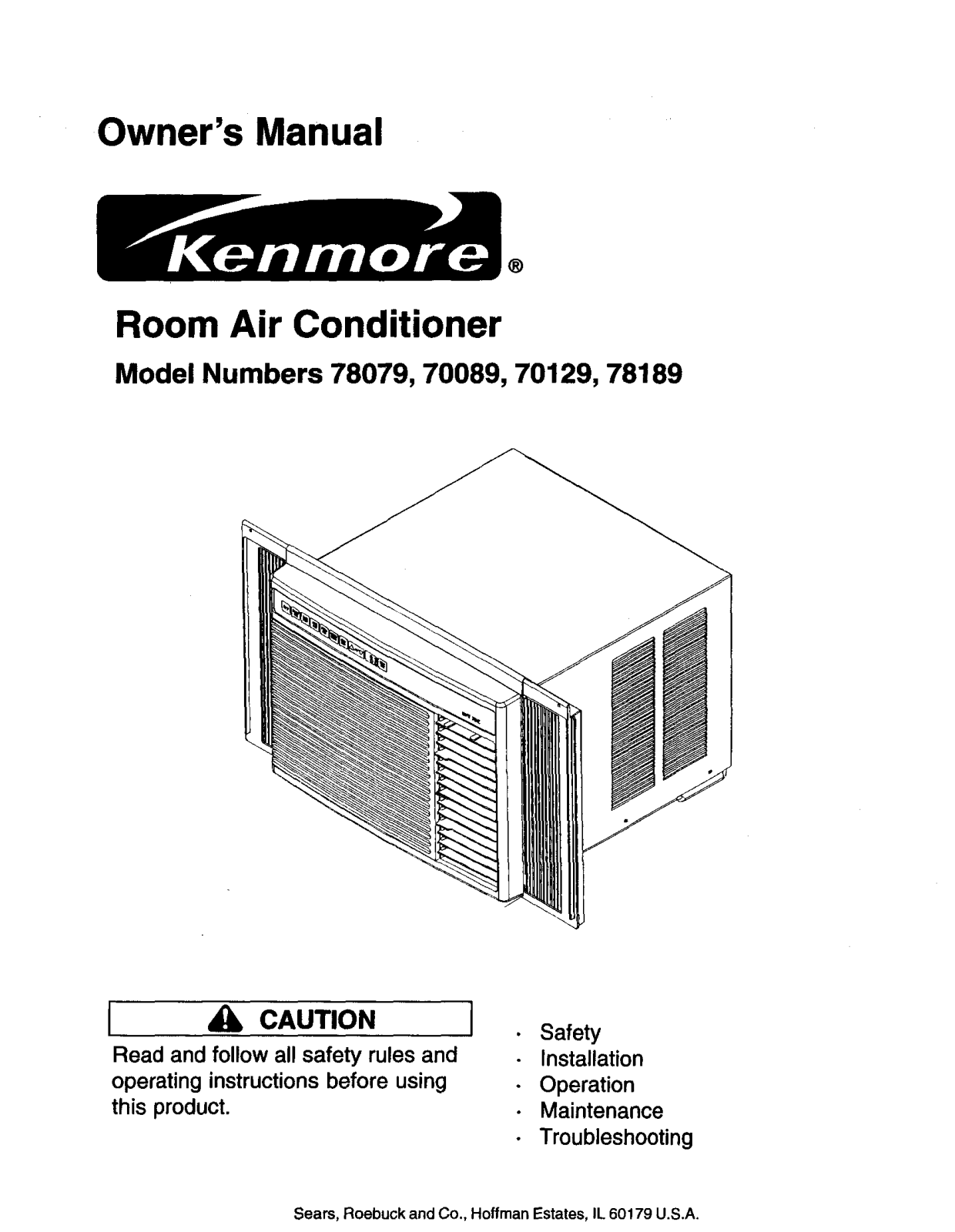

Owner's Manual

Room Air Conditioner

Model Numbers 78079, 70089, 70129, 78189

J _IL CAUTION

Read and follow all safety rules and

operating instructions before using

this product.

Seam, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Safety Installation

Operation

Maintenance

Troubleshooting

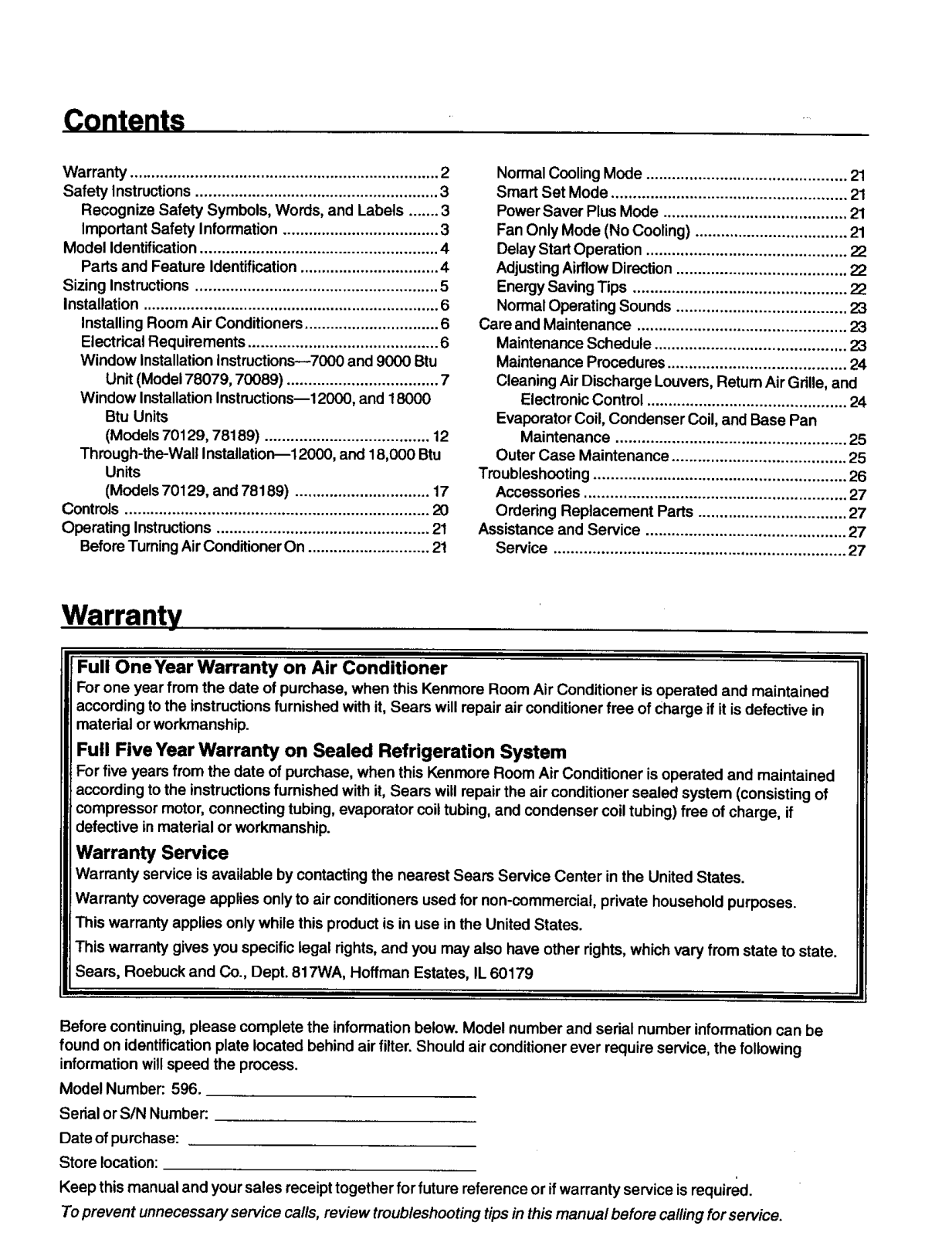

Contents

Warranty ....................................................................... 2

Safety Instructions ........................................................ 3

Recognize Safety Symbols, Words, and Labels ....... 3

Important Safety Information .................................... 3

Model Identification ....................................................... 4

Parts and Feature Identification ................................ 4

Sizing Instructions ........................................................ 5

Installation .................................................................... 6

Installing Room Air Conditioners ............................... 6

Electrical Requirements ............................................ 6

Window Installation Instructions---7000 and 9000 Btu

Unit (Model 78079, 70089) ................................... 7

Window Installation Instructions--12000, and 18000

Btu Units

(Models 70129, 78189) ...................................... 12

Through-the-Wall Installation_12000, and 18,000 Btu

Units

(Models 70129, and 78189) ............................... 17

Controls ...................................................................... 20

Operating Instructions ................................................. 21

Before TurningAirConditioner On ............................ 21

Warranty

Normal Cooling Mode .............................................. 21

Smart Set Mode ...................................................... 21

Power Saver Plus Mode .......................................... 21

Fan Only Mode (No Cooling) ................................... 21

Delay Start Operation .............................................. 22

Adjusting Airflow Direction ....................................... 22

EnergySaving Tips ................................................. 22

Normal Operating Sounds ....................................... 23

Care and Maintenance ................................................ 23

Maintenance Schedule ............................................ 23

Maintenance Procedures ......................................... 24

Cleaning Air Discharge Louvers, Retum Air Grille, and

Electronic Control .............................................. 24

Evaporator Coil, Condenser Coil, and Base Pan

Maintenance ..................................................... 25

Outer Case Maintenance ........................................ 25

Troubleshooting .......................................................... 26

Accessories ............................................................ 27

Ordering Replacement Parts .................................. 27

Assistance and Service .............................................. 27

Service ................................................................... 27

IFuII One Year Warranty on Air Conditioner

For one year from the date of purchase, when this Kenmore Room Air Conditioner is operated and maintained according tothe instructions furnished with it, Sears will repair air conditioner free of Charge if it isdefective in

material or workmanship. Full Five Year Warranty on Sealed Refrigeration System

For five years from the date of purchase, when this Kenmore Room Air Conditioner is operated and maintained

according to the instructionsfurnished with it,Sears will repairthe air conditioner sealed system (consisting of compressor motor, connecting tubing,evaporator coil tubing,and condenser coiltubing) free of charge, if

defective in material or workmanship. Warranty Service

Warranty service is available by contacting the nearest Sears Service Center in the United States. Warranty coverage applies onlyto air conditioners used for non-commercial, private household purposes.

This warranty applies onlywhile this productis in use in the United States. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

Before continuing, please complete the information below. Model number and serial number information can be found on identificationplate located behind air filter. Should air conditioner ever require service, the following

information willspeed the process. Model Number: 596.

Serial or S/N Number: Date ofpurchase:

Store location: Keep this manual and your sales receipt together for future reference or ifwarranty service isrequired.

To prevent unnecessary service calls, review troubleshooting tipsin this manual before calling for service.

Safety. Instructions

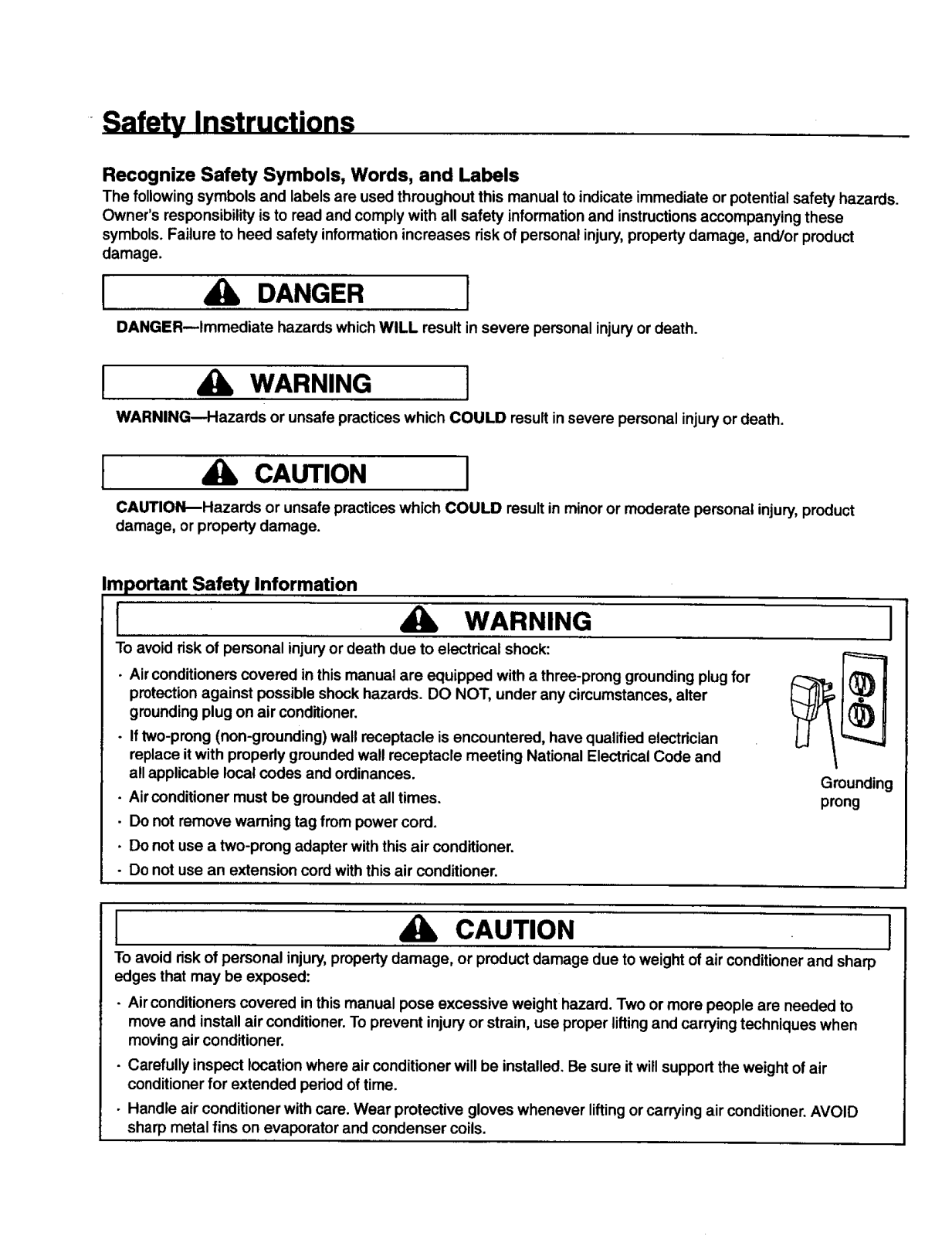

Recognize Safety Symbols, Words, and Labels

The following symbols and labels are used throughout this manual toindicate immediate or potential safety hazards. Owner's responsibility is to read and comply with allsafety informationand instructionsaccompanying these

symbols. Failure to heed safety information increases risk of personal injury,property damage, and/or product damage.

I DANGER I

DANGERmlmmodiate hazards which WILL result in severe personal injuryor death.

I WARNING ]

WARNING---Hazards or unsafe practices which COULD result in severe personal injury or death.

I CAUTION I

CAUTlON_Hazards or unsafe practices which COULD result in minor or moderate personal injury, product damage, or property damage.

Important Safety Information

I WARNING

To avoid risk of personal injury or death due to electrical shock:

• Air conditioners covered in this manual are equipped with a three-prong grounding plug for

protection against possible shock hazards. DO NOT, under any circumstances, alter groundingplug on air conditioner.

. If two-prong (non-grounding) wall receptacle isencountered, have qualified electrician

replace itwith propedy grounded wall receptacle meeting National Electdcal Code and

all applicable local codes and ordinances.

• Air conditioner must be grounded at all times.

• Do not remove warning tag from power cord•

• Do not use a two-prong adapter with this air conditioner.

- Do not use an extension cord with this air conditioner.

Grounding prong

I CAUTION

To avoid risk of personal injury,property damage, or product damage due to weight of air conditioner and sharp edges that may be exposed:

- Air conditioners covered in this manual pose excessive weight hazard. Two or more people are needed to

move and install air conditioner.Toprevent injuryor strain, use proper liftingand carrying techniques when moving air conditioner.

• Carefully inspect location where air conditioner will be installed. Be sure itwill support the weight of air conditioner for extended period of time.

• Handle air conditioner with care. Wear protective gloves whenever lifting or carrying air conditioner. AVOID sharp metal fins on evaporator and condenser coils.

Model Identification

Every Kenmore Room Air Conditioner has an

identification plate showing model number, part number,

serial number, and power requirements of unit.

identification plate is located behind air filter, attached to

the lower left hand side of base pan.

Parts and Feature Identification

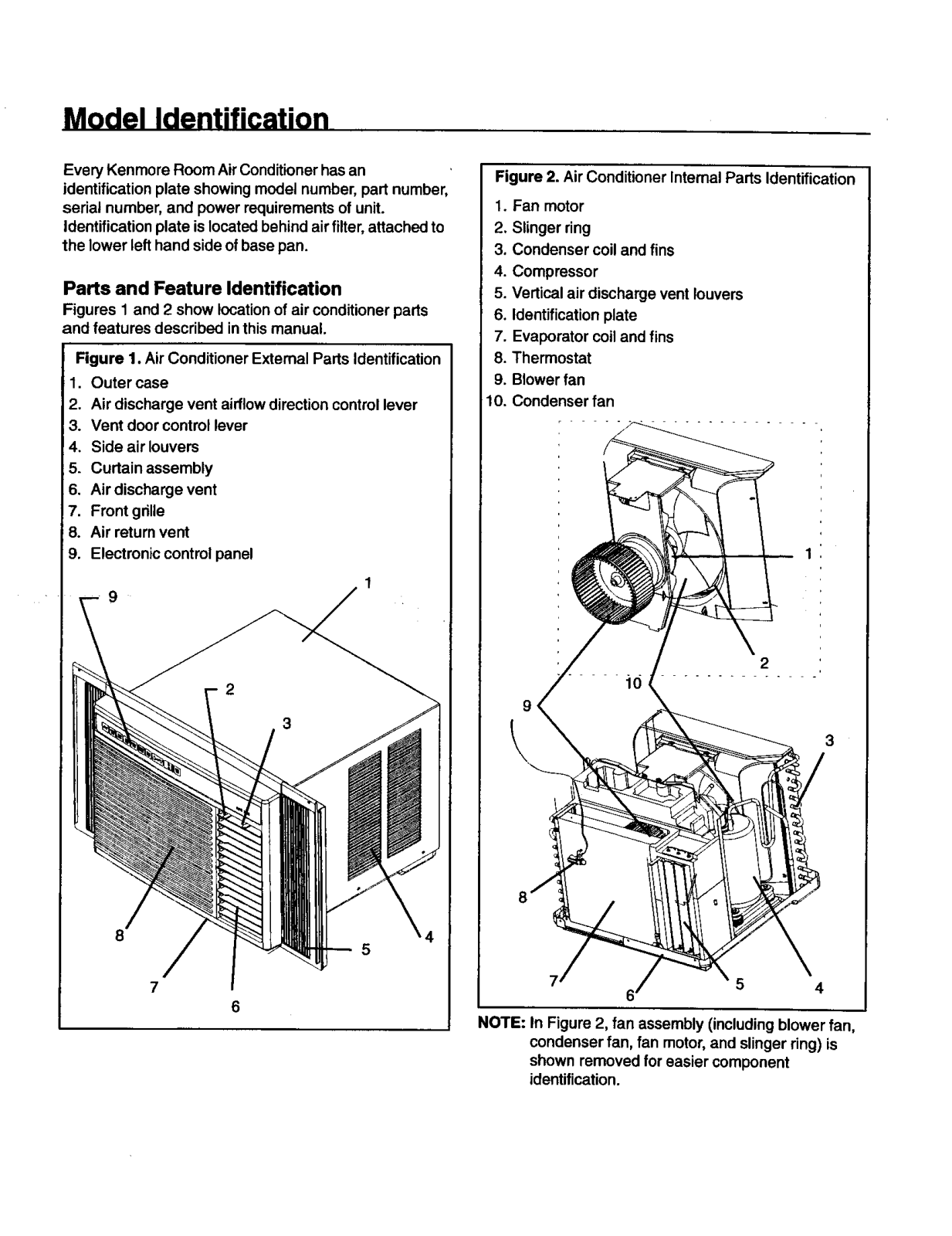

Figures 1and 2 show location of air conditioner parts

and features described in this manual.

Figure 1. Air Conditioner External Parts Identification

1. Outer case

2. Air discharge vent airflowdirection control lever

3. Vent door control lever

4. Side air louvers

5. Curtain assembly

6. Air discharge vent

7. Front grille Air return vent

Electronic control panel

Figure 2. Air Conditioner Internal Parts Identification

1. Fan motor

2. Slinger ring

3. Condenser coil and fins

4. Compressor

5. Vertical air discharge vent louvers

6. identification plate

7. Evaporator coil and fins

8. Thermostat

9. Blower fan

10. Condenser fan

5 4

NOTE: In Figure 2, fan assembly (including blower fan,

condenser fan, fan motor, and slinger ring) is shown removed for easier component

identification.

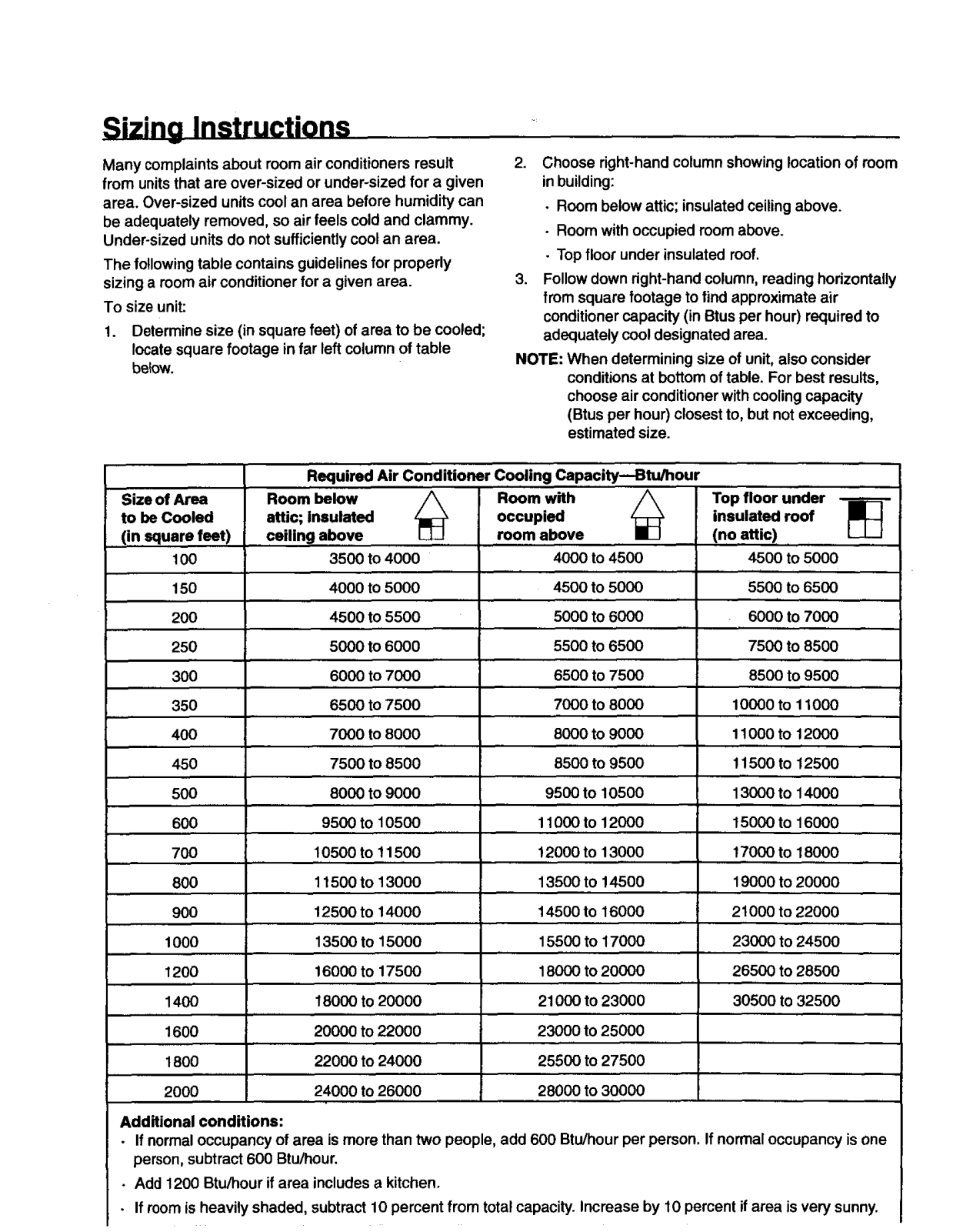

Sizing Instructions

Many complaints about room air conditioners result from units that are over-sized or under-sized for a given

area. Over-sized units cool an area before humidity can

be adequately removed, so air feels cold and clammy. Under-sized units do not sufficiently cool an area.

The following table contains guidelines for properly sizing a room air conditioner for a given area.

To size unit:

1. Determine size (in square feet) of area to be cooled; locate square footage in far left column of table

below.

Required Air Conditioner Cooling Capacity--Btu/hour

Size of Area to be Cooled

(in square feet)

100

attic; insulated

Room below

ceiling above

3500 to 4000

Choose right-hand column showing location of room inbuilding:

• Room below attic; insulated ceiling above.

• Room with occupied room above.

• Top floor under insulated roof.

Follow down right-hand column, reading horizontally

from square footage to lind approximate air conditioner capacity (in Btus per hour) required to adequately cool designated area.

NOTE: When determining size of unit, also consider

conditions at bottom of table. For best results, choose air conditioner with cooling capacity

(Btus per hour) closest to, but not exceeding, estimated size.

Top floor under

occupied

Room with room above

4000 to 4500

insulated roof (no attic)

4500 to 5000

150

200

250

300 35O 4OO 450 5OO 60O 700

800 9OO

1000 1200

1400 1600

4000 to 5000 4500 to 5500 5000 to 6000

6000 to 7000 6500 to 7500 7000 to 8000

7500 to 8500

8000 to 9000

9500 to 10500

10500 to 11500

11500 to 13000 12500 to 14000 13500 to 15000 16000 to 17500

18000 to 20000

20000 to 22000

4500 to 5000

5000 to 6000 5500 to 6500

6500 to 7500 7000 to 8000

8000 to 9000 8500 to 9500

9500 to 10500 11000 to 12000 12000 to 13000 13500 to 14500 14500 to 16000

15500 to 17000 18000 to 20000 21000 to 230O0

23000 to 25000

5500 to 6500

6000 to 7000 7500 to 8500

8500 to 9500

10000 to 11000 11000 to 12000

11500 to 12500 13000 to 14000 t 5000 to 16000 17000 to 18000 19000 to 20000

21000 to 22000

23000 to 24500 26500 to 28500 30500 tO32500

1800

2000

22000 to 24000 24000 to 26000

25500 to 27500 28000 to 30000

Additional conditions:

• If normal occupancy of area is more than two people, add 600 Btu/hour per person. If normal occupancy is one

person, subtract 600 Btu/hour.

• Add 1200 Btu/hour if area includes a kitchen,

• If room isheavily shaded, subtract 10 percent from total capacity. Increase by 10 percent ifarea is very sunny.

Installation

Installing Room Air Conditioners

Proper installation of a room air conditioner helps ensure trouble-free operation, improper installationcan result in problems ranging from excessive noiseto property or equipment damage.

Installation requires some mechanical experience and

aptitude. Depending upon installer's knowledge and

skill, installation of a room air conditioner can take between 1 and 3 hours. Professional installation,

performed by authorized Sears technicians, is available. Contact a local Seers store or call 1-800-4-MY-HOME to

obtain an estimate and schedule an installation.

Before Beginning Any Installation

• Carefully read all installation instructions. Make sure each step or procedure is understood and any special

considerations are taken into account.

- Before starting installation, assemble all tools, hardware, and supplies needed• Some items may

need to be purchased locally.

• After deciding where to install unit, carefully examine

Iocation_both insideand outside. Note any potential

obstacles or problems. Choose a more suitable

location, ifnecessary.

Electrical Requirements

Grounding Instructions

For safety, air conditioner must be grounded. All air conditioners have power supply cord with three-prong grounding plug. To minimize possible electrical shock

hazard, power cord must only be plugged into matching

groundingwall receptacle in accordance with National

Electrical Code (and any applicable localcodes and

ordinances). If appropriate grounding-type wall

receptacle isnot available, have properly groundedwall

receptacle installed by qualified electrician.

If codes permit and separate grounding wire is used,

have qualified electrician determine ifgrounding path is adequate and uninterrupted by plastic, non-metallic

gaskets, or other insulating (non-conductive) materials.

Electrical Connection A separate (dedicated) circuit is required for units

labeled "Use on Single Outlet Circuit Only." Devices

covered inthis manual require a 60Hz supply. Refer to

unitnameplate for exact voltage requirements. Voltage

requirements can also be determined by type of plug on air conditioner. See Table 1.

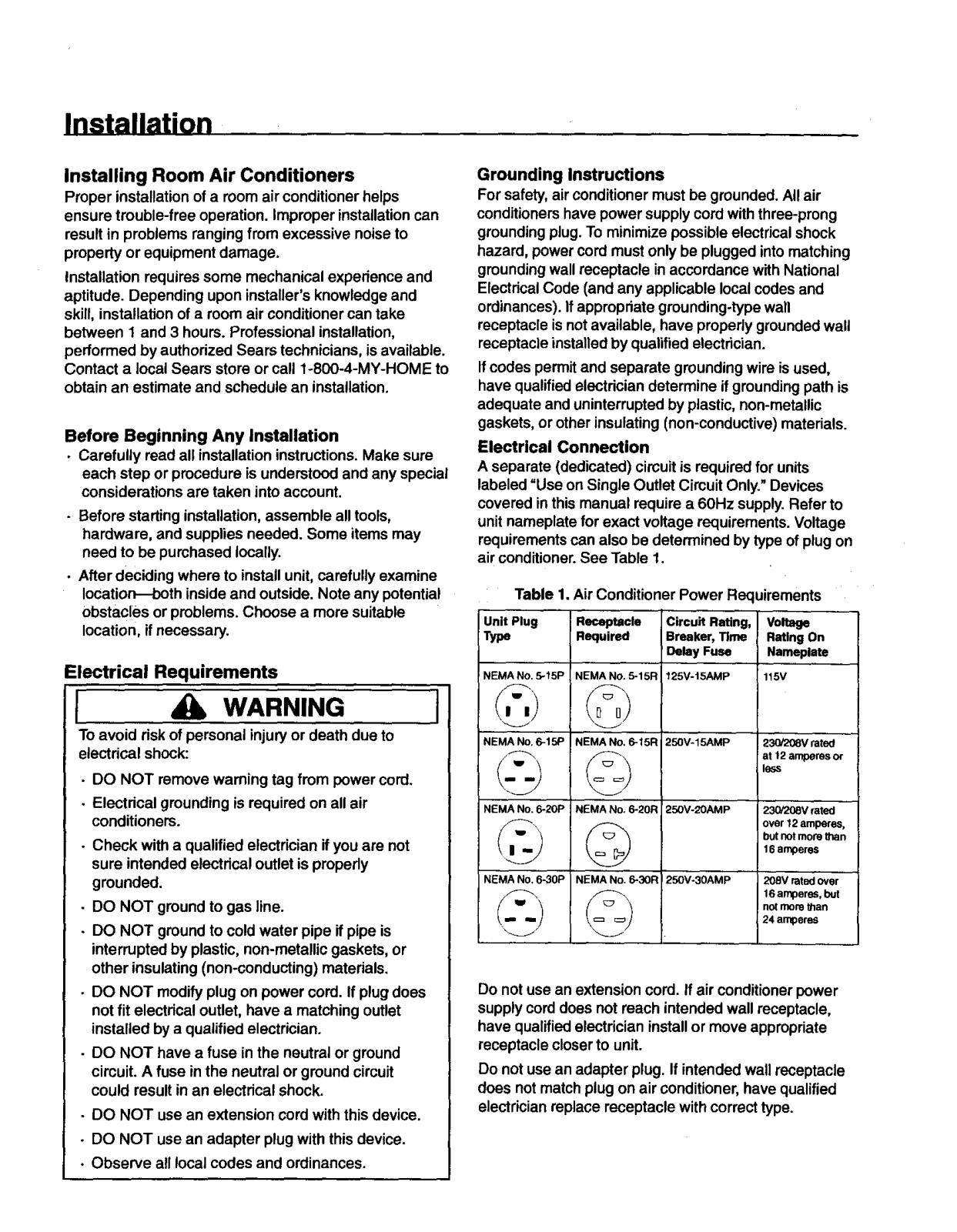

Table 1.Air Conditioner Power Requirements

Unit Plug

Type

NEMA No. 5-15P

Receptacle Required

NEMA NO._15R

Circuit Rating, Breaker, "rime

Delay Fuse

125V-t5AMP

Voltage

Ratlng On

Nameplate

115V

I WARNING

To avoid dsk of personal injuryor death due to electrical shock:

• DO NOT remove warning tag from power cord•

• Electrical grounding is required on all air conditioners.

• Check with a qualified electrician if you are not sure intended electrical outlet is properly grounded.

• DO NOT ground to gas line.

• DO NOT ground to cold water pipe if pipe is interrupted by plastic, non-metallic gaskets, or

other insulating (non-conducting) materials.

• DO NOT modify plug on power cord. If plug does not fit electrical outlet, have a matching outlet

installed by a qualified electrician.

• DO NOT have a fuse in the neutral or ground

circuit. A fuse in the neutral or ground circuit could result in an electrical shock.

• DO NOT use an extension cord with this device.

• DO NOT use an adapter plug with this device.

• Observe all local codes and ordinances.

NEMA No.6-15P

NEMA No. _20P

NEMANo.@I5R

NEMA No. _20R

250V-15AMp

250V-20AMP

NEMA NO. 6_0P

Do not use an extension cord. If air conditioner power supply cord does not reach intended wall receptacle, have qualified electrician install or move appropriate receptacle closer to unit.

Do not use an adapter plug. If intended wall receptacle does not match plug on air conditioner, have qualified electrician replace receptacle with correct type.

NEMANo. _R

25OV-30AMP

23ei208Vrated at t2 amperesor

Is_s

23G/208Vrated o_rl2amper_,

b_notmo_than 16amperes

208V rated over 16 amperes, but

not mot8 _an 24 amperes

Installation

Receptacle Wiring Receptacle wiring must be of adequate size for unit.

Refer to unit identification plate for exact power requirements. Power requirements can also be

determined by the type of plug on unit. See Table 1 on preceding page. Minimum size of wiring, based on

power requirements, is: Units up to 20 amps: 12 gauge

20-30 amp units: 10 gauge Use copper wire only. It is owner's responsibilityto

provide proper and adequate receptacle wiring that

conforms to all applicable codes. All wiring should be

installed by a qualified electrician.

Window Installationn7000 and 9000 Btu

Units (Models 78079, 70089)

I CAUTION I

To avoid risk of personal injury,property damage, or product damage due to weight of device and sharp edges that may be exposed:

• Air conditioners covered in this manual pose an excessive weight hazard. Two or more people are

needed to move and install unit. To prevent injury or strain, use proper lifting and carrying methods.

• Carefully inspect locationwhere air conditioner

will be installed. Be sure it will support weight of unitfor extended period of time,

• Handle air conditioner with care. Wear protective

gloves whenever lifting or carrying unit. AVOID sharp metal fins on front and rear coils.

• Make sure air conditioner does notfall dudng

installation.

Installation Kit Parts Window installation kit contains the following parts. Be

sure all parts are included before starting installation. If parts are missing,contact Sears.

NOTE: Parts are listed in the order used and are

illustrated in Figure 3.

Item #

C D E F G

Window sill gasket (½" x ¼")

Window seal stdp (3A"x 1½")

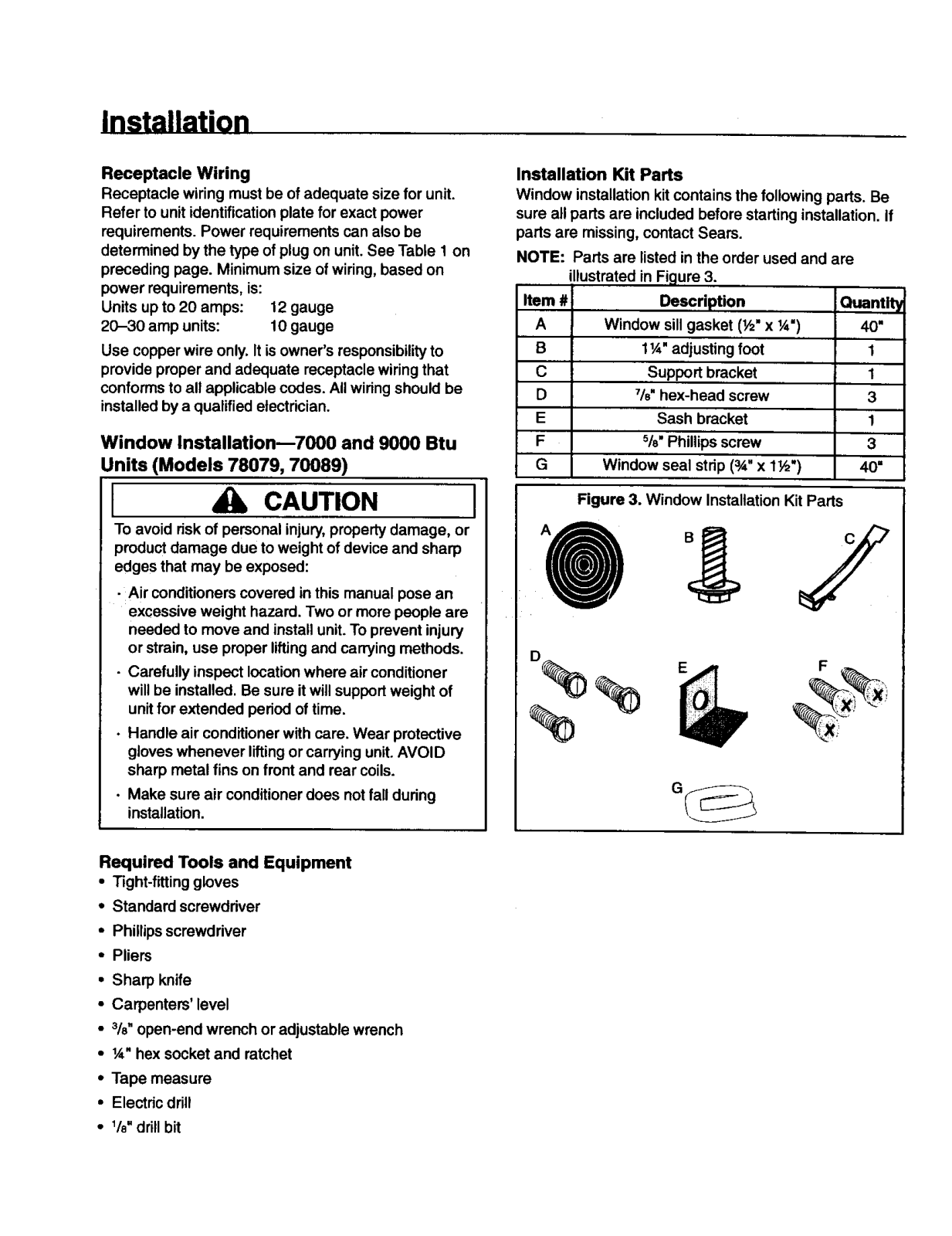

Figure 3. Window Installation Kit Parts

Description

1¼" adjusting foot

Support bracket

%" hex-head screw

Sash bracket

%" Phillips screw

Quantity

40"

1 1

40"

Required Tools and Equipment

• Tight-fitting gloves

• Standard screwddver

• Phillips screwdriver

• Pliers

• Sharp knife

• Carpenters' level

• 3/8"open-end wrench or adjustable wrench

• 1/4"hex socket and ratchet

• Tape measure

• Electdc drill

• 1/8"drill bit

Installation

Installation Requirements

See Figure 4. Inspect window track, sash, and sill.

Ensure window will bear weight of air conditioner for

extended period of time. Measure width of window opening to be sure air conditioner will fit.Air conditioner is designed for windows 22½" to 40" wide. Ensure lower left inside corner of window is within 6' of an appropriate

electrical outlet.

NOTE: Installation kitis designed for mostdouble-hung

windows that do not have storm windows installed. If storm window is installed, or if

installation is in a mobile home, window sill may need modification. See procedure for Storm

Window Modification or for Mobile Home Window Modification.

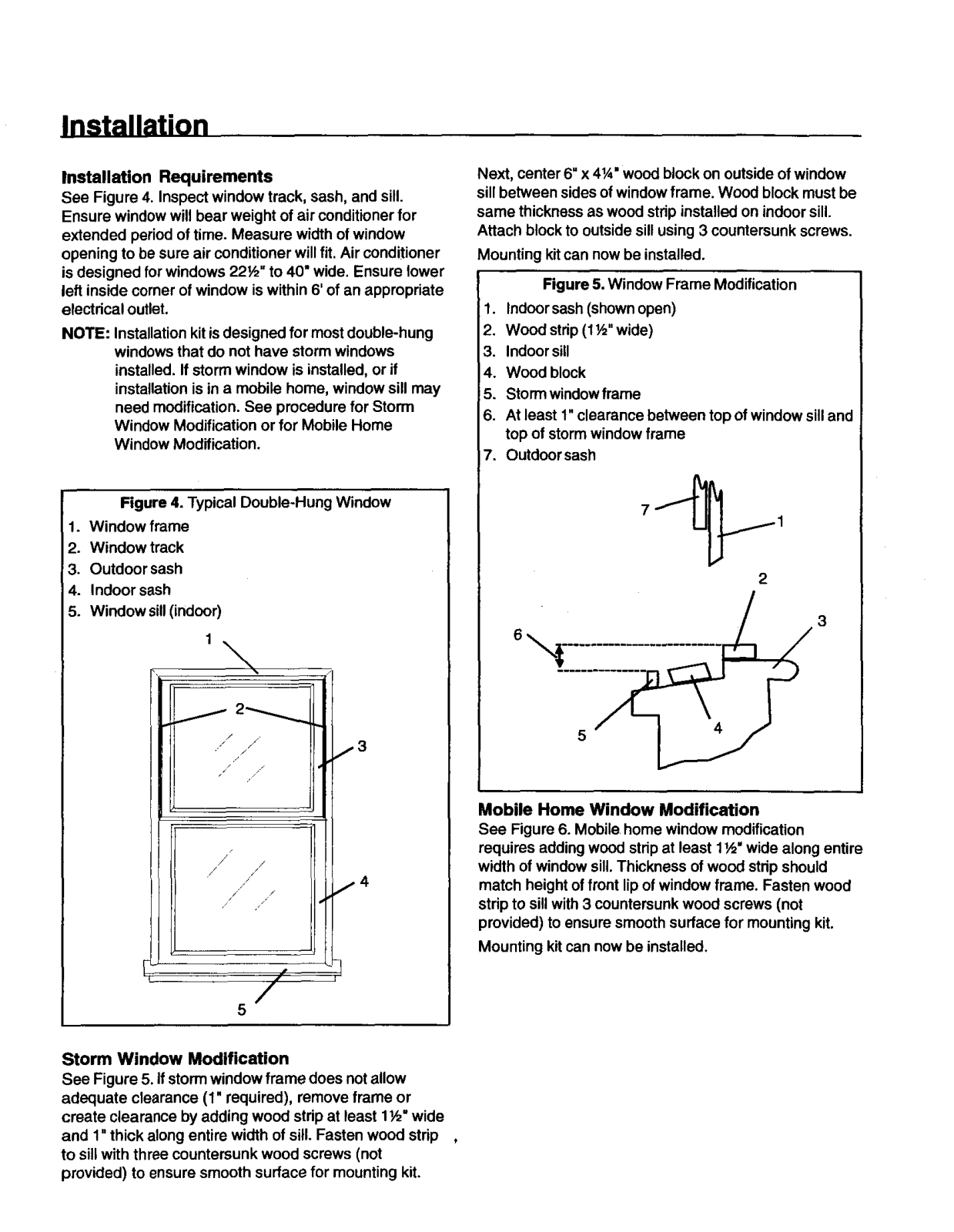

Figure 4. Typical Double-Hung Window

1. Window frame

2. Window track

3. Outdoor sash

4. Indoor sash

5. Window sill(indoor)

Next, center 6"x 41A"wood blockon outside of window sillbetween sides ofwindowframe. Wood block mustbe

same thickness as wood strip installed on indoor sill. Attach block to outside sillusing 3 countersunk screws.

Mounting kitcan now be installed.

Figure 5. Window Frame Modification

1. Indoorsash (shownopen)

2. Wood strip(1I/="wide)

3. Indoor sill

4. Wood block

5. Storm windowframe

6. At least 1"clearance between top of window sill and

top of storm window frame

7. Outdoor sash

_ J

J j'

Storm Window Modification See Figure 5. if storm window frame does not allow

adequate clearance (1' required), remove frame or create clearance by adding wood strip at least 1½" wide and 1" thick along entire width of sill Fasten wood strip to sillwith three countersunk wood screws (not provided) to ensure smooth surface for mounting kit.

/s I 4

/ /

/ F,

Mobile Home Window Modification See Figure 6. Mobile home window modification

requires adding wood strip at least 1½" wide along entire width of window sill.Thickness of wood strip should

match height of front lipof window frame. Fasten wood strip to sillwith3 countersunk wood screws (not

provided) to ensure smooth surface for mounting kit. Mounting kit can now be installed.

Installation

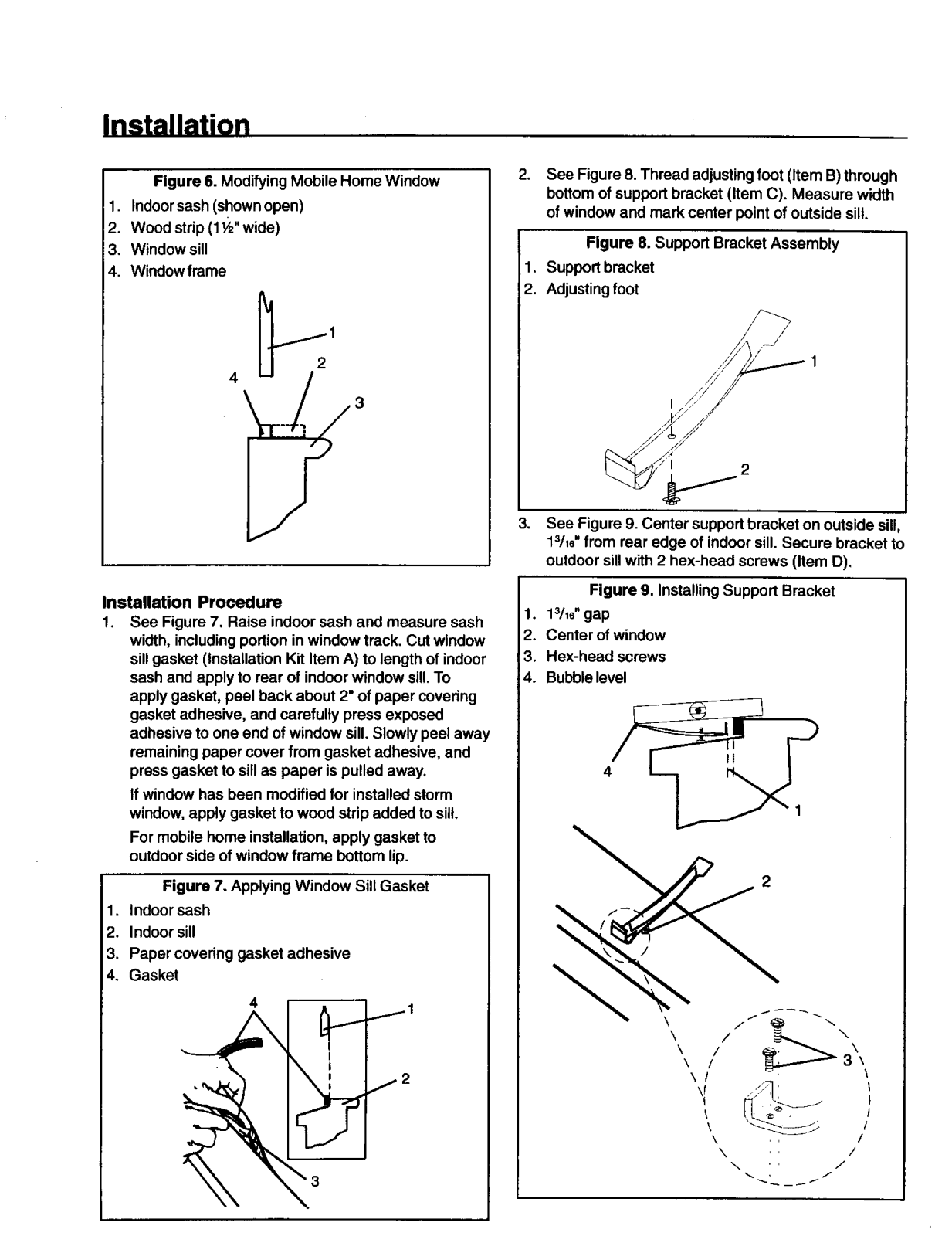

Figure 6. Modifying Mobile Home Window

1. Indoor sash (shown open)

2. Wood strip (1½" wide)

3. Window sill

4. Window frame

Installation Procedure

1. See Figure 7. Raise indoor sash and measure sash

width, including portion in window track. Cut window sillgasket (installation Kit Item A) to length of indoor sash and apply to rear of indoor window sill.To apply gasket, peel back about 2" of paper covedng gasket adhesive, and carefully press exposed adhesive to one end of window sill. Slowly peel away remaining paper cover from gasket adhesive, and press gasket to sillas paper is pulled away.

If window has been modified for installed storm window, apply gasket to wood strip added to sill.

For mobile home installation, apply gasket to outdoor side of window frame bottom lip.

Figure 7. Applying Window Sill Gasket

1. Indoor sash

2. Indoor sill

3. Paper covering gasket adhesive

4. Gasket 4

2. See Figure 8. Thread adjusting foot (Item B) through bottom of support bracket (Item C). Measure width ofwindow and mark center pointof outside sill.

Figure 8. Support Bracket Assembly

1. Support bracket

2. Adjusting foot

3. See Figure 9. Center supportbracket on outside sill, 1_/16"from rear edge of indoor sill. Secure bracket to

outdoor sillwith2 hex-head screws (Item D),

Figure 9. Installing Support Bracket

1. 13/16"gap

2. Center of window

3. Hex-head screws

4. Bubblelevel

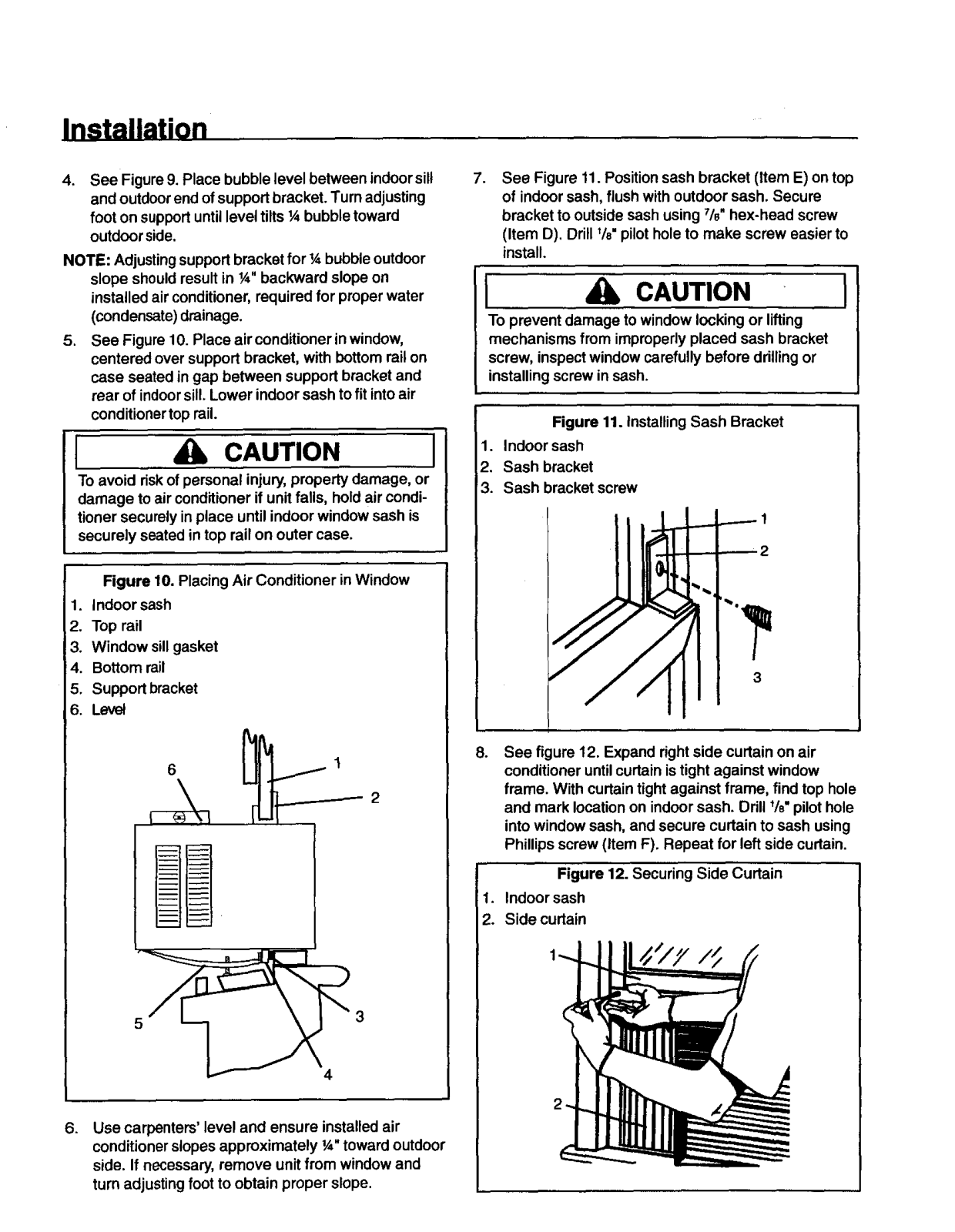

Installation

See Figure 9. Place bubble level between indoor silt

and outdoor end of support bracket. Turn adjusting

foot on support until level tilts ¼ bubble toward outdoor side.

NOTE: Adjustingsupportbracket for ¼ bubble outdoor

slope shouldresult in ¼" backward slope on installed air conditioner, required for proper water

(condensate) drainage.

5. See Figure 10. Place air conditioner inwindow,

centered over support bracket, with bottomrail on case seated in gap between support bracket and

rear of indoorsill. Lower indoor sash to fit intoair conditionertop rail.

I CAUTION I

To avoid risk of personal injury, property damage, or damage to air conditioner if unit falls, hold air condi-

tioner securely in place until indoor window sash is

securely seated in top rail on outer case.

Figure 10. Placing Air Conditioner inWindow

1. Indoor sash

2. Top rail

3. Window sill gasket

4. Bottom rail

5. Support bracket

6. Level

See Figure 11. Positionsash bracket (Item E) on top of indoorsash, flush with outdoor sash. Secure bracket to outside sash using %" hex-head screw (Item D). Drill I/e"pilot holeto make screw easier to

install.

I CAUTION I

To prevent damage to window locking or lifting

mechanisms from impropedy placed sash bracket screw, inspect window carefully before ddlling or installing screw in sash.

Figure 11. Installing Sash Bracket

1. Indoor sash

2. Sash bracket

3. Sash bracket screw

6 1

Use carpenters' level and ensure installed air conditioner slopes approximately ¼" toward outdoor side. If necessary, remove unitfrom window and turn adjusting foot to obtain proper slope.

See figure 12. Expand right side curtain on air conditioner untilcurtain is tight against window frame. With curtain tight against frame, find top hole and mark location on indoor sash. Drill t/8"pilothole into window sash, and secure curtain to sash using Phillips screw (Item F). Repeat for left side curtain.

Figure 12. Securing Side Curtain

Indoor sash

Side curtain

Installation

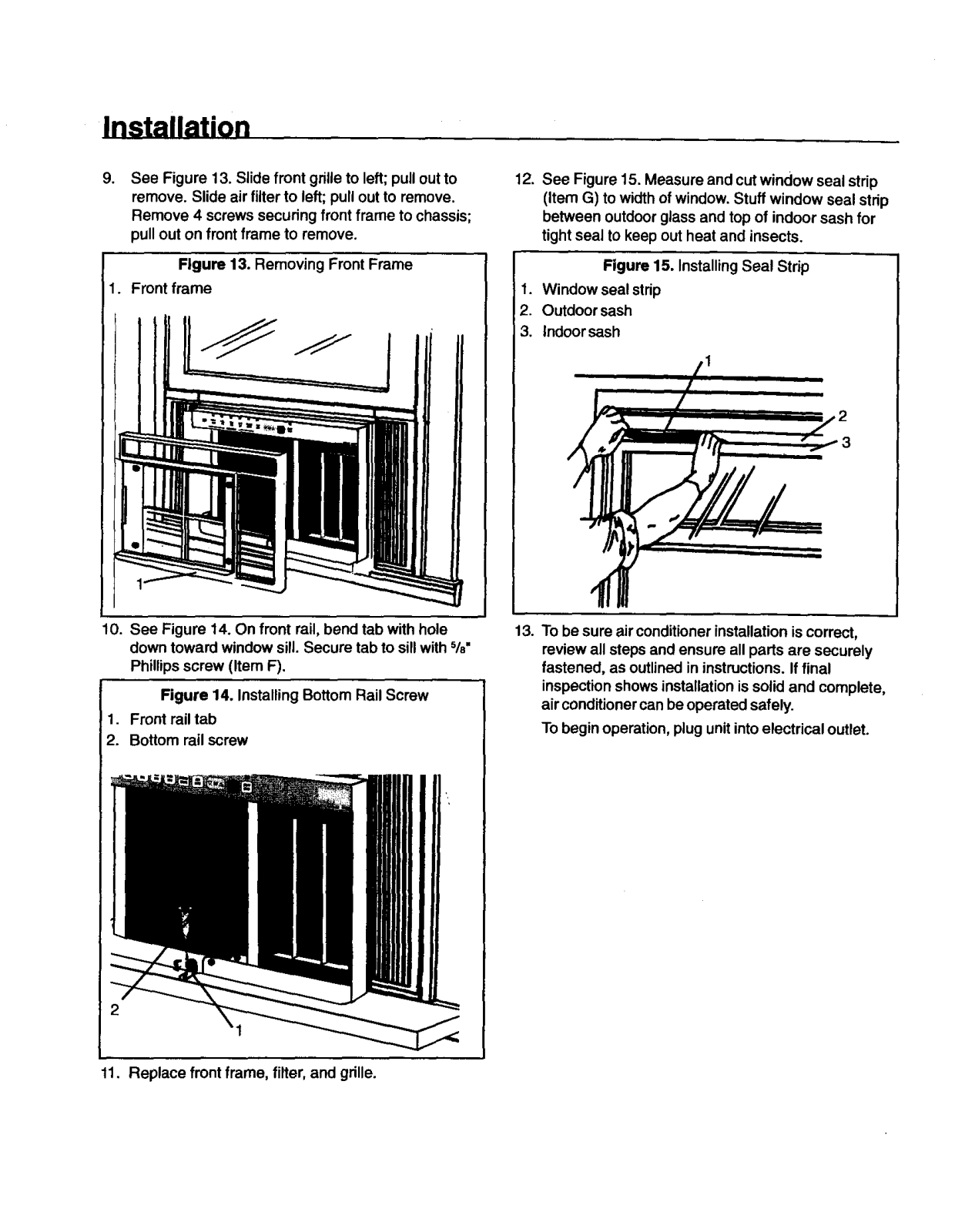

See Figure 13. Slide front grille to left; pull out to

remove. Slide air filter to left; pull out to remove. Remove 4 screws securing front frame to chassis; pull out on front frame to remove.

12. See Figure 15. Measure and cutwindow seal strip

(Item G) to width of window. Stuff window seal strip

between outdoor glass and top of indoor sash for tightseal to keep out heat and insects.

Figure 13. Removing Front Frame

1. Front frame

10. See Figure 14. On front rail, bend tab with hole down toward window sill. Secure tab to sill with %"

Phillips screw (Item F).

Figure 14. Installing Bottom Rail Screw

1. Front rail tab

2. Bottom rail screw

Figure 15. Installing Seal Strip

1. Window seal strip

2. Outdoor sash

3. Indoor sash

13. To be sure air conditioner installation is correct,

review all steps and ensure all parts are securely fastened, as outlined in instructions. If final

inspection shows installation is solid and complete,

air conditionercan be operated safely. To begin operation, plug unit into electrical outlet.

11. Replace front frame, filter, and grille.

Installation

Window Installation--12000, and 18000 Btu Units

(Models 70129, 78189)

I CAUTION I

TOavoid riskof personal injury,property damage, or

product damage due to weight of device and sharp edges that may be exposed:

• Air conditionerscovered in this manual pose an excessive weight hazard. Two or more people are needed to move and install unit. To prevent injury

or strain, use proper liftingand carrying methods.

- Carefully inspect location where air conditioner

will be installed. Be sure itwill supportweight of

unitfor extended period of time.

• Handle air conditionerwith care. Wear protective gloves whenever liftingor carrying unit. AVOID sharp metal fins on front and rear coils.

• Make sure air conditioner does notfall during installation.

Required Tools and Equipment

• _ght-fitting gloves

• Standard screwdriver

• Phillipsscrewdriver

• Pliers

• Sharp knife

• Carpenters' level

• 3/8"open-end wrench or adjustable wrench

• ¼" hex socket and ratchet

Item #

D E

H I

J K

D _ E

Window sillgasket (1/z"x ¼")

7/8"countersunk wood screw

Window seal strip (_" x 1½")

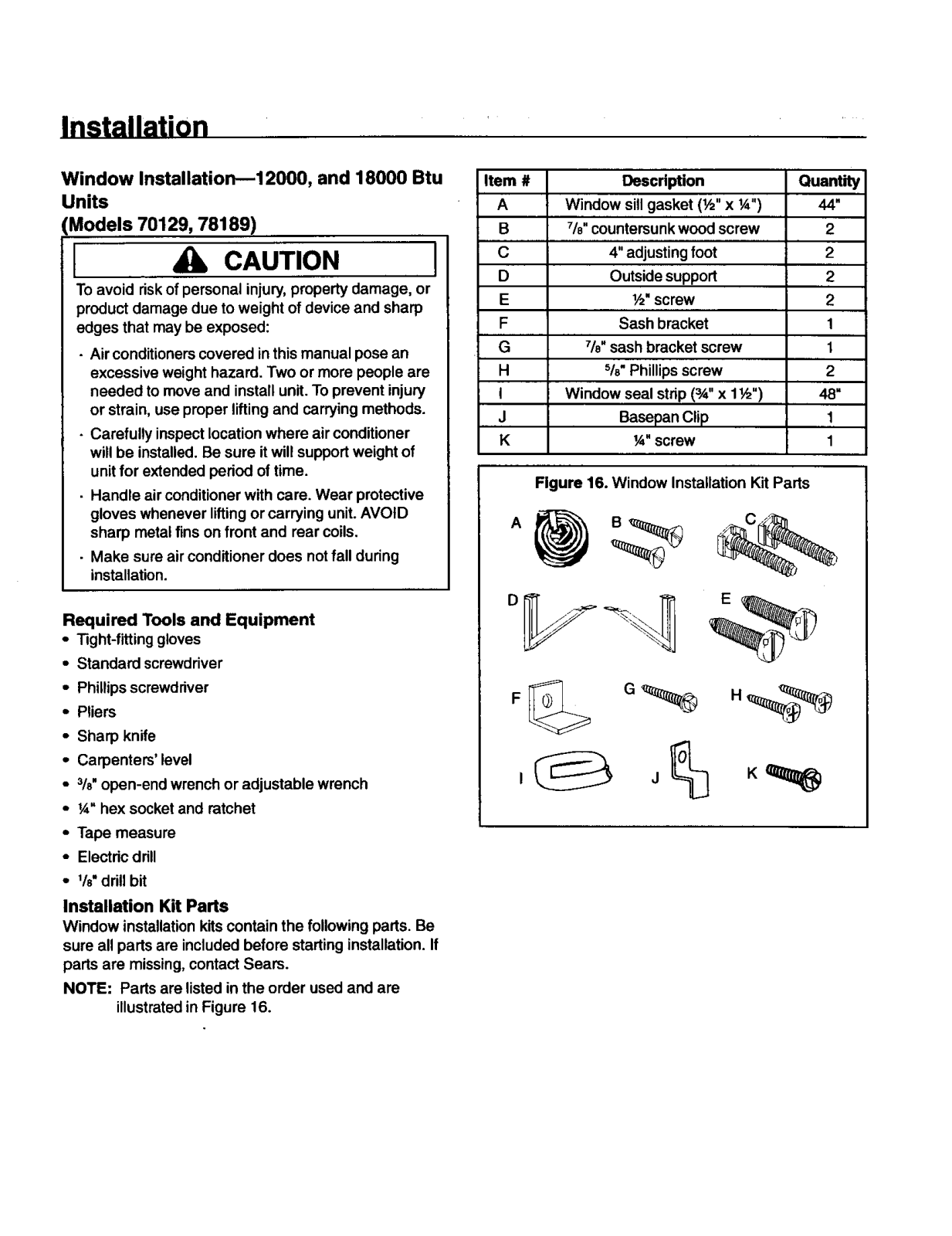

Figure 16. Window Installation Kit Parts

Description

4" adjustingfoot

Outside support

l/z"screw

Sash bracket

%" sash bracket screw

%" Phillipsscrew

Basepan Clip

¼" screw

Quantity

44"

2 2

1 1

48"

1 1

• Tape measure

• Electricdrill

• 1/8"drillbit

Installation Kit Parts Window installationkits contain the following parts. Be

sure all parts are included before starting installation. If parts are missing,contact Seam.

NOTE: Parts are listed in the order used and are

illustratedin Figure 16.

Installation

Installation Requirements See Figure 17. inspect window track, sash, and sill.

Ensure window will bear weight ofair conditioner for

extended period of time. Measure width of window opening to be sure installation kitwill fit. Air conditioner

is designed for windows 28" to 42" wide. Ensure lower left inside corner of window is within 6' of appropriate

electrical outlet. NOTE: Installation kit is designed for most double-hung

windows that do not have storm windows installed. If storm window is installed or if

installation is in mobile home, window sillmay need modification. See procedure for Storm

Window Modification or for Mobile Home

Window Modification.

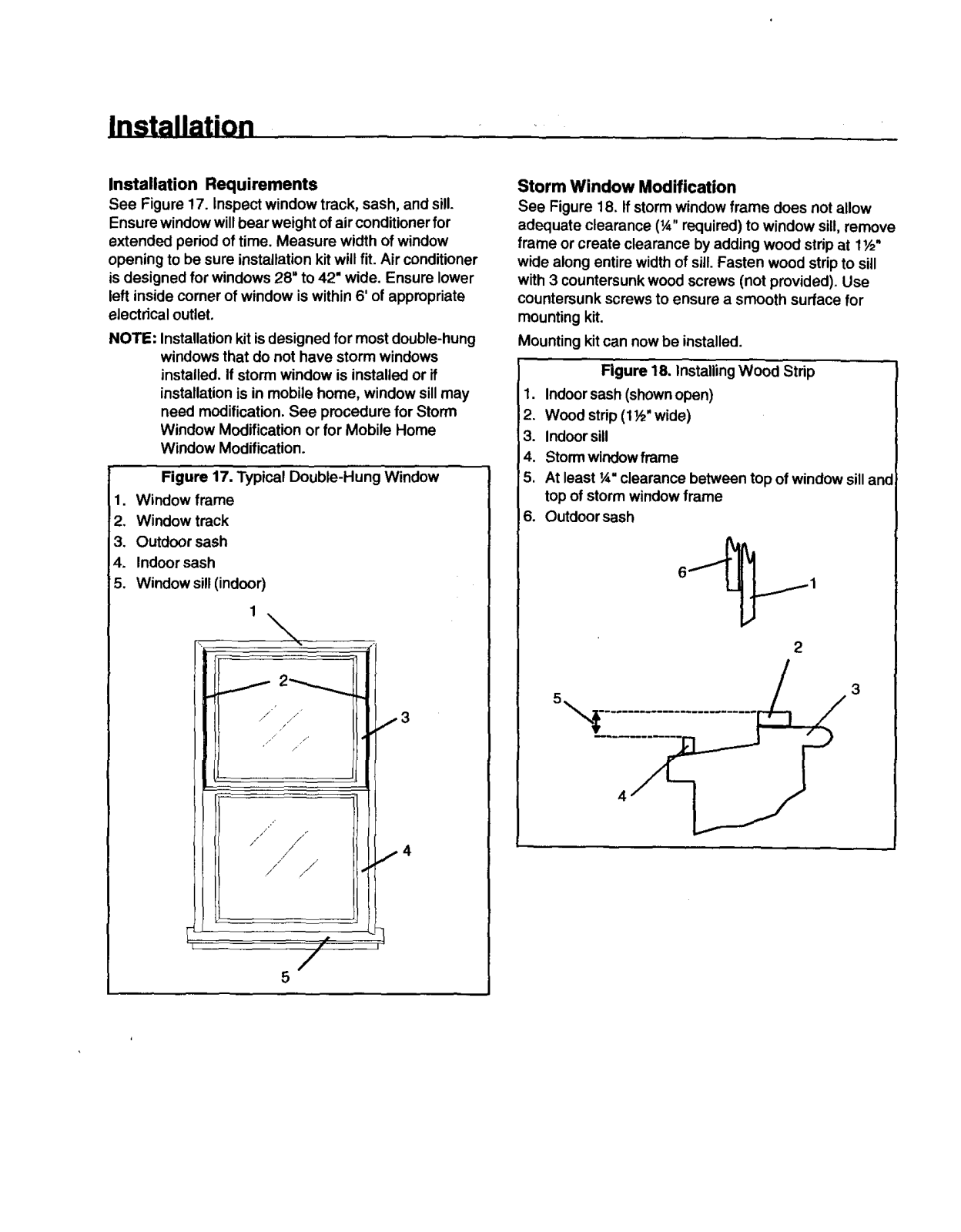

Figure 17. Typical Double-Hung Window

1. Window frame

2, Window track

3. Outdoor sash

4. Indoor sash

5. Window sill(indoor)

Storm Window Modification See Figure 18. If storm window frame does not allow

adequate clearance (¼" required) to window sill, remove frame or create clearance by adding wood strip at f ½"

wide along entire width of sill. Fasten wood stripto sill with 3 countersunk wood screws (not provided). Use

countersunk screws to ensure a smooth surface for mounting kit.

Mounting kitcan now be installed.

Rgure 18. InstallingWood Strip

1. Indoor sash (shownopen)

2. Wood strip (t ½' wide)

3. Indoor sill

4. Storm windowframe

5. At least ¼* clearance between top of window silland top of storm window frame

6. Outdoor sash

/ _"3

/ ti /

/./ /

J I 4

/" j

Installation

Mobile Home Window Modification See Figure 19. Mobile home window modification requires

adding wood stripat least 1½" wide along entire width of window sill. Thickness of wood stripshould match height

of front liponwindowframe. Fasten wood stripto sillwith 3 countersunk wood screws (not provided) to ensure a

smooth surface for mounting kit. Mounting kit can now be installed.

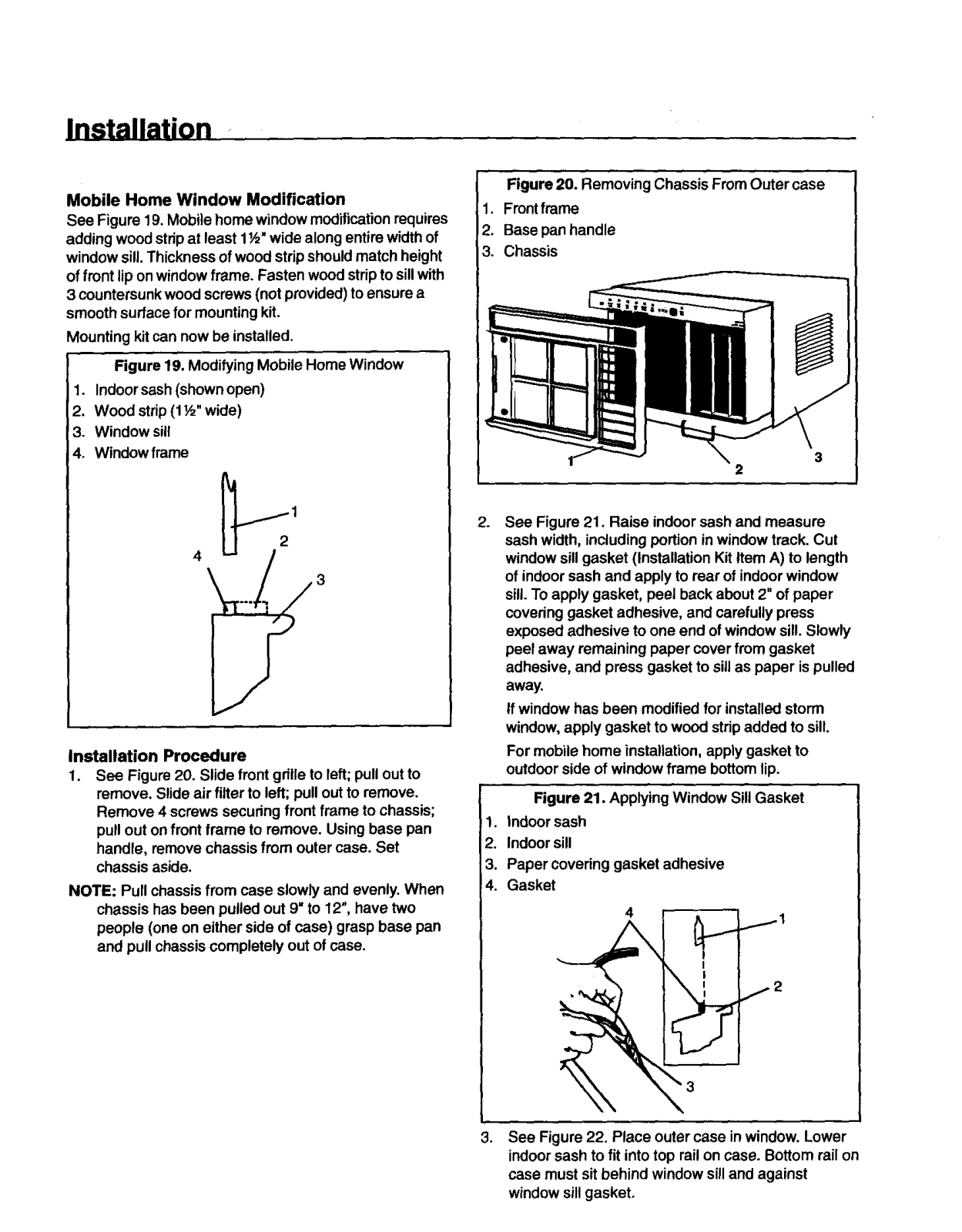

Figure 19. Modifying Mobile Home Window

1. Indoor sash (shown open)

2. Wood strip (1½" wide)

3. Window sill

4. Window frame

Installation Procedure

1. See Figure 20. Slide front gdlle to left; pull out to remove. Slide air filter to left; pull out to remove.

Remove 4 screws secudng front frame to chassis; pull out on front frame to remove. Using base pan

handle, remove chassis from outer case. Set chassis aside.

NOTE: Pull chassis from case slowly and evenly. When

chassis has been pulled out 9" to 12", have two people (one on either side of case) grasp base pan

and pull chassis completely out of case.

Figure 20. Removing Chassis From Outer case

1. Frontframe

2. Base pan handle

3. Chassis

See Figure 21. Raise indoor sash and measure sash width, including portion inwindow track. Cut

window sillgasket (Installation Kit Item A) to length of indoor sash and apply to rear ofindoor window sill. To apply gasket, peel back about 2" of paper covering gasket adhesive, and carefully press

exposed adhesive to one end of window sill. Slowly

peel away remaining paper cover from gasket adhesive, and press gasket to sillas paper is pulled

away. If window has been modified for installed storm

window, apply gasket towood strip added to sill.

For mobile home installation, apply gasket to outdoor side of window frame bottom lip.

Figure 21. Applying Window Sill Gasket

1. Indoor sash

2. Indoor sill

3. Paper covering gasket adhesive

4. Gasket 4

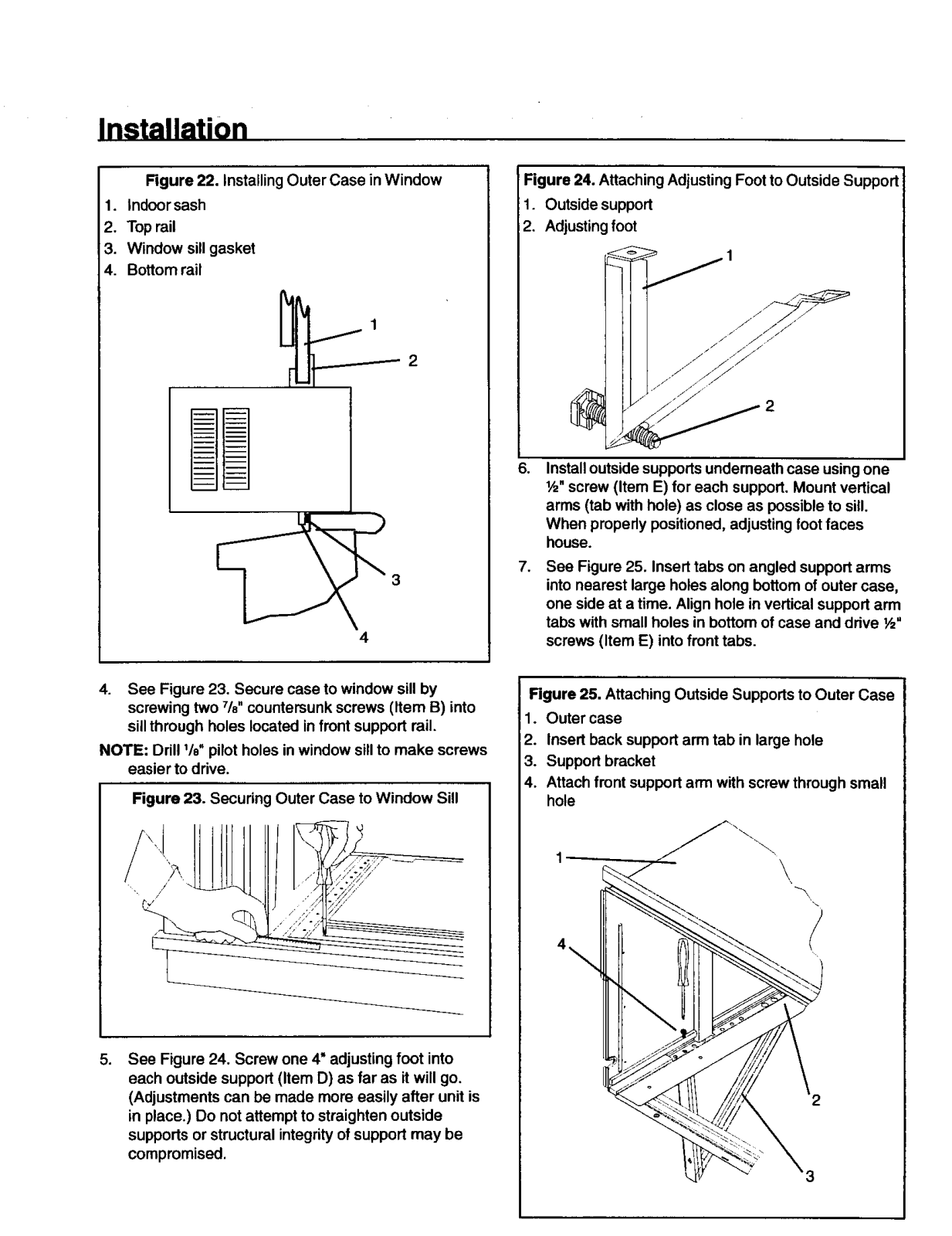

See Figure 22. Place outer case in window. Lower

indoor sash to fit into top rail on case. Bottom rail on

case must sit behind window silland against window sillgasket.

Installation

Figure 22. Installing Outer Case in Window

1. indoor sash

2. Top rail

3. Window sill gasket

4. Bottom rail

Figure 24. Attaching Adjusting Footto Outside Support

1. Outside support

2. Adjusting foot

I I /" .-"/--

//" /// /

Installoutside supportsundemeath case using one

!,_"screw (Item E) for each support. Mount vertical arms (tab with hole) as close as possible to sill. When properly positioned, adjusting footfaces

house.

See Figure 25. Insert tabs on angled support arms intonearest large holes along bottom of outer case,

one side at a time. Align hole in vertical support arm tabs with small holes in bottom of case and ddve ½"

screws (Item E) into front tabs.

4. See Figure 23. Secure case to window sill by

screwing two 7/8"countersunk screws (Item B) into sillthrough holes located infront support rail.

NOTE: Drill Vd' pilot holes in window sill to make screws

easier to drive.

Figure 23. Securing Outer Case to Window Sill

See Figure 24. Screw one 4" adjusting foot into each outside support (Item D) as far as itwill go.

(Adjustments can be made more easily after unit is in place.) Do not attempt to straighten outside

supports or structural integrity of support may be compromised.

Figure 25. Attaching Outside Supports to Outer Case

1. Outer case

2. Insert back support arm tab in large hole

3. Support bracket

4. Attach front support arm with screw through small hole

Installation

[ CAUTION I

To avoid damage to outside wall of house, especially

ifwall isweak or outside supportssit between studs inwall, place wood blocks (not provided) between

wall and each adjusting foot.

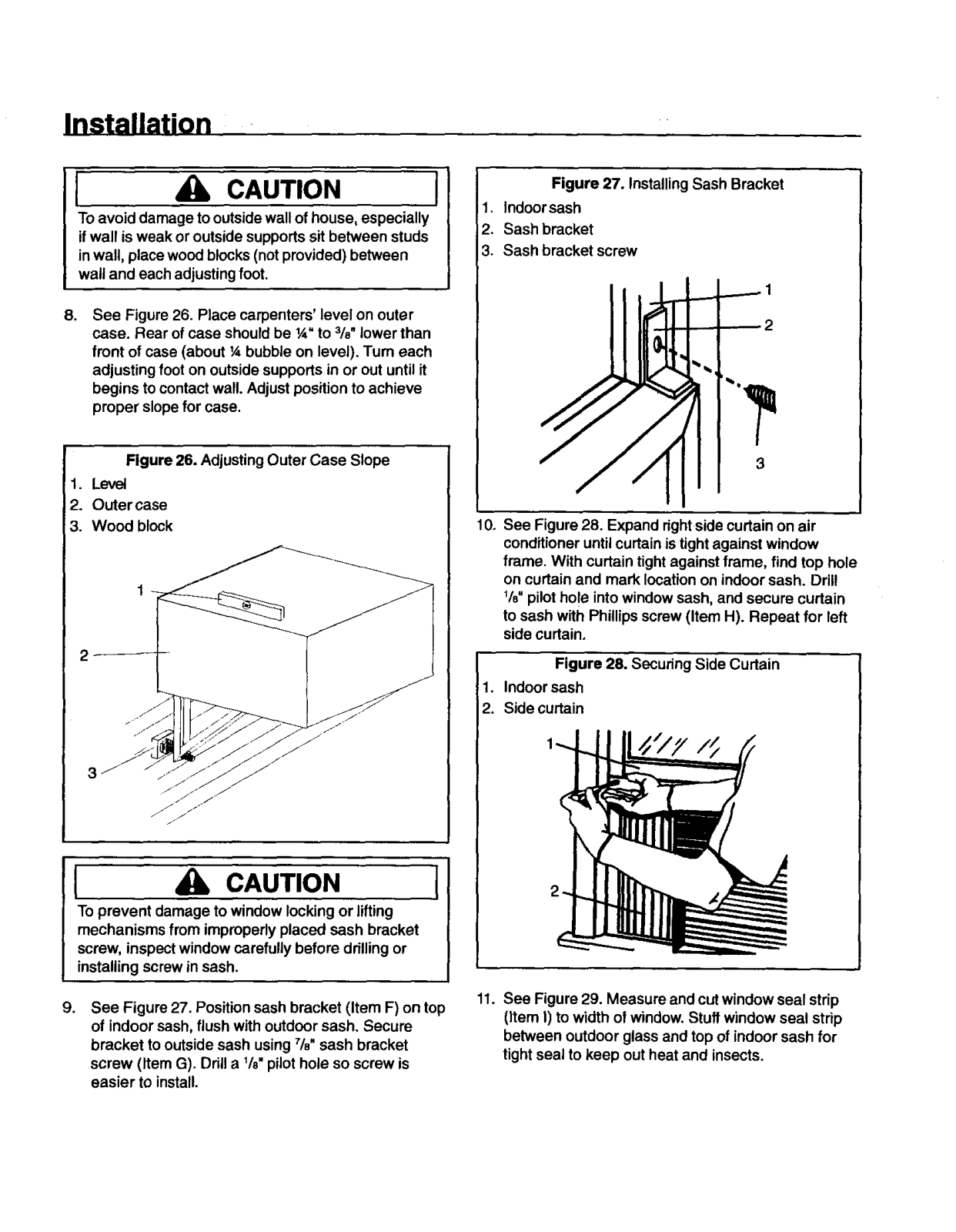

See Figure 26. Place carpenters' level on outer case. Rear of case should be 1A"to 3/8"lowerthan

front of case (about ¼ bubble on level). Turn each adjusting foot on outside supports in or out until it begins to contact wall. Adjust position to achieve proper slope for case.

Figure 26. AdjustingOuter Case Slope

1. Level

2. Outer case

3. Wood block

Figure 27. InstallingSash Bracket

1. Indoorsash

2. Sash bracket

3. Sash bracket screw

10.

See Figure 28. Expand right side curtain on air conditioner until curtain istightagainst window

frame. With curtain tight against frame, find top hole

on curtain and mark location on indoor sash. Drill Ve"pilot ho!e into window sash, and secure curtain

to sash with Phillips screw (Item H). Repeat for left

side curtain,

[ CAUTION I

To prevent damage to window lockingor lifting mechanisms from improperly placed sash bracket

screw, inspect window carefully before drilling or installing screw in sash.

See Figure 27, Position sash bracket (Item F) on top of indoor sash, flush with outdoor sash. Secure

bracket to outside sash using 7/8"sash bracket screw (Item G). Drill a 1/8"pilot hole so screw is

easier to install.

Figure 28. Securing Side Curtain

1. Indoor sash

2. Side curtain

11. See Figure 29. Measure and cut window seal strip (item I) to width of window. Stuff window seal strip between outdoor glass and top of indoor sash for

tight seal to keep out heat and insects.

Installation

Figure 29. Installing Seal Strip

1. Seal strip

2. Outdoor sash

3. Indoorsash

//1

12. See Figure 30. Under normal conditions, unitcan

evaporate water as fast as it is removed from indoor air. In very humid conditions, however, excess water

may drip off chassis, To avoid dripping, install

condensate drain cup (included with unit). Insert condensate drain cup through %" hole recessed in

flange on right side of outer case bottom. Then

place ½" diameter hose or tube on bottom spout of

drain cup.

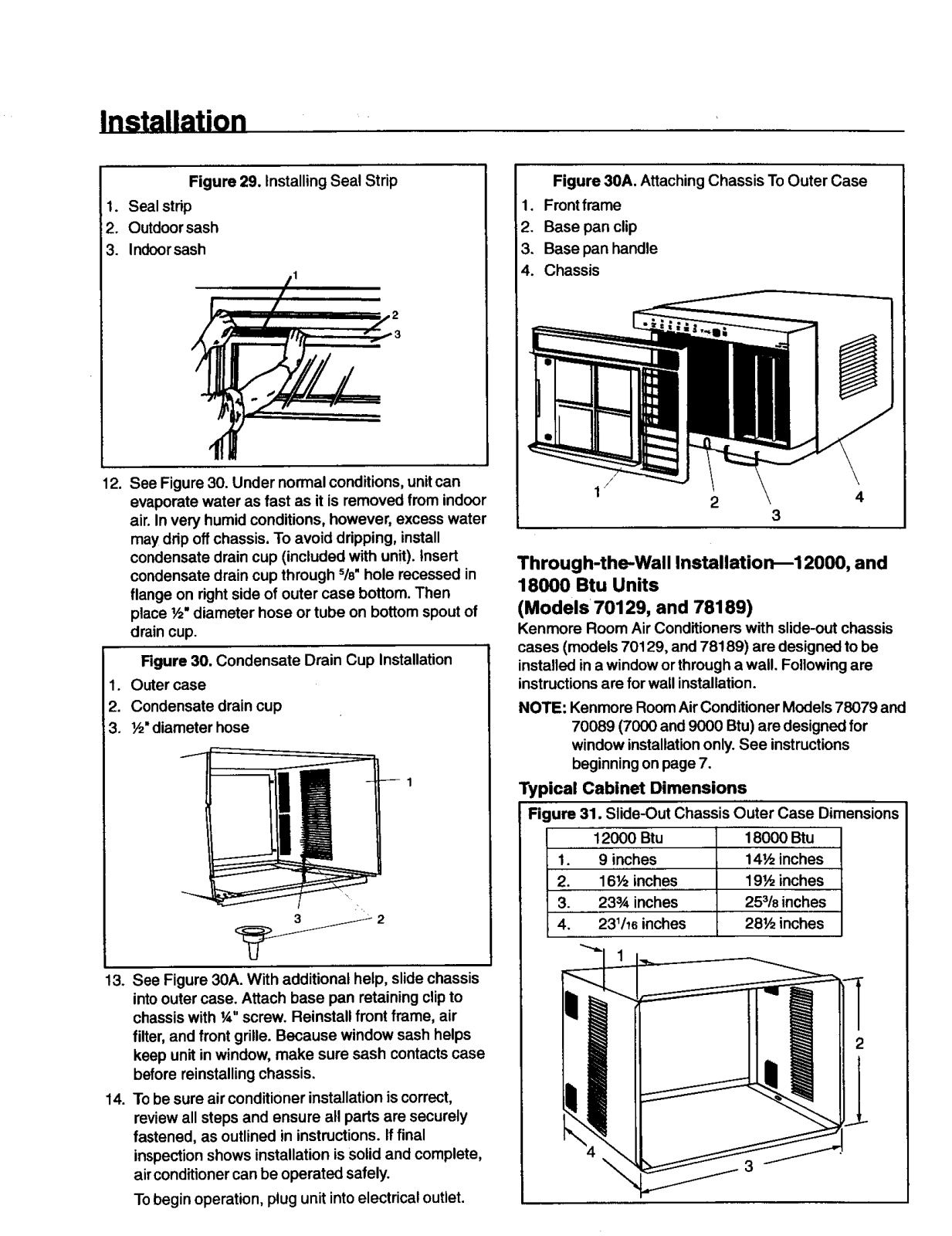

Rgure 30. Condensate Drain Cup Installation

1. Outer case

2. Condensate drain cup

3. Y2"diameter hose

Figure 30A. Attaching Chassis To Outer Case

1. Frontframe

2. Base pan clip

3. Base pan handle

4. Chassis

Through-the-Wall Installation_12000, and

18000 Btu Units (Models 70129, and 78189)

Kenmore Room Air Conditioners with slide-out chassis cases (models 70129, and 78189) are designed tobe

installed ina window or through a wall. Following are instructionsare for wall installation.

NOTE: Kenmore Room AirConditioner Models 78079 and

70089 (7000 and 9000 Btu) are designed for window installationonly.See instructions beginning on page 7.

Typical Cabinet Dimensions

Figure 31. Slide-Out Chassis Outer Case Dimensions

12000 Btu 18000 Btu

1. 9 inches 14½ inches

2. 16½ inches 19½ inches

3. 233Ainches 25318inches

4. 231/16inches 28½ inches

13. See Figure 30A. With additional help, slide chassis into outer case. Attach base pan retaining clip to chassis with ¼" screw. Reinstall front frame, air

filter, and front grille. Because window sash helps

keep unit in window, make sure sash contacts case before reinstalling chassis.

14. To be sure air conditioner installation is correct, review all steps and ensure all parts are securely

fastened, as outlined in instructions. Iffinal

inspection shows installation issolid and complete, airconditioner can be operated safely.

Tobegin operation, plug unit into electrical outlet.

Installation

General Instructions

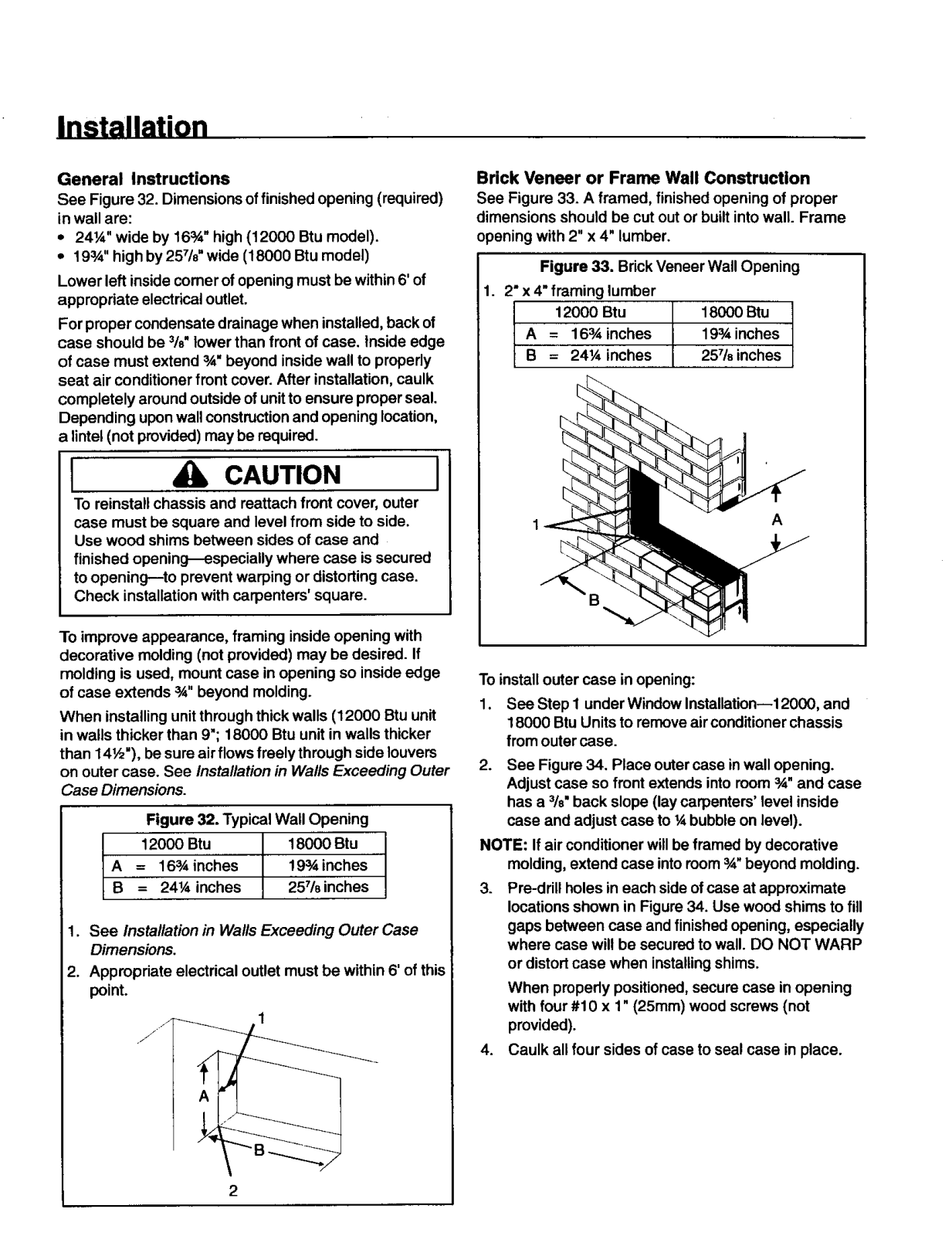

See Figure 32. Dimensions of finished opening (required) in wall are:

• 24¼" wide by 16_" high (12000 Btu model).

• 19%" high by 257/8"wide (18000 Btu model) Lower left inside comer of opening must be within 6' of

appropriate electrical outlet. For proper condensate drainage when installed, back of

case should be %" lower than front of case. Inside edge of case must extend 3,4,beyond inside wall to properly

seat air conditioner front cover. After installation, caulk completely around outside of unit to ensure proper seal.

Depending upon wall construction and opening location,

a lintel (not provided) may be required.

I CAUTION I

To reinstall chassis and reattach front cover, outer case must be square and level from side to side.

Use wood shims between sides of case and finished opening_especially where case is secured to opening--to prevent warping or distorting case. Check installation with carpenters' square.

Brick Veneer or Frame Wall Construction See Figure 33. A framed, finished opening of proper

dimensions should be cut out or built into wall. Frame opening with 2" x 4" lumber.

Figure 33. BrickVeneer Wall Opening

1. 2" x 4" framing lumber

12000 Btu 18000 Btu

A = 163,4inches 193Ainches

B = 24¼ inches 25718inches

To improve appearance, framing inside opening with

decorative molding (not provided) may be desired. If molding is used, mount case inopening so inside edge

of case extends _" beyond molding. When installing unit through thick walls (12000 Btu unit

in walls thicker than 9"; t 8000 Btu unit in walls thicker than 14½"), besure air flows freely through side louvers on outer case. See Installation in Walls Exceeding Outer

"_aseDimensions.

Figure 32. Typical Wall Opening

= 16sA inches 19_inches

_ 12000 Btu 18000 Btu

= 241/4inches 257/8inches

1. See Installation in Walls Exceeding Outer Case Dimensions.

2. Appropriate electrical outlet must be within 6' of this

point.

To install outer case in opening:

1. See Step I under Window Installation--12000, and 18000 Btu Units to remove air conditionerchassis

from outer case.

2. See Figure 34. Place outer case in wall opening. Adjust case so front extends into room 3A"and case

has a %" back slope (laycarpenters' level inside

case and adjust case to ¼bubble on level).

NOTE: If air conditioner will be framed by decorative

molding, extend case into room3A"beyond molding.

3. Pre-drill holes in each side ofcase at approximate locationsshown in Figure 34. Use wood shims to fill gaps between case and finished opening, especially

where case will be secured to wall. DO NOT WARP

or distort case when installingshims. When pmpedy positioned, secure case inopening

with four #10 x 1" (25mm) wood screws (not provided).

4. Caulk all four sides ofcase to seal case in place.

Installation

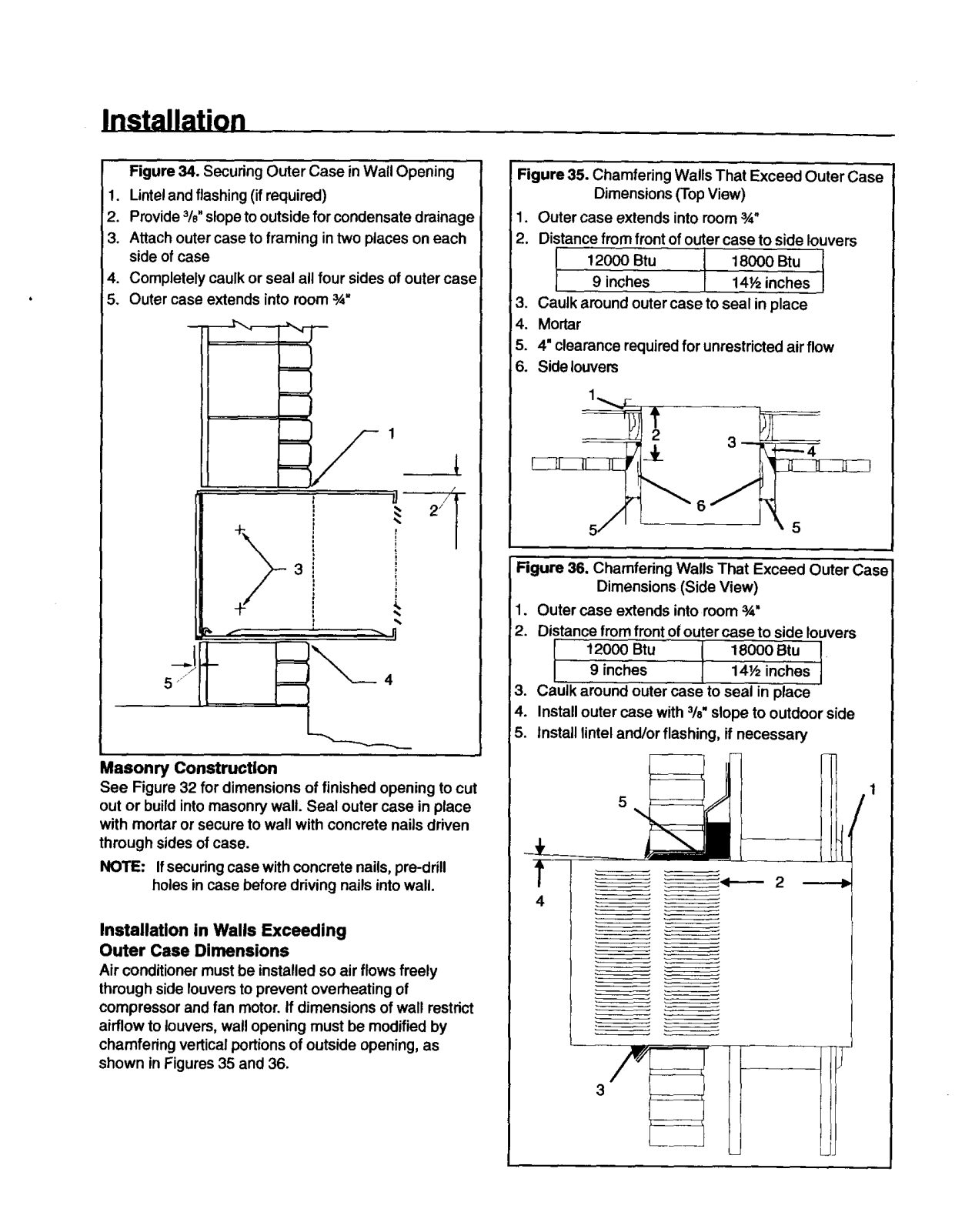

Figure 34. Secudng Outer Case inWall Opening

1. Linteland flashing (if required)

2. Provide %" slopeto outside for condensate drainage

3. Attach outer case to framing intwo places on each

side ofcase

4. Completely caulk or seal all four sides of outer case

5. Outer case extends into room _"

% %

Figure 35. Chamfering Walls That Exceed Outer Case

Dimensions (TopView)

1. Outer case extends into room sA"

2. Distance from frontof outercase to side louvers f2000 Btu 18000 Btu I

9 inches 14Y2inches

3. Caulk around outer case to seal in place

4. Mortar

5. 4" clearance required for unrestricted air flow

6. Side louvers

Figure 36. Chamfering Walls That Exceed Outer Case

Dimensions (Side View)

1. Outer case extends into room _"

2. Distance froomfront of outer case to side louvers

Masonry Construction See Figure 32 for dimensions of finished opening to cut out or build into masonry wall. Seal outer case in place

with mortar or secure to wall with concrete nails driven

through sides ofcase.

NOTE: Ifsecudng case with concrete nails, pre-drill

holes in case before driving nails intowall.

Installation in Walls Exceeding Outer Case Dimensions

Air conditioner must be installed so air flows freely through side louvers to prevent overheating of compressor and fan motor. If dimensions of wall restrict airflow to louvers, wall opening must be modified by chamfering verticalportions of outside opening, as

shown in Figures 35 and 36.

12000 Btu I 18000Btu 19 inches 14V2inches

3. Caulk around outer case to seal in place

4. Install outer case with %" slope to outdoor side

5. install lintel and/or flashing, if necessary

_<---- 2

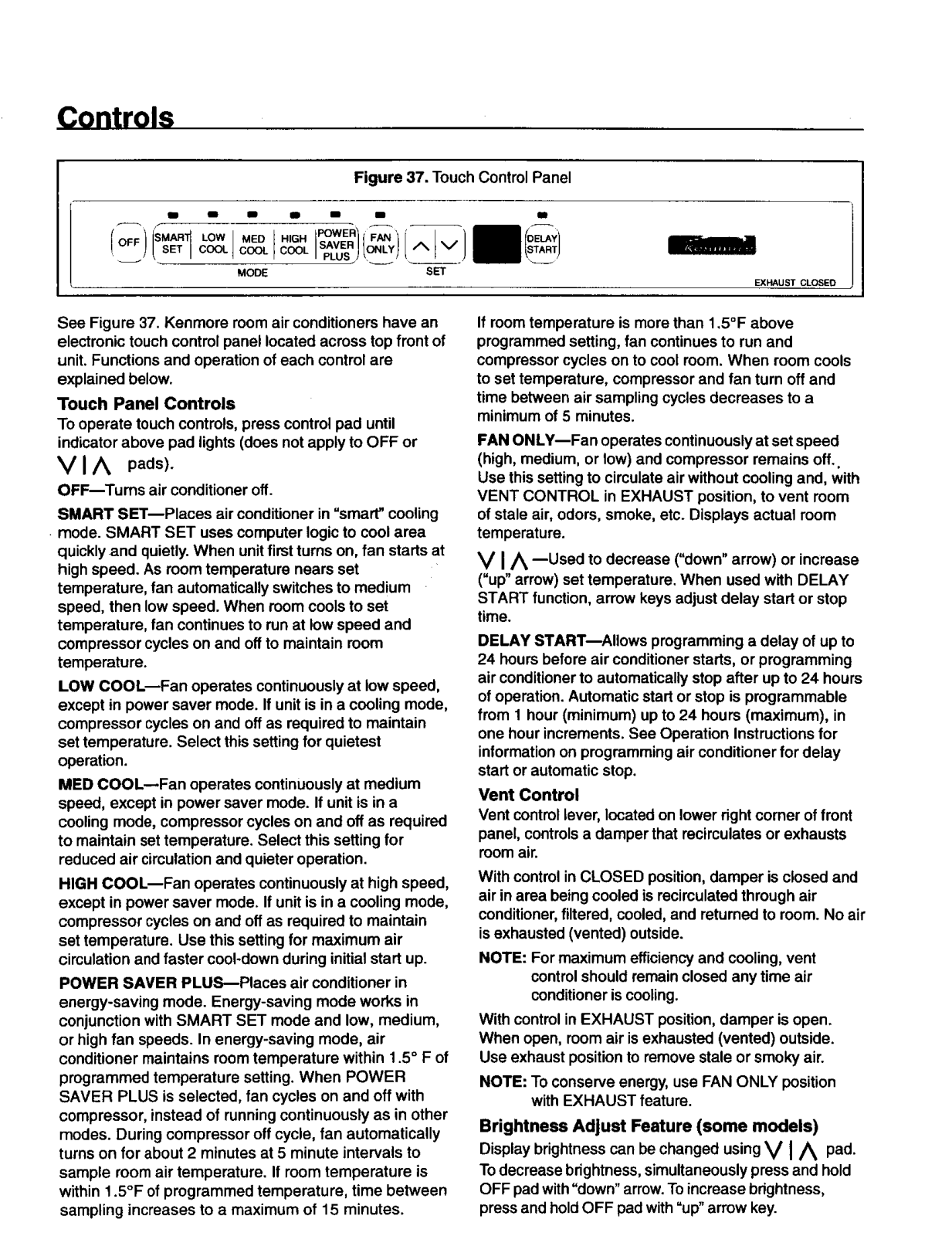

Controls

/oFF "'°"s,vE.O.L*^ V"

-)i 1 i I I }LOW Fo

Figure 37. Touch Control Panel

COOL PLUS _ ____

MODE SET

aidm I I m B B

EXHAUST CLOSEO

See Figure 37. Kenmore room air conditioners have an electronic touch control panel located across top front of

unit. Functions and operation of each control are explained below.

Touch Panel Controls To operate touch controls, press control pad until

indicator above pad lights (does not apply to OFF or

V IA pads).

OFF--Turns air conditioner off. SMART SET--Places air conditioner in "smart" cooling

• mode. SMART SET uses computer logic to cool area

quickly and quietly. When unitfirst turns on, fan starts at high speed. As room temperature nears set

temperature, fan automatically switches to medium speed, then low speed. When room cools to set

temperature, fan continues to run at low speed and compressor cycles on and off to maintain room

temperature. LOW COOL--Fan operates continuously at low speed,

except in power saver mode. If unit is in a cooling mode, compressor cycles on and off as required to maintain set temperature. Select this setting for quietest operation.

MED COOL--Fan operates continuously at medium speed, except in power saver mode. If unit is in a cooling mode, compressor cycles on and off as required to maintain set temperature. Select this setting for

reduced air circulationand quieter operation. HIGH COOL--Fan operates continuously at high speed,

except in power saver mode. If unit is in a cooling mode, compressor cycles on and off as required to maintain set temperature. Use this setting for maximum air circulation and faster cool-down during initialstart up.

POWER SAVER PLUS--Places air conditioner in energy-saving mode. Energy-saving mode works in

conjunction with SMART SET mode and low, medium, or high fan speeds. In energy-saving mode, air conditioner maintains room temperature within 1.5° F of programmed temperature setting. When POWER SAVER PLUS is selected, fan cycles on and off with compressor, instead of running continuously as in other

modes. During compressor off cycle, fan automatically turns on for about 2 minutes at 5 minute intervals to

sample room air temperature. If room temperature is within 1.5°F of programmed temperature, time between sampling increases to a maximum of 15 minutes.

If roomtemperature is more than 1,5°F above programmed setting, fan continues to run and

compressor cycles on to cool room. When room cools to set temperature, compressor and fan turn off and time between air sampling cycles decreases to a

minimum of 5 minutes. FAN ONLY--Fan operates continuously at set speed

(high, medium, or tow) and compressor remains off..

Use this setting to circulate air without cooling and, with

VENT CONTROL inEXHAUST position, to vent room of stale air, odors, smoke, etc. Displays actual room

temperature. V IA --Used to decrease ("down" arrow) or increase

("up"arrow) set temperature. When used with DELAY

START function, arrow keys adjust delay start or stop time.

DELAY START--Allows programming a delay of up to

24 hours before air conditioner starts, or programming air conditioner to automatically stop after up to 24 hours

ofoperation. Automatic start or stop is programmable

from 1 hour (minimum) up to 24 hours (maximum), in

one hour increments. See Operation Instructions for information on programming air conditioner for delay start or automatic stop.

Vent Control Vent control lever, located on lower dght corner offront

panel, controls a damper that recirculates or exhausts room air.

With control in CLOSED position, damper is closed and air in area being cooled is recirculated through air

conditioner,filtered, cooled, and returned to room. No air is exhausted (vented) outside.

NOTE: For maximum efficiency and cooling, vent

control should remain closed any time air

conditioner iscooling.

With control in EXHAUST position, damper is open. When open, room air is exhausted (vented) outside.

Usa exhaust position to remove stale or smoky air. NOTE: To conserve energy, use FAN ONLY position

with EXHAUST feature.

Brightness Adjust Feature (some models) Display brightness can be changed using V I A pad.

To decrease brightness, simultaneously press and hold

OFF pad with"down" arrow.To increase brightness, press and holdOFF pad with =up"arrow key.

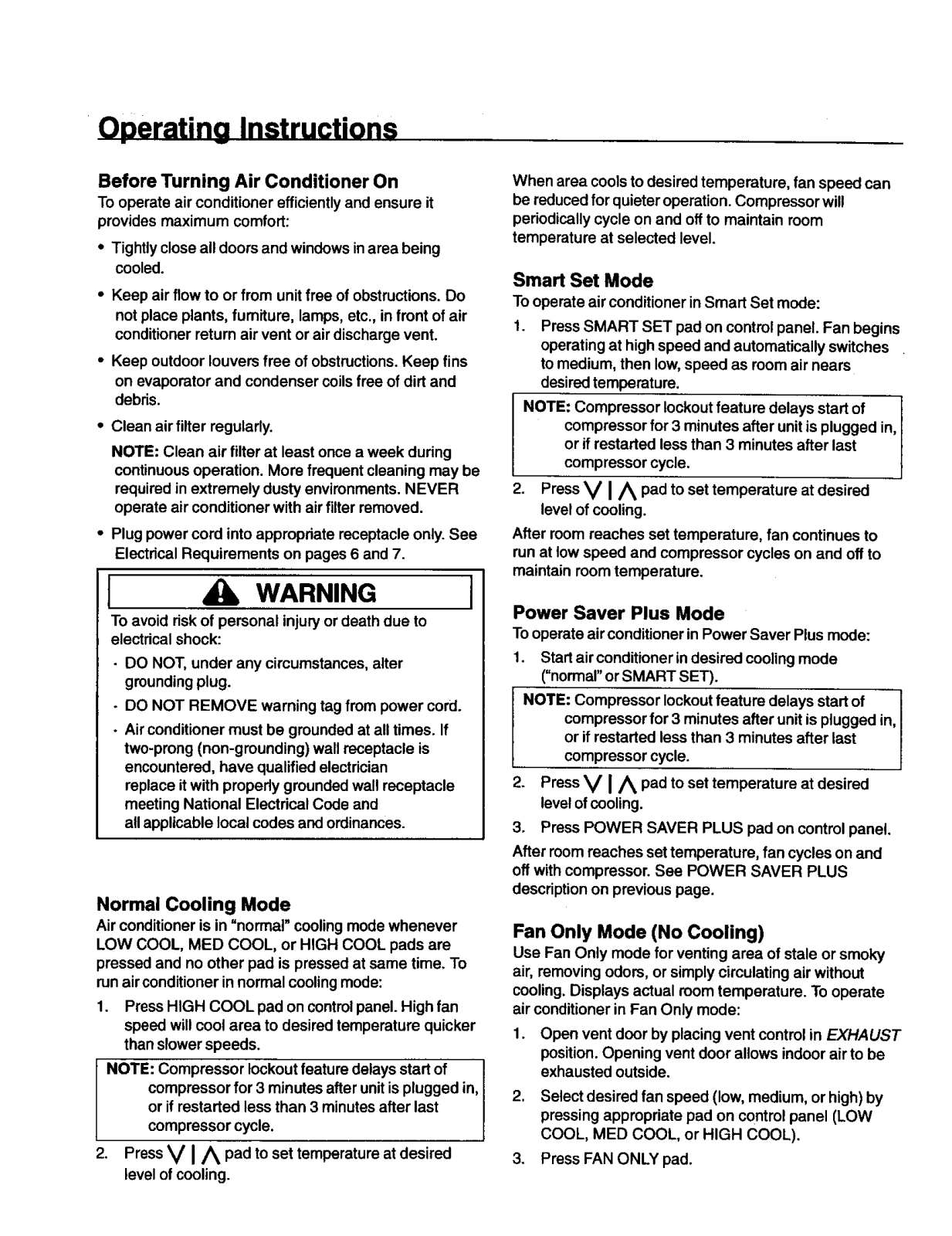

Operating Instructions

Before Turning Air Conditioner On

To operate air conditioner efficientlyand ensure it

provides maximum comfort:

• Tightly close all doors and windows inarea being cooled.

• Keep air flow to or from unit free ofobstructions. Do not place plants, furniture, lamps, etc., in front of air

conditioner return air vent or air discharge vent.

• Keep outdoor louvers free of obstructions.Keep fins on evaporator and condenser coilsfree of dirt and

debris.

• Cleanairfilter regularly. NOTE: Clean air filter at least once a week during

continuous operation. More frequent cleaning may be

required in extremely dusty environments. NEVER

operate air conditioner with air filter removed.

• Plugpower cord into appropriate receptacle only. See

Electrical Requirements on pages 6 and 7.

I WARNING

To avoid riskof personal injury or death due to electdcal shock:

• DO NOT, under any circumstances, alter groundingplug.

- DO NOT REMOVE warning tag from power cord.

• Air conditioner must be grounded at all times. If

two-prong (non-grounding) wall receptacle is

encountered, have qualified electrician replace itwith propedy grounded wall receptacle meeting National Electrical Code and all applicable local codes and ordinances.

Normal Cooling Mode

Air conditioner is in "normal" coolingmode whenever

LOW COOL, MED COOL, or HIGH COOL pads are pressed and no other pad is pressed at same time. To runair conditioner in normal coolingmode:

1. Press HIGH COOL pad on controlpanel. High fan

speed will cool area to desired temperature quicker than slowerspeeds.

NOTE: Compressor lockout feature delays start of

compressor for 3 minutes after unit isplugged in, or if restarted less than 3 minutesafter last

compressor cycle.

2. Press V I/_ pad to set temperature at desired level of cooling.

When area coolsto desired temperature, fan speed can be reduced for quieter operation. Compressor will

periodically cycle on and off to maintain room temperature at selected level.

Smart Set Mode To operate air conditioner in Smart Set mode:

1. Press SMART SET pad on controlpanel. Fan begins

operating at high speed andautomatically switches tomedium, then low,speed as room air nears

desiredtemperature.

NOTE: Compressor lockoutfeature delays start of

compressor for 3 minutes after unitis plugged in, I or ifrestarted less than 3 minutes after last

compressor cyc e.

2. Press V I/_ pad to set temperature at desired

level of cooling.

After room reaches set temperature, fan continues to run at low speed and compressor cycles on and off to

maintain room temperature.

Power Saver Plus Mode Tooperate air conditioner in Power Saver Plus mode:

1. Start air conditioner indesired cooling mode (=normal"or SMART SET).

NOTE: Compressor lockoutfeature delays start of

compressor for 3 minutes after unit is plugged in, or ifrestarted less than 3 minutes after last

compressor cycle.

2• Press V I/_ pad to set temperature at desired

level ofcooling.

3. Press POWER SAVER PLUS pad on control panel.

After room reaches set temperature, fan cycles on and offwith compressor. See POWER SAVER PLUS

descriptionon previous page.

Fan Only Mode (No Cooling) Use Fan Only mode for venting area of stale or smoky

air, removing odors, or simply circulating air without cooling. Displays actual room temperature. To operate air conditioner in Fan Only mode:

1. Open vent door by placing vent control in EXHAUST position.Opening vent door allows indoor air to be

exhausted outside.

2. Select desired fan speed (low, medium, or high) by

pressing appropriate pad on control panel (LOW COOL, MED COOL, or HIGH COOL).

3. Press FAN ONLY pad.

Operating Instructions

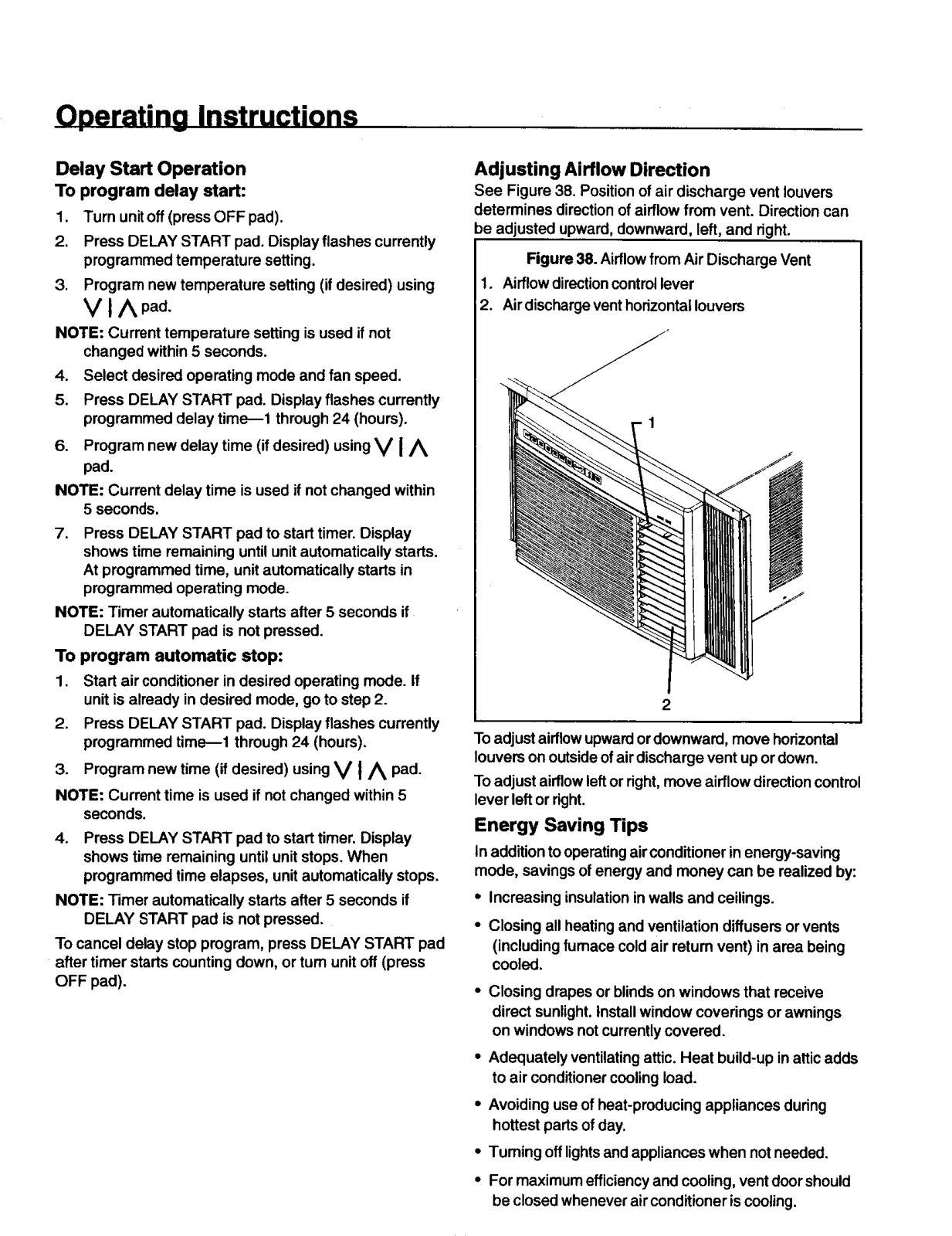

Delay Start Operation

To program delay start:

1. Turn unitoff(pressOFFpad).

2. Press DELAY START pad. Display flashes currently

programmed temperature setting.

3. Program new temperature setting (if desired) using

Vl Apad.

NOTE: Current temperature setting is used if not

changed within 5 seconds.

4. Select desired operating mode and fan speed.

5. Press DELAY START pad. Display flashes currently programmed delay time_l through 24 (hours).

6. Program new delay time (if desired) usingV I/_ pad.

NOTE: Current delay time is used if not changed within

5 seconds.

7. Press DELAY START pad to start timer. Display shows time remaining until unit automatically starts.

At programmed time, unit automatically starts in

programmed operating mode.

NOTE: Timer automatically starts after 5 seconds if

DELAY START pad is not pressed.

To program automatic stop:

1. Start air conditioner in desired operating mode. If unit is already in desired mode, go to step 2.

2. Press DELAY START pad. Display flashes currently

programmed time_l through 24 (hours).

3. Program new time (it desired) using V I A pad. NOTE: Current time is used if not changed within 5

seconds.

4. Press DELAY START pad to start timer. Display

shows time remaining untilunit stops. When programmed time elapses, unit automatically stops.

NOTE: Timer automatically starts after 5 seconds if

DELAY START pad is not pressed.

To cancel delay stop program, press DELAY START pad

after timer starts counting down, or turn unit off (press OFF pad).

Adjusting Airflow Direction See Figure 38. Position ofair discharge vent louvers

determines directionof airflow from vent. Direction can be adjusted upward, downward, left,and right.

Figure 38. Airflowfrom Air Discharge Vent

1. Airflow directioncontrollever

2. Air dischargevent hodzontal louvers

To adjustairflowupwardor downward, move horizontal louvers on outsideofairdischarge vent up or down.

To adjust airflowleft or right,move airflow directioncontrol lever leftorright.

Energy Saving Tips In additionto operatingairconditioner in energy-saving

mode, savings of energy and money can be realized by:

• Increasing insulationin walls and ceilings.

• Closing all heating and ventilation diffusers or vents (including furnace cold air retum vent) in area being

cooled.

• Closing drapes or blindson windows that receive direct sunlight. Installwindow coverings or awnings

on windows not currentlycovered.

• Adequately ventilating attic. Heat build-up in atticadds to air conditioner cooling load.

• Avoiding use of heat-producing appliances during hottest parts of day.

• Turning off lightsand appliances when not needed.

• For maximum efficiency and cooling, vent doorshould

be closed whenever air conditioner iscooling.

Operating Instructions

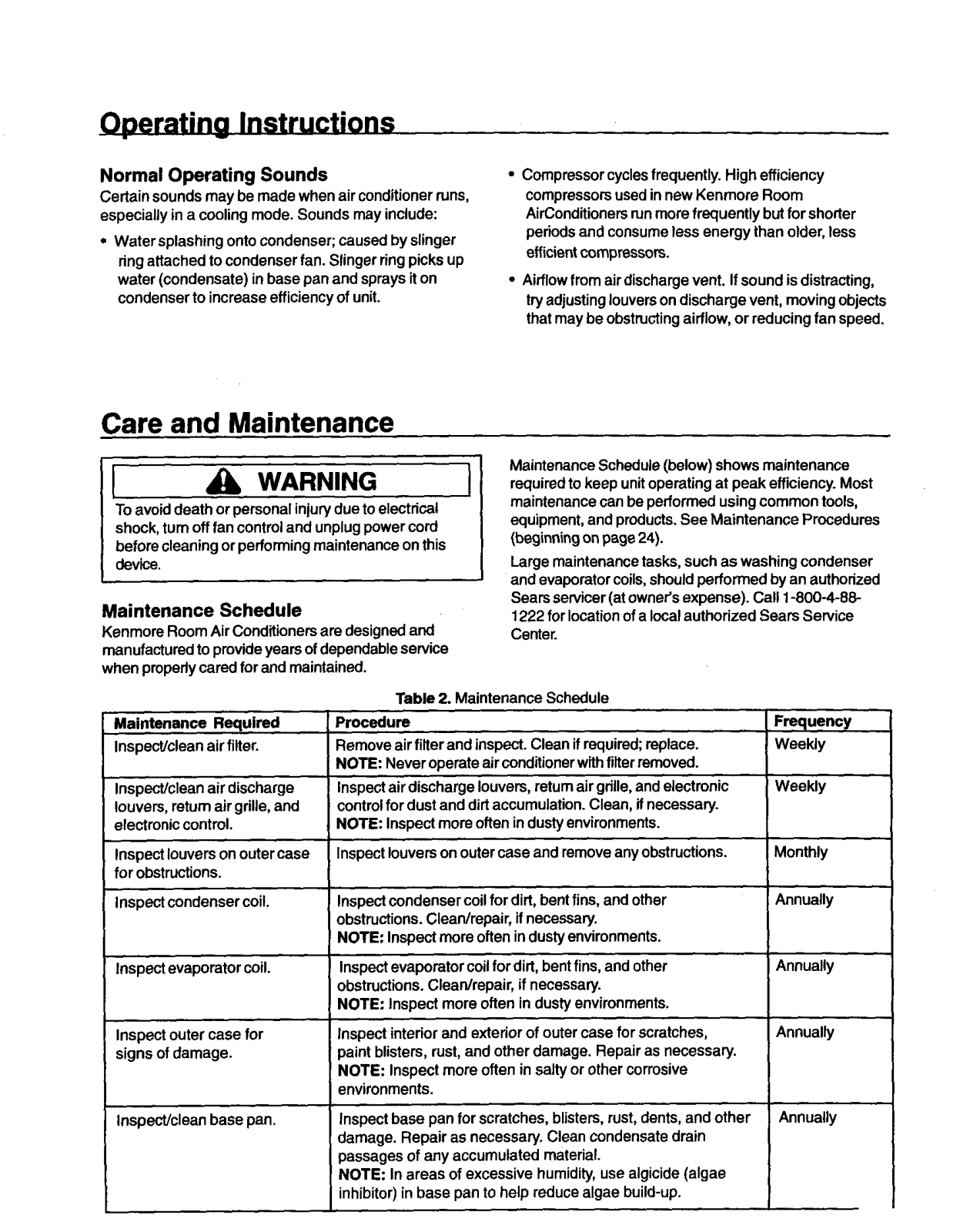

Normal Operating Sounds

Certain sounds may be made when air conditioner runs, especialJyin a cooling mode. Sounds may include:

• Water splashing onto condenser; caused by slinger ring attached to condenser fan. Slinger ring picks up

water (condensate) in base pan and sprays it on condenser to increase efficiency of unit.

Care and Maintenance

I WARNING ]

To avoid death or personal injury due to electrical shock, turn offfan control and unplug power cord before cleaning orperforming maintenance on this

device.

Maintenance Schedule Kenmore Room Air Conditionersare designedand

manufacturedto provideyears ofdependable service

when propedy cared for and maintained.

• Compressorcycles frequently. High efficiency compressorsused in new Kenmora Room

AirConditionersrunmore frequently butfor shorter periodsand consume less energy than older, less

efficientcompressors.

• Airflowfrom air discharge vent. Ifsound is distracting, try adjusting louvers on discharge vent, moving objects

that may be obstructing airflow, or reducing fan speed.

Maintenance Schedule (below) shows maintenance

requiredto keep unit operating at peak efficiency. Most maintenance can be performed using common tools, equipment, and products.See Maintenance Procedures (beginningon page 24).

Large maintenance tasks, such as washing condenser and evaporator coils,should performed byan authorized

Sears servicer (at owner'sexpense). Call 1-800-4-88- 1222 for locationofa local authorized Sears Service

Center.

Table 2. Maintenance Schedule

Maintenance Required

Inspect/clean air filler.

Inspect/clean air discharge Weekly

louvers, retum air grille, and

electronic control.

Inspect louvers on outer case Monthly

for obstructions.

Inspect condenser coil. Inspect condenser coil for dirt, bent fins, and other Annually

Inspect evaporator coil. Inspect evaporator coil for dirt, bent fins, and other Annually

Inspect outer case for I Inspect interior and exterior of outer case for scratches, Annually

signs of damage, paint blisters, rust, and other damage. Repair as necessary.

Inspect/clean base pan. Inspect base pan for scratches, blisters, rust, dents, and other Annually

Procedure Remove air filler and inspect. Clean ifrequired; replace.

NOTE: Never operate air conditioner withfiller removed.

Inspectair discharge louvers, returnair grille,and electronic

control for dust and dirtaccumulation. Clean, ifnecessary. NOTE: Inspect more often in dustyenvironments.

Inspect louvers onouter case and remove anyobstructions.

obstructions. Clean/repair, if necessary.

! NOTE: Inspect mare often in dusty environments.

obstructions. Clean/repair, if necessary.

NOTE: nspect more often in dusty environments.

NOTE: Inspect more often in salty or other corrosive environments.

damage. Repair as necessary. Clean condensate drain passages of any accumulated material. NOTE: In areas of excessive humidity, use algicide (algae

inhibitor) in base pan to help reduce algae build-up.

Frequency

Weekly

Care and Maintenance

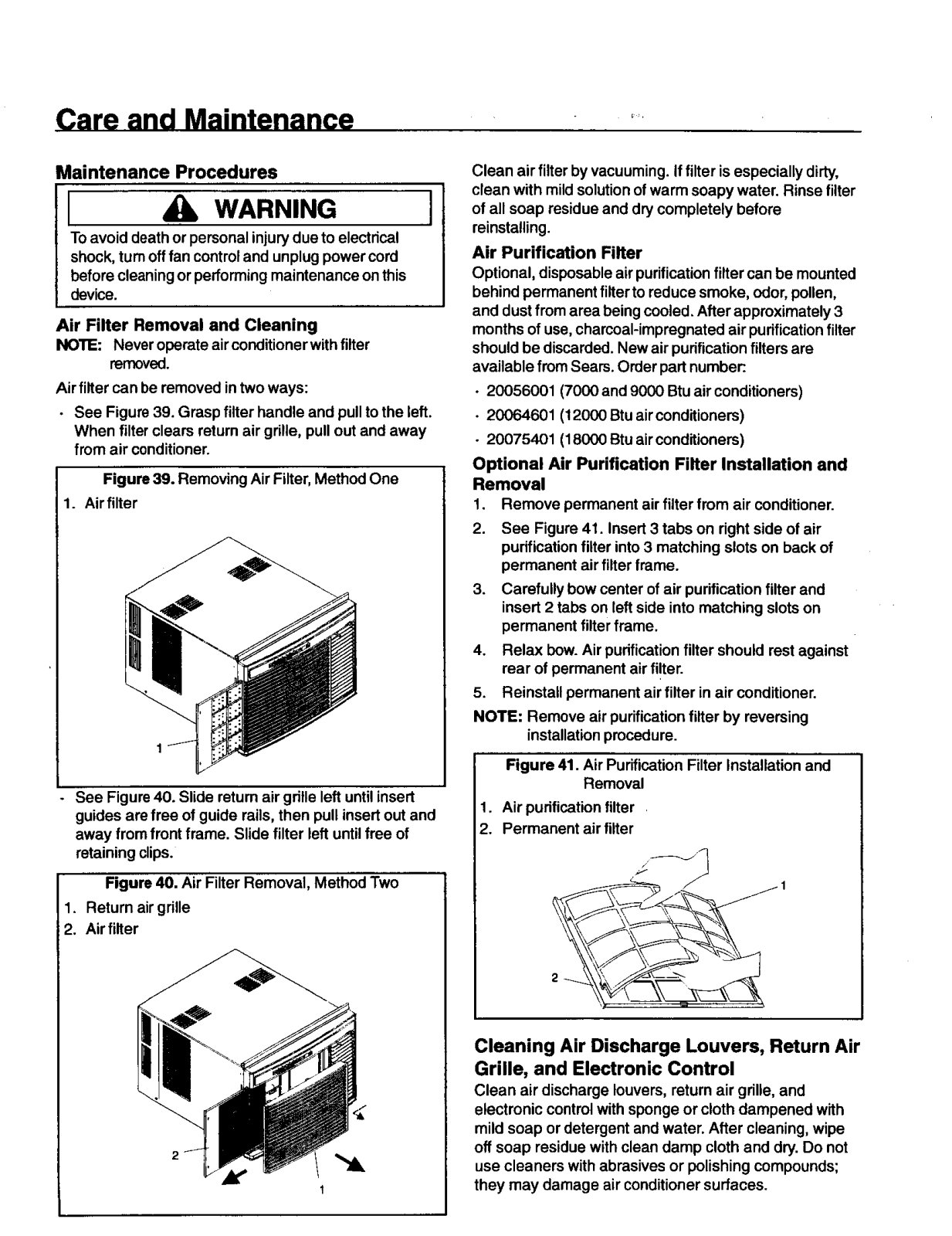

Maintenance Procedures

I WARNING I

Toavoid death or personal injurydue to electrical shock, turn offfan control and unplug power cord before cleaning or performing maintenance on this

device.

Air Filter Removal and Cleaning NOTE: Neveroperate air conditioner withfilter

removed.

Airfilter can be removed in two ways:

• See Figure 39. Grasp filter handle and pullto the left.

When filter clears return air grille, pull out and away from air conditioner.

Figure 39. Removing Air Filter, Method One

1. Airfilter

Clean air filter by vacuuming. If filter is especially dirty, clean with mild solution of warm soapy water. Rinse filter

of all soap residue and dry completely before reinstalling.

Air Purification Filter Optional, disposable air purificationfiltercan be mounted

behind permanent filterto reduce smoke, odor, pollen, and dust from area being cooled. After approximately 3 months of use, charcoal-impregnated airpurificationfilter should be discarded. New air purificationfilters are

available from Sears. Order part number:.

• 20056001 (7000 and 9000 Btu air conditioners)

• 20064601 (12000 Btu airconditioners)

• 20075401 (18000 Stu air conditioners)

Optional Air Purification Filter Installation and Removal

1. Remove permanent air filter from air conditioner.

2. See Figure 41. Insert 3 tabs on right side of air purificationfilter into 3 matching slots on back of

permanent air filter frame.

3•

Carefully bow center of air purification filter and insert 2 tabs on left side into matching slots on permanent filter frame.

4. Relax bow. Air purification filter should rest against rear of permanent air fi!ter.

5. Reinstall permanent air filter in air conditioner.

NOTE: Remove air purification filter by reversing

installationprocedure.

See Figure 40. Slide return air grille left until insert

guides are free of guide rails, then pull insert out and away from front frame. Slide filter left until free of retaining clips.

Figure 40. Air Filter Removal, Method Two

1. Return air grille

2. Air filter

Figure 41. Air Purification Filter Installation and

Removal

1. Air purification filter

2. Permanent air filter

Cleaning Air Discharge Louvers, Return Air Grille, and Electronic Control

Clean air discharge louvers, return air grille, and electronic controlwith sponge or cloth dampened with

mild soap or detergent and water. After cleaning, wipe off soap residue with clean damp cloth and dry. Do not

use cleaners with abrasives or polishing compounds;

they may damage air conditioner surfaces.

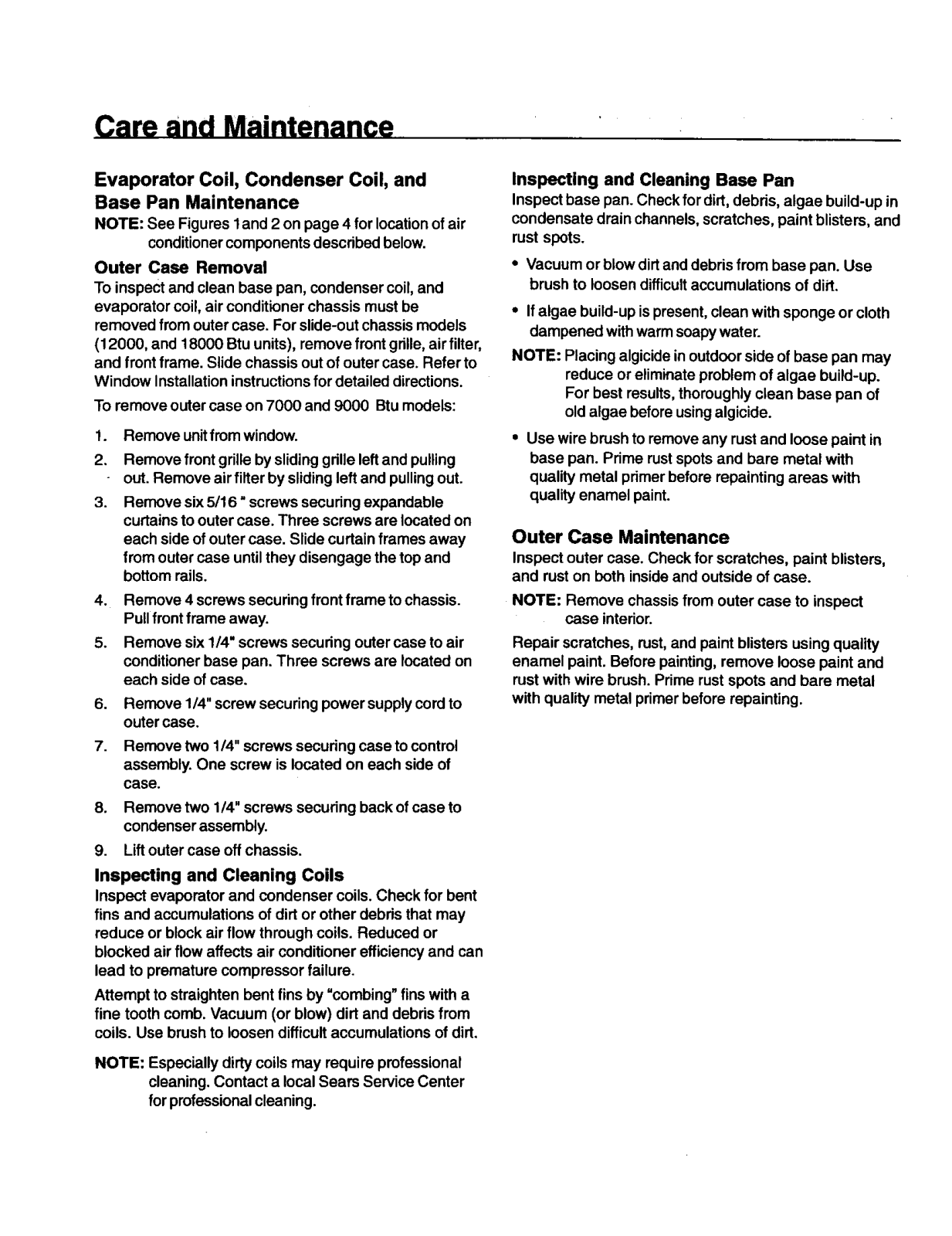

Care and Maintenance

Evaporator Coil, Condenser Coil, and

Base Pan Maintenance

NOTE: See Figures I and 2 on page 4 for locationof air

conditionercomponents described below.

Outer Case Removal To inspect and clean base pan, condenser coil, and

evaporator coil, air conditioner chassis must be

removed from outer case. For slide-out chassis models

(12000, and 18000 Btu units), remove front grille, air filter, and front frame. Slide chassis out of outer case. Refer to

Window Installationinstructions for detailed directions. To remove outer case on 7000 and 9000 Btu models:

1. Remove unitfrom window.

2. Remove front grilleby sliding gdlle leftand pulling

- out. Remove airfilter by sliding leftand pullingout.

Remove six 5/16" screws secudng expandable curtains to outer case. Three screws are located on

each side of outer case. Slide curtain frames away from outer case until they disengage the top and

bottom rails.

4. Remove 4 screws securing front frame to chassis. Pullfront frame away.

5. Remove six 1/4" screws secudng outer case to air conditioner base pan. Three screws are located on each side of case.

6. Remove 1/4" screw securing power supplycord to outer case.

7. Remove two 1/4" screws sscudng case to control

assembly. One screw is located on each side of case.

8. Remove two 1/4" screws secudng back ofcase to condenser assembly.

9. Lift outer case off chassis.

Inspecting and Cleaning Base Pan Inspect base pan. Check fordirt, debds, algae build-up in

condensate drain channels, scratches, paint blisters, and

rust spots.

• Vacuum or blow dirt and debris from base pan. Use

brush to loosen difficult accumulations of dirt.

• Ifalgae build-up is present, clean with sponge or cloth

dampened withwarm soapywater.

NOTE: Placing algicide in outdoor side of base pan may

reduce or eliminate problem of algae build-up. For best results,thoroughly clean base pan of

old algae before usingalgicide.

• Use wire brush to remove any rust and loose paint in base pan. Pdme rust spots and bare metal with quality metal pdmer before repainting areas with quality enamel paint.

Outer Case Maintenance

Inspect outer case. Check for scratches, paint blisters,

and rust on both insideand outside of case.

NOTE: Remove chassis from outer case to inspect

case interior.

Repair scratches, rust, and paint blisters using quality enamel paint. Before painting, remove loose paint and rust with wire brush. Prime rust spots and bare metal

with quality metal primer before repainting.

Inspecting and Cleaning Coils Inspect evaporator and condenser coils. Check for bent

fins and accumulations of dirtor other debds that may

reduce or block air flow through coils. Reduced or blocked air flow affects air conditioner efficiencyand can

lead to premature compressor failure.

Attempt to straighten bent fins by "combing" fins with a fine tooth comb. Vacuum (or blow) dirt and debris from

coils. Use brush to loosen difficult accumulations of dirt. NOTE: Especially dirty coils may require professional

cleaning. Contact a local Sears Service Center for professionalcleaning.

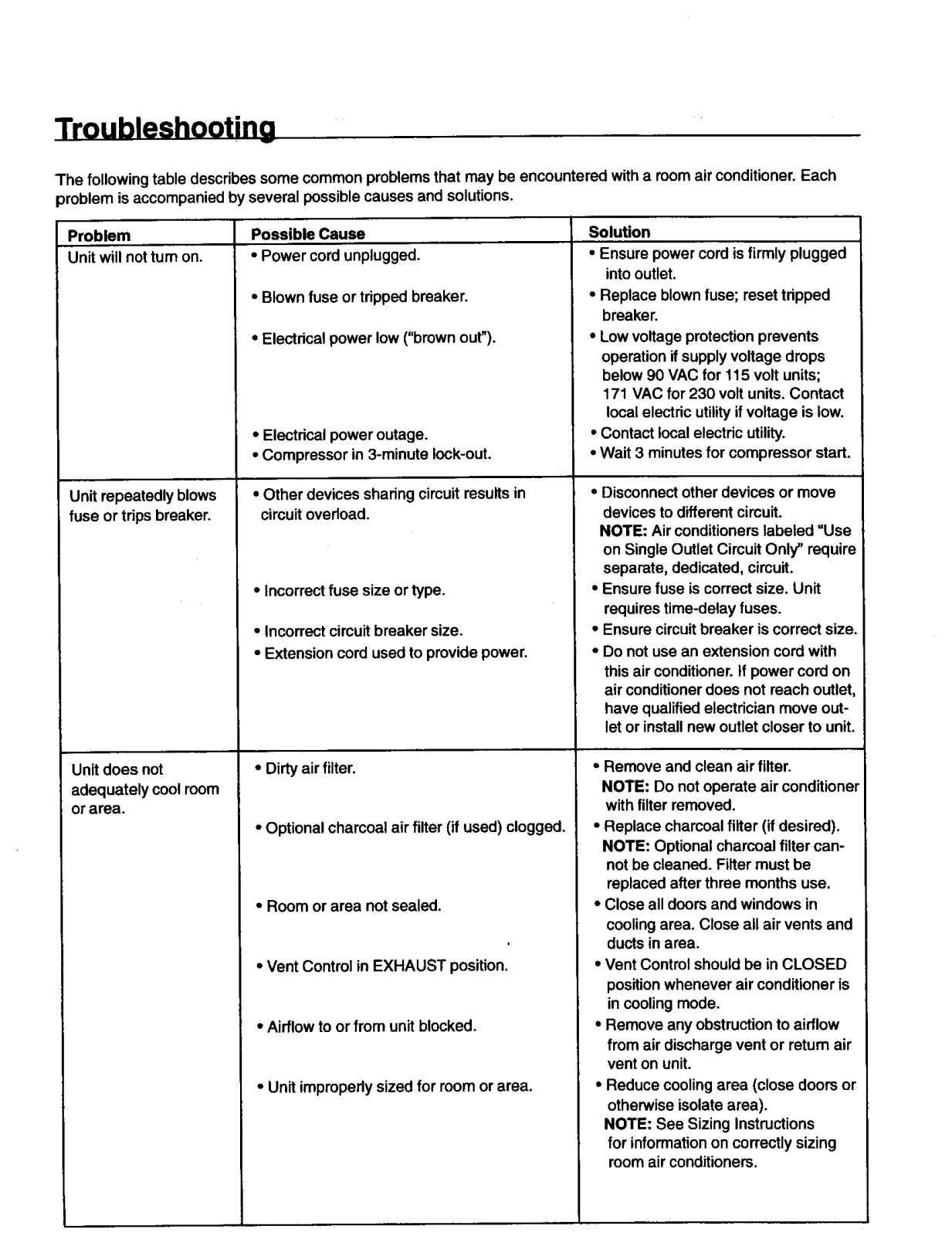

Troubleshooting

The following table describes some common problems that may be encountered with a room air conditioner. Each

problem is accompanied by several possible causes and solutions.

Problem Unit will not turn on.

Unit repeatedly blows

fuse or trips breaker.

Possible Cause

• Power cord unplugged.

• Blown fuse or tripped breaker.

• Electrical power low ("brown out").

• Electrical power outage.

• Compressor in 3-minute lock-out.

• Other devices sharing circuit results in

circuit overload.

• Incorrect fuse size or type.

• Incorrect circuit breaker size.

• Extension cord used to provide power.

Solution

• Ensure power cord is firmly plugged

intooutlet.

• Replace blown fuse; reset tdpped

breaker.

• Low voltage protection prevents

operation ifsupply voltage drops

below 90 VAC for 115 volt units; 171 VAC for 230 volt units. Contact

local electric utilityif voltage is low.

• Contact local electric utility.

• Wait 3 minutes for compressor start.

• Disconnect other devices or move devices to different circuit.

NOTE: Air conditioners labeled "Use

on Single Outlet Circuit Only" require separate, dedicated, circuit.

• Ensure fuse is correct size. Unit requires time-delay fuses.

• Ensure circuit breaker is correct size.

• Do not use an extension cord with

this air conditioner. If power cord on air conditioner does not reach outlet

have qualified electrician move out- let or install new outlet closer to unit.

Unit does not adequately cool room

or area.

• Dirty air filter.

• Optional charcoal air filter (if used) clogged.

• Room or area not sealed.

• Vent Control in EXHAUST position.

• Airflow to or from unit blocked.

• Unit impropedy sized for room or area.

• Remove and clean air filter.

NOTE: Do not operate air conditioner

with filter removed.

• Replace charcoal filter (if desired).

NOTE: Optional charcoal filter can-

not be cleaned. Filter must be replaced after three months use.

• Close all doors and windows in

cooling area. Close all air vents and ducts in area.

• Vent Control should be in CLOSED

position whenever air conditioner is

in cooling mode.

• Remove any obstruction to airflow from air discharge vent or return air

vent on unit.

• Reduce cooling area (close doors or

otherwise isolate area).

NOTE: See Sizing Instructions

for information on correctly sizing

room air conditioners.

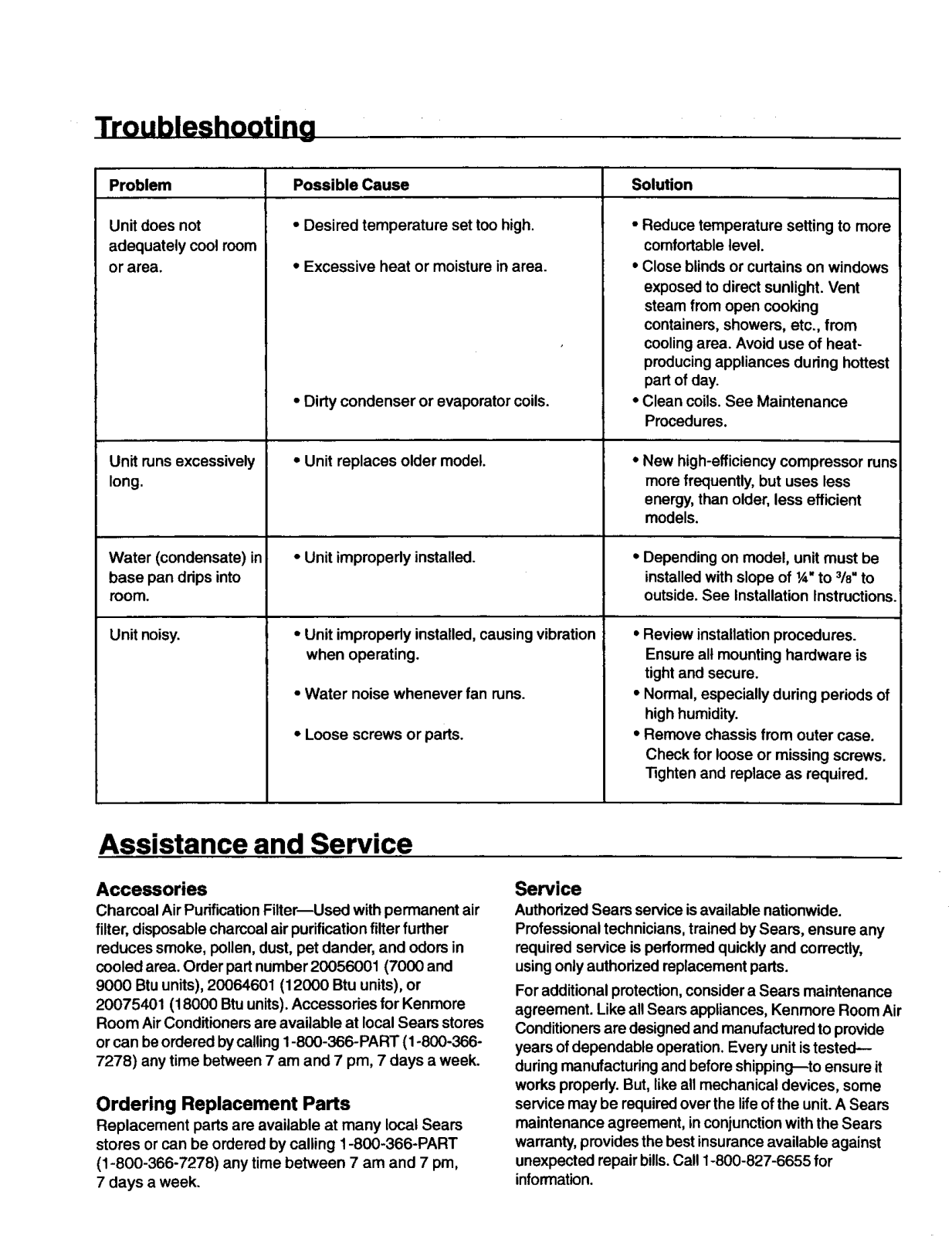

Troubleshooting

Possible Cause

Unit does not adequately cool room

or area.

Unit runs excessively long.

Water (condensate) in oUnit improperly installed. • Depending on model, unit must be

base pan ddps into installedwith slope of 1,_,to 318"to room. outside. See Installation Instructions.

Unit noisy. • Unit improperly installed, causing vibration

• Desired temperature set too high.

• Excessive heat or moisture in area.

• Dirty condenser or evaporator coils.

• Unit replaces older model.

when operating.

• Water noise whenever fan runs.

• Loose screws or parts.

SolutionProblem

• Reduce temperature setting to more

comfortable level.

• Close blinds or curtains on windows

exposed to direct sunlight. Vent

steam from open cooking

containers, showers, etc., from cooling area. Avoid use of heat-

producing appliances dudng hottest

part ofday.

• Clean coils. See Maintenance

Procedures.

• New high-efficiency compressor runs more frequently, but uses less

energy, than older, less efficient models.

• Review installation procedures. Ensure all mounting hardware is tightand secure.

• Normal, especially during periods of high humidity.

• Remove chassis from outer case. Check for loose or missing screws.

Tighten and replace as required.

Assistance and Service

Accessories

Charcoal AirPurification Filter--Used withpermanent air filter, disposable charcoal air purificationfilter further

reduces smoke, pollen, dust, pet dander, and odors in

cooled area. Order part number 20056001 (7000 and 9000 Btu units), 20064601 (12000 Btu units), or 20075401 (18000 Btuunits). Accessories for Kenmore

Room AirConditioners are available at local Sears stores

or can beordered bycalling 1-800-366-PART (1-800-366-

7278) any time between 7 am and 7 pm, 7 days a week.

Ordering Replacement Parts

Replacement parts are available at many local Sears

stores or can be ordered by calling 1-800-366-PART

(1-800-366-7278) any time between 7 am and 7 pro, 7 days a week.

Service

Authorized Sears service isavailable nationwide.

Professional technicians, trained by Sears, ensure any required service is performed quickly and correctly,

usingonlyauthorized replacement parts.

For additional protection, considera Sears maintenance

agreement. Like all Sears appliances, Kenmore Room Air Conditioners are designed and manufactured to provide years of dependable operation. Every unit is tested-- during manufacturing and before shipping--to ensure it works propedy. But, like all mechanical devices, some service may be required over the life of the unit. A Sears

maintenance agreement, in conjunction with the Sears

warranty, provides the best insurance available against

unexpected repair bills. Call 1-800-827-6655 for information.

For in-home major brand repair service:

Call 24 hours a day, 7 days a week

1-800-4-MY-HOM E'"(1-800-469-4663)

Para pedir servicio de reparaci6n - 1-800-676-5811

Au Canada pour tout le service - 1-877-LE FOYER 'M (1-877-533-6937)

For the repair or replacement parts you need:

Call 6 a.m. - 11 p.m. CST, 7 days a week

PartsDirect"

1-800-366-PART (1-800-366-7278)

www.sears.com/partsdirect

Para ordenar piezas - 1-800-659-7084

For a Sears Service Center location in your area:

Call 24 hours a day, 7 days a week

1-800-488-1222

For a Sears Maintenance Agreement purchase or inquiry:

Call 7 a.m.-5 p.m. CST, Monday-Saturday

1-800-827-6655

HomeCentrar"

Part No, 20101102 Printed in U.S.A.

Kenmore 70129, 78189, 78079 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
