READ AND SAVE THESE INSTRUCTIONS
Operator’s Manual
K^nmor^
WHOLE HOUSE HUMIDIFIER
8 Gallon Output with
Digital Readout
Model 758.154080
CAUTION: Before using this
product, read this manual and
follow all its Safety Rules and
Operating Instructions.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com
Part No. SP6597 Printed in China
• Safety
• Assembly
• Operation
• Maintenance
• Parts
• Español, p. 17
ONE YEAR FULL WARRANTY ON KENMORE HUMIDIFIER
If any part of this humidifier fails due to a defect in material or workmanship
within one year from the date of purchase, or it the humidifier motor fails due
to a defect in material or workmanship during the second year from the date
of purchase, RETURN THE HUMIDIFIER TO THE NEAREST SEARS PARTS &
REPAIR CENTER, and it will be repaired free of charge. This warranty does
not include humidifier filters, which are expendable parts that can wear out
from normal use in less than one year. This warranty gives you specific legal
rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 81 TWA, Hoffman Estates, IL 60179
GENERAL SAFETY INSTRUCTIONS
Safety Signal Words
DANGER: means if the safety
information is not followed someone will
be seriously injured or killed.
WARNING; means if the safety
information is not followed someone
could be seriously injured or killed.
CAUTION: means if the safety
information is not followed someone may
be injured.
1. To reduce the risk of fire or shock
hazard, plug humidifier directly into a
120V, A.C, electrical outlet. Do not use
extension cords.
2. Keep the electric cord out of traffic
areas. To reduce the risk of fire
hazard, never put the electric cord
under rugs, near heat registers,
radiators, stoves or heaters.
3. Always unplug the humidifier before
moving it, before cleaning, or
whenever the humidifier is not in
service.
4. Keep the humidifier clean.
5. Do not put foreign objects inside the
humidifier.
6. Do not allow to be used as a toy.
Close attention is necessary when
used by or near children.
7. Never use your humidifier while any
part is missing or damaged in any
manner.
8. To reduce the risk of electrical
hazard or damage to humidifier, do
not tilt, jolt or tip humidifier while unit
is running.
9. To reduce the risk of damage to
humidifier, unplug when not in use.
10. To reduce the risk of accidental
electrical shock, do not touch the
cord or controls with wet hands.
11. Note the warning label shown below.
WARNING: To reduce risk of fire,
electric shock, or injury always unplug
before servicing or cleaning.
Table of Contents
Warranty Information
General Safety Instructions
To Save A Service Call
Know Your Humidifier
............................
...........................
---------
..................
.........................
How Your Humidifier Works..................4
Step 1. Getting Your Humidifier
Up and Running
Step 2. Location Instructions
................................
.........
......5
Electrical Hook-Up
2
Step 3. Water Fill
2
Step 4. Operating the Controls
3
Using Your Humidifier
3
................................
............
......................6
.......................
Replacement and Care of Filters
Cleaning and Maintenance.................11
Troubleshooting
4
............................

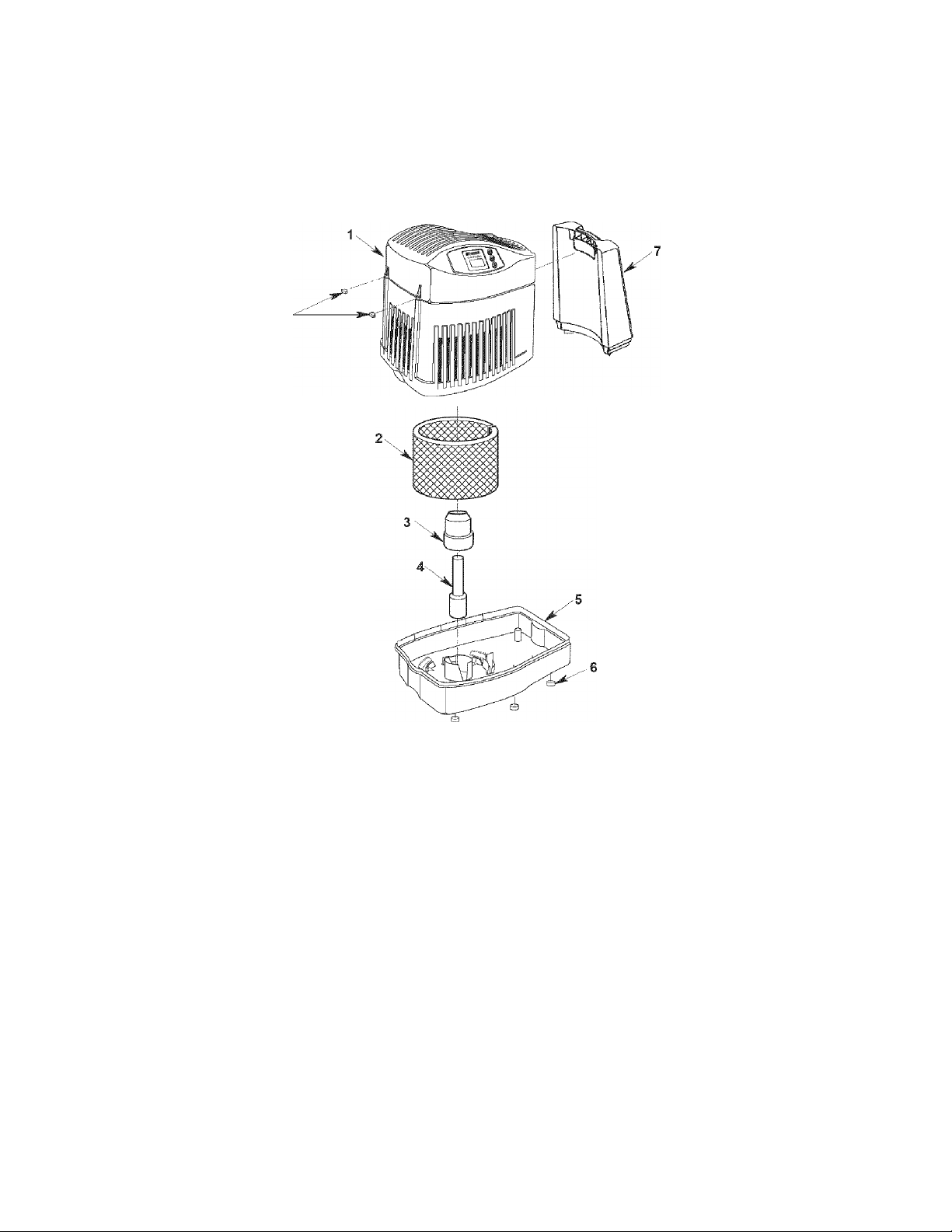

Repair Parts...................................14-15
.........
........
12-13
5
7-8
8-9
10
To Save A Service Call
Check the following If your humidifier is
not operating.
1. Is power cord attached to outlet?
2. Is there electrical power to outlet?

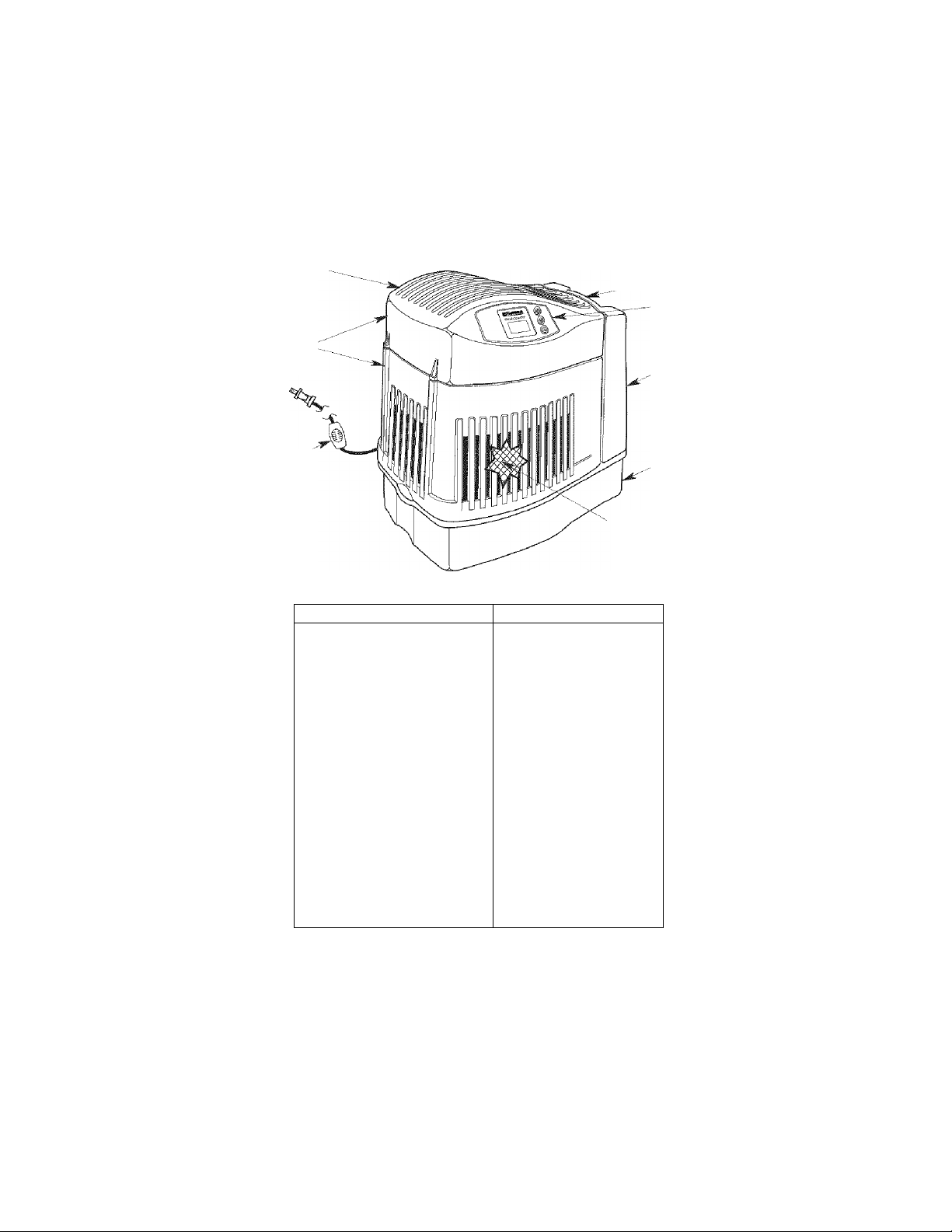

Know Your Humidifier
3. Is humidity control set high enough?
4. Is the cabinet sitting on a ievel
surface?
Fan Assembly
Housing
Assembly
Humidistat
(On Power
Cord)
Bottle Handle
Speed &
Humidity
Controls
Bottle
Base
Filter:
Replacement No.
32-15508
Description 758.154080
* Gallon Output/24 hrs 8
Capacity of Bottle 1.2 Gallons
Capacity of Base 1.2 Gallons
* Sq. Ft. Coverage 1700
Fan Speeds 3
Auto Fan Speed Yes
Replacement Filter 32-15508
Auto Humidistat Yes
Auto Shut Off Yes
Controls Electronic (Push Button)
Rubber Feet 6
CUL Listed Yes
Volts 120 A.C.
Hertz 60
Amps (High Speed) 1.2
Watts (High Speed) 81
Based on an area with average insulation and an 8 foot
ceiling height

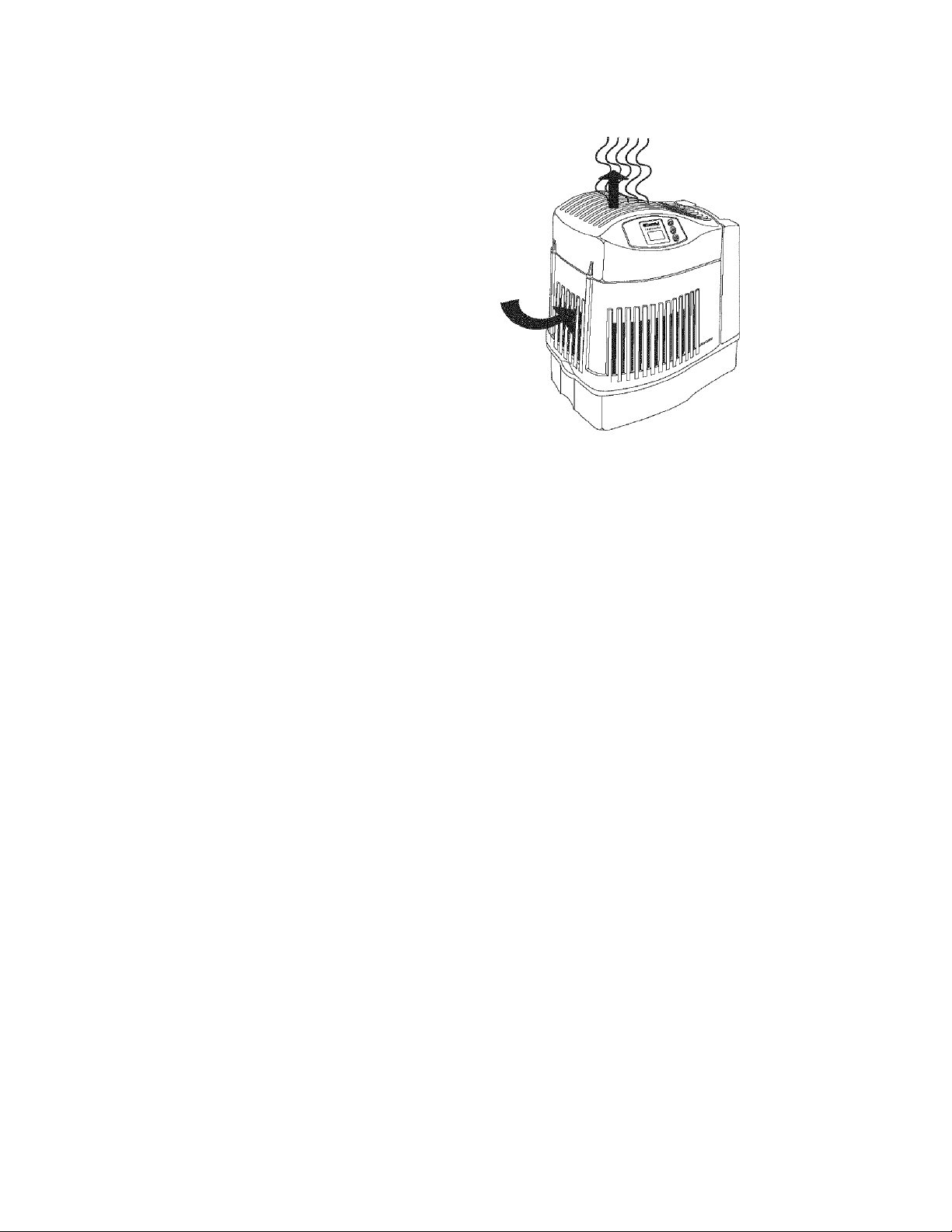

How Your Humidifier Works
Your new Kenmore humidifier is designed
to satisfy home humidity requirements
through the principle of evaporation of
water in the air.
Once the filter becomes saturated, air is
drawn in, passes through the filter and
moisture is absorbed into the air. All
evaporation occurs in the humidifier so
any residue remains in the filter. This
natural process of evaporation virtually
eliminates white dust.
CAUTION: To reduce the risk of
injury, fire or damage to humidifier,
use only cleaners specifically
recommended for humidifiers. Never
use flammable, combustible or
poisonous materials to clean your
humidifier.
To reduce the risk of scalds and
damage to humidifier, never put hot
water in humidifier.
Humidified air is
then released
through the top
Dry air
enters
through
the
louvers
in the
housing
Step 1. Getting Your Humidifier Up and Running —
Once removed from its carton, remove all
packing materials. Verify the filter is
properly seated (See pg.10).
step 2. Location and Electrical Hook-Up
WARNING; For your own safety, do
not use humidifier if any parts are
damaged or missing.
Selecting A Location
Place humidifier on a fiat levei surface,
take extra care in leveiing when piacing
the unit on carpet. Position the humidifier
where the most humidity is needed or
where the most air wiil be circuiated
throughout the house such as near a
coid air return.
Moist air (humidity) produced will
disperse into the whoie house, but the
area ciosest to the unit wiii have the
highest humidity, if the unit is positioned
close to a window, condensation may
form on the window pane. If this occurs
the unit should be repositioned in another
location.
NOTE: Due to release of cool, moist air
from humidifier, it is best to direct air
away from thermostat and hot air
registers and to position humidifier next
to an inside wall. Unit should not be
placed where cold air from outside wails
or warm air from a hot air register blows
directly on it.
Positioning The Unit
The humidifier should be positioned with
the back (cord exit side) and left side, at
least 2 inches away from the wall. Air
needs to enter through all of the louvers
in the housing assembly in order for the
humidifier to operate at peak efficiency.
NOTE: Be sure humidistat (located
approximately 4 inches outside
humidifier body on power cord) is free
from obstruction and away from any hot
air register.

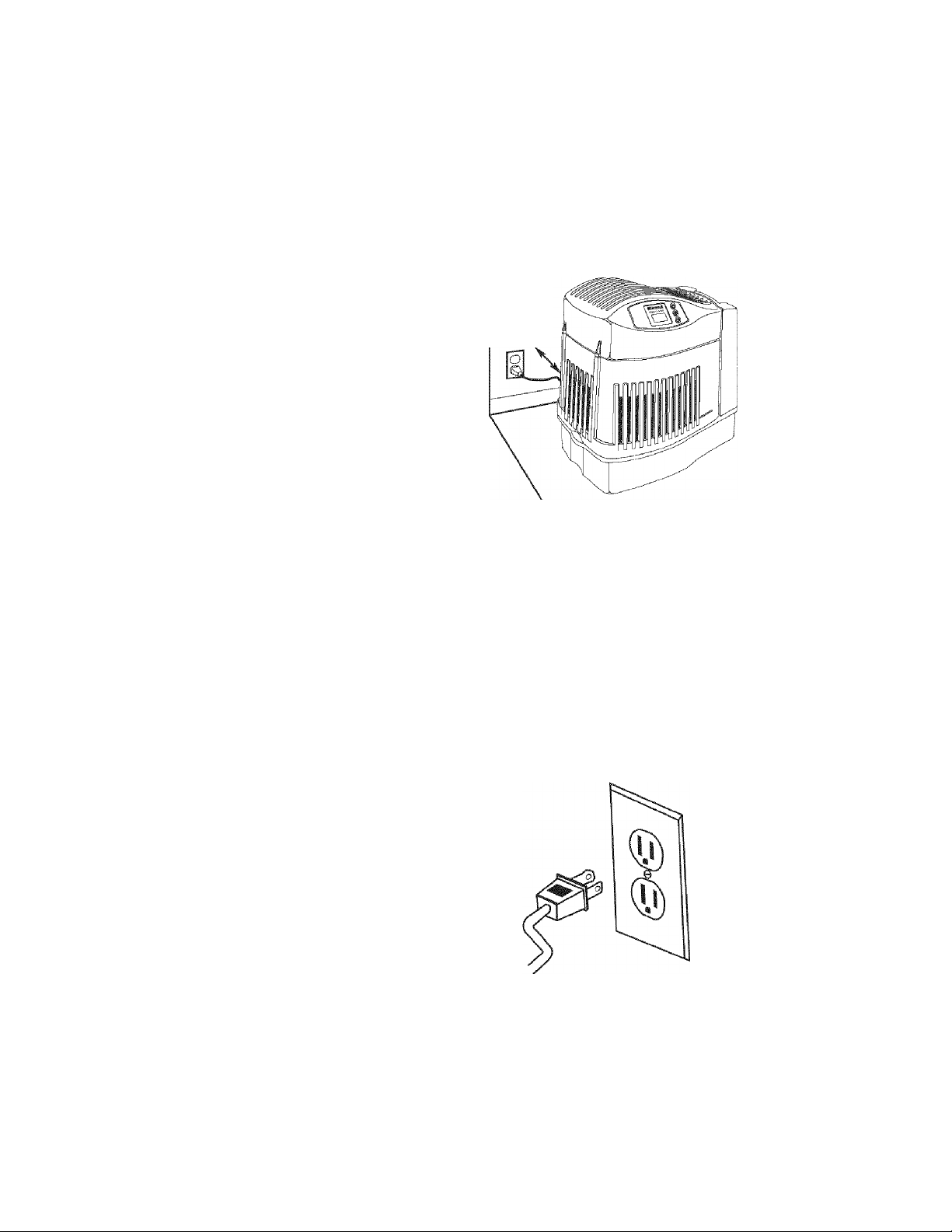

Electrical Hook-Up —
Locate nearest 120V A.C. wall socket in
the location desired, preferably on inside
wall. With the humidifier in the desired
location, route the electrical cord safely
so no one will trip or upset the humidifier.
Plug in the electrical cord.
WARNING: To reduce the risk of fire
or shock hazard, humidifier should
be plugged into a 120V A.C. outlet.
Do not use extension cords.
To reduce the risk of electrical shock, this
humidifier has a polarized plug (one
blade is wider than the other). This plug
wiil fit in a polarized outlet only one way.
If the plug does not fit fully in the outlet,
reverse plug. If it still does not fit, contact
a qualified electrician to install the proper
outlet. Do not change the plug in any
way.

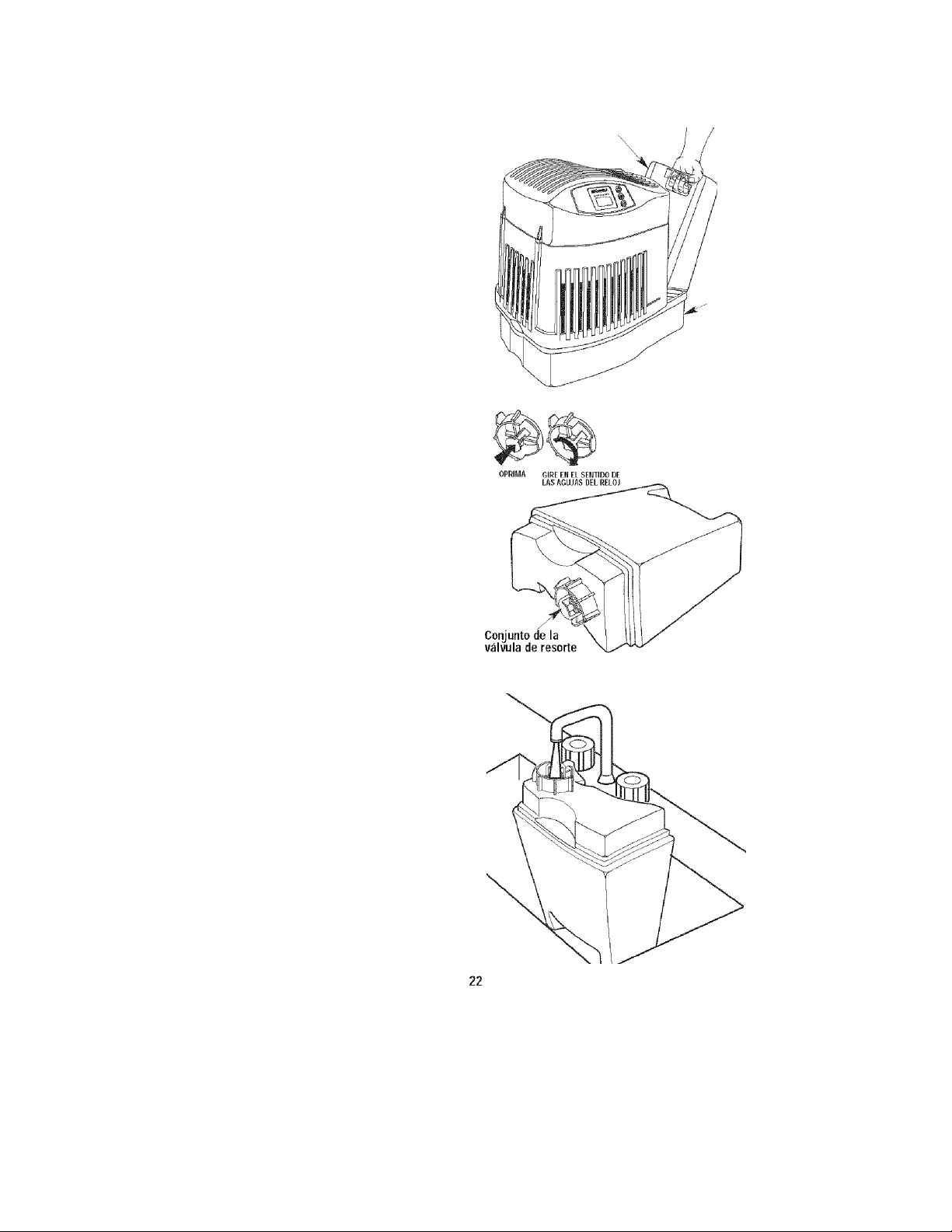

step 3. Water Fill
WARNING: To reduce the risk of fire
or shock hazard, do not pour or spill
water Into control or motor area.
If controls get wet, let them dry
completely and have unit checked by
authorized service personnel before
plugging in.
After the humidifier is positioned where it
will be operating you are ready to fill the
humidifier. The bottle lifts straight up and
away from the base. Take care not to
bump or damage fill valve assembly on
the bottom of the bottle.
Invert the bottle. Press the valve stem
button into the bottle and turn clockwise
to lock in open position. Place bottle
under the faucet. Fill the bottle, being
careful not to allow any debris to get in
the bottle. Debris may interfere with the
valve seating. Once the bottle is full,
press the valve stem button and turn
counter clockwise to release and close.
CAUTION: Use only 32-14900 EPA
Registered Bacteriostat available
from Sears Retail store. Under no
circumstances should you use water
treatment products designed for
Roto belt or Ultrasonic humidifiers.
PUSH IN
Bottle
- Base
TURN
Place the water bottle back into the
humidifier base. When positioned
properly, the plunger will open and the
water will flow into the base. The base
will hold the entire contents of the water
bottle. Once the bottle is empty, remove it
and repeat the filling process. The
humidifier is now filled to capacity. To
benefit from less frequent filling let the
humidifier exhaust both the water from
the bottle and the base before filling.
step 4. Operating the Controls
Where you set your desired humidity
levels depends on your personal comfort
level, outside temperature and inside
temperature. A starting set point of 30% 40% ROOM humidity is recommended
but there may be conditions that require a
different setting.
When Outdoor
Temperature is:
-10° F -24° C 20%
2° F -18° C 25%
10° F -12° C 30%
20° F* -6° C*
Recommended Indoor
Relative Humidity is:
35%
IMPORTANT: Water damage may
result if condensation starts to form
on windows or walls. Humidity SET
point should be lowered until
condensation no longer forms. We
recommend room humidity levels do
not exceed 50%.

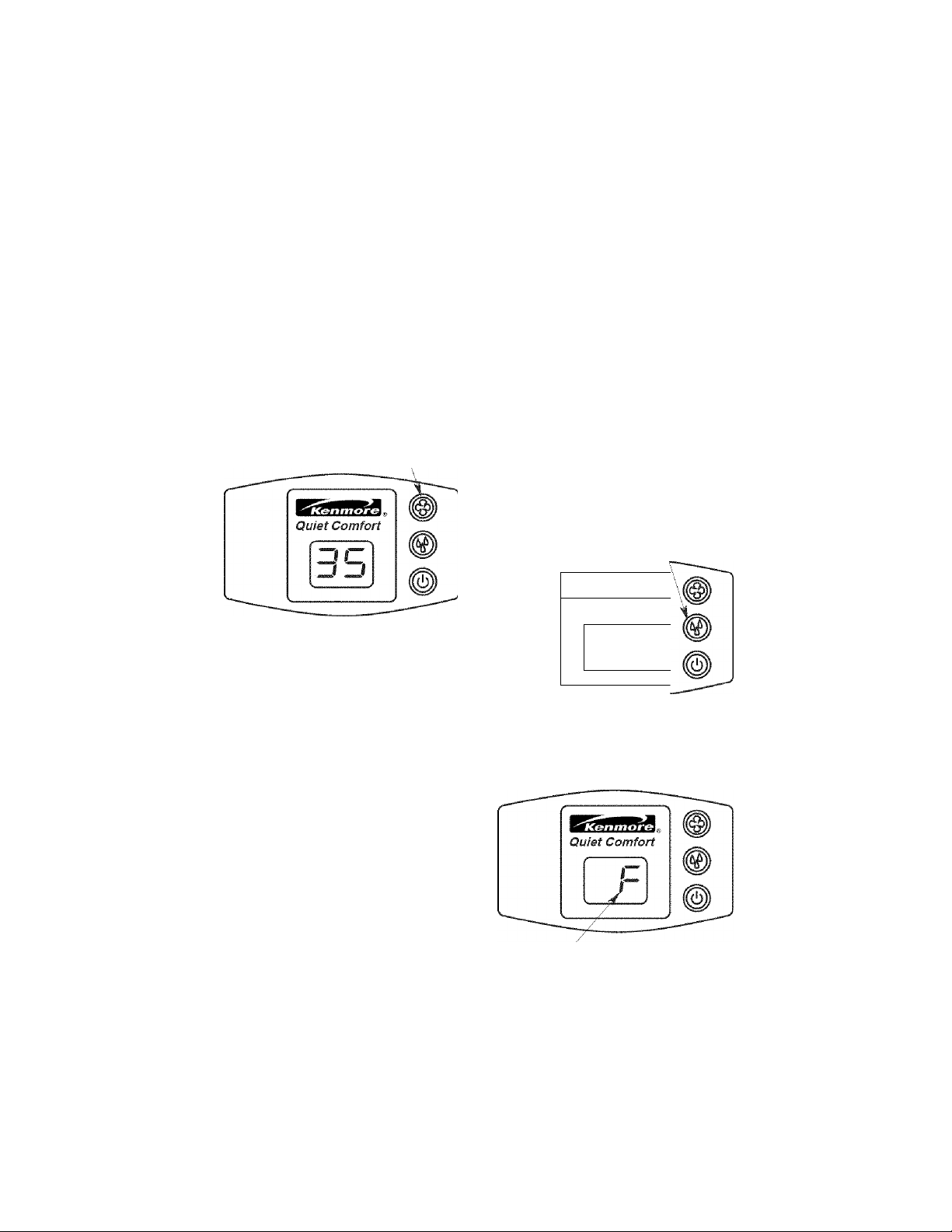

To Operate the Controls

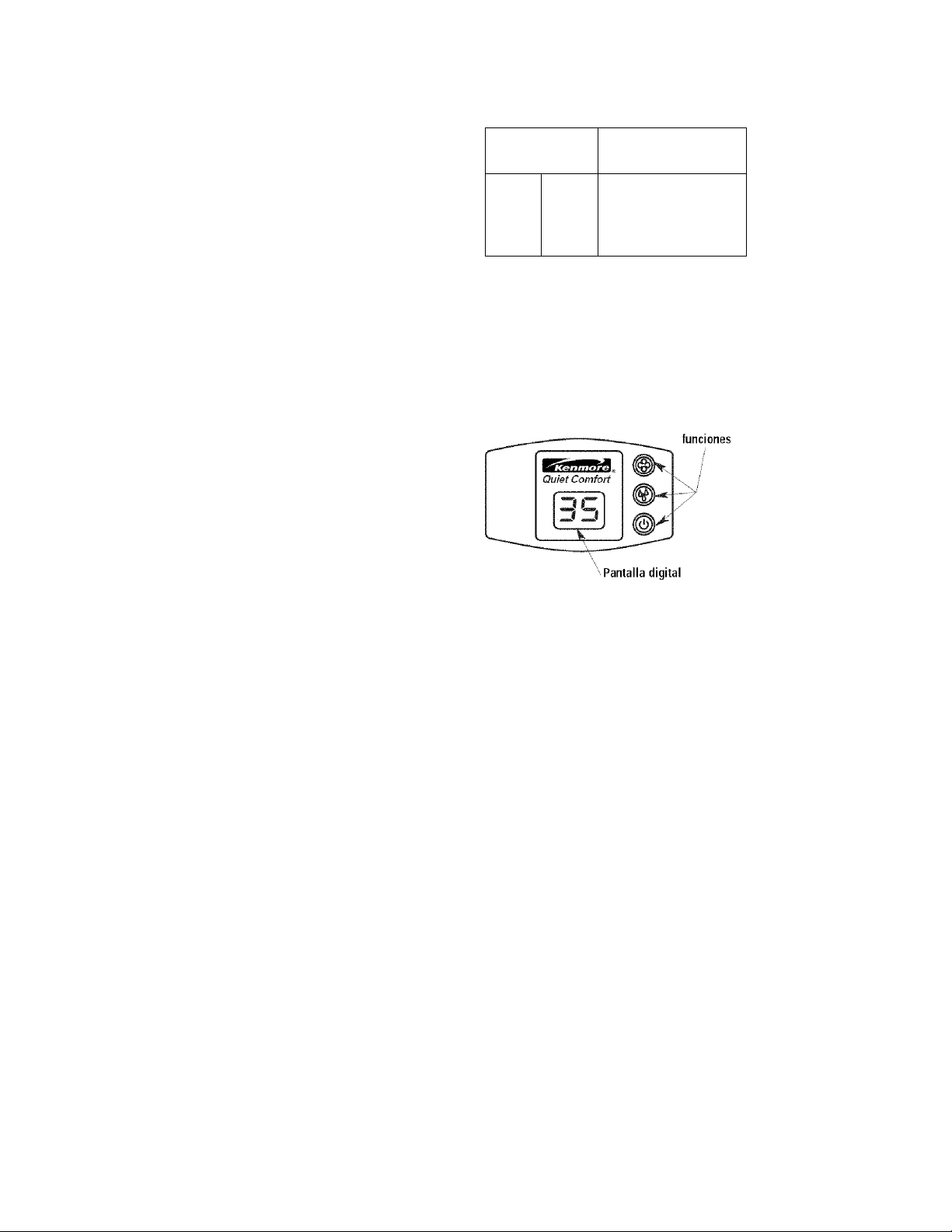

Digital Display
Press the power button once to turn the
unit on* © Initially there is a slight
delay while the electronics calibrate.
Two bars (- -) appear during this time.
Once calibration is complete a ROOM
humidity reading between 20% - 95% will
be displayed. A flashing 20 display
indicates that the room humidity is less
than 20%.
NOTE: The default settings at initial
startup are (LOW) F1 fan speed and 65%
SET humidity. After desired settings are
selected by the user, they remain as long
as the unit remains plugged in and there
is no power interruption. If the unit is
unplugged the original default settings
are employed.
* Humidifier fan should operate at initial start
up. If it does not, refer to, “Fan not operating
(digital display is illuminated)" in the “Trouble
Shooting” section on page 12 of this manual.
* and above
Function
Operating the Controls (cont’d.)
Speed Button Q
This humidifier is equipped with a 3speed fan control. Initially depressing the
speed button will display the current
speed setting. Each push of the speed
button advances the mode through the
settings of (HIGH) F3, (MEDIUM) F2,
(LOW) F1 and (AUTO) A.
The selected setting Is displayed on the
digital readout. The higher the setting, the
faster water is evaporated and released
into the air. F1 (LOW) is the quietest
setting and is provided for conditions that
do not require a rapid evaporation rate.
When (AUTO) A is selected the
humidifier will determine the required fan
speed needed to bring the actual room
humidity up to the set humidity.
Speed Button.
Humidity Control m
This button allows you to adjust the
humidity to suit your needs. This humidifier
will automatically cycle on and off as
required to maintain the selected setting.
The readout displays both actual (ROOM)
and desired (SET) humidity percentage
(%) settings when humidity control button
Is pressed. The ROOM readout has a
range of 20% to 95%. If the room humidity
level is equal to or less than 20% the
display will show a flashing 20.
The SET readout has a range of 25% to
65% and is adjusted in increments of 5%.
Initially depressing the humidity button
will display the current humidity setting.
Each additional press of the button
increases the setting by 5%. A SET point
of 65% operates the humidifier
continuously regardless of the ROOM
reading. The humldistat that senses the
readings is located on the power cord.
Insure that it is free from obstruction.
Humidity Button ,
Using Your Humidifier
Refill Display
For maximum run time both the bottle
and the base should be filled. When both
the bottle and the base empties the
display alternates the room humidity
reading and “F” (FILL), informing
additional water is required. Also at this
time the unit will automatically switch into
DRY OUT MODE and continue to run on
the lowest speed until the filter is dry.
Quiet Comfort
3CÌ
-*
----------------
Quiet Comfort
J
/
Refill/Dry Out Mode
Display
r
J
NOTE: During this time the room
humidity levei wiii continue to be
monitored and the humidifier will cycie
the fan on and off untii the fiiter is
compietely dry. The fan will shut off
leaving you with a dry humidifier that is
less prone to mold and mildew growth.
If DRY OUT MODE Is not desired, refill
the humidifier with water and the fan will
return to the set speed.
NOTE: Fan automatically switches to
lowest speed during DRY OUT MODE.
Check Filter Indicator
The ability of any humidifier to efficiently
supply humidity output relies heavily on the
condition of the filter. As the filter loads with
impurities it gradually loses its wicking
capability. When this happens, moisture
output is reduced and the humidifier has to
work longer to satisfy the selected setting.

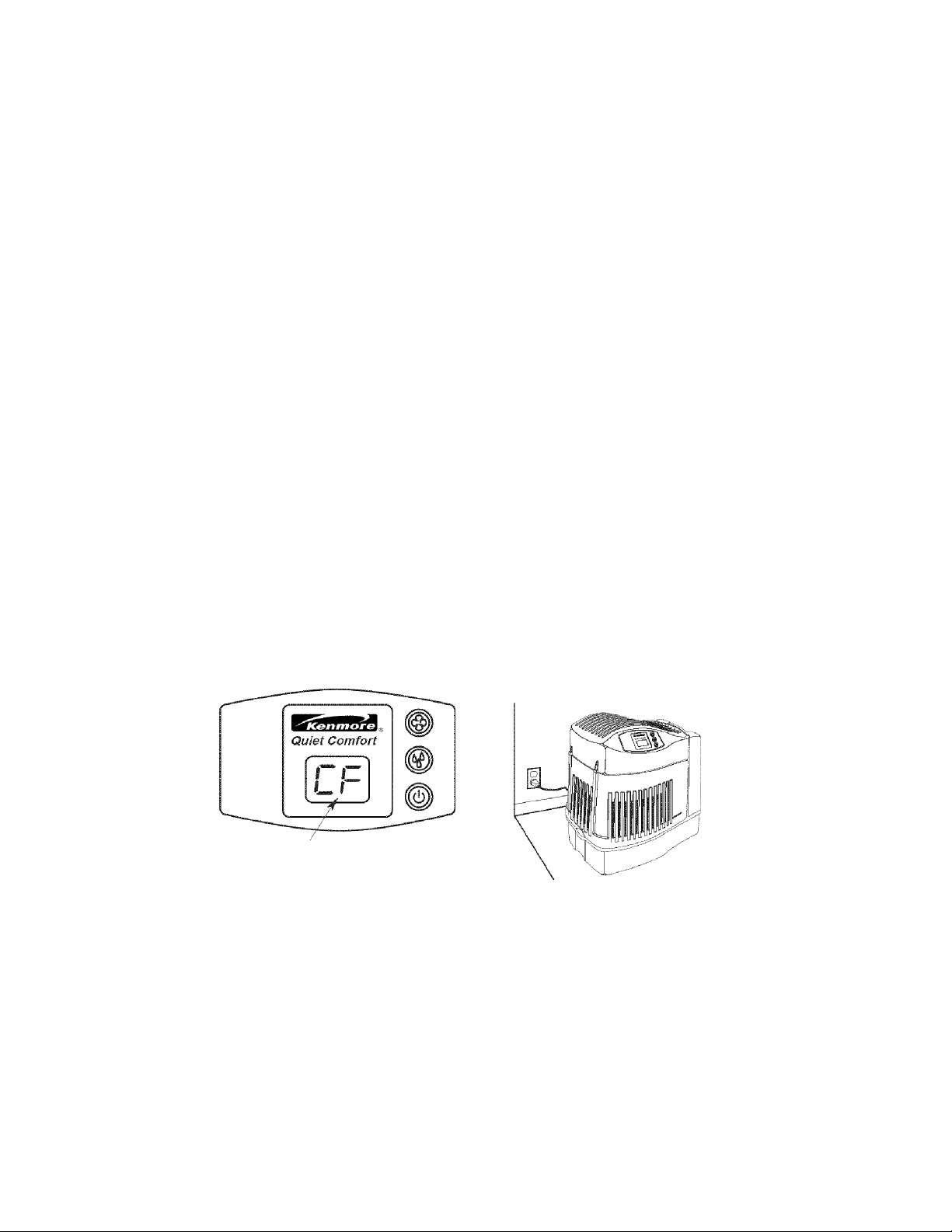

This humidifier has a check filter reminder
timed to appear after 720 hours of
operation. When the display shows an
alternating “CF” and “room humidity”
setting at 5 second intervals it is a
reminder to check the filter condition.
NOTE: Some areas have high water
mineral content causing the need for more
frequent filter changes.
Refer to “Replacement and Care of Filter”
on page 10. if a build-up of deposits or
severe discoloration is evident replace the
filter to restore maximum efficiency.
Humidistat
The humidistat located on the power cord
senses the percentage of humidity in the
air. It causes the humidifier to cycie on
and off to maintain the selected humidity
SET point. The fan will turn on if the
“ROOM” reading falls 3% below the SET
point and will continue to run the
humidifier until a reading of 1% above the
SET point is achieved. The fan will turn
off until the ROOM reading falls 3%
below the SET point again.
Control Lock Out
To avoid unwanted tampering with the
humidifier settings the controls can be
locked.
Activation Procedure
After the humidifier functions have been
set up, hold the power button down for 5
seconds. The display will show “CL” for
2 seconds; release the power button and
the control will resume the display of the
room humidity. The room humidifier will
continue to function with the locked in
settings. If buttons are operated whiie
“CL” is active, the “CL” is displayed and
settings are unaffected.
Deactivation Procedure
To deactivate the “CL” function simply
press and hold the power button for 5
seconds. “CL” will flash at the rate of
1 second on and 1 second off for a
period of 2 seconds and then resume the
display of room humidity.
Check Filter^
Display
Quiet Comfort
rc
u r
___
NOTE: Be sure humidistat located
approximately 4 inches outside humidifier
body on power cord is free from
obstruction and away from any hot air
register.
Replacement and Care of Filter
WARNING: To reduce the risk of
shock or injury from moving parts,
always unplug humidifier before
removing or replacing any parts.
CAUTION: To help retard bacteria
growth and keep maximum efficiency,
the filter should be replaced at least
once per season, or more often
under hard water conditions. Use
Kenmore 32-15508 recommended
replacement filter.
Replace the evaporative wicking filter at
least once per humidification season or
more depending on water conditions in
your area.
Filter Replacement
1. Unplug humidifier. Before removing
the filter, we recommend moving the
humidifier to an area where floor
coverings are not susceptible to water
damage, (i.e. kitchen or bath areas.)
2. Remove the water bottle and set aside.
Be sure not to bump or damage the fill
valve.

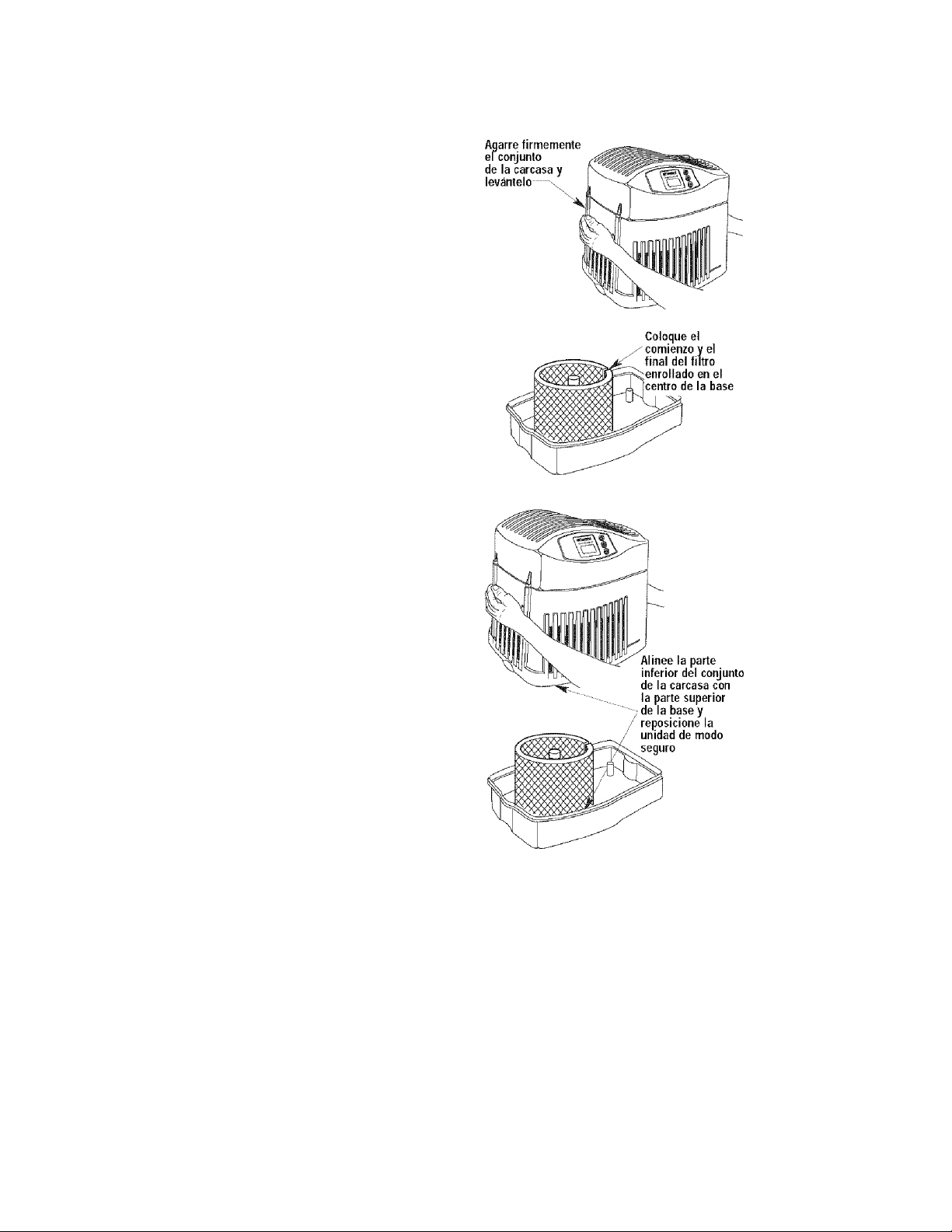

3. Grasp the housing assembly and lift
straight up and away from the base
and set aside. The filter is now
accessible.
4. Take note of the filter position.
Remove the filter. You may want to
clean the base at this time. See the
"Cleaning Your Humidifier" section of
this manual.

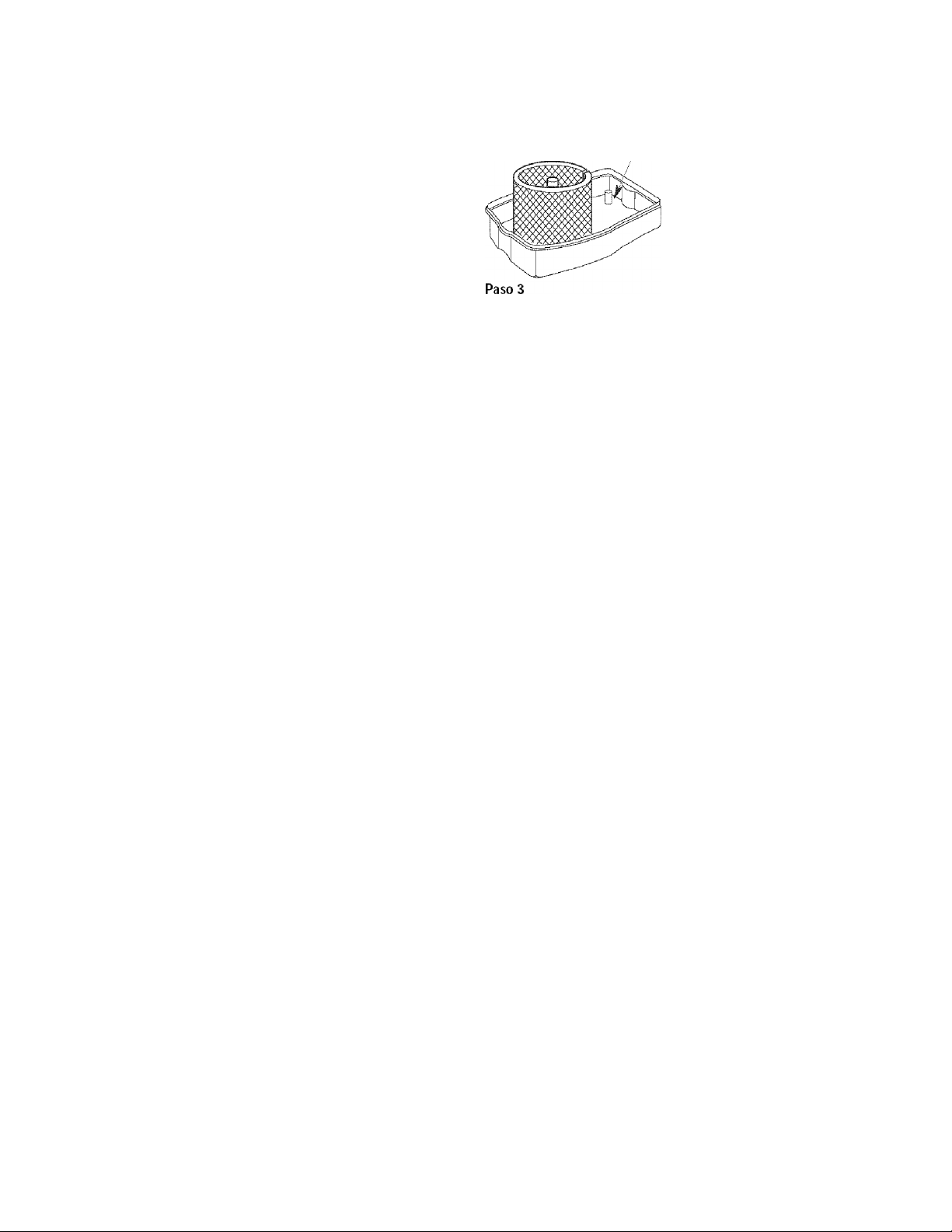

5. Install a new filter (32-15508) into the
base. Coil the filter and position it
between the uprights in the bottom of
the base. The start and finish of the
coil should be captured at the center
of the base (see diagram) and the
filter should be resting on the floor of
the base.
6. Return the housing assembly to the
top of the base. Reposition the
humidifier to its operating position.
7. The humidifier is now ready to be filled
for operation.
Grasp housing
10
Loading...
