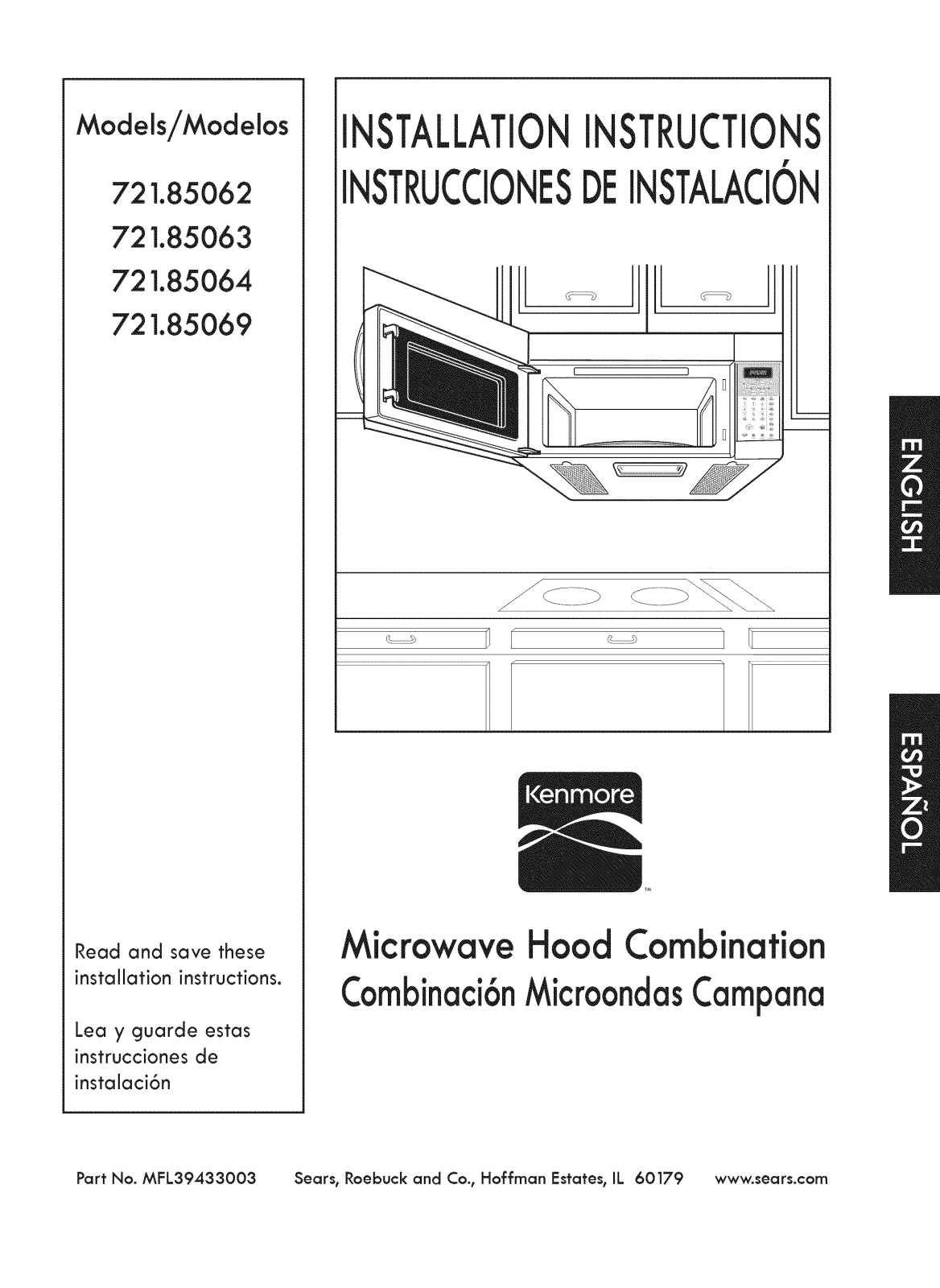

Kenmore 72185069010, 72185063010, 72185064010, 72185062010 Installation Guide

Models/Modelos

iNSTALLATiON

iNSTRUCTiONS

!

721.85062

721.85063

721.85064

721.85069

iNSTRUCCIONES

i
i

DEINSTALACION

Read and save these
installation instructions,

Microwave Hood Combination
Combinaci6nMicroondasCampana

Lea y guarde estas
instrucciones de

instalaci6n

Part No. MFL39433003 Sears, Roebuck and Co., Hoffman Estates,IL 60179 www.sears.com

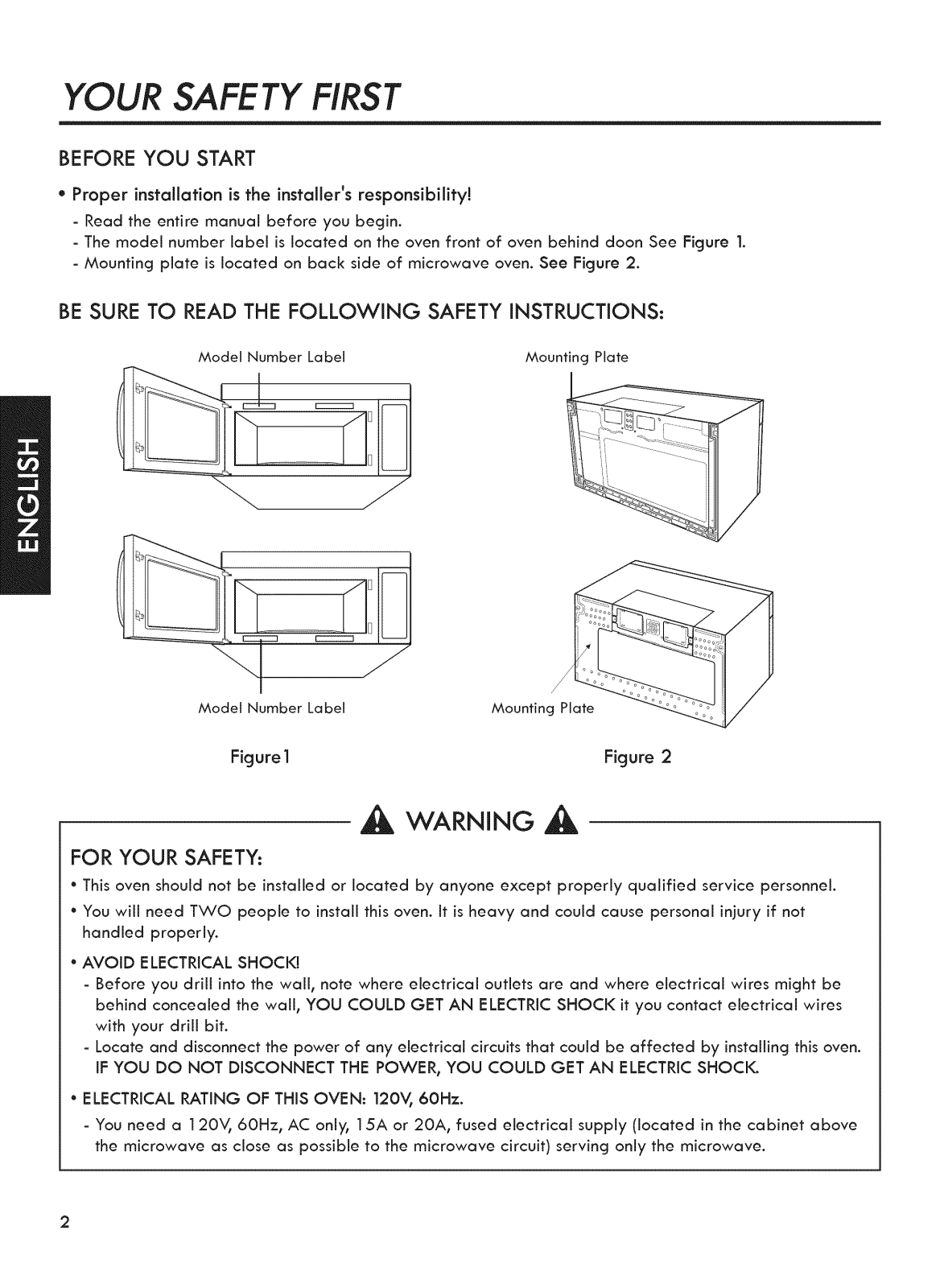

YOUR SAFETY FIRST

BEFORE YOU START

* Proper installation is the instailer's responsibility!

- Read the entire manual before you begin.

- The model number label is located on the oven front of oven behind doon See Figure 1.

- Mounting plate is located on back side of microwave oven. See Figure 2.

BE SURE TO READ THE FOLLOWING SAFETY iNSTRUCTiONS:

Model Number Label

Model Number Label

Figure1

Mounting Hate

Mountin

Figure 2

WARNING

FOR YOUR SAFETY:

• This oven should not be installed or located by anyone except properly qualified service personnel.

• You will need TWO people to install this oven. It is heavy and could cause personal injury if not
handled properly.

• AVOID ELECTRICAL SHOCK!

- Before you drill into the wail, note where electrical outlets are and where electrical wires might be
behind concealed the wall, YOU COULD GET AN ELECTRIC SHOCK it you contact electrical wires

with your drill bit.

- Locate and disconnect the power of any electrical circuits that could be affected by installing this oven.
IF YOU DO NOT DISCONNECT THE POWER, YOU COULD GET AN ELECTRIC SHOCK.

• ELECTRICAL RATING OF THIS OVEN: 120V, 60Hz.

- You need a 120% 60Hz, AC only, 15A or 20A, fused electrical supply (located in the cabinet above

the microwave as close as possible to the microwave circuit) serving only the microwave.

YOUR SAFETY FIRST

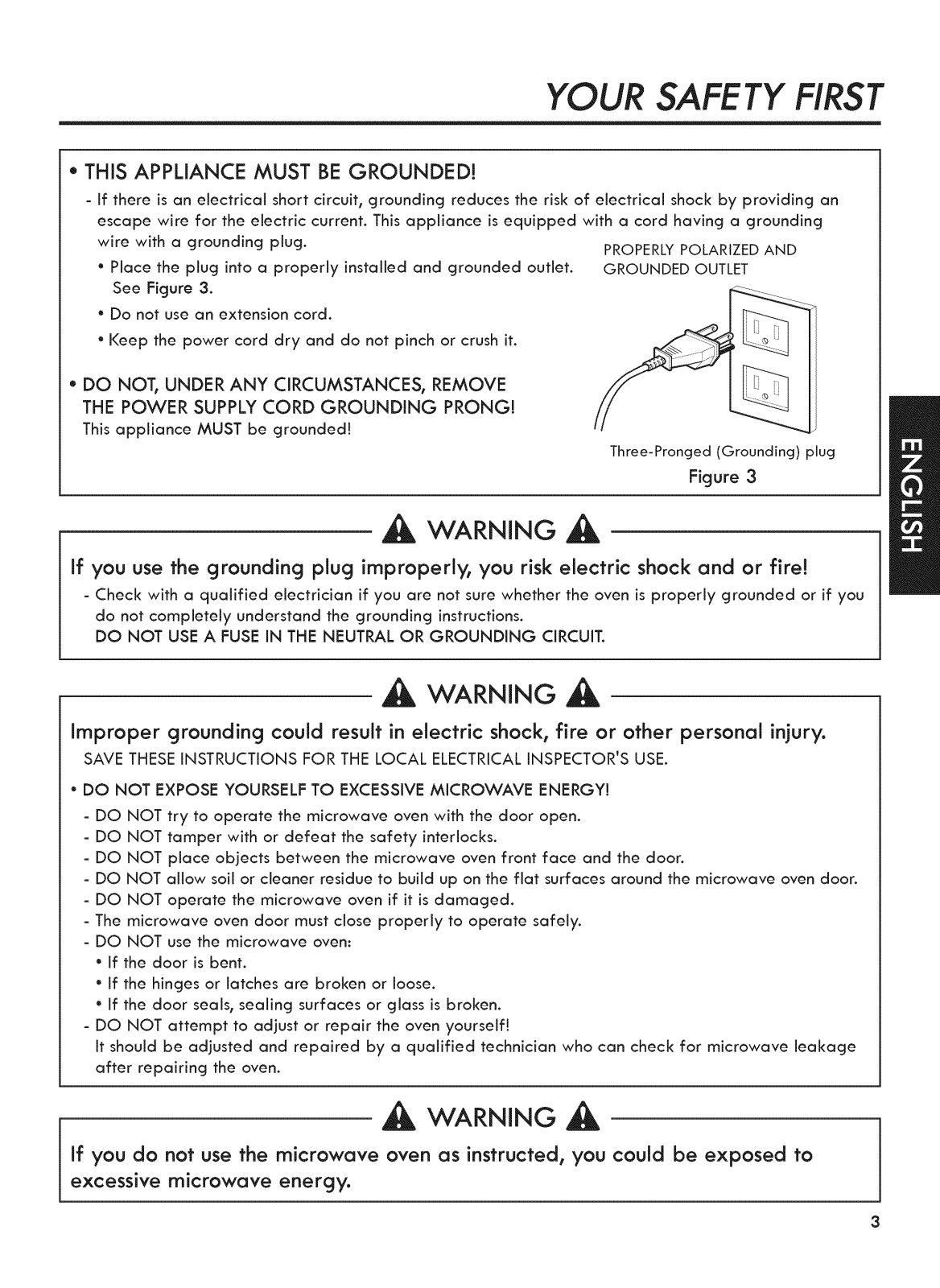

• THIS APPLIANCE MUST BE GROUNDED!

- if there is an electrical short circuit, grounding reduces the risk of electrical shock by providing an
escape wire for the electric current. This appliance is equipped with a cord having a grounding

wire with a grounding plug. PROPERLYPOLARIZED AND

• Place the plug into a properly installed and grounded outlet. GROUNDED OUTLET

See Figure 3.

• Do not use an extension cord.

• Keep the power cord dry and do not pinch or crush it.

* DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE

THE POWER SUPPLY CORD GROUNDING PRONG!
This appliance MUST be grounded!

Three-Pronged (Grounding) plug

Figure 3

WARNING

Jf you use the grounding plug improperly, you risk electric shock and or fire!

- Check with a qualified electrician if you are not sure whether the oven is properly grounded or if you
do not completely understand the grounding instructions.

DO NOT USE A FUSE IN THE NEUTRAL OR GROUNDING CIRCUIT.

WARNING

improper grounding could result in electric shock, fire or other personal injury,

SAVE THESE INSTRUCTIONS FOR THE LOCAL ELECTRICAL INSPECTOR'S USE.

* DO NOT EXPOSE YOURSELF TO EXCESSIVE MICROWAVE ENERGY!

- DO NOT try to operate the microwave oven with the door open.

- DO NOT tamper with or defeat the safety interlocks.

- DO NOT place objects between the microwave oven front face and the door.

- DO NOT allow soil or cleaner residue to build up on the flat surfaces around the microwave oven door.

- DO NOT operate the microwave oven if it is damaged.

- The microwave oven door must close properly to operate safely.

- DO NOT use the microwave oven:

* If the door is bent.
* If the hinges or latches are broken or loose.

* If the door seals, sealing surfaces or glass is broken.

- DO NOT attempt to adjust or repair the oven yourself!

It should be adjusted and repaired by a qualified technician who can check for microwave leakage

after repairing the oven.

WARNING

If you do not use the microwave oven as instructed, you could be exposed to

excessive microwave energy.

YOUR SAFETY FIRST

• MAKE SURE YOU HAVE ENOUGH SPACE AND SUPPORT.

- Mount the oven against a flat, vertical wail, so that it is supported by the wail. The wall should be

constructed of minimum 2" x 4" wood studding and 3/8" thick drywall or piaster/lath.

- ATTACH AT LEAST ONE of the two lag screws supporting the oven to a vertical, 2" x 4" wail stud.

- DO NOT mount the microwave oven to an island or peninsula cabinet.

- BESURE the upper cabinet and rear wail structures are able to support 150 Ibs., plus the weight of

any items you place inside the oven or upper cabinet.

- Locate the oven away from strong draft areas, such as windows, doors, and strong heating vents.

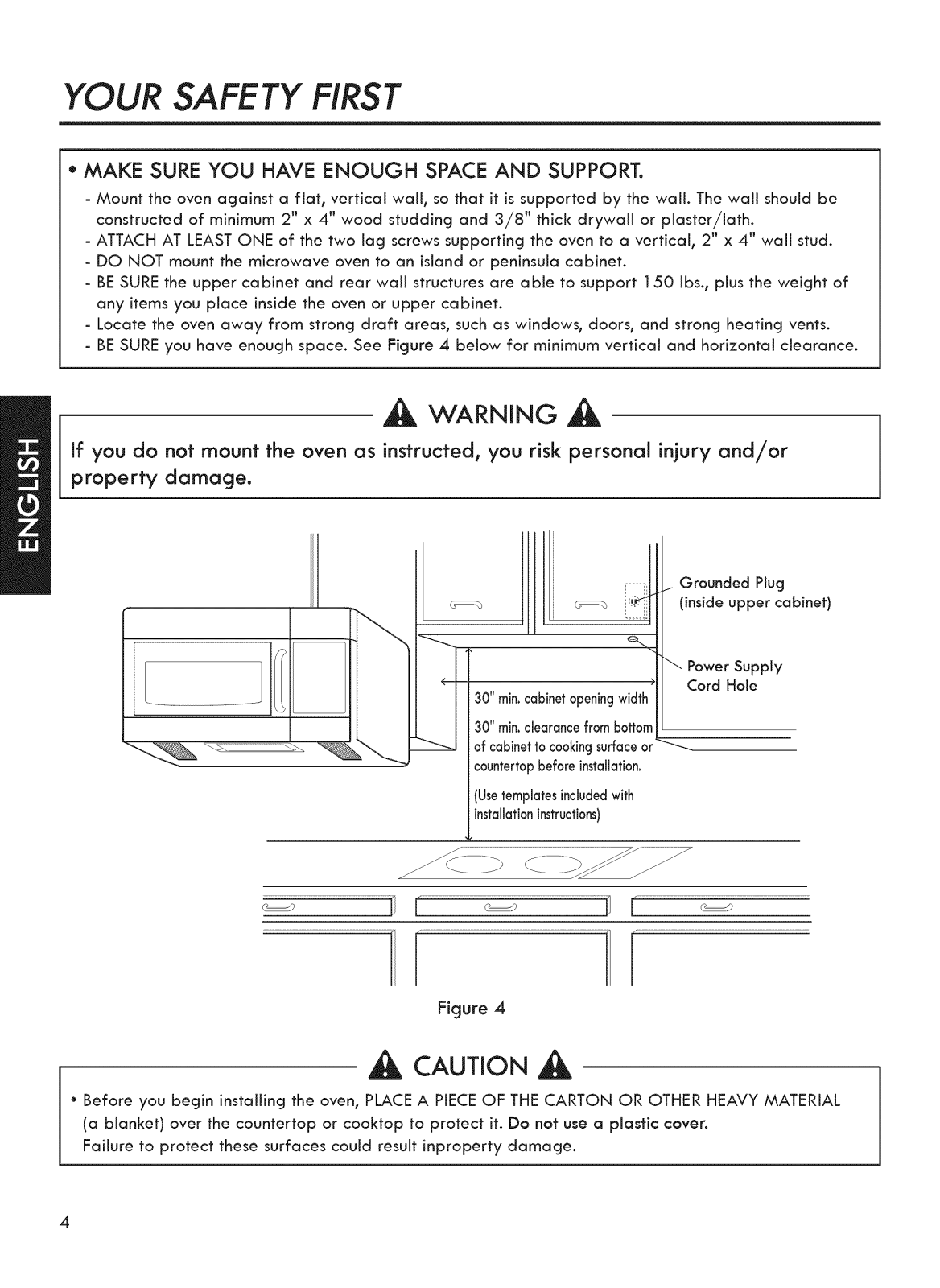

- BESURE you have enough space. See Figure 4 below for minimum vertical and horizontal clearance.

WARNING

if you do not mount the oven as instructed, you risk personal injury and/or

property damage.

i__ Grounded Plug

G_ i:_J (inside upper cabinet)

I _ Power Supply

i CordHo,e

30"rain.cabinetopening __
30 ram.clearancefrom" " bottom

of cabinetto cookingsurfaceor
countertopbeforeinstallation.

(Usetemplatesincludedwith

installationinstructions)

Figure 4

width

CAUTION

* Before you begin installing the oven, PLACE A PIECE OF THE CARTON OR OTHER HEAVY MATERIAL

(a blanket) over the countertop or cooktop to protect it. Do not use a plastic cover.

Failure to protect these surfaces could result inproperty damage.

4

PARTS, TOOLS, MATERIALS

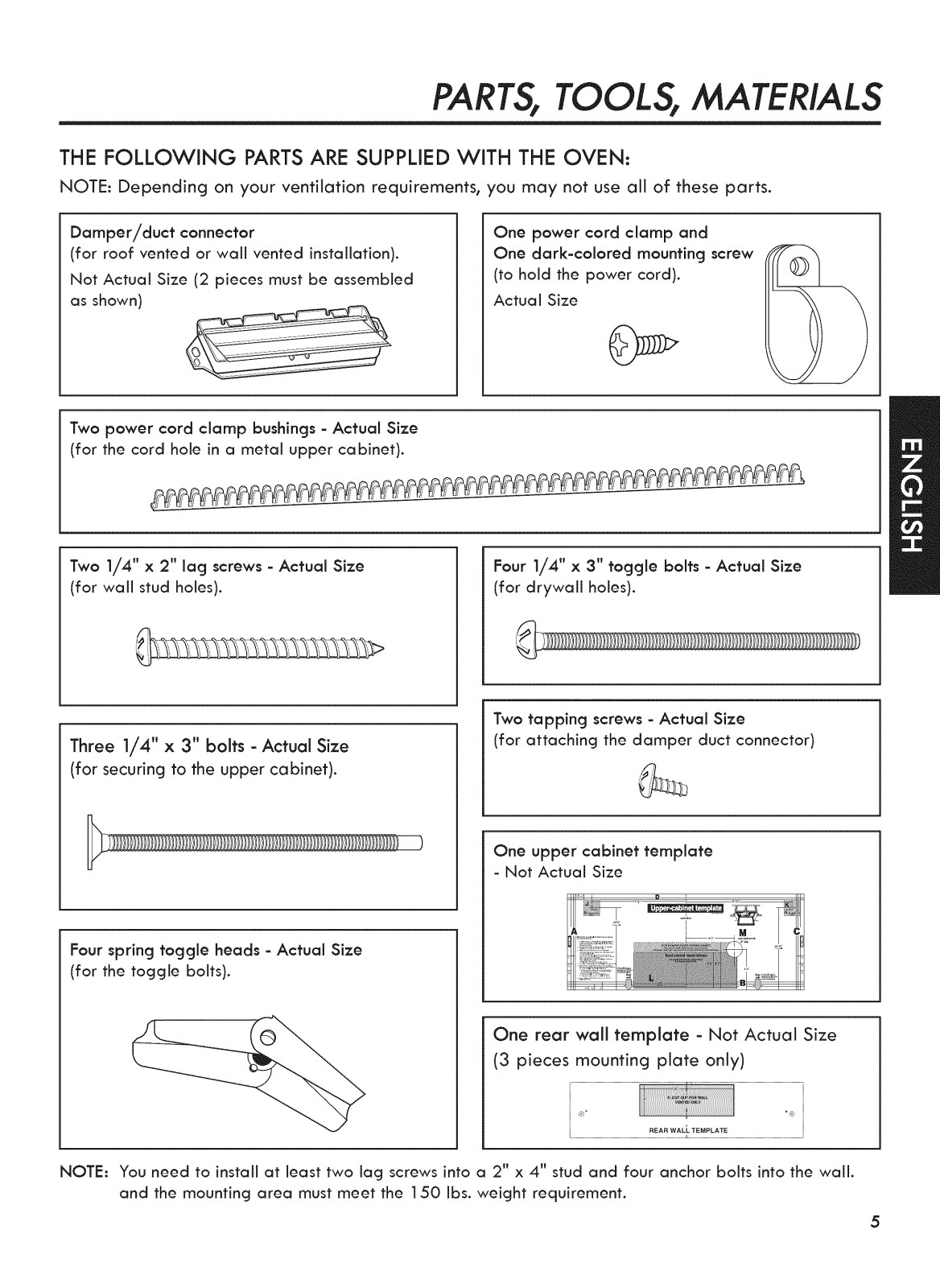

THE FOLLOWING PARTS ARE SUPPLIED WiTH THE OVEN:

NOTE: Depending on your ventilation requirements, you may not use all of these parts.

Damper/duct connector
(for roof vented or wall vented installation).

Not Actual Size (2 pieces must be assembled
as shown)

Two power cord clamp bushings - Actual Size
(for the cord hole in a metal upper cabinet).

Two 1/4" x 2" lag screws - Actual Size
(for wall stud holes).

Three 1/4" x 3" bolts - Actual Size
(for securing to the upper cabinet).

One power cord clamp and
One dark-colored mounting screw

(to hold the power cord).

Actual Size

Four 1//4'' x 3" toggle bolts - Actual Size
(for drywall holes).

Two tapping screws - Actual Size

(for attaching the damper duct connector)

One upper cabinet template

- Not Actual Size

Four spring toggle heads - Actual Size
(for the toggle bolts).

One rear wall template - Not Actual Size

(3 pieces mounting plate only)

i

NOTE: You need to instaJJ at Jeast two Jag screws into a 2" x 4" stud and four anchor boJts into the wail

and the mounting area must meet the 150 Jbs. weight requirement.

5

PARTS, TOOLS, MATERIALS

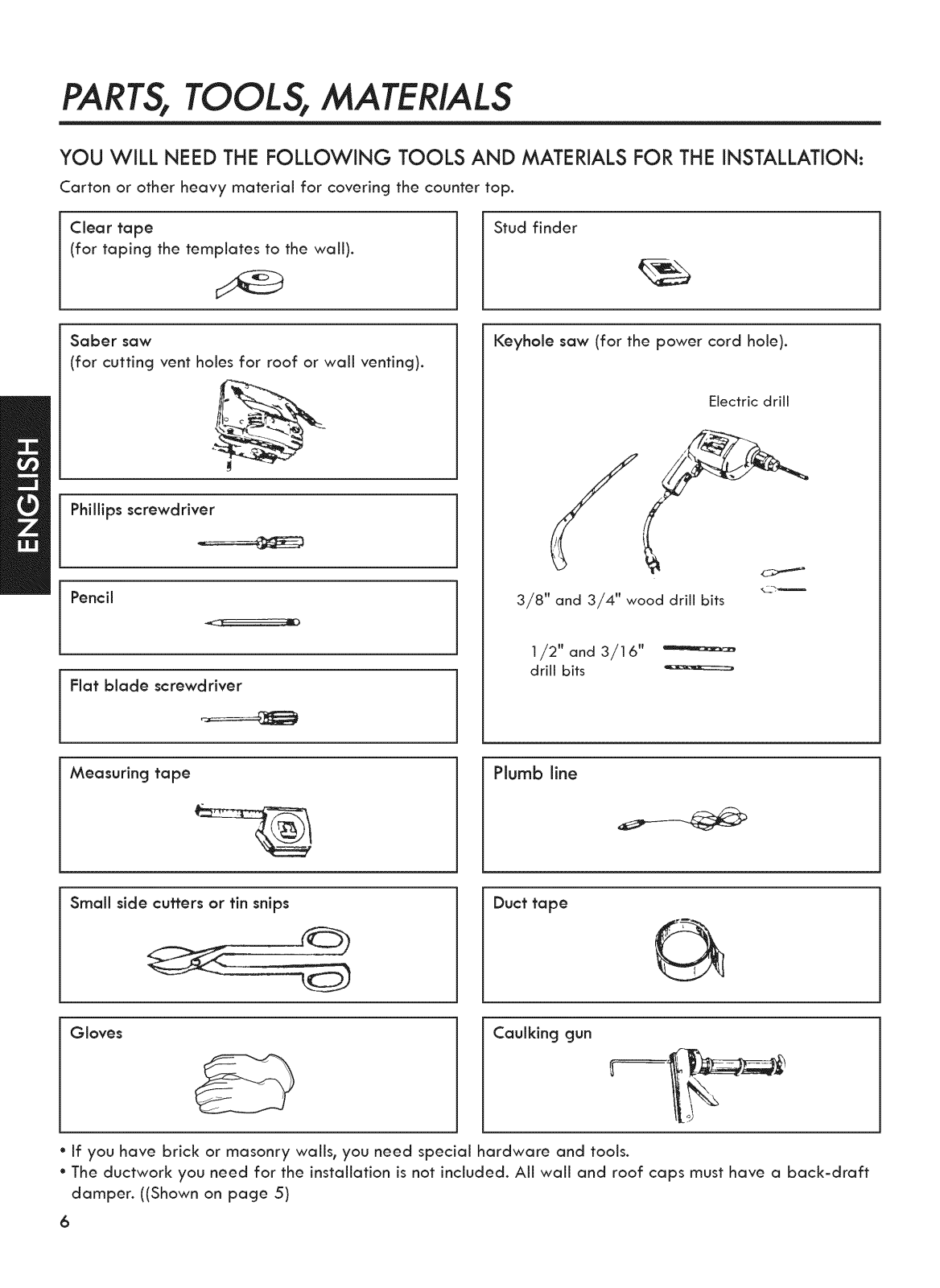

YOU WILL NEED THE FOLLOWING TOOLS AND MATERIALS FOR THE INSTALLATION:

Carton or other heavy material for covering the counter top.

Clear tape Stud finder
(for taping the templates to the wail).

Saber saw
(for cutting vent holes for roof or wail venting).

Phillips screwdriver

Pencil

Fiat blade screwdriver

Measuring tape

Keyhole saw (for the power cord hole).

Electric drill

3/8" and 3/4" wood drill bits

]/2" and 3/1 6"

drill bits

Plumb line

Small side cutters or tin snips Duct tape

Gloves

• If you have brick or masonry wails, you need special hardware and tools.

• The ductwork you need for the installation is not included. Aii wail and roof caps must have a back-draft

damper. ((Shown on page 5)

6

Caulking gun
