Kenmore 721.63669, 721.63663, 721.63664, 721.63662 Owner's Manual

_E L ! T E_/o

ULTRA WAVETMMicrowave Hood

Combination

Use & Care Guide

Combinacibn Microondas Campana

de ULTRA WAVET.

Gu_a de uso y cuidado

Models/Modelos

\

721.63662 / 721.63663

721.63664 / 721.63669

I

I

3828W5A2894 Sears, Roebuck and Co., Hoffman Estates, IL 60179 www.sears.com

Table of

Microwave Hood

Contents

Warranty ........................................................... 2

Sears Service .................................................. 3

Microwave Oven Safety .................................. 4

Getting to Know Your

Microwave Oven .............................................. 7

How your kenmore ULTRA WAVE TM

microwave hood combination works ............... 7

Radio interference .......................................... 7

Testing your microwave oven ......................... 8

Testing your dinnerware or cookware ............ 8

Operating safety precautions .......................... 8

Electrical connection ...................................... 8

Microwave oven features ............................... 9

Control panel features ................................... 10

Using Your Microwave Oven ....................... 12

Audible Signals ............................................. 12

Interrupting Cooking ...................................... 12

Clock ............................................................. 12

Child Lock ..................................................... 12

Timer ............................................................. 13

Cooktop Light ................................................ 14

Exhaust Fan .................................................. 14

Add Minute .................................................... 14

Timed Cooking .............................................. 15

Multi-stage Cooking ...................................... 15

Microwave Power Levels .............................. 16

Auto Defrost .................................................. 17

Auto defrost table .......................................... 18

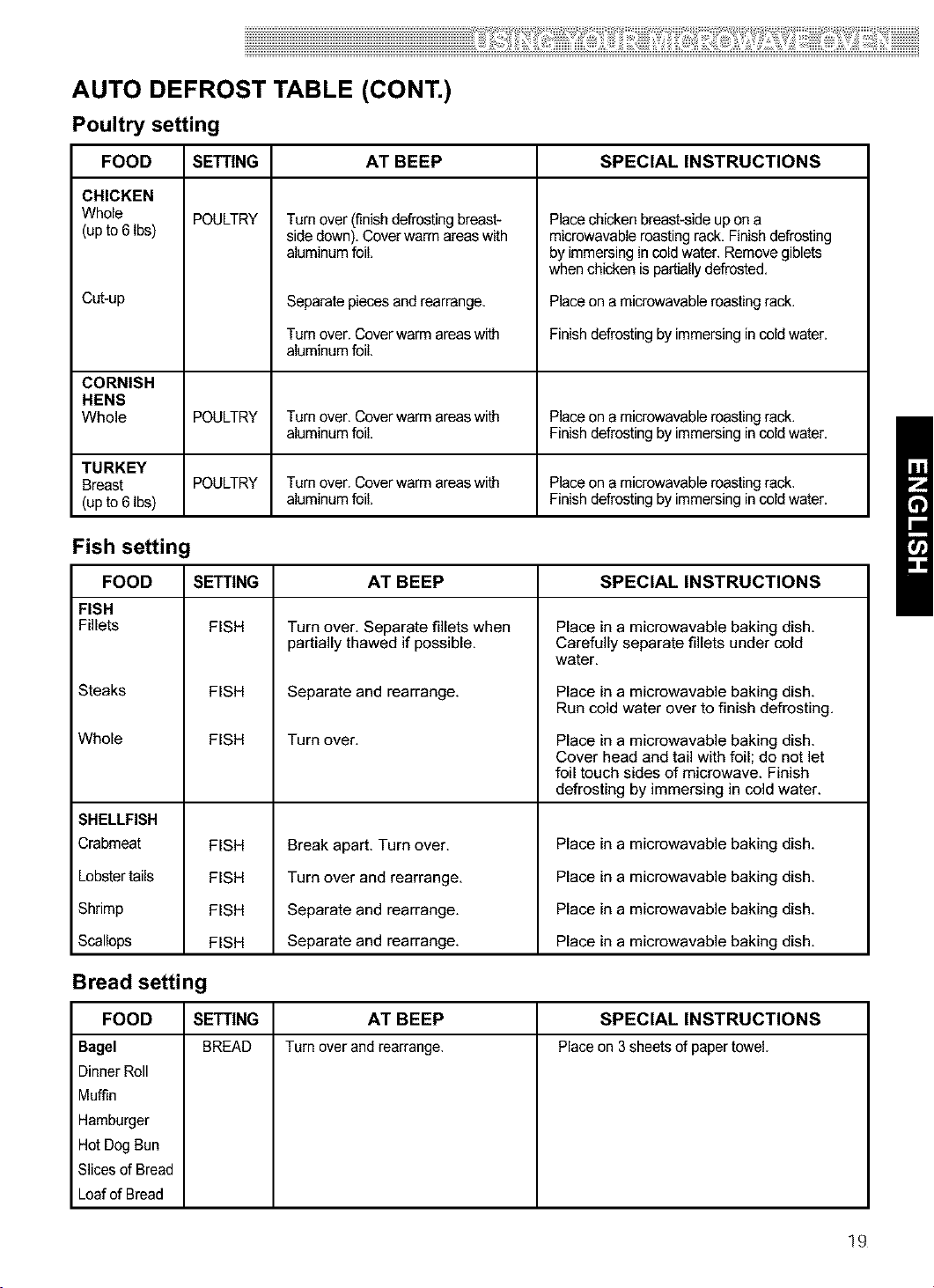

Auto defrost table (Cont.) .............................. 19

Defrosting tips .............................................. 20

Hold Warm .................................................... 20

Sure Simmer ................................................. 21

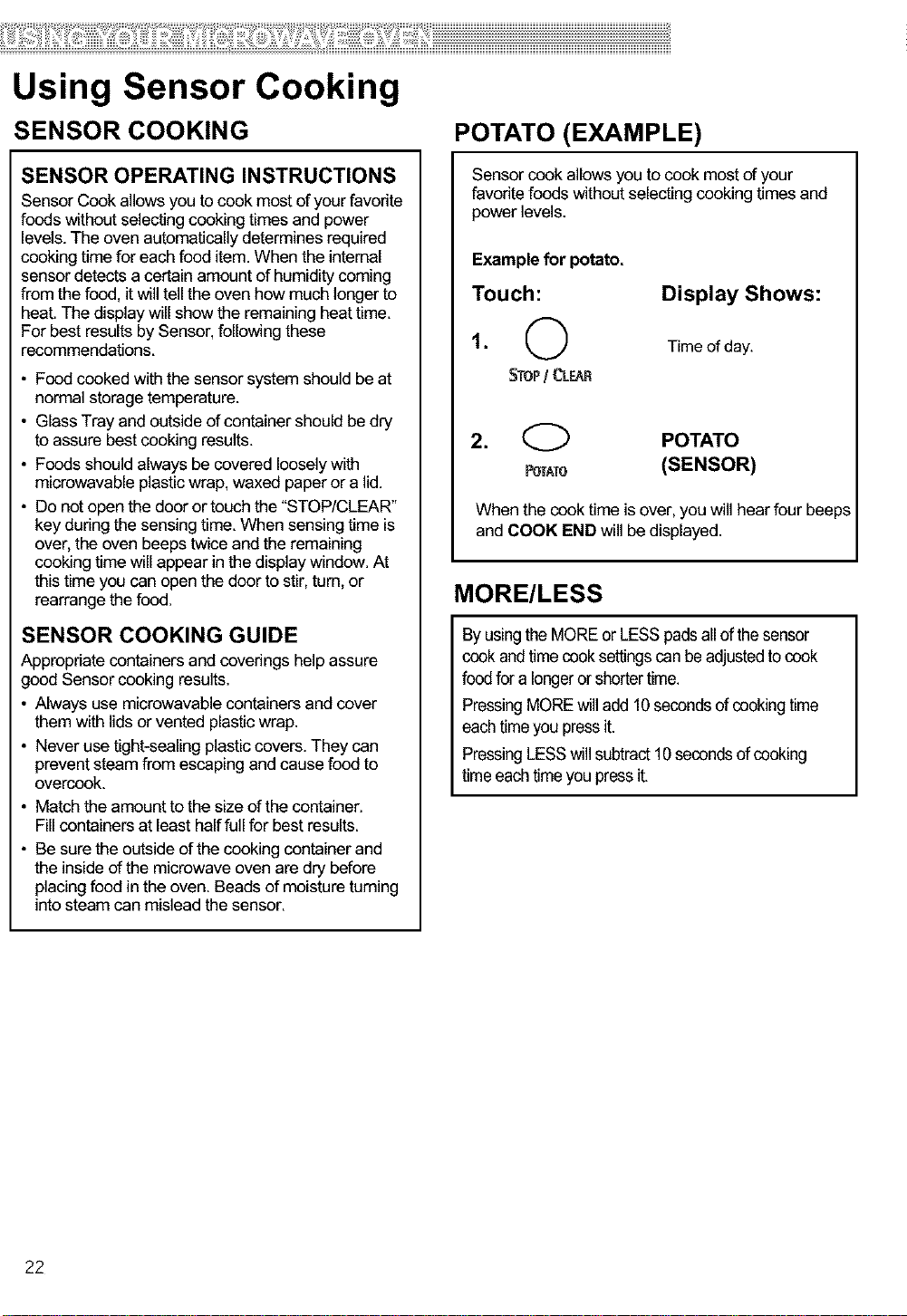

Using Sensor Cooking .................................. 22

Sensor Cooking ............................................ 22

Potato (Example) .......................................... 22

More/Less ..................................................... 22

Sensor Cooking Table .................................. 23

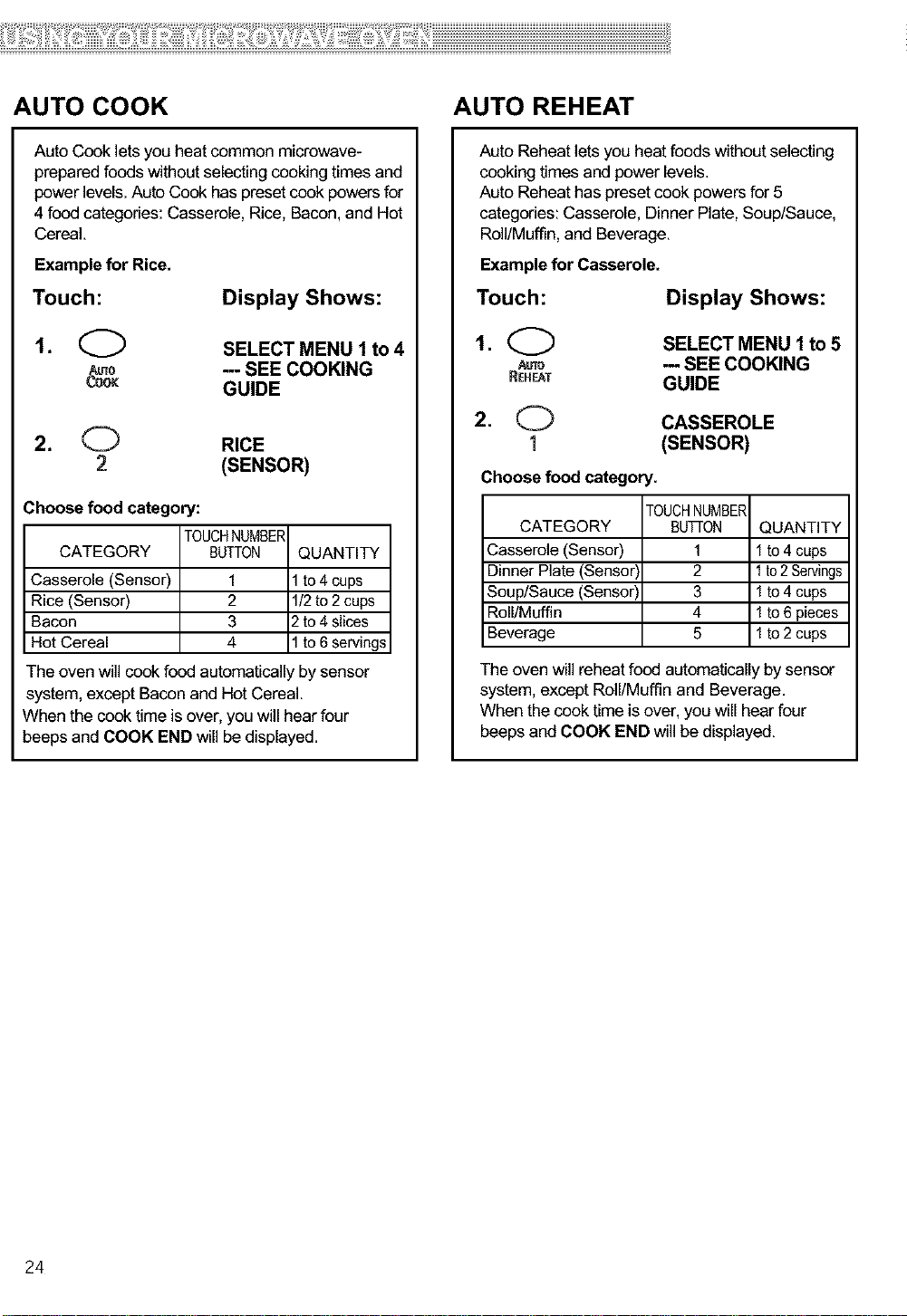

Auto Cook, Auto Reheat ............................... 24

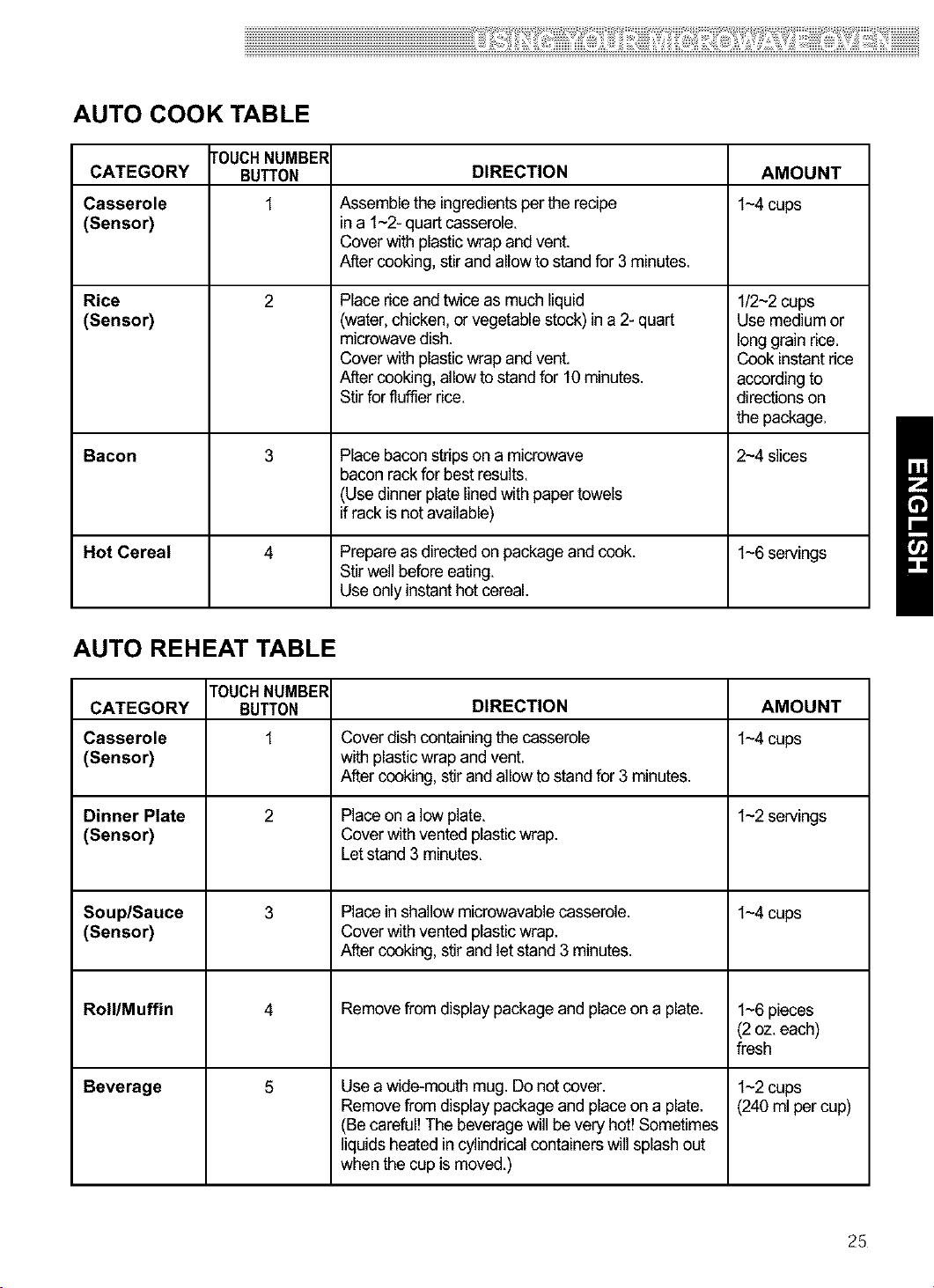

Auto Cook Table, Auto Reheat Table ........... 25

Soften, Soften Table ..................................... 26

Melt, Melt Table ............................................ 26

Caring for Your Microwave Oven ................. 27

Caring for the filters ....................................... 28

Replacing the cooktop and oven lights .........29

Microwave Cooking Tips ............................... 31

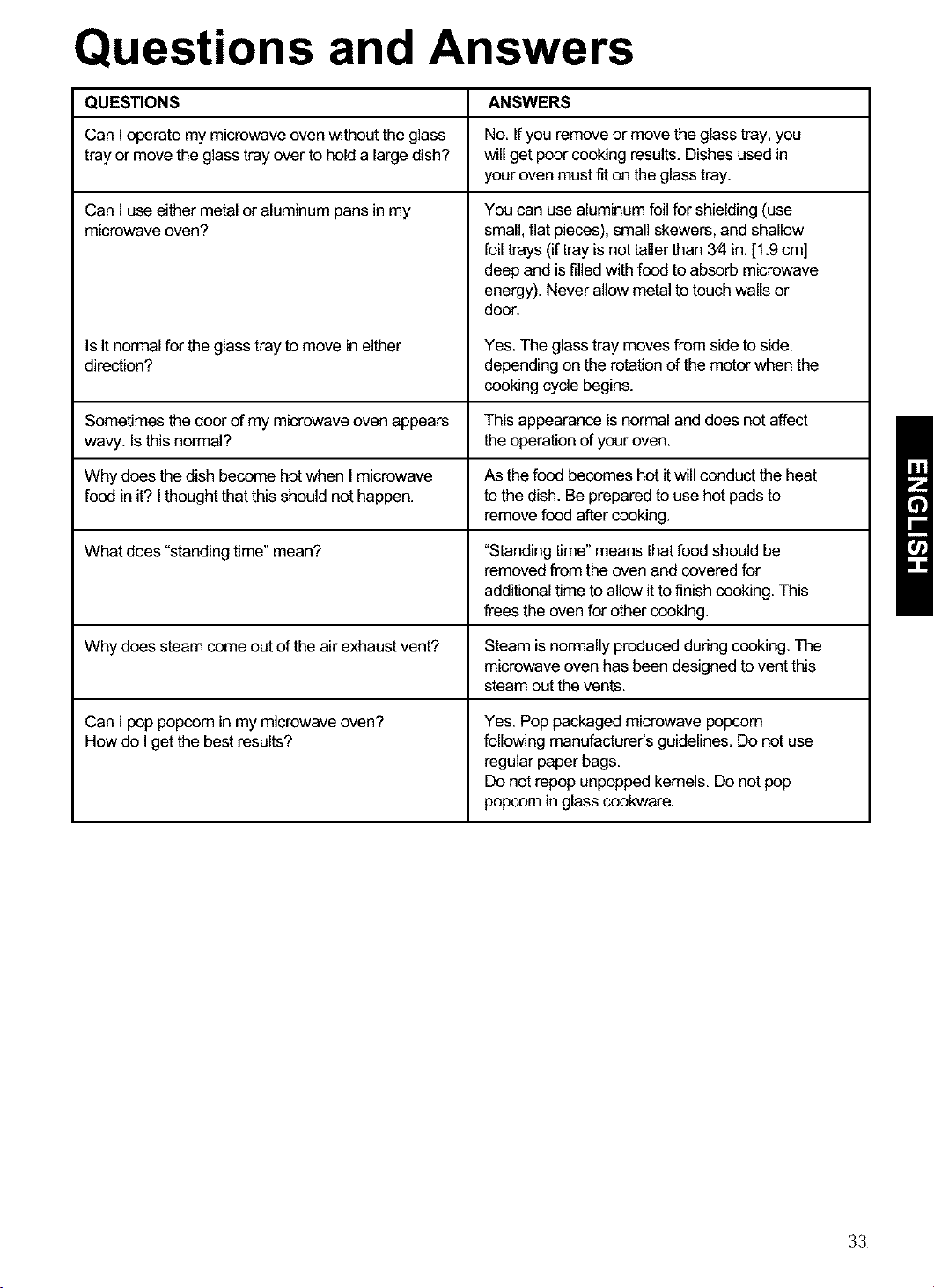

Questions and Answers ................................ 33

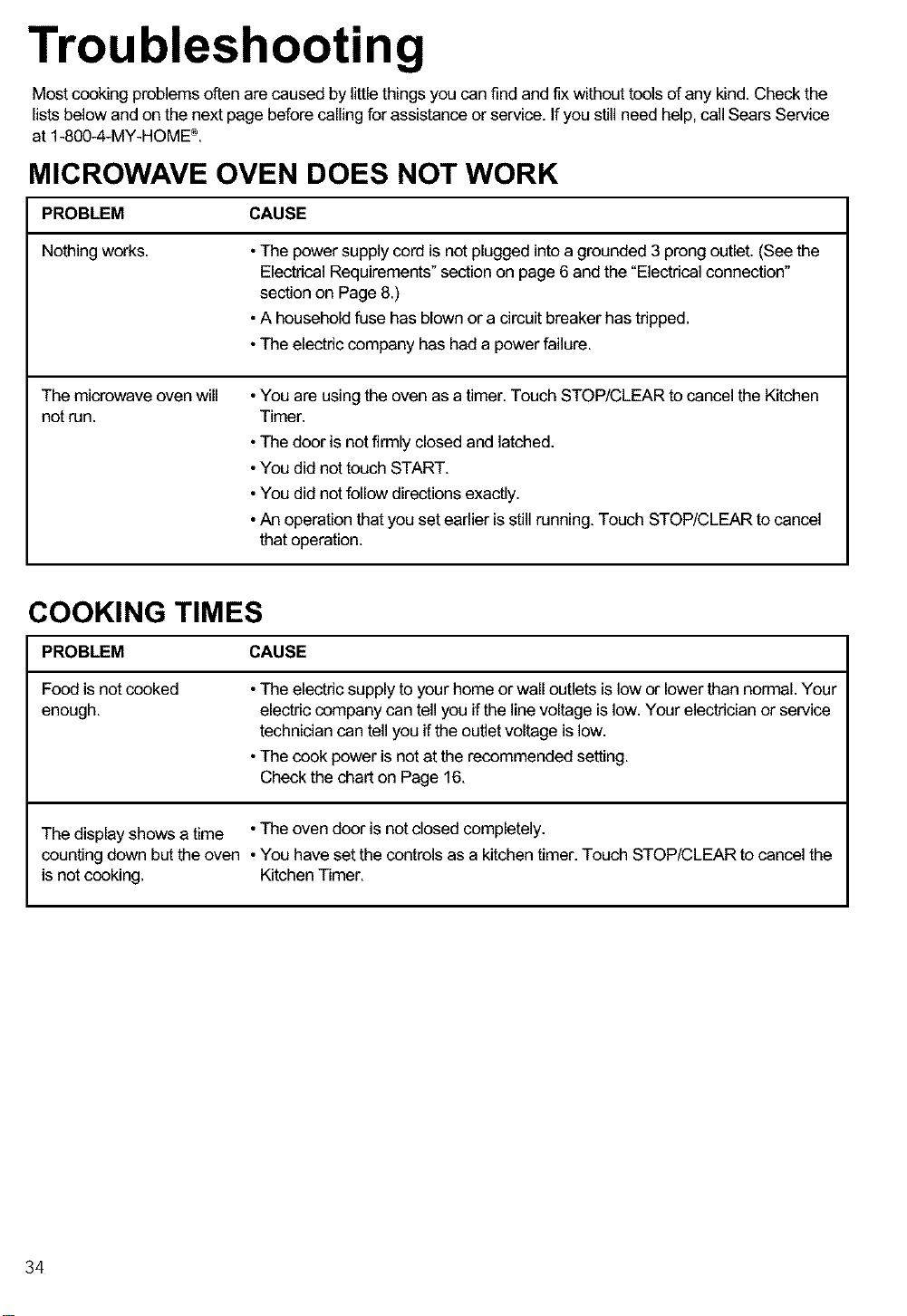

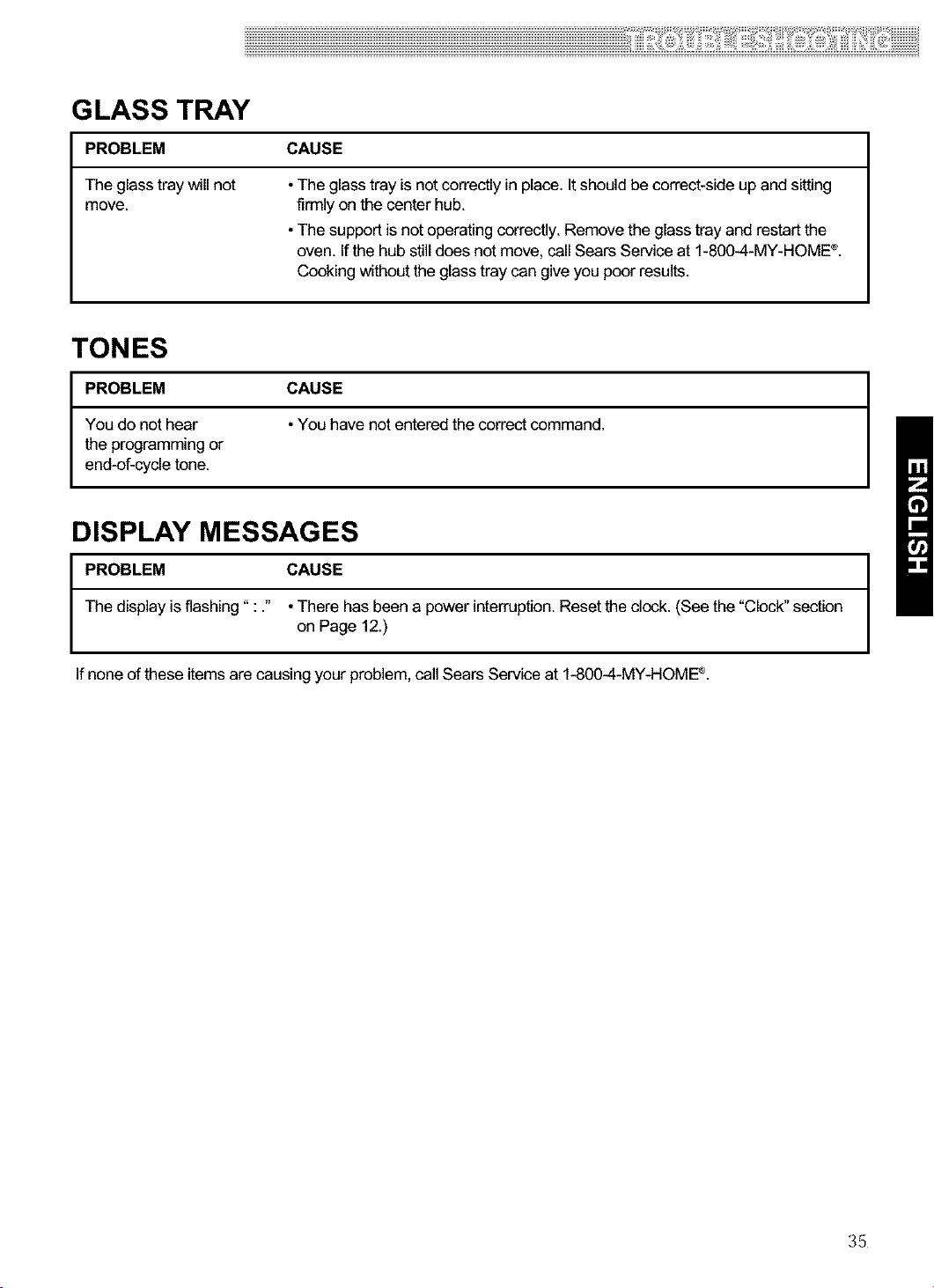

Troubleshooting ............................................. 34

Service ............................................. Back cover

2

Combination

Warranty

FULL ONE-YEAR WARRANTY ON
MICROWAVE HOOD COMBINATION

For one year from the date of purchase, if this
Kenmore Microwave Hood Combination fails due to

a defect in material or workmanship,Sears will
repair itfree of charge.

FULL FIVE-YEAR WARRANTY ON THE
MAGNETRON

For five years from the date ofpurchase, if the

magnetron in this Kenmore Microwave Hood
Combination fails due to a defect in material or

workmanship, Sears will repair itfree of charge.
The above warranty coverage applies only to

Microwave Hood Combinations which are used for
private household purposes.

WARRANTY SERVICE IS AVAILABLE BY
SIMPLY CONTACTING SEARS SERVICE AT
1-800-4-MY-HOME _

This warranty applies only while this product is in
use in the United States.

This warranty gives you specific legal rights, and
you may also have other rights which vary from

state to state.

Sears, Roebuck and Co.,
Dept. 817WA,

Hoffman Estates, IL 60179
For service call:

1-800-4-MY-HOME _
(1-800-469-4663)

Please record your model's information.

Whenever you call to request service for your
appliance, you need to know your complete model

number and serial number. You can find this
informationon the model and serial number
label/plate at the upper side of cavity front inyour

Microwave oven. Also, record the other information
shown below.

Model Number
Serial Number

Purchase Date

Sears Service

Master Protection Agreements

Congratulations on making a smart purchase.

Your new Kenmore ®product is designed and manufactured for years of dependable operation.

But like all products, it may require preventive maintenance or repair from time to time.

That's when having a Master Protection Agreement can save you money and aggravation.

Purchase a Master Protection Agreement now and protect yourself from unexpected hassle
and expense.

The Master Protection Agreement also helps extend the life of your new product. Here's
what's included in the Agreement:

Expert service by our 12,000 professional repair specialists

[_ Unlimited service and no charge for parts and labor on all covered repairs

"No-lemon" guarantee - replacement of your covered product if four or more product failures
occur within twelve months

Product replacement if your covered product can't be fixed

[_ Annual Preventive Maintenance Check at your request- no extra charge

Fast help by phone - phone support from a Sears technician on products requiring in-home
repair, plus convenient repair scheduling

[_ Power surge protection against electrical damage due to power fluctuations
[_ Rental reimbursement if repair of your covered product takes longer than promised

Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service.
You can call anytime day or night, or schedule a service appointment online.

Sears has over 12,000 professional repair specialists, who have access to over 4.5 million quality
parts and accessories. That's the kind of professionalism you can count on to help prolong the life of
your new purchase for years to come. Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and additional information call 1-800-827-

6655.
Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water heaters, and
other major home items, in the U.S.A. call

1-800-4-MY-HOME ®

Microwave Oven Safety

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance.
Always read and obey all safety messages.

This is the safety alert symbol.
This symbol alerts you to hazards that can kilt or hurt you and others.

All safety messages will be preceded by the safety alert symbol and the word
"DANGER" or "WARNING." These words mean:

You will be killed or seriously injured

if you don't follow immediately instructions.

You can be killed or seriously injured

if you don't follow instructions.

Atl safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell
you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances basic safety precautions should be followed, including the

following:

WARNING: To reduce the risk of burns,

electric shock, fire, injury to persons, or
exposure to excessive microwave energy:

• Read all instructions before using the

microwave oven.

• Read and follow the specific

"PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY" found in this section.

• The microwave oven must be grounded.

Connect only to properly grounded outlet.
See "GROUNDING INSTRUCTIONS" found

at the end of this section.

• Install or locate the microwave oven only in

accordance with the provided installation
instructions.

Some products such as whole eggs in the
shell and sealed containers - for example,
closed glass jars - are able to explode and

should not be heated in the microwave oven.

• Use the microwave oven only for its intended
use as described in this manual. Do not use

corrosive chemicals or vapors in the
microwave oven. This type of oven is
specifically designed to heat, cook, or dry
food. It is not designed for industrial or
laboratory use.

• As with any appliance, close supervision is
necessary when used by children.

• Do not operate the microwave oven if it has
a damaged cord or plug, if it is not working
propedy, or if it has been damaged or
dropped.

SAVE THESEINSTRUCTIONS

4

IMPORTANT SAFETY INSTRUCTIONS

• Themicrowaveoven shouldbeservicedonlyby

qualifiedservicepersonnel.Callanauthorized
servicecompanyfor examination,repair,or
adjustment.

•Seedoorsurfacecleaninginstructionsinthe "Caring
forYour MicrowaveOven"section.

•Toreducetheriskof fire intheoven cavity:

- Donotovercookfood.Carefullyattendthe
microwaveovenwhen paper,plastic,or other

combustiblematerialsareplacedinsidetheoven to
facilitatecooking.

- Removewiretwist-tiesfrompaperorplasticbags
beforeplacingbagsinoven.

- Ifmaterialsinsidethe ovenignite,keepoven door

dosed, tam ovenoff,and disconnectthebower
cord,or shutoff boweratthefuseorcircuitbreaker

panel.

- Donot usethe cavityforstoragepurposes.Donot
leavepaperproducts,cookingutensils,orfood in

thecavitywhen notinuse.

•Suitablefor useabove bothgasandelectriccooking
equipment.

•Intendedto beused aboverangeswithmaximum
widthof36 inches(91cm).

•CleanVentilatingHoodsFrequently- Greaseshould
notbe allowedto accumulateon hoodor filter.

•Whenflamingfoodsunderthe hood,tum thefanon.

•Usecarewhen cleaningthe vent-hoodfilter.
Corrosivecleaningagents,suchas lye-basedoven

cleaners,maydamagethefilter.

•Oversizedfoodsor oversizedmetalutensilsshould
notbe insertedinthe microwaveovenasthey may

createafireor riskof electricshock.

•Donot dean with metalscouringpads.Piecescan
burnoffthe padandtouchelectricalpartsinvolvinga

riskofelectricshock.

• Do not store anything directly on topof the
microwave oven when the microwave oven isin

operation.

• Do not cover or block any openings on the
microwave oven.

• Do not store this microwave oven outdoors. Do not
use the microwave oven near water for example,

near a kitchen sink, in a wet basement, near a
swimming pool, or similar location.

• Do not immerse cord or plug in water.

• Keep cord away from heated surfaces.

• Do not let cord hang over edge of table or counter.

• Do not mount over a sink.

• Do not cover racks or any other part of the oven with
metal foil. This will cause overheating of the oven.

• Liquids such as water, coffee, or tea are able to
be overheated beyond the boiling point without
appearing to be boiling due to surface tension of

the liquid. Visible bubbling or boiling when the

container is removed from the microwave oven is
not always present. This could result in very hot

liquids suddenly boiling over when a spoon or

other utensil is inserted into the liquid. To reduce
the risk of injury to persons.

1) Do not overheat the liquid.

2) Stir the liquid both before and halfway through

heating it.

3) Do not use straight-sided containers with

narrow necks.

4) After heating, allow the container to stand
in the microwave oven for a short time before

removing the container.

5) Use extreme care when inserting a spoon or
other utensil into the container.

SAVE THESE INSTRUCTIONS

PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE

ENERGY

(a) Do not attempt to operate this oven with the

door open since open - door operation can
result in harmful exposure to microwave
energy. It is important not to defeat or tamper
with the safety interlocks.

(b) Do not place any object between the oven

front face and the door or allow soil or cleaner

residue to accumulate on sealing surfaces.

Electrical

requirements

Observe all governing codes and
ordinances. A 120 Volt, 60 Hz, AC only,
20 amp fused electrical supply is
required. (A time-delay fuse is recommended.)
It is recommended that a separate circuit
serving only this appliance be provided.

(c) Do not operate the oven if it is damaged. It is

particularly important that the oven door close
properly and that there is no damage to the:
(1) Door (bent),
(2) Hinges and latches (broken or loosened),
(3) Door seals and sealing surfaces.

(d) The oven should not be adjusted or repaired

by anyone except properly qualified service
personnel.

Electrical Shock Hazard

Plug into a grounded 3-prong
outlet. Do not remove ground

prong. Do not use an adapter.
Do not use an extension cord.

Failure to follow these

instructions can result in death,

fire, or electrical shock.

GROUNDING INSTRUCTIONS

• For all cord connected appliances:
The microwave oven must be grounded.

In the event of an electrical short circuit,

grounding reduces the risk of electric
shock by providing an escape wire for the

electric current. The microwave oven is
equipped with a cord having a grounding

wire with a grounding plug. The plug must
be plugged into an outlet that is properly
installed and grounded.

WARNING: Improper use of the
grounding can result in a risk of electric

shock.
Consult a qualified electrician or

serviceman if the grounding instructions
are not completely understood, or if doubt

exists as to whether the microwave oven
is properly grounded.

SAVE THESE INSTRUCTIONS

6

Do not use an extension cord. If the power
supply cord is too short, have a qualified

electrician or serviceman install an outlet
near the microwave oven.

• For a permanently connected appliance:

The microwave oven must be connected
to a grounded, metallic, permanent wiring

system, or an equipment grounding
conductor should be run with the circuit

conductors and connected to the

equipment grounding terminal or lead
on the microwave oven.

Gettingto Know Your

MicrowaveOven

This section discusses the concepts behind microwave cooking. It also shows you the basics you need to know
to operate your microwave oven. Please read this informationbefore you use your oven.

HOW YOUR KENMORE ULTRA WAVE TM MICROWAVE
HOOD COMBINATION WORKS

Microwave energy is not hot. It causesfood to make
itsown heat, and it'sthis heatthat cooks the food.
Microwavesare like"iV waves, radio waves, or

lightwaves. You cannot see them, but you can see

what they do.
A magnetron in the microwave oven produces

microwaves. The microwaves move into the oven

where they contact food as itturns on the turntable.

Magnetron

Oven cavity

Metal floor G_asstray

The glass turntable of your microwave oven lets

microwaves pass through. Then they bounce off a
metal floor, back through the glass turntable, and

are absorbed by the food.
Microwaves pass through most glass, paper, and

plasticswithout heating them so food absorbs the
energy. Microwaves bounce off metal containers so

food does not absorb the energy.

ULTRA WAVE TM Inverter Microwave System
ULTRA WAVETM Inverter Microwave System gives

you better microwave cooking performance for
defrosting, cooking and reheating foods quickly

and uniformly.

The ULTRA WAVETM Inverter Microwave System

is proven technology that delivers a constant
stream of microwave power - true high, medium,

and low power.

Conventional microwave ovens operate on HIGH
power only. To achieve a 70% power level in a

conventional microwave oven, the oven operates

70% of the time at HIGH power and 30% of the

time OFF.

TheULTRAWAVETM InverterMicrowaveSystem
deliverspowercontinuously,todefrostmoreevenlyand

minimizeovercookingoffoodandmessyfoodspatters.

Sensor Cooking

The ULTRAWAVETM InverterMicrowaveSystemfea-
turesSensorCookingfunctions.A humiditysensorin
theoven cavitydetectsmoistureand humidityemitted
fromfoodas itheats.The sensoradjustscookingtimes
to varioustypesand amountsoffood. Sensorcooking
takesthe guessworkoutof microwavecooking.

For the best cooking results

•Always cook food for the shortest cooking time
recommended. Check to see how the food is

cooking.

•Stir, turn over, or rearrange the food being
cooked about halfway through the cooking time
for all recipes. This will help make sure the food
is evenly cooked.

•If you do not have a cover for a dish, use wax
paper, or microwave-approved paper towels or
plastic wrap. Remember to turn back a corner of
the plastic wrap to vent steam during cooking.

Radio interference

Usingyour microwaveoven may causeinterference • Movingthereceiverawayfrom themicrowaveoven.

to your radio,TV, or similar equipment.Whenthereis • Plugging the microwaveoven into a differentoutlet

interference,youcan reduceitor removeitby: so thatthe microwaveoven and receiverare on

•Cleaning the doorand sealingsurfacesoftheoven. differentbranch circuits.

•Adjusting the receivingantenna ofthe radioor
television.

7

Testing your microwave oven

glasscontainerintheoven.Closethe door. Whenthe timeisup,thewatershouldbe heated.

I To testtheovenputabout 1cupofcold waterina Makesureitlatches.Cookat 100%bowerfor 1minute.

Testing your dinnerware or cookware

Test dinnerware or cookware before using. To
test a dish for safe use, putit into the oven with a
cup of water besideit.Cook at 100% cook power
for one minute.If the dish gets hot, do not use it.
Some dishes (melamine, some ceramic
dinnerware, etc.) absorb microwave energy,

Operating safety precautions

• Never lean onthe door or allow a child to swing
on it whenthe door is open.

• Use hot pads. Microwave energy does not heat
containers, butthe heat from the food can make
the container hot.

• Do not use newspaper or other printed paper in
the oven.

• Do not dry flowers, fruit, herbs, wood, paper,
gourds, or clothes in the oven.

• Do not start a microwave oven when it isempty.

Product life may be shortened. Ifyou practice
programming the oven, put a container ofwater in

the oven. It is normalfor the oven door to look
wavy after the oven hasbeen running for a while.

• Do not try to melt paraffinwax in the oven.

Paraffin wax will notmelt ina microwave oven
because it allows microwaves to pass through it.

• Do not operate the microwave oven unlessthe
glass turntable is securelyin placeand can move
freely. The turntable can move in eitherdirection.

Make sure the turntable iscorrect-side up in the

oven. Handle your turntable with care when

removing it from the ovento avoid possibly
breaking it.Ifyour turntable cracks or breaks,

contact your dealer for a replacement.

• When you use a browning dish, the browning
dish bottommust be atleast 3/16 inchabovethe

turntable. Follow the directions supplied with the

browningdish.

• Never cook or reheat awhole egg inside the

becoming too hotto handle and slowing cooking
times. Cooking inmetal containers not designed for
microwave use could damage the oven, as could
containerswith hidden metal (twist-ties,foil lining,
staples, metallicglaze or trim).

shell. Steam buildup in whole eggs may cause
them to burst, and possibly damage the oven.
Slice hard-boiled eggs before heating. In rare
cases, poached eggs have been known to
explode. Cover poached eggs and allow a
standing time of one minute before cutting into

them.

•For best results, stir any liquid several times
during heating or reheating. Liquids heated in
certain containers (especiallycontainers shaped
likecylinders) may become overheated.The liquid
may splash out with a loud noiseduringor after
heating or when adding ingredients (coffee
granules, tea bags, etc.). This can harm the oven.

•Microwaves may not reach thecenter ofa roast.
The heat spreads to the center from the outer,
cooked areasjust as inregularoven cooking. This
isone of the reasons for letting some foods (for
example, roasts or baked potatoes) stand for a
while after cooking,or for stirring some foods
during the cooking time.

•Do not deep fry in the oven. Microwavable
utensilsare not suitable and itisdifficult to

maintain appropriate deep-frying temperatures.

•Do not overcook potatoes. At the end ofthe
recommended cooking time, potatoes should be
slightlyfirm because they will continue cooking
during standing time. After microwaving, let
potatoes stand for 5 minutes. They will finish
cooking while standing.

Electrical connection

If your electric power line or outletvoltage is
less than 110volts, cooking times may be longer.

8

Have a qualified electrician checkyour electrical
system.

Microwave oven features

®® ®

oo 0 o _ooo o#-

Your microwave oven is designed to make your
cooking experience as enjoyable and productive
as possible. To get you up and running quickly, the
following is a list of the oven's basic features:

1. Metal Shielded Window. The shield prevents
microwaves from escaping. It is designed as a
screen to allow you to view food as it cooks.

2. Model and Serial Number Plate & Cooking
Guide Label

3. Charcoal Filter (behind Vent Grille)

1

The glass tray moves in both directions to help cook food more
evenly. Do not operate the microwave oven without the glass

tray in place.

To Install:

1. Place the support on the oven cavity bottom.

2. Place the glass tray on the support.
Fit the raised, hollowed groove of the glass tray bottom

between the rollers of the hub. The rollers on the support
should fit inside the glass tray bottom ridge.

4. Vent Grille

5. Glass tray. The glass tray moves food as it
cooks for more even cooking. It must be in the
oven during operation for best cooking results.

6. Cooktop Light

7. Grease Filter. See "Caring for the filters"
section.

8. Control Panel. Touch the buttons on this panel

to perform all functions.

9. Cooking Rack. Use for extra space when
cooking in more than one container at the

same time.

1. Glass tray

2. Support

3. Hub

Control panel features

Your microwave oven control panel lets you select the desired cooking function quickly and easily.
All you have to do is touch the necessary Command Button. The following is a list of all the
Command and Number Buttons located on the control panel. For more information on these
features, see the "Using your microwave oven" section.

OOO
000

POPO_RN VE6ETAB[E ALnO SURE

oooo

O(Z) O o

C_Y_K SIMMER _REN Heu_ MORE

W_M

1. Display. The display includes a clock and
indicatorsto tellyou time of day, cooking time

settings, cook powers, quantities, weights, and
cooking functions selected.

2. Popcorn. Touch this button to pop popcorn with
the sensor feature. The oven's sensor will tell

the oven how long to cook depending on the
amount of humidity it detects from the popcorn.

3. Potato. Touch this button to cook potatoes
without entering a cook time or power.

10

4. Vegetable. Touch this button to cook without
entering a cook time or power.

5. Frozen Entree. Touch this button to cook a 10-
to 21- ounce frozen entree without entering a

cook time or power.

6. Auto Cook. Touch this button to cook
microwavable foods without entering a cook

time or power.

7.AutoReheat.Touchthisbuttontoreheat
microwavablefoodswithoutenteringacook

timeorpower.

8.SureSimmer.Touchthispadtosimmersoups,
casseroles,stews,andotherliquidfoods.

9. Auto Defrost. Touch this button followed by

Number Buttons to thaw frozen meat by weight.

18. Cook Time. Touch this button followed by
Number Buttons to set a cooking time.

19. Power. Touch this button after the cook time
has been set, followed by a Number Button to

set the amount of microwave energy released
to cook the food. The higher the number, the

higher the microwave power or "cooking

speed."

10. Soften. Touch this button to soften ice cream,
cream cheese, butter, or frozen juice.

11. Melt. Touch this button to melt chocolate,
cheese, butter, or marshmallows.

12. Hold Warm. Touch this button to keep hot,
cooked foods safely warm in your oven for up

to 99 minutes, 99 seconds. Hold Warm can be

used by itself, or it can automatically follow a

cooking cycle.

13. Add Minute. Touch this button to cook for 1

minute at 100% cook power, or to add extra
minutes at the set cook power to your cooking

cycle.

14. More. Touch this button to add 10 seconds of
cook time each time you press it.

15. Less. Touch this button to subtract 10 seconds
of cook time each time you press it.

16. Clock. Touch this button to enter the time of
day.

20. Number Buttons. Touch number buttons to
enter cooking times, cook powers, quantities,
weights, or food categories.

21. START. Touch this button to start a function. If
you open the door after the oven begins to

cook, retouch START.

22. STOP/Clear. Touch this button to erase an

incorrect command, cancel a program during

cooking, or to clear the Display.

23. Fan (_) On/Off. Touch this button to turn the
fan on or off.

24. Fan (_) 5-Speed. Touch this button to
choose one of 5 fan speeds.

25. Light (_,). Touch this button to turn the light
on high, night, or off.

NOTE: If you try to enter incorrect instructions,
you will not hear any tones. Touch STOP/CLEAR

and re-enter the instructions.

17. Timer. Touch this button to change the oven's
default settings for Kitchen Timer, Light Timer

SET or CLEAR.

11

Using Your Microwave

ven

This section gives you instructions for operating
each function. Please read these instructions

carefully.

AUDIBLE SIGNALS

Audible signals are available to guide you when
setting and using your oven:

• A programming tone will sound each time
you touch a pad.

• Seven tones signal the end of a Kitchen Timer
countdown.

• Four tones signal the end of a cooking cycle.

CLOCK

Whenyour microwaveovenis firstpluggedinor
aftera powerfailure,the Displaywillshow"PLEASE
SETTIME OF DAY". Ifa time of dayis notset,

":"willshow onthe Displayuntilyoutouch"Clock".

Example for 10:30 (AM).

Touch:

Display Shows:

1.

StoP/ CL_

INTERRUPTING COOKING

You can stop the oven during a cycle by opening
the door.The oven stops heating and the fan

stops,but the light stays on.
To restart cooking, close the door and Touch

START.
If you do not want to continue cooking,

open the door and touch STOP/Clear.

CHILD LOCK

Use this safety feature to lock the control panel

when you are cleaning the oven,or so that children
cannot use the oven unsupervised.

To set CHILD LOCK:

Touch:

STOP/ CL_R

Display Shows:

Timeofday,

ENTER TIME OF DAY

3. O_X_)O TOUCH START

1 0 3 0 10 : 30

4,

(_ TOUCH START

1 10 : 30 AM

6,

NOTE: You can switch between AM and PM by

touching 1or 2 after step 4.

12

AM TOUCH 1
PM TOUCH 2

10 : 30

10 : 30 AM

2,

To cancel CHILD LOCK:

Touch and hold until

Locked appears in

the display

(approximately

4 seconds),

Touch: Display Shows:

1,

Touch and hold until
Locked disappears

in the display
(approximately

4 seconds),

TIMER

TIMER provides two modes which make using your microwave oven quite handy. You can select KITCHEN TIMER,

LIGHT TIMER SET or CLEAR.

Example for Kitchen Timer.

Touch: Display Shows:

1. (,_ Time of day.

_P / CLEAR

2.

TIMEn & SEC --- TOUCH

Once for Timer. AGAIN for LIGHT

KITCHEN TIMER
ENTER TIME MIN

TIMER

3.O_)O TOUCH START

3 0 0 3:00

.

Example for Light Timer.

Touch:

1.

STOP! CL_R

2. 0

TINER

Twice for Timer.

KITCHEN TIMER

and Timecountingdown

Display Shows:

Time of day,

LIGHT TIMER

TO SET LIGHT
TIMER TOUCH 1 /
TO CLEAR LIGHT
TIMER TOUCH 2

Example for Light Timer.

Touch:

8. (_(_)(_ TOUCH START

4 3 0 4:30

.

_A_

Display Shows:

LIGHT TIMER
ENTER TIME OF
DAY for LIGHT OFF

AM TOUCH 1

PM TOUCH 2

4:30

10. (_ TOUCH START

1 4:30 AM

The display will show

"LIGHT TIMER SET"

once and then Time of

day will be appeared.

NOTE: To clear light timer, touch TIMER button twice
and touch 2 button once. The display will show "LIGHT
TIMER CLEAR" once and then Time of day will be
appeared

TIMER FUNCTION TABLE

TIMER NUMBER

BUTfON OPTION BUTTON RESULT

4.0000

1130

LIGHT TIMER
ENTER TIME OF
DAY for LIGHT ON

TOUCH START

11:30

AM TOUCH 1

PM TOUCH 2
11:30

TOUCH START

11:30 PM

Once Kitchen Timer Time Counting Down

1 Light Set

Twice Light Timer 2 Light Clear

13

COOKTOP LIGHT

ADD MINUTE

The button right of the control panel controls the
cooktop light.

Example far Light HIGH.

Touch:

1. O HIGH_NIGHTstOFF

once for HIGH light

twice for NIGHT light

2 ('_ c_,

• _ Hi6i-i/Nioi-iT/OfF

To turn off, touch button
once or twice depending

on light setting.

Display Shows:

The display will show
"HIGH LIGHT" once.

The display will show
"OFF LIGHT" once.

EXHAUSTFAN

The button right of the control panel controls the 5-speed
exhaust fan.

Example for exhaust fan speed to level 4

A time-saving button, this simplified control lets
you quickly set and start microwave cooking at

100% powerwithout the need to touch START.

Example for 2 minutes.

Touch: Display Shows:
1• O Time of day,

Stop/ CLear

2• (_ Twice

MmNUT_

NOTE: Each time you touch ADD MINUTE, itwill

add I minute up to99 min 59 seconds.

TIME COOK

2:00 P-100
andTimecountingdown,

Touch: Display Shows:

1, O ONI%_F

This shows the last level
until you select the fan

speed level

2.0

Touch until Level 4

Turn off fan when desired
NOTE: If the temperature from the range or cooktop

below the oven gets too hot, the exhaust fan in the vent
hood will automatically turn on at the LEVEL 5 setting to

_rotectthe oven. It may stay on up to an hour to cool the

oven. When this occurs, the FAN button will not turn the
fan off.

5=SPEED

LEVEL 1 VENT FAN

LEVEL 4 VENT FAN

OFF VENT FAN

14

TIMED COOKING

MULTI-STAGE COOKING

This feature lets you program a specific cook time
and power, For best results, there are 10 power
level settings in addition to HIGH (100%) power,

Refer to the "Microwave Power Levels Table" on
page 16 for more information,

NOTE: If you do not select a power level, the oven
will automatically cook at HIGH (100%) power,

Example for 5 minutes, 30 seconds at 80% power.

Touch:

Display Shows:

C) TIME COOK

1, c_K

TIME ENTER COOKING

TIME

2, OOO TOUCH START

,5 3 0 or POWER

5 : 30 P-100

3. O ENTER POWER

POWER

LEVEL 1 to 10
5:30 P-100

4. O TOUCH START
8 5:30 P-80

TIME COOK

5:30 P-80
andTimecountingdown,

NOTE: After use ofcook function, fan will run for 1
minute to cool if itsenses too much heat.

For best results, some recipes call for different cook

powers during different stages of a cook cycle. You

can program your oven to switch from one power

level to another for up to 3 stages.

Example for 2-stage cook cycle.

Touch:

1.

0 TIME COOK
c_K ENTER COOKING

TIME

Display Shows:

TIME

2.

000 TOUCH START or

3 0 0 POWER

to seta 3 minutecook 3 : 00 P-100
timefor the firststage.

3.

0 ENTER POWER

LEVEL 1 to 10

POWER 3 : 00 P-100

4. _==J TOUCH START
8 3 : 00 P-80

to set an 80% cook

powerfor the first stage,

0 TIME COOK
cook ENTER COOKING

TIME TIME

6. OOO TOUCH START or

7 0 0 POWER
toseta 7 minutecook 7 : 00 P-100
timefor thesecondstage,

0 ENTER POWER

LEVEL 1 to 10

POwE_ 7 : 00 P-100

8. O TOUCH START

,5 7 : 00 P-50

to set a 50% cook power

for the second stage,

.

TIME COOK
3 : 00 P-80

andTimecountingdown.

10. When the first stage is over, you will hear two

short tones asthe oven begins the second
cook stage.

15

MICROWAVE POWER LEVELS

For best results, some recipes call for different cook
powers. The lower thecook power,the slower the

cooking. Each number from 1to 9 standsfor a
different percentage of full cook power.

The following table gives the percentage of cook power
each number pad stands for, and the cook power

name usually used.

COOK POWER NAME WHEN TO USE IT

100% offull power High •Quick heatingmany convenience foods and

9 = 90% of full power • Heatingcream soups
8 = 80% of full power • Heating rice,pasta, or casseroles

7 = 70% of full power Medium-High •Cooking and heating foods that need a

6 = 60% of full power •Cooking requiring specialcare, such as cheese

It alsotells you when to use each cook power.
Follow recipe or food package instructions ifavailable.

foods with highwater content, such as soups and
beverages

•Cooking tender cuts of meat, ground meat

Cook Power lowerthan high (for example,
whole fish and meat loaf) or when food is

cooking too fast

• Reheatinga single serving of food

and egg dishes, pudding,and custards

• Finishingcooking casseroles

5 = 50% of full power Medium • Cooking ham, whole poultry,and potroasts

•Simmering stews

4 = 40% of full power • Meltingchcoolate

• Heating pastries

3 = 30% of full power Medium-Low, • Manuallydefrosting foods,such as bread,fish,

Defrost meats,poultry, and precooked foods

2 = 20% of full power •Softening butter,cheese,and ice cream

1 = 10% of fullpower Low • Keepingfood warm

•Taking chill out of fruit

16

AUTO DEFROST

Four defrost sequences are preset in the oven.
The auto defrost feature provides you with the best
defrosting method for frozen foods. The cooking guide
will show you which defrost sequence is recommended

for the food you are defrosting. For added convenience,

the Auto Defrost includes a built-in beep mechanism
that reminds you to check, turn over, separate, or
rearrange to get best defrost results.

1. MEAT

2. POULTRY

3. FISH

4. BREAD

This table shows you food type selections and the
weights you can set for each type. For best

results, loosen or remove covering on food.

WEIGHTS YOU

TOUCH CAN SET

FOOD Auto Defrost (tenths of a pound)

Meat 1 .1 to 6.0 (45g to 2722g)

Poultry 2 .1to 6.0 (45g to 2722g)
Fish 3 .1to 6.0 (45g to 2722g)

Bread 4 .1to 1.0 (45g to 450g)

Example for 1.2 Ibs of ground beef.

Touch:

Display Shows:

1. Q MEAT TOUCH 1

An POULTRY TOUCH 2

DEFn0ST FISH TOUCH 3

BREAD TOUCH 4

2. (_ MEAT
1 ENTER WEIGHT

3. Q and (_ TOUCH START

1 2 1.2 LBS

to entertheweight

,

NOTE:
When you touch the START pad, the display changes

to defrost time count down. The oven will beep during
the DEFROST cycle. At this time, open the door and
turn, separate, or rearrange the food. Remove any
portions that have thawed. Return frozen portions to
the oven and touch START to resume the defrost cycle.

DEFROST and
Time counting down

Operating Tips

• For best results, remove fish, shellfish, meat, and
poultry from its original closed paper or plastic

package (wrapper). Otherwise, the wrap will hold
steam and juice close to the foods, which can cause

the outer surface of the foods to cook.

• For best results, shape your ground meat into the

form of a doughnut before freezing. When defrosting,

scrape off thawed meat when the beep sounds and
continue defrosting.

• Place foods in a shallow container or on a microwave
roasting rack to catch drippings.

Weight conversion table

You are probably used to food weights as being in
pounds and ounces that are fractions of a pound (for

example, 4 ounces equals 1/4 pound). However, in
order to enter food weight in Auto Defrost, you must

specify pounds and tenths of a pound.
If the weight on the food package is in fractions of a

pound, you can use the following table to convert the
weight to decimals.

EQUIVALENT WEIGHT

OUNCES

1.6

3.2

4.0

4.8

6.4

8.0

9.6

11.2

12.0

12.8

14.4

16.0

DECIMAL WEIGHT

.10
.20
.25 One-Quarter Pound
.30

.40
.50 One-HalfPound
.60
.70
.75 Three-Quarters Pound

.80
.90

1.00 One Pound

17

AUTO DEFROST TABLE

Meat setting

FOOD SETTING AT BEEP SPECIAL INSTRUCTIONS

BEEF

Meat of irregularshapeand large, fatty cuts
of meatshould have thenarrow orfatty areas
shieldedwithfoil atthe beginningof a defrost
sequence.

Ground Beef,
Bulk

Ground Beef,
Patties

RoundSteak

Tenderloin

Steak
Stew Beef

PotRoast,
Chuck Roast

RibRoast

RolledRump
Roast

LAMB

Cubes for
Stew

Chops
(1 inchthick)

MEAT

MEAT

MEAT

MEAT

MEAT

MEAT

MEAT

MEAT

MEAT

MEAT

Removethawedportbns withfork.

Turnover.Returnremaindertooven.
Separate and rearrange,

Turn over. Cover warm areas with
aluminum foil,

Turn over. Cover warm areas with
aluminum foil,

Removethawed portions with fork.

Separate remainder.

Return remainderto oven,

Turn over. Cover warm areas with
aluminum foil,

Turn over. Cover warm areas with
aluminum foil,

Turn over. Cover warm areas with
aluminum foil,

Removethawed portions with fork.
Return remainderto oven.

Separate and rearrange.

Do not defrost less than 1/4lb.
Freeze in doughnut shape.

Do not defrost less than 2 oz. patties.
Depress center whenfreezing.

Place on a microwavable roasting rack.

Place on a microwavable roasting rack.

Place ina microwavable baking dish.

Place on a microwavable roasting rack.

Place on a microwavable roasting rack.

Place on a microwavable roasting rack.

Place ina microwavable baking dish.

Place on a microwavable roasting rack.

PORK

Chops
(1/2inch thick)

Hot Dogs
Spareribs

Country-style
Ribs

Sausage,
Links

Sausage,
Bulk

Loin Roast,
Boneless

18

MEAT

MEAT
MEAT

MEAT

MEAT

MEAT

Separate and rearrange.

Separate and rearrange.
Turn over. Cover warm areas with

aluminum foil,

Separate and rearrange.

Removethawedportbns withfork.

Turnover.Returnremaindertooven.
Turn over. Cover warm areas with

aluminum foil,

Place on a microwavable roasting rack.

Place on a microwavable roasting rack.
Place on a microwavable roasting rack.

Place on a microwavable roasting rack.

Place in a microwavable baking dish.

Place on a microwavable roasting rack.

AUTO DEFROST TABLE (CONT.)

Poultry setting

FOOD AT BEEP SPECIAL INSTRUCTIONS

CHICKEN
Whole

(up to 6 Ibs)

Cutup

CORNISH
HENS
Whole

TURKEY

Breast
(up to 6 Ibs)

SETTING

POULTRY

POULTRY

POULTRY

Turn over (finish defrosting breast-
side down). Cover warm areas with

aluminum foil.

Separate pieces and rearrange,
Turn over. Cover warm areas with

aluminum foil.

Turn over. Cover warm areas with
aluminum foil.

Turn over. Cover warm areas with
aluminum foil.

Place chicken breast-side up on a
microwavable roasting rack, Finish defrosting

byimmersing in cold water. Remove giblets

when chicken is partiallydefrosted,

Place on a microwavable roasting rack.
Finishdefrosting by immersing incold water.

Place on a microwavable roasting rack.
Finishdefrosting by immersing incold water.

Place on a microwavable roasting rack.
Finishdefrosting by immersing incold water.

Fish setting

FOOD

FISH

Fillets

Steaks

Whole

SHELLFISH

Crabmeat
Lobster tails

SETTING

FISH

FISH

FISH

FISH
FISH

AT BEEP

Turn over, Separate fillets when
partially thawed if possible,

Separate and rearrange.

Turn over,

Break apart. Turn over.
Turn over and rearrange,

SPECIAL INSTRUCTIONS

Place in a microwavable baking dish.

Carefully separate fillets under cold
water,

Place in a microwavable baking dish.
Run cold water over to finish defrosting,

Place in a microwavable baking dish.
Cover head and tail with foil; do not let
foil touch sides of microwave. Finish

defrosting by immersing in cold water.

Place in a microwavable baking dish.

Place in a microwavable baking dish.

Shrimp
Scallops

Bread setting

FOOD

Bagel

Dinner Roll
Muffin

Hamburger
Hot Dog Bun

Slices of Bread
Loaf of Bread

FISH
FISH

Separate and rearrange.
Separate and rearrange.

Place in a microwavable baking dish.

Place in a microwavable baking dish.

SETTING AT BEEP SPECIAL INSTRUCTIONS

BREAD Turnoverandrearrange, Placeon3sheetsofpapertowel.

19

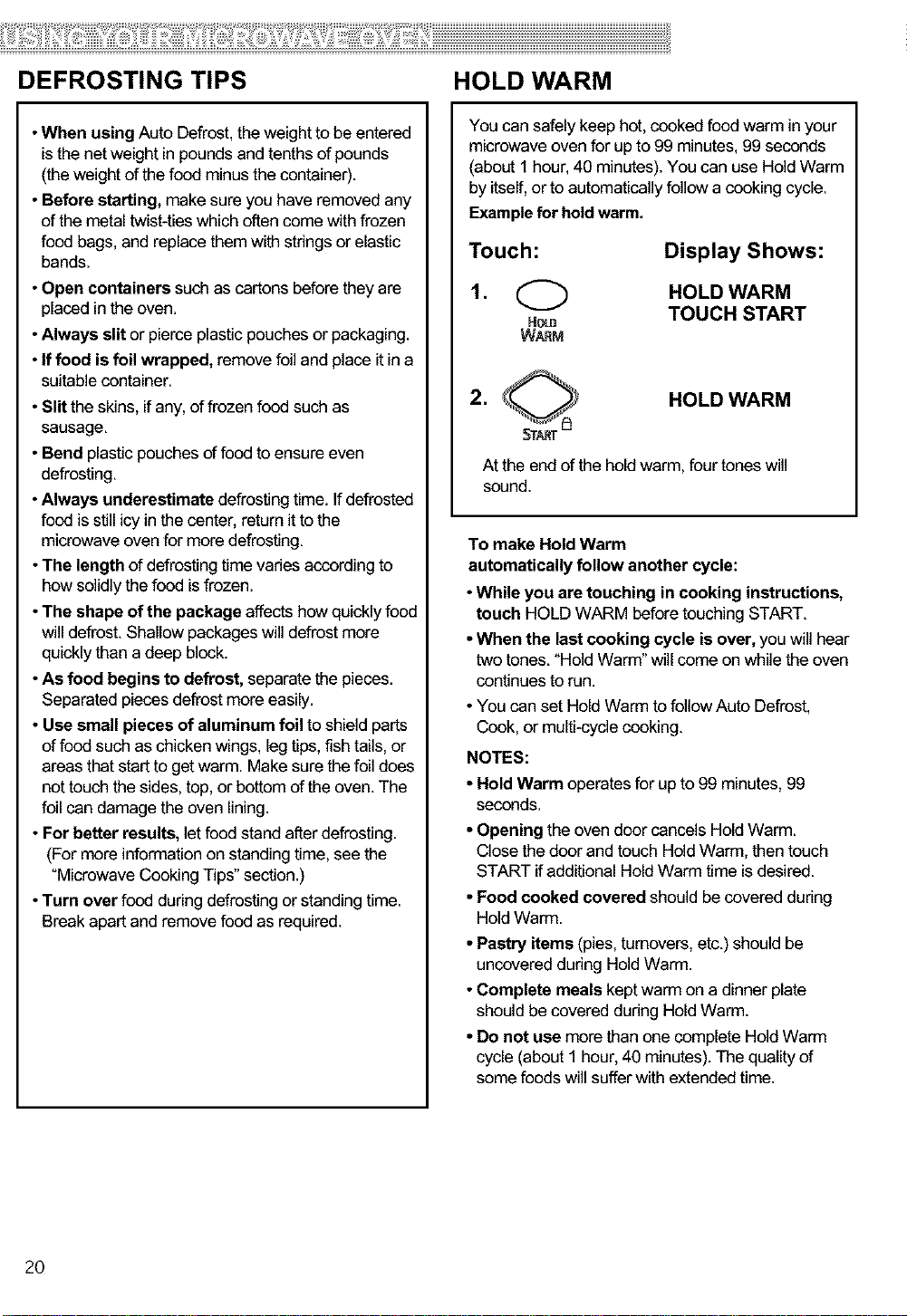

DEFROSTING TIPS HOLD WARM

•When using Auto Defrost, the weight to be entered
isthe netweight in poundsand tenths of pounds

(theweight of the food minus the container).

• Before starting,make sure you have removed any

of the metal twist-ties which often come with frozen
food bags, and replacethem with strings or elastic

bands.

• Open containers such as cartons before they are
placedin the oven.

•Always slit or pierceplastic pouches orpackaging.

• If food is foil wrapped, remove foil and place itin a

suitable container.

• Slitthe skins, if any, of frozen food such as

sausage.

• Bend plasticpouches of food to ensure even

defrosting.

•Always underestimate defrostingtime. If defrosted

food is still icy in the center, return it tothe

microwave oven formore defrosting.

•The length of defrostingtime vades according to
how solidly thefood is frozen.

•The shape of the package affects howquickly food
willdefrost. Shallow packages will defrostmore
quicklythan a deep block.

•As food begins to defrost, separate the pieces.
Separated pieces defrostmore easily.

•Use small pieces of aluminumfoil to shield parts
offood such as chicken wings, leg tips, fish tails,or

areasthat startto get warm. Make sure the foildoes
nottouch the sides,top, or bottom ofthe oven. The

foOlcan damage the oven lining.

•For better results, let foodstand after defrosting.

(For more information on standing time, see the

"Microwave CookingTips" section.)

•Turn over food during defrosting or standing time.
Breakapart and remove food as required.

You can safely keep hot, cooked food warm in your
microwave oven for up to 99 minutes, 99 seconds

(about 1 hour, 40 minutes).You can use Hold Warm
by itself, or to automaticallyfollow a cooking cycle.

Example for holdwarm.

Touch:

I.Q

HOLD

WAF_M

2. HOLD WARM

Atthe end ofthe holdwarm, four tones will
sound.

To make Hold Warm
automaticallyfollow another cycle:

•While you are touching in cooking instructions,
touch HOLD WARM before touching START.

• When the last cooking cycle is over, you will hear
two tones."Hold Warm" will come on while the oven

continues to run.

•You can set Hold Warm to follow Auto Defrost,
Cook, or multi-cyclecooking.

NOTES:

• Hold Warm operates for up to 99 minutes, 99
seconds.

•Opening the oven door cancels HoldWarm.
Close thedoor and touch HoldWarm, then touch

START ifadditional Hold Warm time is desired.

• Food cooked covered should be covered during

HoldWarm.

• Pastry items (pies, turnovers, etc.) should be
uncovered dudng Hold Warm.

•Complete meals kept warm on a dinner plate
should be covered during Hold Warm.

• Do not usemore than one complete HoldWarm
cycle (about I hour, 40 minutes). The quality of
some foods will sufferwith extendedtime.

Display Shows:

HOLD WARM

TOUCH START

2O

SURE SIMMER

Your microwave oven lets you simmer soups,
casseroles, stews, and other liquid foods. All you do

is set a simmer time and your oven will bring your

food to a boil and then simmer it for the time you
specify.

NOTES:

•You cannot change the cook power or aloneness
for Sure Simmer.

•This function uses the sensor. The sensor needs
2 minutes 30 seconds to warm up after the oven

is connected to power or after a power failure.
If you start Sure Simmer during the warm up,

microwave energy will not be turned on until the

sensor is warm.

•When cooking vegetables, increase amount of
water to 1/4 to 1/2 cup (60 to 125ml).

• Cover dish with a hard lid, i.e., the lid that comes
with the dish or a dinner plate. Do not use plastic

wrap.

Touch: Display Shows:

1. Place the food in the oven and

close the door.

When simmering foods like pasta use a container
that can hold enough water to cover the food
completely when cooking, such as a 3-quart (12 cup)
casserole with a lid. When cooking pasta or noodles,

add 1 tbsp (15ml) oil to the water before boiling.
Use the following method:

Place container with water in the oven and follow
steps 2~4, setting the simmer time at 1 second. At

the end of the signal, place the food in the water and
stir until completely covered by water. Cover. Repeat

steps 2~4, setting the simmer time you want.
Changing instructions you can change the simmering

time while simmering by repeating steps 2, 3, and 4.

O SURE SIMMER

.

SURE ENTER COOKING

SIMMER

TIME

3. OOOO TOUCH START
3 0 0 0 30:00

Touch Number buttons
to enter the simmer

time. Example for 30
minutes.

.

SURE SIMMER
(SENSOR)

The ovenwillbringthe

foodto a boil.

The food will then simmer for the time you set.

21

Using Sensor Cooking

SENSOR COOKING

SENSOR OPERATING INSTRUCTIONS

Sensor Cook allows you tocook most ofyour favorite
foods withoutselecting cooking times and power
levels.The oven automatically determines required

cooking time for eachfood item. When the internal
sensor detects a certain amount of humiditycoming
from the food, itwill tell the oven how much longer to

heat. The display will show the remainingheat time.
For best resultsby Sensor, followingthese

recommendations.

• Food cooked with the sensor system should be at
normal storage temperature.

• GlassTray and outside of container should be dry
to assure best cooking results.

• Foodsshould always be covered loosely with
microwavable plastic wrap, waxed paper or a lid.

• Do not open the door or touch the "STOP/CLEAR"
key during the sensing time. When sensing time is
over, the oven beeps twice and the remaining
cooking time will appear in the display window. At

this time you can open the door tostir, turn, or
rearrange the food.

SENSOR COOKING GUIDE

Appropriate containers and coverings help assure
good Sensor cooking results.

• Always use microwavable containers and cover
them with lids or vented plastic wrap.

• Never usetight-sealing plastic covers. They can
prevent steam from escaping and cause food to

overcook.

• Match the amount to the size of the container.
Fillcontainers at least halffull for best results.

• Be surethe outside of the cooking container and
the inside of the microwave oven are dry before
placingfood in the oven. Beads of moisture turning

into steam can mislead the sensor.

POTATO (EXAMPLE)

Sensor cook allows you to cook mostof your

favodte foods without selecting cooking times and

power levels.

Example for potato.

Touch: Display Shows:

1, _._ Time of day.

STOPt CLEAR

2. Q POTATO

POTATO (SENSOR)

When the cook time isover,you will hear four beeps
and COOK END will be displayed.

MORE/LESS

Byusingthe MOREor LESSpadsallofthesensor

cook andtimecook settingscanbeadjustedtocook
foodfor a longeror shortertime.

PressingMOREwilladd 10secondsofcookingtime

eachtimeyou pressit.

PressingLESSwillsubtract10secondsofcooking

time eachtime youpressit.

22

SENSOR COOKING TABLE

CATEGORY DIRECTION AMOUNT

Popcorn Popcorn lets you pop commercially packaged 3.0~3.5oz.

microwave popcorn. Pop only one package at a time. package
For best results, use fresh bag of popcorn.Ptace bag of
prepackaged microwave popcorn on the center of turntable.
Before popping, remove the rack from the oven (refer to Page 32).

Potato Pierce each potatowith a fork and place the oven tray 1~4 medium

around the edge, at least one inch apart. (approx.
After cooking, allow to stand for 5 minutes. 8 to 10 oz. each)

Fresh Prepareasdesired,washand leaveresidualwateron thevegetables. 1~4 cups

Vegetable Placeinan appropriatelysizedmicrowavecontainer.

Add amountof wateraccordingto the quantity.(1~2 cups:2 tablespoons,
3~4cups:4 tablespoons).Coverwithplasticwrapandvent. Aftercooking,

stirand albw to standfor 3 minutes.

_e Frozen Removefrom package,rinseofffrostunderrunningwater.

Vegetable Placeinan appropriatelysizedmicrowavecontainer. 1~4cups

.,., Add amountof wateraccordingto thequantity.(1~2 cups:2 tablespoons,

3~4cups:4 tablespoons).Coverwithplasticwrapandvent. Aftercooking,

:_ stirand albw to standfor 3 minutes.

Canned Remove from the outerdisplay can. 1~4cups
Vegetable Place inan appropriatelysized microwave container,

cover with plastic wrap and vent.
After cooking, stir and allow to stand for 3 minutes.

Frozen Entree Remove from outer display package. Slit cover. 10 to 21 oz.

Ifnot in microwave-safecontainer, place on a plate.

Cover with plastic wrap and vent the plasticfilm by piercing with a fork
(3 times). After cooking, allow to stand for 3 minutes.

23

AUTO COOK

AUTO REHEAT

Auto Cook letsyou heat common microwave-

prepared foods without selectingcooking times and
powerlevels. Auto Cook has presetcook powersfor

4 food categories: Casserole, Rice, Bacon, and Hot

Cereal.

Example for Rice.

Touch:

Display Shows:

1. Q SELECT MENU 1 to4

_r_ -- SEE COOKING

Cook GUIDE

2. (_ RICE

2 (SENSOR)

Choose food category:

CATEGORY BUTTON QUANTITY

Casserole (Sensor) 1 to 4 cups

Rice (Sensor) 2 1/2to 2 cups
Bacon 3 2 to 4 slices

Hot Cereal 4 to 6servings

The oven will cook food automatically by sensor

system, except Bacon and Hot Cereal,
When the cook time is over, you will hear four
beeps and COOK END will be displayed,

TOUCHNUMBEF

Auto Reheat lets youheat foods without selecting
cooking times and power levels,

Auto Reheat has preset cook powers for 5
categories: Casserole, Dinner Plate, Soup/Sauce,

Roll/Muffin, and Beverage,

Example for Casserole.

Touch:

1,

Display Shows:

SELECT MENU 1 to 5

A_ -- SEE COOKING

REHEAT GUIDE

2. Q

CASSEROLE

(SENSOR)

Choose food category.

CATEGORY BUTTON QUANTITY

Casserole (Sensor) 1 1 to 4 cups
Dinner Plate (Sensor _, 2 I to2 Servings

Soup/Sauce (Sensor) 3 1 to 4 cups
Roll/Muffin 4 1 to 6 pieces

Beverage 5 1 to 2 cups

The oven will reheat food automatically by sensor
system, except Roll/Muffin and Beverage,
When the cook time is over, you will hear four

beeps and COOK END will be displayed,

TOUCHNUMBER

24

AUTO COOK TABLE

['OUCHNUMBER

CATEGORY BUTTON DIRECTION AMOUNT

Casserole 1 Assemble the ingredientsper the recipe 1~4 cups
(Sensor) ina 1~2-quart casserole.

Cover with plasticwrap and vent.

After cooking,stir and allow to stand for 3 minutes.

Rice 2
(Sensor)

Bacon 3 Place bacon strips on a microwave 2~4slices

Hot Cereal 4 Prepareas directed on package and cook. 1~6servings

Place rice and twice as much liquid
(water,chicken, or vegetable stock) in a 2- quart

microwave dish.
Cover with plasticwrap and vent.

After cooking,allow to stand for 10minutes.

Stirfor fluffierrice.

bacon rack for best results.
(Use dinner plate lined with paper towels

ifrack isnot available)

Stirwell before eating.
Use only instanthot cereal.

1/2~2cups

Use medium or
long grain rice.

Cook instantrice
according to

directionson
the package.

AUTO REHEAT TABLE

CATEGORY BUTTON DIRECTION AMOUNT

Casserole 1 Cover dish containing the casserole 1~4cups
(Sensor) with plastic wrap and vent.

TOUCHNUMBER

After cooking, stir and allow to stand for 3 minutes.

Dinner Plate 2 Placeon a low plate. 1~2servings
(Sensor) Coverwith vented plasticwrap.

Letstand 3 minutes.

Soup/Sauce 3 Placein shallow microwavable casserole. 1~4cups
(Sensor) Coverwith vented plasticwrap.

After cooking, stir and let stand 3 minutes.

Roll/Muffin 4 Remove from display package and placeon a plate. 1~6 pieces

(2 oz. each)
fresh

Beverage 5 Use a wide-mouth mug. Do not cover. 1~2cups

Removefrom display package and placeon a plate. (240ml per cup)
(Be careful! The beverage will be very hot! Sometimes
liquids heated incylindrical containerswill splash out
when the cup is moved.)

25

SOFTEN MELT

The oven uses low power to soften foods (butter, ice
cream, cream cheese, and frozen juice)

See the following table.

Example for quart of ice cream.

Touch:

, O

STOP/_R

2.

SOFTEN

Display Shows:

Time of day.

SELECT MENU 1 to 4

-- SEE COOKING
GUIDE

3. (_ ICE CREAM

2 TOUCH 1 to 3

4.

2 ICE CREAM

The display will show

QUART once,
ICE CREAM and

Time counting down.

When the cook time isover,you will hear four
beeps and COOK ENDwill be displayed.

SOFTEN TABLE

CODE CATEGOR_ DIRECTION AMOUNT

1 Butter Unwrap and place in 1, 2 or 3

microwavable container, sticks
Butter will be at room

temperature and ready
for use in recipe.

2 Ice Place container in oven. Pint,

cream Ice cream will be soft Quart,

enough to make Half
scooping easier, gallon

3 Cream Unwrap and place in 3 or 8 oz.

cheese microwavable Container.

Cream cheese will be at
room temperature and

ready for use in recipe.

4 Frozen Remove top. 6, 12 or

juice Place in oven. 16 oz.

Frozen juice will be soft
enough to easily mix with

water.

26

The oven uses low power to melt foods (butter or
margarine, chocolate, marshmallows, or processed

cheese food). See the following table.
Example for 8 oz. Chocolate.

Touch:

,

,

Display Shows:

Time of day.

SELECT MENU 1to 4

--- SEE COOKING

MELT GUIDE

3. O CHOCOLATE
2 TOUCH 1 to 2

4. (_ The display will show

2 CHOCOLATE 80Z

once, CHOCOLATE and

Time counting down.

When the cook time is over, you will hear four
beeps and COOK END will be displayed.

MELT TABLE

]ODE CATEGORY DIRECTION AMOUNT

1 Butter or Unwrap and place in 1, 2 or 3

Margarine microwavable container, sticks

No need to cover butter.

Stir at the end of cooking
to complete melting.

2 Chocolate Chocolate chips or 4 or 8 oz.

squares of baking
chocolate may be used.

Unwrap squares and

31acein microwavable

container. Stir at the end
of cycle to complete

melting.

3 Cheese Use processed cheese 8 or 16

food only. Cut into cubes, oz.

Place in a single layer in

microwavable container.
Stir at the end of cooking

to complete melting.

4 Marshmallows Largeor miniature 5 or 10

marshmallowsmay beused. oz.

Placeinmicrowavable

container.Stiratthe end of
cycleto completemelting.

Caring for Your Microwave Oven

To make sure yourmicrowave oven looks good and works well for a long time, youshould
maintain itproperly.For proper care, pleasefollow these instructions carefully.

For interior surfaces: Wash often with warm, sudsy

water and a sponge or

softcloth. Use only mild,
nonabrasive soaps or a

milddetergent. Be sure

to keep the areas clean

where the door and

oven frame touch

when closed. Wipe well

with cleancloth.

Overtime, stains can
occur on the surfaces as the resultof food particles
spattering during cooking.This is normal.

For stubborn soil, boil a cup of water in the oven for 2

to 3 minutes. Steam will

softenthe soil. To get rid

ofodors inside theoven,

boila cup of water with

some lemonjuice or

vinegar in it.

To clean glass tray and support, wash in mild,

Glasstray

Support

Hub

sudsy water; for heavily
soiledareas use a mild

cleanser and scouring
sponge. The glass tray
and support are

dishwasher safe.

For exterior surfaces and

damage the control panel and the interior and exterior
oven surfaces,

control panel: Use a soft

clothwith spray glass

cleaner.Apply the spray

glass cleanerto the soft

cloth;do notspray

directJyon the oven.

NOTE: Abrasive

cleansers, steelwool

pads,gritty wash

cloths,some paper

towels, etc., can

27

CARING FOR THE FILTERS

The grease filter should be removed and cleaned often, atleast once a month.

NOTE: Ifyour microwave hood combination isinstalled to recirculateair, the chacoal filter
(PartNo. 5230W1A003A) availablefrom Sears bycalling 1-8004-MY-HOME ®.

The charcoal filter cannot be cleaned and should be replacedevery 6 to 12 months.

Grease filter (Part No. 5230W2A004A):

1. Unplug microwave oven or disconnect power.

2.To remove grease filter,slide eachfilterto the side.
Pull filter downward and push to the other side. The

filter willdrop out.

3. Soak grease filterin hotwater and a mild
detergent. Scrub and swish to remove embedded

dirtand grease. Rinse well and shake to dry. Do
not clean filterwithammonia, corrosive cleaning

agents such as lye-based oven cleaners, or place

them ina dishwasher. The filterwill turn black or

could be damaged.

_o_ oooo ooooooo

Charcoal filter (PartNo. 5230WIA003A):

1. Unplug microwave oven or disconnect power.

2. Remove the vent gdlle mounting screws.

3. Push the rightside lower part of the charcoal filter.

Remove the filter.

4. Lift the back of the charcoal filter.Slidethe filter
straightout.

4.To replace grease filter, slidefilter in the frame slot
on back side of the opening. Push filter upward and
pushto front sideto lock into place.

5. Plug in microwave oven or reconnect power.

28

5,Slide a new charcoal filter into place,The filter

should rest atthe angle shown,

REPLACING THE COOKTOP

AND OVEN LIGHTS

The cooktop light

1.Unplug microwave oven or disconnect power.

2. Remove the bulb cover mounting screw,

3. Replace bulbwith candelabra-base 20-watt bulb

(Part No, 6912A40002A) available from Sears by
calling 1-800-4-MY-HOME®,

6. Slide the bottom of the vent gdlle into place, Push
the top until it snaps into place, Replace the
mounting screws,

7, Plug in microwave oven or reconnectpower,

NOTE: Do not operatethe hood without the grease

filters in place.

4. Plug in microwave oven or reconnect power.

The oven light

1.Unplug microwave oven or disconnect power.

2. Remove the vent grille mounting screws.

x_

3. Tip the grille forward, then lift outto remove,

29

Bulb holder

4.Liftupthebulbholder.

5. Replacethe bulbwith a candelabra-base 20-watt
bulb (Part No.6912A40002A) available from Sears

by calling 1-800-4-MY-HOME®.

6. Slide the top of the vent gdlle into place. Pushthe
bottom until it snaps into place, Replace the

mounting screws.

7. Plug in microwave oven or reconnect power.

30

MICROWAVE COOKING TIPS

Amount of food

•Ifyou increase or decrease the amount of food
you prepare, the time it takes to cook that food will

also change. Forexample, if you double a recipe,
add a little more than halfthe originalcooking time.
Check for doneness and, if necessary,add more

time in small increments.

Starting temperature of food

•The lower the temperature ofthe food being put
intothe microwave oven, the longer it takesto cook.
Food at room temperature will be re-heated more

quicklythan food at refrigeratortemperature.

Composition of food

•Food with a lotof fat and sugar willbeheated
fasterthan food containing a lot of water. Fat and
sugarwill also reach a higher temperature than

water in the cooking process.

•The more dense the food, the longer it takes to
heat. "Very dense"food likemeat takes longerto

heat than lighter, more porous food likesponge
cakes.

Size and shape

•Smaller pieces of food willcookfaster thanlarger
pieces.Also, same-shaped pieces cookmore
evenly than different-shaped pieces.

•With foods that have different thicknesses, the
thinner partswill cook faster than the thicker parts.

Place the thinnerparts of chicken wings and legsin
the center ofthe dish.

Stirring,turning foods

•Stirring and turning foods spreadsheatquickly to
the center ofthe dish and avoids overceoking at the
outer edges of the food.

Releasingpressure in foods

• Several foods (forexample:baked potatoes,

sausages, egg yolks, and some fruits) are tightly
covered by a skin or membrane. Steam can build up

under the membrane during cooking, causing the
foodto burst. To relievethe pressure and to prevent

bursting,pierce these foods before cooking with a
fork,cocktail pick, or toothpick.

Using standingtime

•Always allow food to stand aftercooking.
Standingtime after defrostingand cooking allows

thetemperature to evenly spread throughout the
food, improving the cooking results.

•The length of the standing time depends on how
much food you are cooking and how dense it is.

Sometimes it can be as short as the time it takes
you to remove the food from the oven and take itto

the serving table. However, with larger, denser food,
the standing time may be as long as 10 minutes.

Arranging food

Forbest results, placefood evenly on the plate. You
cando this inseveral ways:

•If you are cooking several items of the same
food, such as baked potatoes,place them ina dng

pattern for uniform cooking.

•When cooking foods of uneven shapes or
thickness, such as chicken breasts, place the

smaller or thinner area of the foodtowards the
center of thedish where itwill be heated last.

•Layer thin slices of meat on top of each other.

•When you cook or reheat whole fish, scorethe
skin - this preventscracking.

•Do not letfood or a container touch the top or sides
ofthe oven. This will prevent possible arcing.

Covering food

Cover food to:

•Reduce splattering

•Shorten cookingtimes

•Keep food moist

You can use any coveringthat lets microwaves pass
through. See "Getting to Know Your Microwave
Oven" for materials that microwaves will pass

through. If you are using the Sensorfunction, be sure
to vent.

Using aluminumfoil

Metal containersshould not be used in a microwave
oven. There are, however, some exceptions. Ifyou

have purchased food which is prepackaged in an
aluminum foilcontainer, refer to the instructions on

the package. When using aluminum foil containers,

cooking times may be longer because microwaves

will only penetrate the top ofthe food. Ifyou use

aluminum containers withoL_package instructions,

follow these guidelines:

31

MICROWAVE COOKING TIPS (CONT.)

Using aluminum foil (cont.)

• Place thecontainer in a glass bowl and add come
water so that itcovers the bottom of the container,

not more than 1/4in.(.64cm) high.This ensures
even heating of the container bottom.

• Always remove the lid to avoiddamage tothe
oven.

• Use only undamaged containers.

• Do not usecontainers taller than 3/4in. (1.9 cm).

• Container must beat least half filled.

•To avoid arcing, there must be a minimum 1/4in.
(.64cm) between the aluminum container end the

walls ofthe oven and also between two aluminum

containers.

• Always placethe containeron the turntable.

• Shield with small pieces of aluminum foil, parts of
food that may cook quickly, such as wing tips and

leg ends of poultry.

• Heating food inaluminum foilcontainers usually
takes up to double the time compared to reheating

inplastic,glass,china, or paper containers.

The time when food isready will vary depending

upon the type of container you use.

• Let food stand for 2 to 3 minutes after heating so
that heat is spread evenly throughout container.

Removing the rack

•When poppingcommercially packagedpopcorn,
Remove the rack from the oven; Do not placethe

bag of microwave popcorn on the rack or under the
rack.

• Inthe case of popping microwave popcorn with
rack, that can cause the fire or damage to your

microwave oven.

Cookingyou should not do in your

microwave oven

• Do not do canning offoods inthe oven. Closed

glassjars may explode, resulting indamageto the

oven.

• Do not use the microwave oven tosterilize objects
(baby bottles, etc.). It isdifficultto keep the oven at

the high temperature needed for sterilization.

32

Questions and Answers

QUESTIONS ANSWERS

Can I operate my microwave oven without the glass No.Ifyou removeor move the glass tray, you

tray or move the glass tray over to hold a large dish? will get poor cooking results. Dishesused in

youroven must fit on theglass tray.

Can I use either metal or aluminum pans in my You can use aluminum foil for shielding (use
microwave oven? small,flat pieces), small skewers, and shallow

foil trays (if tray isnot taller than 3/4in.[1.9 cm]

deep and is filledwith food to absorb microwave
energy). Never allow metal to touch walls or

door.

Is it normalfor the glass tray to move ineither Yes. The glass tray moves from side to side,
direction? depending on the rotation of the motor when the

cooking cycle begins.

Sometimes the door ofmy microwave oven appears This appearance isnormal and does not affect

wavy. Isthis normal? the operation of youroven.
Why does the dish become hotwhen Imicrowave As the food becomes hot itwill conduct the heat

food init? Ithought that this should not happen, to the dish. Be prepared to use hot padsto

remove food after cooking.

What does "standing time" mean? "Standingtime" means that food should be

Why does steam come outof the air exhaust vent? Steam isnormally produced during cooking. The

Can I pop popcorn inmy microwave oven? Yes. Pop packaged microwave popcorn
How do I getthe best results? following manufacturer's guidelines. Do not use

removed from the oven and covered for
additionaltime to allow itto finish cooking. This

frees the ovenfor other cooking.

microwave oven has been designed to vent this
steam out the vents.

regular paper bags.
Do not repop unpopped kernels. Do not pop

popcornin glass cookware.

33

Troubleshooting

Mostcooking problems often are caused by littlethings you canfind and fix withouttoolsof any kind. Check the
listsbelow and on the next page before callingfor assistanceor service. If you still need help,callSears Service

at 1-800-4-MY-HOME®.

MICROWAVE OVEN DOES NOT WORK

PROBLEM CAUSE

Nothing works. • The power supply cord is not plugged into a grounded 3 prong outlet. (See the

Electrical Requirements" section on page 6and the "Electricalconnection"
sectionon Page 8.)

•A householdfuse has blownor a circuit breaker has tripped.

•The electdc company has had a power failure.

The microwave oven will • You are using the ovenas a timer.Touch STOP/CLEAR to cancel the Kitchen

notrun. Timer.

•The door is not firmly closed and latched.

•You did not touch START.

•You did not follow directions exactly.

•An operation that you set earlier is still running.Touch STOP/CLEAR to cancel
that operation.

COOKING TIMES

PROBLEM CAUSE

Food is not cooked • The electric supply to yourhome or wall outlets is low or lowerthan normal.Your
enough, electriccompany can tell you if the line voltage is low. Your electricianor service

techniciancan tell you ifthe outlet voltage is low.

•The cook power is not at the recommended setting.
Check the chart on Page 16.

The displayshows a time •The oven door is not closed completely.

counting down bL_the oven • You haveset the controlsas a kitchentimer. Touch STOP/CLEAR to cancel the
isnot cooking. Kitchen Timer.

34

GLASS TRAY

PROBLEM CAUSE

The glass tray will not •The glass tray isnot correctly in place. It should be correct-side up and sitting
move. firmly on the center hub.

•The support isnot operating correctly.Remove the glass tray and restartthe
oven. If the hub still does not move, callSears Service at 1-800-4-MY-HOME®.

Cooking withoutthe glass tray can giveyou poorresults.

TONES

PROBLEM CAUSE
You do not hear • You have not enteredthe correct command.

the programming or
end-of-cycle tone.

DISPLAY MESSAGES

PROBLEM CAUSE

The display is flashing" : ." • There has been a power interruption. Reset the clock. (See the "Clock" section

I

on Page 12.)

I

If none of these items are causing your problem, call Sears Service at 1-800-4-MY-HOME®.

35

Your Home

For repair- in your home- of all major brand appliances,

lawnand garden equipment, or heating and coolingsystems,

no matter who made it, no matter who sold it!

For the replacement parts, accessoriesand

owner'smanuals that you need to do-it-yourself.

For Sears professionalinstallationof home appliances

and items likegarage dooropeners and water heaters.

1-800-4-MY-HOME ® (1-800-469-4663)

Call anytime, day or night(U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repairof carry-in items like vacuums, lawn equipment,

and electronics,call orgo on-line for the locationof your nearest

Sears Parts & Repair Center.

1-800-488-1222

Call anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protectionagreement (U.S.A.)

or maintenance agreement (Canada) on a productservicedby Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparacibn

a domicilio,y para ordenar piezas:

1-888-SU-HOGAR s"

(1-888-784-6427)

Au Canada pour service en fran_:ais:

1-800-LE-FOYER "c

(1-800-533-6937)

www.sears.ca

SEARS

Registered Trademark/_Trademark / Service Mark of Seam, Roebuck and Co.

® Mama Registrade/ha Mama de F_hrica/SM Marca de Servicio de Sears, Roebuck and Co.

MCMarque de commerce/MD Marque d_pos6e de Sears, Roebuck and Co. © Sears, Roebuck and Co.

6M
