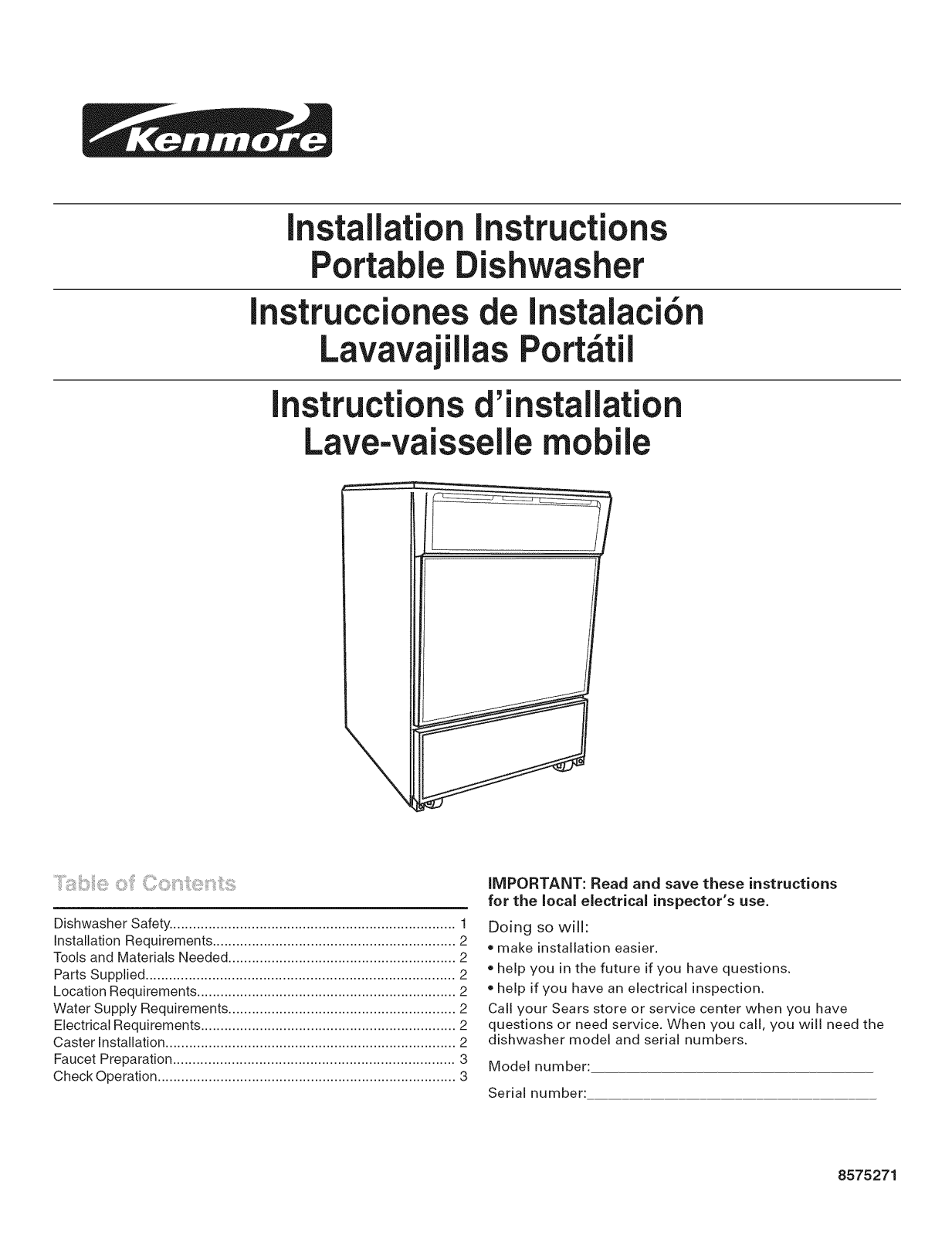

Kenmore 66517762K600, 66517769K600, 66517739K900, 66517722K900, 66517729K900 Installation Guide
...
Installation instructions
Portable ishwasher
Instruccionesde Instalaci6n
Lavavaj las Portbtii
instructionsd'installation
Lave-vaissellemobi
....ii_,i_!!!ii_iii_!i@O,ii_{_O_,_iiij:@_ii_i_iilS
Dishwasher Safety. ........................................................................ 1
Installation Requirements .............................................................. 2
Tools and Materials Needed .......................................................... 2
Parts Supplied ............................................................................... 2
Location Requirements .................................................................. 2
Water Supply Requirements .......................................................... 2
Electrical Requirements ................................................................. 2
Caster Installation .......................................................................... 2
Faucet Preparation ........................................................................ 3
Check Operation ............................................................................ 3
iMPORTANT: Read and save these instructions
for the local eJectrical inspector's use.
Doing so wiJJ:
o make installation easier.
o help you in the future if you have questions.
o help if you have an electrical inspection.
Call your Sears store or service center when you have
questions or need service. When you call, you will need the
dishwasher model and serial numbers.
Model number:
Serial number:
8575271

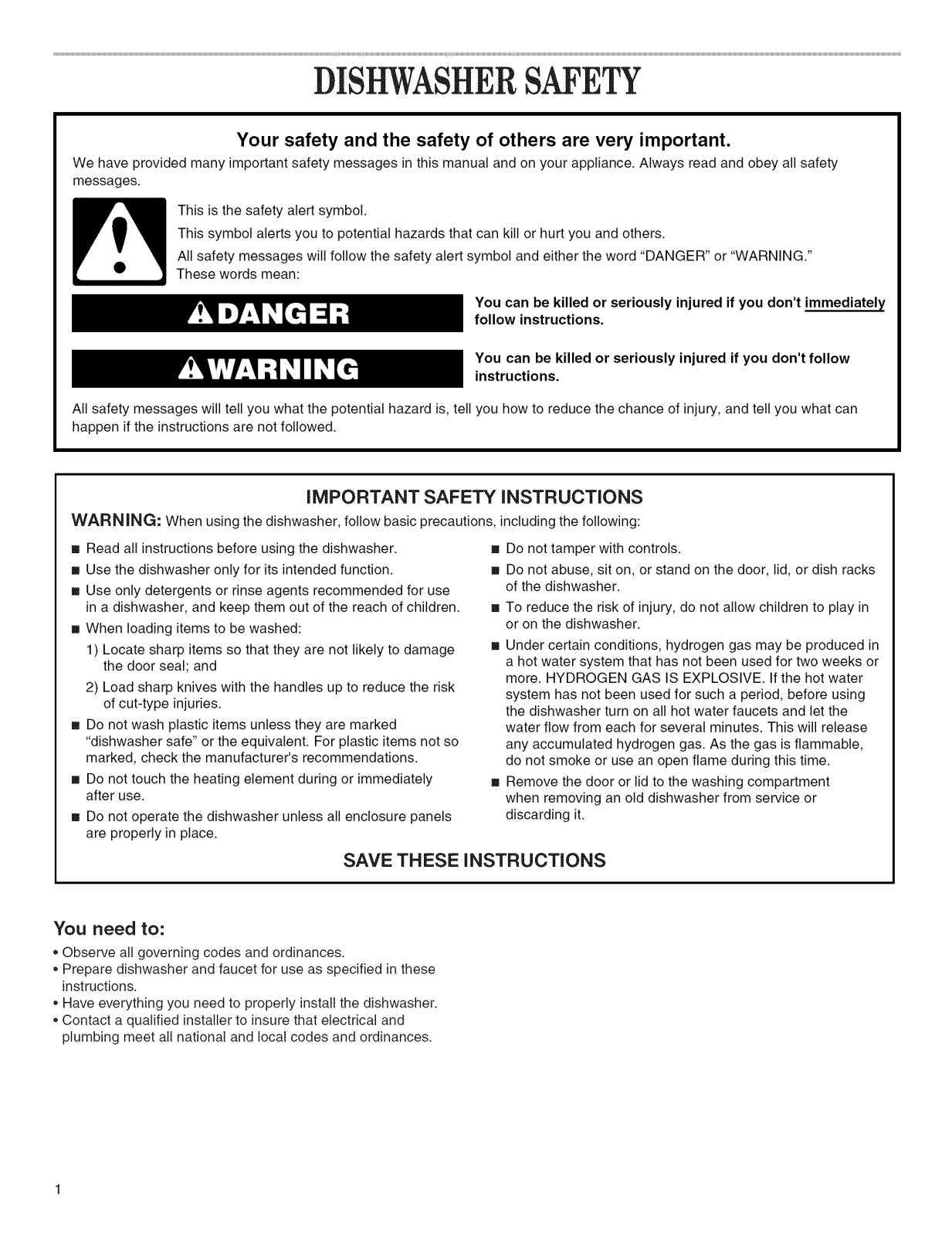

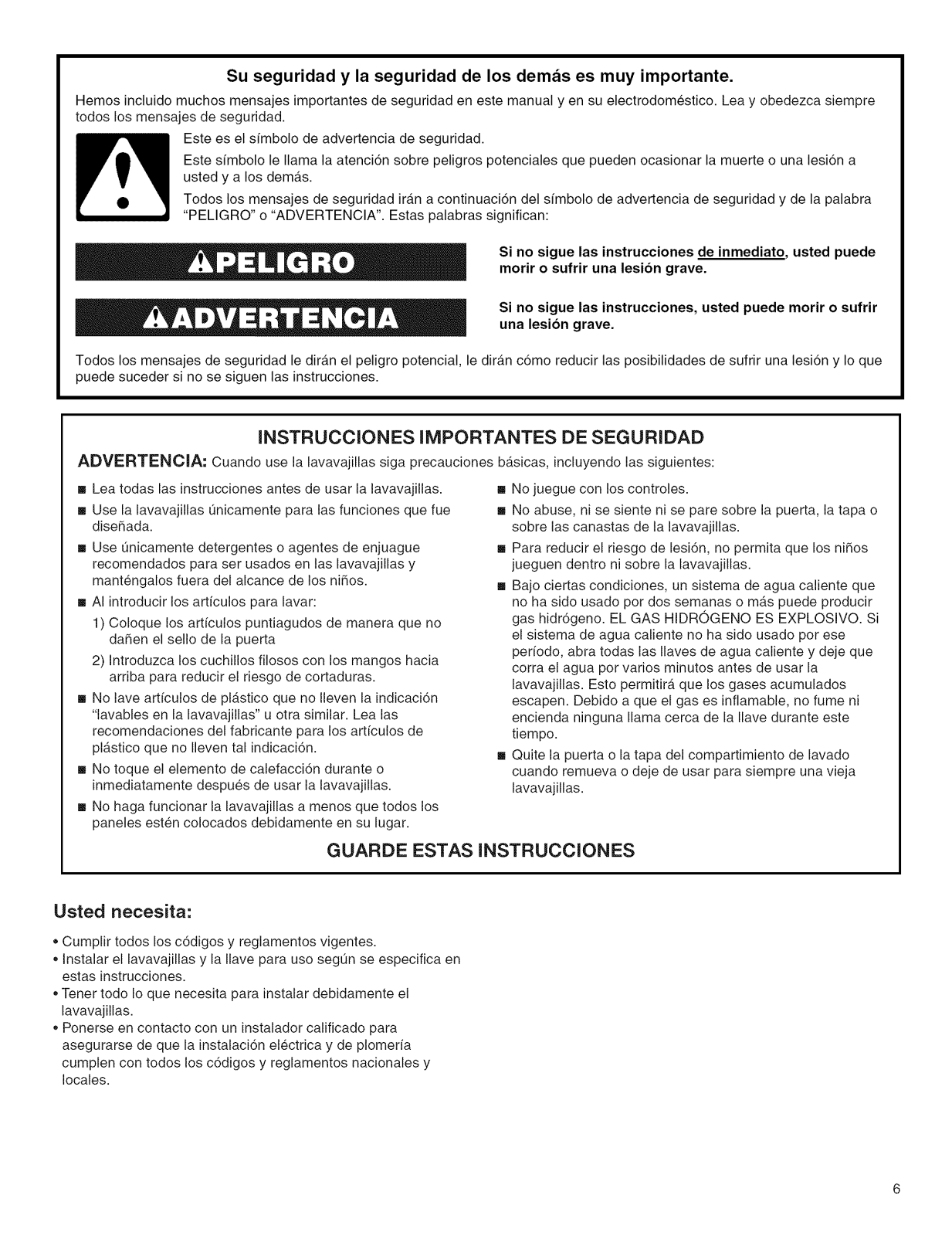

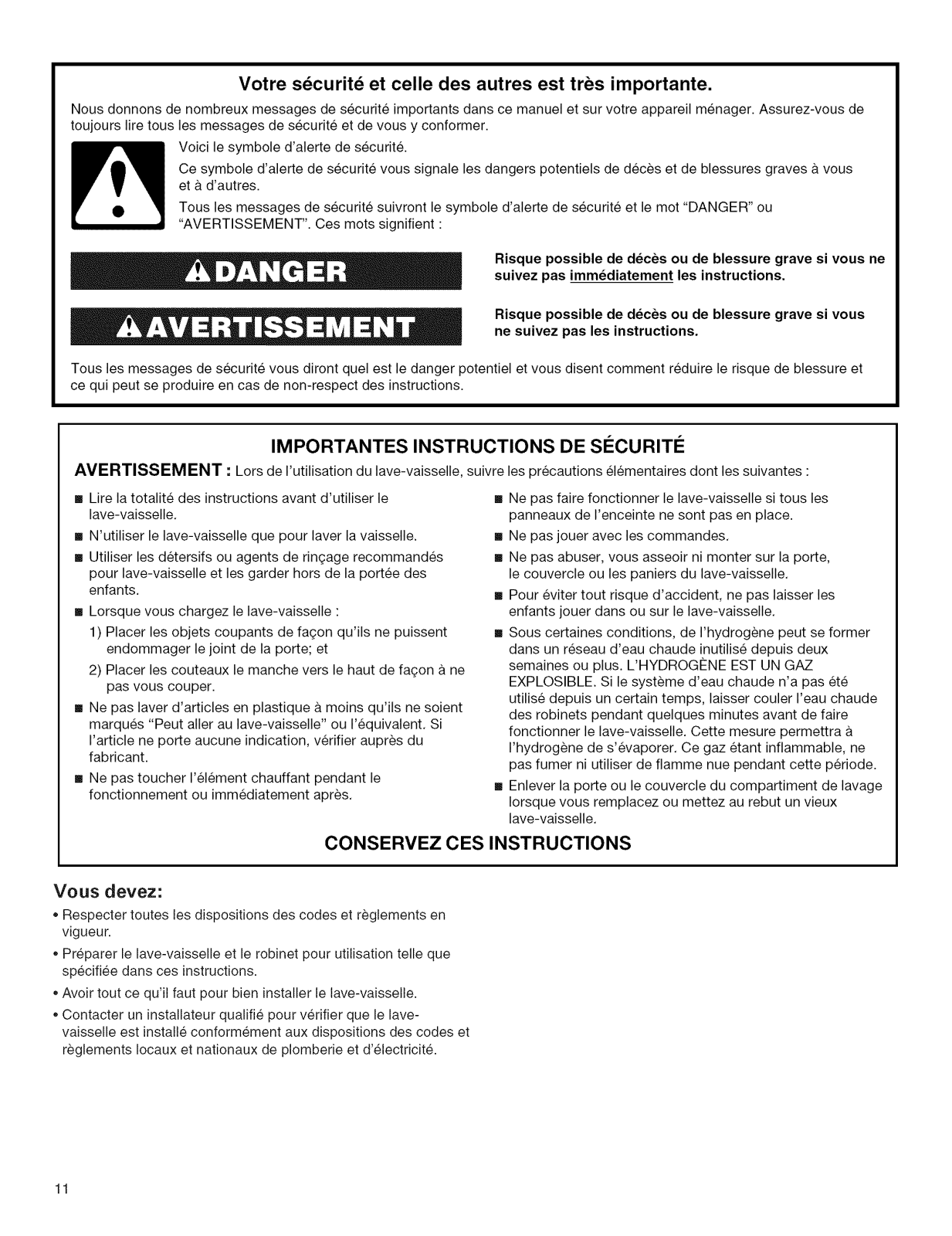

DISHWASHERSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: When using the dishwasher, follow basic precautions, including the following:
[] Read all instructions before using the dishwasher.
[] Use the dishwasher only for its intended function.
[] Use only detergents or rinse agents recommended for use
in a dishwasher, and keep them out of the reach of children.
[] When loading items to be washed:
1) Locate sharp items so that they are not likely to damage
the door seal; and
2) Load sharp knives with the handles up to reduce the risk
of cut-type injuries.
[] Do not wash plastic items unless they are marked
"dishwasher safe" or the equivalent. For plastic items not so
marked, check the manufacturer's recommendations.
[] Do not touch the heating element during or immediately
after use.
[] Do not operate the dishwasher unless all enclosure panels
are properly in place.
SAVE THESE INSTRUCTIONS
You need to:
* Observe all governing codes and ordinances.
,, Prepare dishwasher and faucet for use as specified in these
instructions.
,, Have everything you need to properly install the dishwasher.
,, Contact a qualified installer to insure that electrical and
plumbing meet all national and local codes and ordinances.
[] Do not tamper with controls.
[] Do not abuse, sit on, or stand on the door, lid, or dish racks
of the dishwasher.
[] To reduce the risk of injury, do not allow children to play in
or on the dishwasher.
[] Under certain conditions, hydrogen gas may be produced in
a hot water system that has not been used for two weeks or
more. HYDROGEN GAS IS EXPLOSIVE. Ifthe hot water
system has not been used for such a period, before using
the dishwasher turn on all hot water faucets and let the
water flow from each for several minutes. This will release
any accumulated hydrogen gas. As the gas is flammable,
do not smoke or use an open flame during this time.
[] Remove the door or lid to the washing compartment
when removing an old dishwasher from service or
discarding it.

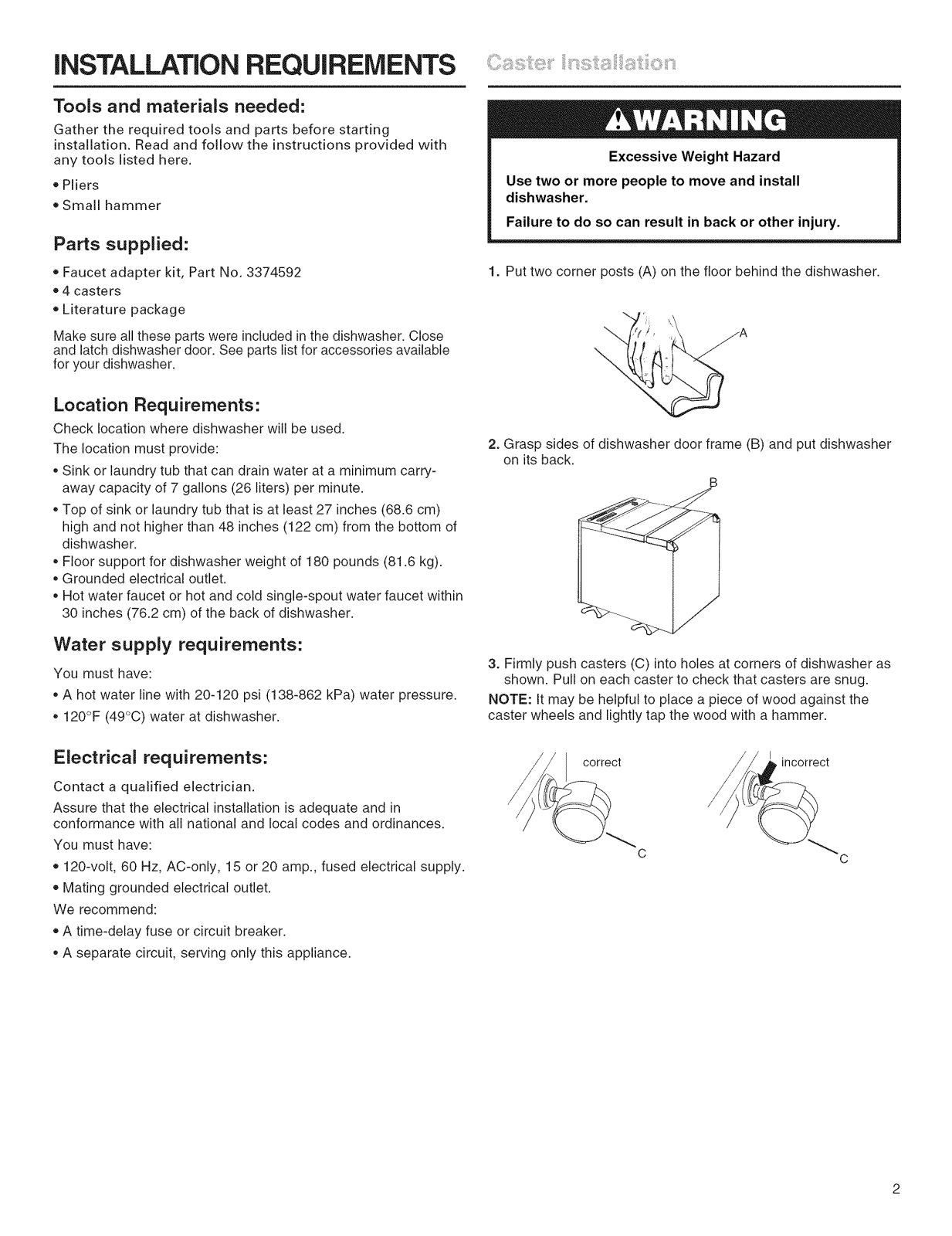

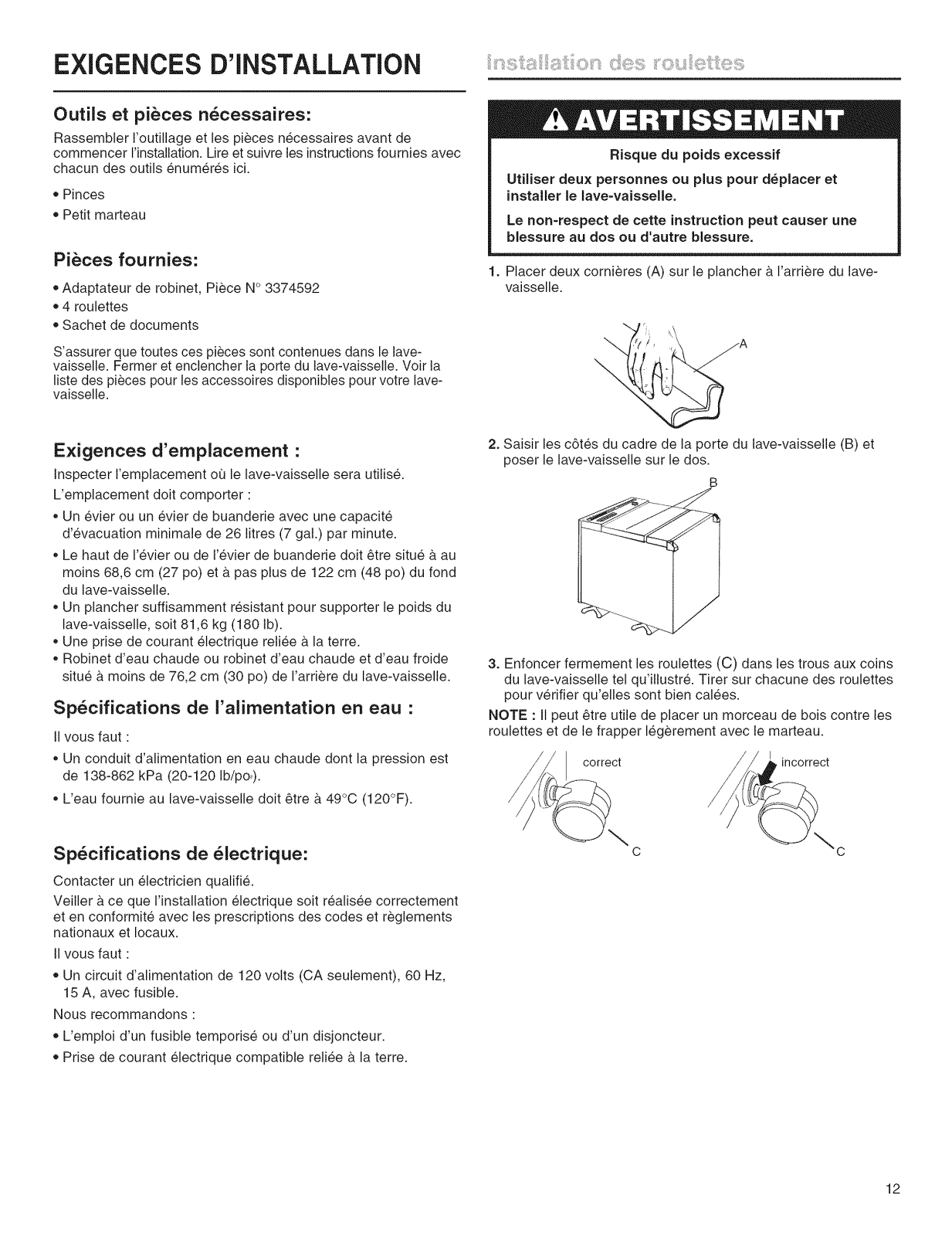

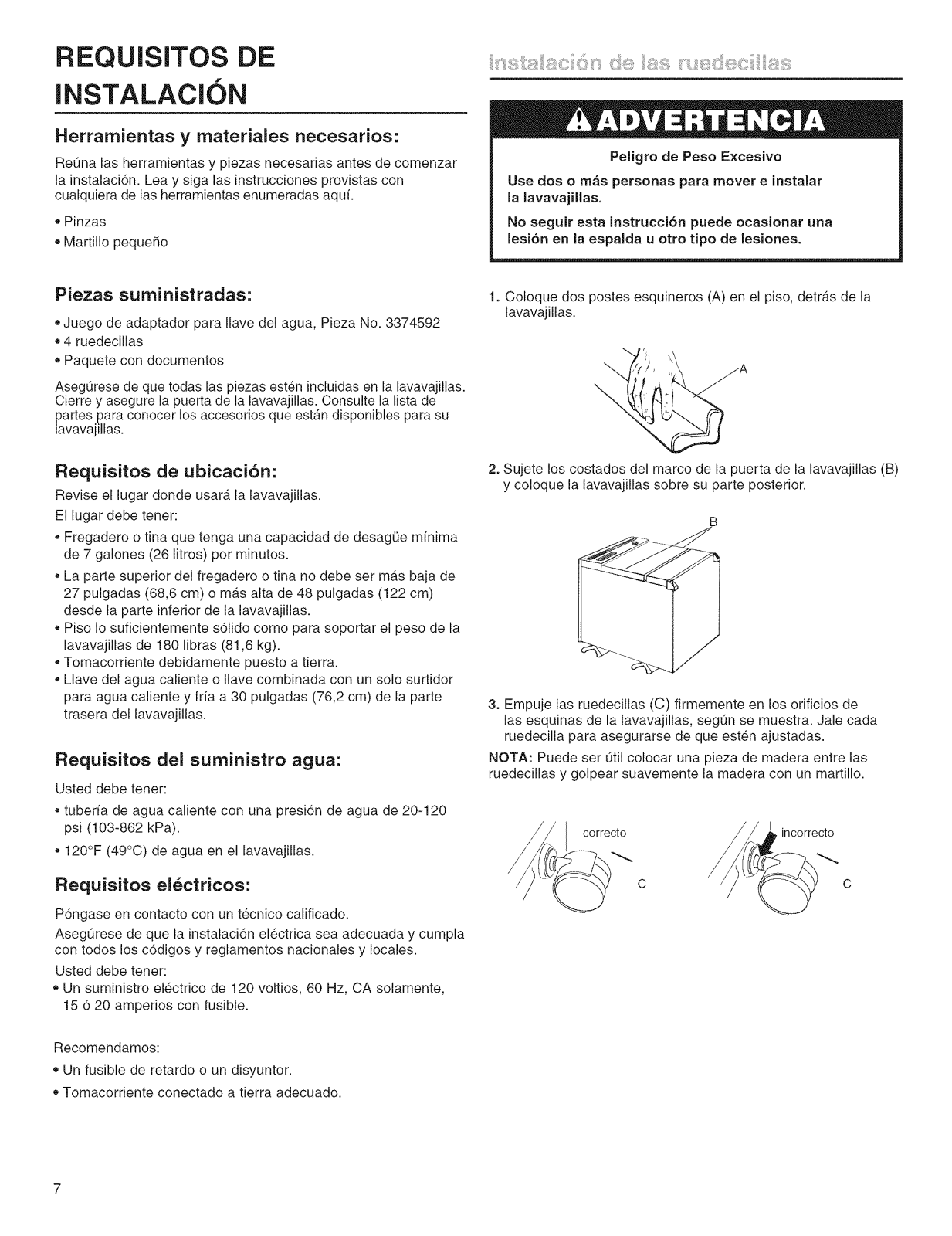

iNSTALLATiON REQUIREMENTS
Tools and materials needed:
Gather the required tools and parts before starting
installation. Read and follow the instructions provided with
any tools listed here.
o Pliers
o Small hammer
Parts supplied:
o Faucet adapter kit, Part No. 3374592
o 4 casters
o Literature package
Make sure all these parts were included inthe dishwasher. Close
and latch dishwasher door. See parts list for accessories available
for your dishwasher.
Location Requirements:
Check location where dishwasher will be used.
The location must provide:
,, Sink or laundry tub that can drain water at a minimum carry-
away capacity of 7 gallons (26 liters) per minute.
,, Top of sink or laundry tub that is at least 27 inches (68.6 cm)
high and not higher than 48 inches (122 cm) from the bottom of
dishwasher.
,, Floor support for dishwasher weight of 180 pounds (81.6 kg).
,, Grounded electrical outlet.
,, Hot water faucet or hot and cold single-spout water faucet within
30 inches (76.2 cm) of the back of dishwasher.
Excessive Weight Hazard
Use two or more people to move and install
dishwasher.
Failure to do so can result in back or other injury.
1. Put two corner posts (A) on the floor behind the dishwasher.
2. Grasp sides of dishwasher door frame (B) and put dishwasher
on its back.
B
Water supply requirements:
You must have:
, A hot water line with 20-120 psi (138-862 kPa) water pressure.
,120°F (49°C) water at dishwasher.
Electrical requirements:
Contact a qualified electrician.
Assure that the electrical installation is adequate and in
conformance with all national and local codes and ordinances.
You must have:
,, 120-volt, 60 Hz, AC-only, 15 or 20 amp., fused electrical supply.
,, Mating grounded electrical outlet.
We recommend:
,, A time-delay fuse or circuit breaker.
,, A separate circuit, serving only this appliance.
3. Firmly push casters (C) into holes at corners of dishwasher as
shown. Pull on each caster to check that casters are snug.
NOTE: It may be helpful to place a piece of wood against the
caster wheels and lightly tap the wood with a hammer.
I incorrect
4. Stand dishwasher upright. Open door and remove any
shipping pieces (D) from racks. Close dishwasher door and
latch shut.
NOTE: Packaging may vary.
L

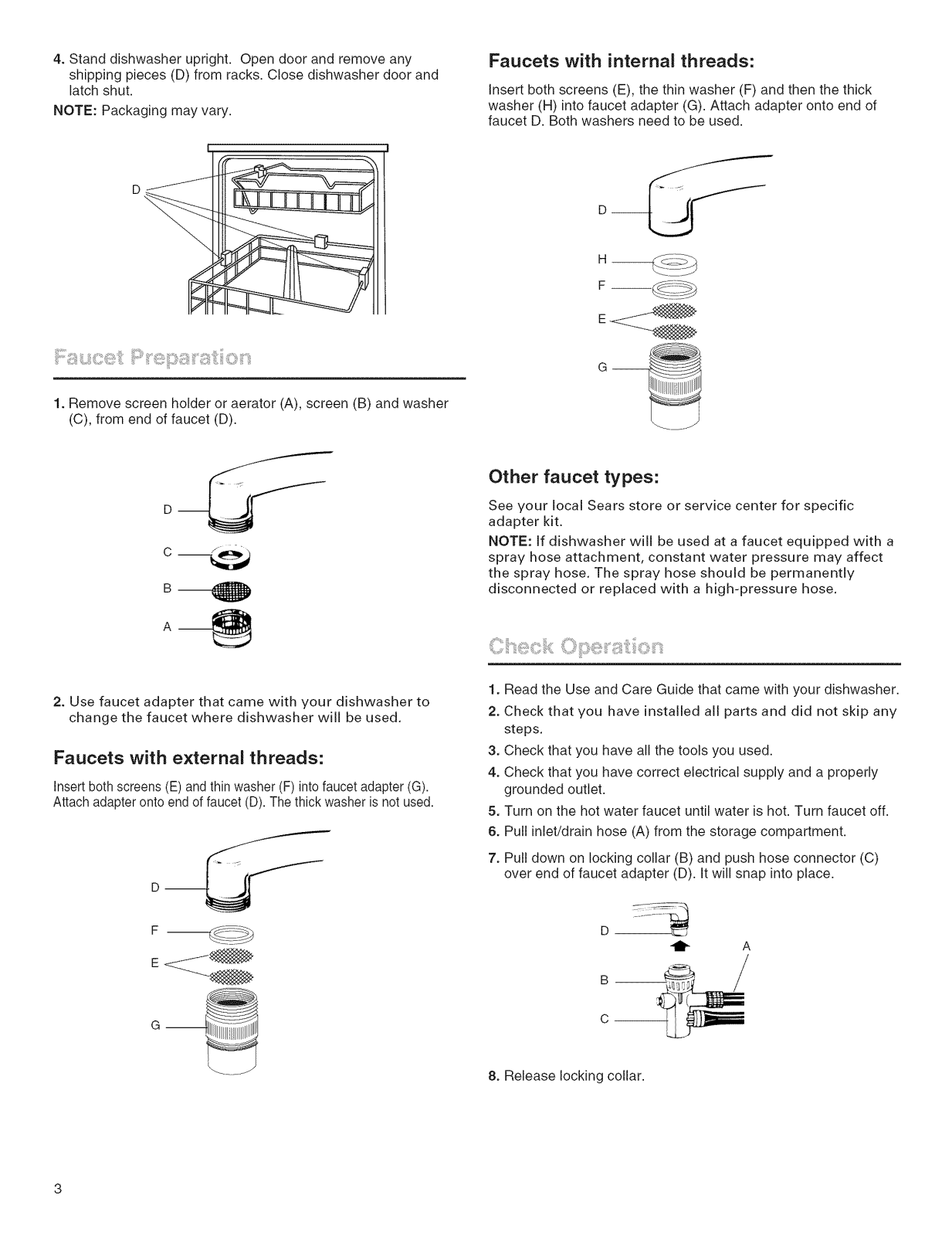

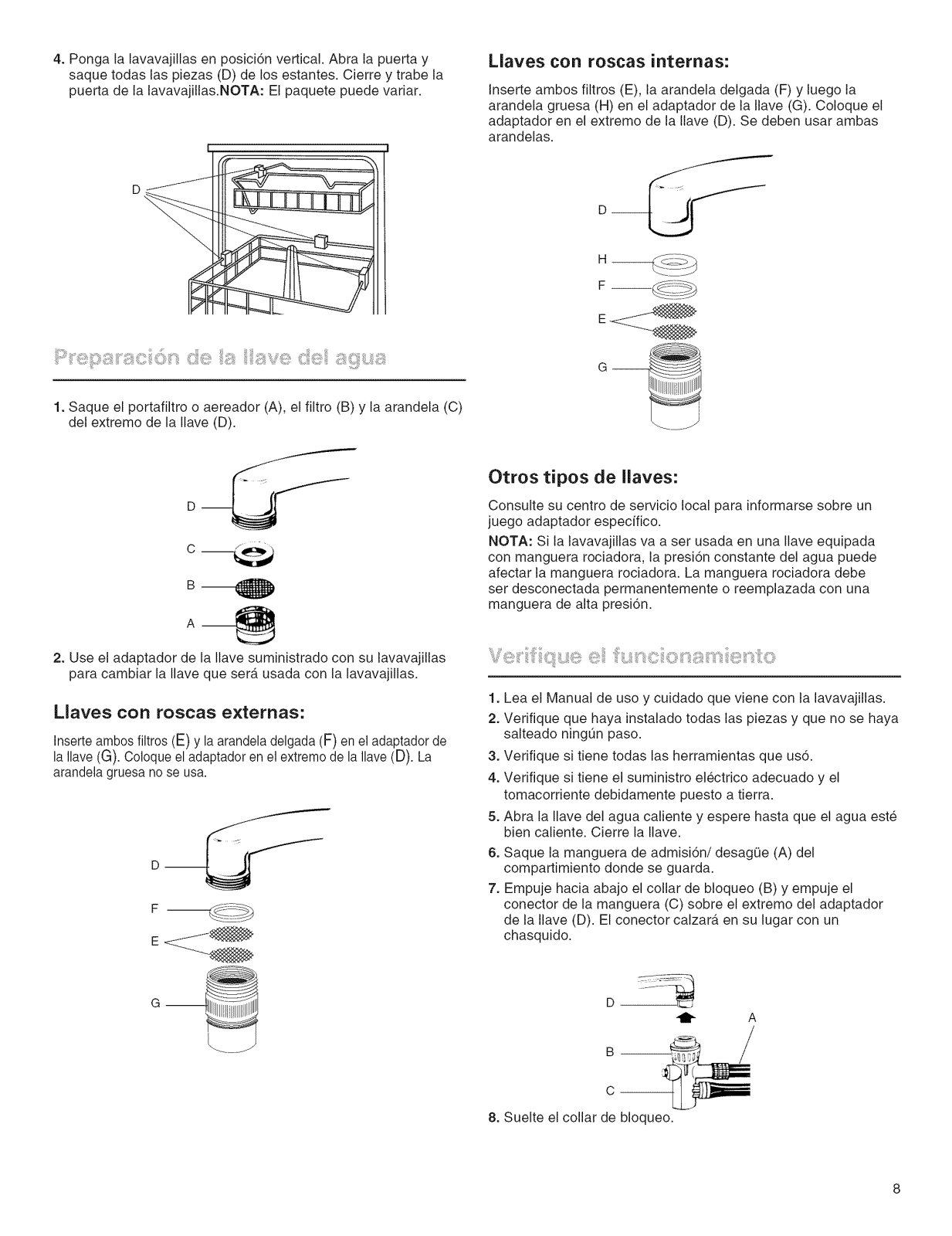

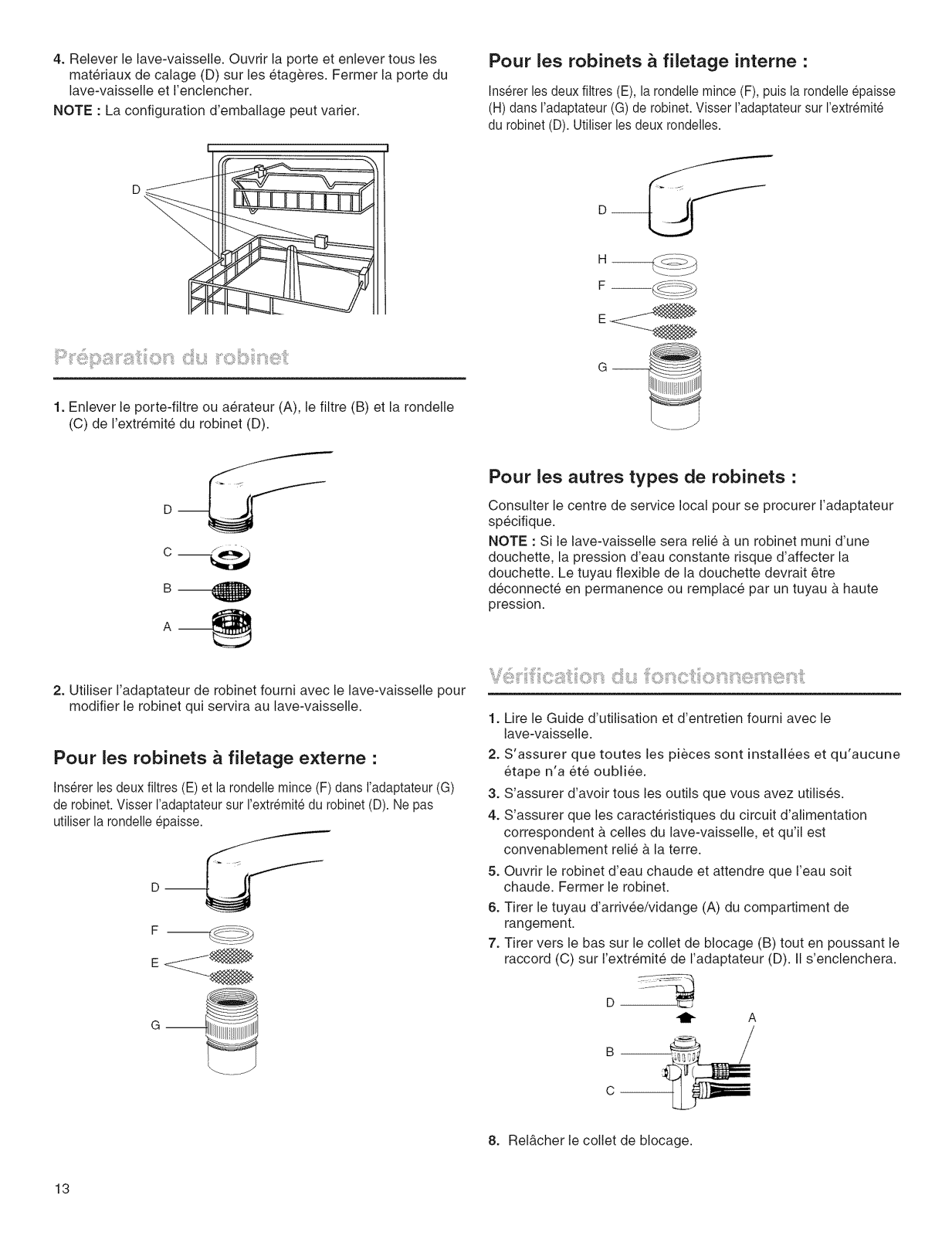

1. Remove screen holder or aerator (A), screen (B) and washer
(C), from end of faucet (D).
Faucets with internal threads:
Insert both screens (E), the thin washer (F) and then the thick
washer (H) into faucet adapter (G). Attach adapter onto end of
faucet D. Both washers need to be used.
H__
F__
G--
Other faucet types:
See your local Sears store or service center for specific
adapter kit.
NOTE: If dishwasher will be used at a faucet equipped with a
spray hose attachment, constant water pressure may affect
the spray hose. The spray hose should be permanently
disconnected or replaced with a high-pressure hose.
2. Use faucet adapter that came with your dishwasher to
change the faucet where dishwasher will be used.
Faucets with external threads:
Insert both screens (E) and thin washer (F) into faucet adapter (G).
Attach adapter onto end of faucet (D). The thick washer is not used.
F m
E
1. Read the Use and Care Guide that came with your dishwasher.
2. Check that you have installed all parts and did not skip any
steps.
3, Check that you have all the tools you used.
4. Check that you have correct electrical supply and a properly
grounded outlet.
5, Turn on the hot water faucet until water is hot. Turn faucet off.
6. Pull inlet/drain hose (A) from the storage compartment.
7. Pull down on locking collar (B) and push hose connector (C)
over end of faucet adapter (D). It will snap into place.
8. Release locking collar.

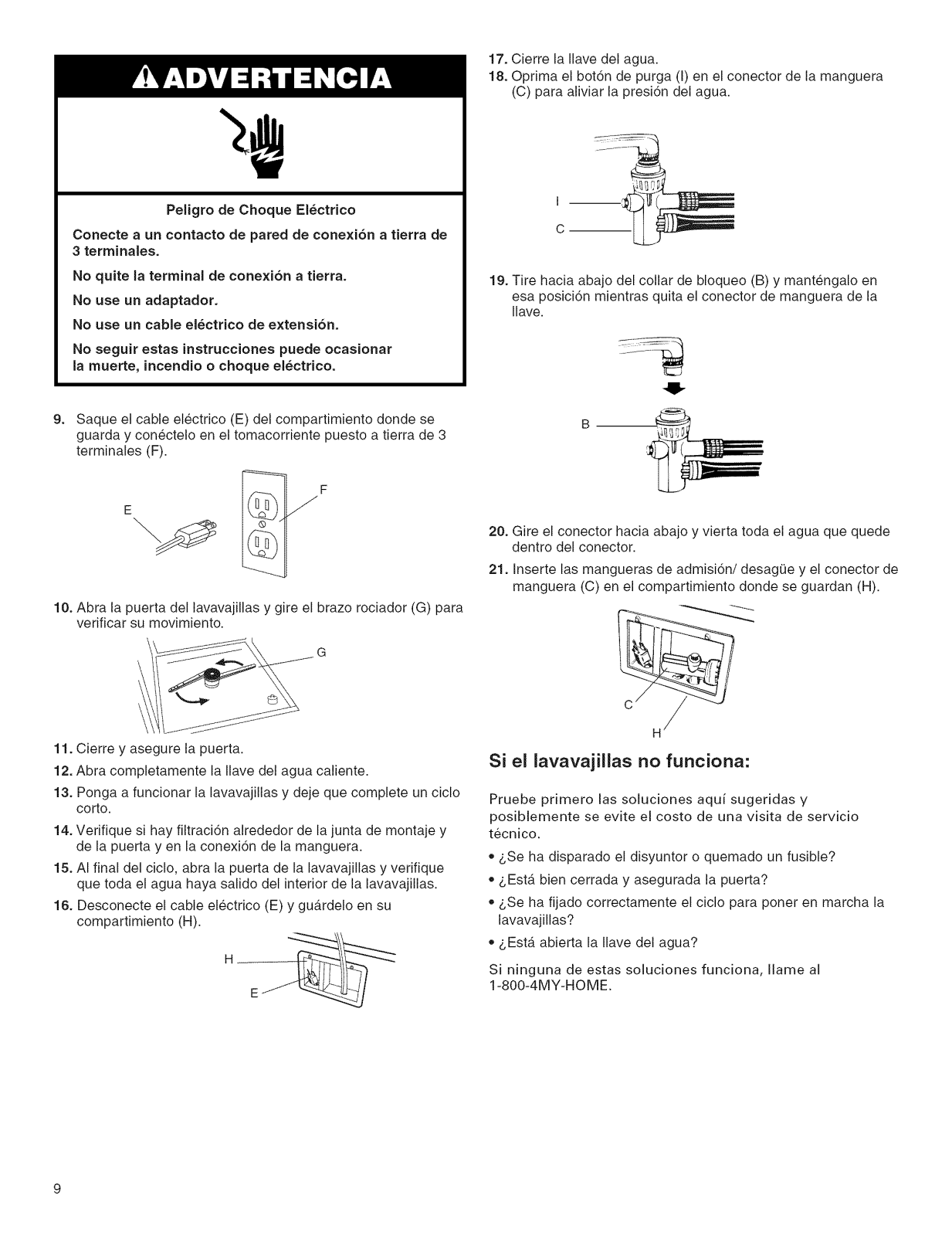

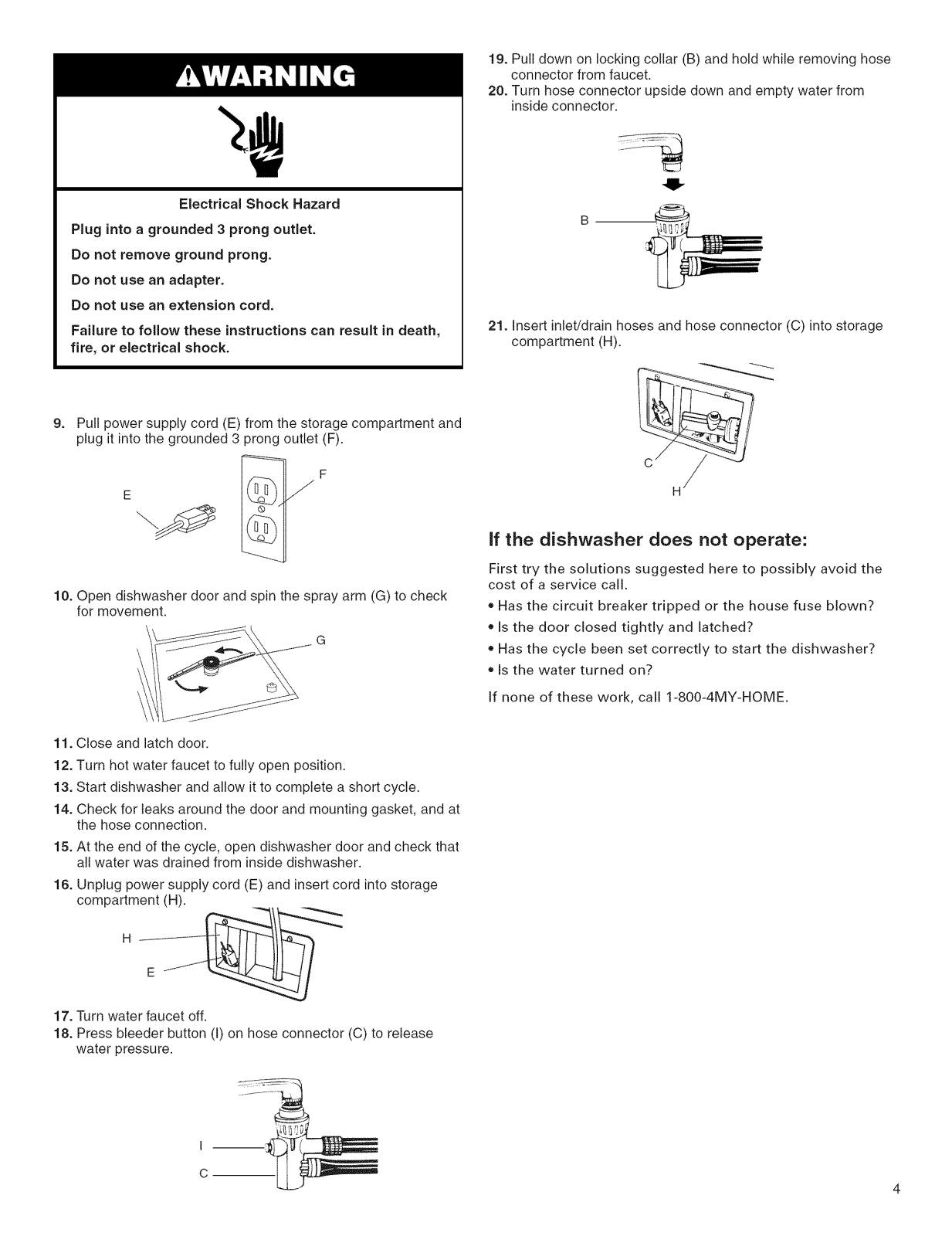

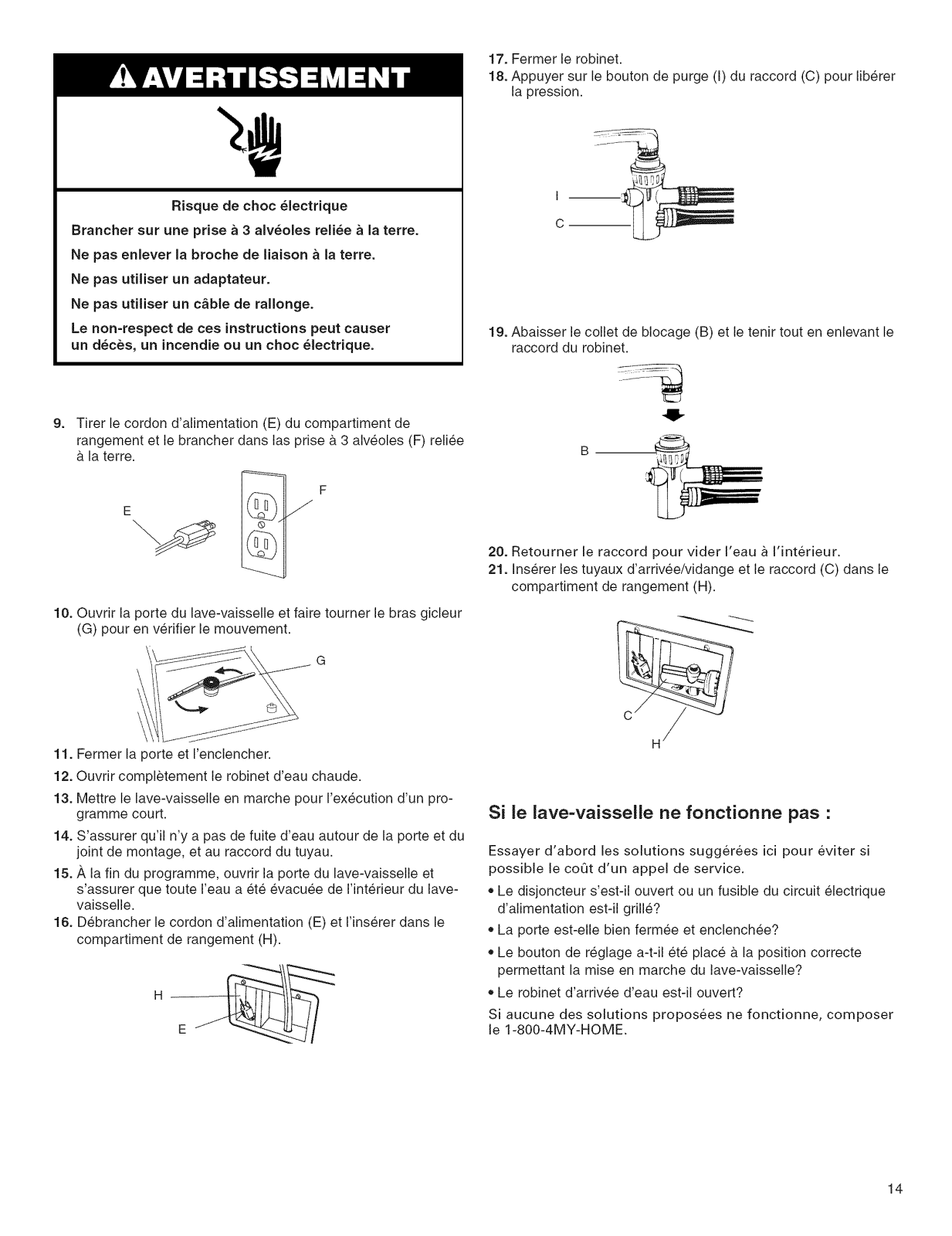

ElectricalShock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
9.
Pull power supply cord (E) from the storage compartment and
plug it into the grounded 3 prong outlet (F).
19. Pull down on locking collar (B) and hold while removing hose
connector from faucet.
20. Turn hose connector upside down and empty water from
inside connector.
21. Insert inlet/drain hoses and hose connector (C) into storage
compartment (H).
10. Open dishwasher door and spin the spray arm (G) to check
for movement.
G
11. Close and latch door.
12. Turn hot water faucet to fully open position.
13. Start dishwasher and allow it to complete a short cycle.
14. Check for leaks around the door and mounting gasket, and at
the hose connection.
15. At the end of the cycle, open dishwasher door and check that
all water was drained from inside dishwasher.
16. Unplug power supply cord (E) and insert cord into storage
compartment (H).
if the dishwasher does not operate:
First try the solutions suggested here to possibly avoid the
cost of a service call.
* Has the circuit breaker tripped or the house fuse blown?
* Is the door closed tightly and latched?
,,Has the cycle been set correctly to start the dishwasher?
®Is the water turned on?
If none of these work, call 1-800-4MY-HOME.
17. Turn water faucet off.
18. Press bleeder button (I) on hose connector (C) to release
water pressure.
