Portable Dishwasher
Use & Care Guide
Lavavajillas portátil
Manual de uso y cuidado
Lave-vaisselle mobile
Guide d’utilisation et d’entretien
Models/Modelos/Modèles 665.1770✼, 665.1771✼
✼ = color number, número de color, numéro de couleur
W10040780 Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8 www.sears.ca
Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com
Page 2
TABLE OF CONTENTS
PROTECTION AGREEMENTS.......................................................2
In the U.S.A...................................................................................2
In Canada .....................................................................................3
WARRANTY.....................................................................................3
DISHWASHER SAFETY..................................................................4
PARTS AND FEATURES ................................................................6
Soil Settler
START-UP GUIDE ..........................................................................7
Using Your New Dishwasher........................................................7
CONNECTING THE DISHWASHER ..............................................8

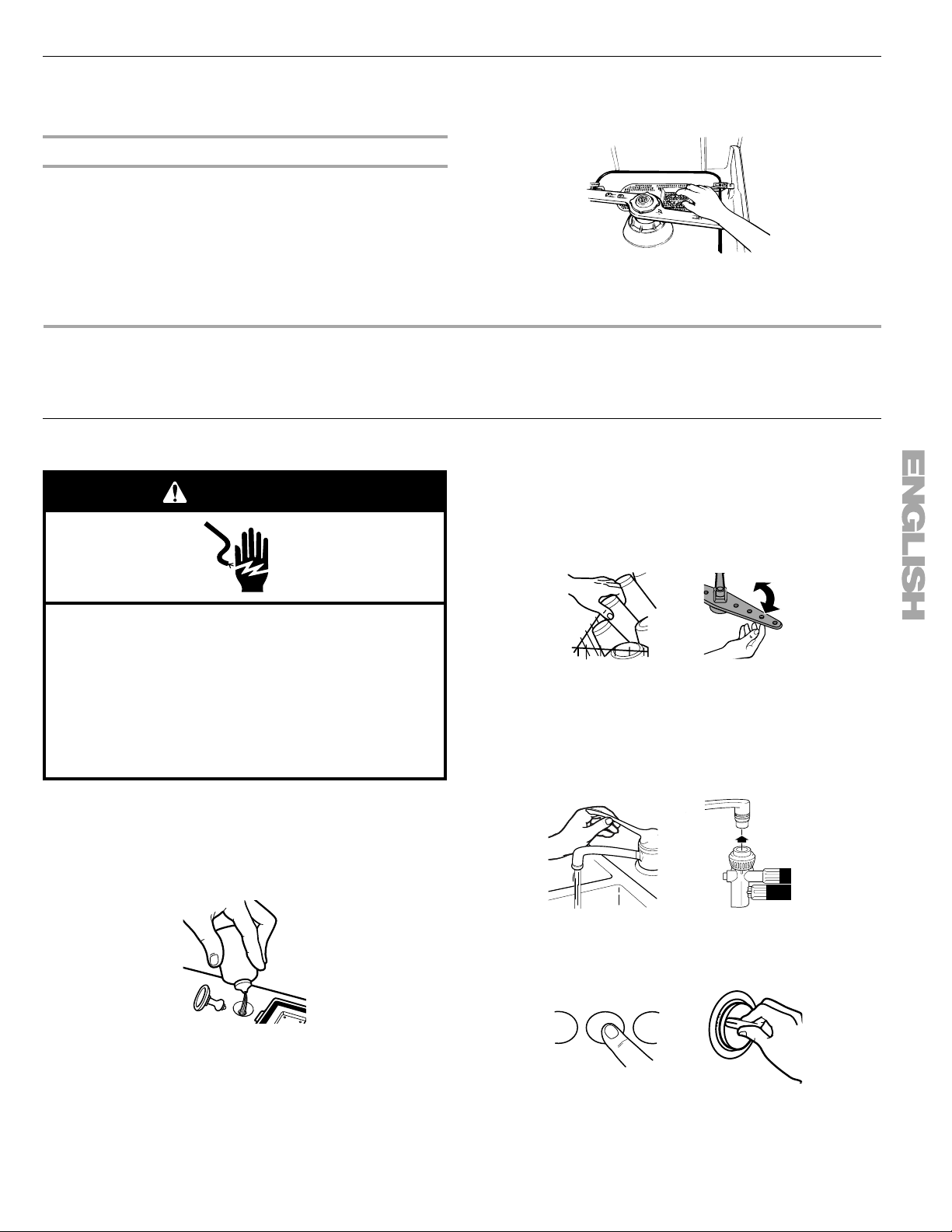

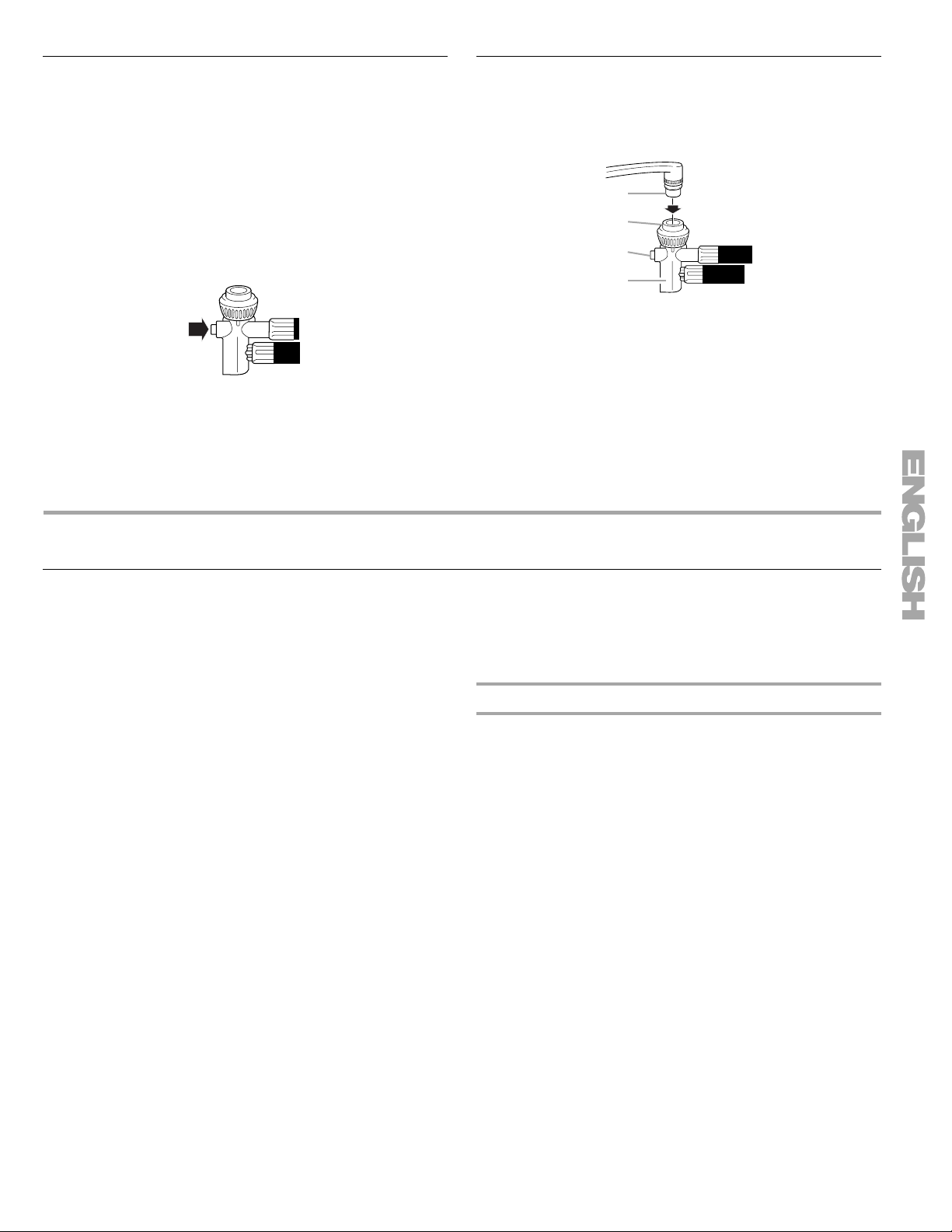

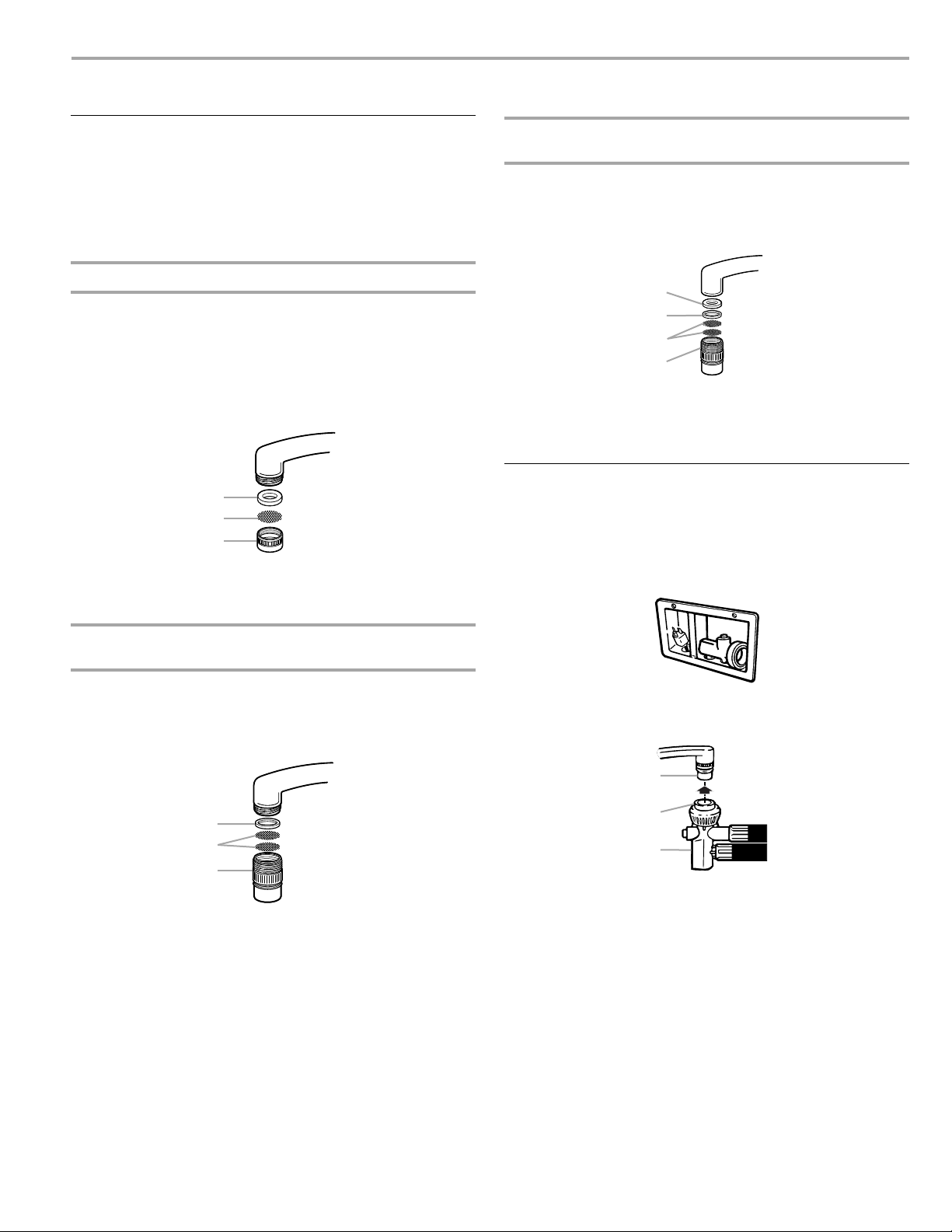

Connecting the Faucet Adapter...................................................8
Connecting to Water and Electrical Supply.................................8
Using the Faucet ..........................................................................9
Disconnecting the Dishwasher.....................................................9
DISHWASHER LOADING..............................................................9
Loading Suggestions....................................................................9

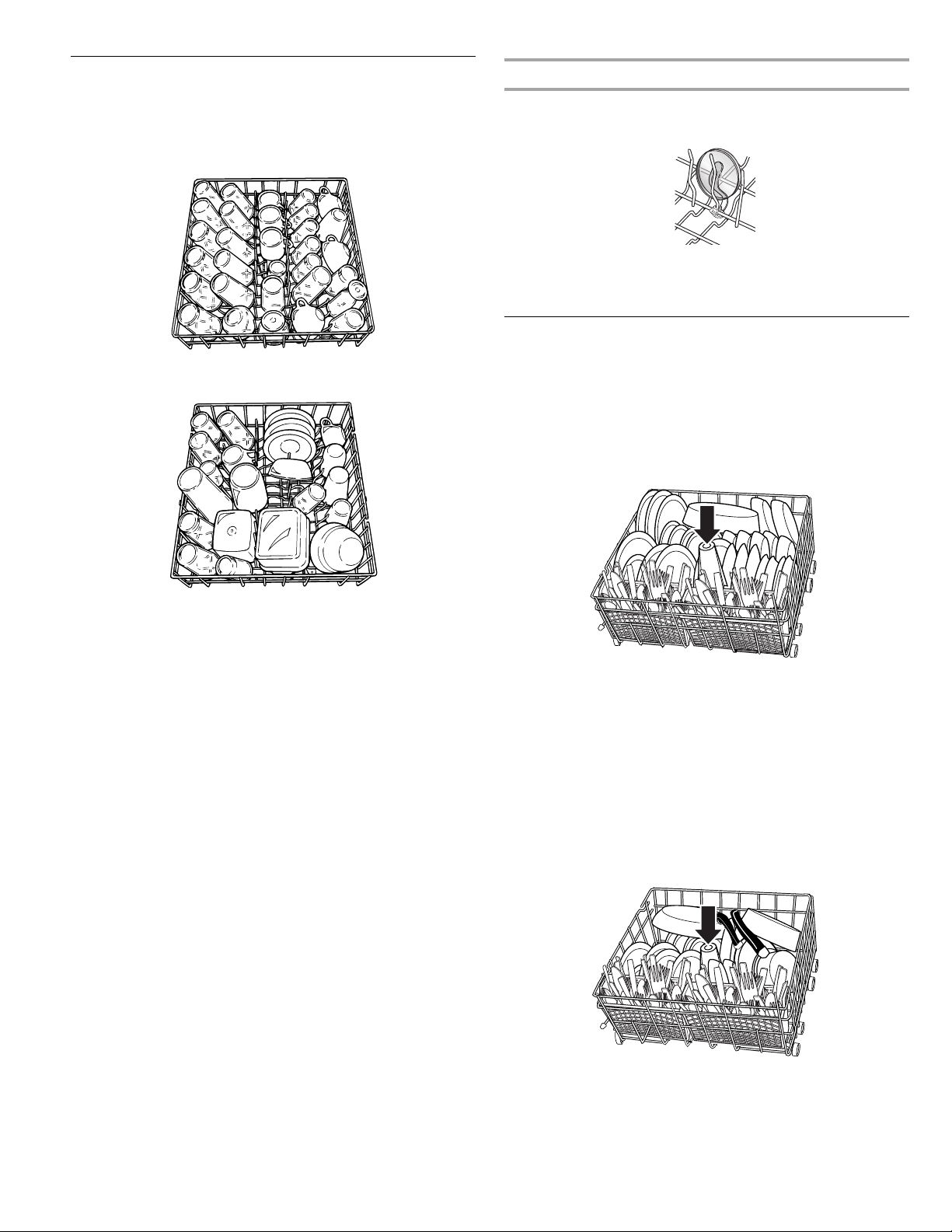

Loading Top Rack ..................................................................... 10
Loading Bottom Rack ............................................................... 10

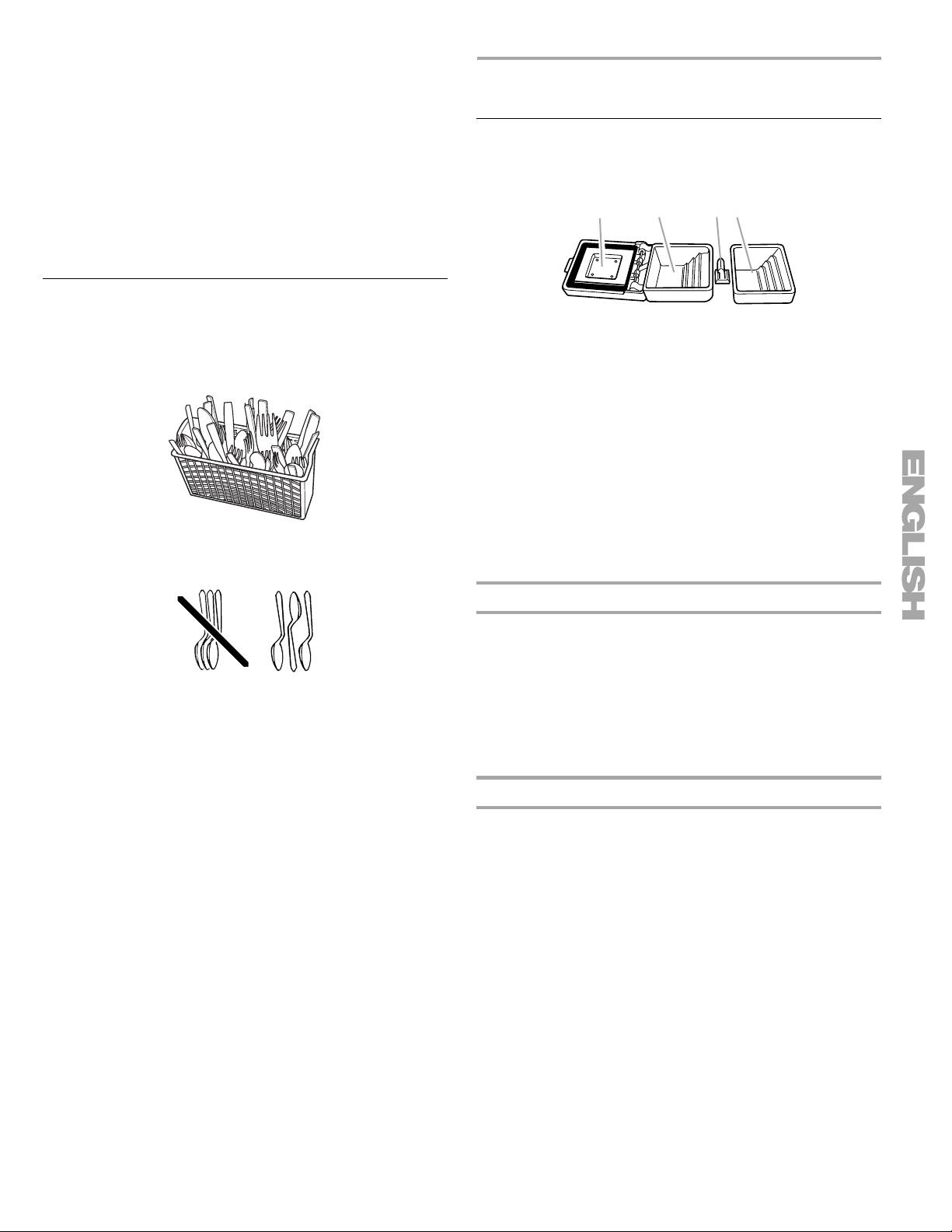

Loading Silverware Basket........................................................ 11
DISHWASHER USE ..................................................................... 11
Detergent Dispenser.................................................................. 11
Rinse Aid Dispenser .................................................................. 12
Dishwasher Efficiency Tips ....................................................... 13

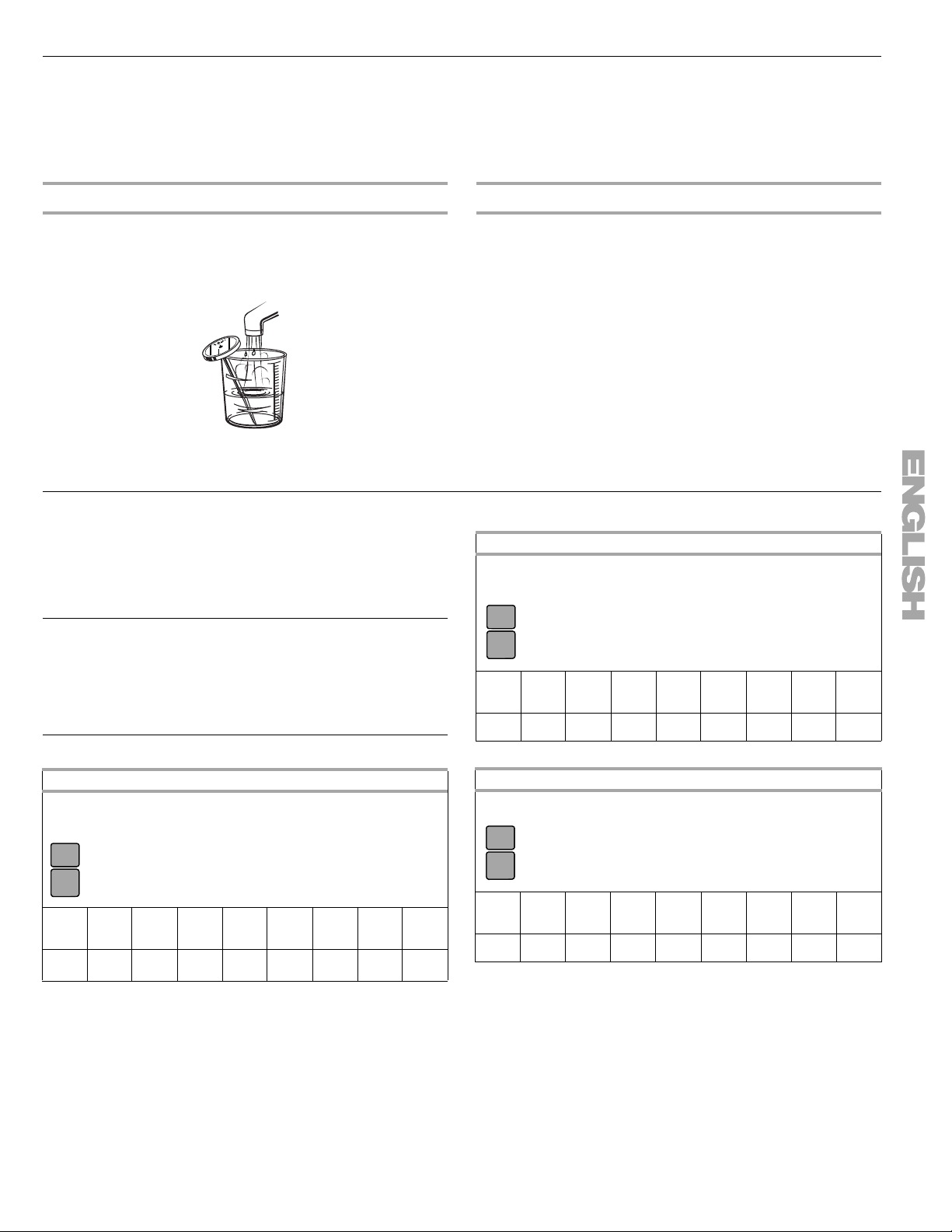

Cycle Selection Charts.............................................................. 13
Canceling a Cycle...................................................................... 14
Changing a Cycle or Setting ..................................................... 14
Adding Items During a Cycle..................................................... 14
Option Selections...................................................................... 14

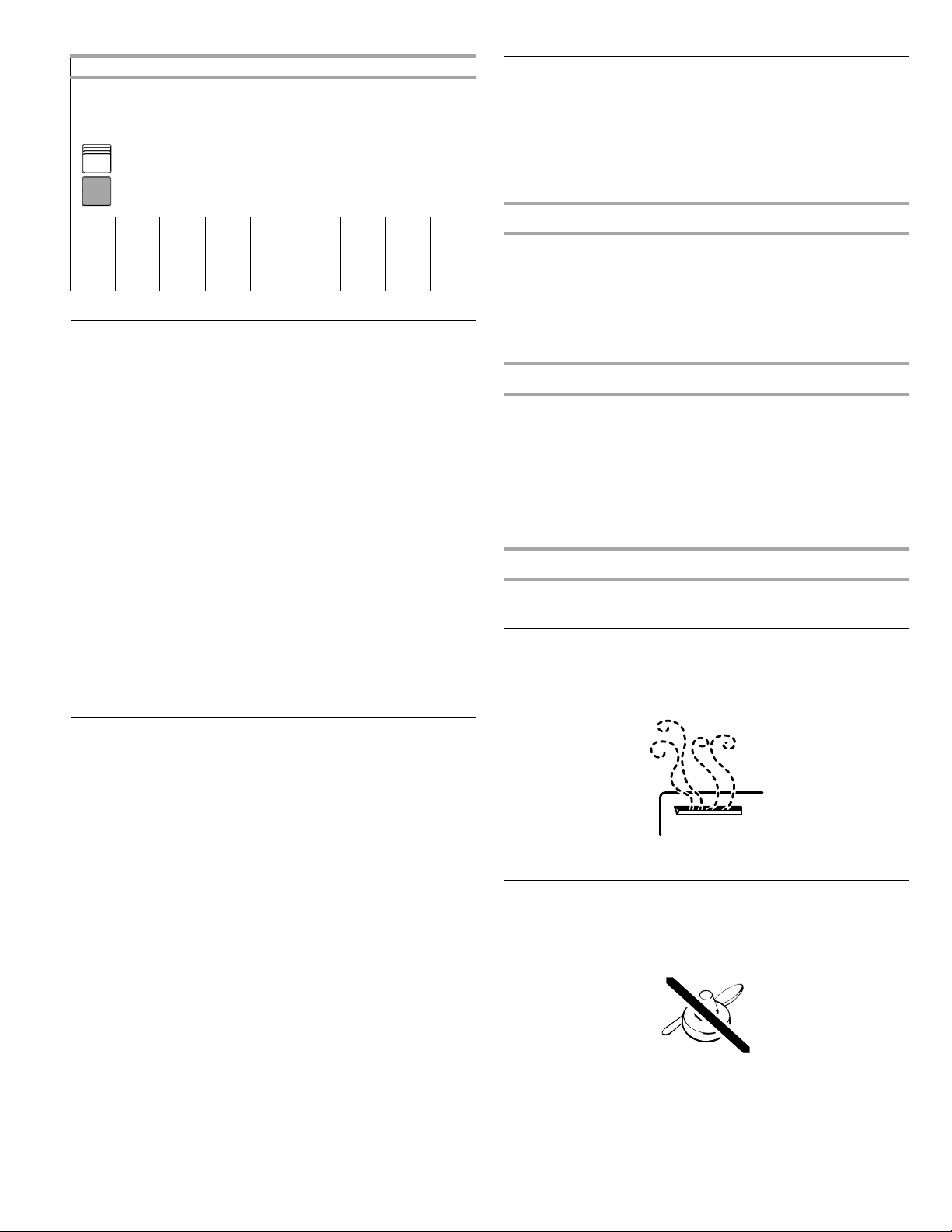

Drying System ........................................................................... 14

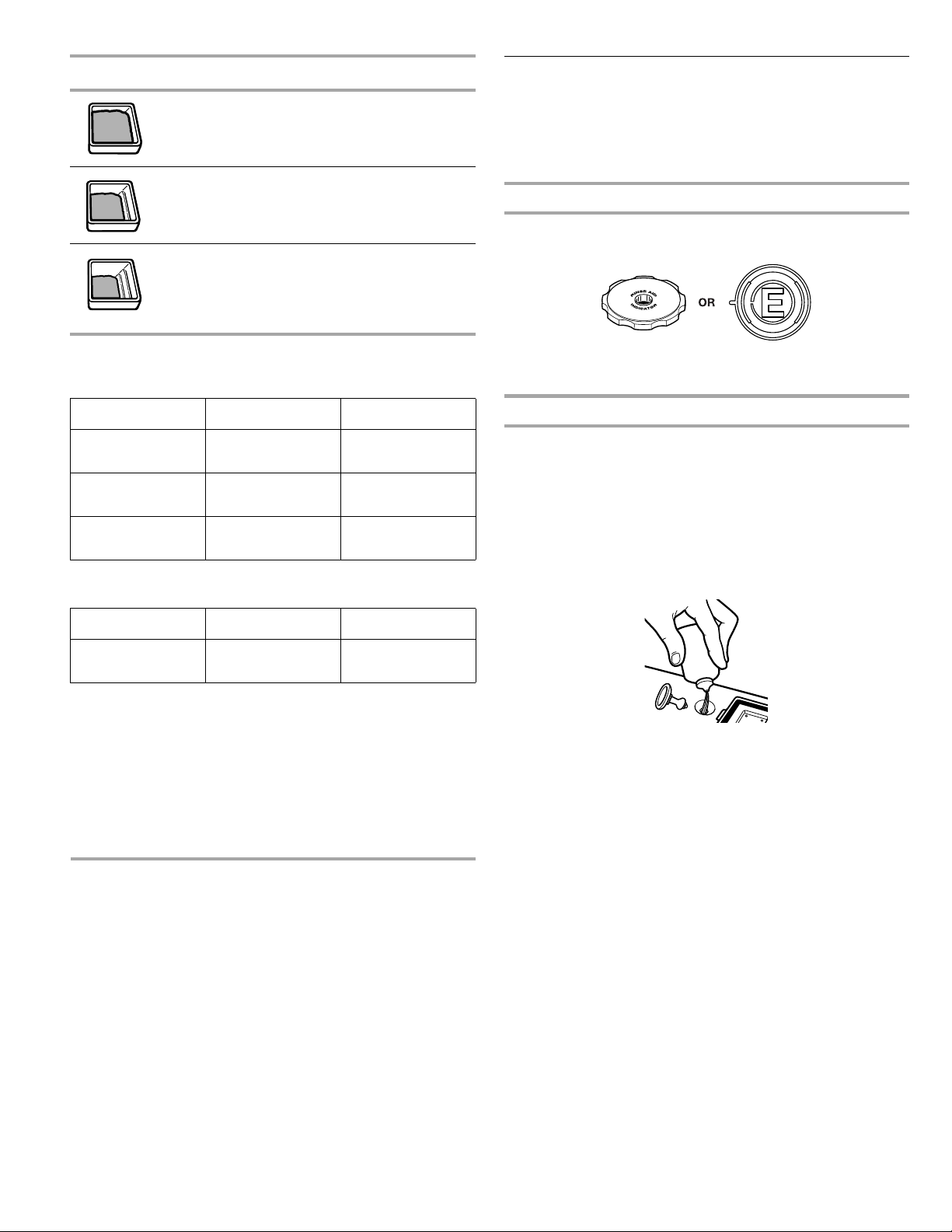

Overfill Protection Float............................................................. 14
WASHING SPECIAL ITEMS........................................................ 15
DISHWASHER CARE................................................................... 16

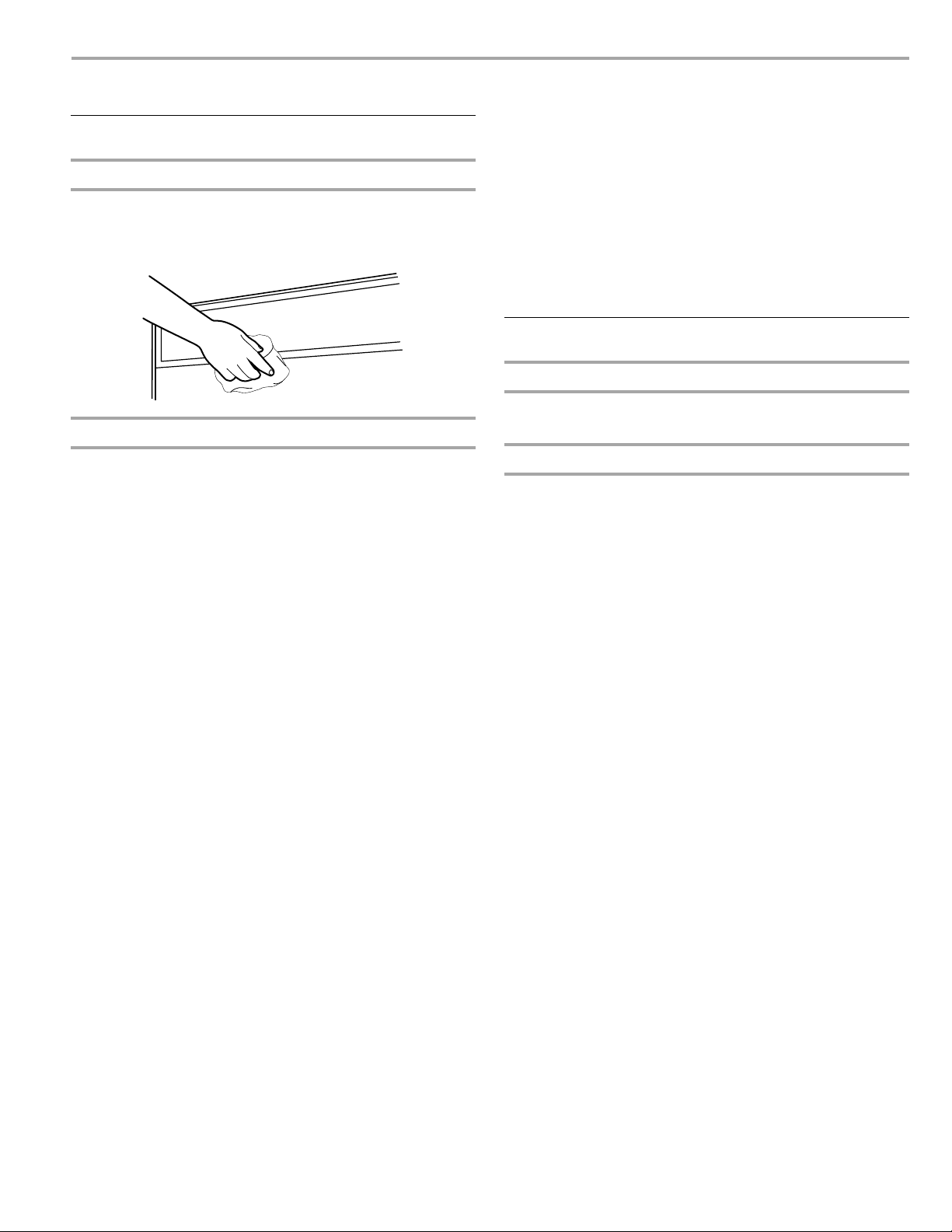

Cleaning..................................................................................... 16
Storing ....................................................................................... 16
TROUBLESHOOTING.................................................................. 17
SERVICE NUMBERS ............................................... BACK COVER
Soil Removal System .................................................7
PROTECTION AGREEMENTS
In the U.S.A.
Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore® product is designed and manufactured for years of
dependable operation. But like all products, it may require
preventive maintenance or repair from time to time. That’s when
having a Master Protection Agreement can save you money and
aggravation.
Purchase a Master Protection Agreement now and protect
yourself from unexpected hassle and expense.
The Master Protection Agreement also helps extend the life of
your new product. Here’s what’s included in the Agreement:
✔ Expert service by our 12,000 professional repair specialists
✔ Unlimited service and no charge for parts and labor on all
covered repairs
✔ “No-lemon” guarantee – replacement of your covered
product if four or more product failures occur within twelve
months
✔ Product replacement if your covered product can’t be fixed
✔ Annual Preventive Maintenance Check at your request – no
extra charge
✔ Fast help by phone – phone support from a Sears technician
on products requiring in-home repair, plus convenient repair
scheduling
✔ Power surge protection against electrical damage due to
power fluctuations
✔ Rental reimbursement if repair of your covered product takes
longer than promised
Once you purchase the Agreement, a simple phone call is all that
it takes for you to schedule service. You can call anytime day or
night, or schedule a service appointment online.
Sears has over 12,000 professional repair specialists, who have
access to over 4.5 million quality parts and accessories. That’s
the kind of professionalism you can count on to help prolong the
life of your new purchase for years to come. Purchase your
Master Protection Agreement today!
Some limitations and exclusions apply. For prices and
additional information, call 1-800-827-6655.
Sears Installation Service
For Sears professional installation of home appliances, garage
door openers, water heaters, and other major home items, in the
U.S.A. call 1-800-4-MY-HOME
®
.
2
Page 3
In Canada
Maintenance Agreements
Your purchase has added value because you can depend on
Sears HomeCentral
Technicians and more than a million parts and accessories, we
have the tools, parts, knowledge and skills to back our pledge:
We Service What We Sell.
You r Ke nm ore
provide years of dependable operation. But like all products, it
may require service from time to time. The Sears Maintenance
Agreement offers you an outstanding service program, affordably
priced.
®
for service. With over 2,400 Service
®
product is designed, manufactured and tested to
KENMORE APPLIANCE WARRANTY
ONE YEAR LIMITED WARRANTY
When installed, operated and maintained according to all
instructions supplied with the product, if this appliance fails due
to a defect in material or workmanship within one year from the
date of purchase, call 1-800-4-MY-HOME
repair.
If this appliance is used for other than private family purposes,
this warranty applies for only 90 days from the date of purchase.
THIS WARRANTY COVERS ONLY DEFECTS IN MATERIAL
AND WORKMANSHIP. SEARS WILL NOT PAY FOR:
1. Expendable items that can wear out from normal use,
including but not limited to filters, belts, light bulbs, and bags.
2. A service technician to instruct the user in correct product
installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed,
operated or maintained according to all instructions supplied
with the product.
5. Damage to or failure of this product resulting from accident,
abuse, misuse or use for other than its intended purpose.
6. Damage to or failure of this product caused by the use of
detergents, cleaners, chemicals or utensils other than those
recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from
unauthorized modifications made to this product.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF
REMEDIES
Customer’s sole and exclusive remedy under this limited
warranty shall be product repair as provided herein. Implied
warranties, including warranties of merchantability or fitness for a
particular purpose, are limited to one year or the shortest period
allowed by law. Sears shall not be liable for incidental or
consequential damages. Some states and provinces do not allow
the exclusion or limitation of incidental or consequential
damages, or limitations on the duration of implied warranties of
merchantability or fitness, so these exclusions or limitations may
not apply to you.
®
to arrange for free
The Sears Maintenance Agreement
■ Is your way to buy tomorrow’s service at today’s price
■ Eliminates repair bills resulting from normal wear and tear
■ Provides phone support from a Sears technician on products
requiring in-home repair
■ Even if you don’t need repairs, provides an annual Preventive
Maintenance Check, at your request, to ensure that your
product is in proper running condition.
Some limitations apply. For more information about Sears
Canada Maintenance Agreements, call 1-800-361-6665.
This warranty applies only while this appliance is used in the
United States and Canada.
This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
Sears, Roebuck and Co.
Dept. 817WA, Hoffman Estates, IL 60179
Sears Canada Inc.
Toronto, Ontario, Canada M5B 2B8
PRODUCT RECORD
In the space below, record your complete model number, serial
number, and purchase date. You can find this information on the
model and serial number label located on the product.
Have this information available to help you obtain assistance or
service more quickly whenever you contact Sears concerning
your appliance.
Model number __ __ __. __________________________________________
Serial number___________________________________________________
Purchase date __________________________________________________
Save these instructions and your sales receipt for future
reference.
3
Page 4
DISHWASHER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
You can be killed or seriously injured if you don't immediately
DANGER
WARNING
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
When using the dishwasher, follow basic precautions, including the following:
follow instructions.
can be killed or seriously injured if you don't
You
instructions.
follow
■
Read all instructions before using the dishwasher.
■
Use the dishwasher only for its intended function.
■
Use only detergents or rinse agents recommended for use
in a dishwasher, and keep them out of the reach of children.
■
When loading items to be washed:
1) Locate sharp items so that they are not likely to damage
the door seal; and
2) Load sharp knives with the handles up to reduce the risk
of cut-type injuries.
■
Do not wash plastic items unless they are marked
“dishwasher safe” or the equivalent. For plastic items not so
marked, check the manufacturer's recommendations.
■
Do not touch the heating element during or immediately
after use.
■
Do not operate the dishwasher unless all enclosure panels
are properly in place.
SAVE THESE INSTRUCTIONS
■
Do not tamper with controls.
■
Do not abuse, sit on, or stand on the door, lid, or dish racks
of the dishwasher.
■
To reduce the risk of injury, do not allow children to play in
or on the dishwasher.
■
Under certain conditions, hydrogen gas may be produced in
a hot water system that has not been used for two weeks or
more. HYDROGEN GAS IS EXPLOSIVE. If the hot water
system has not been used for such a period, before using
the dishwasher turn on all hot water faucets and let the
water flow from each for several minutes. This will release
any accumulated hydrogen gas. As the gas is flammable,
do not smoke or use an open flame during this time.
■
Remove the door or lid to the washing compartment
when removing an old dishwasher from service or
discarding it.
4
Page 5
GROUNDING INSTRUCTIONS
■
For a grounded, cord-connected dishwasher:
The dishwasher must be grounded. In the event of a
malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current. The dishwasher is
equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is installed and
grounded in accordance with all local codes and
ordinances.
WARNING: Improper connection of the
equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or
service representative if you are in doubt whether the
dishwasher is properly grounded. Do not modify the
plug provided with the dishwasher; if it will not fit the
outlet, have a proper outlet installed by a qualified
electrician.
■
For a permanently connected dishwasher:
The dishwasher must be connected to a grounded
metal, permanent wiring system, or an equipmentgrounding conductor must be run with the circuit
conductors and connected to the equipmentgrounding terminal or lead on the dishwasher.
SAVE THESE INSTRUCTIONS
■ Install where dishwasher is protected from the elements.
Protect against freezing to avoid possible rupture of fill valve.
Such ruptures are not covered by the warranty. See “Storing”
section for winter storage information.
■ Install and level dishwasher on a floor that will hold the
weight, and in an area suitable for its size and use.
■ Remove all shipping plugs from hoses and connectors (such
as the cap on the drain outlet) before installing. See
Installation Instructions for complete information.
5
Page 6
PARTS AND FEATURES
M
This manual covers several different models. The features on your dishwasher may vary from those shown below.
A
B
I
C
D
E
F
G
H
A. Top rack.
B. No-flip clips (on some models)
C. Spray arm
D. Water inlet opening (in tub wall)
E. Bottom rack
F. Rack bumper
G. Heating element
H. Vent
I. Spray tower and protector
J. Model and serial number label
J
K
L
N
K. Silverware basket (2)
L. Overfill protection float
M. Detergent dispensers
N. Rinse aid dispenser
Control Panel
6
Page 7
Soil Settler Soil Removal System
The Soil Settler soil removal system cleans by spraying a mixture
of hot, clean water and detergent against soiled dishes.
To clean the Soil Settler filter screen
1. Wait at least 20 minutes after a cycle for the heating element
to cool down.
2. Unload and slide the bottom rack forward. (Remove bottom
rack if necessary to reach filter screen.)
3. Remove collected particles from the screen with your fingers
or a paper towel.
4. Replace the bottom rack with the rack bumpers facing the
door.
NOTE: Do not clean the dishwasher interior until it has cooled.
START-UP GUIDE
Before using your dishwasher, remove all packaging materials. Read this entire Use and Care Guide. You will find important safety
information and useful operating tips.
Using Your New Dishwasher
3. Scrape large food soil and hard items (toothpicks or bones)
WARNING
from dishes.
4. Properly load the dishwasher. (See “Dishwasher Loading.”)
Load dishes with space in between so water will reach the
soiled surfaces. Make sure nothing keeps the spray arm(s)
from spinning freely.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
A power supply of 120 volts, 60 Hz AC, 15 or 20 amps, is
required.
1. Plug into a grounded 3 prong outlet.
2. Rinse aid is essential for good drying. Be sure to fill the
dispenser before you use your new dishwasher. Each filling
will last about 1 to 3 months depending on your usage.
5. Add detergent. Always use a quality brand detergent. (See
“Dishwasher Use.”)
6. Push door firmly closed. The door latches automatically. Run
hot water at the sink where you will connect dishwasher until
water is hot. (See “Dishwasher Efficiency Tips.”) Turn off the
water and hook the dishwasher to the faucet. (See
“Connecting the Dishwasher.”) Turn on the hot water.
7. Press the desired cycle and option selections. (See
“Dishwasher Use.”) Turn the Cycle Control knob to the
desired cycle to start.
7
Page 8
CONNECTING THE DISHWASHER
Connecting the Faucet Adapter
NOTE: A special adapter must be installed on the faucet before
the dishwasher can be connected. Complete Installation
Instructions and the adapter are packed with your dishwasher.
(See the Installation Instructions.)
When moving your dishwasher, make sure the door is latched.
Hold the dishwasher at the top front corners.
Preparing the faucet
1. Remove the screen holder or aerator, screen, and washer
from the end of the faucet.
2. Use the faucet adapter kit that came with your portable
dishwasher to modify the faucet where the dishwasher will be
used.
NOTE: Remove and save the washer, screen, and screen holder
or aerator for future use.
A
B
C
A. Washer
B. Screen
C. Screen holder or aerator
Connecting the faucet adapter to faucets with
internal threads
Insert the 2 screens, the thin washer, and then the thick washer
from the faucet adapter kit into the faucet adapter. Attach the
adapter onto the end of the faucet.
NOTE: Use both washers.
A
B
C
D
A. Thick washer
B. Thin washer
C. Screens
D. Faucet adapter
Connecting to Water and Electrical Supply
1. Run water at the faucet until it is hot. Turn off the water.
2. Pull the hoses out of their storage compartment on the back
of the dishwasher.
NOTE: Make sure the hoses are not kinked or twisted. Kinked
hoses reduce washing performance.
Connecting the faucet adapter to faucets with
external threads
Insert the 2 screens and then the thin washer from the faucet
adapter kit into the faucet adapter. Attach the adapter onto the
end of the faucet.
NOTE: Do not use the thick washer.
A
B
C
A. Thin washer
B. Screens
C. Faucet adapter
3. Pull down on the locking collar while lifting the hose
connector onto the faucet adapter.
A
B
C
A. Faucet adapter
B. Locking collar
C. Hose connector
4. When the connector snaps into place, release the locking
collar.
5. Turn the hot water on slowly until it is all the way on.
6. Plug into a grounded 3 prong outlet.
8
Page 9
Using the Faucet
You can draw water from the faucet while the dishwasher is
connected.
NOTE: Do not draw water while the dishwasher is filling or while
water is being pumped out. (This helps avoid a low fill when
dishwasher is filling or mixing drain water with fresh water when
dishwasher is draining.)
Press the red button on the hose connector to draw water from
the faucet. (The faucet is set on hot. Adjust the faucet for the
water temperature you want.)
NOTE: Turn the hot water back on after you draw water from the
faucet. Turn off the cold water.
Disconnecting the Dishwasher
1. Turn off the hot water. (This can be done after the last rinse.)
2. Press the red button on the connector to release the water
pressure.
A
B
C
D
A. Faucet adapter
B. Locking collar
C. Red button
D. Hose connector
3. Lift slightly on the hose connector while pulling down the
locking collar. Pull down on the connector.
4. Empty any remaining water from the connector by turning the
connector upside-down.
5. Unplug the power supply cord and return it to the storage
compartment.
6. Return the hoses to the storage compartment.
DISHWASHER LOADING
Loading Suggestions
■ Remove leftover food, bones, toothpicks and other hard
items from the dishes. It is not necessary to rinse the dishes
before putting them into the dishwasher.
NOTE: Prerinsing dishes soiled with tomato-based products
is recommended to avoid staining the dishware.
The wash module removes food particles from the water.
■ It is important for the water spray to reach all soiled surfaces.
■ Load dishes so they are not stacked or overlapping, if
possible. For best drying, water must be able to drain from all
surfaces.
■ Make sure pot lids and handles, pizza pans, cookie sheets,
etc., do not interfere with the spray arm rotation.
■ Run a rinse cycle to keep dishes moist if you do not plan to
wash them soon. Foods such as eggs, rice, pasta, spinach,
and cooked cereals may be hard to remove if they are left to
dry over a period of time.
Quiet operating tips
To avoid thumping/clattering noises during operation:
■ Make sure lightweight load items are secured in the racks.
■ Make sure pot lids and handles, pizza pans, cookie sheets,
etc., do not touch interior walls or interfere with the rotation of
the spray arm.
■ Load dishes so they do not touch one another.
9
Page 10
Loading Top Rack
The top rack is designed for cups, glasses, and smaller items.
(See recommended loading patterns shown.)
NOTE: The features on your dishwasher rack may vary from the
drawings shown.
Cup and glass load
No-flip clips (on some models)
The no-flip clips hold lightweight plastic items such as cups, lids,
or bowls in place during washing.
To move a clip
1. Pull the clip up and off the tine.
2. Reposition the clip on another tine.
Loading Bottom Rack
The bottom rack is designed for plates, pans, casseroles, and
utensils. Items with cooked-on or dried-on food should be loaded
with soiled surfaces facing inward to the spray. (See
recommended loading patterns shown.)
NOTE: The features on your dishwasher rack may vary from the
drawings shown.
Do not cover spray tower. See arrow.
Mixed load
■ Place items so open ends face down for cleaning and
draining.
■ Load glasses in top rack only. The bottom rack is not
designed for glasses. Damage can occur.
■ Place cups and glasses in the rows between tines. Placing
them over the tines can lead to breakage.
■ China, crystal, and other delicate items must not touch each
other during dishwasher operation. Damage may occur.
■ Load plastic items in the top rack only. Only plastic items
marked “dishwasher safe” are recommended.
■ Load plastic items so the force of the spray does not move
them during the cycle.
■ To avoid chipping, do not let stemware touch other items.
■ Small bowls, pans, and other utensils can be placed in the
top rack. Load bowls in the center section for best stability.
Mixed load
■ Do not load glasses, cups, or plastic items in the bottom
rack. Load small items in the bottom rack only if they are
secured in place.
■ Load plates, soup bowls, etc., between tines and facing
inward to the spray.
■ Overlap the edges of plates for large loads.
■ Load soup, cereal, and serving bowls in the rack in a variety
of ways depending upon their size and shape. Load bowls
securely between the rows of tines. Do not nest bowls
because the spray will not reach all surfaces.
10
Utensil load
Page 11
■ Load cookie sheets, cake pans, and other large items at the
sides and back. Loading such items in front can keep the
water spray from reaching the detergent dispenser and
silverware basket.
■ Secure heavily soiled cookware face down in the rack.
■ Make sure pot handles and other items do not stop rotation
of the spray arm(s). The spray arm(s) must move freely.
■ Do not load items between the bottom rack and the side of
the dishwasher tub because they might block the water inlet
opening.
NOTE: If you have removed the bottom rack for unloading or
cleaning, replace it with the bumpers in front.
Loading Silverware Basket
Load the silverware basket while it is in the bottom rack or take
the basket out for loading on a counter or table.
NOTE: Unload or remove the basket before unloading the racks
to avoid spilling water droplets onto the silverware.
Mix items in each section of the basket with some pointing up
and some down to avoid nesting. Spray cannot reach nested
items.
DISHWASHER USE
Detergent Dispenser
The detergent dispenser has 2 sections. The Pre-Wash section
empties detergent into the dishwasher when you close the door.
A
The larger Main Wash section automatically empties detergent
into the dishwasher during the main wash. (See the “Cycle
Selection Charts.”)
■ Use automatic dishwashing detergent only. Other detergents
can produce excessive suds that can overflow out of the
dishwasher and reduce washing performance.
■ Add detergent just before starting a cycle.
■ Store tightly closed detergent in a cool, dry place. Fresh
automatic dishwasher detergent results in better cleaning.
NOTE: Do not use detergent if you have selected a rinse cycle.
BCD
A. Cover
B. Main Wash section
C. Cover latch
D. Pre-Wash section
IMPORTANT: Always load items (knives, skewers, etc.) pointing
down.
NOTES:
■ Do not load silver or silver-plated silverware with stainless
steel. These metals can be damaged by contact with each
other during washing.
■ Some foods (such as salt, vinegar, milk products, fruit juices,
etc.) can pit or corrode silverware. Run a rinse cycle if you do
not have a full load to wash immediately.
Filling the dispenser
1. If the dispenser cover is closed, open the cover by pushing
the cover latch.
2. Fill the Main Wash section with detergent. See “How much
detergent to use.”
3. Fill the Pre-Wash section if needed. (See “Cycle Selection
Charts.”)
4. Close the dispenser cover.
The cover will open during the cycle to dispense the detergent.
How much detergent to use
■ The amount of detergent to use depends on the hardness of
your water and the type of detergent. If you use too little,
dishes will not be clean. If you use too much in soft water,
glassware will etch.
■ Water hardness can change over a period of time. Find out
your water’s hardness by asking your Sears Sales Associate,
local water department, water softener company, or county
extension agent.
11
Page 12
Where to fill
Top of 3rd step (9 tsp or 45 mL)
Rinse Aid Dispenser
IMPORTANT: Your dishwasher is designed to use a liquid rinse
aid. The use of rinse aids greatly improves drying by allowing
water to drain from the dishes during the final rinse. They also
keep water from forming droplets that can dry as spots or
streaks. Do not use a solid or bar-type rinse aid.
Top of 2nd step (6 tsp or 30 mL)
Top of 1st step (3 tsp or 15 mL)
Soft to Medium Water (0-6 grains per gallon)
[typical water softener water and some city water]
Soil Level Main Wash Pre-Wash
Lightly soiled/Prerinsed dish loads
Normally soiled
dish loads
Heavily soiled
dish loads
3 tsp (15 mL)
[top of 1st step]
6 tsp (30 mL)
[top of 2nd step]
9 tsp (45 mL)
[top of 3rd step]
[top of 1st step]
[top of 2nd step]
[top of 2nd step]
Medium to Hard Water (7-12 grains per gallon)
[well water and some city water]
Soil Level Main Wash Pre-Wash
3 tsp (15 mL)
6 tsp (30 mL)
6 tsp (30 mL)
†
Checking the dispenser
Check the center of the fill indicator cap. Clear means it needs
filling.
Or you can remove the fill indicator cap. If an “E” is visible, the
dispenser is empty.
Filling the dispenser
The rinse aid dispenser holds 6 oz (175 mL) of rinse aid. Under
normal conditions, this will last for about 3 months. You do not
have to wait until the dispenser is empty to refill it. Try to keep it
full, but be sure not to overfill it.
1. Make sure the dishwasher door is completely open.
2. Remove the fill indicator cap.
3. Add rinse aid. Fill to the smallest opening in the lower part of
the dispenser. Overfilling can cause the rinse aid to leak out,
and could cause oversudsing.
All soil types 9 tsp (45 mL)
†
It might be necessary to use the Hi Temp wash option for best
[top of 3rd step]
6 tsp (30 mL)
[top of 2nd step]
wash performance in very hard water.
NOTE: Fill amounts shown are for standard powdered detergent.
Amounts may vary if you use liquid or concentrated powdered
detergent. Tablet detergents should be placed in the main wash
section of the detergent dispenser with the cover closed. Follow
instructions on the package when using liquid dishwasher
detergent, concentrated powdered detergent or tablet detergent.
IMPORTANT: See “Cycle Selection Charts” for which detergent
dispenser sections to use with each cycle.
4. Clean up any spilled rinse aid with a damp cloth.
5. Replace the fill indicator cap. Close tightly.
12
Page 13
Dishwasher Efficiency Tips
Hot water dissolves and activates the dishwashing detergent. Hot water also dissolves grease on dishes and helps glasses dry spotfree. For best dishwashing results, water should be 120°F (49°C) as it enters the dishwasher. Loads may not wash as well if the water
temperature is too low. Water that is too hot can make some soils harder to remove and cause certain detergent ingredients not to
function. If your water heater is located far from the dishwasher, it may be necessary to run the hot water at the faucet closest to the
dishwasher to minimize the amount of cold water in the water line.
To check water temperature
1. Run hot water at the faucet closest to your dishwasher for at
least 1 minute.
2. Place a candy or meat thermometer in a glass measuring
cup.
3. Check the temperature on the thermometer as the water is
running into the cup.
Cycle Selection Charts
Press the desired cycle. Turn the Cycle Control knob to the
desired cycle. If the door is latched, you will hear the cycles start
and stop as the Cycle Control knob passes each cycle mark. This
is normal and does not hurt the dishwasher. If you prefer, you can
set the Cycle Control knob with the door unlatched.
A “●” shows what steps are in each cycle.
Water usage is shown in U.S. gallons/liters.
Cycle time includes dry time.
NOTE: The Cycle Control knob pauses while water is being
heated.
Additional efficiency tips
■ To save water, energy and time, do not rinse dishes before
putting them into the dishwasher.
■ Use a delay feature to run your dishwasher during off-peak
hours. Local utilities recommend avoiding heavy usage of
energy at certain times of day.
■ During the summer, run your dishwasher at night. This
reduces daytime heat buildup in the kitchen.
■ Use a rinse aid to improve drying.
■ Use cycles or options that add extra heat to the wash or rinse
portion of the cycle only when needed.
■ If your home is equipped with a water softener, you may want
to avoid starting the dishwasher during the regeneration of
the softener, since this may contribute to poor wash
performance.
Normal Wash
Use this cycle for loads with normal amounts of food soil. (The
energy-usage label is based on this cycle.)
Use both detergent dispenser sections
Wash Rinse Rinse Main
●● ●●●●84 7.2/27.3
Rinse Rinse Dry Time
Wash
(min)
Water
Usage
(gal/L)
Pots Pans
Use this cycle for hard-to-clean, heavily soiled pots, pans,
casseroles, and regular tableware.
Use both detergent dispenser sections.
Wash Rinse Rinse Main
●●●●●●●92 8.6/32.6
Rinse Rinse Dry Time
Wash
(min)
Water
Usage
(gal/L)
Heavy Wash
Use this cycle for loads with heavy food soils.
Use both detergent dispenser sections.
Wash Rinse Rinse Main
● ●●●●● 90 7.2/27.2
Wash
Rinse Final
Rinse
Dry Time
(min)
Water
Usage
(gal/L)
13
Page 14
Light Wash
Use this cycle for china and crystal. This cycle uses a light wash
and gentle dry. The Air Dry option is automatic with this cycle,
and the heater is turned off.
Use covered detergent dispenser section.
Option Selections
You can customize your cycles by pressing an option. If you
change your mind, press RESET to turn the option off. Select a
different option if desired.
You can change an option anytime before the selected option
begins. For example, you can press an unheated drying option
anytime before drying begins.
Wash Rinse Rinse Main
●●●●●79 5.8/22.0
Rinse Rinse Dry Time
Wash
(min)
Water
Usage
(gal/L)
Canceling a Cycle
You can cancel a cycle at any time.
1. Turn the cycle control knob slowly clockwise until you hear
water draining. Let the dishwasher drain completely.
2. Open the door.
3. Turn the cycle control knob to Off.
Changing a Cycle or Setting
If your dishwasher has more than one wash cycle, you can
change a cycle anytime during a cycle.
1. Lift the door latch to stop the cycle.
2. Turn the Cycle Control knob clockwise.
3. Check the detergent dispensers. They must be filled properly
for the new cycle.
NOTE: Turning the Cycle Control knob can cause the covered
Detergent Dispenser section to open and release the
detergent. Check the covered section if the cycle uses
detergent in both sections.
4. Close the door firmly until it latches. The dishwasher starts a
new cycle.
Hi Temp
Select this option to heat the water to 140°F (60°C) during parts
of the cycle. Heating the water helps improve washing results.
This option adds both heat and wash time to parts of the cycle.
Hi Temp wash is useful when loads contain baked-on food.
NOTE: Pots Pans automatically uses this option. Hi Temp wash is
an option with the Normal Wash, Heavy Wash and Light Wash
cycles.
Air Dry
Select this energy-saving option to dry without heat. Air drying is
useful when loads contain plastic dinnerware that may be
sensitive to high temperatures.
The dishes take longer to dry and some spotting can occur. For
best drying, use a liquid rinse aid. Some items (such as plastics)
may need towel drying.
NOTE: Light Wash automatically uses this option. Air Dry is an
option with all other cycles.
Reset
Select Reset to change an option anytime before the selected
option begins.
Drying System
During drying, you can see steam escaping through the vent at
the upper left corner of the door. This is normal as the heat dries
your dishes.
Adding Items During a Cycle
You can add an item anytime before the main wash starts, or the
Cycle Control knob reaches Water Miser/Light Wash.
1. Lift up the door latch to stop the cycle. Wait for the spraying
action to stop before opening the door.
2. Open the door and add the item.
3. Close the door, but do not latch it. Wait 30 seconds for the air
in the dishwasher to warm up. This reduces the amount of
moisture escaping from the vent when restarting a cycle.
4. Close the door firmly until it latches. The dishwasher resumes
the cycle.
IMPORTANT: The vapor is hot. Do not touch the vent
during drying.
Overfill Protection Float
The overfill protection float (in the front right corner of the
dishwasher tub) keeps the dishwasher from overfilling. It must be
in place for the dishwasher to operate.
Check under the float for objects that may keep the protector
from moving up or down.
14
Page 15
WASHING SPECIAL ITEMS
If you have doubts about washing a particular item, check with the manufacturer to see if it is dishwasher safe.
Material Dishwasher Safe?/Comments
Material Dishwasher Safe?/Comments
Aluminum Yes
High water temperature and detergents
can affect finish of anodized aluminum.
Disposable
Aluminum
Bottles and Cans No
Cast Iron No
China/
Stoneware
Crystal Yes
Gold No
Glass Yes
Hollow-Handle
Knives
No
Do not wash throwaway aluminum pans
in the dishwasher. These might shift
during washing and transfer black marks
to dishes and other items.
Wash bottles and cans by hand. Labels
attached with glue can loosen and clog
the spray arms or pump and reduce
washing performance.
Seasoning will be removed, and iron will
rust.
Yes
Always check manufacturer’s
recommendations before washing.
Antique, hand-painted, or over-the-glaze
patterns may fade. Gold leaf can discolor
or fade.
Always check manufacturer’s
recommendations before washing. Some
types of leaded crystal can etch with
repeated washing.
Gold-colored flatware will discolor.
Milk glass yellows with repeated
dishwasher washing.
No
Handles of some knives are attached to
the blade with adhesives which can
loosen if washed in the dishwasher.
Pewter, Brass,
Bronze
Disposable
Plastics
Plastics Yes
Stainless Steel Yes
Sterling Silver or
Silver Plate
Tin No
Wooden Ware No
No
High water temperatures and detergent
can discolor or pit the finish.
No
Cannot withstand high water
temperatures and detergents.
Always check manufacturer’s
recommendations before washing.
Plastic items may vary in their ability to
withstand high temperatures and
detergents. It is recommended that light
items such as lids and butter dishes be
placed in the upper rack only. Sturdy
items such as coolers and high-chair
trays may be placed in the lower rack.
When washing plastic items in the lower
rack, it is recommended that an air dry
be used.
Run a rinse cycle if not washing
immediately. Prolonged contact with
food containing salt, vinegar, milk
products, or fruit juice can damage
finish.
Yes
Run a rinse cycle if not washing
immediately. Prolonged contact with
food containing salt, acid, or sulfide
(eggs, mayonnaise, and seafood) can
damage finish.
Can rust.
Wash by hand. Always check
manufacturer’s instructions before
washing. Untreated wood can warp,
crack, or lose its finish.
15
Page 16
DISHWASHER CARE
Cleaning
Cleaning the exterior
In most cases, regular use of a soft, damp cloth or sponge and a
mild detergent is all that is necessary to keep the outside of your
dishwasher looking nice and clean. If your dishwasher has a
stainless steel exterior, a stainless steel cleaner is recommended.
Cleaning the interior
To clean interior
Make a paste with powdered dishwasher detergent on a damp
sponge and clean.
OR
Use liquid automatic dishwasher detergent and clean with a
damp sponge.
OR
See the vinegar rinse procedure in “Spotting and filming on
dishes” in “Troubleshooting.”
NOTE: Run a normal cycle with detergent after cleaning the
interior.
Storing
Storing for the summer
Protect your dishwasher during the summer months by turning
off the water supply and power supply to the dishwasher.
Hard water minerals can cause a white film to build up on the
inside surfaces, especially just beneath the door area.
Do not clean the dishwasher interior until it has cooled. Wear
rubber gloves. Do not use any type of cleanser other than
dishwasher detergent because it may cause foaming or sudsing.
Winterizing your dishwasher
Protect your dishwasher and home against water damage due to
freezing water lines. If your dishwasher is left in a seasonal
dwelling or could be exposed to near freezing temperatures, have
your dishwasher winterized by authorized service personnel.
16
Page 17
TROUBLESHOOTING
First try the solutions suggested here and possibly avoid the cost of a service call...
Dishwasher is not operating properly
■ Dishwasher does not run or stops during a cycle
Is the door closed tightly and latched?
Is the right cycle selected? Refer to the “Cycle Selection
Charts.”
Is there power to the dishwasher? Has a household fuse
blown, or has a circuit breaker tripped? Replace the fuse or
reset the circuit breaker. If the problem continues, call an
electrician.
Has the motor stopped due to an overload? The motor
automatically resets itself within a few minutes. If it does not
restart, call for service.
Is the water shut-off valve (if installed) turned on?
It is normal for certain cycles to repeatedly pause for several
seconds during the wash cycle.
■ Dishwasher will not fill
Is the overfill protection float able to move up and down
freely? Press down to release.
■ Dishwasher seems to run too long
Is the water supplied to the dishwasher hot enough? The
dishwasher runs longer while heating water. Refer to the
“Dishwasher Efficiency Tips” section.
A delay automatically occurs in some wash and rinse cycles
until the water reaches the proper temperature.
■ Water remains in the dishwasher
Is the cycle complete?
■ Detergent remains in the covered section of the
dispenser
Is the cycle complete?
Is the detergent lump-free? Replace detergent if necessary.
Is the bottom rack installed properly with the bumpers (on
some models) in the front? Refer to the “Parts and Features”
section. Reinstall the rack if necessary.
■ White residue on the front of the access panel
Was too much detergent used? Refer to the “Detergent
Dispenser” section.
Is the brand of detergent making excess foam? Try a different
brand to reduce foaming and eliminate buildup.
■ Odor in the dishwasher
Are dishes washed only every 2 or 3 days? Run a rinse cycle
once or twice a day until you have a full load.
Does the dishwasher have a new plastic smell? Run a vinegar
rinse as described in “Spotting and filming on dishes” later in
this Troubleshooting guide.
■ Condensation on the kitchen counter (built-in models)
Is the dishwasher aligned with the countertop? Moisture from
the vent in the dishwasher console can form on the counter.
Refer to the Installation Instructions for more information.
Dishes are not completely clean
■ Food soil left on the dishes
Is the dishwasher loaded correctly? Refer to the “Dishwasher
Loading” section.
Is the water temperature too low? For best dishwashing
results, water should be 120°F (49°C) as it enters the
dishwasher. Refer to the “Dishwasher Efficiency
Tips” section.
Did you use the correct amount of fresh detergent? Use
recommended dishwasher detergents only. Refer to the
“Detergent Dispenser” section. Detergent must be fresh to be
effective. Store detergent in a cool, dry area. Heavy soil and/
or hard water generally require extra detergent.
Do you have hard water? You may need to increase the
amount of detergent you are using. Refer to the “Detergent
Dispenser” section. Also, you may need to switch to a
detergent with a phosphorus content of 8.7%.
Is detergent caked in dispenser? Use fresh detergent only. Do
not allow detergent to sit for several hours in a wet dispenser.
Clean dispenser when caked detergent is present.
Is the pump or spray arm clogged by labels from bottles and
cans?
Is the home water pressure high enough for proper
dishwasher filling? Home water pressure should be 20 to
120 psi (138 to 828 kPa) for proper dishwasher fill. If you have
questions about your water pressure, call a licensed, qualified
plumber.
Are high suds slowing the wash arm? Do not use soap or
laundry detergents. Use recommended dishwasher
detergents only.
Spots and stains on dishes
■ Spotting and filming on dishes
Is your water hard or is there a high mineral content in your
water? Conditioning the final rinse water with a liquid rinse
aid helps eliminate spotting and filming. Keep the rinse aid
dispenser filled.
Is the water temperature too low? For best dishwashing
results, water should be 120°F (49°C) as it enters the
dishwasher. Refer to the “Dishwasher Efficiency
Tips” section.
Did you use the correct amount of effective detergent? Use
recommended dishwasher detergents only. Refer to the
“Detergent Dispenser” section. Detergent must be fresh to be
effective. Store detergent in a cool, dry area. Heavy soil and/
or hard water generally require extra detergent.
17
Page 18
Is the home water pressure high enough for proper
dishwasher filling? Home water pressure should be 20 to
120 psi (138 to 828 kPa) for proper dishwasher fill. If you have
questions about your water pressure, call a licensed, qualified
plumber.
NOTE: To remove spots and film from dishes, try a white
vinegar rinse. This procedure is intended for occasional use
only. Vinegar is an acid, and using it too often could damage
your dishwasher.
1. Wash and rinse dishes. Use an air-dry or an energy saving
dry option. Remove all silverware or metal items.
2. Put 2 cups (500 mL) white vinegar in a glass or
dishwasher-safe measuring cup on the bottom rack.
3. Run the dishwasher through a complete washing cycle
using an air-dry option. Do not use detergent. Vinegar will
mix with the wash water.
■ Silica film or etching (silica film is a milky, rainbow-
colored deposit; etching is a cloudy film)
Sometimes there is a water/chemical reaction with certain
types of glassware. This is usually caused by some
combination of soft or softened water, alkaline washing
solutions, insufficient rinsing, overloading the dishwasher,
and the heat of drying. It might not be possible to avoid the
problem, except by hand washing.
To slow this process use a minimum amount of detergent per
load. Use a liquid rinse aid and underload the dishwasher to
allow thorough rinsing. Silica film and etching are permanent
and cannot be removed. Do not use heated drying.
■ White spots on cookware with nonstick finish
Has the dishwasher detergent removed cookware
seasoning? Reseason cookware after washing in the
dishwasher.
■ Brown stains on dishes and dishwasher interior
Does your water have high iron content? Rewash dishes
using 1-3 tsp (5-15 mL) of citric acid crystals added to the
covered section of the detergent dispenser. Do not use
detergent. Follow with a normal wash cycle with detergent. If
treatment is needed more often than every other month, the
installation of an iron removal unit is recommended.
■ Black or gray marks on dishes
Are aluminum items rubbing dishes during washing?
Disposable aluminum items can break down in the
dishwasher and cause marking. Hand wash these items.
Remove aluminum markings by using a mild abrasive cleaner.
■ Orange stains on plastic dishes or dishwasher interior
Are large amounts of tomato-based foods on dishes placed
in the dishwasher? Stains gradually fade over time. Regular
use of heated drying will slow fading. Stains will not affect
dishwasher performance. Regular use of a rinse cycle and an
air-dry or energy-saving dry option will reduce the likelihood
of staining.
Dishes do not dry completely
■ Dishes are not dry
Did you load your dishwasher to allow proper water
drainage? Do not overload. Refer to the “Dishwasher
Loading” section. Use a liquid rinse aid to speed drying.
Are the plastics wet? Plastics often need towel drying.
Is the rinse aid dispenser empty? Refer to the “Rinse Aid
Dispenser” section.
Did you use an air-dry option? Use a heated drying option for
dryer dishes.
Dishes are damaged during a cycle
■ Chipping of dishes
Did you load the dishwasher properly? Load the dishes and
glasses so they are stable and do not strike together from
washing action. Minimize chipping by moving the rack in and
out slowly.
NOTE: Antiques, feather-edged crystal, and similar types of
china and glassware might be too delicate for automatic
dishwashing. Wash by hand.
Noises
■ Grinding, grating, crunching or buzzing sounds
A hard object has entered the wash module (on some
models). When the object is ground up, the sound should
stop. If the noise persists after a complete cycle, call for
service.
Dishwasher exterior is dirty or marked
■ Marks, smudges or residue on dishwasher exterior
Did you clean the dishwasher with a mild detergent and cloth
or use a stainless steel cleaner on models with a stainless
steel exterior? In most cases, regular use of a soft, damp
cloth or sponge and a mild detergent is all that is necessary
to keep the outside of your dishwasher looking fresh and
clean. If your dishwasher has a stainless steel exterior, a
stainless steel cleaner is recommended.
18
Page 19
Notes
19
