Kenmore 665.1649 User Manual [en, es, fr]

ULTRA WASH® Dishwasher

Lavavajillas ULTRA WASH<

11 ît i

i ICS-r

Lave-vaisselle ULTRA WASH*

i’.,.'i: V %■ %i#' I il %■ È %i#' 5 Ítíi I

Models/Modelos/Modéles 665.1648^, 665.1748^, 665.1649:^:

❖ = color number, número de color, numéro de couleur

8542293

ENERGY STAR

Sears Roebuck aid Co., Hoffman Estates, IL 60179 U.S.A.

Sears Canada Inc., Toronto, Ontario, Canada MSB 2B8

www.sears.com

www.sears.ca

TABLE OF CONTENTS

PROTECTION

PROTECTiON AGREEMENTS

!n Canada.....................................................

....................................................

...........................

.............................3 ----------------------------------------------------------------------------------------

2 AGREEMENTS

...2

in the и.З.Д»

DISHWASHER SAFETY

Before Using Your Dishwasher

PARTS AND FEATURES..............................................................6 Congratulations on making a smart purchase. Your new

Control Panels

ULTRA WASH® Soil Removal System .QTADT I ID fti line; 7 preventive maintenance or repair from time to time. That’s when ^ ., . " w ^

DISHWASHER LOADING................

DISHWASHER USE...................................................................12 your new appliance. Here’s what’s included in the Agreement:

WASHING SPECIAL ITEMS 16 phone - phone support from a Sears technician

DISHWASHER CARE.......................

TROUBLESHOOTING 18 Rental reimbursement if repair of your covered product takes

.............................................. having a Master Protection Agreement can save you money and

Using Your New Dishwasher.....................................................7 aggravation

Loading Suggestions.................................................................8 Purchase a Master Protection Agreement now and protect

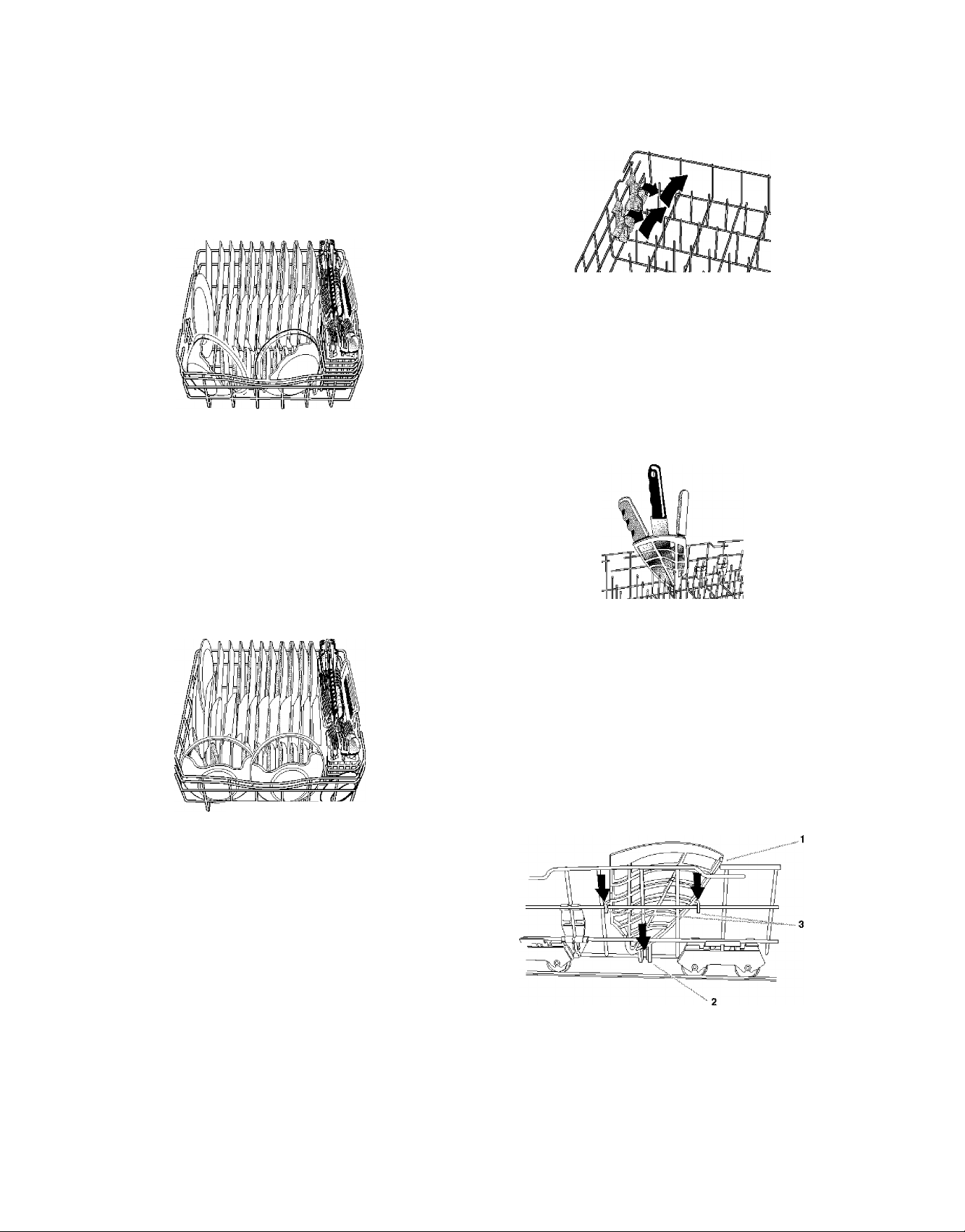

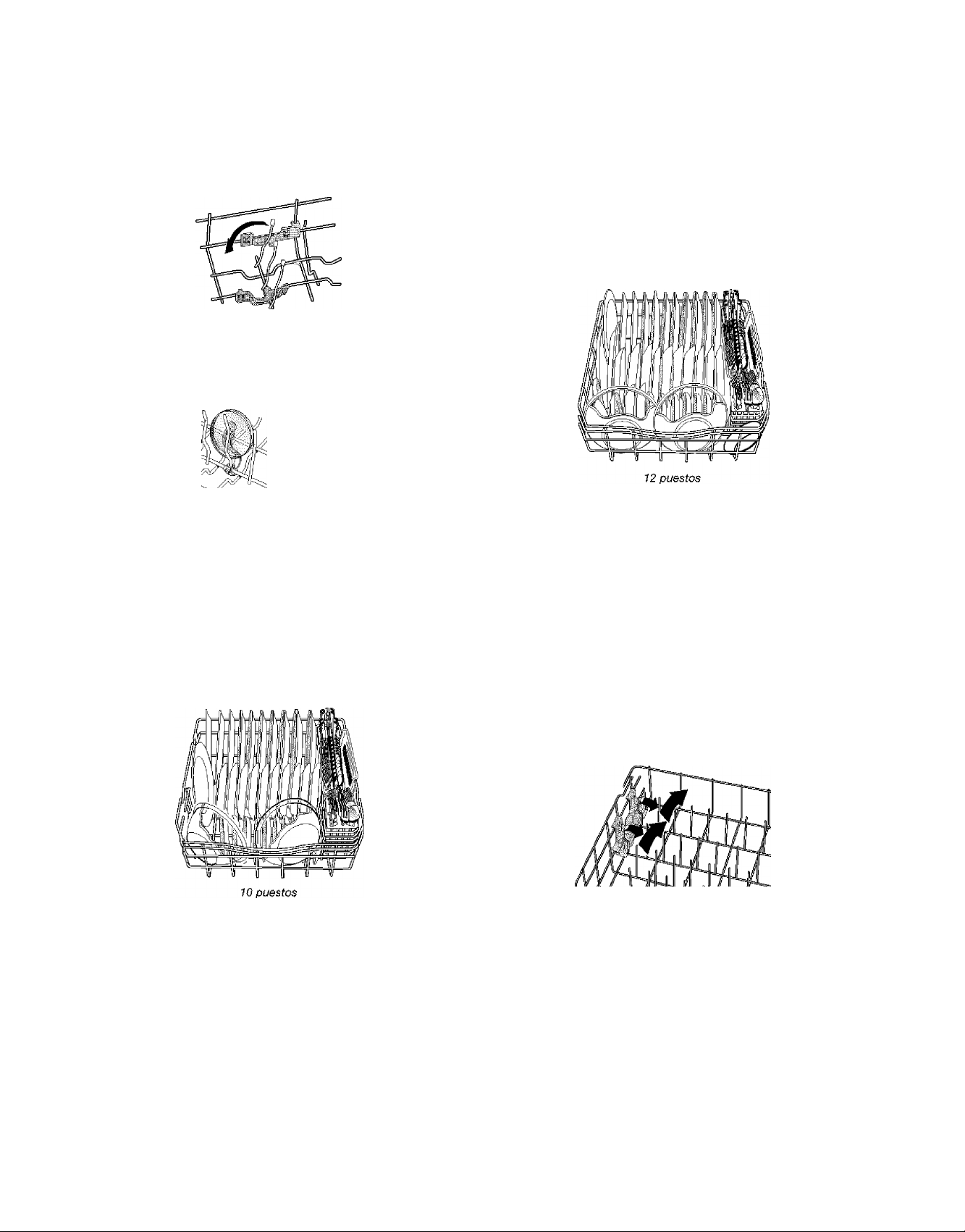

Loading Top Rack.............................................................. ...9 yoursetf from unexpected hassle and expense.

Loading Bottom Rack............................................................... 10

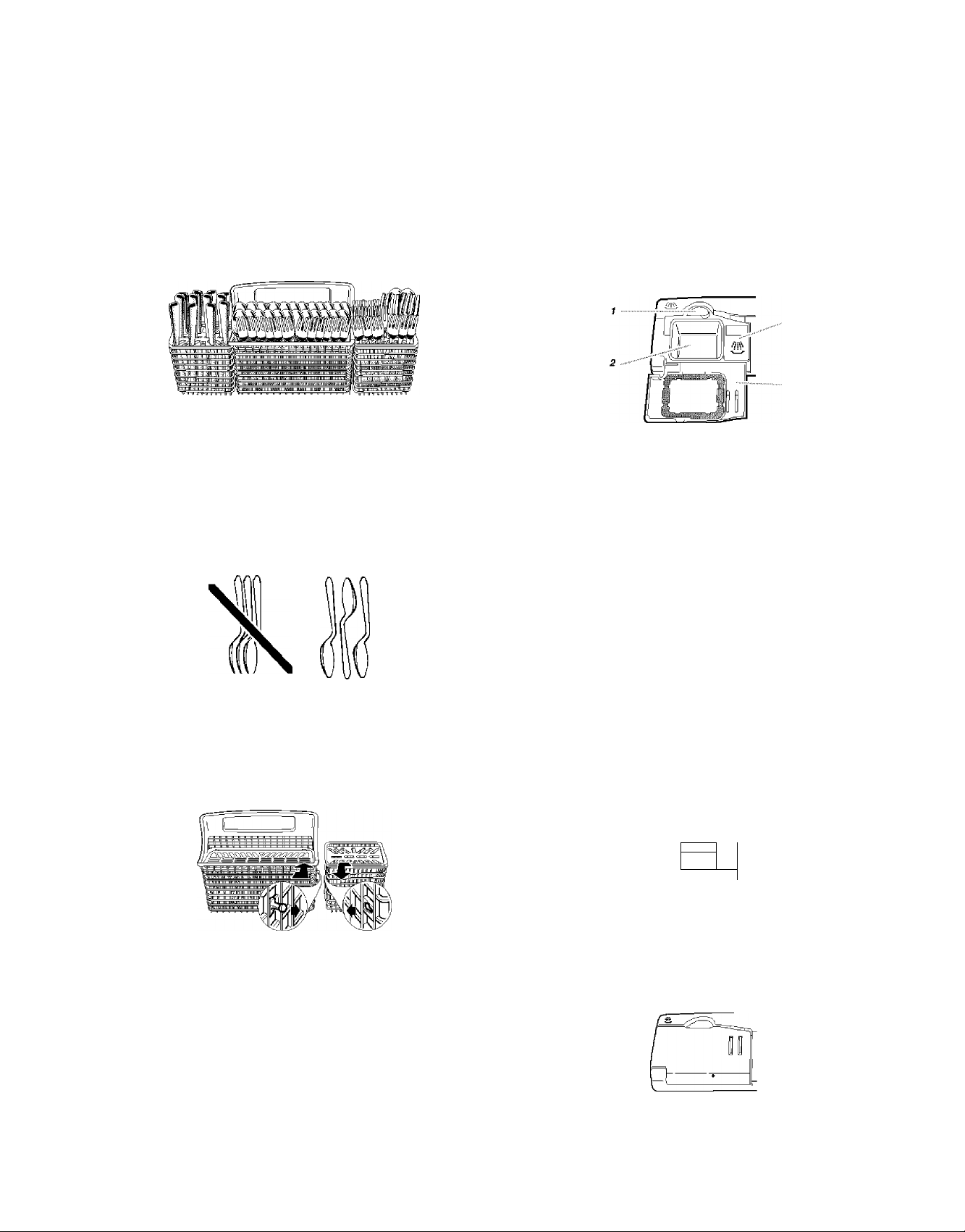

Loading Silverware Basket

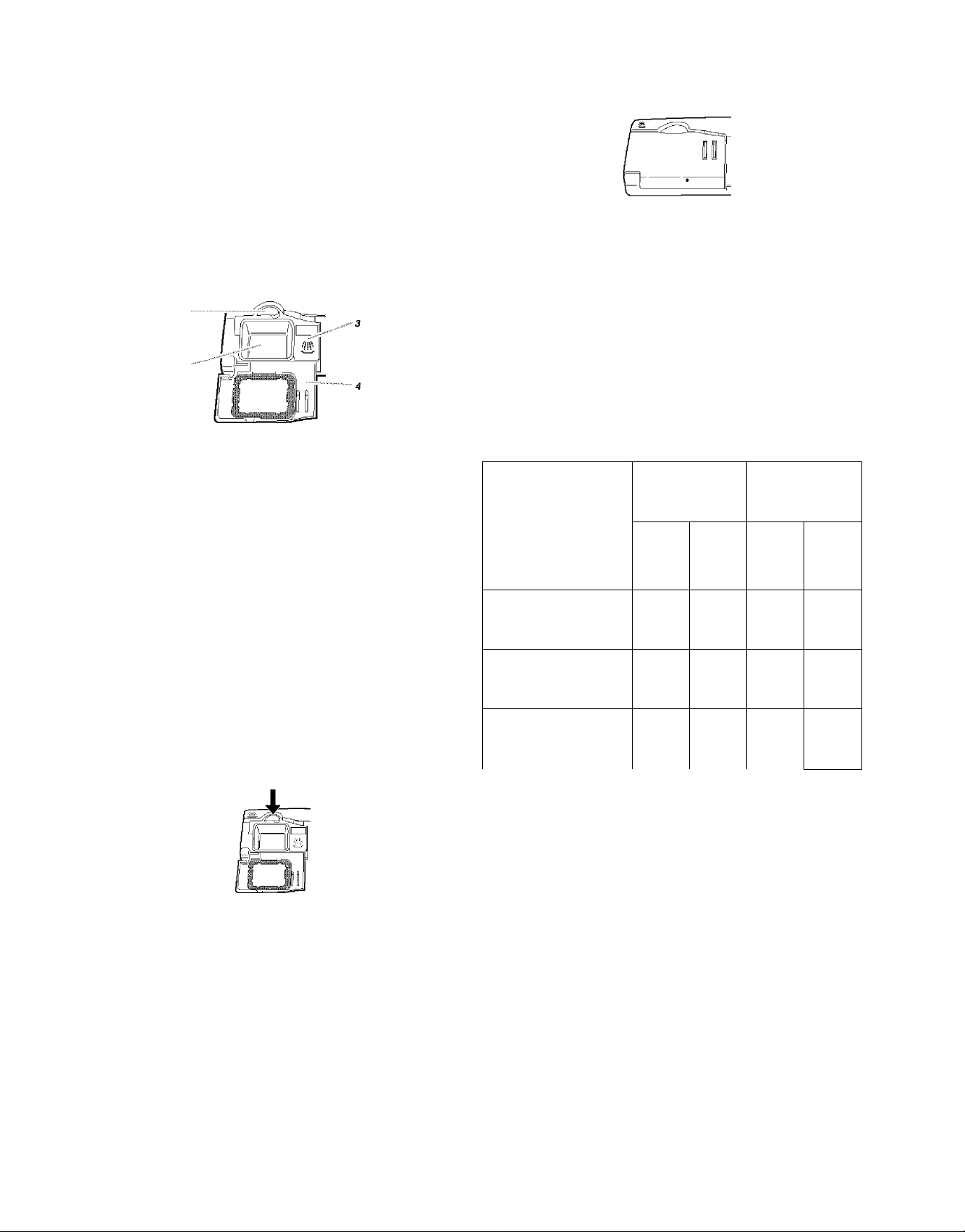

Detergent Dispenser........................

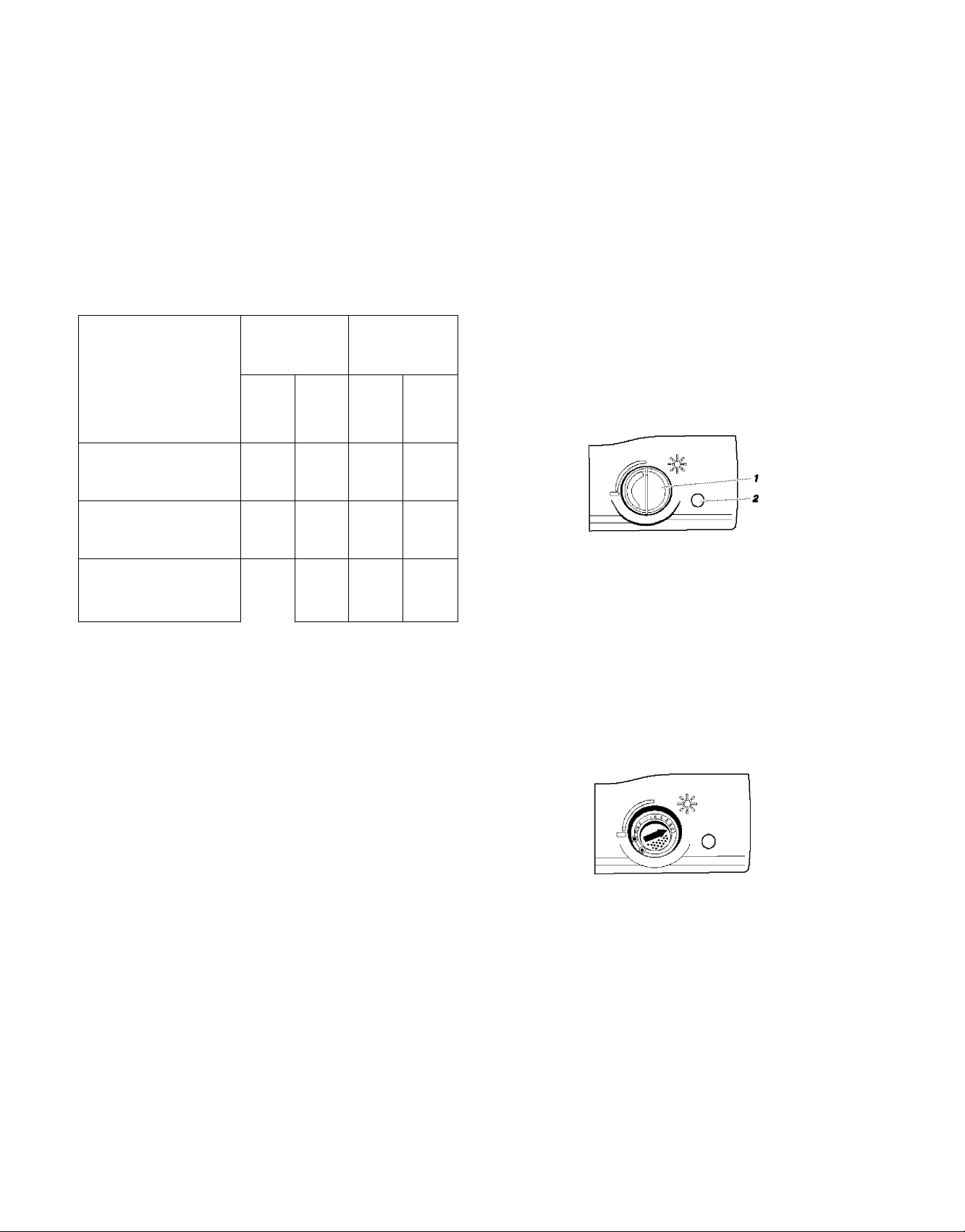

Rinse Aid Dispenser...............................................................13

Dishwasher Efficiency Tips 13*^ Unlimited service and no charge for parts and labor on all

Cycle Selection Charts14 repairs

Canceling a Cycle....................................................................14 ✓ “No-lemon” guarantee - replacement of your covered

Changing a Cycle or Setting

Adding Items During a Cycle

Option Selections.....................................................................15 ✓ Product replacement if your covered product can’t be fixed

Cycle Status Indicators n Ip ;■%■■■■■ o’";"""""”""”"

Overfill Protection Float............................

Cleaning.................................................................................17

nrainAirGap 17 И Power Surge protection against electrical damage due to

Storing ................ power fluctuations

...........................................................................

SERVICE miMRFRS

...........................................................

.......

...........................................5 Master Protection Agreements

..........

.......................

......................................

......................................................

.....................................

....................................................

................................................

..........................................................

...................................................

...................

..........................................

.............................

products requiring in-home repair, plus convenient repair

.......................................

RACK COVER P™“

7 Kenmore® appliance is designed and manufactured for years of

...7 dependable operation. But like all products, it may require

..8

11 j^e Master Protection Agreement also helps extend the life of

12 ^ Expert service by our 12,000 professional repair specialists

15 product if four or more product failures occur within twelve

15 months

16 ^ Annual Preventive Maintenance Check at your request - no

« charge

17 scheduiing

Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can caii anytime day or night, or schedule a service appointment online.

Sears has over 12,000 professional repair specialists, who have access to over 4.5 million quality parts and accessories. That’s the kind of professionalism you can count on to help prolong the life of your new purchase for years to come. Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and information, call 1-800-827-6655.

Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the U S A. call 1-800-4-MY-HOME®.

Maintenance Agreements

Your purchase has added value because you can depend on Sears HomeCentral® for service. With over 2,400 Service Technicians and access to over 900,000 parts and accessories, we have the tools, parts, knowledge and skills to back our pledge: We Service What We Sell.

Your Kenmore® appliance is designed, manufactured and tested to provide years of dependable operation. Yet any major appliance may require service from time to time. The Sears

Maintenance Agreement offers you an outstanding service

program, affordably priced.

1Tie Sears Maintenance Agieement

■ Guarantees tomorrow’s service at today’s price.

■ Eliminates repair bills resulting from normal wear and tear.

■ Covers non-technical and instructional service calls.

■ Provides an annual Preventive Maintenance Check, at your request, to ensure that your appliance is in proper running condition.

Some limitations appiy. For information concerning Sears HomeCentral® Maintenance Agreements, cail 1-800-361-6665.

WARRANTY

FULL THREE-YEAR WARRANTY ON THIS KENMORE ELfTP DISHWASHER

For three years from the date of purchase, when this dishwasher

is installed and operated according to instructions provided in the

Installation Instructions and Use & Care Guide, Sears will repair this dishwasher, free of charge, if defective in material or workmanship.

WARRANTY RESTRICTION

if the dishwasher is subject to other than private family use, the

above warranty coverage is effective for only 90 days.

WARRANTY SERVICE

WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE

NEAREST SEARS SERVICE CENTER IN THE UNITED STATES OR CANADA. This warranty applies only while the product is in use in the United States or Canada.

This warranty gives you specific legai rights and you may also have other rights which vary from state to state or province to province.

Warranty terms may vary in Canada.

For Sears warranty information in the United States or Canada, please reference the service numbers located on the back page of this manual.

Sears, Roebuck and Co.

D/817WA, Hoffman Estates, IL 60179

Toronto, Ontario, Canada MSB 2B8

Sears Canada Inc.

PRODUCT RECORD

In the space below, record your complete model number, serial number, and purchase date. You can find this information on the model and serial number label, located as shown in the Parts and

Features section of this book. Have this information available to help you quickly obtain assistance or service when you contact Sears concerning your appliance.

Model number 665.__________________________________________ Serial number Purchase date.

Save these instructions and your sales receipt for future reference.

______________________________________________

FULL WARRANTY FOR THE LIFE OF THE DISHWASHER,

ON ELITE STAINLESS STEEL TUB MODELS, AGAINST

LEAKS IN THE TUB AND INNER DOOR PANEL

For the life of the dishwasher, if a leak should occur as a result of rust-through of the stainless steel tub or inner door panel, Sears will replace free of charge the tub or inner door panel.

LIMITED FIVE-YEAR WARRANTY ON UPPER AND

LOWER RACKS

After the third year and until five years from the date of purchase, when the dishwasher is installed and operated in accordance with the instructions provided in the Installation Instructions and

Use & Care Guide, Sears will replace parts for the upper or lower dishrack if the rack rusts due to defective materials or workmanship. Customer assumes any labor costs associated with dishrack replacement.

DISHWASHER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or

“WARNING.” These words mean;

You can be killed or seriously injured if you don't

▲ DANGER

▲WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPOFnANT SAFETY INSTRUCTIONS

WARNING : When using the dishwasher, follow basic precautions, including the following:

immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

Read all instructions before using the dishwasher. Use the dishwasher only for its intended function. Use only detergents or rinse agents recommended

for use in a dishwasher, and keep them out of the reach of children.

When loading Items to be washed:

1) Locate sharp items so that they are not likely to

damage the door seal; and

2) Load sharp knives with the handles up to reduce

the risk of cut-type injuries.

Do not wash plastic Items unless they are marked

“dishwasher safe” or the equivalent. For plastic

Items not so marked, check the manufacturer's

recommendations.

Do not touch the heating element during or Immediately after use.

SAVE THESE INSTRUCTIONS

Do not operate the dishwasher unless all enclosure panels are properly in place.

Do not tamper with controls. Do not abuse, sit on, or stand on the door, lid, or dish

racks of the dishwasher.

To reduce the risk of Injury, do not allow children to play in or on the dishwasher.

Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS

EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

Remove the door or lid to the washing compartment when removing an old dishwasher from service or discarding it.

^WARNING

Tip Over Hazard

Do not use dishwasher until completely installed. Do not push down on open door. Doing so can result in serious injury or cuts.

^WARNING

GROUNDING INSTRUCTIONS

For a grounded, cord-connected dishwasher:

The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of ieast resistance for electric current. The dishwasher is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appro priate outlet that is installed and grounded in accordance with all local codes and ordinances.

WARNING: improper connection of the

equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the dishwasher is properly grounded. Do not modify the plug provided with the dishwasher; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

For a permanently connected dishwasher:

The dishwasher must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the dishwasher.

Electrical Shock Hazard

Electrically ground dishwasher. Connect ground wire to green ground connector

in terminal box. Do not use an extension cord. Failure to follow these instructions can result in

death, fire, or electrical shock.

Instaii where dishwasher is protected from the elements. Protect against freezing to avoid possible rupture of fill valve. Such ruptures are not covered by the warranty. See “Storing” in the “Dishwasher Care” section for winter storage information.

Install and ievel dishwasher on a floor that will hoid the weight, and in an area suitable for its size and use.

Remove all shipping plugs from hoses and connectors (such as the cap on the drain outlet) before installing. See Installation instructions for complete information.

SAVE THESE INSTRUCTIONS

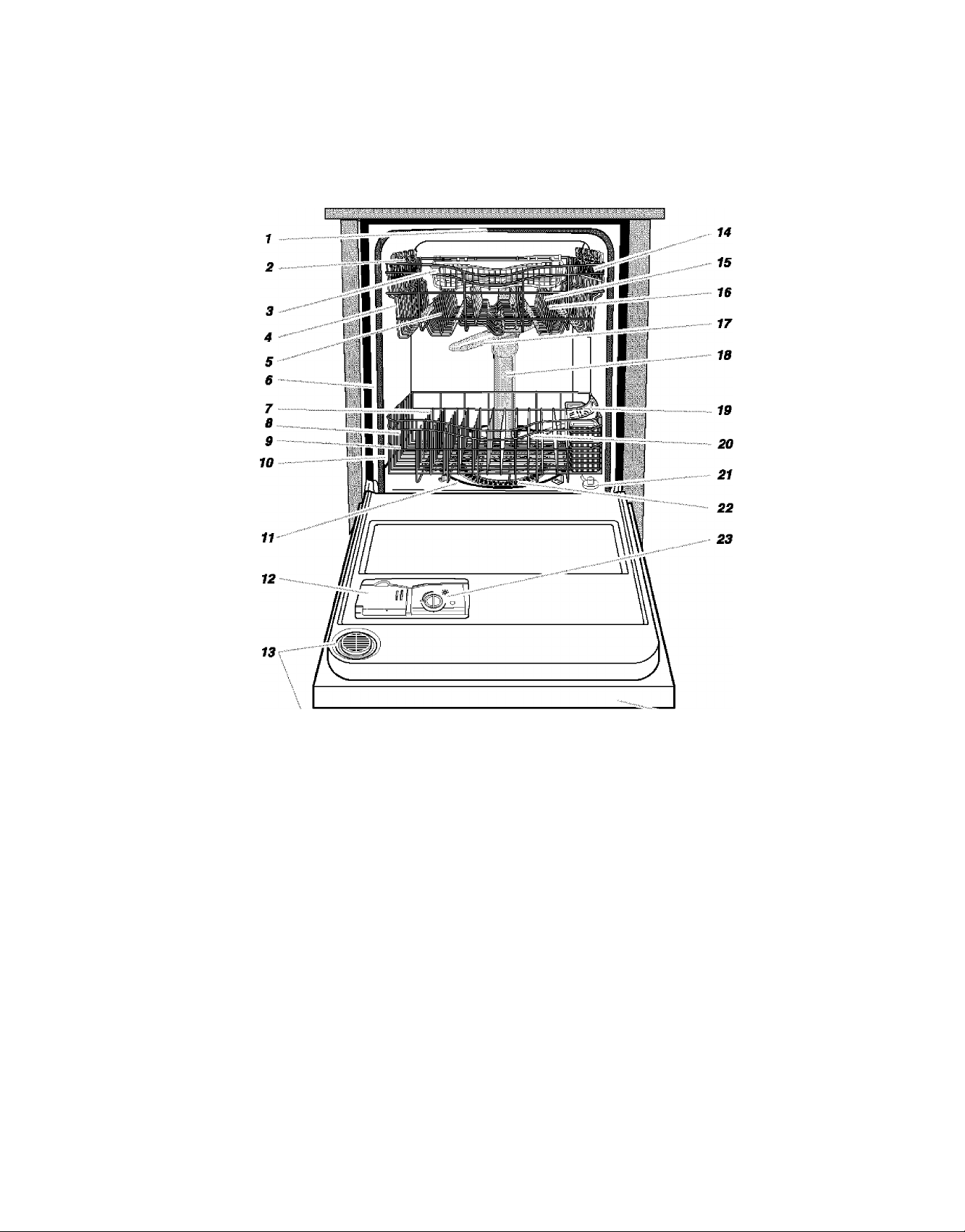

PAFTTS AND FEATURES

This manual covers several different models. The features on your dishwasher may vary from those shown below.

Upper ievel wash

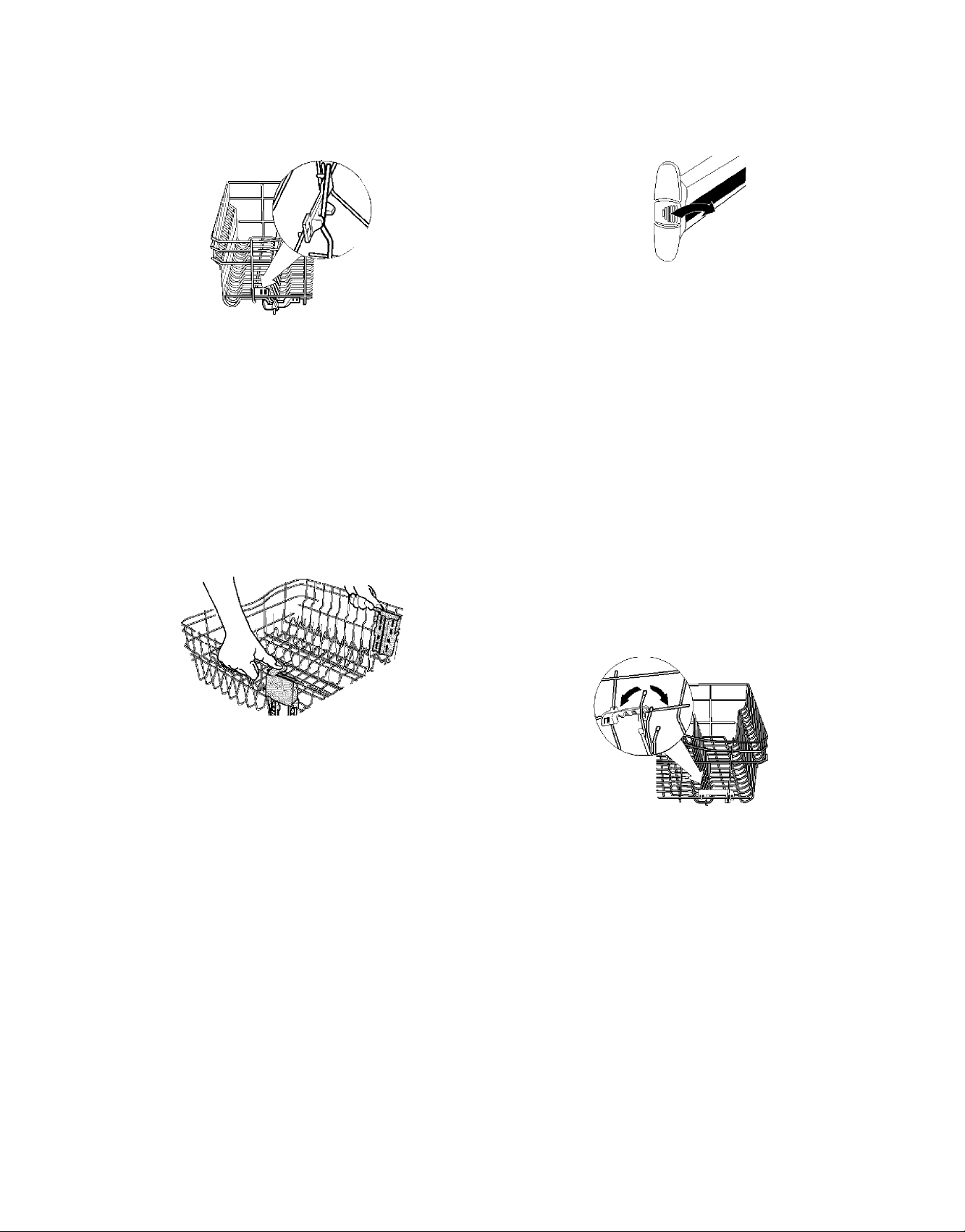

Top rack adjusters [two]

3. Utensil basket

Removable top rack

Flexible tines

6. Mode! and serial number label

7. Fold-down tines

Knife holder

9. Bottom rack

10. Water inlet opening [in tub wall]

11. Fieating element

12. Detergent dispenser 21. Overfill protection float

13. Active vent

14. Cup shelves 23. Rinse aid dispenser

15. Divided tines

16. No-flip clips

17. Top spray arm

ULTRA FLOW™ water feed tube

18.

19. Silverware basket

Lower spray arm

20.

22.

ULTRA WASH® module

24.

Control panel [Split control models]

25. Control panel [Top control models]

Model 665.1648^, 665.1748Н= (Split control models)

• • • • • • • • •

RINSE AID EMPTY

•

SANITIZED

f Smart Акт Normal China

1 WASH

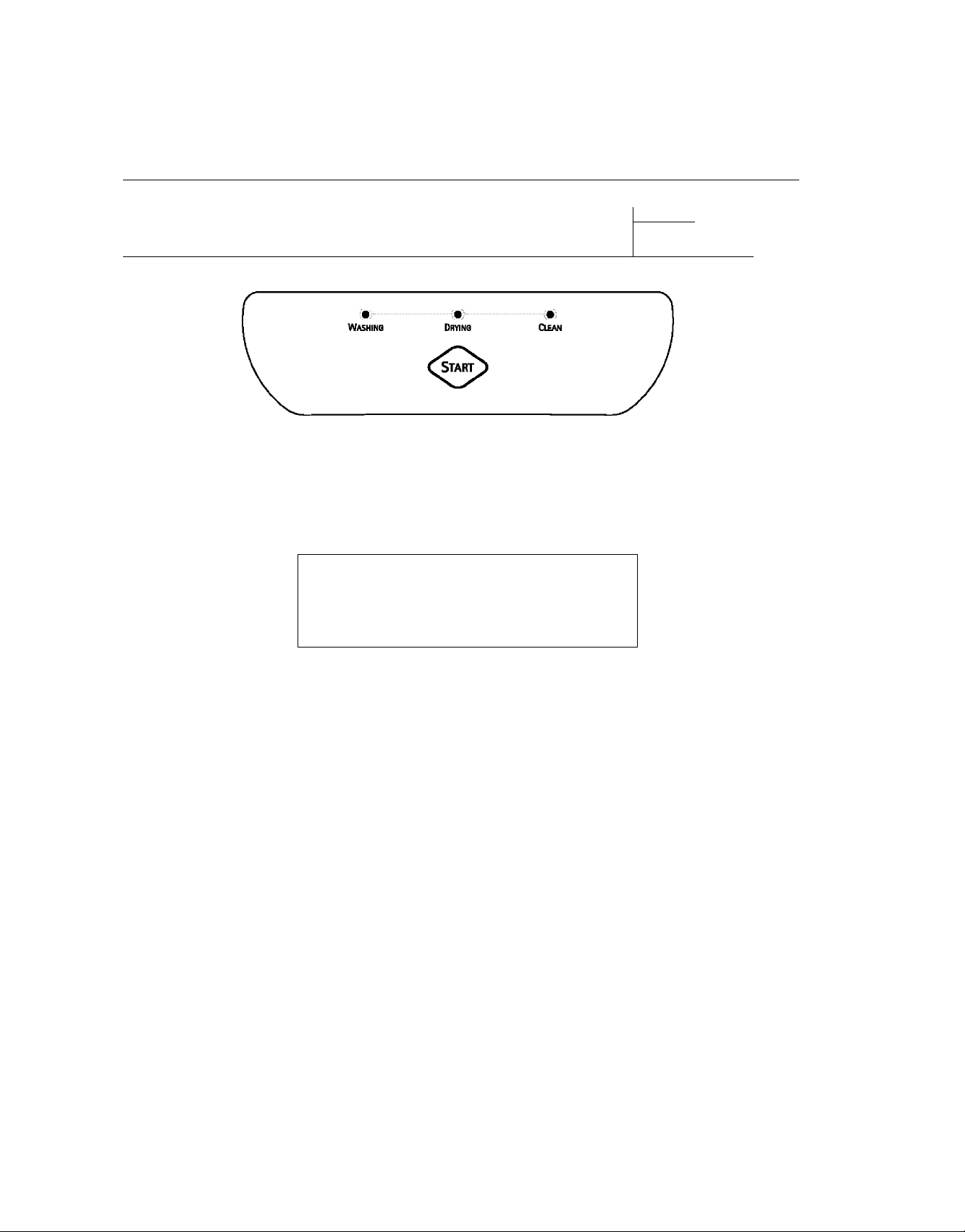

Model 665.1649Ф (Top control models)

;SMARf\rf Ami Д^МормАГу£Сн1МАЛ^Ои1СК^

, WASH/ЛМС1ША1/Т WASH/\GEmL£7 RINSE,

Cycles Options

WASH GENTLE RINSE

• • •

Washing^ Drying Clean

Quick

НПЕМР

WASH

2 4 в

: - ORY;rt.'. ..

■ ,« -i- ji

LOCK ON

I LDCKON

• s««rzED 1®

Delay

HOURS

Cancel

DRAIN

=i: = color number ^ Status indicator light labels are not actually on dishwasher door front.

IJL r :-i;\ ...... e.errio¥al System

The ULTRA WASH® Soil Removal System gives you sparkling clean dishes, while using less energy and time. The ULTRA WASH® Soii Removal System includes:

■ A heavy-duty grinder that acts as a food disposer to grind and dispose of large food particles.

■ An ULTRA WASH® sensor to monitor soil level and adjust the cycles as needed.

■ An Automatic Temperature Control (АТС) that ensures the proper water temperature for the selected wash cycle, and soil level of the load.

■ A Triple Action Filtration system that intermittently filters soil from the wash water.

Featuring sriiariwash'^'“ Seiising Bfstem

How the smartwash^“ Sensing System works

1. When the smart wash™ cycle is started, the smart wash™ Sensors detect the size of the dishload, the soil level, and the water temperature in the dishwasher.

2. After the dishload size and soii level are determined, the sensors automatically adjust the temperature and the amount of water used for the load. This allows less water usage when there is a smaller, less heavily-soiled dishioad.

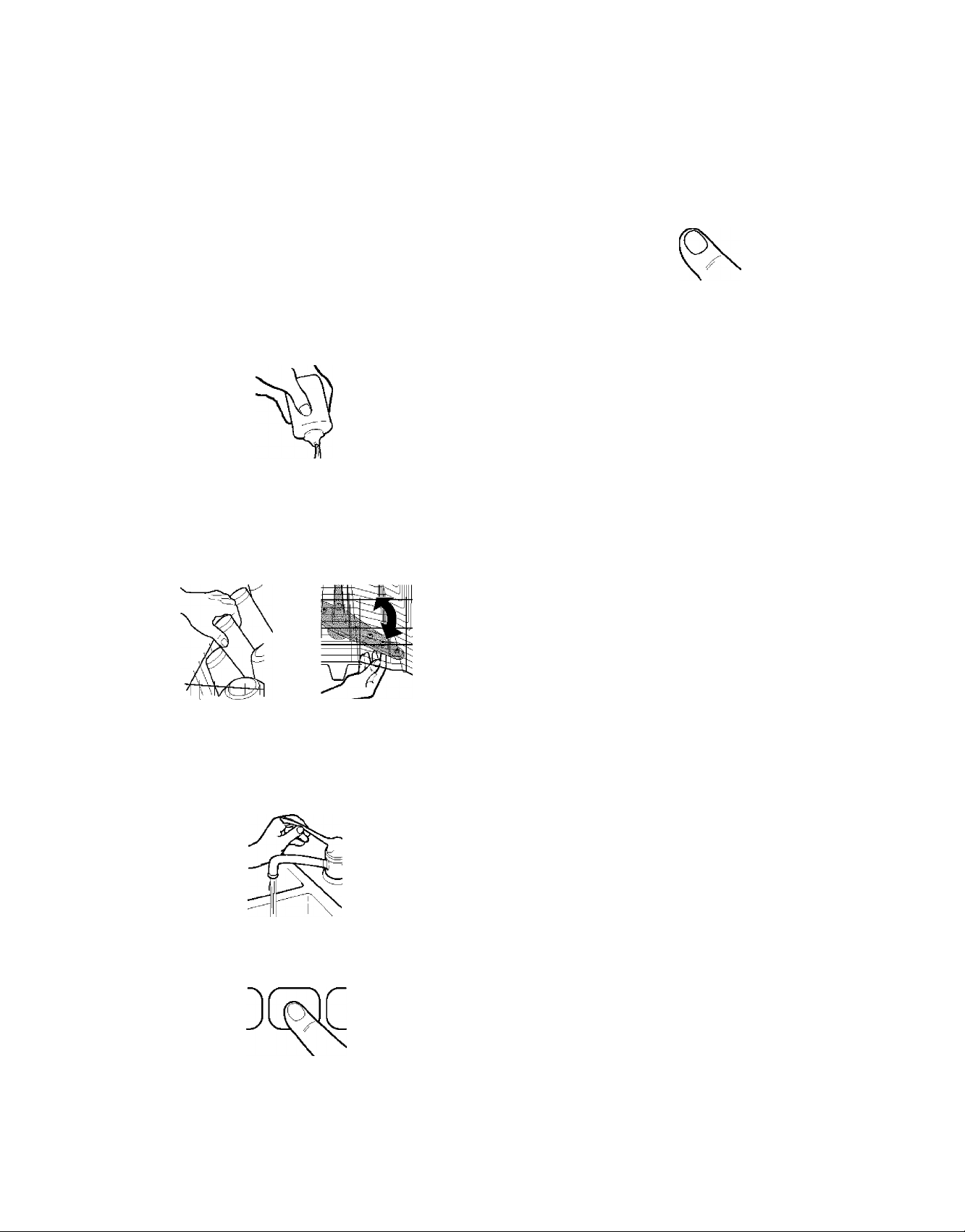

START-UP GUIDE

Before using your dishwasher, remove all packaging materials. Read this entire Use and Care Guide. You will find important

safety information and useful operating tips.

Rinse aid is ESSENTIAL for good drying. Be sure to fill the dispenser before you use your new dishwasher. Each filling

will last about 1 to 3 months depending on your usage.

2. Scrape large food soil and hard items (toothpicks or bones) from dishes.

Properly load the dishwasher. (See “Dishwasher Loading.”)

Load dishes with space in between so water will reach the soiled surfaces. Make sure nothing prevents the spray arm{s)

from spinning freely.

Add detergent. Always use a quality brand detergent. (See “Dishwasher Use.”)

Run hot water at the sink nearest your dishwasher until the water is hot. (See “Dishwasher Efficiency Tips.”) Turn off water.

6. Press the desired cycle and option selections. (See “Dishwasher Use.”)

Press START and firmly close the door (on top control models). Or firmly close the door and press START (on split control models). The selected cycle and option lights will flash once.

You can also press START to repeat the same cycle and options as the previous cycle.

START

8. When the door is firmly dosed, it latches automatically.

DISHWASHER LOADING

■ Remove leftover food, bones, toothpicks and other hard items from the dishes. To conserve water, energy and save time it is not necessary to rinse dishes before putting them in the dishwasher.

NOTE: Dishes soiled with tomato-based products should be pre-rinsed to avoid staining.

The wash moduie removes food particles from the water. The module contains a chopping device which will reduce the size of food items.

NOTE: If hard items such as fruit seeds, nuts, and eggshelis enter the wash moduie, you might hear chopping, grinding, crunching, or buzzing sounds. These sounds are normal when hard items enter the module. Do not let metallic items (such as pot handle screws) get into the wash module. Damage can occur.

■ For best drying, water must be able to drain from all surfaces.

■ It is important for the water spray to reach all soiled surfaces.

■ Load dishes so they are not stacked or overlapping if possible.

■ Use special care when loading heavy pots and pans. Heavy items can dent the stainless steel interior of the door if they are dropped or bumped.

■ Make sure pot lids and handies, pizza pans, cookie sheets, etc., do not interfere with the spray arm rotation.

■ Conserve water, energy and save time over hand rinsing by running a rinse cycle to keep dishes moist if you do not plan to wash them soon. Foods such as eggs, rice, pasta, spinach, and cooked cereals may be hard to remove it they are left to dry over a period of time.

■ Place items so open ends face down for best cleaning and draining.

Quiet operating lips

To avoid thumping/clatter!ng noises during operation;

■ Make sure lightweight load Items are secured in the racks.

■ Make sure pot lids and handies, pizza pans, cookie sheets, etc., do not touch interior walls or interfere with the rotation of the spray arm.

■ Load dishes so they do not touch one another.

NOTE: For bui!t-in models, keep sink drain plugs closed during dishwasher operation to prevent noise transfer through drains.

The top rack is designed for cups, glasses, and smaller items.

Many items, up to 11 in. (28 cm), fit in the top rack. (See

recommended loading patterns shown.) NOTE: The features on your dishwasher rack may vary from the

drawings shown.

Cup shelves

Fold down the extra shelf on the left-hand or right-hand side of the top rack to hold additional cups, stemware or long items such as utensils and spatulas.

NOTE: The features on your dishwasher may vary from those shown below.

FleMble tines

The row of tines on the left-hand and right-hand sides of the top rack can be adjusted to make room for a variety of dishes.

5l ^ 1

Jti

12 place setting

Ш Place items so open ends face down for cleaning and

draining.

■ Load glasses in top rack only. The bottom rack is not designed for glasses. Damage can occur.

■ Place cups and glasses in the rows between tines. Placing them over the tines can lead to breakage and water spots.

■ China, crystal, and other delicate items must not touch each other during dishwasher operation. Damage may occur.

■ Load lightweight plastic items in the top rack only. Only plastic items marked “dishwasher safe” are recommended.

■ Load plastic items so the force of the spray does not move them during the cycle.

■ To avoid chipping, do not let stemware touch other items.

■ Small bowls, pans, and other utensils can be placed in the top rack. Load bowls in the center section for best stability.

To adjust the flexible tines

1. Grasp the tip of the tine that is in the tine holder.

2. Gently push the tine out of the holder.

3. Lay the tines down, toward the center of the rack. Adjustable 2-position top rack

You can raise or lower the top rack to fit tall items in either the top or bottom rack. Raise the top rack to accommodate items up to 9 in. (22 cm) in the top rack and 13 in. (33 cm) in the bottom rack, or lower the top rack to accommodate items up to 11 in. (28 cm) in both the top and bottom racks. Adjusters are located on each side of the top rack.

Utensil basket

Use this extra capacity basket in the back of the top rack to hoid

spatulas, wooden spoons, and similar items.

llJiLXll- '■ ’ll -IL

To raise the top rack

Lift the rack on both sides until the rack is level.

NOTE: The top rack MUST be level. To lower the top rack

Depress both tabs on rack adjusters, as shown above, and slide

the rack back to its original position.

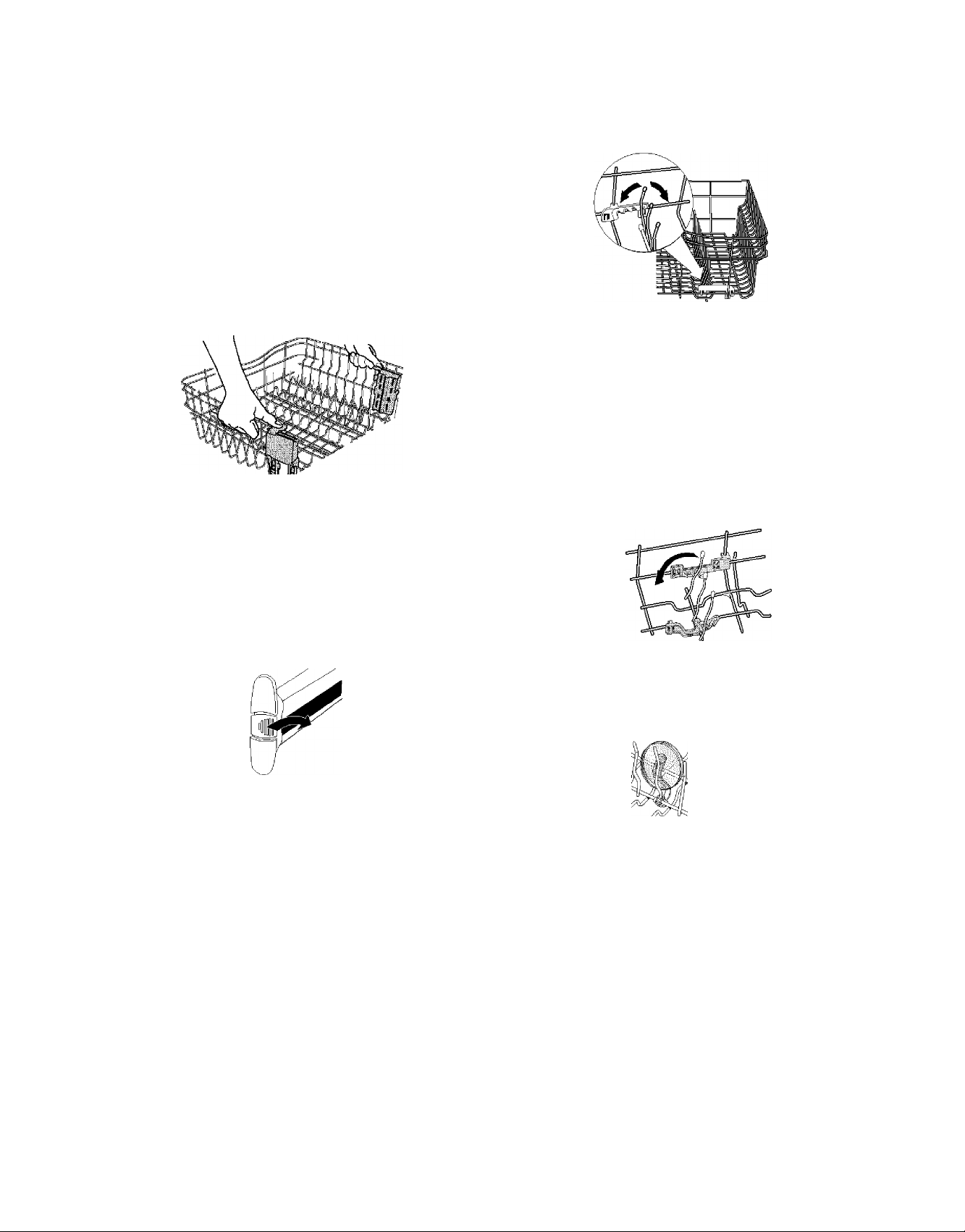

Removable Top Rack

The removable top rack allow/s you to wash larger items such as stock pots, roasters, and cookie sheets in the bottom rack.

Puli the rack forward slightly to access clips.

While pressing the ridges in, push back on the clip until the outer side releases. Slide the clip to the inside of the track edge to remove the clip.

After removing both clips, puil rack out.

To replace the top rack

1. Place the rollers on each side of the rack into the rack tracks and push the rack back.

Align the open side of the clip with the inside edge of the rack track.

Push the ridges and slide the ciip toward the outside rack

edge until it locks into place.

Repeat on the other side. Puli the rack out all of the way to ensure clips are fuily seated.

No-flip clips

The no-flip clips hold lightweight plastic items such as cups, lids, or bowis in place during washing.

To move a clip

1. Pull the clip up and off the tine.

2. Reposition the clip on another tine.

The bottom rack is designed for plates, pans, casseroles, and utensils. Many items, up to 13 in. {33 cm) tall, fit in the bottom rack. (See recommended loading patterns shown.)

NOTE: The features on your dishwasher rack may vary from the drawings shown.

Divided tines

The row of tines on the right-hand side of the top rack can be adjusted to make room for a variety of dishes.

To adjust the front half

1. Grasp the tip of the tine that is in the tine holder.

2. Gently push the tine out of the tine holder.

3. Move the tines to the left to make room for larger dishes.

Move the tines to the right to wedge plastic or other

lightweight items against the side of the rack.

To adjust the back half

1. Grasp the tip of the tine that is in the tine holder.

2. Gently push the tine out of the holder.

3. Lay the tines down, toward the center of the rack.

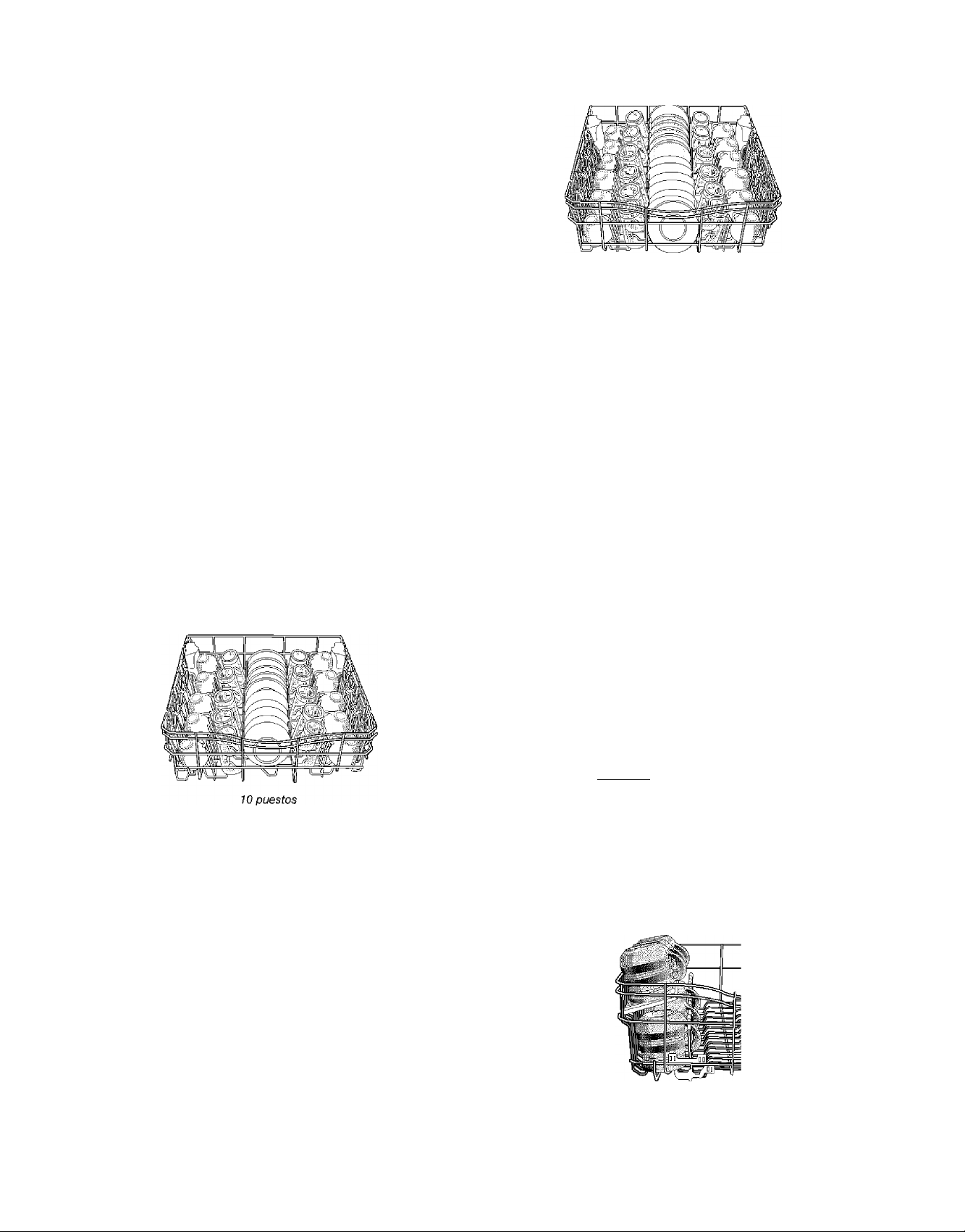

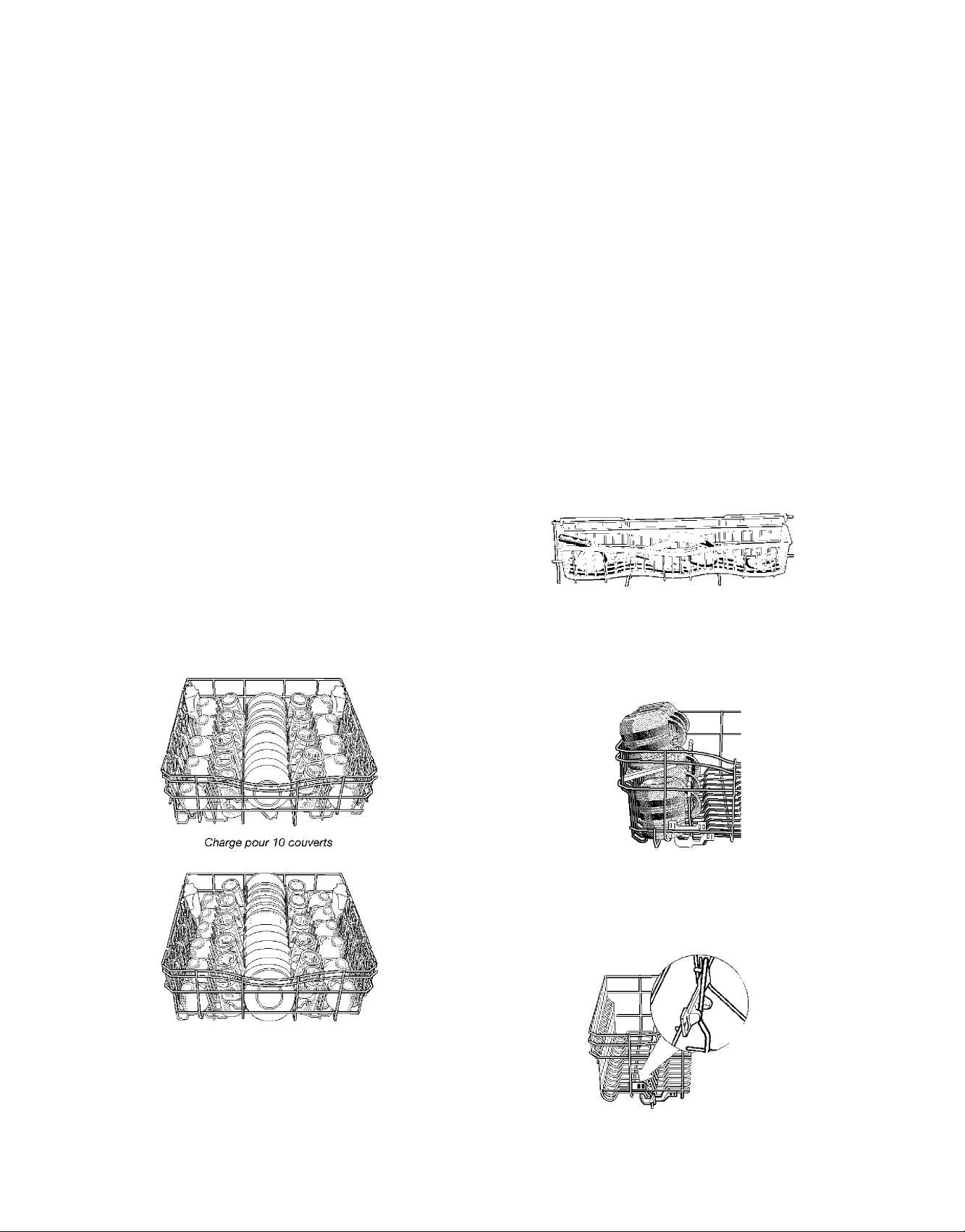

10 place setting

m Do not load glasses, cups, or lightweight plastic items in the

bottom rack. Load smail items in the bottom rack only if they are secured in place.

■ Load plates, soup bowls, etc., between tines.

■ Overlap the edges of plates for large loads.

■ Load soup, cereal, and serving bowls in the rack in a variety of ways depending upon their size and shape. Load bowls securely between the rows of tines. Do not nest bowls because the spray will not reach all surfaces.

12 place setting

m Load cookie sheets, cake pans, and other iarge items at the

sides and back. Loading such items in front can keep the water spray from reaching the detergent dispenser.

■ Secure heavily soiled cookware face down in the rack.

■ Make sure pot handies and other items do not stop rotation of the spray arm(s). The spray arm(s) must move freeiy.

■ Do not load items between the bottom rack and the side of the dishwasher tub because they might block the water iniet opening.

Fold-down lines

You can fold down one or both rows of tines at the back of the bottom rack.

Grasp the tip of the tine that is in the tine holder.

Gently pull the tine out of the tine holder. Lay the row of tines down in the rack to make room for larger

3. dishes, bowls, pots, pans or roasters.

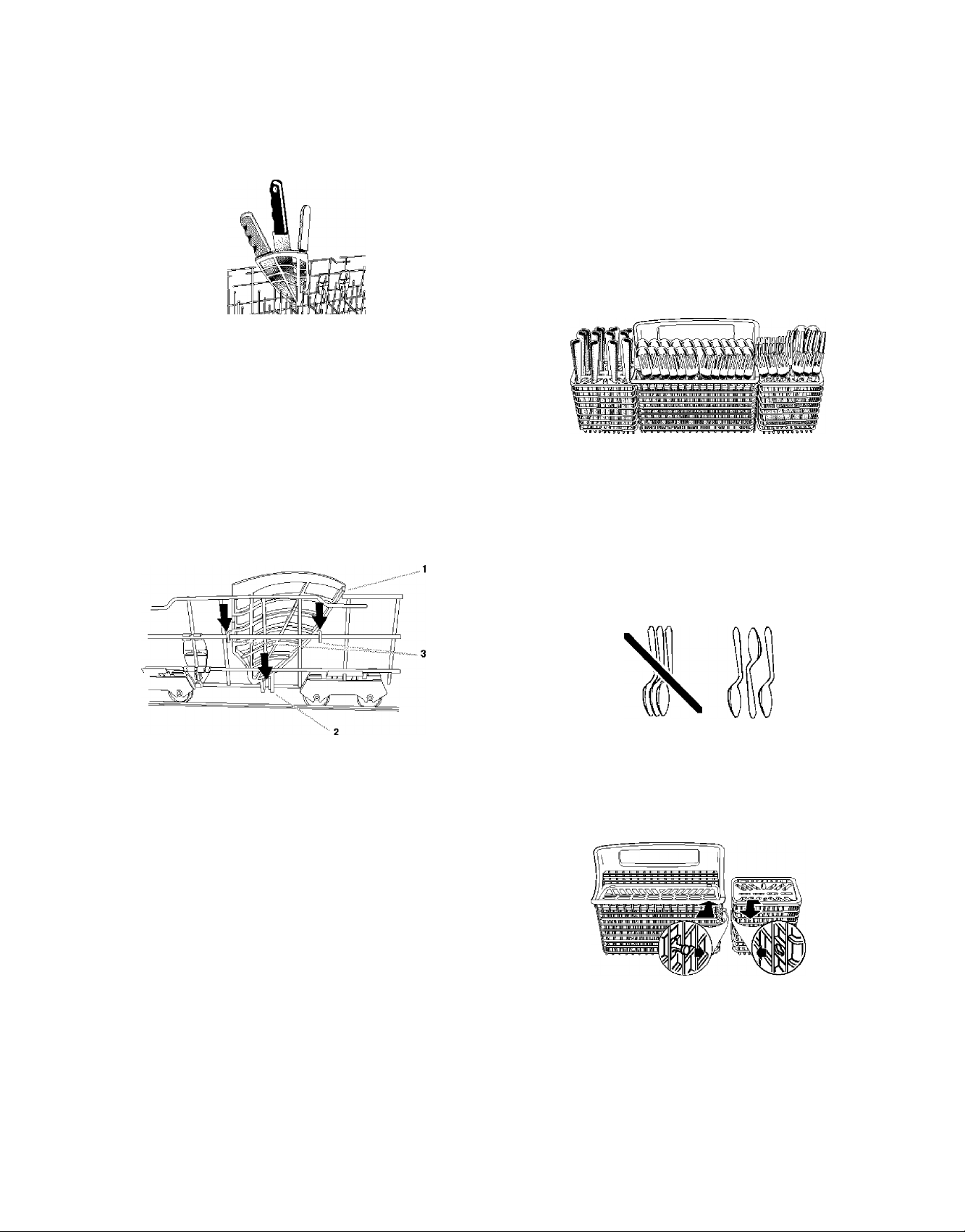

Knife holder

Use the knife holder on the left side of the bottom rack to hold

knives that are too large for the silverware basket. Place knives in the holder as shown.

3. Place the hooks, located on the back of the knife holder, over the center rack wire and gently push down to lock into place.

1. Top alignment

2. Bottom slotted guide

3. Knife holder hooks

Load the silverware basket while it is in the bottom rack or take

the basket out for loading on a counter or table. NOTE: Unload Or remove the basket before unloading the racks

to avoid spilling water droplets on the silverware.

■ Place small items such as baby bottle caps, jar lids, corncob holders, etc., in a covered section. Close the cover to hold small items in place.

To remove the knife holder

1. Slide up to release the hooks over the rack wire.

2. Lift knife holder out of rack.

To install the knife holder

1. Align the knife holder with the bottom rack as shown in the illustration below.

2. Place the bottom slotted guide over the vertical wire in the side of the rack.

■ Use suggested loading patterns, as shown, to increase washability of your silverware.

■ This silverware basket can be separated and placed into the bottom rack in several locations. Load silverware in all sections or just one, depending upon your load.

■ if your silverware basket does not have covers or when covers are up, mix items in each section of the basket with some pointing up and some down to avoid nesting. Spray cannot reach nested items.

IMPORTANT: Always load sharp items (knives, skewers, etc.) pointing down.

To iBtnove a stnail basket

1. Hold the center basket and one small basket. Slide the small basket forward to release the tabs from the corresponding slots.

2. Pull the baskets apart.

NOTES:

■ Do not load silver or silver-plated silverware with stainless steel. These metals can be damaged by contact with each other during washing.

■ Some foods {such as salt, vinegar, milk products, fruit juices, etc.) can pit or comode silverware. Run a rinse cycle if you do not have a full load to wash immediately.

DISHWASHER USE

The detergent dispenser has 2 sections. The smaller Pre-Wash section empties detergent into the dishwasher when you close the door.

Filling the dispenser

1. If the dispenser cover is closed, open the cover by rotating the cover latch.

2. Fill the Main Wash section with detergent. See the following section “How much detergent to use.”

3. Fill the Pre-Wash section, if needed. (See “Cycle Selection Charts.”)

4. Close the dispenser cover.

The cover will open during the cycle to dispense the detergent.

How much detei^ent to use

■ The amount of detergent to use depends on the hardness of your water and the type of detergent. If you use too little, dishes won’t be clean. If you use too much in soft water, glassware will etch.

■ Water hardness can change over a period of time. Find out your water’s hardness by asking your local water department, water softener company, or county extension agent.

1. Cover latch

2. Main Wash section

3. Pre-Wash section

4. Cover

The larger Main Wash section automatically empties detergent into the dishwasher during the wash. (See the “Cycle Selection Charts.”)

■ Use automatic dishwashing detergent only. Other detergents can produce excessive suds that can overflow out of the dishwasher and reduce washing performance.

■ Add detergent just before starting cycle.

■ Store tightly closed detergent in a cool, dry place. Fresh automatic dishwasher detergent results in better cleaning.

NOTE: Do not use detergent if you have selected a rinse cycle.

Detergent dispenser fill recommendatons per dishload soil level and water hardness

Light soil

Normal-Heavy

soil

Water Hardness

Soft

(0-2 grains per gallon)

Medium

(2-6 grains per gallon)

Hard

(7 grains per gallon

and above)^

Main

Wash

section

4tsp

(20 mL)

6 tsp

(30 itiL)

8 tsp

(40 mL)

[ftill]

Pre

Wash

section

Empty

2 tsp

(10 mL)

4 tsp

(20 mL)

[full]

Main

Wash

section

6 tsp

(30 mL)

6 tsp

(30 mL)

8 tsp

(40 mL)

[full]

Pre

Wash

section

4 tsp

(20 mL)

[full]

4 tsp

(20 mL)

[full]

4 tsp

(20 mL)

[full]

^ Turn the rinse aid dispenser to a higher setting as needed. (See

“Rinse Aid Dispenser” section.) it might be necessary to use the Hi Temp Wash option for best wash performance in very hard water.

NOTE: Fill amounts are for standard powdered detergent. Amounts may vary if you use liquid or concentrated powdered detergent. Tablet detergents should be placed in the main wash section of the detergent dispenser with the cover closed. Follow instructions on the package when using liquid dishwasher detergent, concentrated powdered detergent or tablet detergent.

IMPORTANT: See “Cycle Selection Charts” for which detergent dispenser sections to use with each cycle.

IMPORTANT; Your dishwasher is designed to use a liquid rinse aid. The use of rinse aids greatiy improve drying by aiiowing water to drain from the dishes during the final rinse. They also prevent water from forming droplets that can dry as spots or streaks. Do not use a solid or bar-type rinse aid.

Filling the dispenser

The rinse aid dispenser holds 4.8 oz (145 mL) of rinse aid. Under normai conditions, this will last for about 1 to 3 months. You do not have to wait until the dispenser is empty to refill it. Try to keep it full, but be careful not to overfill it.

1. Make sure the dishwasher door is fully open.

2. Turn the dispenser knob to the left and lift it out.

1. Dispenser knob

2. Indicator window

Hot water dissolves and activates the dishwashing detergent.

Hot water also dissolves grease on dishes and heips glasses dry spot-free. For best dishwashing results, water should be 120"F (49“C) as it enters the dishwasher. Loads may not wash as well if the water temperature is too low. Water that is too hot can make some soils harder to remove and cause certain detergent ingredients not to function, if your water heater is located far from the dishwasher, it may be necessary to run the hot water at the faucet closest to the dishwasher to minimize the amount of cold water in the water line.

To check water temperature

1. Run hot water at the faucet closest to your dishwasher for at

least 1 minute.

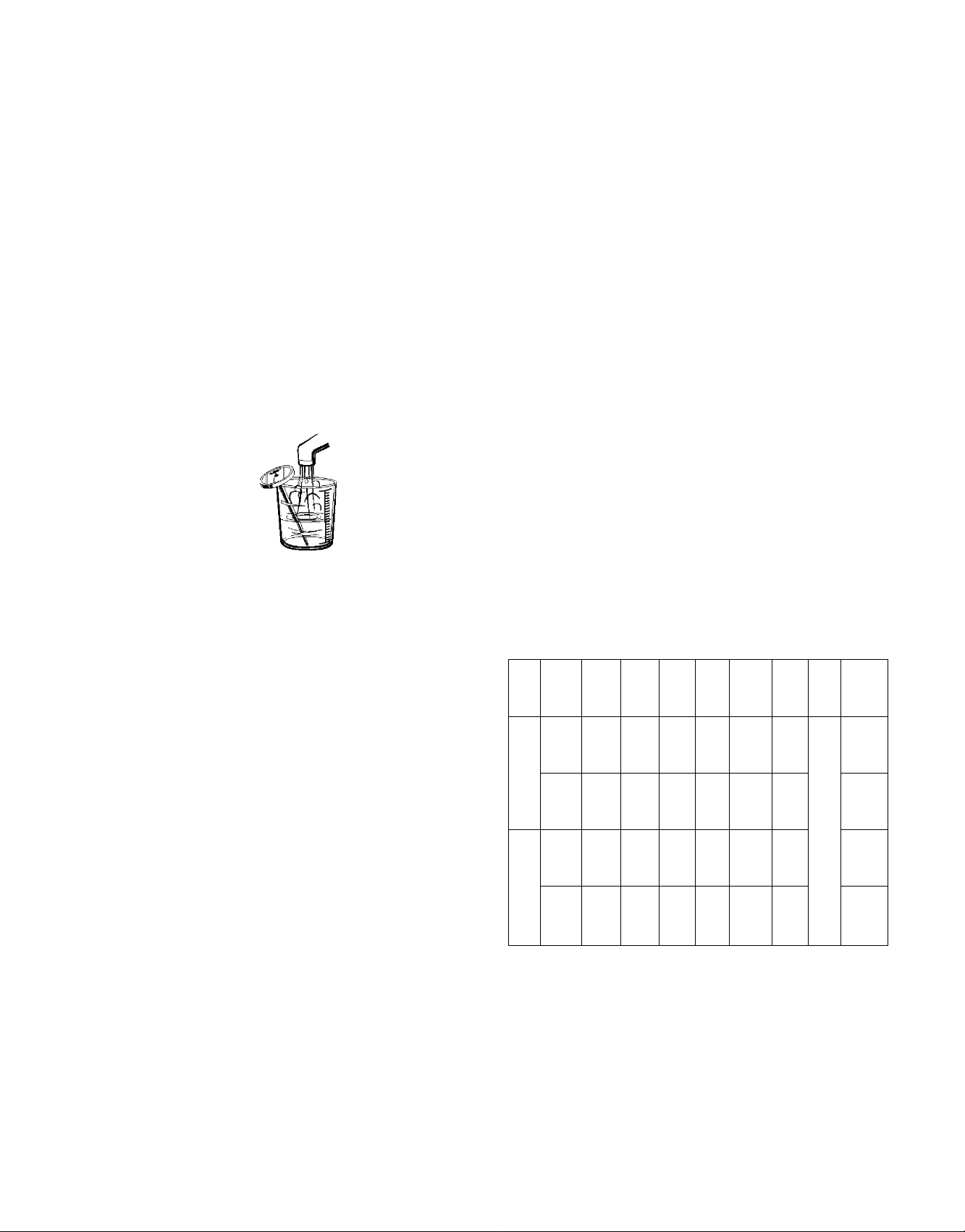

2. Place a candy or meat thermometer in a glass measuring

cup.

3. Add rinse aid until the indicator window looks full.

4. Clean up any spilled rinse aid with a damp cloth.

5. Replace the dispenser knob.

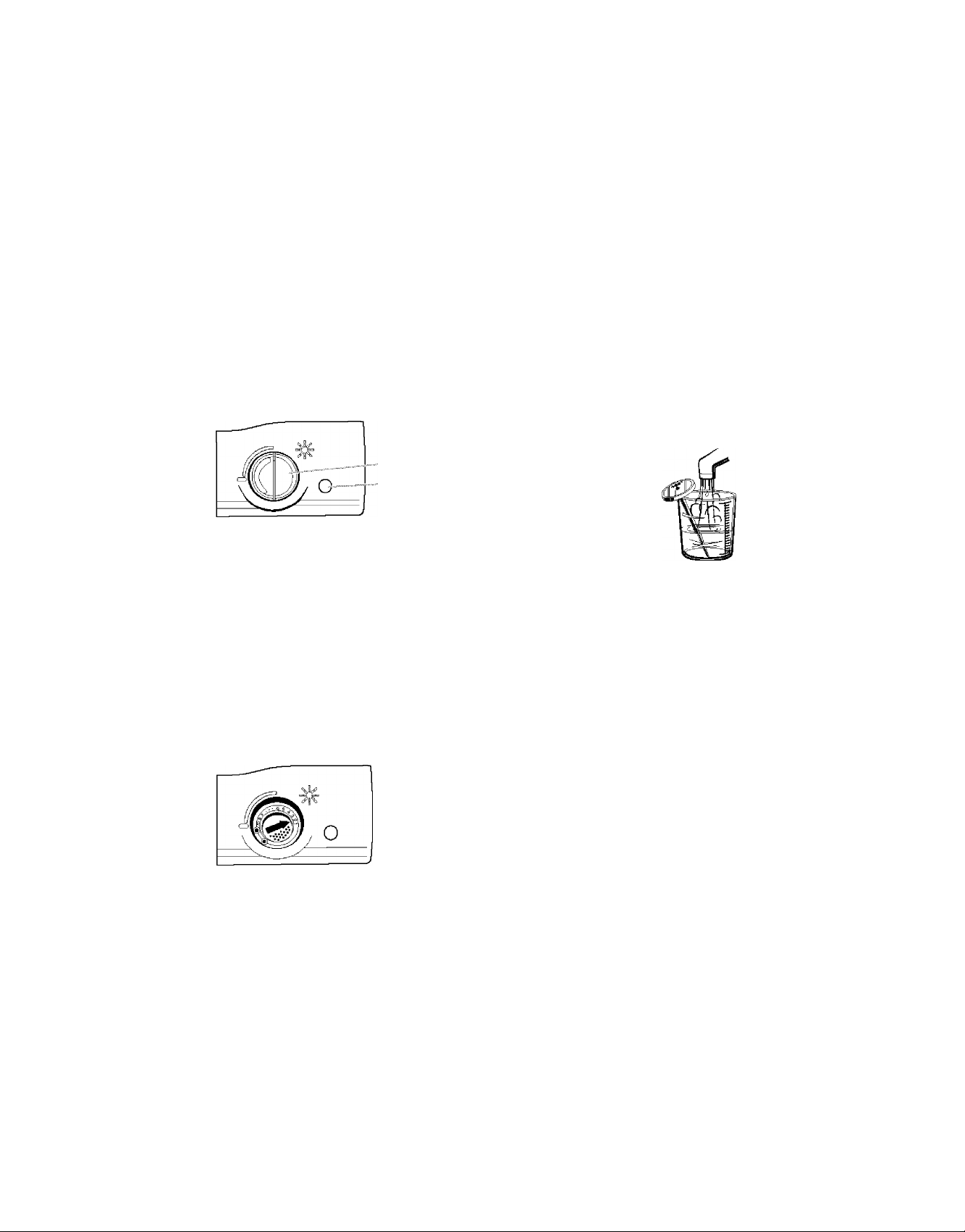

Rinse aid setting

The amount of rinse aid released into the final wash can be adjusted. The factory setting is at 2. For most water conditions set the adjuster to 1 or 2. If there are rings or calcium (hard water) spots on dishes, try a higher setting.

To adjust the setting

Remove the dispenser knob, then turn the adjuster inside the

dispenser to the desired setting.

3. Check the temperature on the thermometer as the water is

running into the cup. To save water, energy and time, do not rinse dishes before

putting them into the dishwasher.

Use a delay feature to run your dishwasher during off-peak hours. Local utilities recommend avoiding heavy usage of energy at certain times of day.

During the summer, run your dishwasher at night. This reduces daytime heat buildup in the kitchen.

Use a rinse aid to improve drying.

Use cycles or options that add extra heat to the wash or rinse portion of the cycle only when needed.

If your home is equipped with a water softener, you may want to avoid starting the dishwasher during the regeneration of the softener, as this may contribute to poor wash performance.

Select the wash cycle and options desired. Or press START to use the same cycle and options as the previous cycle.

NOTE: if the last cycle you completed was a rinse cycle, the

dishwasher will run the last full wash cycle and options that you selected when you press Start.

Normal Wash

Use this cycle for loads with normal amounts of food soil. (The energy-usage label is based on this cycle.) During the main wash, the wash action will repeatedly pause for several seconds.

Use both detergent dispenser sections.

A shows the steps that are in each cycle. Water usage is shown in U.S. gallons/liters. These modeis meet the ENERGY STAR® guidelines for energy

efficiency.

IMPORTANT: These sensor-based cycles may take several

hours depending on cycle selected, water temperature, and soil level sensed.

Smart Wash

Use this cycle for ail day-to-day soil types when washing full to partial dishloads. During the cycle, the sensors will determine water temperature, wash time, and water amount based on the soil level and the dishload size. During the main wash, the wash action will repeatedly pause for several seconds.

Use both detergent dispenser sections when washing a full soiled dishload.

Use one detergent dispenser section when washing lightly-soiled, partial dishloads.

Dish

load

Full

Par

tial

Sensed

Wash

Soil

Level

Heavy • •

Light • •

Heavy • •

Light • •

Main

Wash

Rinse

Purge

• •

•

Purge

Rinse Final

Heated

Rinse

•

Dry

• 8.3- 10.1/

•

prox¡mate Time

2hrs*

Water Usage (gai/L)

33.3- 38.2

6.3/26.1

6.9-3.4/

26.1-31.8

5.9/22.3

Wash Main

Wash

• •

Rinse Rinse Final

•

Purge

Heated

Rinse

•

Dry A|:^rox~

¡mate

Time

2 hrs*

•

Water

Usage (gal/L)

5.9-10.1/

22.3-38.2

China Gentle

Use this cycle for china and crystal. This cycle uses a light

wash and gentle dry. During the heated dry, the heating element cycles on and off.

Use main detergent dispenser section.

Wash Main

Wash

• • •

Rinse

or Purge

Purge

Rinse Final

Heated

Rinse

•

Dry Approx

cycled

imate

Time

•

1.5 hrs*

Water Usage (gal/L)

S.9-8.4/

22.3-31.8

Quick Rinse

Use this rinse cycle for rinsing dishes, glasses, and silverware

that will not be washed right away.

Do not use detergent with this cycle.

Wash Main

Wash

Rinse Rinse Final

Heated

Rinse

• 10

Dry

Time (minj

Water Usage (gal/L)

1.8- 2.7/

6.8- 10.2

* If the incoming water temperature is less than the

recommended temperature or food soils are heavy, the cycle will automatically compensate by adding time, heat and water as needed.

Anti Bacterial

Use this sanitizaton cycle for all day-to-day soil types, including both normal and heavy soils.

Use both detergent dispenser sections.

JÜ

Wash Main

Wash

• •

Rinse Rinse Final

•

Heated

Rinse

•

Dry A|:^rox~

¡mate

Time

2.5 hrs*

•

Water Usage (gal/L)

6.9-10.4/

26.1-39.4

1. Carefully open the door slightly to stop the cycle. Wait for the spraying action to stop before opening the door to access the control panel.

2. Press CANCEL. The Cancel light glows.

3. Close the door. The dishwasher starts a 2-minute drain (if needed). Let the dishwasher drain completely. The light turns off after 2 minutes.

To stop Hie drain

You can press CANCEL again to stop the drain. Remember to drain the dishwasher before starting a new cycle.

To clear the indicators

Press CANCEL before starting the dishwasher to clear all options and cycles.

During the fiist minute of a cycle

1. Open the door.

2. Press a new cycle and/or options.

3. Check the detergent dispensers. They must be filled properly

for the new cycle.

4. Close the door. The dishwasher resumes the new cycle

and/or option after a 5-second pause.

After the first minute of a cycle

1. Carefully open the door slightly to stop the cycle. Wait for the spraying action to stop before opening the door to access the control panel.

2. Press CANCEL. The Cancel light glows.

3. Close the door. Your dishwasher starts a 2-minute drain (if needed). Let the dishwasher drain compietety. The tight turns off after 2 minutes.

NOTE: If your dishwasher does not need draining, the light

turns off.

4. Cpen the door. Select a new cycle and/or options.

5. Check the detergent dispensers. They must be filled properly

for the new cycle.

6. Press START and firmly close the door (on top control models). Cr, firmly close the door and press START {on split control models).

Hi Temp Wash

Select this option to increase the water temperature during the wash portions of the cycle. Hi Temp Wash raises the water temperature to 145°F (63°C), in the main wash. Heating the water helps improve washing results. Hi Temp Wash is useful when loads contain baked-on food.

This option adds heat, wash time and may add water to the cycle.

NOTE: Hi Temp Wash is an option with the Smart Wash, Anti

Bacterial, and Normal Wash cycles.

Sani Rinse

Select this option to raise the water temperature in the final rinse to approximately 155°F (68°C). Sani Rinse adds heat and time to the cycle. This high temperature rinse sanitizes your dishes and glassware in accordance with NSF/ANSI Standard 184 for

Residential Dishwashers. Certified residential dishwashers are

not intended for licensed food establishments.

NOTE: The Anti Bacterial cycle automatically uses this option.

Sani Rinse is an option with SmartWash and Normal Wash. Only these sanitization cycles have been designed to meet the NSF/ ANSI requirements.

Air Dry

Select this option to dry without heat. Air drying is useful when loads contain plastic dinnerware that may be sensitive to high temperatures.

The dishes take longer to dry and some spotting can occur. For best drying, use a liquid rinse aid. Some items (such as plastics) may need towel drying.

NOTE: Air Dry is an option with all cycles, except Quick Rinse.

You can add an item anytime before the main wash starts. Cpen the door and check the detergent dispenser. If the cover is still closed, you can add items.

To add items

1. Carefully open the door slightly to stop the cycle. Wait for the spraying action to stop before opening the door.

2. Cpen the door, if the detergent dispenser cover is still closed,

add the item.

3. Close the door firmly until it latches. The dishwasher resumes the cycle after about a 5-second pause.

You can customize your cycles by pressing an option. If you change your mind, press the option again to turn the option off, or select a different option if desired.

You can change an option anytime before the selected option begins. For example, you can press an unheated drying option any time before drying begins.

Press START to use the same cycle and option(s) as the previous

wash cycle.

NOTE: If the last cycle you completed was a rinse cycle, when

you press Start, the dishwasher runs the last full wash cycle and options.

Lock On

Use the Lock On to prevent unintended use of the dishwasher.

You can also use the lock feature to prevent unintended cycle or option changes during a cycle.

When LOCK ON is lit, all buttons are disabled.

NOTE: The dishwasher door can be opened while the controls

are locked.

To turn on the Lock

Press and hold AIR DRY for 4 seconds. LOCK ON glows. If you press any pad while your dishwasher is locked, the light

flashes 3 times.

To turn off the Lock

Press and hold AIR DRY for 4 seconds. The light turns off.

Delay Hours/4 Hour Delay

Select this option to run your dishwasher at a later time or during off-peak hours. You can add items to the load anytime during the delay. After adding items, firmly close the door until it latches. The delay will not continue if the door is not latched.

To delay the start

1. Press the delay button to choose the number of hours

delayed.

2. Select a wash cycle and options.

3. Press START. The dishwasher starts the cycle in the selected number of hours.

NOTES:

■ To cancel the delay and cycle, press CANCEL.

■ To cancel the delay and start the cycle, press START.

Follow the progress of your dishwasher with the Cycle Status indicators.

WASHIHe DmriNe Clcan

NOTE: The features on your dishwasher may vary from those

shown here.

Rinse Aid Empty (on some models)

Fill the Rinse Aid dispenser when Rinse Aid Empty is lit. A rinse aid greatly improves drying and prevents water from forming droplets that can dry as spots or streaks. If the Rinse Aid dispenser is empty, the light glows when you select a cycle or while a cycle is running.

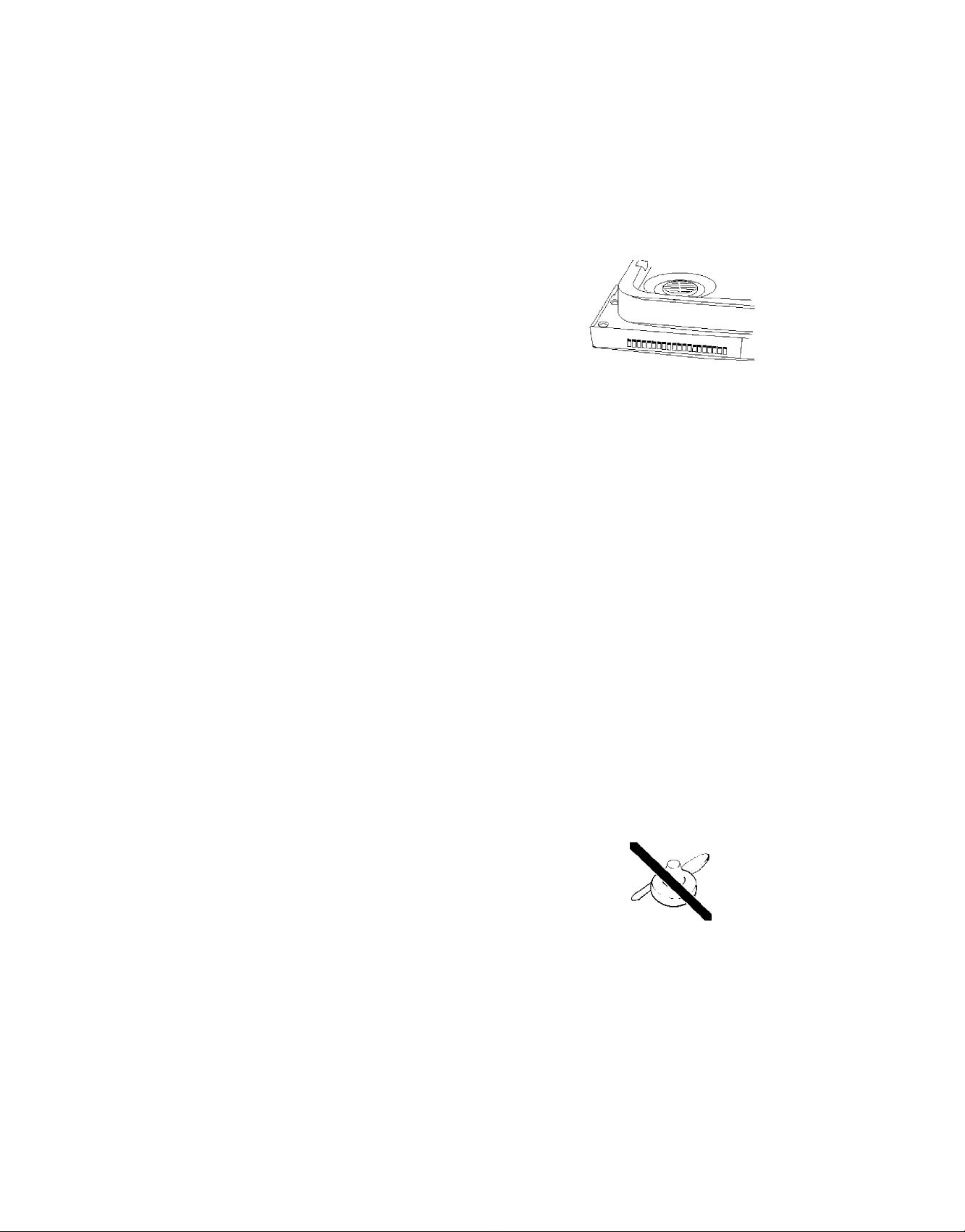

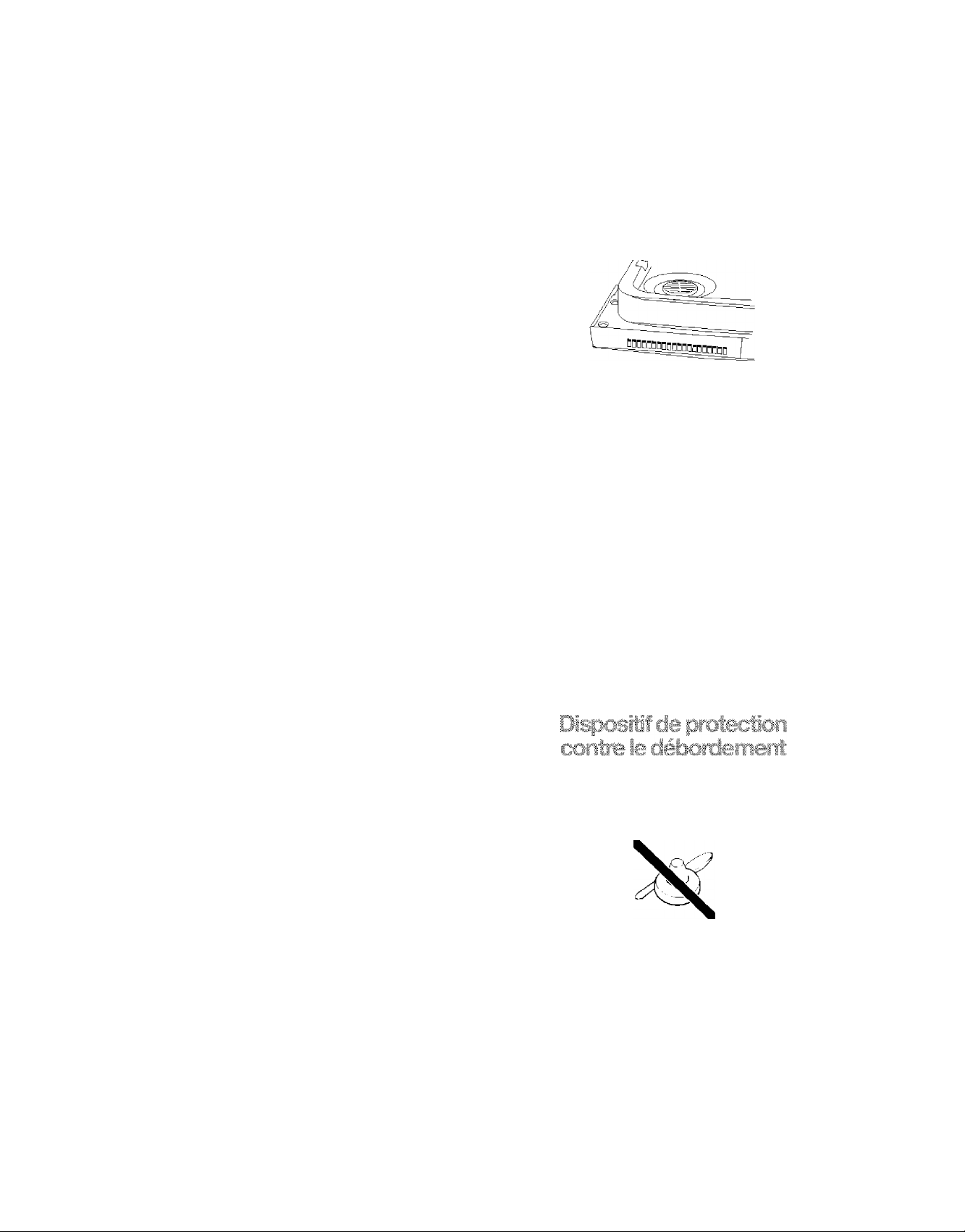

The overfill protection float (in the front right corner of the dishwasher tub) keeps the dishwasher from overfilling. It must be in place for the dishwasher to operate.

Check under the float for objects that may keep the protector from moving up or down.

Sanitized

If you select the Sani Rinse option, Sanitized glows when the Sani Rinse cycle is finished. If your dishwasher did not properly sanitize your dishes, the light flashes at the end of the cycle. This can happen if the cycle is interrupted or the incoming water temperature is too low. The light turns off when you press any button or close the door.

Clean

Clean glows when a cycle is finished. The iight turns off when you press any button or close the door.

(On top control models)

The active vent reduces the sounds from your dishwasher. The vent closes, after the cycle starts, to lock in sound. After the cycle finishes and the dishes cool for several hours, the vent opens. This prevents any water vapor from collecting on the countertop. Between cycles, the vent stays open for airflow, reducing the buildup of odors.

WASHING SPECIAL

ITEMS

If you have doubts about washing a particular item, check with the manufacturer to see if it is dishwasher safe.

Material Dishwasher Safe?/Comments

Aluminum

Disposable

Aluminum

Bottles and Cans

Cast Iron

Yes

High water temperature and detergents

can affect finish of anodized aluminum.

Do not wash throwaway aluminum pans in the dishwasher. These might shift during washing and transfer black marks to dishes and other items.

Wash bottles and cans by hand. Labels attached with glue can loosen and clog the spray arms or pump and reduce washing performance.

Seasoning will be removed and iron will rust.

NOTE: There is a slight noise when the vent closes or opens. This

is normal.

(On split control models)

The active vent reduces the sounds from your dishwasher. The vent closes, after the cycle starts, to lock in sound. The Active Vent opens when wash action ends and vapor is vented into room. Between cycles, the vent stays open for airfiow, reducing the buiidup of odors.

« > \: % \

1*4 4

^ * 4 4

f \ 4 4

'^4 % *

---

1 $

NOTE: There is a slight noise when the cover closes or opens.

This is normal.

IMPORTANT: The vapor is hot. Do not touch the vent

during drying.

China/ Stoneware

Crystal Yes

Gold No

Glass Yes

Fiollow-Fiandle Knives

Yes

Always check manufacturer’s recommendations before washing. Antique, hand-painted, or over-the-giaze patterns may fade. Gold leaf can discolor or fade.

Check manufacturer’s recommendations before washing. Some types of leaded crystal can etch with repeated washing.

Gold-colored flatware will discolor.

Milk glass yellows with repeated dishwasher washing.

Handles of some knives are attached to the blade with adhesives which can loosen if washed in the dishwasher.

Material

Pewter, Brass, Bronze

Disposable Plastics

Plastics Yes

Stainless Steel Yes

Dishwasher Safe?/Comments No

High water temperatures and detergent

can discolor or pit the finish.

Cannot withstand high water temperatures and detergents.

Always check manufacturer’s recommendations before washing. Plastic items may vary in their ability to withstand high temperatures and detergents. It is recommended that light items such as lids and butter dishes be placed in the upper rack only. Sturdy items such as coolers and high-chair trays may be placed in the lower rack. When washing plastic items in the lower rack, it is recommended that the air dry option be used.

Run a rinse cycle if not washing immediately. Prolonged contact with food containing salt, vinegar, milk products, or fruit juice can damage finish.

Cleaning the interior

Hard water minerals can cause a white film to build up on the

inside surfaces, especially just beneath the door area.

Do not clean the dishwasher interior until it has cooled. Wear rubber gloves. Do not use any type of cieanser other than dishwasher detergent because it may cause foaming or sudsing.

To clean interior

Make a paste with powdered dishwasher detergent on a damp sponge and clean.

Use liquid automatic dishwasher detergent and clean with a damp sponge.

See the vinegar rinse procedure in “Spotting and filming on dishes” in “Troubleshooting.”

NOTE: Run a normai cycle with detergent after cleaning the

interior.

Check the drain air gap anytime your dishwasher isn’t draining weil.

Some state or local plumbing codes require the addition of a drain air gap between a built-in dishwasher and the home drain system, if a house drain is clogged, the drain air gap protects your dishwasher from water backing up into it.

Sterling Silver or Silver Plate

Tin No

Wooden Ware

Yes

Run a rinse cycle if not washing immediately. Prolonged contact with food containing salt, acid, or sulfide (eggs, mayonnaise, and seafood) can damage finish.

Can rust.

Wash by hand. Always check manufacturer’s instructions before washing. Untreated wood can warp, crack, or lose its finish.

DISHWASHER CARE

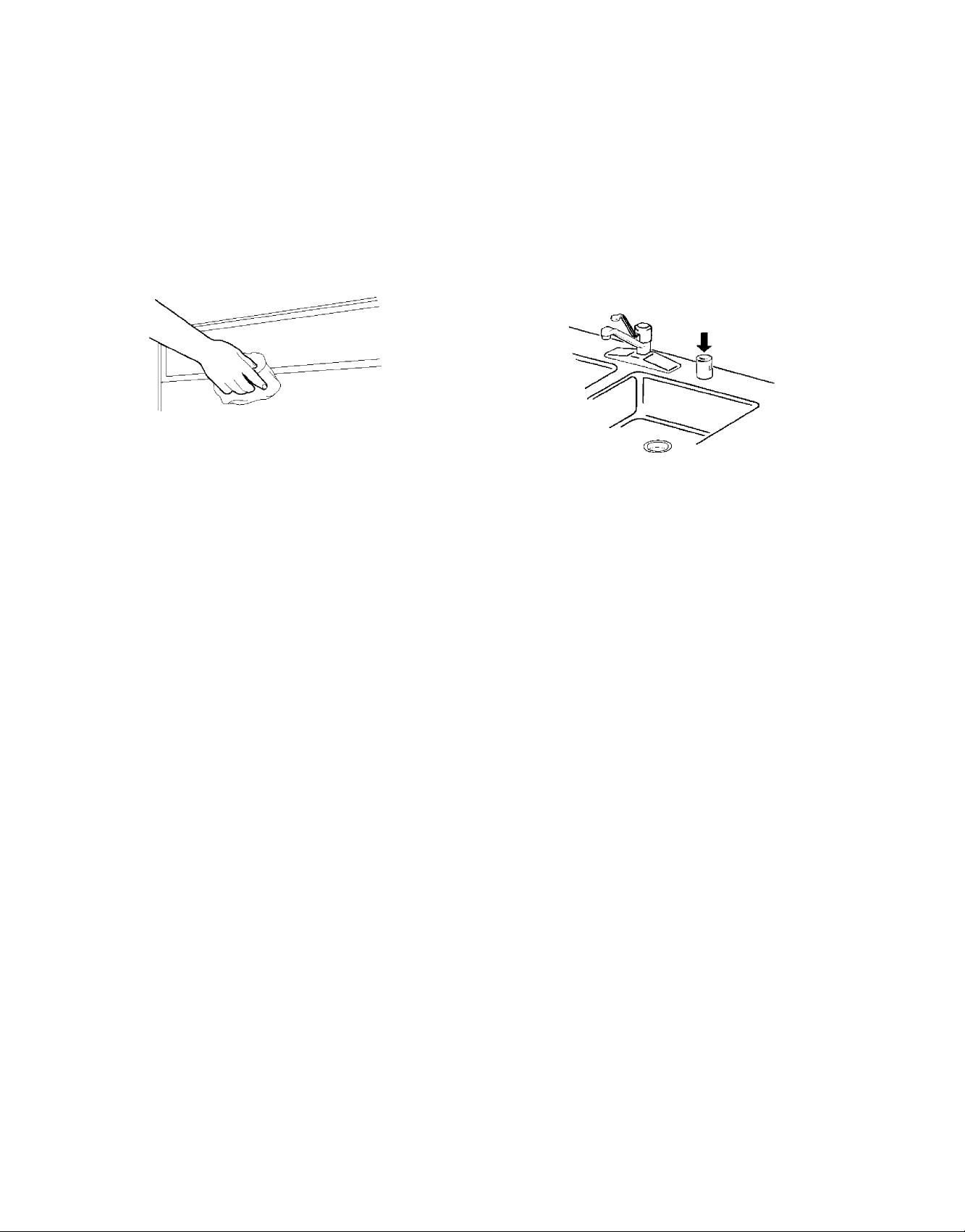

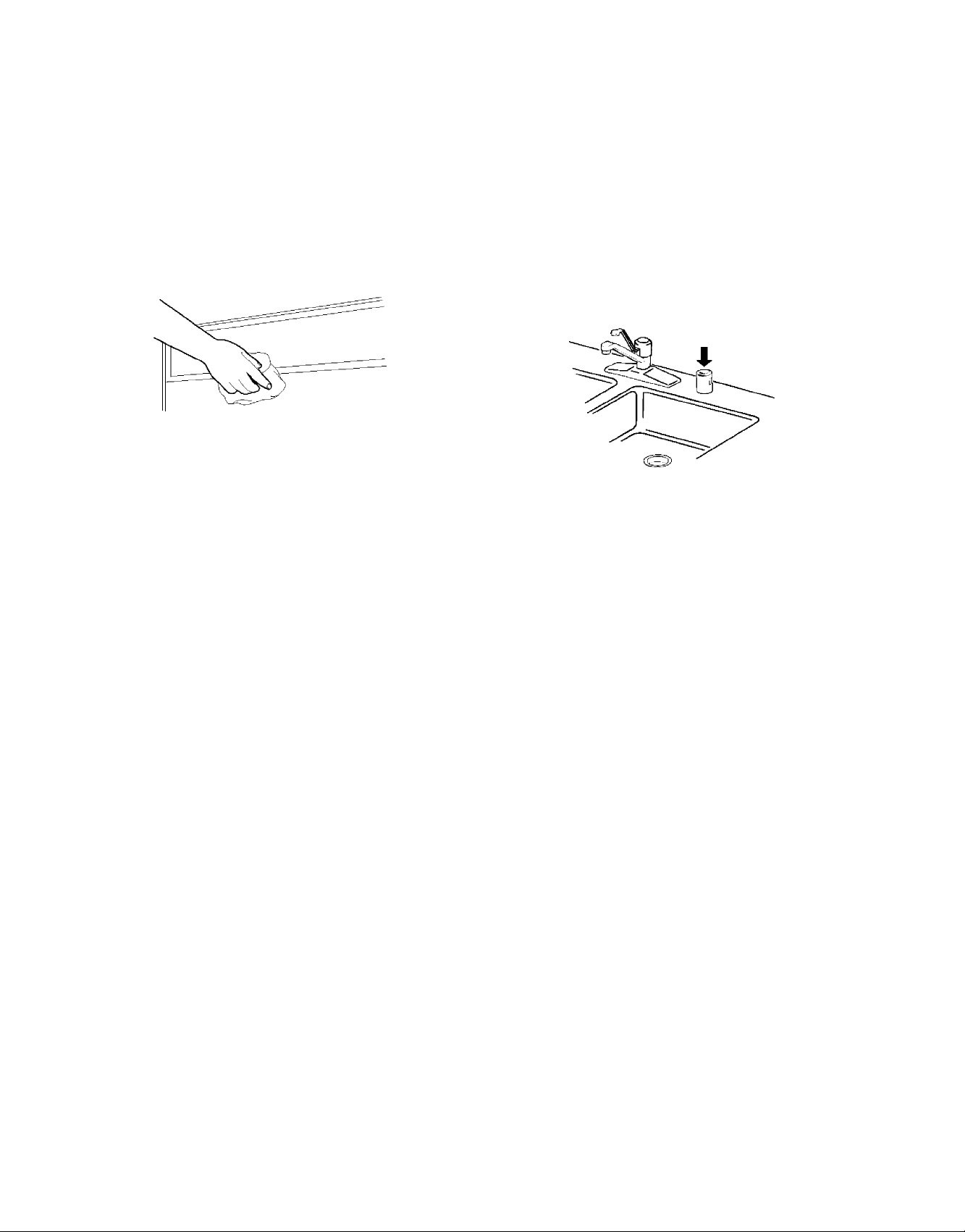

Cleaning the exterior

In most cases, regular use of a soft, damp cloth or sponge and a mild detergent is ali that is necessary to keep the outside of your dishwasher looking nice and clean. If your dishwasher has a stainless steel exterior, a stainless steel cleaner is recommended.

The drain air gap is usually located on top of the sink or countertop near the dishwasher. To order a drain air gap, please cal! 1-800-4-MY-HOME®. Ask for Part Number 300096.

NOTE: The drain air gap is an external plumbing device that is

not part of your dishwasher. The warranty provided with your dishwasher does not cover service costs directly associated with the cleaning or repair of the external drain air gap.

To clean Itie drain air gap

Clean the drain air gap periodically to ensure proper drainage of your dishwasher. Follow the cleaning instructions provided by the manufacturer. With most types, you lift off the chrome cover.

Unscrew the plastic cap. Then check for any soil buildup. Clean

if necessary.

Storing for the summer

Protect your dishwasher during the summer months by turning

off the water supply and power supply to the dishwasher.

Winterizing your dishwasher

Protect your dishwasher and home against water damage due to freezing water lines. If your dishwasher is left in a seasonal dwelling or could be exposed to near freezing temperatures, have your dishwasher winterized by authorized service personnel.

TROUBLESHOOTING

First try the solutions suggested here and possibiy avoid the cost of a service cail...

Dishwasher is not operating property

■ Dishwasher does not run or stops during a cycle

Is the door closed tightly and latched? Is the right cycle selected? Refer to the “Cycle Selection

Charts.”

Is there power to the dishwasher? Has a household fuse

blown or circuit breaker tripped?

Has the motor stopped due to an overload? The motor

automatically resets itself within a few minutes. If it does not restart, cal! for service.

Is the water shutoff valve (if installed) turned on? It is normal for certain cycles to repeatedly pause for several

seconds during the main wash.

■ Dishwasher will not fill

Is the overfiil protection float able to move up and down

freely? Press down to release.

■ Dishwasher seems to run too long

Is the water supplied to the dishwasher hot enough? The

dishwasher runs longer while heating water. Refer to the “Dishwasher Efficiency Tips” section.

A delay automatically occurs in some wash and rinse cycles until the water reaches the proper temperature.

■ Water remains in the dishwasher

Is the cycle complete?

■ Detergent remains in the covered section of the

dispenser

Is the cycle complete? Is the detergent lump-free? Replace detergent if necessary.

■ White residue on the front of the access panei

Was too much detergent used? Refer to the “Detergent

Dispenser” section. Is the brand of detergent making excess foam? Try a different

brand to reduce foaming and eliminate buildup.

■ Odor in the dishwasher

Are dishes washed only every 2 or 3 days? Run a rinse cycie once or twice a day until you have a full load.

Does the dishwasher have a new plastic smell? Run a vinegar

rinse as described in the section “Spotting and filming on dishes.”

Condensation on the kitchen counter (built-in models)

Is the dishwasher aligned with the countertop? Moisture from the vent in the dishwasher console can form on the counter. Refer to the Installation Instructions for more information.

Dishes are not completely clean

■ Food soil left on the dishes

Is the dishwasher loaded comectiy? Refer to the “Dishwasher Loading” section.

Is the water temperature too low? For best dishwashing results, water should be 120“F (49°C) as it enters the dishwasher. Refer to the “Dishwasher Efficiency Tips” section.

Did you use the correct amount of fresh detergent? Use recommended dishwasher detergents only. Refer to the “Detergent Dispenser” section. Detergent must be fresh to be effective. Store detergent in a cool, dry area. Heavy soil and/ or hard water generally require extra detergent.

Do you have hard water? You may need to increase the amount of detergent you are using. Refer to the “Detergent Dispenser” section. Also, you may need to switch to a detergent with a phosphorus content of 8.7%.

Is detergent caked in dispenser? Use fresh detergent only. Do not allow detergent to sit for several hours in a wet dispenser. Clean dispenser when caked detergent is present.

Is the pump or spray arm clogged by labels from bottles and cans? If you wash bottles and cans in your dishwasher, check for labels clogging the pump or spray arm.

Is the home water pressure high enough for proper dishwasher filling? Home water pressure should be 20 to 120 psi (138 to 828 kPa) for proper dishwasher fill. A booster pump on the water supply can be added if pressure is too low.

Are high suds slowing the wash arm? Never use soap or laundry detergents. Use recommended dishwasher detergents only.

Spots and stains on dishes

Spotting and filming on dishes

Is your water hard or is there a high mineral content in your water? Conditioning thefinai rinse water with a liquid rinse aid helps eliminate spotting and filming. Keep the rinse aid dispenser filled.

Is the water temperature too low? For best dishwashing results, water should be 120“F (49°C) as it enters the dishwasher. Refer to the “Dishwasher Efficiency Tips” section.

Did you use the correct amount of effective detergent? Use recommended dishwasher detergents only. Refer to the “Detergent Dispenser” section. Detergent must be fresh to be effective. Store detergent in a cool, dry area. Heavy soil and/ or hard water generally require extra detergent.

+ 42 hidden pages
