TABLEOF CONTENTS

DISHWASHER SAFETY ............................................................. 2 Make Power Cord Connection .......................................................13

iNSTALLATiON REQUIREMENTS ............................................. 3

Tools and Parts...................................................................................3

Location Requirements ..................................................................... 4

Drain Requirements ...........................................................................6

Water Supply Requirements ...........................................................6

Electrical Requirements ....................................................................6

iNSTALLATION INSTRUCTIONS ............................................. 7

Prepare Cabinet Opening--

Existing Utilities ................................................................................. 7

Prepare Cabinet Opening--New Utilities ................................... 7

Prepare and Route Water Line.......................................................9

Install Drain Hose.............................................................................10

Install Optional Moisture Barrier ..................................................12

Prepare Dishwasher ........................................................................12

Determine Cabinet Opening ..........................................................15

Install Door Handle .........................................................................16

Custom Panel Installation ...............................................................16

Choose Attachment Option ........................................................... 17

Prepare Water Supply Line........................................................... 17

Move Dishwasher Close to Cabinet Opening ............................ 18

Connect to Water Supply ............................................................ 20

Connect to Drain ............................................................................ 20

Make Direct Wire Electrical Connection .....................................21

Secure Dishwasher in Cabinet Opening .....................................23

Complete installation ..................................................................... 24

Check Operation .............................................................................26

If Dishwasher Does Not Operate .................................................26

Additional Tips.................................................................................26

DISHWASHERSAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

You can be killed or seriously injured if you don't immediately

follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

You Need to= [] Slowly open dishwasher door while someone grasps the rear

of the dishwasher. Remove shipping materials and drain hose. Close dishwasher door until latched.

NOTE: Each dishwasher is tested at the factory and may contain some residual water in the tub as a result of the test.

[] Observe all governing codes and ordinances.

Tip Over Hazard

Do not use dishwasher until completely installed. Do not push down on open door.

Doing so can result in serious injury or cuts.

[] Install this dishwasher as specified in these instructions. [] Installation should be performed by a qualified service

technician.

[] The dishwasher must be installed to meet all electrical and

plumbing national and local codes and ordinances.

Care shall be exercised when the appliance is installed or removed, to reduce the likelihood of damage to the power cord.

WARNING= To reduce the risk of electric shock, fire, or injury to persons, the installer must ensure that the dishwasher is

completely enclosed at the time of installation.

iNSTALLATiON

REQUIREMENTS

Gather the recommended took and parts before starting installation. Read and follow the instructions provided with any

took listed here.

All Installations

Tools Needed:

i F,at:b,ade

e s I screwdriver

5 " i "

_6 and V4 /_) J

nut dr!vers or _S-" JSmal!level

hex sockets __.._.._.._/ _

10', adjustab!e wrench _ 'TorX ®_T20® and, if that opensto _ installing custom _

!'/8" (2 9 Cm)_ fr°nt.pane/s,

Other Useful Items You May Need:

Torx_ T15 screwarivers

Other Parts Needed: (not provided)

%" Compression Household Wiring Twist-on Wire x 3/4 Hose Fitting (Metallic) Strain Relief Connectors

with rubber seal to fit %" (2.2 cm) hole NOTE: Confirm and 90°elbow (required to properly proper size for

(required to secure household connecting your properly connect wiring to the dish- gauge of house- household water washer terminal box) hold wiring to the line to the NOTE: Use only UL .16-gauge wiring

dishwasher)

(Part Number W!0685193)

To order parts, caff 1-800-469-4663, for Part Number above, or see local electrical/plumbing supply retailer for equivalent.

Optional Accessory Parts Available:

Moisture BarderTape NOTE: Moisture barrier tape is

an optional, added level of protection if installing a

dishwasher under a wooden countertop.

(Part Number 4396277)

I i

Listed/CSAApproved in the dishwasher

part ,_ NOTE: Use on y

_- -3_ UL Listed/CSA

Approved parts.

(Part I ff _ Number 4396672) 'J '_

Side Panel Kit For enclosing the side of

the dishwasher when

installing it at the end of your cabinetry.

varies with

color)

(Part Number _

To order parts, call 1-800-469-4663,for PartNumber above.

F,ashlight__ Ba

Pa#s Suppffed:

Drain h0se Drain hose #10 X underc0unter Door clamps (2)Phillips, mounting handle(on

(1 large/red head brackets (2) 5ome

and I smallJ __ screws (2) _m°dels)-

;Ireen) . .

Make sure all these parts are included in the literature package. If parts are not included, call 1-800-422-1230. In Canada, call

1-800-807-6777

First-time Installatlons=

Check local codes. Check existing electrical supply. See the "Electrical Requirements" section, it is recommended that electrical connections be made by a licensed electrical installer.

Additional Tools Needed:

Additional Ports Needed (not provided)

Coppe_ tubing (%" screw:TyPe Opti0na!,L0nge[

O,D. suggested)Clamps Drain Hose Maximum or Rexible Braided 11/2,. 2" length: 12 ft (3.7 m) Water Supply Line (3.8!- 5cm) NOTE:Must meet

Kit (Part Number (3 maximum) AHAM/IAPMO test W10278635RP), Kit . standards, fit 1,

includes Braided (2,5 cm)drain

Hose and %,' connection, and be Compression x 3/4, resistant to heat and

HoseF tt ng detergent,

1-®)TORX,T15, and T20 are registered trademarks of Acument Intellectual Properties, LLC.

To order parts; call 1.800'469_466& for part number above, or see local electrical supply retailer for equivalent.

NOTE: If using a flexible braided hose, replace inlet hose after 5 years to reduce the risk of hose failure. Record hose

installation or replacement dates on the hose for future reference.

For DirectWire For Power Cord

Cabinet Grommet Power Cord Kit

For 11/2"(3.8 cm) Kit typically incHudes power cord,

hoHe in cabinet, metallic strain relief, grommet, and

twist-on wire Connectors.

Number 302797) (___ Id L_

NOTE: Required for metal cabinets. (Part Number 4317824)

oTOorder parts, call 1-800-469-4663, for Part Number above,

r see local electrical supply retailer for equivalent.

Dishwasher must be fully enclosed (top, sides, back, and floor) upon installation. A side panel kit is available from your dealer

for installing your dishwasher at the end of your cabinetry. An optional moisture barrier accessory is also available for

installing underneath a wooden countertop. See the "Tools and Parts" section at the front of the guide for part details and

orders. Check location where dishwasher will be installed. The location

must provide: [] Convenient access for loading and unloading dishes. Corner

locations require a 2" (5.1 cm) minimum clearance between the side of the dishwasher door and the wall or cabinet.

[] Easy access to water, electricity and drain.

[] Grounded electrical supply required. [] Make sure pipes, wires and drain hose are within the

shaded area shown in the "Product and Cabinet Opening Dimensions" section.

[] Do not run drain lines, water lines or electrical wiring

where they can interfere with or contact dishwasher motor or legs.

[] Shelter dishwasher and water lines leading to

dishwasher against freezing. Damage from freezing is not covered by the warranty.

NOTE= If dishwasher will be left unused for a period of time or in a location where it may be subject to freezing, have it

winterized by authorized service personnel.

[]

A square opening for proper operation and appearance.

[]

The cabinet front to be perpendicular to floor.

[]

A level floor. Helpful Hint: If floor at front of opening is not level with

floor at rear of opening, shims may be used to level dishwasher. NOTE: To avoid shifting during dishwasher

operation, shims must be securely attached to the floor. The location where the dishwasher will be installed must

provide clearance between motor and flooring. Motor should not touch the floor.

[] Do not install dishwasher over carpeted flooring.

3/41

/ (1.9 cm)

A. Insulation may be compressed

(not used on all models).

B. For panel-ready models, dishwasher

depth is 24" (60 cm) not including the

3/4"(1.9 cm) custom door panel.

C. Door handles may protrude forward

of the face of the dishwasher; varies by model.

31/2"-41/4''

(8.8 cm - 10.6 cm) /

For 4" (10 cm) toe (9

kick. height of cabinet

opening is 341/2'' (86.3 cm).

NOTE: Shaded areas of cabinet walls show where

utility connections may be installed

D. Measured from the Iowesl point on the

underside of the countertop. May be redu ced to 331W (85.1 cm) by removing

the wheels and 3erforated area of insulation

(blanket) on dishwasher.

E. Minimum. measured from narrowest point of opening.

Check that all surfaces have no protrusions that would prohibit dishwasher installation.

61/4 ''

/15.9cm

[]

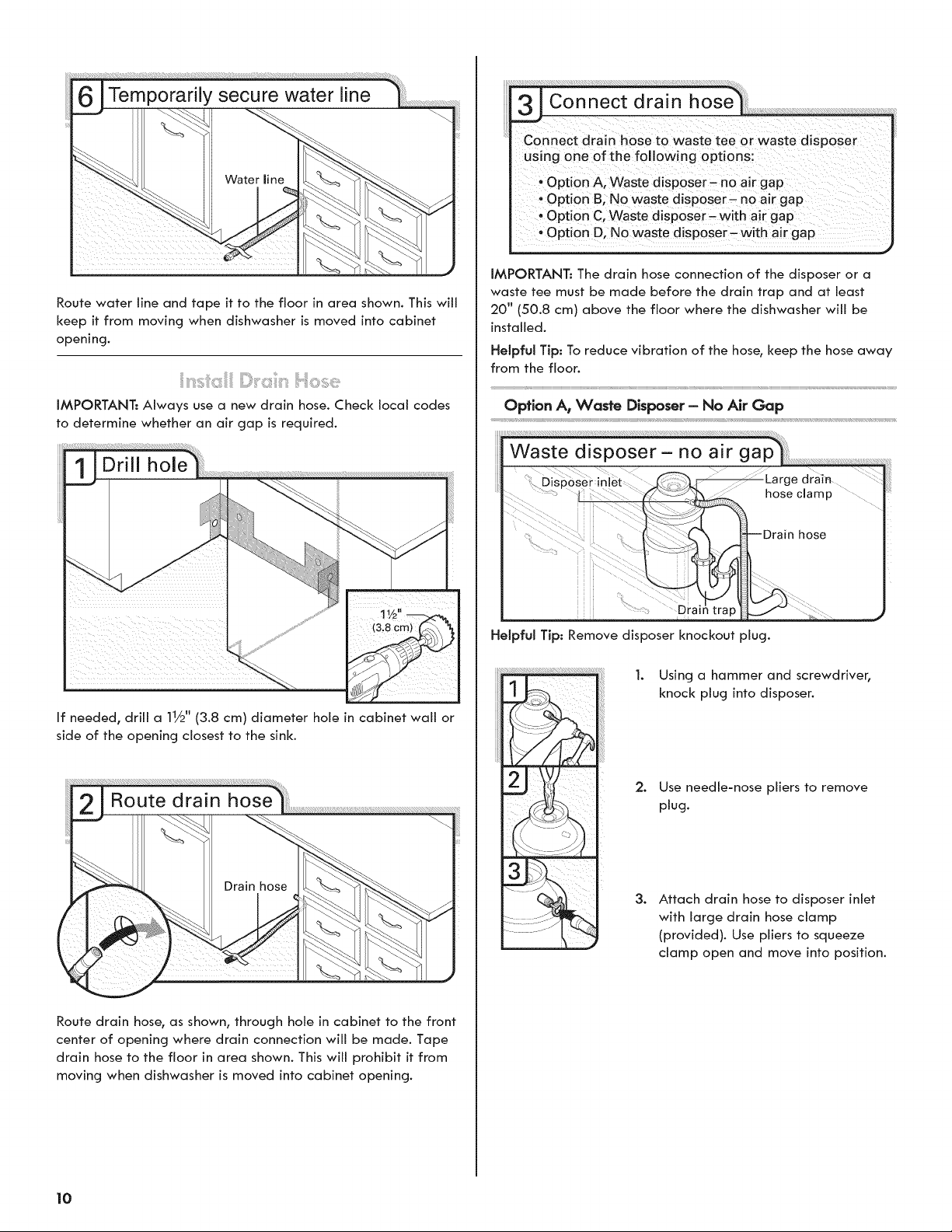

A new drain hose is supplied with your dishwasher. If drain hose is not long enough, use a new drain hose with a

maximum length of 12 ft (3.7 m) that meets all current AHAM!IAPMO test standards, is resistant to heat and detergent, and fits the 1" (2.5 cm) drain connector of the dishwasher. See the "Tools and Parts" section at the front of

the guide for part details and orders.

[]

Make sure to connect drain hose to waste tee or disposer inlet above drain trap in house plumbing and 20" (50.8 cm) minimum above the floor. It is recommended that the drain

hose either be looped up and securely fastened to the underside of the counter, or be connected to an air gap.

[]

Make sure to use an air gap if the drain hose is connected to house plumbing lower than 20" (50.8 cm) above sub floor or

floor.

[] If required, the air gap should be installed in accordance

with the air gap installation instructions. When you are connecting the air gap, a rubber hose (not provided) will be

needed to connect to the waste tee or disposer inlet.

[] Use 1/2" minimum I.D. drain line fittings

Be sure that the electrical connection and wire size are adequate and in conformance with the National Electrical

Code, ANSI!NFPA 70 - latest edition and all local codes and ordinances.

A copy of the above code standards can be obtained from:

National Fire Protection Association 1Batterymarch Park Quincy, MA 02169-7471

You Must Have: [] 120-volt, 60 Hz, AC-only, 15- or 20-amp, fused electrical

supply.

[] Copper wire only. [] A maximum of two field wiring supply conductors (12 AWG

largest size) plus one grounding conductor are permitted in the terminal box.

We Recommend: [] A time-delay fuse or circuit breaker.

[] A separate circuit.

If Connecting Dishwasher With A

Power Cord: [] Use UL Listed power cord kit

marked for use with dishwasher. See the "Tools and Parts" section at the front of the guide for

part details and orders. Power cord must plug into a grounded 3

prong outlet, located in the cabinet next to the dishwasher opening. Outlet must meet all

local codes and ordinances.

If Connecting Dishwasher With Direct Wiring:

[] Use flexible, armored or

nonmetallic sheathed, copper wire with grounding wire that meets the

wiring requirements for your home and local codes and ordinances.

[] Use a UL Listed/CSA Approved metallic strain relief. See the

"Tools and Parts" section at the front of the guide for part details and orders.

[]

A hot water line with 20 to 120 psi (138 to 862 kPa) water pressure can be verified by a licensed plumber.

[]

120°F (49°C) water at dishwasher.

[]

3/8"O.D. copper tubing with compression fitting or flexible braided water supply line. See the "Tools and Parts" section

at the front of the guide for part details and orders. NOTE: 1/2"minimum plastic tubing is not recommended.

[]

A 90 ° elbow with 3/4"hose connection with rubber washer. See the "Tools and Parts" section at the front of the guide for

part details and orders.

[]

Do not solder within 6" (15.2 cm) of the water inlet valve.

iNSTALLATiON iNSTRUCTiONS

Electrical Shock Hazard

Disconnect electrical power at the fuse box or circuit breaker box before installing dishwasher.

Failure to do so can result in death or electrical shock.

i Discoaaect electric al POwe[ atthe fuse bO× or c!rcu!t

Cable

When removing a previous dishwasher, be sure to avoid damaging the existing power cord, drain line, and water line

connected to the dishwasher.

If the water line and the cable extend to the locations shown,

proceed to the "install Drain Hose" section. If they do not reach far enough, follow the instructions in the "Prepare Cabinet

Opening--New Utilities" section.

YeS --Follow instructions )n the "Prepare Cabinet

Opening--Existing Utilities section. NO Follow instructions in the "Prepare Cabinet

Opening--New Utilities" section,

Existing utility hookups

Prepare And Route The Electrical Supply

What type of electrical

connection will you use?

[

Option A_ Power Cord =

Option B_Direct Wire

NOTE." A grounded 3 prong outlet is required inside a cabinet next to the dishwasher cabinet opening.

Drill a 11/2" (3.8 cm) hole in cabinet side or rear. See the "Product and Cabinet Opening Dimensions" section.

Helpful Tip."Wiring the dishwasher will be easier if you route the cable into the cab}net opening from the right-hand s}de.

Drill a 11/2"(3.8 cm) hole in right-hand cabinet side or rear. See the "Product and Cabinet Opening Dimensions" section.

Wood cabinet: Sand the hole until smooth.

Metal cabinet: Cover edges of hole with grommet included with power cord kit.

See the "Tools and Parts" section at the front of the guide for part details.

Wood cabinet: Sand the hole until smooth. Metal cabinet: Cover edges of hole with a grommet.

See the "Tools and Parts" section at the front of the guide for part details.

Route cable from power supply through cabinet hole (cable must extend to the right front side of cabinet opening). Tape

cable to the floor in area shown. This will prohibit cable from moving when dishwasher is moved into cabinet opening.

ili"_'i_'_i_J!!D_!iii_iiiii_,,_i:ii_'_!!?_:::_!ii_iiii"'ii_'ii:_Iiiii_ii:,i,'ii_,_i,,,_i_!_'_i,_!?'_i_'!_,_J_i,':i:_'iiii_!!ii_,_'_iiii!,,,,_iii_iiii_"i_,_ii!_?

Helpful Tip: Routing the water line through the left-hand side of cabinet opening will make water connection easier.

Drill a 1/2" (1.3 cm) hole in the cabinet side or rear.

Attach the water supply line (copper tubing or flexible braided line) to the hot water line using a connection configuration that

is in compliance with local codes and ordinances. The water supply to the dishwasher should have a manual shutoff valve

located under the sink.

If using copper tubing, measure overall length of copper tubing required to reach the water supply, cut to length and attach compression fittings.

If using flexible braided line, confirm braided line is of adequate length. See the "Tools and Parts" section at the front

of the guide for part details and orders. NOTE: If using a flexible braided hose, replace inlet hose after 5 years to reduce the risk of hose failure. Record hose

installation or replacement dates on the hose for future reference.

Slowly route water supply line through hole in cabinet. (If you are using copper tubing, it will bend and kink easily, so be

gentle.) It should be far enough into the cabinet opening to connect it to the dishwasher inlet on the front left side of the

dishwasher.

Slowly turn water shutoff valve to "ON" position. Flush water into a shallow pan until clear to get rid of particles that could

clog the inlet valve. Turn shutoff valve to "OFF" position.

Routewaterlineandtapeittothefloorinareashown.Thiswill keepitfrommovingwhendishwasherismovedintocabinet

opening.

Connect drain hose to waste tee or waste disposer

using one of the following options:

- Option A, Waste disposer- no air gap * Option B, No waste disposer- no air gap * Option C, Waste dis poser- with air gap , Option D, No waste disposer-with air gap

IMPORTANT: The drain hose connection of the disposer or a waste tee must be made before the drain trap and at least

20" (50.8 cm) above the floor where the dishwasher will be installed.

Helpful Tip: To reduce vibration of the hose, keep the hose away from the floor.

IMPORTANT=Alwaysuseanewdrainhose.Checklocalcodes todeterminewhetheranairgapisrequired.

Ifneeded,drilla11/2''(3.8cm)diameterholeincabinetwallor sideoftheopeningclosesttothesink.

Option A_ Waste Disposer - No Air Gap

Helpful Tip: Remove disposer knockout plug.

Using a hammer and screwdriver, knock plug into disposer.

2. Use needle-nose pliers to remove plug.

Routedrainhose,asshown,throughholeincabinettothefront centerofopeningwheredrainconnectionwillbemade.Tape

drainhosetothefloorinareashown. This will prohibit it from

moving when dishwasher is moved into cabinet opening.

Attach drain hose to disposer inlet with large drain hose clamp

(provided). Use pliers to squeeze clamp open and move into position.

Option B_No Waste Disposer- No Air Gap

]. Using a hammer and screwdriver,

knock p}ug into disposer.

2. Use needle-nose pliers to remove plug.

3. Connect rubber end of drain hose

to air gap and cut if needed.

NOTE: Do not cut ribbed section.

]o Fit rubber end of drain hose to

waste tee and cut if needed. NOTE: Do not cut ribbed section.

2= Attach rubber end of drain hose to

waste tee with a large drain hose c}amp (provided). Use p}iers to

squeeze c}amp open and move into position. If the drain hose was cut,

use a 11/2,, to 2" (3.8 to 5 cm) screw- type clamp (not provided).

Option C, Waste Disposer - With Air Gap

Attach drain hose to air gap with

large drain hose clamp (provided). Use p}iers to squeeze clamp open

and move into position. If the drain

hose was cut, use a 11/2"to 2" (3.8 to

5 cm) screw-type c}amp (not

provided).

Use a rubber hose (not provided)

with screw-type clamps (not

provided) to connect from air gap

to disposer inlet.

Option D_No Waste Disposer - With Air Gap

Helpful T}p: Remove disposer knockout plug.

Drain trap

_ _ii__ i_ii!

]. Connect rubber end of drain hose

to air gap and cut if needed.

NOTE: Do not cut ribbed section.

Attach drain hose to air gap with

large drain hose clamp (provided). Use p}iers to squeeze clamp open

and move into position. If the drain

hose was cut, use a 11/2"to 2" (3.8 to

5 cm) screw-type c}amp (not

provided).

Use a rubber hose (not provided)

with screw-type clamps (not

provided) to connect from waste tee

to air gap.

Iiii iii :ii : i!iiii iii3 : iiiii, :i il :iii! iii!!!i!ii, i:: iiii

Moisture

barrier

See the "Tools and Parts" section at the front of the guide for part details and orders.

1. Make sure the area under the cabinet is clean and dry for installation of the moisture barrier.

2. Remove the backing of the moisture barrier and apply to underside of the countertop along the front edge of the

counter.

Remove and discard the foam blocks (if blocks are present, not all models have them) located above the front legs on each side

of the dishwasher. The blocks cover the rope/link pulleys on the dishwasher.

Tip Over Hazard

Do not use dishwasher until completely installed. Do not push down on open door.

Doing so can result in serious injury or cuts.

Excessive Weight Hazard

Use two or more people to move and install

dishwasher.

Failure to do so can result in back or other injury.

Helpful Tip; Place cardboard under dishwasher until installed in cabinet opening to avoid damaging floor covering.

Using 2 or more people, grasp sides of dishwasher door frame and place dishwasher on its back.

Do not use door panel as a worktable without first covering with a towel to avoid scratching the door panel.

Remove and discard the plastic rail cover on each side of the dishwasher frame. To remove the plastic rail cover, push upward

and back to unsnap it from the dishwasher frame.

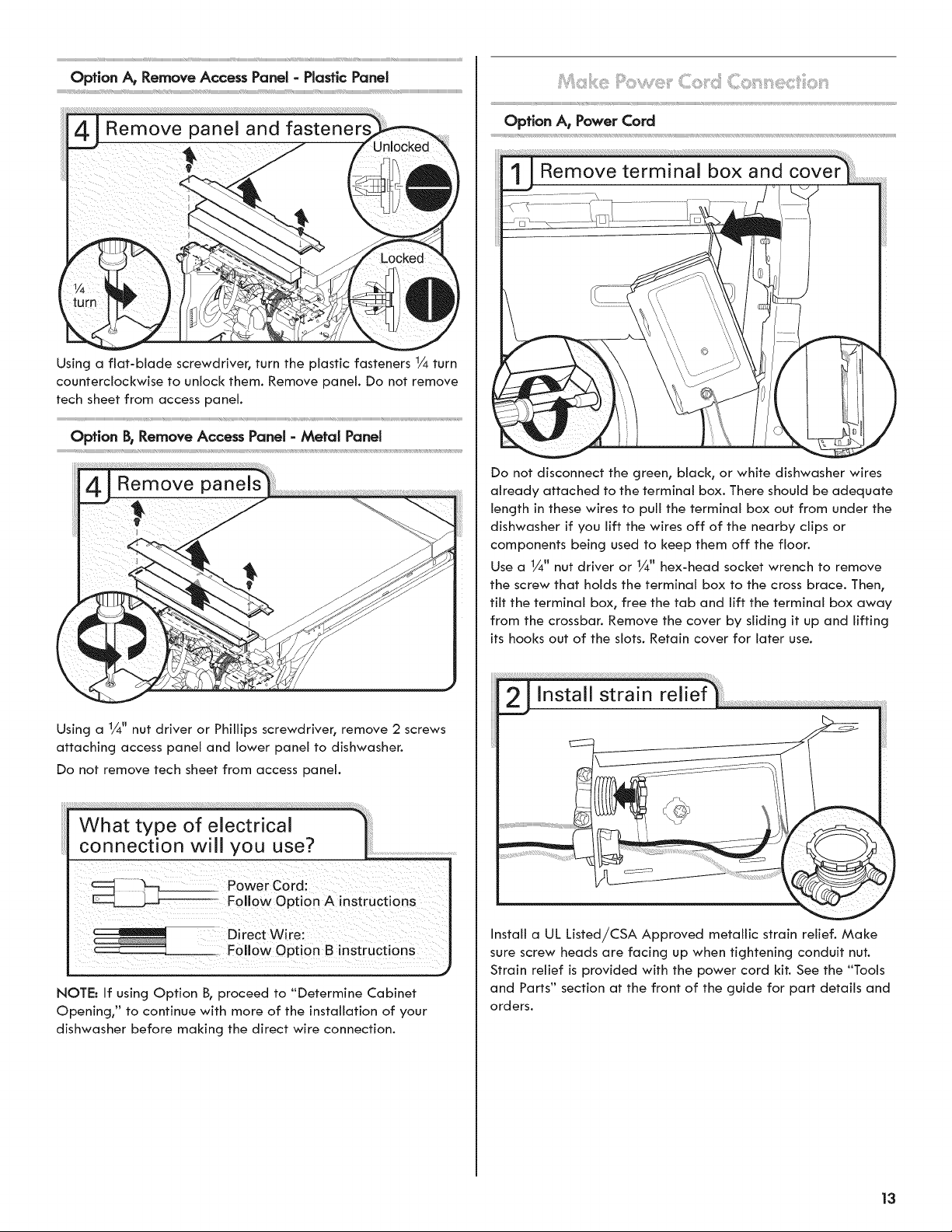

Option A_Remove Access Panel - Plastic Panel

Using a f}at-bJade screwdriver, turn the plastic fasteners 1/4turn

counterclockwise to unlock them. Remove panel. Do not remove tech sheet from access panel.

Option B,Remove Access Panel - Metal Pane{

Option A_ PowerCord

Do not disconnect the green, black, or white dishwasher wires already attached to the terminal box. There should be adequate

length in these wires to pu[} the terminal box out from under the dishwasher if you lift the wires off of the nearby clips or

components being used to keep them off the f}oon Use a 1/4" nut driver or 1/4" hex-head socket wrench to remove the screw that holds the terminal box to the cross brace. Then,

tJ}t the terminal box, free the tab and lift the terminal box away from the crossbar. Remove the cover by sliding it up and lifting

its hooks out of the slots. Retain cover for later use.

Using a 1/4" nut driver or Phillips screwdriver, remove 2 screws attaching access panel and }ower pane} to dishwasher.

Do not remove tech sheet from access pane{.

NOTE: If using Option B, proceed to "Determine Cabinet Opening," to continue with more of the installation of your

dishwasher before making the direct wire connection.

Install strain relief

Install a UL Listed!CSA Approved metallic strain relief. Make sure screw heads are facing up when tightening conduit nut.

Strain relief is provided with the power cord kit. See the "Tools and Parts" section at the front of the guide for part details and

orders.

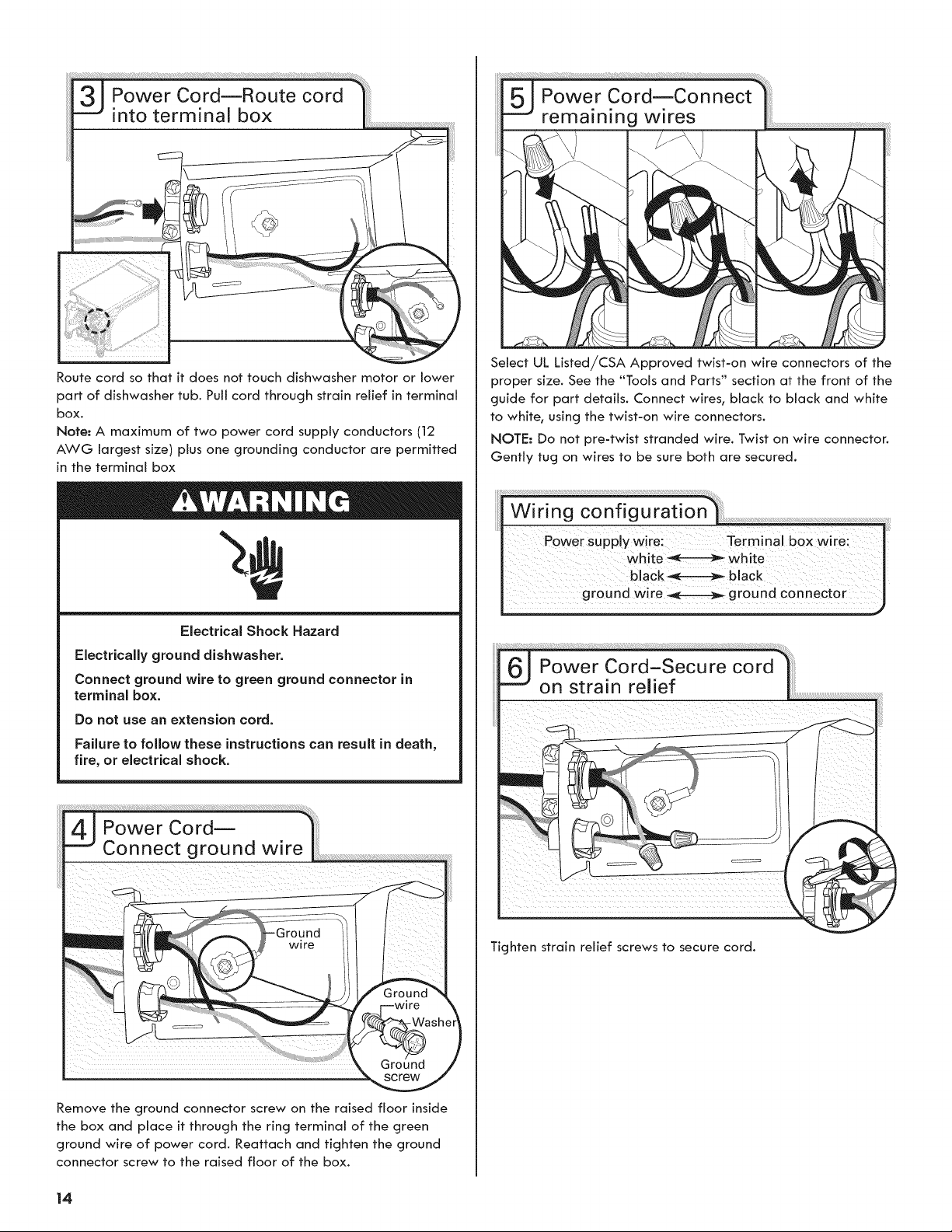

Power CordmConnect remaining wires

Route cord so that it does not touch dishwasher motor or lower part of dishwasher tub. Pull cord through strain relief in terminal

box. Note= A maximum of two power cord supply conductors (12

AWG largest size) plus one grounding conductor are permitted in the terminal box

Electrical Shock Hazard

Electrically ground dishwasher. Connect ground wire to green ground connector in

terminal box.

Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

Select UL Usted!CSA Approved twist-on wire connectors of the proper size. See the "Tools and Parts" section at the front of the

guide for part details. Connect wires, black to black and white to white, using the twist-on wire connectors.

NOTE: Do not pre-twist stranded wire. Twist on wire connector. Gently tug on wires to be sure both are secured.

Remove the ground connector screw on the raised floor inside the box and place it through the ring terminal of the green

ground wire of power cord. Reattach and tighten the ground connector screw to the raised floor of the box.

Tighten strain relief screws to secure cord.

Place wires inside terminal box. Replace the cover by inserting the hooks of the terminal cover into the slots in the floor of the

terminal box and sliding the cover tight against the back walE where wires come in. Make sure wires are tucked inside the box

and not pinched by the cover. Then, put the terminal box back on the crossbar with the tab in

place. Use a 1/4"nut driver and the previously removed screw to secure the terminal box to the crossbar.

NOTE= Do not plug into outlet until instructed to do so. Once the terminal box has been remounted on the dishwasher,

there should be some excess length or slack in the green, black, and white wires coming from the dishwasher to the terminal

box. Wrap these wires over the nearby components or clip them back into the nearby clips that they were routed through prior to

your removing the box, to help keep them off the floor.

Dishwasher Height Adjustment Cha

Cabinet opening Front legs Wheel Insulation

height height position blanket

331/2'' 3/8,,

(85.1 mm) (9.8 mm) Removed Cut

34" %"

(86.4 cm) (22 mm) 1 No cut

341/4'' 1"

(87.0 cm) (25 mm) 2 No cut

34W' ! 1/8"

(87.6 cm) (28.8 mm) 3 No cut

NOTE= If the minimum cabinet opening height is less than 34" (86.4 cm), the rear wheels can be removed for additional clearance. This will allow the dishwasher and perforated section

of the insulation blanket to fit into a 331/2" (85.1 cm) high cabinet opening, but the dishwasher will be more difficult to

move. Measurements are approximate. Wheels and legs are preset at the factory for 341/2'' (87.6 cm).

Measure height of cabinet opening from underside of countertop to floor where dishwasher will be installed (you will

need to measure the lowest point on the underside of the countertop and the highest point on the floor). Refer to

"Dishwasher Height Adjustment Chart" for wheel position and for wheel position and height of front legs needed for your

cabinet opening height.

Cut insulation blanket along perforation

Cut insulation blanket along perforation for cabinet opening height of 331/2'' (85.1 cm). For other cabinet opening heights, do not cut.

Adjust wheels and legs

Turn both leveler legs to the same height. Put wheels in the required position determined from "Dishwasher Height

Adjustment Chart."

Mounting stud

Handle

Setscrew (in bottom of handle)

Hex key

IMPORTANT= Do not scratch the front panel during this procedure.

Remove the door handle and hardware bag containing the setscrews and hex key from the cardboard box. Setscrews are

already installed in the handle. Place handle on mounting studs with the setscrews facing down. Push the door handle tightly

against the door. Insert the short end of the hex key into the setscrews. Tighten the setscrews 1/4turn past snug.

Retain hex key with Installation Instructions.

Built-up floors: If the kitchen floor is higher than the cabinet opening's floor - for example, the kitchen floor tile does not

extend into the cabinet opening - add shims as needed in the area shown to bring the dishwasher up to 34" (86.4 cm) below

the countertop. NOTE= Shims must be securely attached to floor to avoid

movement when the dishwasher is in use.

Excessive Weight Hazard

Use two or more people to move and install dishwasher.

Failure to do so can result in back or other injury.

Stand dishwasher upright

Using 2 or more people, stand the dishwasher up. NOTE= Do not install kick plate until instructed to do so.

For custom panel installation, refer to the Custom Panel

Installation Instruction Sheet (Part Number W10750117A).

Complete custom panel installation before proceeding to the "Choose Attachment Option" section.

iMPORTANT: The dishwasher must be secured to the cabinet as one of the final steps. Prepare the dishwasher for this by

attaching the two brackets found in the parts bag to the

dishwasher.

For countertops that are wood, laminate, or another similar surface, use Option A.

For countertops that are marble, granite, or another hard surface, use Option B.

Option At Countertop Attachment

_!J Insert bracket*__ __

Tabs mast point

With another person holding the rear of the dishwasher to keep it from tipping, open dishwasher door and place towel over

pump assembly and spray arm of dishwasher. This will keep screws from falling into pump area when you are securing

dishwasher to cabinet.

Plastic button

Push the plastic buttons out of the side of the tub. NOTE= Save the buttons to cover the holes after dishwasher is

installed.

Remove the brackets from the package and insert into the open slots on the left-hand and right-hand top of the dishwasher

collar, as shown.

2J Bend tab

Using a pair of pliers, bend the tab down to secure the bracket

in place. Repeat this step for the other side. NOTE; Do not attach the dishwasher. This will be done later.

Option B,Dishwasher Side Attachment

NOTE= Remove the brackets from the parts package.

3_ Install bracket

Bend

tabs _

_ iiii iii_ ii

Push bracket into slot on the side of dishwasher, and bend tab in toward the side of the dishwasher so that it keeps the bracket in place. Repeat this step for the other side of the dishwasher.

NOTE: Do not attach the dishwasher. This will be done later.

- tobino,coooertub,no

Score line

Break off the end of the bracket along the scored line.

Copper tubing only: Slide nut, and then ferrule about 1" (2.5 cm)

onto copper tubing. NOTE= To avoid vibration during operation, route the water

supply line so that it does not touch the dishwasher base, frame or motor.

JAdd 90 ° elbow fitting to the

water supply line

Get 3/8" compression x 3/_" hose fitting with 90-degree elbow. See the "Tools and Parts" section at the front of the guide for

part details and orders. Connect the 3/8"compression fitting of the 90 ° elbow to the water supply line prior to installing the unit

into the cabinet opening. Attach such that the 3/4" connection is facing upward, as shown above.

Copper tubing only: Put the tubing into the 90 ° elbow fitting as far as it will go (the copper tubing bends and kinks easily). Slide

the nut and ferrule forward, and then start the nut onto the elbow threads.

Flexible braided connection: Secure nut to elbow using 5/8" open ended wrench or adjustable wrench.

NOTE: Do not use Teflon °_ tape with compression fittings.

iMPORTANT: Double-check correct placement of utilities. Grasp the sides of the dishwasher at the edges of the door panel. Tilt

dishwasher backward on wheels and move dishwasher close to cabinet opening.

NOTE: Do not push on the front of the panel or on the console. Panel or console may dent.

Helpful Tip: Temporarily tape utilities to the floor in the locations shown to prohibit them from moving when dishwasher is moved

into the cabinet opening.

Check that water line is on the left-hand side of opening and drain hose is near the center of the cabinet opening.

Excessive Weight Hazard

Use two or more people to move and install dishwasher.

Failure to do so can result in back or other injury.

Water

Use 2 or more people to move and install dishwasher.

With another person holding the dishwasher to keep it from tipping, open and close the door a few times. If the door closes

or falls open under its own weight, the door tension will need to be adjusted.

1-®)TEFLON is a registered trademark of E.I. Du Pont De Nemours and Company.

To adjust the door spring tension, unhook the spring from the rear leg of dishwasher.

Using a 5A6"nut driver or hex socket, remove the screw from the tensioner.

The screw can be put into one of 3 holes (1, 2, 3) in the front leg of dishwasher. If the door closes by itself, move the tensioner to

a lower-numbered hole and replace screw. Reattach door spring to rear leg.

NOTE: Tensioners on both sides of dishwasher should be secured at same holes.

Spring

iMPORTANT: If wheels were removed, cover the floor when moving the dishwasher. Slowly move dishwasher completely into cabinet opening. Do not kink or pinch water line, drain hose,

power cord or direct wire between dishwasher and cabinet. Remove cardboard from under dishwasher.

NOTES:

[] It is all right if dishwasher fits tightly into cabinet opening.

Do not remove insulation blanket - the blanket reduces the sound level.

If using power cord, make sure to route end through hole in

cutout before sliding dishwasher into cabinet opening. For models with water softener, make sure that the drain

hose stays on the hanger that is on the right-hand side and is tucked in on the side of the unit.

Screw 181 [] []

When door is unlatched, if door opens by itself, move the tensioner to a higher-numbered hole and replace the screw. Reattach door spring to rear leg.

NOTE: Tensioners on both sides of dishwasher should be secured at same holes.

Align front of dishwasher door panel with front of cabinet doors. You may need to adjust alignment to be even with your

cabinets.

C)_:Iiiii_i!_iii!!ii,i:i;l_¸i!o _j_iiJ_iiiiil_i!i!!i_¸i_ii%i_i:;_ii_;;;!_ii_!iS,¸

Check that leveling legs are firmly against the floor. Close and latch the door, and place level against the front panel. Check that dishwasher is centered from front to back in the opening. If

needed, adjust leveling leg until dishwasher is plumb. Repeat for other side of dishwasher.

Helpful Tip: Push up on front of dishwasher to raise dishwasher off the ground to adjust front legs. With some installations, it

may be easier to adjust the front leg using the _6" hex-head socket or adjustable wrench.

Be sure rubber washer is properly seated in fitting. Slide the 3/4"fitting of the 90 ° elbow up to the valve and hand tighten to

avoid cross-threading. Hand tighten until the coupling is tight. Using pliers, check the tightness of the coupling. An additional

1/4to 1/2turn may be required to seal the rubber gasket. NOTE: Do not over tighten. Damage to the coupling can result.

Place paper towel under 90 ° elbow fitting. Turn on water supply and check for leaks. If leak occurs, repeat previous step.

NOTE. Do not use Teflon _ tape with compression fittings.

Place level against top front opening of tub. Check that dishwasher is level from side-to-side. If dishwasher is not level,

adjust front legs up or down until dishwasher is level.

'¸

Place towel under drain hose to catch any water in drain hose.

1-®TEFLON is a registered trademark of E.I. Du Pont De Nemours and Company.

Place the small drain hose clamp onto the small end of the drain hose. Push the new drain hose into the rubber drain hose

connector up to the drain hose stop.

Using pliers, squeeze open the small drain hose clamp and slide onto connector between stops.

Option B_Direct Wire

NOTE; If the power cord was connected earlier, proceed to "Secure Dishwasher in Cabinet Opening" section.

Install a UL Listed!CSA Approved metallic strain relief. See the

"Tools and Parts" section at the front of the guide for part details and orders.

Route cable so that it does not touch dishwasher motor or lower part of dishwasher tub. Pull cable through UL Listed/CSA

Approved strain relief in terminal box. Note: A maximum of two field wiring supply conductors

(12 AWG largest size) plus one grounding conductor are permitted in the terminal box.

Electrical Shock Hazard

Electrically ground dishwasher. Connect ground wire to green ground connector in

terminal box.

Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

Ground

in strain relief |

Tighten strain relief screws to secure cable. Make sure screw heads are facing up when tightening conduit nut.

)

Form bare ground wire into a U-shaped hook. Wrap ground wire hook clockwise around the ground connector screw on the

raised floor inside the box and under the washer. Securely tighten ground connector.

Select UL Listed!CSA Approved twist-on wire connectors of the proper size. See the "Tools and Parts" section at the front of the

guide for part details. Connect wires, black to black and white to white, using the twist-on wire connectors.

NOTE: Do not pre-twist stranded wire. Twist on wire connector. Gently tug on wires to be sure both are secured.

Place wires inside terminal box. Replace the cover by inserting the hooks of the terminal cover into the slots in the floor of the

terminal box and sliding the cover tight against the back wall where wires come in. Make sure wires are tucked inside the box

and not pinched by the cover. Then, put the terminal box back on the crossbar with the tab in place. Use a 1/4"nut driver and

the previously removed screw to secure the terminal box to the crossbar.

Once the terminal box has been remounted on the dishwasher, there should be some excess length or slack in the green, black,

and white wires coming from the dishwasher to the terminal box. Wrap these wires over the nearby components, or clip

them back into the nearby clips that they were routed through prior to your removing the box, to help keep them off the floor.

Check that dishwasher is still level front-to-back and side-to= side in cabinet opening.

Option 2 =Side Mount Dishwasher To Cabinet.

Locate brackets installed on sides of dishwasher (during

Choose Attachment Method). [] Drill pilot holes in cabinet to avoid splitting the wood. [] Secure dishwasher to cabinet with two, #10 x Y_" Phillips-

head screws (included).

Open dishwasher door to prepare for securing the dishwasher to the cabinet.

NOTES: [] The dishwasher must be secured to keep it from shifting

when the door is opened.

[] Do not drop screws into bottom of dishwasher.

Option 1 - Secure Dishwasher To Countertop.

[] Locate brackets installed on top of dishwasher (during

Choose Attachment Method)

[] Secure dishwasher to countertop with two, #10 x Y2" Phillips-

head screws (included).

Open door and check that space between dishwasher cabinet opening and tub is equal on both sides. If spacing is not equal,

loosen bracket screws and shift tub. Tighten bracket screws

Check that top of door does not contact screws, brackets or countertop. If it does, adjust leveling legs.

If securing with a side attachment, check that sides of door do not rub against the screw heads. If they do, dishwasher must be re-centered. When dishwasher is properly centered, replace

plastic buttons.

Check that power supply wire or cord does not touch dishwasher motor or lower part of dishwasher tub.

Option A_Install Access Panel- Plastic Panel

Place the plastic access panel against the dishwasher leg.

Using a flat-blade screwdriver, turn the fasteners 1/4turn clockwise to lock into place. The fasteners slot will be straight up

and down when properly locked.

Option B,InstallAccess Panel - Meta_ Pane_

Check that grounding clip is attached to the lower panel. Position the lower panel behind the access panel. On some

models there is insulation on the access panel that must fall behind the insulation on the lower panel.

Check that the lower edge of the access panel touches the floor. Adjust if necessary.

Hold the 2 panels together and place them against dishwasher leg. Using a Phillips screwdriver or 1/4"nut driver, reinstall the

screws through the holes in the access panel, and the slots in the lower panel.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter.

Do not use an extension cord. Failure to follow these instructions can result in death_

fire_ or electrical shock.

Check that the lower edge of the lower panel contacts the floor. Adjust if necessary.

Tighten access panel screws.

Plug into a grounded 3 prong outlet.

Reconnect Power

':(iiiiiiseciiiii,,_:O,pe_'oiiiiilili¸¸iili_c_,iiii'_"_,_J_

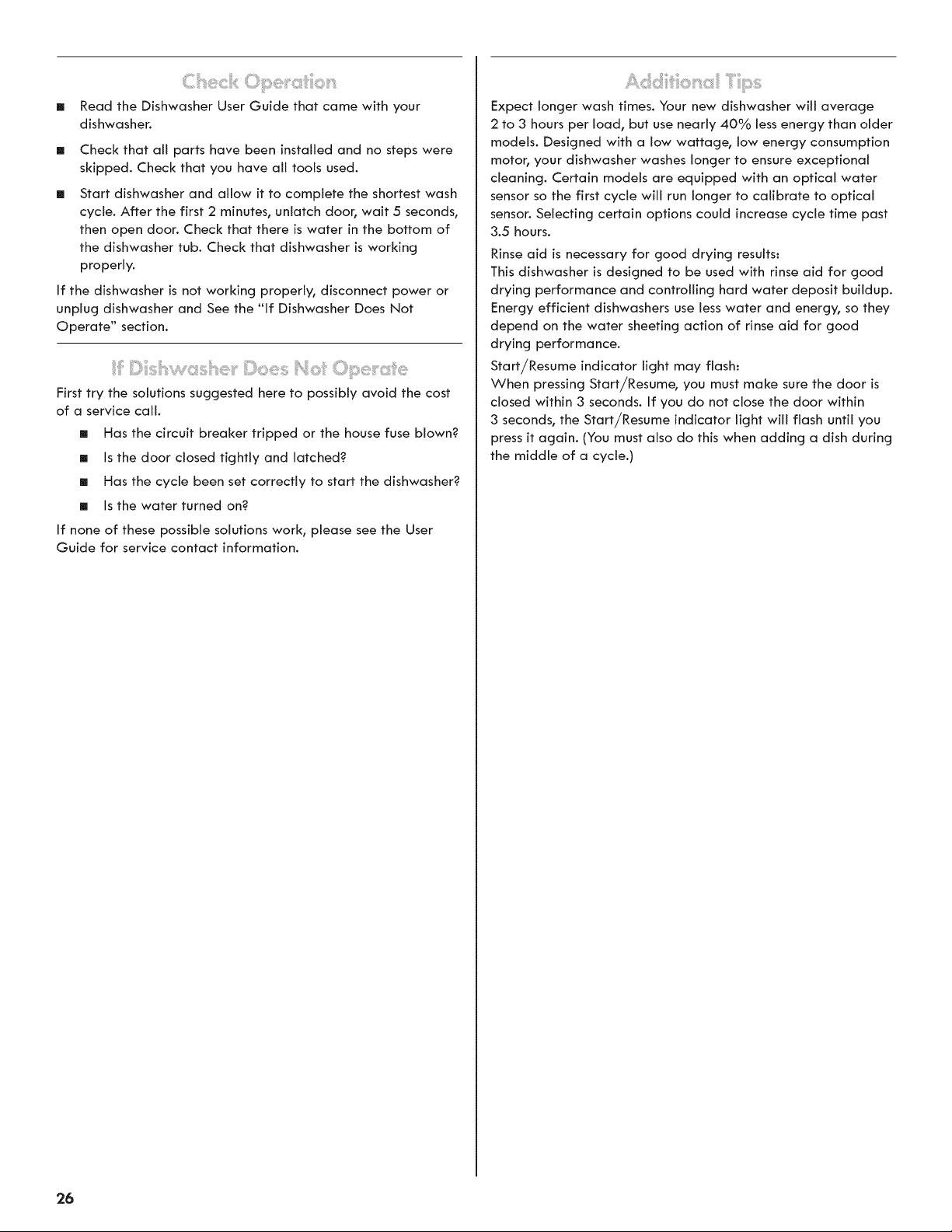

[] Read the Dishwasher User Guide that came with your

dishwasher.

[]

Check that all parts have been installed and no steps were skipped. Check that you have all tools used.

[]

Start dishwasher and allow it to complete the shortest wash cycle. After the first 2 minutes, unlatch door, wait 5 seconds,

then open door. Check that there is water in the bottom of the dishwasher tub. Check that dishwasher is working

properly.

If the dishwasher is not working properly, disconnect power or unplug dishwasher and See the "if Dishwasher Does Not

Operate _ section.

iii'iiiFii)_,_ilisliiisvv'es_iiiiise_,''iiii!)i,_s,es iNi!o!l'¸O_peil,"xi:ii!xi!_,¸

First try the solutions suggested here to possibly avoid the cost of a service call.

[] Has the circuit breaker tripped or the house fuse blown? [] Is the door closed tightly and latched? [] Has the cycle been set correctly to start the dishwasher? [] Is the water turned on?

If none of these possible solutions work, please see the User Guide for service contact information.

Addliii_¸ii¸oiii_'_,_J_xiiiiiiii_"iil"'iiiips

Expect longer wash times. Your new dishwasher will average 2 to 3 hours per load, but use nearly 40% lessenergy than older

models. Designed with a low wattage, low energy consumption motor, your dishwasher washes longer to ensure exceptional

cleaning. Certain models are equipped with an optical water sensor so the first cycle will run longer to calibrate to optical

sensor. Selecting certain options could increase cycle time past

3.5 hours. Rinse aid is necessary for good drying results:

This dishwasher is designed to be used with rinse aid for good drying performance and controlling hard water deposit buildup.

Energy efficient dishwashers use less water and energy, so they depend on the water sheeting action of rinse aid for good

drying performance. Start/Resume indicator light may flash:

When pressing Start!Resume, you must make sure the door is closed within 3 seconds. If you do not close the door within

3 seconds, the Start/Resume indicator light will flash until you press it again. (You must also do this when adding a dish during

the middle of a cycle.)

Kenmore 66513692N411, 66513692N412, 66513693N411, 66513693N412, 66513699N411 Installation Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
