Kenmore 665.1375, 665.1386, 665.1376, 665.1385 User Manual

ULTRA WASH® Dishwasher

Use & Care Guide

Lavavajillas ULTRA WASH

Manual de uso y cuidado

Lave-vaisselle ULTRA WASH

Guide d’utilisation et d’entretien

Models/Modelos/Modèles 665.1375✼, 665.1376✼, 665.1385✼, 665.1386✼ ✼ = color number, número de color, numéro de couleur

W10040720 Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8 www.sears.ca

Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com

TABLE OF CONTENTS

PROTECTION AGREEMENTS.......................................................2

In the U.S.A...................................................................................2

In Canada .....................................................................................2

WARRANTY.....................................................................................3

DISHWASHER SAFETY..................................................................4

Before Using Your Dishwasher....................................................5

PARTS AND FEATURES ................................................................6

Control Panels..............................................................................7

ULTRA WASH Featuring

URBOZONE™ wash option ........................................................7

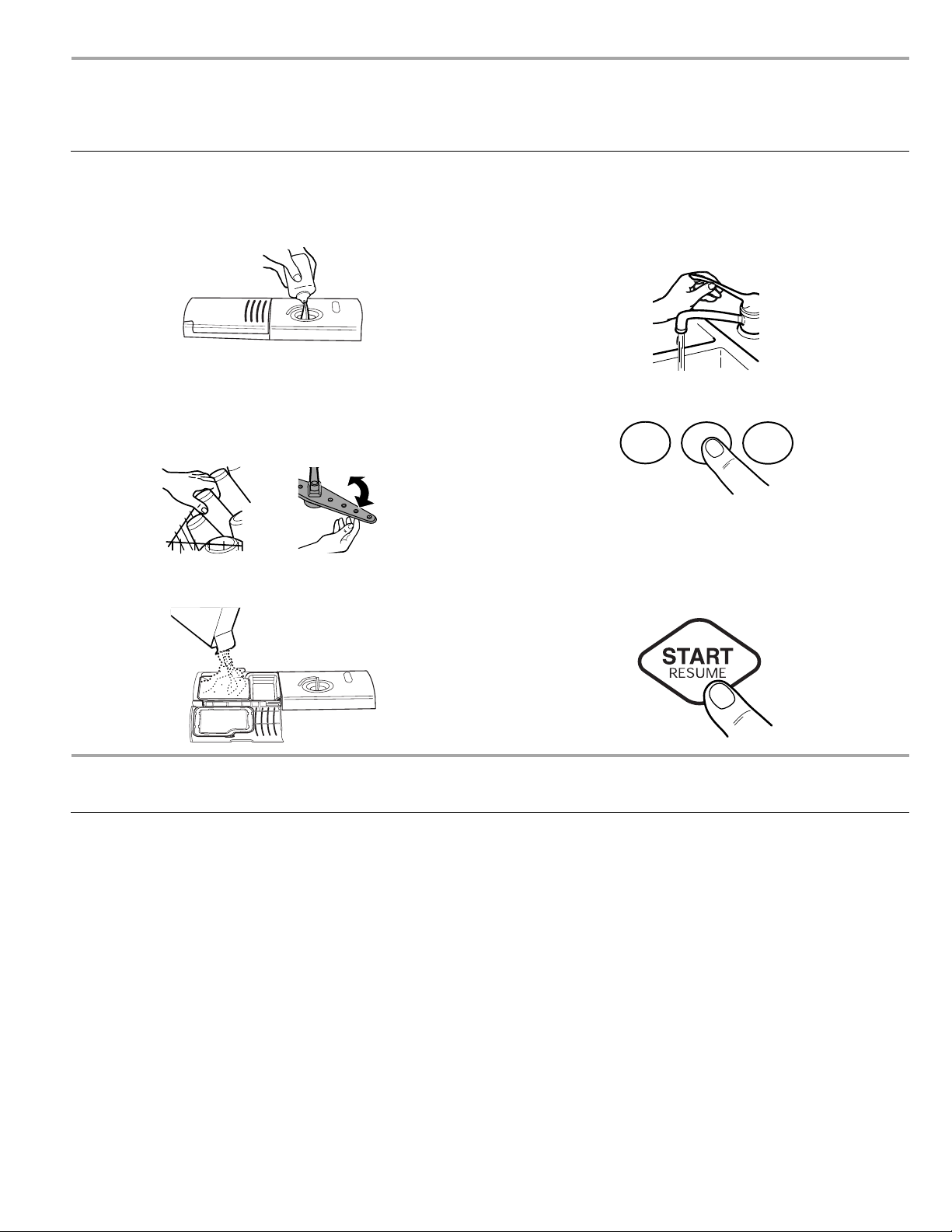

START-UP GUIDE ..........................................................................8

Using Your New Dishwasher........................................................8

DISHWASHER LOADING...............................................................8

Loading Suggestions....................................................................8

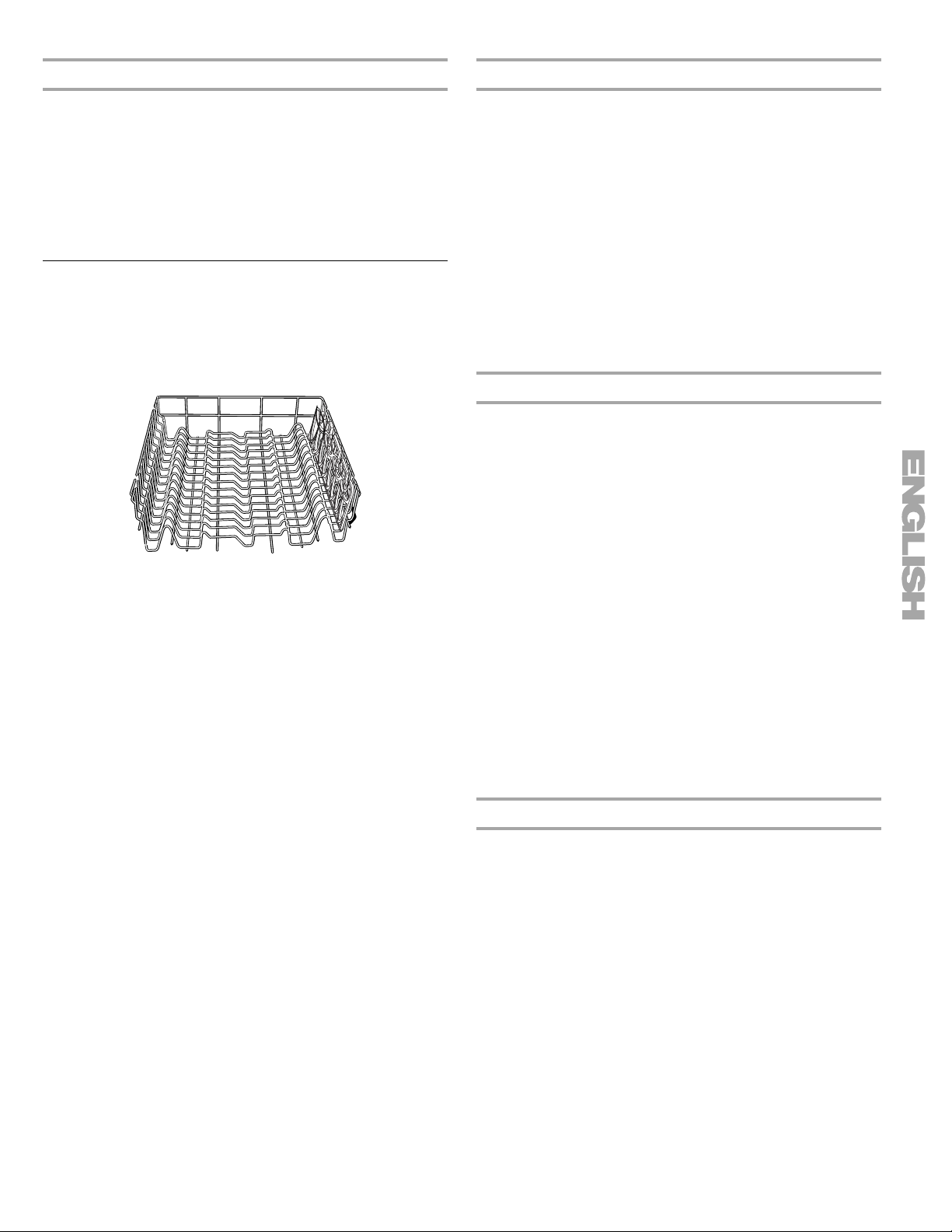

Loading Top Rack........................................................................9

Loading Bottom Rack ............................................................... 10

Loading Silverware Basket........................................................ 12

DISHWASHER USE ..................................................................... 13

Detergent Dispenser.................................................................. 13

Rinse Aid Dispenser.................................................................. 14

Dishwasher Efficiency Tips ....................................................... 14

Cycle Selection Charts.............................................................. 15

Canceling a Cycle...................................................................... 16

Changing a Cycle or Setting ..................................................... 16

Adding Items During a Cycle..................................................... 16

Option Selections...................................................................... 16

Cycle Status Indicators ............................................................. 17

Active Vent................................................................................. 18

Overfill Protection Float............................................................. 18

WASHING SPECIAL ITEMS........................................................ 19

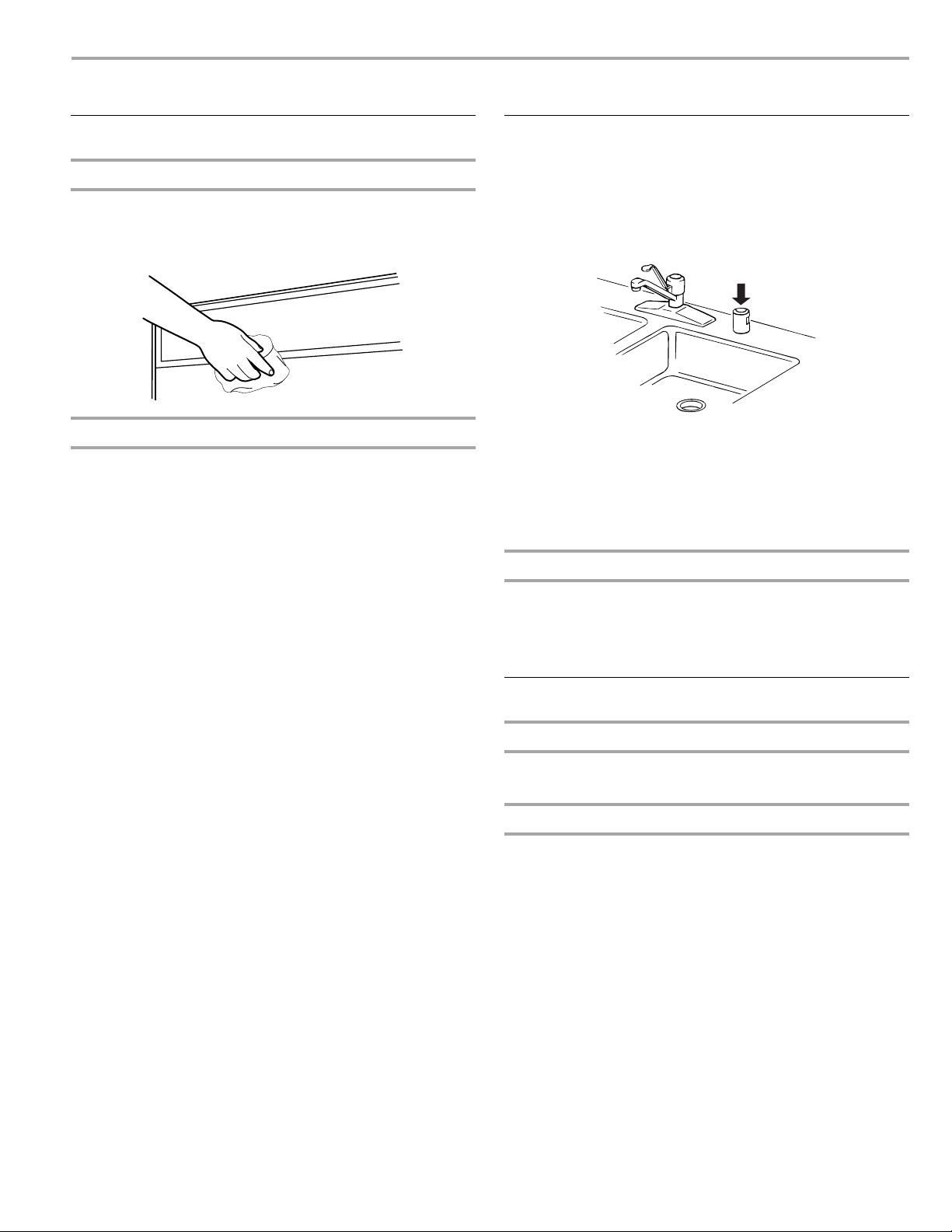

DISHWASHER CARE................................................................... 20

Cleaning..................................................................................... 20

Drain Air Gap............................................................................. 20

Storing ....................................................................................... 20

TROUBLESHOOTING.................................................................. 21

SERVICE NUMBERS ............................................... BACK COVER

Soil Removal System .........................................7

smartwash™ cycle and

PROTECTION AGREEMENTS

In the U.S.A.

Master Protection Agreements

Congratulations on making a smart purchase. Your new Kenmore® product is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That’s when having a Master Protection Agreement can save you money and aggravation.

Purchase a Master Protection Agreement now and protect yourself from unexpected hassle and expense.

The Master Protection Agreement also helps extend the life of your new product. Here’s what’s included in the Agreement:

✔ Expert service by our 12,000 professional repair specialists ✔ Unlimited service and no charge for parts and labor on all

covered repairs

✔ “No-lemon” guarantee – replacement of your covered

product if four or more product failures occur within twelve months

✔ Product replacement if your covered product can’t be fixed ✔ Annual Preventive Maintenance Check at your request – no

extra charge

✔ Fast help by phone – phone support from a Sears technician

on products requiring in-home repair, plus convenient repair scheduling

✔ Power surge protection against electrical damage due to

power fluctuations

✔ Rental reimbursement if repair of your covered product takes

longer than promised

Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call anytime day or night, or schedule a service appointment online.

Sears has over 12,000 professional repair specialists, who have access to over 4.5 million quality parts and accessories. That’s the kind of professionalism you can count on to help prolong the life of your new purchase for years to come. Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and additional information, call 1-800-827-6655.

Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the U.S.A. call 1-800-4-MY-HOME

In Canada

Maintenance Agreements

Your purchase has added value because you can depend on Sears HomeCentral Technicians and more than a million parts and accessories, we have the tools, parts, knowledge and skills to back our pledge: We Service What We Sell.

Your Kenmore provide years of dependable operation. But like all products, it may require service from time to time. The Sears Maintenance Agreement offers you an outstanding service program, affordably priced.

The Sears Maintenance Agreement

■ Is your way to buy tomorrow’s service at today’s price

■ Eliminates repair bills resulting from normal wear and tear

■ Provides phone support from a Sears technician on products

requiring in-home repair

■ Even if you don’t need repairs, provides an annual Preventive

Maintenance Check, at your request, to ensure that your product is in proper running condition.

Some limitations apply. For more information about Sears Canada Maintenance Agreements, call 1-800-361-6665.

for service. With over 2,400 Service

product is designed, manufactured and tested to

KENMORE ELITE® APPLIANCE WARRANTY

ONE YEAR LIMITED WARRANTY

When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME repair.

TWO-YEAR LIMITED WARRANTY ON ELECTRONIC CONTROL AND POWER SUPPLY BOARD

For two years from the date of purchase, when this dishwasher is installed, operated and maintained according to all instructions supplied with the product, Sears will replace any part of the electronic module and power supply board that fails due to defective materials or workmanship. After the first year, customer assumes any labor costs associated with replacement of these parts.

TWO-YEAR LIMITED WARRANTY ON THE ULTRA WASH WASH SYSTEM

For two years from the date of purchase, when this dishwasher is installed, operated and maintained according to all instructions supplied with the product, Sears will replace any part of the Ultra Wash wash system (motor, pump, spray arms, spray tower, motor seals and pump gasket) that fails due to defective materials or workmanship. After the first year, customer assumes any labor costs associated with replacement of these parts.

FIVE-YEAR LIMITED WARRANTY ON UPPER AND LOWER RACKS

For five years from the date of purchase, when this dishwasher is installed, operated and maintained according to all instructions supplied with the product, Sears will replace parts for the upper or lower dishrack if the rack rusts due to defective materials or workmanship. After the first year, customer assumes any labor costs associated with dishrack replacement.

LIMITED WARRANTY FOR THE LIFE OF THE DISHWASHER, ON KENMORE ELITE STAINLESS STEEL TUB MODELS, AGAINST LEAKS IN THE TUB AND INNER DOOR PANEL

For the life of the dishwasher, if a leak should occur as a result of rust-through of the stainless steel tub or inner door panel, Sears will replace the tub or inner door panel free of charge.

If this appliance is used for other than private family purposes, this warranty applies for only 90 days from the date of purchase.

THIS WARRANTY COVERS ONLY DEFECTS IN MATERIAL AND WORKMANSHIP. SEARS WILL NOT PAY FOR:

1. Expendable items that can wear out from normal use,

including but not limited to filters, belts, light bulbs, and bags.

2. A service technician to instruct the user in correct product

installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed,

operated or maintained according to all instructions supplied with the product.

5. Damage to or failure of this product resulting from accident,

abuse, misuse or use for other than its intended purpose.

6. Damage to or failure of this product caused by the use of

detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from

unauthorized modifications made to this product.

to arrange for free

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States and Canada.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co.

Dept. 817WA, Hoffman Estates, IL 60179

Sears Canada Inc.

Toronto, Ontario, Canada M5B 2B8

PRODUCT RECORD

In the space below, record your complete model number, serial number, and purchase date. You can find this information on the model and serial number label located on the product.

Have this information available to help you obtain assistance or service more quickly whenever you contact Sears concerning your appliance.

Model number __ __ __. __________________________________________

Serial number___________________________________________________

Purchase date __________________________________________________

Save these instructions and your sales receipt for future reference.

DISHWASHER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

You can be killed or seriously injured if you don't immediately

DANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING:

When using the dishwasher, follow basic precautions, including the following:

follow instructions.

can be killed or seriously injured if you don't

You

instructions.

■

Read all instructions before using the dishwasher.

■

Use the dishwasher only for its intended function.

■

Use only detergents or rinse agents recommended for use in a dishwasher, and keep them out of the reach of children.

■

When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal; and

2) Load sharp knives with the handles up to reduce the risk of cut-type injuries.

■

Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.

■

Do not touch the heating element during or immediately after use.

■

Do not operate the dishwasher unless all enclosure panels are properly in place.

SAVE THESE INSTRUCTIONS

■

Do not tamper with controls.

■

Do not abuse, sit on, or stand on the door, lid, or dish racks of the dishwasher.

■

To reduce the risk of injury, do not allow children to play in or on the dishwasher.

■

Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

■

Remove the door or lid to the washing compartment when removing an old dishwasher from service or discarding it.

Before Using Your Dishwasher

WARNING

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Doing so can result in serious injury or cuts.

WARNING

Electrical Shock Hazard

Electrically ground dishwasher.

Connect ground wire to green ground connector in

terminal box.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

GROUNDING INSTRUCTIONS

■

For a grounded, cord-connected dishwasher:

The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The dishwasher is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the

equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the dishwasher is properly grounded. Do not modify the plug provided with the dishwasher; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

■

For a permanently connected dishwasher:

The dishwasher must be connected to a grounded metal, permanent wiring system, or an equipmentgrounding conductor must be run with the circuit conductors and connected to the equipmentgrounding terminal or lead on the dishwasher.

SAVE THESE INSTRUCTIONS

■ Install where dishwasher is protected from the elements.

Protect against freezing to avoid possible rupture of fill valve. Such ruptures are not covered by the warranty. See “Storing” section for winter storage information.

■ Install and level dishwasher on a floor that will hold the

weight, and in an area suitable for its size and use.

■ Remove all shipping plugs from hoses and connectors (such

as the cap on the drain outlet) before installing. See Installation Instructions for complete information.

PARTS AND FEATURES

This manual covers several different models. The features on your dishwasher may vary from those shown below.

A. Upper level wash B. Top rack adjusters C. Removable top rack D. Flexible tines (on some models) E. Model and serial number label

F. Fold-down tines

G. Bottom rack

H. Water inlet opening (in tub wall)

I. Heating element

J. Detergent dispenser

K. Active vent

L. Cup shelves (on some models)

M. No-flip clips (on some models)

N. Top spray arm

O. ULTRA FLOW™ water feed tube

P. TURBOZONE™ spray jets Q. Silverware basket R. Lower spray arm

S. Overfill protection float

T. ULTR A W A SH U. Rinse aid dispenser

module

Models 665.1375✼, 665.1385✼

Models 665.1376✼, 665.1386✼

✼ = color number

Control Panels

ULTRA WASH® Soil Removal System

The ULTRA WASH® Soil Removal System gives you sparkling clean dishes, while using less energy and time. The ULTRA

WASH

■ A Triple Action Filtration system that intermittently filters soil

When the smartwash™ cycle is selected, it saves energy and water by adjusting the wash cycle as needed.

■ Sensors detect the size of the dish load, the soil level, and the

■ Sensors automatically adjust the temperature and the

This dishwasher will automatically calibrate the sensor approximately once a year to your water quality.

IMPORTANT: The very first wash cycle after installation in your home will be adjusted to include an additional 2 rinses for optical soil sensor calibration. For proper calibration, the first cycle should not be interrupted. If this calibration cycle is canceled or stopped before the Clean light comes on at the end of the cycle, the next wash cycle will repeat this sensor calibration.

Soil Removal System includes:

from the wash water, thus eliminating the need to scrape dishes.

Featuring smartwash™ cycle and TURBOZONE™ wash option

How the smartwash™ cycle works

water temperature in the dishwasher.

amount of water used for the load.

■ An ULTRA WASH

optical soil sensor that detects soil level and detergent quantity appearing in the wash water and adjusts the cycles as needed.

■ An Automatic Temperature Control (ATC) that ensures the

proper water temperature for the selected wash cycle, dish load size, and soil level of the load.

How the TURBOZONE™ wash option works

When the TURBOZONE™ option is selected, it provides a concentrated wash to a specific zone in the back of the lower dishrack for large, hard-to-clean dishes.

■ 4 rotating spray jets on the TURBOZONE™ manifold are

periodically activated at the back of the tub throughout the wash cycle.

■ Intensified cleaning is provided only to this specific wash

area, allowing you to gently clean the rest of the dish load.

+ 16 hidden pages
