Kenmore 665.13402, 665.13499 User Manual [nl]

Use & Care Guide Manual de uso y cuidado Guide d’utilisation et d’entretien

English / Español / Français

Models/Modelos/Modèles: 665.1320*, 665.1340*, 665.1349*, 665.1369*

Kenmore®

ULTRA WASH® Dishwasher

Lavavajillas ULTRA WASH Lave-vaisselle ULTRA WASH

* = color number, número de color, le numéro de la couleur

P/N W10620228B Sears Brands Management Corporation

Hoffman Estates, IL 60179 U.S.A. www.kenmore.com

www.sears.com Sears Canada Inc.

Toronto, Ontario, Canada M5B 2C3 www.sears.ca

TABLE OF CONTENTS

PROTECTION AGREEMENTS ...................................................2

WARRANTY .............................................................................3

DISHWASHER SAFETY ............................................................ 4

PARTS AND FEATURES............................................................6

START-UP / QUICK REFERENCE ............................................. 7

ULTRA WASH

DISHWASHER EFFICIENCY TIPS ..............................................9

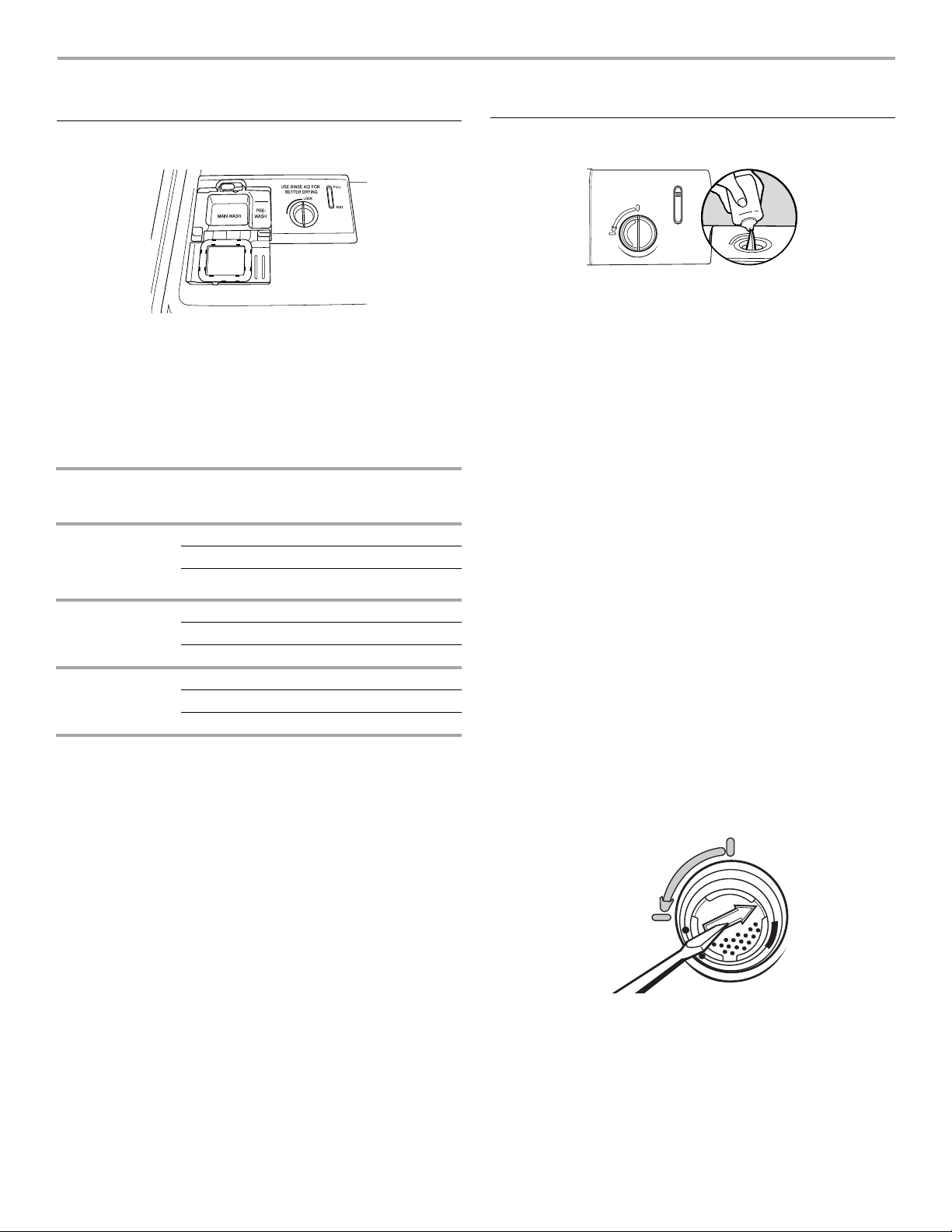

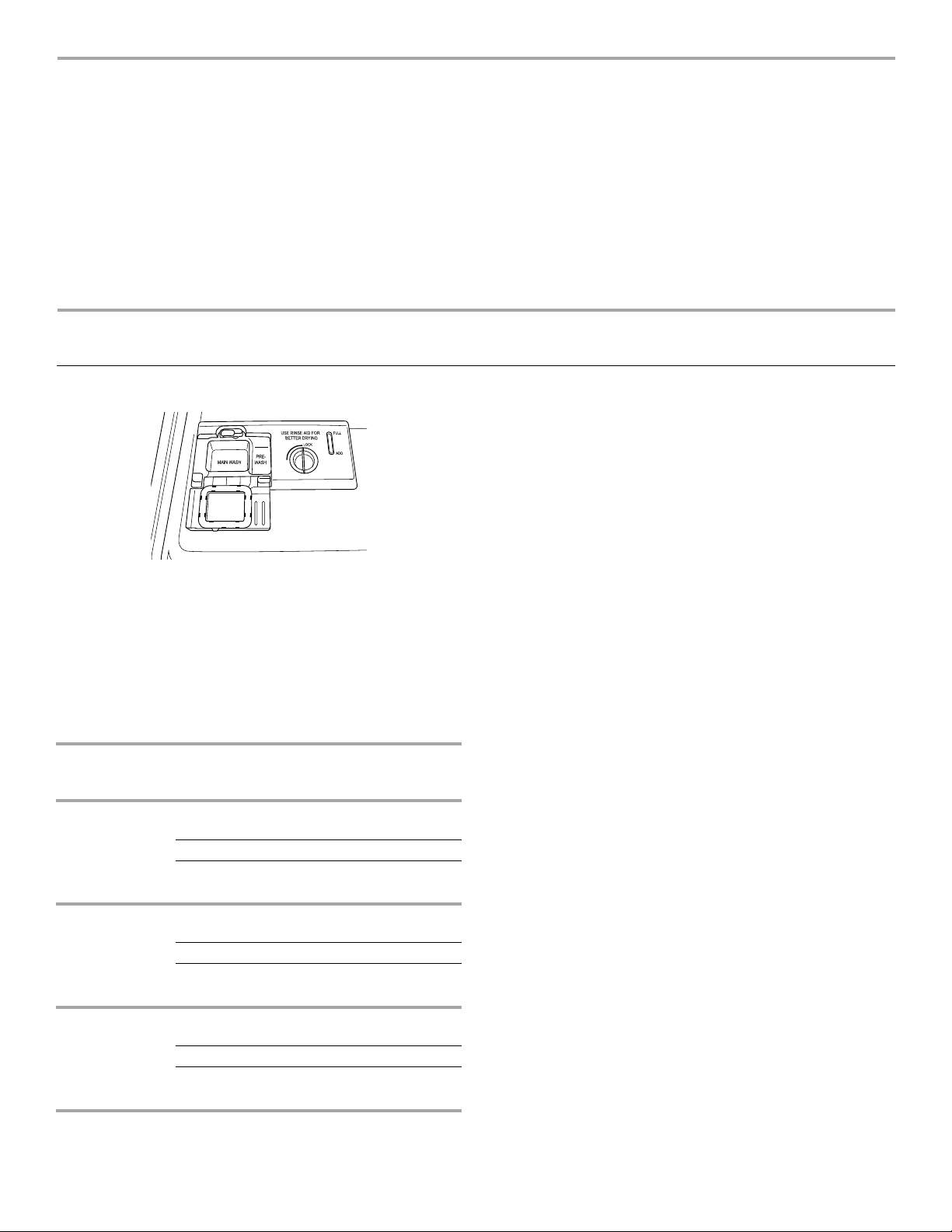

DETERGENT AND RINSE AID ................................................10

Detergent ..........................................................................................10

Rinse Aid............................................................................................ 10

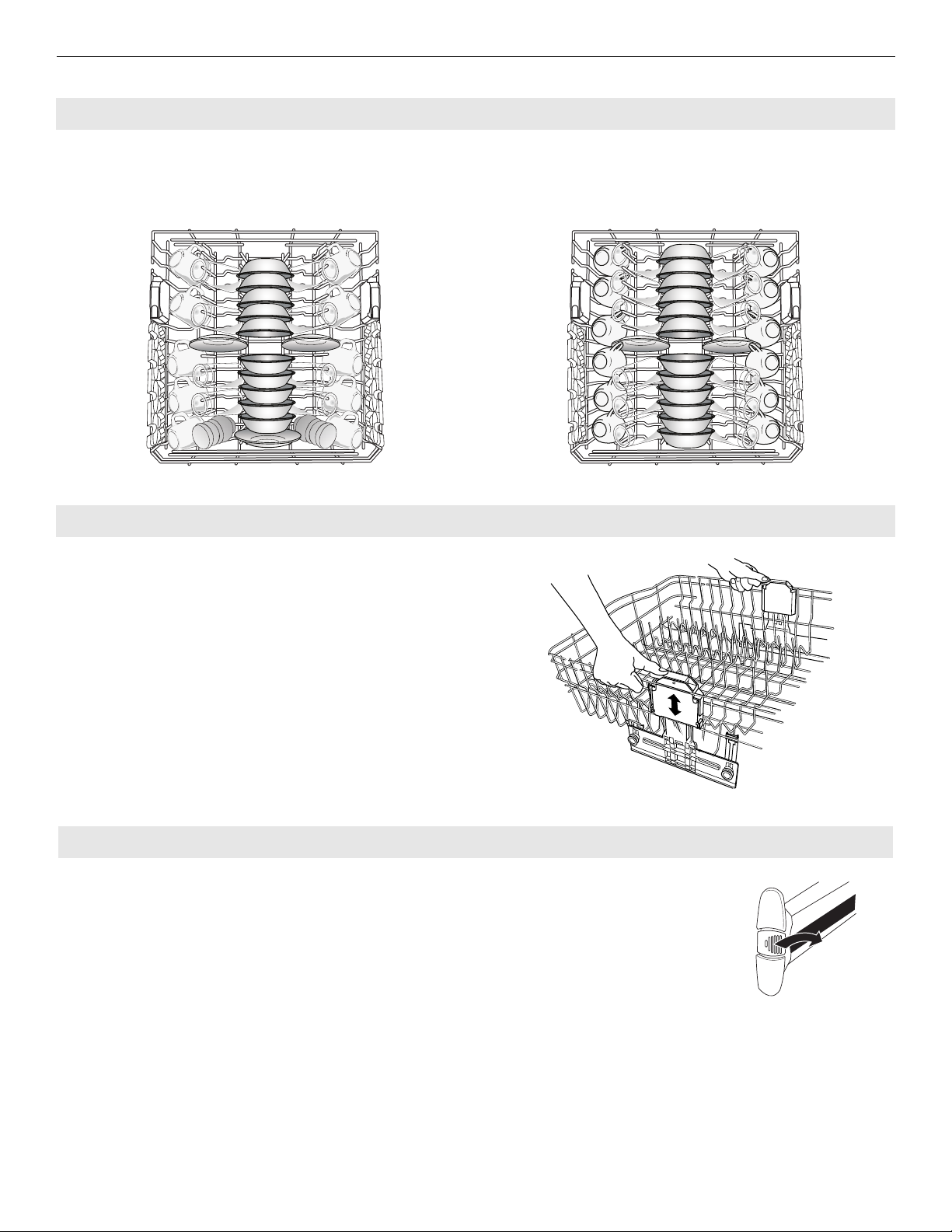

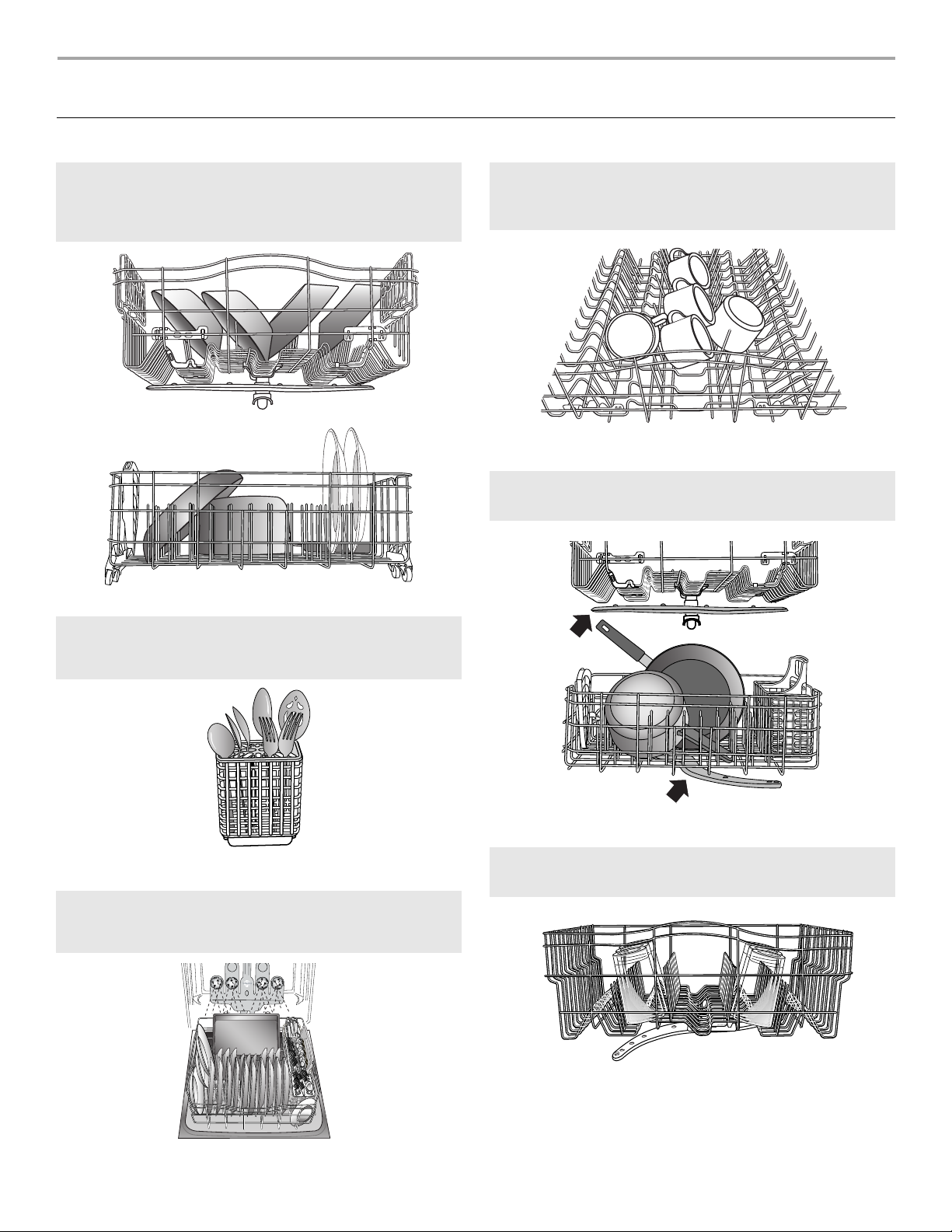

LOADING................................................................................11

Loading for Best Cleaning and Drying Performance.................11

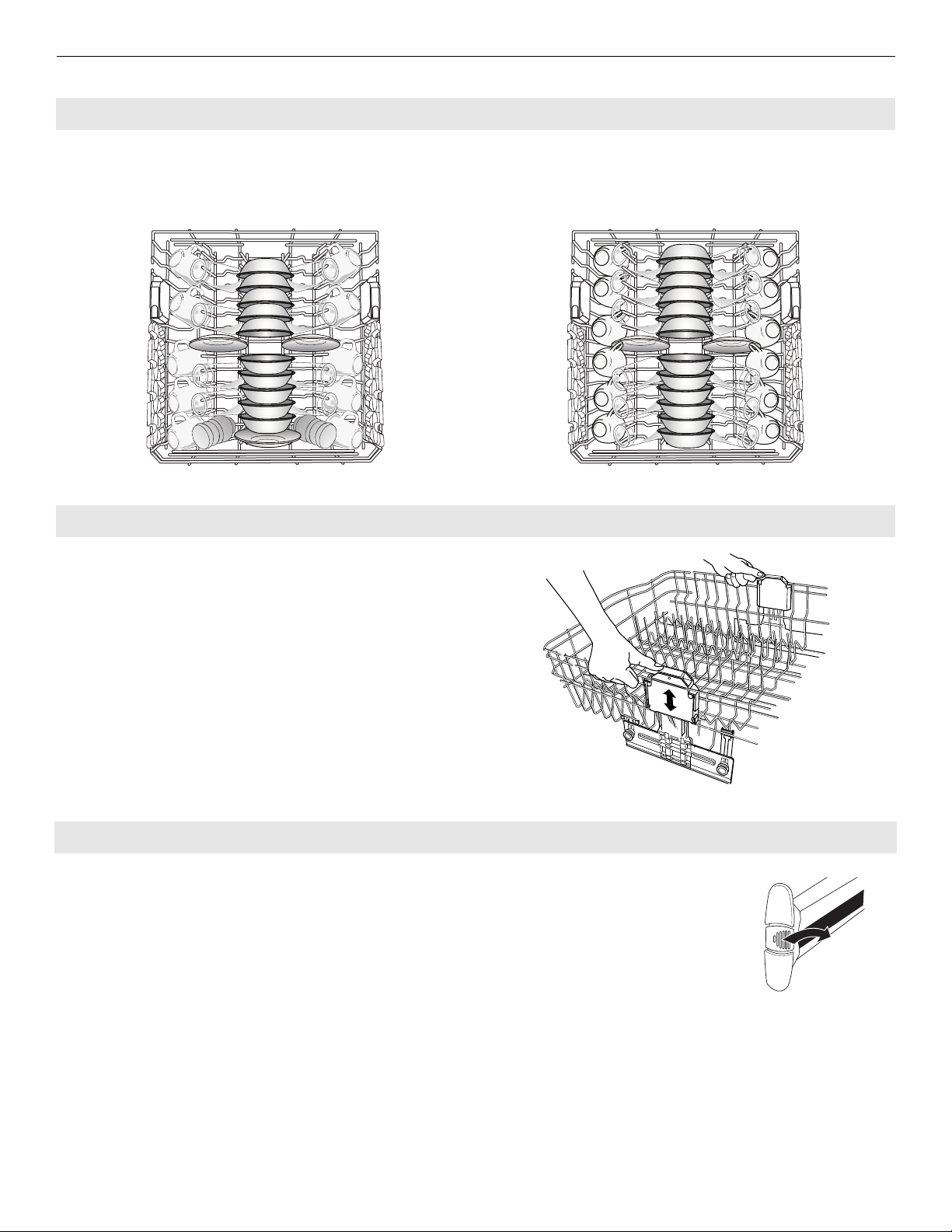

Top Rack Loading............................................................................ 12

Bottom Rack Loading...................................................................... 13

FILTRATION SYSTEM .......................................8

PROTECTION AGREEMENTS

Master Protection Agreements

Congratulations on making a smart purchase.

Kenmore dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That’s when having a Master Protection Agreement can save you money and aggravation.

The Master Protection Agreement also helps extend the life of your new product. Here’s what the Agreement* includes:

✔Parts and labor needed to help keep products operating

✔Expert service by a force of more than 10,000 authorized

✔Unlimited service calls and nationwide service, as often as

✔“No-lemon” guarantee – replacement of your covered

✔Product replacement if your covered product can’t be fixed. ✔Annual Preventive Maintenance Check at your request – no

✔Fast help by phone – we call it Rapid Resolution – phone

✔Power surge protection against electrical damage due to

product is designed and manufactured for years of

properly under normal use, not just defects. Our coverage goes well beyond the product warranty. No deductibles, no functional failure excluded from coverage—real protection.

Sears service technicians, which means someone you can trust will be working on your product.

you want us, whenever you want us.

product if four or more product failures occur within twelve months.

extra charge.

support from a Sears representative on all products. Think of us as a “talking owner’s manual.”

power fluctuations.

Your new

DISHWASHER USE..................................................................15

Cycles and Options Information ...................................................15

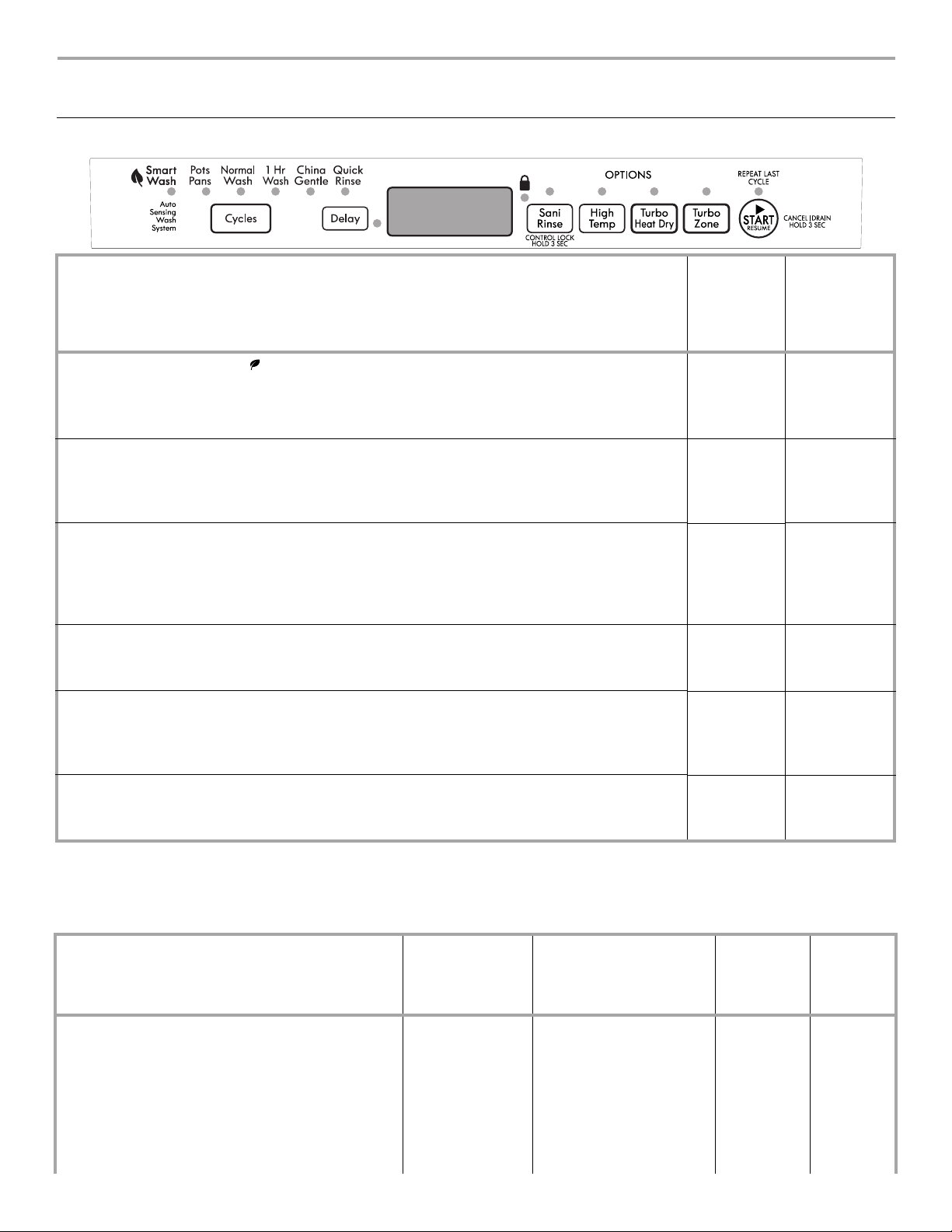

Dishwasher Control Section........................................................... 16

Dishwasher Feedback Section...................................................... 17

Canceling A Cycle .......................................................................... 17

Changing A Cycle After Dishwasher Is Started......................... 17

WASHING SPECIAL ITEMS......................................................18

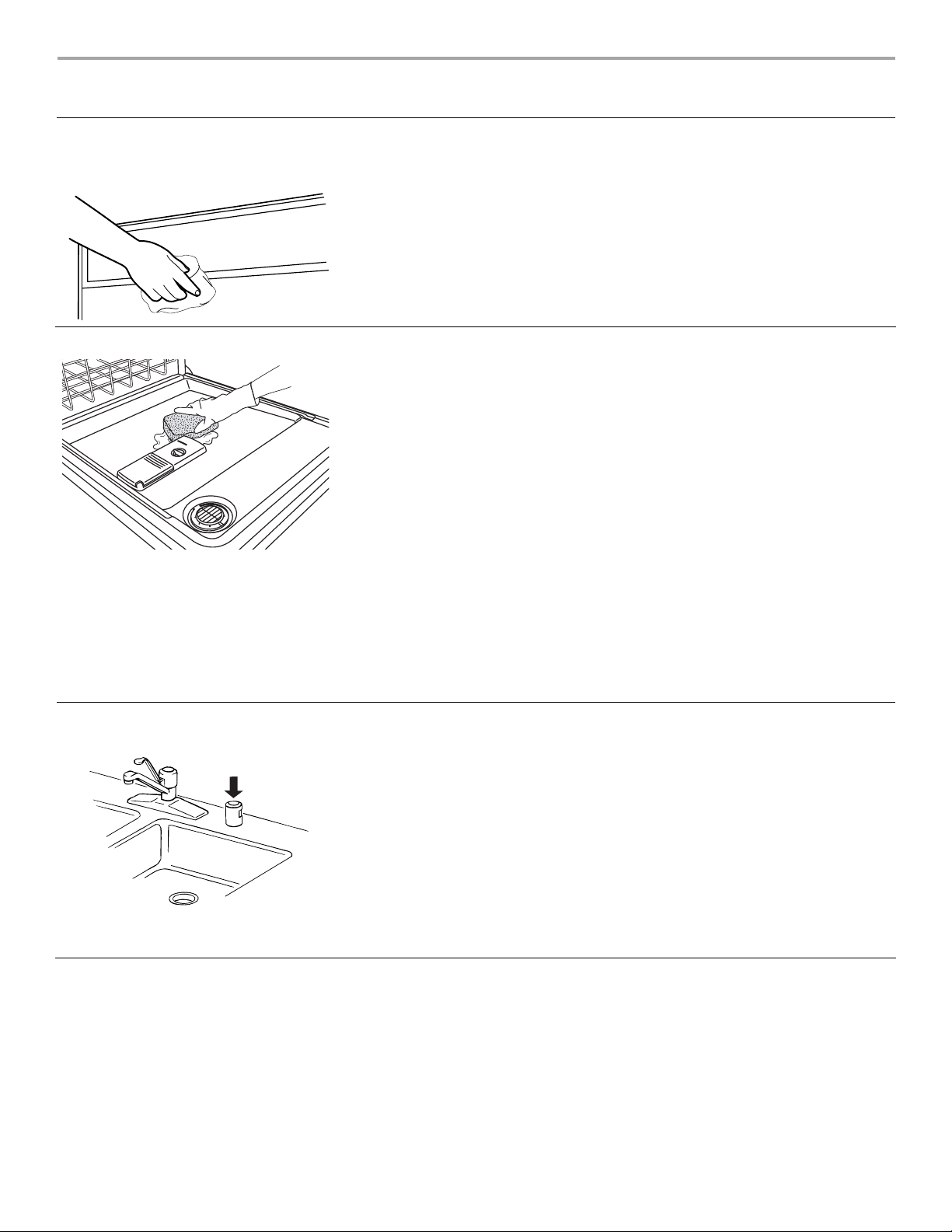

DISHWASHER CARE ...............................................................19

Cleaning............................................................................................ 19

Drain Air Gap.................................................................................. 19

Vacation or Extended Time Without Use ................................. 19

TROUBLESHOOTING.............................................................20

SERVICE NUMBERS .............................................BACK COVER

✔$250 Food Loss Protection annually for any food spoilage

that is the result of mechanical failure of any covered refrigerator or freezer.

✔Rental reimbursement if repair of your covered product takes

longer than promised.

✔25% discount off the regular price of any non-covered

repair service and related installed parts.

Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call anytime day or night, or schedule a service appointment online.

The Master Protection Agreement is a risk free purchase. If you cancel for any reason during the product warranty period, we will provide a full refund. Or, a prorated refund anytime after the product warranty period expires. Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and additional information in the U.S.A. call 18008276655.

*Coverage in Canada varies on some items. For full details call

Sears Canada at 18003616665.

Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the U.S.A. or Canada call 18004MYHOME

KENMORE APPLIANCE WARRANTY

ONE YEAR LIMITED WARRANTY

When installed, operated and maintained according to all supplied instructions, if this appliance fails due to a defect in material and workmanship within one year from the date of purchase, call 18004MYHOME arrange for free repair.

If this appliance is ever used for other than private family purposes, this warranty applies for only 90 days from the date of purchase.

This warranty covers only defects in material and workmanship. Sears will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, incandescent light bulbs, and bags.

2. A service technician to instruct the user in correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.

6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

(18004694663) to

Disclaimer of implied warranties; limitation of remedies

Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States or Canada*.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

*In Canada, in-home repair service is not available in all areas,

nor will this warranty cover user or servicer travel and transportation expenses if this product is located in a remote area (as defined by Sears Canada Inc.) where an authorized servicer is not available.

Sears Brands Management Corporation

Hoffman Estates, IL 60179

Sears Canada Inc.

Toronto, Ontario, Canada M5B 2C3

DISHWASHER SAFETY

You can be killed or seriously injured if you don't immediately follow instructions.

You

can be killed or seriously injured if you don't

follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or

“WARNING.” These words mean:

IMPORTANT SAFETY INSTRUCTIONS

WARNING:

When using the dishwasher, follow basic precautions, including the following:

SAVE THESE INSTRUCTIONS

■ Read all instructions before using the dishwasher.

■ Use the dishwasher only for its intended function.

■ Use only detergents or rinse agents recommended for

use in a dishwasher, and keep them out of the reach of children.

■ When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal; and

2) Load sharp knives with the handles up to reduce the risk of cut-type injuries.

■ Do not wash plastic items unless they are marked

“dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.

■ Do not touch the heating element during or

immediately after use.

■ Do not operate the dishwasher unless all enclosure

panels are properly in place.

■ Do not tamper with controls.

■ Do not abuse, sit on, or stand on the door, lid, or dish

racks of the dishwasher.

■ To reduce the risk of injury, do not allow children to

play in or on the dishwasher.

■ Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

■ Remove the door or lid to the washing compartment

when removing an old dishwasher from service or discarding it.

State of California Proposition 65 Warnings: WARNING: This product contains one or more chemicals known to the State of California to cause cancer. WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or

other reproductive harm.

Tip Over Hazard Do not use dishwasher until completely installed. Do not push down on open door. Doing so can result in serious injury or cuts.

Electrical Shock Hazard Electrically ground dishwasher. Connect ground wire to green ground connector

in terminal box. Do not use an extension cord. Failure to follow these instructions can result in

death, fire, or electrical shock.

■

For a grounded, cord-connected dishwasher:

The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The dishwasher is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the

equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the dishwasher is properly grounded. Do not modify the plug provided with the dishwasher; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

■

For a permanently connected dishwasher:

The dishwasher must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the dishwasher.

GROUNDING INSTRUCTIONS

SAVE THESE INSTRUCTIONS

■ Install where dishwasher is sheltered from the elements.

Avoid possible rupture of fill valve from freezing. Such ruptures are not covered by the warranty. See the “Vacation or Extended Time Without Use” section.

■ Install and level dishwasher on a floor that will hold the

weight, and in an area suitable for its size and use.

■ Remove all shipping plugs from hoses and connectors (such

as the cap on the drain outlet) before installing. See Installation Instructions for complete information.

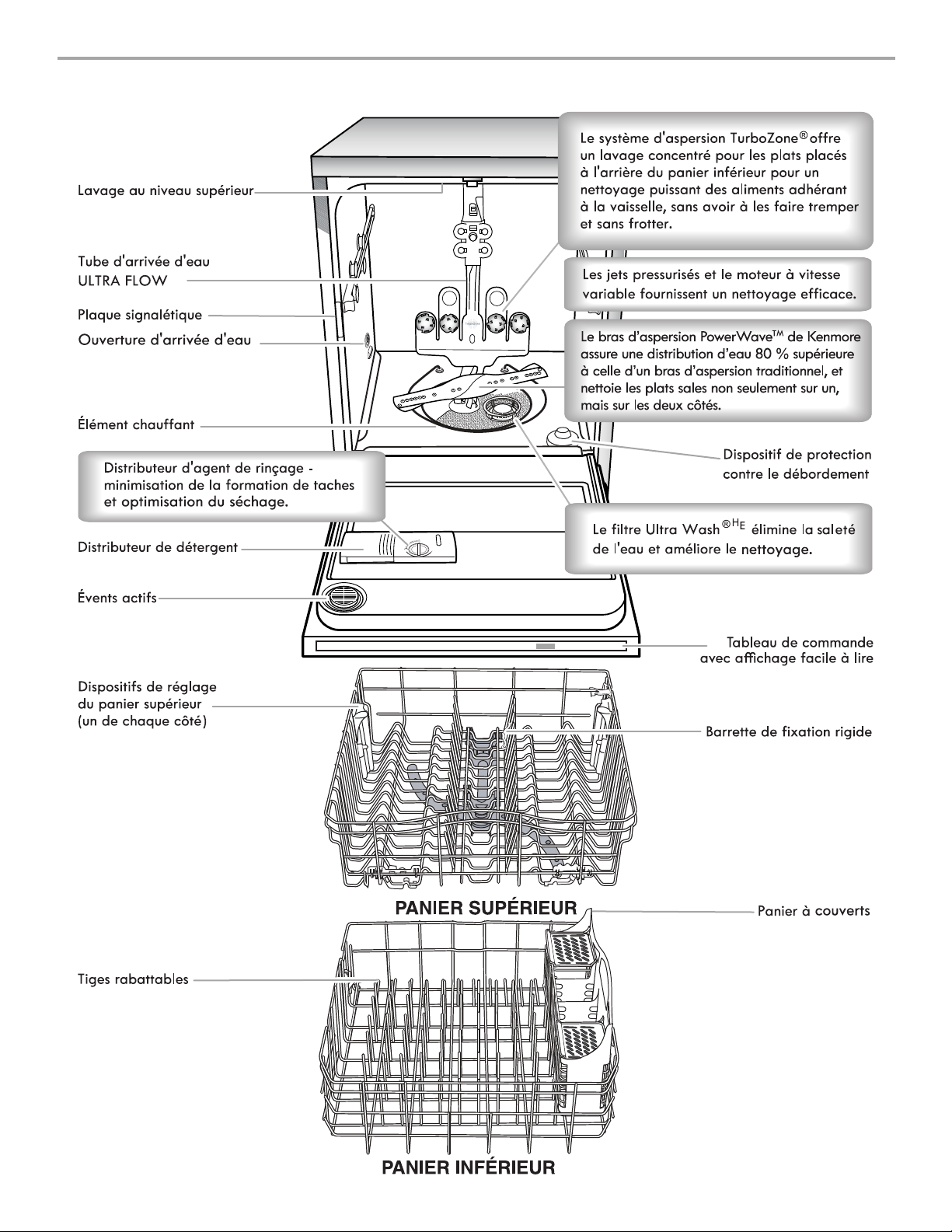

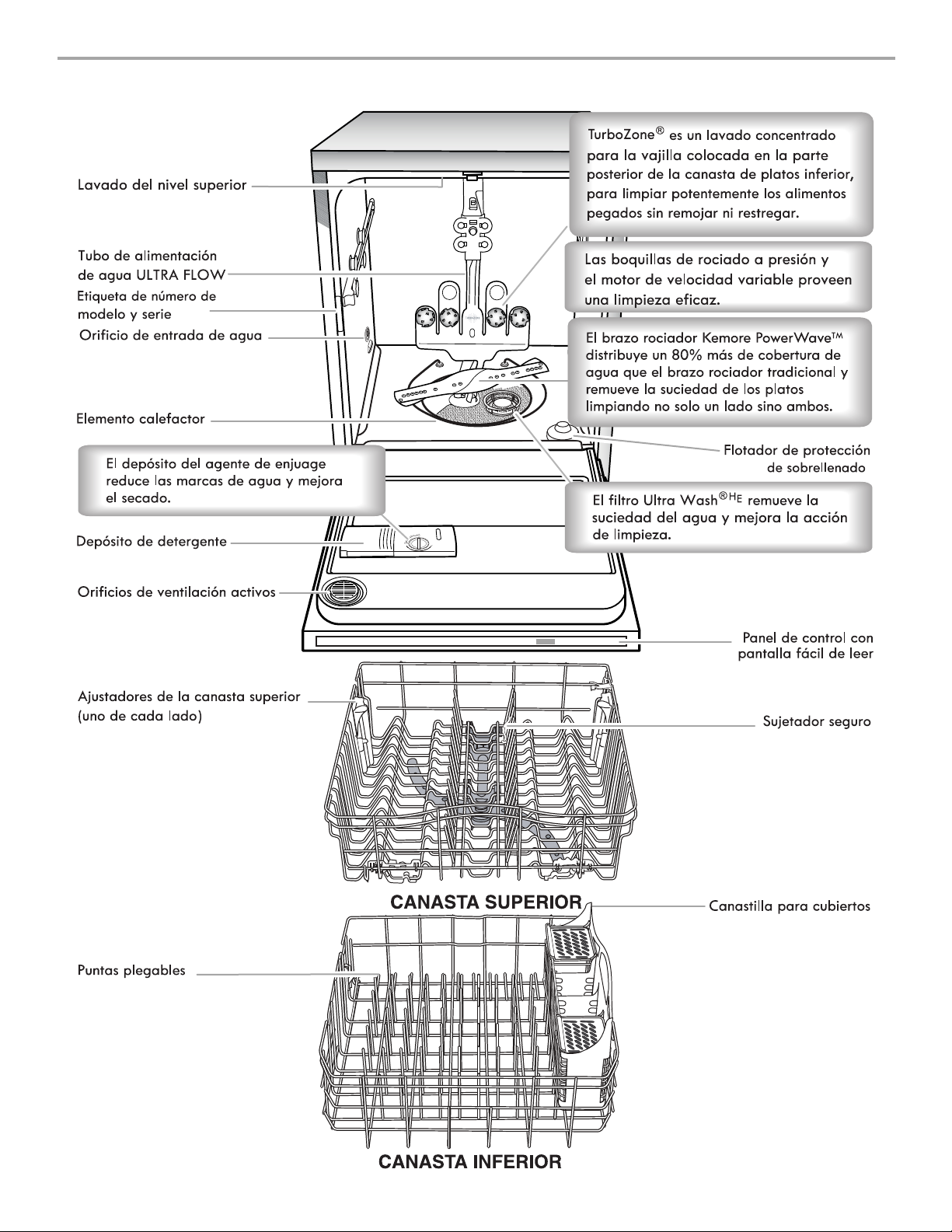

PARTS AND FEATURES

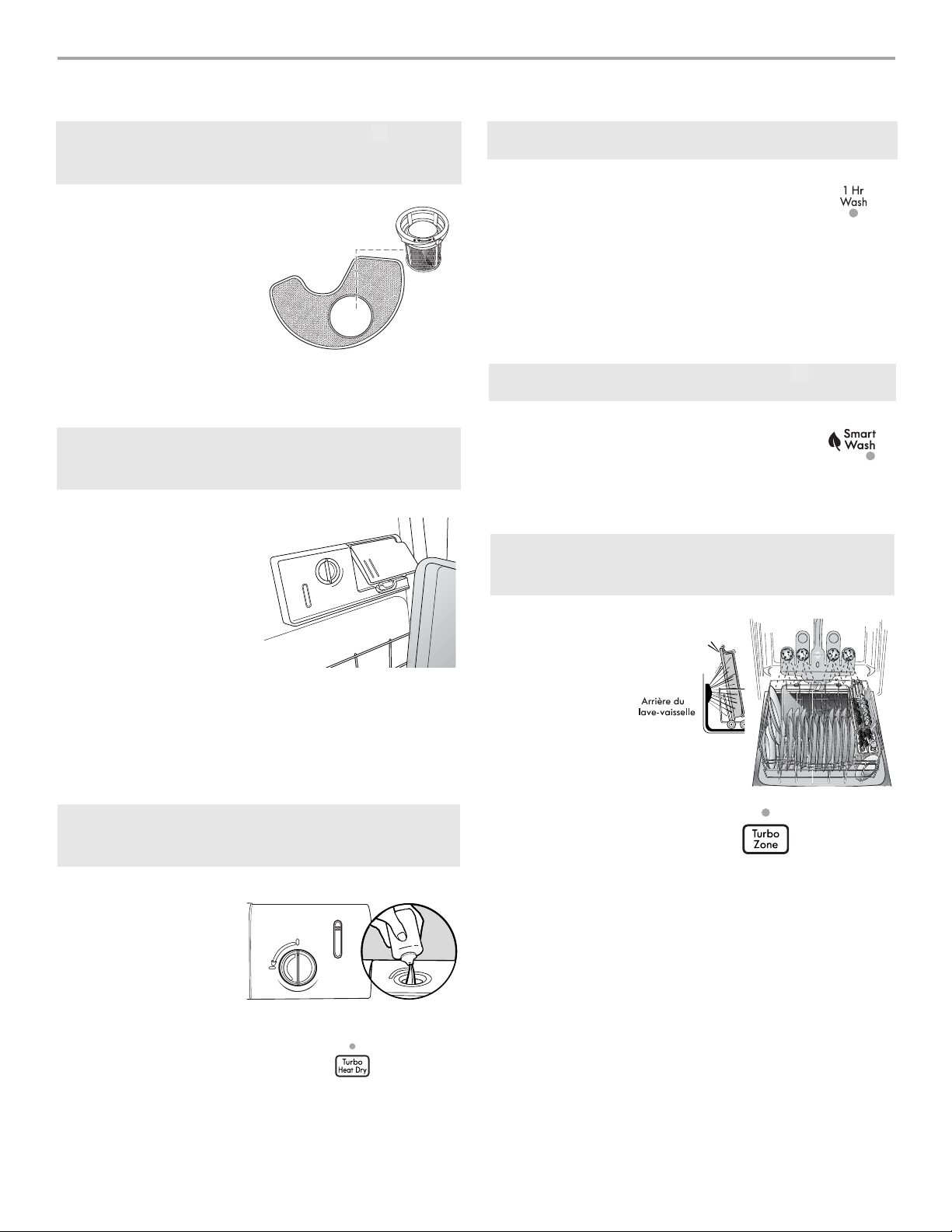

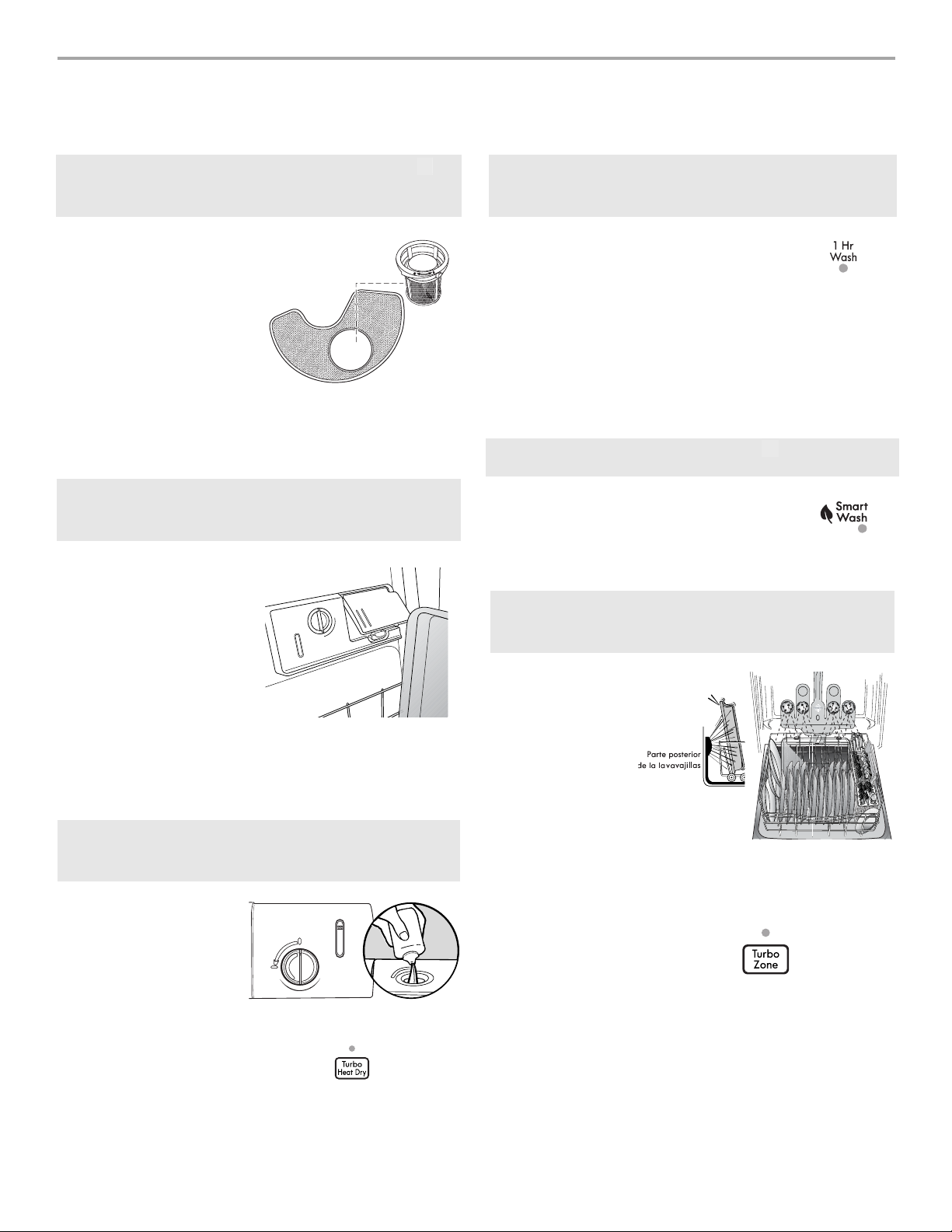

START-UP / QUICK REFERENCE (VARIES BY MODEL)

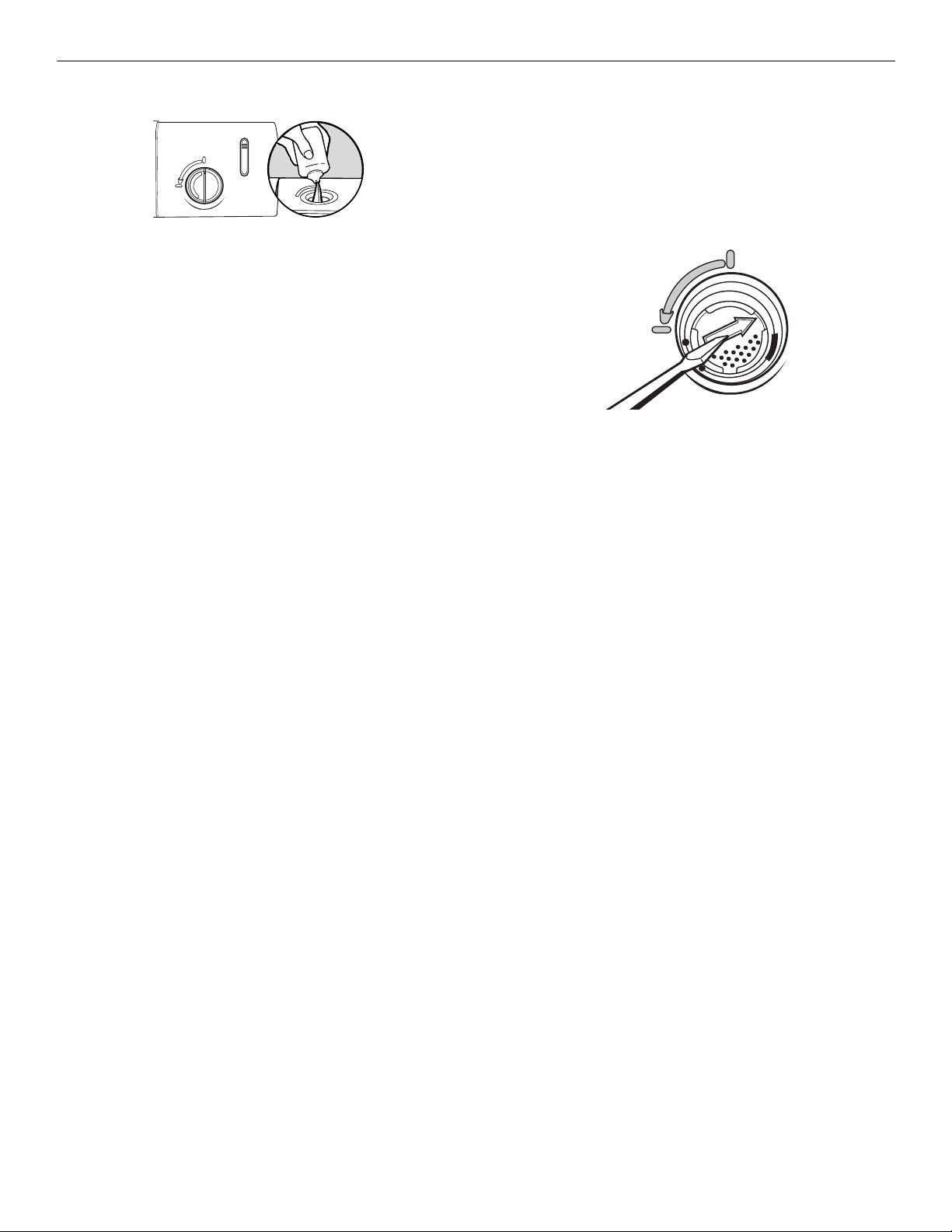

USE RINSE AID FOR BETTER DRYING

Lock

Full

Add

ULTRA WASH

removable filters provide

peak performance.

Cleaning the filters periodically helps keep the dishwasher working at peak performance. The filters can be found at the bottom center of your dishwasher.

See “ULTRA WASH

FILTRATION SYSTEM” for information on removing and maintaining the filters.

IMPORTANT: Do not block detergent

dispenser.

Tall items placed in the lower rack may block the dispenser door. Cookie sheets and cutting boards loaded on the left-hand side of the dishwasher can easily block the dispenser. If detergent is inside of the dispenser or on the bottom of the tub after the cycle is complete, the dispenser was blocked.

Drying - Rinse Aid is essential.

You must use a drying agent such as rinse aid for good drying performance (sample included). Rinse aid along with the Turbo Heat Dry will provide best drying and avoid excessive moisture in the dishwasher interior.

1 Hour Wash - When you need fast results.

SmartWash

cycle

SmartWash® provides optimal results using only the amount of water and energy needed. The SmartWash

and Pots & Pans cycles are recommended for tough soil.

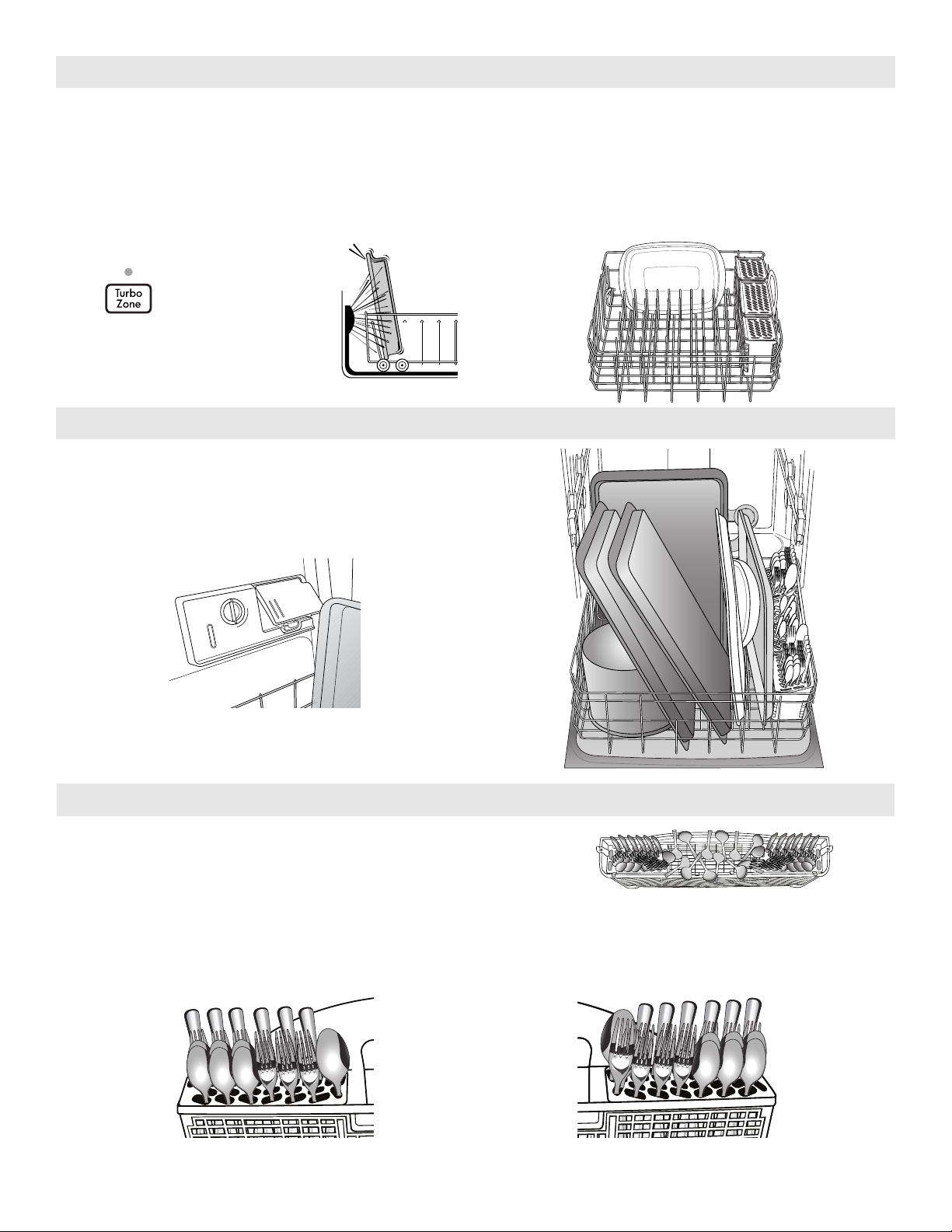

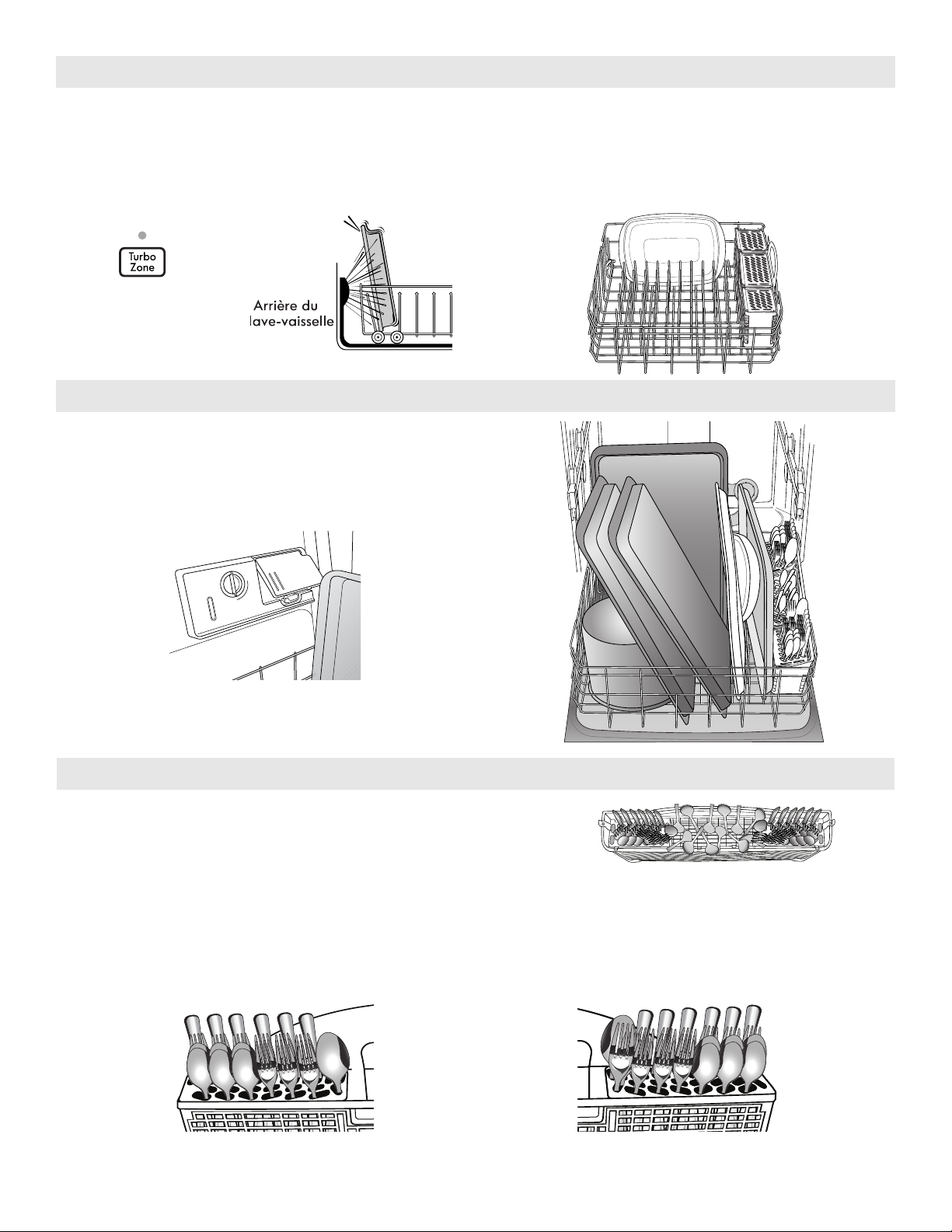

TurboZone® loading (on some models)

When the TurboZone selected, it provides a concentrated wash on the back of the lower dish rack for hard-to-clean dishes. Place these dishes with the soiled surface of the dish toward the TurboZone nozzles in the lower rack of the dishwasher.

option is

spray

Press START every time you add a dish.

To start and resume a cycle, press START and close the door within 3 seconds. If the door is not closed within 3 seconds, the start button LED will flash and the cycle will not start.

IMPORTANT: If anyone opens the door (as, to add a dish, even during the Delay Hours option), the START button must be pressed each time and the door closed within 3 seconds to resume the cycle.

Detergent Dosing

It is possible to use too much detergent in your dishwasher. This can lead to etching of your dishes. See “Detergent and Rinse Aid” to determine the amount of detergent needed based on your water hardness. Dishwasher detergent tablets and packs have been proven better than powder, liquid or gel detergents to reduce filming on your dishes.

High Efficiency dishwashers run longer to save water and energy just like driving a car slower saves on gas. When you need fast results, the 1 Hour Wash will clean your dishes using more water and energy. For improved drying, select the Turbo Heat Dry option to add additional time to dry.

ULTRA WASH

FILTRATION SYSTEM

Your dishwasher has the latest technology in dishwasher filtration. This triple filtration system minimizes sound and optimizes water and energy consumption while providing superior cleaning performance. Throughout the life of your dishwasher, the filter will require maintenance to sustain peak cleaning performance.

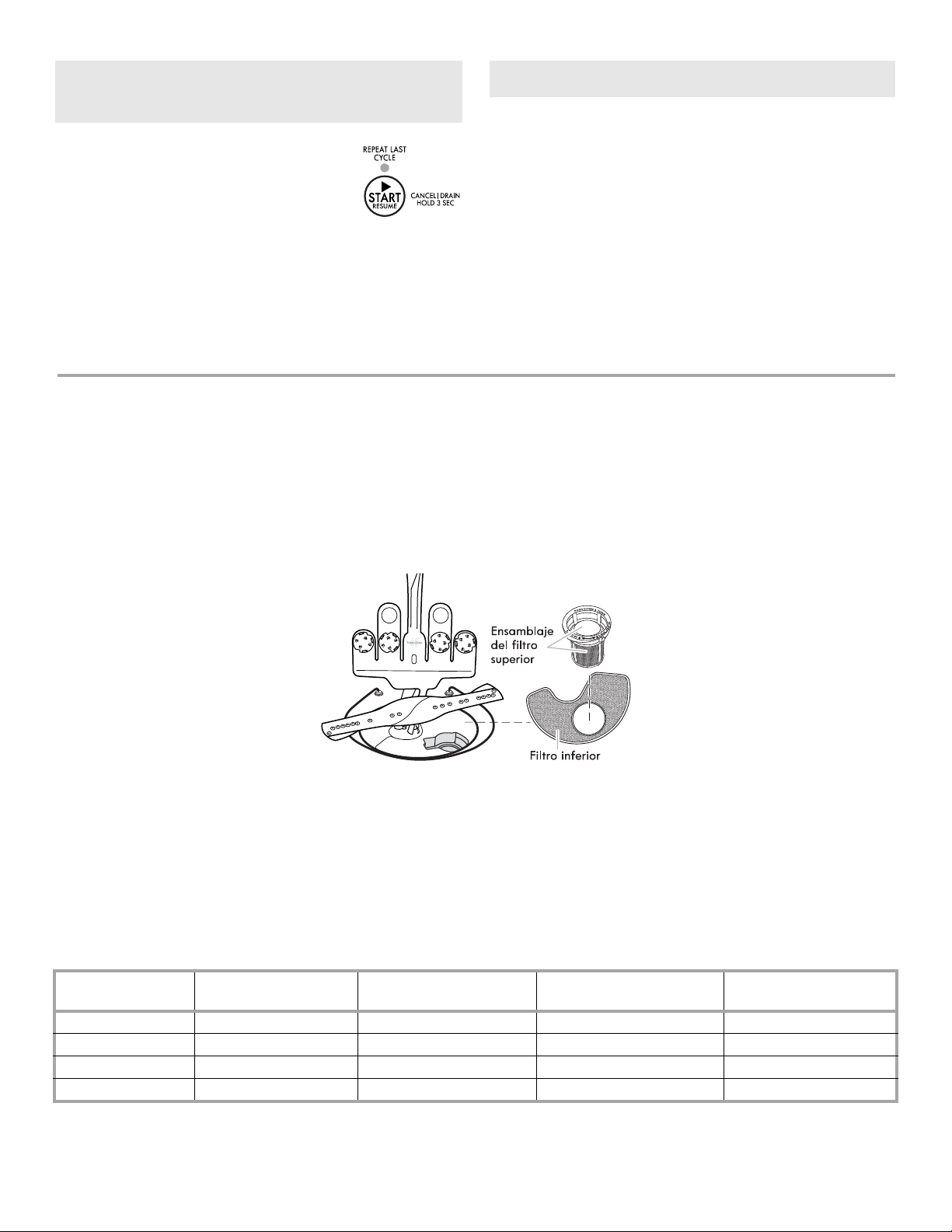

The triple filter system consists of 2 parts, an upper filter assembly and a lower filter.

■ The upper filter assembly keeps oversized items and foreign objects, along with very fine food particles out of the pump.

■ The lower filter keeps food from being recirculated onto your dishware.

In order to provide optimum cleaning performance we suggest a monthly filter maintenance by removing and inspecting both the upper and the lower filter for any soils. Based on your dishwashing habits, cleaning of the filters may be required more or less often than what is indicated in the chart below.

The filters may need to be cleaned when:

■ Visible objects or soils are on the Upper Filter Assembly.

■ There is degradation in cleaning performance (that is, soils still present on dishes).

■ Dishes feel gritty to the touch.

Removing and maintaining the filters is very easy. The chart below shows the recommended cleaning frequency.

Recommended time intervals to clean your filter

Number of

Loads Per Week

13-14 Once per year Twice per year Every two months Once per week

8-12 Once per year Every four months Every two months Every two weeks

4-7 Once per year Once per year Every four months Once per month

1-3 Once per year Once per year Twice per year Every two months

*Manufacturer's recommendation: This practice will eliminate the water and energy that you use preparing your dishes for loading.

This will also save you time and effort.

If you wash

before loading

If you scrape and rinse

before loading

If you only scrape before

loading*

If you do not scrape or

rinse before loading

Very Hard Water

If you have hard water (above 15 grains), clean your filter at least once per month. Building up of white residue on your dishwasher indicates hard water. You may bring your water samples to Sears to check hardness level. For tips on removing spots and stains, see “Troubleshooting” section.

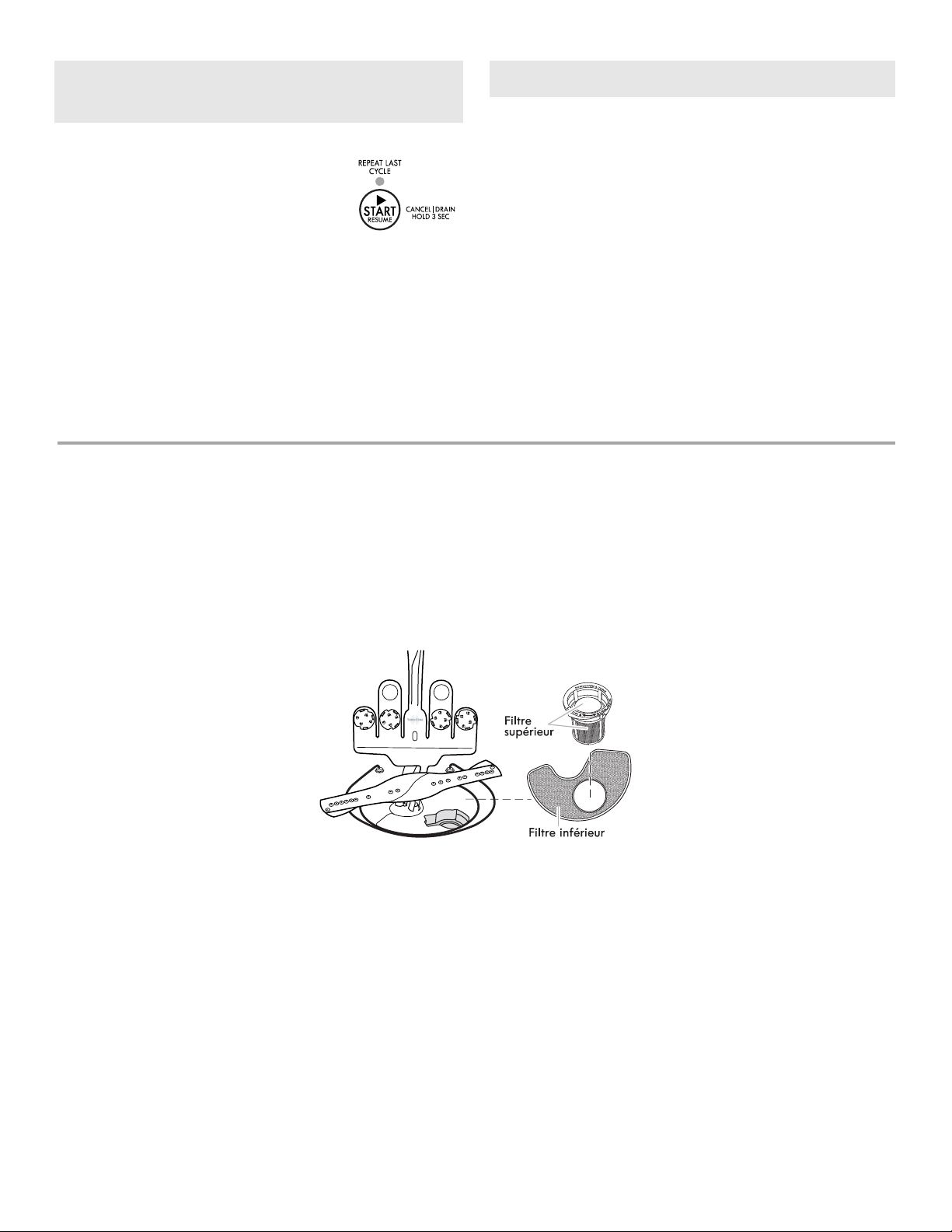

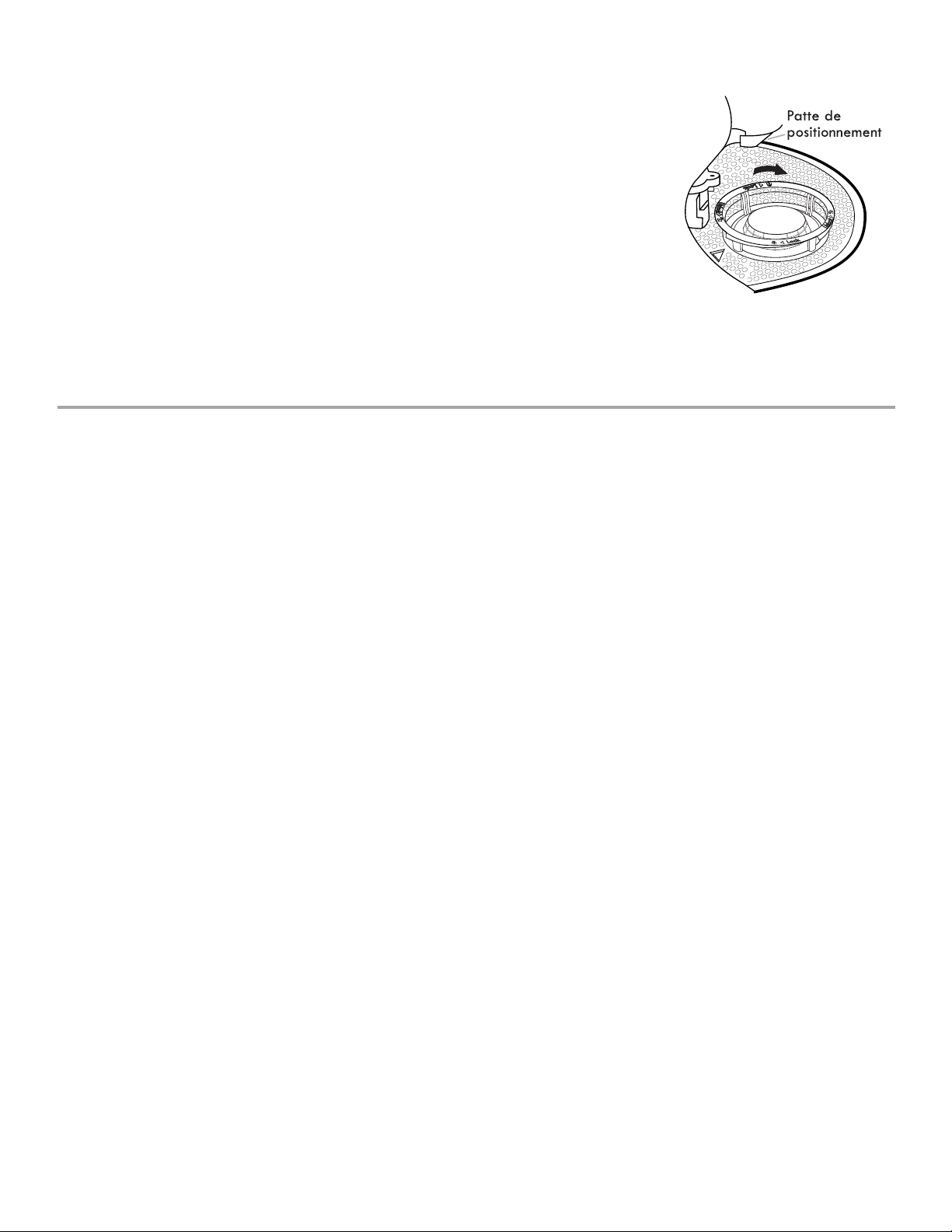

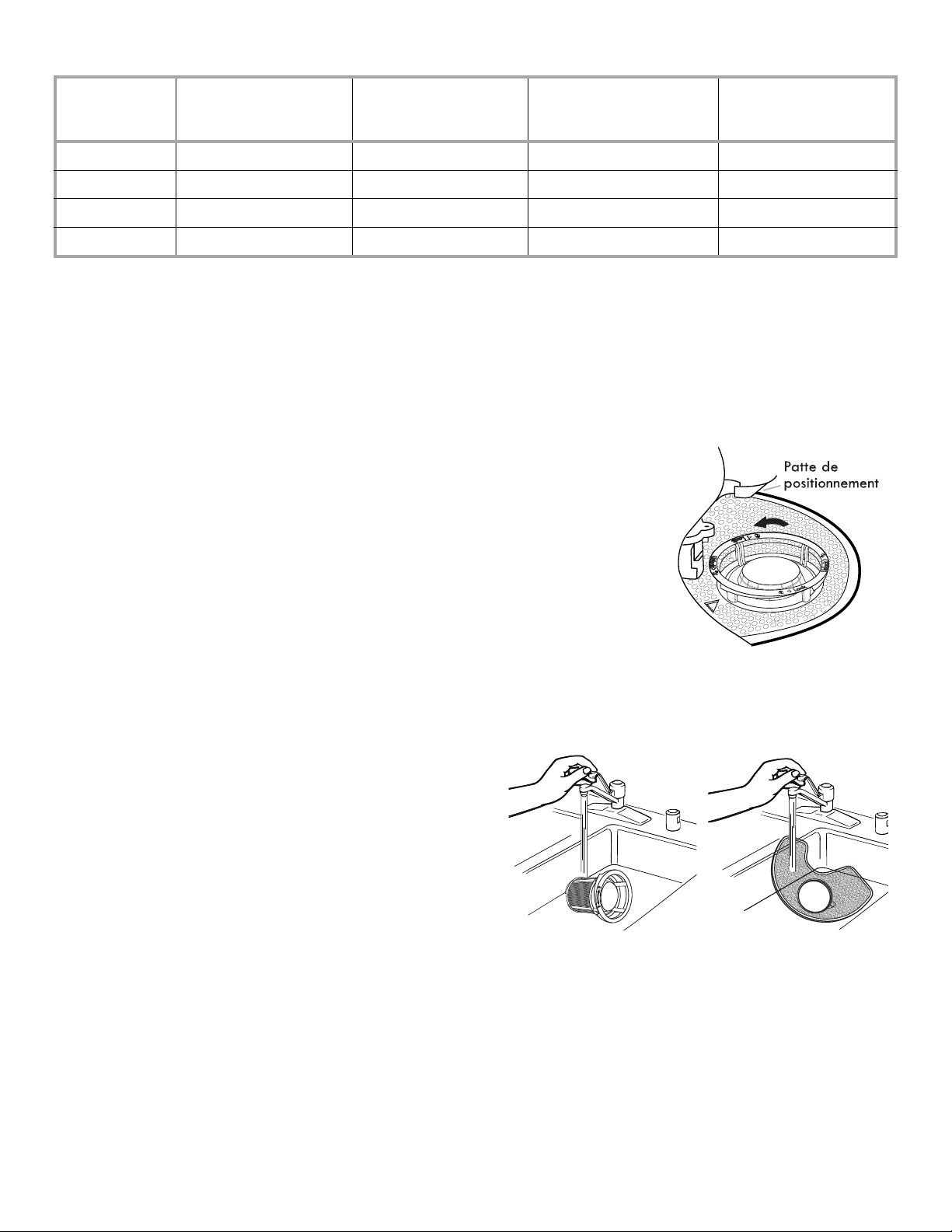

Filter Removal

1. Turn the Upper Filter Assembly ¼ turn counterclockwise and lift out.

2. Grasp the Lower Filter in the circular opening, lift slightly, and pull forward to remove.

3. Clean the filters as shown below.

Cleaning

IMPORTANT: Do not use wire brush, scouring pad, etc., as they may damage the filters.

Rinse filter under running water until most soils are removed. If you have hard-to-remove soils or calcium deposits from hard water, a soft brush may be required.

To remove Upper Filter Assembly

Filter Reinstallation

1. Noting the previous illustrations, place the Lower Filter under the Locating Tabs in the bottom of the dishwasher so the round opening for the Upper Filter Assembly lines up with the round opening in the bottom of the tub.

2. Insert the Upper Filter Assembly into the circular opening in the Lower Filter.

3. Slowly rotate the filter clockwise until it drops into place. Continue to rotate until the filter is locked into place. If the filter is not fully seated (still turns freely), continue to turn the filter clockwise until it drops and locks into place.

NOTE: The Upper Filter Assembly arrow does not have to align with the arrow in the Lower Filter as long as the filter is locked.

To replace Upper Filter Assembly

IMPORTANT: To avoid damage to dishwasher, do not operate your dishwasher without the ULTRA WASH®filters properly installed. Be sure the Lower Filter is securely in place and the Upper Filter Assembly

is locked into place. If the Upper Filter Assembly turns

freely, it is not locked into place.

DISHWASHER EFFICIENCY TIPS

Hot water dissolves and activates the dishwasher detergent. Hot water also dissolves grease on dishes and helps glasses dry spotfree. For best dishwashing results, water should be 120°F (49°C) as it enters the dishwasher. Loads may not wash as well if the water temperature is too low.

Additional efficiency tips

■ To save water, energy and time, only scrape dishes. Do not rinse dishes before putting them into the dishwasher.

■ Use a delay feature to run your dishwasher during off-peak hours. Local utility providers recommend avoiding heavy usage of

energy at certain times of day.

■ During the summer, run your dishwasher at night. This reduces daytime heat buildup in the kitchen.

■ Use a rinse aid to improve drying.

DETERGENT AND RINSE AID

USE RINSE AID FOR BETTER DRYING

Lock

Full

Add

Lock

Detergent

IMPORTANT: Use only automatic dishwashing detergent. Hand dishwashing detergent will produce excessive suds and overflow out of the dishwasher.

Recommended Detergent Amount

Add recommended amount of detergent to each compartment as shown and close the detergent lid.

Powders and Gels

Water Hardness

Soft (0-4 grains

per U.S. gallon)

Medium (5-9 grains

per U.S. gallon)

Hard (10-14 grains

per U.S. gallon)

*Full pre-wash compartment contains 7 tsp (35 mL), and full

main wash cup contains 9 tsp (45 mL).

Premeasured Detergents

Many detergents now come in premeasured forms (gel packs, tablets, or powder packs). These forms are suitable for all hardness and soil levels. Always place premeasured detergents in the main compartment and close the lid.

Using dishwasher detergent tablets and packs have been proven better than powder, liquid or gel detergents to reduce filming on your dishes. By using these tablets and packs, over time this will start to reduce or eliminate white film. Also, by using a rinse aid you can minimize repeat buildup of white film.

IMPORTANT: Extremely hard water mineral deposits (15 grains per U.S. gallon or more) can cause damage to your dishwasher and make it difficult to achieve good results. A water softener is recommended to avoid damage and achieve good results. You may bring your water samples to Sears to check hardness level.

Soil Level

Pre-Wash Compartment

Light None ¹⁄₂

Normal None ¹⁄₂

Heavy Full ¹⁄₂

Light None ¹⁄₂

Normal ¹⁄₂ ¹⁄₂

Heavy Full* Full*

Light ¹⁄₂ Full*

Normal Full* Full*

Heavy Full* Full*

Main Wash Compartment

Rinse Aid

IMPORTANT: Your dishwasher is designed to use a liquid rinse aid. The use of rinse aids greatly improves drying by allowing water to drain from the dishes after the final rinse. They also keep water from forming droplets that can dry as spots or streaks.

Filling the dispenser

The dispenser holds 5 oz (150 mL) of rinse aid. Under most conditions this will last 1 to 3 months.

1. Turn the knob ¼ turn counterclockwise and remove.

2. Pour rinse aid into the opening until the indicator points to FULL. Do not overfill.

3. Clean up any spilled rinse aid. Spilled rinse aid can create excessive suds.

4. Replace the knob and turn to the LOCK position.

NOTE: Indicator reads correct fill level when door is completely opened.

Rinse Aid Setting

Your rinse aid dispenser is adjustable. For most water conditions, the factory setting of 2 will give good results. If you have hard water and notice calcium buildup on your dishware, you may want to try a higher setting. If you notice foam in your dishwasher, use a lower setting.

fill

max

To adjust the setting

1. Turn the knob ¼ turn counterclockwise and remove.

2. Turn the arrow inside the dispenser to the desired setting.

3. Replace the knob and turn to the LOCK position.

Loading for Best Cleaning and Drying Performance

1. Angle dirtiest dish surfaces downward and allow space for water to flow up through each rack and between dishware.

Separating allows water flow.

2. For best silverware cleaning use the slots in the covers to keep items separated.

4. Angle concave surfaces such as the bottom of coffee cups to allow water to drain and improve drying performance.

Angled surfaces

5. Check that all spray arms spin freely before every cycle.

Separated

3. Use TurboZone® (on some models) option with your dirtiest items facing toward the lower back.

Soil facing TurboZone® spray jets

Spray arms spin freely.

6. Place cups and glasses in the rows between tines.

Top Rack Loading

Loading Recommendations

Place cups and glasses in the rows between tines. Placing them over the tines can lead to breakage and water spots. To avoid damage to your delicate items, be sure china, crystal, stemware and other similar items do not touch during dishwasher operation.

Load lightweight and dishwasher-safe plastic items only in the top rack.

10 place load 12 place load

Deluxe Adjustable 2-position Rack (on some models)

You can raise or lower the top rack to fit tall items in either the top or bottom rack. Adjusters are located on each side of the top rack. Raise the top rack to accommodate items up to 9" (23 cm) in the top rack and 13" (33 cm) in the bottom rack, or lower the top rack to accommodate items up to 11" (28 cm) in both the top and bottom racks.

1. To raise, lift rack until both sides are at the same height and

lock.

2. To lower, depress both tabs on rack adjusters, as shown,

and lower.

Removable Top Rack

The removable rack allows you to wash larger items such as stock pots, roasters, and cookie sheets in the lower level rack.

IMPORTANT: Remove dishes prior to removing the upper rack from the dishwasher.

To remove the rack (push tab rack stop):

1. Roll the rack ¹⁄₃ to ½ of the way out.

2. Remove each plastic push tab rack stop from the end of each track by pushing inward toward the

rack on the ridged area of the rack stop. The rack stop will snap open and can be easily removed by pulling straight out. Be sure to support the track while removing rack stops.

3. Roll the rack all the way out of the track and remove from the dishwasher.

To replace the rack:

Reverse the above steps 1 to 3 to replace the rack into the dishwasher.

Bottom Rack Loading

Loading Recommendations

The bottom rack is best suited for plates, pans, casseroles, and utensils. (See recommended loading patterns shown.) Load small items in the bottom rack only if they are secured in place. Load plates, soup bowls, etc., between tines. Load bowls securely between the rows of tines. Ensure that there is space between dishes so that the spray will reach all surfaces. Load heavily soiled items facing the spray. NOTE: Ensure that detergent dispenser is not blocked by tall items such as cookie sheets and cutting boards placed at the left-

hand front of rack. See “Start Up/Quick Reference” section.

10 place load 12 place load

Fold-Down Tines (on some models)

You can fold down one row of tines at the back of the bottom rack in order to accommodate larger dishware.

Keep this tine row in the 60° position when using the TurboZone

IMPORTANT: When moving tine row to the flat position, fold only the tine row toward the front of the dishwasher.

(on some models) option.

TurboZo ne® Loading (on some models)

Back of dishwasher

IMPORTANT: For proper performance, only one row of items may face the TurboZone® spray jets.

You must select the TurboZone Load pans, casserole dishes, etc., with the soiled surfaces facing the TurboZone

wash option to utilize this wash feature.

spray jets. TurboZone® wash area is located at the

back of the lower dish rack. Below are the recommended loading when using the TurboZone®option.

Loading Tall Items

You can wash larger items such as pots, roasters, and cookie sheets in the bottom rack by removing the top rack. See “Top Rack Loading” section.

IMPORTANT: Do not block detergent dispenser.

Loading Silverware

Use suggested loading patterns, as shown, to better clean your silverware. Use the slots in the covers to keep your silverware separated for optimum

wash. (See illustration, right.)

NOTE: If your silverware does not fit into the designated slots, flip the covers up and mix silverware types to keep them separated. Load knives down, forks up, and alternate spoons as illustrated, for best cleaning results. Load taller silverware items to the back and shorter to the front of basket.

Left-side silverware basket Right-side silverware basket

DISHWASHER USE

Cycles and Options Information (on some models)

Cycles

SmartWash®cycle

The most advanced and versatile cycle. This cycle senses the load size, soil amount, and toughness of soil. This cycle is optimized to achieve outstanding cleaning with minimal water and energy.

Pots & Pans

Works best on your toughest items such as casseroles with baked-on food residue. Use with TurboZone

(on some models) option to get the best cleaning of baked-on soils.

Normal Wash

This cycle with only the Turbo Heat Dry option selected, and without other options selected, is recommended to completely wash a full load of normally soiled dishes. The energy label is based on this cycle and option combination.

China Gentle (on some models)

Provides a light wash and gentle dry for delicate items such as china and crystal with varying soil levels

1 Hour Wash

For fast results, the 1 Hour Wash will clean your normally soiled dishes using more water and energy. For improved drying, select the Turbo Heat Dry option.

Quick Rinse

Use for rinsing dishes, glasses, and silverware that will not be washed right away. Do not use detergent.

Estimated

WashTime*

Displayed:

H:MM

2:30

3.23

2:21

1:00

0:18

Range of

Water Usage

Gallons

(Liters)

3.4 to 7.4

(12.8 to 28.0)

7. 4

(28.0)

2.4 to 7.4

(9.09 to 28.0)

2.4 to 7.4

(9.09 to 28.0)

7. 9

(29.8)

2.0

(7.6)

*Adding options will add time to the cycle. See options information section. This is the approximate cycle time obtained with 120°F

(49°C) hot water available at the dishwasher. Increase in time results from low temperature of the incoming water. Cycle times and water usage may increase or decrease depending on water temperature, heavy soil condition, dish load size and options selected.

Added

Options

Can be selected

with

What it does

Added time

to cycle

Water* Gallons

(Liters)

TurboZone® (on some models)

Directs all of the cleaning

Blasts water into your casserole or other dishes to eliminate the need for soaking and scrubbing of dirty, baked-on food soils. For your toughest items, use TurboZone

with the Pots & Pans cycle. See

SmartWash

Pots & Pans

Normal Wash

power of the dishwasher to the TurboZone during certain times in the wash cycle.

area

0:12 to 0:57

0 - 4.8

(0 - 18.2)

loading information.

High Temp

Raises main wash temperature to improve cleaning for loads containing tough, baked-on food.

SmartWash

Pots & Pans

Normal Wash

Raises the main wash temperature to 135°F (57°C).

0:05 to 0:13 0 - 3.9

(0 - 14.6)

Sani Rinse

This high temperature option sanitizes your dishes and glassware in accordance with National Sanitation Foundation (NSF)/ANSI Standard 184 for Residential Dishwashers. Certified residential dishwashers are not intended for licensed food establishments. The word Sanitized will light at the

SmartWash

Pots & Pans

Normal Wash

Raises the main wash

temperature to 135°F (57°C) and the final rinse temperature to 156°F (69°C).

0:05 to 1:01

0 - 3.9

(0 - 14.6)

end of the cycle when successfully completed. If Sanitization is not achieved (most often due to cycle interruption) the word Sanitized will flash.

Turbo Heat Dry

Turns the heat element and fan on after the wash portion of the cycle is over. The fan may remain on after the overall cycle is complete for a period of time or until the door is opened. Use rinse aid with or without the Turbo Heat Dry option for best

Available with

any cycle

except

Quick Rinse

Turns the heat element and the fan on at the end of the wash portion of the cycle.

0:08 to 0:46

drying results. Plastic items are less likely to deform when loaded in the top dish rack.

*The maximum additional water used for any combination of options is 4.8 gal. (18.2 L).

Dishwasher Control Section

Delay Hours (on some models)

Use this option to run your dishwasher during off-peak hours. Local utility providers recommend using energy during off-peak hours when possible. Delay displays how many hours Before the cycle will begin.

To delay the start

1. Select a wash cycle and options.

2. Press the delay button. Each time you press the DELAY button it will display the next available delay time.

NOTE: The dishwasher remembers the last Delay you selected. To reset the delay time to something other than what is displayed continue to press the Delay button until the desired delay time is reached.

3. Press START/RESUME to begin the delay countdown.

NOTE: Anytime the door is opened (such as, to add a dish), the START/RESUME button must be pressed again to resume the delay countdown.

Control Lock Option

Use the Control Lock option to avoid unintended use of the dishwasher between cycles. When the Lock indicator is lit, all buttons are disabled. The dishwasher door can still be opened or closed while the controls are locked.

To turn on the Lock

Press and hold SANI RINSE for 3 seconds. The Lock indicator will light up. If you press any pad while your dishwasher is locked, the light flashes 3 times.

NOTE: The dishwasher cannot start if the control is locked.

To turn off the Lock

Press and hold SANI RINSE for 3 seconds. The light turns off.

Dishwasher Feedback Section

Status Indicator Lights

Selecting Cycles and Options

1. Select the desired cycle. If you want to run the last cycle that was completed, you can simply press START once to show which

options you used, then press START again to start the cycle.

2. Select the desired options. Not all options are available for every cycle. If an invalid option is selected for a given cycle, the

lights will flash.

Turning OFF/ON the Sound

Press and hold HIGH TEMP for 3 seconds to toggle sound ON and OFF. The sound will not be deactivated for cycle interruption.

The full lit display will glow for wash, drying, sanitized, and complete. It will also display the estimated remaining time for the cycle in hours and minutes.

The indicator light (on some models) is green when running and off when the cycle is complete.

Canceling A Cycle

1. Open the door slightly to stop the cycle. Wait for the spraying action to stop before completely opening the door.

2. To cancel selections and/or drain press and hold the START/RESUME button for 3 seconds. If you drain the dishwasher by selecting CANCEL/DRAIN the word drain will turn on and the time display will show minutes of drain remaining. The drain will not begin until the door is closed.

3. Close the door within 3 seconds. The dishwasher starts a drain cycle (if water remains in bottom of dishwasher). Let the dishwasher drain completely. The Cancel/Drain light turns off after 2 minutes.

Changing A Cycle After Dishwasher Is Started

You can interrupt a cycle and restart your dishwasher from the beginning using the following procedure.

1. See steps in the previous “Canceling A Cycle” section for canceling the current cycle.

2. Check that detergent dispenser cover is still closed. If cover is open, you will need to refill the detergent dispenser before restarting your new cycle.

3. Select new cycles and options.

4. Press START/RESUME.

WASHING SPECIAL ITEMS

If you have doubts about washing a particular item, check with the manufacturer to see if it is dishwasher safe.

Material Dishwasher Safe? Comments

Aluminum Yes High water temperature and detergents can affect finish of anodized

aluminum.

Disposable Aluminum No Do not wash disposable aluminum pans in the dishwasher. These might

shift during washing and transfer black marks to dishes and other items.

Bottles and Cans No Wash bottles and cans by hand. Labels attached with glue can loosen

and clog the wash system and reduce washing performance.

Cast Iron No Seasoning will be removed and then cast iron will rust.

China/Stoneware Yes Always check manufacturer’s recommendations before washing.

Antique, hand-painted, or over-the-glaze patterns may fade. Gold leaf can discolor or fade.

Crystal Yes Always check manufacturer’s recommendations before washing. Some

types of leaded crystal can etch with repeated washing.

Gold No Gold-colored flatware will discolor.

Glass Yes Milk glass material yellows with repeated dishwasher washing.

Hollow-Handle Knives No Handles of some knives are attached to the blade with adhesives which

can loosen if washed in the dishwasher.

Pewter, Brass, Bronze, and Copper

Disposable Plastics No Cannot withstand high water temperatures and detergents.

Plastics Yes Always check manufacturer’s recommendations before washing. Plastic

Stainless Steel Yes Run a rinse cycle if not washing immediately. Prolonged contact with

Sterling Silver or Silver Plate Yes Run a rinse cycle if not washing immediately. Prolonged contact with

Tin No Not recommended.

Wooden Ware No Wash by hand. Always check manufacturer’s instructions before

No High water temperatures and detergent can discolor or pit the finish.

items may vary in their ability to withstand high temperatures and detergents. It is recommended that lightweight items such as lids and butter dishes be placed in the upper rack only. Sturdy items such as coolers and high-chair trays may be placed in the lower rack. When washing plastic items in the lower rack, it is recommended not to use the Heated Dry or Turbo Heat Dry option (depending on your model).

food containing salt, vinegar, milk products, or fruit juice can damage finish.

food containing salt, acid, or sulfide (eggs, mayonnaise, and seafood) can damage finish.

washing. Untreated wood can warp, crack, or lose its finish.

Large Casserole Dish Yes There may be certain casserole dishes that may not fit in front of the

TurboZone Adjust the tines as necessary to load the large dishes.

(on some models) feature in the back of the lower dish rack.

Cleaning the exterior

DISHWASHER CARE

Cleaning

In most cases, regular use of a soft, damp cloth or sponge and a mild detergent is all that is necessary to keep the outside of your dishwasher looking nice and clean. If your dishwasher has a stainless steel exterior, a stainless steel cleaner is recommended.

Cleaning the interior

To clean the drain air gap

Hard water minerals can cause a white film to build up on the inside surfaces, especially just beneath the door area.

Do not clean the dishwasher interior until it has cooled. You may want to wear rubber gloves. Do not use any type of cleanser other than dishwasher detergent because it may cause foaming or sudsing.

To clean interior

Make a paste with powdered dishwasher detergent on a damp sponge and clean.

Use liquid automatic dishwasher detergent and clean with a damp sponge.

See the vinegar rinse procedure in “Cloudy or spotted dishware” in “Troubleshooting” section.

NOTE: Run a normal cycle with dishwasher detergent after cleaning the interior.

Drain Air Gap

Some state or local plumbing codes require the addition of a drain air gap between a built-in dishwasher and the home drain system. Check the drain air gap when your dishwasher is not draining well.

The drain air gap is usually located on top of the sink or countertop near the dishwasher. To order a drain air gap, please call 1-800-4-MY-HOME Number 300096.

NOTE: The drain air gap is an external plumbing device that is not part of your dishwasher. The warranty provided with your dishwasher does not cover service costs directly associated with the cleaning or repair of the external drain air gap.

Clean the drain air gap periodically to ensure proper drainage of your dishwasher. With most types, you lift off the chrome cover. Unscrew the plastic cap. Then check for any soil buildup. Clean if necessary.

. Ask for Part

Vacation or Extended Time Without Use

To reduce the risk of property damage

■ If you will not be using the dishwasher during the summer months, turn off the

water and power supply to the dishwasher.

■ Make sure the water supply lines are protected against freezing conditions. Ice

formations in the supply lines can increase water pressure and damage your dishwasher or home. Damage from freezing is not covered by the warranty.

■ When storing your dishwasher in the winter, avoid water damage by having

your dishwasher winterized by authorized service personnel.

TROUBLESHOOTING

CHECK THESE POINTS TO HELP SAVE YOU TIME AND MONEY.

PROBLEM SOLUTION

DISHWASHER DOES NOT RUN NOTE: It is normal for the dishwasher to repeatedly pause several times during a cycle.

If the Start/Resume light is blinking, close the door and press START/RESUME or press START/ RESUME and close the door within 3 seconds.

Be sure the door is closed and latched. Check that there is not an interference with large casserole dishes and the wash system at the

back of the dishwasher. Adjust loading as necessary to ensure door is closed and latched. Be sure the Control/Lock feature is not on. (Control/Lock indicator will be lit.) Be sure you have selected a cycle. (See “Cycles and Options Information.”) Be sure there is power to the dishwasher. A circuit breaker or fuse may have tripped. If lights other than Start/Resume blink and the unit will not run, you will need to call for service.

DETERGENT REMAINS IN THE DISPENSER OR TABLET IS ON BOTTOM OF TUB

Check for dishware such as cookie sheets, cutting boards, or large containers, etc., that may be blocking the detergent dispenser from opening properly.

Be sure your detergent is fresh and lump free. Be sure the cycle has completed. The Complete indicator will be on in the display, and the front

status light (on some models) will be off. If it has not completed, you will need to resume the cycle. Close the door and press START/RESUME or press START/RESUME and close the door within 3 seconds.

CYCLE RUNS TOO LONG NOTES:

■ To use less water and reduce energy consumption you will encounter cycles that typically run

for up to 3 hours. To wash dishes with less water the dishwasher must run longer. The dishwasher uses less energy to run than your water heater does to heat the water that the dishwasher is using.

■ A water heater setting of 120°F (49ºC) is best. The dishwasher will delay longer while heating

cooler water.

■ Some options will add time to the cycle. (See “Cycles and Options Information” section.)

Try the 1 Hour Wash cycle. The 1 Hour Wash uses more energy and water to clean the dishes in less time.

Run the hot water at a faucet close to the dishwasher before selecting and starting the cycle.

DISHWASHER NOT DRYING NOTE: Plastic and items with nonstick surfaces are difficult to dry because they have a porous

surface which tends to collect water droplets. Towel drying may be necessary. Use of rinse aid along with the Turbo Heat Dry option is needed for proper drying. Proper loading of items can affect drying. (See specific loading instructions within this guide.) Glasses and cups with concave bottoms hold water. This water may spill onto other items when

unloading.

■ Unload the bottom rack first.

■ Locate these items on the more slanted side of the rack for improved results.

WILL NOT FILL Be sure the water is turned on to the dishwasher.

Check that the float is free from obstructions. (See “Parts and Features.”) Check for suds in the dishwasher. If foam or suds are detected, the dishwasher may not operate

properly or may not fill with water.

PROBLEM SOLUTION

WATER REMAINS IN THE TUB/ WILL NOT DRAIN

Be sure the cycle has completed. The Complete indicator will be turned on in the display, and the front status light (on some models) will be off. If it has not completed, you will need to resume the cycle by closing the door and pressing START/RESUME or press START/RESUME and close the door within 3 seconds.

If dishwasher is connected to a food waste disposer, be sure the knockout plug has been removed from the disposer inlet.

Check for kinks in the drain hose. Check for food obstructions in the drain or disposer. Check your house fuse or circuit breaker.

filters and check for any food buildup underneath.

HARD WATER (WHITE RESIDUE ON DISHWASHER INTERIOR OR GLASSWARE)

Remove and clean the ULTRA WASH

NOTE: Extremely hard water mineral deposits can cause damage to your dishwasher and make it difficult to achieve good cleaning. You may bring water samples to Sears to check your water hardness level. A water softener is strongly recommended if your hardness is 15 grains or more. If a water softener is not installed, the following steps may help:

Use a commercial cleaner designed for dishwashers once per month. Clean the ULTRA WASH

filters at least once per month. Always use a rinse aid. Always use fresh high quality tablets or packs of detergent for improved performance. Use a detergent booster/water softener additive designed for dishwashers.

ODORS NOTE: If the dishwasher is not used daily, you can run a rinse cycle with a partial load until a full

load is ready to run. Run a vinegar rinse through the dishwasher by putting 2 cups (500 mL) of white vinegar in an

upright glass measuring cup in the lower rack. Run a Normal Wash cycle with the Turbo Heat Dry option turned OFF. Do not use detergent.

The dishwasher may not be draining properly. See “WATER REMAINS IN THE TUB/WILL NOT DRAIN” in “Troubleshooting.”

NOISY NOTES:

■ Surging sounds can occur periodically throughout the cycle while the dishwasher is draining.

■ Normal water valve hissing may be heard periodically.

■ A normal snap sound may be heard when the detergent dispenser opens during the cycle

and when the door is opened at the end of the cycle.

■ Improper installation will affect noise levels.

Be sure the filters are properly installed. If items extend beyond the racks and interfere with the wash arms, a thumping sound might be

heard.

FOOD SOILS REMAIN ON DISHES

Be sure the dishwasher is loaded correctly. Improper loading can greatly decrease the washing performance. See “Loading for Best Cleaning and Drying Performance”.

Check filter to ensure it is properly installed. Clean it if needed. (See “Cleaning Instructions” in “ULTRA WASH

Select the proper cycle and option for the type of soils. The Pots & Pans cycle with the TurboZone

Filtration System” for details.)

(on some models) option can be used for tougher loads. Be sure the incoming water temperature is at least 120°F (49ºC). Use the proper amount of fresh detergent. More detergent is needed for heavier-soiled loads

and hard water conditions. Scrape food from dishes prior to loading (do not prerinse).

DID NOT SANITIZE If Sanitized is blinking, the load is

your water heater is set too low. Set your water heater to 120ºF (49ºC).

NOT

sanitized. The cycle was interrupted in the final rinse, or

DAMAGE TO DISHWARE Improper loading can cause dishes to become chipped or damaged. (See specific loading

instructions within this guide.)

PROBLEM SOLUTION

BLINKING LIGHTS If Start/Resume or any status lights are blinking and the dishwasher will not run, close the door

and push START/RESUME or press START/RESUME and close the door within 3 seconds. If the dishwasher still will not run, call service.

CLOUDY OR SPOTTED DISHWARE (AND HARD WATER SOLUTION)

NOTES:

■ Liquid rinse aid, in addition to all-in-one tablets or packs, is necessary for drying and to

reduce spotting.

■ Use the correct amount of detergent.

Confirm that the cloudiness is removable by soaking the item in white vinegar for 5 minutes. If the cloudiness disappears, it was due to hard water. Adjust the amount of detergent and rinse aid. See “HARD WATER (WHITE RESIDUE ON DISHWASHER INTERIOR OR GLASSWARE)” in “Troubleshooting.” If it does not come clear, it is due to etching (see below).

Be sure the incoming water temperature is set at 120°F (49ºC). Try using the High Temp and Sani Rinse options. To remove spotting, run a vinegar rinse through the dishwasher.

■ Wash and rinse the affected dishware and load into dishwasher. Remove all silverware and

metal items. Put 2 cups (500 mL) of white vinegar into a glass measuring cup in the lower rack. Run a Normal Wash cycle with the Turbo Heated Dry option turned OFF. No detergent is needed.

ETCHING (PERMANENT CLOUDINESS)

This is an erosion of the surface of the glassware and can be caused by a combination of: water that is too hot, from using too much detergent with soft water, or by pre-washing. Detergent needs food soil to act upon. If etching has occurred, the glassware is permanently damaged. To avoid further etching, adjust the detergent amount to match the water hardness, stop prewashing, and use water heating options only when incoming water temperature is below 120°F (49ºC).

LEAKING WATER Be sure dishwasher has been installed properly and is level.

Suds can cause the dishwasher to overflow. Measure the detergent accurately and use only detergents designed for use in a dishwasher. Less detergent is needed in soft water. Try another brand of detergent if sudsing continues.

To avoid rinse aid leaking from the dispenser, be sure the lid is securely attached and avoid overfilling.

TUB IS DISCOLORED NOTES:

■ High iron content in the water can discolor the tub.

■ Tomato-based foods can discolor the tub or dishware.

■ A citrus-based cleaner can be used to clean the tub.

+ 50 hidden pages
