Kenmore 665.1301 User Manual

Use & Care Guide Manual de uso y cuidado Guide d’utilisation et d’entretien

English / Español / Français

Model/Modelo/Modèle: 665.1301*

Kenmore®

ULTRA WASH

Dishwasher

Lavavajillas ULTRA WASH Lave-vaisselle ULTRA WASH

* = color number, número de color, le numéro de la couleur

P/N W10350362B Sears Brands Management Corporation

Hoffman Estates, IL 60179 U.S.A. www.kenmore.com

www.sears.com www.sears.ca

TABLE OF CONTENTS

PROTECTION AGREEMENTS........................................................ 2

WARRANTY.................................................................................. 3

DISHWASHER SAFETY..................................................................4

WHAT’S NEW IN YOUR DISHWASHER... ..................................... 6

Energy....................................................................................................... 6

Performance............................................................................................ 6

PARTS AND FEATURES ................................................................7

START-UP / QUICK REFERENCE (VARIES BY MODEL)................. 8

ULTRA WASH

DISHWASHER EFFICIENCY TIPS..................................................10

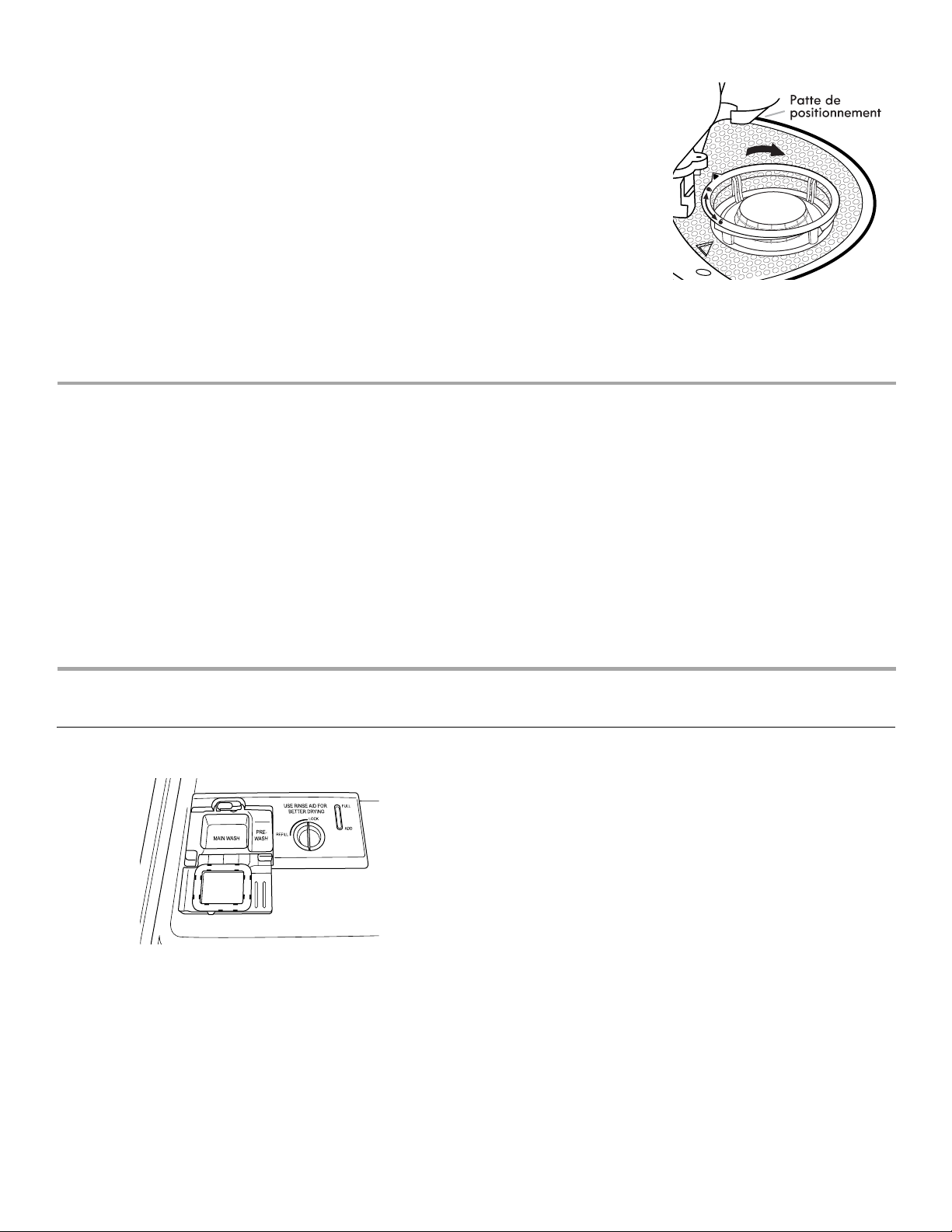

DETERGENT AND RINSE AID.......................................................11

Detergent .................................................................................................11

Rinse Aid...................................................................................................11

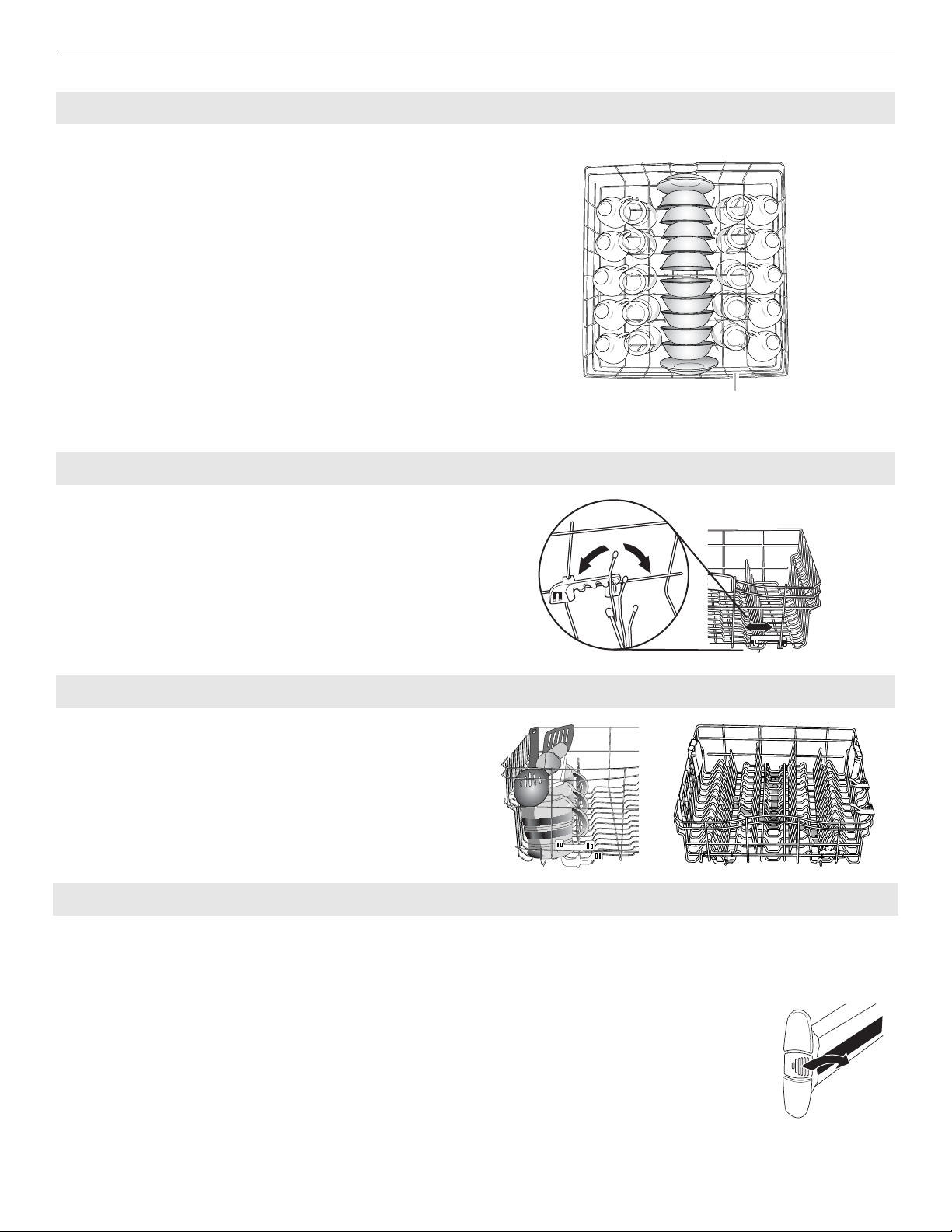

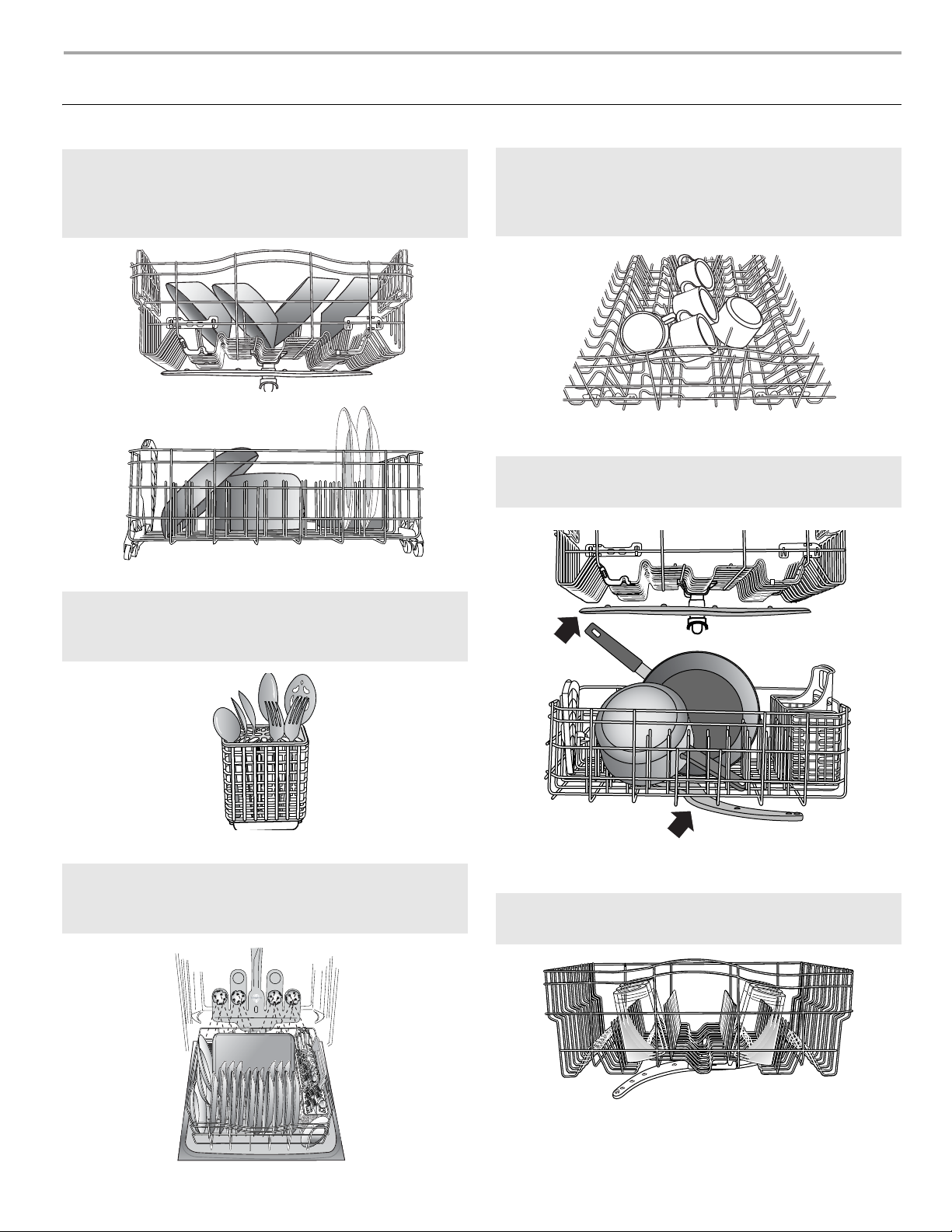

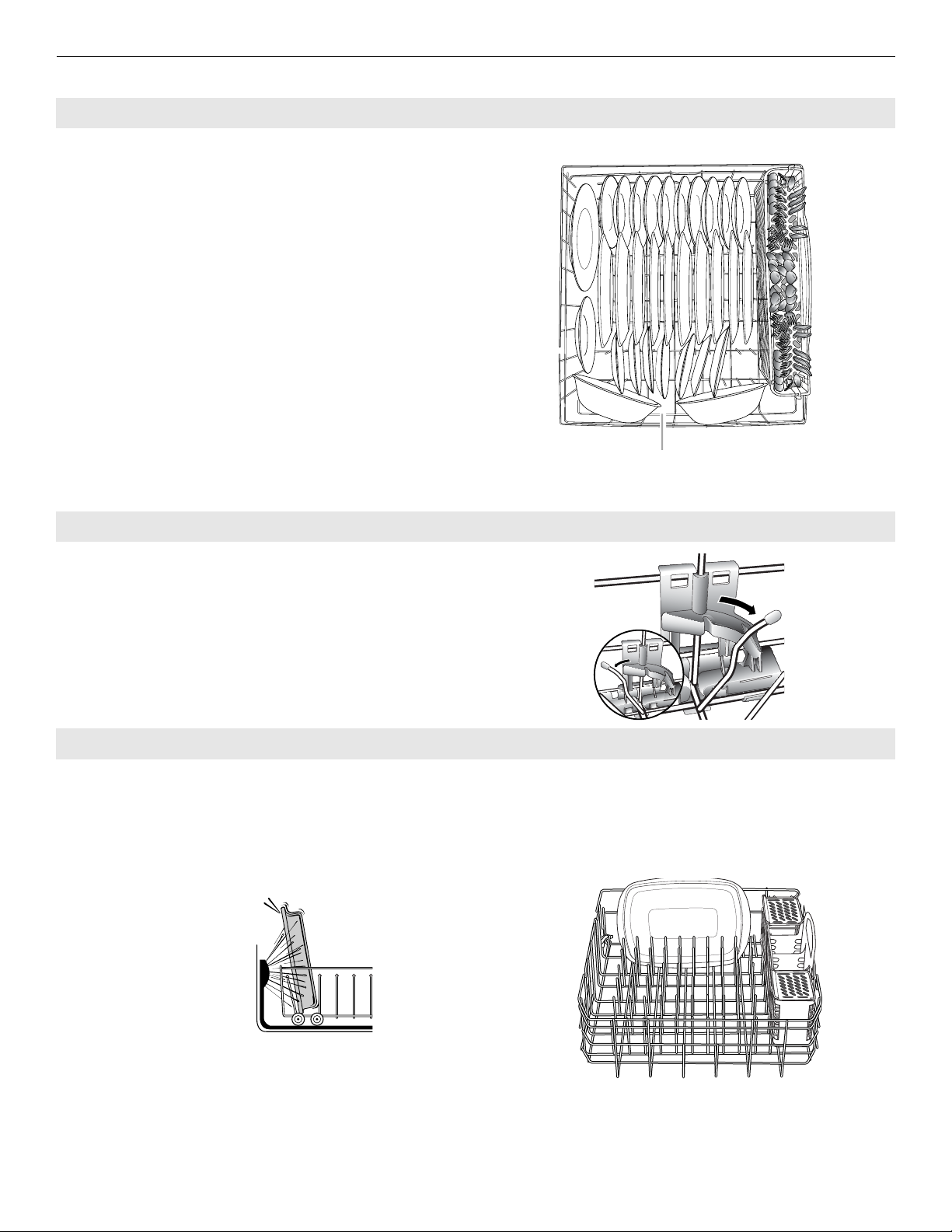

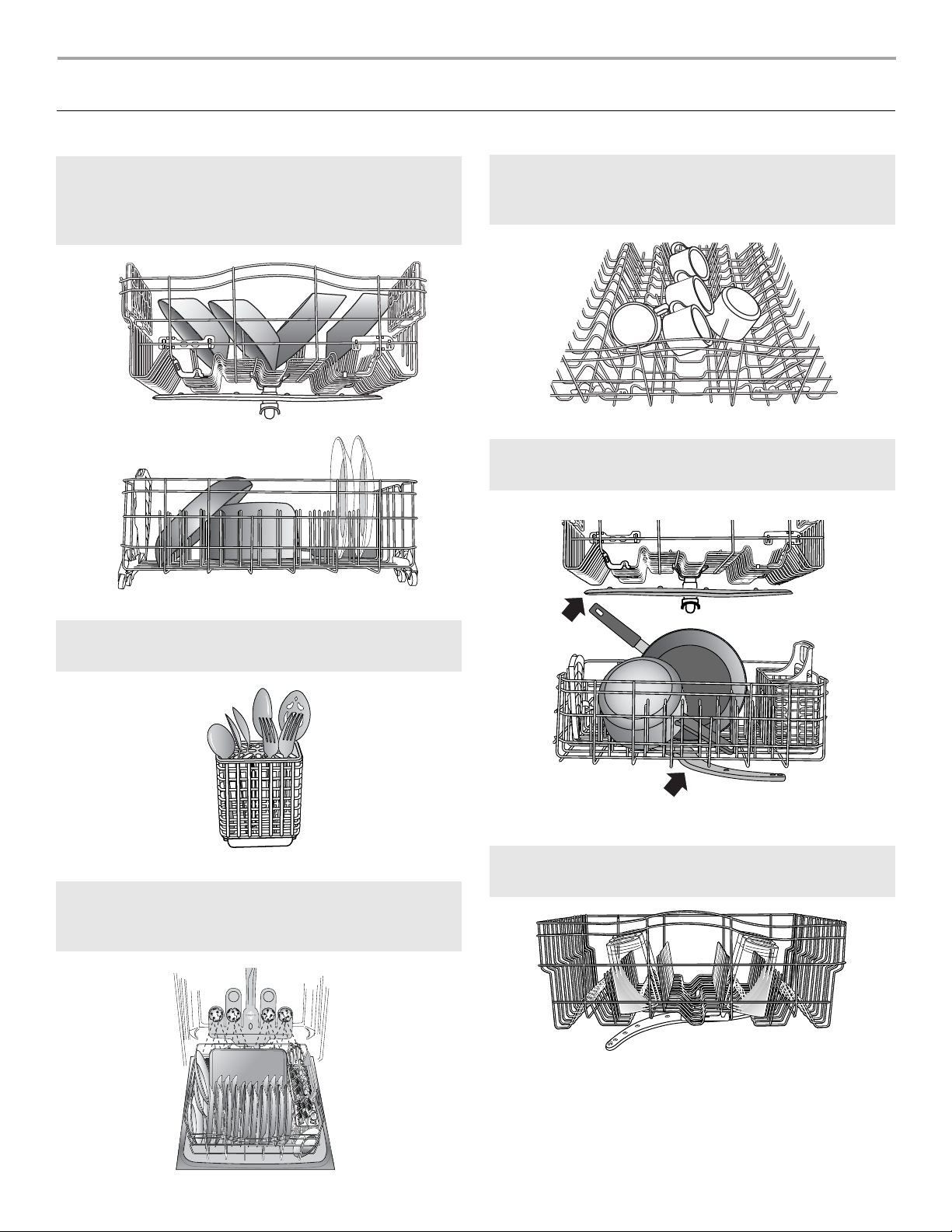

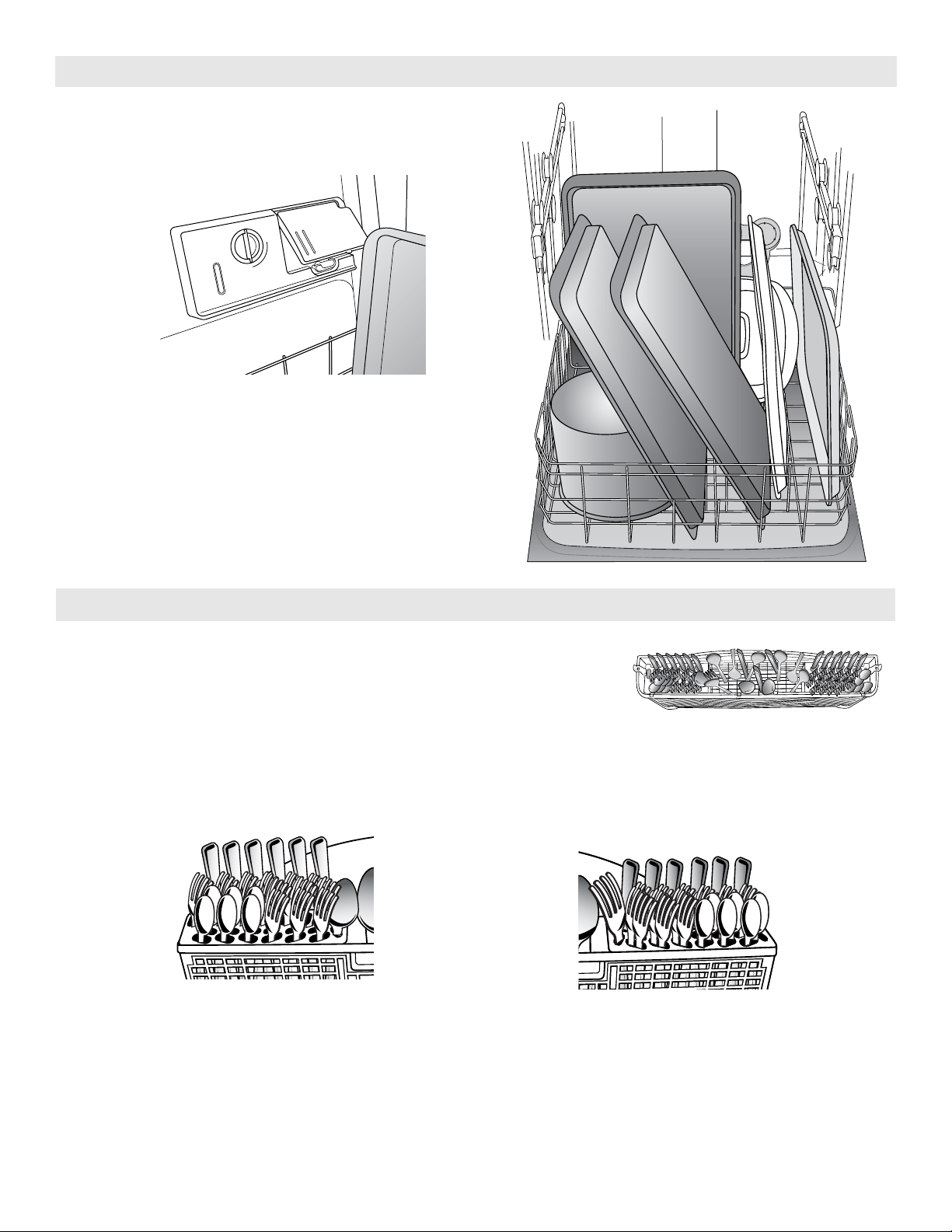

LOADING....................................................................................12

Loading For Best Cleaning and Drying Performance.....................12

ÍNDICE .......................................................................................24

TABLE DES MATIÈRES ................................................................49

FILTRATION SYSTEM.......................................... 9

PROTECTION AGREEMENTS

Top Rack Loading..................................................................................13

Bottom Rack Loading...........................................................................14

DISHWASHER USE.......................................................................16

Cycles and Options Information (on some models)....................... 16

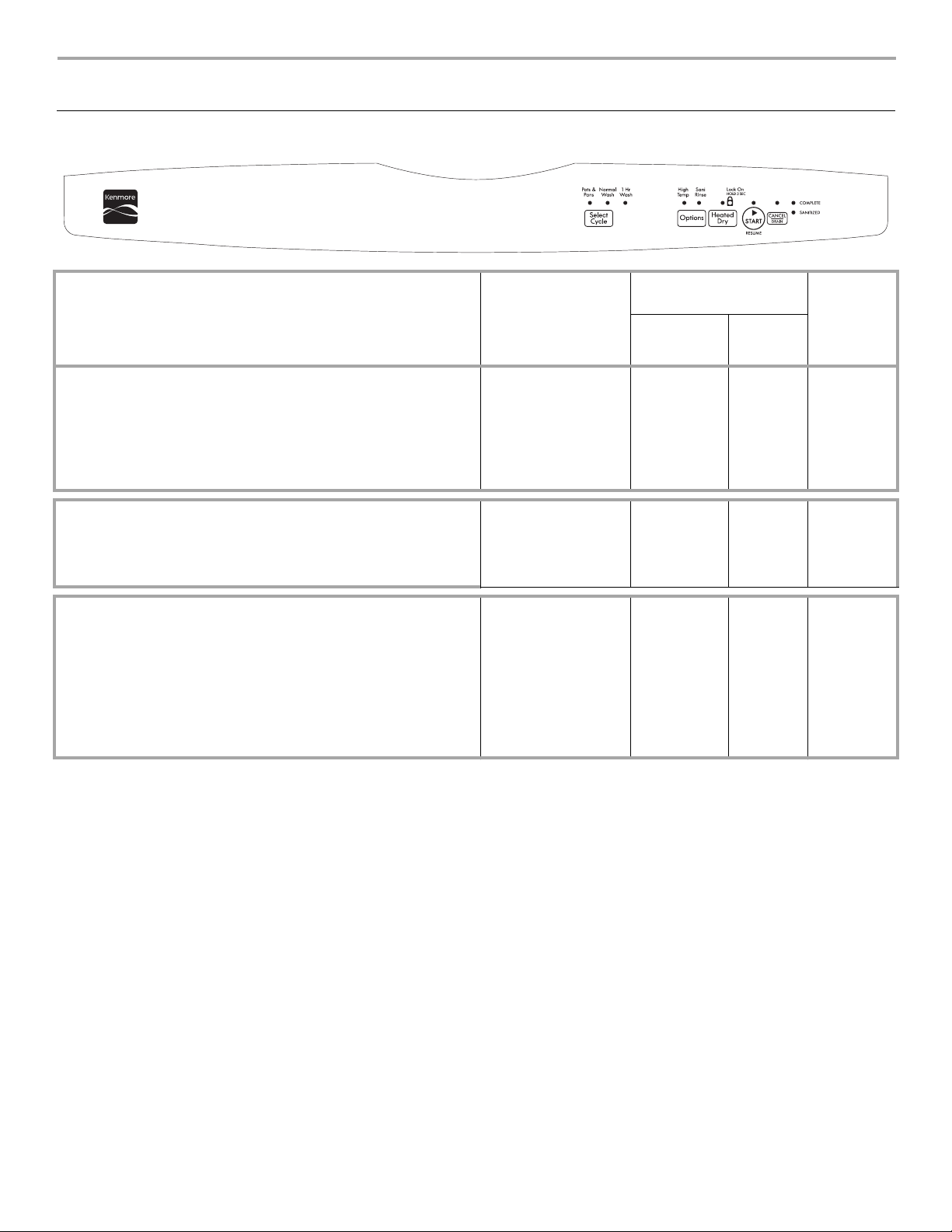

Dishwasher Control Section ................................................................17

Dishwasher Feedback Section............................................................ 18

Canceling A Cycle................................................................................ 18

Changing A Cycle After Dishwasher Is Started.............................. 18

WASHING SPECIAL ITEMS ..........................................................19

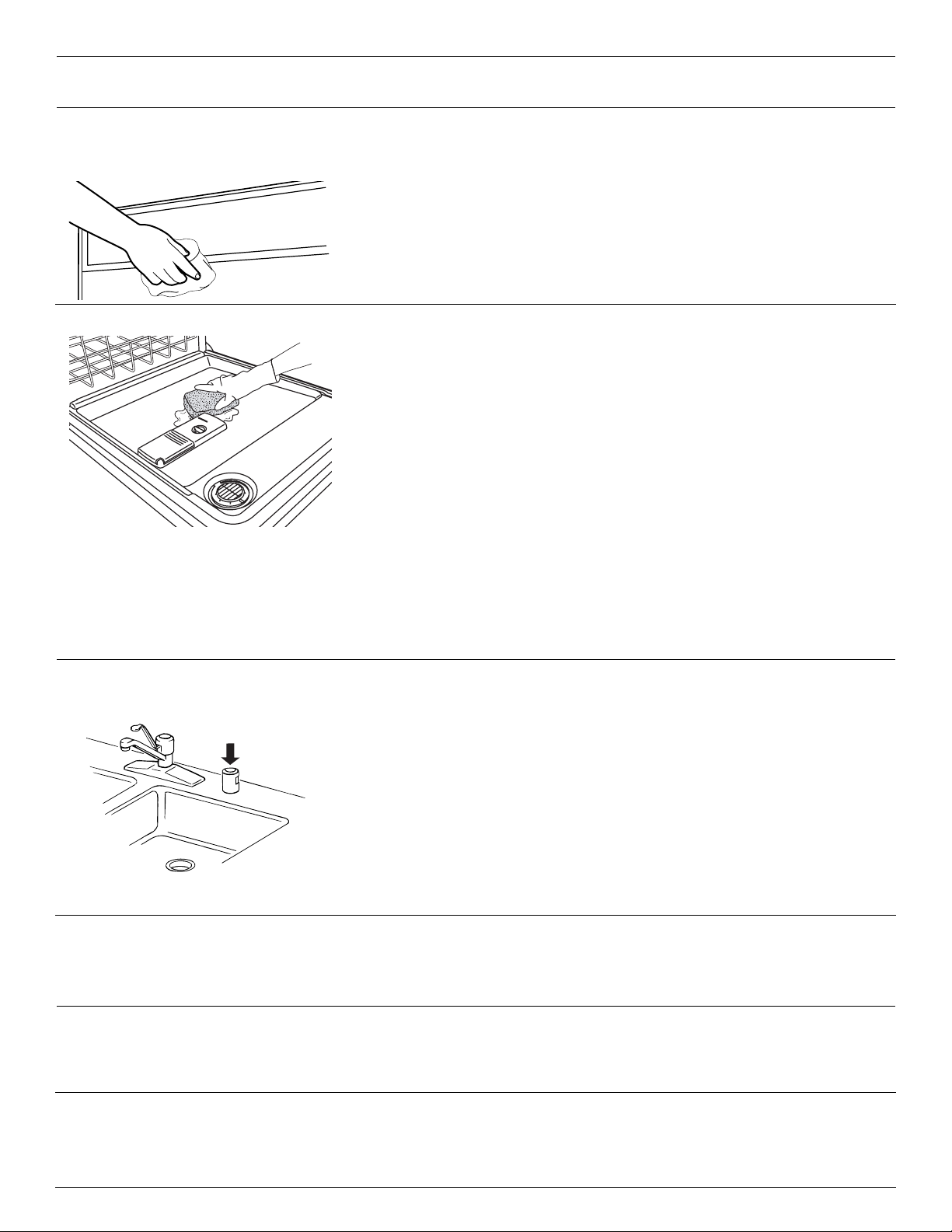

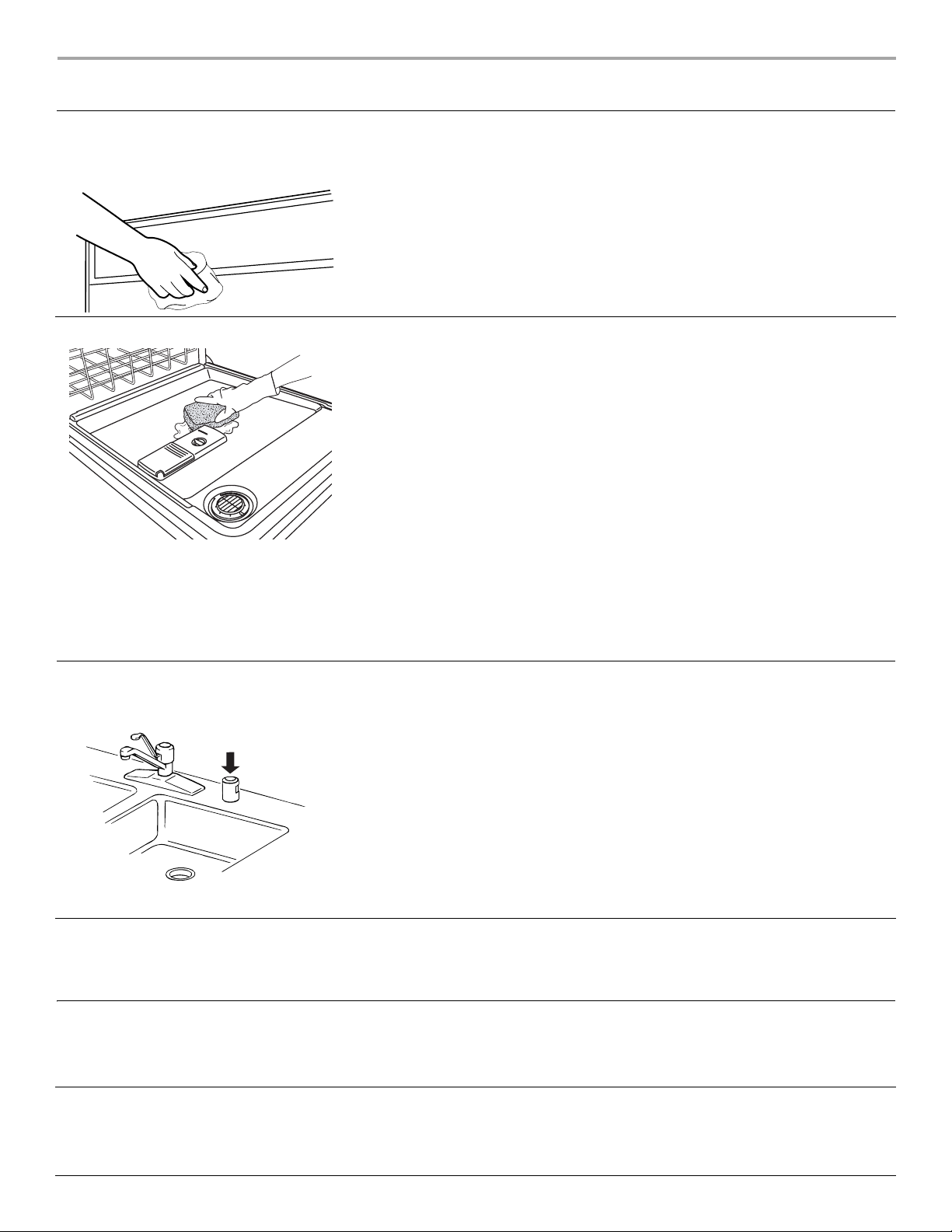

DISHWASHER CARE ...................................................................20

Cleaning..................................................................................................20

Drain Air Gap........................................................................................20

Storing.....................................................................................................20

TROUBLESHOOTING...................................................................21

SERVICE NUMBERS ..................................................BACK COVER

Master Protection Agreements

Congratulations on making a smart purchase.

Kenmore

product is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That’s when having a Master Protection Agreement can save you money and aggravation.

The Master Protection Agreement also helps extend the life of your new product. Here’s what the Agreement* includes:

✔Parts and labor needed to help keep products operating

properly u goes w

nder normal use, not just defects. Our coverage

ell beyond the product warranty. No deductibles, no functional failure excluded from coverage— r protection.

✔Expert service by a force of more than 10,000 authorized

Sears service technicians, which means someone you can trust will be working on your product.

✔Unlimited service calls and nationwide service, as often as

you want us, whenever you want us.

✔“No-lemon” guarantee – replacement of your covered

product if four or more product failures occur within twelve months.

✔Product replacement if your covered product can’t be

fixed.

✔Annual Preventive Maintenance Check at your request –

no extra charge.

Your ne w

eal

✔Power surge protection against electrical damage due to

power fluctuations.

✔$250 Food Loss Protection annually for any food spoilage

that is the result of mechanical failure of any covered refrigerator or freezer.

✔Rental reimbursement if repair of your covered product

takes longer than promised.

✔10% discount off the regular price of any non-covered

repair service and related installed parts.

Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call anytime day or night, or schedule a service appointment online.

The Master Protection Agreement is a risk free purchase. If you cancel for any reason during the product warranty period, we will provide a full refund. Or, a prorated refund anytime after the product warranty period expires. Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and additional information in the U.S.A. call 1ą800ą827ą6655.

*Coverage in Canada varies on some items. For full details

call Sears Canada at 1ą800ą361ą6665.

Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the U.S.A. or Canada call 1

ą800ą4ąMYąHOME®.

✔Fast help by phone – we call it R

apid Resolution – phone support from a Sears representative on all products. Think of us as a “talking owner’s manual.”

KENMORE APPLIANCE WARRANTY

ONE YEAR LIMITED WARRANTY

When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material or workmanship within one year from the date of purchase, call 1ą800ą4ąMYąHOME arrange for free repair.

This warranty applies for only 90 days from the date of purchase if this appliance is ever used for other than private family purposes.

THIS WARRANTY COVERS ONLY DEFECTS IN MATERIAL AND WORKMANSHIP. SEARS WILL NOT PAY FOR:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.

2. A service technician to instruct the user in correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.

6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States or Canada.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corporation

Hoffman Estates, IL 60179

Sears Canada Inc.

Toronto, Ontario, Canada M5B 2C3

DISHWASHER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or

“WARNING.” These words mean:

You can be killed or seriously injured if you don't immediately follow instructions.

can be killed or seriously injured if you don't

You follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using the dishwasher, follow basic precautions, including the following:

■ Read all instructions before using the dishwasher.

■ Use the dishwasher only for its intended function.

■ Use only detergents or rinse agents recommended for

use in a dishwasher, and keep them out of the reach of children.

■ When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal; and

2) Load sharp knives with the handles up to reduce the risk of cut-type injuries.

■ Do not wash plastic items unless they are marked

“dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.

■ Do not touch the heating element during or

immediately after use.

■ Do not operate the dishwasher unless all enclosure

panels are properly in place.

■ Do not tamper with controls.

■ Do not abuse, sit on, or stand on the door, lid, or dish

racks of the dishwasher.

■ To reduce the risk of injury, do not allow children to

play in or on the dishwasher.

■ Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

■ Remove the door or lid to the washing compartment

when removing an old dishwasher from service or discarding it.

SAVE THESE INSTRUCTIONS

State of California Proposition 65 Warnings: WARNING: This product contains one or more chemicals known to the State of California to cause cancer. WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or

other reproductive harm.

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Doing so can result in serious injury or cuts.

Electrical Shock Hazard

Electrically ground dishwasher.

Connect ground wire to green ground connector in terminal box.

GROUNDING INSTRUCTIONS

■

For a grounded, cord-connected dishwasher:

The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The dishwasher is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the

equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the dishwasher is properly grounded. Do not modify the plug provided with the dishwasher; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

■

For a permanently connected dishwasher:

The dishwasher must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the dishwasher.

SAVE THESE INSTRUCTIONS

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

■ Install where dishwasher is sheltered from the elements.

Avoid possible rupture of fill valve from freezing. Such ruptures are not covered by the warranty. See “Storing” section for winter storage information.

■ Install and level dishwasher on a floor that will hold the

weight, and in an area suitable for its size and use.

■ Remove all shipping plugs from hoses and connectors

(such as the cap on the drain outlet) before installing. See Installation Instructions for complete information.

WHAT’S NEW IN YOUR DISHWASHER...

Energy

Congratulations on purchasing your water and energy efficient dishwasher! This dishwasher cleans by spraying the dishes with water and pauses to allow the detergent to soak into and release the soils on the dishes. The cycles are longer due to the soak and pauses for exceptional cleaning. Models with SmartWash optical water sensor. The optical water sensor is used to determine the optimum water and energy consumption for great cleaning performance. The first cycle using the sensor will run longer to calibrate the optical sensor.

Performance

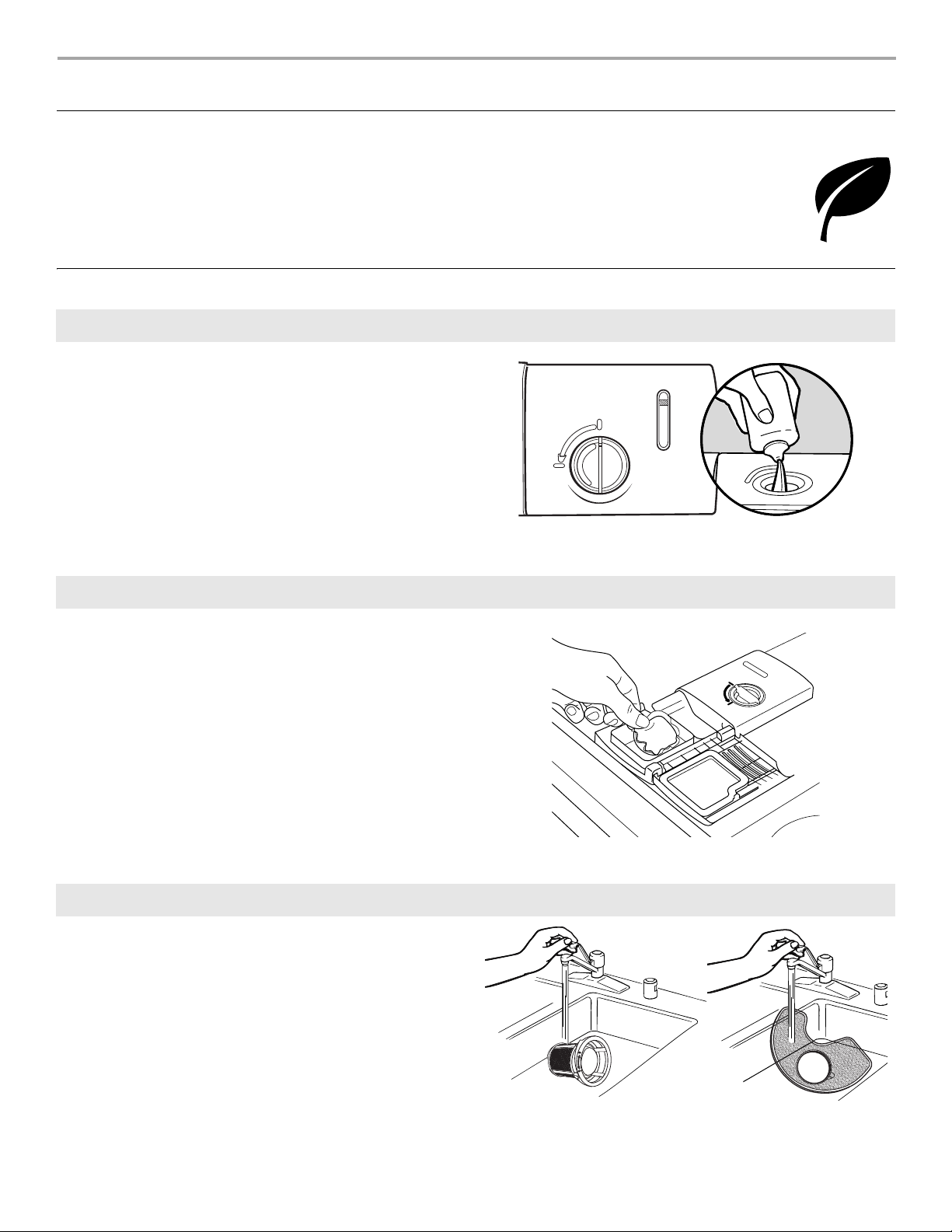

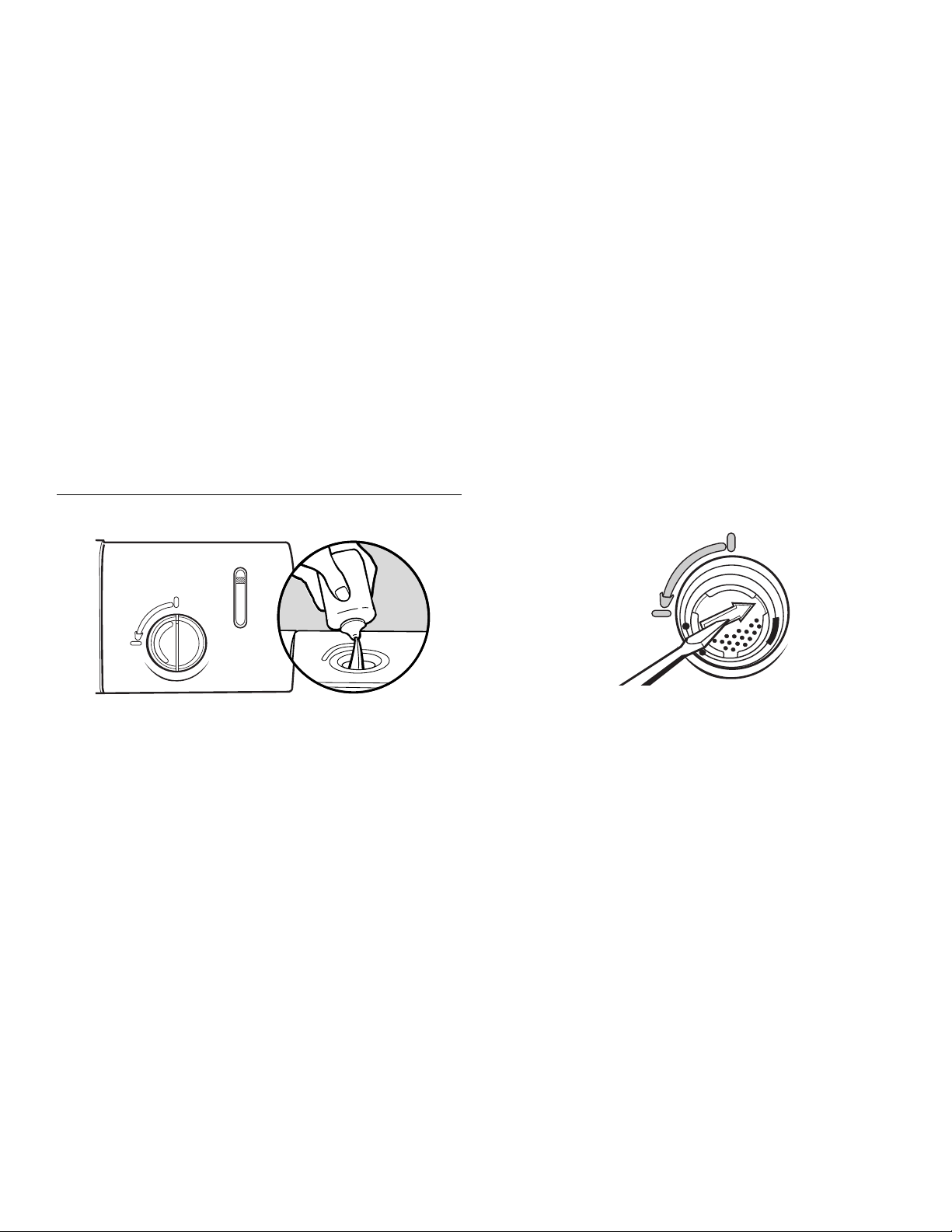

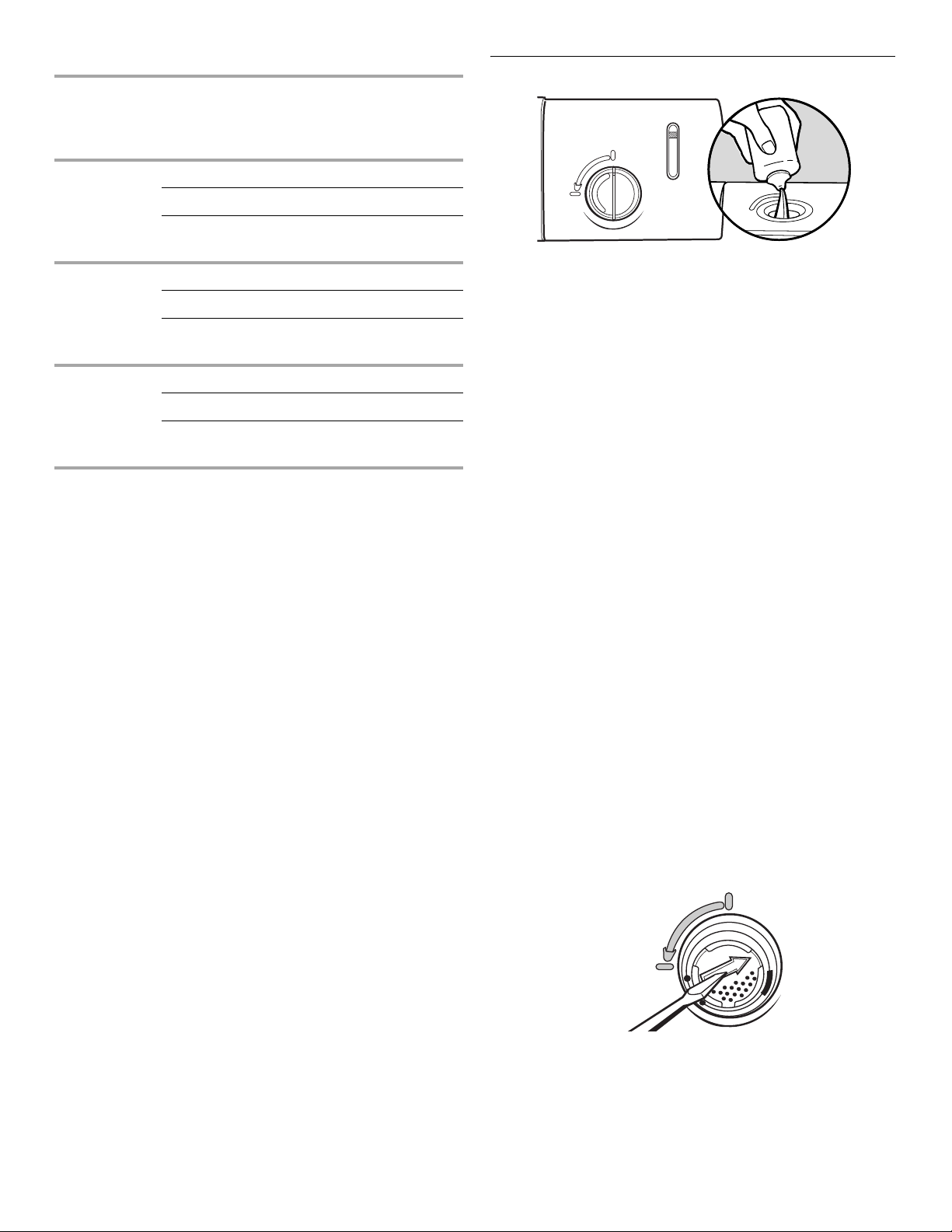

Rinse Aid

Using rinse aid will optimize your drying and wash performance. This dishwasher is specifically designed to be used with rinse aid for improved drying performance and controlling buildup of hard water deposits. Energy efficient dishwashers use less water and energy, so they depend on the water “sheeting” action of rinse aid for total optimal performance.

USE RINSE AID FOR BETTER DRYING

Refill

Lock

Full

Add

contain an

Detergent

The United States has passed a restriction limiting the amount of phosphorus (phosphates) in the household dishwasher detergents to no more than 0.5%, where previous detergents contained 8.7%. Major manufacturers have reformulated their dishwasher detergent for this change in detergents as another step in eco-conscious awareness. With these recent changes it is recommended to use tablets and packs for convenience and improved performance.

Filtration System

Your dishwasher has the latest technology in dishwasher filtration. This triple filtration system minimizes sound and optimizes water and energy conservation while providing optimal cleaning performance. Maintenance of your filters regularly will sustain peak cleaning performance. We suggest you clean both your upper and lower filter and rinse under running water at least once a month.

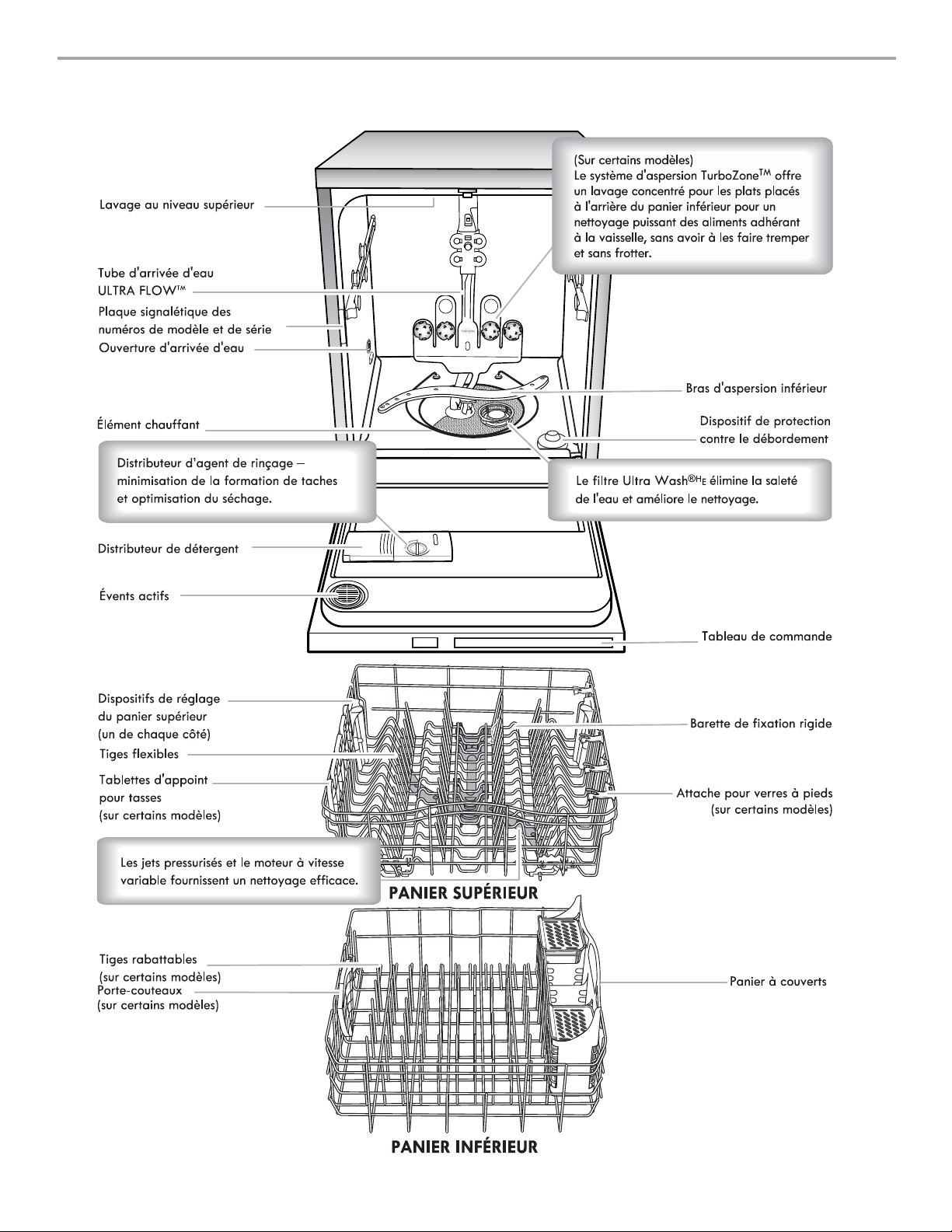

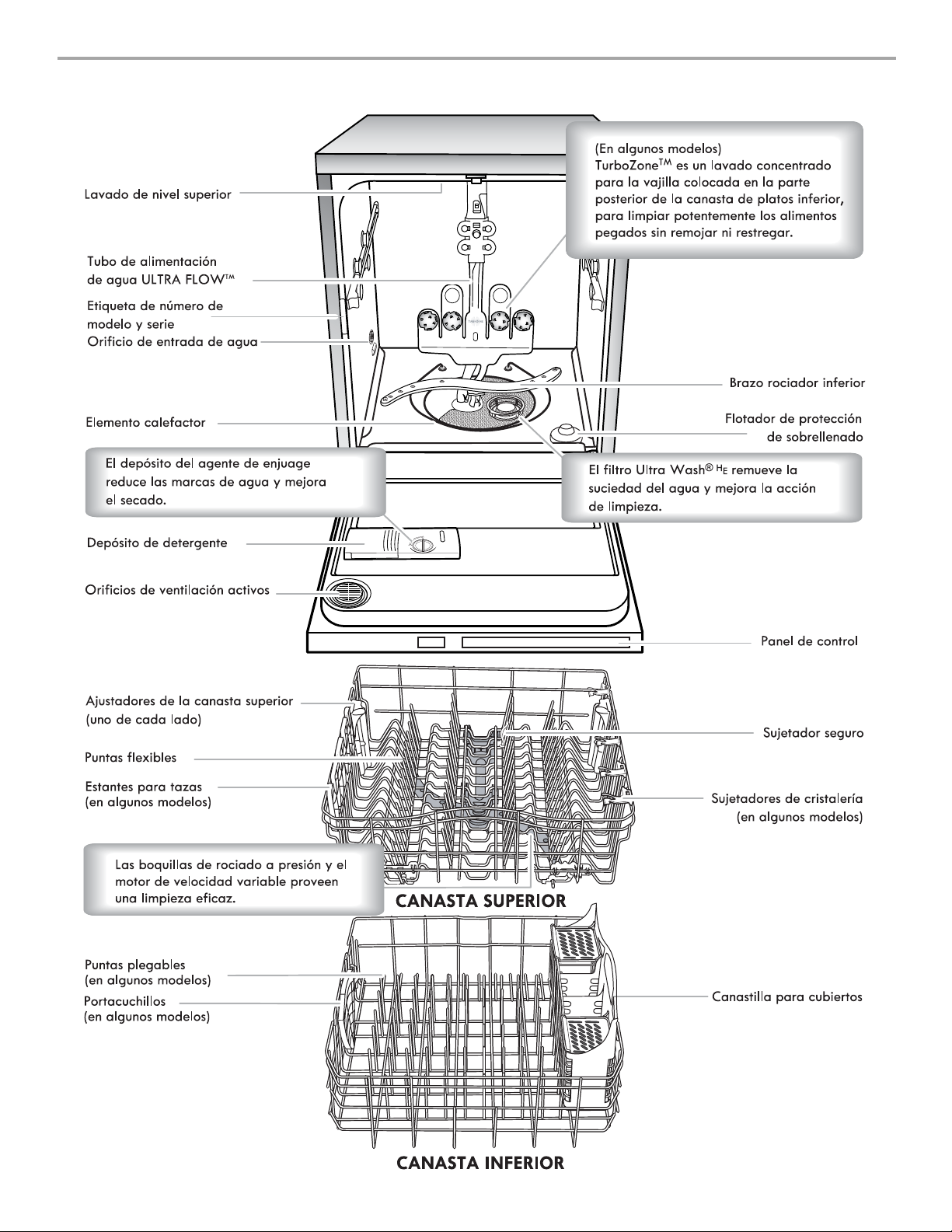

PARTS AND FEATURES

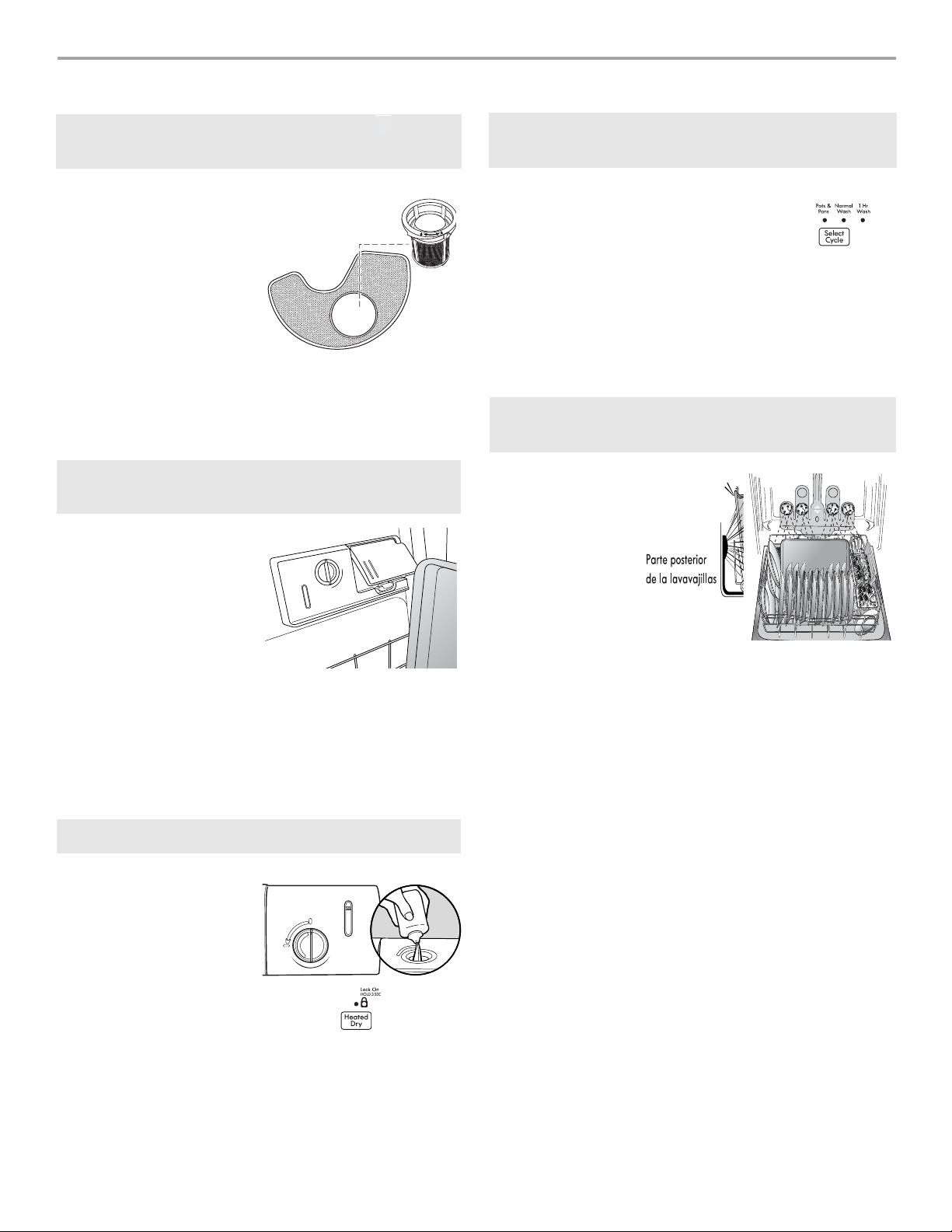

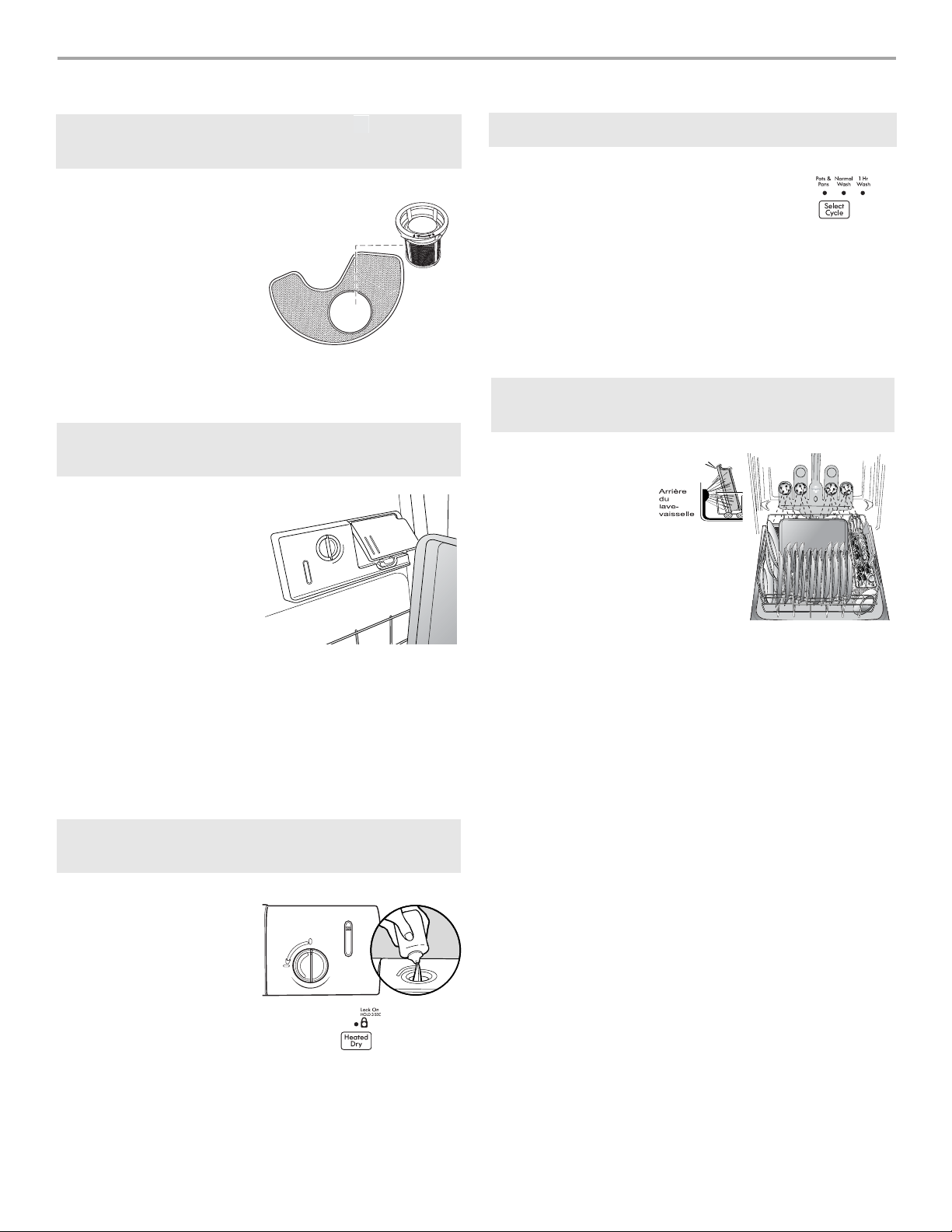

START-UP / QUICK REFERENCE (VARIES BY MODEL)

ULTRA WASH® removable filters provide peak performance.

Cleaning the filters periodically helps keep the dishwasher working at peak performance. The filters can be found at the bottom center of your dishwasher.

See “ULTRA WASH FILTRATION SYSTEM” for information on removing and maintaining the filters.

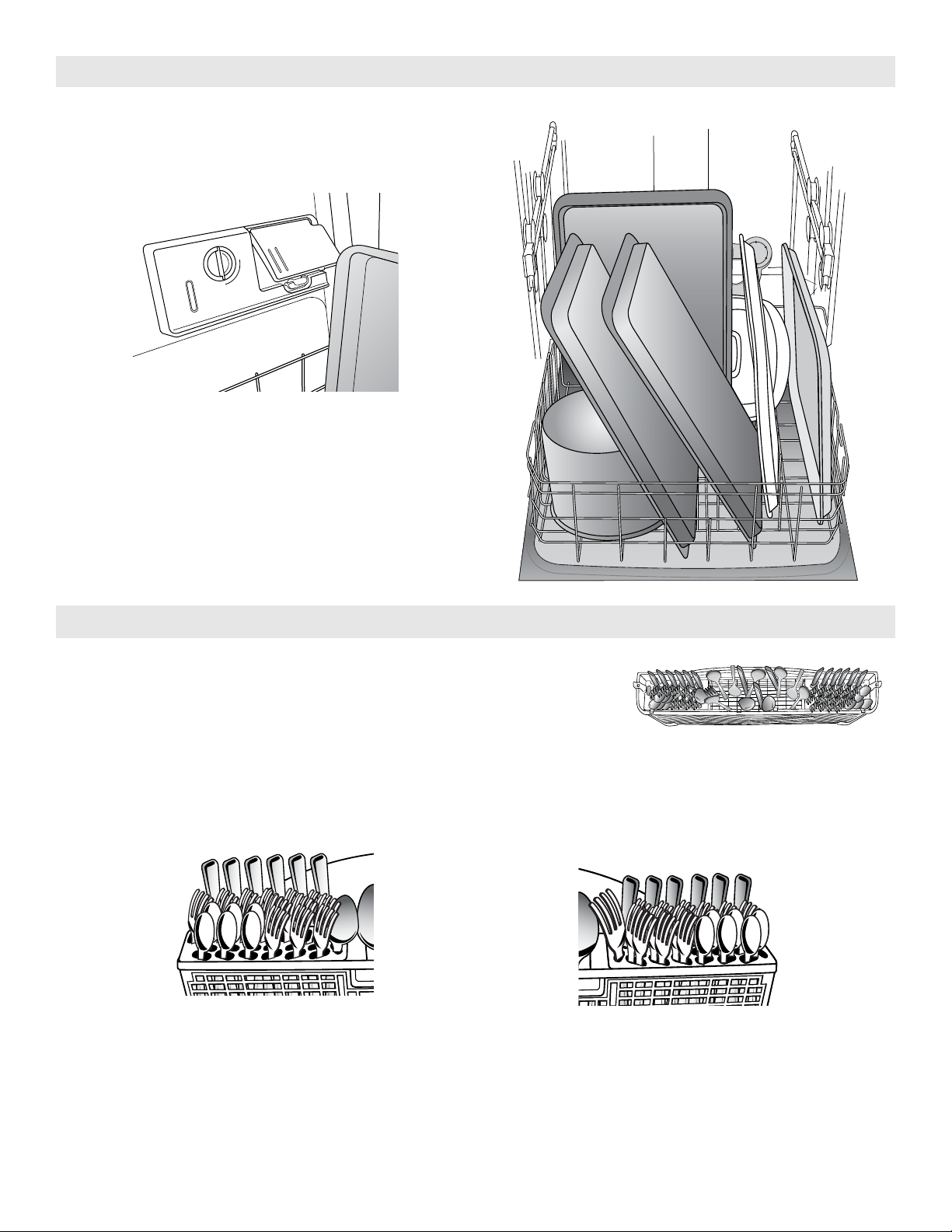

IMPORTANT: Do not block detergent dispenser.

Tall items placed in the lower rack may block the dispenser door. Cookie sheets and cutting boards loaded on the left-hand side of the dishwasher can easily block the dispenser. If detergent is inside of the dispenser or on the bottom of the tub after the cycle is complete, the dispenser was blocked.

Drying - Rinse Aid is essential.

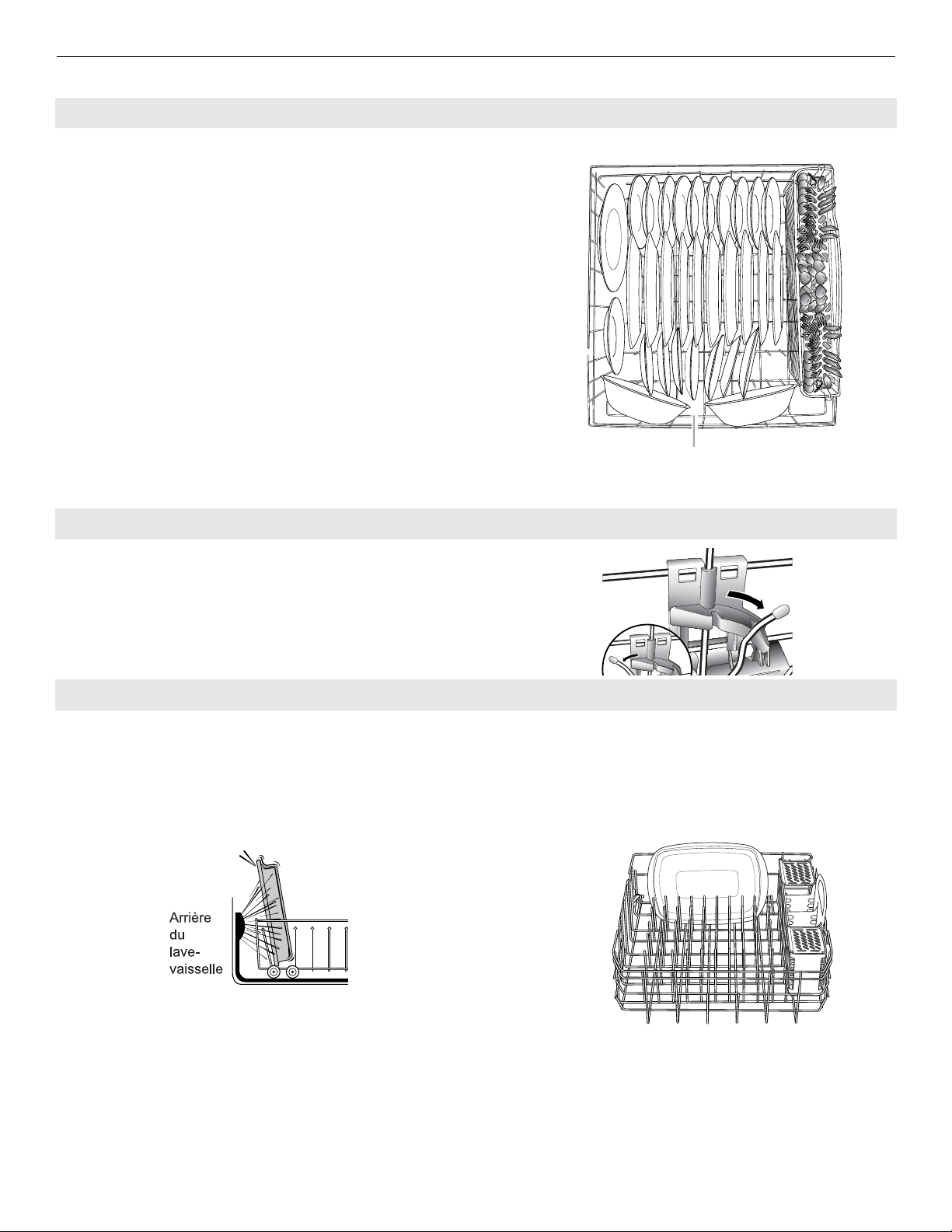

TurboZoneTM loading (on some models)

When the TurboZone™ option is selected, it

provides a concentrated wash on the back of the

Back of

dishwasher

lower dish rack for hard-to-clean dishes. Place these dishes with the soiled surface of the dish toward the TurboZone™ spray nozzles in the lower rack of the dishwasher.

Press START/RESUME every time you add a dish.

To start and resume a cycle, press START/ RESUME and close the door within 3 seconds. If the door is not closed within 3 seconds, the start button LED will flash, an audible tone will sound, and the cycle will not start.

IMPORTANT: If anyone opens the door (as, to add a dish, even during the Delay Hours option), the START/RESUME button must be pressed each time and the door closed within 3 seconds to resume the cycle.

You must use a drying agent such as a rinse aid for good drying performance (sample included). Rinse aid along with the Heated Dry

USE RINSE AID FOR BETTER DRYING

Lock

Refill

Full

Add

option will provide best drying and avoid excessive moisture in the dishwasher interior.

1 Hr Wash - When you need fast results.

High Efficiency dishwashers run longer to save water and energy just like driving a car slower saves on gas. When you need fast results, the 1 Hr Wash will clean your dishes using slightly more water and energy. For improved drying, select the Heated Dry option to add additional time to dry.

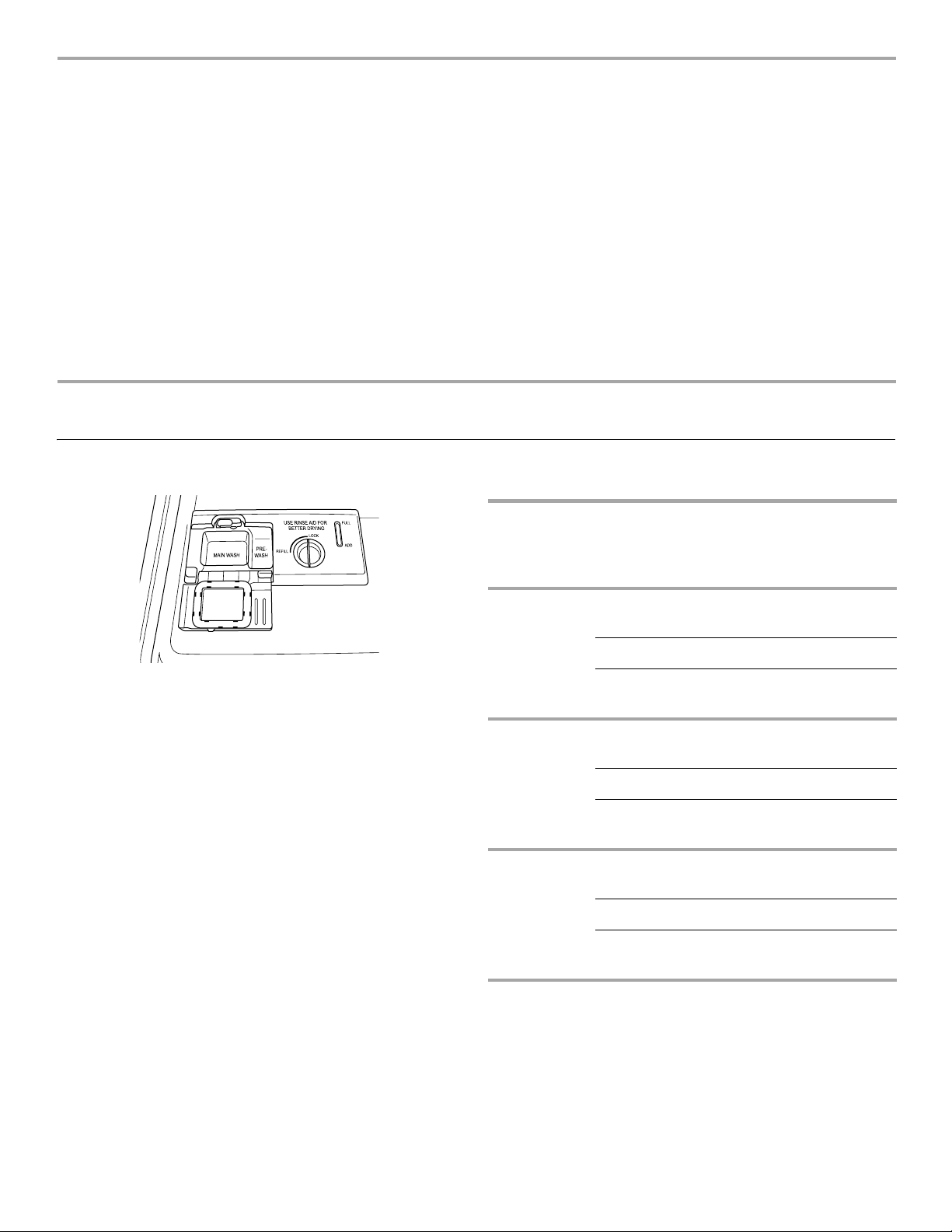

Detergent Dosing

It is possible to use too much detergent in your dishwasher. This can lead to etching of your dishes. See “Detergent and Rinse Aid” to determine the amount of detergent needed based on your water hardness. Using dishwasher detergent tablets and packs have been proven better than powder, liquid or gel detergents to reduce filming on your dishes.

ULTRA WASH

FILTRATION SYSTEM

Your dishwasher has the latest technology in dishwasher filtration. This triple filtration system minimizes sound and optimizes water and energy consumption while providing superior cleaning performance. Throughout the life of your dishwasher, the filter will require maintenance to sustain peak cleaning performance.

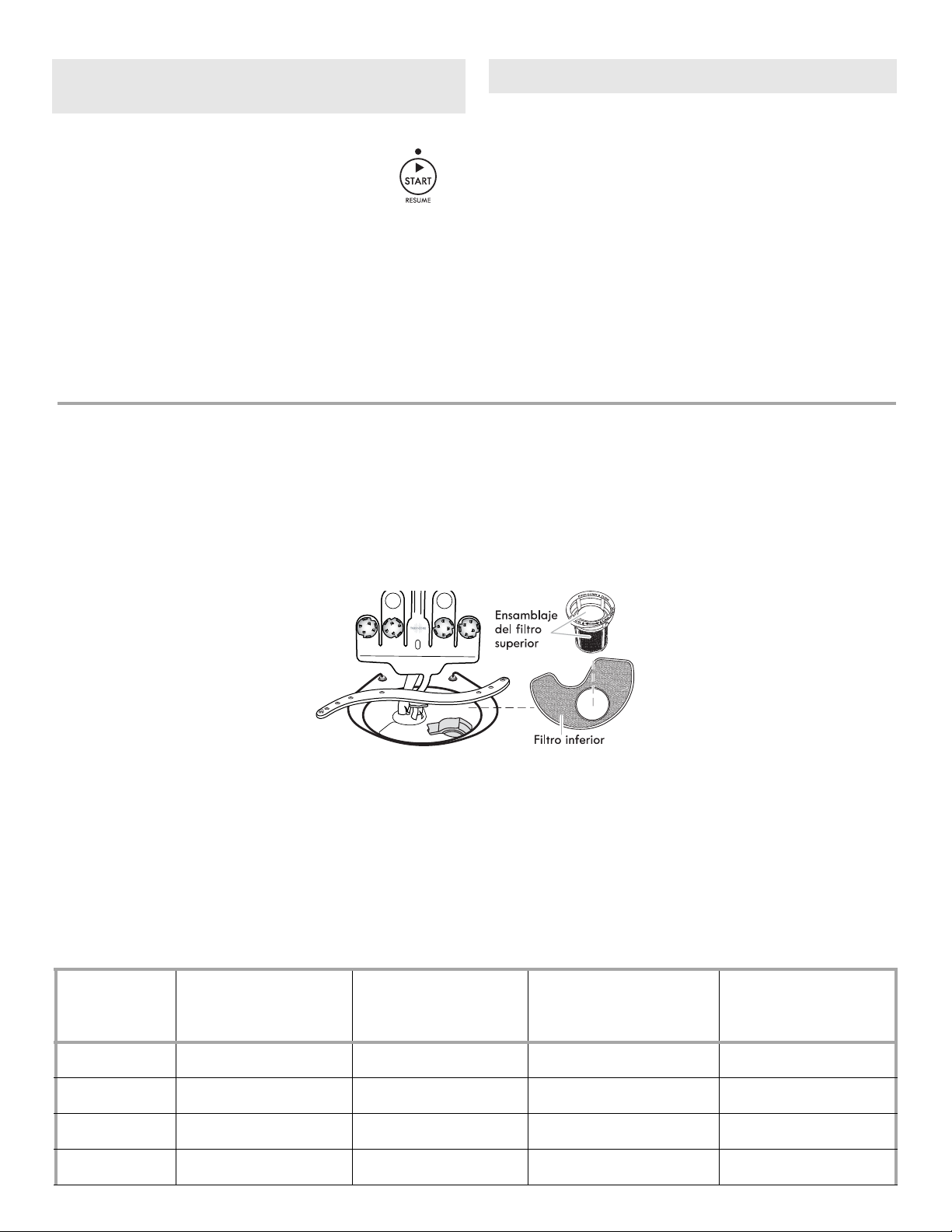

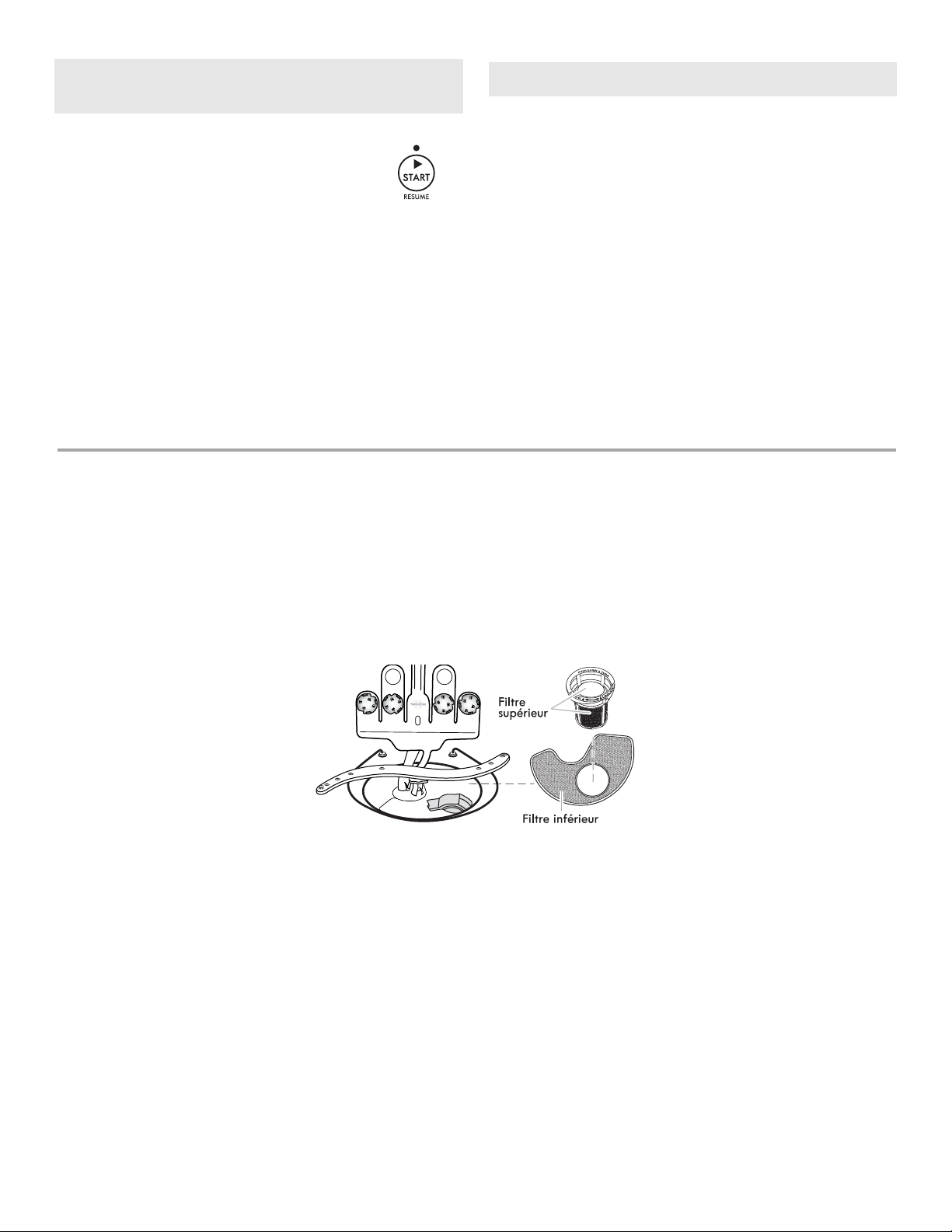

The triple filter system consists of 2 parts, an upper filter assembly and a lower filter.

■ The upper filter assembly keeps oversized items and foreign objects, along with very fine food particles out of the pump.

■ The lower filter keeps food from being recirculated onto your dishware.

In order to provide optimum cleaning performance we suggest a monthly filter maintenance by removing and inspecting both the upper and the lower filter for any soils. Based on your dishwashing habits, cleaning of the filters may be required more or less often than what is indicated in the chart below.

The filters may need to be cleaned when:

■ Visible objects or soils are on the Upper Filter Assembly.

■ There is degradation in cleaning performance (that is, soils still present on dishes).

■ Dishes feel gritty to the touch.

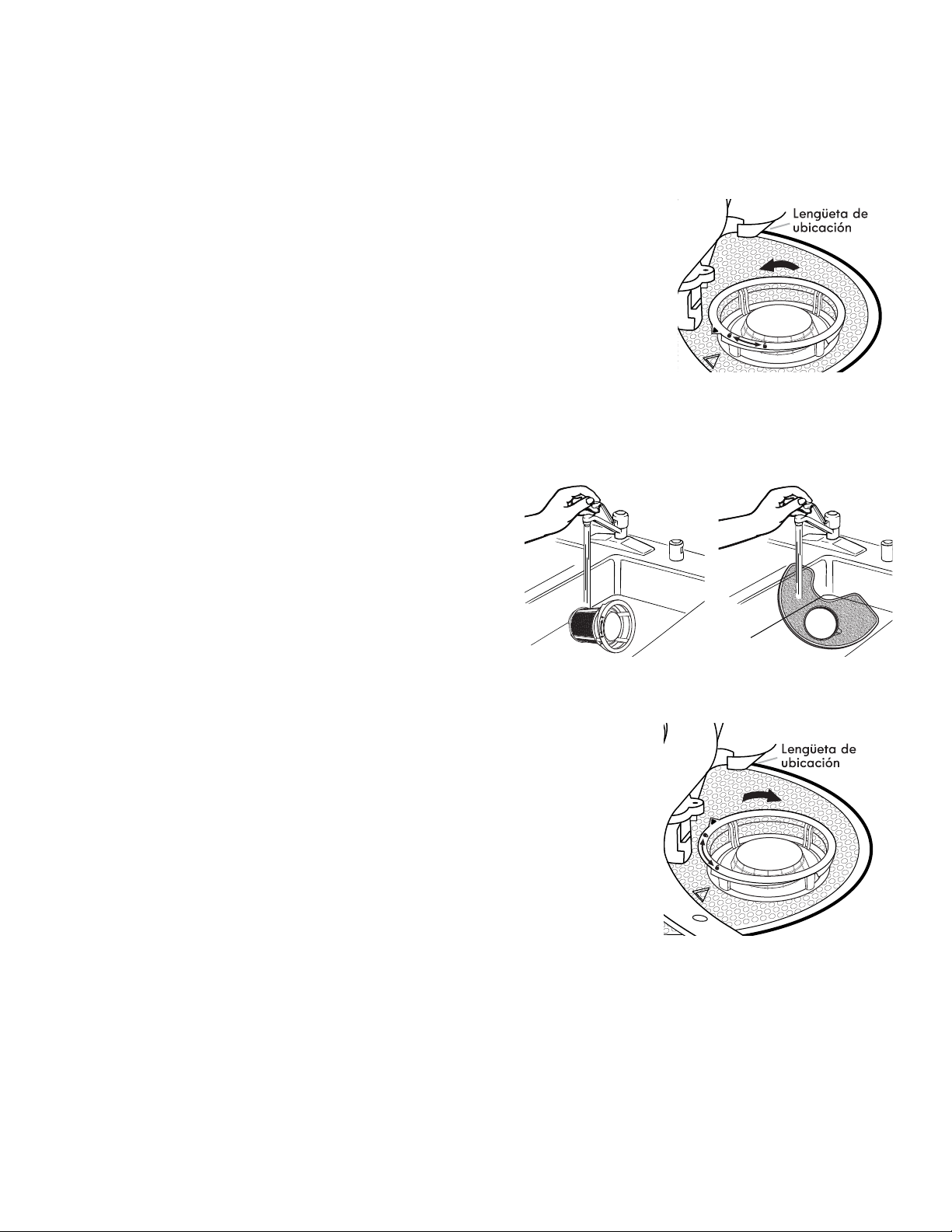

Removing and maintaining the filters is very easy. The chart below shows the recommended cleaning frequency.

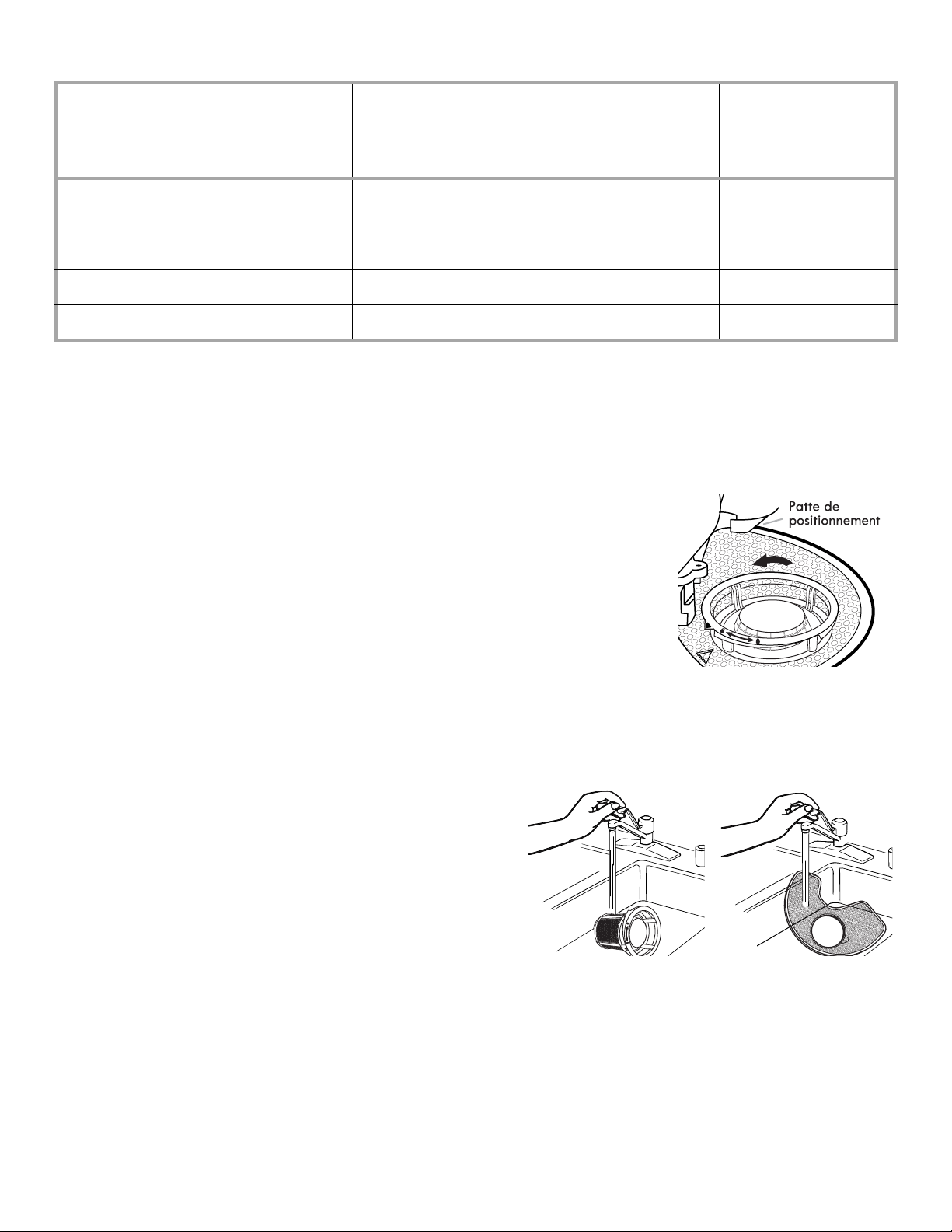

Recommended time interval to clean your filter.

Number of

Loads Per

If you wash

before loading

If you scrape and rinse

before loading

If you only scrape before

loading*

If you do not scrape or

rinse before loading

Week

13-14 Once per year Twice per year Every two months Once per week

8-12 Once per year Every four months Every two months Every two weeks

4-7 Once per year Once per year Every four months Once per month

1-3 Once per year Once per year Twice per year Every two months

*Manufacturer's recommendation: This practice will eliminate the use of water and energy that you use preparing your dishes.

This will also save you time and effort.

Very Hard Water

If you have hard water (above 15 grains), clean your filter at least once per month. Building up of white residue on your dishwasher indicates hard water. You may bring your water samples to Sears to check hardness level. For tips on removing spots and stains, see “Troubleshooting” section.

Filter Removal Instructions

1. Turn the Upper Filter Assembly ¼ turn counterclockwise and lift out.

2. Grasp the Lower Filter in the circular opening, lift slightly, and pull forward to remove.

3. If you have hard water, clean the filters at least once per month as shown below.

Cleaning Instructions

IMPORTANT: Do not use wire brush, scouring pad, etc., as they may damage the filters.

Rinse filter under running water until most soils are removed. If you have hard-to-remove soils or calcium deposits from hard water, a soft brush may be required.

Locating tab

To remove Upper Filter Assembly

Filter Reinstallation Instructions

1. Noting the previous illustrations, place the Lower Filter under the Locating Tabs in the bottom of the dishwasher so the round opening for the Upper Filter Assembly lines up with the round opening in the bottom of the tub.

2. Insert the Upper Filter Assembly into the circular opening in the Lower Filter.

3. Slowly rotate the filter clockwise until it drops into place. Continue to rotate until the

filter is locked into place. If the filter is not fully seated (still turns freely), continue to turn the filter clockwise until it drops and locks into place.

NOTE: The Upper Filter Assembly arrow does not have to align with the arrow in the Lower Filter as long as the filter is locked.

To replace Upper Filter Assembly

IMPORTANT: To avoid damage to dishwasher, do not operate your dishwasher without the ULTRA WASH® filters properly installed. Be sure the Lower Filter is securely in place and the Upper Filter Assembly is locked into place. If the Upper Filter Assembly turns freely, it is not locked into place.

Locating tab

DISHWASHER EFFICIENCY TIPS

Hot water dissolves and activates the dishwasher detergent. Hot water also dissolves grease on dishes and helps glasses dry spot-free. For best dishwashing results, water should be 120°F (49°C) as it enters the dishwasher. Loads may not wash as well if the water temperature is too low.

Additional efficiency tips

■ To save water, energy and time, only scrape dishes. Do not rinse dishes before putting them into the dishwasher.

■ Use a delay feature to run your dishwasher during off-peak hours. Local utility providers recommend avoiding heavy usage

of energy at certain times of day.

■ During the summer, run your dishwasher at night. This reduces daytime heat buildup in the kitchen.

■ Use a rinse aid to improve drying.

Detergent

DETERGENT AND RINSE AID

IMPORTANT: Extremely hard water mineral deposits (15 grains per U.S. gallon or more) can cause damage to your dishwasher and make it difficult to achieve good results. A water softener is recommended to avoid damage and achieve good results. You may bring your water samples to Sears to check hardness level.

Rinse Aid

IMPORTANT: Use only automatic dishwashing detergent. Hand dishwashing detergent will produce excessive suds and overflow out of the dishwasher.

Recommended Detergent Amount

Add recommended amount of detergent to each compartment as shown and close the detergent lid.

Powders and Gels

Water Hardness

Soft (0-4 grains

per U.S. gallon)

Medium (5-9 grains

per U.S. gallon)

Hard (10-14 grains

per U.S. gallon)

*Full pre-wash compartment contains 7 tsp (35 mL), and full

main wash compartment contains 9 tsp (45 mL).

Soil Level

Light None

Pre-Wash Compartment

Main Wash Compartment

¹⁄₂

Normal None ¹⁄₂

Heavy Full ¹⁄₂

Light None ¹⁄₂

Normal ¹⁄₂ ¹⁄₂

Heavy Full* Full*

Light

¹⁄₂ Full*

Normal Full* Full*

Heavy Full* Full*

Premeasured Detergents

Many detergents now come in premeasured forms (gel packs, tablets, or powder packs). These forms are suitable for all hardness and soil levels. Always place premeasured detergents in the main compartment and close the lid.

Using dishwasher detergent tablets and packs have been proven better than powder, liquid or gel detergents to reduce filming on your dishes. By using these tablets and packs, over time this will start to reduce or eliminate white film. Also, by using a rinse aid you can minimize repeat buildup of white film.

USE RINSE AID FOR BETTER DRYING

Refill

Lock

Full

Add

IMPORTANT: Your dishwasher is designed to use a liquid rinse aid. The use of rinse aids greatly improves drying by allowing water to drain from the dishes after the final rinse. They also keep water from forming droplets that can dry as spots or streaks.

Filling the dispenser

The dispenser holds 5 oz (150 mL) of rinse aid. Under most conditions this will last 1 to 3 months.

1. Turn the knob to the REFILL position and remove.

2. Pour rinse aid into the opening until the indicator points to FULL. Do not overfill.

3. Clean up any spilled rinse aid. Spilled rinse aid can create excessive suds.

4. Replace the knob and turn to the LOCK position.

NOTE: Indicator reads correct fill level when door is completely opened.

Rinse Aid Setting

Your rinse aid dispenser is adjustable. For most water conditions, the factory setting of 3 will give good results. If you have hard water and notice calcium buildup (water spots) on your dishware, you may want to try a higher setting. If you notice foam in your dishwasher, use a lower setting.

Lock

Refill

fill

To adjust the setting

1. Turn the knob to the REFILL position and remove.

2. Turn the arrow inside the dispenser to the desired setting.

3. Replace the knob and turn to the LOCK position.

Loading For Best Cleaning and Drying Performance

1. Angle dirtiest dish surfaces downward and allow space for water to flow up through each rack and between dishware.

Separating allows water flow.

2. For best silverware cleaning use the slots in the covers to keep items separated.

4. Angle concave surfaces such as the bottom of coffee cups to allow water to drain and improve drying performance.

Angled surfaces

5. Check that all spray arms spin freely before every cycle.

Separated

3. Use TURBOZONE™ (on some models) option with your dirtiest items facing toward the lower back.

Soil facing T

URBOZONE

™ spray jets

Spray arms spin freely.

6. Place cups and glasses in the rows between tines.

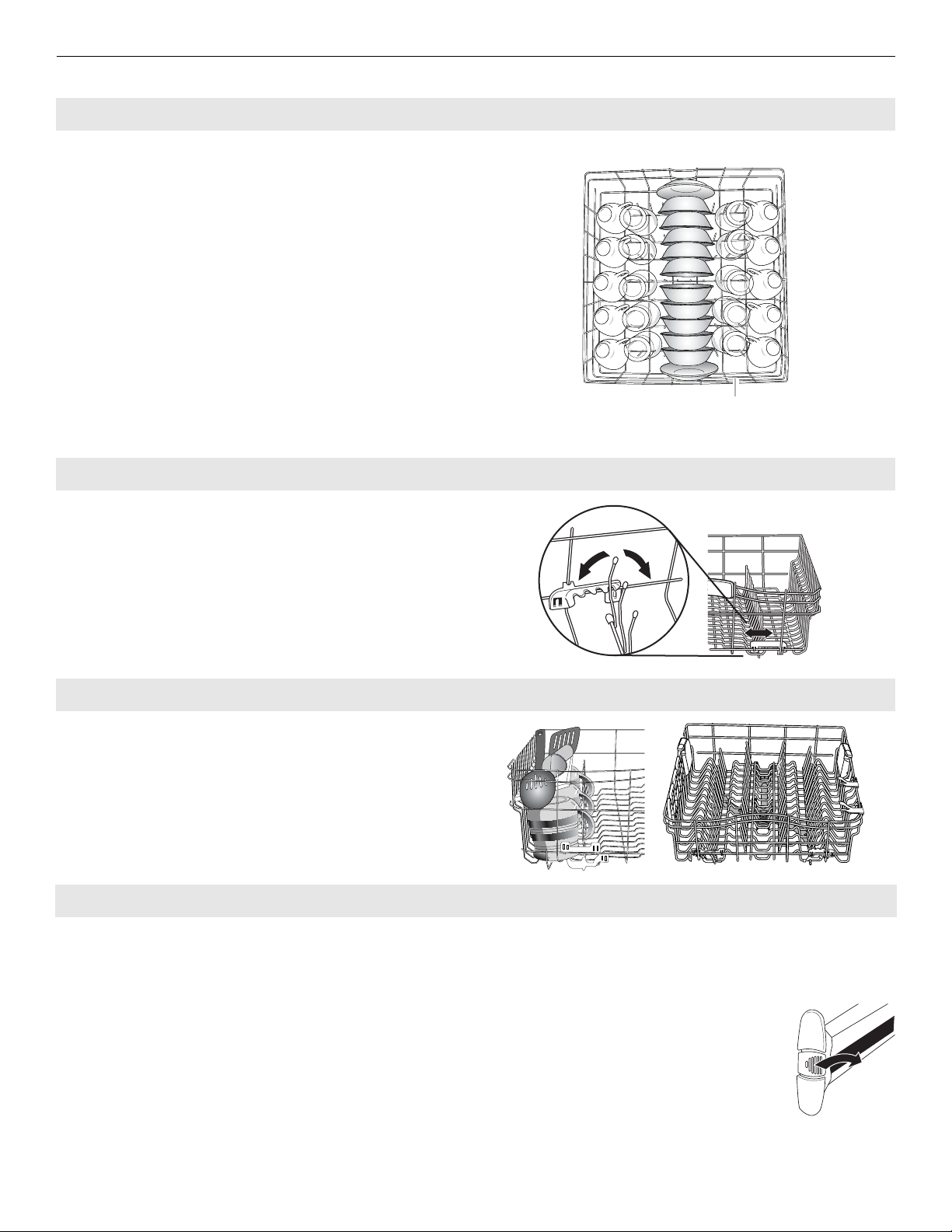

Top Rack Loading

Loading Recommendations

Place cups and glasses in the rows between tines. Placing them over the tines can lead to breakage and water spots. To avoid damage to your delicate items, be sure china, crystal, stemware and other similar items do not touch during dishwasher operation.

Load lightweight and dishwasher-safe plastic items only in the top rack.

Flexible Tines

The row of tines on the left-hand and right-hand sides of the top rack can be adjusted to make room for a variety of dishes.

Front

10 place load

Cup Shelves and Stem Ware Clips (on some models)

Fold down the extra shelf on either side of the top rack to hold additional cups, stemware or long items such as utensils and spatulas.

Removable Top Rack

The removable rack allows you to wash larger items such as stock pots, roasters, and cookie sheets in the lower level rack. IMPORTANT: Remove dishes prior to removing the upper rack from the dishwasher.

To remove the rack (push tab rack stop):

1. Roll the rack

2. Remove each plastic push tab rack stop from the end of each track by pushing inward toward the rack on the ridged area of the rack stop. The rack stop will snap open and can be easily removed by pulling straight out. Be sure to support the track while removing rack stops.

3. Roll the rack all the way out of the track and remove from the dishwasher.

To replace the rack:

Reverse the above steps 1-3 to replace the rack into the dishwasher.

¹⁄₃ to ¹⁄₂ of the way out.

Bottom Rack Loading

Loading Recommendations

The bottom rack is best suited for plates, pans, casserole dishes, and utensils. (See recommended loading patterns shown.)

Load small items in the bottom rack only if they are secured in place.

Load plates, soup bowls, etc., between tines. Load bowls securely between the rows of tines. Ensure that

there is space between dishes so that the spray will reach all surfaces.

Load heavily soiled items facing the spray. NOTE: Ensure that detergent dispenser is not blocked by tall

items such as cookie sheets and cutting boards placed at the left-hand front of rack. See “Start Up/Quick Reference” section.

Fold-Down Tines (on some models)

Front

10 place load

You can fold down one row of tines at the back of the bottom rack in order to accommodate larger dishware.

Keep this tine row in the 60° position when using the TURBOZONE

(on some models) option.

IMPORTANT: When moving tine row to the flat position, fold only the tine row toward the front of the dishwasher.

TURBOZONE™ Loading (on some models)

IMPORTANT: For proper performance, only one row of items may face the TURBOZONE™ spray jets. You mu st s el ec t t he T Load pans, casserole dishes, etc., with the soiled surfaces facing the T

located at the back of the lower dish rack.

URBOZONE™ wash option to utilize this wash feature.

URBOZONE™ spray jets. TURBOZONE™ wash area is

Back of

dishwasher

Loading Tall Items

You can wash larger items such as pots, roasters, and cookie sheets in the bottom rack by removing the top rack. See “Top Rack Loading” section.

IMPORTANT: Do not block detergent dispenser.

Loading Silverware

Use suggested loading patterns, as shown, to better clean your silverware. Use the slots in the covers to keep your silverware separated for optimum wash.

(See illustration, right.) NOTE: If your silverware does not fit into the designated slots, flip the covers up and

mix silverware types to keep them separated. Load knives down, forks up, and alternate spoons as illustrated, for best cleaning results. Load taller silverware items to the back and shorter to the front of basket.

Left-side silverware basket Right-side silverware basket

DISHWASHER USE

Cycles and Options Information (on some models)

Time* (mins.)

Cycles Soil Level

Pots & Pans

Works best on your toughest items such as casseroles with baked-on food residue. Use with T models) option to get the best cleaning of baked-on soils.

Normal Wash

Senses the soil level and makes adjustments in the water and energy used. The Energy Guide information is based on this cycle.

1 Hr Wash

To save water and energy, High Efficiency dishwashers use advanced filtration which may result in longer cycle times (in some cases over 2 hours). When you need fast results, the 1 Hr Wash will clean your dishes using slightly more water and energy. For improved drying, select the Heated Dry option.

*Adding options will add time to the cycle. See options information section. **This is the approximate cycle time obtained with 120°F (49°C) hot water available at the dishwasher. Increase in time results

from low temperature of the incoming water.

URBOZONE™ (on some

All soil levels 125 200

All soil levels 105 155

All soil levels 58 62

w/o Options

Typical** Max

Water Usage

Gallons

(Liters)

7. 4

(28.0)

4.6

(17.6)

5.8

(22.0)

Options

High Temp

Raises the main wash temperature to improve cleaning. When used with the Normal Wash cycle this will provide a little extra tough cleaning capability, but not as much as the Pots & Pans cycle.

Can be selected

with

Pots & Pans

Normal Wash

What it does

Raises the main wash temperature from 105°F (41°C) to 130°F (49°C).

Added time to cycle Added

Water

Typical Max

25 45

Gallons

(Liters)

0 - 1.8

(0 - 7.0)

†

Sani Rinse

This high temperature option sanitizes your dishes and glassware in accordance with National Sanitation Foundation (NSF)/ANSI Standard 184 for Residential Dishwashers. Certified residential dishwashers are not intended for licensed food establishments. The Sani indicator indicates at the end of the cycle whether the Sani Rinse option was successfully completed. If the indicator does not activate, it is probably due to the cycle being interrupted.

Heated Dry

Turns the heat element on after the wash cycle is completed. Use rinse aid with or without the Heated Dry option for best drying results. Plastic items are less likely to deform when loaded in the top dish rack.

Pots & Pans

Normal Wash

Available with

any cycle

except

Quick Rinse

Increases the main wash temperature from 105°F (41°C) to 120°F (49°C) and the final rinse from 140°F (60°C) to 155°F (68°C).

Turns the heat element on at the end of the wash cycle.

55 100

0 - 1.8

(0 - 7.0)

32 32 0

†

The maximum additional water used for any combination of options is 2.6 gal. (10.0 L).

Dishwasher Control Section

Delay Hours (on some models)

Use this option to run your dishwasher during off-peak hours. Local utility providers recommend using energy during off-peak hours when possible.

To delay the sta rt

1. Select a wash cycle and options.

2. Press the delay button.

3. Press START/RESUME. NOTE: Anytime the door is opened (such as, to add a dish), the START/RESUME button must be pressed again, to resume the

delay countdown.

Control Lock Option

Use the Control Lock option to avoid unintended use of the dishwasher between cycles. When LOCK ON is lit, all buttons are disabled. The dishwasher door can still be opened/closed while the controls are locked.

To turn on the Lock

Press and hold CONTROL LOCK for 3 seconds. LOCK ON will light up. If you press any pad while your dishwasher is locked, the light flashes 3 times and an audible tone will sound.

NOTE: The dishwasher cannot start if the control is locked.

To turn off the Lock

Press and hold CONTROL LOCK for 3 seconds. The light turns off.

Dishwasher Feedback Section

Selecting Cycles and Options

1. Select the desired cycle. If you want to run the last cycle that was completed, you can simply press START once to show which options you used, then press START again to start the cycle.

2. Select the desired options. Not all options are available for every cycle. If an invalid option is selected for a given cycle, the lights will flash.

Turning OFF/ON the Sound

Press and hold HIGH TEMP for 3 seconds to toggle sound ON and OFF. The sound will not be deactivated for cycle interrupt or service required messages.

Canceling A Cycle

1. Open the door slightly to stop the cycle. Wait for the spraying action to stop before completely opening the door.

2. Press CANCEL/DRAIN button once. The Cancel/Drain light will light up.

3. Close the door within 3 seconds. The dishwasher starts a drain cycle (if water remains in bottom of dishwasher). Let the dishwasher drain completely. The Cancel/Drain light turns off after 2 minutes.

Changing A Cycle After Dishwasher Is Started

You can interrupt a cycle and restart your dishwasher from the beginning using the following procedure.

1. Open the door slightly to stop the cycle. Wait for the spraying action to stop, then open the door completely.

2. Check that detergent dispenser cover is still closed. If cover is open, you will need to refill the detergent dispenser before restarting your new cycle.

3. Press Cancel/Drain twice to reset the control.

4. Select new cycles and options.

5. Press START/RESUME.

WASHING SPECIAL ITEMS

If you have doubts about washing a particular item, check with the manufacturer to see if it is dishwasher safe.

Material Dishwasher Safe? Comments

Aluminum Yes High water temperature and detergents can affect finish of

anodized aluminum.

Disposable Aluminum No Do not wash disposable aluminum pans in the dishwasher. These

might shift during washing and transfer black marks to dishes and other items.

Bottles and Cans No Wash bottles and cans by hand. Labels attached with glue can

loosen and clog the wash system and reduce washing performance.

Cast Iron No Seasoning will be removed and then will rust.

China/Stoneware Yes Always check manufacturer’s recommendations before washing.

Antique, hand-painted, or over-the-glaze patterns may fade. Gold leaf can discolor or fade.

Crystal Yes Always check manufacturer’s recommendations before washing.

Some types of leaded crystal can etch with repeated washing.

Gold No Gold-colored flatware will discolor.

Glass Yes Milk glass material yellows with repeated dishwasher washing.

Hollow-Handle Knives No Handles of some knives are attached to the blade with adhesives

which can loosen if washed in the dishwasher.

Pewter, Brass, Bronze, and Copper

Disposable Plastics No Cannot withstand high water temperatures and detergents.

Plastics Yes Always check manufacturer’s recommendations before washing.

Stainless Steel Yes Run a rinse cycle if not washing immediately. Prolonged contact with

Sterling Silver or Silver Plate

No High water temperatures and detergent can discolor or pit the finish.

Plastic items may vary in their ability to withstand high temperatures and detergents. It is recommended that lightweight items such as lids and butter dishes be placed in the upper rack only. Sturdy items such as coolers and high-chair trays may be placed in the lower rack. When washing plastic items in the lower rack, it is recommended not to use the Heated Dry option.

food containing salt, vinegar, milk products, or fruit juice can damage finish.

Yes Run a rinse cycle if not washing immediately. Prolonged contact with

food containing salt, acid, or sulfide (eggs, mayonnaise, and seafood) can damage finish.

Tin No Not recommended.

Wooden Ware No Wash by hand. Always check manufacturer’s instructions before

washing. Untreated wood can warp, crack, or lose its finish.

Large Casserole Section Yes There may be certain casserole dishes that may not fit in front of the

TurboZone™ (on some models) feature in the back of the lower dish rack. Adjust the tines as necessary to load the large dishes.

Cleaning the exterior

DISHWASHER CARE

Cleaning

In most cases, regular use of a soft, damp cloth or sponge and a mild detergent is all that is necessary to keep the outside of your dishwasher looking nice and clean. If your dishwasher has a stainless steel exterior, a stainless steel cleaner is recommended.

Cleaning the interior

Hard water minerals can cause a white film to build up on the inside surfaces, especially just beneath the door area.

Do not clean the dishwasher interior until it has cooled. You may want to wear rubber gloves. Do not use any type of cleanser other than dishwasher detergent because it may cause foaming or sudsing.

To clean interi or

Make a paste with powdered dishwasher detergent on a damp sponge and clean. OR Use liquid automatic dishwasher detergent and clean with a damp sponge. OR See the vinegar rinse procedure in “Spotting and filming on dishes” in

“Troubleshooting” section. NOTE: Run a normal cycle with dishwasher detergent after cleaning the interior.

Drain Air Gap

Some state or local plumbing codes require the addition of a drain air gap between a built-in dishwasher and the home drain system. Check the drain air gap if your dishwasher is not draining well.

The drain air gap is usually located on top of the sink or countertop near the dishwasher. To order a drain air gap, please call 1 Part Number 300096.

NOTE: The drain air gap is an external plumbing device that is not part of your dishwasher. The warranty provided with your dishwasher does not cover service costs directly associated with the cleaning or repair of the external drain air gap.

-800-4-MY-HOME

. Ask for

To clean the drain air gap

Storing for the summer

Storing for the winter

Clean the drain air gap periodically to ensure proper drainage of your dishwasher. With most types, you lift off the chrome cover. Unscrew the plastic cap. Then check for any soil buildup. Clean if necessary.

Storing

If your dishwasher is not in use during the summer months, turn off the water supply and power supply to the dishwasher.

Avoid possible water damage to your home and dishwasher due to freezing water lines. If your dishwasher is left in a seasonal dwelling or could be exposed to near freezing temperatures, have your dishwasher winterized by authorized service personnel.

CHECK THESE POINTS TO HELP SAVE YOU TIME AND MONEY.

PROBLEM SOLUTION

TROUBLESHOOTING

DISHWASHER DOES NOT RUN

NOTE: It is normal for the dishwasher to repeatedly pause several times during a cycle. If the Start/Resume light is blinking, close the door and push START/RESUME. Be sure the door is closed and latched. Check that there is not an interference with large casserole dishes and the wash system at

the back of the dishwasher. Adjust loading as necessary to ensure door is closed and latched.

Be sure you have selected a cycle. (See “Cycles and Options Information.”) Be sure there is power to the dishwasher. A circuit breaker or fuse may have tripped. If lights other than Start/Resume blink and the unit will not run, you will need to call for

service.

DETERGENT REMAINS IN THE DISPENSER OR TABLET IS ON BOTTOM OF TUB

Check for dishware such as cookie sheets, cutting boards, or large containers, etc., that may be blocking the detergent dispenser from opening properly.

Be sure your detergent is fresh and lump free. Be sure the cycle has completed (green or blue light is on). If it has not completed, you will

need to resume the cycle by closing the door and pressing START/RESUME.

CYCLE RUNS TOO LONG NOTES:

■ To use less water and reduce energy consumption you will encounter cycles that

typically run for up to 3 hours.

■ A water heater setting of 120°F (49ºC) is best, the dishwasher will delay longer while

heating cooler water.

■ Some options will add time to the cycle. (See “Cycles and Options Information” section.)

The Heated Dry option adds ½ hour. Try the 1 Hr Wash cycle. Run the hot water at a faucet close to the dishwasher before starting the cycle.

DISHWASHER NOT DRYING NOTE: Plastic and items with nonstick surfaces are difficult to dry because they have a

porous surface which tends to collect water droplets. Towel drying may be necessary. Use of rinse aid along with the Heated Dry option is needed for proper drying. Proper loading of items can affect drying. (See specific loading instructions within this

guide.) Glasses and cups with concave bottoms hold water. This water may spill onto other items

when unloading.

■ Unload the bottom rack first.

■ Locate these items on the more slanted side of the rack for improved results.

WILL NOT FILL Be sure the water is turned on to the dishwasher.

Check that the float is free from obstructions. (See “Parts and Features.”) Check for suds in the dishwasher. If foam or suds are detected, the dishwasher may not

operate properly or may not fill with water.

PROBLEM SOLUTION

WATER REMAINS IN THE TUB/WILL NOT DRAIN

Be sure the cycle has completed (the green or blue light is on). If it has not, you will need to resume the cycle by closing the door and pressing START/RESUME.

If dishwasher is connected to a food waste disposer, be sure the knockout plug has been removed from the disposer inlet.

Check for kinks in the drain hose. Check for food obstructions in the drain, air-gap, or disposer. Check your house fuse or circuit breaker.

HARD WATER (WHITE RESIDUE ON DISHWASHER INTERIOR OR GLASSWARE)

NOTE: Extremely hard water mineral deposits can cause damage to your dishwasher and make it difficult to achieve good cleaning. You may bring water samples to Sears to check your water hardness level. A water softener is strongly recommended if your hardness is 15 grains or more. If a water softener is not installed, the following steps may help:

Use a commercial cleaner designed for dishwashers once per month.

Clean the ULTRA WASH

filters at least once per month. Always use a rinse aid. Always use a high-quality, fresh detergent. Use a detergent booster/water softener additive designed for dishwashers.

ODORS NOTE: If the dishwasher is not used daily, you can run a rinse cycle with the partial load

daily until a full load is ready to run, or use the Top Rack Only option (on some models) for partial loads.

Run a vinegar rinse through the dishwasher by putting 2 cups (500 mL) of white vinegar in an upright glass measuring cup in the lower rack. Run a normal cycle with the Heated Dry option turned off. Do not use detergent.

The dishwasher may not be draining properly, see “WATER REMAINS IN THE TUB/WILL NOT DRAIN” in “Troubleshooting.”

NOISY NOTES:

■ Surging sounds can occur periodically throughout the cycle while the dishwasher is

draining.

■ Normal water valve hissing may be heard periodically.

■ A normal snap sound may be heard when the detergent dispenser opens during the

cycle and when the door is opened at the end of the cycle.

■ Improper installation will affect noise levels.

Be sure the filters are properly installed. A thumping sound may be heard if items extend beyond the racks and interfere with the

wash arms. Readjust the dishware and resume the cycle.

FOOD SOILS REMAIN ON DISHES

Be sure the dishwasher is loaded correctly. Improper loading can greatly decrease the washing performance (see “Loading for Best Performance”).

Check filter to ensure it is properly installed. Clean it if needed. (See “Cleaning Instructions” in “ULTRA WASH

Select the proper cycle and option for the type of soils. The Pots & Pans cycle with the T

URBOZONE

Be sure the incoming water temperature is at least 120°F (49ºC). Use the proper amount of fresh detergent. More detergent is needed for heavier-soiled

loads and hard water conditions. Scrape food from dishes prior to loading (do not prerinse).

Filtration System” for details.)

(on some models) option can be used for tougher loads.

DID NOT SANITIZE If the sanitized light is blinking, the load is

NOT

sanitized. The cycle was interrupted in the

final rinse, or your water heater is set too low. Set your water heater to 120ºF (49ºC).

PROBLEM SOLUTION

DAMAGE TO DISHWARE Improper loading can cause dishes to become chipped or damaged. (See specific loading

instructions within this guide.)

BLINKING LIGHTS If Start/Resume or any status lights are blinking and the dishwasher will not run, close the

door and push START/RESUME. If the dishwasher still will not run call service.

CLOUDY OR SPOTTED DISHWARE (AND HARD WATER SOLUTION)

ETCHING (PERMANENT CLOUDINESS)

NOTES:

■ Liquid rinse aid is necessary for drying and to reduce spotting.

■ Use the correct amount of detergent.

Confirm that the cloudiness is removable by soaking the item in white vinegar for 5 minutes. If the cloudiness disappears, it is due to hard water. Adjust the amount of detergent and rinse aid. (See “HARD WATER [WHITE RESIDUE ON DISHWASHER INTERIOR OR GLASSWARE] in “Troubleshooting.” If it does not come clear, it is due to etching (see below).

Be sure the incoming water temperature is set at 120°F (49ºC). Try using the High Temp and Sani Rinse options. To remove spotting, run a vinegar rinse through the dishwasher.

■ Wash and rinse the affected dishware and load into dishwasher. Remove all silverware

and metal items. Put 2 cups (500 mL) of white vinegar in a glass measuring cup in the lower rack. Run a normal cycle with the Heated Dry option turned off. No detergent is needed.

This is an erosion of the surface of the glassware and can be caused by a combination of: water that is too hot, from using too much detergent with soft water or by pre-washing. Detergent needs food soil to act upon. If etching has occurred, the glassware is permanently damaged. To avoid further etching, adjust the detergent amount to match the water hardness, stop pre-washing, and use water heating options only when incoming water temperature is below 120°F (49ºC).

LEAKING WATER Be sure dishwasher has been installed properly and is level.

Suds can cause the dishwasher to overflow. Measure the detergent accurately and use only detergents designed for use in a dishwasher. Less detergent is needed in soft water. Try another brand of detergent if sudsing continues.

To avoid rinse aid leaking from the dispenser, be sure the lid is securely attached and avoid overfilling.

TUB IS DISCOLORED NOTES:

■ High iron content in the water can discolor the tub.

■ Tomato-based foods can discolor the tub or dishware.

A citrus-based cleaner can be used to clean the tub.

ÍNDICE

CONTRATOS DE PROTECCIÓN .................................................24

GARANTÍA..................................................................................25

SEGURIDAD DE LA LAVAVAJILLAS........................................... 26

QUÉ HAY DE NUEVO EN SU LAVAVAJILLAS… .........................28

Energía....................................................................................................28

Desempeño............................................................................................28

PIEZAS Y CARACTERÍSTICAS..................................................... 29

PUESTA EN MARCHA/REFERENCIA RÁPIDA............................. 30

SISTEMA DE FILTRACIÓN ULTRA WASH

CONSEJOS PARA LA EFICIENCIA DE LA LAVAVAJILLAS...........33

DETERGENTE Y AGENTE DE ENJUAGUE....................................33

Detergente.............................................................................................33

Agente de enjuague.............................................................................34

CÓMO CARGAR..........................................................................35

Cómo cargar para un mejor desempeño en el secado................35

Cómo cargar la canasta superior ...................................................36

..................................31

CONTRATOS DE PROTECCIÓN

Cómo cargar la canasta inferior...................................................... 37

USO DE LA LAVAVAJILLAS........................................................39

Información acerca de los ciclos y las opciones............................39

Sección de control de la lavavajillas................................................ 41

Sección de información provista por la lavavajillas......................41

Cómo cancelar un ciclo.......................................................................42

Cómo cambiar un ciclo después de iniciar la lavavajillas...........42

CÓMO LAVAR ARTÍCULOS ESPECIALES....................................42

CUIDADO DE LA LAVAVAJILLAS.............................................. 44

Limpieza ................................................................................................44

Purga de aire del desagüe.................................................................44

Almacenaje...........................................................................................44

SOLUCIÓN DE PROBLEMAS.......................................................45

NÚMEROS DE SERVICIO .................................CONTRAPORTADA

Contratos maestros de protección

¡Felicitaciones por su inteligente adquisición!

producto Kenmore

está diseñado y fabricado para proporcionarle años de funcionamiento confiable. Pero al igual que todos los productos, puede necesitar mantenimiento preventivo o reparación de vez en cuando. Es allí donde el Contrato maestro de protección puede ahorrarle dinero e inconvenientes.

El Contrato maestro de protección también ayuda a prolongar la vida de su nuevo producto. He aquí lo que se incluye en el Contrato*:

✔Piezas y mano de obra necesarios para ayudar a

mantener los productos funcionando correctamente b uso normal, no sólo en caso de defectos. Nuestra cobertura va m

ucho más allá de la garantía del producto. No existen deducibles ni fallas de funcionamiento que estén excluidas de la cobertura — p

✔Servicio experto a cargo de un personal de más de

10.000 t

écnicos de servicio autorizados por Sears, lo que significa que su producto será reparado por alguien en quien usted puede confiar.

✔Llamadas de servicio ilimitadas y servicio en todo el país,

con la frecuencia que usted desee, cuando usted desee.

✔Garantía “sin disgustos” – reemplazo de su producto

protegido si ocurren cuatro fallas o más del producto en el transcurso de doce meses.

✔Reemplazo del producto si su producto protegido no

puede ser reparado.

✔Revisión anual de mantenimiento preventivo a solicitud

suya – sin costo adicional.

✔Ayuda rápida por teléfono – lo que nosotros llamamos

Solución rápida – apoyo por teléfono a cargo de un representante de Sears para todos los productos. Piense en nosotros como si fuéramos un “manual parlante para el propietario”.

Su nuevo

rotección verdadera.

ajo

✔Protección de sobrevoltaje contra daños eléctricos debido

a fluctuaciones de electricidad.

✔Protección por pérdida de comida, por un valor anual de

$250, por cualquier pérdida de comida que sea como resultado de fallas mecánicas de cualquier refrigerador o congelador cubierto bajo la garantía.

✔Reembolso de la renta si la reparación de su producto

protegido tarda más de lo prometido.

✔10% de descuento sobre el precio común por el servicio

de reparación que no esté bajo protección, así como también las piezas relacionadas con el mismo que se hayan instalado.

Una vez adquirido el Contrato, tan sólo tiene que llamar para fijar la visita de servicio técnico. Usted puede llamar a cualquier hora, de día o de noche, o fijar una visita técnica en Internet.

El Contrato maestro de protección es una compra sin riesgo. Si por algún motivo usted lo cancela durante el período de la garantía del producto, le proveeremos un reembolso total. O un reembolso proporcional en cualquier momento posterior a la expiración del período de la garantía. ¡Adquiera hoy su Contrato maestro de protección!

Se aplican algunas limitaciones y exclusiones. Para obtener precios e información adicional en EE.UU., llame al 1ą800ą827ą6655.

*La cobertura en Canadá varía en algunos artículos. Para

obtener los d

etalles completos, llame a Sears Canada a

1ą800ą361ą6665.

Servicio de instalación de Sears

Para la instalación profesional de Sears de aparatos electrodomésticos, abridores de puertas de garaje, calentadores de agua y otros artículos principales del hogar, en los EE.UU. o en Canadá llame al 1

ą800ą4ąMYąHOME®.

+ 56 hidden pages
