SAFETY MESSAGES - Please READ and SAVE this information
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
WARNING
•Misuse of the dishwasher can result in serious injury or death. Do not use the dishwasher in any way not covered in this manual or for any purpose other than those explained in the following pages.
•Severe product damage and/or injury could result from the use of unqualified service technicians or non-original replacement parts. All repairs must be performed
by a qualified service technician using only original equipment factory replacement parts.
•Electrical shock or fire could result if the electrical supply for the dishwasher covered in this manual is incorrectly installed or if the dishwasher has been improperly grounded. Do not use the dishwasher covered in this manual unless you are certain the electrical supply has been correctly installed or the dishwasher has been properly grounded.
•Never use harsh chemicals to clean your dishwasher. Some chloride-containing products can damage your dishwasher and may present health hazards!
NOTICE
•It is highly recommended for the end user to become familiar with the procedure to shut off the incoming water supply and the procedure to shut off the incoming power supply. See the installation Instructions or contact your installer for more information.
•Never use steam cleaning products to clean your dishwasher. The manufacturer will not be liable for the possible damages or consequences.
4
Downloaded from www.Manualslib.com manuals search engine
IMPORTANT SAFETY INSTRUCTIONS
Please READ and SAVE this information!
WARNING: To reduce the risk of fire, electrical shock, or serious injury, observe the following:
•This dishwasher is provided with Installation Instructions and this Use and Care Manual. Read and understand all instructions before installing or using the dishwasher.
•This appliance must be grounded to a metal, permanent wiring system, or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the dishwasher. See the Installation Instructions included with this dishwasher for more information on electrical requirements.
•Use this dishwasher only for its intended function, which is the washing of household dishware and kitchenware.
•Use only detergents or rinsing agents recommended for use in a dishwasher, and keep them out of the reach of children.
•When loading items to be washed:
a.Locate sharp items so that they are not likely to damage the door seal.
b.Load knives and other sharp utensils with their HANDLES UP to reduce the risk of cut-type injuries.
c.Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer’s recommendations.
d.Do not operate your dishwasher unless all enclosure Panels are in place.
e.Do not tamper with or override controls and interlocks
•Do not abuse, sit on, or stand on the door or dish racks of the dishwasher.
•To reduce the risk of injury, do not allow children to play in or on the dishwasher.
•When children become old enough to operate the appliance, it is the legal responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualified persons.
•Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. Hydrogen gas is explosive. Before using a dishwasher that is connected to a hot water system that has been unused for two weeks or longer, turn on all hot water faucets and let the water flow from each for several minutes, open windows to ventilate the house. This will release any accumulated hydrogen gas. As the gas is explosive, do not smoke or use an open flame during this time.
•Remove the dishwasher door to the washing compartment when removing an old dishwasher from service or discarding.
•To avoid floor damage and possible mold growth, do not allow wet areas to remain around or under the dishwasher.
•Protect your dishwasher from the elements. Protect against freezing to avoid possible damage to the fill valve. Damage caused by freezing is not covered by the warranty.
5
Downloaded from www.Manualslib.com manuals search engine
Door Gasket
Top Rack
Silverware
Basket
Bottom Rack
Rinse Agent
Dispenser

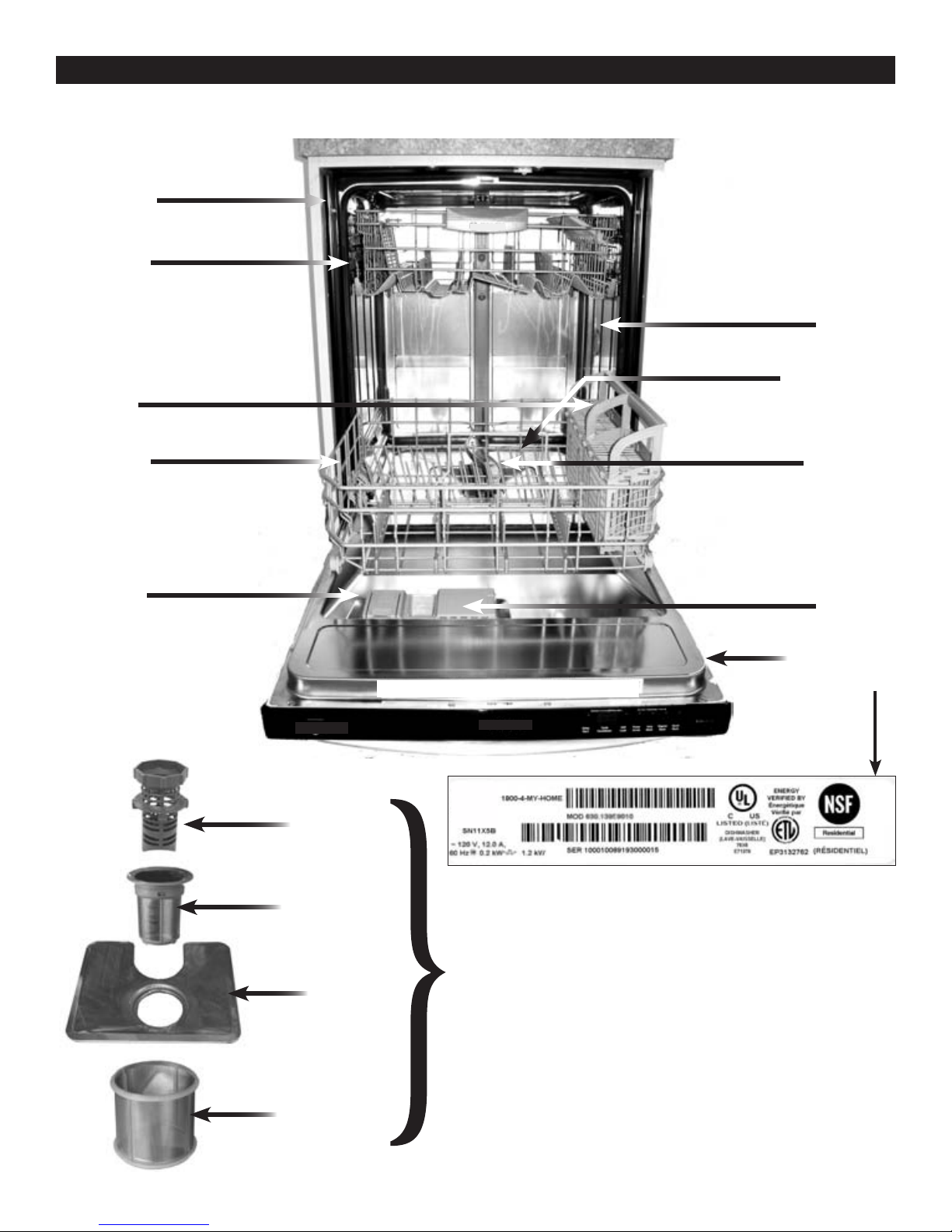

DISHWASHER COMPONENTS
Vent
Filter System
Bottom Rack
Spray Arm
Detergent
Dispenser
Serial Number
Label
Features vary by model
Large Object
Trap
Cylinder Filter
FILTER SYSTEM
Fine Filter
Micro Filter
6
Downloaded from www.Manualslib.com manuals search engine
DISHWASHER FEATURES
QuietGuard™ Supreme: A two-pump motor system, the Suspended Motor and triple insulation make this dishwasher one of the quietest in North America.
Stainless Steel Giant Tub: A rust-free, hygienic interior surface.
Nylon Coated Racks: Greatly reduces cuts and nicks. Racks carry a five year warranty.
Concealed Heating Element: Heats water up to a sanitizing temperature.
Condensation Drying: A high temperature final rinse, a low temperature stainless steel tub, and the sheeting action of a rinse agent result in drying that is hygienic, energy efficient, and economical.
SmartSensor: Checks water condition and decides whether a second fresh water fill is necessary.
Triple Filtration System: Multiple filters ensure distribution of clean water and protect the main pump and the drain pump from foreign material.
Water Shut-Off: A safety feature that stops the flow of incoming water, if water is detected in the base of the dishwasher.
Upper Rack & Lower Rack Flip Tines: Increase the rack flexibility to accommodate larger/taller items.
Dry Assist: Raises the temperature of the rinse water and increases the drying time which will result in improved drying.
Adjustable Racks: The top rack can be raised or lowered to accommodate tall items in the top and bottom racks.
SmartWash™ HE: Takes the guesswork out of cycle selection. The sensors in the dishwasher automatically adjust the cycle length, temperature and water changes based on the soil load.
TurboClean™: Tackles hard-to-clean dishes in the lower rack, eliminating the need to soak and scrub heavily soiled dishes.
AquaGuard™ Plus: Leak protection system that cuts off the water supply in the event of a leak.
DISHWASHER MATERIALS
NOTE: Before using your dishwasher for the first time, check the information in this section. Some items are not dishwasher safe and should be handwashed; others require special loading and care.
RECOMMENDED
Aluminum: Colored anodized aluminum may fade over time. Minerals in your water may cause the aluminum to darken or spot. This can usually be removed with a soapfilled steel wool pad.
China, Crystal, Stoneware: Some hand-painted utensils may discolor, fade, or spot. Hand-wash these utensils. Position fragile glassware so that it will not topple over or come in contact with other utensils during the wash cycle.
Glass: Milk glass may discolor or become yellow.
Non-stick Coatings: Apply a light coating of vegetable oil to non-stick surfaces after drying.
Plastics: Make sure the plasticware is dishwasher safe.
Stainless Steel, Sterling Silver, and Silver Plates: Load these utensils in a way that they do not come in contact with other metals.
NOT RECOMMENDED
Acrylic: Crazing (small cracks throughout the acrylic) may occur.
Adhesive-Joined Pieces: Adhesives that join materials such as plastic, wood, bone, steel copper, tin, etc. may loosen.
Bone-Handled Utensils: Handles may separate.
Iron, Cast Iron: Iron will rust. Hand-wash and dry immediately.
Non-Dishware Items: Your dishwasher is intended for use in cleaning ONLY standard household dishware and kitchenware.
Pewter, Brass, Bronze: Pewter will tarnish. Hand-wash and dry immediately.
Tin: Tin will stain. Hand-wash and dry immediately.
Wood: Wooden bowls, wooden utensils, and utensils with wooden handles can crack, warp, and lose their finish.
Gold: Gold will discolor.
7
Downloaded from www.Manualslib.com manuals search engine
LOADING THE DISHWASHER
Do not pre-wash items that have loosely attached soiling. Remove large food particles, bones, seeds, toothpicks, and excessive grease. Items having burned-on, baked-on or starchy soils may require pre-treatment.
Refer to the Dishware Materials section for more information about dishware suitability.
•Load only dishwasher-safe items into the dishwasher.
•Load dishes in the dishwasher racks so that the insides of bowls, pots and pans are facing the spray arms.
•Avoid nesting and contact points between dishes.
•Separate items of dissimilar metals.
•Load dishes and glasses at an angle to avoid puddling and improve drying performance.
NOTICE
To avoid dishwasher damage, do not load the dishwasher with paper products, plastic bags, packing materials, or anything other than normal, dishwashersafe dishware and kitchenware.
TOP RACK - SUGGESTED LOADING PATTERN
Loading the Top Rack
NOTE: Ensure items do not protrude through the bottom of the racks and block the spray arms.
NOTE: When pushing the top rack into the dishwasher, push it until it stops against the back of the tub so the top rack spray arm will connect to the water supply at the back of the tub. Do not push the top rack with the door.
Loading the Bottom Rack
Place large items in the bottom rack. Load pots, pans and bowls with the dirty surfaces facing the spray arms.
Unloading Sequence
•Unload the bottom rack first.
•Unload the silverware basket.
•Unload the top rack.
NOTE: Do not use rubber bands (to hold items in place in the racks) or any other after market parts in your
dishwasher. The use of such items could potentially damage the drain pump.
BOTTOM RACK - SUGGESTED LOADING PATTERN
NOTE: Load cups and glasses between tines. Loading over the tines can cause breakage or water spots.
TOP RACK - ADDITIONAL LOADING PATTERN |
BOTTOM RACK - ADDITIONAL LOADING PATTERN |
|
8
Downloaded from www.Manualslib.com manuals search engine
LOADING THE SILVERWARE
NOTE: The silverware basket tops can be folded up to accommodate large or oddly-shaped items.
With the silverware basket tops down, load the silverware basket following the patterns suggested below.
Place knives and sharp utensils with their handles up, and forks and spoons with their handles down. If large or oddlyshaped items are to be loaded into the silverware basket with the tops up, load the items so that they do not nest together.
For best results, use the suggested loading patterns shown below.
WARNING
The sharp points and edges of knives and other sharp utensils can cause serious injuries. Load knives and other sharp utensils with edges down. Do not allow children to handle or play near knives and sharp utensils.
THE FLEXIBLE SILVERWARE BASKET
1 |
2 |
3 |
4 |
5 |
6 |
7 |
1 |
- Salad Fork |
3 |
- Dinner Fork |
5 |
- Tablespoon |
2 |
- Teaspoon |
4 |
- Knife |
6 |
- Serving Spoon |
|
|
|
|
7 - Serving Fork |
This basket splits along its length, resulting in two halves that may be placed in a variety of positions in the lower rack, greatly increasing the lower rack’s loading versatility.
The basket fits together sideways or back to back as shown below.
To split the Flexible Silverware Basket:
•Grasp the basket and slide the two halves in opposite directions, as shown.
•Pull the two halves apart.
Some Basket Placement Options
9
Downloaded from www.Manualslib.com manuals search engine
RACK FEATURES & ACCESSORIES
UTILITY BASKET
In addition to the flexible silverware basket, your dishwasher comes with an additional utility basket in which to place extra flatware.
CUP SHELVES
Cup shelves are used to hold cups and other large items such as ladles and serving spoons. To use the cup shelves, fold them downwards so that they are positioned as shown below. Place cups upside down on the shelves.
FLIP TINES
The racks consist of tines that you can fold down or raise, depending on what you need to load in the rack.
To fold down:
•Grasp the tine near the locking mechanism.
•Release from notch.
•Push downwards.
TOP RACK HEIGHT ADJUSTMENT
The top rack can be raised or lowered to accommodate large items in either rack.
NOTE: Before you push the top rack into the dishwasher, ensure that the rack height is the same on both sides. Otherwise, the dishwasher door will not shut and the top rack spray arm will not connect to the water circuit.
To raise the top rack:
•Pull the empty top rack out of the dishwasher until it stops.
•Grasp the top of the rack above the Automatic Height Adjustable Top Rack handles and pull it upward until the handles lock the rack into position (you do not need to press the handles in order to raise the rack).
To lower the top rack:
•Pull the top rack out of the dishwasher until it stops.
•Press the Automatic height adjustable Top Rack handles inward and let the rack drop.
Top Rack
handle
10
Downloaded from www.Manualslib.com manuals search engine

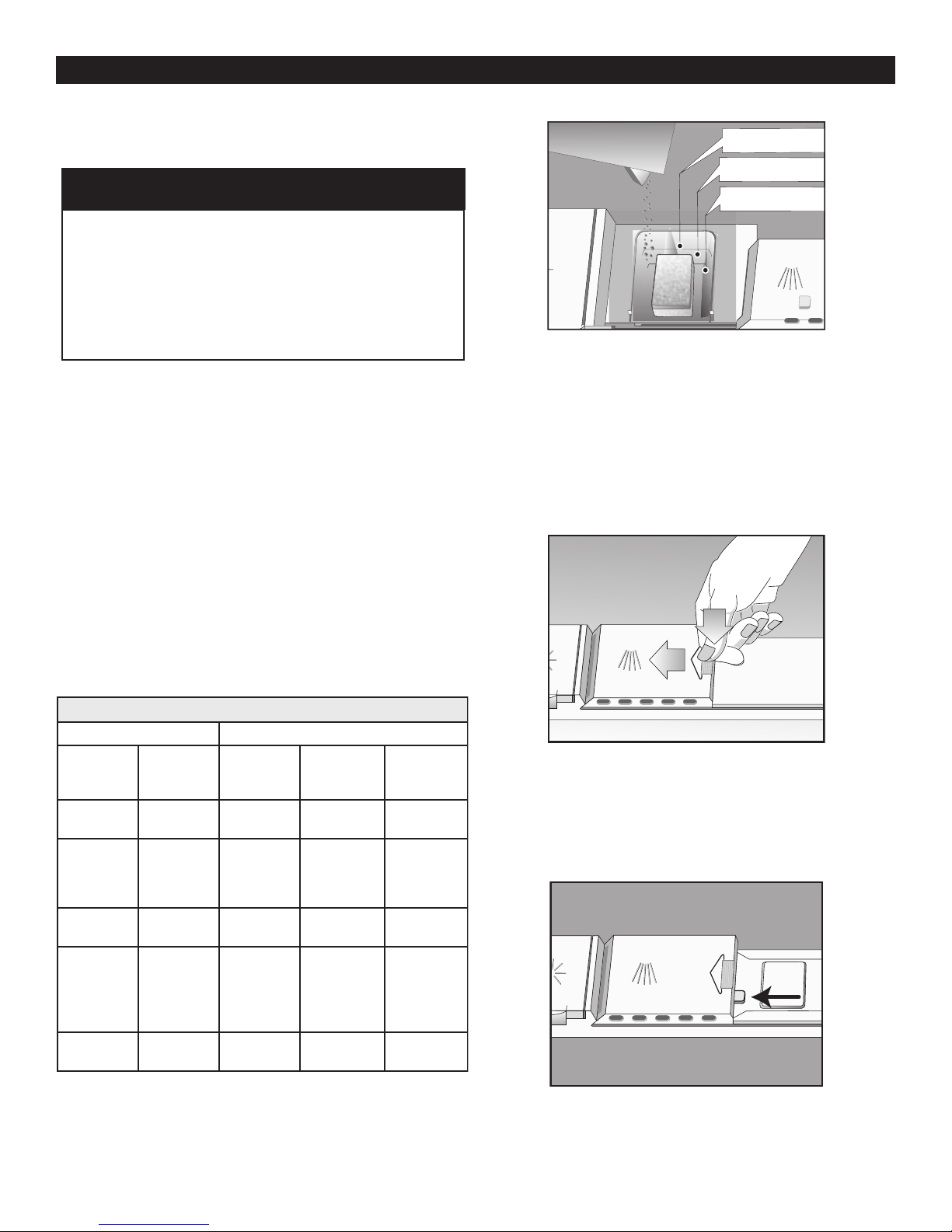

DETERGENT
Detergent
Use only detergent specifically designed for dishwashers. For best results, use fresh powdered dishwashing detergent.
NOTICE
To avoid dishwasher damage, do not use hand dishwashing products in your dishwasher.
■
To avoid dishwasher damage, do not use too much detergent if your water is soft, it may cause etching in glassware.
The dishwasher uses less water so you need to use less detergent. With soft water, 1 tbsp. (15ml) of detergent will clean most loads. The detergent dispenser cup has lines that measure detergent to:
•1 tablespoon (15ml)
•1.75 tablespoons (25ml)
3 tablespoons (45ml) of detergent will completely fill the detergent dispenser cup.
NOTE: If you do not know the hardness of your water supply, use 1Tbsp. (15ml) of detergent. Increase the amount, if necessary, to the least amount required to get your kitchenware clean.
Use the measuring lines in the detergent dispenser cup to measure the amount of detergent recommended in the Table.
Recommended Detergent Amount
|
|
|
Water Type |
|
||
Wash Cycle |
Unit |
Hard |
|
Medium |
|
Soft |
7.0 gr/gal |
|
7.0-1.0 gr/ |
|
less than |
||
|
|
or more |
|
gal |
|
1.0 gr/gal |
|
|
|
|
|
|
|
SmartWash™ HE |
Tbsp |
3 |
|
3 |
|
1-1.75 |
|
ml |
25-45 |
|
45 |
|
15-25 |
Pots & Pans |
Tbsp |
3 |
|
3 |
|
1.75-3 |
|
ml |
45 |
|
45 |
|
25-45 |
Normal |
Tbsp |
1.75-3 |
|
1.75 |
|
1-1.75 |
Wash |
ml |
25-45 |
|
25 |
|
15-25 |
China Gentle |
Tbsp |
1.75 |
|
1-1.75 |
|
1 |
|
ml |
25 |
|
15-25 |
|
15 |
Fast |
Tbsp |
1.75 |
|
1-1.75 |
|
1 |
Wash |
ml |
25 |
|
15-25 |
|
15 |
Adding Detergent
•Use fresh powdered detergent for best results.
•1 tablespoon will clean most loads.
•Do not use more than 3 tablespoons. Do not overfill.
•When using detergent tabs, lay them flat to avoid contact with the cover.
TO CLOSE
2 |
1 |
•Slide cover fully left
•Push rear end of the cover down firmly until you hear a *CLICK*
TO OPEN
NOTE: When using gel packs, tablets or other dishwasher |
• To open the cover, push the blue button, at the rear |
detergents , refer to the manufacturers instructions |
|
(normally 1 tab/dose). |
end of the cover, inwards. (NOT DOWN) |
|
11 |
Downloaded from www.Manualslib.com manuals search engine
RINSE AGENT
Rinse Agent
To achieve proper drying, always use a liquid rinse agent, even if your detergent contains a rinse agent or drying additive.
NOTE: The dishwasher indicates low rinse agent by showing the symbol in the countdown display. Units without a display have a Rinse Agent LED that illuminates when the Rinse Agent is low.
NOTE: The LED will not illuminate if there is enough rinse agent in the dishwasher.
Adding Rinse Agent
Recommended |
drying |
Rec |
for b |
Dishwasher Deterge |
Only |
•Always use Rinse Agent even if your detergent contains rinse agent.
•Add rinse agent when the LED on the control panel illuminates.
Filling the dispenser
•Make sure the dishwasher door is completely open.
•To fill the dispenser with rinse agent, simply pour on the “arrow”as shown below until the rinse agent is visibly
full.
Wipe up any excess rinse agent that puddles when the dispenser reservoir is full to prevent sudsing.
After filling the rinse agent dispenser, the indicator light will go out in a few minutes after the dishwasher door is shut.
Rinse Agent Setting
The default factory setting for the rinse agent is set between 3 and 4.
•If you notice spots on glasses, it means you need more rinse agent.
•If you notice streaks, it means you need less rinse agent.
To Decrease |
To Decrease |
Streaks on glasses |
Spots on glasses |
To adjust the amount of rinse agent dispensed:
•Turn the dial (in the shape of an arrow) until you reach the desired level between 1 and 6.
12
Downloaded from www.Manualslib.com manuals search engine
DISHWASHER CYCLES AND OPTIONS
WASH CYCLES
|
|
*TIME (mins.) |
Water Usage |
|||
CYCLE |
SOIL LEVEL |
Without options |
||||
|
|
|||||
Gallons |
Liters |
|||||
|
|
Typical |
Maximum |
|||
|
|
|
|
|||
SmartWash™ HE |
Light - Medium |
95 |
100 |
2.2 |
8.4 |
|
Takes the guesswork out of cycle selection. The sensors |
||||||
in the dishwasher automatically adjust the cycle length, |
|
|
|
|
|
|
temperature and water changes based on the soil |
Heavy |
115 |
119 |
5.8 |
21.9 |
|
load. This cycle contains additional sensor decisions |
||||||
|
|
|
|
|
||
when compared to other cycles. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Pots & Pans * |
Light - Medium |
120 |
125 |
6.2 |
23.6 |
|
Cleans items having baked-on or hard dried food soils. |
||||||
These items may require soaking or hand scouring. |
|
|
|
|
|
|
Heavy |
130 |
135 |
7.3 |
27.8 |
||
|
||||||
|
|
|
|
|
|
|
Normal Wash |
Light - Medium |
90 |
95 |
1.8 |
6.9 |
|
Thoroughly cleans normal loads having loosely |
|
|
|
|
|
|
|
|
|
|
|
||
attached normal soiling. |
Heavy |
140 |
155 |
7.6 |
28.8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
China Gentle |
Light - Medium |
80 |
85 |
3 |
11.5 |
|
Designed to be used with your fragile china and |
||||||
|
|
|
|
|
||
glassware, allowing you to get it perfectly clean |
|
|
|
|
|
|
without the hassle of hand washing or worry of |
Heavy |
90 |
100 |
4.7 |
17.7 |
|
damage in the dishwasher. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Fast Wash |
|
|
|
|
|
|
Cleans lightly soiled dishes and reduces overall wash |
All Soil Levels |
59 |
59 |
4.4 |
16.7 |
|
time. Use this cycle to clean glasses and dessert dishes |
||||||
|
|
|
|
|
||
that may need to be re-used at the same event |
|
|
|
|
|
Adding options will increase or decrease the cycle time. See “Options” information section. * The cycle is NSF certified
NSF INFORMATION
A dishwasher or dishwasher cycle that is certified by the NSF international meets very strict requirements of wash time and water temperature to ensure dishware and kitchenware sanitization. These requirements are explained in the document NSF/ANSI 184, Residential Dishwashers. More information on NSF Certification is available at the NSF website, http://www.nsfconsumer.org/home/appliances.asp.
Your dishwasher is NSF certified. The dishwasher cycles that are NSF certified are shown in the chart above. When these cycles are complete, the “Sanitized” indicator on your dishwasher control panel will illuminate. However, if your
household water supply is too hot your dishwasher’s heating time may be reduced, and the Sanitized indicator may not illuminate.
The cycle times listed in the Use and Care Manual are based on normal soil loads and 120°F incoming water and will vary based on your actual conditions.
NOTE: Only sanitizing cycles have been designed to meet the requirements of 6 for soil removal and sanitization efficacy. There is no intention, either directly or indirectly, that all cycles on a certified machine have passed the sanitization performance test.
13
Downloaded from www.Manualslib.com manuals search engine
CYCLE OPTIONS
OPTION |
Can be selected |
Added time to cycle |
Added Water |
|||
with: |
Typical |
Maximum |
Gallons |
Liters |
||
|
||||||
|
|
|
|
|
|
|
|
China Gentle |
reduces |
reduces |
reduces |
reduces |
|
Time Assist |
|
5-10 min |
15 min |
½ G |
2 L |
|
Normal Wash |
reduces |
reduces |
reduces |
reduces |
||
Reduces the amount of time it |
||||||
|
5-10 min |
40 min |
2½ G |
9.3 L |
||
takes to complete a cycle while |
|
|||||
Pots & Pans * |
reduces |
reduces |
reduces |
reduces |
||
maintaining a high performance |
||||||
level. |
|
15 min |
15 min |
1.7 G |
6.7 L |
|
SmartWash™ HE |
reduces |
reduces |
None |
None |
||
|
||||||
|
|
5-10 min |
20 min |
|||
|
|
|
|
|||
|
|
|
|
|
|
|
TurboClean™ |
China Gentle |
adds |
adds |
None |
None |
|
|
15 min |
20 min |
||||
Tackles hard-to-clean dishes in |
|
|
|
|||
Normal Wash |
adds |
adds 20 |
|
|
||
the lower rack, eliminating the |
None |
None |
||||
need to soak and scrub heavily |
|
20 min |
min |
|||
|
|
|
||||
soiled dishes while keeping the |
Pots & Pans * |
adds |
adds 20 |
None |
None |
|
top rack gentle enough for your |
|
15 min |
min |
|||
|
|
|
||||
china. |
|
|
|
|
|
|
SmartWash™ HE |
adds |
adds |
None |
None |
||
|
||||||
|
|
15 min |
21min |
|||
|
|
|
|
|||
|
|
|
|
|
|
|
|
Fast Wash |
adds |
adds |
None |
None |
|
|
|
11 min |
11 min |
|||
|
|
|
|
|||
Dry Assist |
China Gentle |
adds |
adds |
None |
None |
|
|
25 min |
25 min |
||||
|
|
|
||||
Improves the drying performance |
|
|
|
|
|
|
Normal Wash * |
adds |
adds |
None |
None |
||
by increasing the time and |
|
25 min |
25 min |
|||
temperature during the drying |
|
|
|
|||
Pots & Pans * |
adds |
adds |
|
|
||
stage. |
None |
None |
||||
|
|
20 min |
20 min |
|||
|
|
|
|
|||
|
SmartWash™ HE * |
adds |
adds |
None |
None |
|
|
|
20 min |
26 min |
|||
|
|
|
|
* The cycles are NSF certified.
14
Downloaded from www.Manualslib.com manuals search engine
OPERATING THE DISHWASHER
Canceling a cycle
•Open the door slightly to stop the cycle.
•Wait for a few seconds before opening the door all the way.
•Hold down the “POTS & PANS” and “CHINA GENTLE” button until the display shows “0”.
•Close the door. The dishwasher will drain any remaining water.
ADDITIONAL FEATURES Countdown Display
The countdown display indicates the time remaining for a cycle to complete. The time will change based on water temperatures and control settings.
Changing a cycle
If you need to change the running cycle to a new cycle, follow the instructions below:
Open the door slightly to stop the cycle.
•Before opening door all the way, wait a few seconds for water to drain to the base of dishwasher tub.
•Press both the “POTS & PANS” and “CHINA GENTLE” buttons to reset. The display shows “0”
•Press the POWER button to turn the unit off. Now turn unit on again.
•Select new cycles and options.
•Close the door to begin cycle.
Cycle Completion Signal
The cycle completion signal alerts you when a cycle completes and the dishwasher has washed and dried the dishes. You can choose to disable the tone or adjust the volume.
NOTE: The unit must be powered OFF before activating/ deactivating.
To activate or deactivate:
•Press and hold the “CHINA GENTLE” button and the “POWER” button simultaneously.
•When the light on the “CHINA GENTLE” button you are pressing illuminates and a tone is heard, release both buttons.
•Press the “CHINA GENTLE” button until you achieve the desired volume or until there is no tone (to turn off).
•Press the “POWER” button to save the setting.
Dry Assist
With this option you can raise the temperature of the rinse water and increase the drying time for improved drying.
To use this feature:
•Select the desired cycle first.
•Then press the “DRY ASSIST” button.
•Close the door to begin the cycle.
Time Assist
Reduces the amount of time it takes to complete a cycle while maintaining a high performance level.
To use this feature:
•Select the desired cycle first.
•Then press the “TIME ASSIST” button.
•Close the door to begin the cycle.

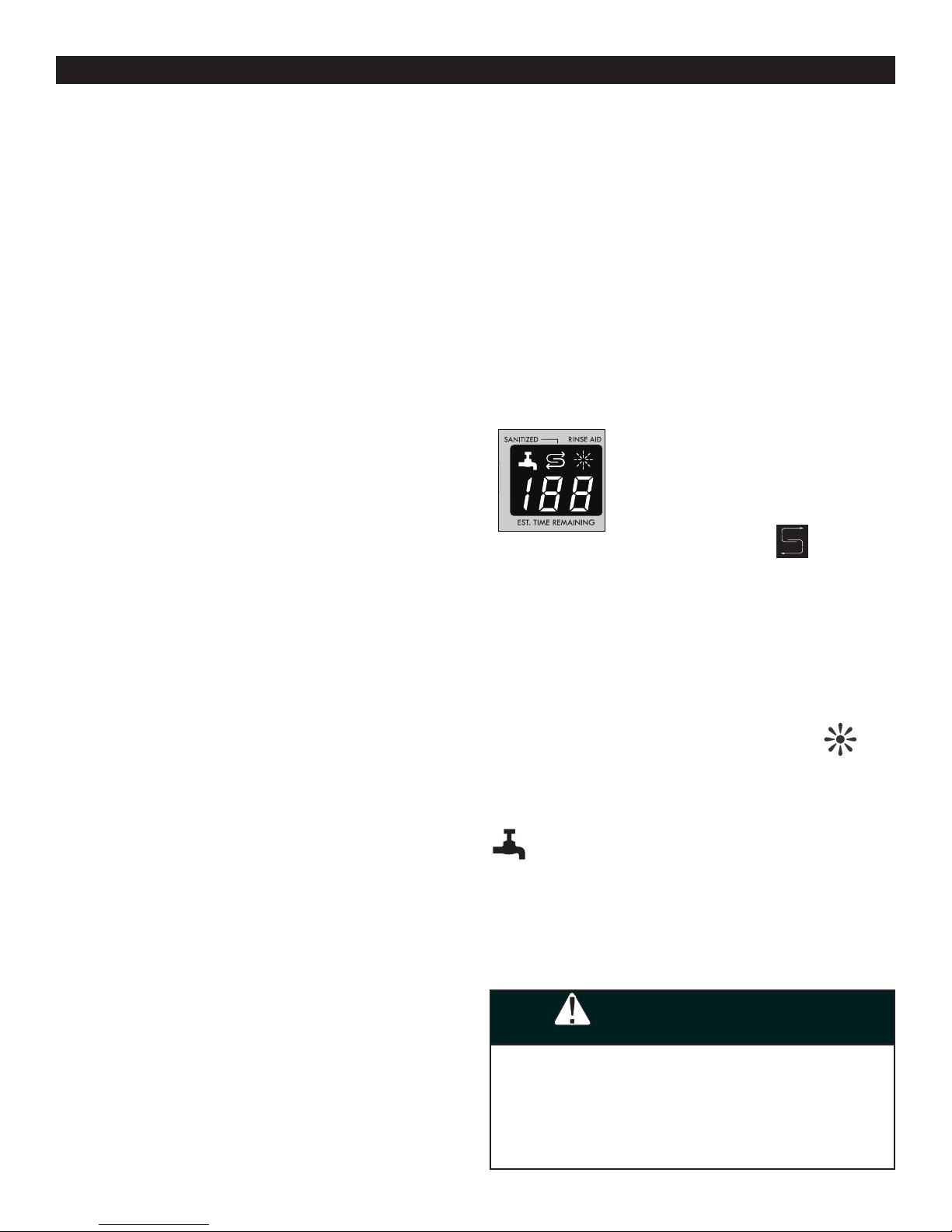

INDICATOR LIGHTS
Sanitized Indicator
When the “Sanitized” symbol illuminates on the control panel , it means that the items that were just washed have been sanitized according to the requirements of the
National Sanitation Foundation (NSF). For more information on NSF certification, refer to the Dishwasher Cycles and Options section of this manual. (The indicator light will come on for the cycles marked with an asterisk in the cycles and options table)
Refill Rinse Agent Indicator
The symbol shown above will illuminate to alert you when more rinse agent is required.
Indicator
If this symbol illuminates it usually means that unit is not getting water. Please check your water supply valve located behind the dishwasher.
SmartLight
Blue LED illuminates the floor to indicate that the dishwasher is running.
WARNING
You could be seriously scalded if you allow hot water to splash out of the dishwasher. OPEN THE DOOR CAREFULLY during any wash or rinse cycle. Do not fully open the door until water noises have stopped.
15
Downloaded from www.Manualslib.com manuals search engine
CARE AND MAINTENANCE
MAINTENANCE TASKS
Certain areas of your dishwasher require occasional maintenance. The maintenance tasks are easy to do and will ensure continued superior performance from your dishwasher:
•Wiping up Spills and Splash-outs
Water may occasionally splash out of your dishwasher, especially if you interrupt a cycle or open the dishwasher door during a cycle. To avoid floor damage and possible mold growth, do not allow wet areas to remain around or under the dishwasher.
•Clean the Stainless Steel Inner Door and Tub
Clean the outer edges of the inside door panel regularly to remove debris that might collect from normal loading. If spots begin to appear on the stainless steel tub or inner door, make sure the rinse agent reservoir is full.
•Clean the drain air gap
Clean the drain air gap periodically to ensure proper drainage of your dishwasher. With most types you lift off the chrome cover. Unscrew the plastic cap. Then check for any soil buildup. Clean if necessary.
•Check and clean the Spray arm nozzles
Occasionally check the spray arms to ensure that the spray arm nozzles (holes) are unobstructed. You must remove the spray arms to check them for obstruction.
To remove the top spray arm:
1.Remove the empty top rack from the dishwasher.
2.Turn the rack upside down. The top spray arm is held in position by a locking nut as shown below. Turn the locking nut counter-clockwise and remove it as shown above to release the spray arm.
16
3.Remove the spray arm as shown above.
4.Look for obstruction in the spray nozzles.
5.If the spray nozzles need cleaning, flush them under running water.
To reinstall the top spray arm:
1.Return the top spray arm to its installed position.
2.Return the locking nut to its installed position and turn it 1/8 turn clockwise.
3.Return the top rack to the top rack roller guides.
To remove the |
spray arm: |
|
CAUTION |
To avoid injury, do not reach into the large object trap with your fingers. The large object trap could contain sharp objects.
1.Remove the empty bottom rack from the dishwasher tub.
2.Grasp and lift the bottom spray arm as shown below.
3.Look for obstruction in the spray nozzles.
4.If the spray nozzles need cleaning, flush them under running water.
To reinstall the bottom spray arm:
1.Return the bottom spray arm to its installed position and press it so that it snaps into place.
2.Return the bottom rack to its installed position.
•Check and clean the filter system
This dishwasher has a filter system that consists of a Large Object Trap/Cylinder Filter assembly and a Fine Filter. There is also an additional Micro Filter.
The filter system is located on the inside of your dishwasher under the lower rack and is easily accessible. During normal use, the filter system is self-cleaning. You should occasionally inspect it for foreign objects and clean it when necessary.
Downloaded from www.Manualslib.com manuals search engine
To remove the Large Object Trap/ Cylinder Filter Assembly:
1.Remove the bottom rack.
2.Grasp the assembly and turn it counterclockwise ¼ turn as shown below.
3.Lift out the assembly as shown below.
4.Carefully examine the assembly. If you find debris in the Large Object Trap, turn it upside-down and gently tap it on a surface such as a countertop to dislodge and remove the debris.
Fine
Filter
3.Turn the ring handle clockwise 1/4 turn until it is locked. The arrow on the ring handle and the arrow on the Fine Filter should point to each other, as shown below.
4.Gently pull the ring handle to ensure that the assembly is locked into place.
5.Flush the Cylinder Filter clean by holding it under running water.
To remove the fine filter:
1.Lift the fine filter from the dishwasher floor as shown below and flush it clean by holding it under running water.
2.Remove the Micro filter and flush it clean by holding it under running water.
To reinstall the filter system:
1. Return the fine filter to its originally installed position.
2.Place the Large Object Trap/Cylinder Filter Assembly into its installed position in the dishwasher floor.
•Clean the Exterior Door Panel
•Colored Doors
Use only a soft cloth that is lightly dampened with soapy water.
•Stainless Steel Doors
Use a soft cloth with a non-abrasive cleaner (preferably a liquid spray) made for cleaning stainless steel. For the best results, apply the stainless steel cleaner to the cloth, then wipe the surface.
•Clean the Interior
Hard water minerals can cause a white film to build up on the inside surfaces, especially just beneath the door area. Do not clean the dishwasher interior until it has cooled.
Wear rubber gloves. Do not use any type of cleanser other than dishwasher detergent because it may cause foaming or sudsing.
•Make a paste with powdered dishwasher detergent on a damp sponge and clean OR
•Use liquid automatic dishwasher detergent and clean with a damp sponge.
•Clean the Door Gasket
Regularly clean the door gasket with a damp cloth to remove food particles and other debris. Also clean the door seal, located inside the dishwasher at the bottom of the door.
•Winterizing Your Dishwasher
If your dishwasher will be unused for an extended period of time in a location that experiences freezing temperatures (e.g., in a holiday home or through a vacation period), have
your dishwasher winterized by an qualified service center.
17
Downloaded from www.Manualslib.com manuals search engine
TROUBLESHOOTING
Dishwashers may occasionally exhibit problems that are unrelated to a malfunction of the dishwasher itself. The following information may help you with a dishwasher problem without involving a repair professional.
Problem |
Cause |
Action |
||
Dishwasher |
1. |
Door may not be properly latched. |
1. |
Shut the door completely. |
does not start |
2. |
Unit may not be turned on. |
2. |
Press the main power switch to turn unit on. |
|
3. |
Unit not reset or previous cycle not completed. |
3. |
To reset, refer to “Canceling or changing the cycle” section |
|
4. |
Delay start engaged. |
|
in this manual. |
|
5. |
Interruption of electrical power supply to |
4. |
To reset, refer to “Delay Start” section in this manual. |
|
|
dishwasher or blown fuse. |
5. |
Check circuit breaker. |
|
6. |
The door may have been closed without first |
6. |
Select a cycle and close the door. |
|
|
selecting a cycle. |
7. |
Check and turn on water supply. |
|
7. |
Water supply may not be turned on. |
|
|
Dishwasher |
Default factory settings alert the customer that the |
To adjust the volume or deactivate, refer to “Cycle Completion |
||
beeping |
cycle has completed by beeping. This feature can |
Signal” section in this manual. |
||
(end of cycle |
be deactivated if so desired. |
|
|
|
signal) |
|
|
|
|
Display does |
1. |
A fuse may have been blown or circuit breaker |
1. |
Check the fuse or circuit breaker box and replace the fuse |
not illuminate |
|
tripped. |
|
or reset the breaker if necessary. |
or console |
2. |
Door not closed or latched. |
2. |
Ensure that door is properly latched and completely |
lights are not |
Note: The display only illuminates when the door is |
|
closed. |
|
on |
opened and controls are visible. |
|
|
|
Dishwasher |
1. |
Incoming water is not warm enough. |
1. |
Before starting a cycle, run hot water faucet at the sink |
seems to run |
2. |
Cycle time can vary due to soil and water |
|
nearest to the dishwasher. Incoming water should be 120°F. |
a long time |
|
conditions. |
2. |
Sensors in the dishwasher automatically increase the cycle |
|
3. |
Rinse agent dispenser is empty. |
|
time to ensure a good wash when heavy soil is detected. |
|
4. |
Dishwasher connected to cold water supply. |
3. |
Add rinse agent. |
|
5. |
The type of cycle options selected may add time |
4. |
Verify dishwasher is connected to hot water supply plumbing. |
|
|
to the cycle. |
|
|
|
Note: For typical cycle length, refer to |
|
|
|
|
Wash Cycles table in Dishwasher Cycles and Options |
|
|
|
|
section of this Use & Care Guide. |
|
|
|
Dishes aren’t |
1. |
Spray arm movement is obstructed. |
1. |
Hand-rotate spray arms to ensure that spray arm movement |
getting clean |
2. |
Spray arm nozzles clogged. |
|
is not blocked. |
enough |
3. |
Improper use of detergents. |
2. |
Remove the spray arms and clean according to “Check/ |
|
4. |
Filters could be clogged. |
|
Clean the Spray Arm Nozzles” in Care and Maintenance |
|
5. |
Dishes are nested or loaded too close together. |
|
section of this manual. |
|
6. |
Selected wash cycle is not suitable for food soil |
3. |
Increase or decrease detergent depending on the water |
|
|
condtions. |
|
hardness. Refer to Table under “Adding Detergent and |
|
7. |
Make sure incoming water is 120°F |
|
Rinse Agent”. |
|
|
|
4. |
Clean the filter. Refer to “Check/Clean the Filter System” |
|
|
|
|
under Care and Maintenance section of this manual. |
|
|
|
5. |
Rearrange load such that water spray can reach all items in |
|
|
|
|
the dishwasher. See also “Preparing and Loading” section |
|
|
|
|
of this manual. |
|
|
|
6. |
Refer to Wash Cycles table in Dishwasher Cycles and Op- |
|
|
|
|
tions section of this Use & Care Guide. |
Dishes are |
1. |
Rinse agent dispenser is empty. (Rinse agent in- |
1. |
Add rinse agent. The use of rinse agent improves drying. |
not getting |
|
dicator is activated). |
2. |
Rearrange load to ensure items are not nested. Refer |
dry enough |
2. |
Improper loading of dishes. |
|
also to the “Preparing and Loading” section of this |
|
Note: Plastic or Teflon do not typically dry as com- |
|
manual. |
|
|
pletely as other items due to their inherent proper- |
Note: This model has a Dry Assist feature to improve drying |
||
|
ties. |
|
performance. Refer to Wash Cycles table in Dishwasher |
|
|
|
|
Cycles and Options section of this Use & Care Guide. |
|
|
|
|
|
|
|
|
18 |
|
|
Downloaded from www.Manualslib.com manuals search engine
Problem |
Cause |
Action |
||
Odor |
1. |
Food debris is present at the bottom of the dish- |
1. |
Remove the filters and clean according to the “Check/ |
|
|
washer. |
|
Clean the Filter System” section of this manual. |
|
2. |
Food particles are present near the door seal. |
2. |
Refer to “Clean the Door Gasket and Door Seal” in the |
|
3. |
Residual water is present at the bottom of the |
|
Care and Maintenance section of this manual . |
|
|
dishwasher. |
3. |
Ensure the unit has completely drained from the last |
|
4. |
Drain hose is obstructed. |
|
cycle. Refer to the “Canceling or changing the cycle” |
|
|
|
|
section of this manual. |
|
|
|
4. |
Remove any obstructions from the drain hose by calling |
|
|
|
|
qualified personnel. |
|
|
|
Note: If odor still persists, run the Normal Wash cycle until it |
|
|
|
|
flushes, then open the door to interrupt the cycle, and place |
|
|
|
|
an 8 oz. cup of distilled white vinegar solution on the top |
|
|
|
|
rack. Close the door and allow the cycle to finish. |
|
Dishwasher not |
1. |
Restriction in the water supply system. |
1. |
Ensure that the water supply valve (typically located under |
filling with water |
2. |
Previous wash cycle was not completed. |
|
kitchen sink) is open and check that the water supply line |
|
3. |
Delay-start is active. |
|
has no kinks and clogs. |
|
|
|
2. |
Refer to “Canceling a cycle” and “Changing a cycle” in- |
|
|
|
|
formation in the Operating the Dishwasher section of this |
|
|
|
|
Use & Care Guide. |
|
|
|
3. |
Cancel the delay-start or wait until delay-start time com- |
|
|
|
|
pletes (times out). Refer to the “Delay Start” section of |
|
|
|
|
this manual. |
Water Leaks or |
1. |
Suds |
1. |
Wrong type of detergent results in suds and leaks. Use |
Sudsing |
2. |
Door seal could be pulled away from track. |
|
only dishwasher detergents. If suds still persist, then add |
|
3. |
Condensation vent is blocked. |
|
one tablespoon of vegetable oil at the bottom of the |
|
4. |
Improper installation. |
|
dishwasher and run the desired cycle. Also wipe up |
|
|
|
|
excess rinse agent to prevent sudsing. |
|
|
|
2. |
Ensure that door seal is in the track. |
|
|
|
3. |
Ensure that condensation vent is not blocked. Refer to |
|
|
|
|
“Loading Extra Tall Items” in the Preparing and Loading |
|
|
|
|
the Dishwasher section of this manual. |
|
|
|
4. |
Have proper installation verified by qualified personnel |
|
|
|
|
(water supply, drain system, leveling, plumbing). |
|
|
|
|
|
Tub stains |
1. |
Stains on the dishwasher interior are due to |
1. |
Concentrated Lemon juice can reduce the build up of |
|
|
hardness of water. |
|
hard water stains. Run a normal cycle until it flushes and |
|
2. |
Silverware in contact with tub. |
|
interrupt the cycle and then place an 8 oz. cup of the |
|
|
|
|
concentrated lemon solution on the top rack and finish the |
|
|
|
|
cycle. This can be done periodically to avoid build up. |
|
|
|
2. |
Ensure that the silverware does not make contact with the |
|
|
|
|
tub while running a cycle. |
|
|
|
||
Spots and |
Incorrect rinse agent setting. |
Depending on the hardness of water, adjust the rinse agent |
||
Streaks on |
|
|
dispenser. Refer to “Rinse Agent” section in this manual for |
|
glassware or |
|
|
adjustment. |
|
residue on the |
|
|
|
|
dishes |
|
|
|
|
Fascia panel |
Abrasive cleaner used. |
Use mild detergents with soft damp cloth. |
||
discolored or |
|
|
|
|
marked |
|
|
|
|
|
|
|
||
Noise during |
The dishes may not be arranged properly. |
Water circulation sound is normal, but if you suspect items are |
||
wash cycle |
|
|
banging into each other or into the spray arms, refer to the |
|
|
|
|
“Preparing and Loading” section of this manual for optimal |
|
|
|
|
arrangement. |
|
|
|
|
|
|
Detergent |
1. |
Improper operation of detergent cover. |
1. |
Refer to “Adding Detergent and Rinse Aid” section of |
dispenser cover |
2. |
Previous cycle has not been finished, reset, or |
|
this manual for instructions on opening and closing the |
will not shut |
|
cycle was interrupted. |
|
dispenser. |
|
|
|
2. |
Refer to “Canceling a cycle” and “Changing a cycle” |
|
|
|
|
information in the Operating the Dishwasher section of |
|
|
|
|
this Use & Care Guide. |
Unable to select |
Previous cycle has not finished. |
Refer to “Canceling a cycle” and “Changing a cycle” infor- |
||
desired cycle |
|
|
mation in the Operating the Dishwasher section of this Use & |
|
|
|
|
Care Guide. |
|
|
|
19 |
|
|
Downloaded from www.Manualslib.com manuals search engine
Dishwasher did |
1. |
Did not run a sanitizing cycle |
1. |
Select a cycle that is intended to sanitize. See |
not sanitize |
2. |
Opened door mid-cycle |
|
Dishwasher cycles and options section for more |
|
|
|
|
information. |
|
|
|
2. |
Do not open the door while the wash cycle is running. |
|
|
|
|
|
Dishwasher not |
1. |
Kinked or Crushed Drain Hose |
1. |
Check Drain Hose for proper installation. Note: In the |
draining |
2. |
No high Loop in Drain Hose |
|
Installation Process, do not rotate the Drain Hose after |
|
3. |
Food Disposer plug not removed |
|
it is attached to the dishwasher. Refer to Installation |
|
4. |
The airgap may need cleaning |
|
Instructions for details. |
|
5. |
A home plumbing issue. |
2. |
Make sure that a portion of the Drain Hose is at least |
|
|
|
|
20” from the floor. Refer to Installation Instructions for |
|
|
|
|
details. |
|
|
|
3. |
If your Drain Hose is attached to the Food Disposer |
|
|
|
|
make sure the plug in the Food Disposer was removed. |
|
|
|
4. |
Clean the air gap periodically to ensure proper |
|
|
|
|
drainage of the dishwasher. With most types, you lift |
|
|
|
|
off the chrome cover. Unscrew the plastic cap. then |
|
|
|
|
check for any soil buildup. Clean if necessary. |
|
|
|
5. |
In this case, a certified plumber would need to check. |
Etching |
1. |
Type of glass - some glassware is sensitive to |
1. |
Make sure that glasses are Dishwasher safe. Select a |
(permanent |
|
temperature |
|
cycle that does not get as hot. Do not use the Heated |
cloudiness) |
2. |
Too much detergent |
|
Dry option. |
“Sudsing” |
3. |
Too much detergent and/or wrong type of |
2. |
The amount of detergent is based on the hardness of |
|
|
detergent and/or wrong brand of detergent. |
|
the water deliveried to your dishwasher and the amount |
|
|
|
|
of food soil present. If you pre-rinse your dishes and/ |
|
|
|
|
or have soft water you should reduce the amount of |
|
|
|
|
detergent. See Owners manual for details. |
|
|
|
3. |
Reduce or change the type/brand of detergent you are |
|
|
|
|
using. Note: Do not pre-rinse dishes. Scraping excess |
|
|
|
|
food soils is all that is required. |
20
Downloaded from www.Manualslib.com manuals search engine
