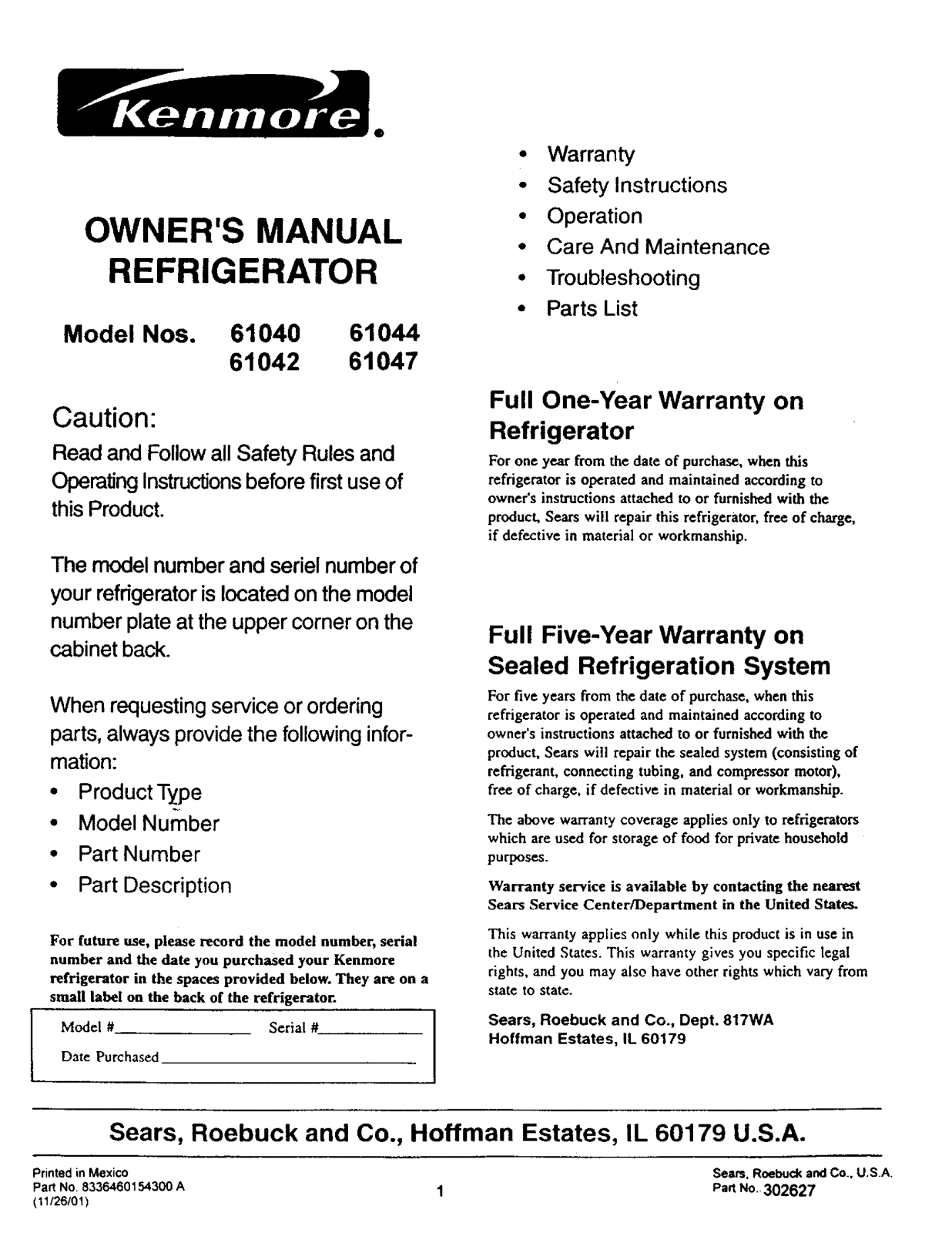

Kenmore 61040, 61044, 61042 User Manual

O

° Warranty
° Safety Instructions

OWNER'S MANUAL

REFRIGERATOR

Model Nos.

Caution:

Read and Follow all Safety Rules and
Operating Instructions before first use of
this Product.

The model number and seriel number of
your refrigerator is located on the model

number plate at the upper corner on the

cabinet back.

When requesting service or ordering
parts, always provide the following infor-

mation:

• Product Type
° Model Number

° Part Number

61040 61044

61042 61047

° Operation

° Care And Maintenance
° Troubleshooting

° Parts List

Full One-Year Warranty on
Refrigerator

For one year from the date of purchase, when this
refrigerator is operated and maintained according to

owner's instructions attached to or furnished with the
product, Sears will repair this refrigerator, free of charge,

if defective in material or workmanship.

Full Five-Year Warranty on

Sealed Refrigeration System

For five years from the date of purchase, when this
refrigerator is operated and maintained according to

owner's instructions attached to or furnished with the
product, Sears will repair the sealed system (consisting of

refrigerant, connecting tubing, and compressor motor),
free of charge, if defective in material or workmanship.

The above warranty coverage applies only to refrigerators

which are used for storage of food for private household

purposes.

• Part Description

For future use, please record the model number, serial
number and the date you purchased your Kenmore
refrigerator in the spaces provided below. They are on a

small label on the back of the refrigerator.

Model # Serial #.

Date Purchased

Sears,

Printed in Mexico
Part No. 8336460154300 A

(11t26t01)

Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Warranty service is available by contacting the nearest
Sears Service Center/Department in the United States.

This warranty applies only while this product is in use in
the United States. This warranty gives you specific legal
rights, and you may also have other rights which vary from

state to state.

Sears, Roebuck and Co., Dept. 817WA

Hoffman Estates, IL 60179

Seats, Roebuck and Co., U,S,A.

1 PartNo.,302627

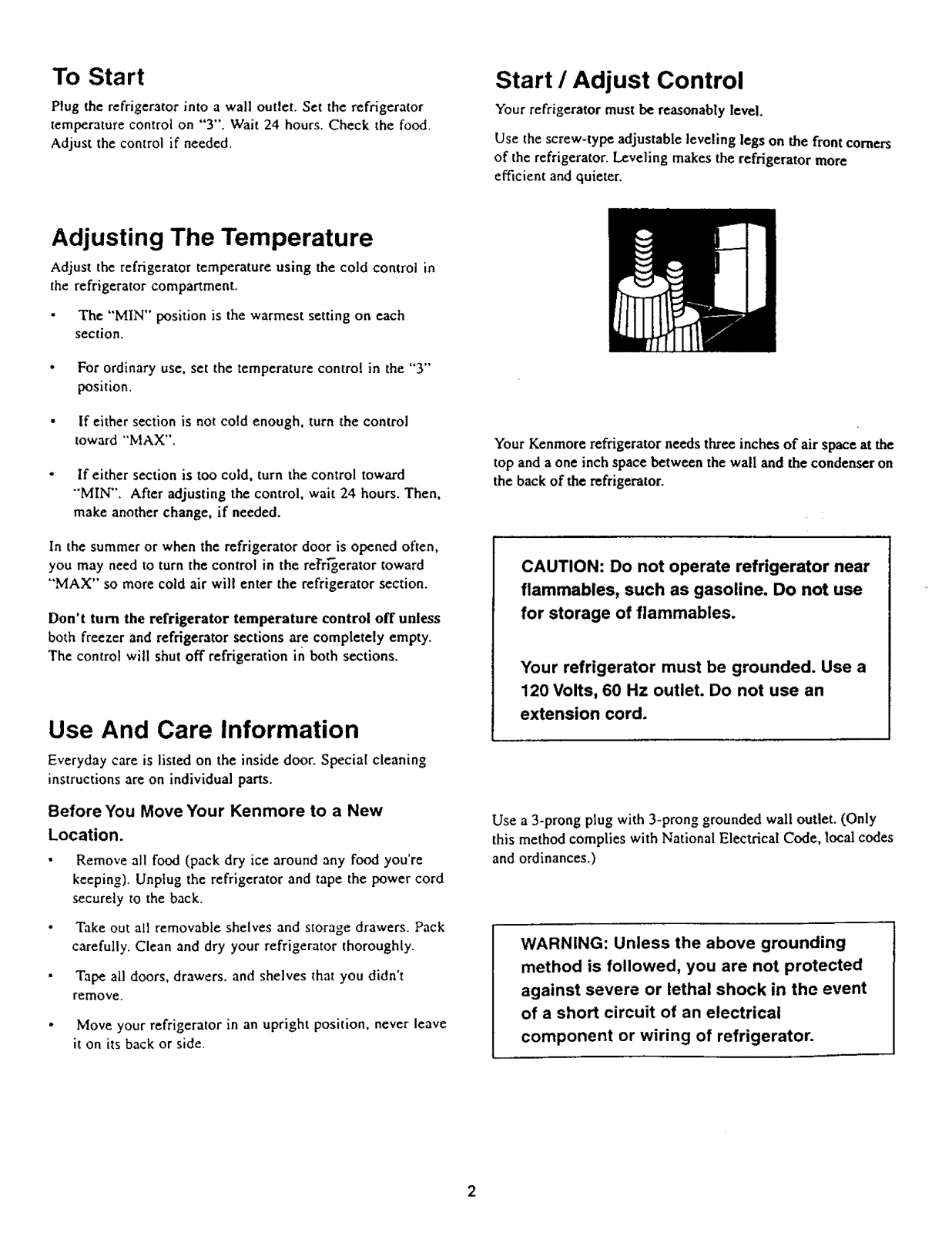

To Start

Plug the refrigerator into a wall outlet. Set the refrigerator

temperature control on "T'. Wait 24 hours. Check the food.
Adjust the control if needed.

Adjusting The Temperature

Adjust the refrigerator temperature using the cold control in
the refrigerator compartment.

- The "MIN'" position is the warmest setting on each

section.

• For ordinary use, set the temperature control in the "3"

position.

• If either section is not cold enough, turn the control

toward "MAX".

• If either section is too cold, turn the control toward

"'MIN". After adjusting the control, wait 24 hours. Then,
make another change, if needed.

Start 1Adjust Control

Your refrigerator must be reasonably level.

Use the screw-type adjustable leveling legs on the front comers
of the refrigerator, Leveling makes the refrigerator more

efficient and quieter.

Your Kenmore refrigerator needs three inches of air space at the
top and a one inch space between the wall and the condenser on
the back of the refrigerator.

In the summer or when the refrigerator door is opened often,
you may need to turn the control in the re_'r_'gerator toward

"'MAX" so more cold air will enter the refrigerator section.

Don't turn the refrigerator temperature control off unless

both freezer and refrigerator sections are completely empty.

The control will shut off refrigeration in both sections.

Use And Care Information

Everyday care is listed on the inside door. Special cleaning

instructions are on individual parts.

Before You Move Your Kenmore to a New
Location.

• Remove all food (pack dry ice around any food you're

keeping). Unplug the refrigerator and tape the power cord
securely to the back.

• Take out all removable shelves and storage drawers. Pack
carefully. Clean and dry your refrigerator thoroughly.

• Tape all doors, drawers, and shelves _hat you didn't

remove.

• Move your refrigerator in an upright position, never leave

it on its back or side.

CAUTION: Do not operate refrigerator near
flammables, such as gasoline. Do not use
for storage of flammables.

Your refrigerator must be grounded. Use a
120 Volts, 60 Hz outlet. Do not use an

extension cord.

Use a 3-prong plug with 3-prong grounded wall outlet. (Only

this method complies with National Electrical Code, local codes
and ordinances.)

WARNING: Unless the above grounding

method is followed, you are not protected
against severe or lethal shock in the event

of a short circuit of an electrical
component or wiring of refrigerator.

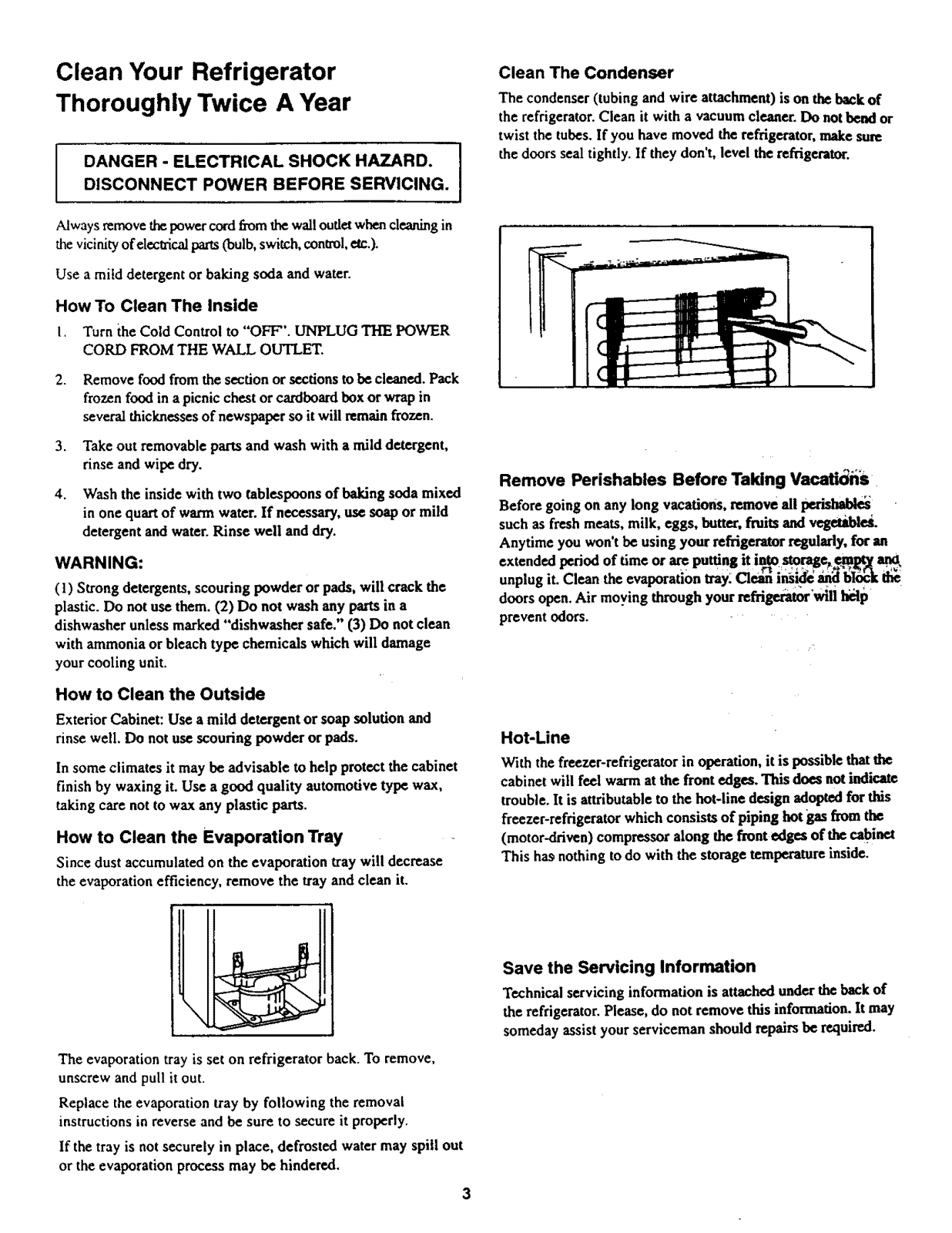

Clean Your Refrigerator
Thoroughly Twice A Year

DANGER - ELECTRICAL SHOCK HAZARD.

I

DISCONNECT POWER BEFORE SERVICING.

Always remove thepowercordfrom the walloutletwhen cleaningin
the vicinity of dectrical parts(bulb, switch, conlrol,etc.).

Use a mild detergent or baking soda and water.

How To Clean The Inside

I. Turn the Cold Control to "OFF". LPNPLUGTHE POWER

CORD FROMTHE WALL OLrI'LET
Remove food from the section or sections to be cleaned. Pack

,

frozen food in a picnic chest or cardboardbox or wrap in
several thicknesses of newspaper so it will remain frozen.

,

Take out removable parts and wash with a mild detergent,
rinse and wipe dry.

4,

Wash the inside with two tablespoons of baking soda mixed
in one quartof warm water. If necessary, use soap or mild
detergent and water. Rinse well and dry.

WARNING:

(1) Strong detergents, scouring powder or pads, will crack the
plastic. Do not use them. (2) Do not wash any parts in a

dishwasher unless marked "dishwasher safe," (3) Do not clean
with ammonia or bleach type chemicals which will damage

your cooling unit.

Clean The Condenser

The condenser (tubing and wire attachment) is on the backof

the refrigerator.Clean it with a vacuum cleaner. Do notbend or

twistthe tubes.If youhave movedtherefrigerator,makesure
the doorssealtightly. If they don't, leveltherefi'igcrator.

Remove Perishables Before Taking Vacati_fik

Before going on any long vacations, remove all perishabl_
such as fresh meats, milk, eggs, butt_, fruits and vegetable&
Anytime you won't be using your refrigerator regularly, for an

extended period of time or are putting it in_ storage_ e_tJ_ _,
unplug it. Clean the evaporation tray:Clean ms!_ ,_l_d bl_k thi:

doors open. Air moying through your refri_'will hidp
prevent odors.

/:

How to Clean the Outside
ExteriorCabinet: Use a mild detergent or soap solution and

rinse well. Do not use scouring powder or pads.
In some climates it may be advisable to help protect the cabinet

finish by waxing it. Use a good quality automotive type wax,
taking care not to wax any plastic parts.

How to Clean the Evaporation Tray -

Since dust accumulated on the evaporation tray will decrease
the evaporation efficiency, remove the tray and clean it.

The evaporation tray is set on refrigerator back. To remove,
unscrew and pull it out.

Replace the evaporation tray by following the removal

instructions in reverse and be sure to secure it properly.
If the tray is not securely in place, defrosted water may spill out

or the evaporation process may be hindered.

Hot-Line

With the freezer-refrigerator in operation, it is possible that the
cabinet will feel warm at the front edges. This does not indicate

trouble. It is attributable to the hot-line design adopted for this
freezer-refrigerator which consists of piping hot gas from the

(motor-driven) compressor along the front edges of the cabinet

This has nothing to do with the storage temperature inside.

Save the Servicing Information

Technicalservicinginformationis attachedunderthebackof

the refrigerator. Please, do not remove this information. It may
someday assist your serviceman should repairs be required.

3

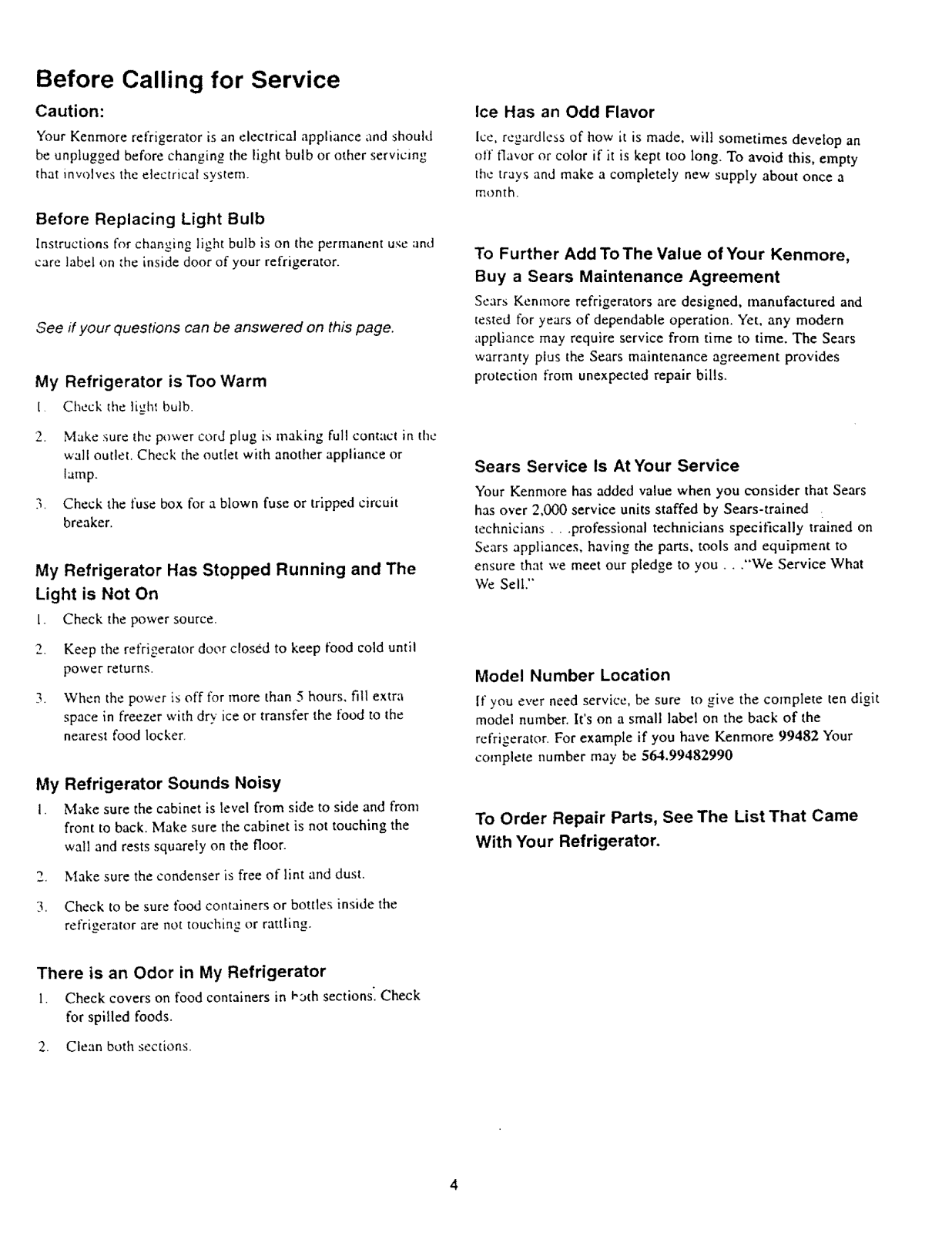

Before Calling for Service

Caution:

Your Kenmore refrigerator isan electrical appliance and should

be unplugged before changing the light bulb or other servicing

thatinvolves theeIectricatsystem.

Before Replacing Light Bulb

Instructions for changing light bulb is on the permanent use anti

care label on the inside door of your refrigerator.

See if your questions can be answered on this page.

My Refrigerator is Too Warm

[ Check the light bulb.

2. Make sure the power cord plug is making full contact in the

wall outlet, Check the outlet with another appliance or
lamp.

3, Check the fuse box for a blown fuse or tripped circuit

breaker.

My Refrigerator Has Stopped Running and The
Light is Not On

I_ Check the power source.

Ice Has an Odd Flavor

Ice, regardless of how it is made, will sometimes develop an
off flavor or color if it is kept too long. To avoid this, empty

the trays and make a completely new supply about once a
month.

To Further Add To The Value of Your Kenmore,
Buy a Sears Maintenance Agreement

Sears Kenmore refrigerators are designed, manufactured and

tested for years of dependable operation. Yet, any modern
appl.iance may require service from time to time. The Sears

warranty plus the Sears maintenance agreement provides
protection from unexpected repair bills.

Sears Service Is At Your Service

Your Kenmore has added value when you consider that Sears
has over 2,000 service units staffed by Sears-trained

technicians . . .professional technicians specifically trained on
Sears appliances, having the parts, tools and equipment to

ensure that we meet our pledge to you..."We Service What

We Sell.'"

2. Keep the refrigerator door closed to keep food cold until
power returns.

3. When the power is off for more than 5 hours, fill extra
space in freezer with dry ice or transfer the food to the

nearest food locker.

My Refrigerator Sounds Noisy

1. Make sure the cabinet is level from side to side and from
front to back. Make sure the cabinet is not touching the

wall and rests squarely on the floor.

2. Make sure the condenser is free of lint and dust.

3, Check to be sure tbod containers or bottles inside the

refri_erator_ are not touchim,_, or rattling.

There is an Odor in My Refrigerator

l. Check covers on food containers in h_th sections_ Check

for spilled foods.

2. Clean both sections.

Model Number Location

If you ever need service, be sure to give the complete ten digit
model number. It's on a small label on the back of the

refrigerator. For example if you have Kenmore 99482 Your
complete number may be 564.99482990

To Order Repair Parts, See The List That Came
With Your Refrigerator.

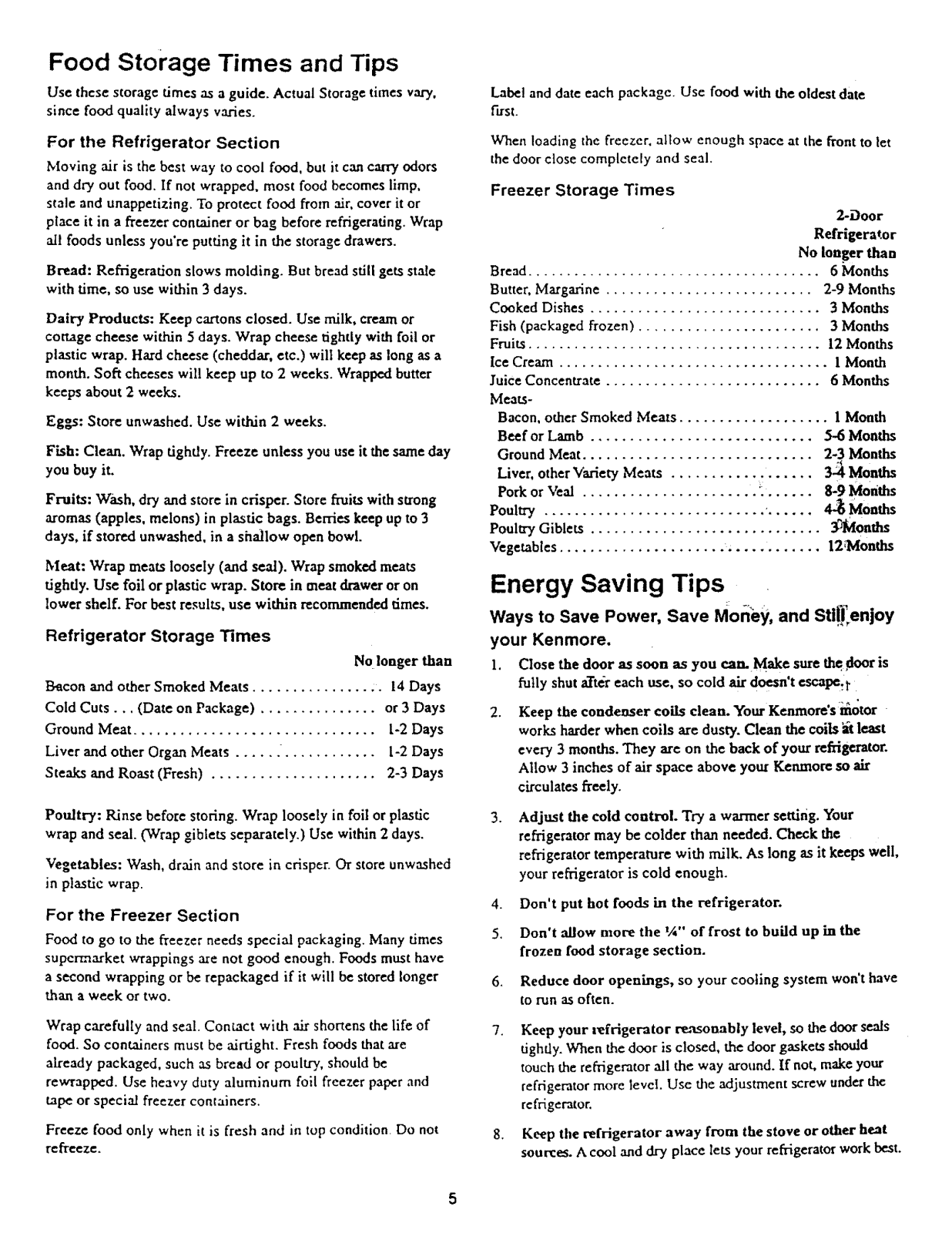

Food storage Times and Tips

Use these storage times as a guide. Actual Storage times vary,
since food quality always varies.

For the Refrigerator Section
Moving air is the best way to cool food, but it can carry odors

and dry out food. If not wrapped, most food becomes limp,
stale and unappetizing. To protect food from air, cover it or

place it in a freezer container or bag before refrigerating. Wrap

nil foods unless you're putting it in the storage drawers.
Bread: Refrigeration slows molding. But bread still gets stale

with time, so use within 3 days.

Dairy Products: Keep cartons closed. Use milk, cream or
cottage cheese within 5 days. Wrap cheese tightly with foil or

plastic wrap. Hard cheese (cheddar, etc.) will keep as long as a
month. Soft cheeses will keep up to 2 weeks. Wrapped butter
keeps about 2 weeks.

Eggs: Store unwashed. Use within 2 weeks.
Fish: Clean. Wrap dghdy. Freeze unless you use it the same day

you buy it.
Fruits: Wash, dry and store in crisper. Store fruits with strong

aromas (apples, melons) in plastic bags. Berries keep up to 3
days, if stored unwashed, in a shallow open bowl.

Meat: Wrap meats loosely (and seal). Wrap smoked meats
tightly. Use foil or plastic wrap. Store in meat drawer or on

lower shelf. For best results, use within recommended times.

Refrigerator Storage Times

No longer than

Bacon and other Smoked Meats ............... :. 14 Days

Cold Cuts... (Date on Package) ............... or 3 Days

Ground Meat ............................... 1-2 Days

Liver and other Organ Meats .................. 1-2 Days

Steaks and Roast (Fresh) ..................... 2-3 Days

Label and date each package. Use food with the oldest date

first.

When loading the freezer, allow enough space at the front to let
the door close completely and seal.

Freezer Storage Times

2-Door

Refrigerator

No longer than

Bread ..................................... 6 Months

Butter, Margarine .......................... 2-9 Months

Cooked Dishes ............................. 3 Months

Fish (packaged frozen) ....................... 3 Months

Fruits..................................... 12 Months

Ice Cream .................................. 1 Month

1uice Concentrate ........................... 6 Months

Meats-

Bacon, other Smoked Meats ................... 1Month

Beef or Lamb ............................ 5-6 Months

Ground Meat ............................. 2-3 Months

Liver, otherVariety Meats .................. 3-_ Months

Pork or Veal _ 8-9 Months

Poultry............................ '...... 4-_ Months

Poultry Giblets ............................. 33Months

Vegetables ..................... • ........... 12_,donths

Energy Saving Tips

Ways to Save Power, Save Money, and St|[i_,enjoy
your Kenmore.

l, Closethedoorassoon asyou can.Make sureth¢dooris

fully shut a]'tc_reach use, so cold air doesn't escaI:_:t

2. Keep the condenser coils clean. Your Kenmore's_otor
works harder when coils axe dusty. Clean the coils iit least

every 3 months. They are on the back of your refrigerator.
Allow 3 inches of air space above your Kenmore so air

circulates freely.

Poultry: Rinse before storing. Wrap loosely in foil or plastic
wrap and seal. Q,Vrapgiblets separately.) Use within 2 days.

Vegetables: Wash, drain and store in crisper. Or store unwashed
in plastic wrap.

For the Freezer Section

Food to go to the freezer needs special packaging. Many times
supermarket wrappings are not good enough. Foods must have
a second wrapping or be repackaged if it will be stored longer

than a week or two.

Wrap carefully and seal. Contact with air shortens the life of

food. So containers must be airtight. Fresh foods that are
already packaged, such as bread or poultry, should be
rewrapped. Use heavy duty aluminum foil freezer paper and

tape or special freezer containers.

Freeze food only when it is fresh and in top condition Do not
refreeze.

. Adjust the cold control. Try a warmer setting. Your

refrigerator may be colder than needed. Check the
refrigerator temperature with milk. As long as it keeps well,

your refrigerator is cold enough.

4. Don't put hot foods in the refrigerator.

5. Don't allow more the 'A" of frost to build up in the
frozen food storage section.

6, Reduce door openings, so your cooling system won't have

to run asoften.

7.

Keep your =gfrigerator reasonably level, so the door seals
dghdy. When the door is closed, the door gaskets should

touch the refrigerator all the way around. If not, make your

refrigerator more level. Use the adjustment screw under the

refrigerator.

,

Keep the refrigerator away from the stove or other heat

soun:es. A cool anddr-:,place lets your refrigeratorwork best.
