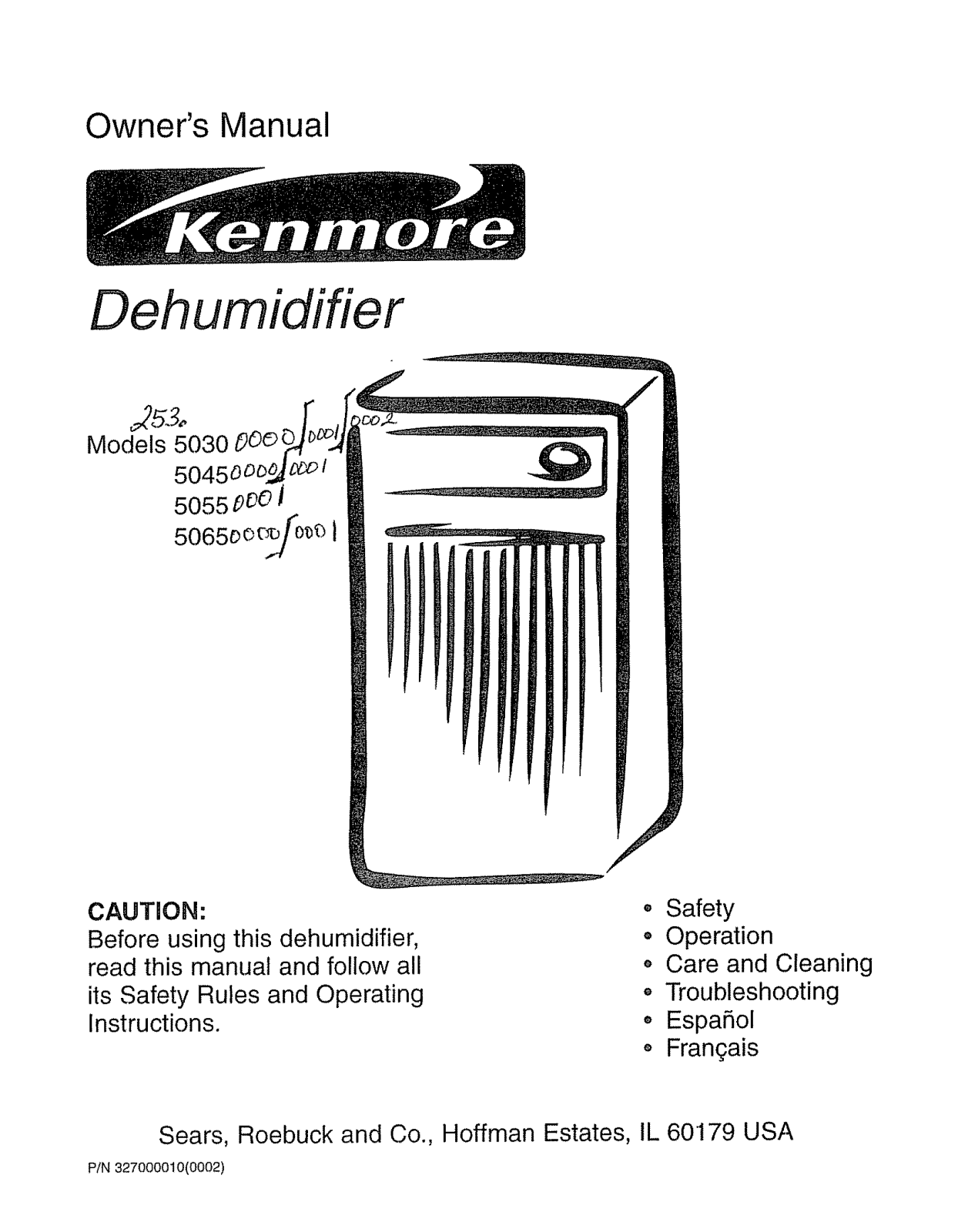

Kenmore 5030, 5055, 5045 User Manual [en, es, fr]

Specifications and Main Features
  • Models: 5030, 5045, 5055, 5065
  • Voltage: 110/120V AC
  • Humidity Control Range: 15% MAX to 75% MIN
  • Fan Speeds: High and Low (excluding model 5030)
  • Bucket capacity: Not mentioned
  • Shut Off automatically when Bucket Full

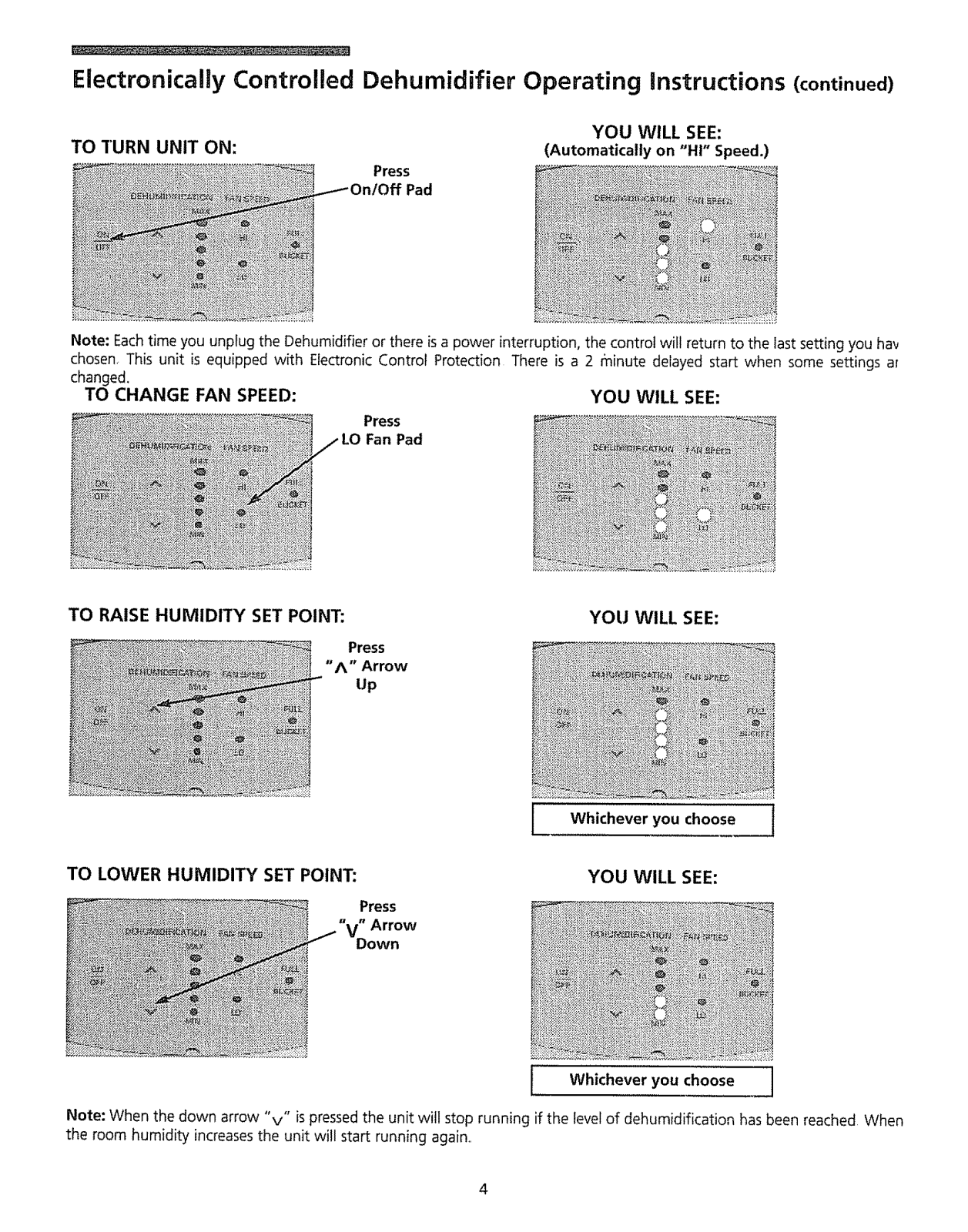

  • Electronic Control Delay for 2 minutes after power ON

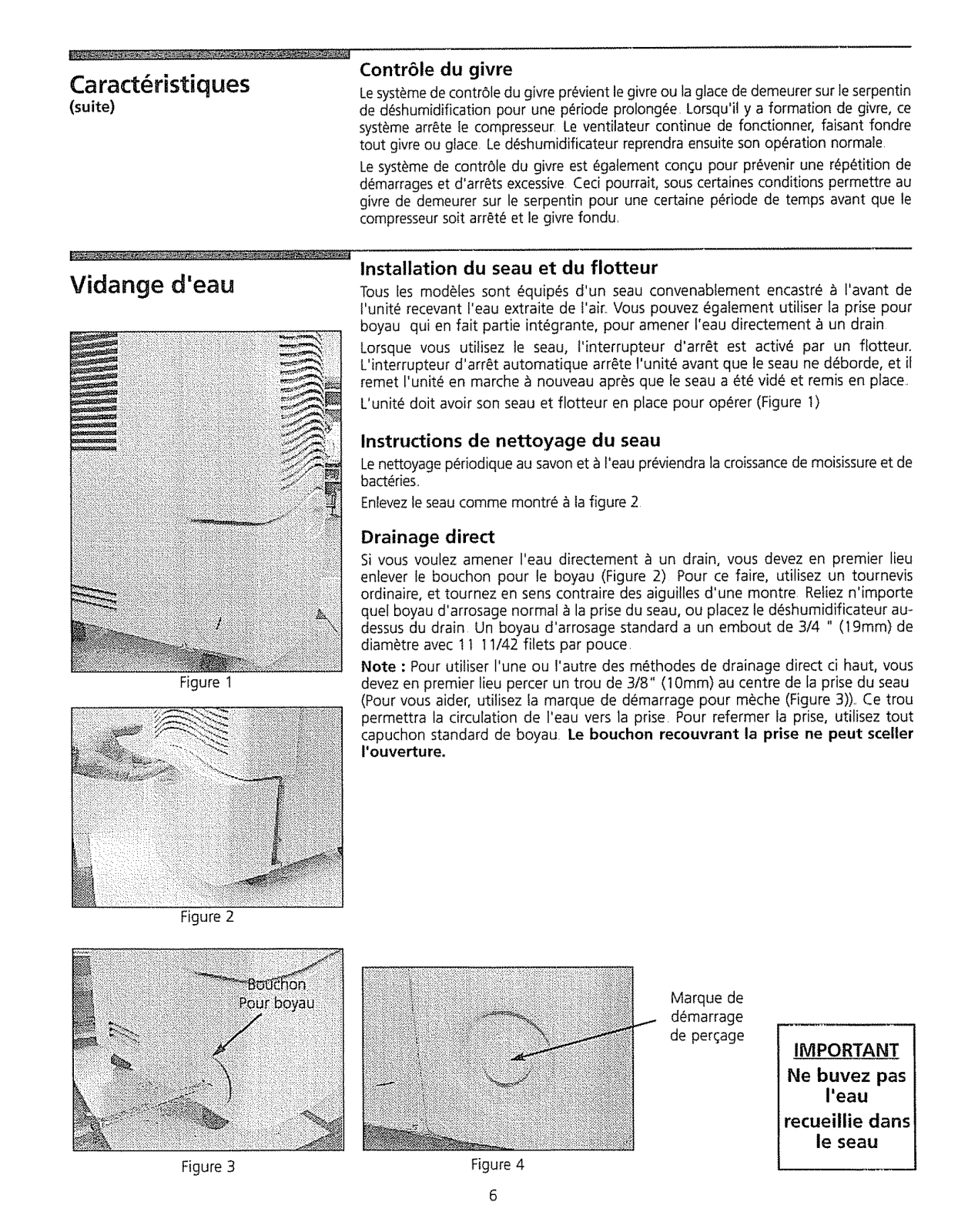

  • Prevents frost or ice formation on the dehumidifying coils: frost control function.

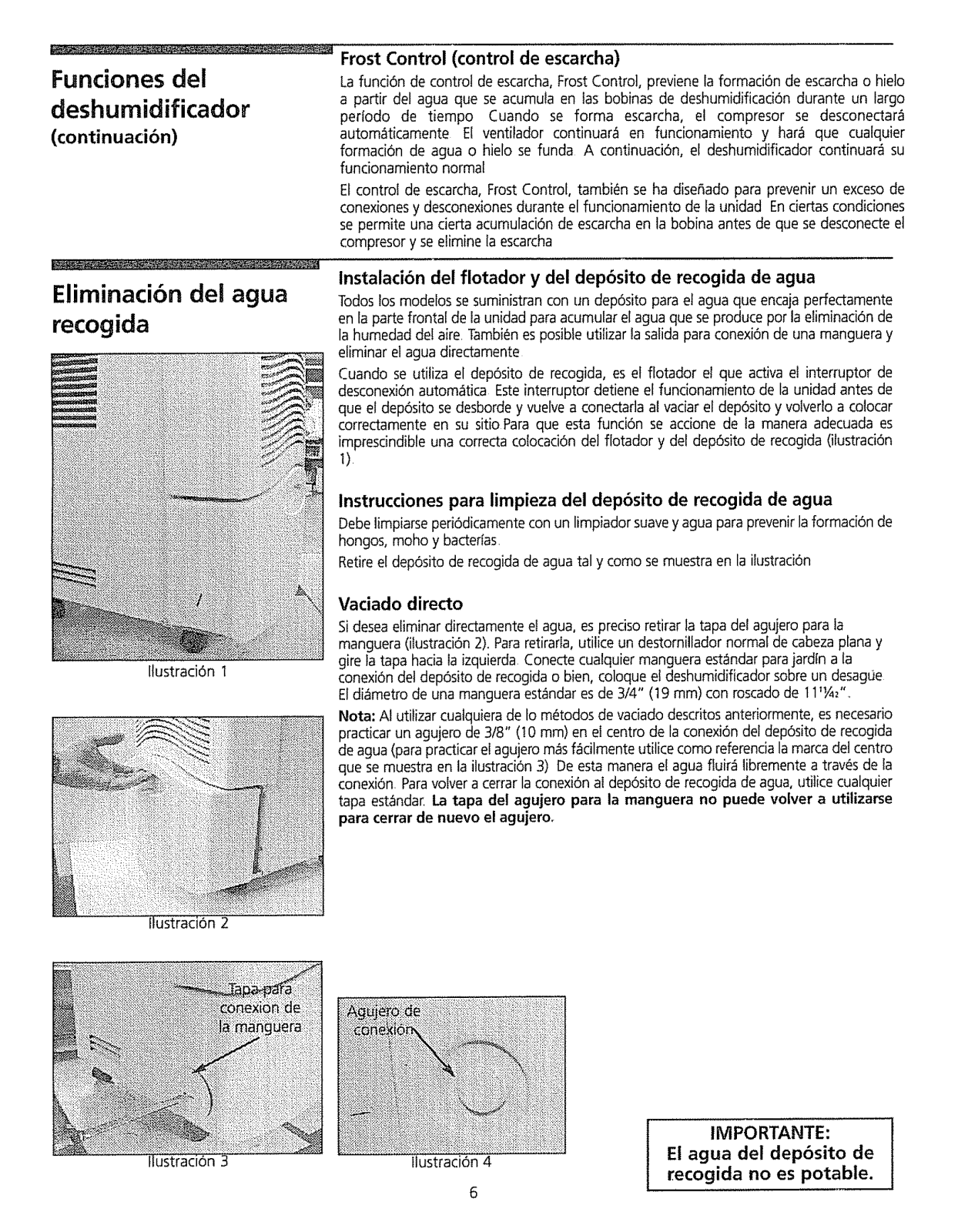

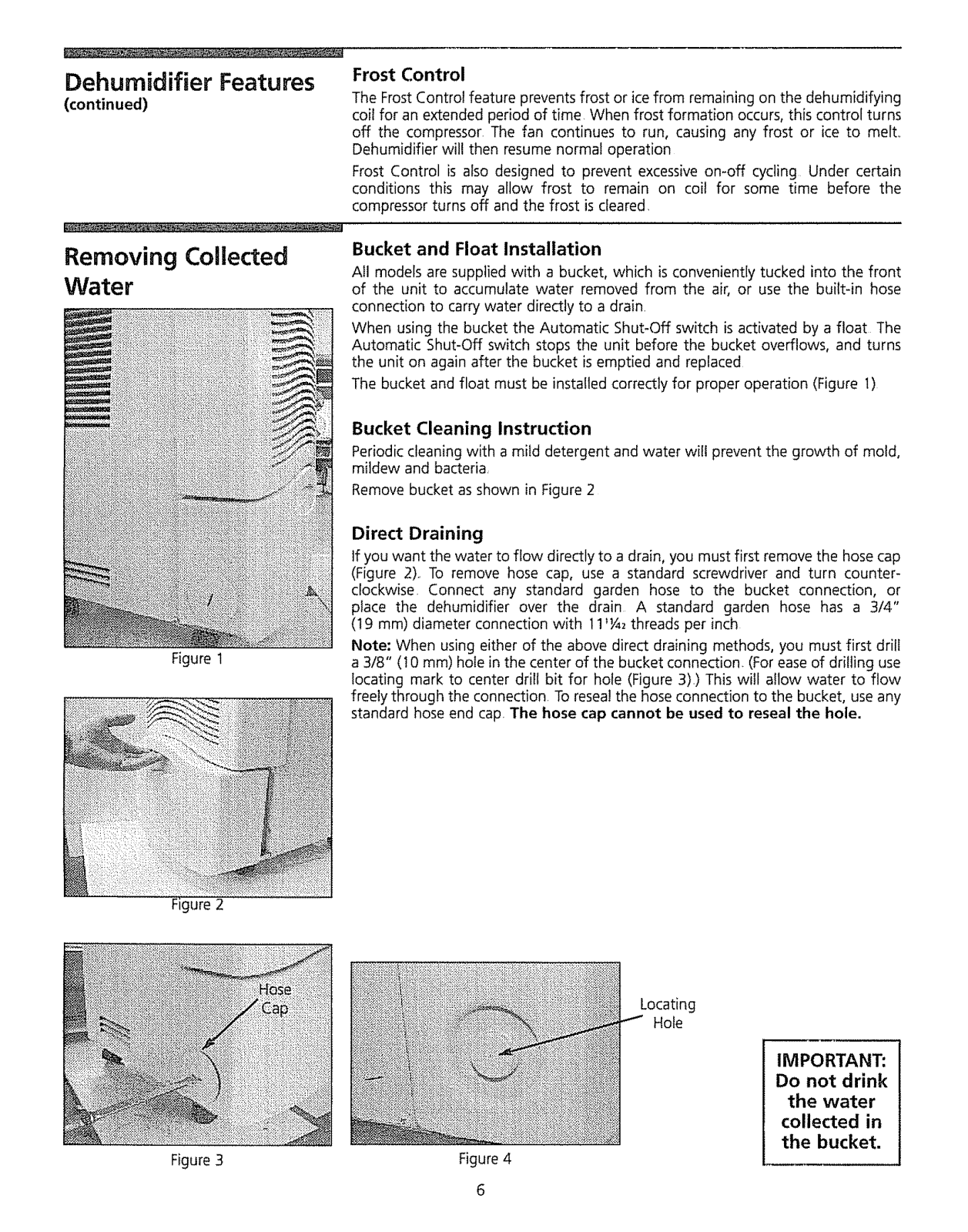

  • Garden hose standard connection for direct draining now available.
  • Operating Conditions: Greater than 18C (65F) ambient conditions.
  • Safety Features: 3 pin grounded plug, float switch for bucket cut off.
Frequently Asked Questions

Q: Is a dehumidifier good for using in a basement?

A: A dehumidifier should be run inside a closed room to work properly otherwise it will not dry the surrounding closed room. It may take time if there is no free flow of air.

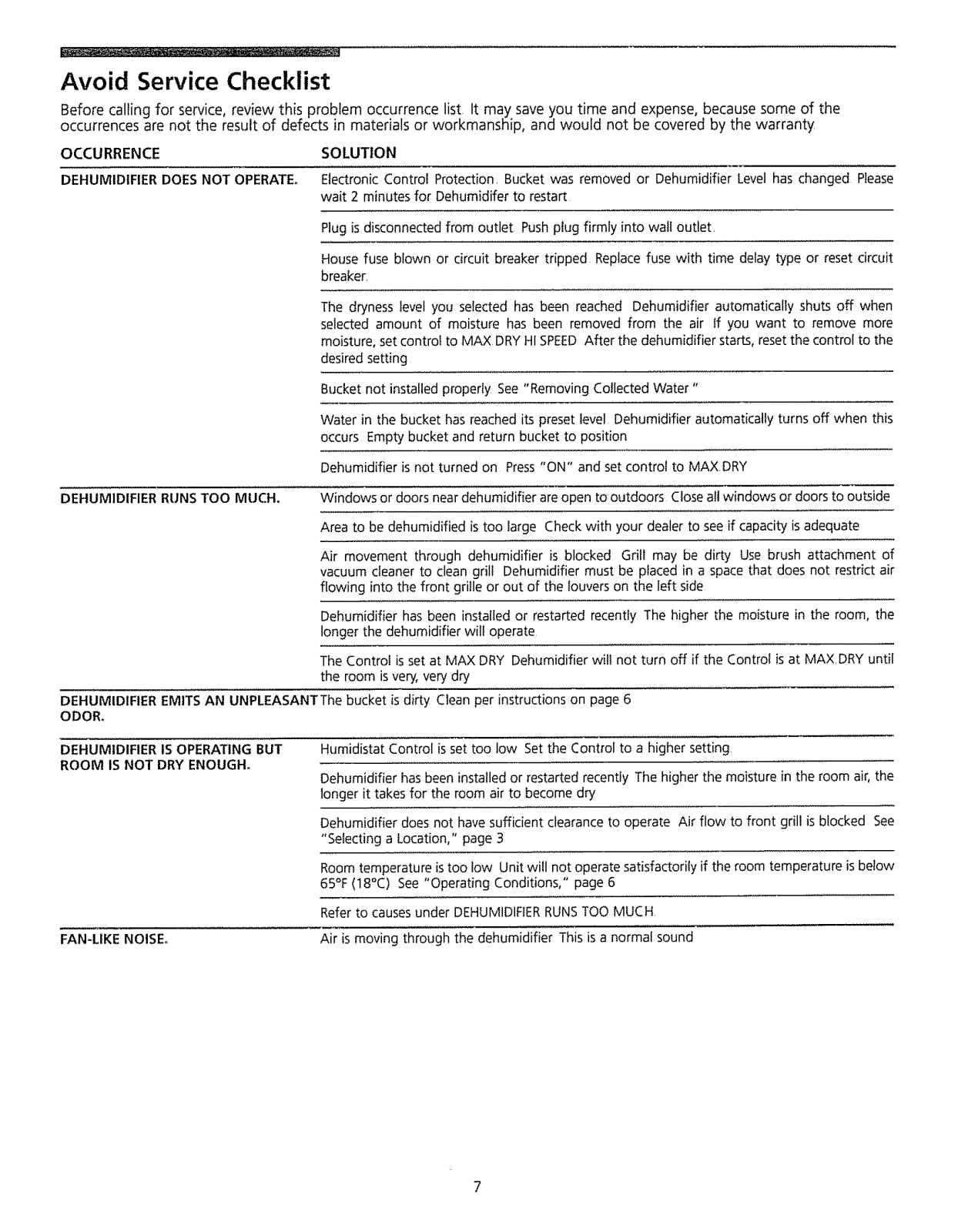

Q: What action can be taken if the dehumidifier fails to start?

A: If the dehumidifier is so fitted the bucket or containers having water in them, plug the unit into the power supply and check the house fuse or circuit breaker. If the bucket has been removed or the level of the dehumidifier has been changed, a two minutes delay will be there.

Q: Is there a specific timeline I should follow while cleaning the bucket?

A: The bucket should be washed thoroughly on a regular basis using a gentle detergent mixed with water, in order to stop the developing of bacteria, and mildew deposits as well as molds.

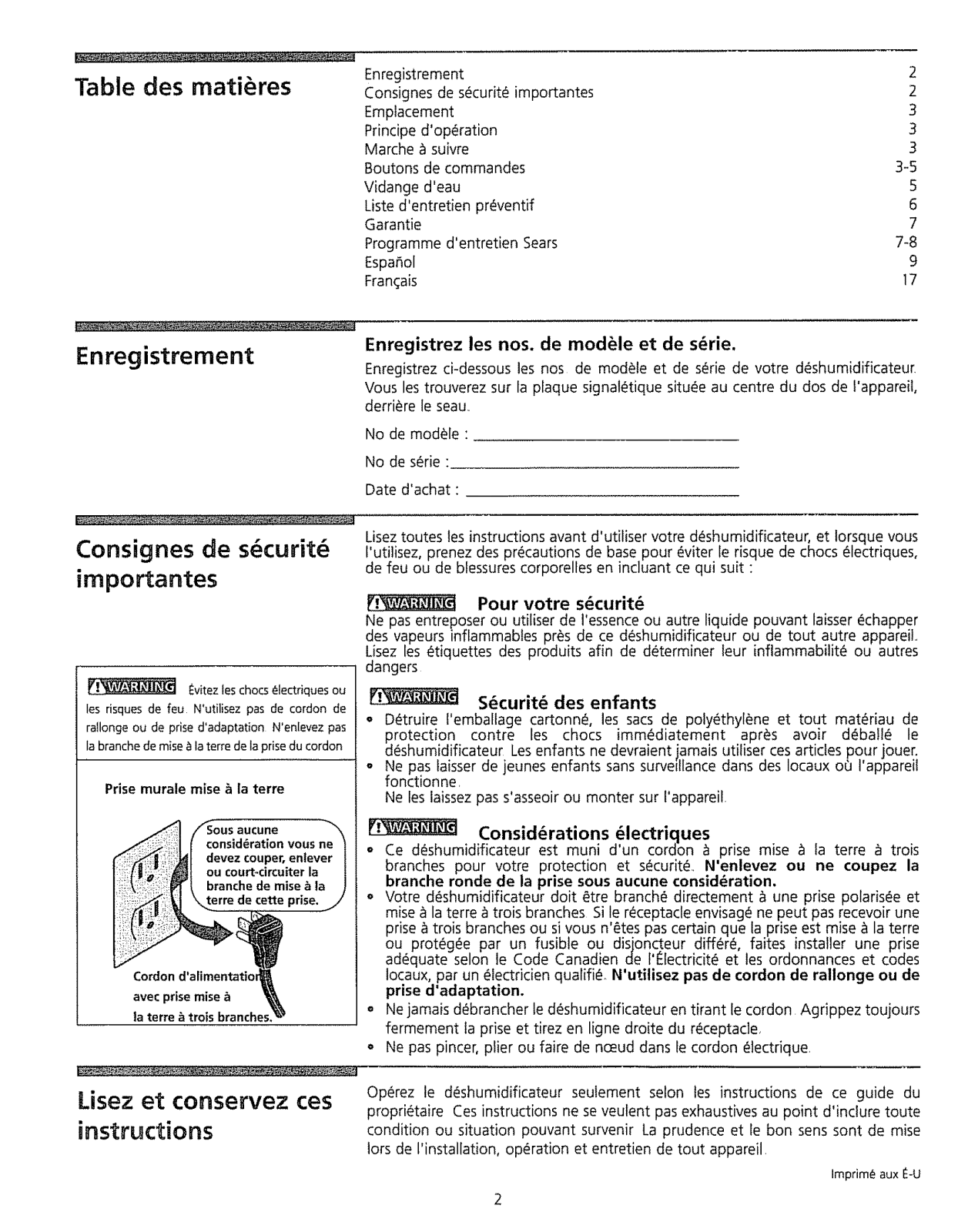

Q: Is it acceptable to plug the dehumidifier into an extension cord?

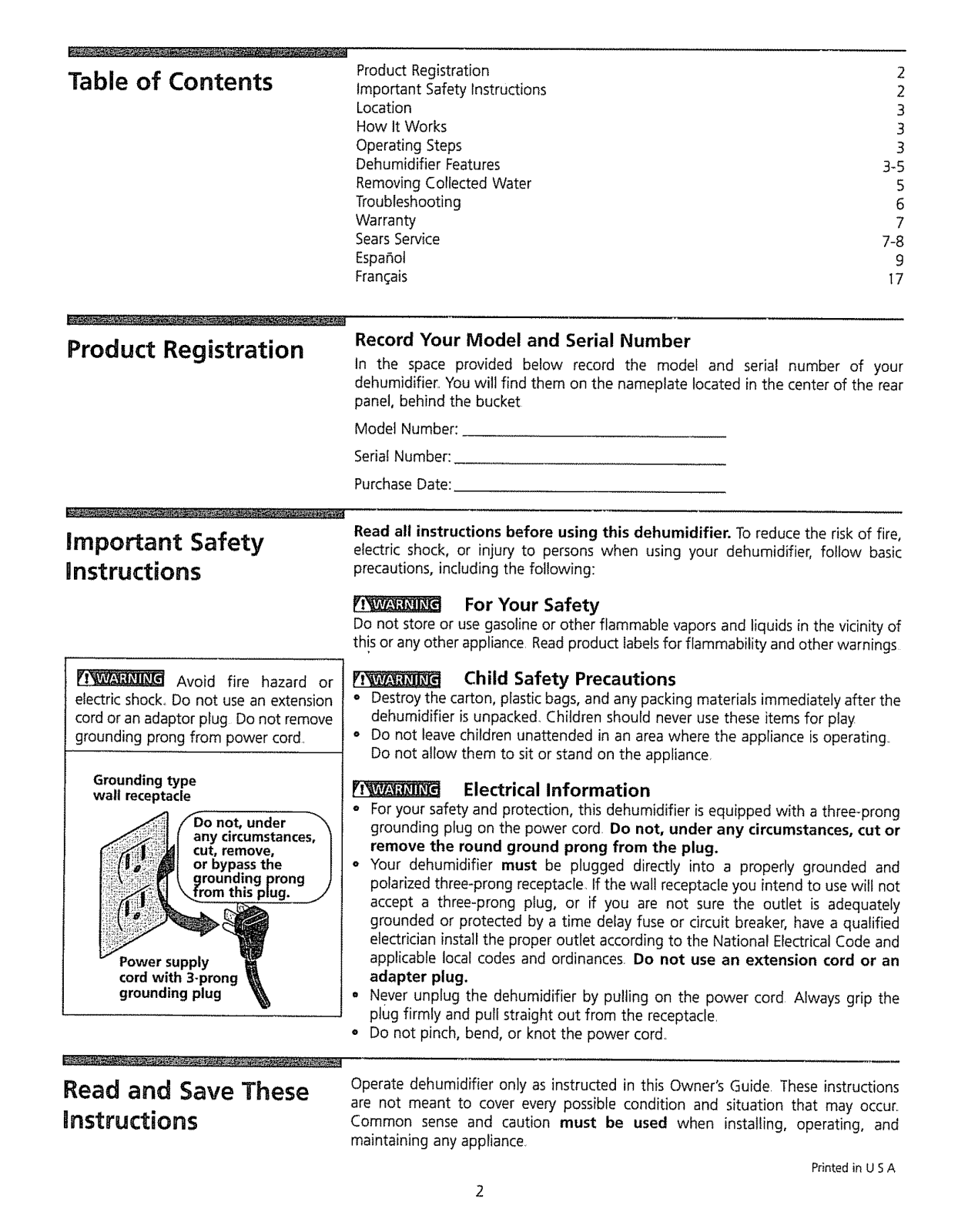

A: It is not advisable to use an extension cord or an adapter plug. Make sure that the dehumidifier is plugged directly into a properly installed socket outlet.

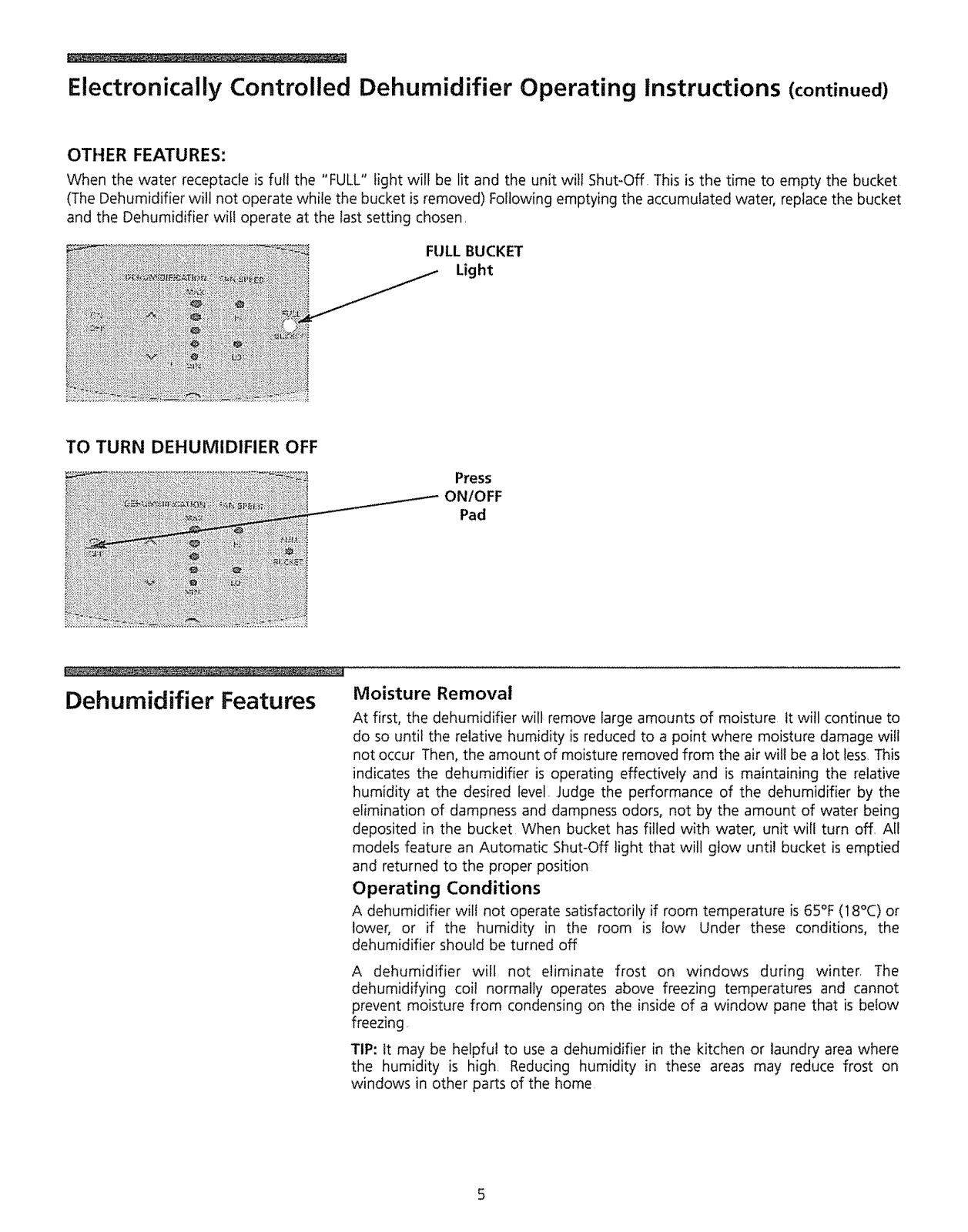

Q: If the bucket fills, what then?

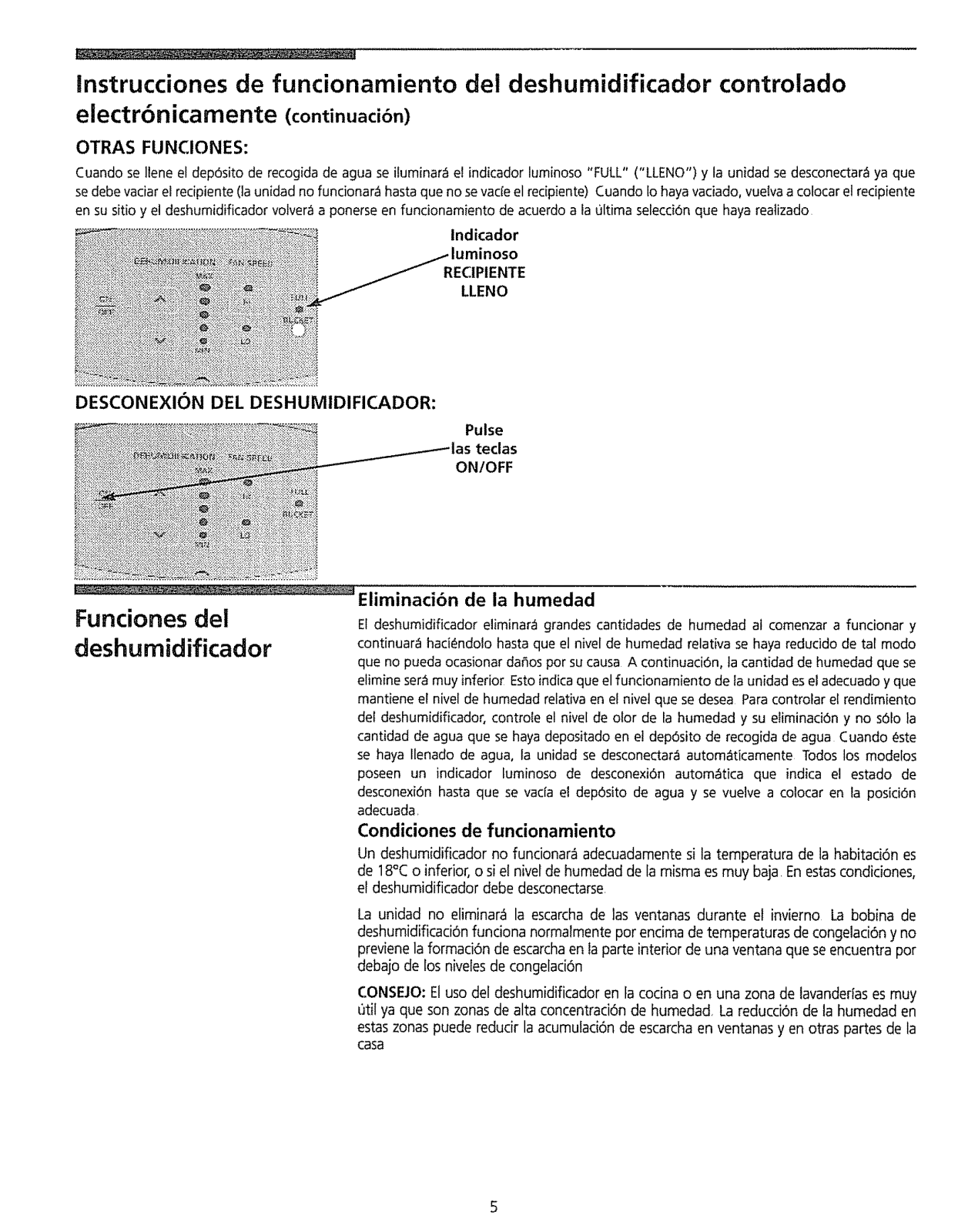

A: This is what happens when the bucket fills during effective service: a light which will say 'FULL' will switch on and, automatically, the system ceases operating until the bucket is taken off and put back on.
