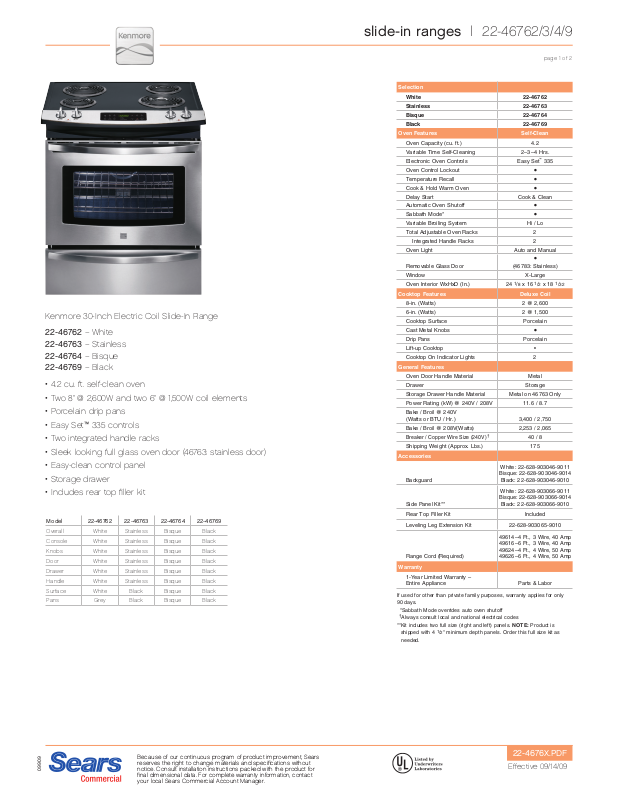

Kenmore 46769 Quick Start Manual

Kenmore 30-Inch Electric Coil Slide-In Range

22-46762 – White 22-46763 – Stainless 22-46764 – Bisque 22-46769 – Black

• 4.2 cu. ft. self-clean oven

• Two 8" @ 2,600W and two 6" @ 1,500W coil elements

• Porcelain drip pans

• Easy Set™ 335 controls

• Two integrated handle racks

• Sleek looking full glass oven door (46763: stainless door)

• Easy-clean control panel

• Storage drawer

• Includes rear top ller kit

Model 22-46762 22-46763 22-46764 22-46769

Overall White Stainless Bisque Black

Console White Stainless Bisque Black

Knobs White Stainless Bisque Black

Door White Stainless Bisque Black

Drawer White Stainless Bisque Black

Handle White Stainless Bisque Black

Surface White Black Bisque Black

Pans Grey Black Bisque Black

slide-in ranges | 22-46762/3/4/9

page 1 of 2

Selection

White 22-46762

Stainless 22-46763

Bisque 22-46764

Black 22-46769

Oven Features Self-Clean

Oven Capacity (cu. ft.) 4.2

Variable Time Self-Cleaning 2–3– 4 Hrs.

Electronic Oven Controls

Oven Control Lockout

Temperature Recall

Cook & Hold Warm Oven

Delay Start Cook & Clean

Automatic Oven Shutoff

Sabbath Mode*

Variable Broiling System Hi / Lo

Total Adjustable Oven Racks 2

Integrated Handle Racks 2

Oven Light Auto and Manual

Removable Glass Door

Window X-Large

Oven Interior WxHxD (In.) 24

Cooktop Features Deluxe Coil

8-in. (Watts) 2 @ 2,600

6-in. (Watts) 2 @ 1,500

Cooktop Surface Porcelain

Cast Metal Knobs

Drip Pans Porcelain

Lift-up Cooktop •

Cooktop On Indicator Lights 2

General Features

Oven Door Handle Material Metal

Drawer Storage

Storage Drawer Handle Material Metal on 46763 Only

Power Rating (kW) @ 240V / 208V 11.6 / 8.7

Bake / Broil @ 240V (Watts or BTU / Hr.) 3,400 / 2,750

Bake / Broil @ 208V(Watts) 2,253 / 2,065

Breaker / Copper Wire Size (240V)

Shipping Weight (Approx. Lbs.) 175

Accessories

Backguard

Side Panel Kit**

Rear Top Filler Kit Included

Leveling Leg Extension Kit 22-628-903065-9010

Range Cord (Required)

Warranty

1-Year Limited Warranty – Entire Appliance Parts & Labor

If used for other than private family purposes, warranty applies for only 90 days. *Sabbath Mode overrides auto oven shutoff

†

Always consult local and national electrical codes

** Kit includes two full size (right and left) panels. NOTE: Product is

shipped with 4 needed.

/2" minimum depth panels. Order this full size kit as

†

White: 22-628-903046-9011

Bisque: 22-628-903046-9014

Black: 22-628-903046-9010

White: 22-628-903066-9011

Bisque: 22-628-903066-9014

Black: 22-628-903066-9010

49614– 4 Ft., 3 Wire, 40 Amp 49616– 6 Ft., 3 Wire, 40 Amp 49624– 4 Ft., 4 Wire, 50 Amp 49626– 6 Ft., 4 Wire, 50 Amp

™

Easy Set

335

•

(46783: Stainless)

/8 x 16 1/2 x 18 1/

•

40 / 8

09909

Because of our continuous program of product improvement, Sears

Because of our continuous program of product improvement, Sears reserves the right to change materials and specications without

reserves the right to change materials and specications without notice. Consult installation instructions packed with the product for

notice. Consult installation instructions packed with the product for nal dimensional data. For complete warranty information, contact

nal dimensional data. For complete warranty information, contact your local Sears Commercial Account Manager.

your local Sears Commercial Account Manager.

22-4676X.PDF

Effective 09/14/09

28 5/16"

Side Panel

Door Open+

/4"

35 5/8" 36

/8"

30"

/16"

Min.

cutout

width

/4"

/2"

Formed or tiled countertop trimmed 3/4" back at front corners of countertop opening.

/4" min.**

/8" max.

CABINET

FRONT

1 1/8"

/8" min.

††

23 1/4" max.

COUNTERTOP PREPARATION

The cooktop sides of the range fit over the cutout edge of your countertop. Countertop must be level.

If you have a square finish (flat) countertop, no countertop preparation is required. Cooktop sides lay directly on edge of countertop.

Formed front-edged countertops must have molded edge shaved flat 3/4" from each front corner of opening.

Tile countertops may need trim cut back 3/4" from each front corner and/or rounded edge flattened.

If the existing cutout width is greater than 30 1/16", reduce the 3/4" dimension.

Shave Raised Edge To Clear

/2" Wide

Cooktop.

1 1/2" Max.

13"

30" Min.

For existing 29" cutout width opening, you must call the Sears Service Center for optional thinner side panels. Also you must prepare the countertop edge as shown in “Counterdepth Preparation”.

Locate Cabinet Doors 1" Min. From Cutout Opening

18" Min.

Approx. 1

/8"

30" Min.*

30"

†

±1/16"

/8" Min.

36 5/8" Max.

24" Min.

21 3/4" Min.** 22

/8"

Max.

Grounded Junction Box or Wall Outlet Should Be

Located 8" to 17" (20.3 - 43.2 cm) From Right of Cabinet

and 2" to 4" From Floor

††For cutouts below 22 7/8", applaince will slightly show out of the cabinet.

**Note: Minimum cutout depth is increased to 24" with optional backguard.

Note: Rear Top Filler Kit ships with product

Do not pinch the power supply cord or flexible gas conduit between the range and the wall.

Do not seal the range to the side cabinets.

*Note: 24" min. clearance between the cooktop and the bottom of the cabinets when the bottom

of the wood or metal cabinet is protected by not less than 1/4" flame retardant millboard covered

with not less than No. 28 MSG sheet metal, 0.015" stainless steel, 0.024" aluminum, or 0.020"

copper. 30" min. clearance when the cabinet is unprotected.

†Note: To avoid cooktop glass breakage for cutout with more than 30 1/16", make sure appliance

is centered in the counter opening while pushing it in. Raise leveling legs at maximum position,

insert the appliance in the counter and then level. Make sure the unit is supported by the leveling

legs and not by the cooktop glass itself.

+Allow at least 19 1/4" clearance for door depth when it is open.

slide-in ranges | 22-46762/3/4/9

page 2 of 2

22-49614, 22-49616

RANGE CORD REQUIRED

Order Wire Length

22-49614 3 4 ft. 22-49616 3 6 ft. 22-49624* 4 4 ft. 22-49626* 4 6 ft.

22-49624, 22-49626
