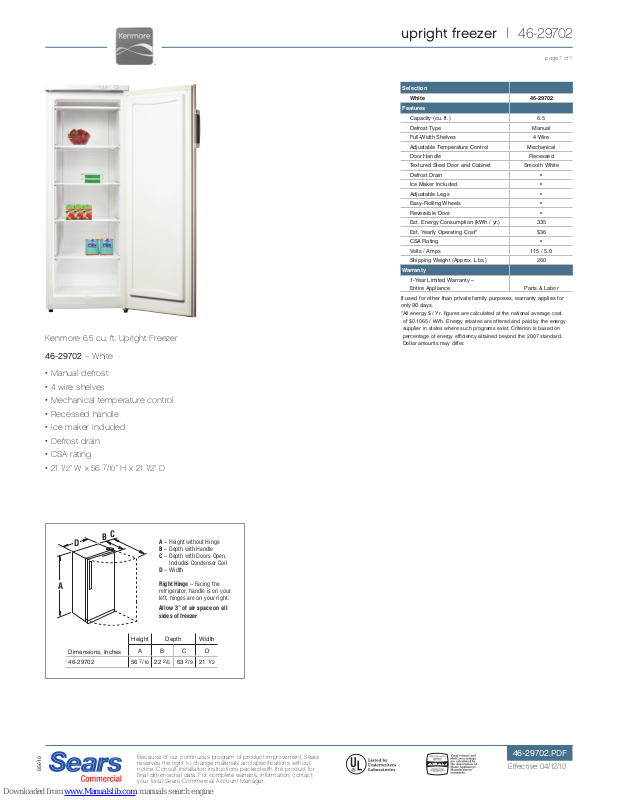

Kenmore 6.5 cu. ft. Upright Freezer
D
B
C
A
46-29702 – White
• Manual defrost
• 4 wire shelves
• Mechanical temperature control
• Recessed handle
• Ice maker included
• Defrost drain
• CSA rating
1
• 21
/2" W x 56 7/10" H x 21 1/2" D
upright freezer | 46-29702
page 1 of 1
Selection
White 46-29702
Features
Capacity (cu. ft.) 6.5
Defrost Type Manual
Full-Width Shelves 4 Wire
Adjustable Temperature Control Mechanical
Door Handle Recessed
Textured Steel Door and Cabinet Smooth White
Defrost Drain •
Ice Maker Included •
Adjustable Legs •
Easy-Rolling Wheels •
Reversible Door •
Est. Energy Consumption (kWh / yr.) 335
Est. Yearly Operating Cost* $36
CSA Rating •
Volts / Amps 115 / 5.0
Shipping Weight (Approx. Lbs.) 260
Warranty
1-Year Limited Warranty –
Entire Appliance Parts & Labor
If used for other than private family purposes, warranty applies for
only 90 days.
* All energy $ / Yr. figures are calculated at the national average cost
of $0.1065 / kWh. Energy rebates are offered and paid by the energy
supplier in states where such programs exist. Criterion is based on
percentage of energy efficiency attained beyond the 2007 standard.
Dollar amounts may differ.
A – Height without Hinge
B – Depth with Handle
C – Depth with Doors Open,
Includes Condenser Coil
D – Width
Right Hinge – Facing the
refrigerator, handle is on your
left, hinges are on your right.
Allow 3” of air space on all
sides of freezer
Height Depth Width
Dimensions, Inches
46-29702 56
05610
A B C D
7
/10 22 2/5 63 2/9 21 1/2
Because of our continuous program of product improvement, Sears
reserves the right to change materials and specifications without
notice. Consult installation instructions packed with the product for
final dimensional data. For complete warranty information, contact
your local Sears Commercial Account Manager.
46-29702.PDF
Effective 04/12/10
