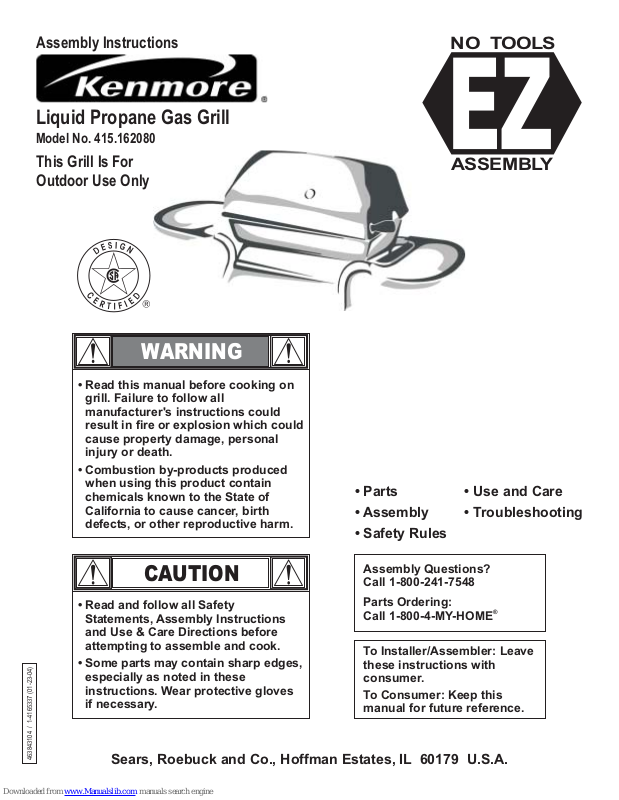

Kenmore 415.162080 Assembling Instructions

Download

Assembly Instructions

Liquid Propane Gas Grill

Model No. 415.162080

NO TOOLS

This Grill Is For Outdoor Use Only

WARNING

• Read this manual before cooking on grill. Failure to follow all manufacturer's instructions could result in fire or explosion which could cause property damage, personal injury or death.

ASSEMBLY

463843104 / 1-4165337 (01-23-04)

• Combustion by-products produced when using this product contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

CAUTION

• Read and follow all Safety Statements, Assembly Instructions and Use & Care Directions before attempting to assemble and cook.

• Some parts may contain sharp edges, especially as noted in these instructions. Wear protective gloves if necessary.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

• Parts

• Assembly

• Use and Care

• Troubleshooting

• Safety Rules

Assembly Questions? Call 1-800-241-7548

Parts Ordering: Call 1-800-4-MY-HOME

To Installer/Assembler: Leave these instructions with consumer.

To Consumer: Keep this manual for future reference.

WARNING

FOR YOUR SAFETY

1. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

2. An LP tank not connected for use shall not be stored in the vicinity of this or any other appliance.

FOR YOUR SAFETY If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open lid.

4. If odor continues, immediately call your

gas supplier or your fire department.

Call Grill Service Center For Help And Parts

If you have questions or need assistance during assembly, please call . You will be speaking to a representative of the grill manufacturer and not a Sears employee. To order new parts call Sears at .

Product Record

IMPORTANT: Fill out the product record information below.

1-800-241-7548

1-800-4-MY-HOME

Installation Safety Precautions

•

Use grill only with LP (propane) gas and the regulator/valve assembly supplied.

•

Grill installation must conform with local codes, or in their absence with

Z223.1

LP Gas Code Grill is not for use in or on recreational vehicles and/or boats.

• All electrical accessories (such as rotisserie) must be electrically grounded in accordance with local codes, or

National Electrical Code, ANSI / NFPA 70.

electrical cords and/or fuel supply hoses away from any hot surfaces.

• This grill is safety certified for use in the United States only. Do not modify for use in any other location. Modification will result in a safety hazard.

Safety Symbols

The symbols and boxes shown below explain what each heading means. Read and follow all of the messages found throughout the manual.

DANGER: Indicates an imminently hazardous situation

which, if not avoided, will result in death or serious injury.

National Fuel Gas Code, NFPA 54 / ANSI

. Handling and storage of LP cylinders must conform to

NFPA/ANSI 58.

Keep any

DANGER

Model Number

UPC (on carton) Label Lot # GG

Serial Number

Date Purchased

CAUTION

For residential use only. Do not use for commercial cooking.

WARNING

CARBON MONOXIDE HAZARD

Burning charcoal releases carbon monoxide which has no odor and can cause serious injury or death. Never burn charcoal inside homes, vehicles or tents.

WARNING

WARNING: Be alert to the possibility of serious bodily injury if the instructions are not followed. Be sure to read and carefully follow all of the messages.

CAUTION

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

2 • 463843104

TABLE OF CONTENTS WARRANTY

For Your Safety ......................................2

Grill Service Center...................................2

Warranty Information .................................2

Installation Safety Precautions ..........................2

Safety Symbols......................................2

Kenmore Grill Warranty ...............................3

Parts List...........................................4

Parts Diagram.......................................5

Assembly ........................................6-16

Use and Care ...................................17-25

Cooking Chart...............................24

Troubleshooting...........................25-26

KENMORE GRILL WARRANTY

Full 1-Year Warranty on Grill

For one year from the date of purchase Sears will repair or replace, at our option, any grill part (except for paint finish) that is defective in material or workmanship.

Limited Warranty on Selected Grill Parts

From one year after the date of purchase for the designated time periods listed below, Sears will replace the following grill parts if they are defective in material or workmanship. You will be charged for labor.

• Lifetime of Grill: Aluminum Top and Bottom Castings

(except for paint finish)

• 9 years: Electronic Ignition System

(except for ignitor battery)

• 2 years: Burner Assembly

WARRANTY SERVICE

Warranty service is available by contacting Sears at

1-800-4-MY-HOME

WARRANTY RESTRICTIONS

This warranty is void if grill is used for commercial or rental purposes.

This warranty applies only when the grill is used in the United States.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA,

Hoffman Estates, IL 60179

463843104 • 3

PARTS LIST – Model No. 415.162080

Key Qty Description Part #

1 2 Leg Assembly.......................4502443

2 1 Base ..............................4503192

3 1 Midshelf ...........................4151035

4 11 #10-24x2” Carriage Bolt ...............4080064

5 12 #10-24 Plastic Tee Knob...............4080091

6 2 Wheel Assembly.....................4310002

7 4 1” Hitch Pin.........................4080062 STD624001

8 2 Leg Extender .......................4154556

9 1 Lower Front Panel ...................4154557

10 1 Upper Front Panel ...................4154426

11 1 Upper Panel Wire ....................4156095

12 1 Condiment Wire .....................4151039

13 1 Grill Bottom.........................4580489

14 3 Burner.............................4158121

15 6 #10x1/2”, T-20, Self-Tap Screw .........4080043

16 1 Air Shield ..........................5501035

17 1 Electrode/Collector Assembly...........4153174

18 1 Control Panel .......................4526176

19 1 Hose/Valve/Manifold Assembly .........4524229

20 3 Control Knob Backplate ...............4154574

21 3 #10-24x5/16”, T-20, Self-Tap Screw ......4080090

22 3 Control Knob........................4154558

23 1 Electronic Ignition Module .............4153189

24 1 Ignitor Ring .........................4157145

25 1 Ignitor Wire .........................4153720

26 2 1/4-20x1-1/4” Carriage Bolt ............4080615 STD532512

27 2 1/4-20 Wing Nut .....................4080221 STD541625

28 2 #10-24x1-1/4” Carriage Bolt ............4080074

Key Qty Description Part #

29 1 Tank Wire ..........................4151019

30 4 EndCap...........................4080065

31 1 Side Shelf ..........................4154373

32 5 #10-12x1-7/8” Wing Screw.............4080096

33 1 Tool Holder .........................4154377

34 1 Sideburner Body.....................4526146

35 1 Sideburner Frame....................4501705

36 1 Sideburner .........................5068018

37 4 #10-24 Wing Nut.....................4080063 STD541610

38 1 Sideburner Ignitor Wire................5156110

39 1 Sideburner Knob.....................4154471

40 1 Sideburner Grate ....................4156376

41 1 Grill Lid ............................4580117

42 1 Heat Indicator .......................4157165

43 1 Heat Indicator Retainer Clip ............4157166

44 1 #10-24 Hex Nut (keps) ................4080208 STD541410

45 1 Logo Plate .........................4156081

46 2 3/16” Pal Nut........................4153096

47 2 1/4x1-1/8” Hinge Pin..................4156513

48 1 Handle ............................4154473

49 2 #10-24x1” Machine Screw .............4080302 STD511010

50 1 Lower SwingAway ...................4152125

51 1 Upper SwingAway ...................4156449

52 1 Cooking Grate ......................4152741

53 1 Grease Clip.........................5156607

54 1 AAA Battery ........................4153177

55 1 Ignitor Button .......................4157156

4 • 463843104

PARTS DIAGRAM – Model No. 415.162080

463843104 • 5

ASSEMBLY – Model No. 415.162080

Cart Assembly Step 1

Position base on edge with tank hole to left side.

Leg Assembly

Insert legs into base and attach with carriage bolts and plastic wing nuts. DO NOT FULLY TIGHTEN. Insert midshelf into holes on insides of legs, long wires toward left side. Fully tighten carriage bolts and plastic wing nuts.

(Plastic)

Qty. 8

Long midshelf wire to left side.

IMPORTANT!

USE TOP HOLE

Base

6 • 463843104

Cart Assembly Step 2

Insert wheel/hubcap assemblies into

Wheel/Hubcap Assembly

bottom holes on left legs. Secure beneath base with hitch pins. See inset below. Push leg extenders into right legs.

Qty. 2

Leg Extender

Completed assembly with hitch pin in axle bolt.

463843104 • 7

Upper And Lower Front Panel Assembly

Snap the upper and lower front panels together. Insert the two pins on lower panel into holes in front of cart base. Snap the upper panel over the midshelf wire.

Upper Front Panel

Lower Front Panel

Upper panel snaps onto midshelf wire.

8 • 463843104

NOTE: Rear view of cart. Wheels are to right side.

Upper Panel Wire And Condiment Wire Assembly

Insert panel wire through upper panel and into leg, then bend wire slightly to insert opposite end. Hook the outer condiment wires into the top holes on front of upper panel, then slide remaining wires into panel holes below the condiment shelf.

Upper Panel Wire (Bend slightly to insert)

NOTE: Rear view of cart. Wheels are to right side.

NOTE: front view of cart. Wheels are to left side.

Condiment Wire

463843104 • 9

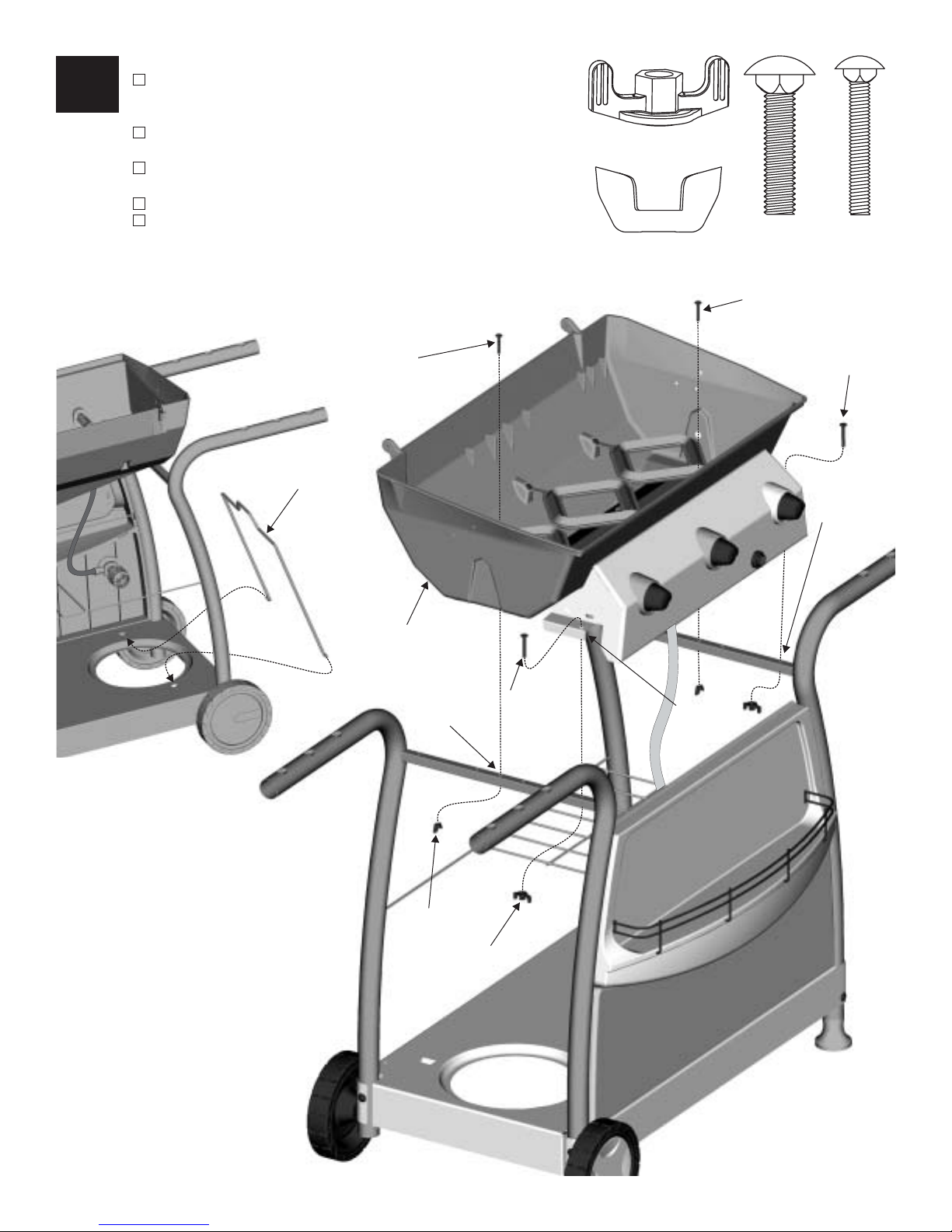

Grill Bottom/Control Panel Assembly and Tank Wire

Carefully place grill bottom/control panel assembly onto cart, so as not to scratch paint on legs. Make sure control panel bracket fits over support bar on each side. Insert carriage bolts through grill bottom and center hole in support bar. Thread metal wing nuts onto bolts but do not fully tighten. Insert carriage bolts through control panel bracket and front holes in support bar. Secure with plastic wing nuts. Fully tighten metal wing nuts. Insert ends of tank wire into slots on each side of tank hole in base. Lean tank wire toward midshelf.

(Plastic)

Qty. 2

(Metal)

Qty. 2

p/n 4080615

Qty. 2

26 p/n 4080615

p/n 4080074

Qty. 2

NOTE: Rear view of cart. Wheels are

to right side.

Tank Wire

26 p/n 4080615

Grill Bottom/ Control Panel Assembly

Support Bar Center Hole

28 p/n 4080074

Support Bar Front Hole

Control Panel Bracket

10 • 463843104

NOTE: Front view of cart. Wheels are

to left side.

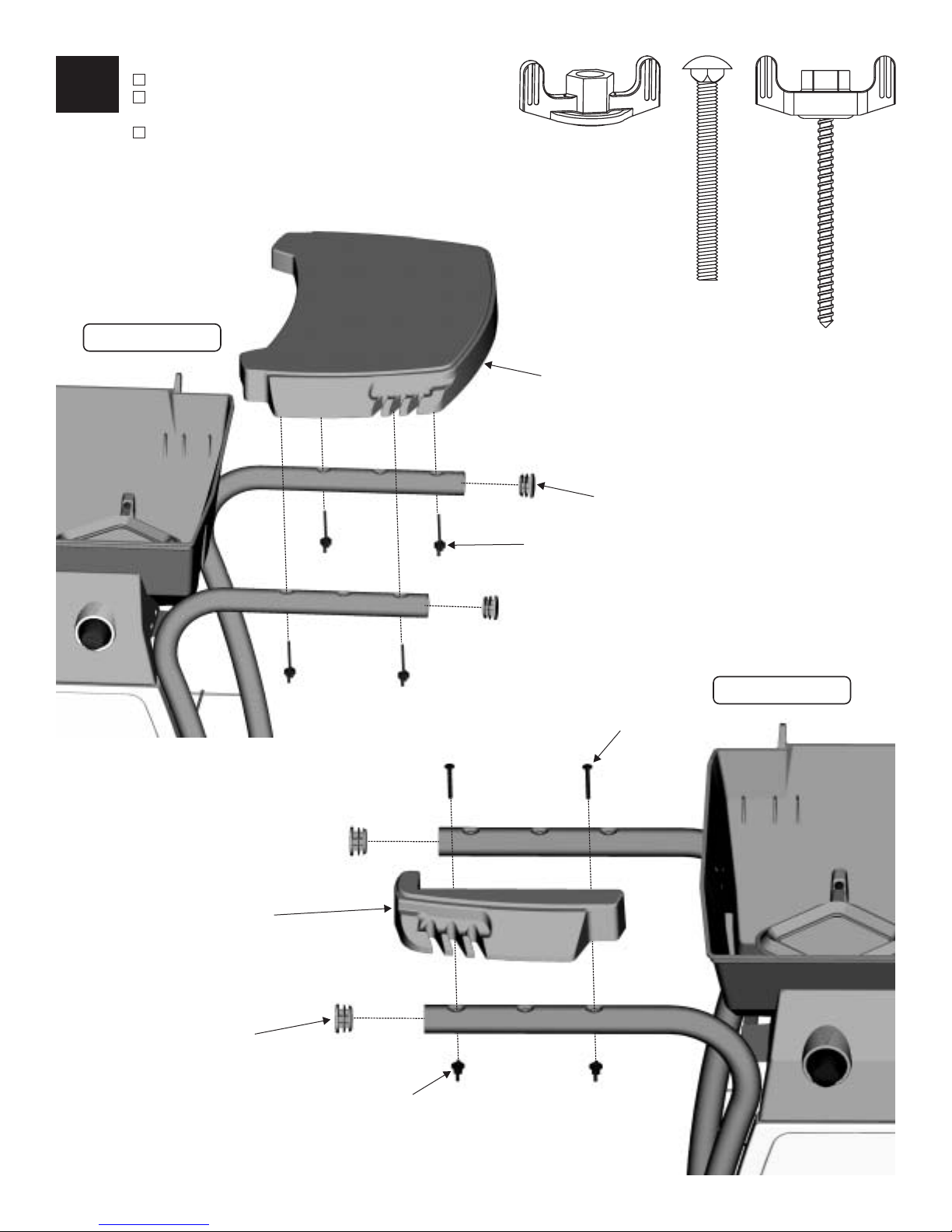

End Cap, Side Shelf, And Tool Holder Assembly

Insert end caps into ends of leg tubes.

Position side shelf onto right legs as shown below and secure with four wing screws. Position tool holder onto left front leg and secure with two carriage bolts and plastic wing nuts. Use the two outer holes. Do not use the middle hole.

Right side of grill

(Plastic)

Qty. 2

Side Shelf

Qty. 2

Qty. 4

End Cap

Tool Holder

Left side of grill

End Cap

463843104 • 11

Sideburner Frame

Sideburner Assembly

Place sideburner body onto legs. Secure at front with one wing screw through leg, tool holder, and into body. Insert tab on sideburner frame into hole in body. At rear leg, insert carriage bolt through frame, body, and middle leg hole. Secure with metal wing nut. Insert sideburner tube into large frame hole. Insert burner’s threaded stud into small frame hole. Attach metal wing nut to stud, but do not fully tighten. Insert sideburner valve into burner tube and snap valve cup into body. Note proper tube-to-valve engagement in figure A. Once proper engagement is made, fully tighten metal wing nut beneath burner. Attach sideburner ignitor wire (long wire behind control panel) to electrode beneath sideburner. See figure B. Press sideburner knob firmly onto sideburner valve and place sideburner grate onto body.

Insert tab into hole.

(Metal)

Qty. 2

Sideburner Body

Rear view of grill.

Qty. 1

IMPORTANT!

Sideburner

Sideburner Igniter Wire

Qty. 1

Sideburner Grate

Front view of grill.

Sideburner Knob

Sideburner Tube

Sideburner Valve

Proper tube-to-valve

engagement

12 • 463843104

Sideburner Valve Cup

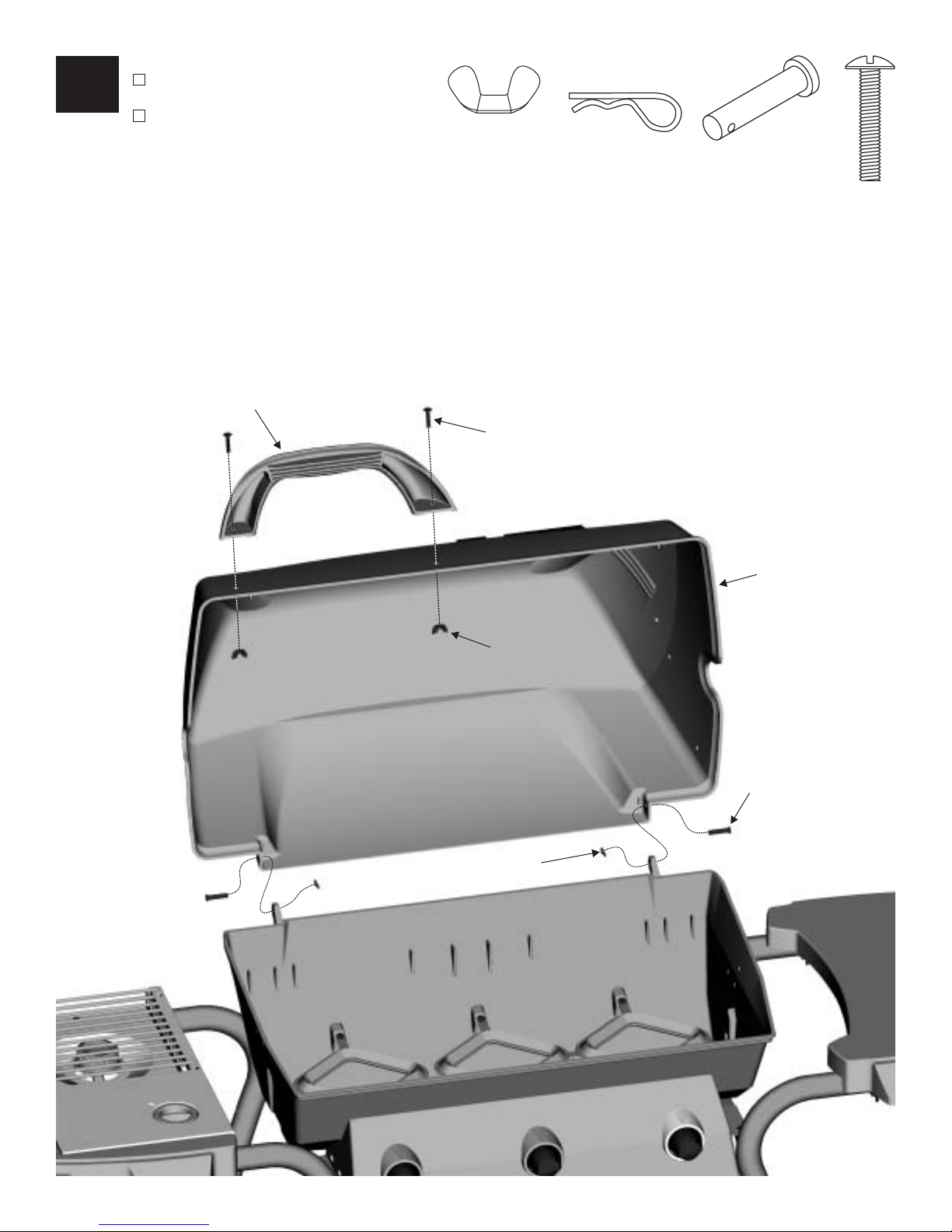

Grill Lid And Handle Assembly

Attach grill lid to grill bottom with hinge pins and hitch pins. Attach handle to lid with carriage bolts and metal wing nuts.

Handle

(Metal)

Qty. 2

Grill Lid

463843104 • 13

SwingAway And Cooking Grate Assembly

Insert lower SwingAway pivot wires into bottom holes in sides of grill lid. Insert lower SwingAway leg wires into top holes in sides of grill bottom. Insert upper SwingAway pivot wires into middle holes in sides of grill lid. Insert upper SwingAway leg wires into loops on side of lower SwingAway. Place cooking grate onto grate rests in grill bottom.

NOTE: Back of SwingAway should be pointing upward.

Pivot Wire

Upper SwingAway

Leg Wire

Lower SwingAway

Cooking Grate

14 • 463843104

Tank Wire, LP Tank And Grease Clip Assembly

Place LP tank into hole in base with

tank valve facing toward front of grill. To secure LP tank, pull tank wire over the side of the tank, toward the tank collar. See Use and Care section for connection of regulator to LP tank. Hang grease clip beneath grill bottom. See inset below. To collect grease, hang an empty soup can (not included) from grease clip.

CAUTION

• Tank collar opening must face to front of cart once tank is attached.

• Failure to install tank correctly may allow gas hose to be damaged in operation, resulting in the risk of fire.

s LP GAS TANK IS SOLD

SEPARATELY. Fill and leakcheck tank before attaching to grill and regulator. See Use and Care section for instructions.

Pull tank wire over tank.

Rear view of grill.

Tank Collar

LP Tank

(Sold Separately)

Tank Wire

Grease Clip

See Use & Care section to perform the “Burner Flame Check” and for important safety instructions before using.

CAUTION

Failure to install can in clip will cause hot grease to drip from bottom of grill with risk of fire or property damage.

463843104 • 15

Battery And Ignitor Button Assembly

Insert AAA battery (”+” end first) into ignition module, then twist ignitor button onto module.

()

Ignition Module

AAA Battery

Ignitor Button

(–)

16 • 463843104

USE AND CARE

LP Tank

• The LP tank used with your grill must meet the following requirements:

DANGER

• Never fill the cylinder beyond 80% full. An overfilled spare LP tank is hazardous due to possible gas released from the safety relief valve.

• The safety relief valve on the LP tank could activate, releasing gas and cause an intense fire with risk of property damage, serious injury or death.

• NEVER store a spare LP tank under or near grill or in enclosed areas.

• If you see, smell or hear escaping gas, immediately get away from the LP tank/grill and call your fire department.

• All spare LP tanks must have safety caps installed on the LP tank outlet.

LP Tank Removal, Transport And Storage

• Turn OFF all control knobs and LP tank valve. Turn coupling nut counterclockwise by hand only - do not use tools to disconnect. Lift LP tank wire upward off of LP tank collar, then lift LP tank up and off of support bracket. Install safety cap onto LP tank valve. Always use cap and strap supplied with valve.

Failure to use safety cap as directed may result in serious personal injury and/or property damage.

•

Use LP tanks only with these required measurements: 12" (30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.) capacity maximum.

• LP tanks must be constructed and marked in accordance with specifications for LP tank of the U.S. Department of Transportation (DOT). See LP tank collar for marking.

•

LP tank valve must have:

• Type 1 outlet compatible with

regulator or grill.

• Safety relief valve.

• UL listed Overfill Protection

Device (OPD). This OPD safety feature is identified by a unique triangular hand wheel.

only LP tanks equipped with this type of valve.

• LP tank must be arranged for vapor withdrawal and include collar to protect LP tank valve.

OPD Hand Wheel

Use

LP (Liquefied Petroleum Gas)

• For

LP gas is nontoxic, odorless and colorless when produced.

Your Safety

cabbage) so that it can be smelled.

•

LP gas is highly flammable and may ignite unexpectedly when mixed with air.

, LP gas has been given an odor (similar to rotten

LP Tank Valve

Safety Cap

Retainer Strap

• A disconnected LP tank in storage or being transported must have a safety cap installed (as shown).

• Do not store an LP tank in enclosed spaces such as a carport, garage, porch, covered patio or other building. Never leave an LP tank inside a vehicle which may become overheated by the sun.

LP Tank Filling

•

Use only licensed and experienced dealers.

• must purge tank

LP dealer before filling.

• NEVER

Dealer should fill LP tank more than 80% of LP tank volume. Volume of propane in tank will vary by temperature.

A frosty regulator indicates gas overfill. Immediately close LP

•

tank valve and call local LP gas dealer for assistance.

• Do not release liquid propane (LP) gas into the atmosphere. This is a hazardous practice.

• To remove gas from LP tank, contact an LP dealer or call a local fire department for assistance. Check the telephone directory under “Gas Companies” for nearest certified LP dealers.

• Do not store an LP tank in an area where children play.

463843104 • 17

LP Tank Exchange

Connecting Regulator To The LP Tank

• Many retailers that sell grills offer you the option of replacing your empty LP tank through an exchange service. Use only those reputable exchange companies that inspect, precision fill, test and certify their cylinders.

Exchange your tank only for an OPD safety feature-equipped tank as described in the "LP Tank" section of this manual.

Always keep new and exchanged LP tanks in upright position

•

during use, transit or storage.

•

Leak test new and exchanged LP tanks BEFORE connecting to grill.

LP Tank Leak Test

For your safety

Leak test must be repeated each time LP tank is exchanged or

•

refilled.

Do not smoke during leak test.

•

Do not use an open flame to check for gas leaks.

•

Grill must be leak tested outdoors in a well-ventilated area,

•

away from ignition sources such as gas fired or electrical appliances. During leak test, keep grill away from open flames or sparks.

• Use a clean paintbrush and a 50/50 soap and water solution.

Use mild soap and water. Do not use household cleaning agents.

Brush soapy solution onto areas indicated by arrows.

Damage to gas train components can result.

LP tank must be properly secured onto grill. (Refer to Assembly Manual)

Turn all control knobs including sideburner (if featured) to the

OFF position.

Turn LP tank OFF by turning hand-wheel clockwise to a

3. full

stop

Remove the protective cap from LP tank valve. Always use

cap and strap supplied with valve.

Strap and Cap

OPD Hand Wheel

Type 1 outlet with thread on outside

Safety Relief Valve

Do not use a POL transport plug (plastic part with external threads)! It will defeat the safety feature of the valve.

WARNING

If “growing” bubbles appear do not use or move the LP tank. Contact an LP gas supplier or your fire department!

18 • 463843104

5. Hold regulator and insert nipple into LP

tank valve. Hand-tighten the coupling nut, holding regulator in a straight line with LP tank valve to as not to crossthread the connection.

Nipple has to be centered into the LP tank valve.

Straight

Hold coupling nut and regulator as shown for proper connection to LP tank valve.

Turn the coupling nut clockwise and tighten to a full stop. The regulator will seal on the back-check feature in the LP tank valve, resulting in some resistance.

An additional one-half to three-quarters turn is required to complete the connection. Tighten by hand only – do not use tools.

NOTE:

Leak Testing Valves, Hose and Regulator

1. Turn all grill control knobs to OFF.

Be sure regulator is tightly connected to LP tank.

Completely open LP tank valve by turning hand wheel counterclockwise. If you hear a , turn gas off immediately. There is a major leak at the connection.

before proceeding

Brush soapy solution onto areas where bubbles are shown:

rushing sound

Hose connection at manifold.

Correct

If you cannot complete the connection, disconnect regulator and repeat steps 5 and 6. If you are still unable to complete the connection,

do not use this regulator!

WARNING

• Do not insert any foreign objects into the valve outlet. You may damage the valve and cause a leak. Leaking propane may result in explosion, fire, severe personal injury, or death.

• Never attempt to attach this grill to the self-contained LP gas system of a camper trailer or motor home.

• Do not use grill until leak-tested.

• If a leak is detected at any time, STOP and call the fire department.

• If you cannot stop a gas leak, close LP tank valve and call LP gas supplier or your fire department!

immediately

Manifold behind control panel.

s Never remove opening

at end of valve.

Sideburner Valve

5. If “growing”

valve immediately and retighten connections.

be stopped do not try to repair.

parts at .

Always close LP tank valve after performing leak test by

bubbles appear, there is a leak. Close LP tank

If leaks cannot

Call Sears for replacement

1-800-4-MY-HOME

turning hand wheel clockwise.

463843104 • 19

WARNING

For Safe Use Of Your Grill And To Avoid Serious Injury:

Do not let children operate or play near grill.

•

Keep grill area clear and free from materials that burn.

•

Do not block holes in bottom or back of grill.

•

Check burner flames regularly.

•

Use grill only in well-ventilated space. NEVER use in

•

enclosed space such as carport, garage, porch, covered patio, or under a surface that can catch fire.

Do not use charcoal or ceramic briquets in a gas grill.

•

(

Unless briquets are supplied with your grill.)

• Use grill at least 3 ft. from any wall or surface.

10 ft. clearance to objects that can catch fire or sources of ignition such as pilot lights on water heaters, live electrical appliances, etc.

Maintain

Safety Tips

Before opening LP tank valve, check the coupling nut for tightness.

When grill is not in use, turn off all control knobs and LP tank valve.

Never move grill while in operation or still hot.

Use long-handled barbecue utensils and oven mitts to avoid burns and splatters.

Maximum load for sideburner and side shelf is 10 lbs.

A soup can be attached to grease clip and emptied after each use. Do not remove soup can until grill has completely cooled.

If you notice grease or other hot material dripping from grill onto valve, hose or regulator, turn off gas supply at once. Determine the cause, correct it, then clean and inspect valve, hose and regulator before continuing. Perform a leak test.

The regulator may make a humming or whistling noise during operation. This will not affect safety or use of grill.

If you have a grill problem see the .

must

"Troubleshooting Section"

• Apartment Dwellers:

Check with management to learn the requirements and fire codes for using an LP gas grill in your apartment complex. If allowed, use outside on the ground floor with a three (3) foot clearance from walls or rails. Do not use on or under balconies made of wood.

• NEVER attempt to light burner with lid closed. A buildup of non-ignited gas inside a closed grill is hazardous.

• Never operate grill with LP tank out of correct position specified in assembly instructions.

• Always close LP tank valve and remove coupling nut before moving LP tank from specified operation position.

CAUTION

• Putting out grease fires by closing the lid is not possible. Grills are well ventilated for safety reasons.

• Do not use water on a grease fire. Personal injury may result. If a grease fire develops, turn knobs and LP tank off.

• Do not leave grill unattended while preheating or burning off food residue on high. If grill has not been regularly cleaned, a grease fire can occur that may damage the product.

Ignitor Lighting

Do not lean over grill while lighting.

1. Open lid.

Turn right knob to .

2. HI

Press and hold ignitor button to light. Be sure burner lights and

stays lit.

If burner does not light, turn knob to , wait 5 minutes, try

again.

Once right burner is lit, turn other knobs to to light other

5. HI

burners.

If ignitor does not work, follow match lighting instructions.

Lighting instructions continued on next page.

Turn on gas at LP tank.

OFF

20 • 463843104

After Lighting HI

: Leave knobs on position for warm-up.

Match-Lighting

Do not lean over grill while lighting.

1. Open lid.

Place lit match into match-lighting hole from outside grill bottom (as shown below).

Push in and turn right knob to . Be sure burner lights and

3. HI

stays lit.

Light other burners by pushing knobs in and turning to .

4. HI

After Lighting: HI

Turn on gas at LP tank.

Leave knobs on for warm-up.

Burner Flame Check

• Light burner, rotate knobs from HI to LO. You should see a smaller flame in LO position than seen on HI. Always check flame prior to each use. Perform flame check on sideburner. If only low flame is seen refer to "Sudden drop or low flame" in the .Troubleshooting Section

Turning Grill Off

• Turn all knobs to position. Turn LP tank off by turning hand-wheel clockwise to a full stop.

OFF

Ignitor Check

Match-lighting hole in side of grill bottom.

Ignitor Lighting The Sideburner

Turn on gas at LP tank.

2. HI

Push in and turn sideburner knob to .

Press and hold ignitor button to light. Be sure burner lights and stays lit.

If burner does not light, turn sideburner knob to , wait 5 minutes, try again.

Match Lighting

Turn on gas at LP tank.

Hold a lit match to any port on the sideburner. Push in and turn the sideburner knob to . Be sure burner lights and stays lit.

CAUTION

If burner does not light, turn knobs to , wait 5 minutes, and try again. If the burner does not ignite with the valve open, gas will continue to flow out of the burner and could accidently ignite with risk of injury.

Before Your First Cookout

• Light burners, check to make sure they are lit, close the lid and warm up grill on HIGH for 15 minutes. Heating of paint and parts will produce an odor only on first lighting.

OFF

• Turn gas off at LP tank.

should be heard and spark seen each time between collector box or burner and electrode. See if no click or spark.

Press and hold ignitor button. "Click"

"Troubleshooting"

Valve Check

• Important: Make sure gas is off at LP tank before checking

. Knobs lock in position. To check valves, first push

valves

in knobs and release, knobs should spring back. If knobs do not spring back, replace valve assembly before using grill. Turn knobs to position then turn back to position. Valves should turn smoothly.

OFF

Hose Check

Before each use, check to see if hoses are cut or worn.

•

Replace damaged hoses before using grill. Use only identical Kenmore replacement valve/hose/regulator assembly.

General Grill Cleaning

• Do not mistake brown or black accumulation of grease and smoke for paint. Interiors of gas grills are not painted at the factory . Apply a strong solution

(and should never be painted)

of detergent and water or use a grill cleaner with scrub brush on insides of grill lid and bottom. Rinse and allow to completely air dry.

Do not apply a caustic grill/oven cleaner to painted

surfaces.

• Plated wire grate:

concentrated grill cleaner or use soap and water solution. Dry thoroughly and store indoors between cookouts.

• Wash with warm soapy water and wipe dry.

Plastic parts:

Do not use citrisol, abrasive cleaners, degreasers or a

concentrated grill cleaner on plastic parts. Damage to and failure of parts can result.

• Porcelain grates:

residue can be wiped away with baking soda/water solution or specially formulated cleaner. Use nonabrasive scouring powder for stubborn stains.

Wash grate and vaporiser bars with

Because of glass-like composition, most

463843104 • 21

Repainting Your Grill

• After extended use and exposure to weather, paint on grill may deteriorate or become spotted. Although this detracts from grill's appearance, it will not impair its performance.

• To refinish your grill brush outside of grill lid and bottom with wire brush and lightly sand with fine grit sandpaper. Sanding allows new paint to adhere more easily. Wash grill lid and bottom with soap and water to remove dust and grease. Do not use a grill cleaner on outside of grill. Wipe with vinegar. Refinish outside with heat-resistant paint. Do not paint inside

of grill.

CAUTION

NATURAL HAZARD • SPIDERS

FACT: Sometimes spiders and other small insects climb into the burner tubes attached to the burners. The spiders spin webs, build nests and lay eggs. The webs or nests can be very small, but they are very strong and can block the flow of gas. Clean burners prior to use after storing, at the beginning of grilling season or after a period of one month not being used.

Typical spider webs inside burner.

Cleaning The Burners

Follow these instructions to clean and/or replace parts of burner assembly or if you have trouble igniting grill.

Turn gas off at control knobs and LP tank.

2. Remove cooking grate.

3. Remove can from grease clip.

4. Remove screws holding burners to grill bottom.

5. Rotate burners approx. 45 degrees while lifting out of grill bottom to disengage burner tube from valves.

Clean outside of burner with soap and water. Lay burner upside down on flat surface. Force a stream of water through tubes. Make sure water comes out of all burner holes. Open clogged holes with a thin wire. and examine holes. Due to normal wear and corrosion, some holes may become enlarged. If any large cracks or holes are found replace burner.

7. To remove air shield for cleaning, disconnect ignitor wire from electrode wire beneath grill bottom. Wash air shield with concentrated grill cleaner or use soap and water solution and dry thoroughly. Return air shield to grill bottom and connect ignitor wire to electrode wire.

8. If grill is to be stored, coat burners lightly with cooking oil. Wrap in protective cover to keep insects out. If not storing grill, tilt burners approx. 45 degrees and insert burner tubes into holes in front of grill bottom to engage valves. Rotate burners to flat position and attach to grill bottom with screws.

VERY IMPORTANT: Burner tubes must engage valves. See

illustration below for proper burner-to-valve engagement.

9. Before cooking again on grill, follow .

Shake out excess water

"Burner Flame Check"

Spider guards are on the air intakes in an effort to reduce this problem, but it will not eliminate it! An obstruction can result in a "flashback" (a fire in the burner tubes). The grill may still light, but the obstruction does not allow full gas flow to the burners.

IF YOU EXPERIENCE THE FOLLOWING:

Smell gas.

Burner(s) will not light.

A small yellow flame from burner (should be blue).

Fire coming from around or behind control knob.

STOP!

Immediately turn off gas at LP tank!

SOLUTION:

Wait for grill to cool.

Follow the “ ” instructions. Clean burners often. Use a 12” pipe cleaner to clean out the burner tubes. You may also force a stream of water from a hose nozzle through burner tubes to clean them.

Cleaning The Burner Assembly

Burner

Valve

Storing Your Grill

• Clean cooking grates.

• Store in dry location.

• When LP tank is connected to grill, store outdoors in well-

ventilated space and out of reach of children.

• Cover grill if stored outdoors.

• Store grill indoors ONLY if LP tank is turned off and

disconnected, removed from grill and stored outdoors.

• When removing grill from storage follow

Assembly"

instructions before starting grill.

"Cleaning Burner

22 • 463843104

Three Cooking Burners

Your grill offers maximum cooking flexibility because it has three diamond-shaped burners, each with its own independent control knob. For maximum direct cooking (food placed directly over the burner flame) of large meals, turn on all three burners. For indirect cooking (food offset from burner flame), see instructions below.

Indirect Cooking

Your grill offers two indirect cooking methods, one-burner for larger food selections, and two-burner for smaller food amounts. With either method, be sure to observe the following:

• Always cook with the lid closed.

• Never cook with food placed directly over the flames.

• Due to weather conditions, cooking times may vary. During cold and windy conditions the temperature setting may need to be increased to insure sufficient cooking temperatures.

One-Burner Indirect Cooking

• Use this method for larger foods or large amounts of food.

• Ignite the burner. For slow cooking, adjust the control knob to the setting. For faster cooking, adjust the control knob to the setting.

• Place the food in the center or left side of the cooking grate.

• Because the heat source is only on one side, the food should be rotated at least once during cooking to insure even cooking. Use a meat thermometer to determine when the food is done.

RIGHT

LO HI

3 Burner Cooking

Set controls to LO for slow or HI for fast cooking.

1 Burner Cooking

Set control to LO for slow or HI for fast cooking.

Two-Burner Indirect Cooking

• Use this method for smaller foods that fit between the left and right burners without being placed directly over the flames.

• , ignite the burner. , ignite the and

First Second

RIGHT LO

Third

• Place the food in the center of the cooking grate.

• Because there is a heat source on both sides, there is no need to rotate the food during cooking. Use a meat thermometer to determine when the food is done.

burners and adjust the control knobs to the setting.

, turn the burner .

CENTER LEFT

CENTER Off

Food Safety

Food safety is a very important part of enjoying the outdoor cooking experience. To keep food safe from harmful bacteria, follow these four basic steps:

Clean:

Wash hands, utensils, and surfaces with hot soapy water

before and after handling raw meat and poultry.

Separate:

foods to avoid cross contamination. Use a clean platter and utensils when removing cooked foods.

Cook:

thermometer to ensure proper internal food temperatures.

Chill:

For more information call: USDA Meat and Poultry Hotline at 1-800-535-4555 In Washington, DC (202) 720-3333, 10:00 am4:00 pm EST.

Separate raw meats and poultry from ready-to-eat

Cook meat and poultry thoroughly to kill bacteria. Use a

Refrigerate prepared foods and leftovers promptly.

2 Burner Cooking

Set controls to LO.

How To Tell If Meat Is Grilled Thoroughly

•

Meat and poultry cooked on a grill often browns very fast on the outside. Use a meat thermometer to be sure food has reached a safe internal temperature, and cut into food to check for visual signs of doneness.

Whole poultry should reach 180° F; breasts, 170° F. Juices

•

should run clear and flesh should not be pink.

Hamburgers made of any ground meat or poultry should reach

•

160° F, and be brown in the middle with no pink juices. Beef, veal and lamb steaks, roasts and chops can be cooked to 145° F. All cuts of pork should reach 160° F.

NEVER partially grill meat or poultry and finish cooking later.

•

Cook food completely to destroy harmful bacteria.

When reheating takeout foods or fully cooked meats like hot

•

dogs, grill to 165° F, or until steaming hot.

463843104 • 23

Cooking Chart

Cooking times and temperatures may vary according to specific recipes, cooking conditions or barbecue equipment used. Take these factors into consideration to insure best results. If you use the indirect cooking method (indirect cooking is lighting only one burner and placing food on opposite side of cooking grate), allow more grilling time.

Temperatures: High = 650°F / Medium = 450°F / Low = 300°F.

Food

Beef

Hamburger 1/2” thick

Steak 1/2”

Roast

Pork

Chops 1/2”

Ribs 5-6 lbs.

Roast 3-5 lbs.

Ham Steak 1/2”

Ham 5 lb. fully cooked

Lamb

Chops 1/2”

Poultry

Chicken 2-1/2 to 3-1/2 lbs.

Setting

Medium

Medium-Hot

Low

Medium

Low-Medium

Medium-Hot

Low-Medium

Medium

Low

Cooking Time

Med: 7-10 min. / Well done: 10-15 min.

Rare: 3-6 min. / Med: 6-9 min. / Well done: 9-12 min.

Rare: 18-22min. per lb. / Med: 22-28 min. per lb. / Well done: 28-32 min. per lb.

Well done: 15-20 min.

Well done: 45-90 min.

Well done: 18-23 min. per lb.

12-15 min.

20 min. per lb.

6-12 min.

1 hr., 15 min. to 1 hr., 30 min.

Chicken halved or quertered

Turkey

Seafood

Steaks 1” thick

Fillets 6-8 oz.

Shrimp large or jumbo

Venison

Steak 1” thick

Burgers 1/2”

Roast 3-4 lbs.

Vegetables

Baking Potato whole

Onions whole

Tomatoes half

Corn whole

Low

Low-Medium

Medium-Hot

Low-Medium

Medium

Low-Medium

Low

Medium

Low

40-60 min.

18-20 min. per lb.

Well done: 10-25 min.

8-12 min.

Rare: 8-10 min. / Med: 10-12 min.

Rare: 10-12 min. / Med: 12-15 min.

Rare: 20-22 min. per lb. / Med: 22-25 min. per lb.

Wrap vegetables in foil

55-60 min.

45 min.

30-40 min.

35-45 min.

Mushrooms

24 • 463843104

Medium

15-20 min.

Troubleshooting

Problem

Burner(s) will not light using ignitor.

Burner(s) will not match light.

Sudden drop in gas flow or low flame.

Possible Cause

• Wire and/or electrode covered with cooking residue. Electrode and burner are wet.

• Electrode cracked or broken "sparks at

• crack” Wire is loose or disconnected.

• Wire is shorting (sparking) between

• ignitor and electrode. Bad ignitor.

•

No gas flow.

•

Coupling nut and regulator not fully

• connected. Obstruction of gas flow.

• Disengagement of burner to valve.

• Is grill assembled correctly?

•

Out of gas.

• Excess flow valve tripped.

•

Prevention/Solution

•

Clean wire and/or electrode with rubbing alcohol and clean swab.

• Wipe dry with cloth.

•

Replace electrode.

• Reconnect wires or replace electrode/wire assembly.

• Replace ignitor wire/electrode assembly.

• Replace ignitor.

• Check to see if LP tank is empty. If LP tank is not empty, refer to

"Sudden drop in gas flow"

• Turn the coupling nut about one-half to three quarters additional turn until solid stop. Tighten by hand only; do not use tools.

•

Clear burner tube(s).

• Reengage burner and valve.

• Check steps in assembly instructions.

• Check for gas in LP tank.

• Turn off knobs, wait 30 seconds and light grill. If flames are still low, turn off knobs and LP tank valve. Disconnect regulator. Reconnect regulator and leak test. Turn on LP tank valve, wait 30 seconds and then light grill.

Flames blow out.

Flare-up.

Persistent grease fire (can damage the appearance of aluminum castings on the grill).

Flashback... (fire in burner tube(s).

Unable to fill LP tank.

High or gusting winds.

• Low on LP gas.

• Excess flow valve tripped.

•

Grease buildup.

• Excessive fat in meat.

• Excessive cooking temperature.

•

Grease trapped by food buildup around

• burner system.

Burner and/or burner tubes are blocked.

•

Some dealers have older fill nozzles

• with worn threads.

• Turn front of grill to face wind or increase flame height.

• Refill LP tank.

• Refer to above.

"Sudden drop in gas flow"

• Clean grill.

• Trim fat from meat before grilling.

• Adjust (lower) temperature accordingly.

• Turn knobs to OFF. Turn gas off at LP tank. Leave lid in position and let fire burn out.

After grill cools, remove, clean all parts and replace

grease can.

• Turn knobs to OFF. Clean burner and/or burner tubes.

• The worn nozzles don't have enough "bite" to engage the valve. Try a second LP dealer.

463843104 • 25

Troubleshooting - Electronic Ignition System

Problem

No sparks appear at any electrodes when ignition button is pushed; no noise can be heard from spark module.

No sparks appear at any electrodes when ignition button is pushed; noise CAN be heard from spark module.

Possible Cause

• Battery not installed properly.

• Dead battery.

• Button assembly not installed properly.

• Faulty spark module.

• Output lead connections not complete.

Check Procedure

• Check battery orientation.

• Has battery been used previously?

• Check to insure threads are properly engaged. Button should travel up and down without binding.

• If no sparks are generated with new battery and good wire connections, module is faulty.

• Are output connections on and tight?

Prevention/Solution

• Install battery (make sure that “+” and “—” connectors are oriented correctly, with “+” end down and “—” end up.)

• Replace battery with new AAA-size alkaline battery.

• Unscrew button cap assembly and reinstall, making sure threads are aligned and engaged fully.

• Replace spark module assembly.

• Remove and reconnect all output connections at module and electrodes.

Sparks are present but not at all electrodes and/or not at full strength.

• Output lead connections not complete.

• Arcing to grill away from burner(s).

• Weak battery.

• Electrodes are wet.

• Electrodes cracked or broken “sparks at crack”.

• Are output connections on and tight?

• If possible, observe grill in dark location. Operate ignition system and look for arcing between output wires and grill frame.

• All sparks present but weak or at slow rate.

• Has moisture accumulated on electrode and/or in burner ports.

• Inspect electrodes for cracks.

• Remove and reconnect all output connections at module and electrodes.

• If sparks are observed other than from burner(s), wire insulation may be damaged. Replace wires.

• Replace battery with a new AAA-size alkaline battery.

• Use paper towel to remove moisture.

• Replace cracked or broken electrodes.

26 • 463843104

463843104 • 27

Get it fixed, at your home or ours!

Your Home

For repair– –of major brand appliances,

in your home all

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner’s manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME

(1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

Sears Parts & Repair Center.

1-800-488-1222

Call anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655

Para pedir servicio de reparación

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR

(1-888-784-6427)

® Registered Trademark / Trademark / Service Mark of Sears, Roebuck and Co. ® Marca Registrada / Marca de Fábrica / Marca de Servicio de Sears, Roebuck and Co.

MC MD

Marque de commerce / Marque déposée de Sears, Roebuck and Co.

TM SM

(U.S.A.)

1-800-361-6665

(Canada)

Au Canada pour service en français:

1-800-LE-FOYER

(1-800-533-6937)

www.sears.ca

Kenmore 415.162080 Assembling Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual
