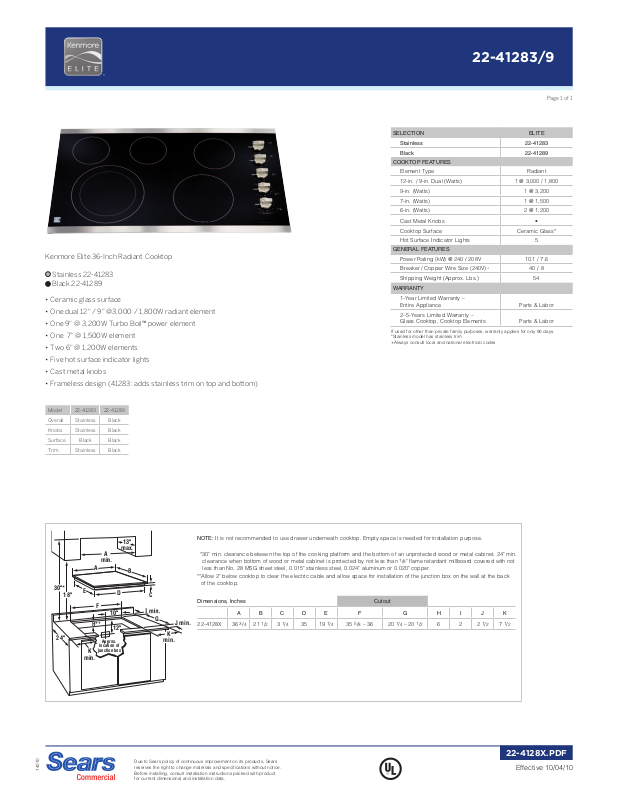

Kenmore 41283 Quick Start Manual
Kenmore Elite 36-Inch Radiant Cooktop
Stainless 22-41283
Black 22-41289
• Ceramic glass surface
• One dual 12" / 9" @3,000 / 1,800W radiant element
• One 9" @ 3,200W Turbo Boil™ power element
• One 7" @ 1,500W element
• Two 6" @ 1,200W elements
• Five hot surface indicator lights
• Cast metal knobs
• Frameless design (41283: adds stainless trim on top and bottom)
22-41283/9
SELECTION ELITE
Stainless 22-41283
Black 22-41289
COOKTOP FEATURES
Element Type Radiant
12-in. / 9-in. Dual (Watts) 1 @ 3,000 / 1,800
9-in. (Watts) 1 @ 3,200
7-in. (Watts) 1 @ 1,500
6-in. (Watts) 2 @ 1,200
Cast Metal Knobs •
Cooktop Surface Ceramic Glass*
Hot Surface Indicator Lights 5
GENERAL FEATURES
Power Rating (kW) @ 240 / 208V 10.1 / 7.6
Breaker / Copper Wire Size (240V)
Shipping Weight (Approx. Lbs.) 54
WARRANTY
1-Year Limited Warranty –
Entire Appliance Parts & Labor
2–5-Years Limited Warranty –
Glass Cooktop, Cooktop Elements Parts & Labor
If used for other than private family purposes, warranty applies for only 90 days.
*Stainless model has stainless trim
+Always consult local and national electrical codes
+
40 / 8
Page 1 of 1
Model 22-41283 22-41289
Overall Stainless Black
Knobs Stainless Black
Surface Black Black
Trim Stainless Black
A
min.
A
30"*
24"
18"
E
min.
H**
K
F
10"
Approx.
location of
junction box
D
12"
13"
max.
NOTE: It is not recommended to use drawer underneath cooktop. Empty space is needed for installation purpose.
* 30" min. clearance between the top of the cooking platform and the bottom of an unprotected wood or metal cabinet. 24" min.
clearance when bottom of wood or metal cabinet is protected by not less than
B
C
G
K
min.
less than No. 28 MSG sheet steel, 0.015" stainless steel, 0.024" aluminum or 0.020" copper.
** Allow 2" below cooktop to clear the electric cable and allow space for installation of the junction box on the wall at the back
of the cooktop.
Dimensions, Inches Cutout
A B C D E F G H I J K
J min.
22-4128X 36
3
/4 21 1/2 3 1/4 35 19 1/4 35 5/8 – 36 20 1/4 – 20 1/2 6 2 2 1/2 7 1/2
1
/8" flame retardant millboard covered with not
14010
Due to Sears policy of continuous improve ment on its products, Sears
reserves the right to change materials and specifications without notice.
Before installing, consult installation instructions packed with product
for current dimensional and installation data.
22-4128X.PDF
Effective 10/04/10
