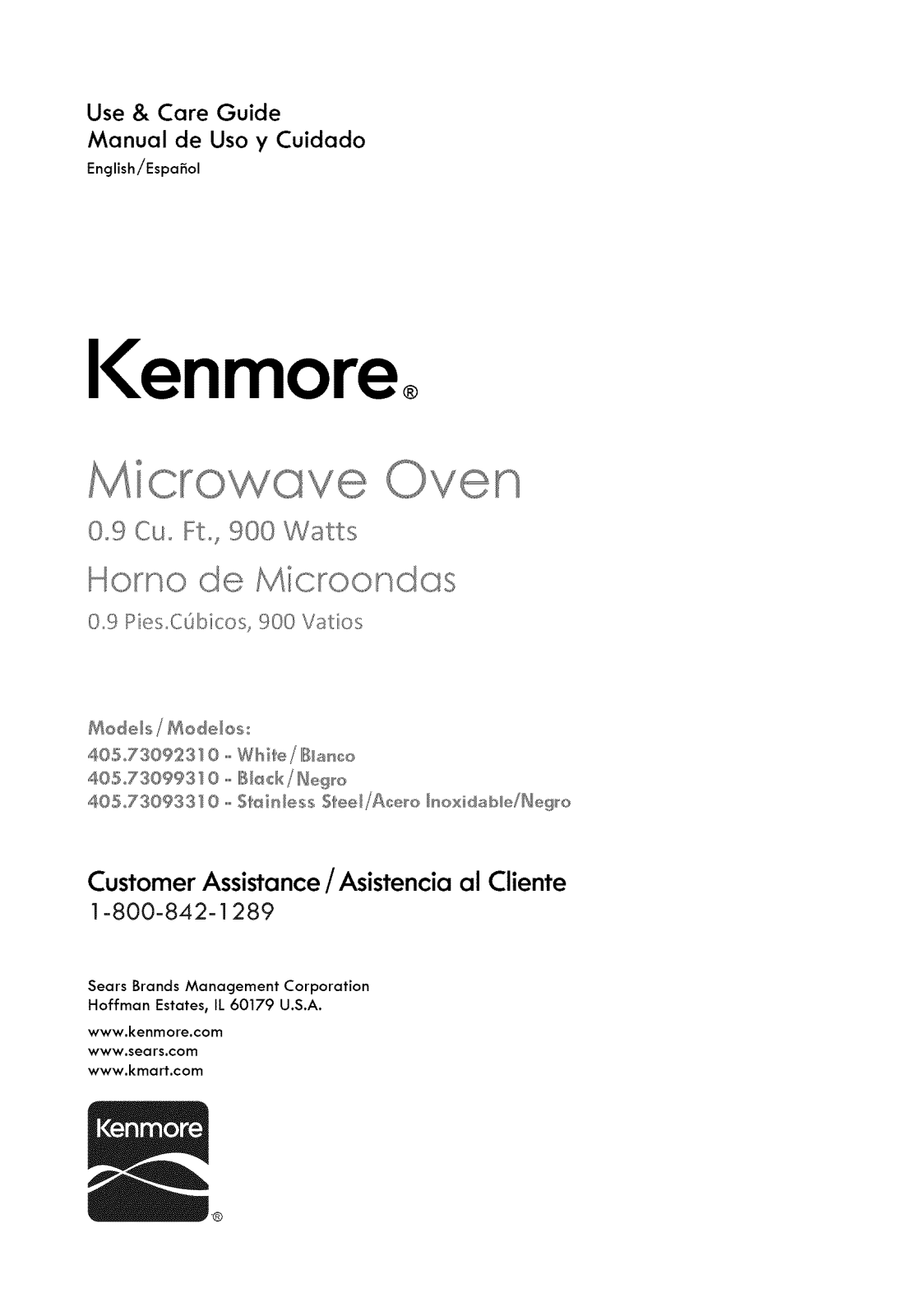

Kenmore 40573099310, 40573093310, 40573092310 Owner’s Manual

Use & Care Guide
Manual de Uso y Cuidado

English/Espa_ol

I(enmore

icrowave Oven

0°9 Cuo Fto, 900 Watts

Homo de Microondas

09Pl_(._(ul%co 900Vatios

405°730923 ] @,,,,,,%Bi'll'e / IIB_a_:_:_
40,5o730993 ] @,,,,,,IIBI_@/ Bbsg_

405o730933] @,,,,,,S'lk_isless S'lkee_//\_sero_noxi_Sable/B_@g_o

Customer Assistance/ Asistencia al Cliente

1-800-842-1289

Sears Brands Management Corporation

Hoffman Estates, IL 60179 U.S.A.

www.kenmore.com
www.sears.com
www.kmart.com

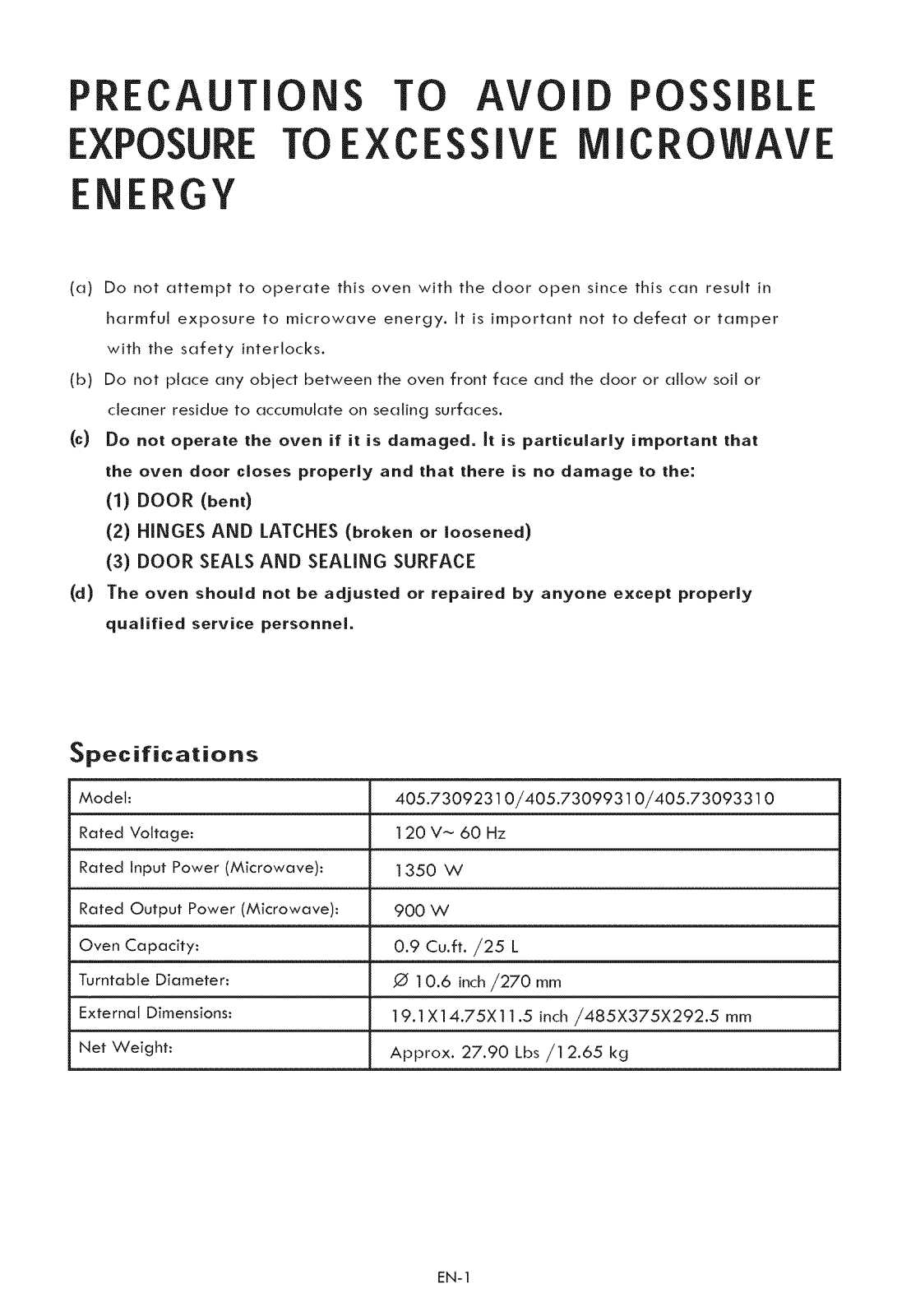

PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE

ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in

harmful exposure to microwave energy. It is important not to defeat or tamper
with the safety interlocks.

(b) Do not place any object between the oven front face and the door or allow soil or

cleaner residue to accumulate on sealing surfaces.

(c) Do not operate the oven if it is damaged. Jt is particularly important that

the oven door closes properly and that there is no damage to the:

(1)DOOR (bent)
(2)HINGES AND LATCHES (broken or loosened)
(3)DOOR SEALS AND SEALING SURFACE

(d) The oven should not be adjusted or repaired by anyone except properly

qualified service personnel.

Specifications

Model:

Rated Voltage:

Rated Input Power (Microwave):

Rated Output Power (Microwave): 900 W

Oven Capacity: 0.9 Cu.ft. ,/25 L

Turntable Diameter: ,0 ] 0.6 inch/270 mm

External Dimensions: ] 9.1 X14.75X1 ] .5 inch/485X375X292.$ mm

Net Weight: Approx. 27.90 Lbs/12.65 kg

405.73092310/405.73099310/405.73093310
120 V_ 60 Hz

1350W

EN-1

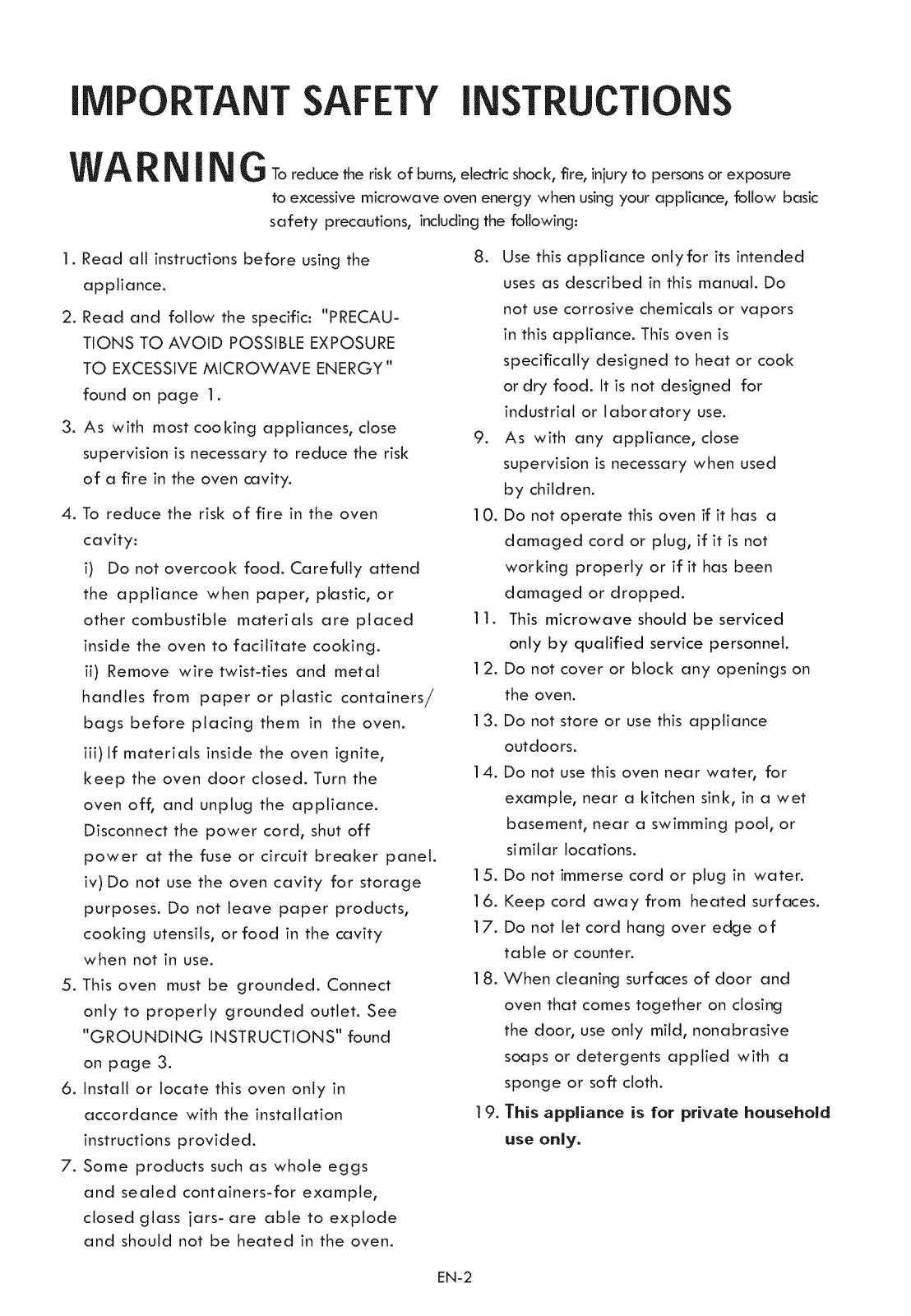

iMPORTANT SAFETY iNSTRUCTiONS

WA RN IN G Toreducether,skofbums,e,eor cshock, re,,nju topersonsorexposure

to excessive microwave oven energy when using your appliance, follow basic

safety precautions, including the following:

1. Read all instructions before using the
appliance.

2. Read and follow the specific: "PRECAU-
TIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY"

found on page 1.

3. As with most cooking appliances, close
supervision is necessary to reduce the risk

of a fire in the oven cavity.

4. To reduce the risk of fire in the oven
cavity:

i) Do not overcook food. Carefully attend

the appliance when paper, plastic, or
other combustible materials are placed

inside the oven to facilitate cooking.
ii) Remove wire twist-ties and metal

handles from paper or plastic containers/

bags before placing them in the oven.
iii) If materials inside the oven ignite,

keep the oven door closed. Turn the

oven off, and unplug the appliance.

Disconnect the power cord, shut off
power at the fuse or circuit breaker panel.

iv) Do not use the oven cavity for storage
purposes. Do not leave paper products,

cooking utensils, or food in the cavity
when not in use.

5. This oven must be grounded. Connect
only to properly grounded outlet. See

"GROUNDING INSTRUCTIONS" found
on page 3.

6. Install or locate this oven only in

accordance with the installation
instructions provided.

7. Some products such as whole eggs
and sealed containers-for example,

closed glass jars- are able to explode

and should not be heated in the oven.

8. Use this appliance onlyfor its intended
uses as described in this manual. Do

not use corrosive chemicals or vapors
in this appliance. This oven is

specifically designed to heat or cook
or dry food. It is not designed for

industrial or laboratory use.

9. As with any appliance, close
supervision is necessary when used

by children.

10. Do not operate this oven if it has a

damaged cord or plug, if it is not
working properly or if it has been
damaged or dropped.

11. This microwave should be serviced

only by qualified service personnel.

12. Do not cover or block any openings on

the oven.

13. Do not store or use this appliance

outdoors.

14. Do not use this oven near water, for

example, near a kitchen sink, in a wet

basement, near a swimming pool, or

similar locations.

15. Do not immerse cord or plug in water.

16. Keep cord away from heated surfaces.

17. Do not let cord hang over edge of

table or counter.

18. When cleaning surfaces of door and

oven that comes together on closing
the door, use only mild, nonabrasive
soaps or detergents applied with a

sponge or soft cloth.

19. This appliance is for private household
use only.

EN-2

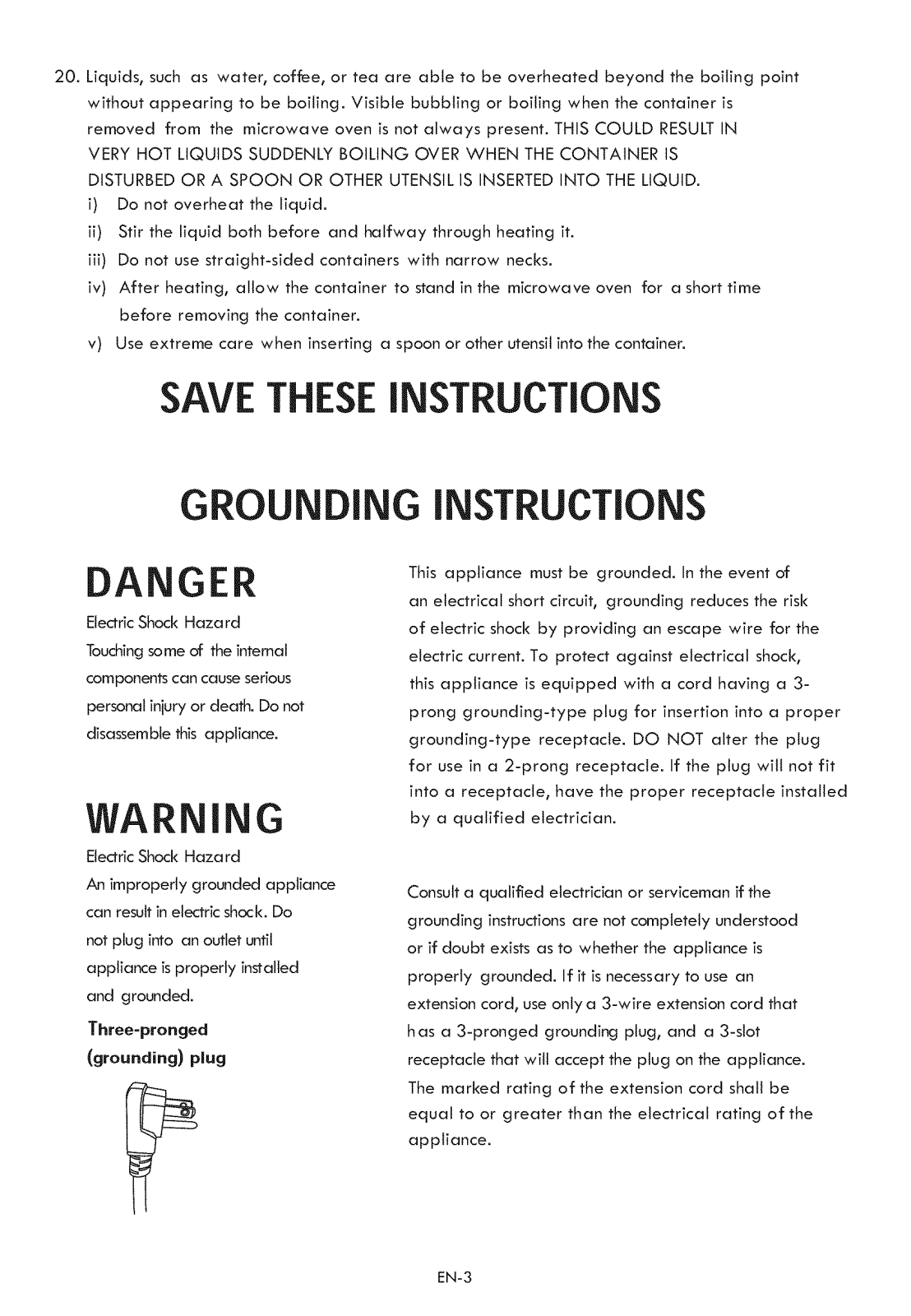

20.Liquids,suchaswater,coffee,orteaareabletobeoverheatedbeyondtheboilingpoint
withoutappearingtobeboiling.Visiblebubblingorboilingwhenthecontaineris

removedfromthemicrowaveovenisnotalwayspresent.THISCOULDRESULTIN

VERYHOTLIQUIDSSUDDENLYBOILINGOVER WHEN THE CONTAINER IS

DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.

i) Do not overheat the liquid.
ii) Stir the liquid both before and halfway through heating it.
iii) Do not use straight-sided containers with narrow necks.

iv) After heating, allow the container to stand in the microwave oven for a short time

before removing the container,

v) Use extreme care when inserting a spoon or other utensil into the container.

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

DANGER

ElectricShock Hazard
Touchingsome of the internal

componentscan cause serious
personalinjury or death. Do not
disassemblethis appliance.

WARNING

ElectricShod<Hazard
Animproperly grounded appliance

can resultin electric shock. Do
not plug into anoutlet until

appliance isproperly installed
and grounded.

Three-pronged
(grounding) plug

This appliance must be grounded. In the event of

an electrical short circuit, grounding reduces the risk

of electric shock by providing an escape wire for the

electric current. To protect against electrical shock,
this appliance is equipped with a cord having a 3-

prong grounding-type plug for insertion into a proper
grounding-type receptacle. DO NOT alter the plug

for use in a 2-prong receptacle. If the plug will not fit

into a receptacle, have the proper receptacle installed
by a qualified electrician.

Consult a qualified electrician or serviceman if the
grounding instructions are not completely understood
or if doubt exists as to whether the appliance is

properly grounded. If it is necessary to use an
extension cord, use only a 3-wire extension cord that

has a 3-pronged grounding plug, and a 3-slot
receptacle that will accept the plug on the appliance.
The marked rating of the extension cord shall be

equal to or greater than the electrical rating of the
appliance.

EN-3

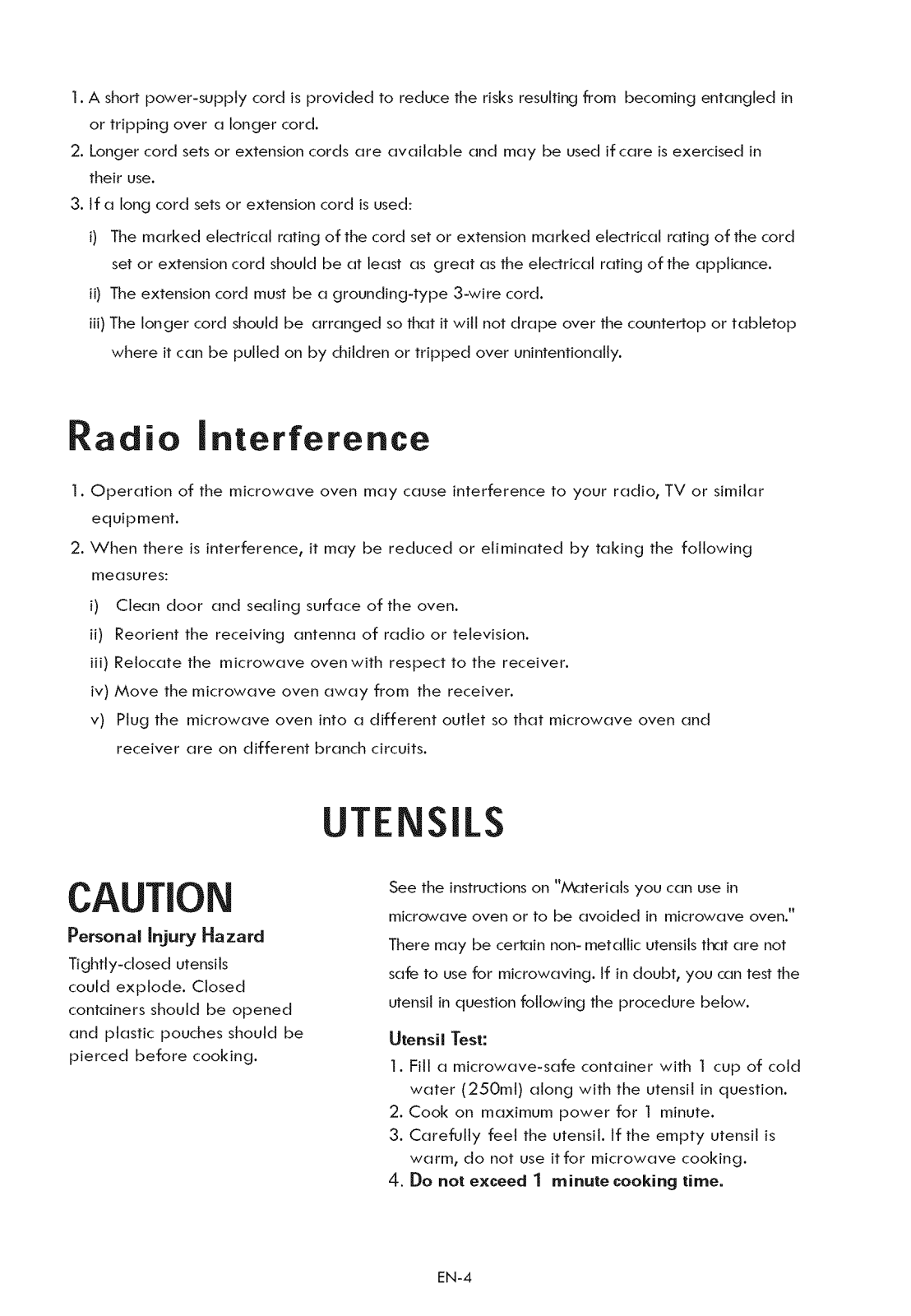

1.Ashortpower-supplycordisprovidedtoreducetherisksresultingfrombecomingentangledin
ortrippingoveralongercord.

2.Longercordsetsorextensioncordsareavailableandmaybeusedifcareisexercisedin
theiruse.

3.Ifalongcordsetsorextensioncordisused:
i) Themarkedelectricalratingofthecordsetorextensionmarkedelectricalratingofthecord

setorextensioncordshouldbeatleastasgreatastheelectricalratingoftheappliance.

ii)Theextensioncordmustbeagrounding-type3-wirecord.
iii)Thelongercordshouldbearrangedsothatitwillnotdrapeoverthecountertoportabletop

whereitcanbepulledonbychildrenortrippedoverunintentionally.

Radio interference

1. Operation of the microwave oven may cause interference to your radio, TV or similar
equipment.

2. When there is interference, it may be reduced or eliminated by taking the following
measures:

i) Clean door and sealing surface of the oven.
ii) Reorient the receiving antenna of radio or television.

JJJ) Relocate the microwave oven with respect to the receiver.

iv) Move the microwave oven away from the receiver.
v) Plug the microwave oven into a different outlet so that microwave oven and

receiver are on different branch circuits.

CAUTION

Personal injury Hazard

Tightly-closed utensils
could explode. Closed
containers should be opened

and plastic pouches should be
pierced before cooking.

UTENSILS

See the instructions on "A,_teriats you can use in
microwave oven or to be avoided in microwave oven."

There may be certain non- metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with I cup of cold
water (250mt) along with the utensil in question.

2. Cook on maximum power for I minute.

3. Carefully feet the utensil. If the empty utensil is
warm, do not use itfor microwave cooking.

4. Do not exceed 1 minute cooking time.

EN-4

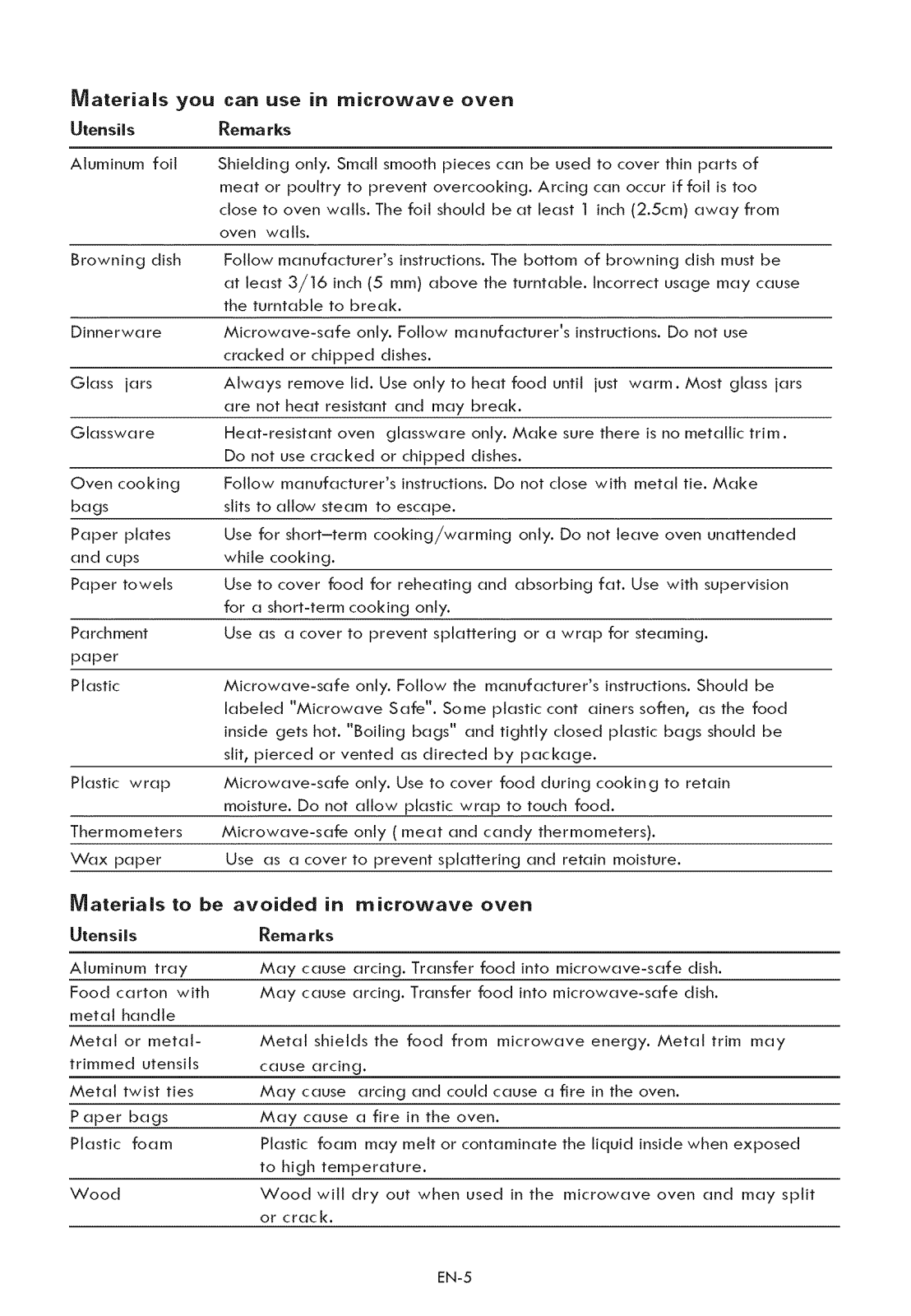

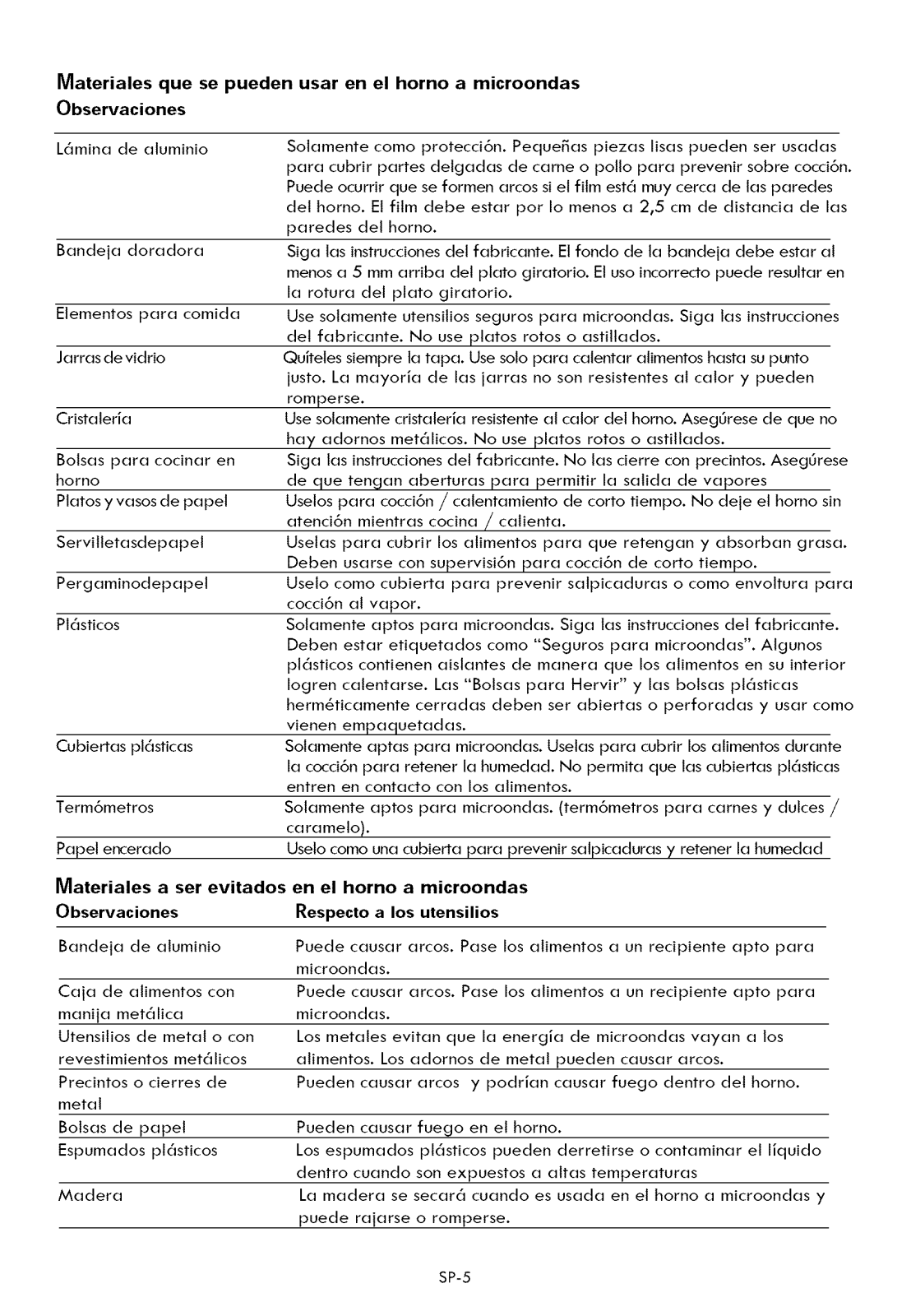

Materials you

Utensils

Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of

Browning dish Follow manufacturer's instructions. The bottom of browning dish must be

Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use

Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars

Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim.

Oven cooking Follow manufacturer's instructions. Do not close with metal tie. Make
bags slits to allow steam to escape.

Paper plates Use for short-term cooking/warming only. Do not leave oven unattended
and cups while cooking.

Paper towels Use to cover food for reheating and absorbing fat. Use with supervision

Parchment Use as a cover to prevent splattering or a wrap for steaming.
paper

Plastic Microwave-safe only. Follow the manufacturer's instructions. Should be

Plastic wrap Microwave-safe only. Use to cover food during cooking to retain

Thermometers Microwave-safe only ( meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

can use in microwave oven

Remarks

meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least I inch (2.5cm) away from

oven walls.

at least 3/16 inch (5 mm) above the turntable. Incorrect usage may cause
the turntable to break.

cracked or chipped dishes.

are not heat resistant and may break.

Do not use cracked or chipped dishes.

for a short-term cooking only.

labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be

slit, pierced or vented as directed by package.

moisture. Do not allow plastic wrap to touch food.

Materialslo be avoided in microwave oven

Utensils Rema rks

Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with May cause arcing. Transfer food into microwave-safe dish.

metal handle
Metal or metal- Metal shields the food from microwave energy. Metal trim may

trimmed utensils cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.

Paper bags May cause a fire in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed

to high temperature.

Wood Wood will dry out when used in the microwave oven and may split

or crack.

EN-5

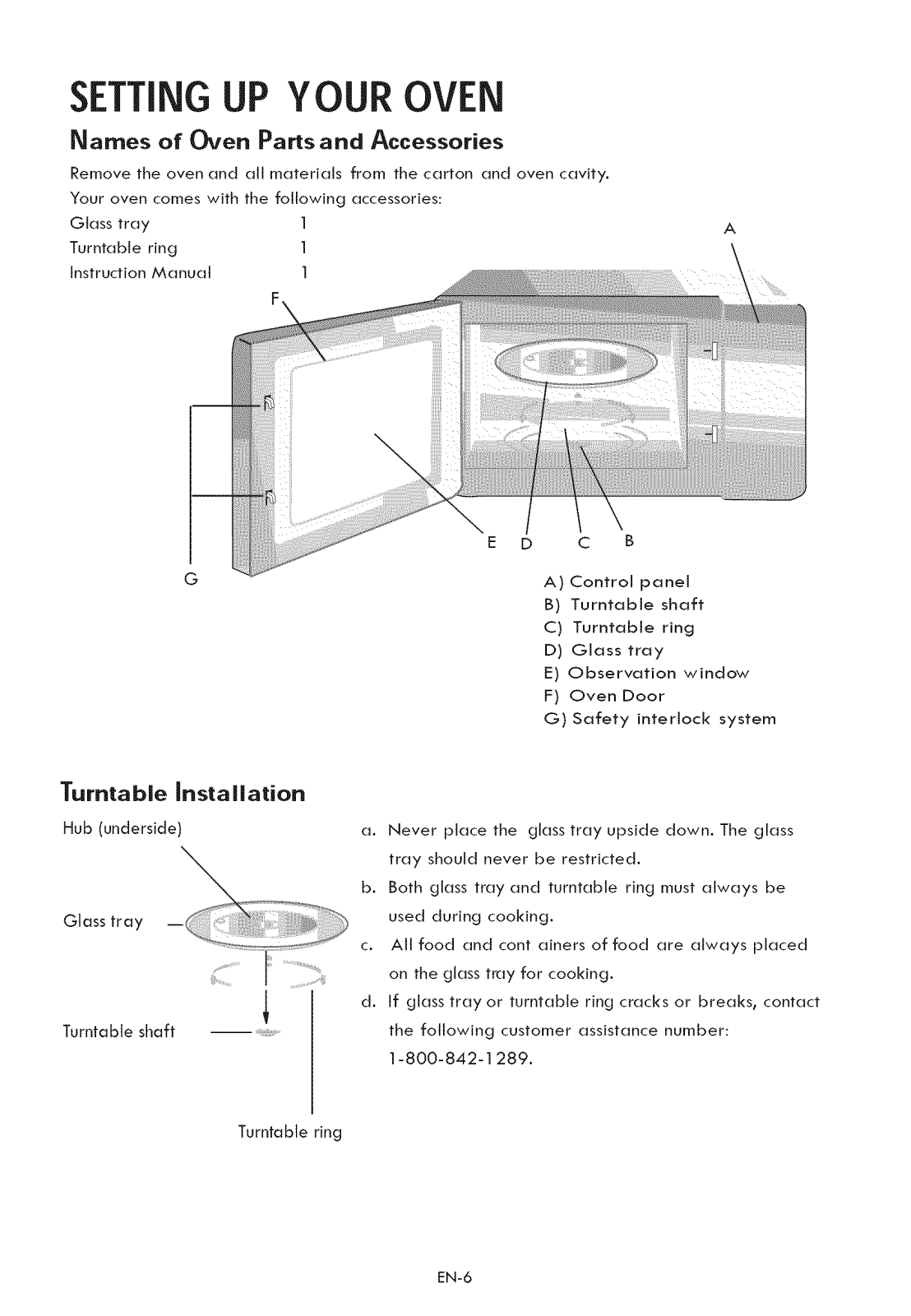

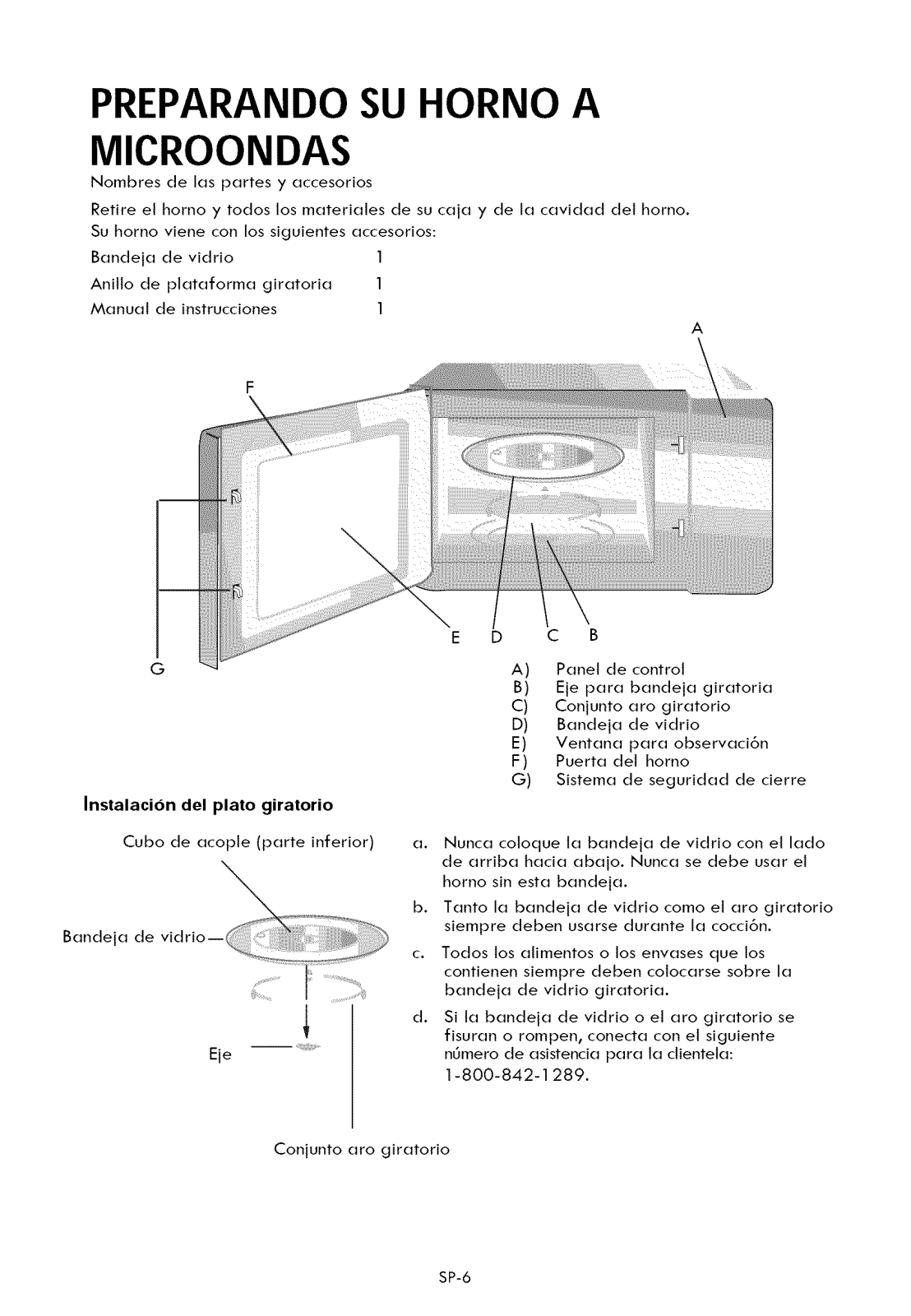

SETTINGUP YOUROVEN

Names o{ Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:
Glass tray 1
Turntable ring 1

Instruction Manual 1

E D C B

G

A) Control panel

B) Turntable shaft

C) Turntable ring

D) Glass tray
E) Observation window

F) Oven Door
G) Safety interlock system

A

Turntable installation

Hub (underside)

Glass tray

Turntable shaft ....

Turntable ring

a. Never place the glass tray upside down. The glass

tray should never be restricted.

b. Both glass tray and turntable ring must always be

used during cooking.

c. All food and cont ainers of food are always placed

on the glass tray for cooking.

d. If glass tray or turntable ring cracks or breaks, contact

the following customer assistance number:

1-800-842-1289.

EN-6

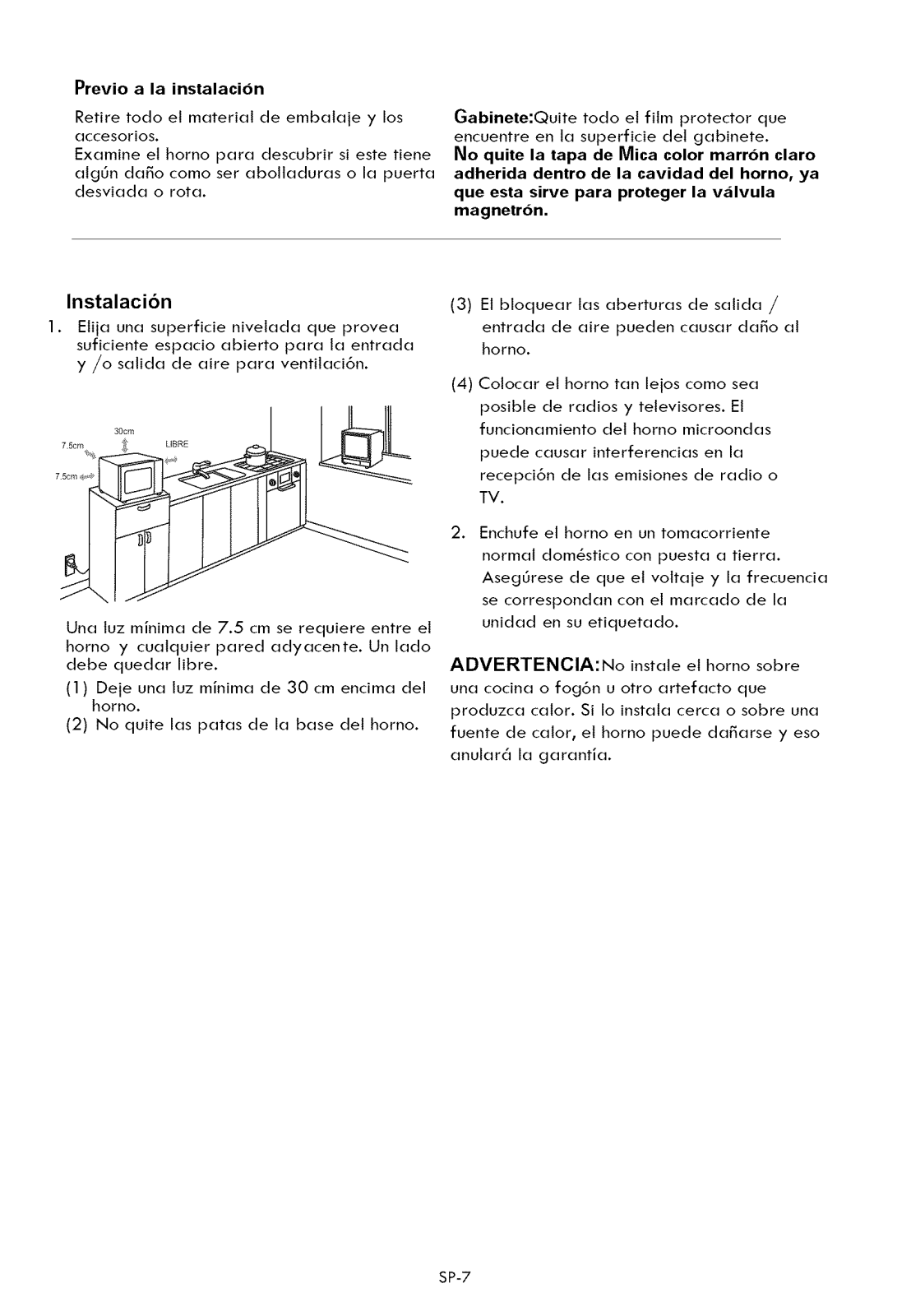

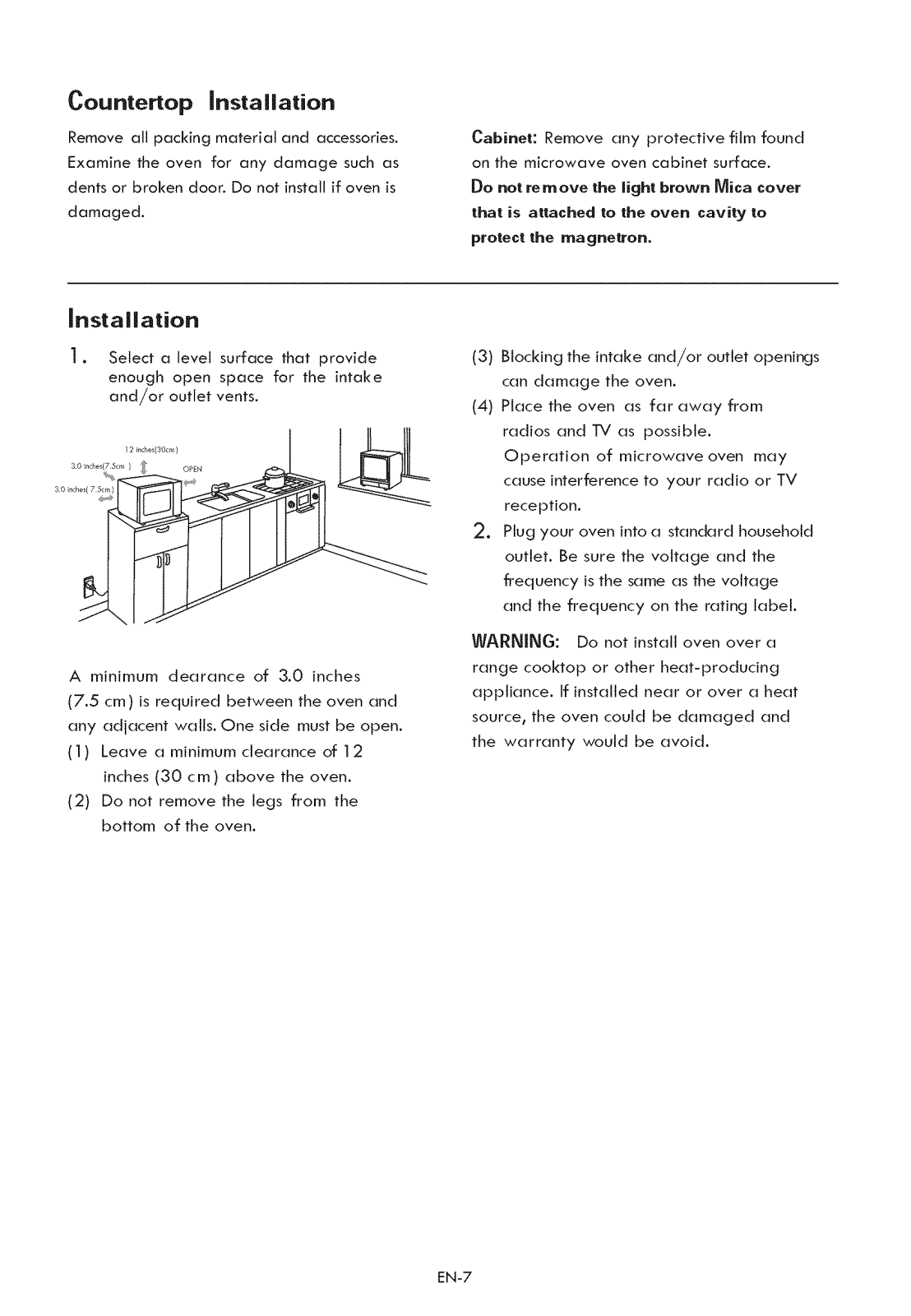

Countertop installation

Remove all packing material and accessories.

Examine the oven for any damage such as
dents or broken door. Do not install if oven is

damaged.

installation

Cabinet: Remove any protective film found

on the microwave oven cabinet surface.

Do not remove the light brown Mica cover
that is attached to the oven cavity to

protect the magnetron.

1. Select a level surface that provide
enough open space for the intake
and/or outlet vents.

12 rn_ es(30_rll ) J _J]!

A minimum dearance of 3.0 inches

(7.5 cm) is required between the oven and
any adjacent walls. One side must be open.

(1) Leave a minimum clearance of 12

inches (30 cm) above the oven.

(2) Do not remove the legs from the

bottom of the oven.

I It tfl

(3) Blocking the intake and/or outlet openings

can damage the oven.

(4) Place the oven as far away from

radios and TV as possible.

Operation of microwave oven may

cause interference to your radio or TV

reception.

2. Plug your oven into a standard household
outlet. Be sure the voltage and the

frequency is the same as the voltage
and the frequency on the rating label.

WARNING; Do not install oven over a
range cooktop or other heat-producing

appliance. If installed near or over a heat
source_ the oven could be damaged and
the warranty would be avoid.

EN-7

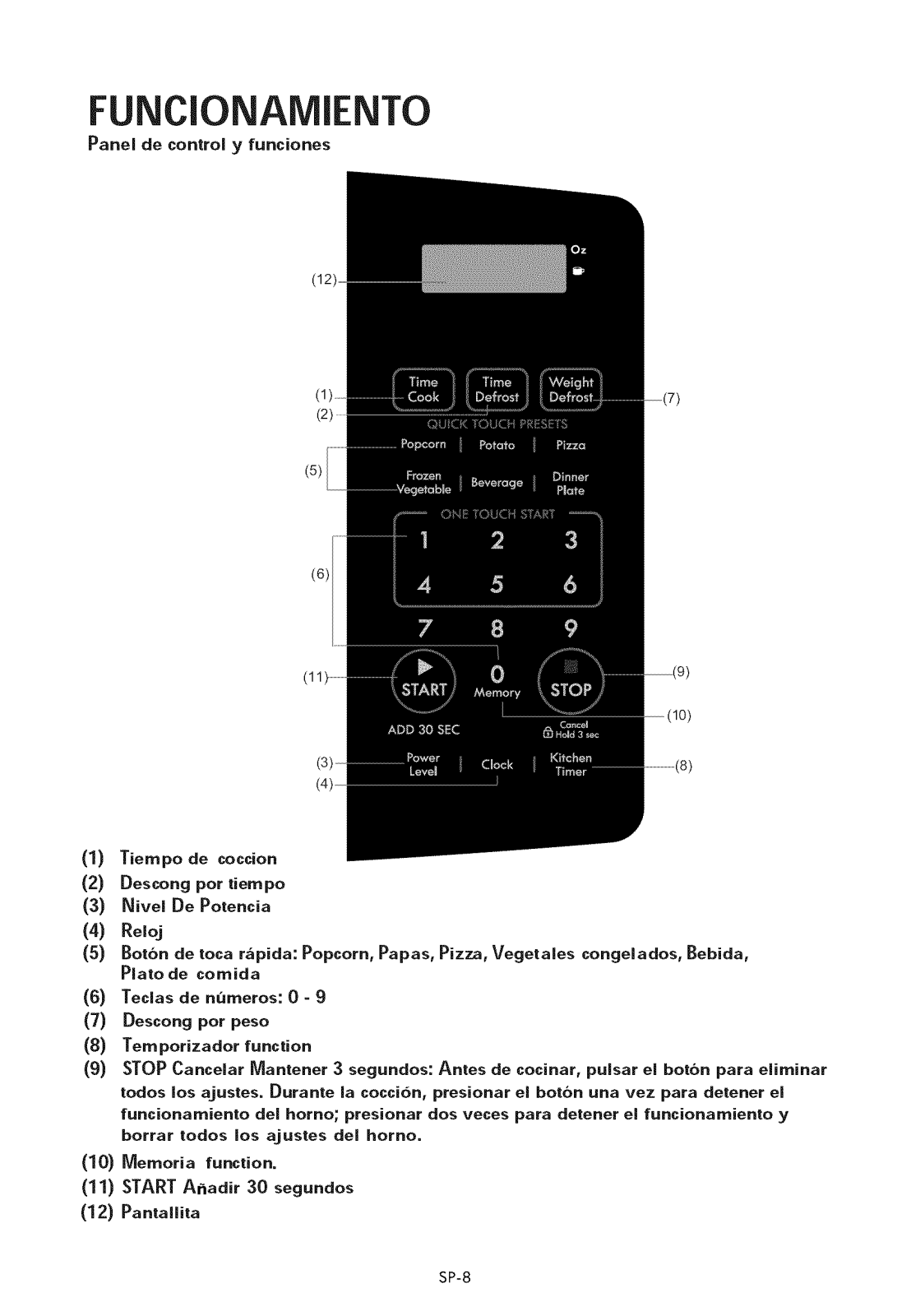

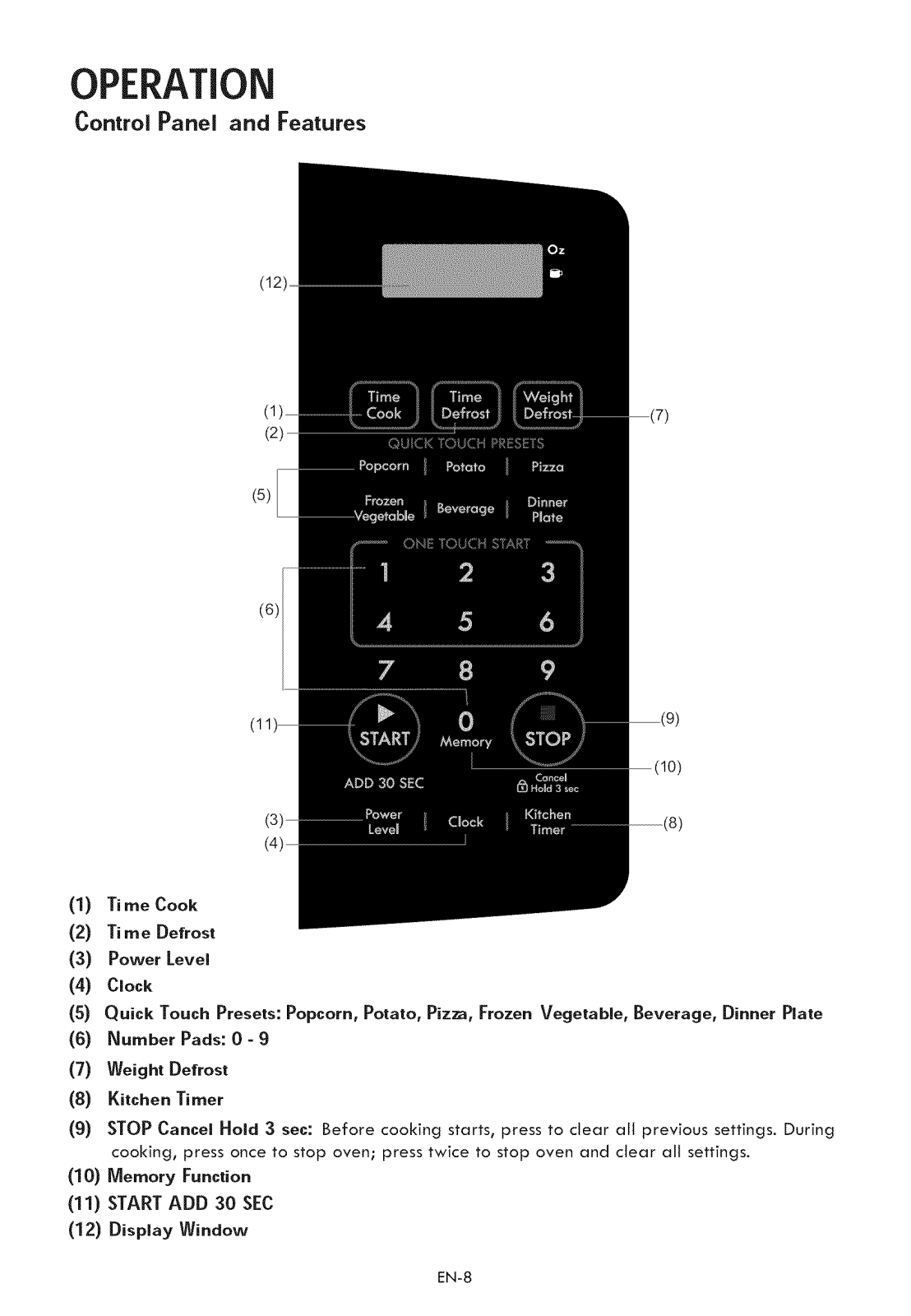

OPERATION

ControlPanel and Features

(5)

(6)

Ti me Cook

(1)

Ti me Defrost

(2)

Power Level

(3)

Clock

(4)
(s)

Quick Touch Presets: Popcorn, Potato, Pizza,Frozen Vegetable, Beverage, Dinner Plate

Number Pads: 0 - 9

(6)
(7)

Weight Defrost

Kitchen Timer

(8)
(9)

STOP Cancel Hold 3 sec: Before cooking starts, press to clear all previous settings. During

cooking, press once to stop oven; press twice to stop oven and clear all settings.

(10) Memory Function
(11) STARTADD 30 SEC

(12) Display Window

EN-8
