- Model Identification: 3EW.65, 3EW.75, 3EW1.00, 4EW.90, 4EW1.25, 4EW1.50, 5EW1.20, 5EW1.75, 5EW2.00
- Type of Fuel: # 2 fuel oil

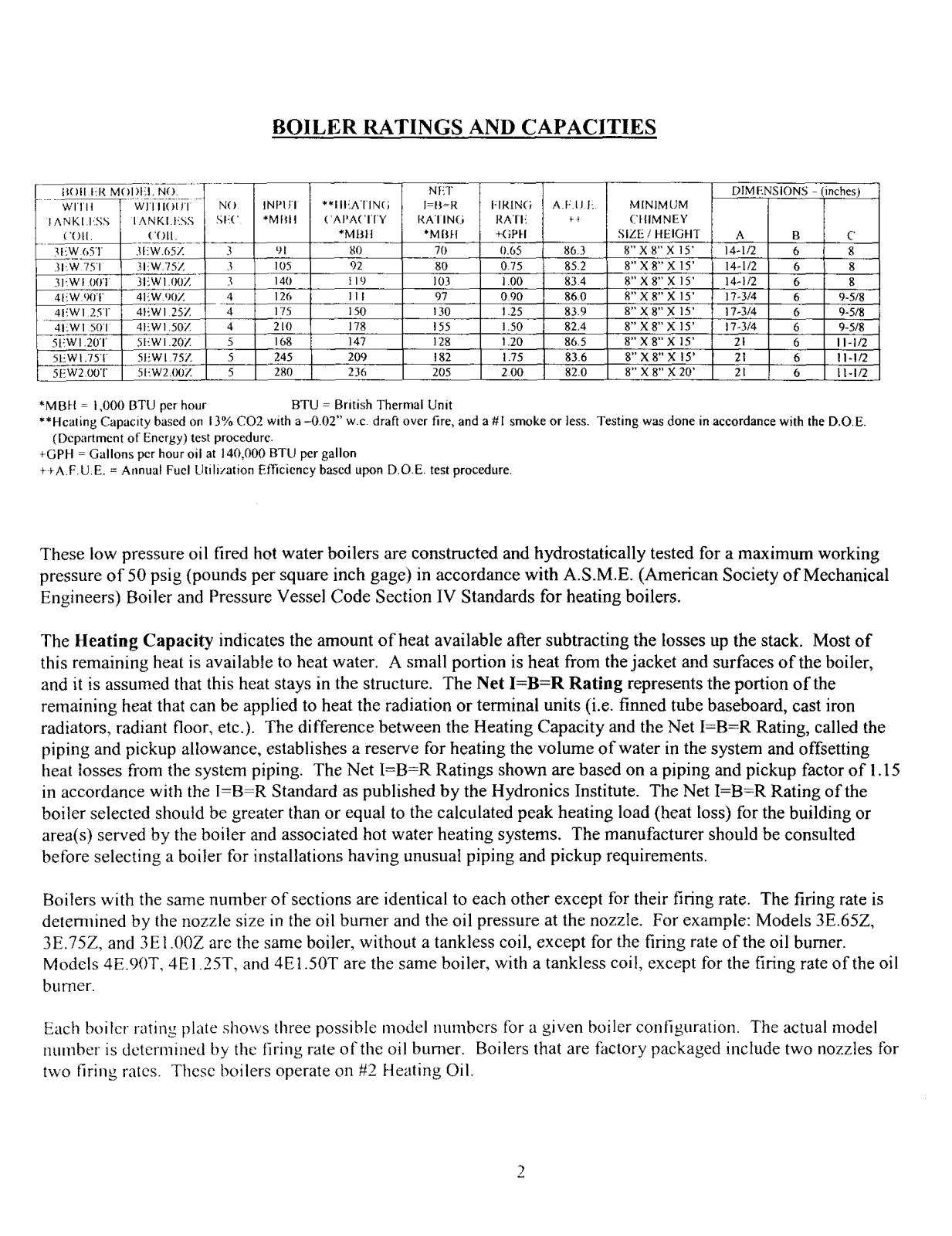

- Heating Power:
3EW.65 80 MBH ( 0.65 gph )
3EW.75 105 MBH ( 0.75 gph )
3EW1.00 140 MBH ( 1.00 gph )
4EW.90 126 MBH ( 0.90 gph )
4EW1.25 175 MBH ( 1.25 gph )
4EW1.50 210 MBH ( 1.50 gph )
5EW1.20 168 MBH ( 1.20 gph )
5EW1.75 245 MBH ( 1.75 gph )
5EW2.00 280 MBH ( 2.00 gph )

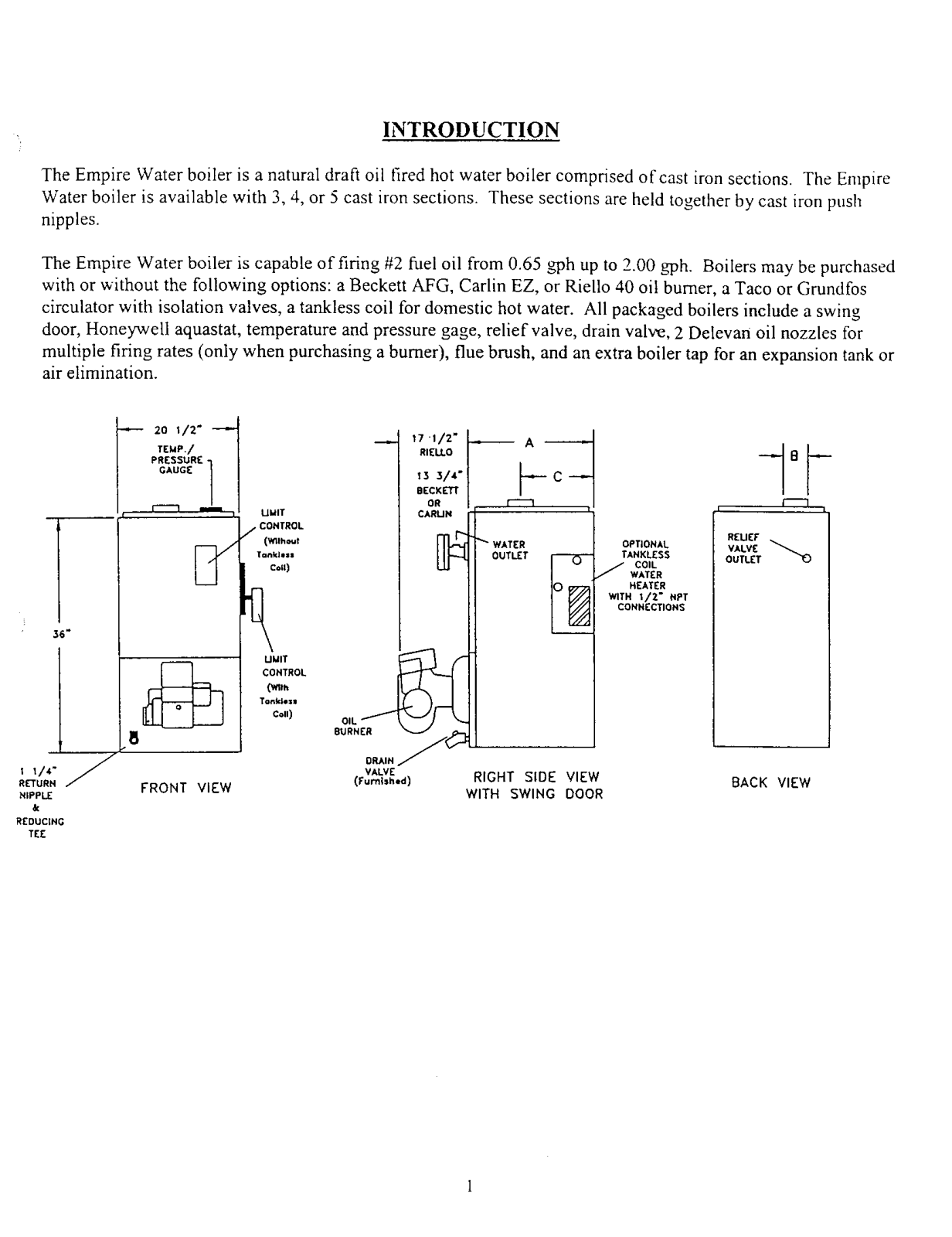

- Construction: Push nipple, cast iron sections.
- Maximum Trust: 50 psig.
- Components Included:
Having one swinging door

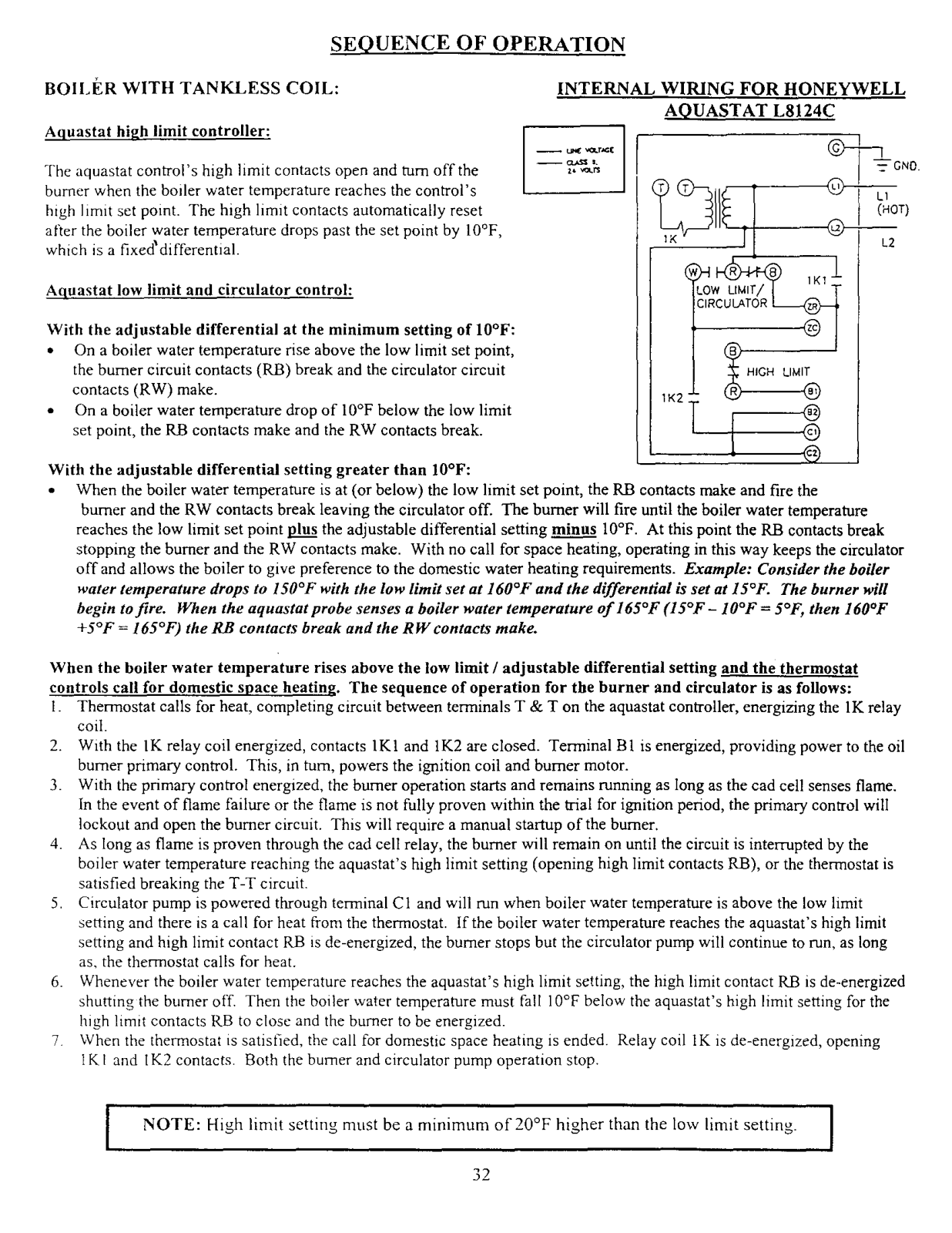

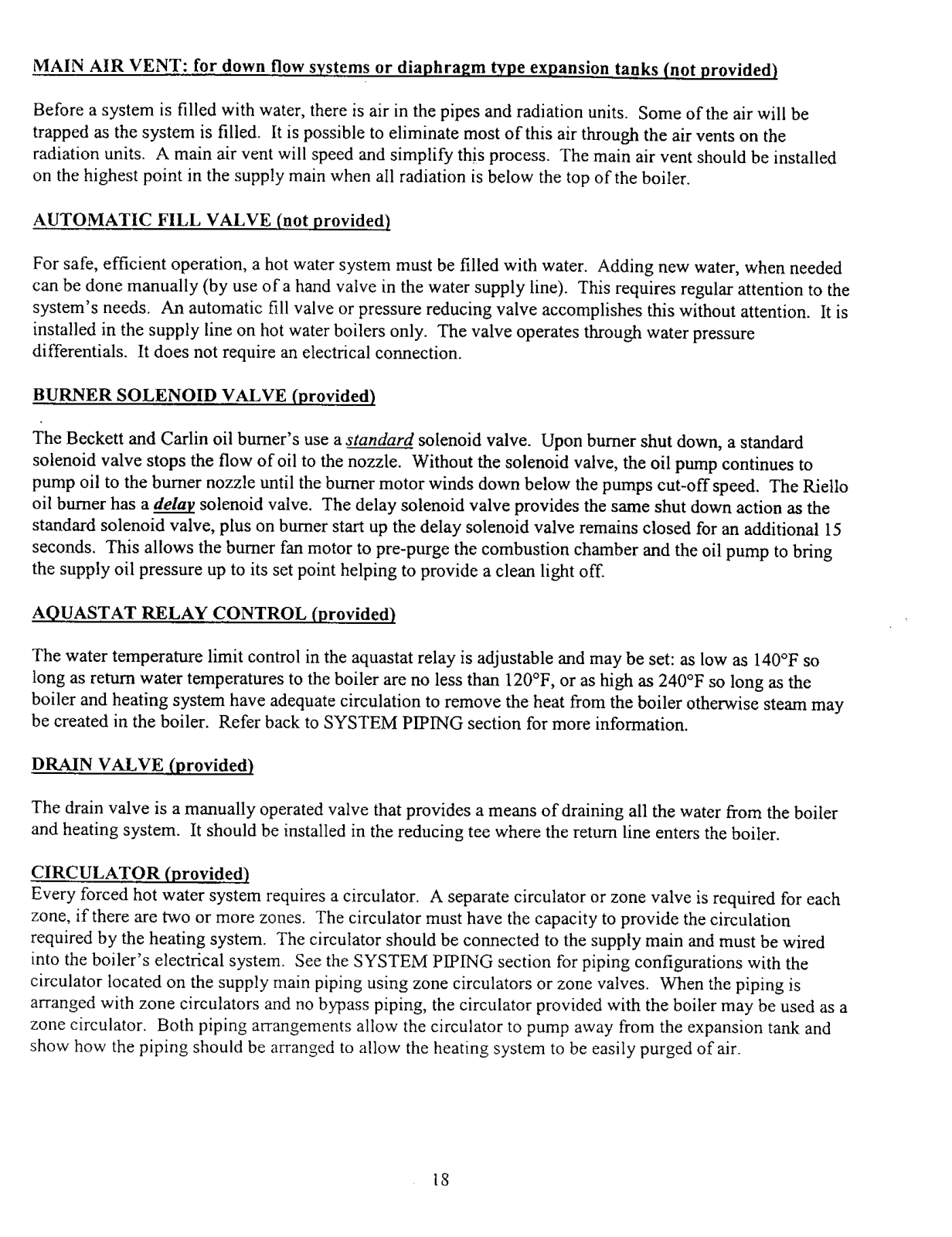

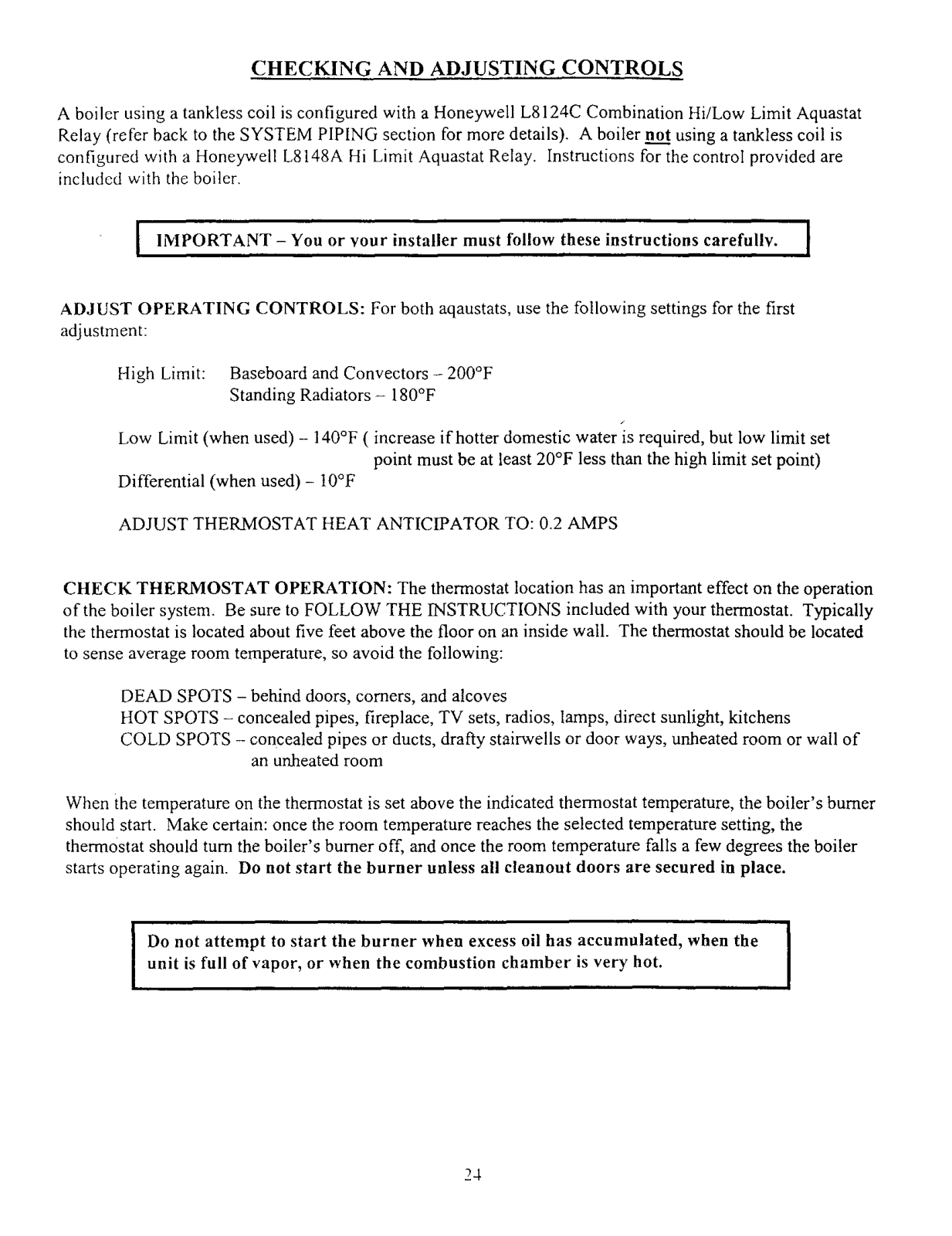

Consisting of Honeywell aquastat
Having temperature and pressure gauge
Having relief valve
Having drain valve

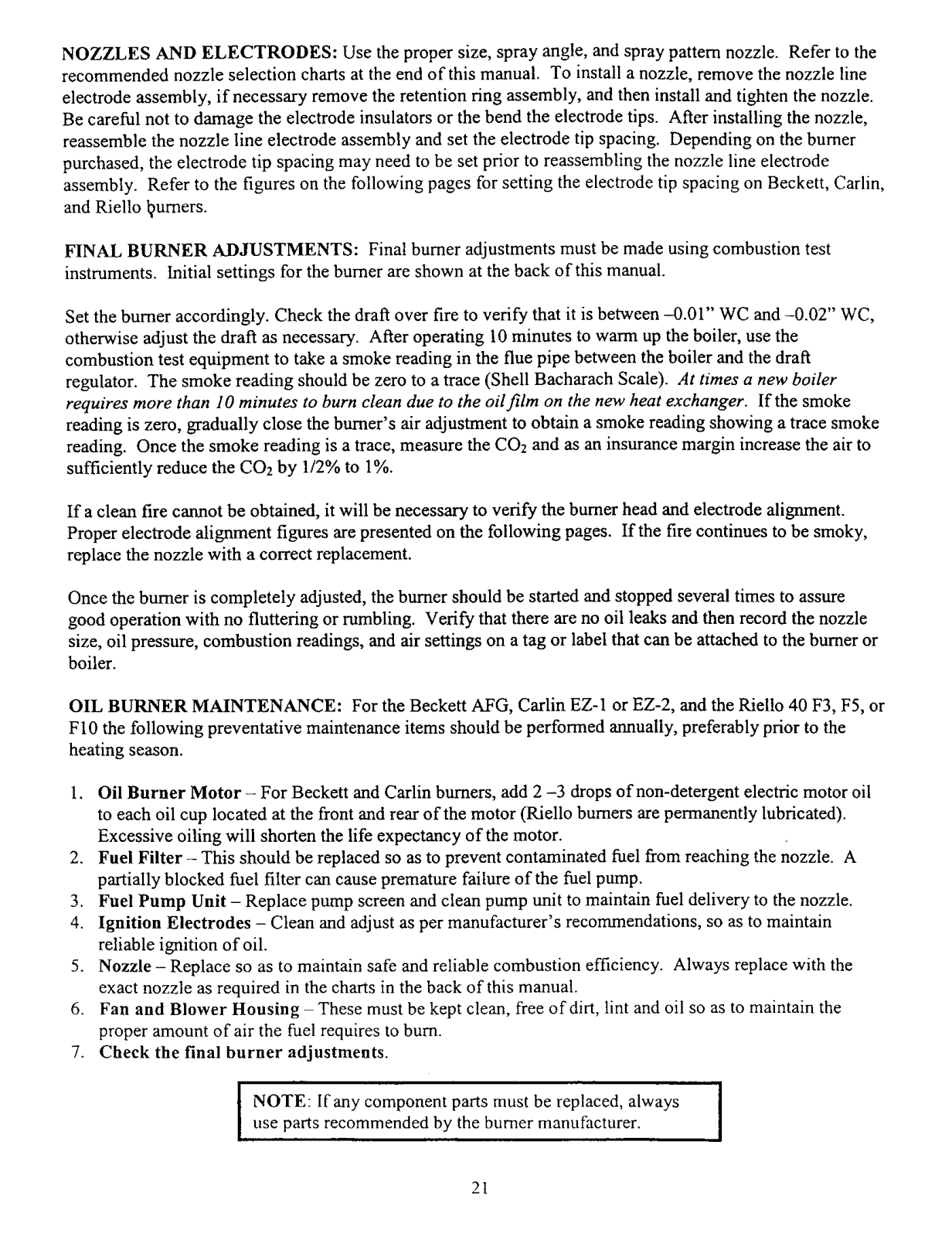

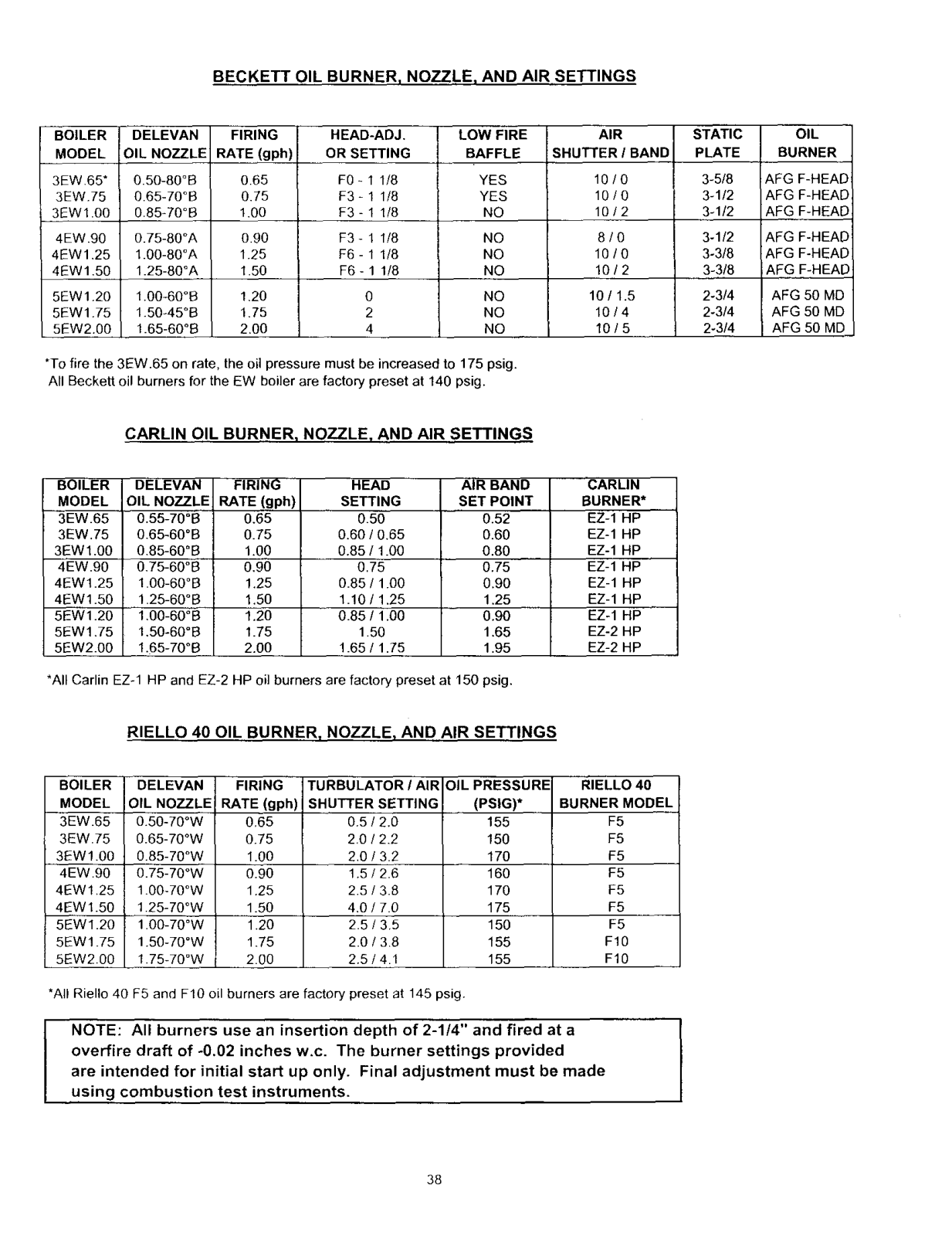

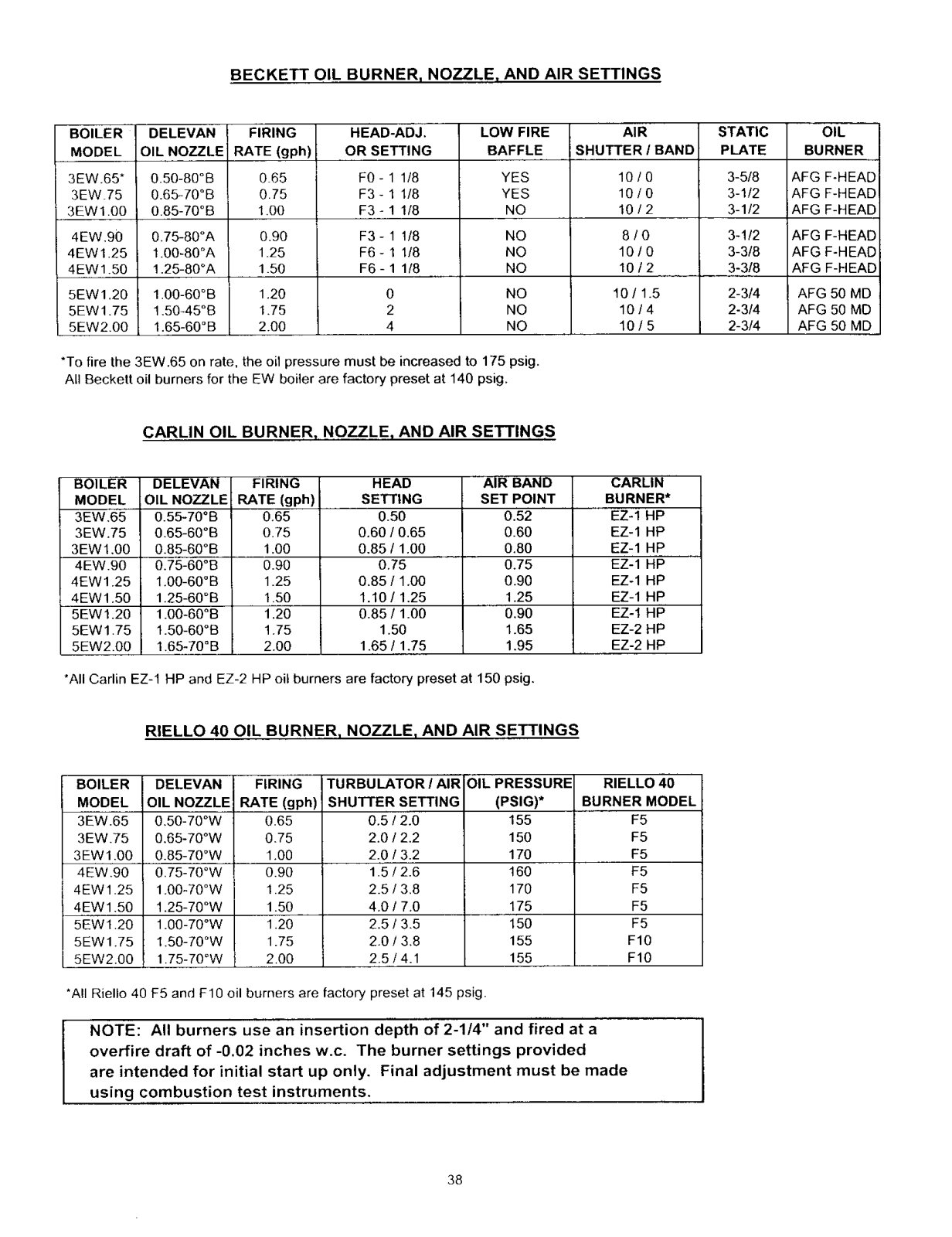

Using Delevan oil nozzles (multiple firing rates)

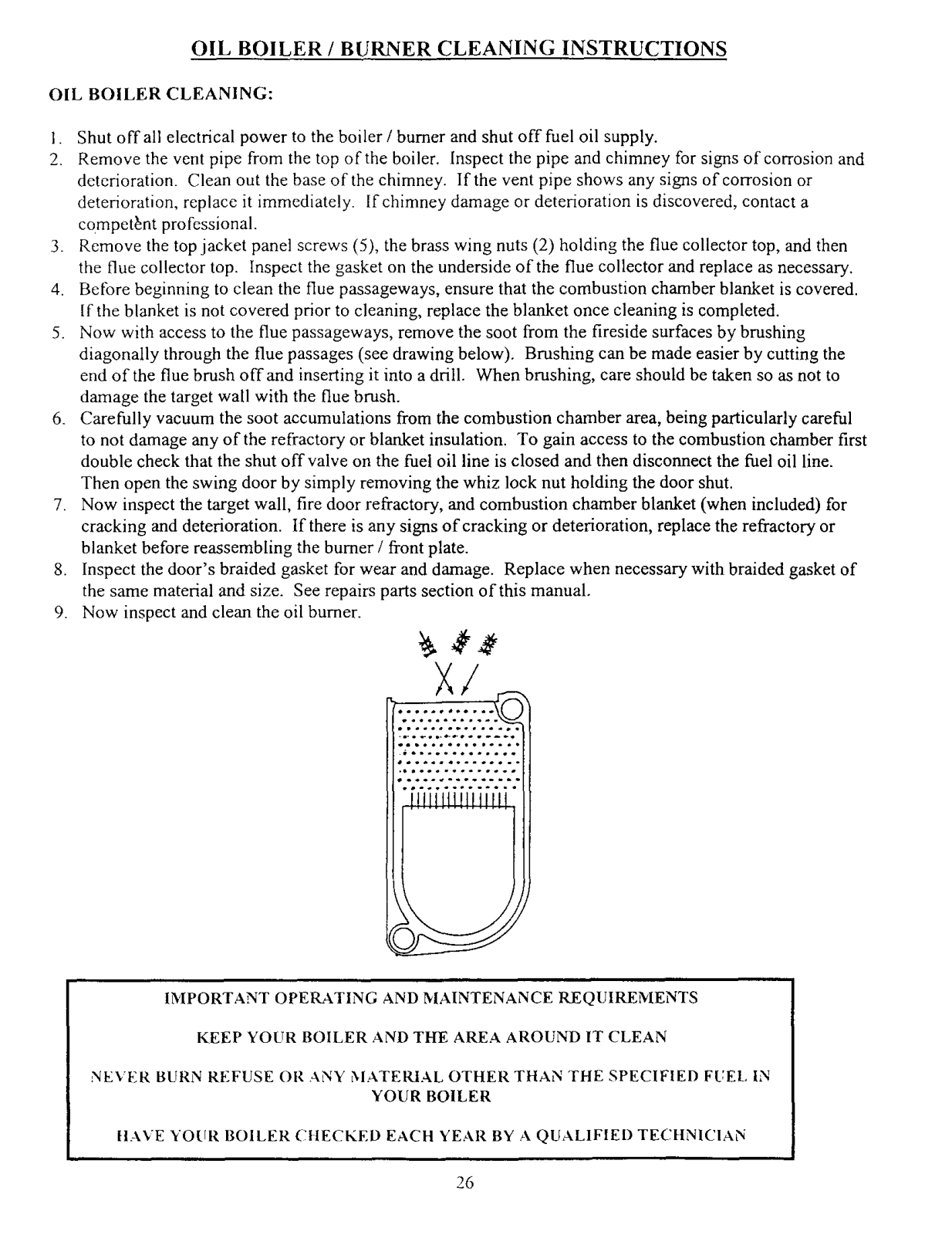

Having a flue brush

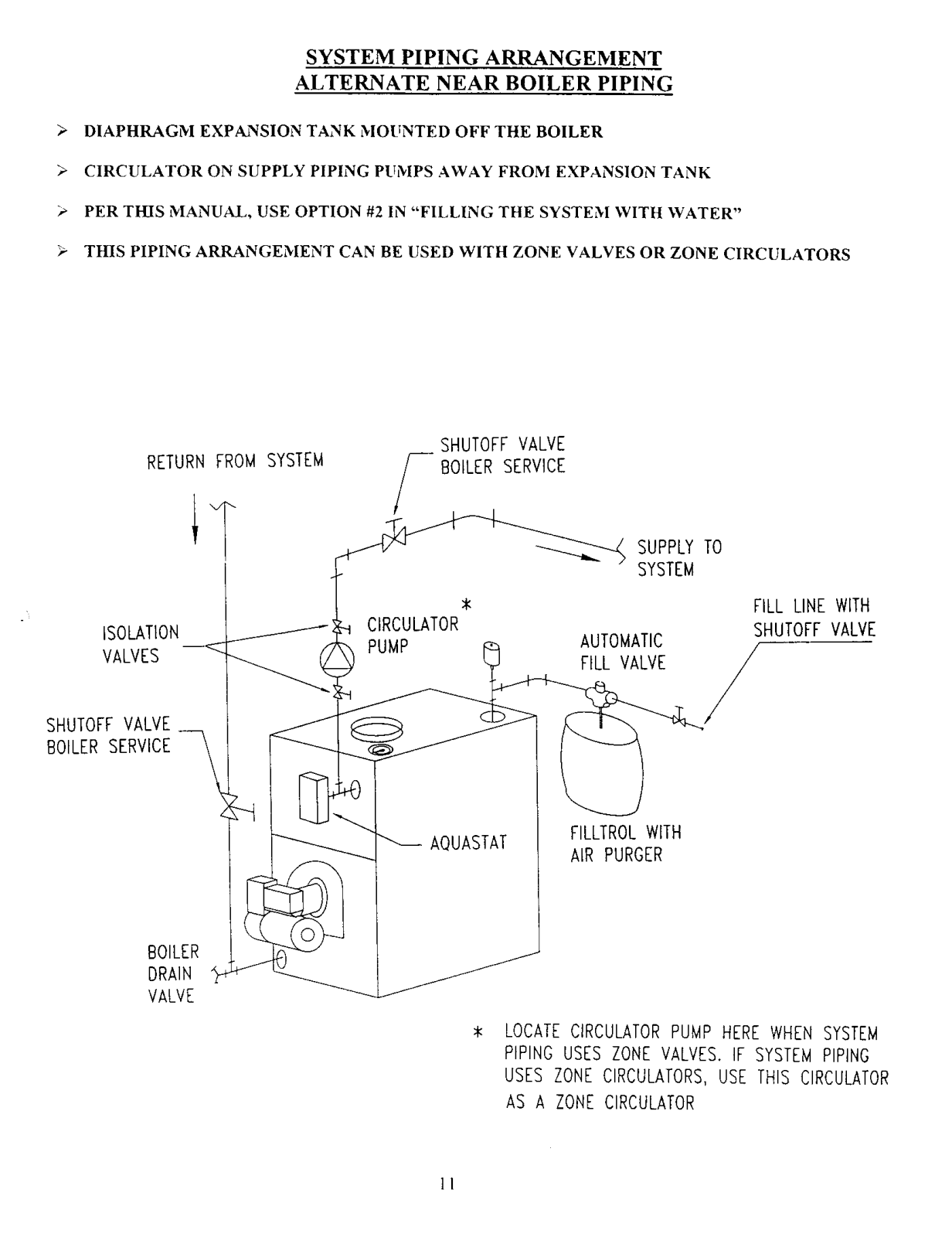

Having an extra boiler tap for expansion tank or air elimination

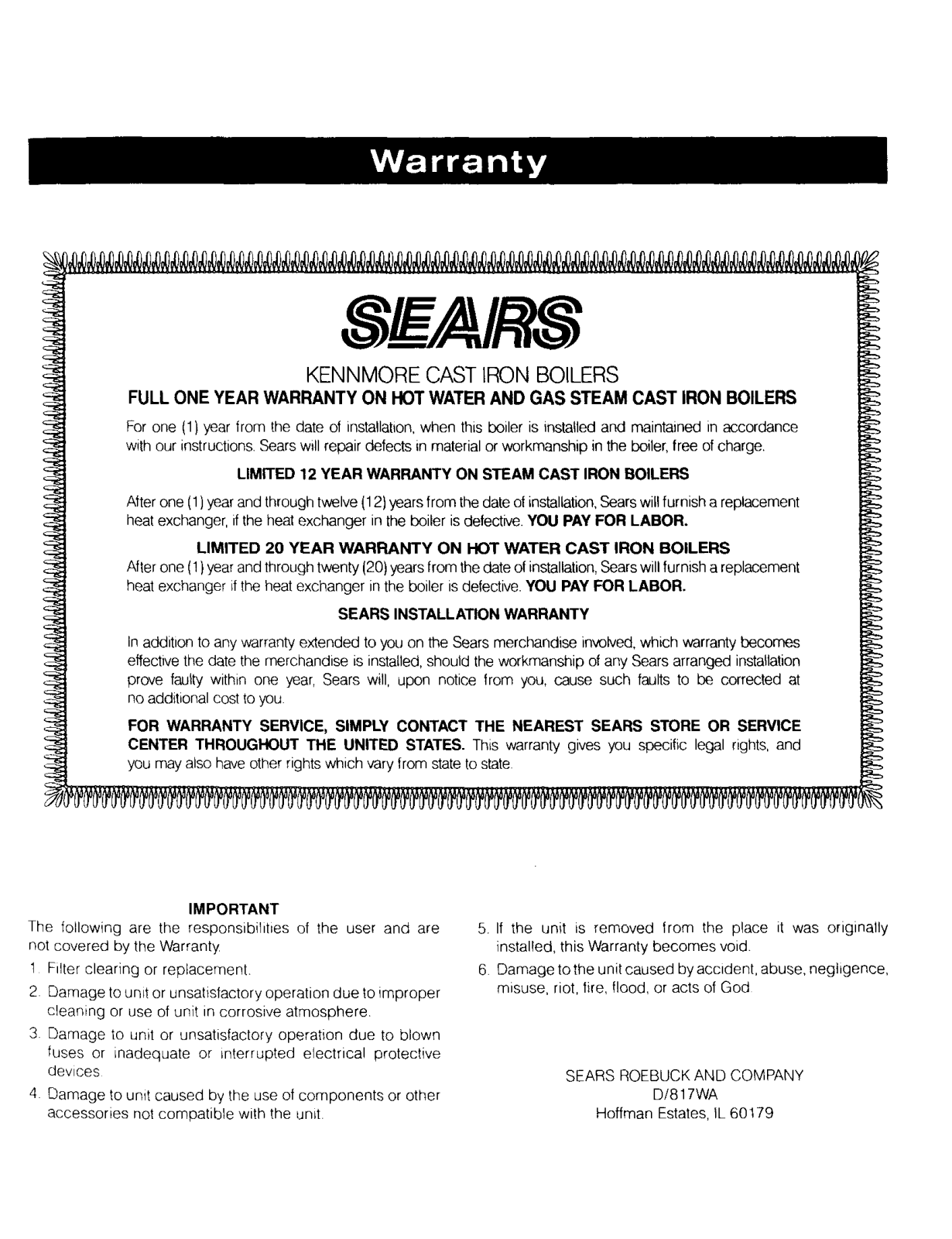

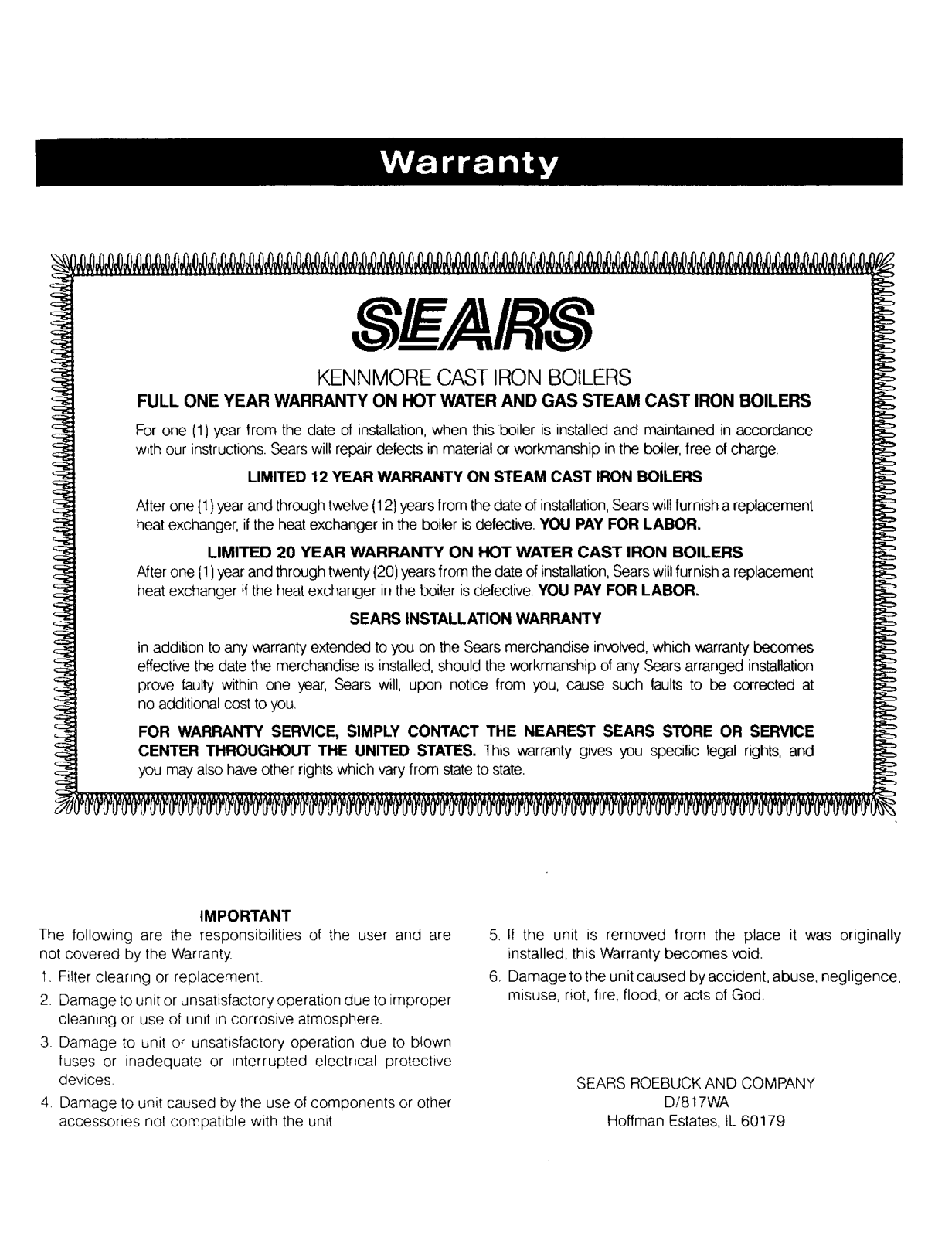

- Warranty:
Hot water and gas steam cast iron boilers: Full 1-year warranty
Steam cast iron boilers (heat exchanger): Limited 12-year warranty
Hot water cast iron boilers (heat exchanger): Limited 20-year warranty
Q: What makes Kenmore boiler fuel type possible?
A: The Kenmore boiler is fueled using #2 oil.
Q: What is the maximum pressure at which the boiler can work?
A: A maximum pressure capability at 50 psi.
Q: Will the gas steam cast iron boiler come with a warranty?
A: The cast iron boilers which are powered by gas and hot water will have full warranty coverage of up to a year while some components will have limited coverage up to a maximum of twenty years.
Q: If I require deals regarding heating capacity ranging from 80 MBH for the 3EW.65 model and upto 280 MBH for the 5EW2.00 model, which model should I purchase?
A: In the range of heating capacities for purchase, the 3EW.65 and 5EW2.00 cover a wide range even further.
Q: Can you shed light on the construction of the boiler, what materials are used to manufacture it?
A: The main components that go into the manufacturing of the boiler includes cast iron as the primary material.

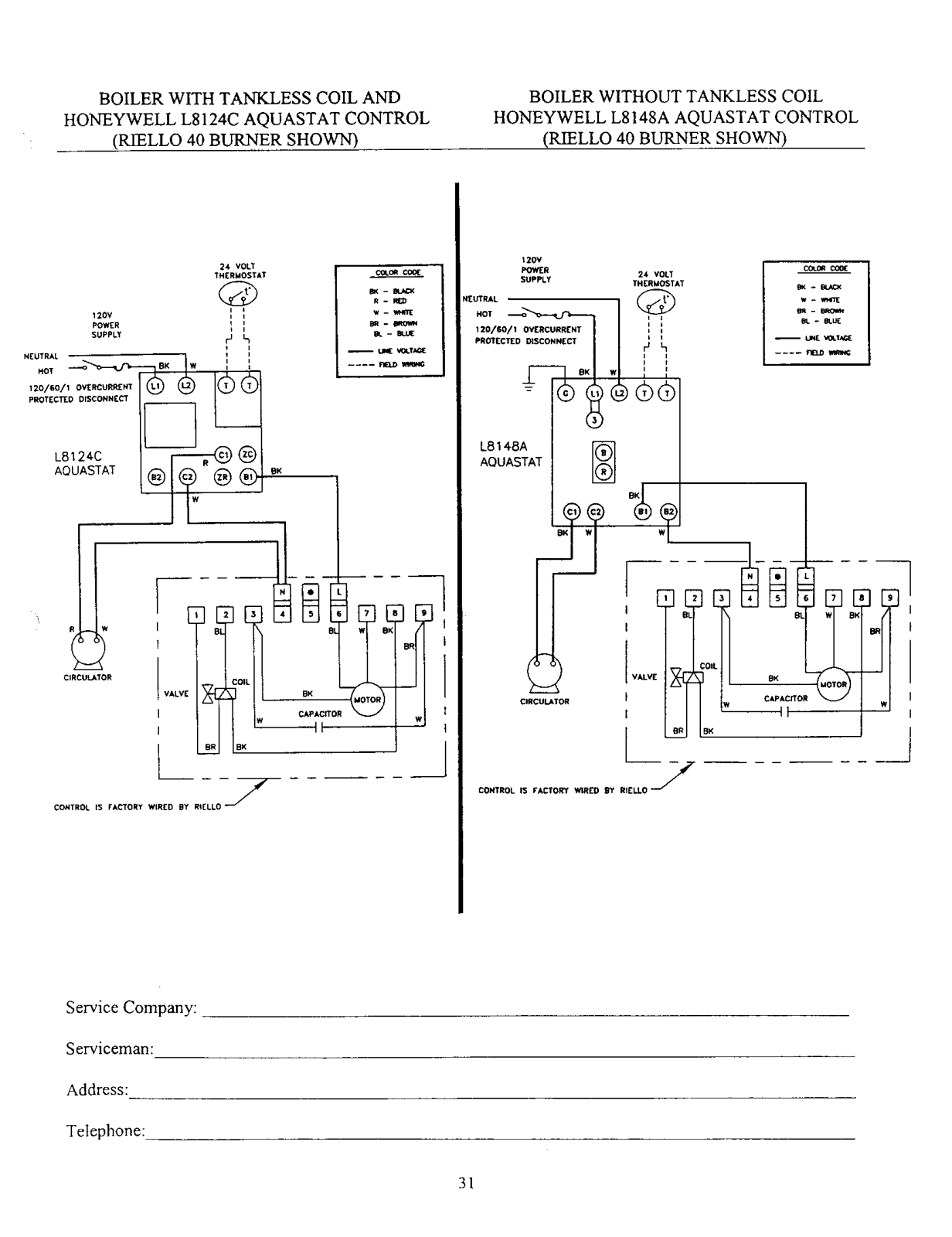

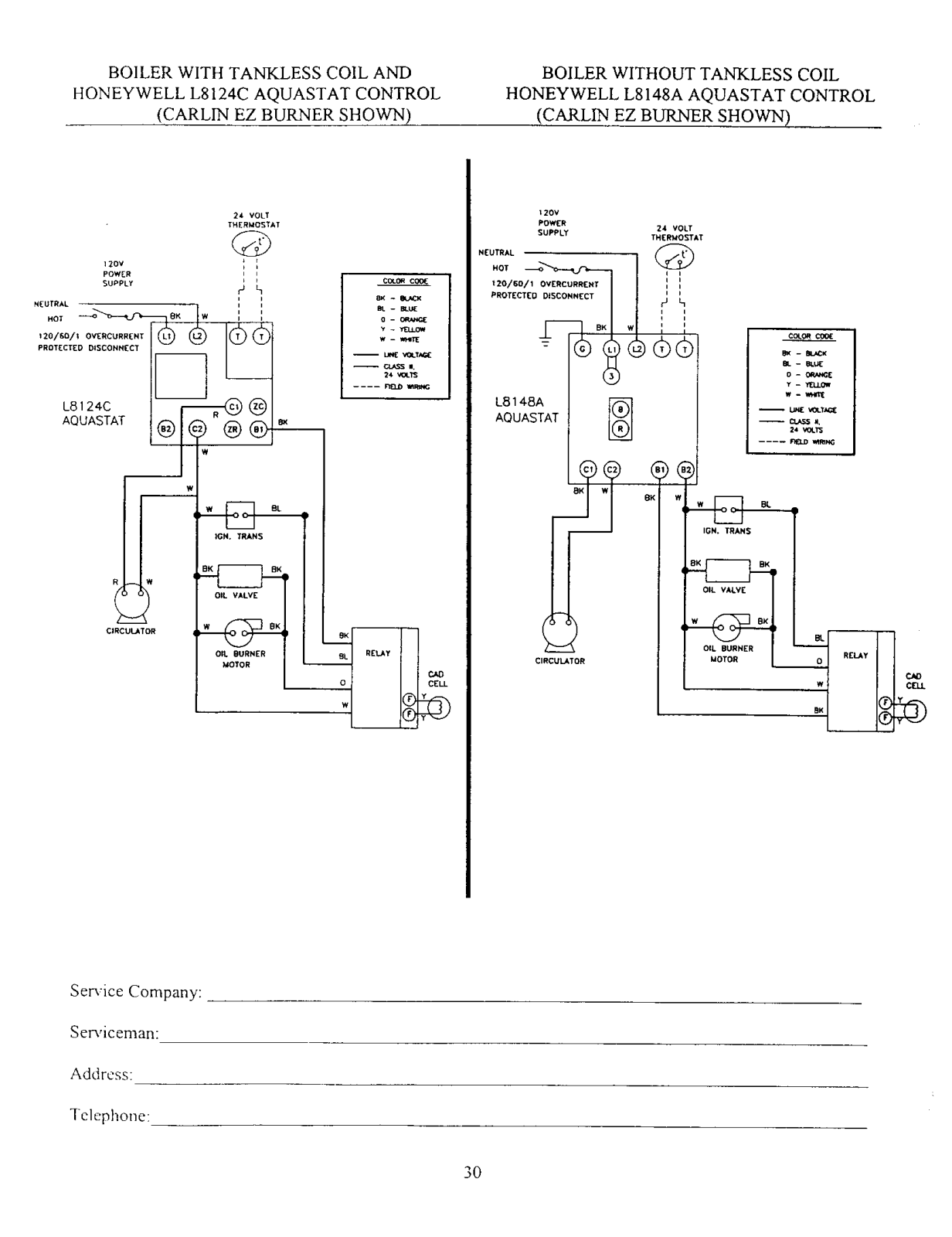

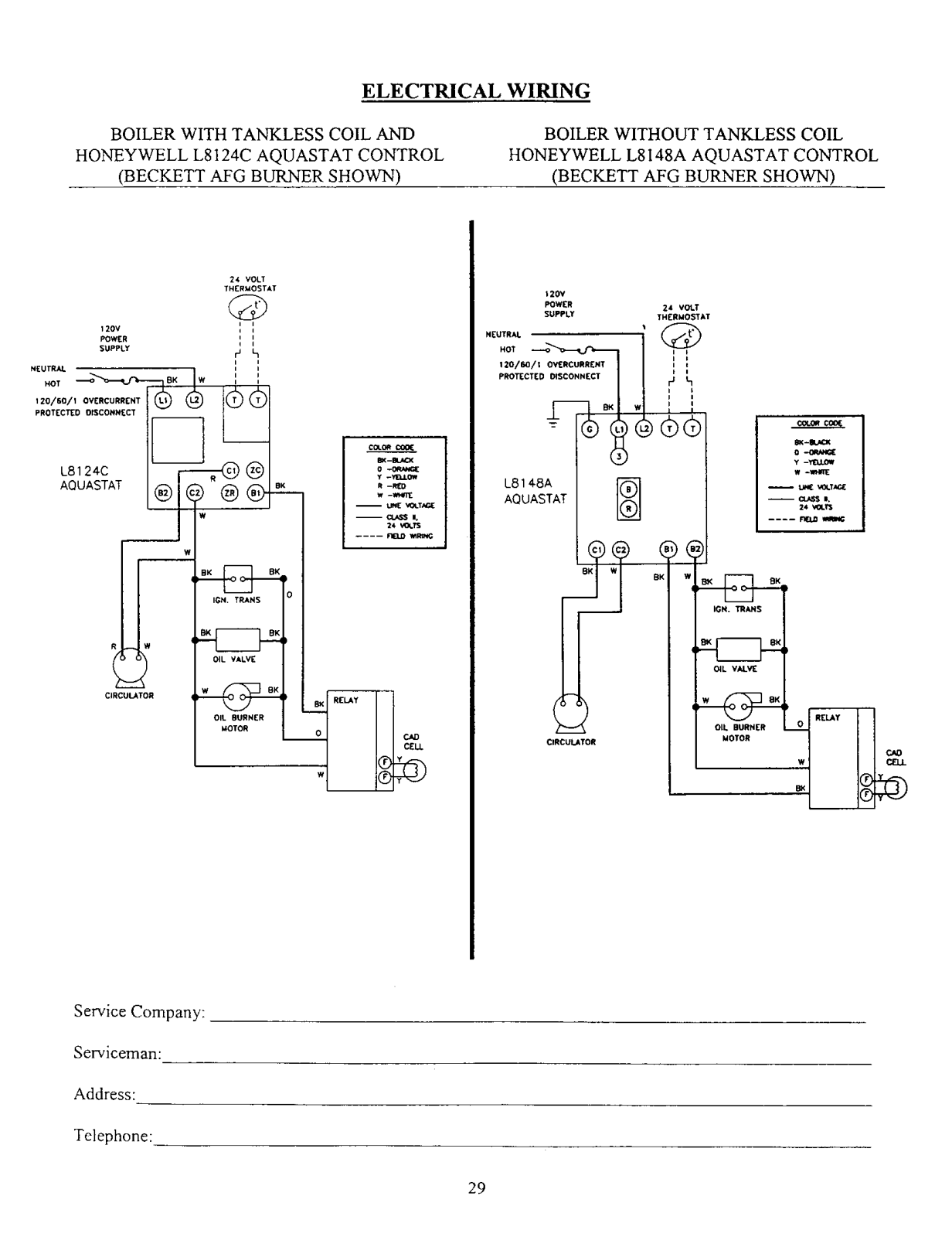

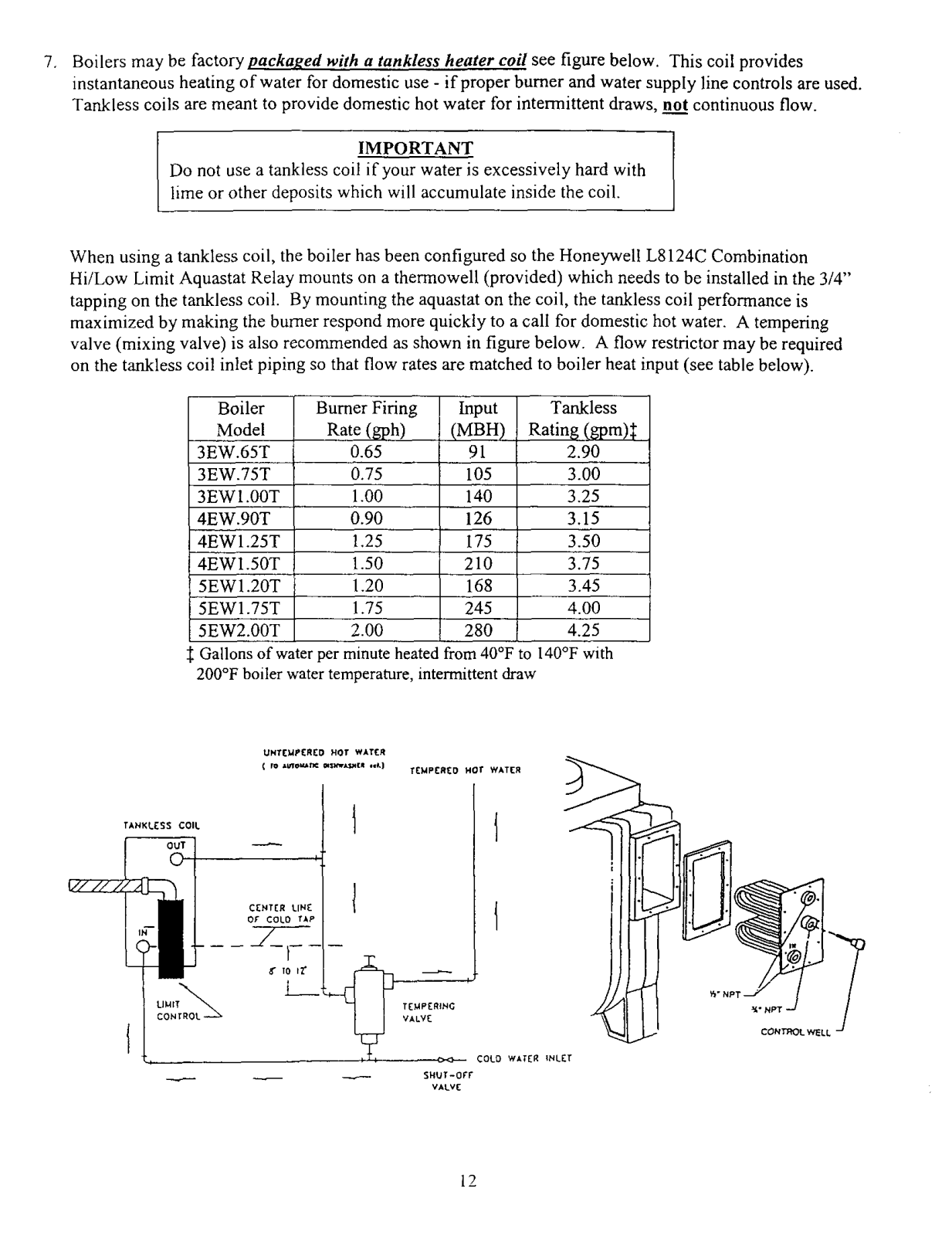

Q: Am I able to use the boiler without the tankless coil?
A: That’s correct, there are a few options available on certain models where hot water can be supplied with or without a tankless coil.
Q: What is the main component which is included in the packaged boiler?
A: The most notable components that are already included in the package are the swing door, honeywell aquastat, temperature and pressure guage, relief valve and a drain valve.
