Kenmore 3631442190 Guide, 3631442191 Guide, 3631442192 Guide, 3631442592 Guide, 3631442591 Guide Operating Instructions Manual

Automatic Dishwashing Guide

Safety Instructions

2

What Your Dishwasher Needs

3

Operating Instructions

4,5

Proper Loading

6,7

Special Tips

8

Dispensers

9

Important Parts of Your Dishwasher

Door Panels

User Maintenance Instructions

10

11

12

Problems and Solutions

13-15

Sears Service Back Cover

Fill in these spaces:

Model _'mdSerial Model No_

Nttmbex Pla_e

Serial No_
Purchase Date

14425
14421

hnportant Safety Instructions

WARNING: Please follow basic precautions, including the following:

Read all instiuctions before using

your dishwasher_

ONLY use detergents and rinse
agents recommended for use in a

drshwashen

Store deter gents and rinse ag.ents in a
cool, dry place OUT' OF CHILDREN'S
REACH

DO NOT t°uchheatingelementl i:_
durin_ or immediately after use° I

AltowTime to coot. /_j/

Load sharp or pointed tableware
with handIes up (points down) to
avoid injury v4hen reaching into

dishwasher.

Load sharp items and knives so they

aren't likeIy to damage door seal.

CIRCUIT BREAKER

DO NOT tamper with controls_

DO NOT operate dishwasher unless
all enclosure panels are properly in
place.

ALWAYS disconnect electrical

power to dishwasher before
attempting to service it. We
recommend having a qualified

technician service your app'liance.

DO NOT sit or stand on or' abuse
dishwasher door or dishracks_

DO NOT allow children to play in or
on dishwashen

When discarding old dishwasher, BE
SURE to remove door to prevent
accidental entrapment.

V

REMEMBER, use dishwasher for' its
intended purpose only_

DO NOT wash plastic items unless
marked "Dishwasher Safe" or'

equivalent. If unmarked, check
manufacturer's recommendations.

This dishwasher must be properly
installed in accordance with the

Installation Instructions before it is

used.

IO AVOID RISK OF ELECTRICAL
SHOCK, the dishwasher must be
electrically grounded before it is
operated

If you did not receive an Installation
Instruction booklet with your dish-

washer, you can _et a copy by
contacting your _ears Service
Center:

DO NOT install the dishwasher on
carpeted floor

AWARNING: Under certain

conditions, hydrogen gas may build
up in a hot water system that has not

been used for two weeks or more,

HYDROGEN GAS IS EXPLOSIVE. To
prevent injury or. damage, before

using dishwasher, turn on all hot
water' faucets and allow water to run

for' several minutes This will allow
gases to escape. As the gas is flam- _
mable, DO NOT smoke or use an __I_;,

open flame or appliance near faucets __!Ill_)

while they are open. __i_,_.

/. ..- ,y<._<._:--_%

NOTE: Do not store or use combustible
materials, asoline or other flammable
vapor,s and hqmds m the wcmity of
this or any other appliance.

Save These Instructions

What Your Dishwasher Needs To Do Its Job

Hot Water

To get dishes clean and dry you need hot water To help you $et water of
the proper temperature, your dishwasher automatically heats the water in
the wash cycle. HilgJher water temperature is needed, to dissoIve_: grease and.
activate powder detergents. For good washm, gand dr'ymg, the enterm g
water must be at least 120°F To prevent dish damage, mtet water should

not exceed t50°E

o Check your water temperature with a candy or meat thermometer,

Turn on the hot water faucet nearest the dishwasher, Put the thernlometer
in a glass and let the water run continuously into the glass until the

temperature stops_ If the wate_ tempelature is below 120 ° E, adjust your

water heater

o Do not operate the dishwasher during or right after other heavy use of hot

water; such as for laundry oi bathing,

Water Pressure

Water supply pressure must be between 15 and 120 pounds per.square inch
To determine if you have enough pressure, put a 1 quart container under a
fully opened hot water faucet nearest the dishwasher If the container fills in
less than 9 seconds, water p_essure _s w_thm an accepta]: le range Be sure all
other faucets are turned offduring this test

Water Conditions

In areas where water is very hard (12 grains or more), it may be necessary
to install a water softener to assure proper performance from your dish-
washer If you do not know the hardness of your water supply, contact your
local water department or biing a sample into your' Sears store for testing,

Detergents

Only use detergents labeled for use in automatic dishwashers_. NEVER use
laundry detergents, liquid soaps or other household cleaners in your
dishwasher. Some detergents will be more effective with your water
conditions than others Store detergent in a cool, dry place.

Rinse Agents

Rinse agents make water flow off dishes quicker than usual_ This lessens
water spotting and makes drying faster, too,

Operating Instructions

SeLector Buttons

Models 14425 and 14421

Door Latch (Locked) Cycle Indicator Dial

_m__NNNN]

....... 7_"...... "_'_T, .... • "- '_"='_ "/

Featuresand Appearancesmay vatly

Starting Your Dishwasher

1. Load the dishwasher (see pages 6 and 7),
2, Add deteigent (see page 9),

3. Close the door but do not latch it.

4. If dishwasher drains into a food waste dispose_;
operate disposer until it is empty,

5. Turn on hot water' faucet nearest dishwasher and

let it run until the water is hot_

6. Push selector button for desired cycle

7. Slowly txm-t the Cycie Indicato_ Dial to SIART, Then

latch the dooi to start the dishwasher:

Select the Cycle

PO'TS PANS Cycle
For heavily soiled dishes and pots
and pans
Cycle lime: Approx 91 minutes

Water Usage: Approx 12,1 gallons

NORMAL WASH Cycle
For normally soiled dishes
Cycle Time: Approx 76 minutes

Water Usage: Approx 12,t gallons

LIGHT WASH Cycle
For pre-rinsed or lightly soiled dish-

es and dishes that have been stored
Cycle Time: Approx. 66 minutes

Water Usage: Approx 8 7 gallons

RINSE & HOLD Cycle

For rinsing dishes that will be washed
laten DO NOT USE DETERGENT

Cycle Time: Approx I0 minutes
Water Usage: Approx 3 7 gallons

SeIect AIR DRY
no-heat option

_The cycle length may be extended up to 21 minutes automatically heating the water to the proper temperature

4

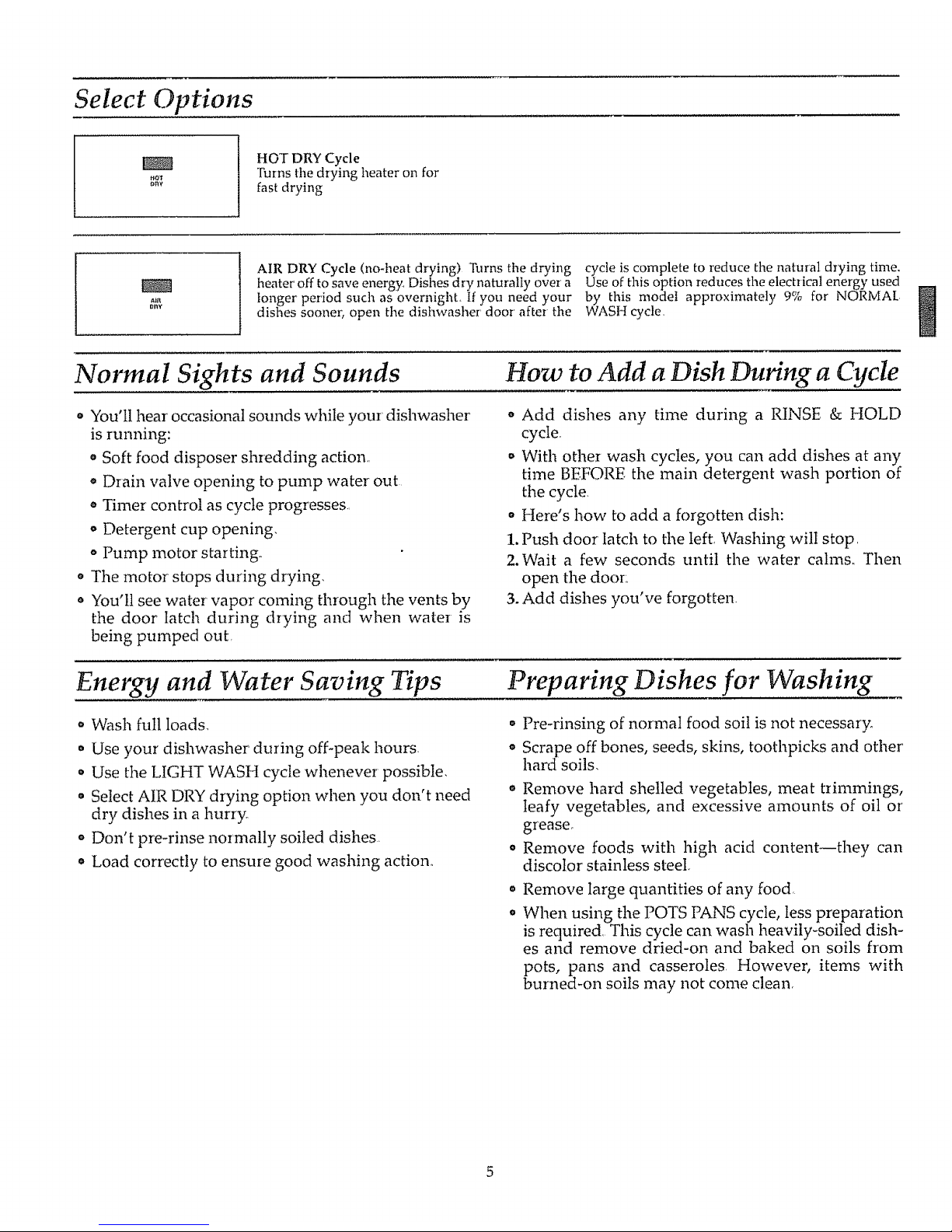

Select Options

HOT DRY Cycle
Turns the drying heater on for
fast drying

onY

AIR DRY Cycle (no-heat drying) Turns the drying
heater off to save energy, Dishes dry naturally over a
longer period such as overnight_ If you need your
dishes sooner; open the dishwasher door after the

cycle is complete to reduce the natural drying time,

Use of this option reduces the electrical energy used

by this model approximately 9% for NORMAL

WASH cycle,

Normal Sights and Sounds How to Add a Dish During a Cycle

o You'll hear occasional sounds while your dishwasher

is running:
o Soft food disposer shredding action..
,_Drain valve opening to pump water out

o Add dishes any time during a RINSE & HOLD

cycle

o With othe_ wash cycles, you can add dishes at any

time BEFORE the main detergent wash portion of
the cycle.

o Timer control as cycle progresses,
o Detergent cup opening,
o Pump motor starting.

o The motor stops during drying,

o Here's how to add a forgotten dish:

1. Push door latch to the left, Washing will stop.

2.Wait a few seconds until the water calms,. Then
open the door:

o You'll see water vapor coming through the vents by

the door latch during drying and when wate_ is

being pumped ouL

3. Add dishes you've forgotten.

Energy and Water Saving Tips Preparing Dishes for Washing

o Wash full loads,

o Use your dishwasher during off-peak hours,
o Use the LIGHT WASH cycle whenever possible,

• Select AIR DRY drying option when you don't need
dry dishes in a hurry°

o Don't pre-rinse normally soiled dishes.
o Load correctly to ensure good washing action_

o Pre-rinsing of normal food soil is not necessary_

o Scrape off bones, seeds, skins, toothpicks and other

hard soils,

• Remove hard shelled vegetables, meat trimmings,

leafy vegetables, and excessive amounts of oil or
grease,

o Remove foods with high acid content_they can

discolor stainless steel,

o

°

Remove large quantities of any food,
When using the POTS PANS cycle, less preparation

is required, This cycle can wash heavily-soiled dish-
es and remove dried-on and baked on soils from

pots, pans and casseroles, However, items with
burned-on soils may not come clean,

Proper Loading

This is a lmtdom mixed load, the most common type Wu

will have,

Make sure dishes are pro_p_er'ty loaded to insure that

water, can reach the soiled suffaces_ The wash arm in
the bottom sprays water' up_ The tower that rises in

the center sends water out over the dishes to wash the

items in the upper' rack. A spray arm in the top wash-
es down, Make sure to place tall items to the outside
so the upper wash arm is not blocked

WAI'CH OI.IT _FOR 7HIS

The wash tower' rises through the center of the bottom
rack during the wash and rinse portions of the cycle,
Don't block it or load tall things next to it. Also, be
careful not to let a portion of an item such as a pot or
dish handle extend through fl-te bottom rack This
could block tlae wash aim and cause poor washing

results.

Upper Rack

The top rack is best for glasses, cups and saucers,
Cups and _Iasses fit best along the si-des This is the

place for dishwasher-safe plastics, too, Make sure
small plastic items, are lod ged ira tightly so they can't

fail onto the heating element. Arrange stemware so
that it cannot move easily. Don't let the glasses touch

each othen

Sauce pans, mixing bowls and other small items may
be placed_face down--in the top rack The top rack

is handy for all kinds of odd shapes,

Lower Rack

/

i ¸¸¸ ....

Fit plates and saucers between the pins, Place items
so that water and detergent from wash arm can reach

soiled surfaces,

Pots, pans, casseroles, salad bowls, mixing bowls and
lids must be loaded in tile bottom rack, facing down,

Load platters, pots, pans and bowls along the sides, in
cornets or in the back, All large items, such as pitch-
ers, salad bowls, and rnixing bowls, should be

washed in the lower rack

Heavily soiled pots, pans and casseroles MUST be
loaded in tlle bottom rack, facing down Prop broiler
pans and racks along the edge

Put flatware in the removable basket with han-
dles up to protect your hands Mix knives, forks
and spoons so they don't nest together_

Distribute evenly, Small plastic items, such as
measuring spoons and lids from small contain-

ers are not recommended for automatic dish-
washingo If placed in the dishwasher, they

should go in bottom of the silverware basket
with silverware on top,

Precaution!
Take out anything that may fall o_ extend through

the bottom of the basket

Don't let any
item extend

through bottom

Special Tips On Dishwasher Use

Most utensils and dishware can be safely ,washed in your
dishwashei _However; some materials may require special
handling_

Aluminum: Some darkening may take placer Colored alu-
minum may fade, Do not place aluminum items directly in
front of detergent cups where contact with undissolved
detergent could cause pitting, spotting or discoloration

Cast Iron: Cast iron utensils should be handwashed_

China: Antique, hand-painted china and those with gold
oz platinum rings should be handwashed_

Ciystah Load carefully in upper rack only, To prevent chip-
ping, items should not touch. Handwash delicate items.
Select Power Miser' drying option to air-diy crystal items_

Flatware: Sterling, silver.plate and stainless steel are nor-
mally dishwasher safe. Flatware with dark decorative shad-
ing and/or non-metallic handles should be handwashed_

Pewter: Pewter or pewter-like materials should be
handwashed_

Plastic: Plastic items should be placed in upper rack only.
Wash only those items marked "'Dishwasher Safe,"

Wood: Wood items should be handwashed

Glass: Milk glass should be handwashedo

Non-Stick Coatings: After washing, wipe the non-stick
coating area with vegetable oil to keep it from losing its
non-stick quality.

Non-Dishware Items: DO NOT wash items such as elec-
tronic air. cleaner filters, furnace filters and paint brushes in

your dishwasher Damage to dishwasher and discoloration
or staining of dishwasher may resulL

8

Detergent Dispenser

You'll find two detergent dispensers on the inside door of your dish-
washer because some cycles use two washes,,

Do not add detergent until you are ready to start the cycle, Use fresh

detergenL

The dispenser will automatically release detergent at the correct

times during the cycle.

Always close the main cup tightly. When it is firmly latched you will

hear a clicking sound° It is not necessary to overtighten,.
Close the main cup,.
Note: To open the detergent cup after it has been closed, unlatch

the door and rotate the Cycle Indicator Dial a full turn to the OFF
position, When the closed cup contains soap it is best that the door
be in a partially open position before rotating the Cycle Indictor Dial,
This will help reduce the amount of detergent and rinse aid agent
spillage into the tub.

Detergent Usage Guide (powder or liquid)

OPEN CUP

\

MAIN CUP

GRASP HANDLE, ROTATE
AND CLOSE TIGHTLY

Moderately

Soft Water Hard Water Hard Water Very Hard Water

Cycles (0 to 3 grains) (4 to 8 grains) (9 to 12 grains) (over 12 grains)

.... ,............. l ............... ! ...............

Main Cup Main Cup Main Cup Water Softener

Light Wash 1 tablespoon Half Full Completely Full Recommended

Pots Pans Each Cup Each Cup Each Cup Water Softener

Normal Wash 1 tablespoon Half Full Completely Full Recommended

Water Softener

Rinse & Hold No Detergent No Detergent No Detergent Recommended

Rinse Agent Dispenser

Rinse agents come in either liquid or solid form, Your dishwasher's dis-

penser uses the liquid form,,

To fill the dispenser:

Unscrew the cap_ Note the FULL line on the tip of the cap, Add the liq-
uid rinse agent until it just reaches the top of the FULL Iineo Replace the
cap, The dispenser automatically releases the rinse agent into the final
rinse water.

The dispenser holds 4½ ounces, This should last about ,3months. Fill as
needed, but do not overfill

FULL

Important Parts of Your Dishwasher

Upper Rack

Lower Spray Arm

Heating Element

Wash _Ibwer

Lower Rack

Normal Water Fill Level

Right Side View

Door Latch

Control Panel--

Door, Panel

Access Panel r

t

. Rinse Agent Dispenser

Dispenseis

Front View

Inner Door

10

Changing Color Panels

If you are redecoiating, you can change your dishwasher's front panels
to match or blend with your new cotors_

The panels are held in place by the door trim and the trim on the panel
below the door Each side of each panel is a different co!or Or you can

paint the panels with the color of your own choice,
WARNING: To prevent electric shock, disconnect electrical power sup-

ply to dishwasher before changing panels°
How to change door panel:

1. Take out trim screws on either side of dishwasher door: Remove side
trim,

2. Slide out insert panel

3. Put the color you want in front (Careful--edges may be sharp,)

4. Replace insert panel, side trim and scIews.
How to change lower access panel:

1. Remove panel attachment screws_
2, Remove entire panel
3_ Take out screws and remove top trim
4, Slide out insert panel

5. Put the color you want in front,

6. Replace insert panel, top trim and screws

7. Replace entire panel and attachment screws.

Do not operate dishwasher while changing panels or when lower
access panel is removed,

Wood panel trim kit GPF40 contains trim and instructions for adding a
decorative wood panel and lower access panel no thicker than 1/4" to
match kitchen cabinetsThis kit is available at no extra cost, (Specify
GPF40 )

Order from:

Decor Color Panel
c/o Dri-View Mfg

4706 Allmond Ave
Louisville, KY 40209

11

User Maintenance instructions

Care of Surfaces

o Clean control panel with lightly dampened cloth.. Dry thoroughly.

Do not use abrasives oi" shaxp objects--they could damage it

¢ Clean outside cabinet finish with a good appliance polish wax_ Do not

use scouring pads, harsh or gritty cleaners.

¢ Interior is self-cleaning with noimal use.. If it should ever need clean-

ing, use a mild cleansing powden If hard water causes lime build-up,
clean as follows:

o Pour2 cups white vinegar into empty dishwasher. Do not use

detergent

o Operate machine on Normal Wash cycle_

Care of Air Gap

If an aft gap was installed for your built-in dishwasher, check to make
sure it is clean_ Air' gaps are usually mounted on the counter top and can
be inspected by removing the cover The air gap is not part of your
dishwasher' and is not covered by Sears warranty.

Drain Air Gap

Protection against Freezing

If dishwasher is left in an unheated place during the wintei...
,, Shut off water and electrical power,
o Remove access panel,
o Disconnect water lines from valve_ Drain into a flat pan.

- Drain collection chamber at rear of unit below filter by disconnecting
hose to pump.

• Remove plastic pump cover in tub bottom and use sponge to soak up

any remaining water

o Reconnect water' lines to valve and hoses to pump

Pump Cover
Screws

/

Preparation for Moving

• Disconnect electrical powen

o Turn off water supply, disconnect water and drain lines,
o Tape racks in place; close door securely and tape it shut_

o Wrap with blankets, and if using a hand truck, lift dishwasher fr'om

side in upright position only

!2

Common Dishwashing Problems and Solutions

Problem Caused by Solution

Dishwasher'
will not start

Dishwasher wilt
not fill with water

Unusual noise

Dishwasher leaks

Detergent cup lid
won't latch after'

adding detergent

Dishes not dry

Dishwasher not receiving
electricity

Dial not in correct position
for cycle selected

No water supply
Water inlet valve clogged

hnproper loading

Dishwasher not level

Too much sudsing

Spilled rinse agent

Cycle Indicator dial not
in OFF position

Water is not hot

AIR DRY option selected

Improper loading
Rinse agent

dispenser empty

Check house fuse or' circuit breaker,

Make sure dial is turned far enough and cycle button is
fully pushed in

Make sure water' supply valve under' sink is turned on,
Water' valve supply line may be clogged with sediment,

Clean out,

Utensils may not be secure on rack pins, or something
small may have dropped from the rack,, Water' is causing
utensils to rattle, Make sure ever3,thing is securely placed

in dishwasher'.

Level dishwasher as described in Installation Instructions_
Do not place dishwasher on carpet,

Improper detergent, Use automatic dishwasher detergent
only or try a different brand or less detergent.

If hand dishwashing detergent is used by mistake, pour'
one measuring cup of vegetable oil in bottom of tub and
run dishwasher through a complete NORMAL WASH
cycle with tecommended amount of automatic dishwashing
detergent,

To remove suds from tub: Open dishwasher: Let suds
evaporate, Add t gallon of cold water to tub, Close and
latch dishwashm; Pump out water by slowly turning control
dial until a drain period is reached° Repeat if necessary,

Spilled rinse agent can cause foam during washing, This
can lead to overflowing Wipe up accidental spill of rinse
agent with a damp cloth_

Cycle Indicator'dial must be in OFF position for cup lid to
close and latch properly If you unlatch the door and open
it to dry your' dishes, the Cycle Indicator dial does not
advance to OFF by itself',,

Raise water' heater thermostat to 140°E, if necessary
Do not select AIR DRY drying option, Allow dishes to dry

in heated air,

Load dishes so items drain properly Avoid overloading,
Fill rinse agent dispenser if empty,

(contimted next page)

1,3

Common Dishwashing Problems and Solutions (continued)

Problem Solution

Spotting and
filming

Etching--permanent
filming which

cannot be removed

'Water left in bottom
of tub

Caused by

Hard water

Water is not hot

AIR DRY drying
option selected

Not enough or poor

quality detergent

Old detergent

No rinse agent

Too much detergent
in soft water'

Improper loading

Normal amount of
water

Drain air gap

Fill detergent cups to capacity_ Use dishwasher
detergent with highest available phosphorous
content. May be necessary to install a water' softener_

Raise water heater thermostat to 140°E

Drying without heat may cause some spotting Do
not select AIR DRY option,

Use more flesh automatic dishwasher detergent..

Use detergent with highest available phosphorous

content, especially if you have hard water
Use only fresh, automatic dishwasher detergent_

Store tightly closed in a cool dry place. Discard old
lumpy or separated detergent, Do not fill detergent
cups until ready to wash

Fill rinse agent dispenser.
To remove stubborn spots and film from glassware:

1_Remove all metal utensils from the dishwasher.

2. Do not add detergent

3. Select POTS PANS cycle..

4. Start the dishwasher and allow to run for 18 to
20 minutes_ The dishwasher will now be in the

main wash

5. Then open the door' and pour 2 cups (500m!)
white vinegai into bottom of dishwasher.

6. Close the door and allow to complete the cycle.

If vinegar rinse doesn't work: Repeat as above, except
use 1/4 cup (60ml) of citric acid crystals instead of
vinegar (Most drugstores carry citric acid crystals..)

Reduce amount of dishwasher detergent.. Use
detergent with lower phosphorous content.

Make sure dishes and glassware are loaded properly
to permit water spray to rinse all surfaces. Do not

overload_

It is normal for- a small amount of clean water to
remain in bottom of tub after each cycle.

Clean the drain air gap. See User' Maintenance
Instructions.

I4

Problem

Dishes and interior
of dishwasher'
brown or yellow

Film build-up on
lower front of tub

Silverware stained

Bronze tarnish

on silver plate

Black or gray
marks on dish

Dishware chipped
or broken

Dishwasher odin

Motor' Hums

Staining of

tub interior

Caused by

iron or mangar_ese
in water

Some detergent did
not dissolve

Undissolved detergent
contacting wet silverware

Acidic or salty food soils

Silver plate worn off
exposing base metal--

takes on bronze hue

Metal utensils rubbing
against dishes
during wash

Improper loading

Soiled dishes held too
long in dishwasher

Vinyl rack coating

Dishwasher has not
been used on a regular

basis

Some detergents
contain colorant

(pigment or dyes)

Solution

Install an iron or manganese filter in home water
supply.

Use fresh, automatic dishwasher detergent Use
detergent ,with highest available phosphorous content,
especially if you have hard water Raise water heater

thermostat to 140°E if necessap/. Run water at shfl< until
hot before starting dishwasher and/or use WATER
HEAT option. Remove film with dishwashing detergent

and warm water

Avoid spilling dry detergent on wet silverware.
Clean with silver polish._

Use Rinse & Hold cycle. Certain foods left on silverware

fm extended periods of time may cause pitting.

Remove tarnish with silver polish Replace silver

Load metal utensils so they do not rub against dishes.
Marks may be removed with mild abrasive cleanser
and plastic scouring pa&

Do not overload.. Load glasses in upper rack only

See Proper Loading section for tips

Use Rinse & Hold cycle if dishes will not be washed
at end of day.

Plastic odor will be gone after several weeks use..

If you do not use your dishwasher often set it to fill

and pump out, once every week,
This will help, keep the seal moist, and the garbage

disposer cleat;

This wilt discolor the tub interior with extended
use. Check the detergent cup for signs of any

discoloration. If cup is discolored, change to

detergent without any coloranL

15

We Sem;ice What We Sell

"We Service What We Sel!" is our assurance you can depend on Sears for

service .... and Sears service is nationwide_ Your dishwasher has added

value when you consider that SeaI's has service units nationwide, staffed
with professional technicians specifically trained on Sears appliances and
having parts, tools and equipment to insure that we meet our pledge to
you._ ."We Service What We Sell."

Sears Maintenance Agreement
Maintain the value of your Kenmore dishwasher with a Sears Maintenance
Agreement_ Sears dishwashers are designed, manufactured, and tested for
years of dependable operation. Yet, any modern appliance may require

service from time to time°

The Sears Maintenance Agreement

o ts your' way to buy tomorrow's service at today's price

o Eliminates repair bills resulting from normal user

o Allows for as many service calls as required..
o Provides for _service by professional Sears-trained technicians

• Offers an annual preventive maintenance check-up at your request

This maintenance agreement does not cover original installation, reinstalla-

tion, or damage resulting h'om external causes such as acts of abuse, theft,

fire, flood, wind, lightning, freezing, power failure, power reduction, etc_

Sears Dishwasher Warranty

Full One-Year Warranty on Dishwasher

For one year from the first day of use in your home, Sears will repair, free of charge, defects in material or
workmanship which appear in this dishwashen

Full Ten-Year Warranty Against Leaks in the Tub and Inner Door Panel

For ten years from the fizst day of use in your home, if a leak should occur as a result of failure of the tub or inner
door panel due to cracking, cl_dpping, or peeling, Sears will replace, flee of charge, the tub or inner door panel

If the dishwasher is subjected to other than private family use, the above warranty coverage is effective for
only 90 days_

Warranty service is available by contacting the NEARESF SEARS SERVICE CENTER/DEPARTMENT in the

United States. This warranty applies only while this product is in use in the United States_

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state

SEARS, ROEBUCK AND CO., Dept. 731CR_W Sears Tower, Chicago, IL 60684

1 I Printed in U.S.A 14425Part No. SR5524 165D3592P025 14421

aB3 CG

This book is pdnted on recycled paper.
