Kenmore 25370251012, 25370251011, 25370181011, 25370181010, 25370251010 Owner’s Manual

WINDOW TYPE ROOM AIR CONDITIONER

Use & Oare Oude

TIPO DE SALA DE VENTANA DE AIRE ACONDICIONADO

Models, Modelos: 253.70181,253.70251

Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.

www.sears.com

P/N 2020219A0900

TABLE OF CONTENTS

Warranty ............................................................ 2

Master Protection Agreements ......................... 3

Important Safety Instructions ............................. 4

Air conditioner Feature ...................................... 5=7

Additional Things ............................................... 8

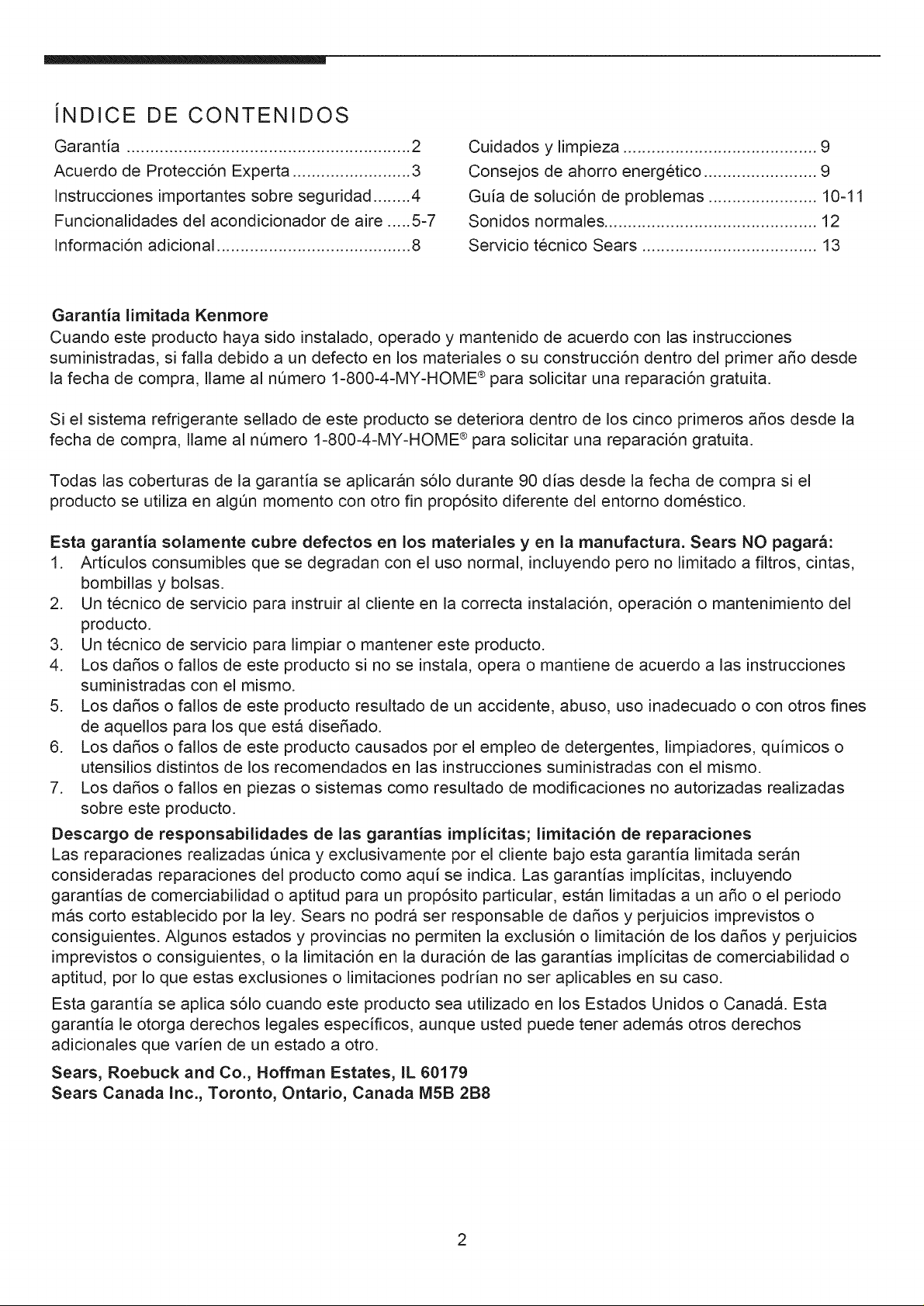

Kenmore Limited Warranty When installed, operated and maintained according to all supplied instructions, if this product fails due to a

defect in material and workmanship within one year from the date of purchase,call 1-800-4-MY-HOME® to

arrange for free repair.

If the sealed refrigerant system of this product is defective within five years from the purchase date, call

1=800=4=MY=HOME® to arrange for free repair.

All warranty coverage applies for only 90 days from the date of purchase if this product is ever used for other than private family purposes.

This warranty covers only defects in material and workmanship. Sears will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.

2. A service technician to instruct the user in correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained according to the all instructions supplied with the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its

intended purpose.

6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

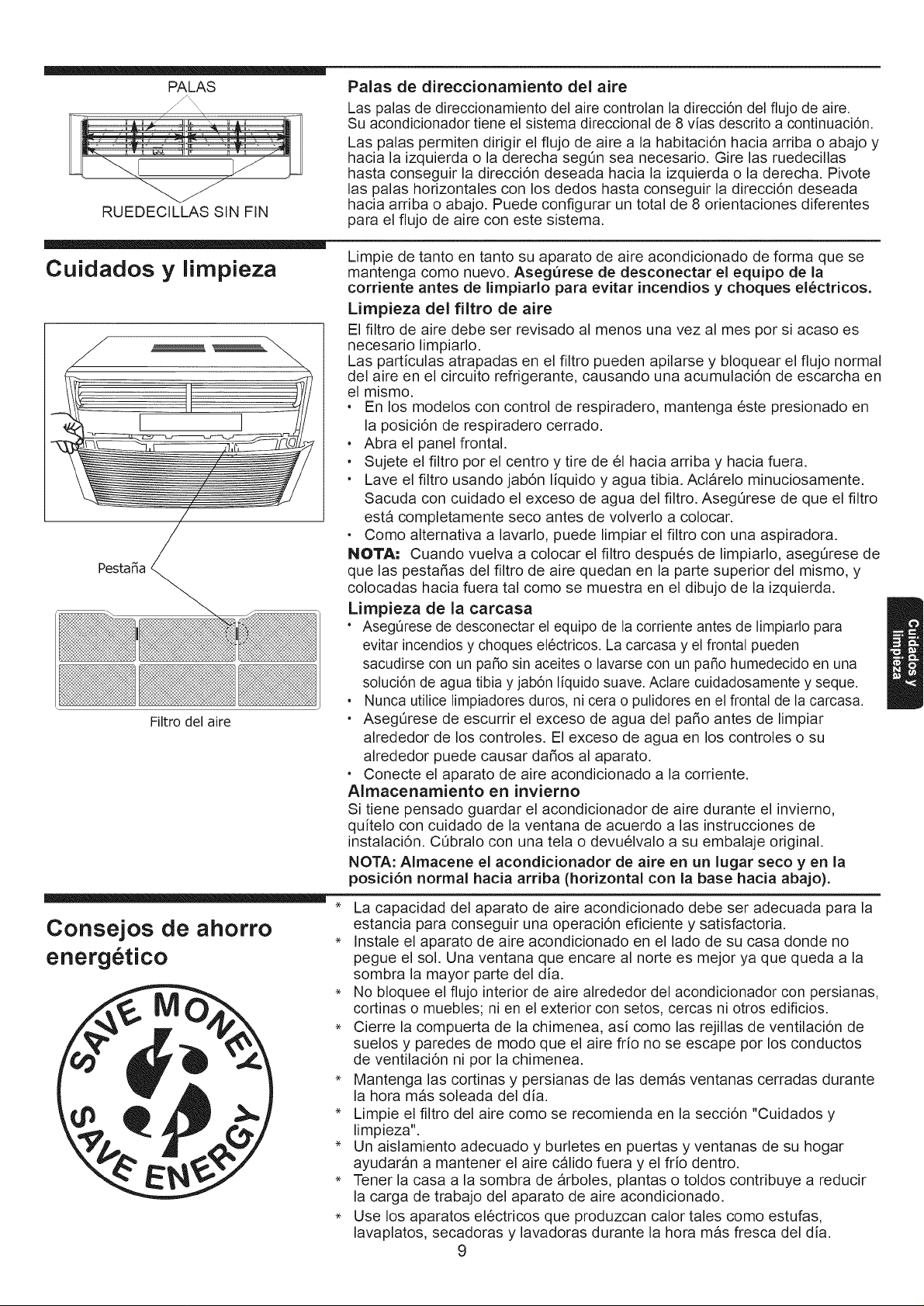

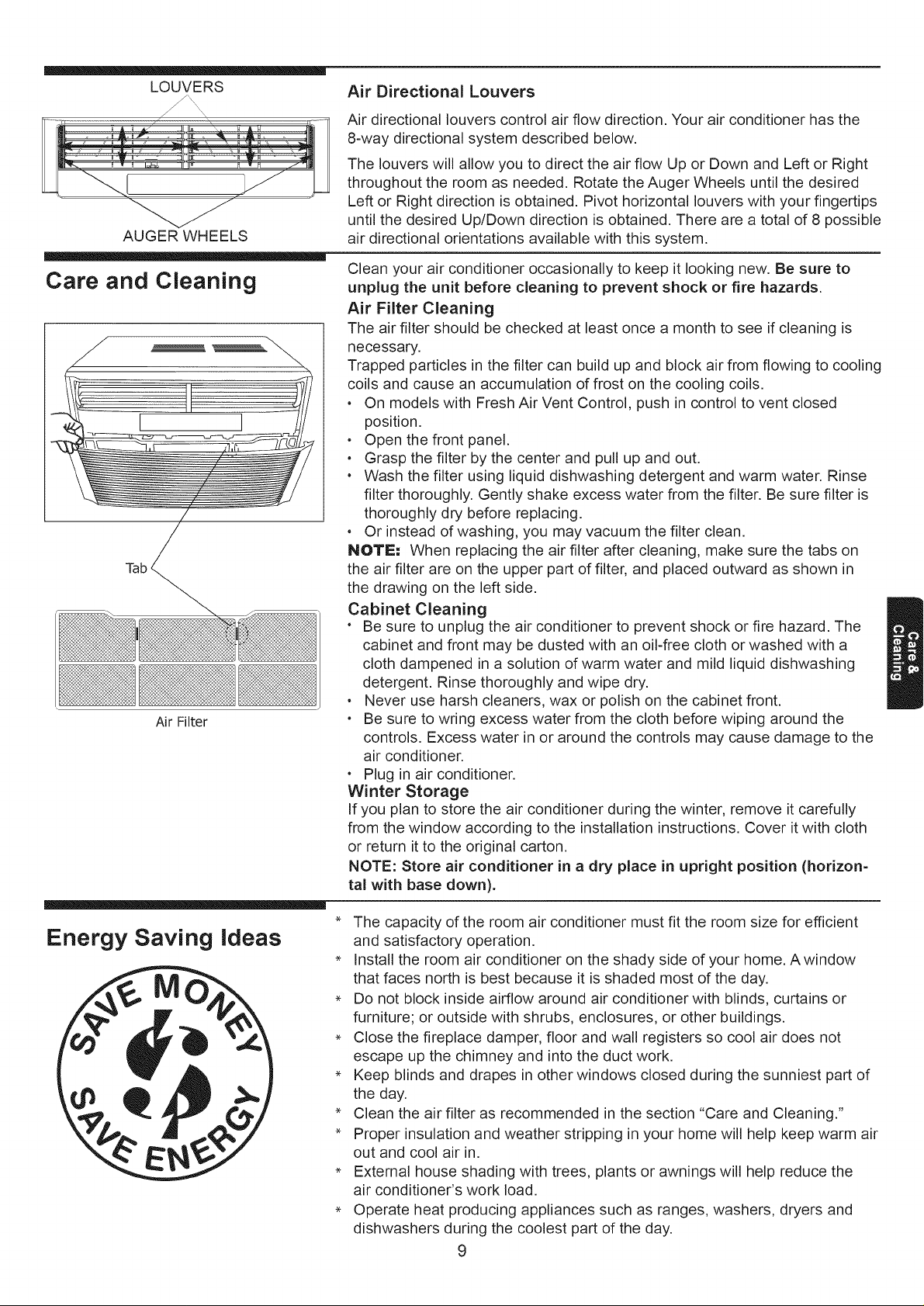

Care and Cleaning ........................................... 9

Energy Saving Ideas ....................................... 9

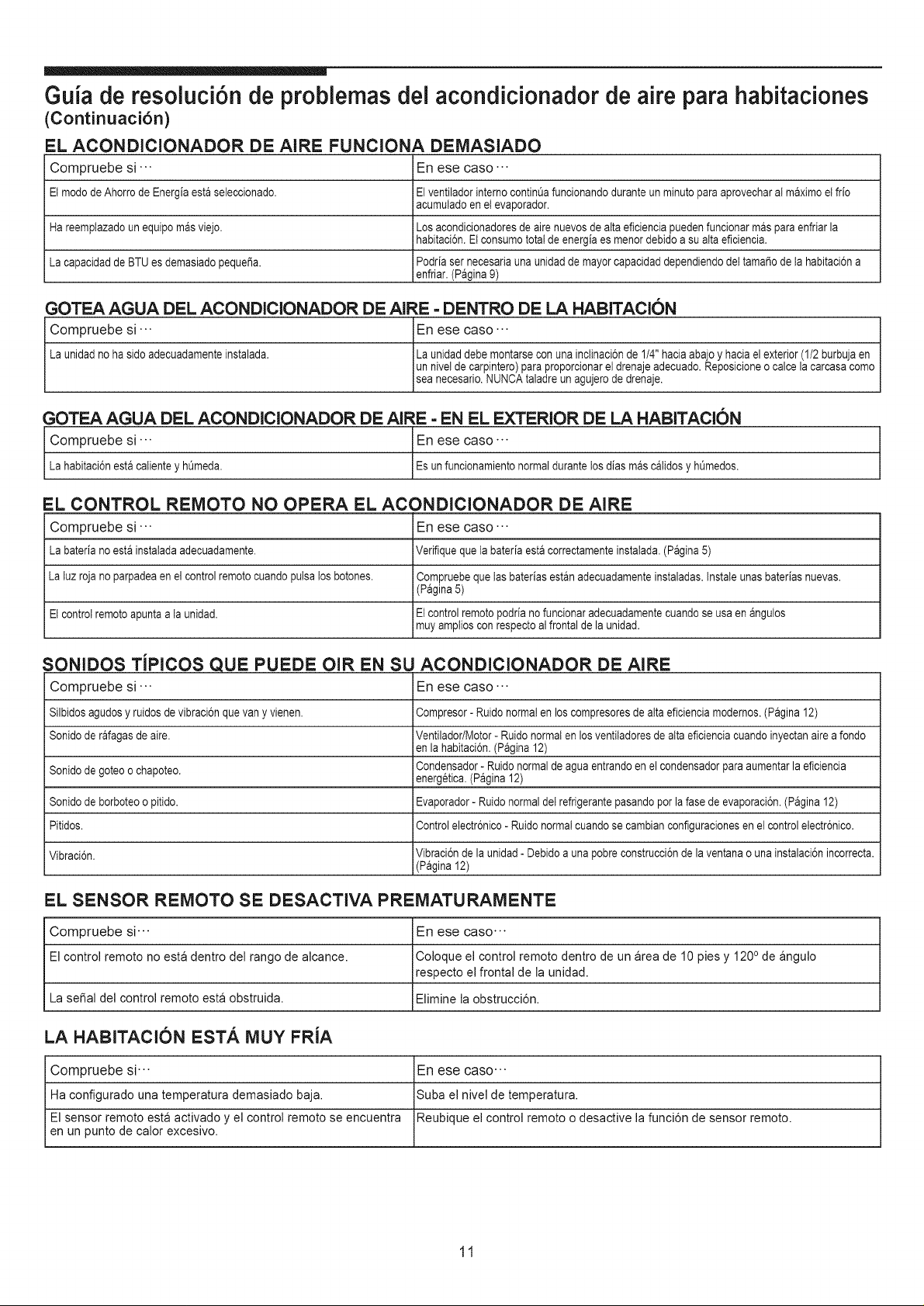

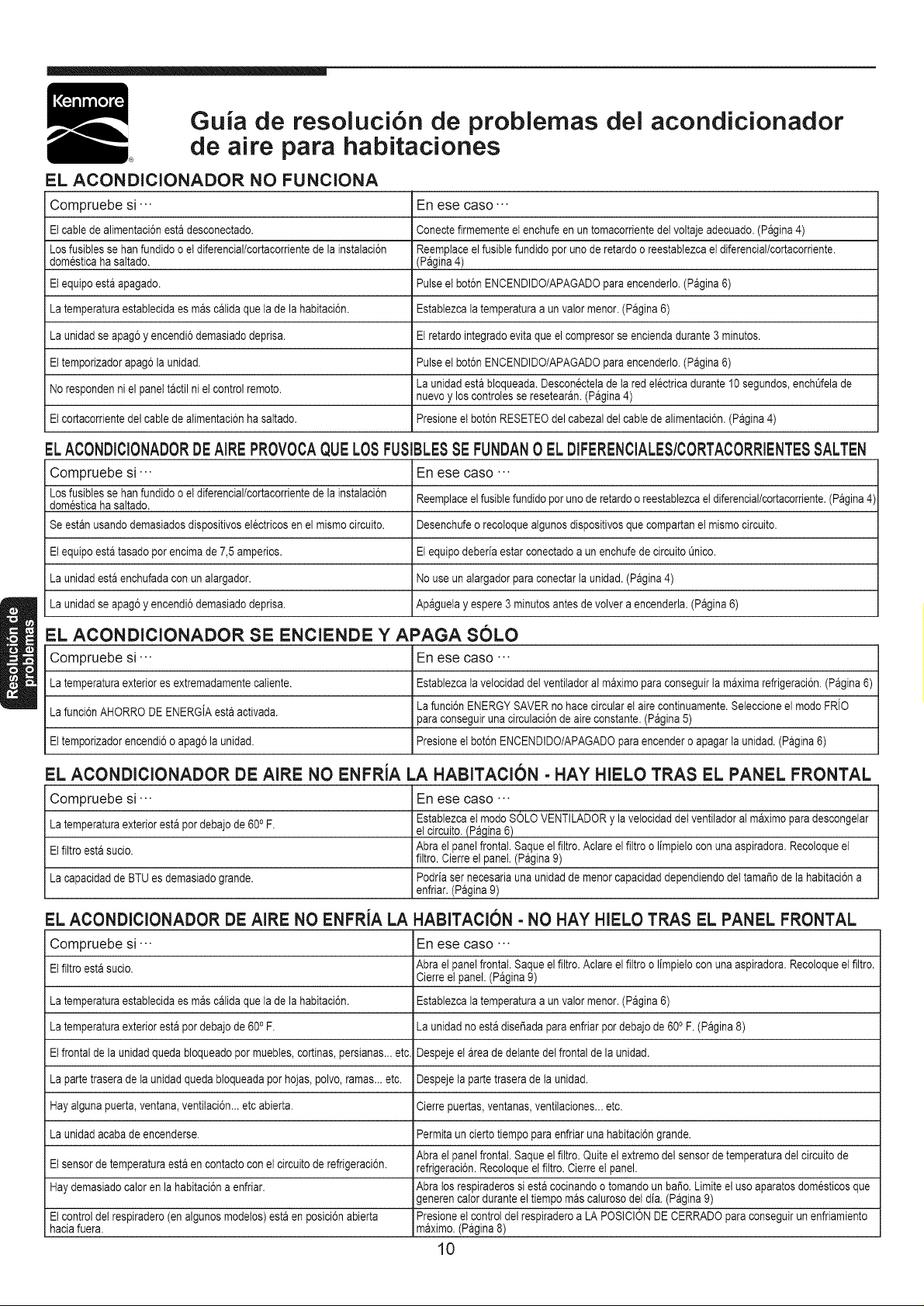

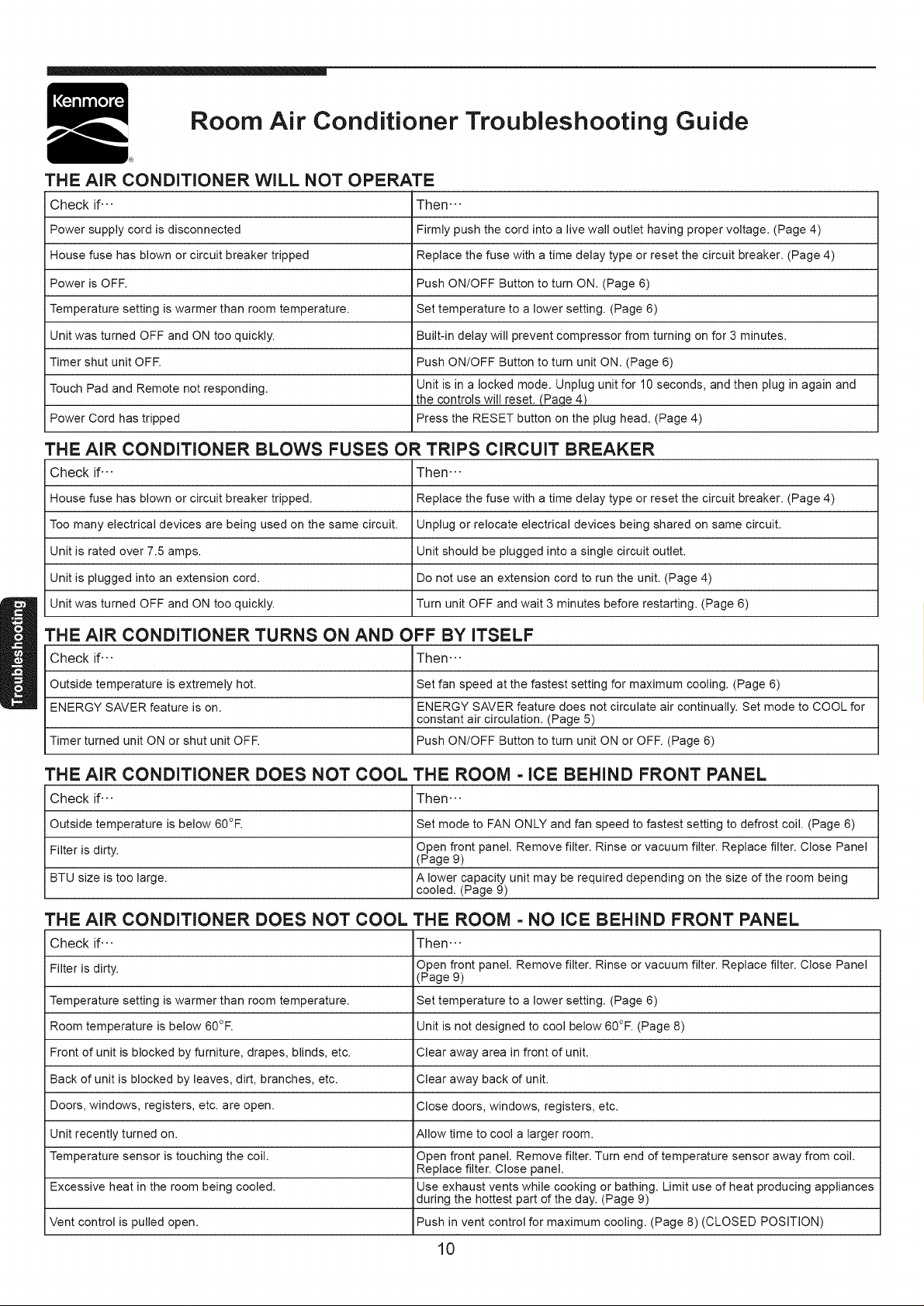

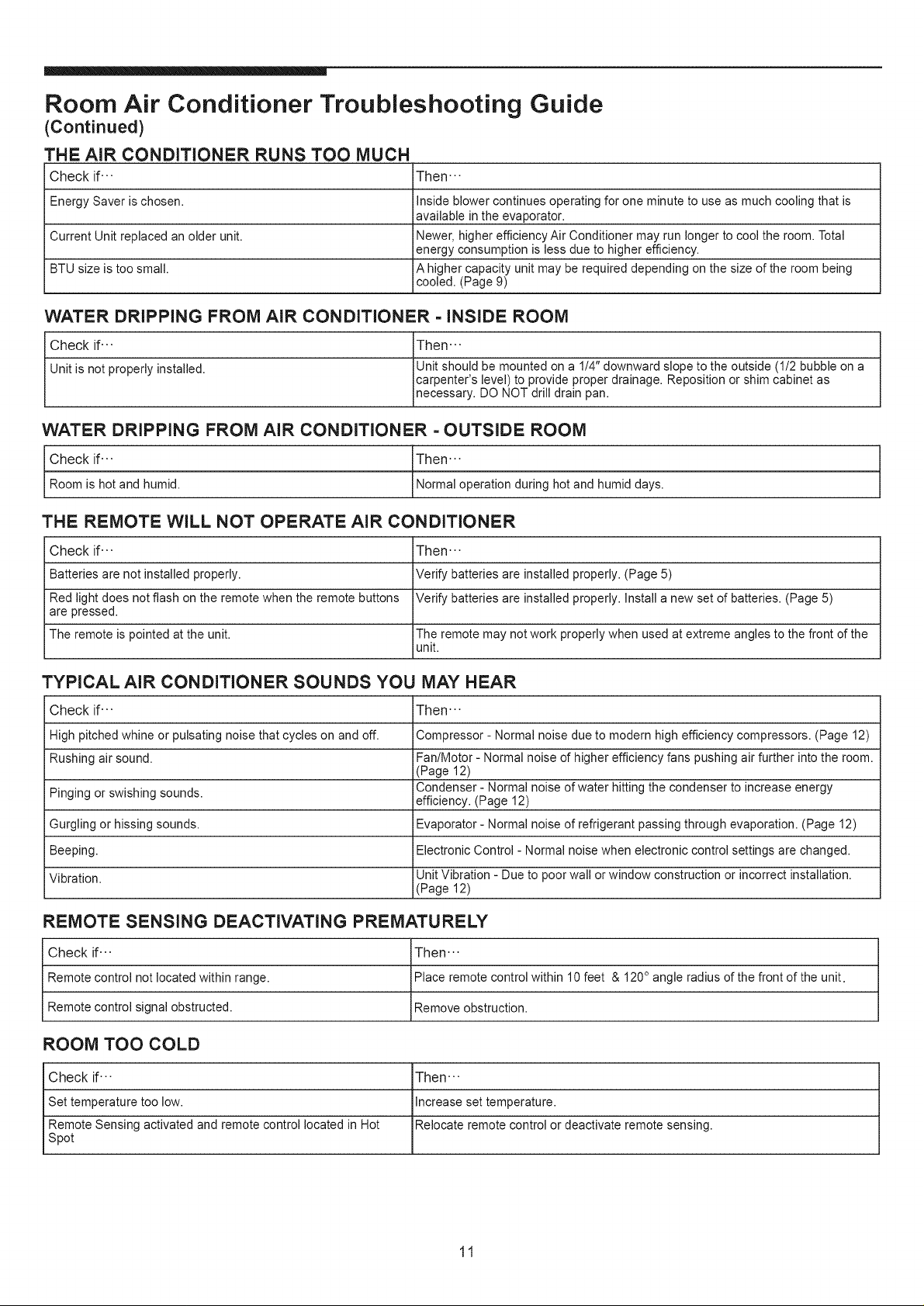

Troubleshooting Guide .................................... 10-11

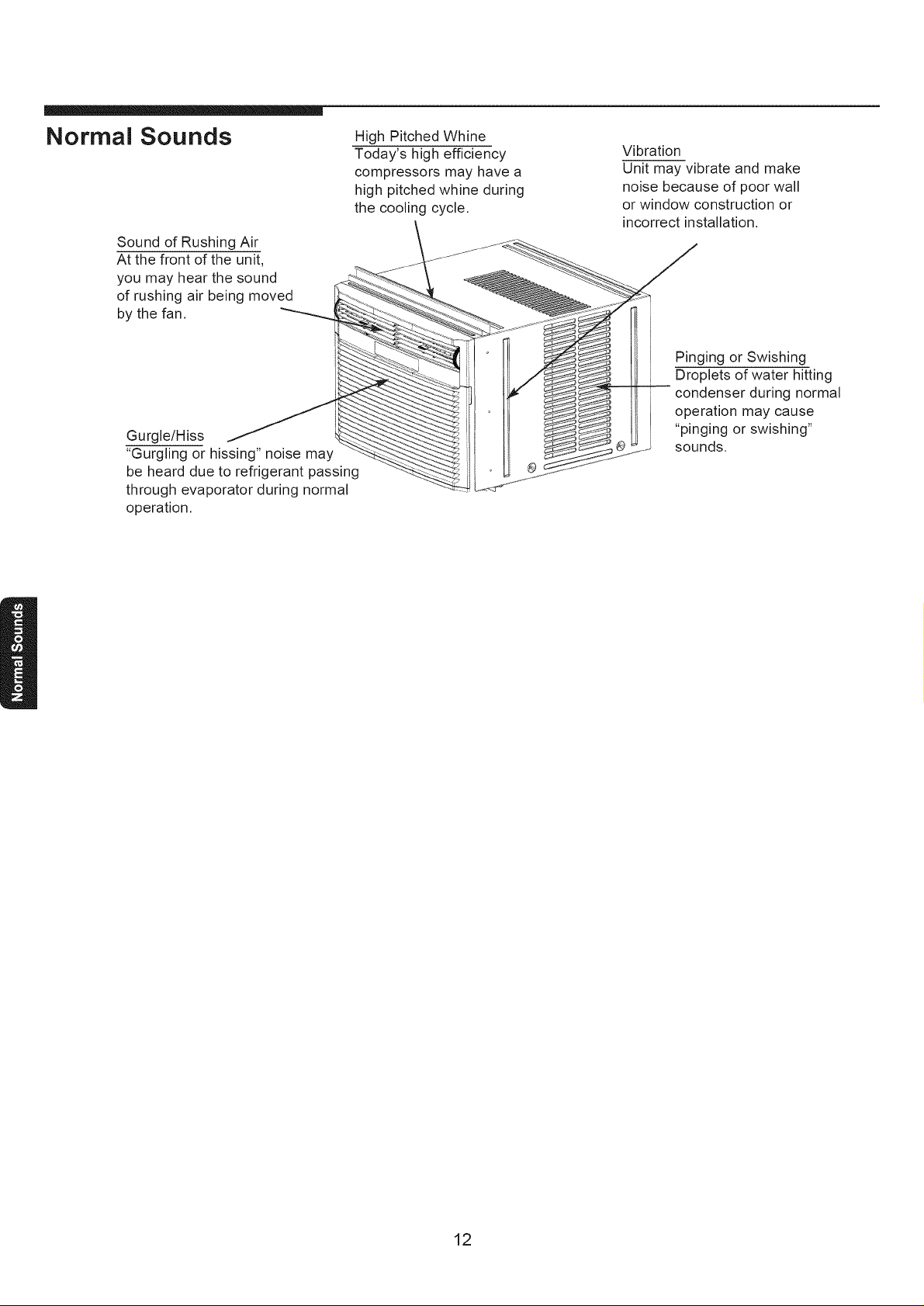

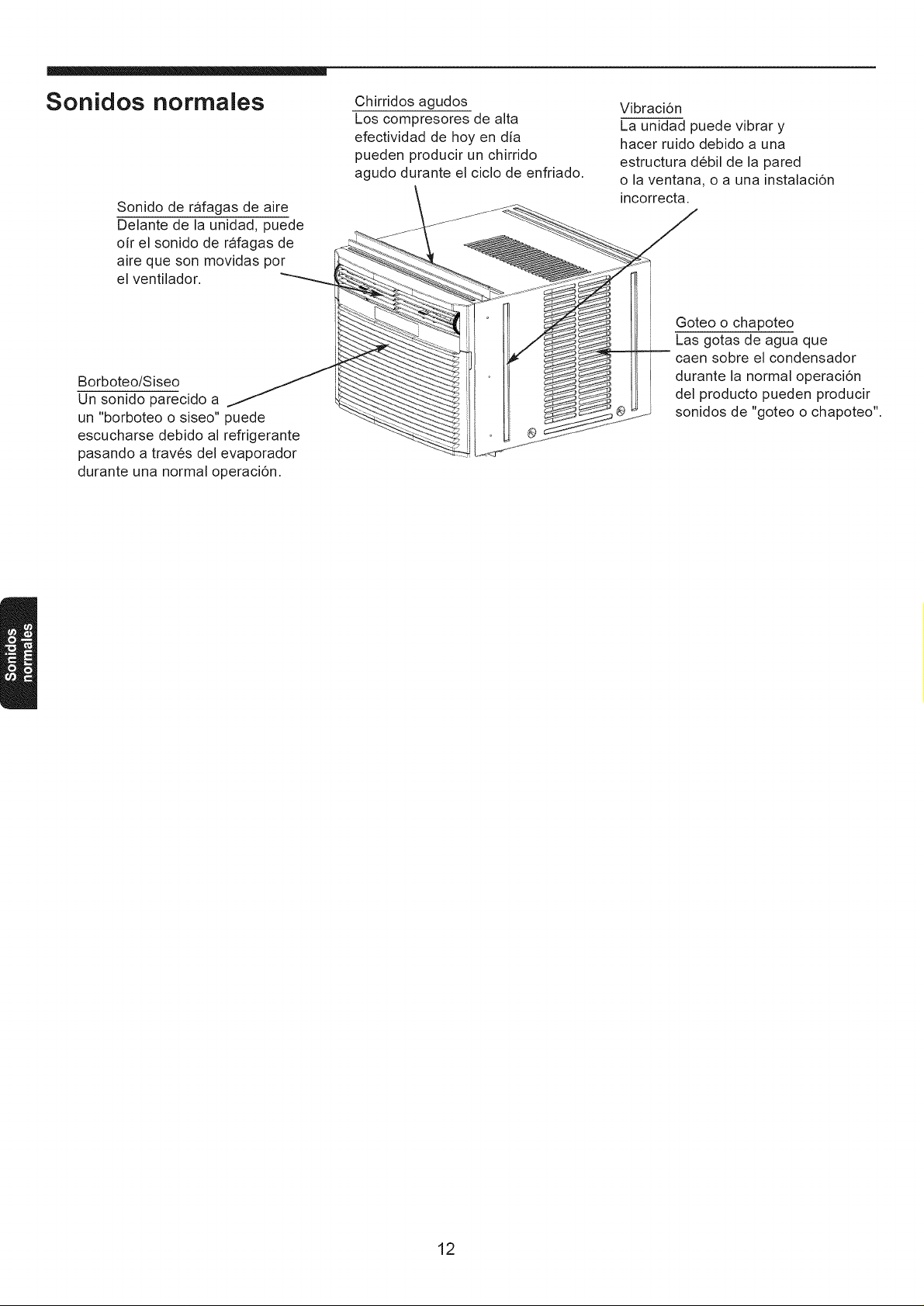

Normal Sounds .............................................. 12

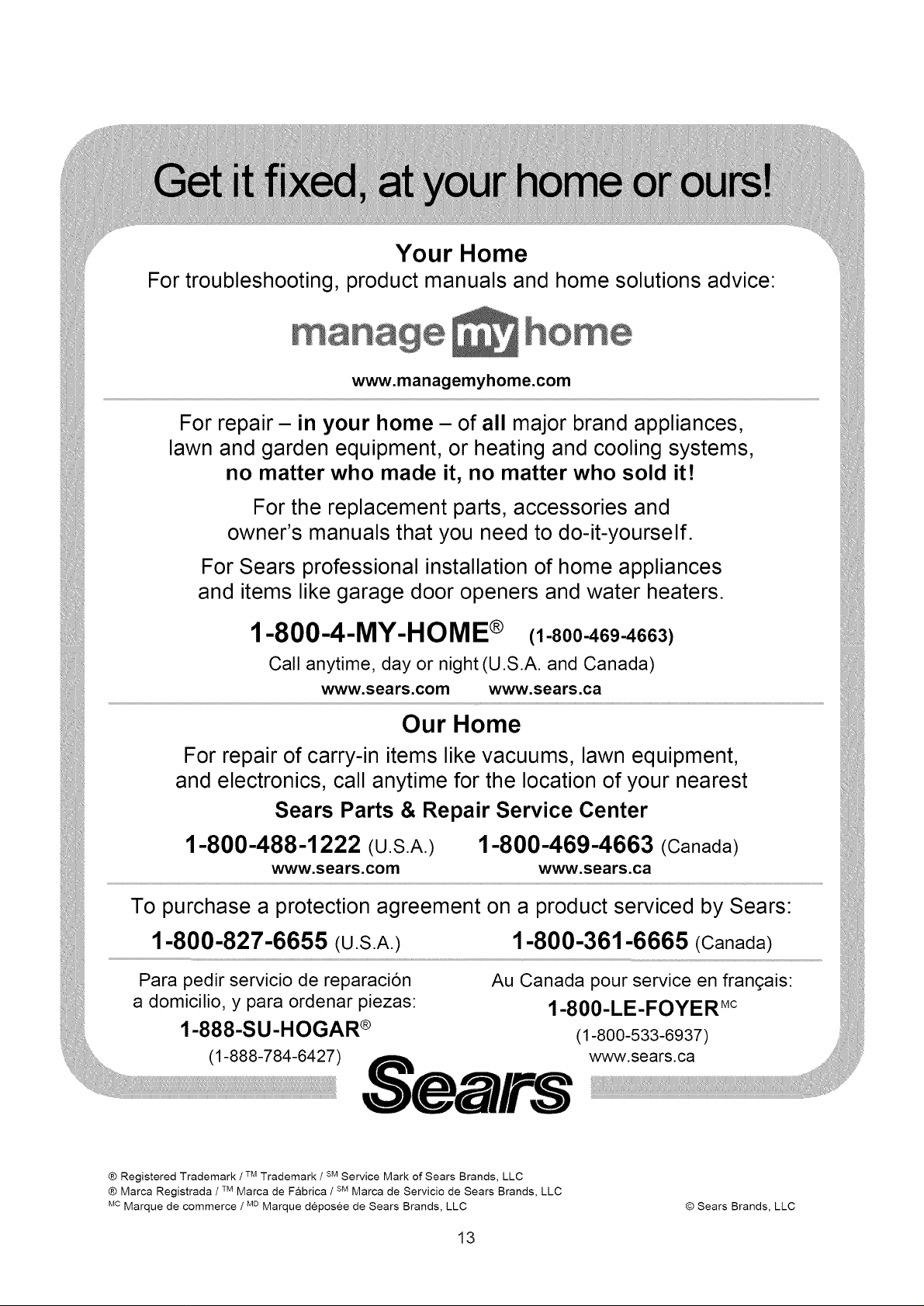

Sears Service .................................................. 13

Disclaimer of implied warranties; limitation of remedies Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein.

Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions

or limitations may not apply to you. This warranty applies only while this appliance is used in the United States or Canada. This warranty gives

you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8

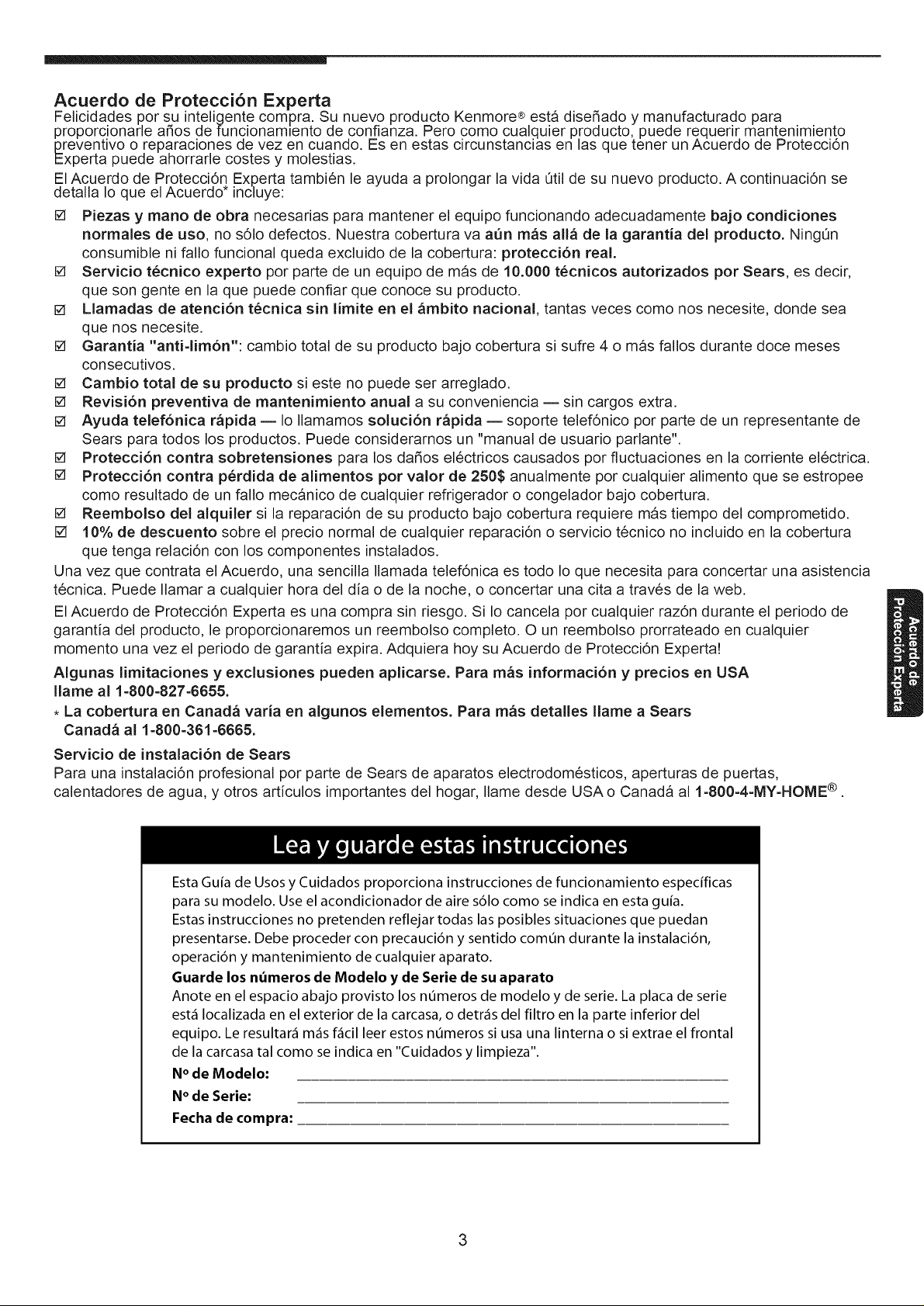

Master Protection Agreements

Congratulations on making a smart purchase. Your new Kenmore ®product is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time, That's when having a Master Protection Agreement can save you money and aggravation,

The Master Protection Agreement also helps extend the life of your new product, Here's what the Agreement*

includes: [] Parts and labor needed to help keep products operating properly under normal use, not just defects. Our

coverage goes well beyond the product warranty. No deductibles, no functional failure excluded from coverage

-- real protection.

[] Expert service by a force of more than 10,000 authorized Sears service technicians, which means someone

you can trust will be working on your product. [] Unlimited service calls and nationwide service, as often as you want us, whenever you want us. [] "No-lemon" guarantee -- replacement of your covered product if four or more product failures occur within twelve

months. [] Product replacement if your covered product can't be fixed.

[] Annual Preventive Maintenance Check at your request-- no extra charge. [] Fast help by phone -- we call it Rapid Resolution -- phone support from a Sears representative on all products,

Think of us as a "talking owner's manual." [] Power surge protection against electrical damage due to power fluctuations. [] $250 Food Loss Protection annually for any food spoilage that is the result of mechanical failure of any covered

refrigerator or freezer, [] Rental reimbursement if repair of your covered product takes longer than promised. [] 10% discount off the regular price of any non-covered repair service and related installed parts,

Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call anytime day or night, or schedule a service appointment online.

The Master Protection Agreement is a risk free purchase. If you cancel for any reason during the product warranty period, we will provide a full refund. Or, a prorated refund anytime after the product warranty period expires. Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and additional information in the U.S.A.call

1-800-827-6655.

. Coverage in Canada varies on some items. For full details call Sears Canada at 1-800-361-6665.

Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the U.S.A. or Canada call 1-800-4-MY-HOME®.

This Use & Care Guide provides specific operating instructions for your model. Use the air conditioner only as instructed in this guide. These instructions are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating, and maintaining any appliance.

Record Your Model and Serial Numbers

Record in the space provided below the model and serial numbers. The serial plate is located on the outside of the cabinet, or behind filter at the bottom of unit. Reading

the numbers may be easier by using a flashlight or by removing the cabinet front as

instructed under" Care and Cleaning."

Model Number : Serial Number :

Purchase Date :

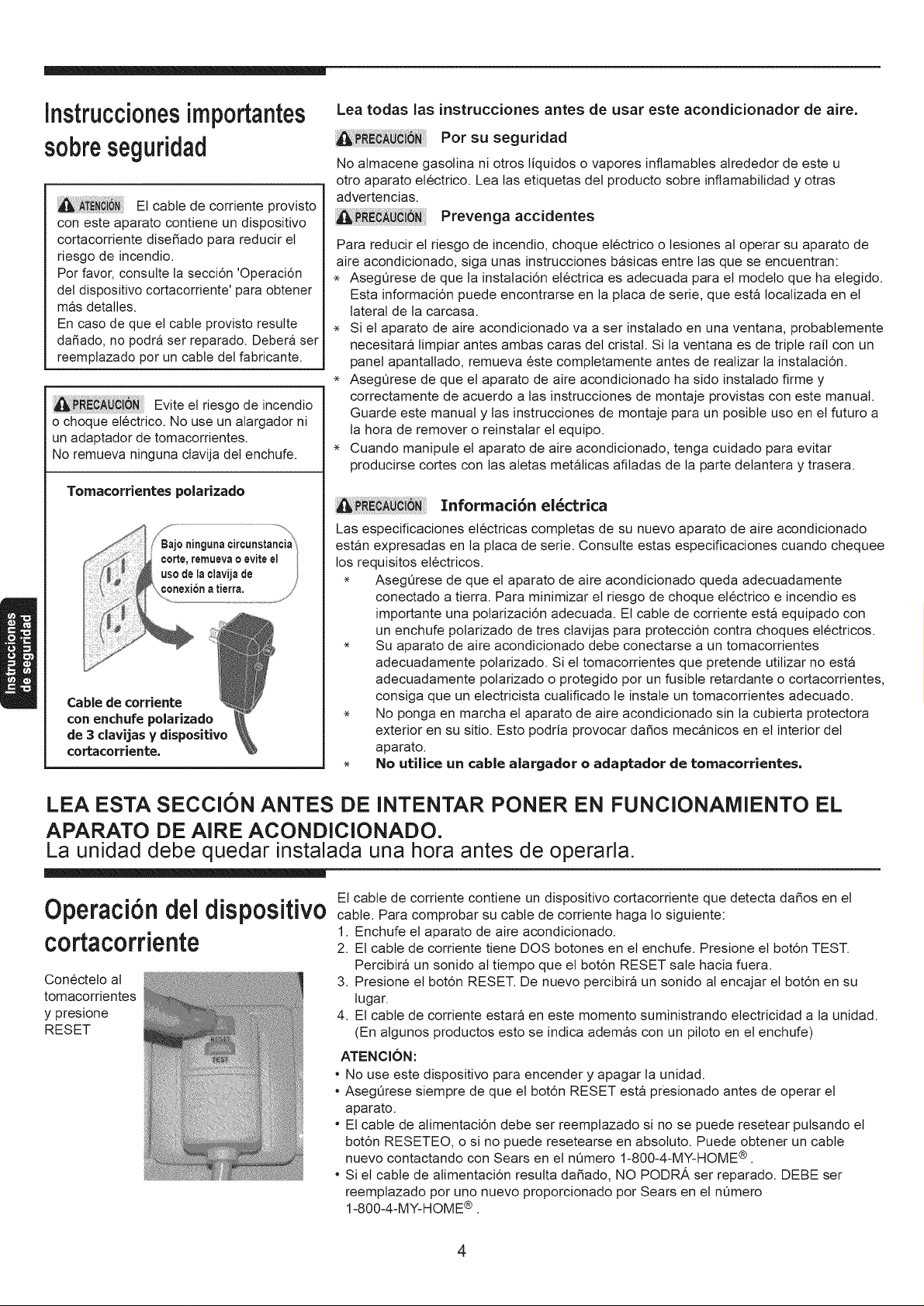

important Safety instructions

The power supply cord with this air conditioner contains a current detection device designed to reduce the

risk of fire. Please refer to the section 'Operation of

Current Device' for details. In the event that the power supply cord is

damaged, it cannot be repaired, and it

must be replaced with a cord from the Product manufacturer.

Avoid fire hazard or electric

shock. Do not use an extension cord or an adaptor plug. Do not remove any prong from the power cord.

Read all instructions before using this air conditioner.

For Your Safety

Donot store or use gasoline or other flammable vapors and liquids in the vicinity of this

or any other appliance. Read productlabels for flammability and other warnings.

Prevent Accidents

To reduce the risk of fire, electrical shock, or injury to persons when using your air conditioner, follow basic precautions, including the following:

* Be sure the electrical service is adequate for the model you have chosen. This

information can be found on the nameplate, which is located on the side of the

cabinet.

* If the air conditioner is to be installed in a window, you will probably want to clean both

sides of the glass first. If the window is a triple-track type with a screen panel included, remove the screen completely before installation.

* Be sure the air conditioner has been securely and correctly installed according to the

separate installation instructions provided with this manual. Save this manual and the

installation instructions for possible future use in removing or reinstalling this unit.

* When handling the air conditioner, be careful to avoid cuts from sharp metal fins on

front and rear coils.

Grounding type wall receptacle

circumstances, cut, i remove, or bypassthej/

\,grounding prong.

Power supply cord with 3=prong grounding

plug and current detection device

The complete electrical rating of your new room air conditioner is stated on the serial plate. Refer to the rating when checking the electrical requirements.

Be sure the air conditioner is properly grounded. To minimize shock and fire hazards, proper grounding is important. The power cord is equipped with a

three-prong grounding plug for protection against shock hazards.

* Your air conditioner must be used in a properly grounded walt receptacle. If the

wall receptacle you intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker, have a qualified electrician install the proper

receptacle.

* Do not run air conditioner without outside protective cover in place. This could

result in mechanical damage within the air conditioner.

* Do not use an extension cord or an adapter plug.

Electrical Information

READ THIS SECTION BEFORE ATTEMPTING TO OPERATE AIR CONDITIONER. Unit must be upright for one hour prior to operating.

The power supply cord contains a current device that senses damage to the power cord.

Operation of Current Device

Plug in &

press RESET

To test your power supply cord do the following:

1. Plug in the Air Conditioner.

2. The power supply cord will have TWO buttons on the plug head. Press the TEST button. You wilt notice a click as the RESET button pops out.

3. Press the RESET button. Again you wilt notice a click as the button engages.

4. The power supply cord is now supplying electricity to the unit. (On some products this

is also indicated by a light on the plug head).

NOTES:

• Do not use this device to turn the unit on or off. . Always make sure the RESET button is pushed in for correct operation.

• The power supply cord must be replaced if it fails to reset when either the TEST button

is pushed, or it cannot be reset. A new one can be obtained by contacting Sears at

1-800-4-MY-HOME®.

• If power supply cord is damaged, it CANNOT be repaired. It MUST be replaced by one obtained by contacting Sears at 1-800-4-MY-HOME®.

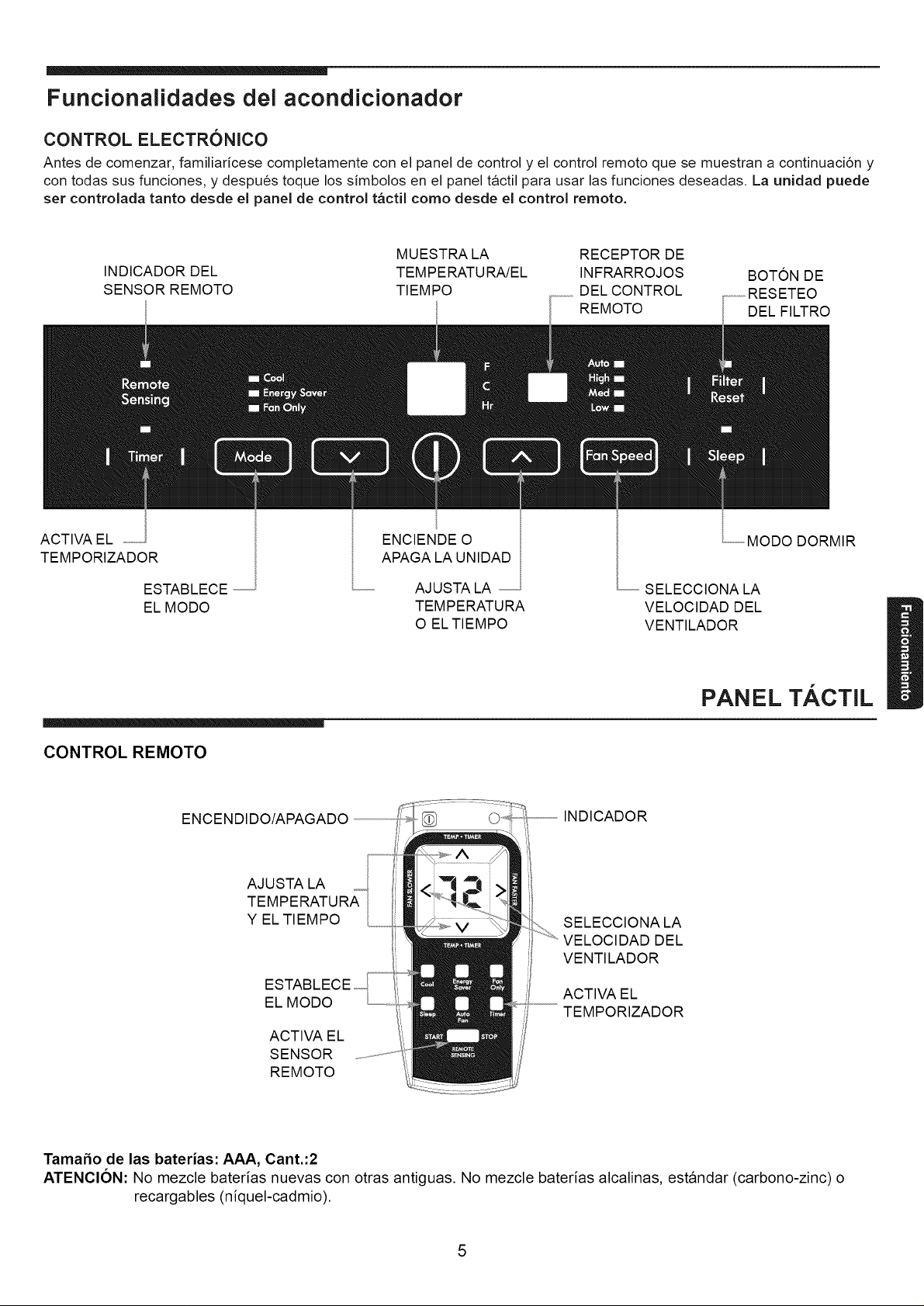

Air Conditioner Features

ELECTRONIC CONTROL

Before you begin, thoroughly familiarize yourself with the control panel and remote as shown below and all its functions, then touch the symbol pads for the functions you desire. The unit can be controlled by the panel touch pads or with the

remote control.

REMOTE SENSING INDICATOR

ACTIVATES ....................

TIMER

SETS MODE ................

REMOTE CONTROL

DISPLAYS

TEMPERATURE/TIME

TURNS UNIT

ON OR OFF

ADJUSTS ...................

TEMPERATURE

ORTIME

INFRARED FILTER RESET

[.............REMOTE WINDOW .................BUTTON

/...................SLEEP MODE

....................SETS FAN SPEEDS

TOUCH PAD

LIGHT

ADJUSTS

TEMP & TIME

SETS FAN SPEEDS

SETS

ACTIVATES TIMER

ACTIVATES

REMOTE SENSING

Battery Size: AAA, Qty.: 2

WARNING: Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable

(nickel-cadmium) batteries.

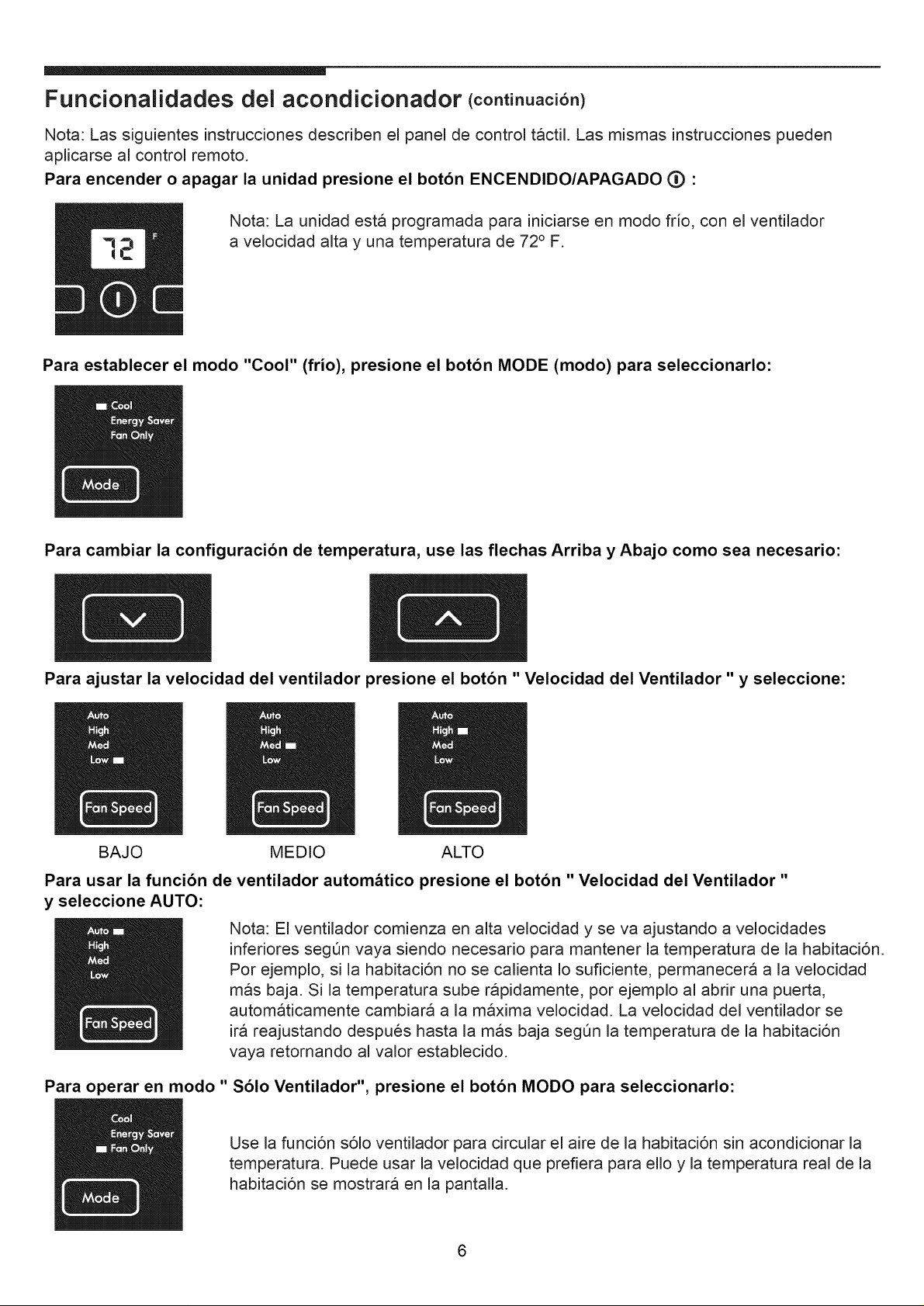

Air Conditioner Features (continued)

Note: The following instructions describe the Control Panel Touch Pads. The same instructions apply to the Remote Control.

To turn unit on or off press the ON/OFF (_) button:

temperature setting of 72 °F.

Note: The unit is programmed to start in the cool mode, with high fan speed and a

To use Cool, press the MODE button to select:

IRl

To change the Temperature Setting use the UP and Down arrows as required:

To adjust Fan Speeds press the Fan Speed button and select:

LOW HIGH

To use the Auto Fan Feature press the Fan Speed button and select AUTO:

To operate on Fan Only, press the MODE button to select:

MED

Note: Fan speed starts at high and adjusts to a slower speed as the room temperature dictates. For example, if the room doesn't get too warm itwill stay at the slowest speed. If the room temperature rises quickly, such as when a door is opened, itwill automatically go to the highest speed. The fan speed will re=adjust back to the slowest speed as the room returns to the original set temperature.

Use Fan Only function to circulate room air without air conditioner cooling. You can use any fan speed you prefer and the actual room temperature will be displayed in the

DISPLAY.

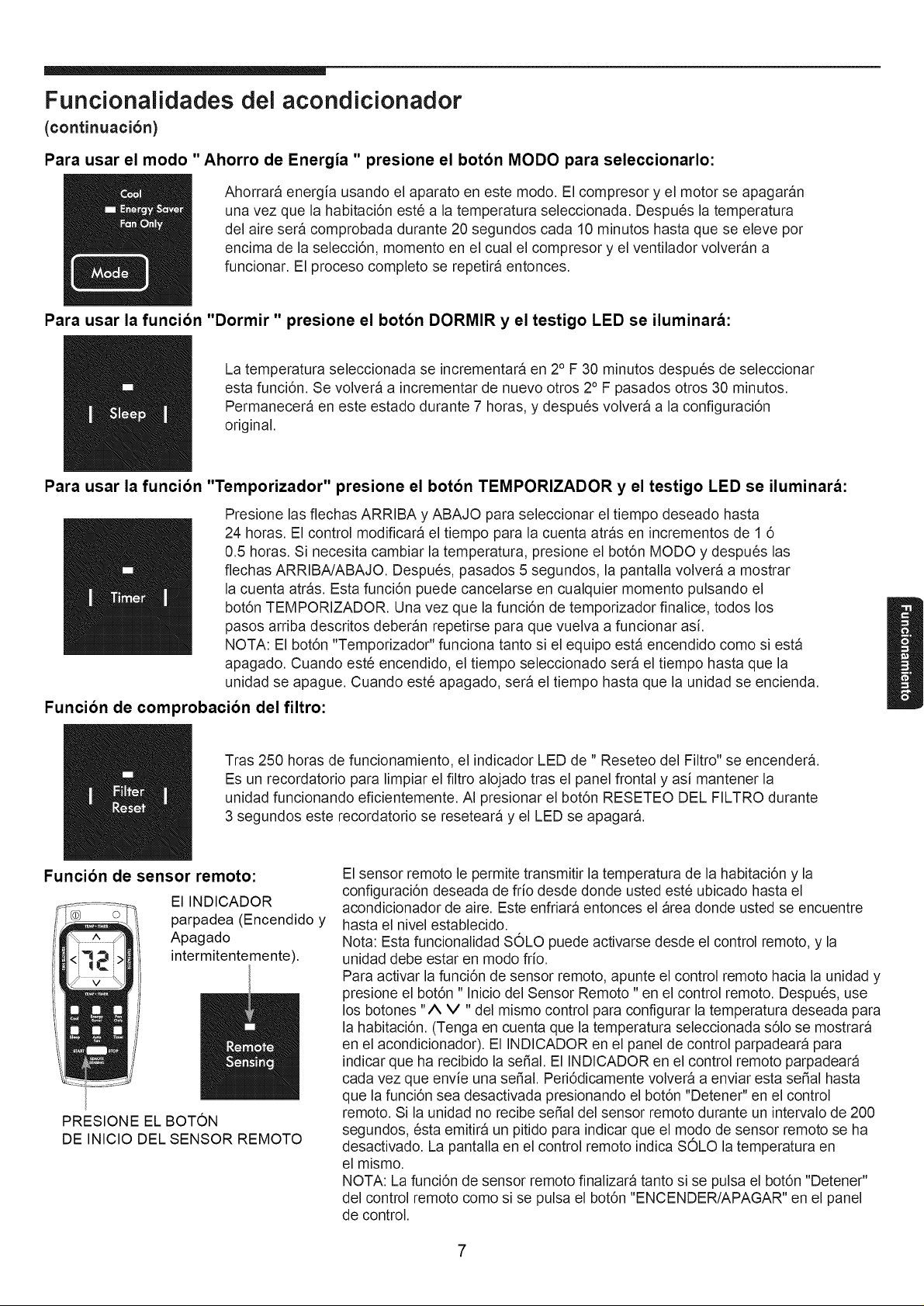

Air Conditioner Features

(continued) To use Energy Saver press the MODE button to select:

You will save energy usage in this mode. The compressor and motor will turn off once the room is at the desired temperature. The air will be sampled for 20 seconds every

10 minutes until the room is above the set temperature, at which point the compressor

turns back on and the fan runs. The entire process is now repeated.

To use the Sleep feature press the SLEEP button and the LED will illuminate:

The set temperature will increase 2 °F 30 minutes after this mode is selected. It will increase again after 30 minutes by another 2 °F. It will stay at this set point for 7 hours, and then return to the original setting.

To use the Timer function press the TIMER button and the LED will illuminate:

Press the UP and DOWN arrows to select the desired time up to 24 hrs. The control will count down the time remaining in 1 and 0.5 hr increments. Ifyou need to change the set temperature, press MODE then the UP/DOWN arrows. Then after 5 seconds the display

will revert to the hours remaining. This mode can be cancelled by pressing the TIMER

button. The mode will operate one time, then the above steps have to be repeated. NOTE: Timer button is functional when On/Off button is set to either On or Off. When

set to On, the amount selected is the time remaining until the unit shuts Off. When set to Off, the amount is the time until the unit turns On.

Check Filter Feature:

Remote Sensing Feature:

LIGHT pulsing ( On & Off intermittently ).

PRESS REMOTE

SENSING START BUTTON

After 250 hours of operation, the Filter Reset LED will light. This is a reminder to clean

the filter housed behind the front panel to keep the unit operating efficiently. Pressing the FILTER RESET button for 3 seconds will reset this reminder and turn off the LED.

Remote Sensing allows you to transmit the room temperature and desired coolness setting from where you sit to the air conditioner. The air conditio-

ner then cools the area where you sit to your desired coolness setting. Note: This feature can be activated from the remote control ONLY, and

the unit must be in a cooling mode. To activate the remote sensing feature, point the remote control towards the unit and press the remote sensing Start button. Next, use the "^ v ,,

buttons to set the desired room temperature with the remote. (Note that the set temperature will only be displayed on the unit itself ). The LIGHT on the unit control will pulse to indicate it received the signal. The LIGHT on the remote control will pulse each time it sends a signal. It will periodi- cally send this signal until the feature is deactivated by pressing the remo-

te sensing Stop button. If the unit does not receive the remote sensing signal during any 200 second interval, the unit will beep to indicate the remote sensing mode has ended. The display on the remote control indi- cates the temperature at the remote ONLY. NOTE: The Remote Sensing function is terminated either by using the

Remote Sensing Stop button or the main ON/OFF button on the unit.

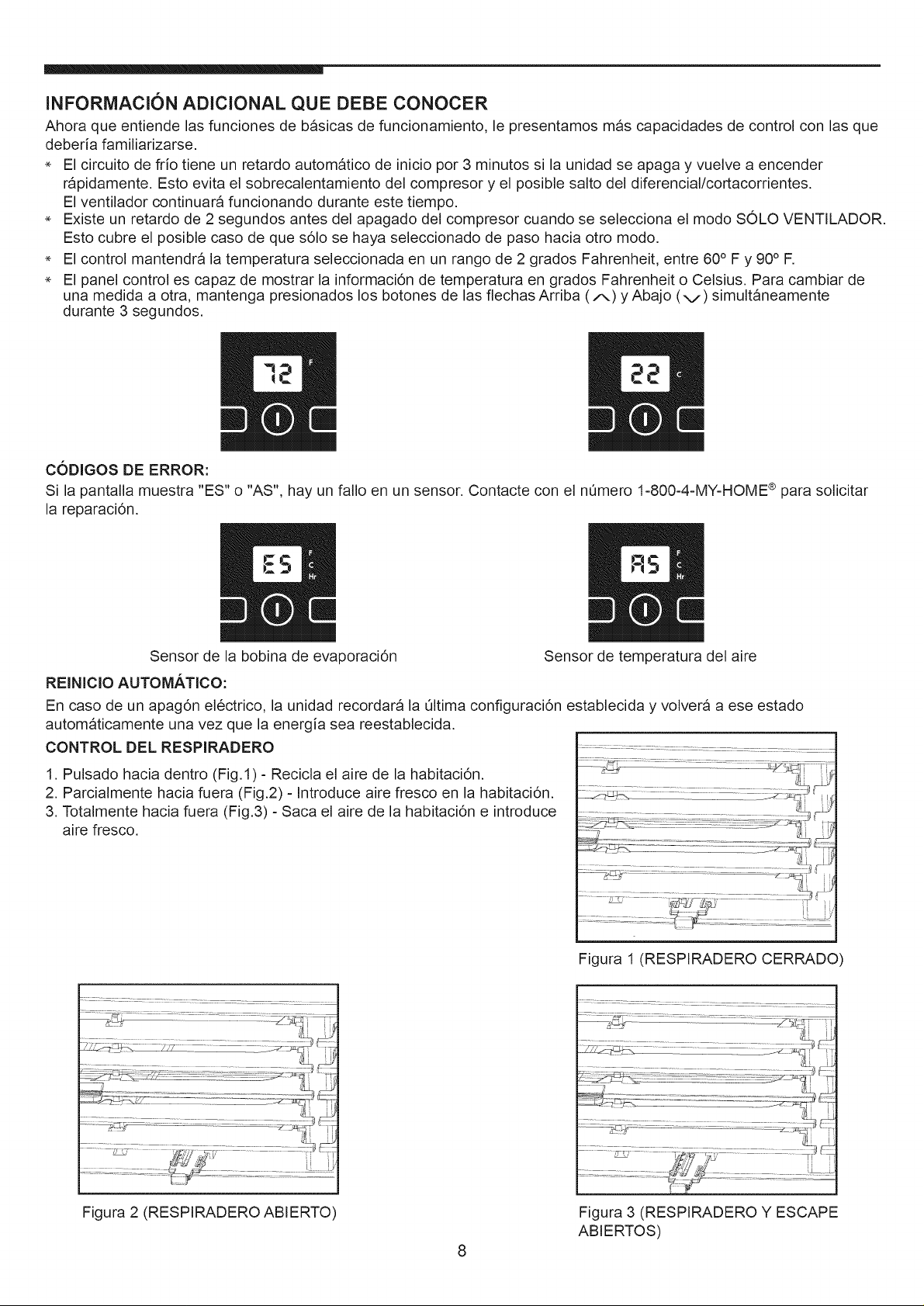

ADDiTiONAL THINGS YOU SHOULD KNOW

Now that you understand the basic operation functions, here are more control features with which you should become

familiar. * The "cool" circuit has an automatic 3 minute time delayed start if the unit is turned off and on quickly. This prevents

overheating of the compressor and possible circuit breaker tripping. The fan will continue to run during this time.

* There is a 2-Second delay for the compressor shutting down when selecting FAN ONLY. This is to cover the possibility

of having to roll through to select another mode.

* The control will maintain the set temperature within 2 degrees Fahrenheit, between 60F and 90F degrees. * The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius. To convert from one to the

other and back, press and hold both the "TEMP/TIMER" Up(/'_) and Down (v) buttons for 3 seconds.

FAULT CODES : If the display reads "ES" or "AS", a sensor has failed. Contact 1=800=4=MY-HOME_Dfor repair.

Evaporator coil sensor Air temperature sensor

AUTO RE-START : After a power outage, the unit will remember the last setting and return the unit to the same setting once power is restored.

FRESH AIR VENT CONTROL

1. Pushed In (Fig. 1)- Recirculates inside air

- ::: _ :::

2. Partially Pulled Out (Fig. 2) - Draws fresh air into room

3. Fully Pulled Out (Fig. 3) - Exhausts air from room and draws fresh air into room

Figure 1 ( VENT CLOSED )

Figure 2 ( VENT OPEN )

Figure 3 ( VENT & EXHAUST OPEN )
