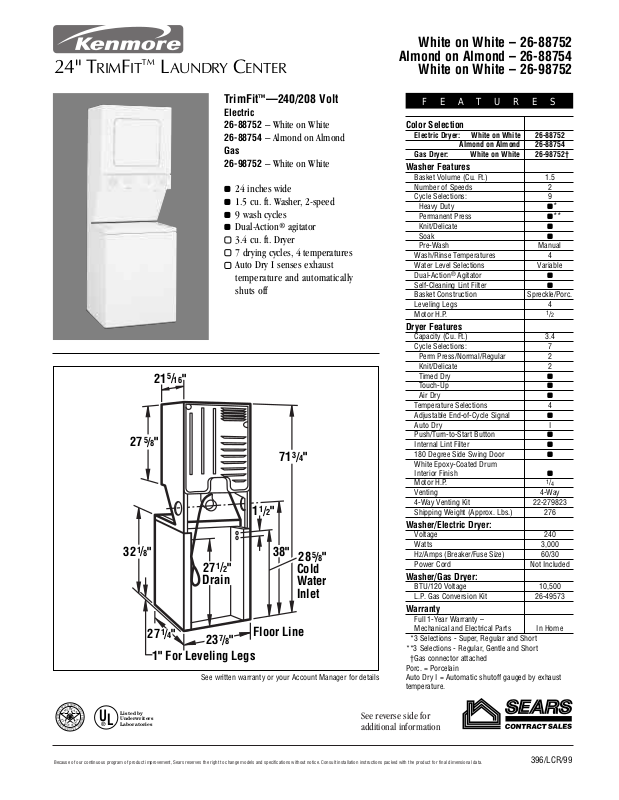

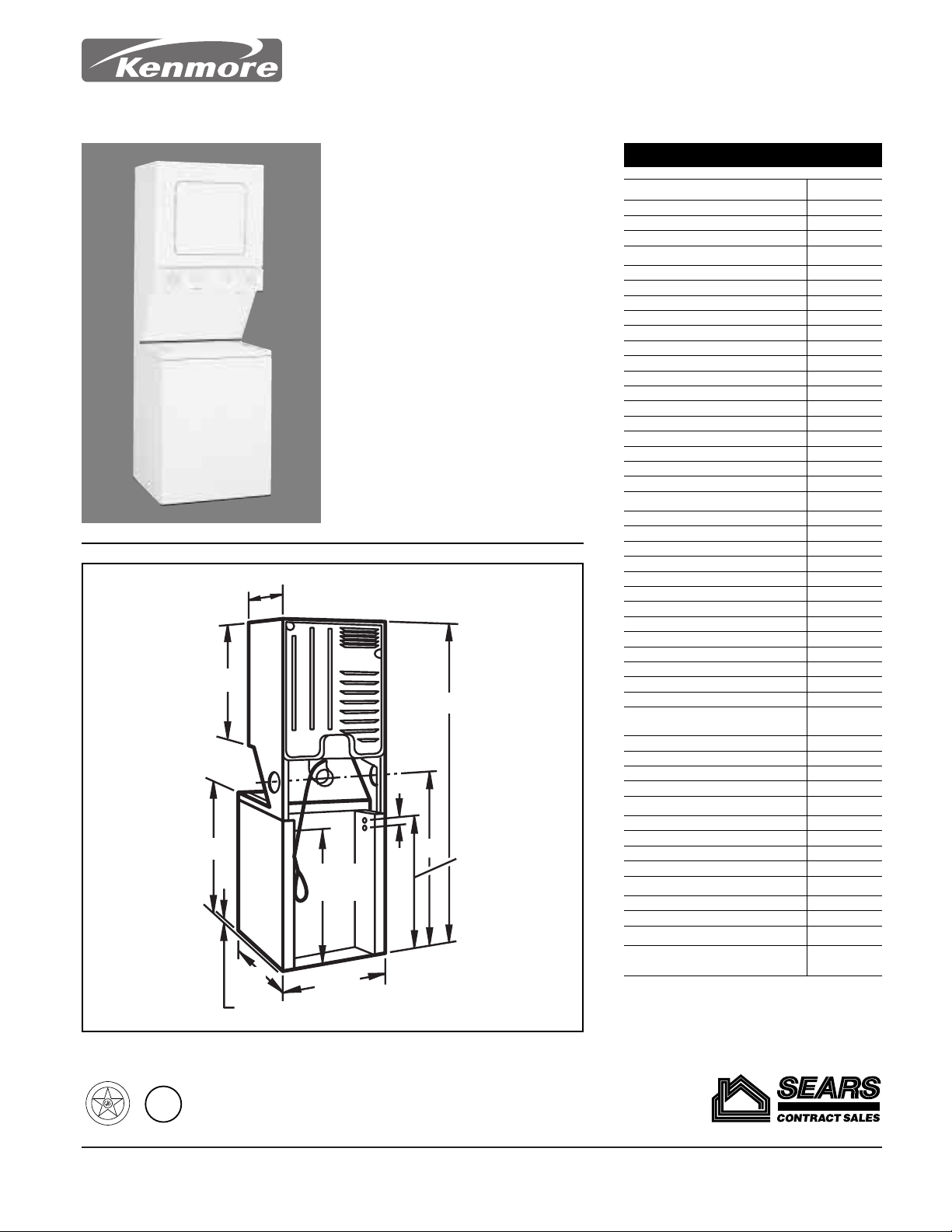

24" TRIMFIT™LAUNDRY CENTER
FEATURES
Color Selection
Electric Dryer: White on White 26-88752
Almond on Almond 26-88754
Gas Dryer: White on White 26-98752†
Washer Features
Basket Volume (Cu. Ft.) 1.5
Number of Speeds 2
Cycle Selections: 9
Heavy Duty {
*
Permanent Press {
**
Knit/Delicate {
Soak {
Pre-Wash Manual
Wash/Rinse Temperatures 4
Water Level Selections Variable
Dual-Action®Agitator {
Self-Cleaning Lint Filter {
Basket Construction Spreckle/Porc.
Leveling Legs 4
Motor H.P.
1
/
2
Dryer Features
Capacity (Cu. Ft.) 3.4
Cycle Selections: 7
Perm Press/Normal/Regular 2
Knit/Delicate 2
Timed Dry {
Touch-Up {
Air Dry {
Temperature Selections 4
Adjustable End-of-Cycle Signal {
Auto Dry I
Push/Turn-to-Start Button {
Internal Lint Filter {
180 Degree Side Swing Door {
White Epoxy-Coated Drum
Interior Finish {
Motor H.P.
1
/
4
Venting 4-Way
4-Way Venting Kit 22-279823
Shipping Weight (Approx. Lbs.) 276
Washer/Electric Dryer:
Voltage 240
Watts 3,000
Hz/Amps (Breaker/Fuse Size) 60/30
Power Cord Not Included
Washer/Gas Dryer:
BTU/120 Voltage 10,500
L.P. Gas Conversion Kit 26-49573
Warranty
Full 1-Year Warranty –
Mechanical and Electrical Parts In Home
*3 Selections - Super, Regular and Short
**3 Selections - Regular, Gentle and Short
†Gas connector attached
Porc. = Porcelain
Auto Dry I = Automatic shutoff gauged by exhaust
temperature.
1" For Leveling Legs
Drain
Floor Line
Cold
Water
Inlet
21
5
/
16"
27
5
/
8"
71
3
/
4"
1
1
/
2"
27
1
/
2"
32
1
/
8"
27
1
/
4"
23
7
/
8"
28
5
/
8"
38"
TrimFit™—240/208 Volt
Electric
26-88752 – White on White
26-88754 – Almond on Almond
Gas
26-98752 – White on White
{ 24 inches wide
{ 1.5 cu. ft. Washer, 2-speed
{ 9 wash cycles
{ Dual-Action
®
agitator
{{ 3.4 cu. ft. Dryer
{{ 7 drying cycles, 4 temperatures
{{ Auto Dry I senses exhaust
temperature and automatically
shuts off
U
L
®
Listed by
Underwriters
Laboratories
A
M
E
R
I
C
A
N
A
S
S
O
C
I
A
T
I
O
N
D
E
S
I
G
N
C
O
M
P
L
I
E
S
W
I
T
H
N
A
T
I
O
N
A
L
S
A
F
E
T
Y
S
T
A
N
D
A
R
D
S
C
E
R
T
I
F
I
E
D
A
M
E
R
I
C
A
N
A
S
S
O
C
I
A
T
I
O
N
See written warranty or your Account Manager for details
Page 2
Because of our continuous program of product improvement, Sears reserves the right to change models and specifications without notice. Consult installation instructions packed with the product for final dimensional data.
396/LCR/99
White on White – 26-88752
Almond on Almond – 26-88754
White on White – 26-98752

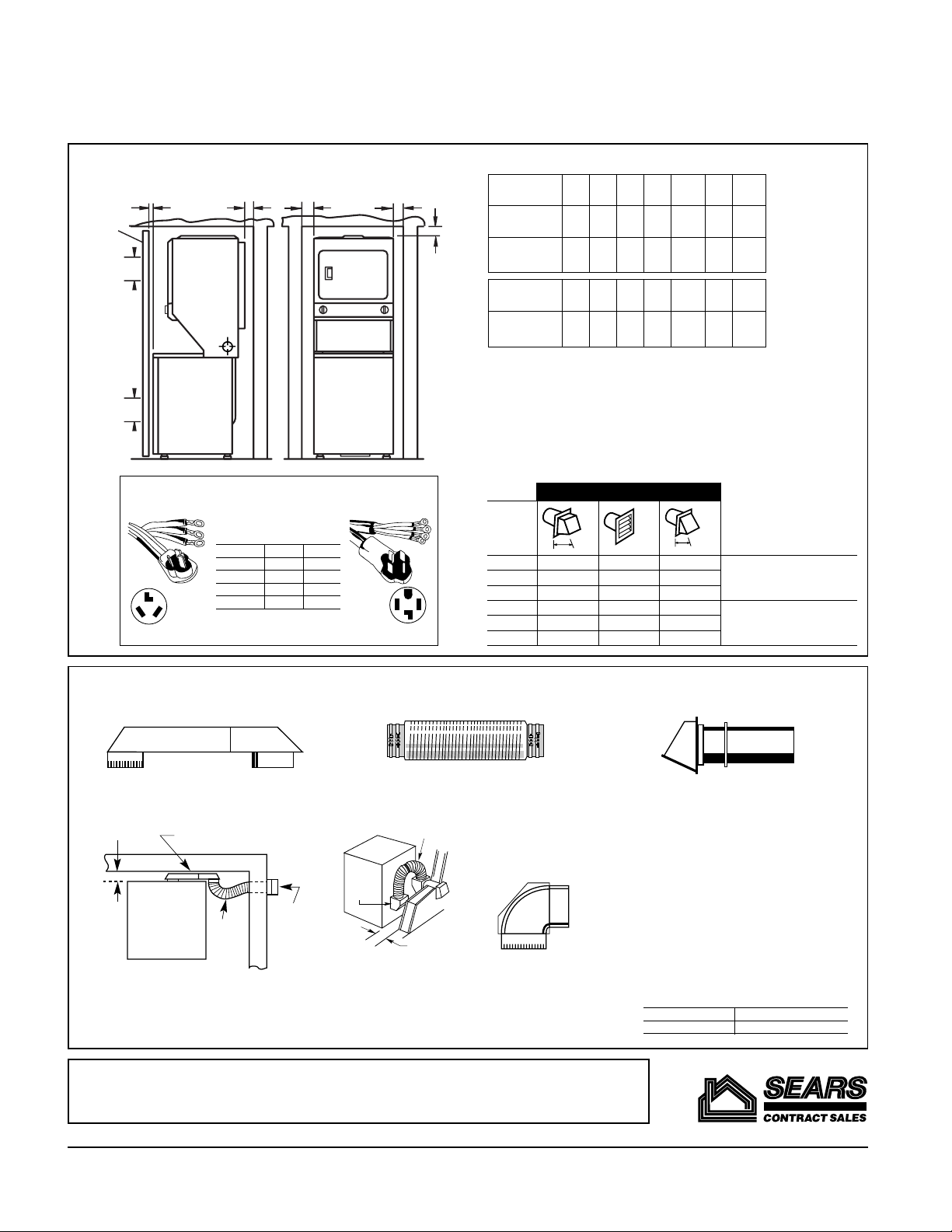

24" TRIMFIT™LAUNDRY CENTER
Adjustable
Periscope
TOP VIEW
Dryer
2"
Flex
Pipe
Vent
Hood
DRYER VENTING RECOMMENDATIONS
26-98382 — ADJUSTABLE PERISCOPE
Sections can be rotated 180° to
have openings on opposite sides
SIDE VENTING: The periscope is used when
necessary to decrease the space between back of
dryer and wall to 2 inches from 41/2inches. The
flexible pipe is used to complete the necessary
length of run.
26-98380 — 4" FLEXIBLE PIPE
26-98381 — UNIVERSAL
CLOSE ELBOW
Heavy gauge 4" diameter corrugated aluminum
pipe with special male/female combination
snap lock and clampable end fittings.
Clamps included. Available in 6 foot length.
“LOOP SYSTEM” VENTING: The flexible pipe
with heavy gauge drawn aluminum universal close
elbow is recommended where space is at a premium.
Takes up only 41/2inches between dryer and wall.
Allows dryer to be pulled in and out for service
without disconnecting system. Clamps included.
26-98379 — VENT HOOD
Aluminum body and plastic molded
hood with a 4" opening.
4-WAY VENTING KIT
Available through
Sears Parts & Service
1-800-255-2864
26-279818 – White
26-279819 – Almond
26-279820 – Black
Flex Pipe
Close
Elbow
4
1
/2"
IMPORTANT NOTE ON DRYER VENTING
Do not use non-metal flexible duct. When installing the venting system, do not exceed the specified length for the vent
duct. Venting systems which are longer than specified will accumulate lint, increase drying time and energy use and
shorten the life of the dryer.
MINIMUM SPACING IN INCHES
RECESSED
INSTALLATION A B C D F G H
INSIDE
VENT 4041
OUTSIDE
VENT 1001
CLOSET
INSTALLATION A B C D F G H
OUTSIDE 60 60
VENT 1001
SQ. IN.1
SQ. IN.
When the Laundry Center is installed in other than the
recessed and closet type of installation shown, minimum
dimensions indicated must be observed.
To prevent large amounts of lint and moisture from
accumulating and to maintain drying efficiency, this
appliance must be vented outdoors.
G DBC
A
H
F
Closet
Door
SIDE VIEW FRONT VIEW
Dryer
Washer
Dryer
Washer
CLOSET INSTALLATION
VENTING INFORMATION
VENT HOOD TYPE
NUMBER
OF 90°
TURNS
0 36 ft. 34 ft. 29 ft. MAXIMUM LENGTH
1 26 ft. 24 ft. 20 ft. OF 4" DIAMETER RIGID
2 16 ft. 14 ft. 12 ft. HEAVY METAL VENT
0 22 ft. 21 ft. 16 ft. MAXIMUM LENGTH
1 16 ft. 15 ft. 10 ft. OF 4" DIAMETER FLEXIBLE
2 8 ft. 7 ft. 2 ft. METAL VENT
4"
4"
2
1
/
2"
Gas Dryer Connector – Stainless Steel
26-16869
3
/8" flex, 4 ft.
26-16871
3
/8" flex, 5 ft.
26-2643, 26-2663
26-2644, 26-2664
OPTIONAL POWER CORDS
All Electric Dryers Require Cord
Electric Dryer Cords
Order Wire Length
26-2643 3 4 ft.
26-2663 3 6 ft.
26-2644* 4 4 ft.
26-2664* 4 6 ft.
*Complies with 1/1/96 NEC
code revision for new
construction and remodeling
