Kenmore 23 User Manual

N S T
RUCTION
S
MODEL
ZIG-ZAG SEWING MACHINE
20/21 / 23/1206/1300.

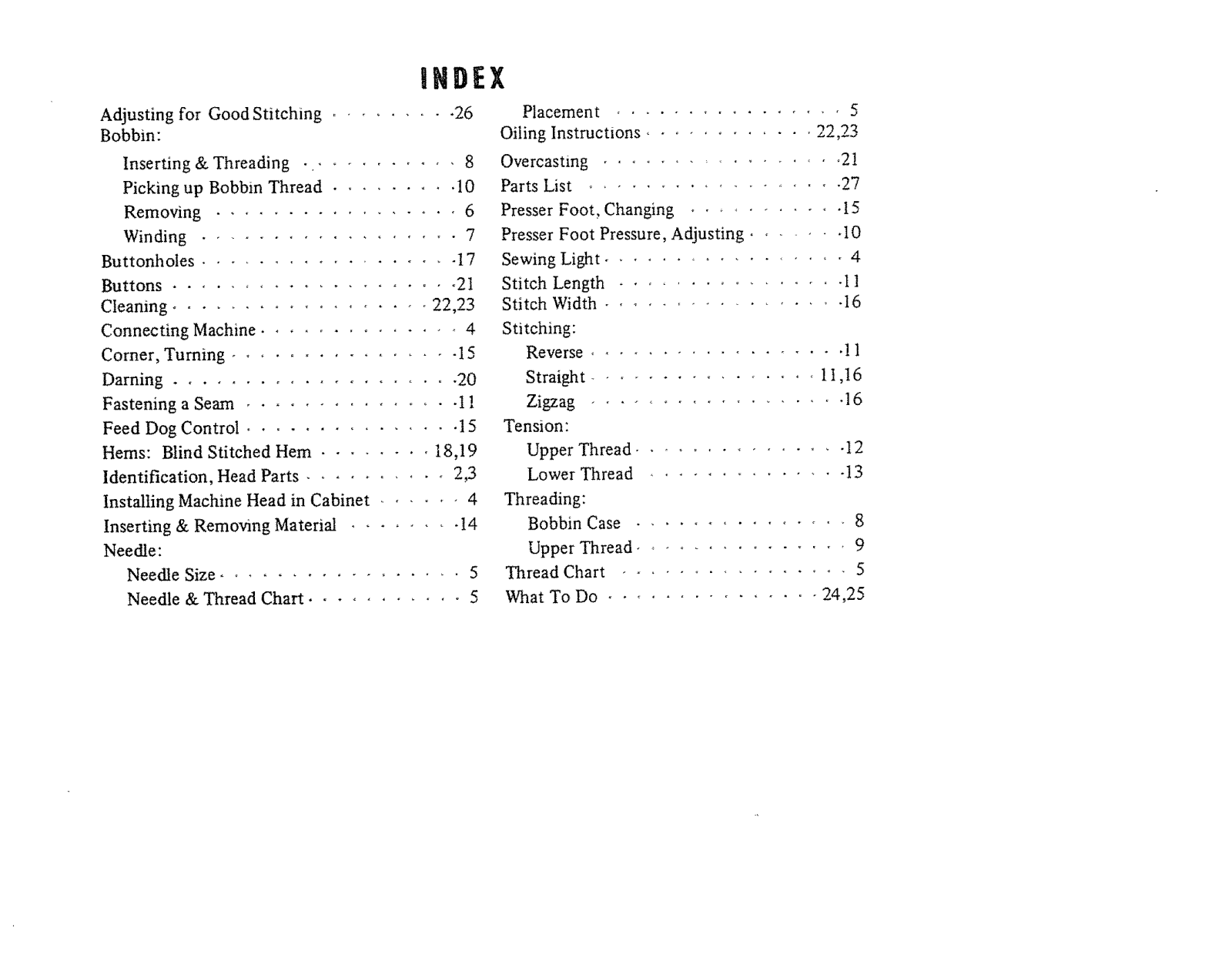

IRDEX

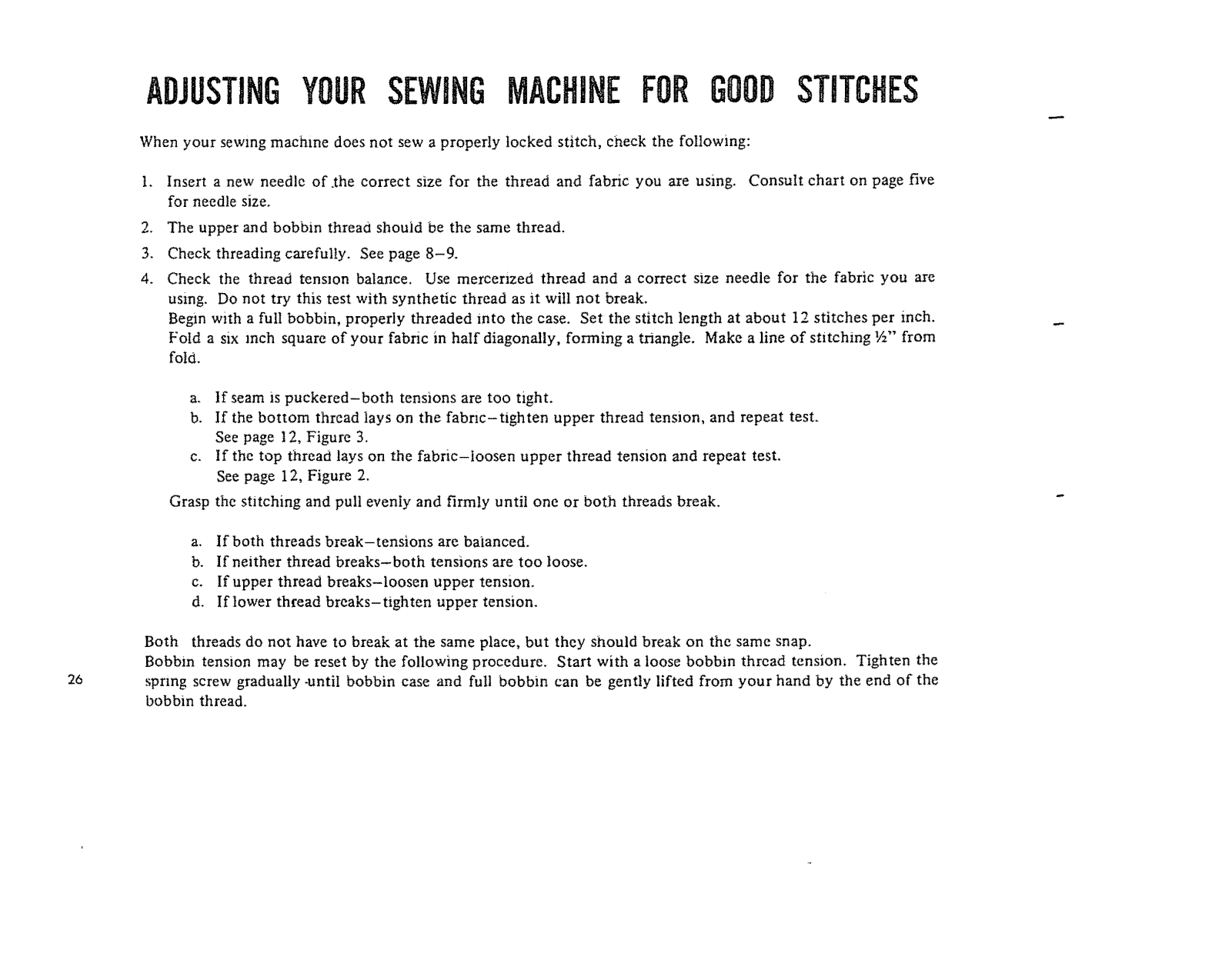

Adjusting for Good Stitching ......... 26
Inserting & Threading - .......... 8
Picking up Bobbin Thread ......... 10
Removing ................. 6
Winding .................. 7
Buttonholes .................. 17

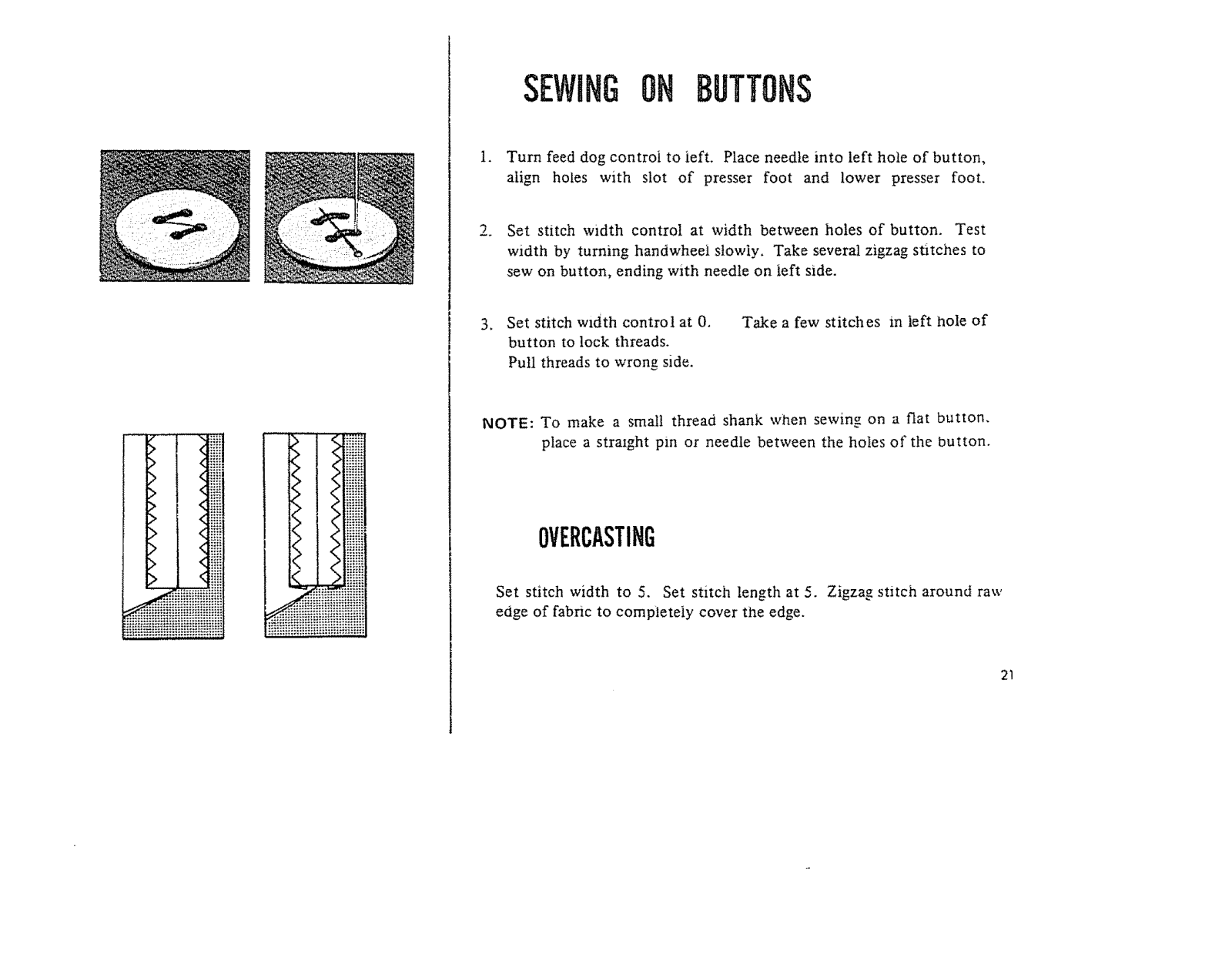

Buttons .................... 21
Cleaning .................. 22,23
Connecting Machine .............. 4
Corner, Turning ................ 15
Darning .................... 20
Fastening a Seam ............... 1!
Feed Dog Control ............... 15
Hems: Blind Stitched Hem ........ 18,19
Identification, Head Parts .......... 2,3
Installing Machine Head in Cabinet ...... 4
Inserting & Removing Material ........ 14
Needle:
Needle Size ................. 5
Needle & Thread Chart ........... 5
Placement ................ 5

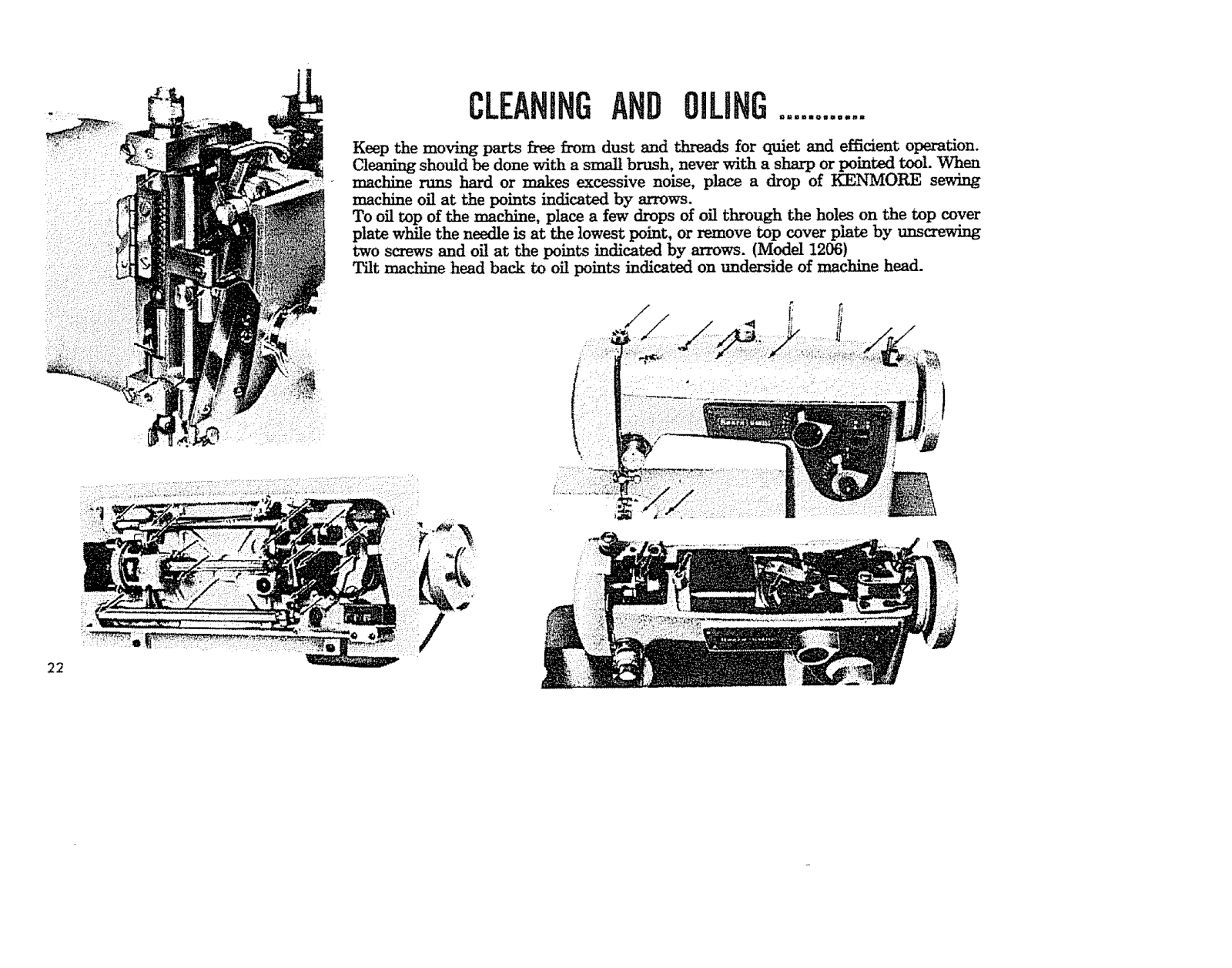

Oiling Instructions ............ 22,23
Overcasting ................ 21

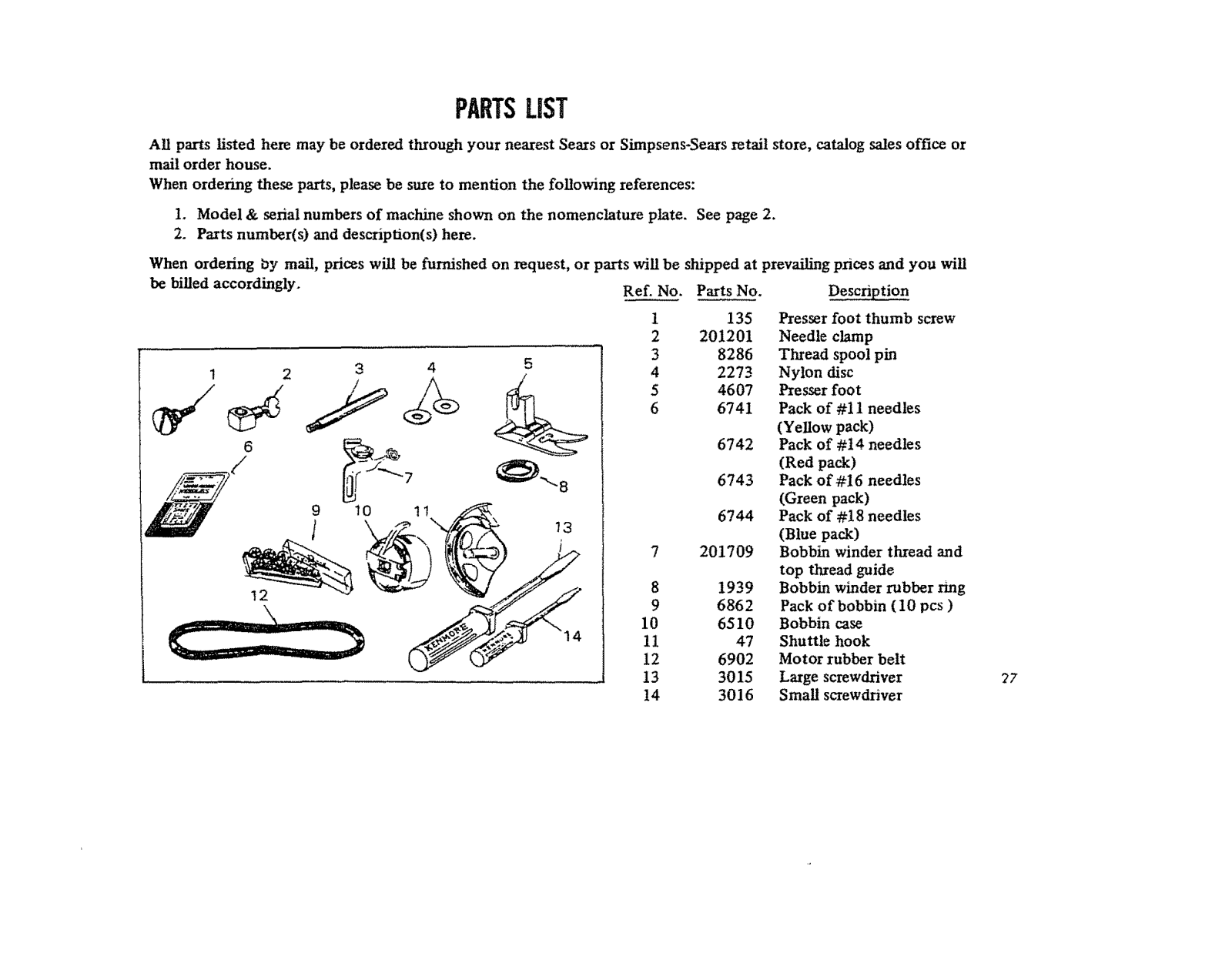

Parts List .................. 27
Presser Foot, Changing ........... 15
Presser Foot Pressure, Adjusting ...... 10
Sewing Light ................ 4
Stitch Length ................ 11
Stitch Width ................ 16
Stitching:
Reverse .................. 11
Straight ................ 1t ,16
Zigzag .................. 16
Tension:
Upper Thread ............... 12
Lower Thread ............... 13
Threading:
Bobbin Case ............... 8
Upper Thread ............... 9
Thread Chart ............... 5

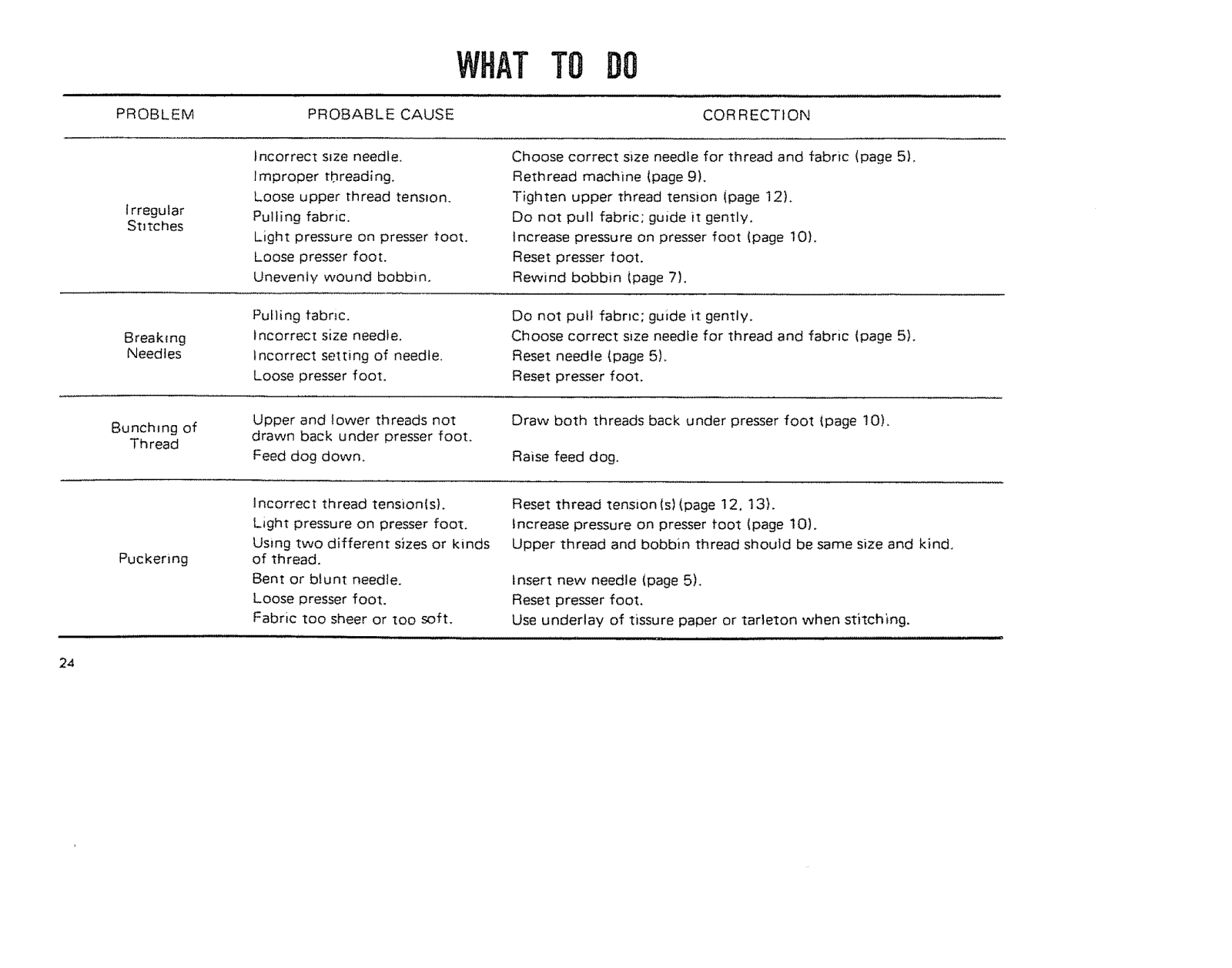

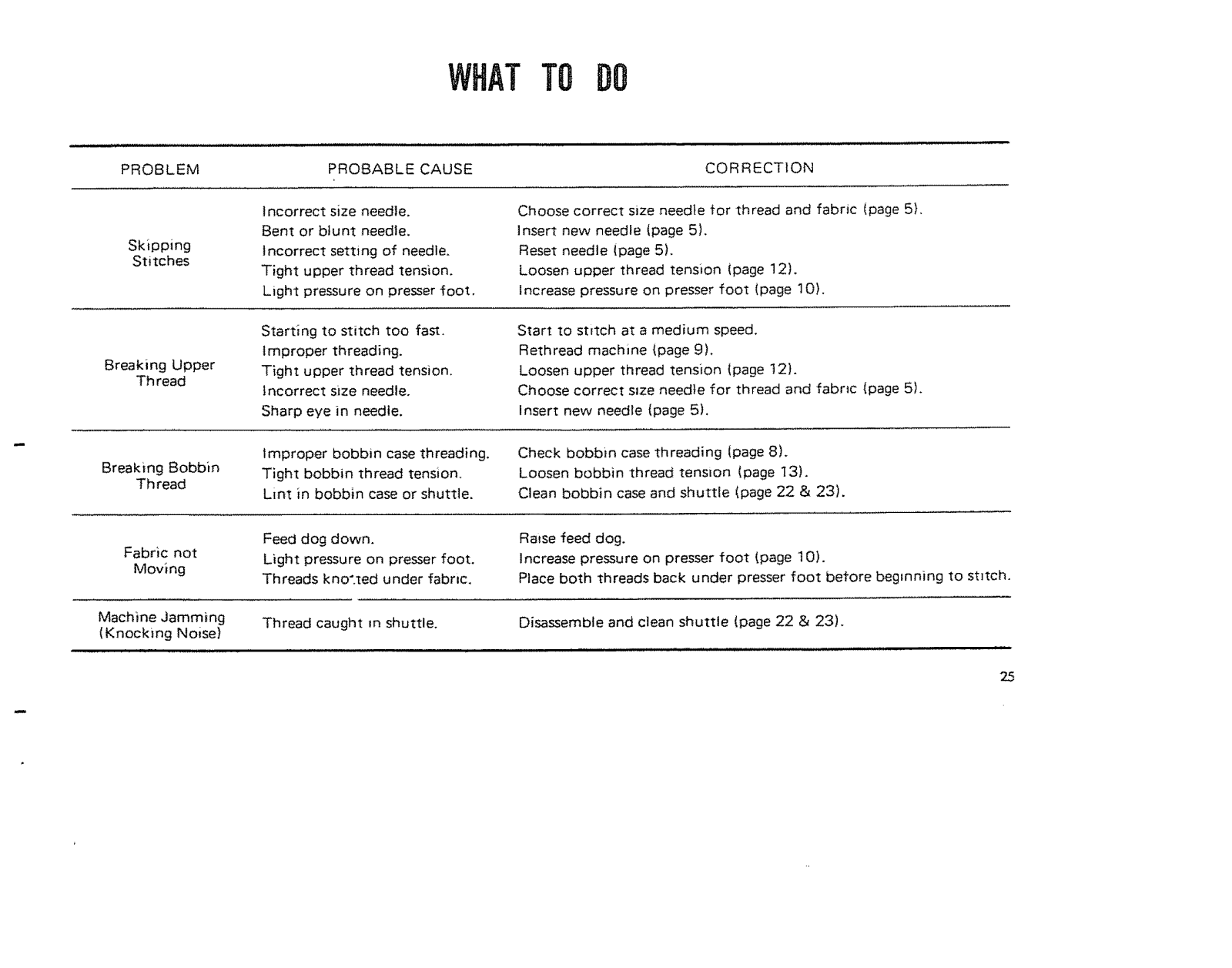

What To Do ............... 24,25

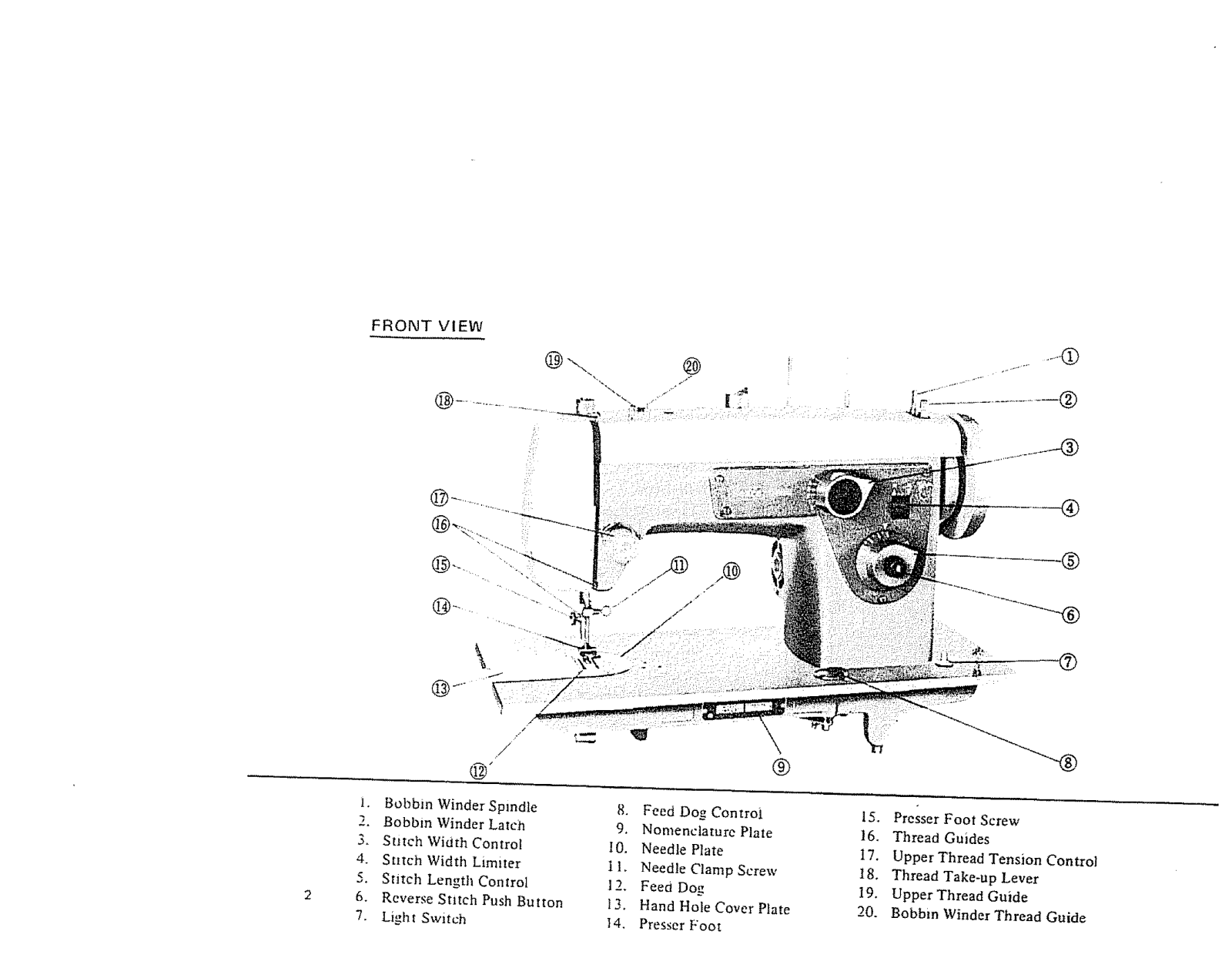

FRONT VIEW
//
@"
q,,,
1. Bobbin WinderSpmdle
2. Bobbin Winder Latch
3. Stitch Width Control
4. Stttch Width Limlter
5. Stitch Length Control
6. Reverse Stitch Push Button
7. Light Switch
®
8. Feed Dog Controi
9. Nomenclature Plate
I0. Needle Plate 1t_ Needle Clamp Screw
12. Feed Dog
13. Hand Hole Cover Plate
14, Presser Foot
15. Presser Foot Screw
16. Thread Guides
17. Upper Thread Tension Control
18. Thread Take-up Lever
19. Upper Thread Guide
20. Bobbin Winder Thread Guide

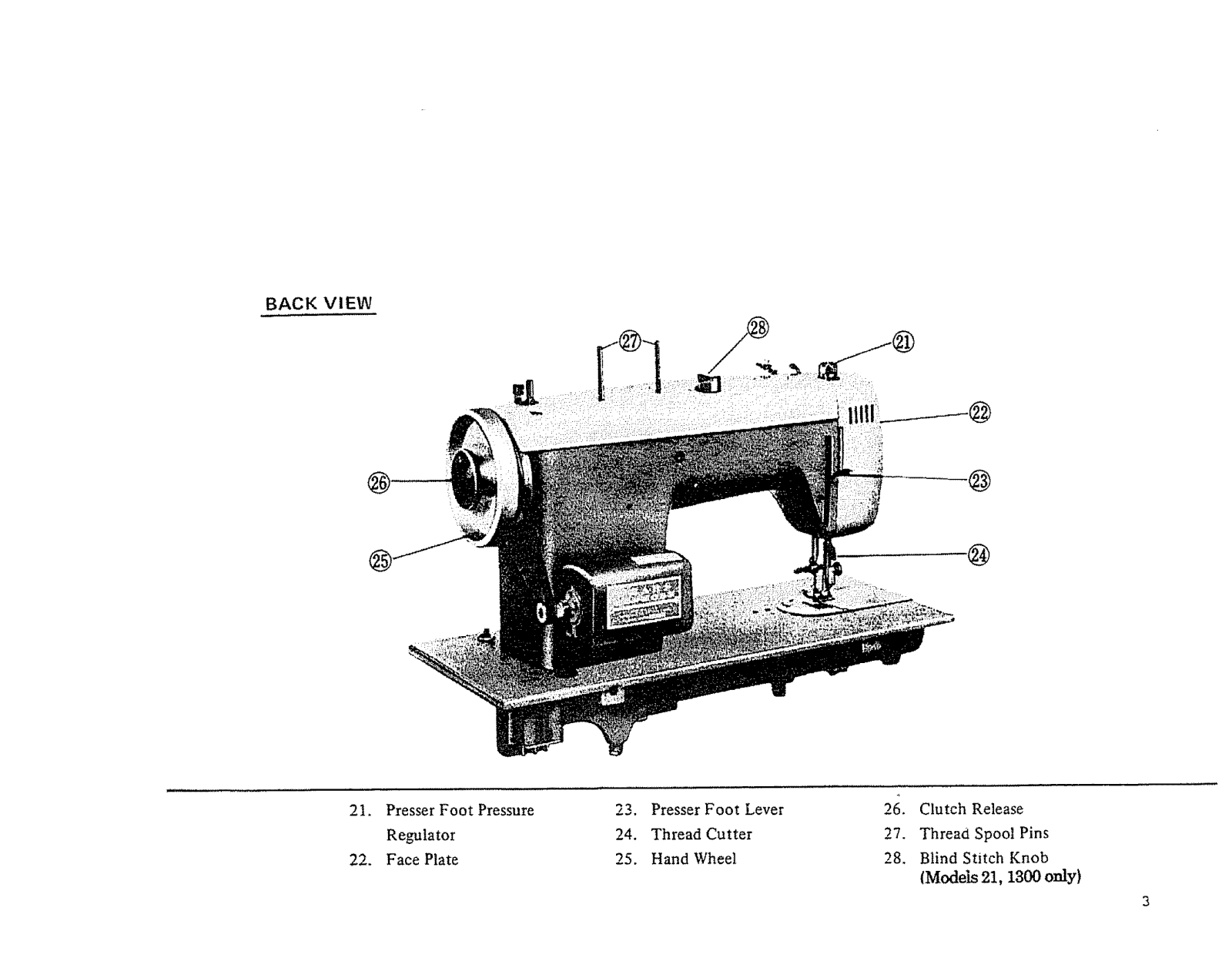

BACK VIEW
@
21. Presser Foot Pressure Regulator
22. Face Plate
23. Presser Foot Lever
24. Thread Cutter
25. Hand Wheel
26. Clutch Release
27. Thread Spool Pins
28. Blind Stitch Knob
{Models 21, 1300 only}

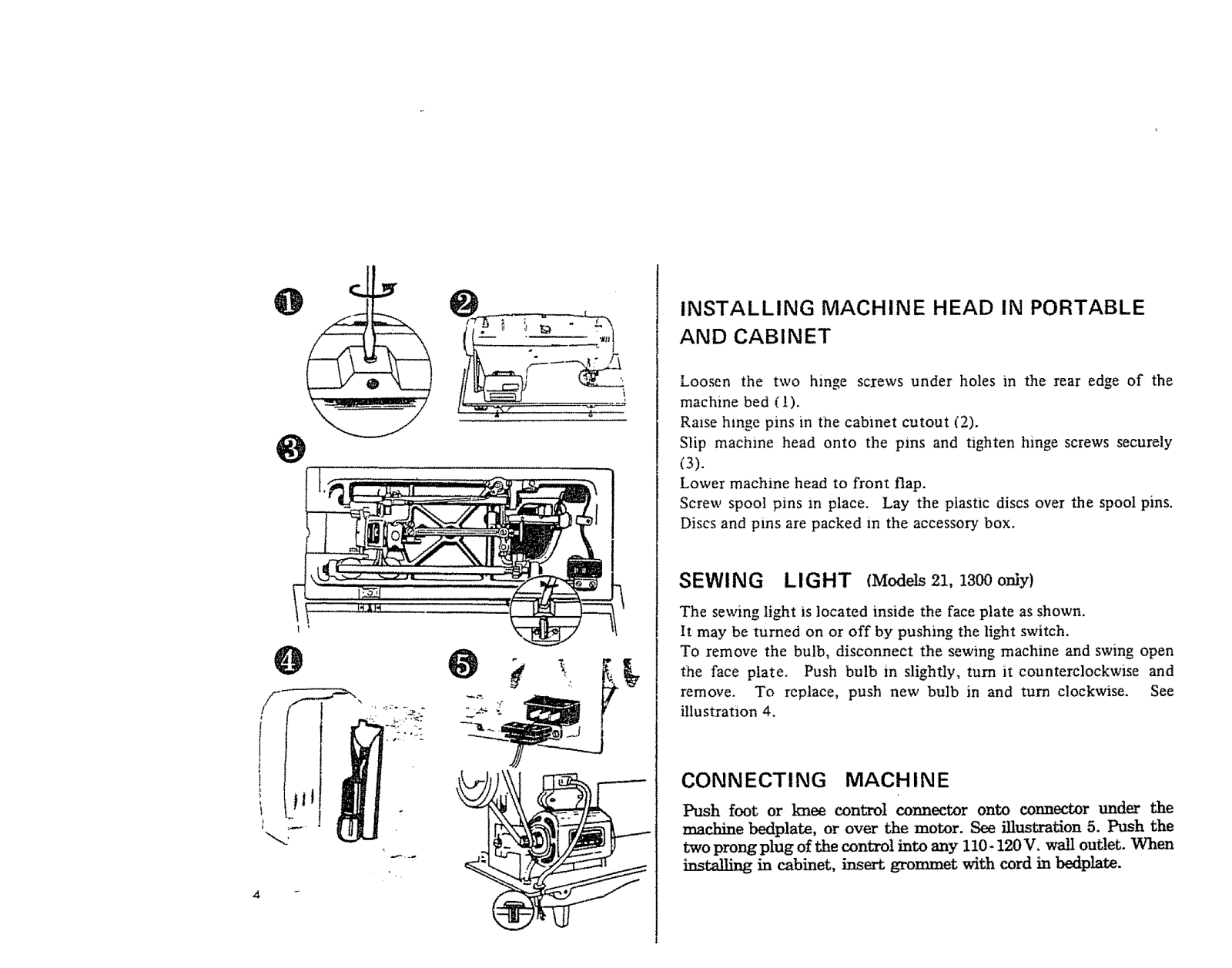

INSTALLING MACHINE HEAD IN PORTABLE
AND CABINET
Loosen the two hinge screws under holes in the rear edge of the machine bed (!).
Raise hinge pins in the cabinet cutout (2). Slip machine head onto the pins and tighten hinge screws securely (3). Lower machine head to front flap. Screw spool pins in place. Lay the plastic discs over the spool pins. Discs and pins are packed in the accessory box.
SEWING LIGHT (Modets 21, 1300 only)
The sewing light is located inside the face plate as shown.
It may be turned on or off by pushing the light switch. TO remove the bulb, disconnect the sewing machine and swing open
the face plate. Push bulb m slightly, turn it counterclockwise and remove. To replace, push new bulb in and turn clockwise. See
illustration 4.
CONNECTING MACHINE
Push foot or knee control connector onto connector under the machine bedplate, or over the motor. See illustration 5. Push the
two prong plug of the control into any 110-120 wall outlet. When installing in cabinet, insert grommet with cord in bedplate.

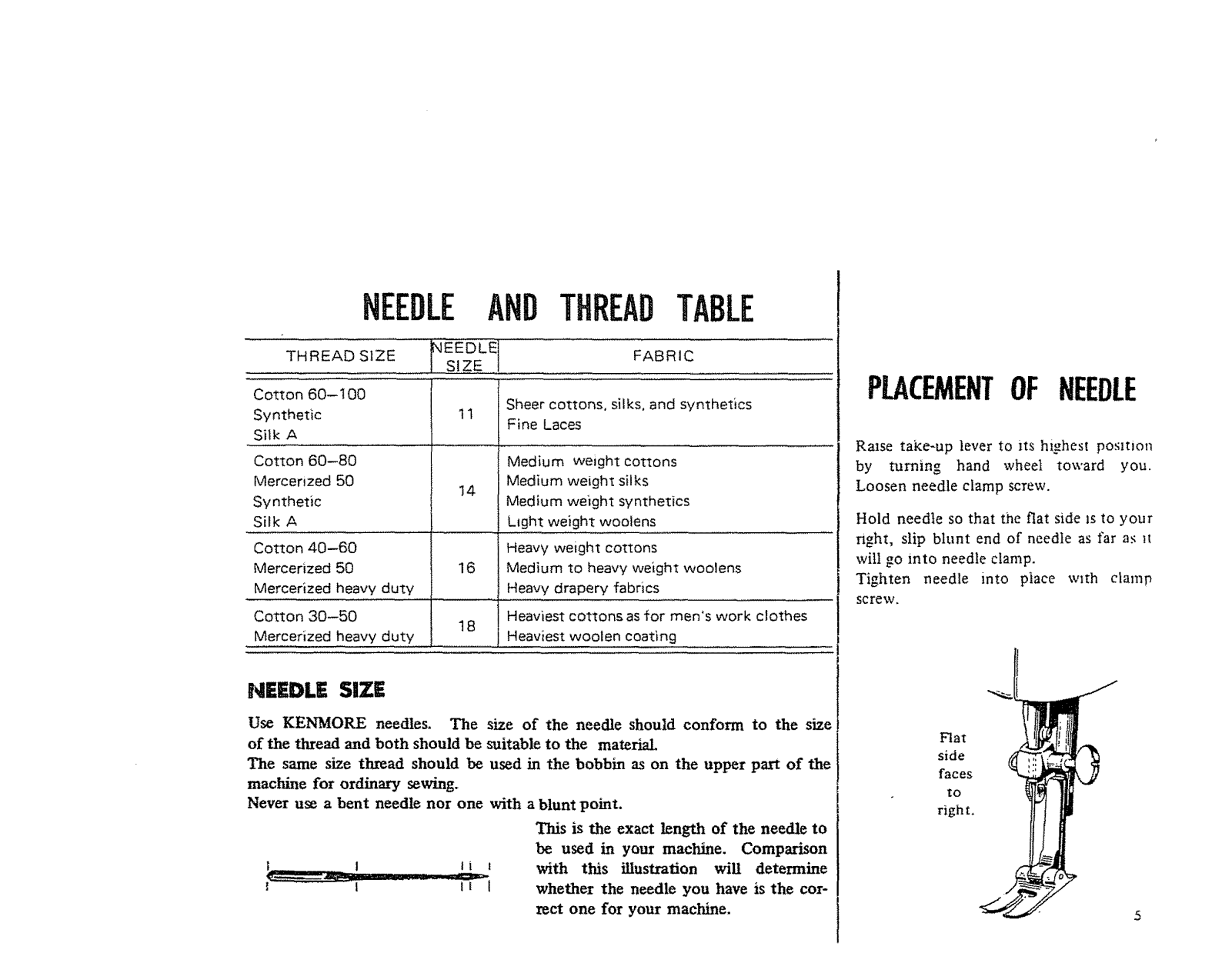

NEEDLE THREADTABLE
THREAD SIZE _i_-r._EDLE FABRIC
Cotton 60-100 Synthetic
Silk A
Cotton 60-80 Mercerized 50
Synthetic Silk A
Cotton 40-60 Mercerized 50
Mercerized heavy duty Cotton 30-50
Mercerized heavy duty
ISIZE
11
14
16 Medium to heavy weight woolens
18
Sheer cottons, silks, and synthetics Fine Laces
Medium weight cottons Medium weight silks Medium weight synthetics Light weight woolens
Heavy weight cottons
Heavy drapery fabrics Heaviest cottons as for men's work clothes
Heaviest woolen coating
NEEDLE 51ZE
Use KENMOtLE needles. The size of the needle should conform to the size of the thread and both should be suitable to the material.
The same size thread should be used in the bobbin as on the upper part of the machine for ordinary sewing.
Never use a bent needle nor one with a blunt point.
This is the exact length of the needle to be used in your machine. Comparison
with this illustration will determine
t whether the needle you have is the cor-
rect one for your machine.
PLACEMENTOF NEEDLE
Raise take-up lever to its highest positron by turning hand wheel toward you. Loosen needle clamp screw.
Hold needle so that the fiat side is to your nght, slip bhmt end of needle as far as _t
will go into needle clamp. Tighten needle into place with clamp
screw.
Flat
side
faces
to
righ t.

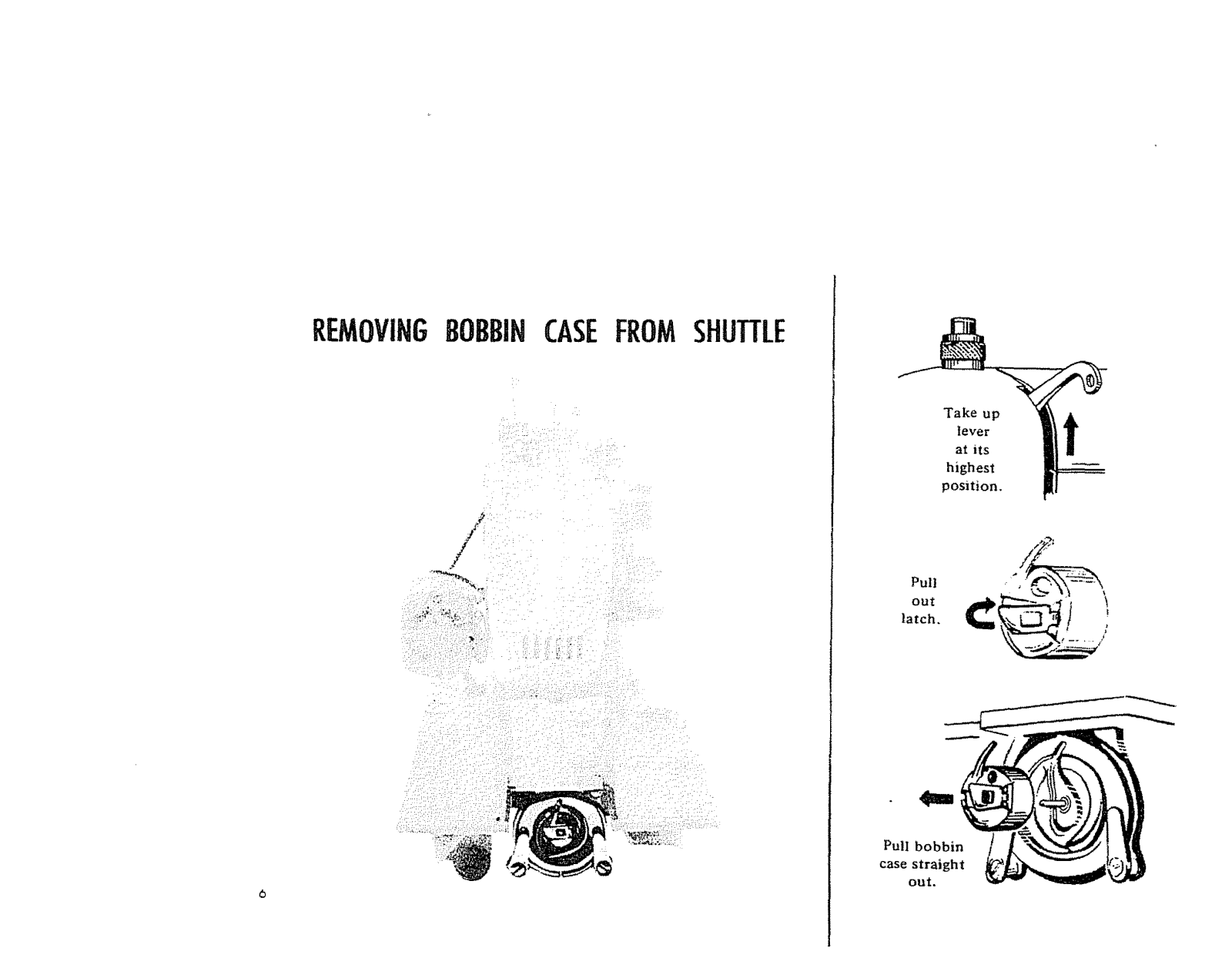

REMOVINGBOBBINCASEFROMSHUTTLE
1/
lever
Take up t
at its
highest
position.
Pull
out
latch.
Pull bobbin /
case straight
out.

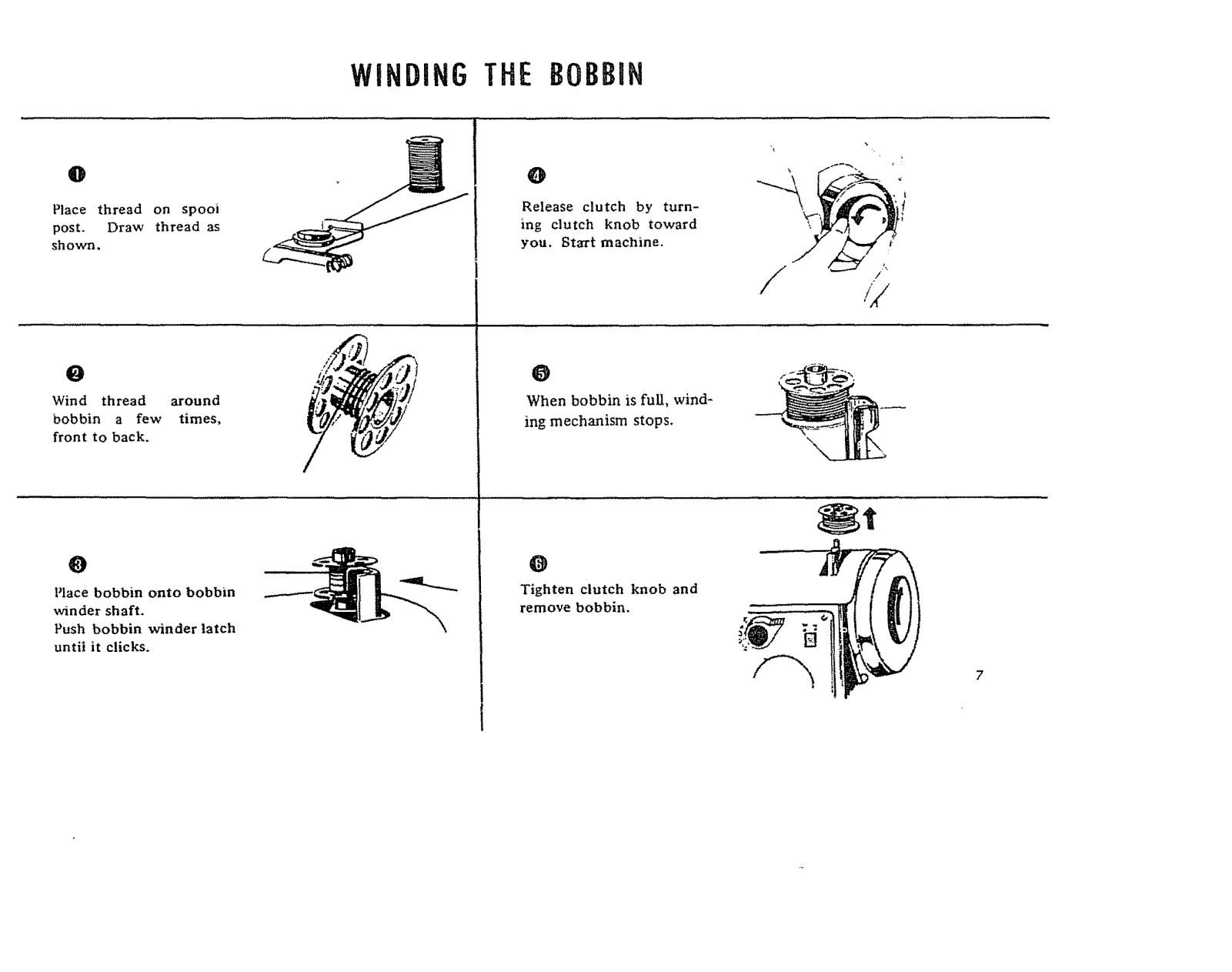

WINDING THE BOBBIN
0
Place thread on spool post. Draw thread as
shown.
0
Wind thread around
bobbin a few times, front to back.
0
Place bobbin onto bobbin
winder shaft.
Push bobbin winder latch until it clicks.
0
Release clutch by turn-
ing clutch knob toward you. 8tart machine.
0
When bobbin is full, wind- ing mechanism stops.
0
Tighten clutch knob and remove bobbin.

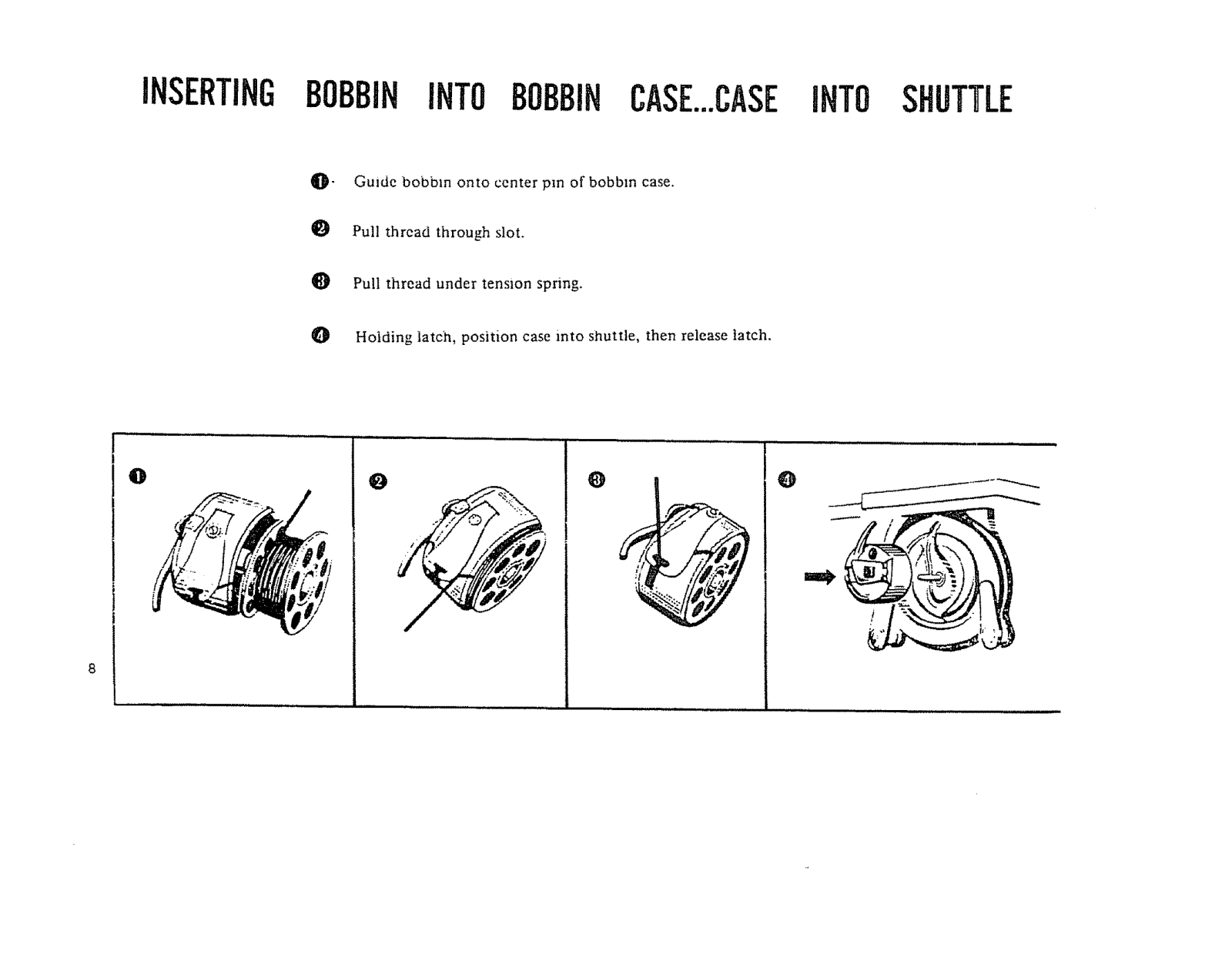

INSERTINGBOBBININTOBOBBINCASE_CASEiNTO SHUTTLE
O" Guide bobbin onto center pm of bobbin case.
Pull thread through slot.
Pull thread under tension spring.
_IP Holding latch, position case into shuttle, then release latch.
@
0
i I,,_,,ILJ,II i

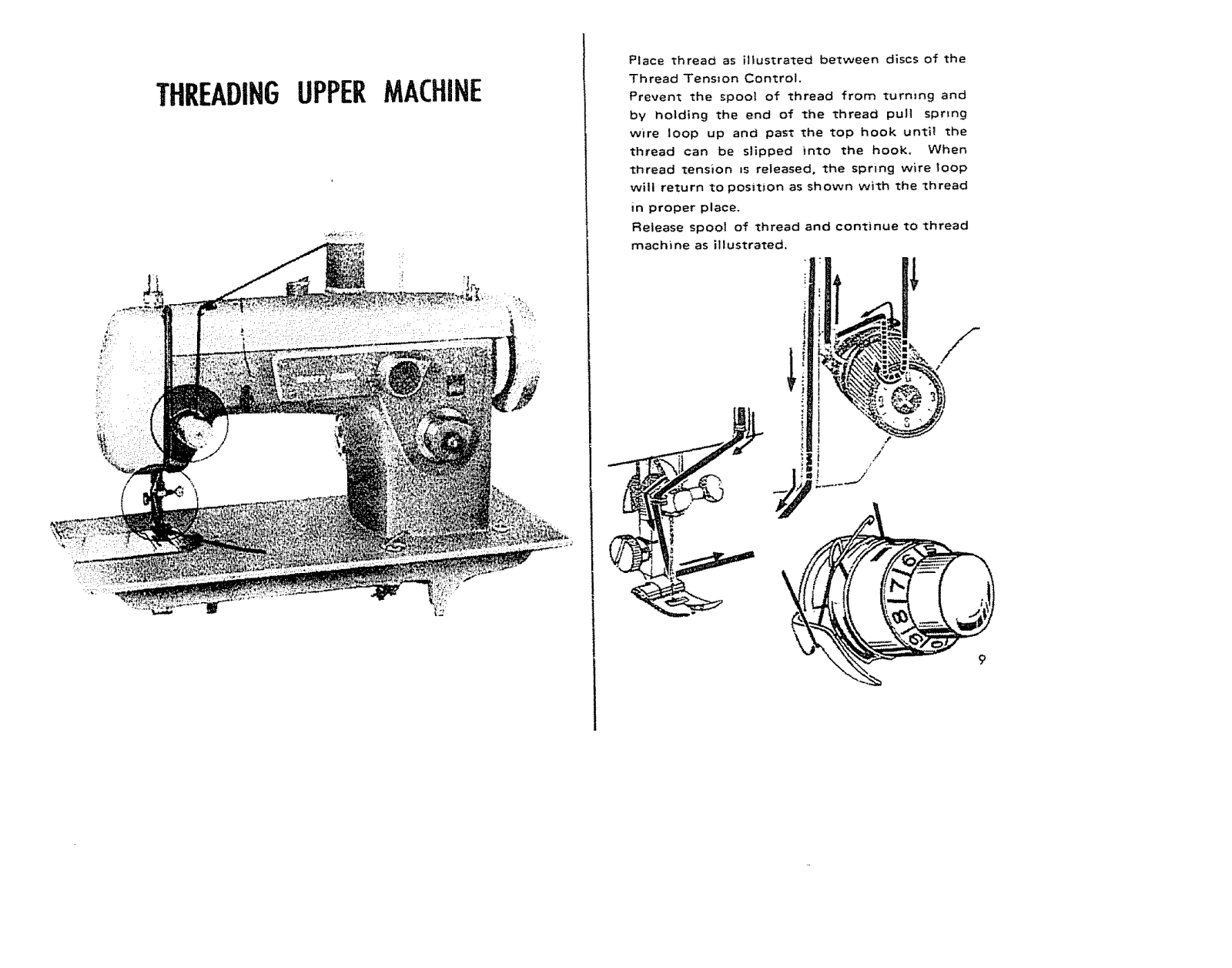

THREADING
UPPERMACHINE
Place thread as illustrated between discs of the Thread Tension Control.
Prevent the spool of thread from 1;urntng and by holding the end of the thread pull spr_ng
wire loop up and past the top hook unti_ the thread can be slipped into the hook. When
thread tension Js released, the spring wire loop
will return to posit_on as shown with the thread _n proper place.
Release spool of thread and continue to thread machine as illustrated,

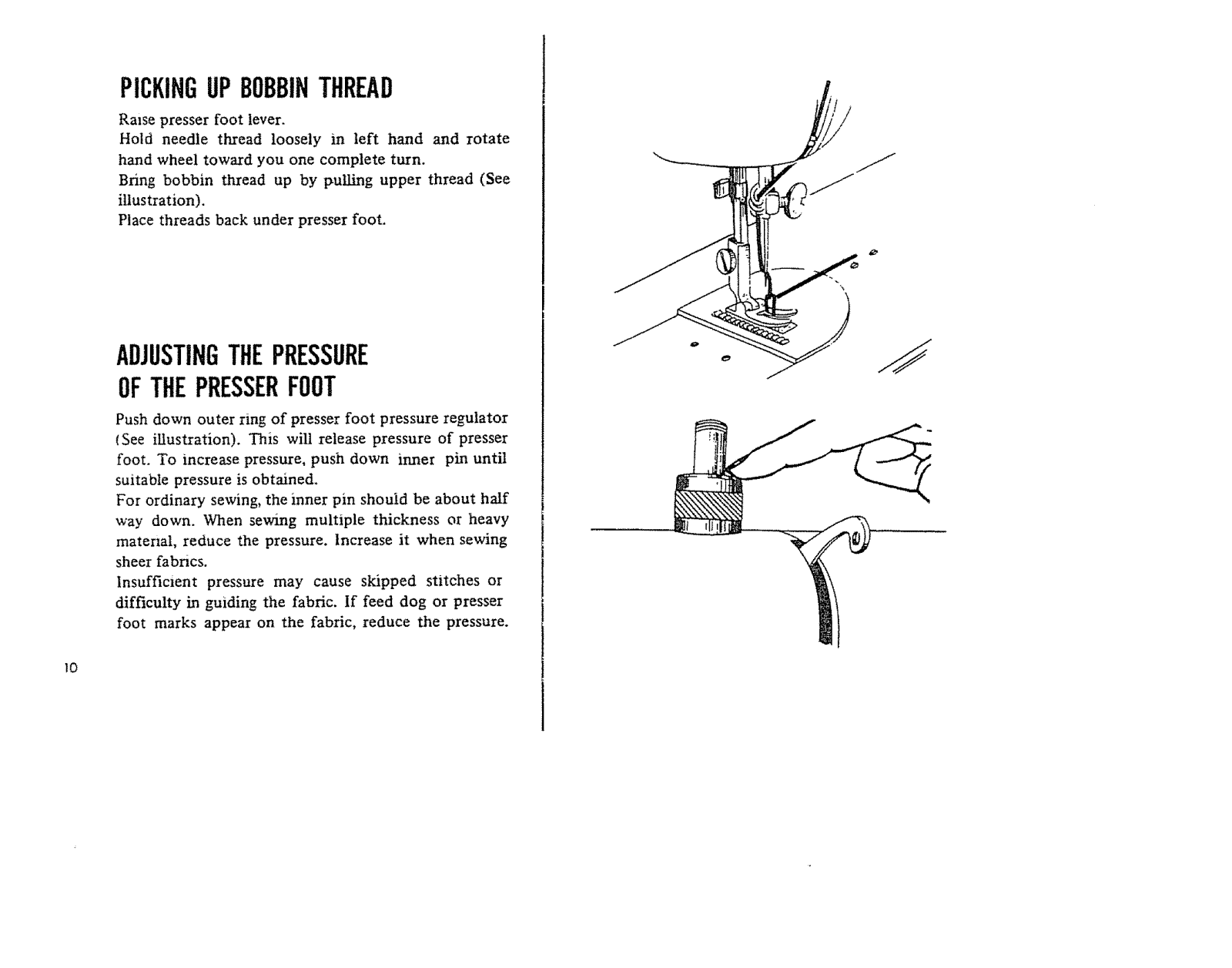

PICKINGUPBOBBINTHREAD
Rinse presser foot lever. Hold needle thread loosely in left hand and rotate
hand wheel toward you one complete turn. Bring bobbin thread up by pulling upper thread (See illustration). Place threads back under presser foot.
ADJUSTINGTHEPRESSURE
OFTHEPRESSERFOOT
Push down outer ring of presser foot pressure regulator _See illustration). This will release pressure of presser
foot. To increase pressure, push down inner pin until suitable pressure is obtained. For ordinary sewing, the inner pin should be about half way down. When sewing multiple thickness or heavy matenat, reduce the pressure. Increase it when sewing
sheer fabncs.
Insufficzent pressure may cause skipped stitches or difficulty in guiding the fabric. If feed dog or presser
foot marks appear on the fabric, reduce the pressure.
I0

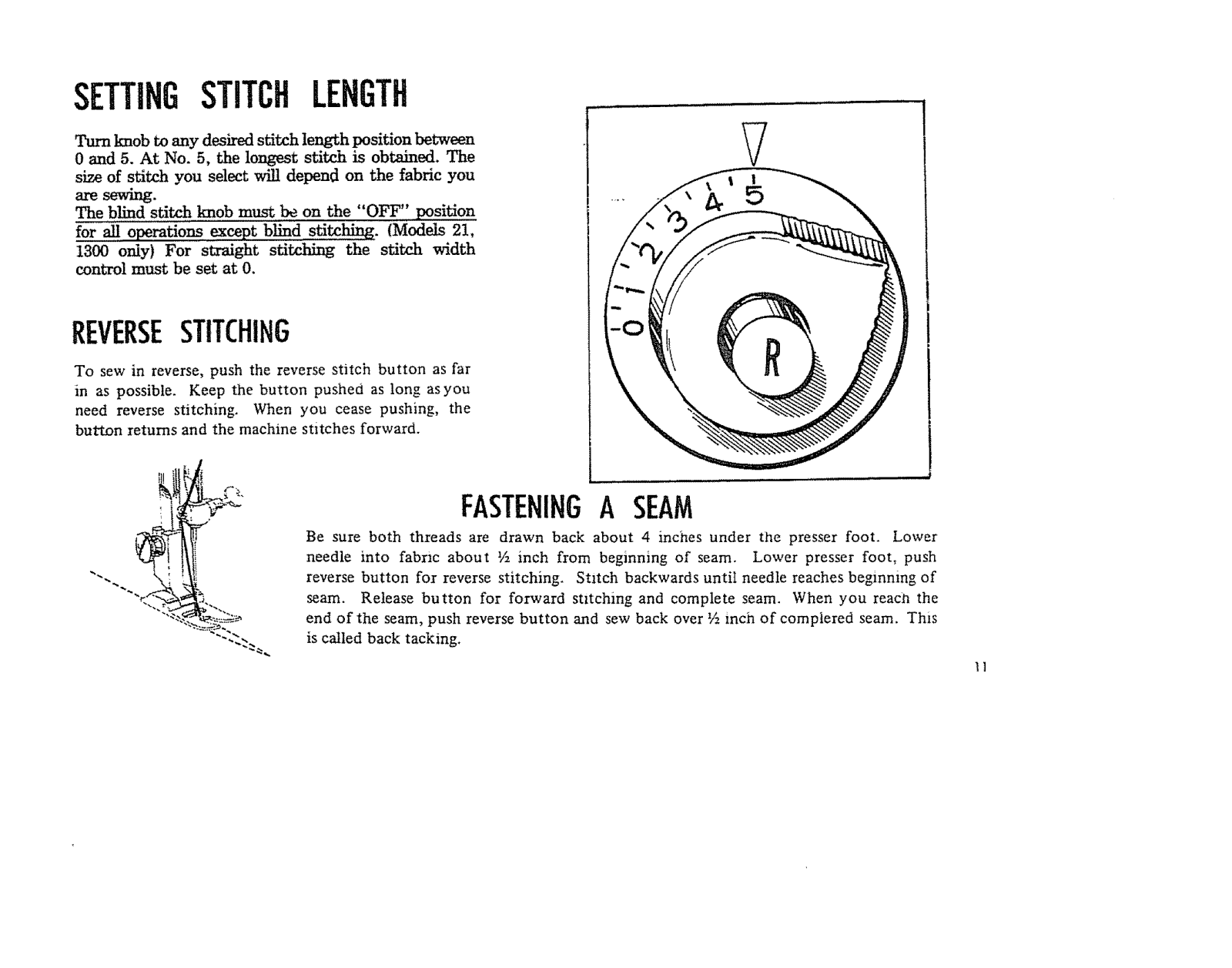

SETTINGSTITCHLENGTH
Turn knob toany desiredstitchlengthpositionbetween 0 and 5.At No. 5, the longes_stitchis obtained.The
sizeof stitchyou selectwilldepend on the fabricyou are sewing.
The blindstitchknob must be on the "OFF" position for alloperationsexceptblind stitching.{Models 21,
1300 only) For straightstitchingthe stitch width
controlmust be se_ at 0.
REVERSESTITCHING
To sew in reverse, push the reverse stitch button as far
in as possible. Keep the button pushed as long as you need reverse stitching. When you cease pushing, the button returns and the machine stitches forward.
FASTENINGA SEAM
Be sure both threads are drawn back about 4 inches under the presser foot. Lower
needle into fabnc about ½ inch from beginning of seam. Lower presser foot, push
reverse button for reverse stitching. Stztch backwards until needle reaches beginning of
seam. Release button for forward sUtching and complete seam. When you reach the
end of the seam, push reverse button and sew back over ½ inch of comptered seam. This
is called back tacking.
7
Fig. 1

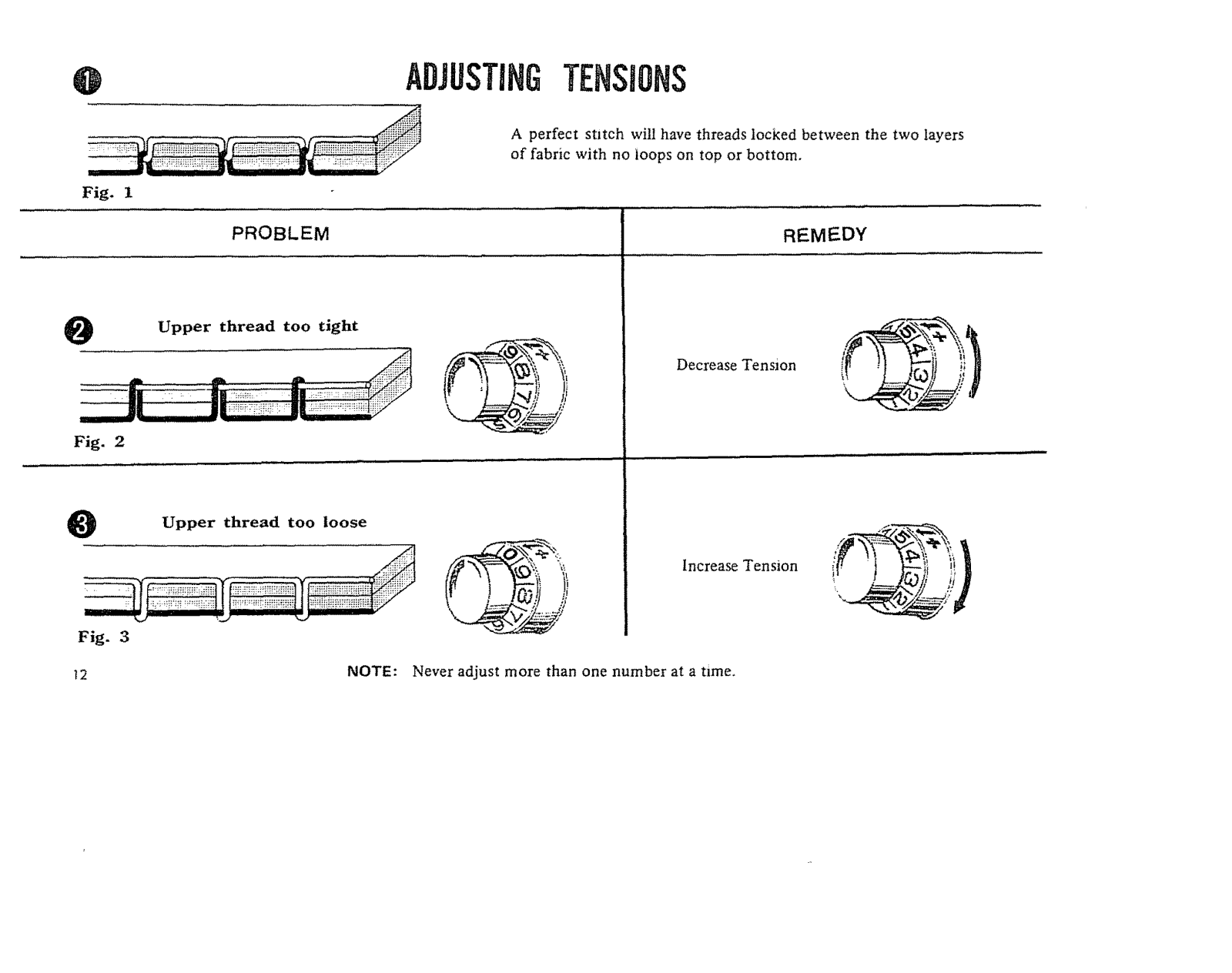

ADJUSTINGTENSIONS
A perfect stitch wilt have threads locked between the two layers of fabric with no loops on top or bottom.
PROBLEM
Upper thread too tight
Decrease Tension
,.._!! li
Fig. 2
Upper thread too loose
Increase Tension
Fig. 3
t2 NOTE: Never adjust more than one number at a time÷
REMEDY
,, ','_ '_
When stitching is unsatisfactory as in figures
2 and 3, adjust the upper thread tension.
Lower thread tension requires adjustment
less frequently than the upper thread tension.
When stitch is satisfactory, as in figure I and
seam is badly puckered, the cause may be
tight tensions and both upper and lower may be adjusted. (See page 26)

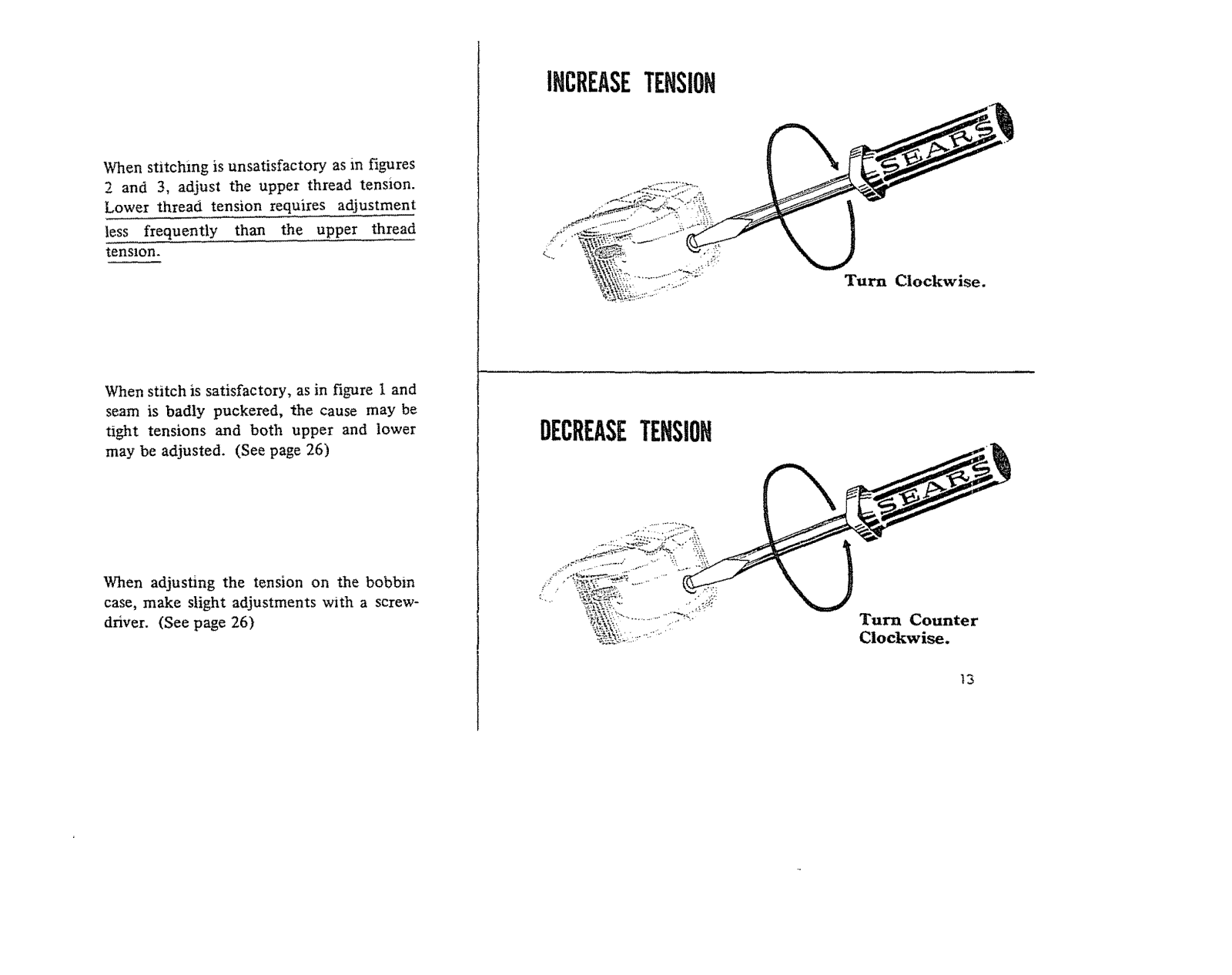

INCREASETENSION
Turn Clockwise.
DECREASETENSiOH
When adjusting the tension on the bobbin case, make slight adjustments with a screw- driver. (See page 26)
Turn Counter Clockwise.
13

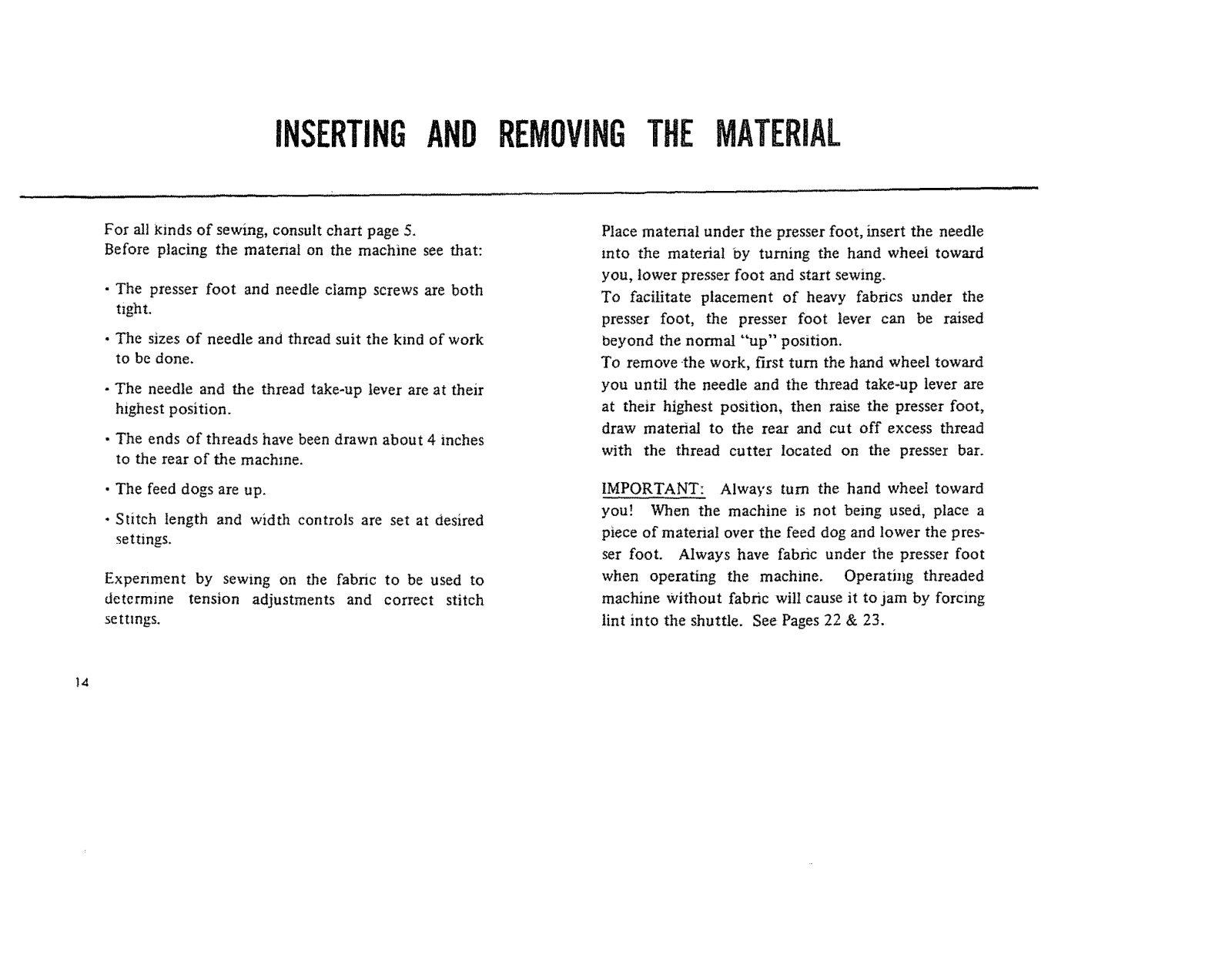

INSERTINGANDREMOVINGTHEMATERIAL
For all kinds of sewing, consult chart page 5.
Before placing the material on the machine see that:
The presser foot and needle clamp screws are both tight.
The sizes of needle and thread suit the kind of work to be done.
- The needle and the thread take-up lever are at their highest position.
. The ends of threads have been drawn about 4 inches
to the rear of the machine.
The feed dogs are up.
Stitch length and width controls are set at desired settings.
Expenment by sewing on the fabric to be used to determine tension adjustments and correct stitch
settings.
Place material under the presser foot, insert the needle into the material by turning the hand wheel toward you, lower presser foot and start sewing.
To facilitate placement of heavy fabrics under the
presser foot, the presser foot lever can be raised beyond the normal "'up" position.
To remove the work, first turn the hand wheel toward
you until the needle and the thread take-up lever are at their highest position, then raise the presser foot,
draw material to the rear and cut off excess thread with the thread cutter located on the presser bar.
IMPORTANT: Always turn the hand wheel toward you! When the machine is not being used, place a
piece of material over the feed dog and lower the pres- ser foot. Always have fabric under the presser foot when operating the machine. Operating threaded
machine Without fabric will cause it to jam by forcing lint into the shuttle. See Pages 22 & 23.
14

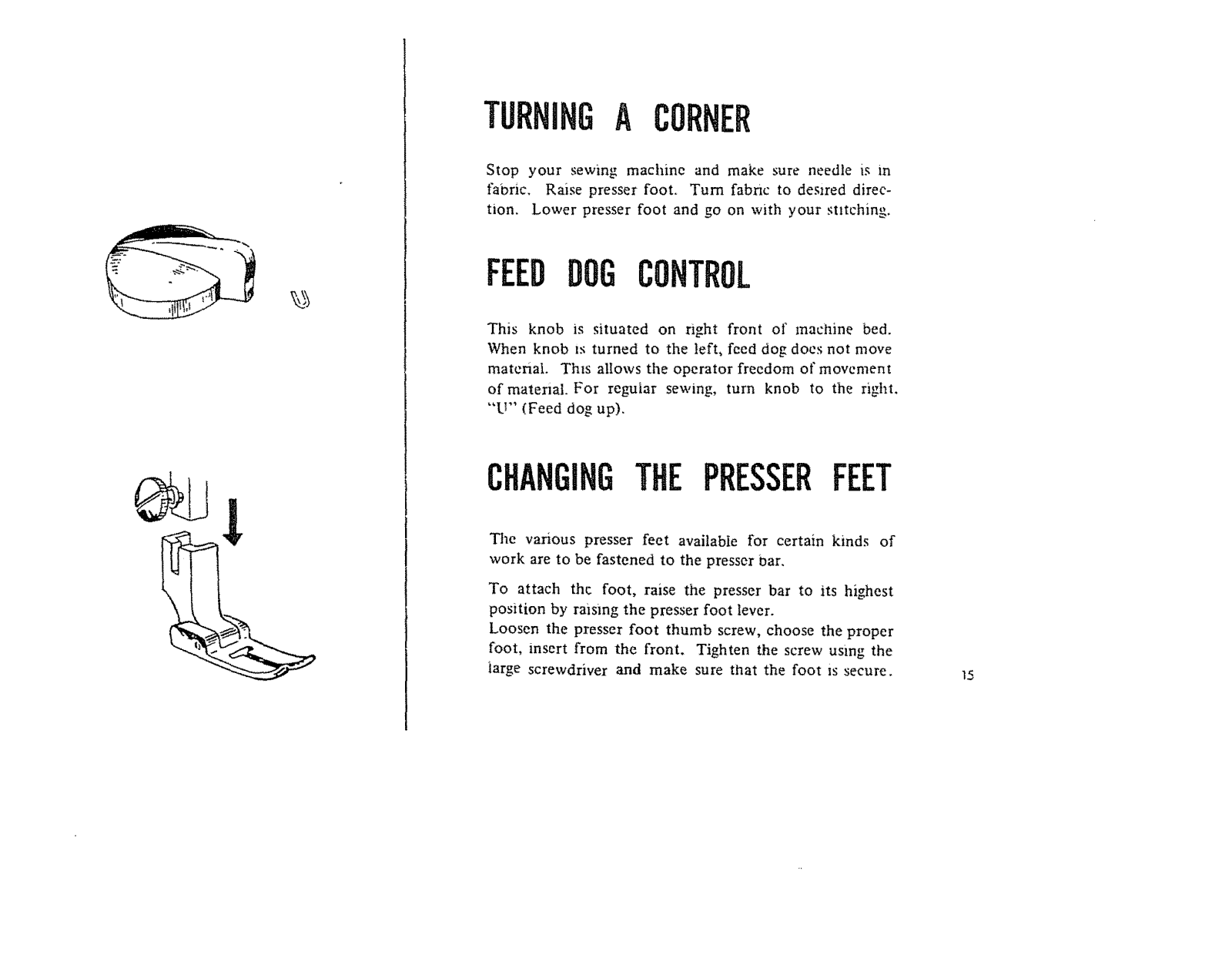

TURNINGA CORNER
Stop your sewing machine and make sure needle is in thbric, Raise presser foot. Turn fabric to desired direc-
tion. Lower presser foot and go on with your stztching.
FEED
This knob is situated on right front of machine bed.
When knob is turned to the left, feed dog does not move material Thzs allows the operator freedom of movement of materml. For regular sewing, turn knob to the right. "'U" (Feed dog up),
COHTROL
CHANGINGTHEPRESSERFEET
The various presser feet availabie for certain kinds of work are to be fastened to the presser IJar,
To attach the foot, raise the presser bar to its highest position by raising the presser foot lever.
Loosen the presser foot thumb screw, choose the proper
foot, insert from the front. Tighten the screw using the large screwdriver and make sure that the foot is secure.
15

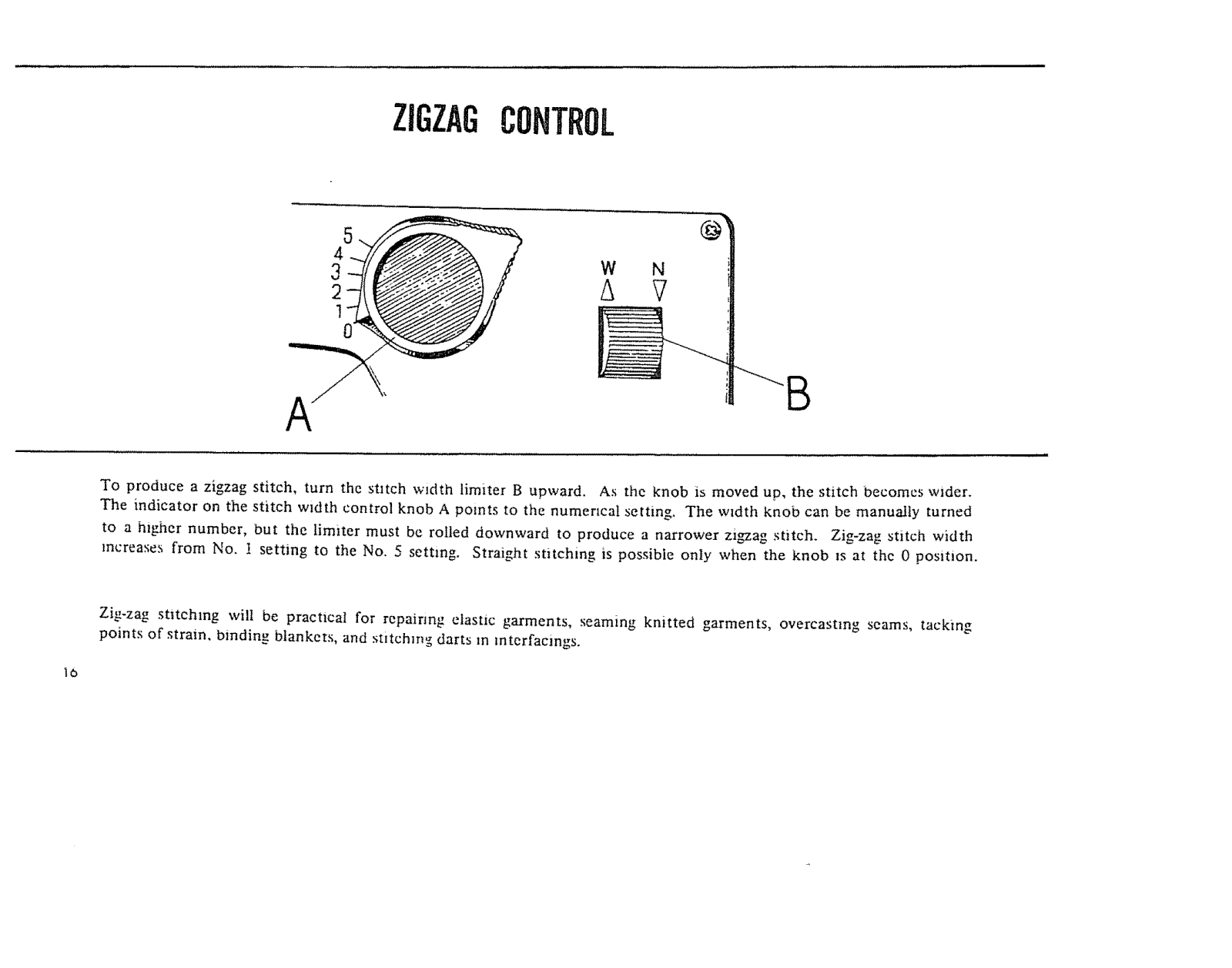

ZIGZAGCONTROL
To produce a zigzag stitch, turn the stitch width limiter B upward. As the knob is moved up, the stitch becomes wider. The indicator on the stitch width control knob A points to the numerical setting. The width knob can be manually turned
to a higher number, but the limiter must be rolled downward to produce a narrower zigzag stitch. Zig-zag stitch width Increases from No. I setting to the No. 5 setting. Straight stitching is possible only when the knob Is at thc 0 position.
Zig-zag stitching will be practical for repairing elastic garments, seaming knitted garments, overcasting seams, tacking points of strain, binding blankets, and st_tchlng darts m mtcrfacmgs.

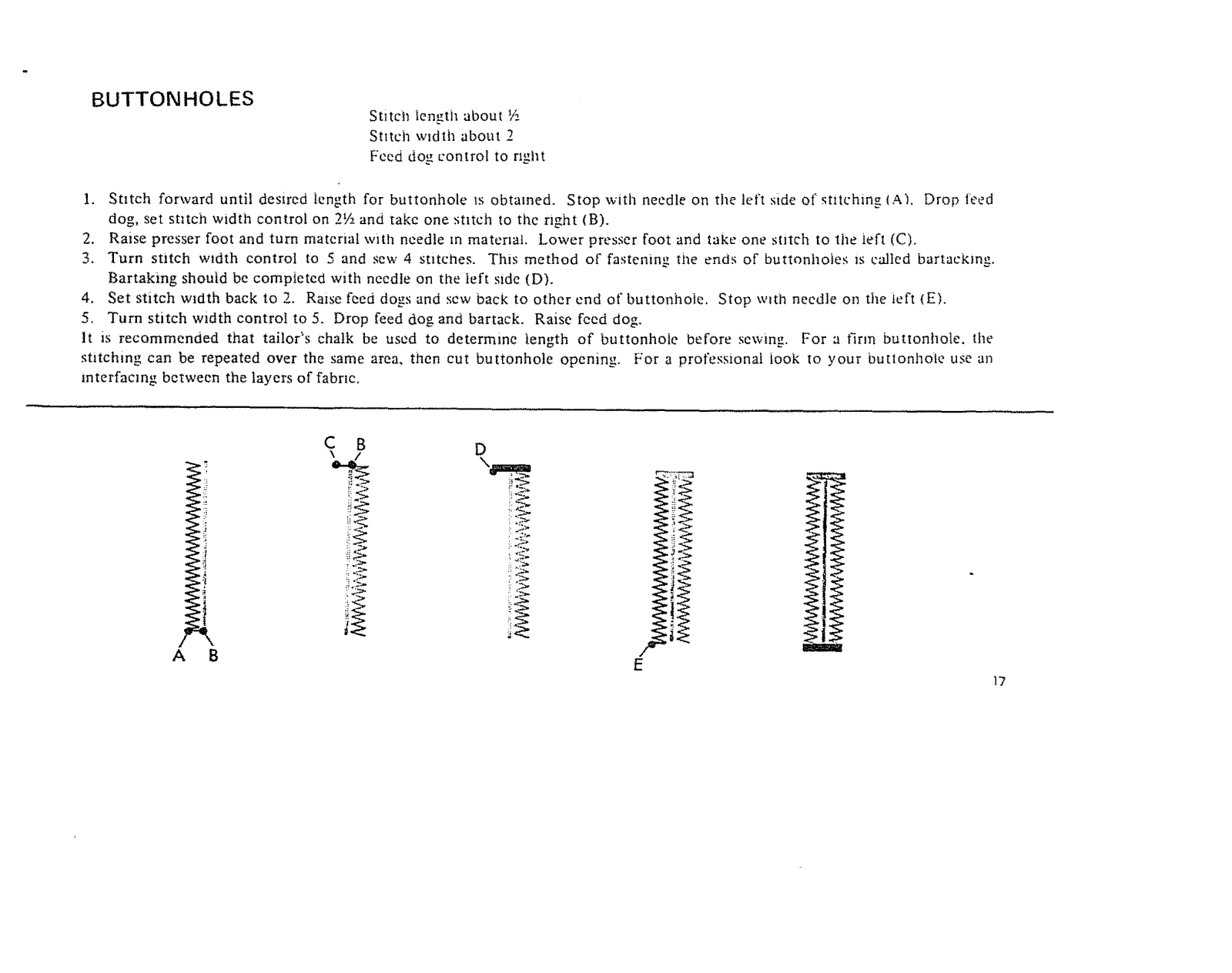

BUTTONHOLES
Stitch length about V__ Stitch width about 2
Feed dog control to right
1. Stitch forward until desired length for buttonhole is obtained. Stop with needle on tlle left side of stitching (A). Drop leed
dog, set stitch width control on 2Vzand take one stitch to the right (B).
2. Raise presser foot and turn material with needle in material. Lower presser foot and take one stitch to the left (C).
3. Turn stitch width control to 5 and sew 4 stitches. This method of fastening the ends of buttonhoies is eNled bartaeking. Bartaking should be completed with needle on the left side (D).
4. Set stitch width back to 2. Raise feed dogs and sew back to other end of buttonhole. Stop w_th needle oil tile left (E).
5. Turn stitch width control to 5. Drop feed dog and bartack. Raise feed dog.
It is recommended that tailor's chalk be used to determine length of buttonhole before sewing. For a firm buttonhole, tile
stitching can be repeated over the same area, then cut buttonhole opening. For a professional look to your buttonho|e use an interfacing between the layers of fabric.
C
A
E
17

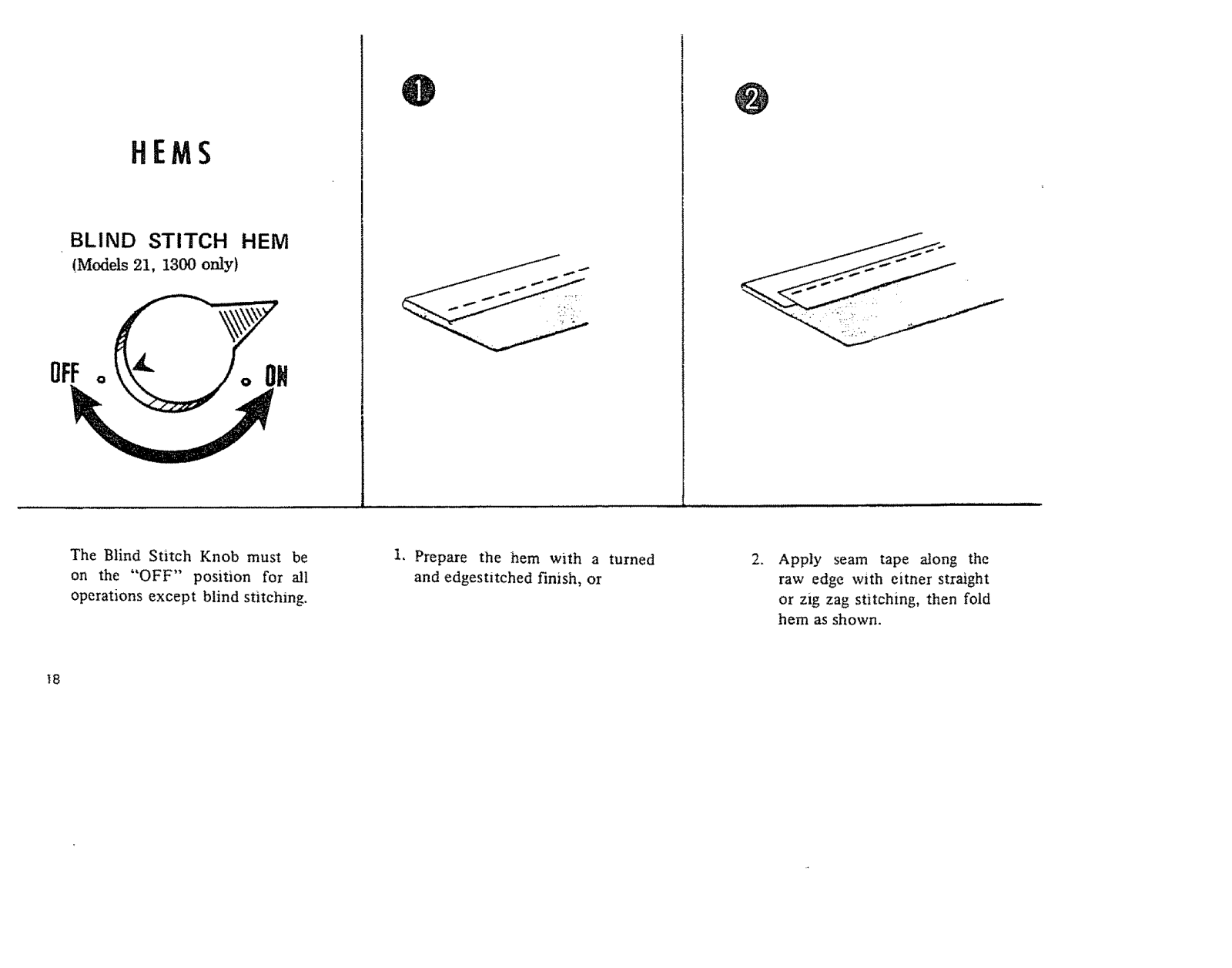

HEMS
BLIND STITCH HEM
(Models 21, 1300 only)
The Blind Stitch Knob must be on the "OFF" position for all operations except blind stitching.
_8
1, Prepare the hem with a turned
and edgestitched finish, or
2_
Apply seam tape along the raw edge with eitner straight or zig zag stitching, then fold
hem as shown.

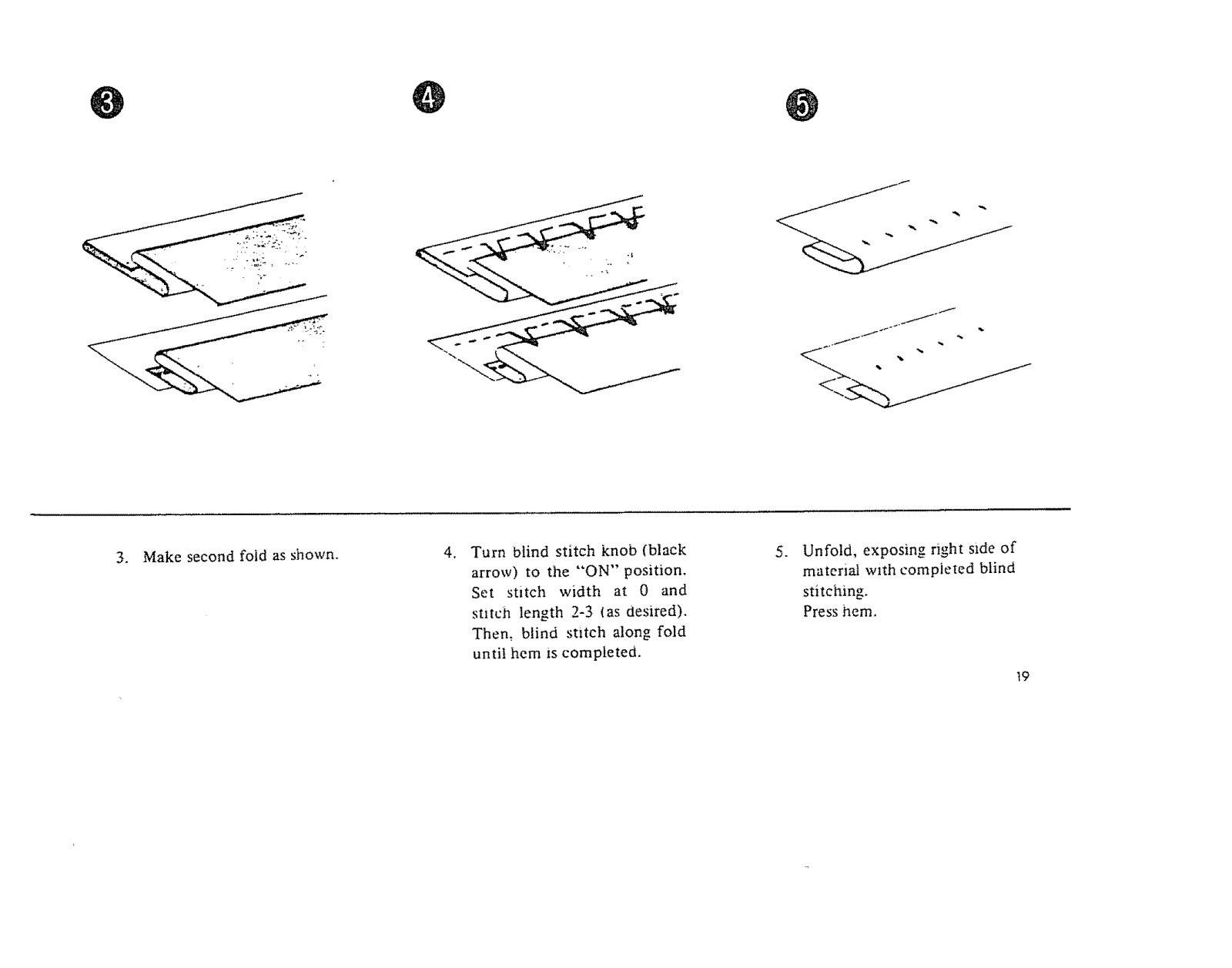

3. Make second fold as shown.
Turn blind stitch knob (black
4_
arrow) to the "ON" position. Set stitch width at 0 and
stitch length 2-3 €as desired). Then, blind stitch along fold
until hem is completed.
5_ Unfold, exposing right side of
material with completed blind stitching.
Press hem.
_9

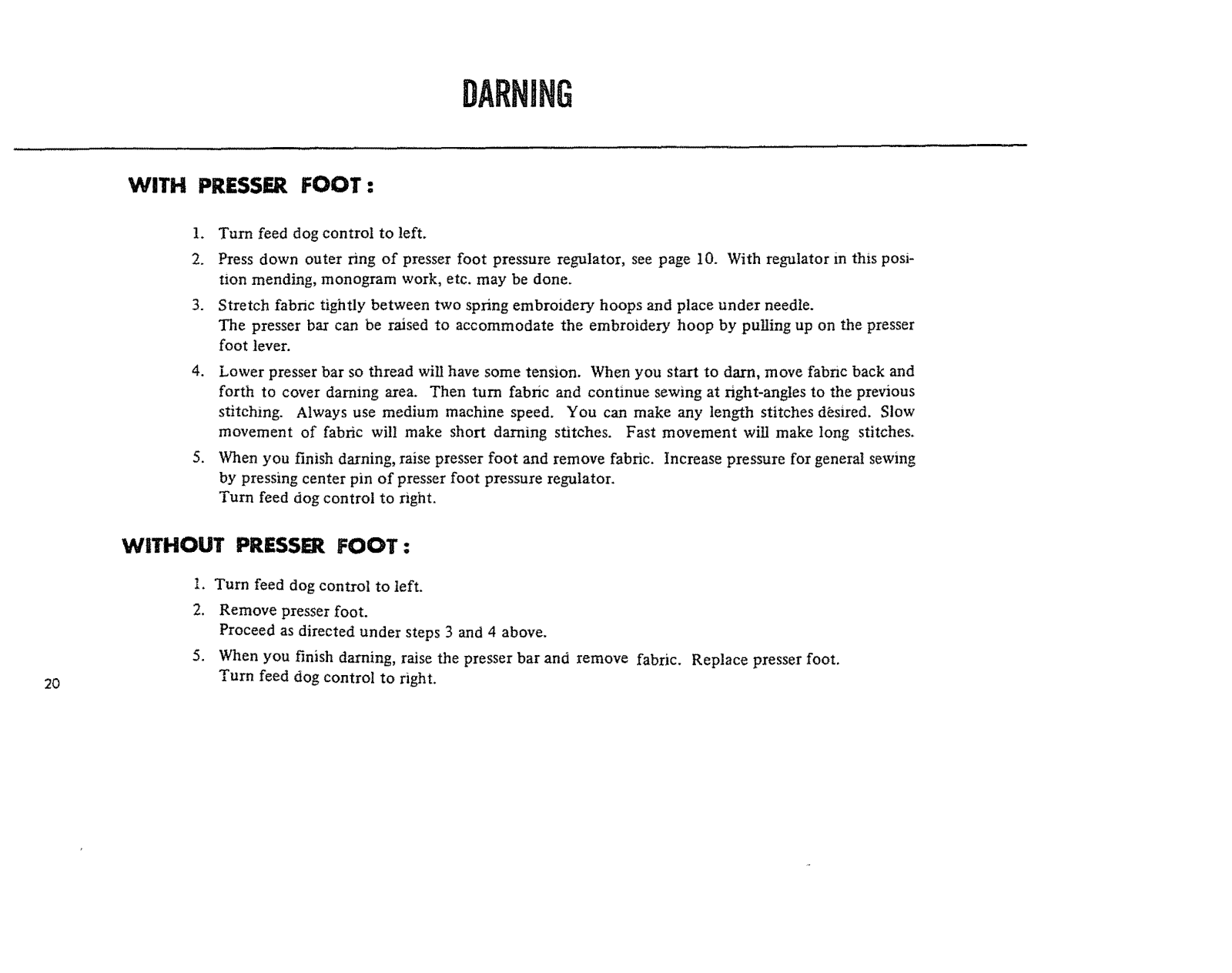

WITH PRES51ER FOOT :
1. Turn feed dog control to left.
2. Press down outer ring of presser foot pressure regulator, see page 10. With regulator In this posi- tion mending, monogram work, etc. may be done.
3. Stretch fabric tightly between two spring embroidery hoops and place under needle. The presser bar can be raised to accommodate the embroidery hoop by pulling up on the presser
foot lever.
4. Lower presser bar so thread will have some tension. When you start to darn, move fabric back and forth to cover darning area. Then turn fabric and continue sewing at right-angles to the previous
stitching. Always use medium machine speed. You can make any length stitches d_sired. Slow movement of fabric wilt make short darning stitches. Fast movement will make tong stitches.
5. When you finish darning, raise presser foot and remove fabric. Increase pressure for general sewing
by pressing center pin of presser foot pressure regulator.
Turn feed dog control to right.
DARHJHG
2O
WITHOUT PRESSER FOOT :
i. Turn feed dog control to left.
2. Remove presser foot. Proceed as directed under steps 3 and 4 above.
5. When you finish darning, raise the presser bar and remove fabric. Replace presser foot. Turn feed dog control to right.
SEWINGON BUTTONS
1. Turn feed dog control to left. Place needle into left hole of button, align holes with slot of presser foot and lower presser foot.
2. Set stitch width control at width between holes of button. Test width by turning handwheet slowly. Take several zigzag stitches to
sew on button, ending with needle on left side.
3. Set stitch width control at 0. button to lock threads.
Pull threads to wrong side.
NOTE: To make a small thread shank when sewing on a flat button.
place a stra:ght pin or needle between the holes of the button.
Take a few stitches in left hole of
OVERCASTING
Set stitch width to 5. Set stitch length at 5. Zigzag stitch around raw
edge of fabric to completely cover the edge.
21
CLEAHIHGAHDOILiHG............
Keep the moving parts free from dust and threads for quiet and efficient operation. Cleaning should be done with a small brush, never with a sharp or pointed tool. When machine runs hard or makes excessive noise, place a drop of KENMORE sewing
machine oil at the points indicated by arrows. To oil top of _e machine, place a few drops of oil through the holes on the top cover
plate while the needle is at the lowest point, or remove top cover plate by unsm_ewing two screws and oil at the points indicated by arrows. (Model 1206) Tilt machine head back to oil points indicated on underside of machine hexad.
/
22

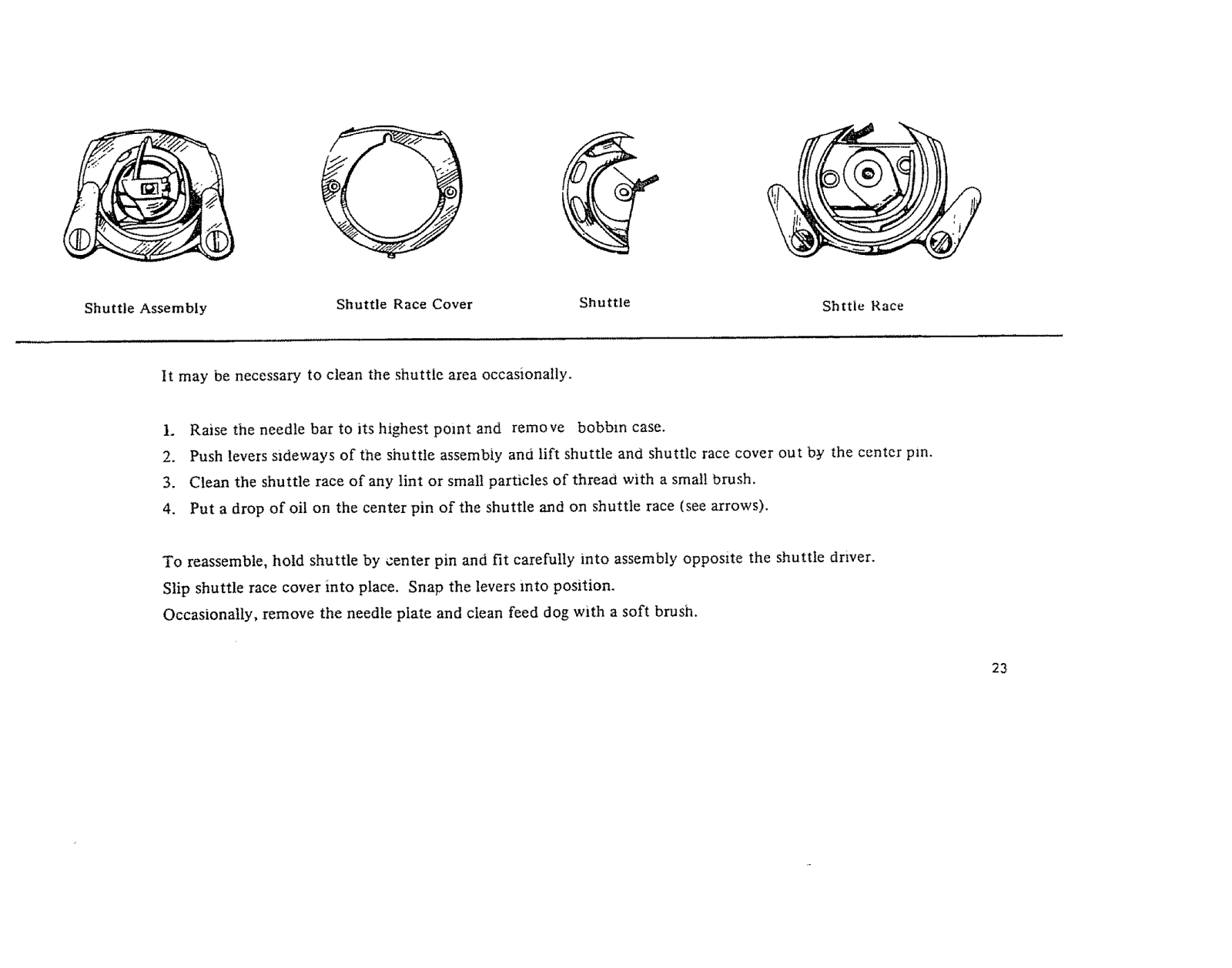

ShuttleAssembly
It may be necessary to clean the shuttle area occasionally.
L Raise the needle bar to its highest point and remove bobbin case.
2. Push levers sideways of the shuttle assembiy and lift shuttle and shuttlc race cover out by the center pro.
3. Clean the shuttle race of any tint or small particles of thread with a small brush.
4. Put a drop of oil on the center pin of the shuttle and on shuttle race (see arrows).
To reassemble, hold shuttle by center pin and fit carefully into assembly opposite the shuttle driver.
Slip shuttle race cover into place. Snap the levers into position. Occasionally, remove the needle plate and clean feed dog with a soft brush.
ShuttleRaceCover
Shuttle Shttle Race
23
WHATTO
PROBLEM PROBABLE CAUSE COR RECTION
Incorrect s_ze needte. Improper [breading,
Loose upper thread tension.
trregular
Stitches
Pulling fabric. Light pressure on presser toot. Loose presser foot. Unevenly wound bobbin,
Pulling fabric.
Breakmg
Needles
Incorrect size needle. Incorrect setting of needle,
Loose presser foot.
Bunching of
Th read
Upper and lower threads not
drawn back under presser fool
Feed dog down.
Incorrect thread tension{s). Light pressure on presser foot.
Using two different sizes or kinds
Puckering
of thread. Bent or brunt needle.
Loose presser foot. Fabric too sheer or too soft.
24
Choose correct size needle for thread and fabric (page 5),
Rethread machine (page 9). Tighten upper thread tension (page 12). Do not pull fabric; guide it gently. Increase pressure on presser foot (page 10).
Reset presser foot.
Rewind bobbin (page 7).
Do not puIl fabric; guide it gently.
Choose correct size needle for thread and fabric (page 5).
Reset needle (page 5). Reset presser foot,
Draw both threads back under presser foot {page 10),
Raise feed dog.
Reset thread tension {s) (page 12. 13). increase pressure on presser foot (page 10).
Upper thread and bobbin thread should be same size and kind,
tnsert new needle (page 5), Reset presser foot. Use underlay of tissure paper or tarleton when stitching.
i , i i i i
WHATTO
PROBLEM PROBABLE CAUSE CORRECTION
Skipping
Stitches
Breaking Upper
Thread
Breaking Bobbin
Thread
Fabric not
Movi ng
Machine Jamming (Knocking Noise)
tncorrect size needle,
Bent or blunt needle.
Incorrect setting of needle.
Tight upper thread tension.
Light pressure on presser foot.
Starting to stitch too fast.
Improper threading.
Tight upper thread tension.
Incorrect size needle.
Sharp eye in needle.
Improper bobbin case threading. Check bobbin case threading (page 8).
Tight bobbin thread tension_ Loosen bobbin thread tensEon (page 13).
Lint in bobbin case or shuttle. Clean bobbin case and shuttle (page 22 & 23).
Feed dog down. Light pressure on presser foot.
Threads kno-.ted under fabric.
Thread caught m shuttle.
Choose correct size needle for thread and fabric (page 5).
Insert new needle (page 5).
Reset needle (page 5). Loosen upper thread tension (page 12L
Increase pressure on presser foot (page 10).
Start to stitch at a medium speed.
Rethread machine (page 9). Loosen upper thread tension (page 12).
Choose correct size needle for thread and fabric (page 5).
Insert new needle (page 5).
Raise feed dog. Increase pressure on presser foot {page 10).
Place both threads back under presser foot before beginning to stitch.
Disassemble and clean shuttle (page 22 & 23).
i ,H llllll
25
ADJUSTINGYOURSEWINGMACHIHEFORGOOD
When your sewing machine does not sew a properly locked stitch, check the following:
Insert a new needle of.the correct size for the thread and fabric you are using. Consult chart on page five
for needle size.
.
The upper and bobbin thread should be the same thread.
3.
Check threading carefully. See page 8-9.
4.
Check the thread tension balance. Use mercerized thread and a correct size needle for the fabric you are
using. Do not try this test with synthetic thread as it will not break. Begin with a full bobbin, properly threaded into the case. Set the stitch length at about 12 stitches per inch.
Fold a six inch square of your fabric in half diagona!ly, forming a triangle. Make a line of stitching ½"" from
fold.
a. If seam is puckered-both tensions are too tight. b. If the bottom thread lays on the fabric-tighten upper thread tension, and repeat test.
See page 12, Figure 3.
c. If the top thread lays on the fabric-loosen upper thread tension and repeat test.
See page 12, Figure 2.
Grasp the stitching and pull evenly and firmly until one or both threads break.
STITCHES
a. If both threads break-tensions are balanced. b. If neither thread breaks-both tensions are too loose.
c. If upper thread breaks-loosen upper tension. d. If lower thread breaks-tighten upper tension.
Both threads do not have to break at the same place, but they should break on the same snap.
Bobbin tension may be reset by the following procedure. Start with a loose bobbin thread tension. Tighten the
26
spring screw gradually -until bobbin case and full bobbin can be gently lifted from your hand by the end of the bobbin thread.
PARTSLIST
All parts listed hem may be ordered through your nearest Sears or $impsens-Sears retail stem, catalog sales office or
mail order house.
When ordering these parts, please be sure to mention the following references:
1. Model & serial numbers of machine shown on the nomenclature plate. See page 2.
2. Parts number(s) and description(s) here.
When ordering by mail, prices will be furnished on request, or parts will be shipped at prevailing prices and you will
be billed accordingly. Ref. No. Parts No. Description
1 2
6
3
J
b7
9 10 11
1 \
1 2
5
3
4 5
6
8 9
10
11 12
13
14
135 Presser foot thumb screw
201201 Needle clamp
8286 Thread spool pin 2273 Nylon disc
4607 Presser foot 6741 Pack of #11 needles
(Yellow pack)
6742 Pack of #t4 needles
(Red pack)
6743 Pack of#16 needles
(Green pack)
6744 Pack of #18 needles
(Blue pack)
201709 Bobbin winder thread and
top thread guide
1939 Bobbin winder rubber nng
6862 Pack of bobbin (10 pcs )
6510 Bobbin case
47 Shuttle hook
6902 Motor rubber belt 3015 Large screwdriver
3016 Small screwdriver
27

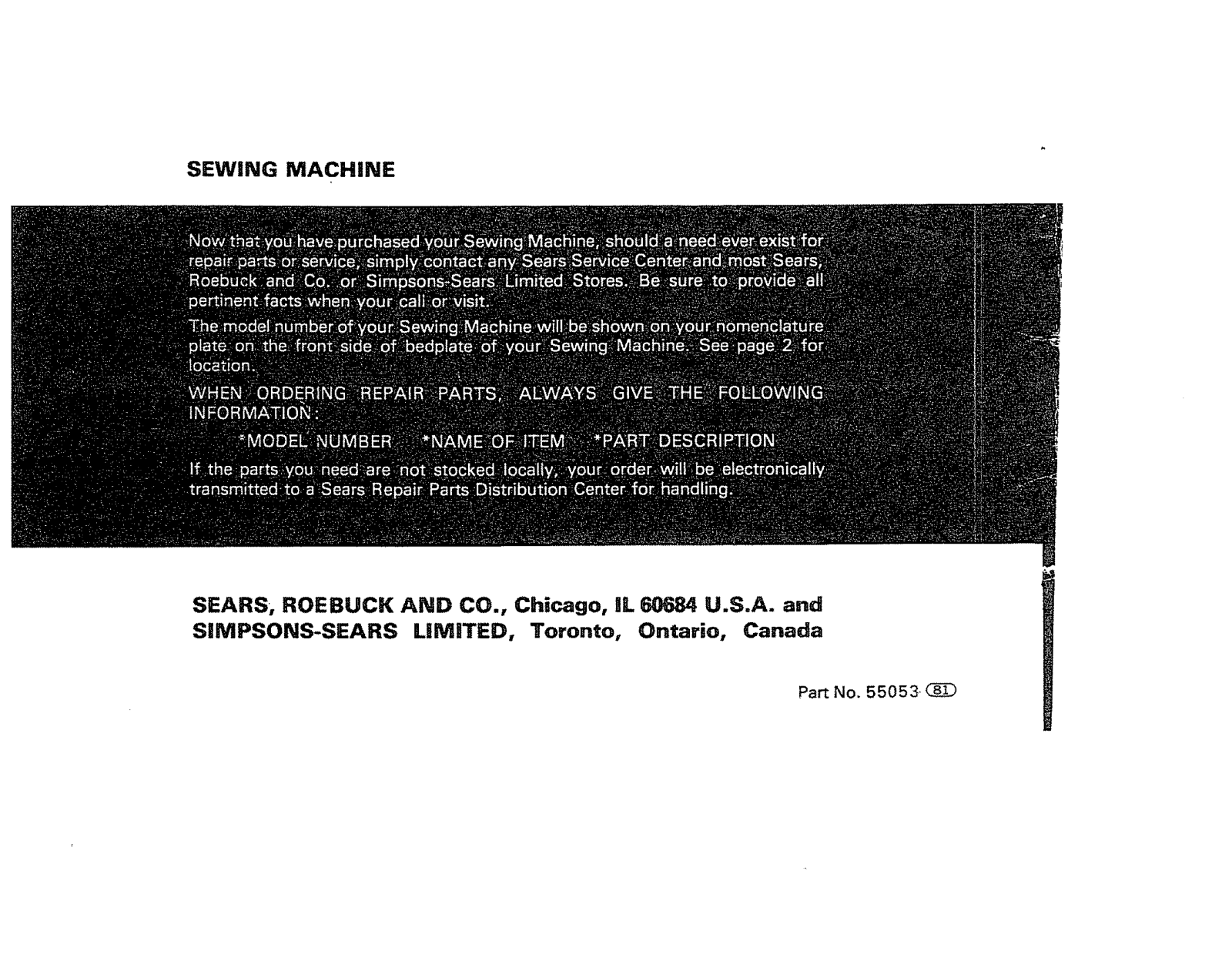

SEWING MACHINE
SEARS; ROEBUCK AND CO., Chicago, IL 60684 U.S.A. and SIMPSONS-SEARS LiMiTED, Toronto, Ontario, Canada
Part No. 55053.
Loading...
