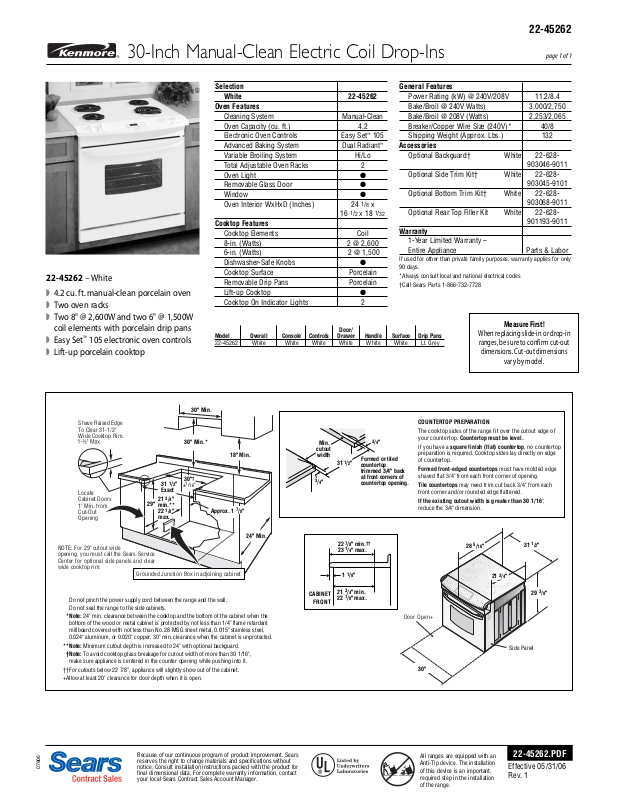

Kenmore 22-45262 User Manual
22-45262
22-45262.PDF
Because of our continuous program of product improvement, Sears
reserves the right to change materials and specifications without
notice. Consult installation instructions packed with the product for
final dimensional data. For complete warranty information, contact
your local Sears Contract Sales Account Manager.
Effective 05/31/06
Rev. 1
07806
Selection
White 22-45262
Oven Features
Cleaning System Manual-Clean
Oven Capacity (cu. ft.) 4.2
Electronic Oven Controls Easy Set™105
Advanced Baking System Dual Radiant
™
Variable Broiling System Hi/Lo
Total Adjustable Oven Racks 2
Oven Light ●
Removable Glass Door ●
Window ●
Oven Interior WxHxD (Inches) 24 1/8x
16 1/2 x 18 1/
32
Cooktop Features
Cooktop Elements Coil
8-in. (Watts) 2 @ 2,600
6-in. (Watts) 2 @ 1,500
Dishwasher-Safe Knobs ●
Cooktop Surface Porcelain
Removable Drip Pans Porcelain
Lift-up Cooktop ●
Cooktop On Indicator Lights 2
General Features
Power Rating (kW) @ 240V/208V 11.2/8.4
Bake/Broil @ 240V Watts) 3,000/2,750
Bake/Broil @ 208V (Watts) 2,253/2,065
Breaker/Copper Wire Size (240V)* 40/8
Shipping Weight (Approx. Lbs.) 132
Accessories
Optional Backguard† White 22-628-
903046-9011
Optional Side Trim Kit† White 22-628-
903045-9101
Optional Bottom Trim Kit† White 22-628-
903068-9011
Optional Rear Top Filler Kit White 22-628-
901193-9011
Warranty
1-Year Limited Warranty –
Entire Appliance Parts & Labor
If used for other than private family purposes, warranty applies for only
90 days.
*Always consult local and national electrical codes
†Call Sears Parts 1-866-732-7728
30-Inch Manual-Clean Electric Coil Drop-Ins
page 1 of 1
All ranges are equipped with an
Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
22-45262 – White
◗ 4.2 cu. ft. manual-clean porcelain oven
◗ Two oven racks
◗ Two 8" @ 2,600W and two 6" @ 1,500W
coil elements with porcelain drip pans
◗ Easy Set
™
105 electronic oven controls
◗ Lift-up porcelain cooktop
Door/
Model Overall Console Controls Drawer Handle Surface Drip Pans
22-45262 White White White White White White Lt. Grey
21 3/4" min.
22 1/8" max.
CABINET
FRONT
1 1/8"
22
7
/8" min.
††
23 1/4" max.
Do not pinch the power supply cord between the range and the wall.
Do not seal the range to the side cabinets.
*Note: 24" min. clearance between the cooktop and the bottom of the cabinet when the
bottom of the wood or metal cabinet is protected by not less than 1/4" flame retardant
millboard covered with not less than No. 28 MSG sheet metal, 0.015" stainless steel,
0.024" aluminum, or 0.020" copper. 30" min. clearance when the cabinet is unprotected.
**Note: Minimum cutout depth is increased to 24" with optional backguard.
†Note: To avoid cooktop glass breakage for cutout width of more than 30 1/16",
make sure appliance is centered in the counter opening while pushing into it.
††For cutouts below 22 7/8”, appliance will slightly show out of the cabinet.
+Allow at least 20" clearance for door depth when it is open.
Shave Raised Edge
To Clear 31-1/2"
Wide Cooktop Rim.
Locate
Cabinet Doors
1" Min. from
Cut-Out
Opening
NOTE: For 29" cutout wide
opening, you must call the Sears Service
Center for optional side panels and clear
wide cooktop rim.
31
1
/2"
Exact
30" Min.
18" Min.
Approx. 1
7
/8"
30" Min.*
29"
30"
†
±1/16"
21
3
/4"
min.**
22 1/8"
max.
Grounded Junction Box in adjoining cabinet
24" Min.
Side Panel
Door Open+
21
3
/4"
28 5/16"
31
1
/2"
29
3
/8"
21
3
/4"
30"
Min.
cutout
width
3
/4"
3
/4"
31
1
/2"
COUNTERTOP PREPARATION
The cooktop sides of the range fit over the cutout edge of
your countertop. Countertop must be level.
If you have a square finish (flat) countertop, no countertop
preparation is required. Cooktop sides lay directly on edge
of countertop.
Formed front-edged countertops must have molded edge
shaved flat 3/4" from each front corner of opening.
Tile countertops may need trim cut back 3/4" from each
front corner and/or rounded edge flattened.
If the existing cutout width is greater than 30 1/16",
Formed or tiled
countertop
trimmed 3/4" back
at front corners of
countertop opening.
reduce the 3/4" dimension.
Measure First!
When replacing slide-in or drop-in
ranges, be sure to confirm cut-out
dimensions. Cut-out dimensions
vary by model.
