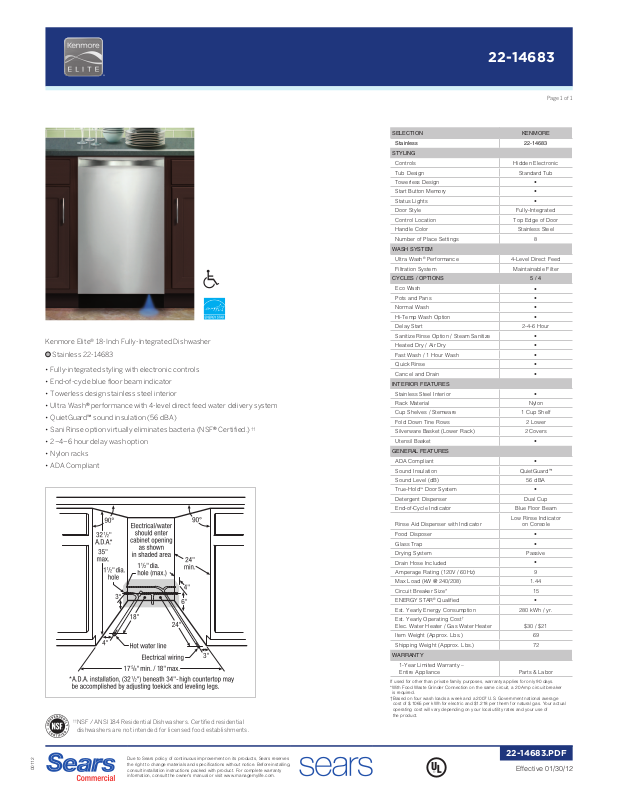

Kenmore 22-14683 Specifications
Kenmore Elite® 18-Inch Fully-Integrated Dishwasher
Stainless 22-14683
• Fully-integrated styling with electronic controls
• End-of-cycle blue floor beam indicator
• Towerless design stainless steel interior
• Ultra Wash® performance with 4-level direct feed water delivery system
• QuietGuard™ sound insulation (56 dBA)
• Sani Rinse option virtually eliminates bacteria (NSF® Certified.)
† †
• 2–4–6 hour delay wash option
• Nylon racks
• ADA Compliant
††
NSF / ANSI 184 Residential Dishwashers. Certified residential
dishwashers are not intended for licensed food establishments.
22-14683
Page 1 of 1
SELECTION KENMORE
Stainless 22-14683
STYLING
Controls
Tub Design Standard Tub
Towerless Design •
Start Button Memory •
Status Lights •
Door Style
Control Location Top Edge of Door
Handle Color Stainless Steel
Number of Place Settings 8
WASH SYSTEM
CYCLES / OPTIONS 5 / 4
INTERIOR FEATURES
GENERAL FEATURES
WARRANTY
If used for other than private family purposes, warranty applies for only 90 days.
* With Food Waste Grinder Connection on the same circuit, a 20 Amp circuit breaker
is required.
† Based on four wash loads a week and a 2007 U.S. Government national average
®
Performance 4-Level Direct Feed
Ultra Wash
Filtration System Maintainable Filter
Eco Wash
Pots and Pans •
Normal Wash •
Hi-Temp Wash Option •
Delay Start 2-4-6 Hour
Sanitize Rinse Option / Steam Sanitize •
Heated Dry / Air Dry •
Fast Wash / 1 Hour Wash •
Quick Rinse •
Cancel and Drain
Stainless Steel Interior •
Rack Material Nylon
Cup Shelves / Stemware 1 Cup Shelf
Fold Down Tine Rows 2 Lower
Silverware Basket (Lower Rack) 2 Covers
Utensil Basket •
ADA Compliant •
Sound Insulation
Sound Level (dB) 56 dBA
™
Door System •
True-Hold
Detergent Dispenser Dual Cup
End-of-Cycle Indicator Blue Floor Beam
Rinse Aid Dispenser with Indicator
Food Disposer •
Glass Trap •
Drying System Passive
Drain Hose Included
Amperage Rating (120V / 60Hz) 9
Max Load (kW @ 240/208) 1.44
Circuit Breaker Size* 15
ENERGY STAR
Est. Yearly Energy Consumption
Est. Yearly Operating Cost
Elec. Water Heater / Gas Water Heater $30 / $21
Item Weight (Approx. Lbs.) 69
Shipping Weight (Approx. Lbs.)
1-Year Limited Warranty –
Entire Appliance Parts & Labor
cost of $.1065 per kWh for electric and $1.218 per therm for natural gas. Your actual
operating cost will vary depending on your local utility rates and your use of
the product.
®
Qualified
†
Hidden Electronic
Fully-Integrated
•
•
QuietGuard™
Low Rinse Indicator
on Console
•
•
280 kWh / yr.
72
00112
Due to Sears policy of continuous improve ment on its products, Sears reserves
the right to change materials and specifications without notice. Before installing,
consult installation instructions packed with product. For complete warranty
information, consult the owner’s manual or visit www.managemylife.com.
22-14683.PDF
Effective 01/30/12
