Kenmore 146.23675310 Owner's Manual

Use & Care Guide

Manual de Uso y Cuidado

English / Espafiol

Models/Modelos: 146.23674310/146.23675310

Items / Articulos: 640-05057350-0/640-05057351-8

I<enmore Elite°

@ @

P/N 30800316 Sears Brands Management Corporation

Hoffman Estates, IL 60179 U.S.A. www.kenmore.com

www.sears.com www.kmart.com

g d_ oro °

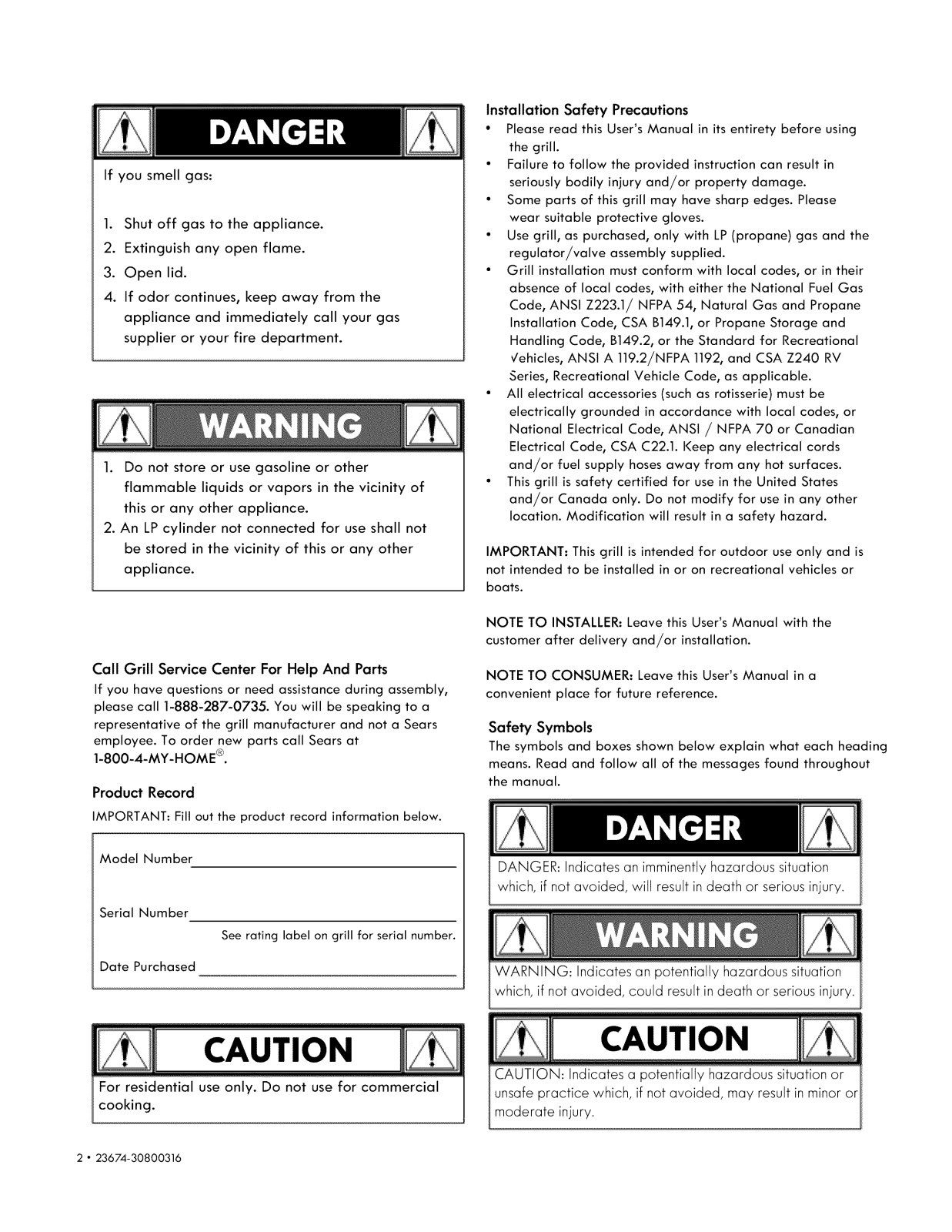

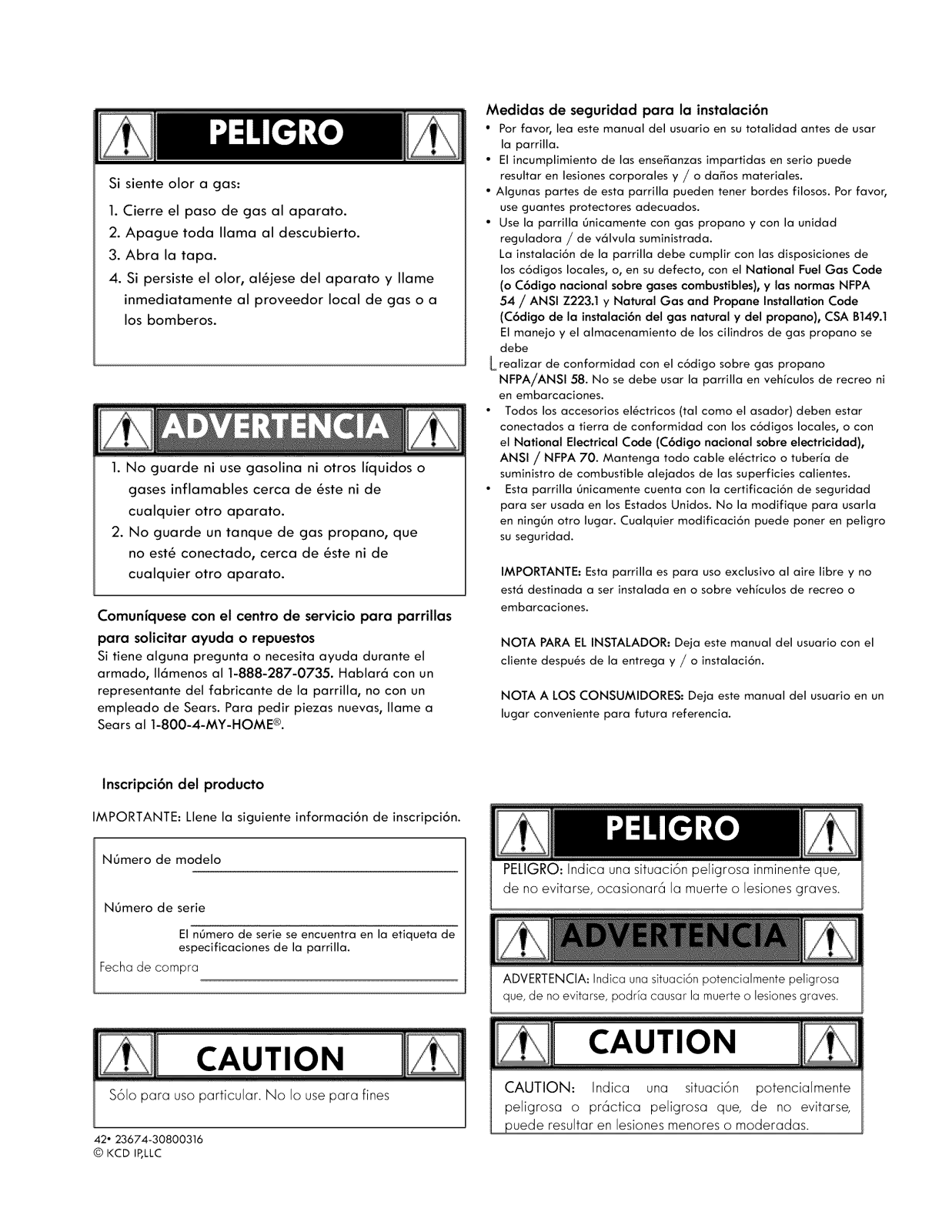

Ifyousmellgas.

1. Shutoff gastotheappliance.

2. Extinguishanyopenflame.

3. Open lid.

4. If odor continues, keep away from the appliance and immediately call your gas

supplier or your fire department.

1. Do not store or use gasoline or other flammable liquids or vapors in the vicinity of

this or any other appliance.

2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

Installation Safety Precautions

• Please read this User's Manual in its entirety before using the grill.

• Failure to follow the provided instruction can result in

seriously bodily injury and!or property damage.

• Some parts of this grill may have sharp edges. Please wear suitable protective gloves.

• Use grill, as purchased, only with LP (propane) gas and the

regulator/valve assembly supplied.

• Grill installation must conform with local codes, or in their absence of local codes, with either the National Fuel Gas

Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage and

Handling Code, B149.2, or the Standard for Recreational

Cehicles, ANSI A 119.2!NFPA 1192, and CSA Z240 RV

Series, Recreational Vehicle Code, as applicable.

• All electrical accessories (such as rotisserie) must be electrically grounded in accordance with local codes, or

National Electrical Code, ANSI / NFPA 70 or Canadian Electrical Code, CSA C22.1. Keep any electrical cords

and/or fuel supply hoses away from any hot surfaces.

• This grill is safety certified for use in the United States and/or Canada only. Do not modify for use in any other

location. Modification will result in a safety hazard.

IMPORTANT: This grill is intended for outdoor use only and is not intended to be installed in or on recreational vehicles or

boats.

Call Grill Service Center For Help And Parts

If you have questions or need assistance during assembly,

please call 1-888-287-0735. You will be speaking to a representative of the grill manufacturer and not a Sears

employee. To order new parts call Sears at 1-800-4-MY-HOME ®.

Product Record

IMPORTANT: Fill out the product record information below.

Model Number

Serial Number

See rating label on grill for serial number.

Date Purchased

NOTE TO INSTALLER: Leave this User's Manual with the

customer after delivery and/or installation.

NOTE TO CONSUMER: Leave this User's Manual in a

convenient place for future reference.

Safety Symbols The symbols and boxes shown below explain what each heading

means. Read and follow all of the messages found throughout the manual.

DANGER: Indicatesan imminentlyhazardoussituation which,if not avoided, will resultindeath or seriousinjury.

WARNING: Indicates an potentially hazardous situation which, if not avoided, could result in death or serious injury.

For residential use only. Do not use for commercial

cooking.

2 * 23674-30800316

CAUTION: Indicates a potentially hazardous situationor unsafepractice which, if not avoided, may result inminoror moderate injury.

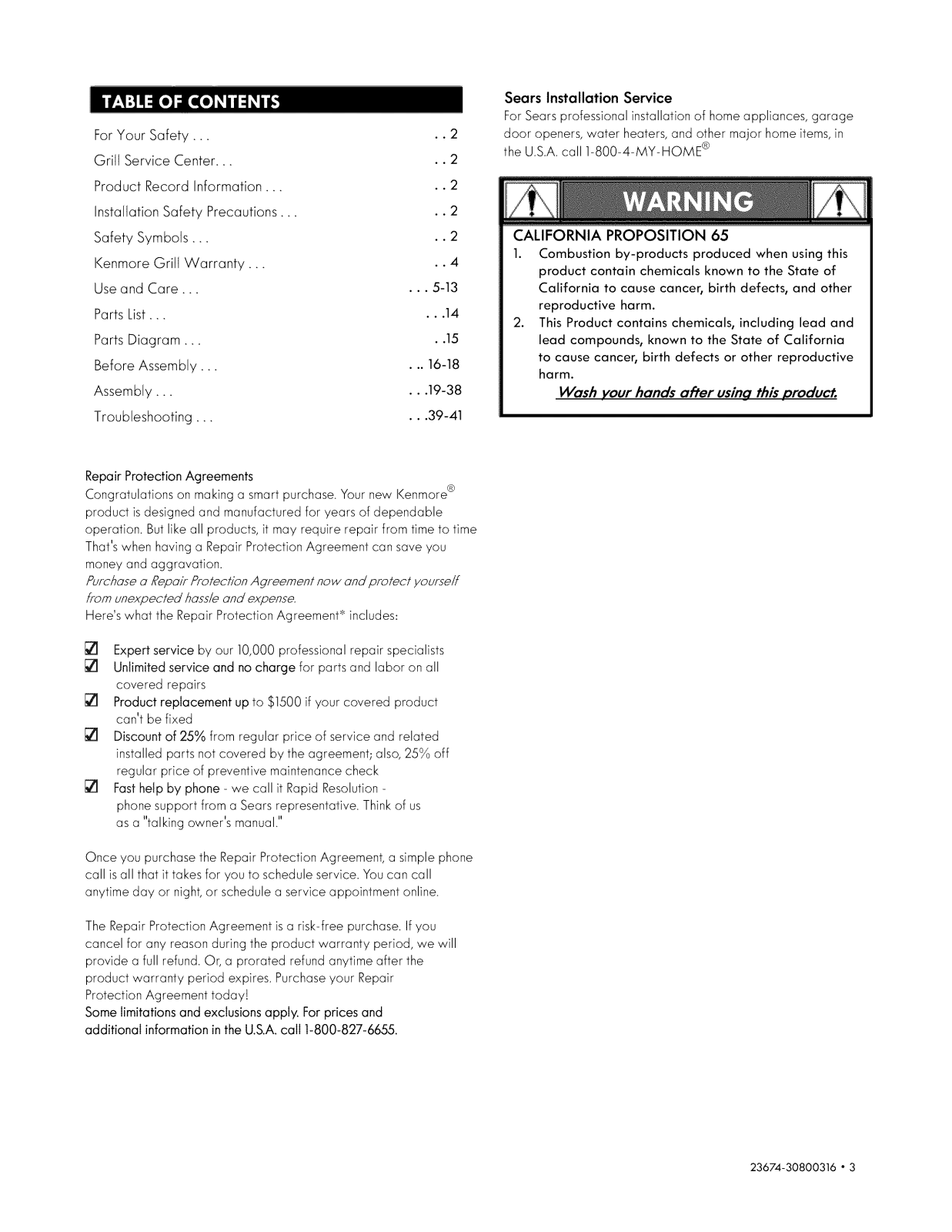

For Your Safety ...

Grill Service Center...

Product Record Information... Installation Safety Precautions...

Safety Symbols ...

Kenmore Grill Warranty...

Use and Care

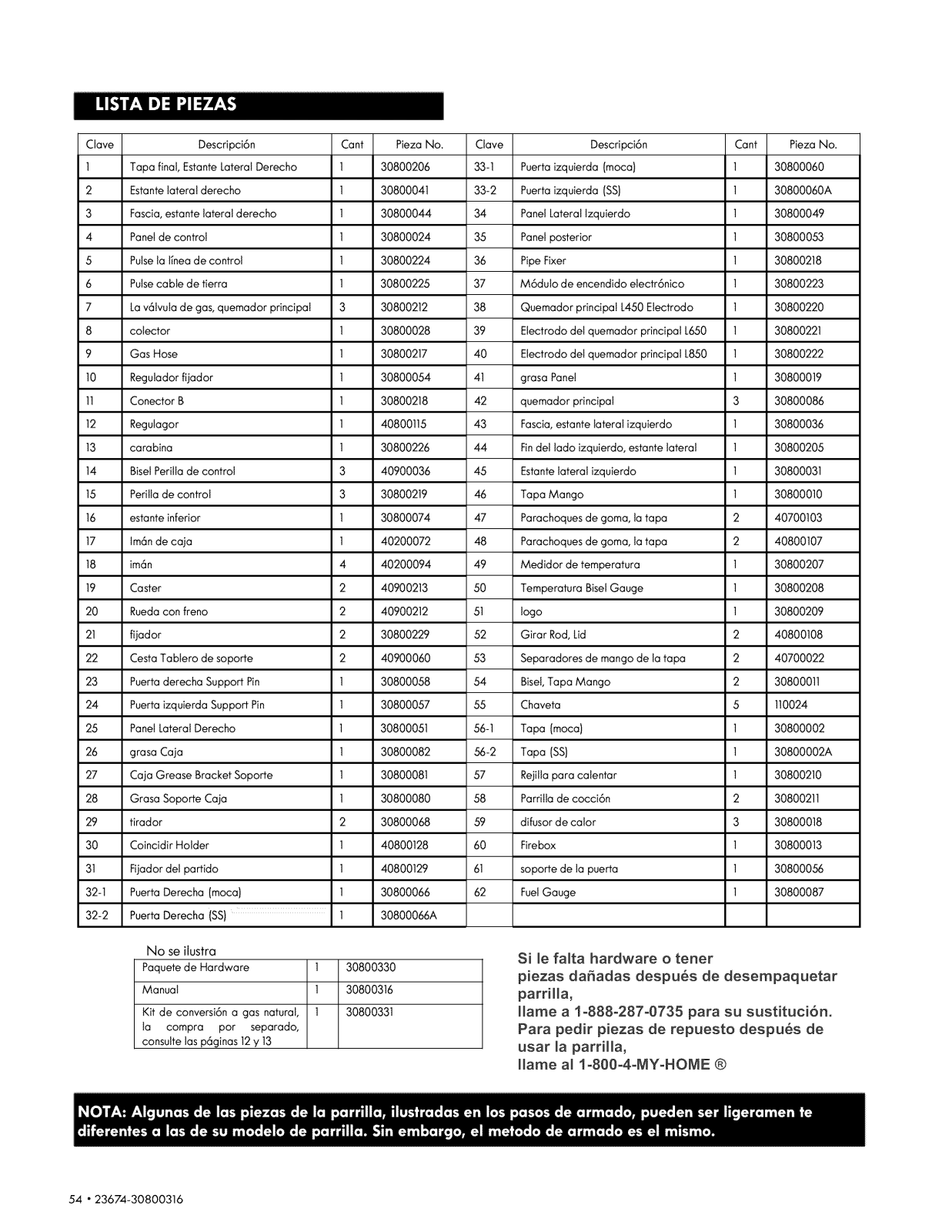

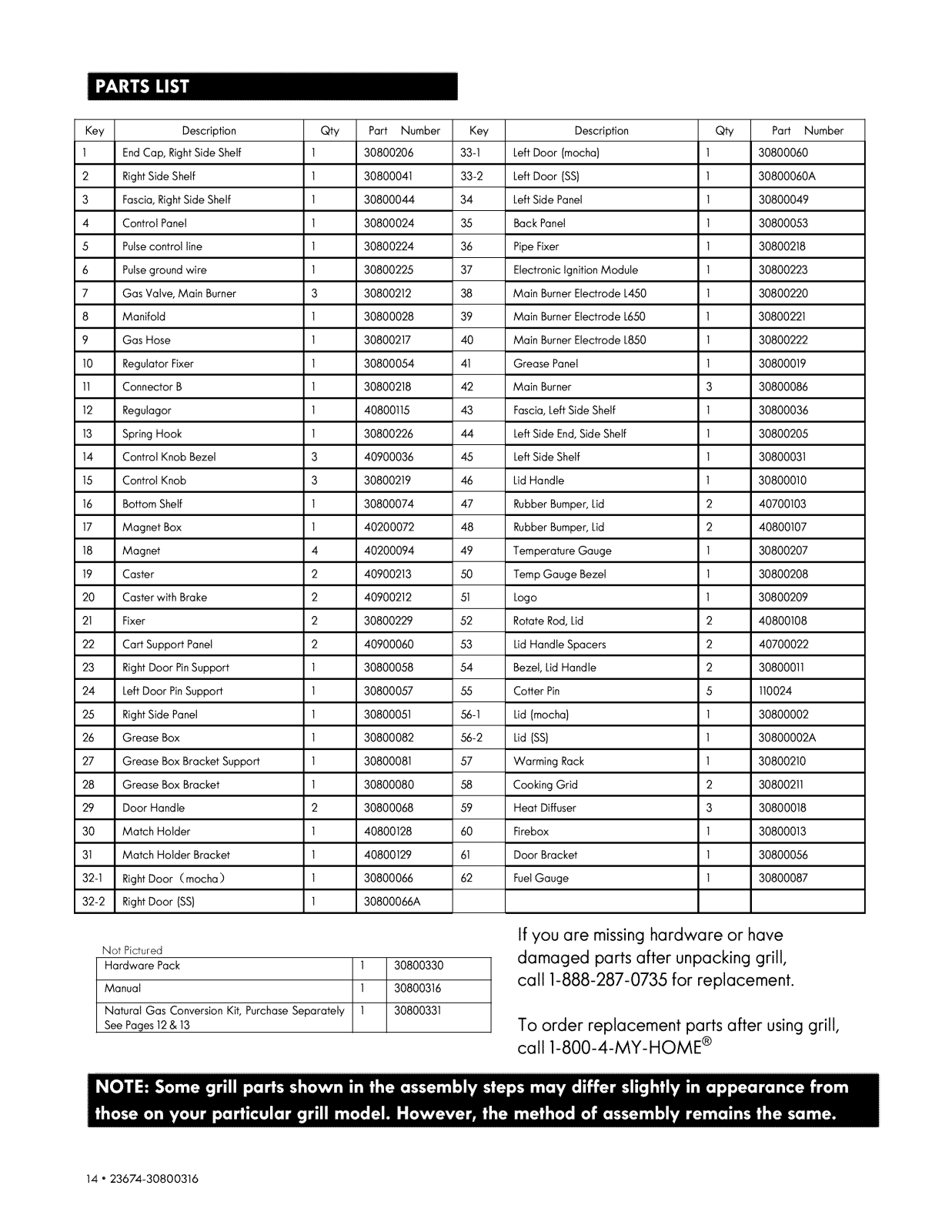

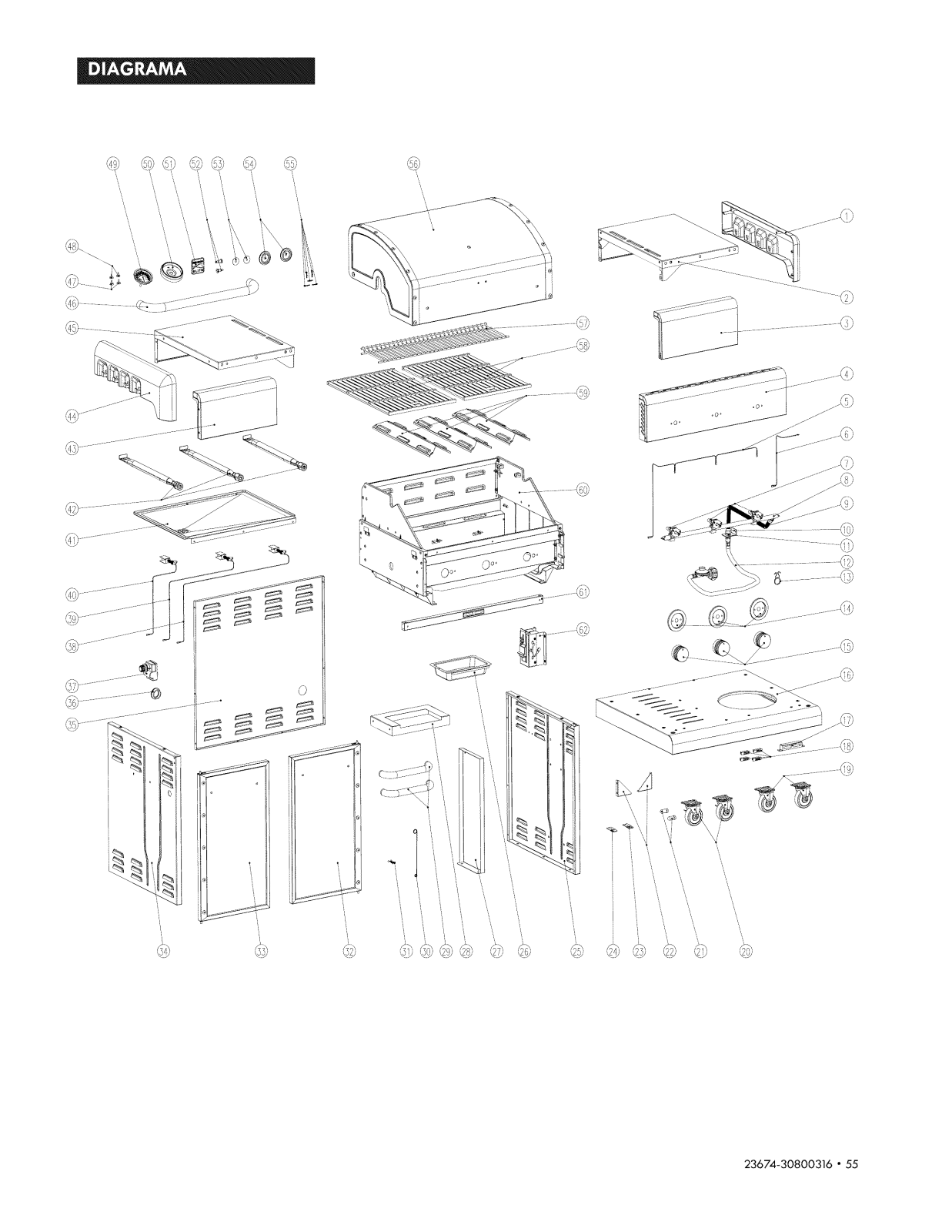

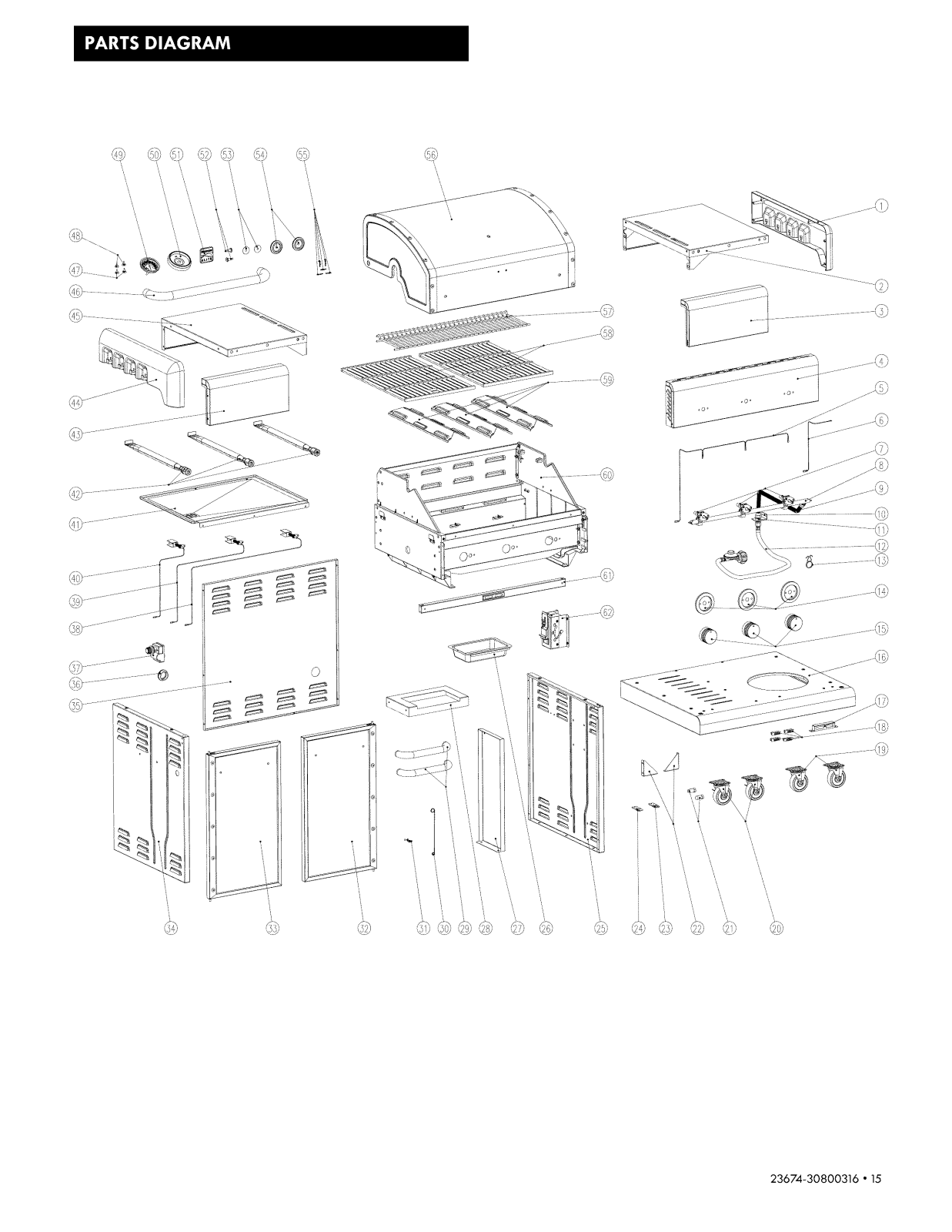

Parts List... Parts Diagram ..

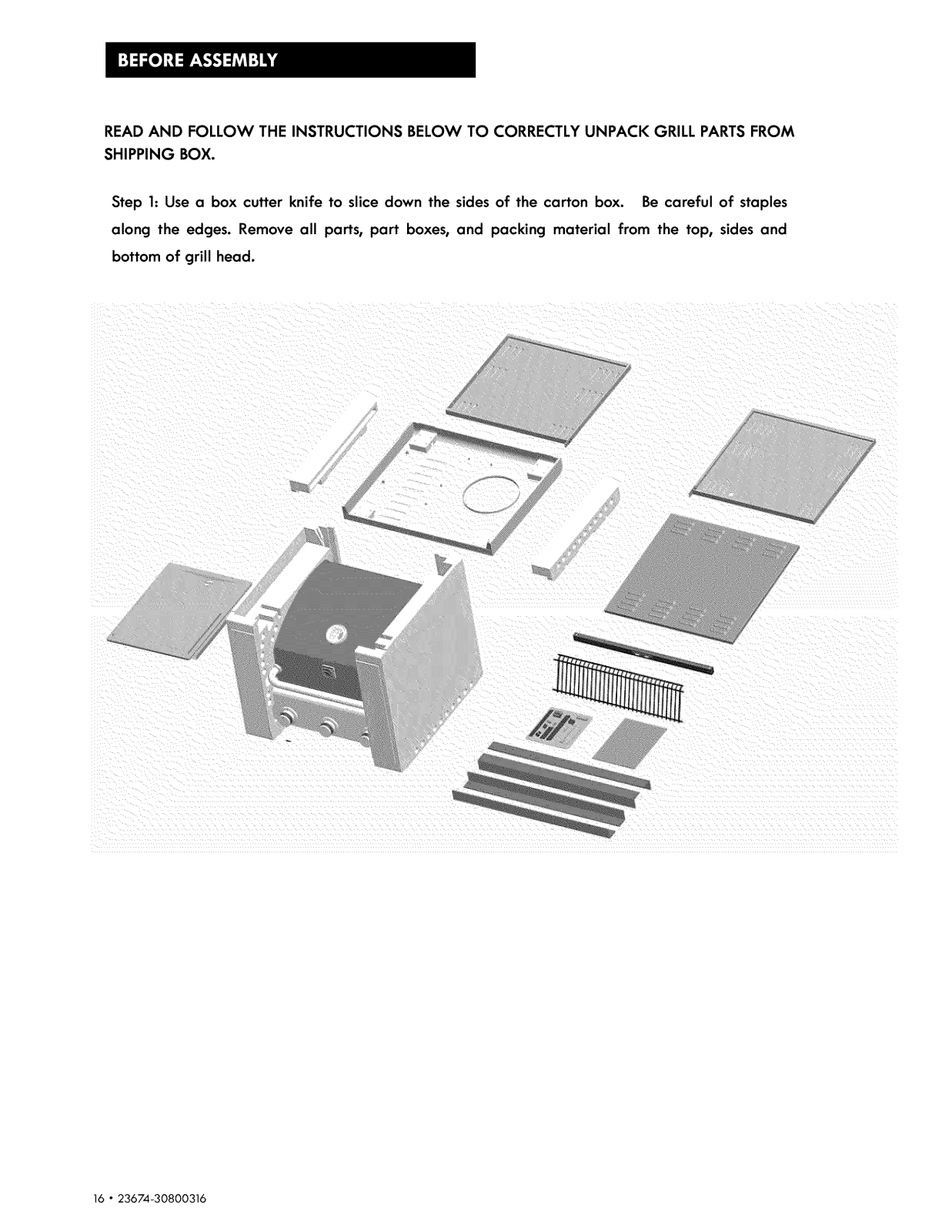

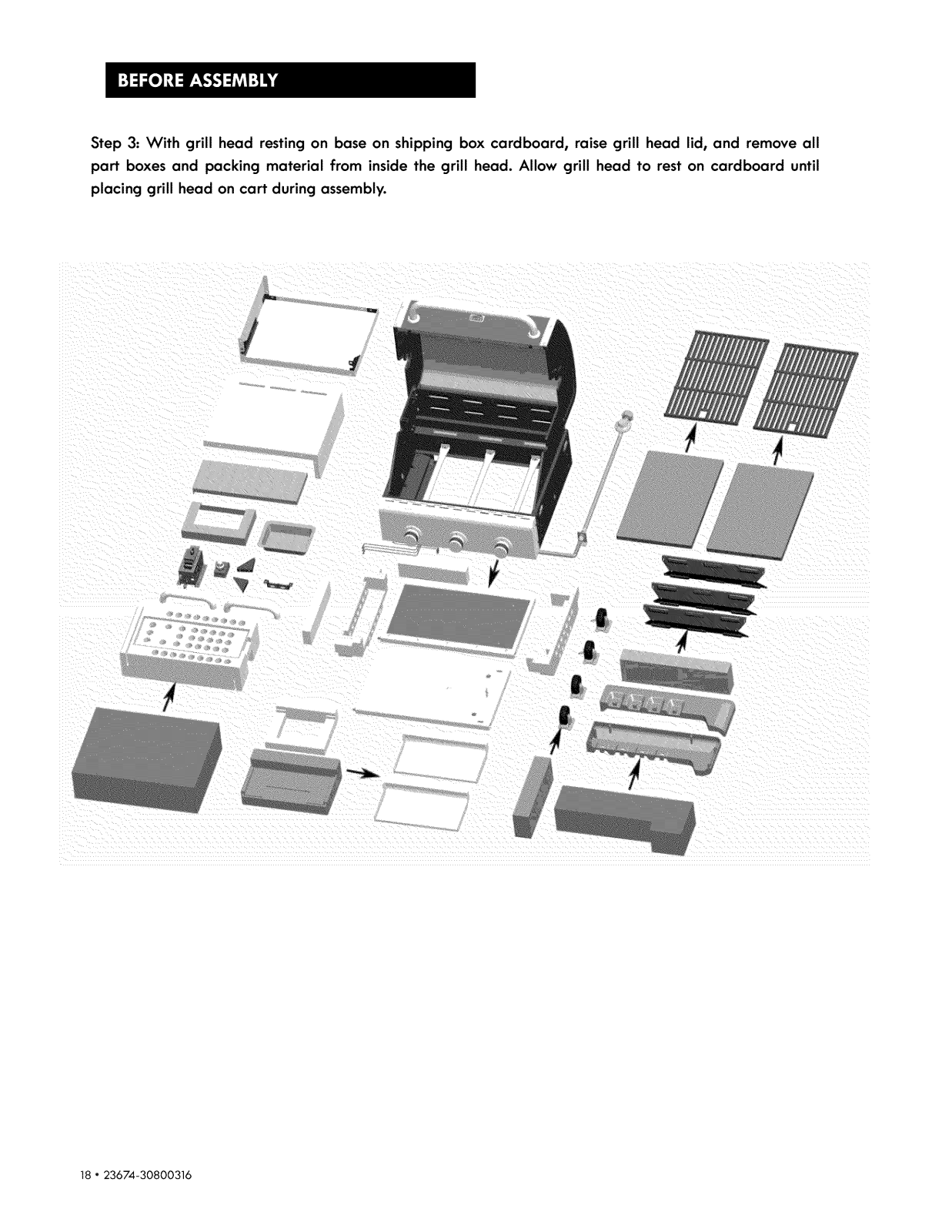

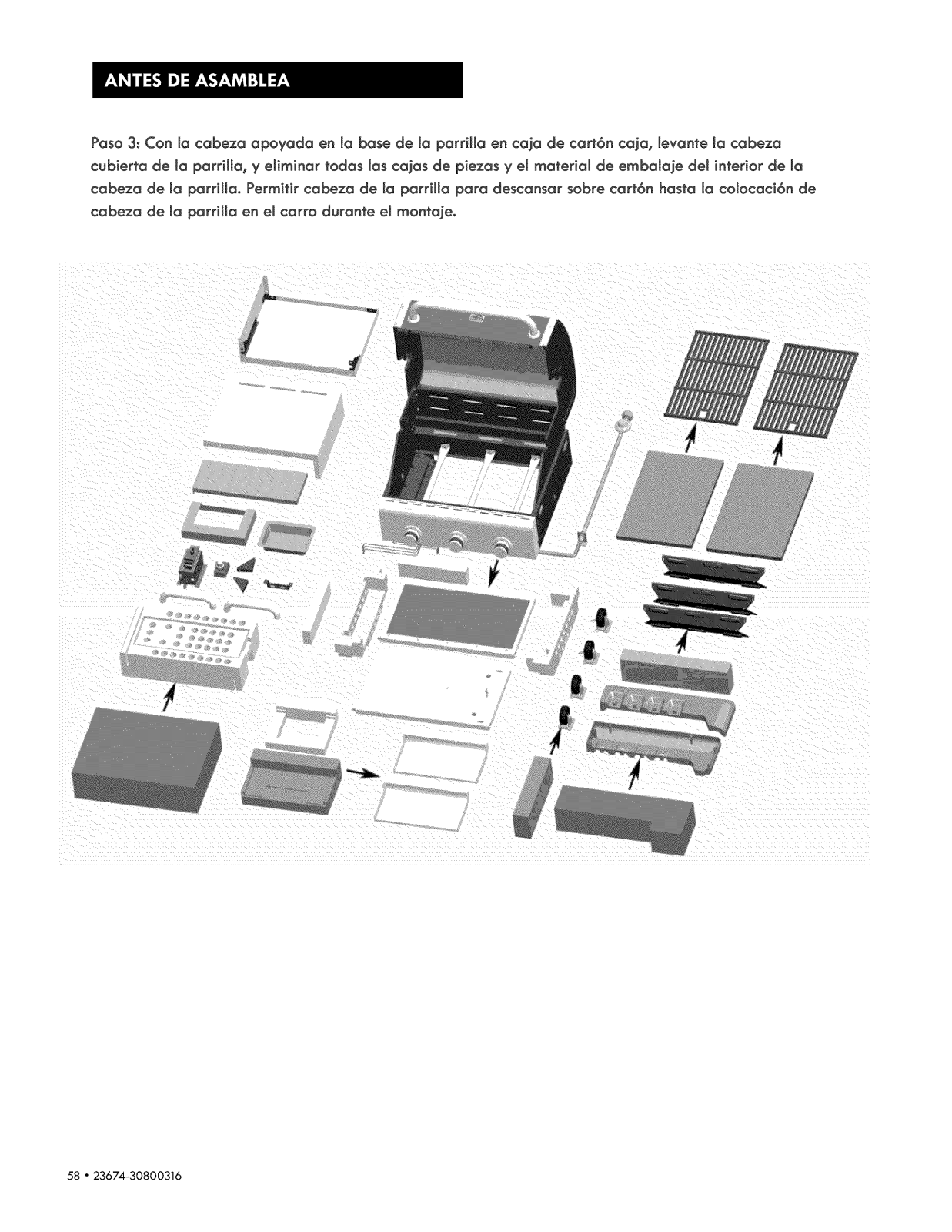

Before Assembly...

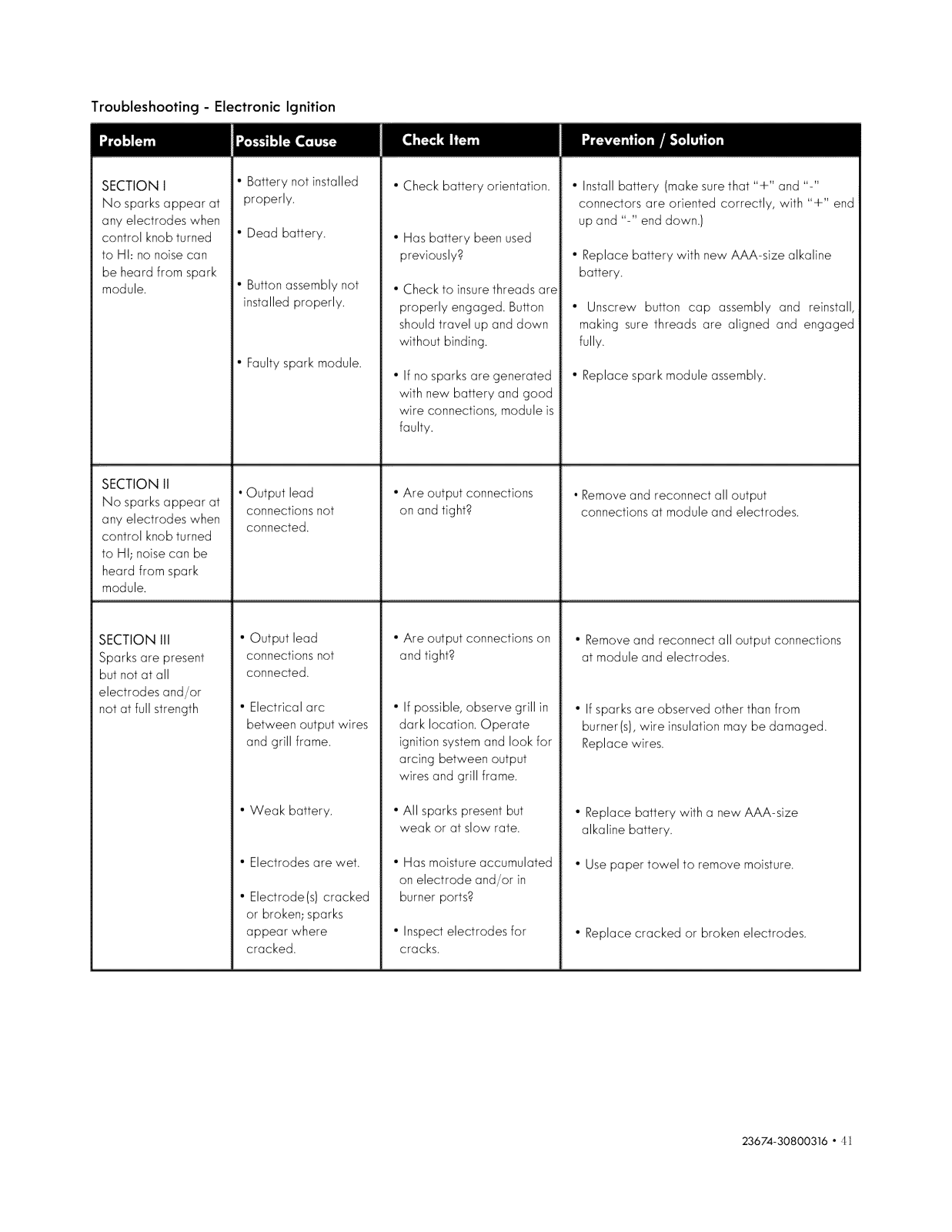

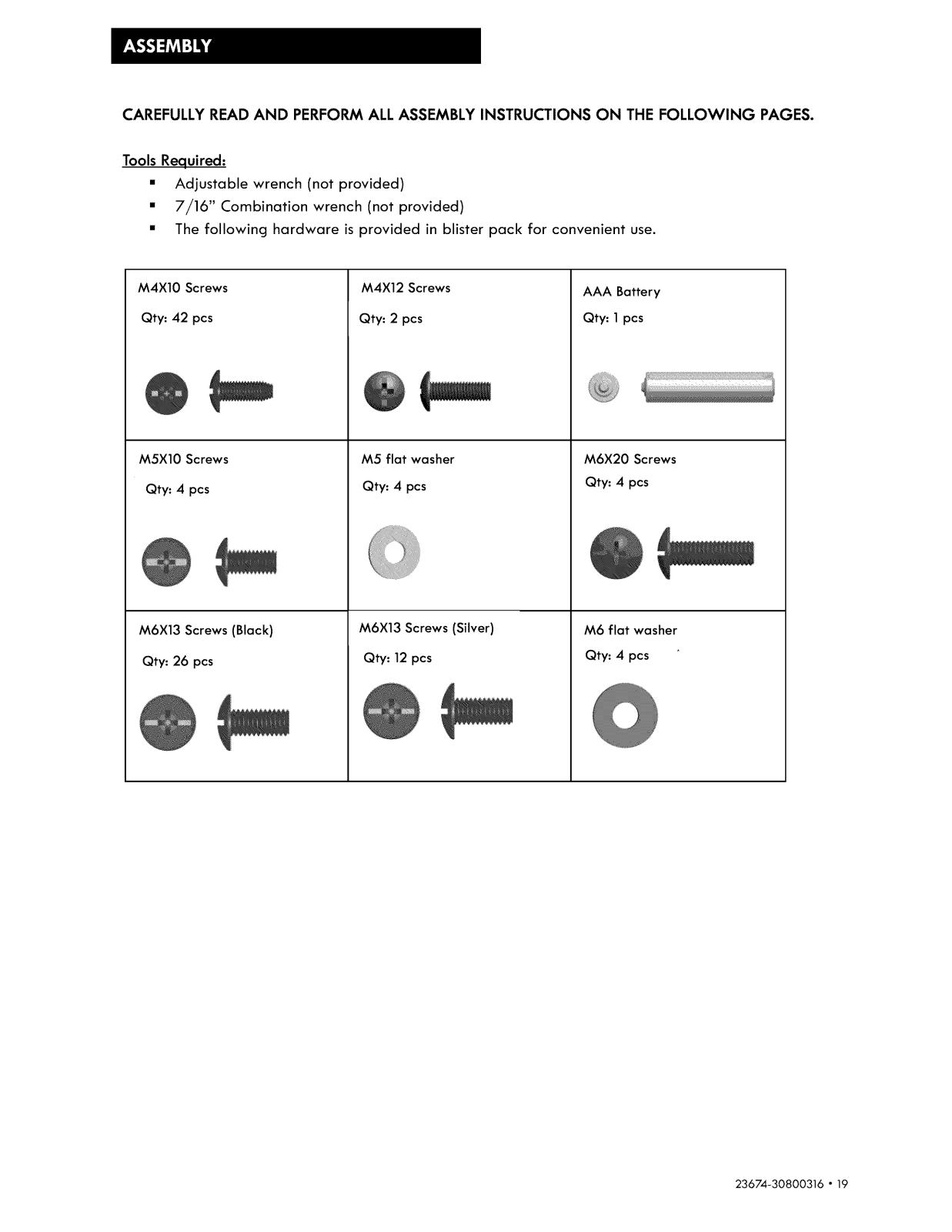

Assembly... Troubleshooting ..

.2 .2

•4

... 5-13

•..14

• .15

... 16-18

•. •19-38

•. •39-41

RepairProtection Agreements Congratulations on making a smart purchase. Yournew Kenmore®

product is designed and manufactured for years of dependable operation. But like all products, it may require repair from time to time That'swhen having a RepairProtection Agreement can save you

money and aggravation.

Purchasea Pepair Protection Agreement now anc/protect yourself from unexpected hassleand expense.

Here's what the Repair Protection Agreement* includes:

Sears Installation Service For Searsprofessional installation of home appliances, garage

door openers, water heaters, and other major home items, in the U.S.A.call 1-800-4-MY-HOME ®

CALIFORNIA PROPOSITION 65

1. Combustion by-products produced when using this product contain chemicals known to the State of

California to cause cancer, birth defects, and other

reproductive harm.

2. This Product contains chemicals, including lead and lead compounds, known to the State of California

to cause cancer, birth defects or other reproductive

harm.

Wash your hands after using this product.

[] Expert service by our 10,000professional repair specialists [] Unlimited service and no charge for parts and labor on all

covered repairs

[] Product replacement up to $1500 if your covered product

can't be fixed

[] Discount of 25% from regular price of service and related

installed parts not covered by the agreement; also,25% off regular price of preventive maintenance check

[] Fasthelp by phone- we call it Rapid Resolution-

phone support from a Searsrepresentative. Think of us asa "talking owner's manual."

Once you purchase the RepairProtection Agreement, a simple phone call isall that it takes for you to schedule service. You can call anytime day or night,or schedule a service appointment online.

The RepairProtection Agreement isa risk-free purchase. If you cancel for any reason during the product warranty period, we will provide a full refund. Or, a prorated refund anytime after the product warranty period expires. Purchaseyour Repair Protection Agreement today!

Some limitations and exclusions apply. Forprices and additional information in the U.S.A.call 1-800-827-6655.

23674-30800316 * 3

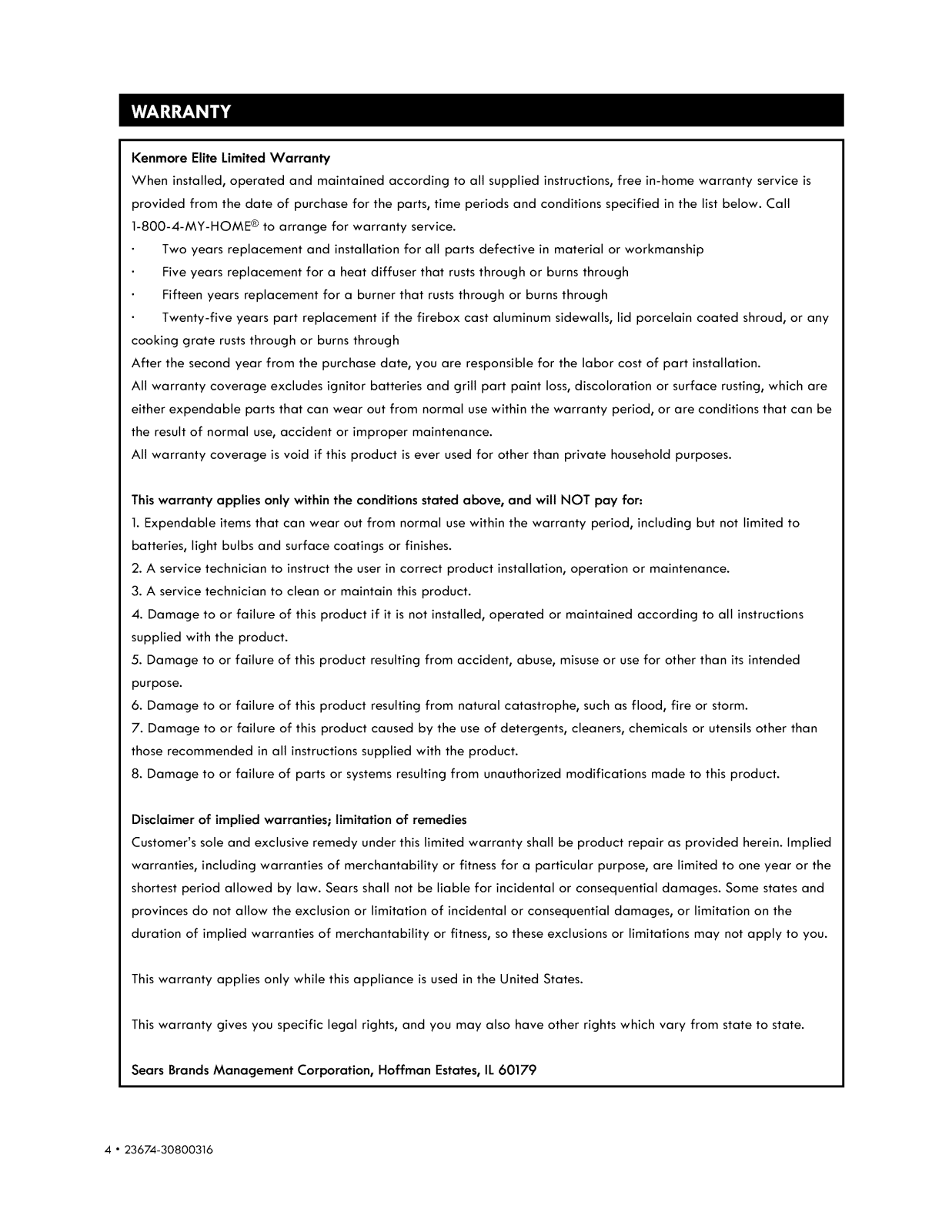

Kenmore Elite Limited Warranty

When installed, operated and maintained according to all supplied instructions, free in-home warranty service is

provided from the date of purchase for the parts, time periods and conditions specified in the list below. Call

1-800-4-MY-HOME ® to arrange for warranty service.

Two years replacement and installation for all parts defective in material or workmanship Five years replacement for a heat diffuser that rusts through or burns through Fifteen years replacement for a burner that rusts through or burns through

Twenty-five years part replacement if the firebox cast aluminum sidewalls, lid porcelain coated shroud, or any cooking grate rusts through or burns through After the second year from the purchase date, you are responsible for the labor cost of part installation.

All warranty coverage excludes ignitor batteries and grill part paint loss, discoloration or surface rusting, which are either expendable parts that can wear out from normal use within the warranty period, or are conditions that can be the result of normal use, accident or improper maintenance.

All warranty coverage is void if this product is ever used for other than private household purposes.

This warranty applies only within the conditions stated above, and will NOT pay for:

1. Expendable items that can wear out from normal use within the warranty period, including but not limited to

batteries, light bulbs and surface coatings or finishes.

2. A service technician to instruct the user in correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended

purpose.

6. Damage to or failure of this product resulting from natural catastrophe, such as flood, fire or storm.

7. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.

8. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the

shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and

provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the

duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL60179

4 " 23674-30800316

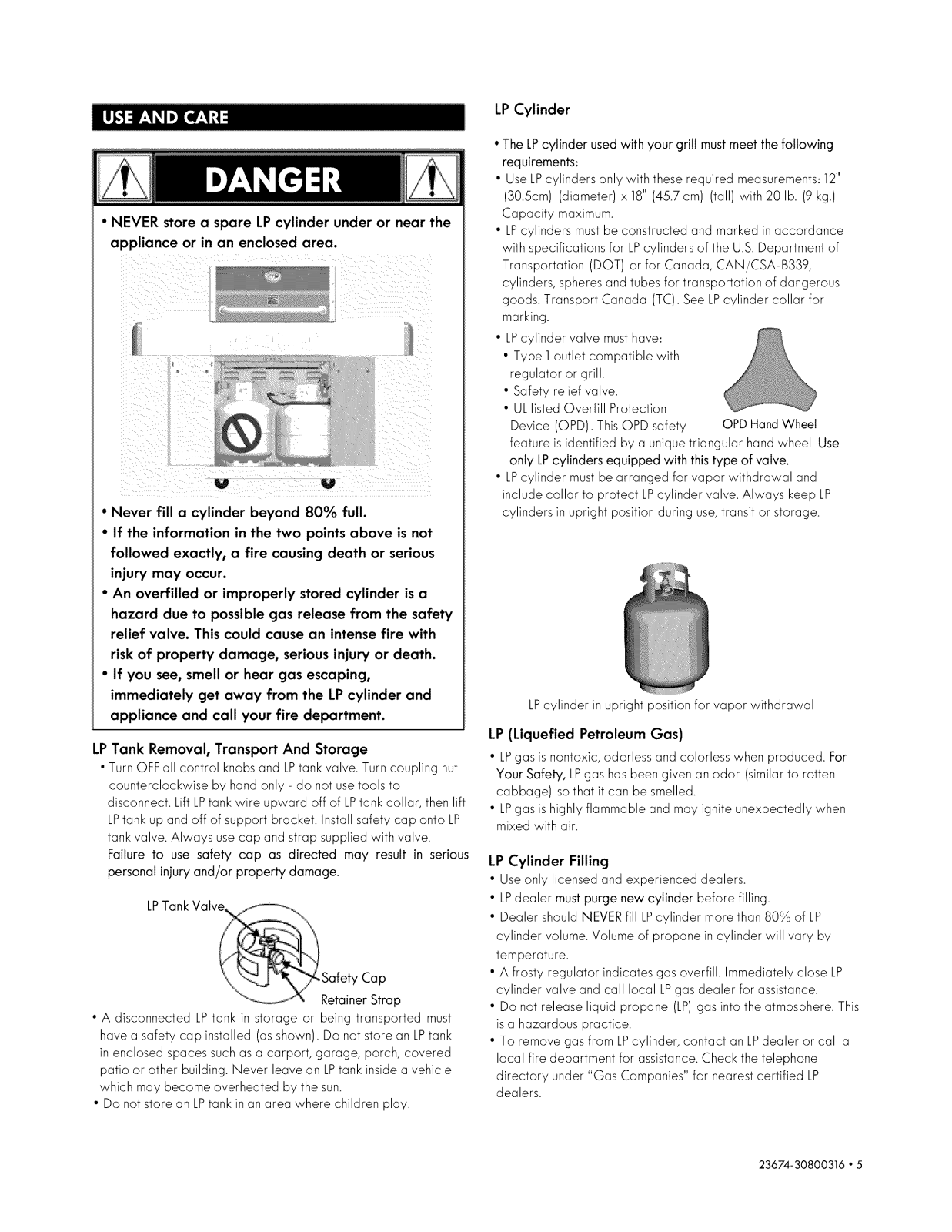

• NEVER store a spare LPcylinder under or near the

appliance or in an enclosed area.

V v

° Never fill a cylinder beyond 80% full.

• If the information in the two points above is not

followed exactly, a fire causing death or serious injury may occur.

• An overfilled or improperly stored cylinder is a hazard due to possible gas release from the safety

relief valve. This could cause an intense fire with risk of property damage, serious injury or death.

• If you see, smell or hear gas escaping, immediately get away from the LP cylinder and appliance and call your fire department.

LP Tank Removal, Transport And Storage

• TurnOFFall control knobsand LPtankvalve. Turncoupling nut counterclockwise by hand only - do not use tools to

disconnect. Lift LPtankwire upward off of LPtankcollar, then lift LPtank up and off of support bracket. Install safety cap onto LP tank valve. Always usecap and strap supplied with valve. Failure to use safety cap as directed may result in serious personal injury and/or property damage.

LPTankVaIve+ __

_Safety Cap

RetainerStrap

• A disconnected LPtank in storage or being transported must have a safety cap installed (asshown). Do not store an LPtank in enclosed spaces such as a carport, garage, porch, covered patio or other building. Never leave an LPtank inside avehicle which may become overheated by the sun.

• Do not store an LPtank inan area where children play.

LPCylinder

• The LPcylinder used with your grill mustmeet the following requirements:

• Use LPcylinders only with these required measurements:12" (30.5cm) (diameter) x 18" (45.7cm) (tall) with 20 lb. (9 kg.)

Capacity maximum.

• LPcylinders mustbe constructed and marked inaccordance

with specifications for LPcylinders of the U.S.Department of Transportation (DOT) or for Canada, CAN/CSA-B339,

cylinders, spheresand tubes for transportation of dangerous goods. Transport Canada (TC).See LPcylinder collar for marking.

• LPcylinder valve musthave:

• Type I outlet compatible with

regulator or grill.

• Safety relief valve.

• UL listed Overfill Protection

Device (OPD). ThisOPD safety OPDHandWheel feature isidentified by a unique triangular hand wheel. Use

only LPcylinders equipped with this type of valve.

• LPcylinder must be arranged for vapor withdrawal and

include collar to protect LPcylinder valve. Always keep LP cylinders in upright position during use,transit or storage.

LPcylinder in upright position for vapor withdrawal

LP (Liquefied Petroleum Gas)

• LPgasis nontoxic, odorless and colorless when produced. For Your Safety, LPgashasbeen given an odor (similarto rotten cabbage) sothat it can be smelled.

• LPgasis highly flammable and may ignite unexpectedly when mixed with air.

LP Cylinder Filling

• Useonly licensed and experienced dealers.

• LPdealer must purge new cylinder before filling.

• Dealer should NEVERfill LPcylinder more than 80% of LP cylinder volume. Volume of propane in cylinder will vary by temperature.

• A frosty regulator indicates gas overfill. Immediately close LP cylinder valve and call local LPgas dealer for assistance.

• Do not release liquid propane (LP)gas into the atmosphere. This isa hazardous practice.

• To remove gas from LPcylinder, contact an LPdealer or call a local fire department for assistance.Check the telephone

directory under "Gas Companies" for nearest certified LP dealers.

23674-30800316 " 5

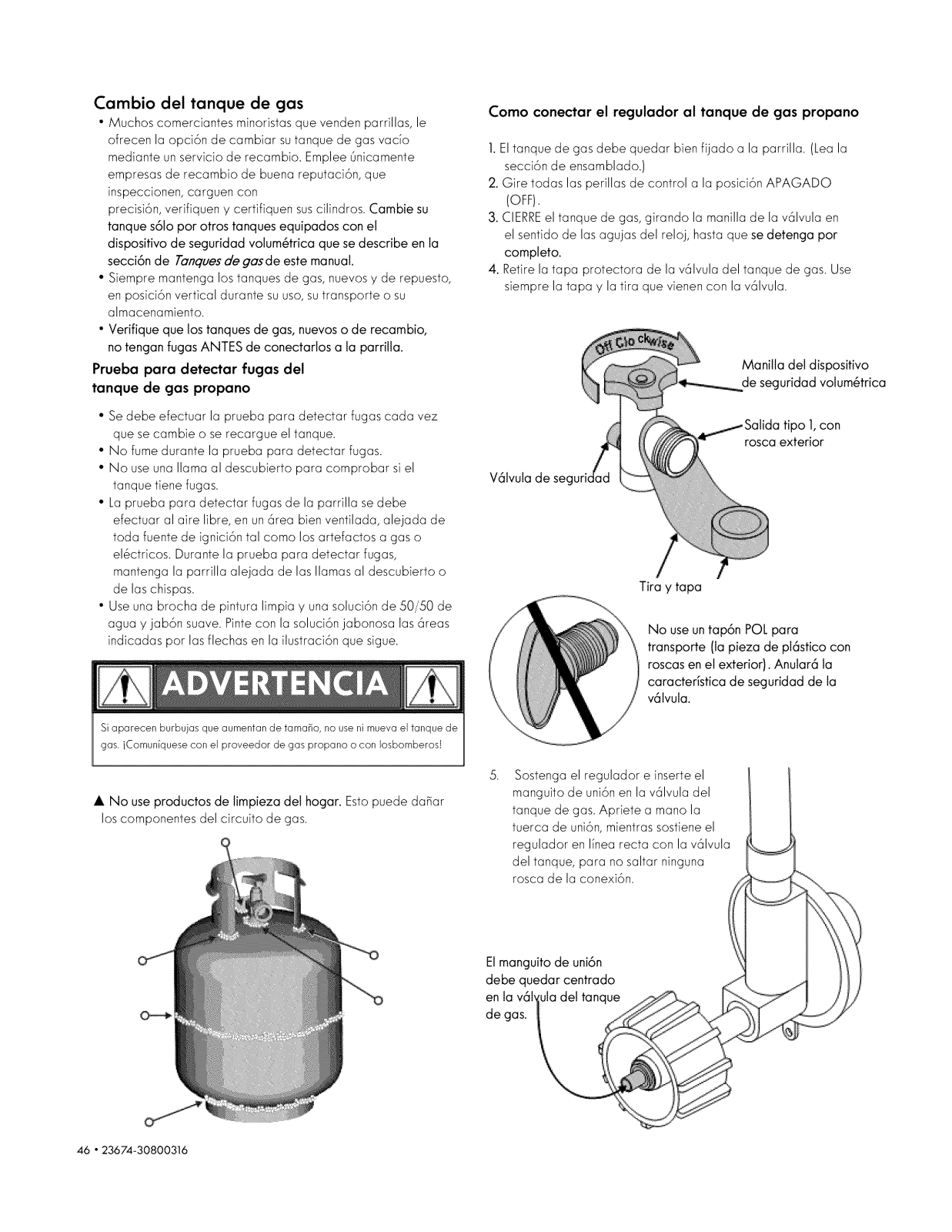

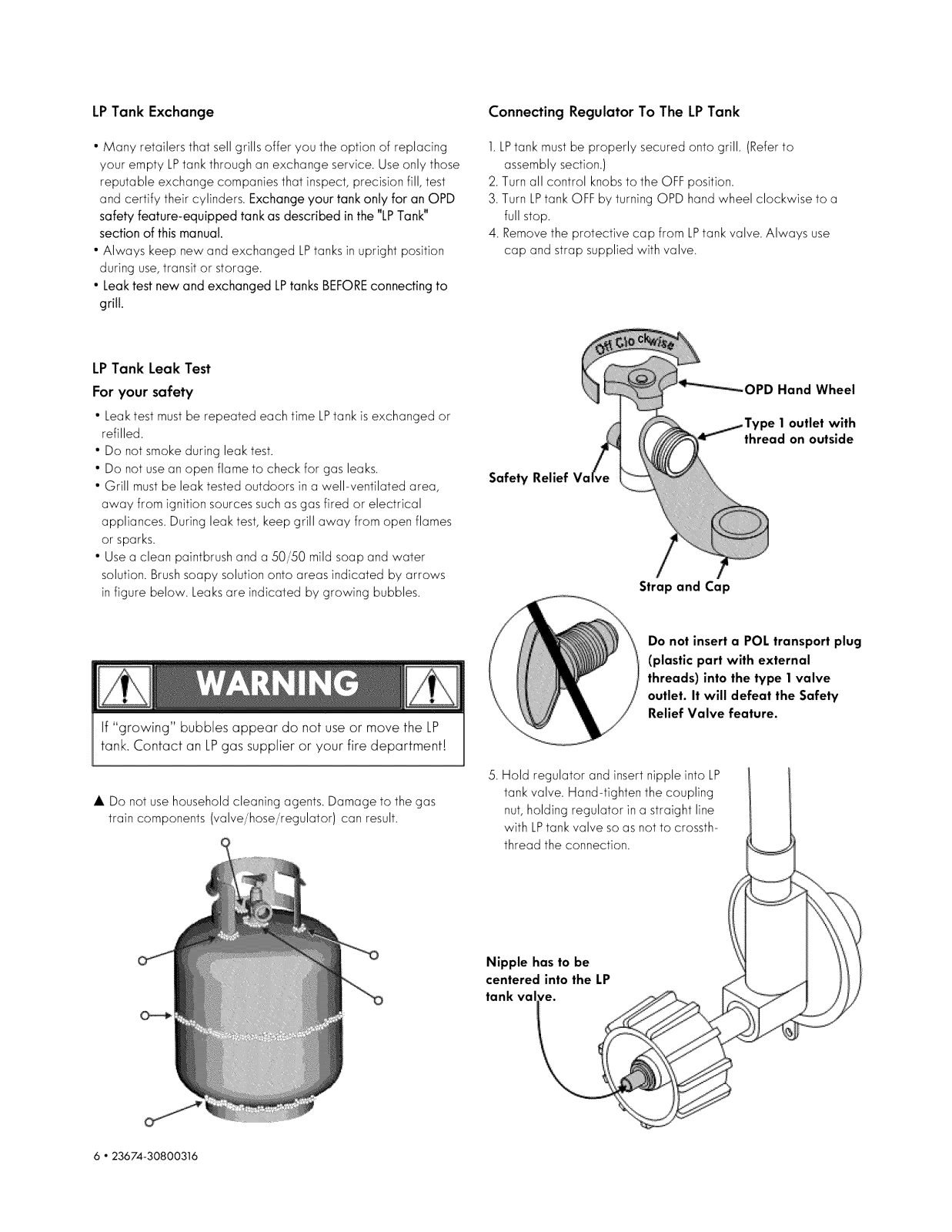

LP Tank Exchange Connecting Regulator To The LP Tank

• Many retailers that sell grills offer you the option of replacing your empty LPtankthrough an exchange service. Use only those reputable exchange companies that inspect, precision fill, test and certify their cylinders. Exchange your tank only for an OPD safety feature-equipped tank asdescribed in the "LPTank"

section of this manual.

• Always keep new and exchanged LPtanksin upright position during use,transit or storage.

• Leak test new and exchanged LPtanks BEFOREconnecting to grill.

LPTank Leak Test

For your safety

• Leak test must be repeated each time LPtank isexchanged or refilled.

• Do not smoke during leak test.

• Do not usean open flame to check for gas leaks.

• Grill mustbe leak tested outdoors in a well-ventilated area,

away from ignition sourcessuch asgas fired or electrical appliances. During leak test, keep grill away from open flames

or sparks.

• Use a clean paintbrushand a 50/50 mild soap and water

solution. Brushsoapy solution onto areas indicated by arrows in figure below. Leaksare indicated by growing bubbles.

1.LPtank must be properly secured onto grill. (Referto assembly section.)

2. Turnall control knobsto the OFFposition.

3. TurnLPtankOFF by turningOPD hand wheel clockwise to a full stop.

4. Removethe protective cap from LPtank valve. Always use cap and strap supplied with valve.

OPD Hand Wheel

1outlet with

thread on outside

Safety Relief

Strap and Cap

If "growing" bubbles appear do not use or move the LP tank. Contact an LPgas supplier or your fire department[

• Do not use household cleaning agents. Damage to the gas train components (valve/hose/regulator) can result.

Do not insert a POL transport plug (plastic part with external

threads) into the type 1valve outlet. It will defeat the Safety

Relief Valve feature.

5. Hold regulator and insert nipple into LP tank valve. Hand-tighten the coupling nut,holding regulator ina straight line

with LPtank valve so as not to crossth- thread the connection.

Nipple has to be

centered into the LP tank val_e. _"_

6 " 23674-30800316

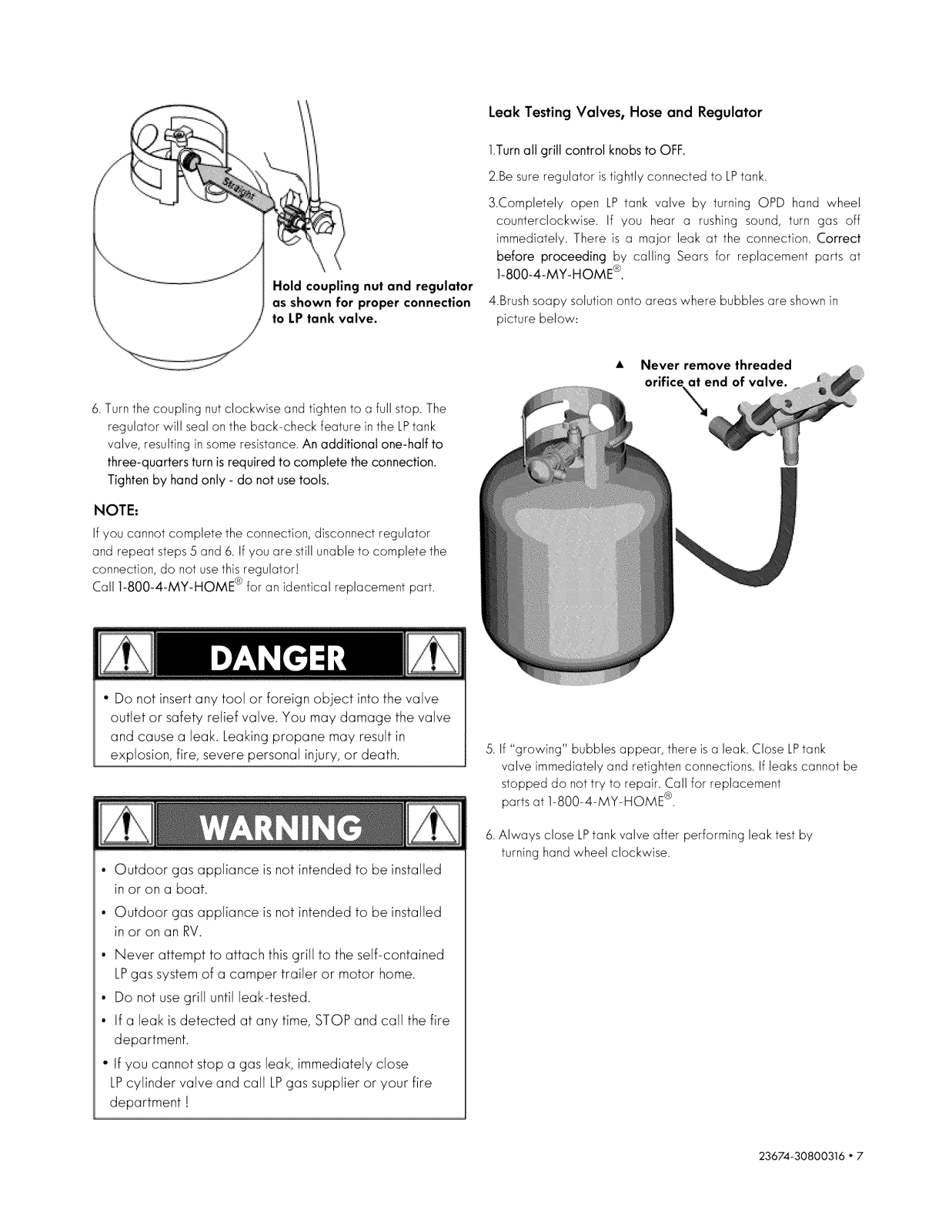

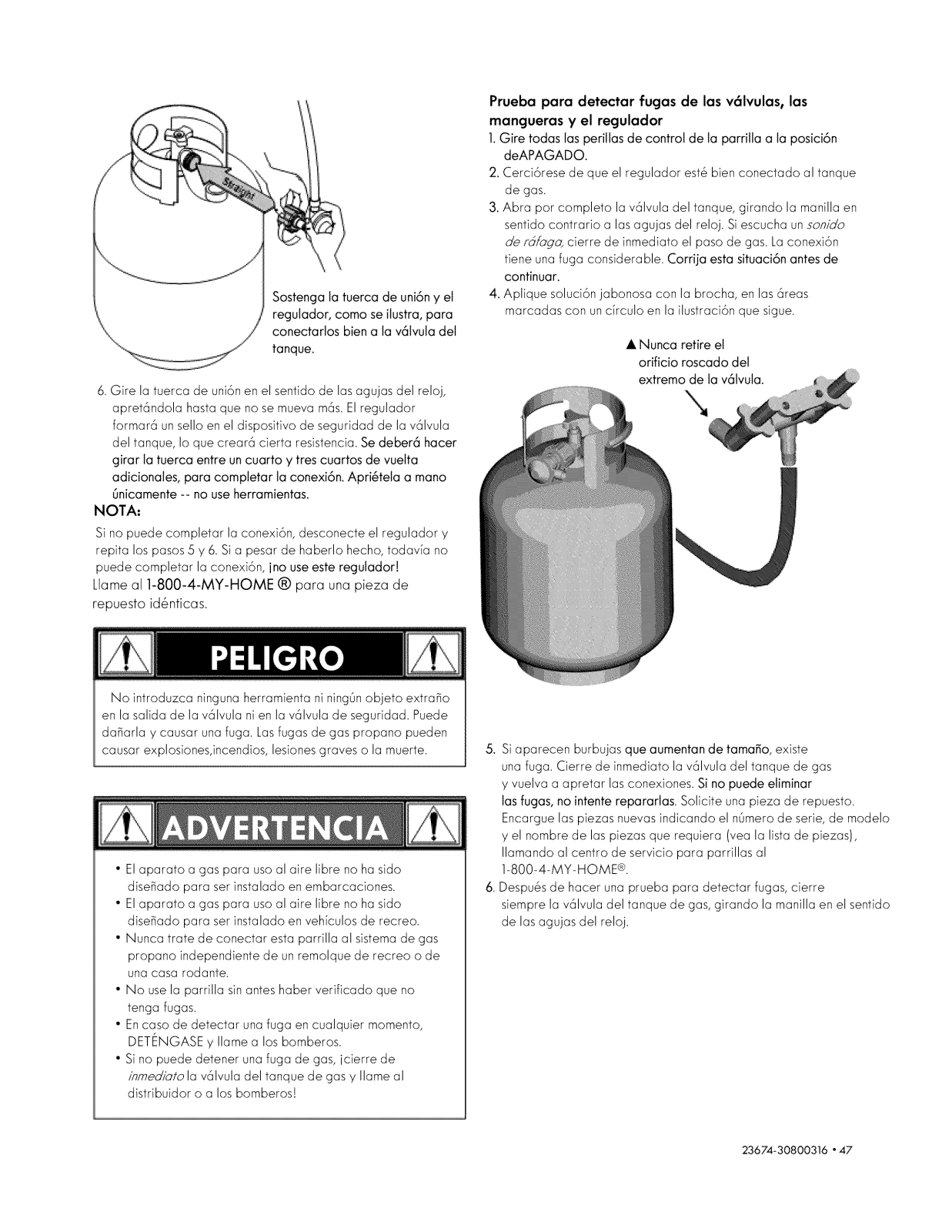

Hold coupling nut and regulator as shown for proper connection

to LPtank valve.

6.Turnthe coupling nutclockwise and tighten to a full stop. The regulator will sealon the back-check feature in the LPtank valve, resulting in someresistance.An additional one-half to

three-quarters turn is required to complete the connection. Tighten by handonly - do not usetools.

NOTE:

Ifyou cannot complete the connection, disconnect regulator

and repeat steps5 and 6.If you are still unable to complete the connection, do not usethis regulator!

Call 1-800-4-MY-HOME ®for an identical replacement part.

Leak Testing Valves, Hose and Regulator

1.Turnall grill control knobsto OFF.

2.Be sure regulator is tightly connected to LPtank.

3.Completely open LPtank valve by turning OPD hand wheel counterclockwise. If you hear a rushing sound, turn gas off immediately. There is a major leak at the connection. Correct

before proceeding by calling Sears for replacement parts at 1-800-4-MY-HOME ®.

4.Brushsoapy solutiononto areas where bubbles are shown in picture below:

• Never remove threaded

orifice at end of valve.

• Do not insert any tool or foreign object into the valve outlet or safety reJief vaJve. You may damage the vaJve

and cause a Jeak. Leaking propane may resuJtin expJosion, fire, severe personaJ injury, or death.

• Outdoor gas appliance is not intendedto be installed in or on a boat.

• Outdoor gas appliance is not intendedto be installed in or on an RV.

• Never attempt to attach this griJJto the serf-contained

LPgas system of a camper trailer or motor home.

• Do not use grill until leak-tested.

• If a Jeak is detected at any time, STOP and call the fire department.

• If you cannot stop a gas Jeak,immediateJy dose LPcyJinder vaJve and caJJLPgas suppJier or your fire

department !

5. If "growing" bubbles appear, there isa leak. Close LPtank valve immediately and retighten connections. If leakscannot be

stopped do not try to repair. Call for replacement parts at 1-800-4-MY-HOME ®.

6.Always close LPtankvalve after performing leak test by turning hand wheel clockwise.

23674-30800316 ° 7

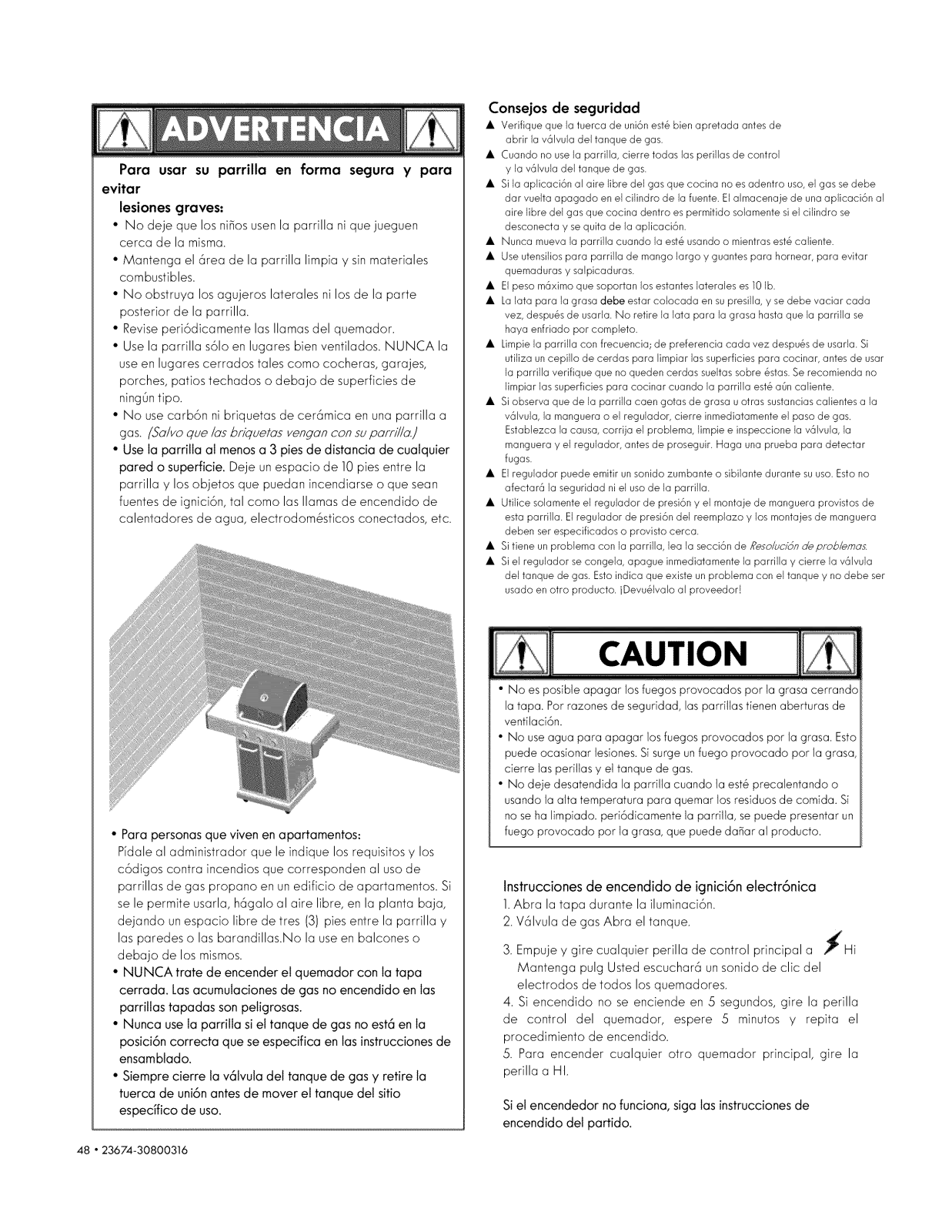

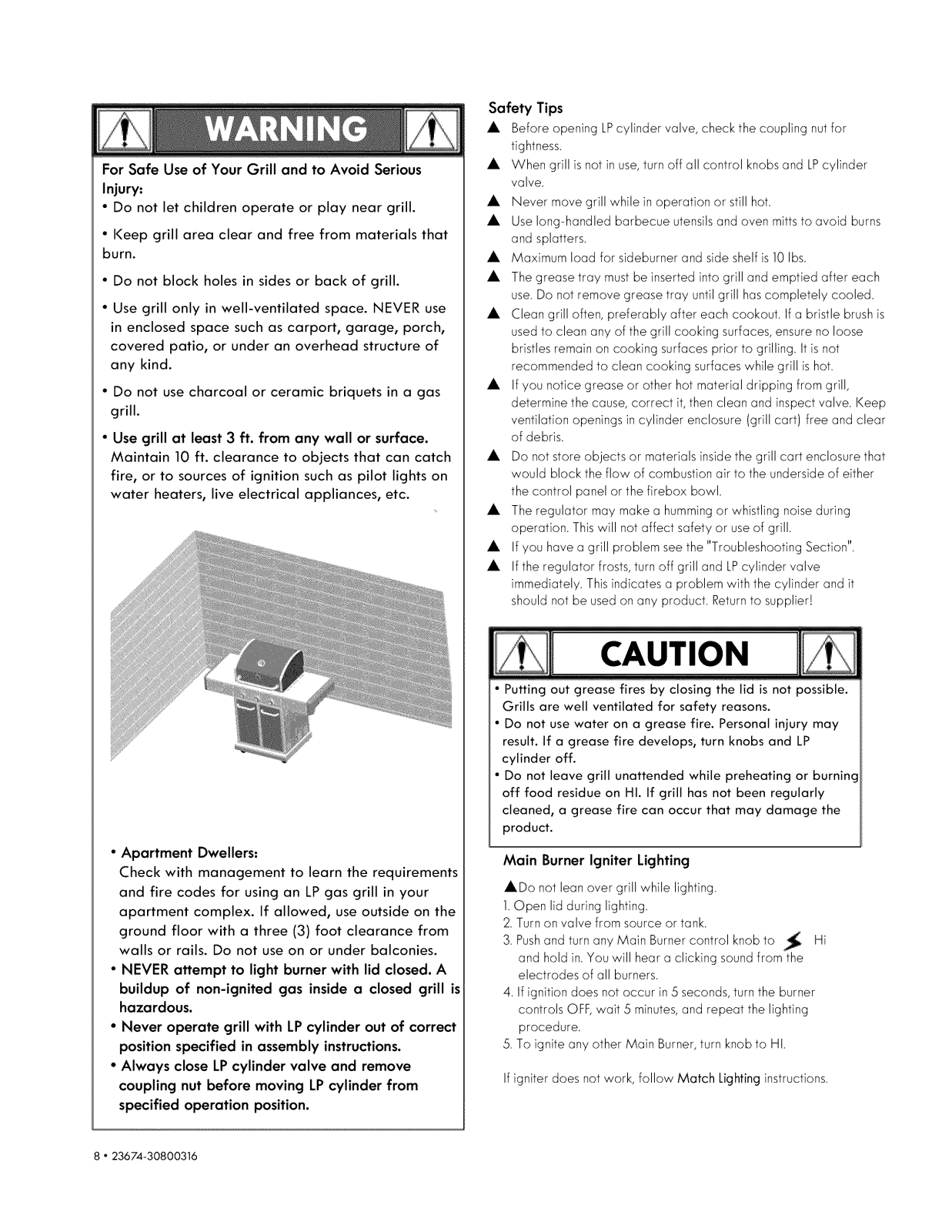

For Safe Use of Your Grill and to Avoid Serious Injury:

• Do not let children operate or play near grill.

• Keep grill area clear and free from materials that burn.

• Do not block holes in sides or back of grill.

• Use grill only in well-ventilated space. NEVER use

in enclosed space such as carport, garage, porch, covered patio, or under an overhead structure of any kind.

• Do not use charcoal or ceramic briquets in a gas grill.

• Use grill at least 3 ft. from any wall or surface. Maintain 10 ft. clearance to objects that can catch fire, or to sources of ignition such as pilot lights on water heaters, live electrical appliances, etc.

Safety Tips

• Before opening LPcylinder valve, check the coupling nutfor tightness.

• When grill isnot in use,turnoff all control knobs and LPcylinder valve.

• Never move grill while in operation or still hot.

• Uselong-handled barbecue utensilsand oven mittsto avoid burns and splatters.

• Maximum load for sideburner and side shelf is10Ibs.

• Thegrease tray mustbe inserted into grill and emptied after each use.Do not remove grease tray until grill hascompletely cooled.

• Cleangrill often, preferably after each cookout. If a bristle brushis usedto clean any of the grill cooking surfaces, ensureno loose bristlesremain on cooking surfaces prior to grilling. It is not

recommended to clean cooking surfaces while grill ishot.

• If you notice grease or other hot material dripping from grill, determine the cause, correct it, then clean and inspectvalve. Keep ventilation openings in cylinder enclosure (grill cart) free and clear

of debris.

• Do not store objects or materials insidethe grill cart enclosure that would block the flow of combustion air to the underside of either

the control panel or the firebox bowl.

• The regulator may make a hummingor whistling noise during operation. Thiswill not affect safety or useof grill.

• If you have a grill problem see the "Troubleshooting Section".

• If theregulator frosts,turn off grill and LPcylinder valve immediately. Thisindicates a problem with the cylinder and it should not be used on any product. Returnto supplier!

• Apartment Dwellers: Check with management to learn the requirements

and fire codes for using an LPgas grill in your apartment complex. If allowed, use outside on the

ground floor with a three (3) foot clearance from

walls or rails. Do not use on or under balconies.

• NEVER attempt to light burner with lid closed. A buildup of non-ignited gas inside a closed grill is

hazardous.

• Never operate grill with LPcylinder out of correct position specified in assembly instructions.

• Always close LPcylinder valve and remove

coupling nut before moving LPcylinder from specified operation position.

CAUT O.iJ l

• Putting out grease fires By ciosing the iidis not possibiel

Grills are well ventilated for safety reasons.

• Do not use water on a grease fire. Personal injury may result. If a grease fire develops, turn knobs and LP

cylinder off.

• Do not leave grill unattended while preheating or burning off food residue on HI. If grill has not been regularly cleaned, a grease fire can occur that may damage the product.

Main Burner Igniter Lighting

• Do not lean over grill while lighting.

1.Open lid during lighting.

2.Turnonvalve from source or tank.

3.Pushand turn any Main Burnercontrol knob to _ Hi and hold in.You will hear a clicking sound from the

electrodes of all burners.

4. If ignition does not occur in 5seconds, turn the burner controls OFF,wait 5 minutes,and repeat the lighting

procedure.

5. To ignite any other Main Burner,turnknob to HI.

Ifigniter does not work, follow Match Lighting instructions.

8 " 23674-30800316

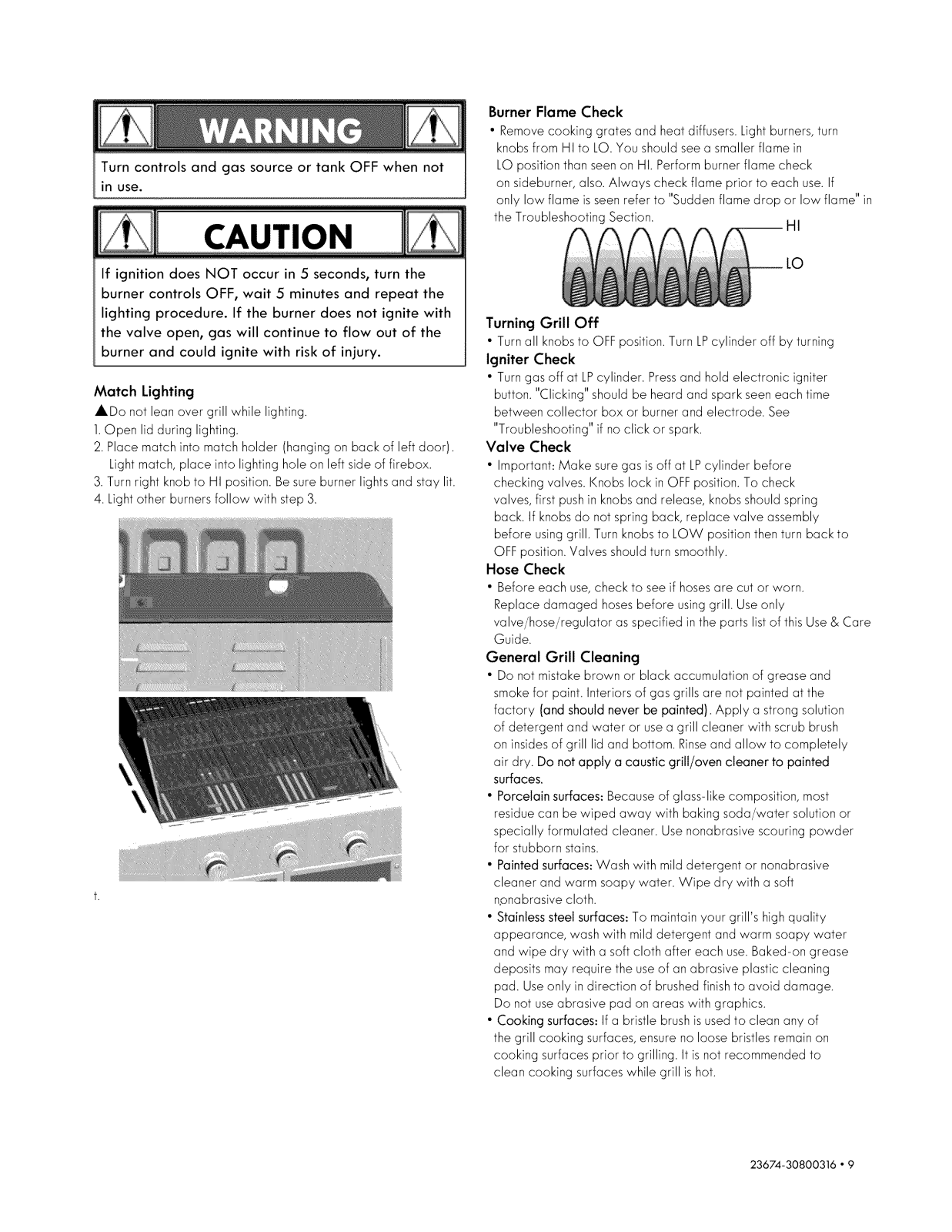

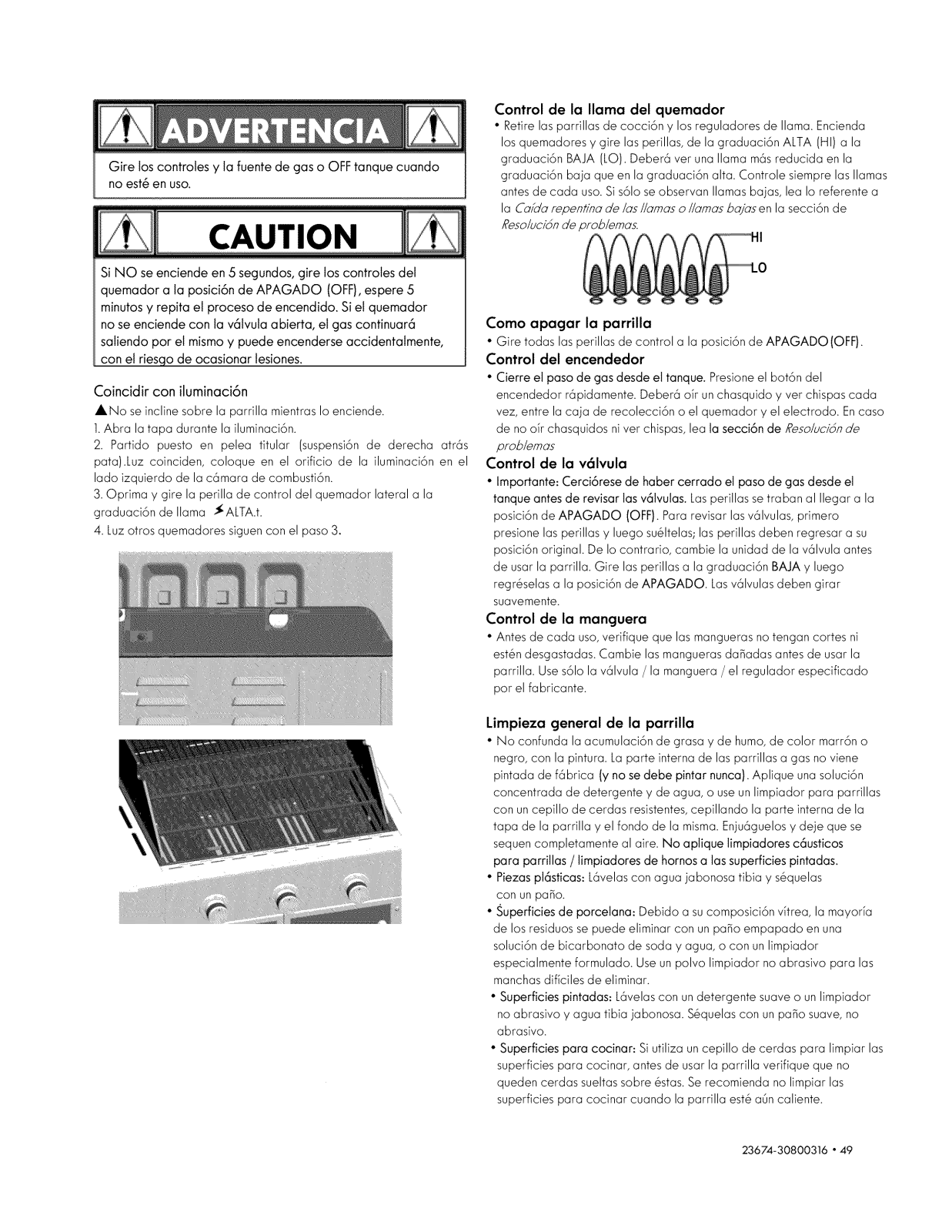

Turn controls and gas source or tank OFF when not in use.

If ignition does NOT occur in 5 seconds, turn the burner controls OFF, wait 5 minutes and repeat the

lighting procedure. If the burner does not ignite with the valve open, gas will continue to flow out of the

burner and could ignite with risk of injury.

Match Lighting

ADo not lean over grill while lighting.

1.Open lid during lighting.

2. Place match into match holder (hanging on back of left door). Lightmatch, place into lighting hole on left side of firebox.

3. Turnright knob to HI position. Besure burner lights and stay lit.

4. Lightother burners follow with step 3.

Burner Flame Check

• Removecooking grates and heatdiffusers.Light burners, turn knobsfrom HI to LO.You should see a smaller flame in

LO position than seen on HI. Perform burner flame check on sideburner, also. Always check flame prior to each use. If only low flame isseen refer to "Sudden flame drop or low flame" in

the Troubleshooting Section.

Turning Grill Off

• Turnall knobsto OFFposition. Turn LPcylinder off by turning Igniter Check

• Turngas off at LPcylinder. Pressand hold electronic igniter button."Clicking" should be heard andspark seen each time

between collector box or burner and electrode. See "Troubleshooting" if no click or spark.

Valve Check

• Important: Make sure gas isoff at LPcylinder before checking valves. Knobs lock in OFFposition.To check

valves, first pushinknobs and release, knobs should spring

back. If knobsdo not spring back, replace valve assembly before usinggrill. Turnknobs to LOW position thenturn back to OFFposition.Valves shouldturn smoothly.

Hose Check

• Before each use,check to seeif hosesare cut or worn. Replacedamaged hosesbefore usinggrill. Useonly

valve/hose/regulator as specified in the parts listof this Use & Care

Guide.

General Grill Cleaning

• Do not mistake brown or black accumulation of grease and smokefor paint. Interiors of gas grills are not painted at the

factory (and should never be painted). Apply a strong solution of detergent and water or usea grill cleaner with scrub brush

on insidesof grill lid and bottom. Rinseand allow to completely air dry. Do not apply a caustic grill/oven cleaner to painted

surfaces.

• PorceJainsurfaces: Because of glass-like composition, most residue can be wiped away with baking soda/water solution or specially formulated cleaner. Usenonabrasive scouring powder

for stubborn stains.

• Paintedsurfaces: Wash with milddetergent or nonabrasive cleaner and warm soapy water. Wipe dry with a soft npnabrasive cloth.

• Stainlesssteel surfaces:To maintain your grill's high quality appearance, wash with mild detergent and warm soapy water andwipe dry with a soft cloth after each use.Baked-on grease deposits may require the useof an abrasive plastic cleaning pad. Use only in direction of brushed finishto avoid damage. Do not useabrasive pad on areas with graphics.

• Cooking surfaces: Ifa bristle brushisusedto clean any of

the grill cooking surfaces,ensure no loose bristles remain on

cooking surfaces prior to grilling. It isnot recommended to clean cooking surfaces while grill is hot.

23674-30800316 " 9

CAUTION

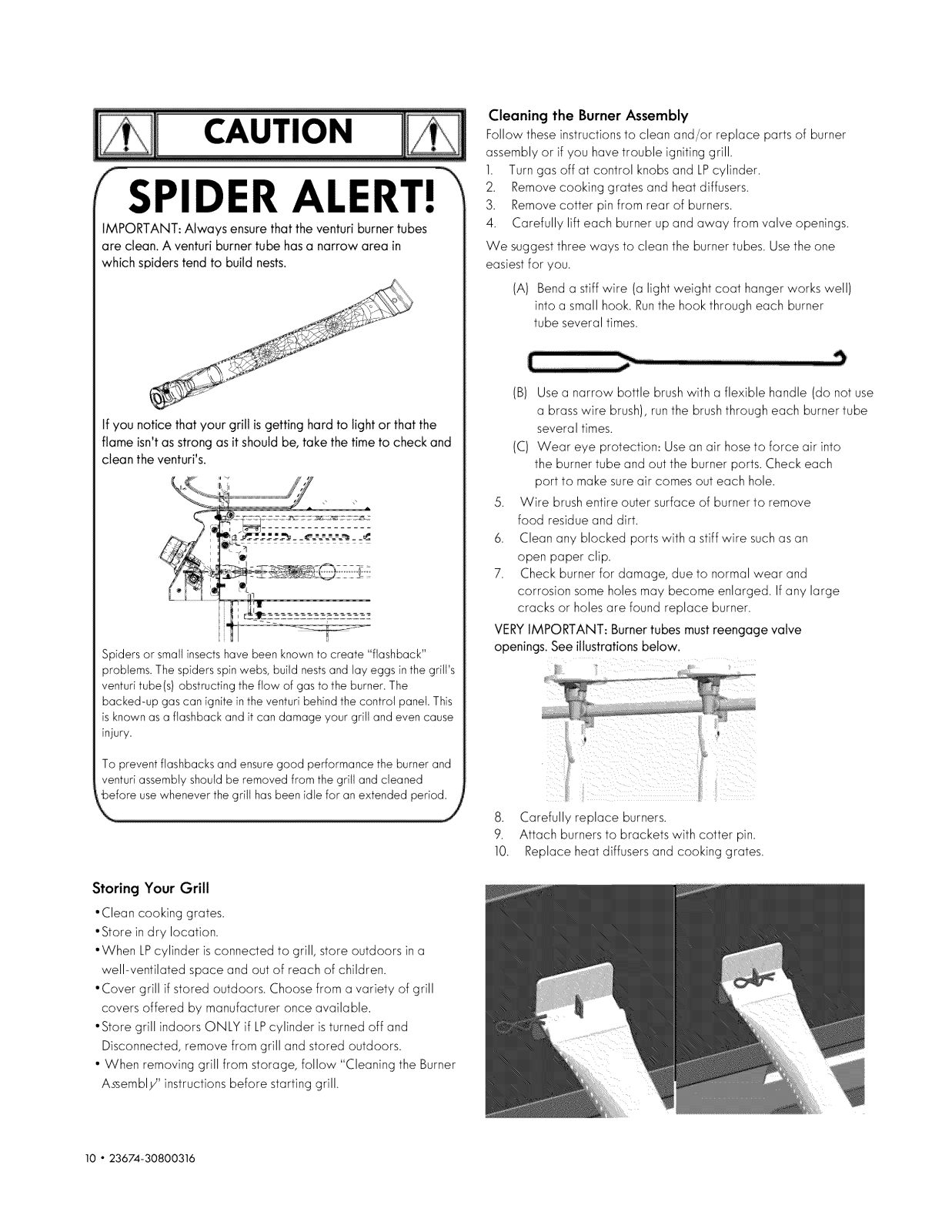

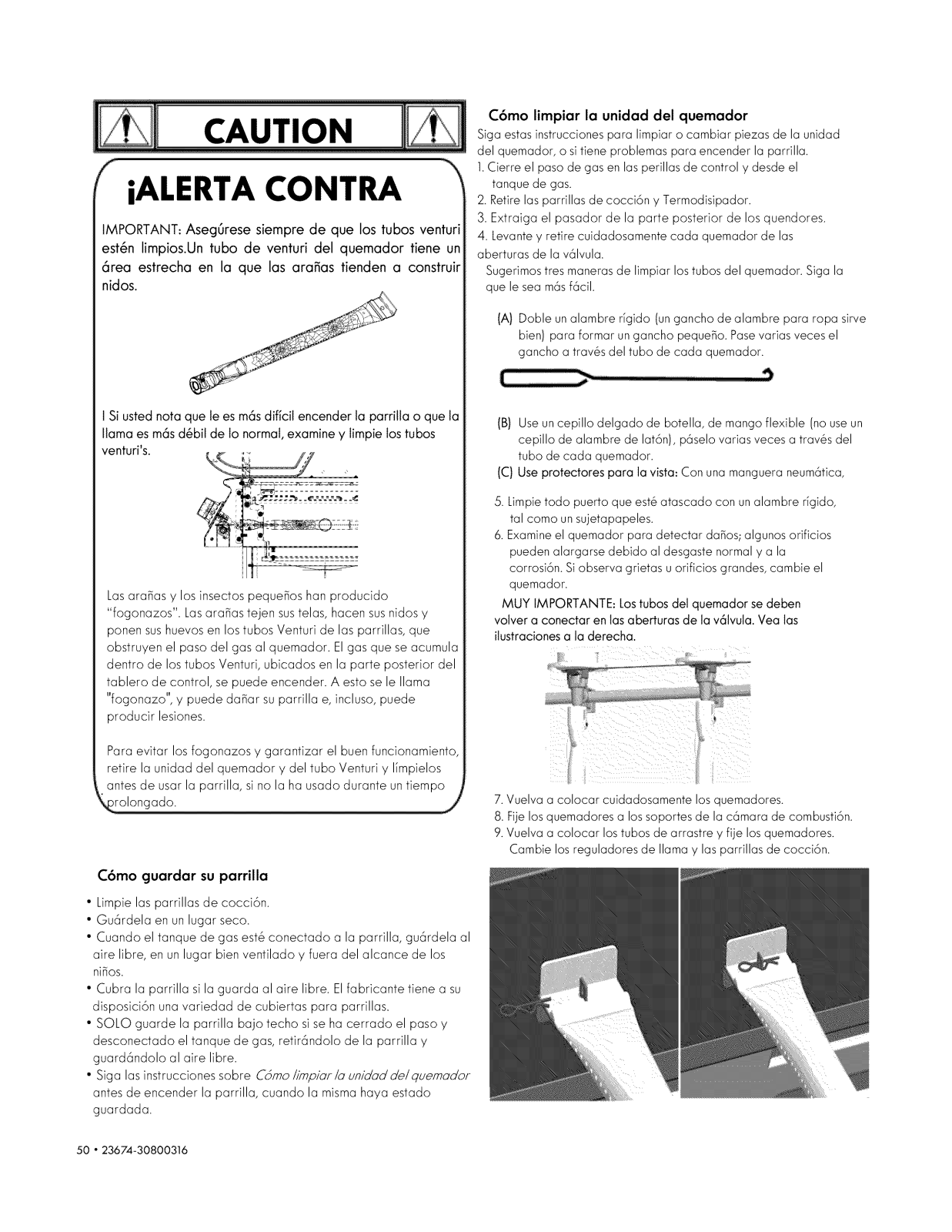

SPIDER ALERT!

IMPORTANT: Always ensure that the venturi burner tubes

are clean. A venturi burner tube hasa narrow area in which spiders tend to build nests.

Ifyou notice thatyour grill isgetting hard to light or that the

flame isn't asstrong asit should be, take the time to check and clean the venturi's.

Spiders or small insects have been known to create "flashback" problems. The spiders spin webs, build nestsand lay eggs in the grill's

venturi tube(s) obstructing the flow of gas to the burner. The

backed-up gas can ignite inthe venturi behind the control panel. This isknown as a flashback and it can damage your grill and even cause injury.

Cleaning the Burner Assembly

Follow these instructionsto clean and/or replace parts of burner

assembly or if you have trouble igniting grill.

1. Turn gas off at control knobsand LPcylinder.

2. Remove cooking grates and heat diffusers.

3. Remove cotter pin from rear of burners.

4. Carefully lift each burner up and away from valve openings. We _uggestthree ways to clean the burner tubes. Usethe one

easiestfor you.

(A) Benda stiffwire (a light weight coat hanger works well)

into a small hook. Runthe hookthrough each burner

tube several times.

(B) Usea narrow bottle brushwith a flexible handle (do not use

a brasswire brush), run thebrushthrough each burner tube several times.

the burner tube and out the burner ports. Check each port to make sure air comes out each hole.

5. Wire brushentire outer surface of burner to remove

food residue and dirt.

6. Clean any blocked ports with a stiff wire suchasan

open paper clip.

7. Check burner for damage, due to normalwear and

corrosion some holes may become enlarged. If any large cracks or holes are found replace burner.

VERYIMPORTANT: Burnertubes mustreengage valve openings.See illustrations below.

To prevent flashbacks and ensure good performance the burner and venturi assembly should be removed from the grill and cleaned 'before usewhenever the grill has been idle for an extended period.

Storing Your Grill

•Clean cooking grates.

•Store in dry location.

•When LPcylinder isconnected to grill, store outdoors in a well-ventilated space and out of reach of children.

•Cover grill if stored outdoors. Choose from a variety of grill covers offered by manufacturer once available.

•Store grill indoors ONLY if LPcylinder isturned off and

Disconnected, remove from grill and stored outdoors.

• When removing grill from storage, follow "Cleaning the Burner Assembly' instructionsbefore starting grill.

10 " 23674-30800316

8. Carefully replace burners.

9. Attach burners to brackets with cotter pin.

10. Replace heat diffusers and cooking grates.

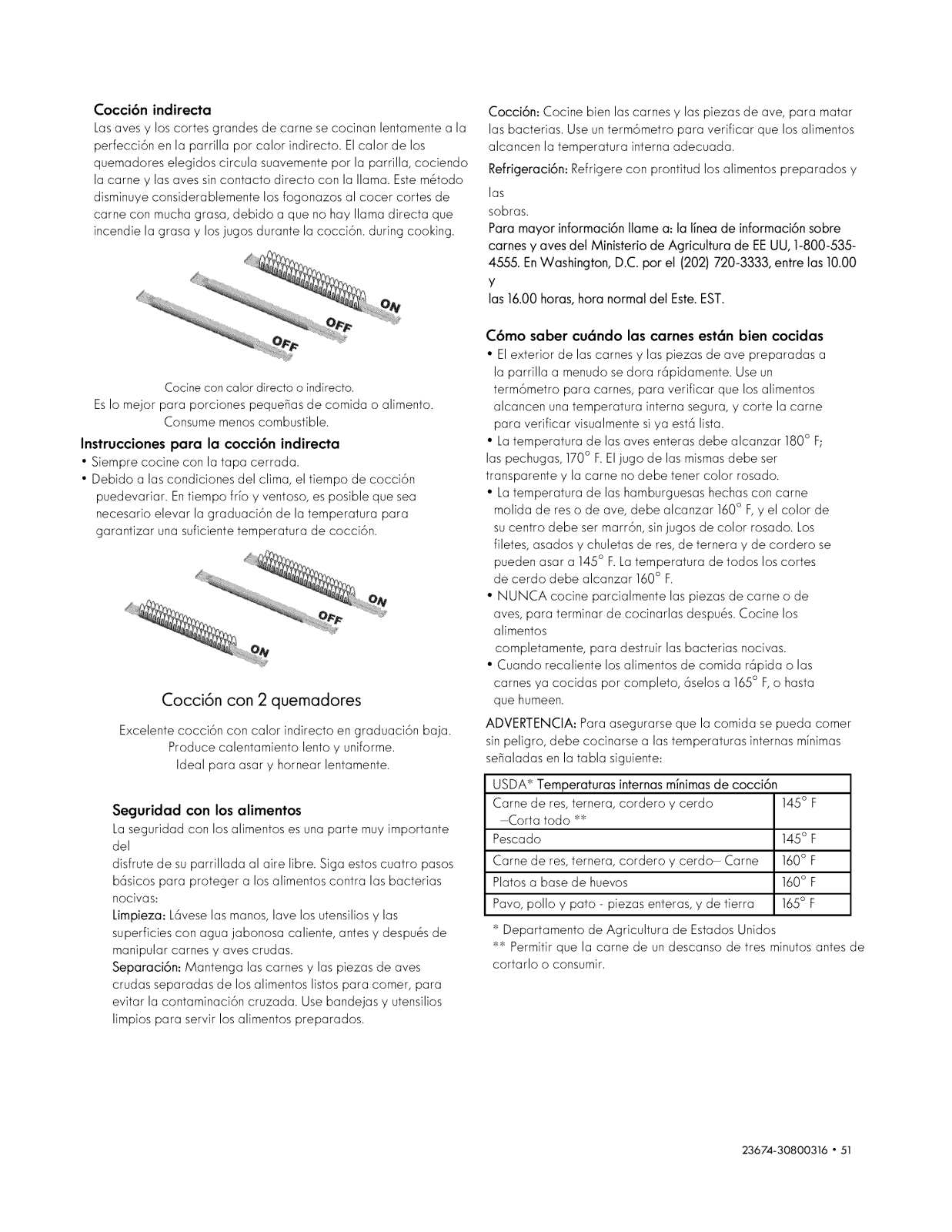

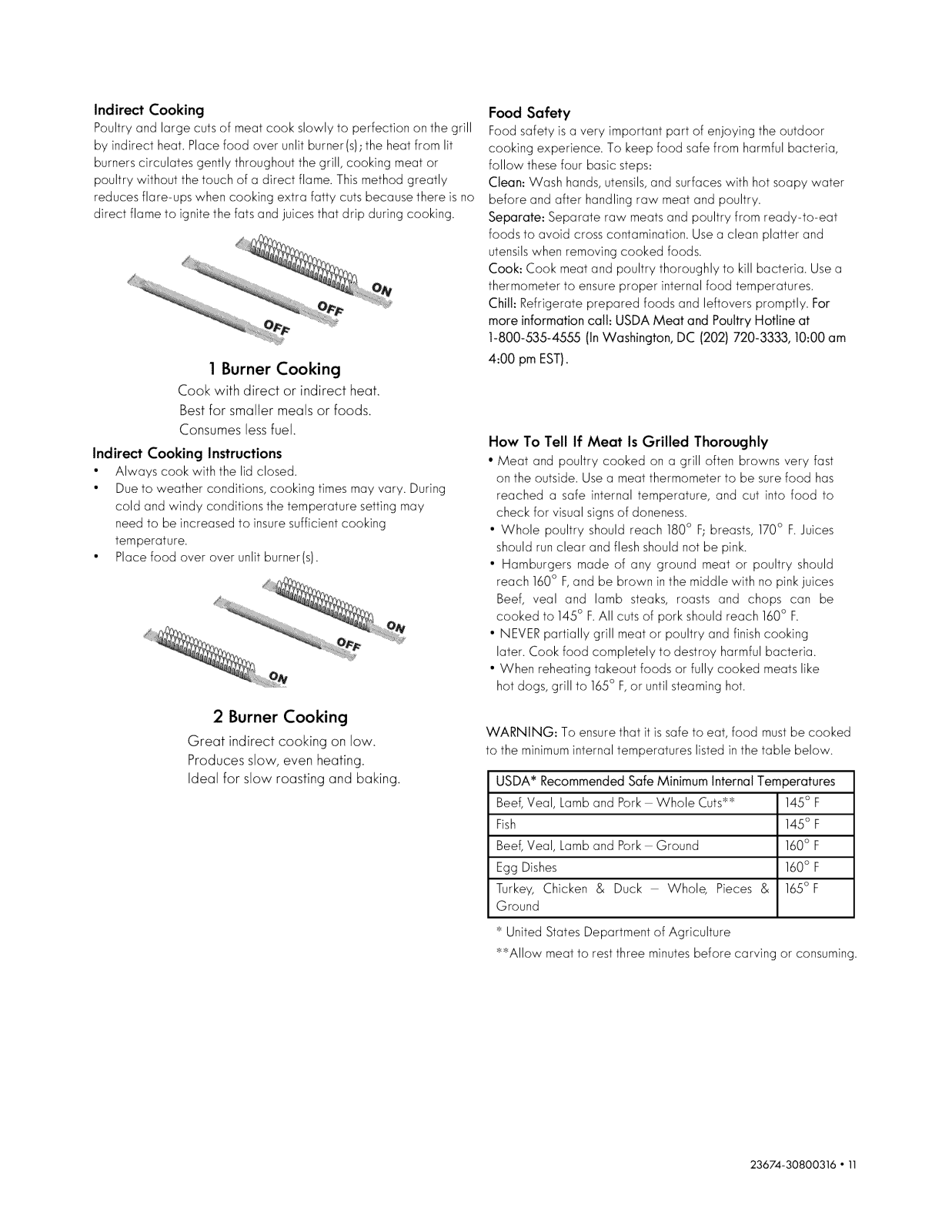

Indirect Cooking

Poultry and large cuts of meat cook slowly to perfection onthe grill by indirect heat. Place food over unlit burner(s);the heatfrom lit

burners circulates gently throughout the grill, cooking meat or poultry without the touch of a direct flame. This method greatly reduces flare-ups when cooking extra fatty cuts because there isno direct flame to ignite the fats and juices that drip during cooking.

1 Burner Cooking

Cook with direct or indirect heat.

Bestfor smaller mealsor foods.

Consumeslessfuel.

Indirect Cooking Instructions

• Always cook with the lid closed.

• Due to weather conditions, cooking times may vary. During cold and windy conditions the temperature setting may

need to be increased to insuresufficient cooking temperature.

• Placefood over over unlit burner(s).

Food Safety

Food safety isa very important part of enjoying the outdoor cooking experience. To keep food safe from harmful bacteria, follow these four basic steps: Clean: Wash hands,utensils,and surfaceswith hot soapy water

before and after handling raw meat and poultry. Separate: Separate raw meats and poultry from ready-to-eat foods to avoid cross contamination. Use a clean platter and utensilswhen removing cooked foods. Cook: Cook meat and poultry thoroughly to kill bacteria. Use a thermometer to ensure proper internal food temperatures. Chill: Refrigerate prepared foods and leftovers promptly. For more information call: USDA Meat and Poultry Hotline at 1-800-535-4555 (InWashington, DC (202) 720-3333, 10:00 am

4:00 pm EST).

How To Tell If Meat Is Grilled Thoroughly

• Meat and poultry cooked on a grill often browns very fast

on the outside. Use a meat thermometer to be sure food has reached a safe internal temperature, and cut into food to check for visual signsof doneness.

• Whole poultry should reach 180° F; breasts, 170° F.Juices should runclear and flesh shouldnot be pink.

• Hamburgers made of any ground meat or poultry should reach 160° F,and be brown in the middle with no pinkjuices Beef, veal and lamb steaks, roasts and chops can be cooked to 145° F.All cutsof pork should reach 160° F.

• NEVERpartially grill meat or poultry and finishcooking later. Cook food completely to destroy harmful bacteria.

• When reheating takeout foods or fully cooked meats like hot dogs, grill to 165° F,or until steaming hot.

2 Burner Cooking

Great indirect cooking on low.

ProducessJow,even heating. Ideal for slow roastingand baking.

WARNING: To ensure that it is safe to eat, food mustbe cooked to the minimuminternal temperatures listed in the table below.

USDA_'RecommendedSafeMinimum Internal Temperatures Beef,Veal, Lamband Pork Whole Cuts_ 145° F

Fish 145° F Beef,Veal, Lamband Pork Ground 160° F

Egg Dishes 160° F Turkey, Chicken & Duck Whole, Pieces & 165°F

Ground

United States Department of Agriculture

_AIIow meat to rest three minutesbefore carving or consuming.

23674-30800316 ° 11

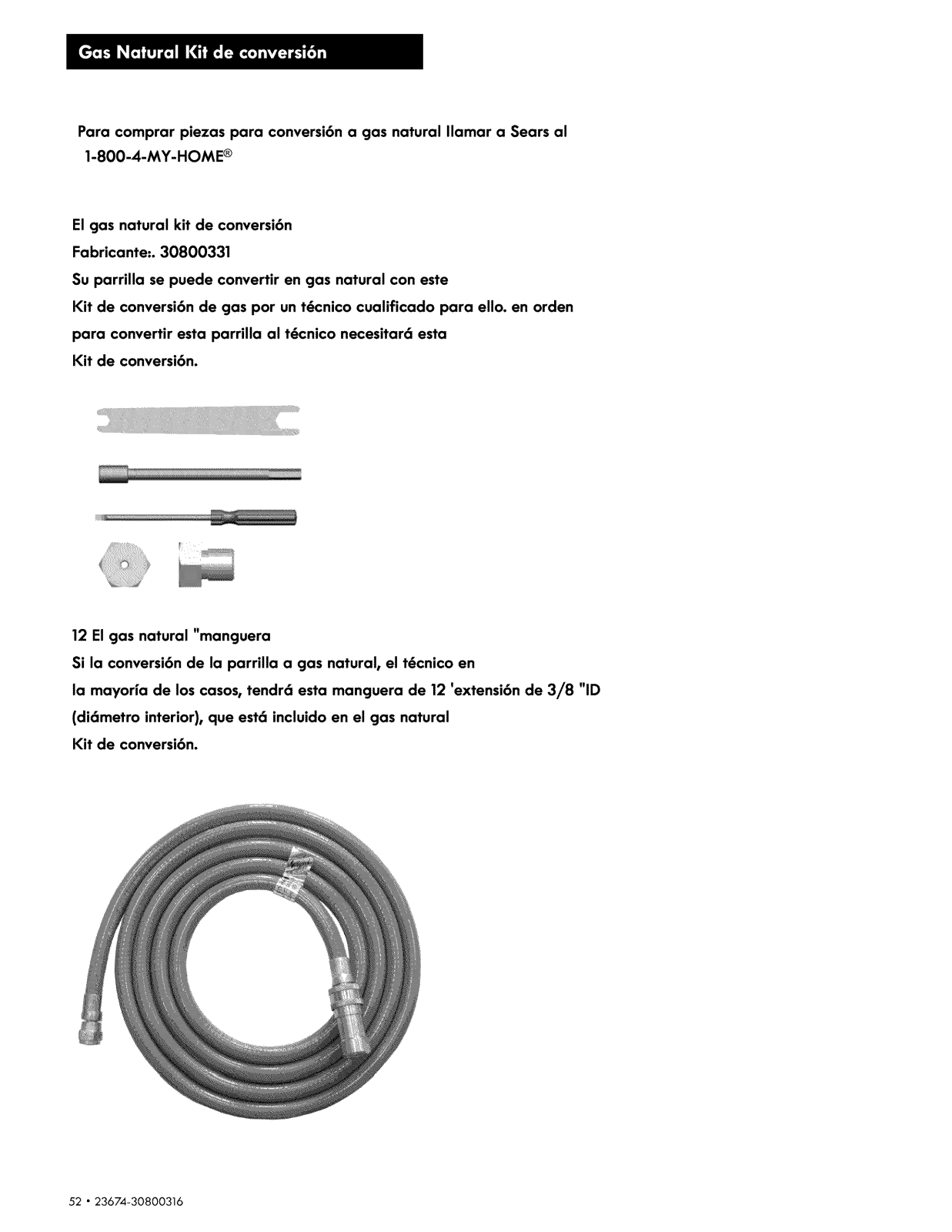

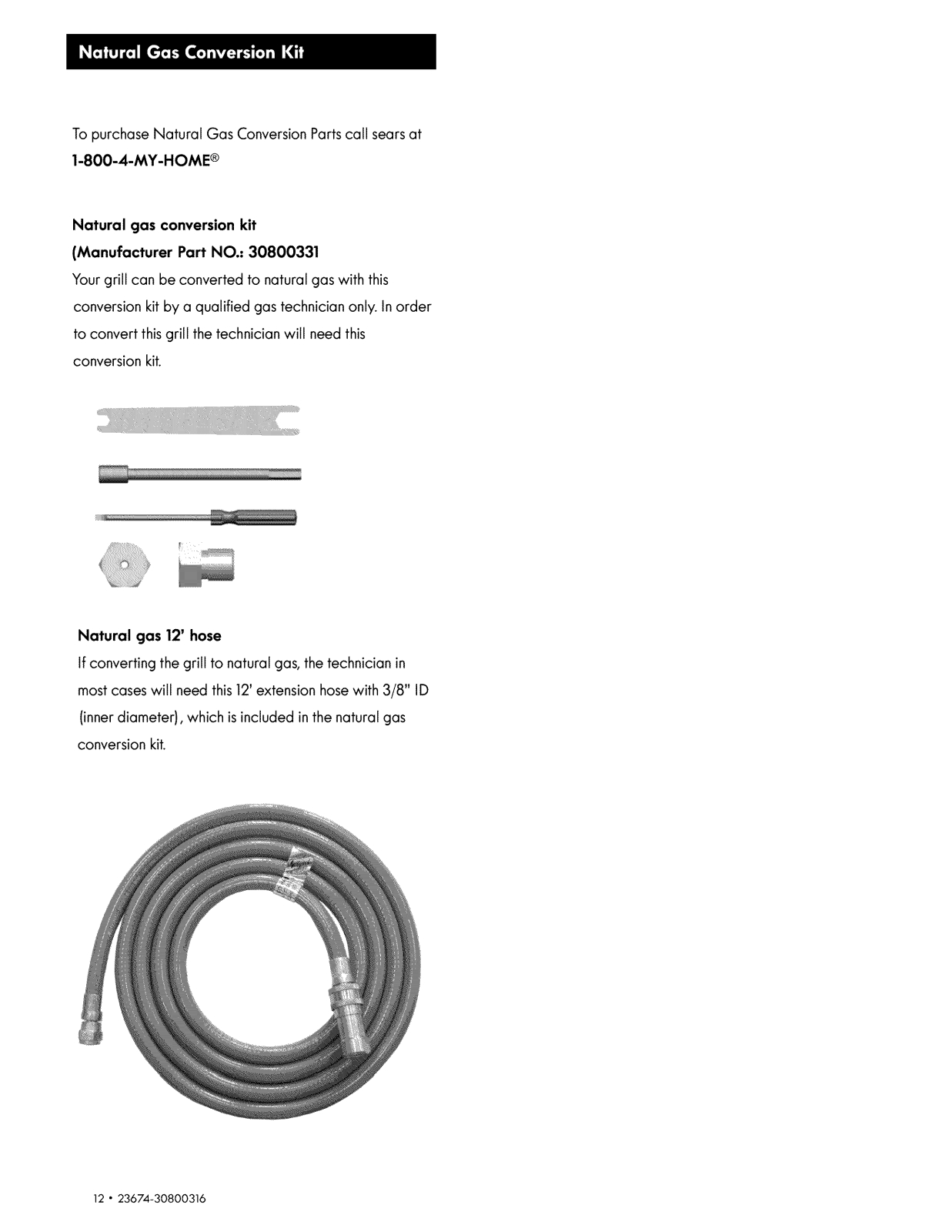

To purchase Natural Gas Conversion Partscall searsat

1-800-4-MY-HOME ®

Natural gas conversion kit

(Manufacturer Part NO.. 30800331

Your grill can be converted to natural gas with this

conversion kit by a qualified gas technician only. Inorder to convert thisgrill the technician will need this

conversion kit.

iiiiiii

Naturalgas 12'hose

If converting the grill to natural gas, the technician in mostcases will need this 12'extension hosewith 3/8" ID

(innerdiameter), which is included in the natural gas

conversion kit.

12 ° 23674-30800316

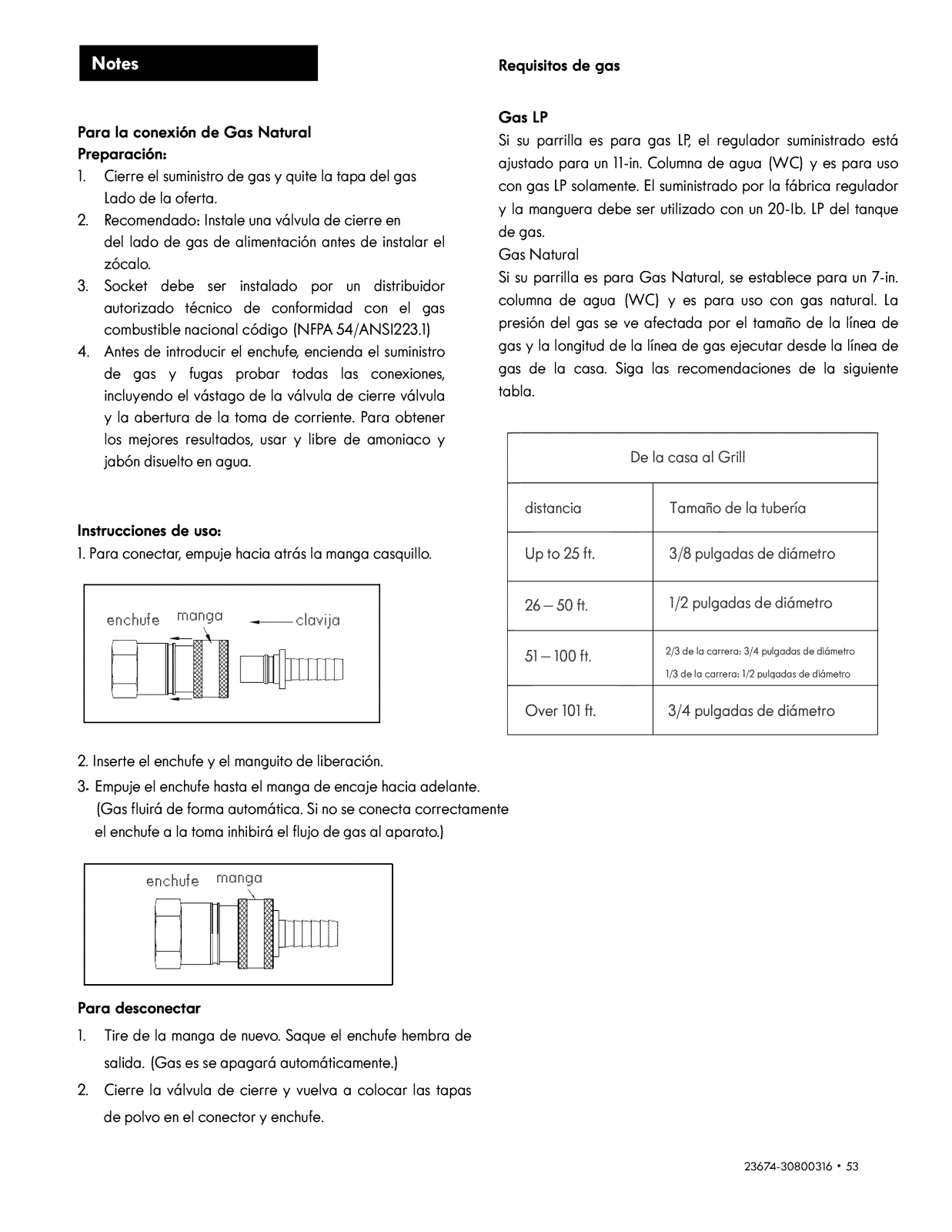

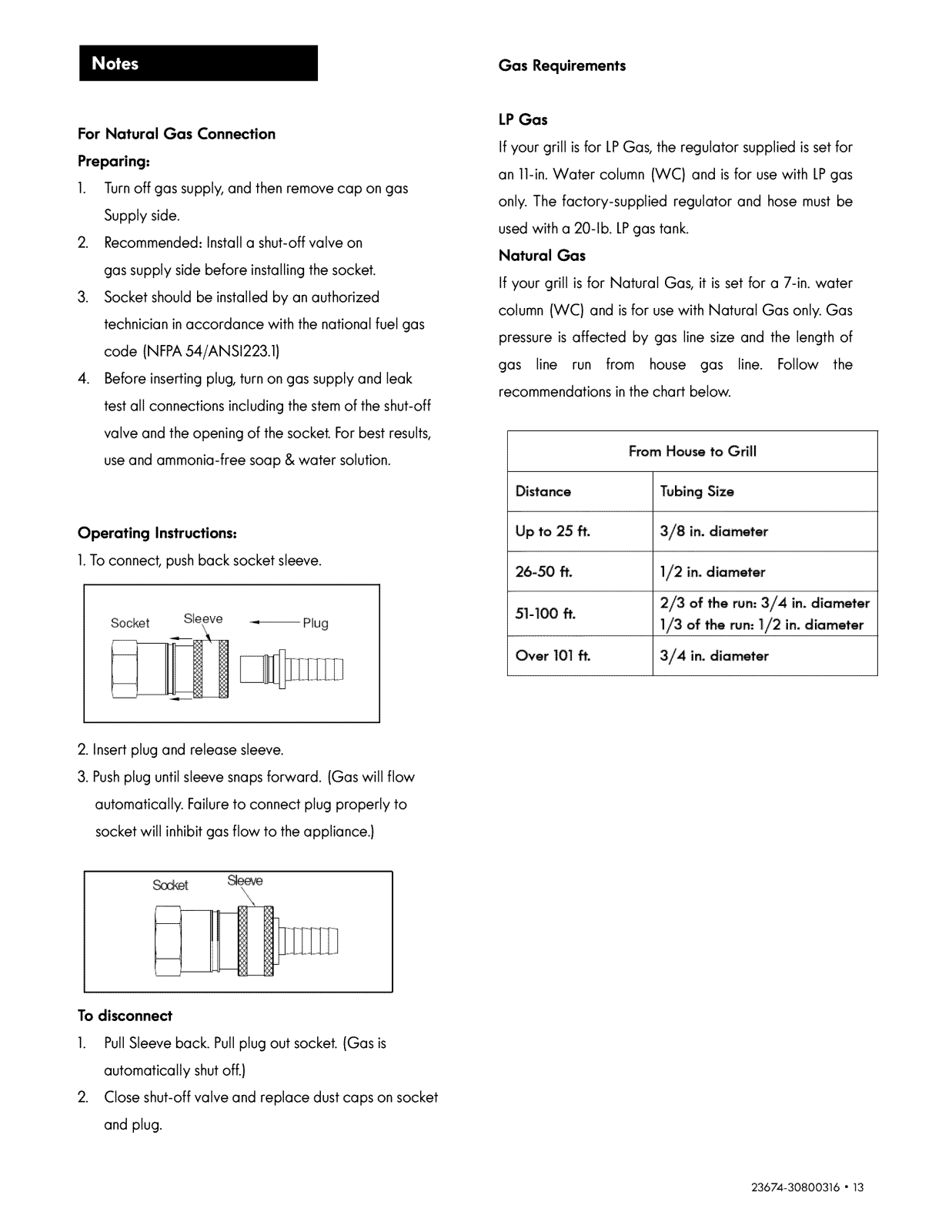

Gas Requirements

For Natural Gas Connection Preparing:

1. Turnoff gas supply, and thenremove cap on gas

Supply side.

2. Recommended: Installa shut-off valve on gas supply side before installing the socket.

3. Socket should be installed by an authorized technician inaccordance with the national fuel gas

code (NFF,A54/ANSI223.1)

4. Before inserting plug, turn ongas supply and leak test all connections including the stemof the shut-off

valve and the opening of the socket. Forbest results, useand ammonia-free soap & water solution.

Operating Instructions:

1.To connect, pushback socket sleeve.

LPGas

If your grill isfor LF,Gas, the regulator supplied isset for

an 11-in.Water column (WC} and is for use with LF,gas only. The factory-supplied regulator and hose must be

usedwith a 20-lb. LF,gas tank.

Natural Gas

If your grill is for Natural Gas, it is set for a 7-in. water

column (WC} and isfor usewith Natural Gas only. Gas

pressure is affected by gas line size and the length of

gas line run from house gas line. Follow the

recommendations inthe chart below.

From House to Grill

Distance Tubing Size

Up to 25 ft. 3/8 in. diameter

26-50 ft. 1/2 in. diameter

Socket Sleeve Plug

2. Insertplug and release sleeve.

3. Pushplug untilsleeve snapsforward. (Gas will flow

automatically. Failureto connect plug properly to socket will inhibit gas flow to the appliance.)

To disconnect

1. PullSleeve back. Pullplug out socket. (Gas is automatically shutoff.)

51-100 ft. 2/z3 of the run: 3/4 in. diameter

1/3 of the run: 1/2 in. diameter

Over 101 ft. 3/4 in. diameter

2. Close shut-off valve and replace dust caps on socket and plug.

23674-30800316 ° 13

Key

End Cap, Right Side Shelf 1

Right Side Shelf 1

Fascia, Right Side Shelf 1

Control Panel 1

Pulse control line 1

Pulse ground wire 1

Gas Valve, Main Burner 3

Manifold 1

Gas Hose 1

Regulator Fixer 1

Connector B 1

Regulagor 1

Spring Hook 1

Control Knob Bezel 3

Control Knob 3

Bottom Shelf 1

Magnet Box 1

Magnet 4

Caster 2

Caster with Brake 2

Fixer 2

Cart Support Panel 2

Right Door PinSupport 1

Left Door Pin Support 1

Right Side Panel 1

Grease Box 1

Grease Box Bracket Support 1

Grease Box Bracket 1

Door Handle 2

Match Holder 1

Match Holder Bracket 1

32-I

Right Door (mocha) 1

32-2

Right Door (SS) 1

Description Qty

Part Number

30800206

30800041

30800044

30800024

30800224

30800225

30800212

30800028

30800217

30800054

30800218

40800115

30800226 40900036

30800219

30800074

40200072

40200094

40900213

40900212

30800229

40900060

30800058

30800057

30800051

30800082

30800081

30800080

30800068

40800128

40800129

30800066

30800066A

Key Description Qty

33-1 Left Door (mocha} 1

33-2 Left Door (SS} 1 34 Left Side Panel 1

35 Back Panel 1

36 Pipe Fixer 1

37 Electronic Ignition Module 1 38 Main Burner Electrode L450 1

39 Main Burner Electrode L650 1

40 Main Burner Electrode L850 1

41 Grease Panel 1

42 Main Burner 3

43 Fascia, Left Side Shelf 1

44 Left Side End, Side Shelf 1 45 Left Side Shelf 1

46 Lid Handle 1

47 Rubber Bumper, Lid 2

48 Rubber Bumper, Lid 2

49 Temperature Gauge 1

50 Temp Gauge Bezel 1

51 Logo 1

52 Rotate Rod, Lid 2

53 Lid Handle Spacers 2

54 Bezel, Lid Handle 2 55 Cotter Pin 5

56-1 Lid (mocha} 1

56-2 Lid (SS} 1

57 Warming Rack 1

58 Cooking Grid 2 59 Heat Diffuser 3

60 Firebox 1

61 Door Bracket 1

62 Fuel Gauge 1

Pad Number

30800060

30800060A

30800049

30800053

30800218

30800223

30800220

30800221

30800222

30800019

30800086

30800036

30800205 30800031

30800010

40700103

40800107

30800207

30800208

30800209

40800108

40700022

30800011

110024

30800002

30800002A

30800210

30800211

30800018

30800013

30800056

30800087

Not Pictured

Hardware Pack 1

Manual 1

Natural Gas Conversion Kit, Purchase Separately 1 See Pages 12 & 13

14 " 23674-30800316

30800330

30800316 30800331

If you are missing hardware or have damaged parts after unpacking grill,

call 1-888-287-0735 for replacement.

To order replacement parts after using grill, call 1-800-4-MY-HOME ®

<@.......................

_ ...................................1 ¢-7_= .... .......

.......... 0 j

.............. .] ---. ,>,_

.............................................C7)

_.:.:;_:_,_- ..... ._7_

f.j +i_j1 °....-_

I .........;.............::;i)

.... /+-] C?-" jfJ ., _'\_

q% , ,_t-.,_,, _'Ts

23674-30800316. 15

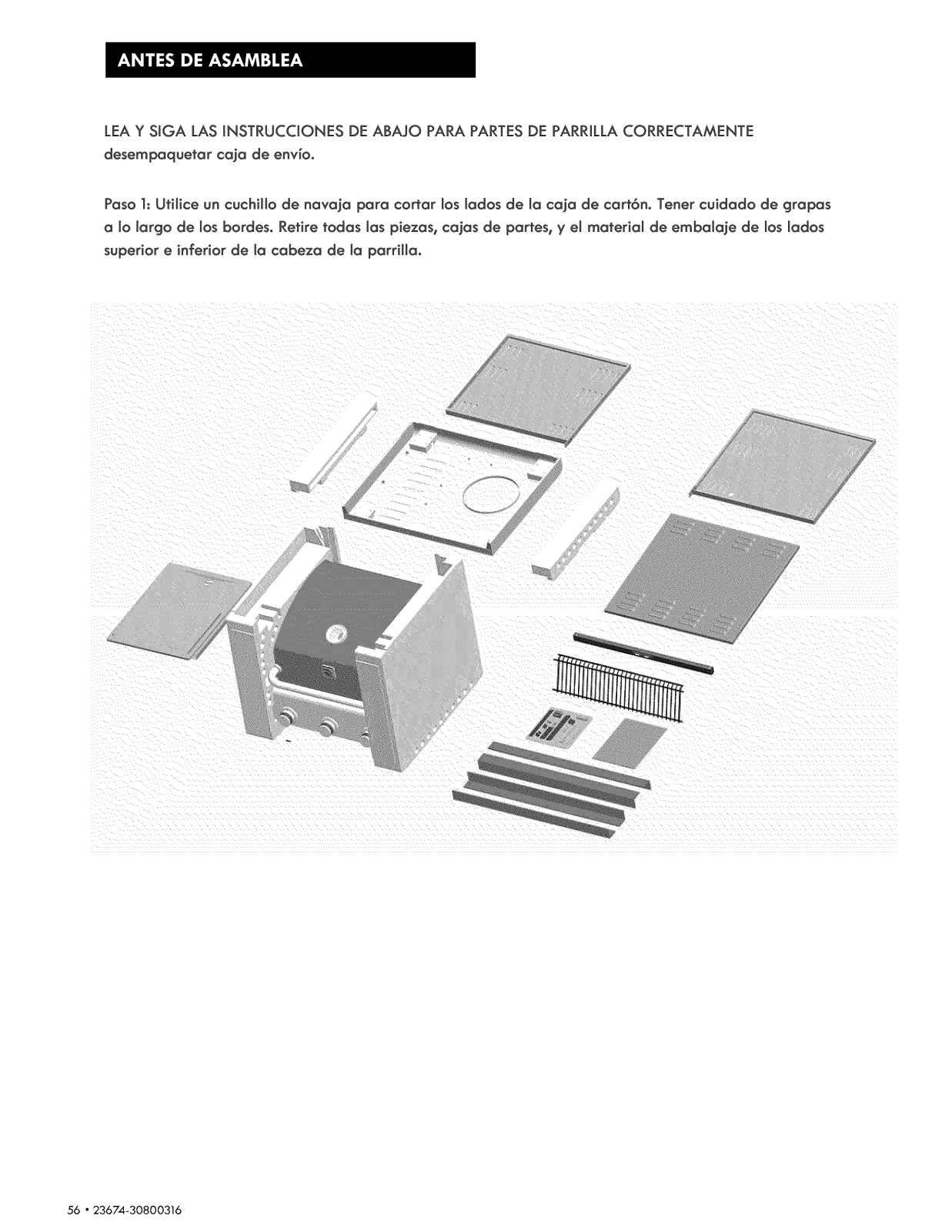

READ AND FOLLOW THE INSTRUCTIONS BELOW TO CORRECTLY UNPACK GRILL PARTS FROM SHIPPING BOX.

Step 1. Use a box cutter knife to slice clown the sides of the carton box. Be careful of staples along the edges. Remove all parts, part boxes, and packing material from the top, sides and

bottom of grill head.

16 " 23674-30800316

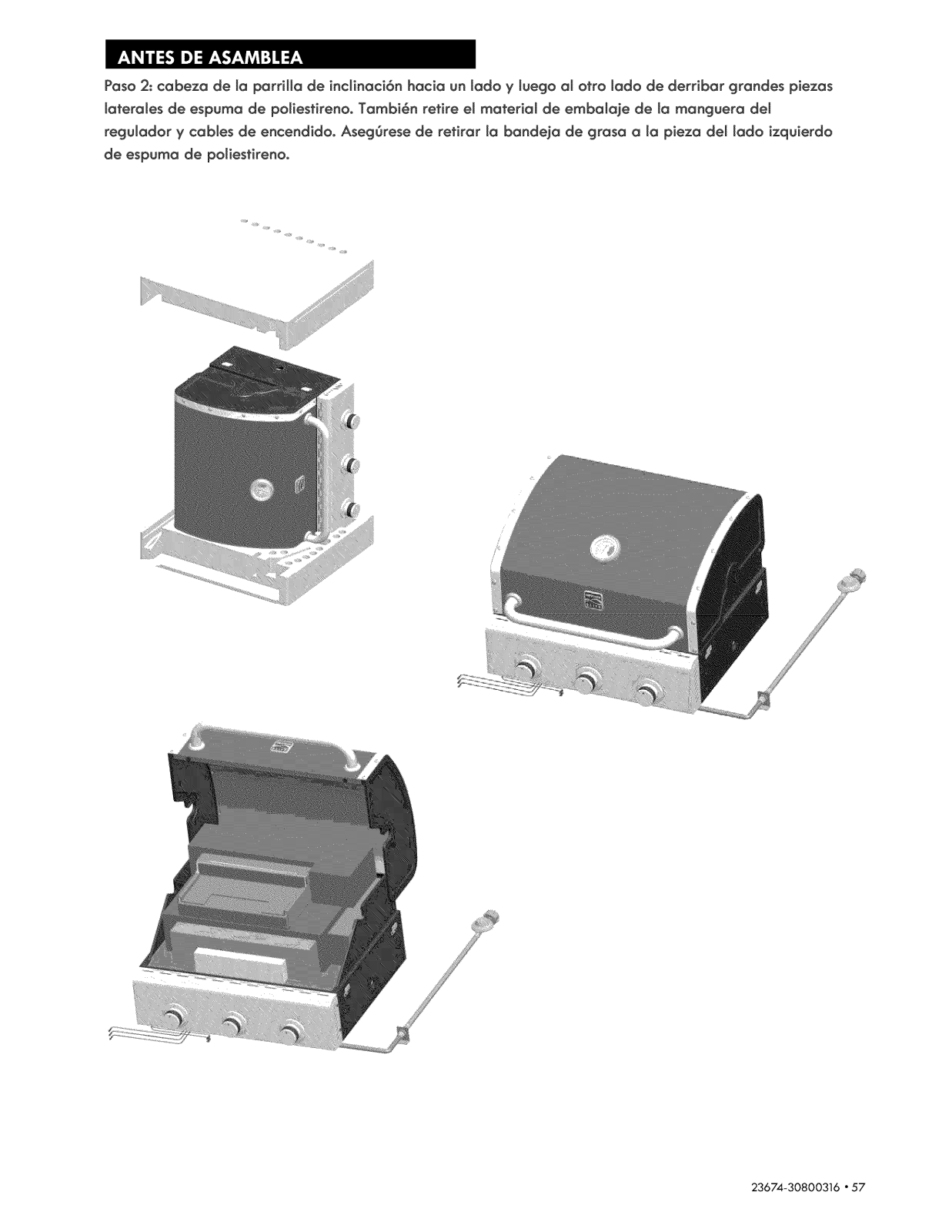

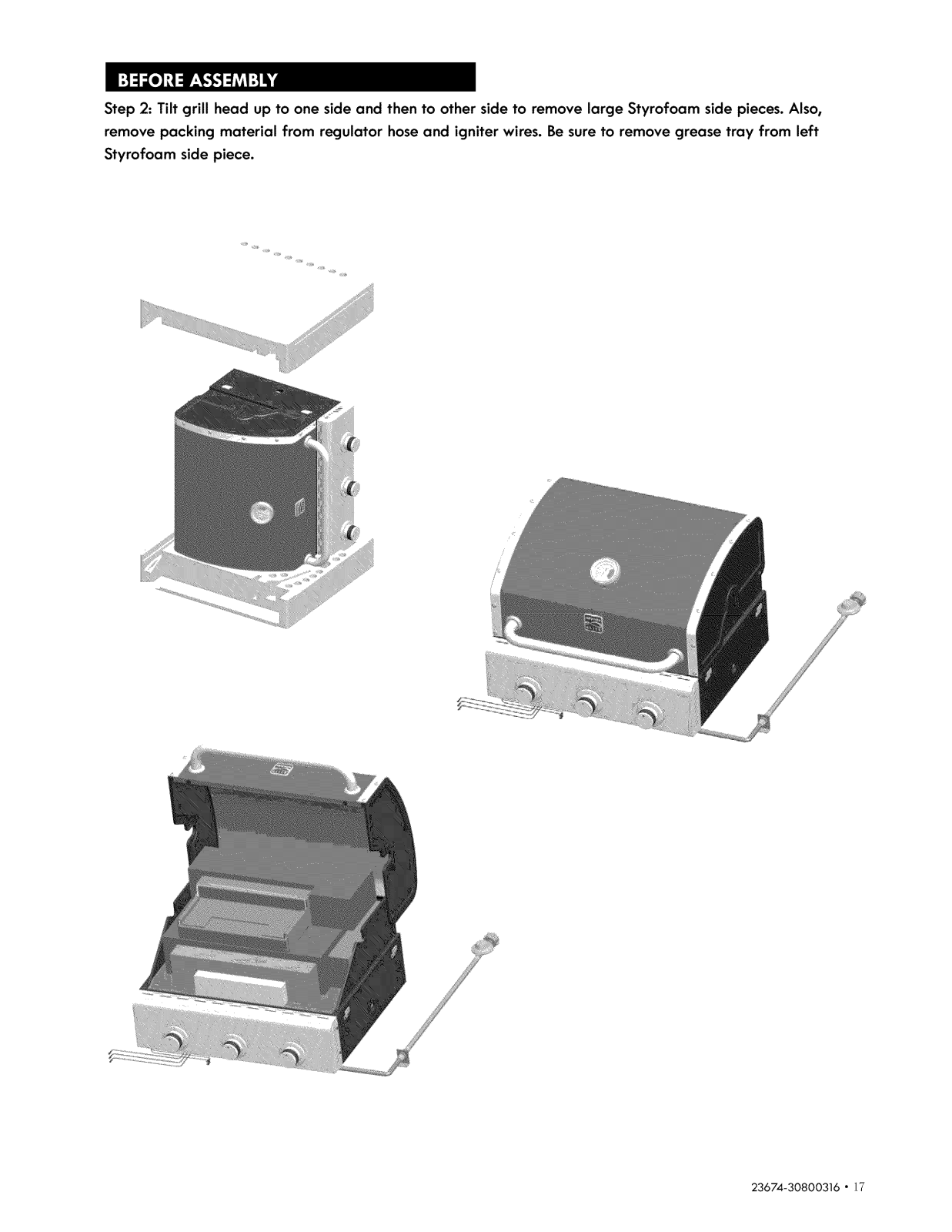

Step 2: Tilt grill head up to one side and then to other side to remove large Styrofoam side pieces. Also, remove packing material from regulator hose and igniter wires. Be sureto remove grease tray from left Styrofoam side piece.

23674-30800316 " 17

Step 3: With grill head resting on base on shipping box cardboard, raise grill head lid, and remove all part boxes and packing material from inside the grill head. Allow grill head to rest on cardboard until

placing grill head on cart during assembly.

18 * 23674-30800316

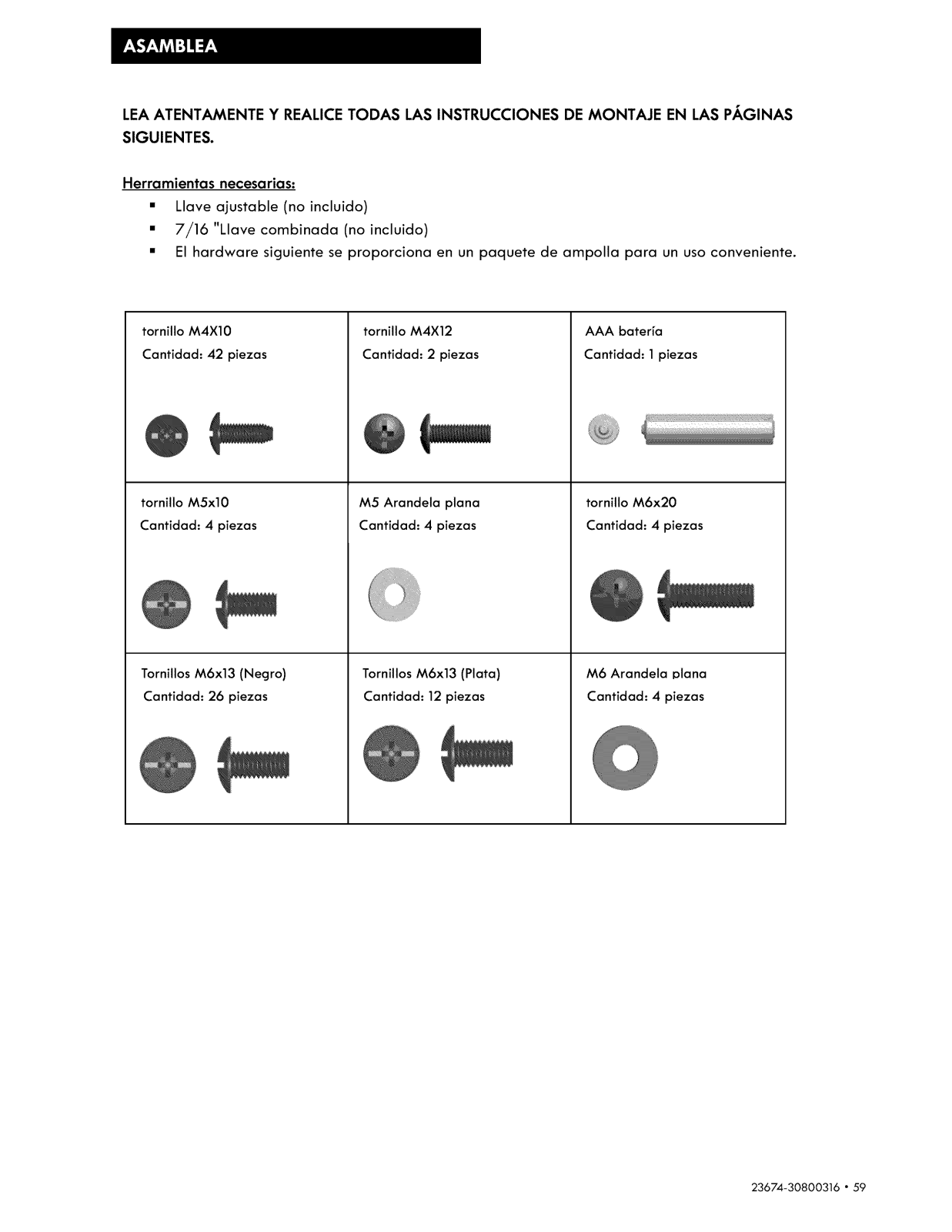

CAREFULLY READ AND PERFORM ALL ASSEMBLY iNSTRUCTiONS ON THE FOLLOWING PAGES.

Tools Required:

• Adjustable wrench (not provided)

• 7/16" Combination wrench (not provided)

• The following hardware is provided in blister pack for convenient use.

M4X10 Screws

Qty: 42 pcs

M5X10 Screws

Qty: 4 pcs

M6X13 Screws (Black)

Qty: 26 pcs

M4X12 Screws

Qty: 2 pcs

M5 flat washer

Qty: 4 pcs

_i/iiiiiiiii!_iii_i

M6X13 Screws (Silver)

Qty: 12 pcs

AAA Battery Qty: 1 pcs

M6X20 Screws

Qty: 4 pcs

M6 flat washer

Qty: 4 pcs

23674-30800316 " 19

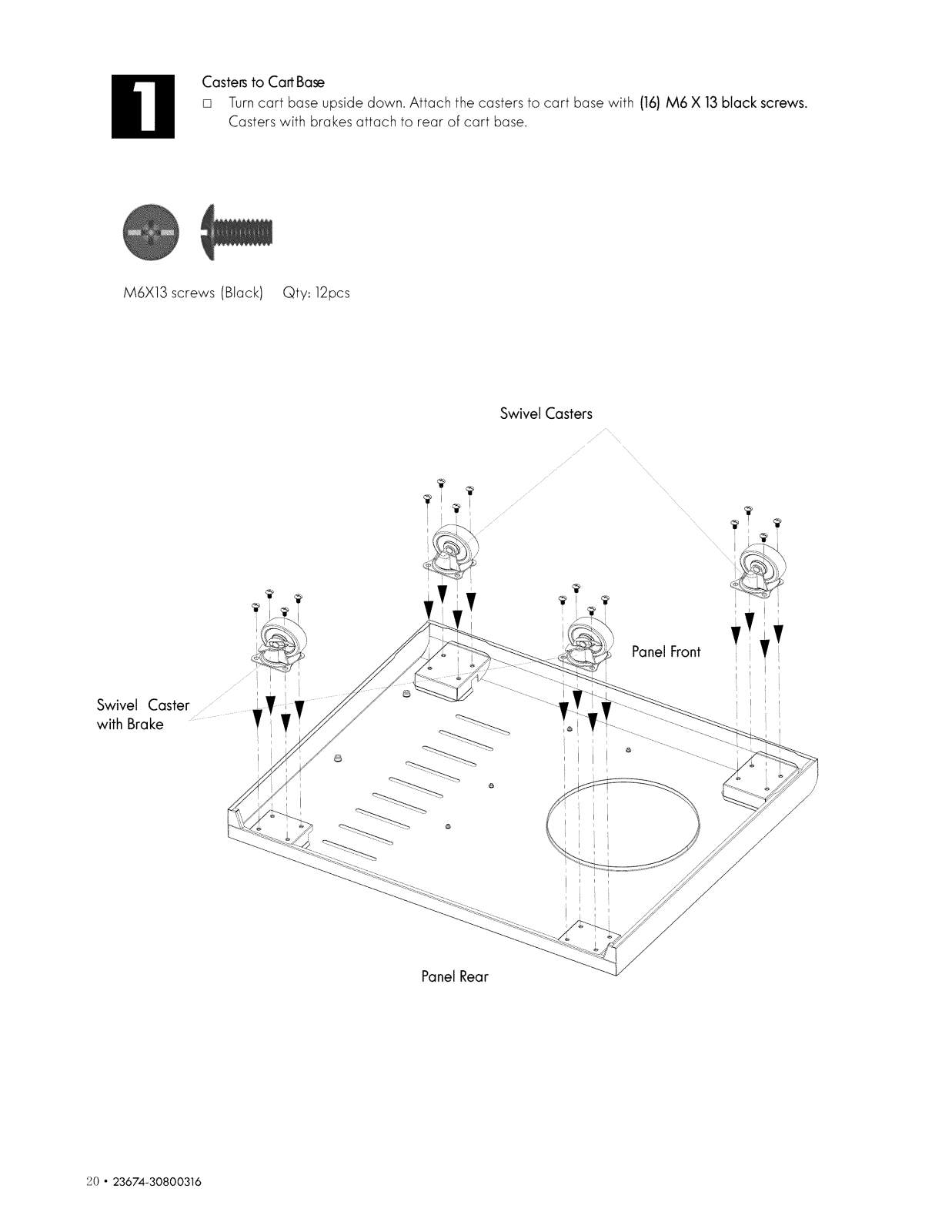

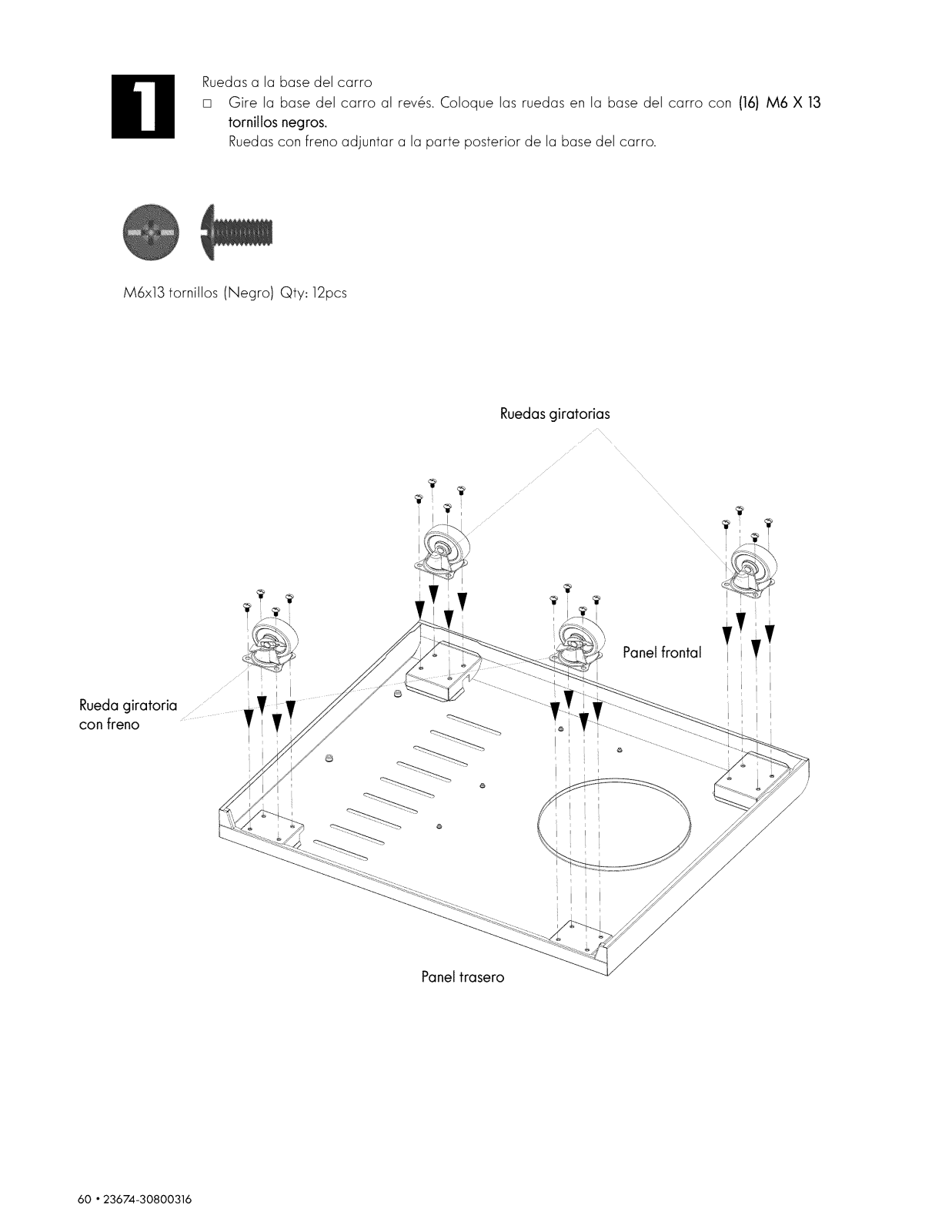

Castersto CartBase [] Turncart base upside down. Attach the casters to cart base with (16)M6 X 13black screws.

Casters with brakes attach to rear of cart base.

M6X13 screws (Black) Qty: 12pcs

Swivel Casters

Swivel Caster with Brake

Panel Front

Panel Rear

20 " 23674-30800316

M4XIO screws Qty: 2 pcs

\\\

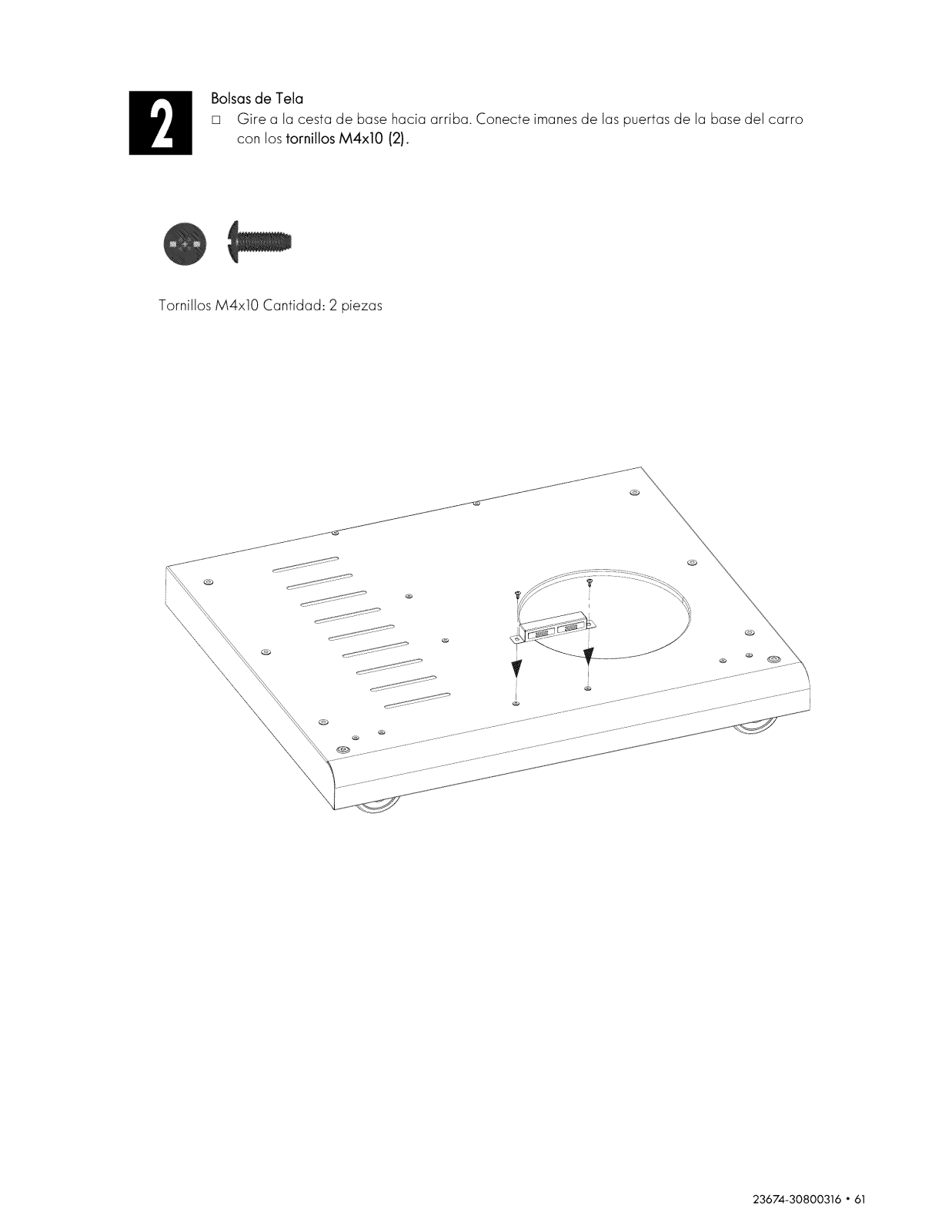

lUrn cart base right side up. Attach door

magnets to cart base With _'2}M4xlO Screws.

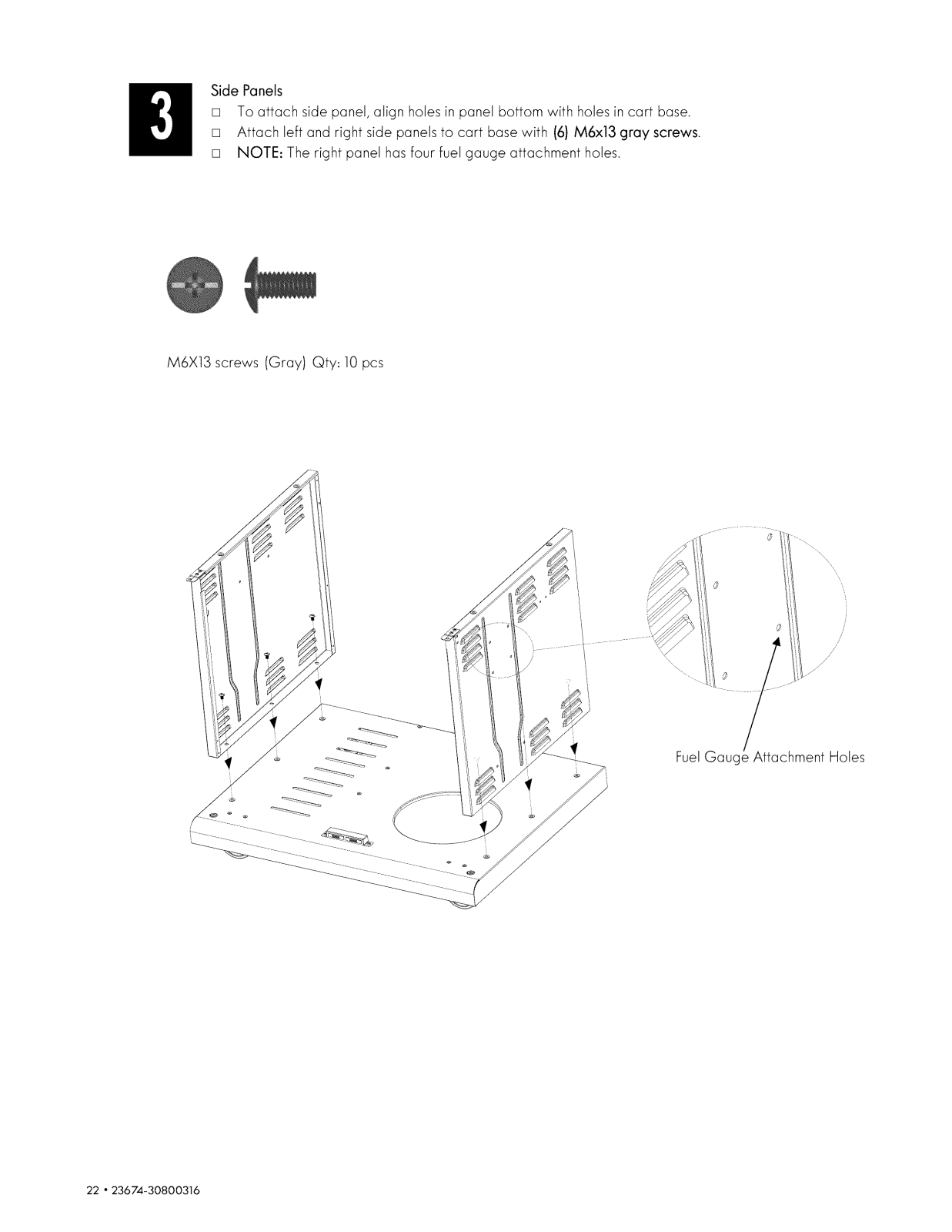

Side Panels

[] To attach side panel, align holesin panel bottom with holes in cart base. [] Attach left and right side panels to cart base with (6) MBx13gray screws.

[] NOTE: The right panel hasfour fuel gauge attachment holes.

M6X13 screws (Gray) Qty: 10pcs

22 " 23674-30800316

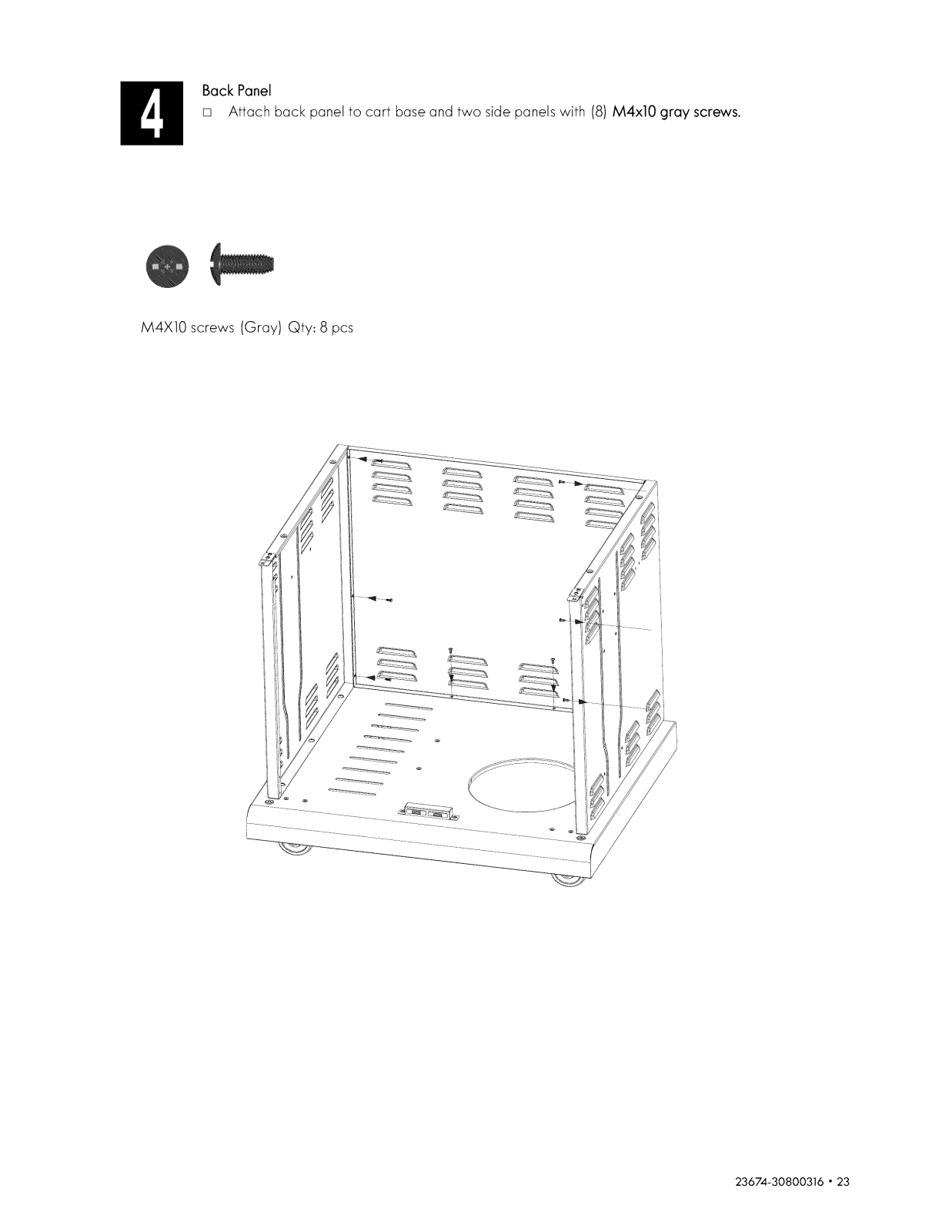

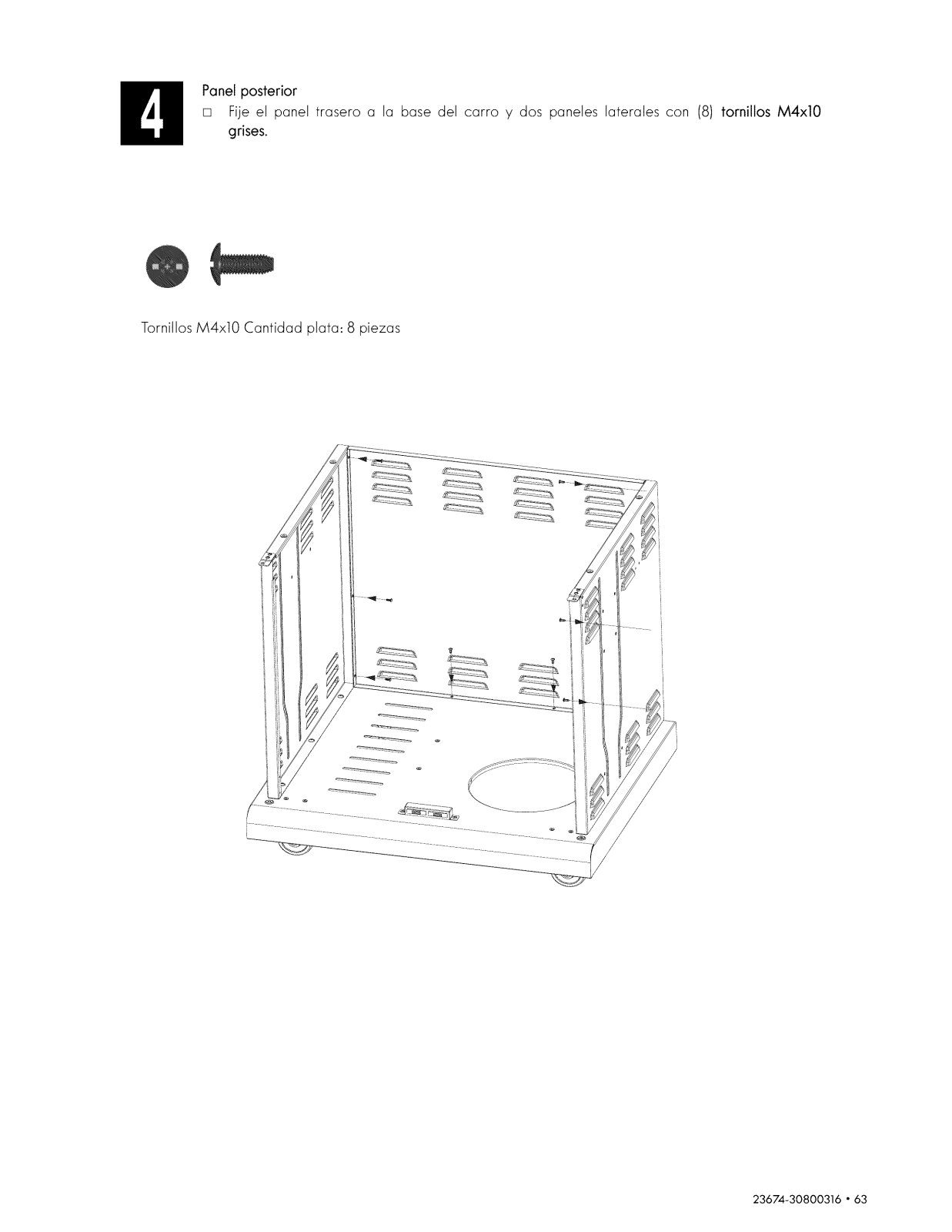

[] Attach back panel to cart base and two side panels with (8) M4xl0 gray screws. Back Panel

M4X10 screws (Gray) Qty: 8 pcs

23674-30800316 " 23

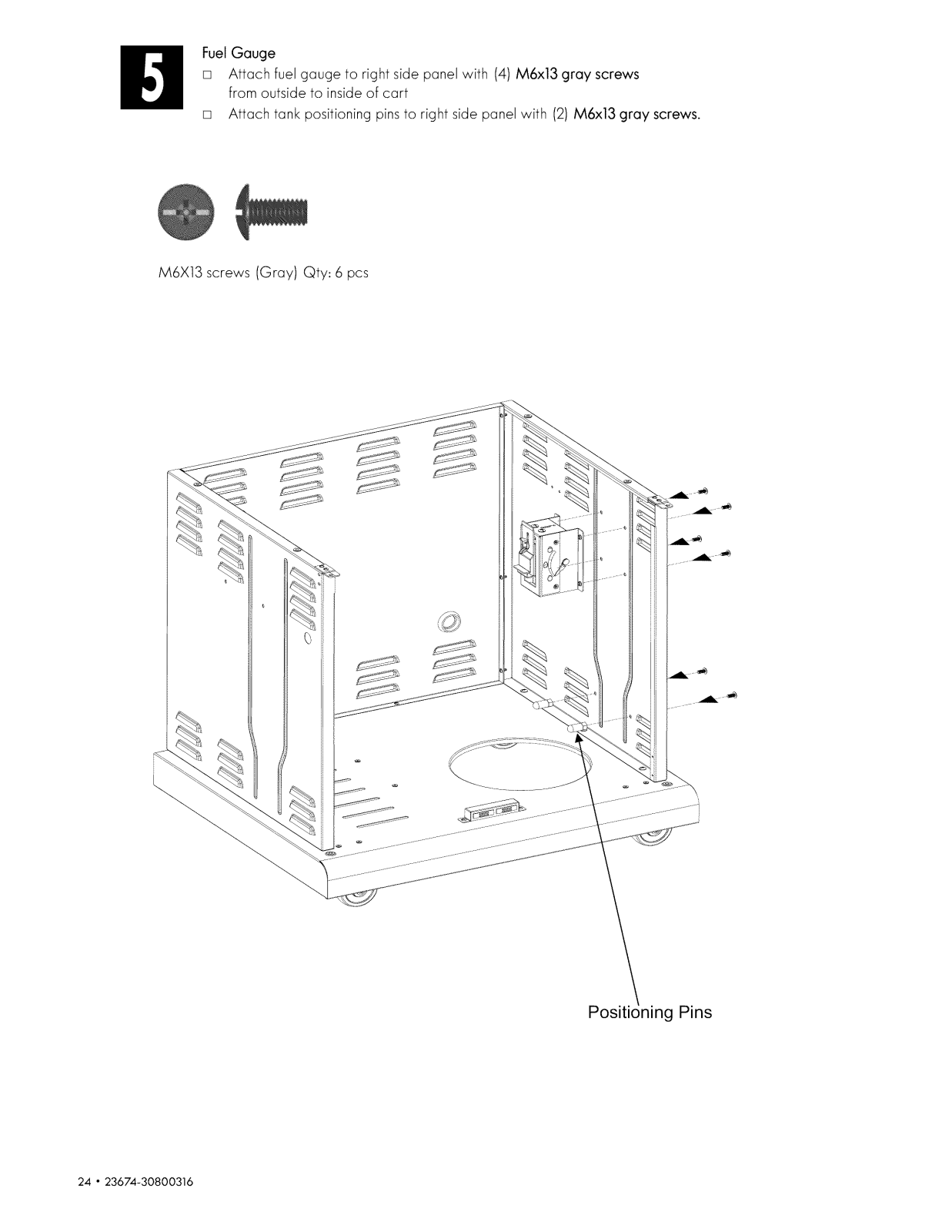

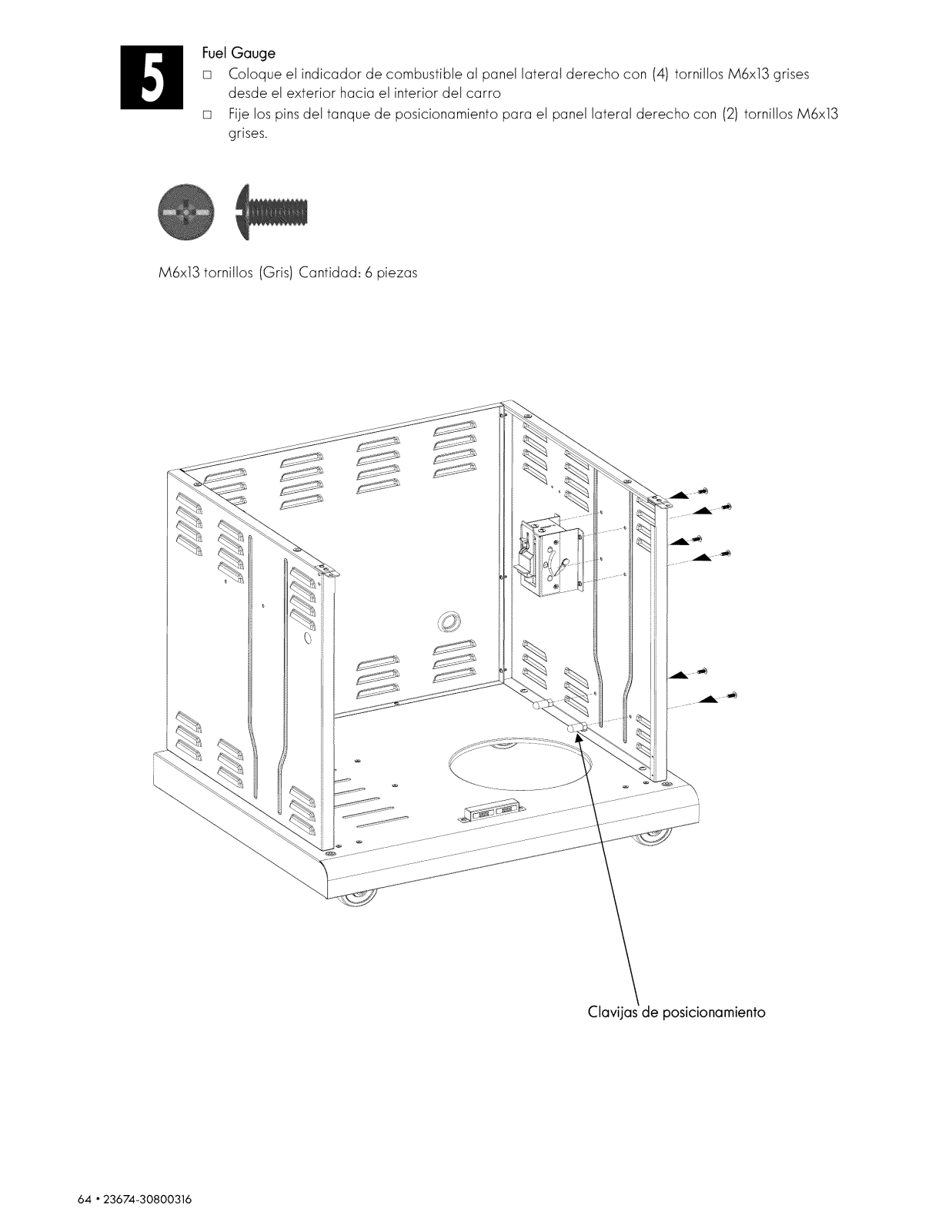

FuelGauge [] Attach fuel gauge to right side panel with (4) M6x13 gray screws

from outsideto insideof cart

[] Attach tank positioning pinsto right side panel with (2) M6x13 gray screws.

M6X13 screws (Gray) Qty: 6 pcs

24 " 23674-30800316

Positi g Pins

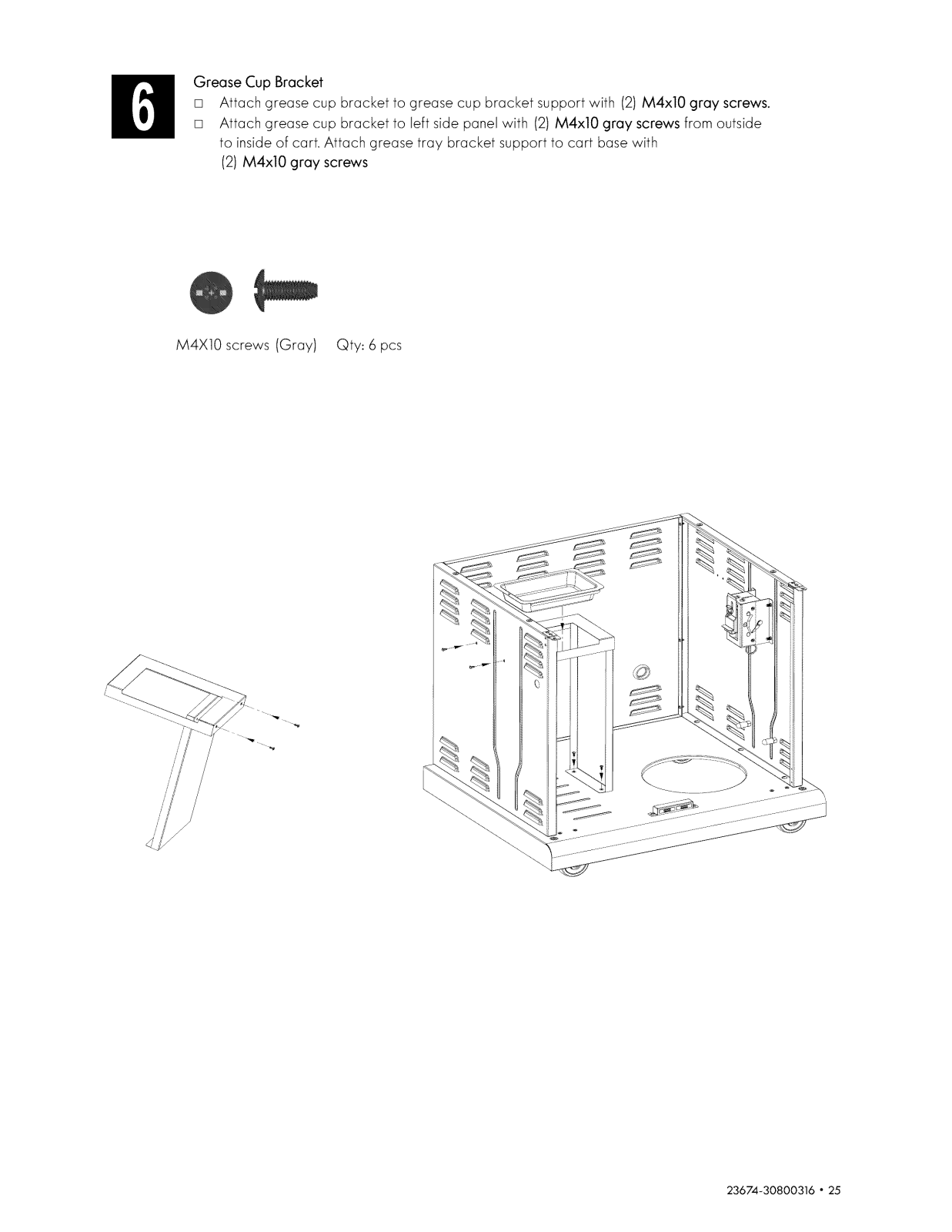

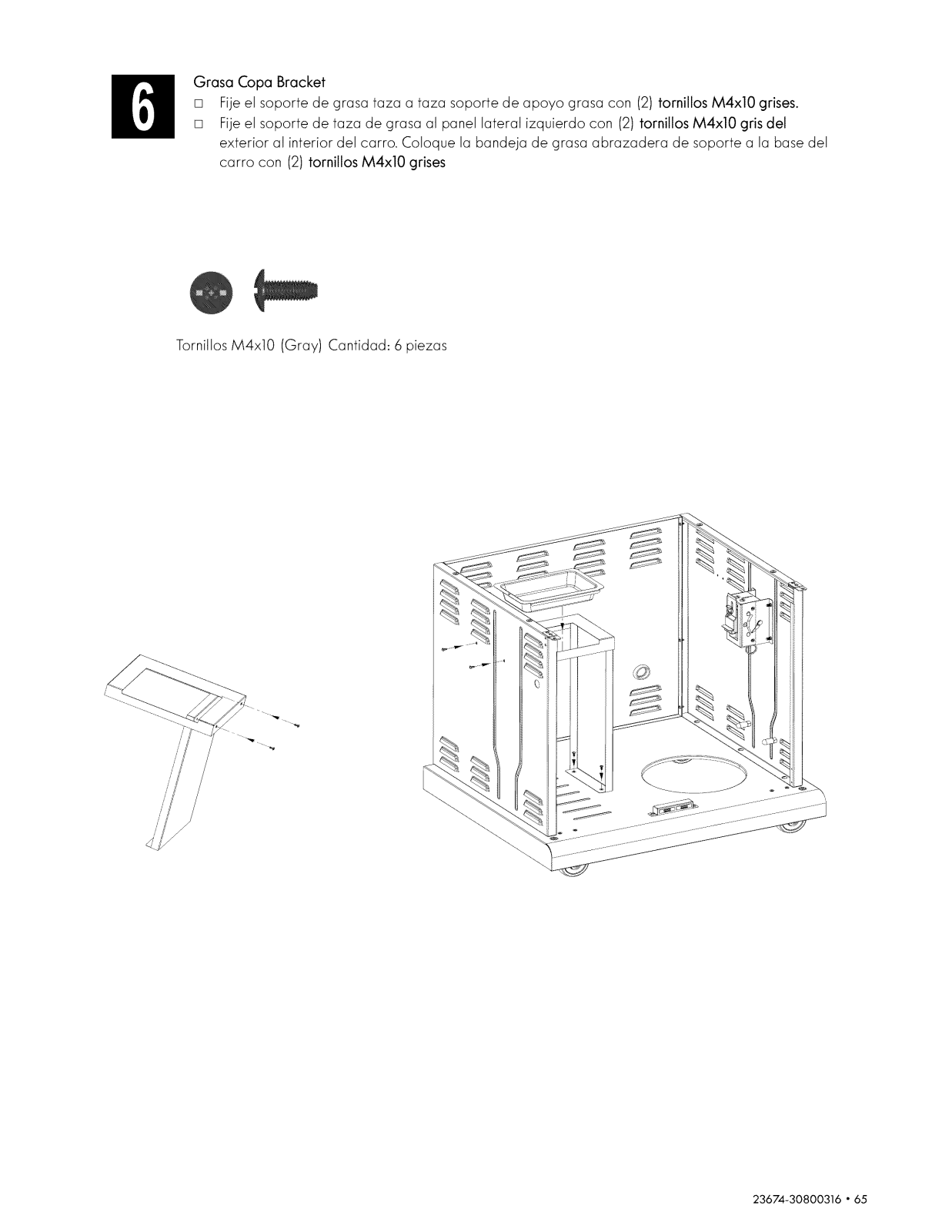

Grease Cup Bracket

[] Attach grease cup bracket to grease cup bracket support with (2) M4xl0 gray screws. [] Attach grease cup bracket to left side panel with (2) M4xl0 gray screws from outside

to insideof cart. Attach grease tray bracket support to cart base with

(2) M4xl0 gray screws

t,,,,,,

M4X10 screws (Gray) Qty: 6 pcs

23674-30800316 ° 25

+ 57 hidden pages

Kenmore 146.23675310 Owner's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
