Kenmore 141.16235 Operator's Manual

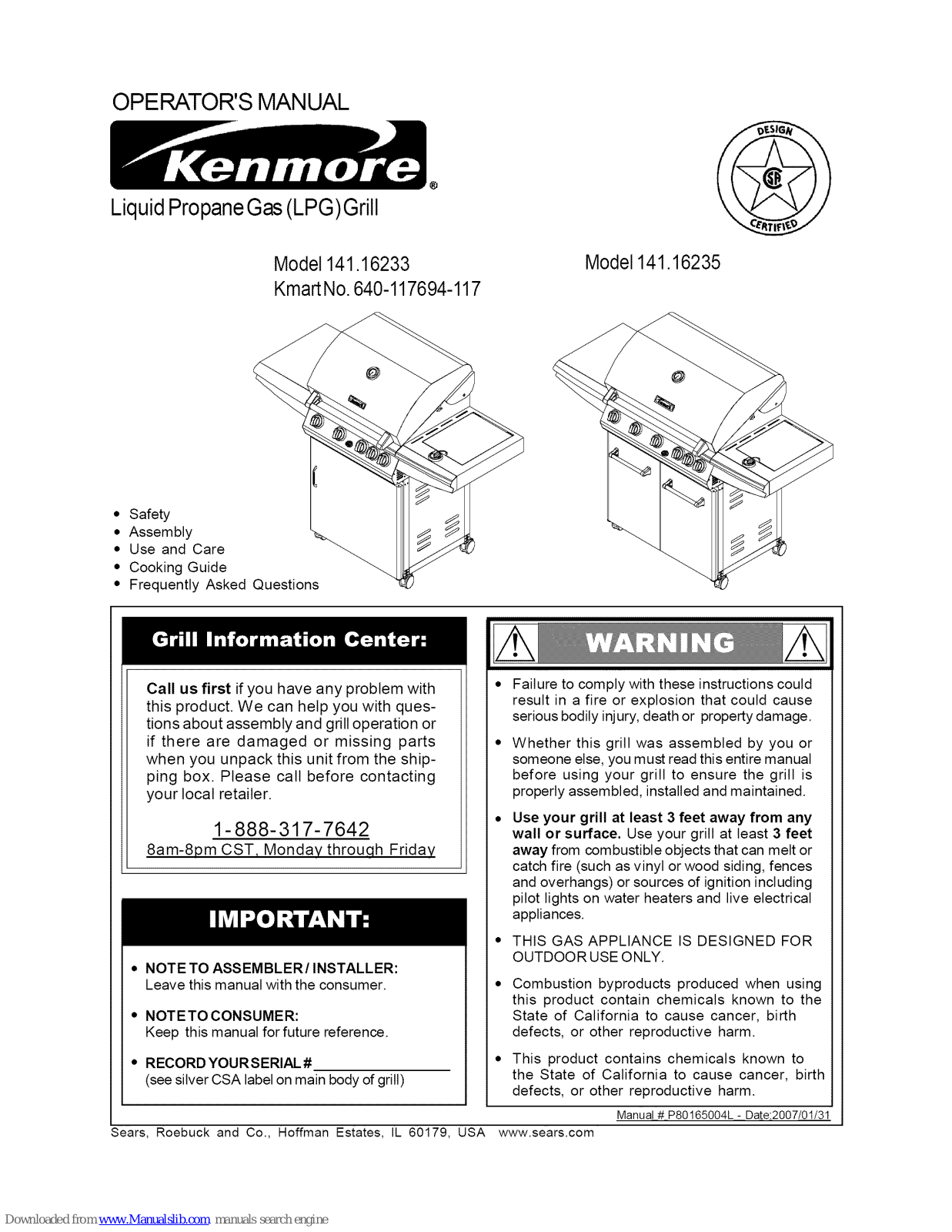

OPERATOR'S MANUAL
LiquidPropaneGas(LPG)Grill
Model 141.16233 KmartNo.640-117694-117
Model 141.16235
Safety
Assembly
Use and Care
Frequently Asked Questions
Call us first if you have any problem with this product. We can help you with ques- tions about assembly and grill operation or if there are damaged or missing parts when you unpack this unit from the ship- ping box. Please call before contacting your local retailer.
1- 888-317-7642
8am-8pm CST, Monday throuqh Friday
NOTE TO ASSEMBLER/INSTALLER: Leave this manual with the consumer.
NOTETO CONSUMER: Keep this manual for future reference.
RECORD YOURSERIAL # (see silver CSA label on main body of grill)
Failure to comply with these instructions could result in a fire or explosion that could cause
serious bodily injury, death or property damage. Whether this grill was assembled by you or
someone else, you must read this entire manual
before using your grill to ensure the grill is properly assembled, installed and maintained.
Use your grill at least 3 feet away from any
wall or surface. Use your grill at least 3 feet away from combustible objects that can melt or catch fire (such as vinyl or wood siding, fences and overhangs) or sources of ignition including
pilot lights on water heaters and live electrical
appliances.
THIS GAS APPLIANCE IS DESIGNED FOR OUTDOOR USE ONLY.
Combustion byproducts produced when using
this product contain chemicals known to the
State of California to cause cancer, birth
defects, or other reproductive harm. This product contains chemicals known to
the State of California to cause cancer, birth defects, or other reproductive harm.
Manual # P80165004L - Date:2007/01/31
Sears, Roebuck and Co., Hoffman Estates, IL 60179, USA www.sears.com

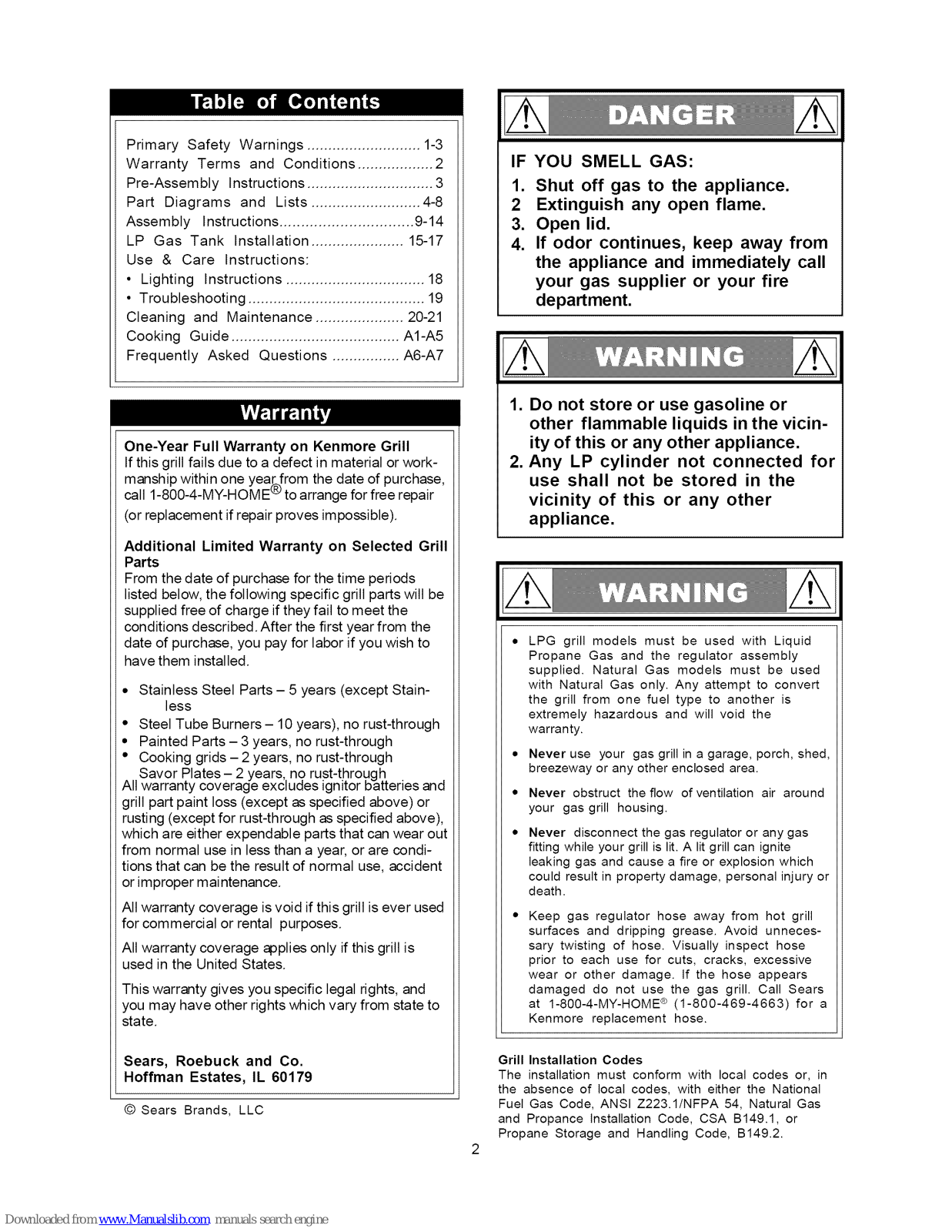

Primary Safety Warnings ........................... 1-3
Warranty Terms and Conditions .................. 2
Pre-Assembly Instructions .............................. 3
Part Diagrams and Lists .......................... 4-8

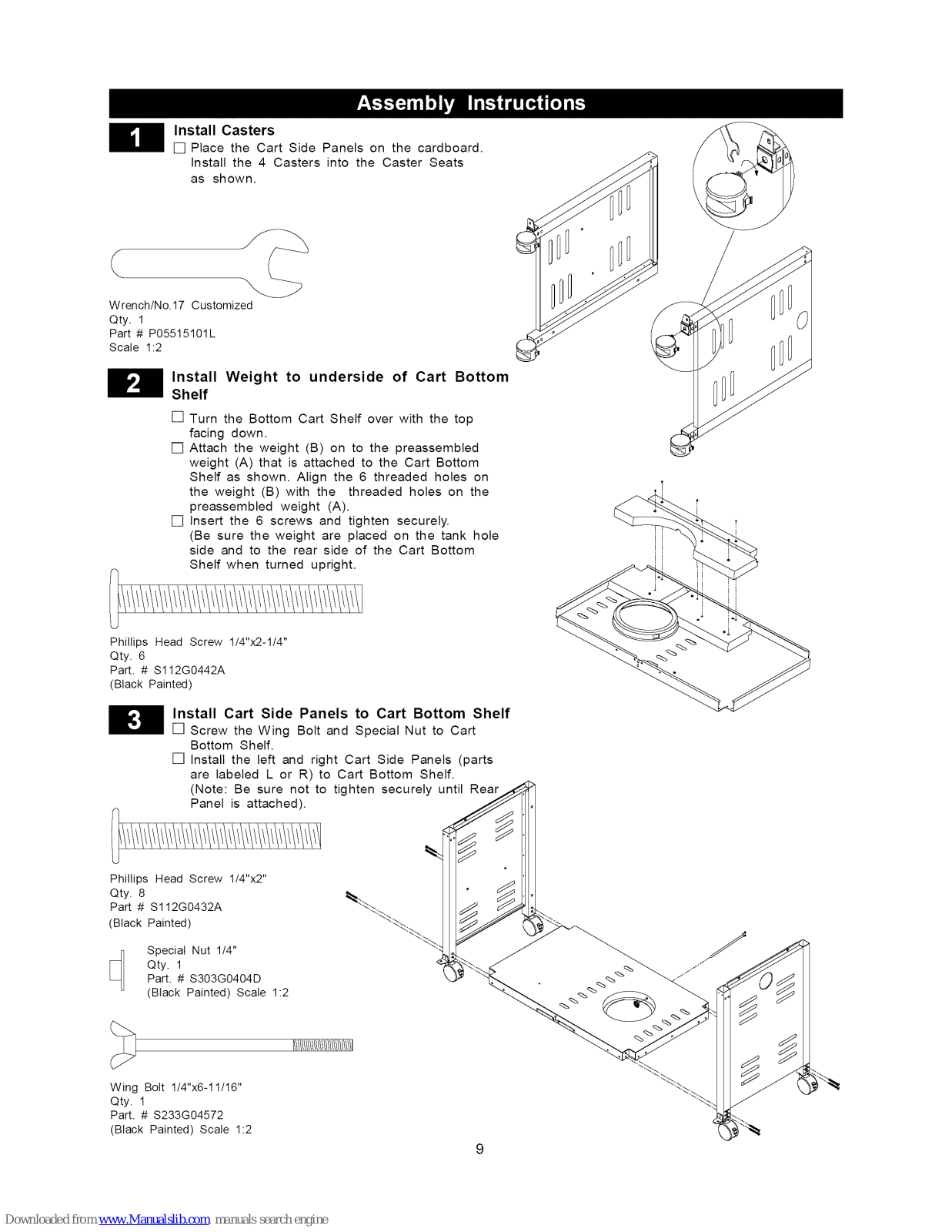

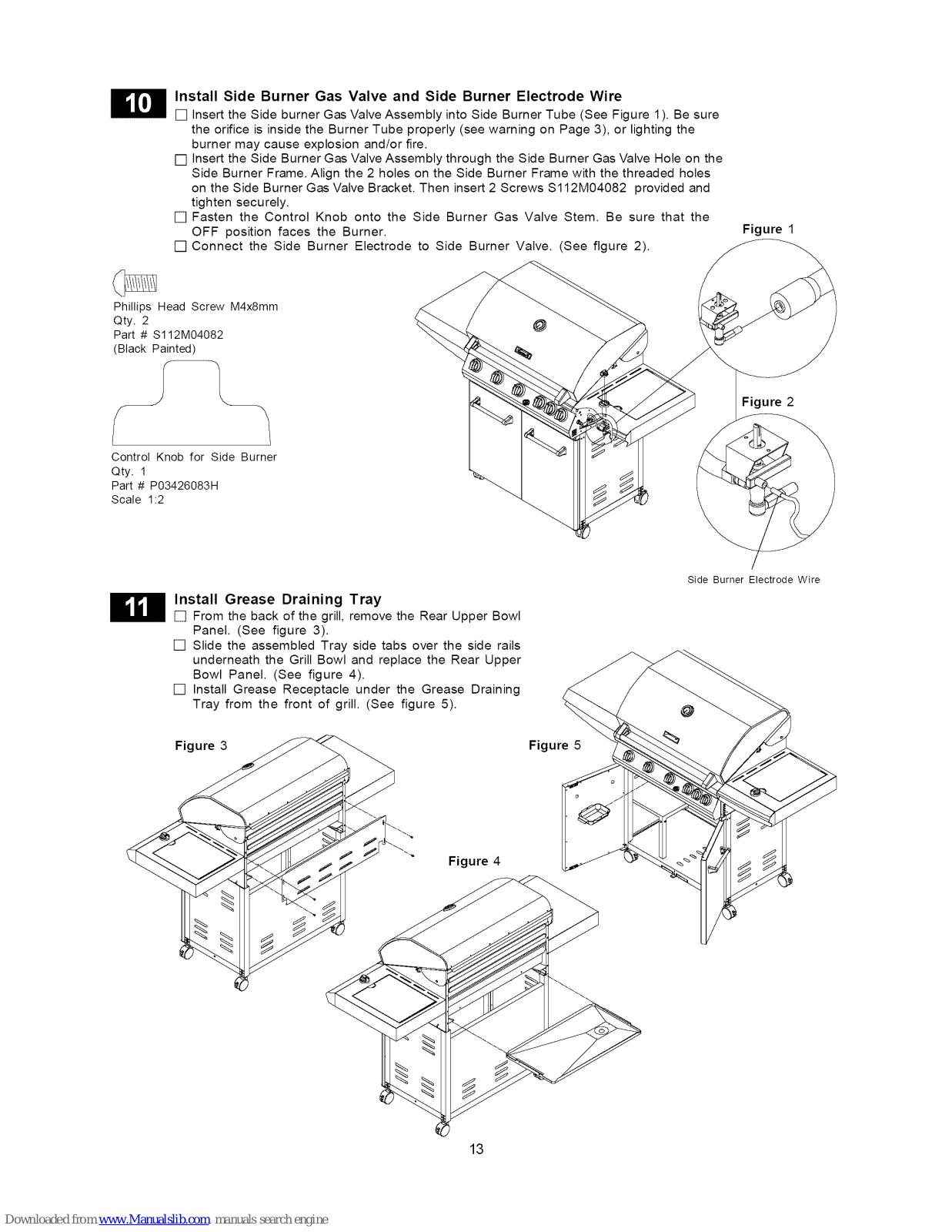

Assembly Instructions ............................... 9-14

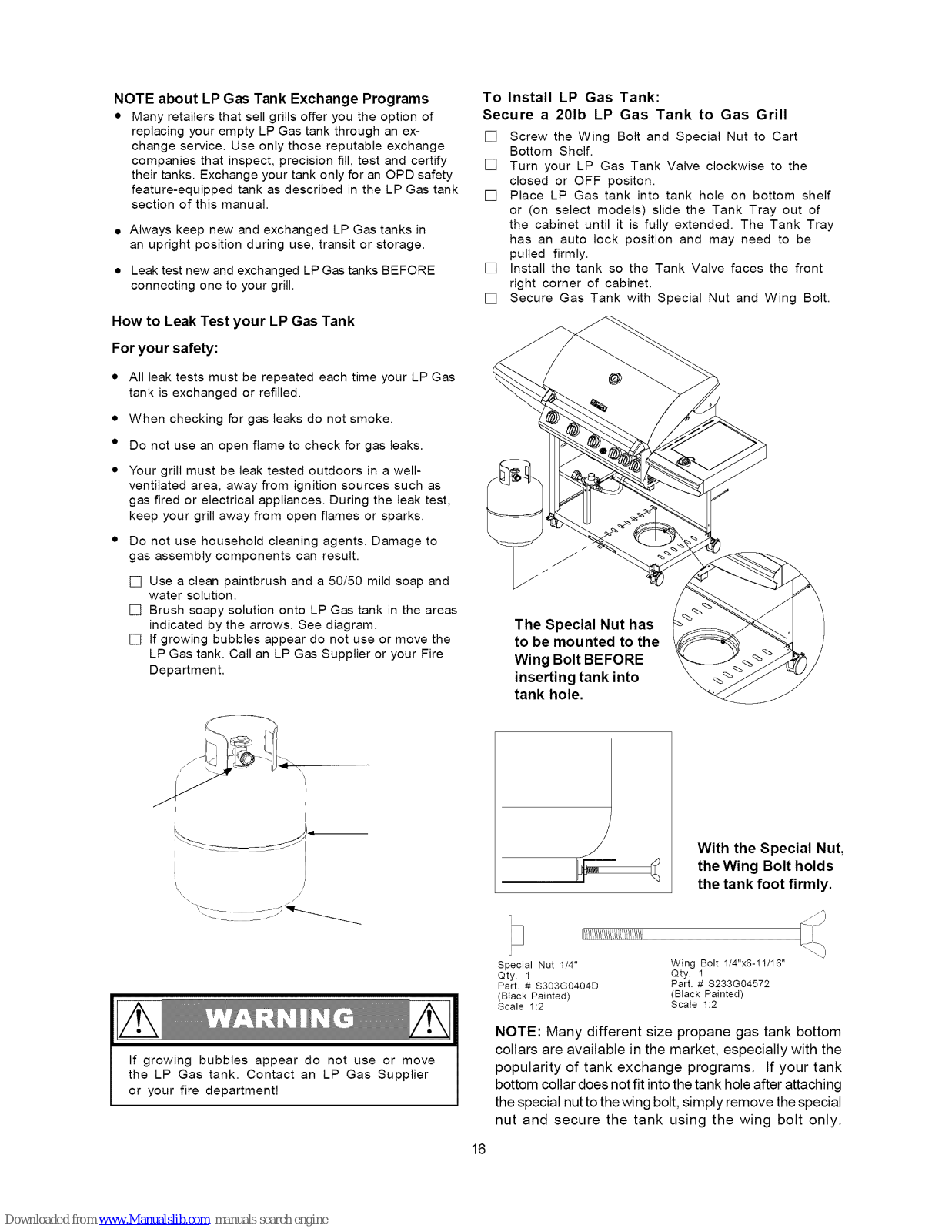

LP Gas Tank Installation ...................... 15-17
Use & Care Instructions:

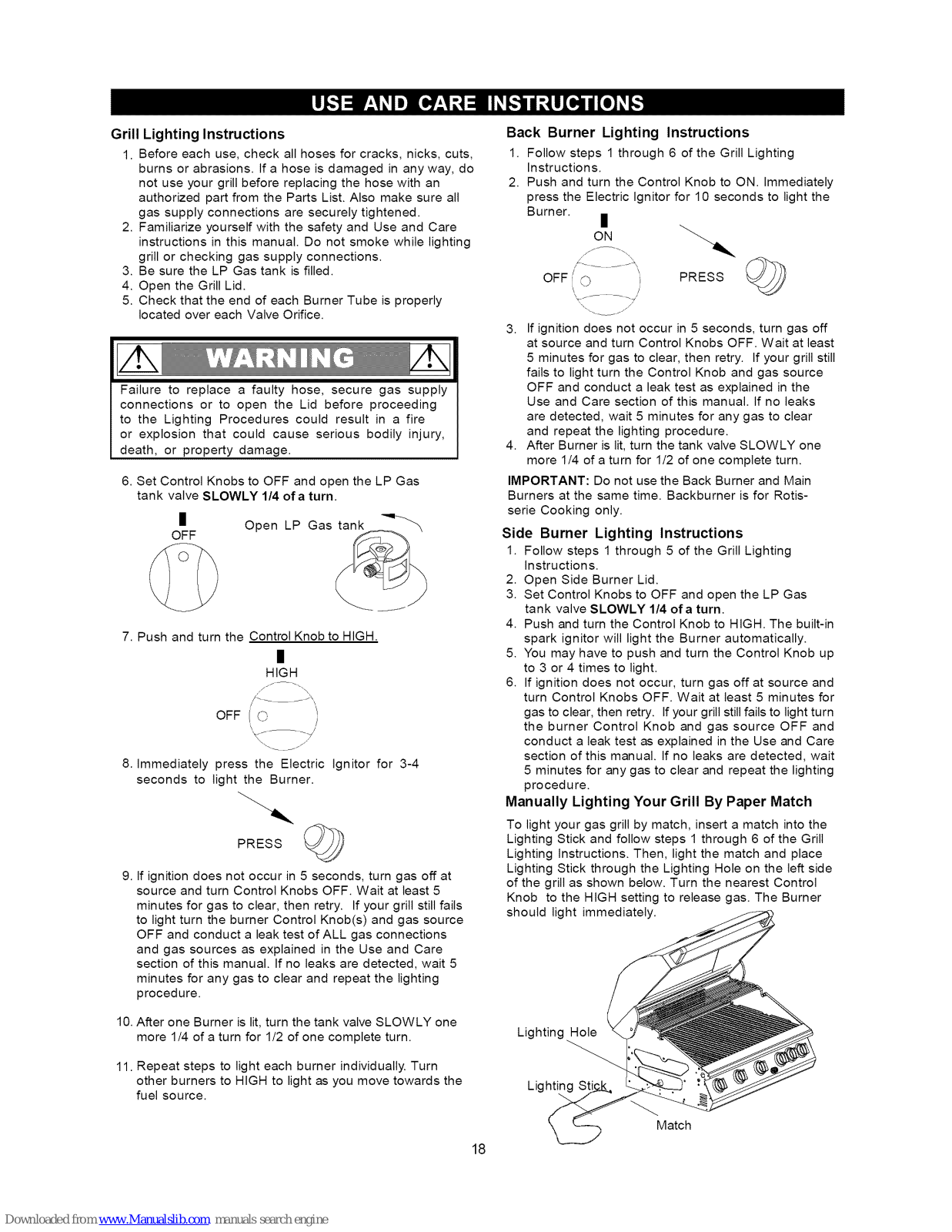

Lighting Instructions ................................. 18

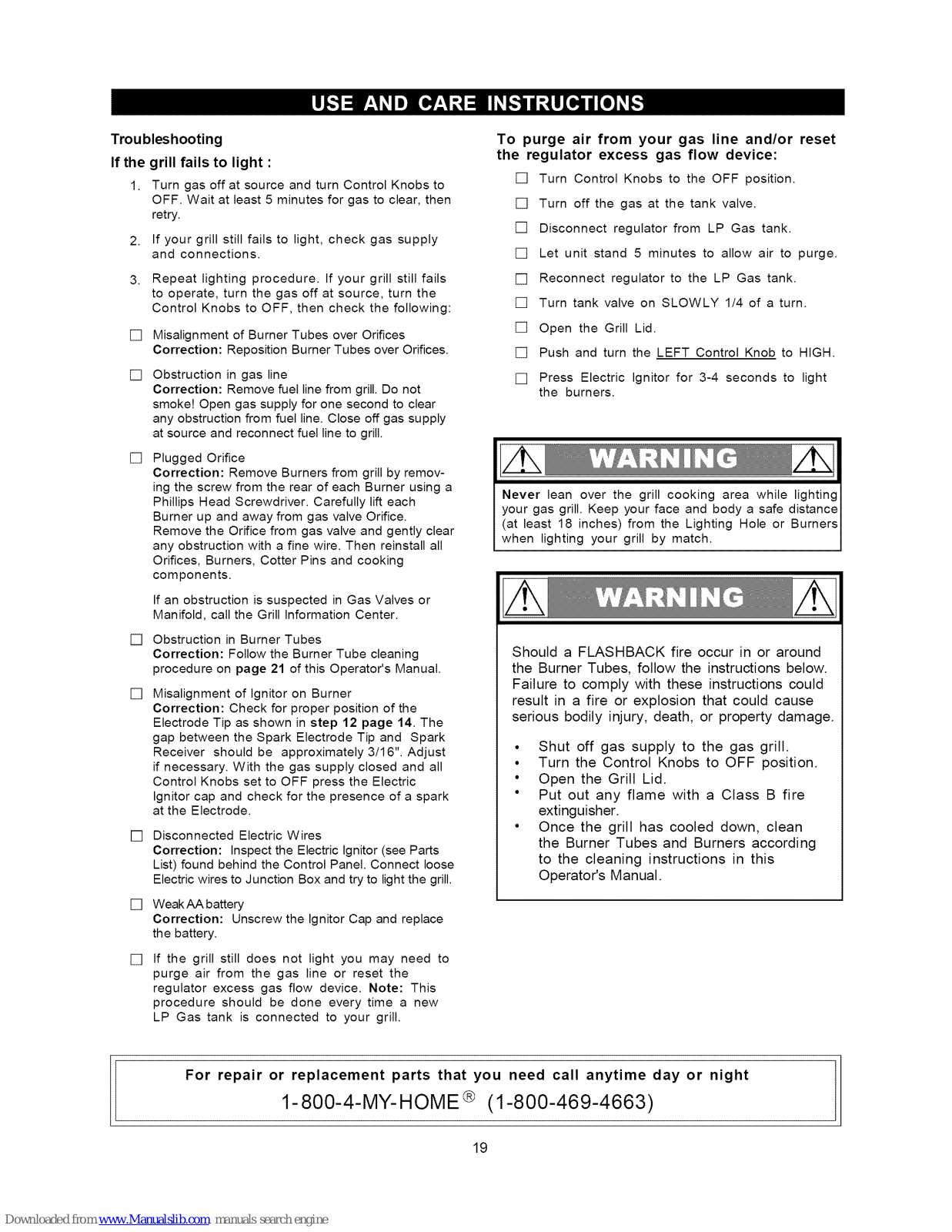

Troubleshooting .......................................... 19

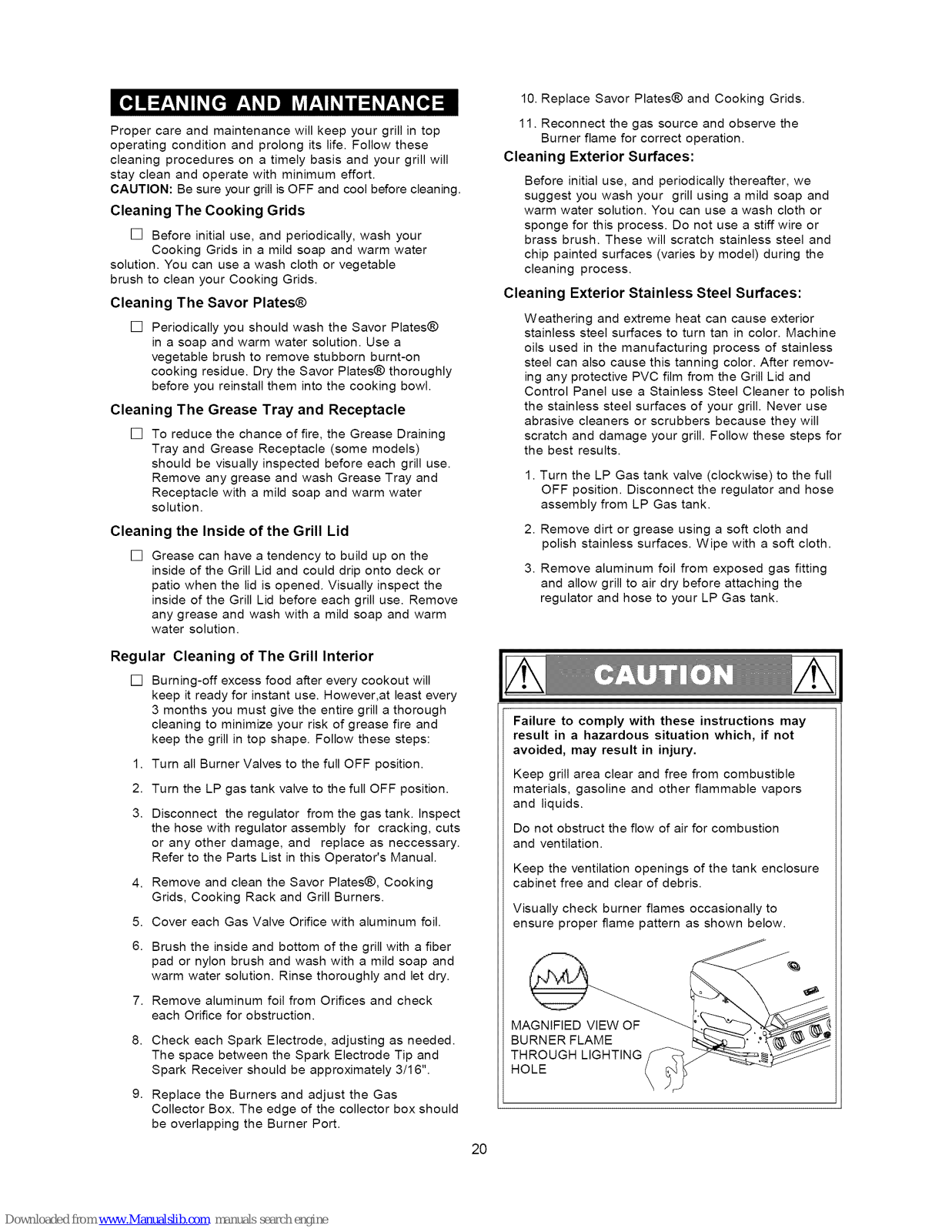

Cleaning and Maintenance ..................... 20-21

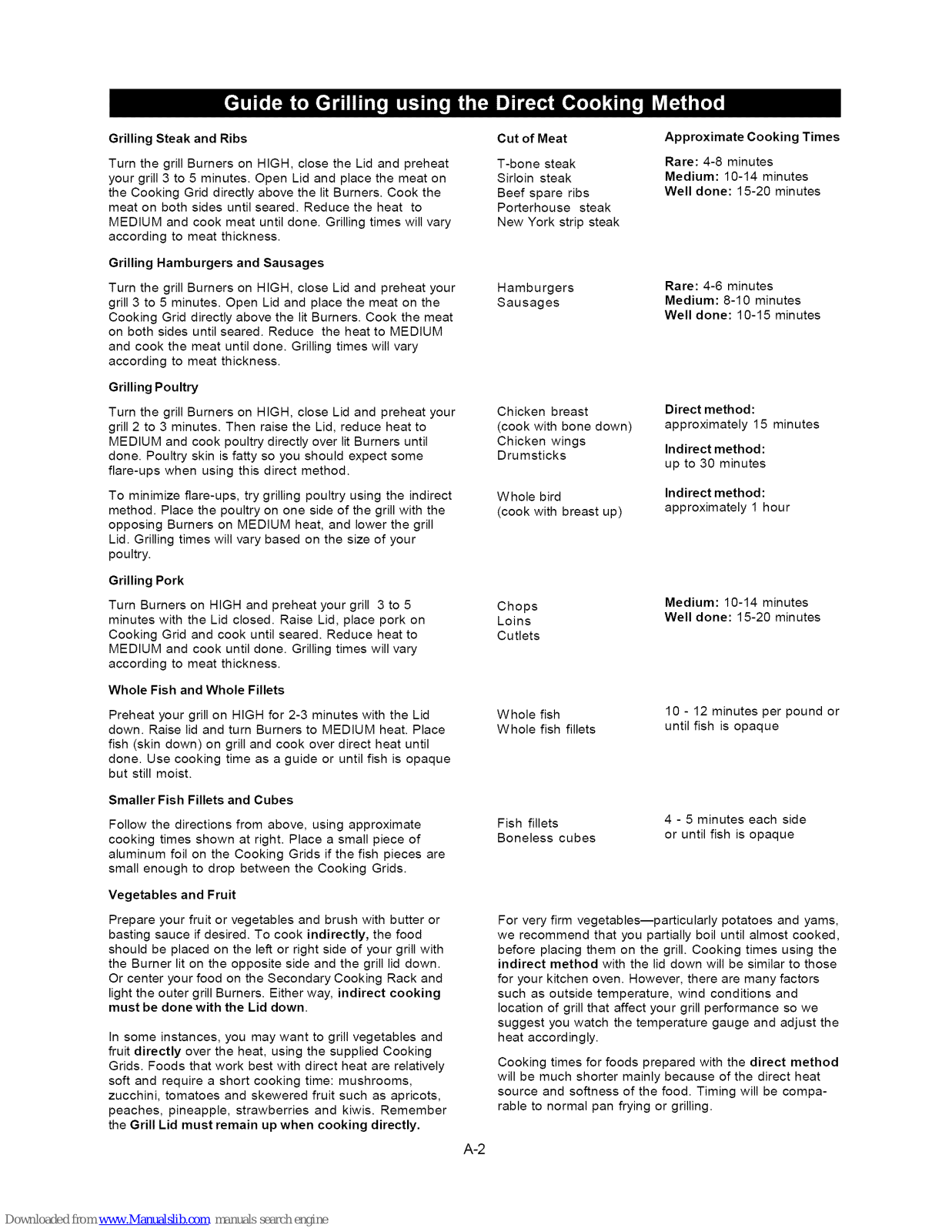

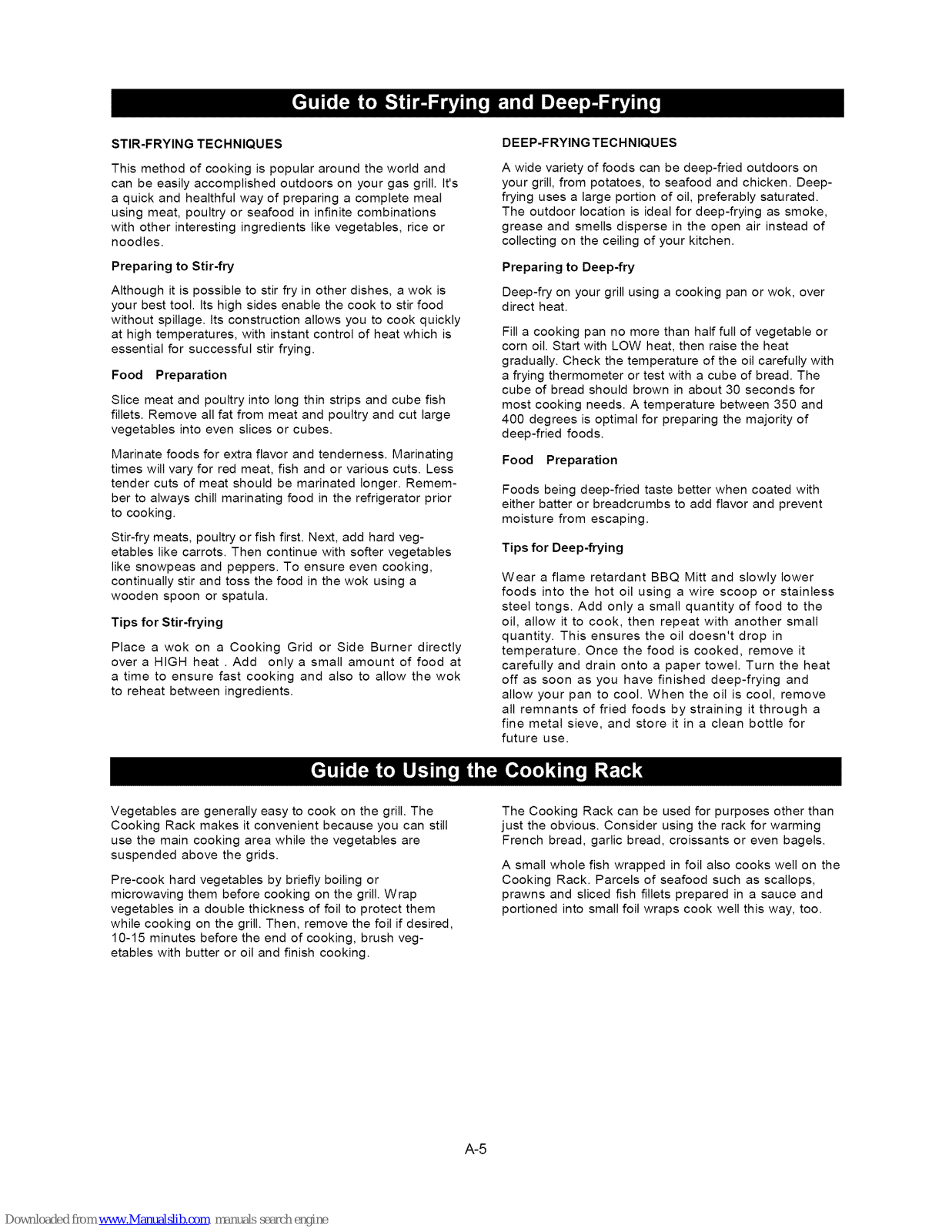

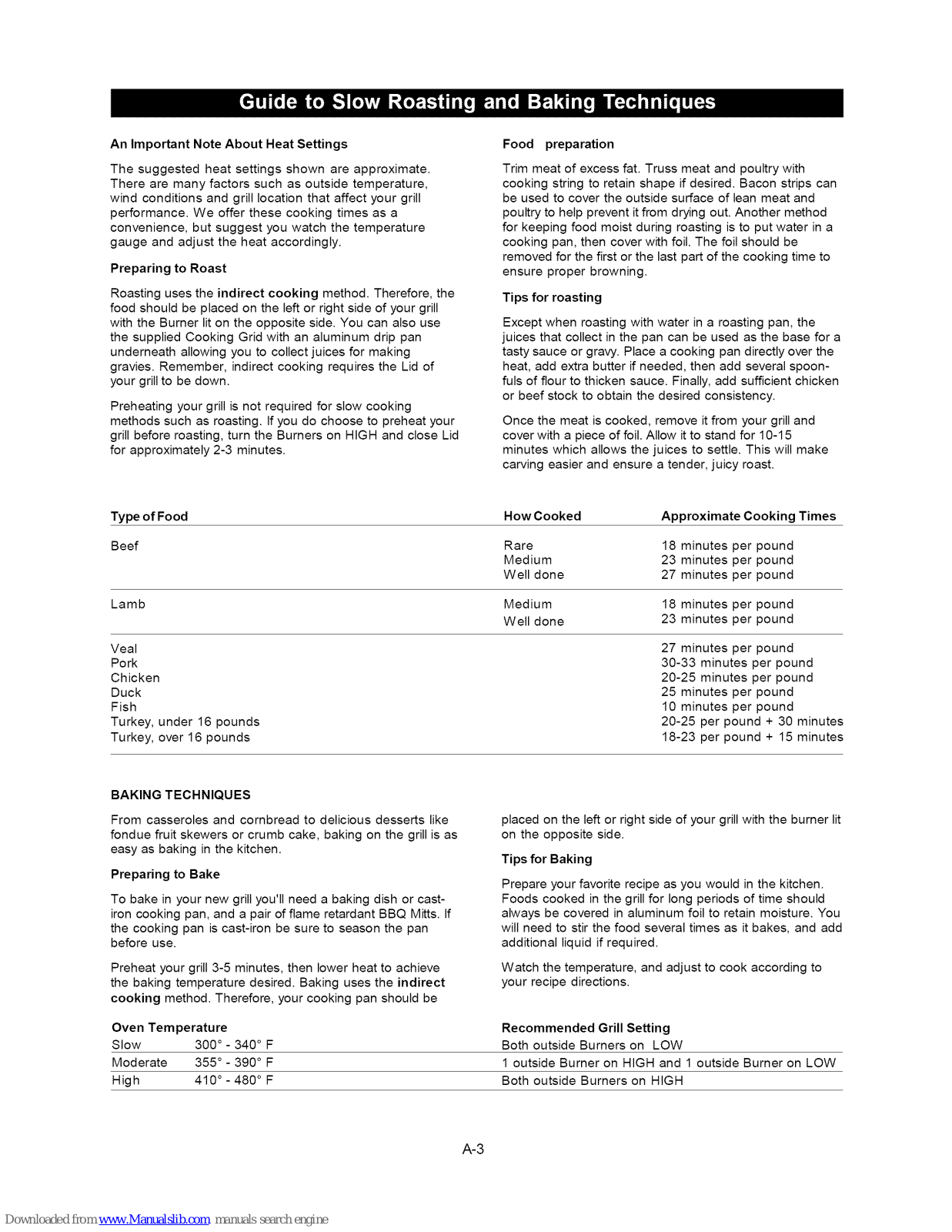

Cooking Guide ........................................ A1-A5

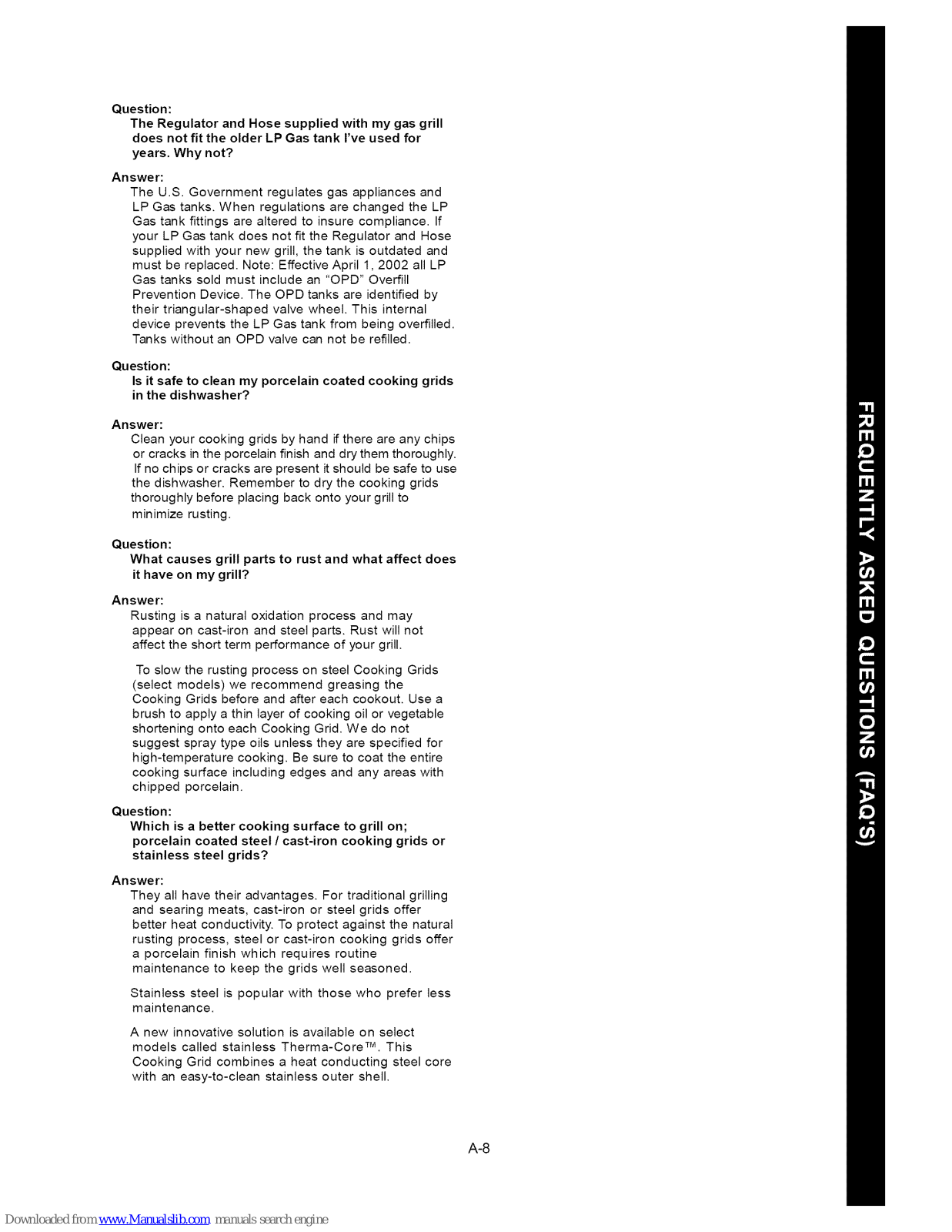

Frequently Asked Questions ................ A6-A7
One-Year Full Warranty on Kenmore Grill If this grill fails due to a defect in material or work-
manship within one year from the date of purchase,
@
call 1-800-4-MY-HOME to arrange for free repair (or replacement if repair proves impossible).
Additional Limited Warranty on Selected Grill Parts
From the date of purchase for the time periods listed below, the following specific grill parts will be supplied free of charge if they fail to meet the conditions described. After the first year from the date of purchase, you pay for labor if you wish to have them installed.
Stainless Steel Parts - 5 years (except Stain- less
Steel Tube Burners - 10 years), no rust-through
Painted Parts - 3 years, no rust-through
Cooking grids - 2 years, no rust-through
Savor Plates - 2 years, no rust-through
All warranty coverage excludes ignitor batteries and grill part paint loss (except as specified above) or
rusting (except for rust-through as specified above), which are either expendable parts that can wear out from normal use in less than a year, or are condi- tions that can be the result of normal use, accident or improper maintenance.
All warranty coverage is void if this grill is ever used for commercial or rental purposes.
All warranty coverage applies only if this grill is
used in the United States. This warranty gives you specific legal rights, and
you may have other rights which vary from state to state.
Sears, Roebuck and Co. Hoffman Estates, IL 60179
© Sears Brands, LLC
IF YOU SMELL GAS:
1. Shut off gas to the appliance.
2 Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from
the appliance and immediately call your gas supplier or your fire department.
1. Do not store or use gasoline or
other flammable liquids in the vicin- ity of this or any other appliance.
2. Any LP cylinder not connected for
use shall not be stored in the vicinity of this or any other
appliance.
LPG grill models must be used with Liquid Propane Gas and the regulator assembly
supplied. Natural Gas models must be used with Natural Gas only. Any attempt to convert the grill from one fuel type to another is
extremely hazardous and will void the warranty.
Never use your gas grill in a garage, porch, shed,
breezeway or any other enclosed area.
Never obstruct the flow of ventilation air around
your gas grill housing.
Never disconnect the gas regulator or any gas fitting while your grill is lit. A lit grill can ignite
leaking gas and cause a fire or explosion which
could result in property damage, personal injury or
death.
Keep gas regulator hose away from hot grill
surfaces and dripping grease. Avoid unneces-
sary twisting of hose. Visually inspect hose
prior to each use for cuts, cracks, excessive wear or other damage. If the hose appears
damaged do not use the gas grill. Call Sears
at 1-800-4-MY-HOME ® (1-800-469-4663) for a
Kenmore replacement hose.
Grill Installation Codes The installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propance installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2.
Failure to comply with these instructions may result in a hazardous situation which, if not avoided, may result in injury.

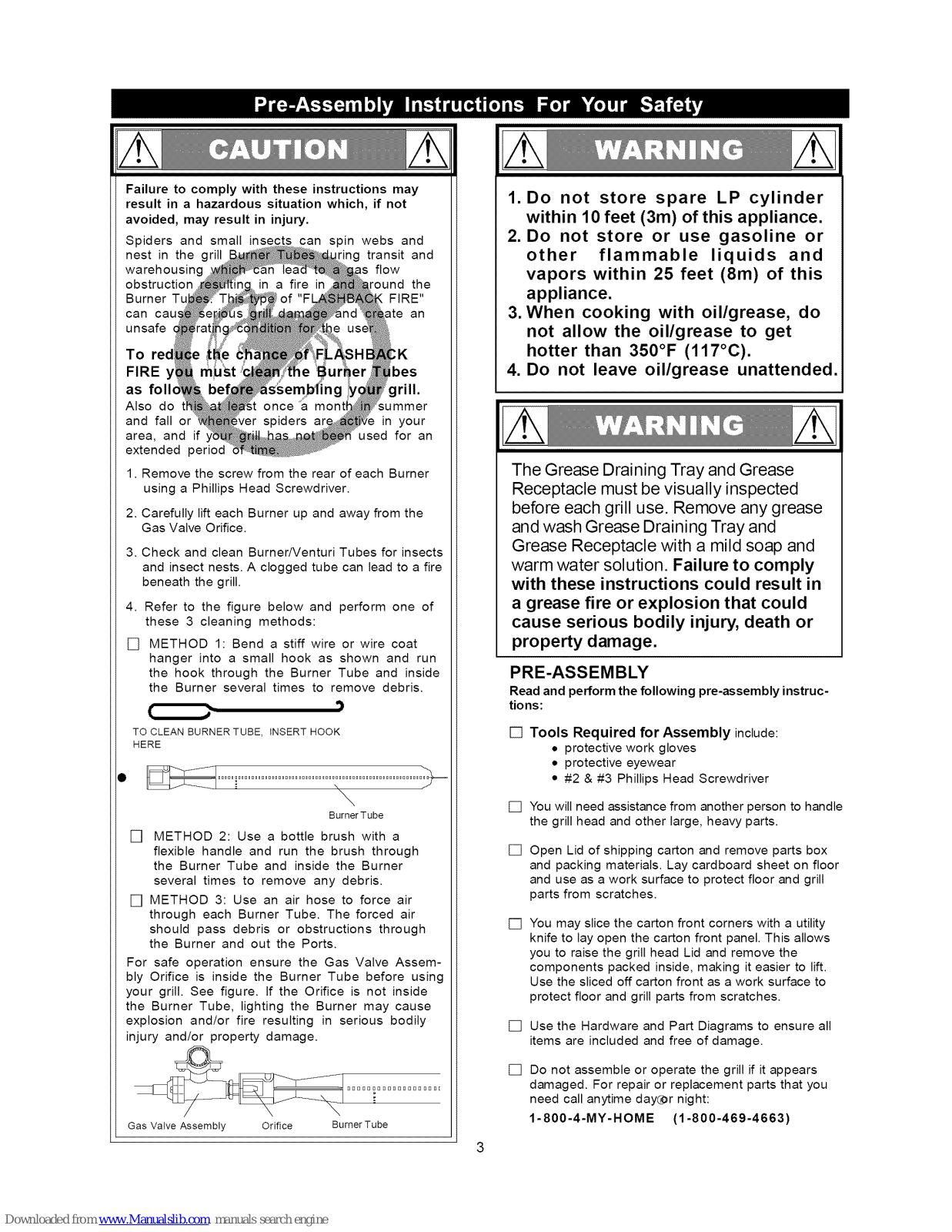

Spiders and small insects can spin webs and nest in the grill ing transit and warehousing s flow obstruction round the Burner T_ FIRE" can cau_ an unsafe {
To ;K
FIRE bes
as ;Irill.
Also do _ummer and fall or in your
area, and if used for an extended period

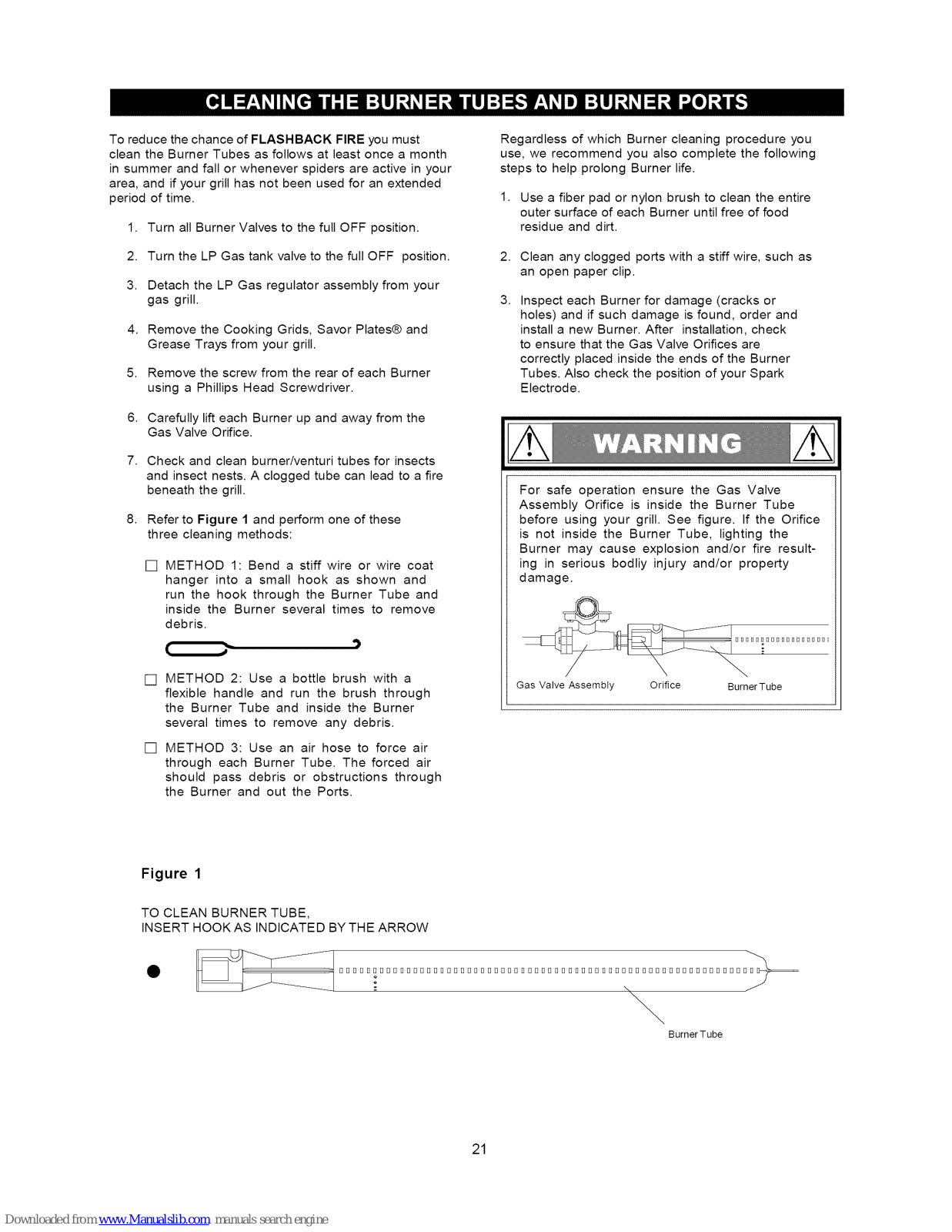

1. Remove the screw from the rear of each Burner using a Phillips Head Screwdriver.
2. Carefully lift each Burner up and away from the Gas Valve Orifice.
3. Check and clean Burner/Venturi Tubes for insects and insect nests. A clogged tube can lead to a fire
beneath the grill.
4. Refer to the figure below and perform one of
these 3 cleaning methods:
[] METHOD 1: Bend a stiff wire or wire coat
hanger into a small hook as shown and run the hook through the Burner Tube and inside the Burner several times to remove debris.
,)
TO CLEAN BURNER TUBE, INSERT HOOK HERE
\
BurnerTube
[] METHOD 2: Use a bottle brush with a
flexible handle and run the brush through the Burner Tube and inside the Burner
several times to remove any debris.
[] METHOD 3: Use an air hose to force air
through each Burner Tube. The forced air should pass debris or obstructions through the Burner and out the Ports.
For safe operation ensure the Gas Valve Assem- bly Orifice is inside the Burner Tube before using your grill. See figure. If the Orifice is not inside the Burner Tube, lighting the Burner may cause explosion and/or fire resulting in serious bodily injury and/or property damage.
__j_ _ 0 [] [] 0 [] 0 [] 0 [] 0 [] 0 [] [] [] 0 [] 0 E
Gas Va+ve Assembly Orifice Burner Tube
1. Do not store spare LP cylinder
within 10 feet (3m) of this appliance.
2. Do not store or use gasoline or
other flammable liquids and vapors within 25 feet (8m) of this appliance.
3. When cooking with oil/grease, do not allow the oil/grease to get
hotter than 350°F (117°C).
4. Do not leave oil/grease unattended.
The Grease Draining Tray and Grease Receptacle must be visually inspected before each grill use. Remove any grease and wash Grease Draining Tray and Grease Receptacle with a mild soap and
warm water solution. Failure to comply
with these instructions could result in
a grease fire or explosion that could cause serious bodily injury, death or property damage.
PRE-ASSEMBLY
Read and perform the following pre-assembly instruc-
tions:
[] Tools Required for Assembly include:
protective work gloves
protective eyewear
#2 & #3 Phillips Head Screwdriver
[]
[]
[]
[]
[]
You will need assistance from another person to handle the grill head and other large, heavy parts.
Open Lid of shipping carton and remove parts box and packing materials. Lay cardboard sheet on floor and use as a work surface to protect floor and grill parts from scratches.
You may slice the carton front corners with a utility knife to lay open the carton front panel. This allows you to raise the grill head Lid and remove the components packed inside, making it easier to lift. Use the sliced off carton front as a work surface to protect floor and grill parts from scratches.
Use the Hardware and Part Diagrams to ensure all items are included and free of damage.
Do not assemble or operate the grill if it appears damaged. For repair or replacement parts that you need call anytime day(_r night:
1-800-4-MY-HOME (1-800-469-4663)

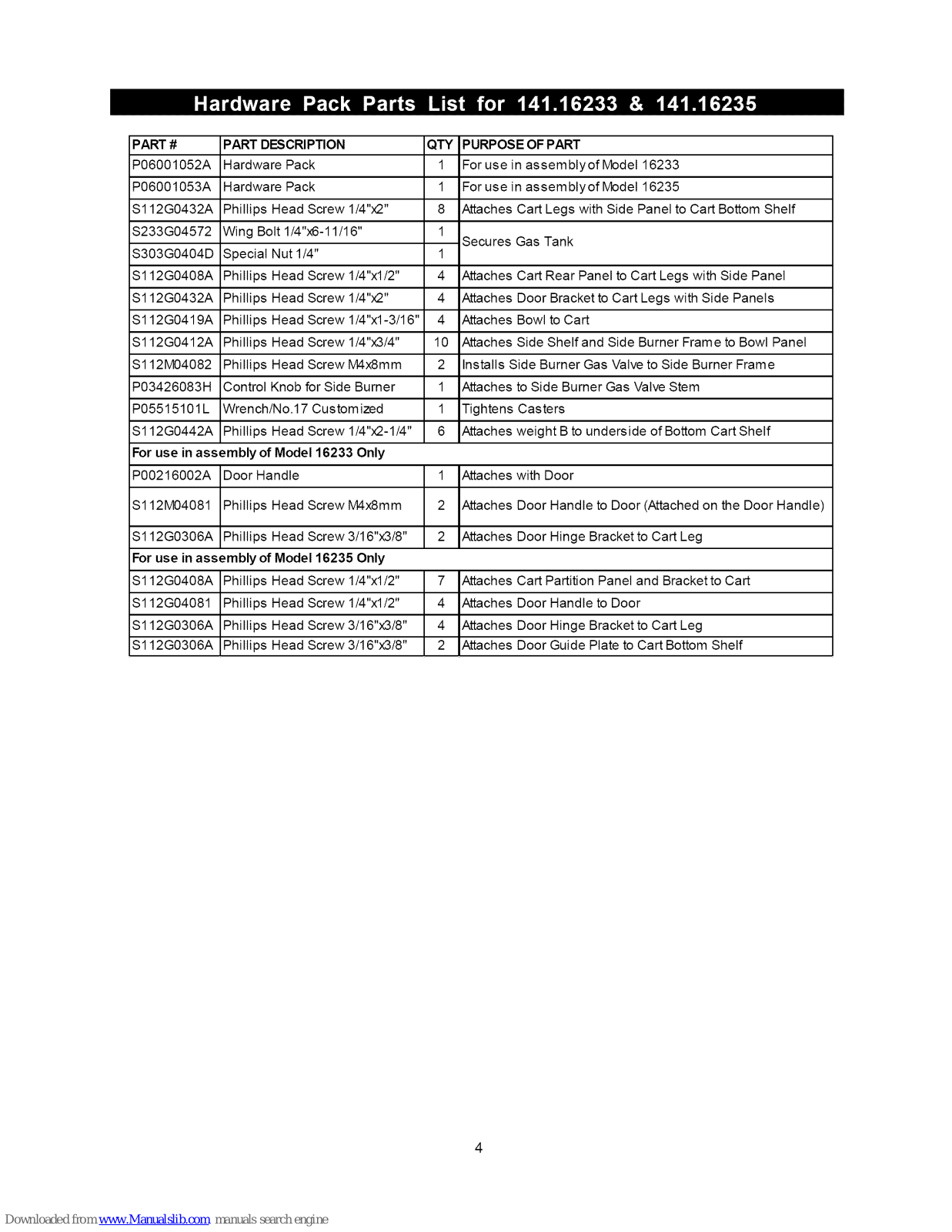

PART # P06001052A
P06001053A S112G0432A $233G04572
S303G0404D Special $112G0408A Phillips $112G0432A Phillips S112G0419A Phillips S112G0412A Phillips $112M04082 Phillips
PART DESCRIPTION Hardware Pack Hardware Pack
Phillips Head Screw 1/4"x2"
Wing Bolt 1/4"x6-11/16"
Nut 1/4" Head Screw 1/4"xl/2" Head Screw 1/4"x2" Head Screw 1/4"xl-3/16" Head Screw 1/4"x3/4"
Head Screw M4x8mm P03426083H Control Knob for Side Burner P05515101L Wrench/No.17 Custom ized
S112G0442A Phillips Head Screw 1/4"x2-1/4"
For use in assembly of Model 16233 Only P00216002A Door Handle
QTY
1 1
8
1
1 4 4 4
10
2
1
1 6
PURPOSE OF PART For use in assemblyof Model 16233 For use in assemblyof Model 16235 Attaches Cart Legs with Side Panel to Cart Bottom Shelf
Secures Gas Tank
Attaches Cart Rear Panel to Cart Legs with Side Panel Attaches Door Bracket to Cart Legs with Side Panels Attaches Bowl to Cart Attaches Side Shelf and Side Burner Frame to Bowl Panel Installs Side Burner Gas Valve to Side Burner Frame Attaches to Side Burner Gas Valve Stem
Tightens Casters Attaches weight B to underside of Bottom Cart Shelf
1 Attaches with Door
$112M04081 Phillips Head Screw M4x8mm
$112G0306A Phillips Head Screw 3/16"x3/8"
For use in assembly of Model 16235 Only $112G0408A Phillips Head Screw 1/4"xl/2" $112G04081 Phillips Head Screw 1/4"x1/2" $112G0306A Phillips Head Screw 3/16"x3/8"
$112G0306A Phillips Head Screw 3/16"x3/8"
2 Attaches Door Handle to Door (Attached on the Door Handle)
2 Attaches Door Hinge Bracket to Cart Leg
7 Attaches Cart Partition Panel and Bracketto Cart 4 Attaches Door Handle to Door
4 Attaches Door Hinge Bracket to Cart Leg 2 Attaches Door Guide Plate to Cart Bottom Shelf
4

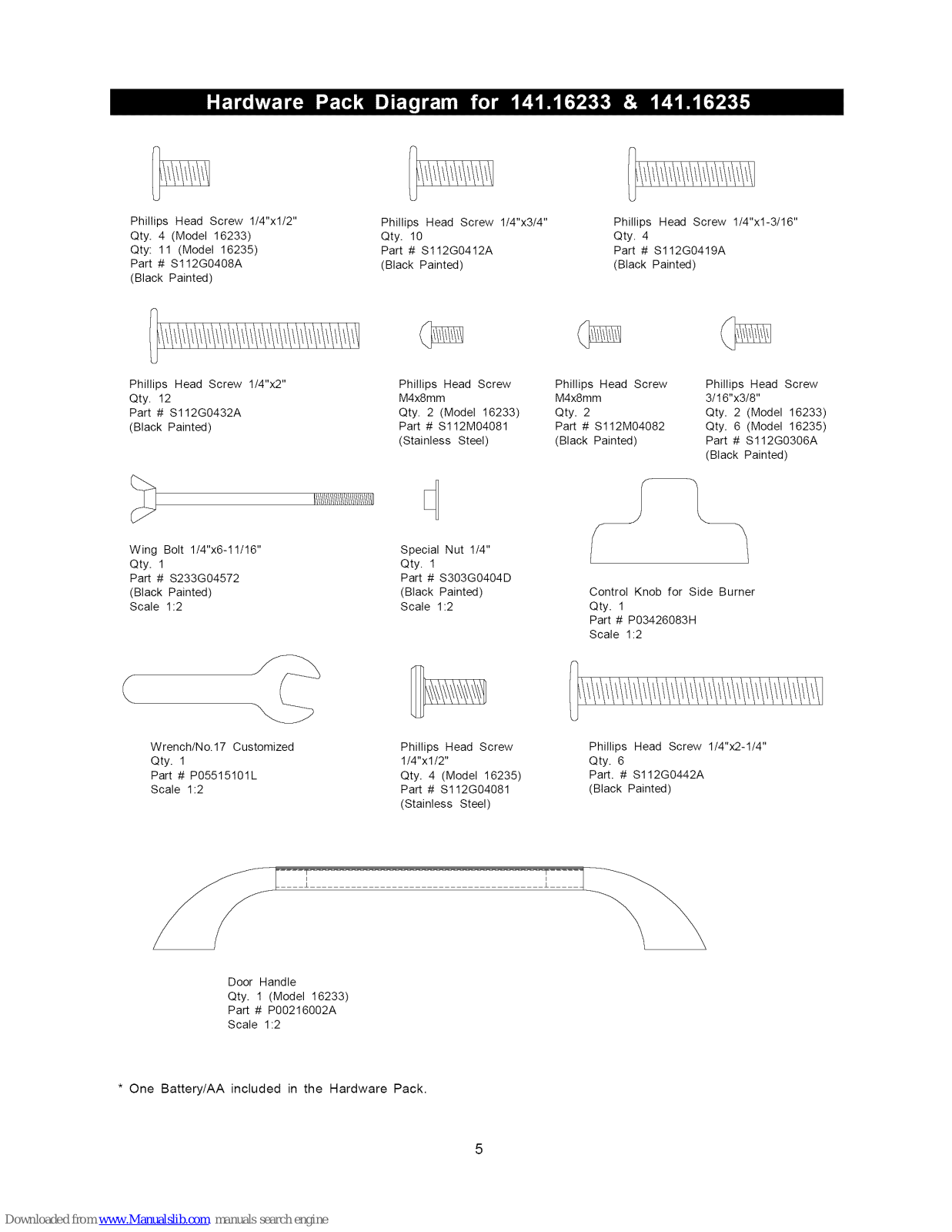

Phillips Head Screw 1/4"xl/2" Qty. 4 (Model 16233) Qty: 11 (Model 16235) Part # S112G0408A (Black Painted)
Phillips Head Screw 1/4"x3/4"
Qty. 10
Part # S112G0412A
(Black Painted)
Phillips Head Screw 1/4"xl-3/16"
Qty. 4
Part # S112G0419A (Black Painted)
Phillips Head Screw 1/4"x2"
Qty. 12
Part # S112G0432A (Black Painted)
Phillips Head Screw M4x8mm
Qty. 2 (Model 16233) Part # $112M04081
(Stainless Steel)
Phillips Head Screw M4x8mm
Qty. 2
Part # $112M04082 (Black Painted)
Phillips Head Screw 3/16"x3/8"
Qty. 2 (Model 16233) Qty. 6 (Model 16235) Part # S112G0306A
(Black Painted)
I/!/!///!///////!/!/!/!/!/!/!1]
Wing Bolt 1/4"x6-11/16"
Qty. 1 Part # $233G04572
(Black Painted) Scale 1:2
Wrench/No.17 Customized Qty. 1
Part # P05515101L Scale 1:2
Special Nut 1/4" Qty. 1 Part # S303G0404D (Black Painted) Scale 1:2
Phillips Head Screw 1/4"xl/2"
Qty. 4 (Model 16235) Part # $112G04081
(Stainless Steel)
Control Knob for Side Burner Qty. 1
Part # P03426083H Scale 1:2
Phillips Head Screw 1/4"x2-1/4" Qty. 6
Part. # S112G0442A (Black Painted)
V
J L
Door Handle Qty. 1 (Model 16233)
Part # P00216002A Scale 1:2
* One Battery/AA included in the Hardware Pack.

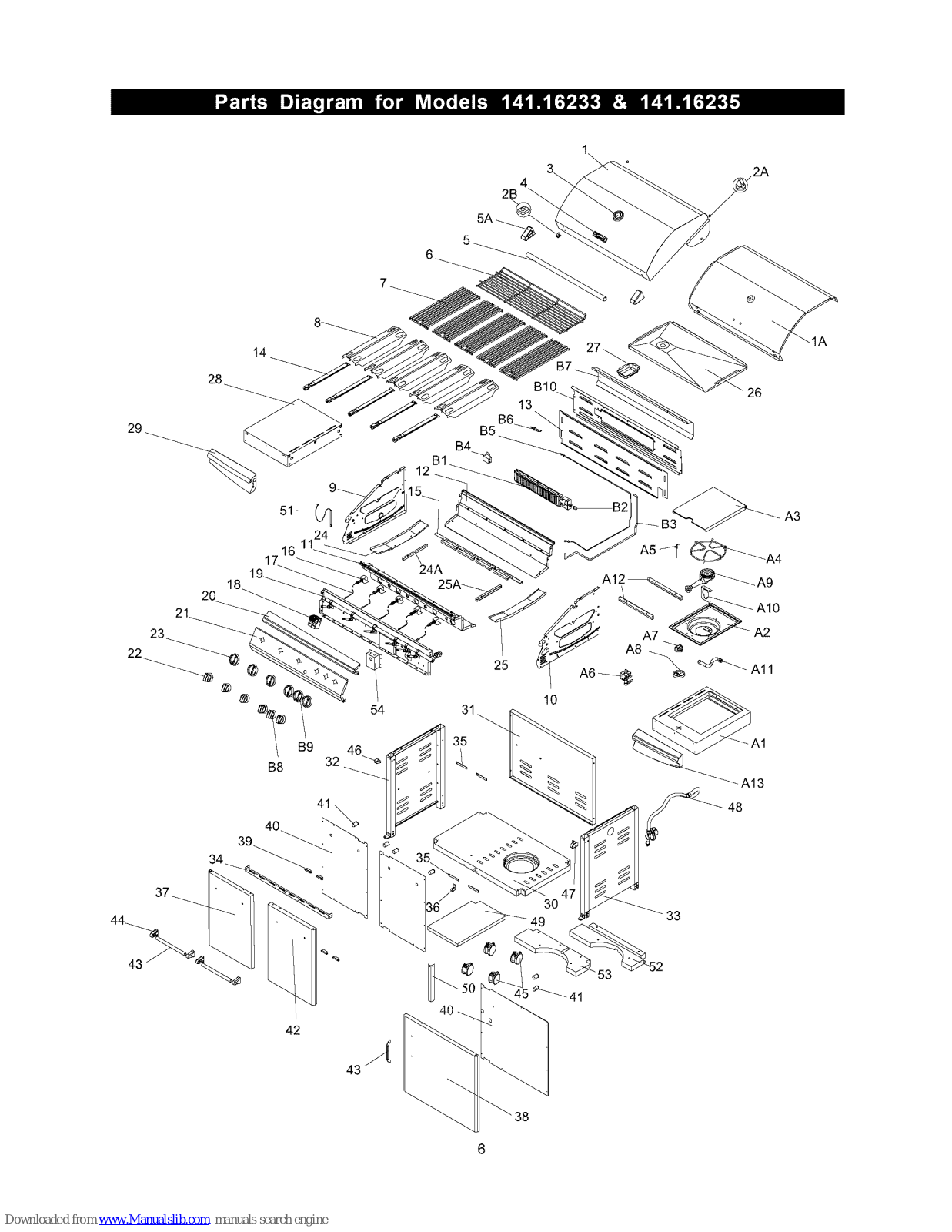

1\
4 3_
2E
2A
29
28
20
14
24
B6
B5
B4
B7_
BIO
13
26
39
>
/ B9
B8
54
46
32
41
10
33
43
42
43
KEY
1 1A 2A
2B
3 4 5
5A
6 7 8
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
24A
25
25A
26 27 28 29 3O 31 32 33 34 35 36 37 38 39 4O 41 42 43 44 45 46

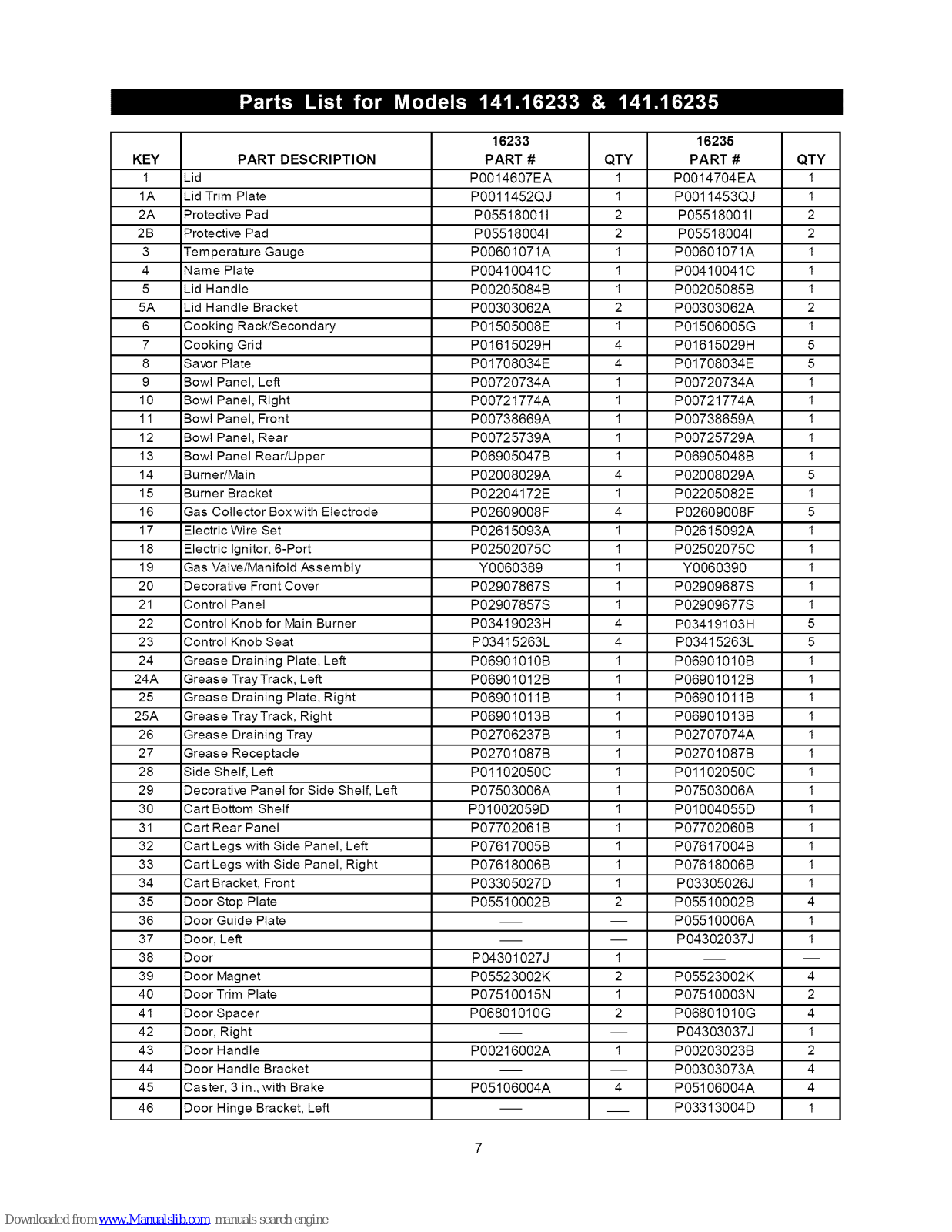

PART DESCRIPTION Lid Lid Trim Plate Protective Pad Protective Pad
Temperature Gauge
Name Plate Lid Handle Lid Handle Bracket
Cooking Rack/Secondary
Cooking Grid Savor Plate
Bowl Panel, Left Bowl Panel, Right Bowl Panel, Front Bowl Panel, Rear Bowl Panel Rear/Upper
Burner/Main Burner Bracket Gas Collector Boxwith Electrode Electric Wire Set Electric Ignitor, 6-Port Gas Valve/Manifold Assembly
Decorative Front Cover Control Panel
Control Knob for Main Burner Control Knob Seat
Grease Draining Plate, Left Grease Tray Track, Left Grease Draining Plate, Right Grease TrayTrack, Right Grease Draining Tray Grease Receptacle Side Shelf, Left Decorative Panel for Side Shelf, Left
Cart Bottom Shelf
Cart Rear Panel
Cart Legs with Side Panel, Left Cart Legs with Side Panel, Right Cart Bracket, Front
Door Stop Plate Door Guide Plate
Door, Left Door
Door Magnet Door Trim Plate
Door Spacer Door, Right Door Handle Door Handle Bracket
Caster, 3 in., with Brake Door Hinge Bracket, Left
16233
PART # P0014607EA P0011452QJ
P055180011
P055180041 P00601071A P00410041C P00205084B P00303062A P01505008E P01615029H P01708034E P00720734A P00721774A P00738669A P00725739A P06905047B P02008029A P02204172E P02609008F P02615093A P02502075C
Y0060389 P02907867S P02907857S P03419023H
P03415263L P06901010B P06901012B P06901011B P06901013B P02706237B P02701087B P01102050C P07503006A
P01002059D
P07702061B P07617005B P07618006B P03305027D P05510002B
P04301027J P05523002K P07510015N
P06801010G
P00216002A
P05106004A
QTY
1 1 2 2 1 1 1 2
1 4 4
1
1
1
1
1 4
1 4
1
1
1
1
1 4 4
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
2
1
2
1
4
16235
PART #
P0014704EA
P0011453QJ
P055180011
P055180041 P00601071A P00410041C P00205085B P00303062A P01506005G P01615029H P01708034E P00720734A P00721774A P00738659A P00725729A P06905048B P02008029A P02205082E P02609008F P02615092A P02502075C
Y0060390 P02909687S P02909677S P03419103H P03415263L P06901010B P06901012B P06901011B P06901013B P02707074A P02701087B P01102050C P07503006A P01004055D P07702060B P07617004B P07618006B
P03305026J P05510002B P05510006A
P04302037J
P05523002K P07510003N P06801010G
P04303037J P00203023B P00303073A P05106004A P03313004D
QTY
1
1 2 2
1
1
1 2
1 5 5
1
1
1
1
1 5
1 5
1
1
1
1
1 5 5
1
1
1
1
1
1
1
1
1
1
1
1
1 4
1
1
4 2 4
1 2 4 4
1
KEY
47 48 49
5O
51 52 53 54 A1 A2 A3 A4 A5 A6 A7 A8
A9 A10 A11 A12 A13
B1 B2 B3 B4 B5 B6 B7 B8 B9
B10

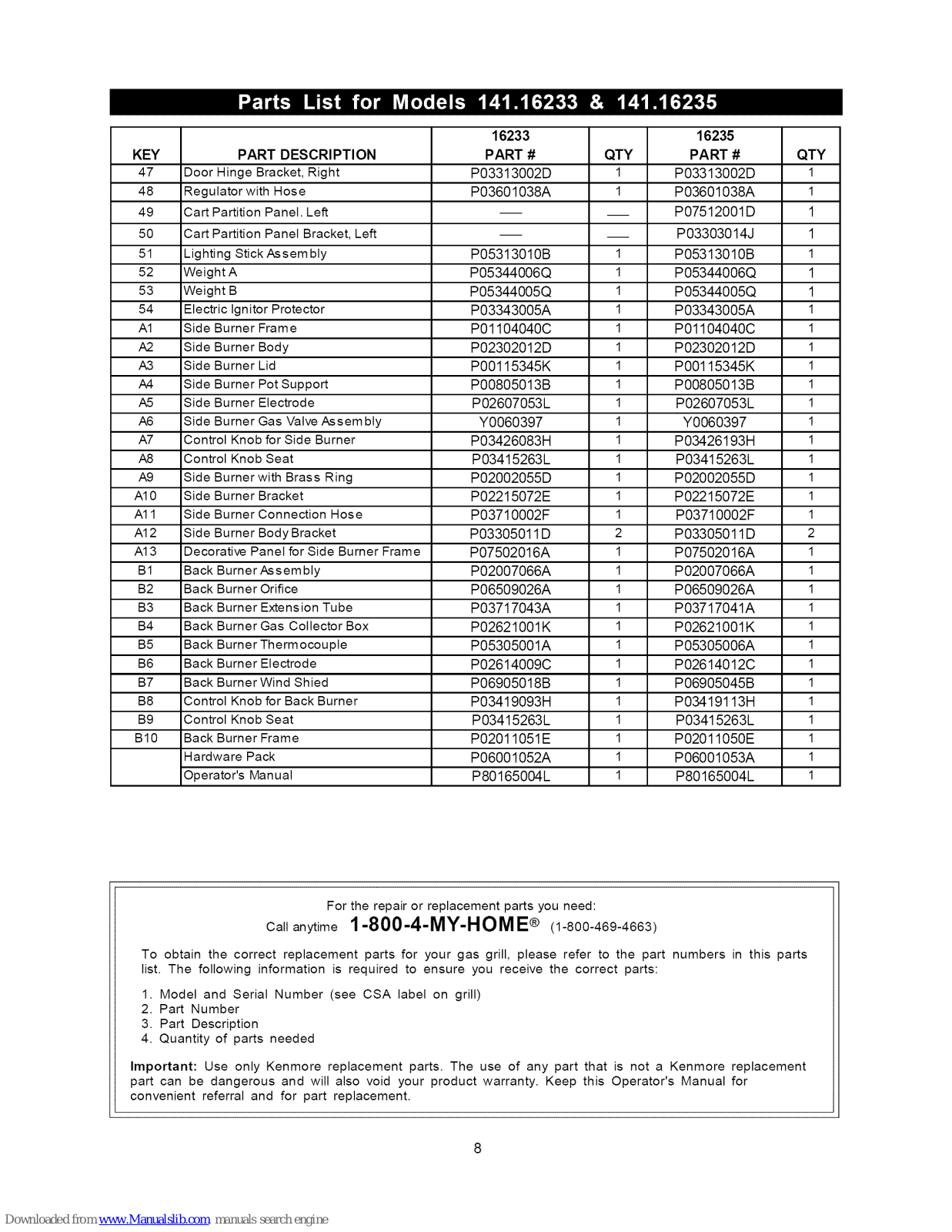

PART DESCRIPTION Door Hinge Bracket, Right Regulator with Hose Cart Partition Panel. Left
Cart Partition Panel Bracket, Left Lighting Stick Assembly
Weight A Weight B
Electric Ignitor Protector Side Burner Frame
Side Burner Body Side Burner Lid
Side Burner Pot Support Side Burner Electrode
Side Burner Gas Valve Assembly Control Knob for Side Burner
Control Knob Seat Side Burner with Brass Ring
Side Burner Bracket Side Burner Connection Hose
Side Burner Body Bracket Decorative Panel for Side Burner Frame
Back Burner Assembly Back Burner Orifice
Back Burner Extension Tube Back Burner Gas Collector Box Back Burner Thermocouple
Back Burner Electrode Back Burner Wind Shied
Control Knob for Back Burner Control Knob Seat
Back Burner Frame Hardware Pack
Operator's Manual
16233 16235
PART # QTY PART # P03313002D 1 P03313002D P03601038A 1 P03601038A
-- __ P07512001D
-- __ P03303014J P05313010B 1 P05313010B P05344006Q 1 P05344006Q P05344005Q 1 P05344005Q
P03343005A 1 P03343005A P01104040C 1 P01104040C P02302012D 1 P02302012D P00115345K 1 P00115345K P00805013B 1 P00805013B
P02607053L 1 P02607053L
Y0060397 1 Y0060397
P03426083H 1 P03426193H
P03415263L 1 P03415263L P02002055D 1 P02002055D P02215072E 1 P02215072E P03710002F 1 P03710002F P03305011D 2 P03305011D P07502016A 1 P07502016A P02007066A 1 P02007066A P06509026A 1 P06509026A P03717043A 1 P03717041A P02621001K 1 P02621001K P05305001A 1 P05305006A P02614009C 1 P02614012C P06905018B 1 P06905045B P03419093H 1 P03419113H
P03415263L 1 P03415263L P02011051E 1 P02011050E P06001052A 1 P06001053A
P80165004L 1 P80165004L
QTY
1 1 1
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
2
1 1 1 1 1 1 1 1 1 1 1 1 1
For the repair or replacement parts you need:
Call anytime 1-800-4-MY-HOME® (1-800-469-4663)
To obtain the correct replacement parts for your gas grill, please refer to the part numbers in this parts list. The following information is required to ensure you receive the correct parts:
1. Model and Serial Number (see CSA label on grill)
2. Part Number
3. Part Description
4. Quantity of parts needed
Important: Use only Kenmore replacement parts. The use of any part that is not a Kenmore replacement part can be dangerous and will also void your product warranty. Keep this Operator's Manual for convenient referral and for part replacement.
Install Casters
[] Place the Cart Side Panels on the cardboard.
Install the 4 Casters into the Caster Seats
as shown.
Wrench/No.17 Customized
Qty. 1 Part # P05515101L Scale 1:2
Install Weight to underside of Cart Bottom
Shelf
[] Turn the Bottom Cart Shelf over with the top
facing down.
[] Attach the weight (B) on to the preassembled
weight (A) that is attached to the Cart Bottom
Shelf as shown. Align the 6 threaded holes on
the weight (B) with the threaded holes on the
preassembled weight (A).
[] Insert the 6 screws and tighten securely.
(Be sure the weight are placed on the tank hole side and to the rear side of the Cart Bottom
Shelf when turned upright.
Phillips Head Screw 1/4"x2-1/4" Qty. 6 Part. # S112G0442A (Black Painted)
H nstall Cart Side Panels to Cart Bottom Shelf
[] Screw the Wing Bolt and Special Nut to Cart
Bottom Shelf.
[] Install the left and right Cart Side Panels (parts
are labeled L or R) to Cart Bottom Shelf. (Note: Be sure not to tighten securely until Rear Panel is attached).
Phillips Head Screw 1/4"x2" Qty. 8 Part # S112G0432A
(Black Painted)
Specia! Nut 1/4" Qty. 1 Part. # S303G0404D (Black Painted) Scale 1:2
_/!/!/!/!/!/!/!/!/!/!/!/!/!/!1
Wing Bolt 1/4"x6-11/16" Qty. 1
Part. # S233G04572 (Black Painted) Scale 1:2

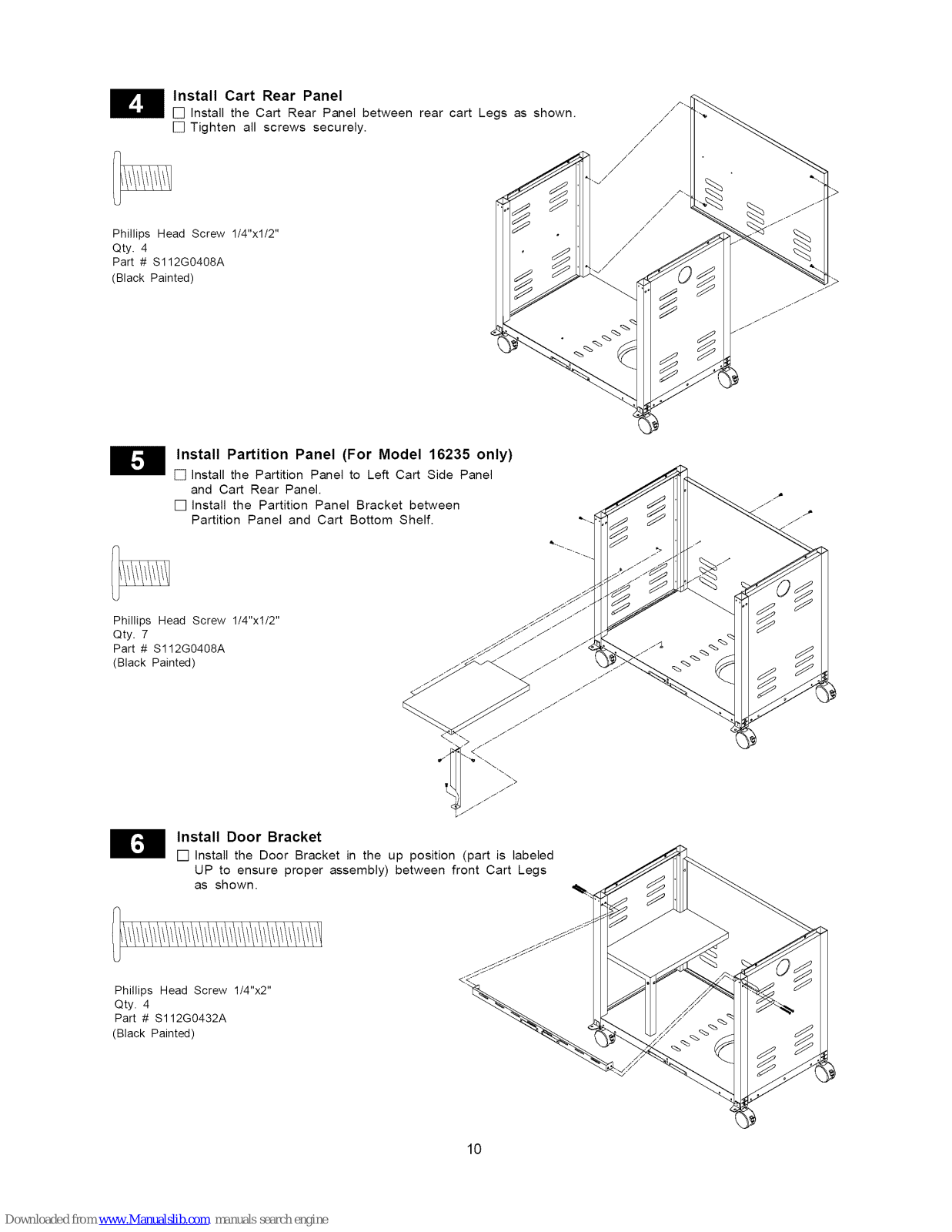

Install Cart Rear Panel
[] Install the Cart Rear Panel between rear cart Legs as shown. [] Tighten all screws securely.
Phillips Head Screw 1/4"xl/2" Qty. 4 Part # S112G0408A
(Black Painted)
,/
//
//
/
,/
,/
/
/
/
/
/
,/
//
/
/
/
/
/
/
Install Partition Panel (For Model 16235 only)
[] install the Partition Panel to Left Cart Side Panel
and Cart Rear Panel.
[] install the Partition Panel Bracket between
Partition Panel and Cart Bottom Shelf.
Phillips Head Screw 1/4"xl/2"
Qty. 7
Part # S112G0408A
(Black Painted)
H nstall Door Bracket
[] Install the Door Bracket in the up position (part is labeled
UP to ensure proper assembly) between front Cart Legs as shown. ,_.
Phillips Head Screw 1/4"x2" Qty. 4 Part # S112G0432A
(Black Painted)
10
Loading...
+ 21 hidden pages
