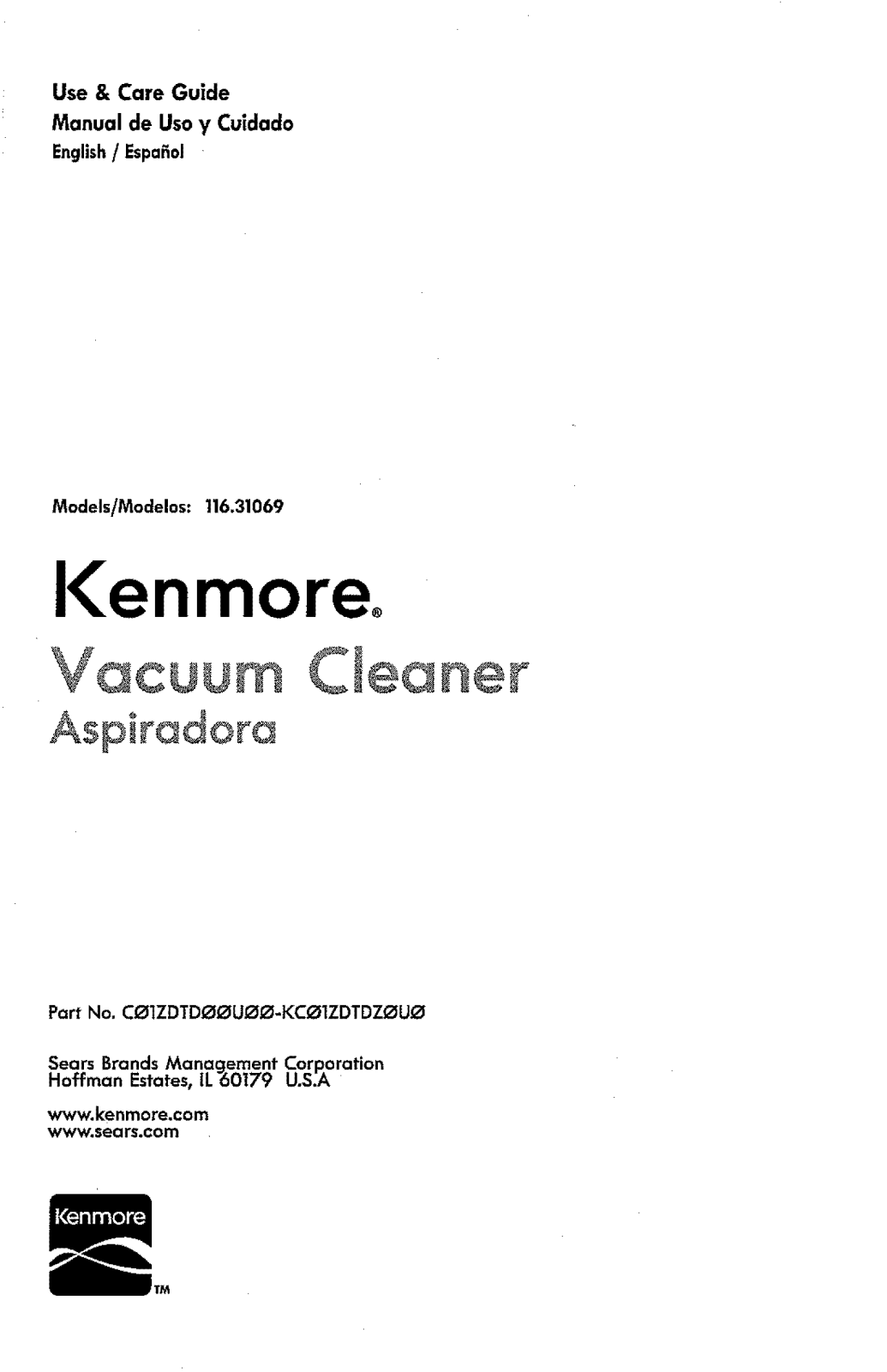

Kenmore 116.31069 User Manual

Use & Care Guide Manual de Uso y Cuidado

English/ Espafiol

ModelsiModelos: 116.31069

Kenmore

Vacuu C

Aspiradora

Part No. C_IZDTDOOU_O-KCOlZDTDZOU(_

Sears Brands Management Corporation Hoffman Estates, IL _50t79 U.SZA..

www.kenmore.com www.sears.com

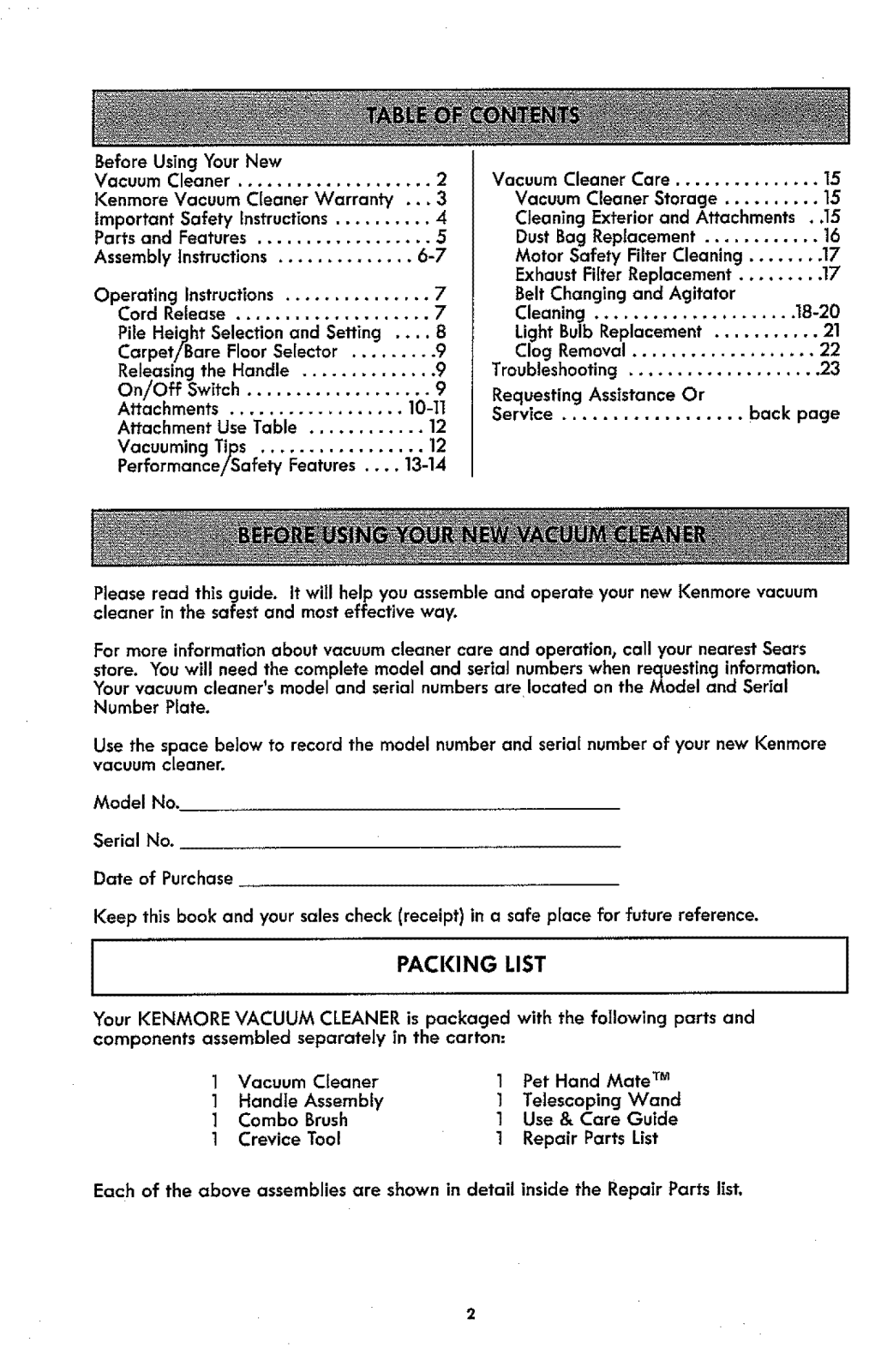

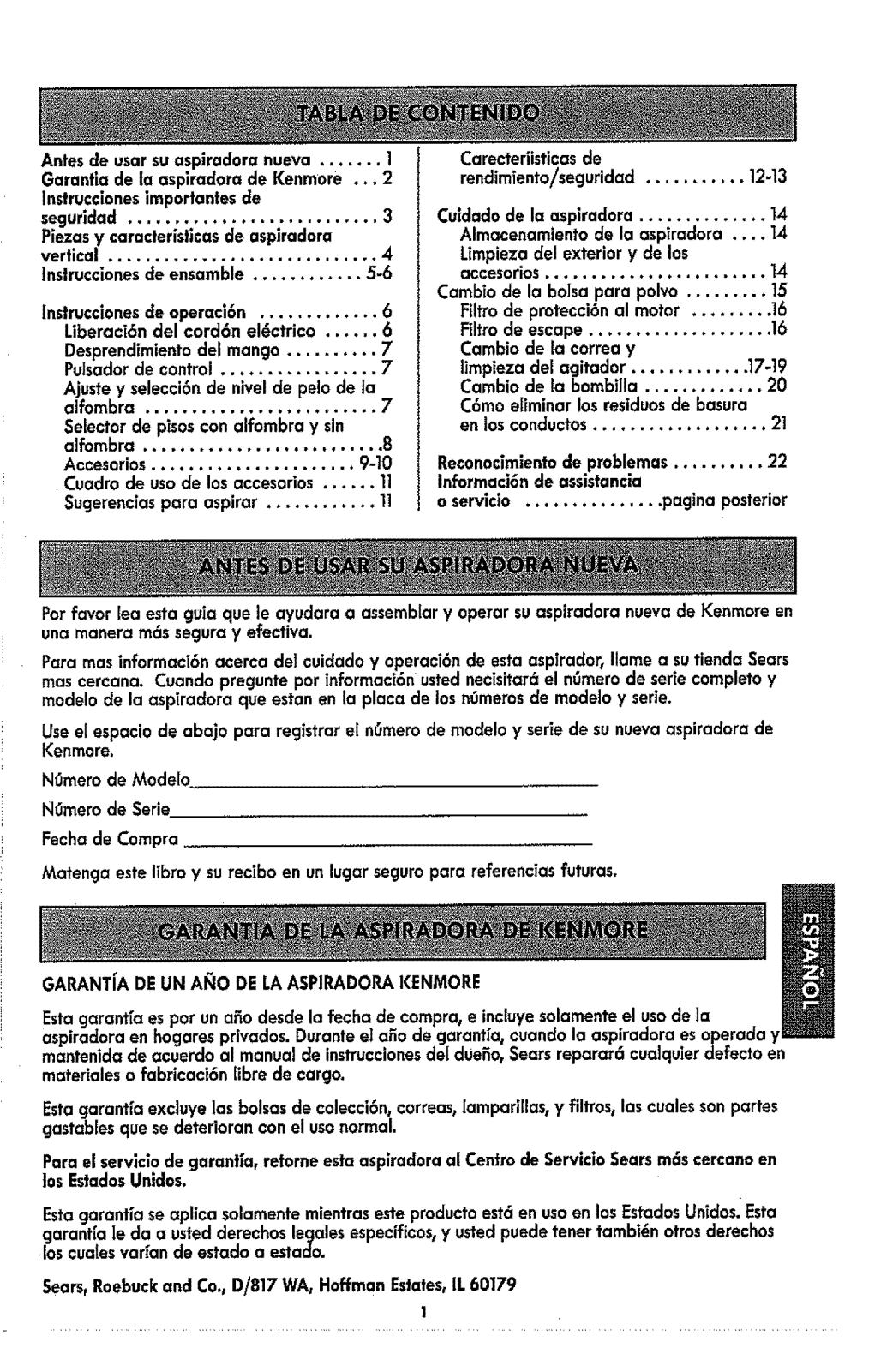

BeforeUsingYourNew

VacuumCleaner.................... 2

Kenmore Vacuum Cleaner Warranty ... 3

important Safety instructions .......... 4

Parts and Features .................. 5

Assembly instructions .............. 6-7

Operating instructions ............... 7

Cord Release .................... 7

Pile Height Selection and Setting .... 8

Carpet/Bare Floor Se[ector ......... 9

Releasing the Handle .............. 9

On/Off Switch ................... 9

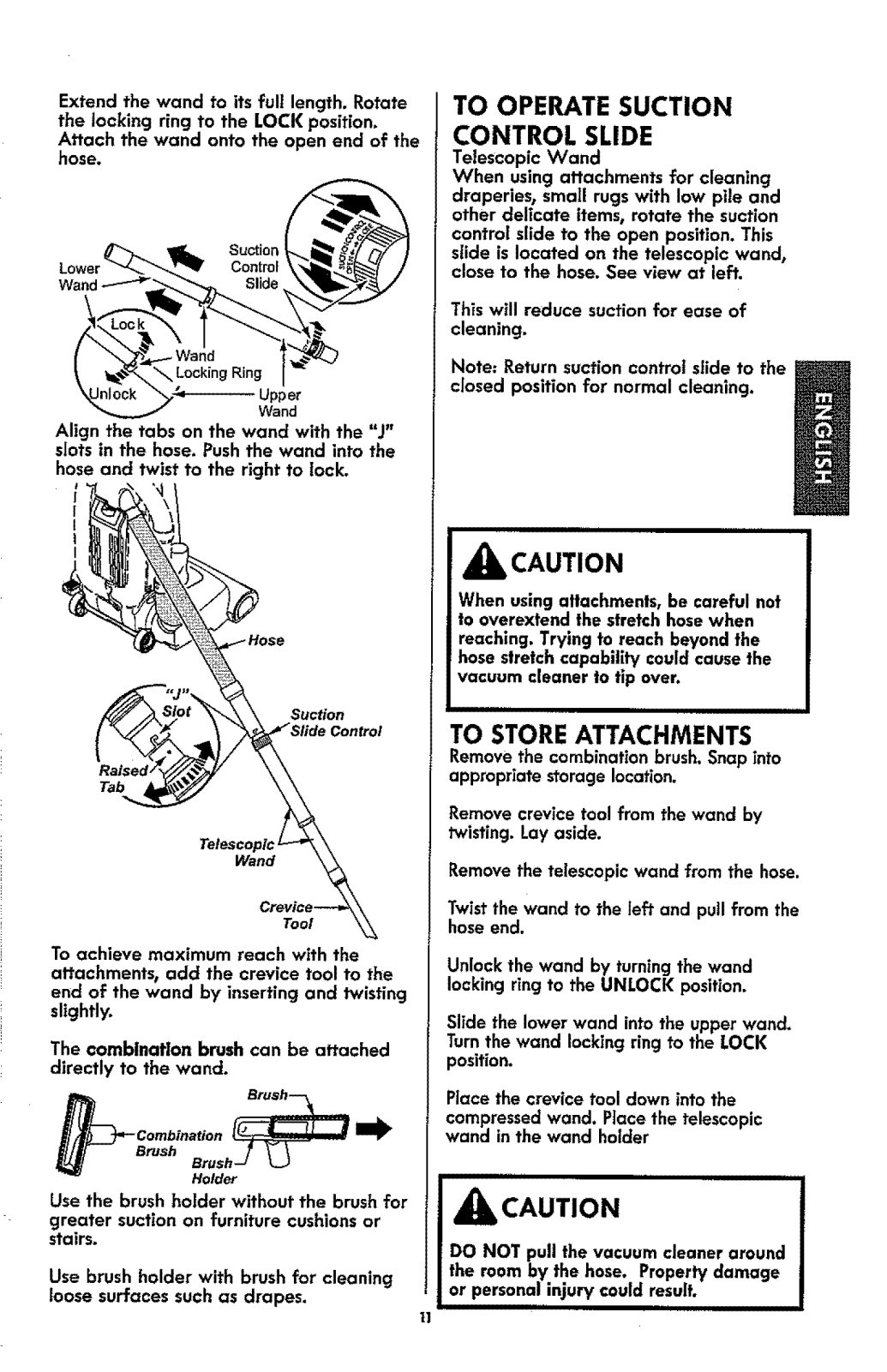

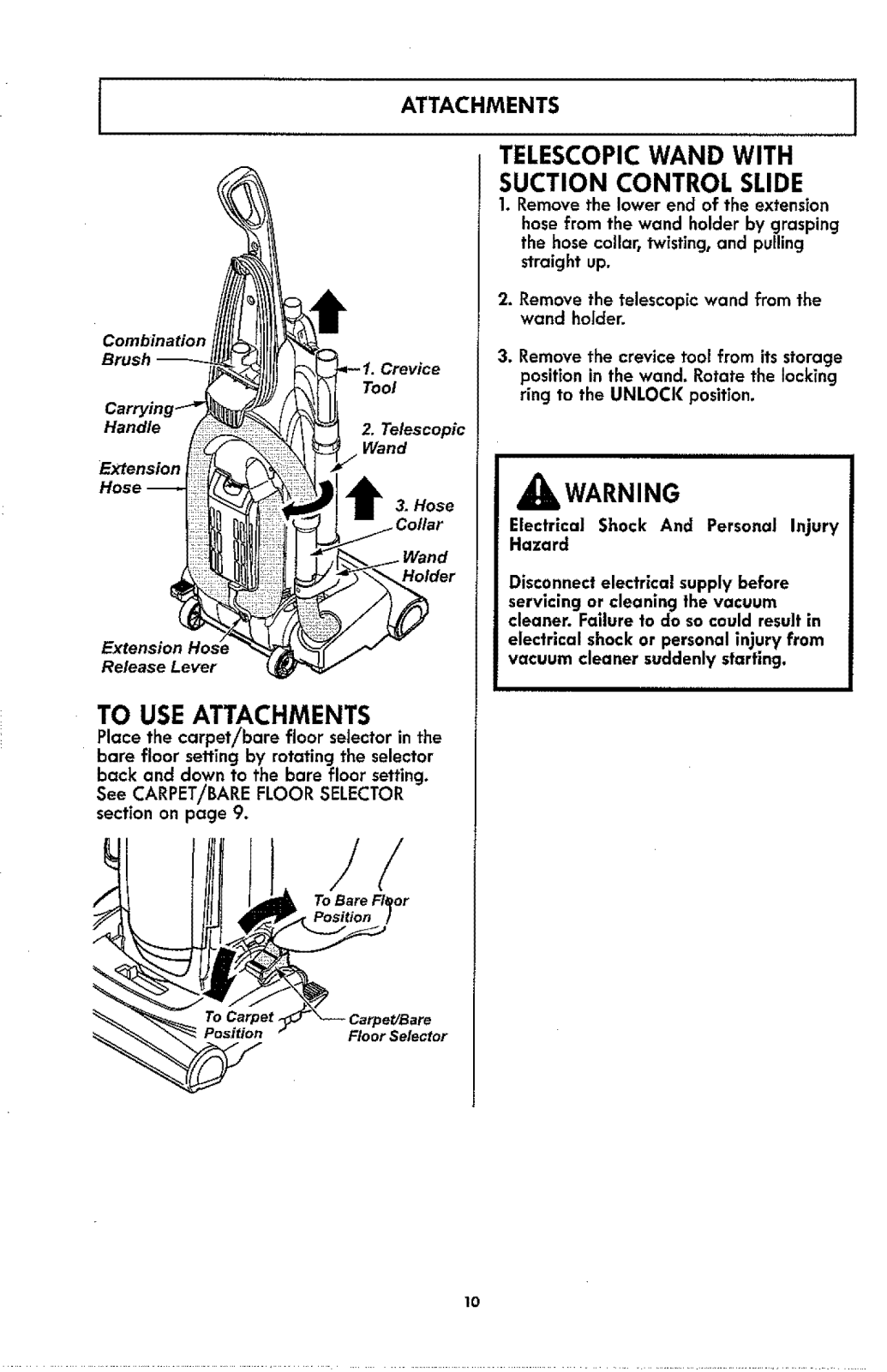

Attachments .................. 10-11

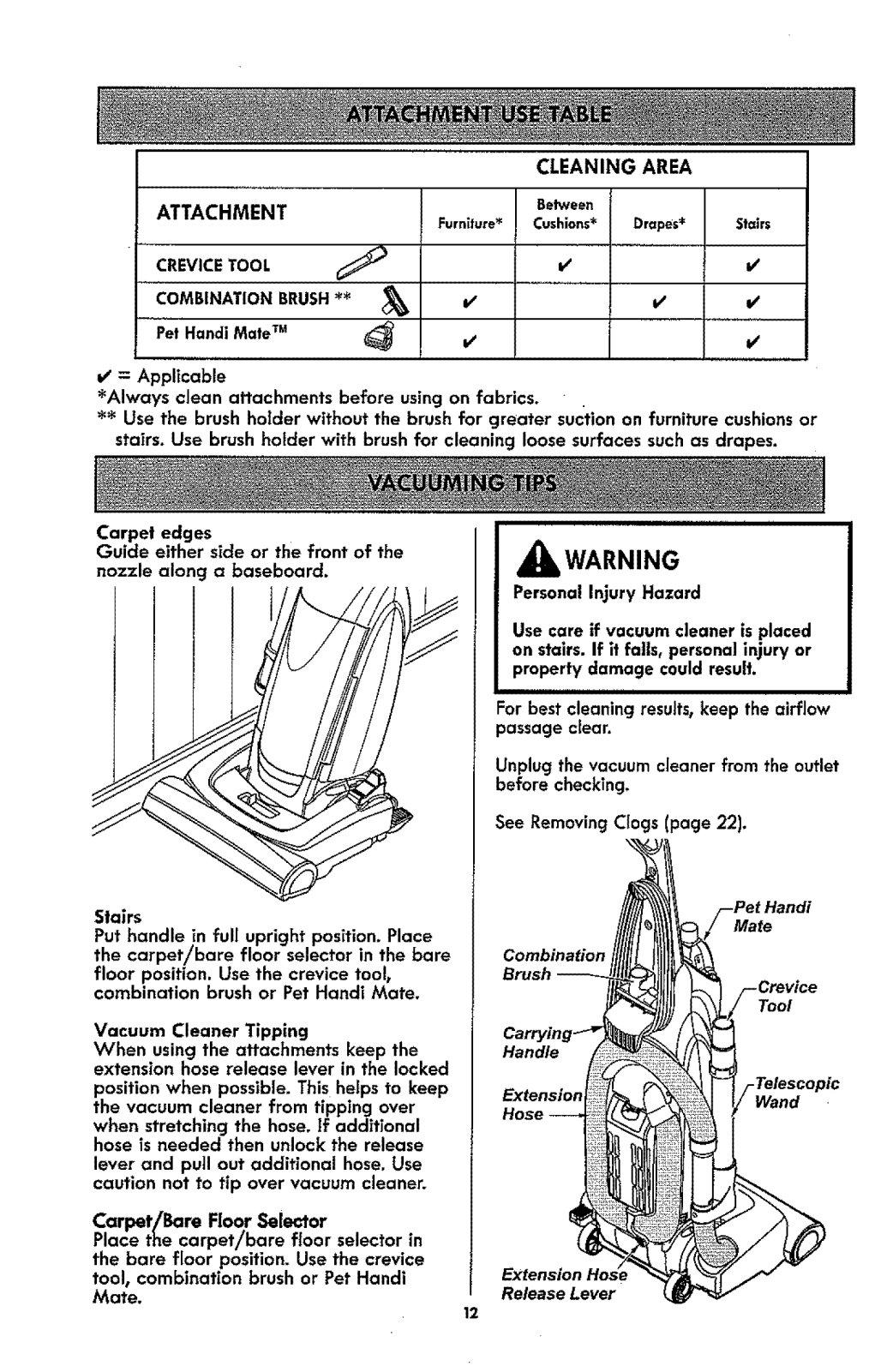

Attachment Use Table ............ 12

Vacuuming Tips ................. 12

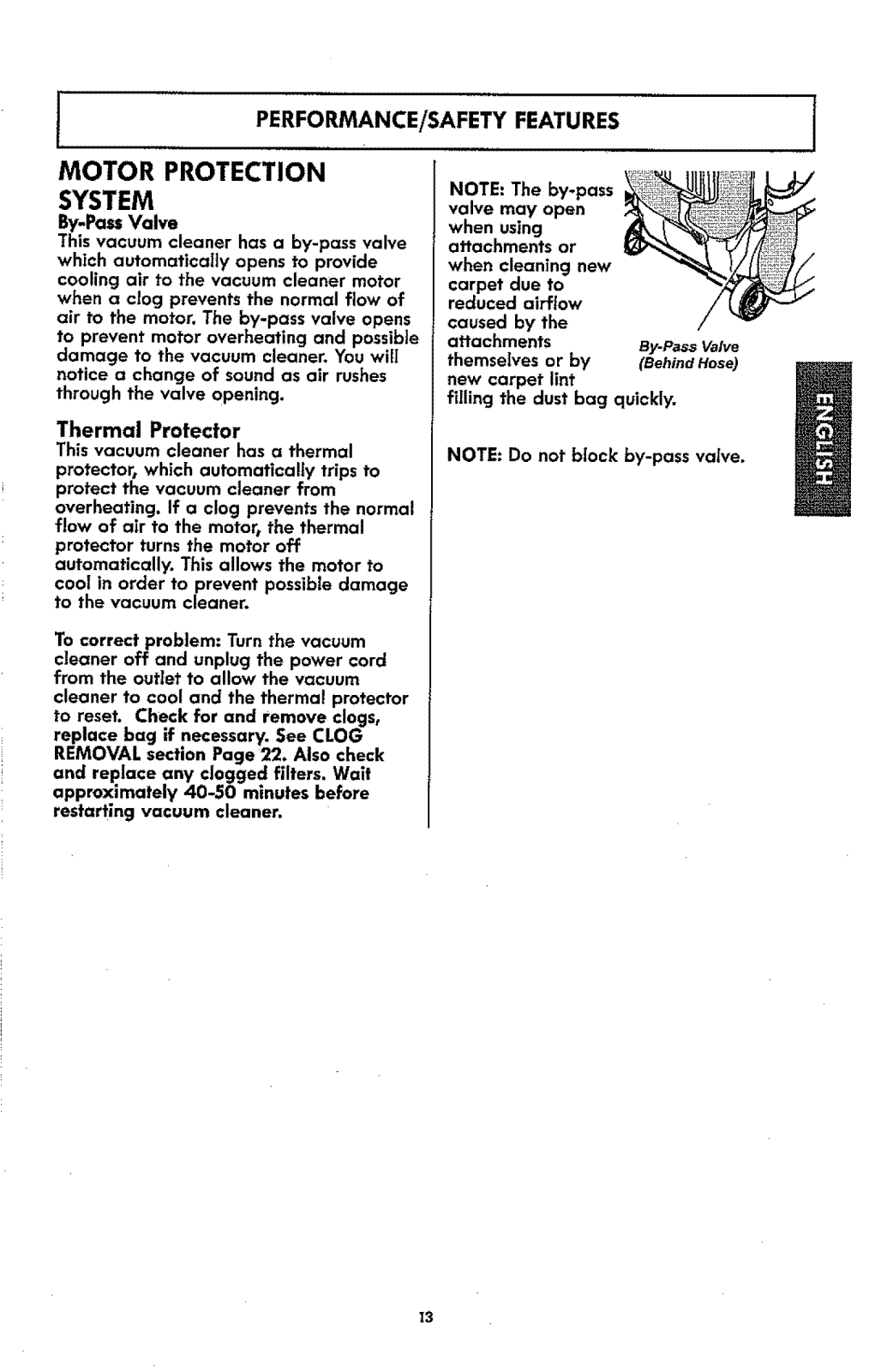

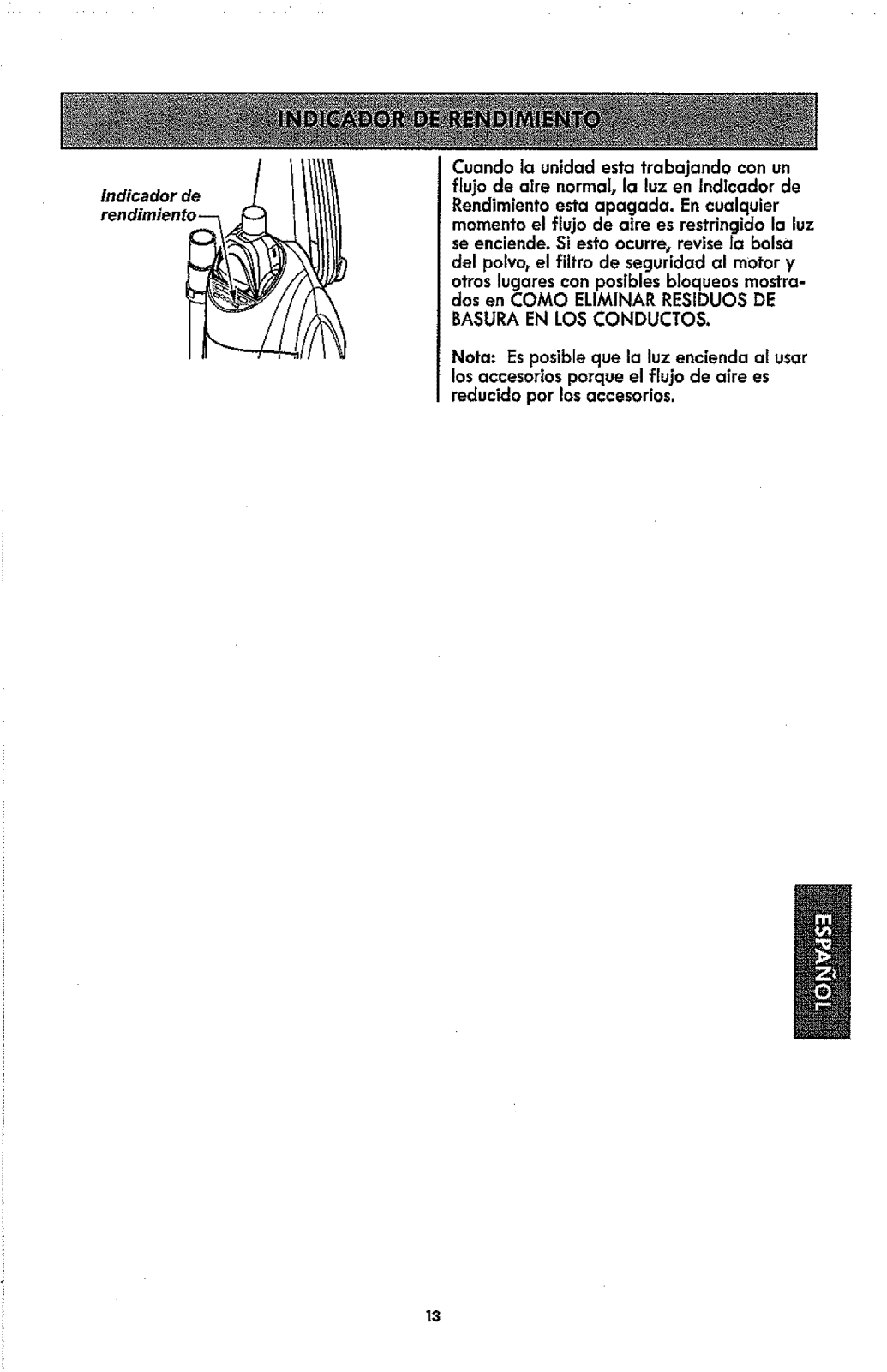

Performance/Safety Features .... 13-14

Please read this guide. It will help you assemble and operate your new Kenmore vacuum

cleaner in the safest and most effective way.

For more information about vacuum cleaner care and operation_ call your nearest Sears store. You will need the complete model and serial numbers when requesting information. Your vacuum cleaner's model and serial numbers are located on the Model and Serial

Number Plate.

Use the space below to record the model number and serial number of your new Kenmore vacuum cleaner.

Model No.

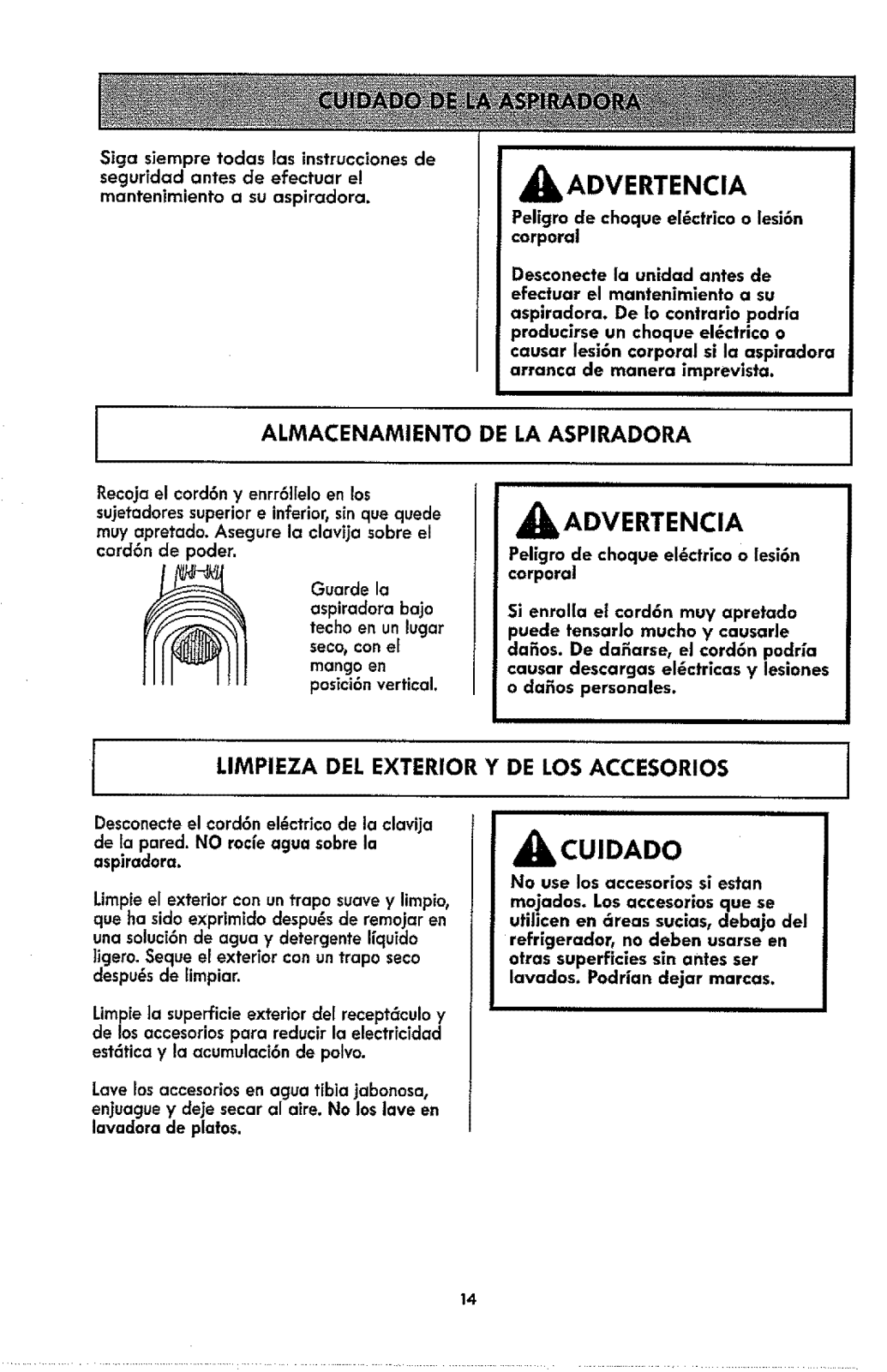

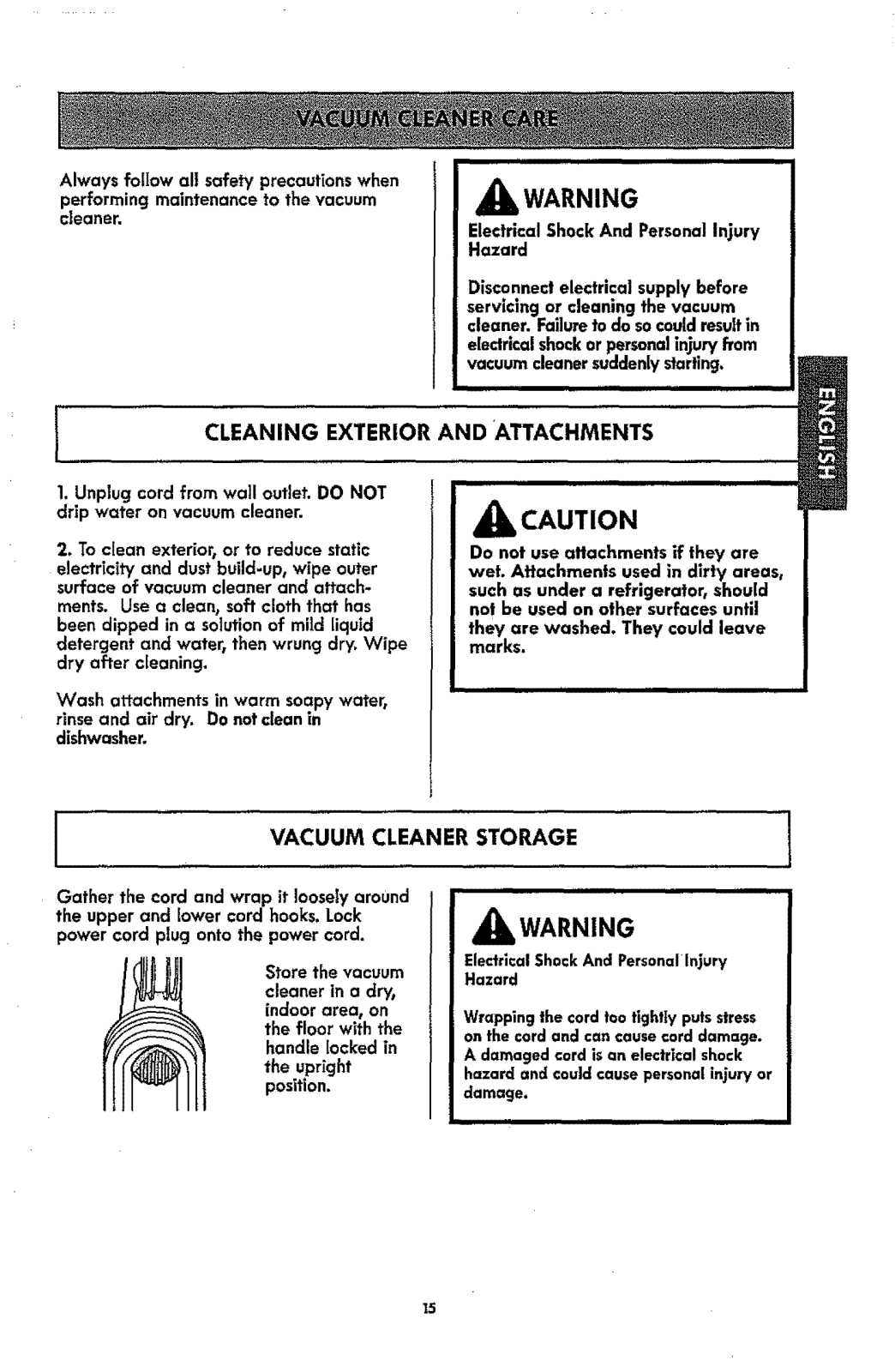

Vacuum Cleaner Care ............... 15

Vacuum Cleaner Storage .......... 15

Cleaning Exterior and Attachments . .15

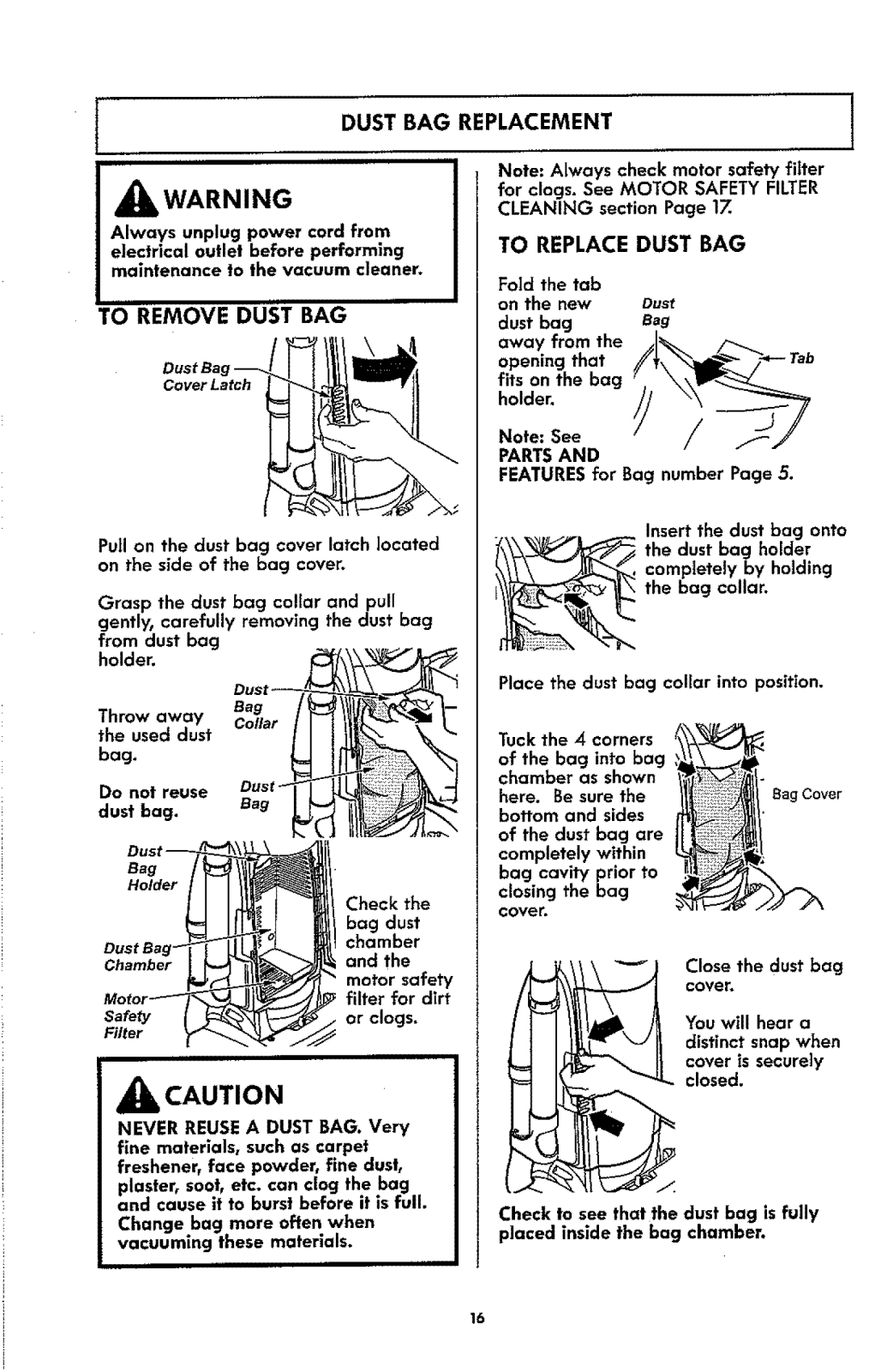

Dust Bag Replacement ............ 16

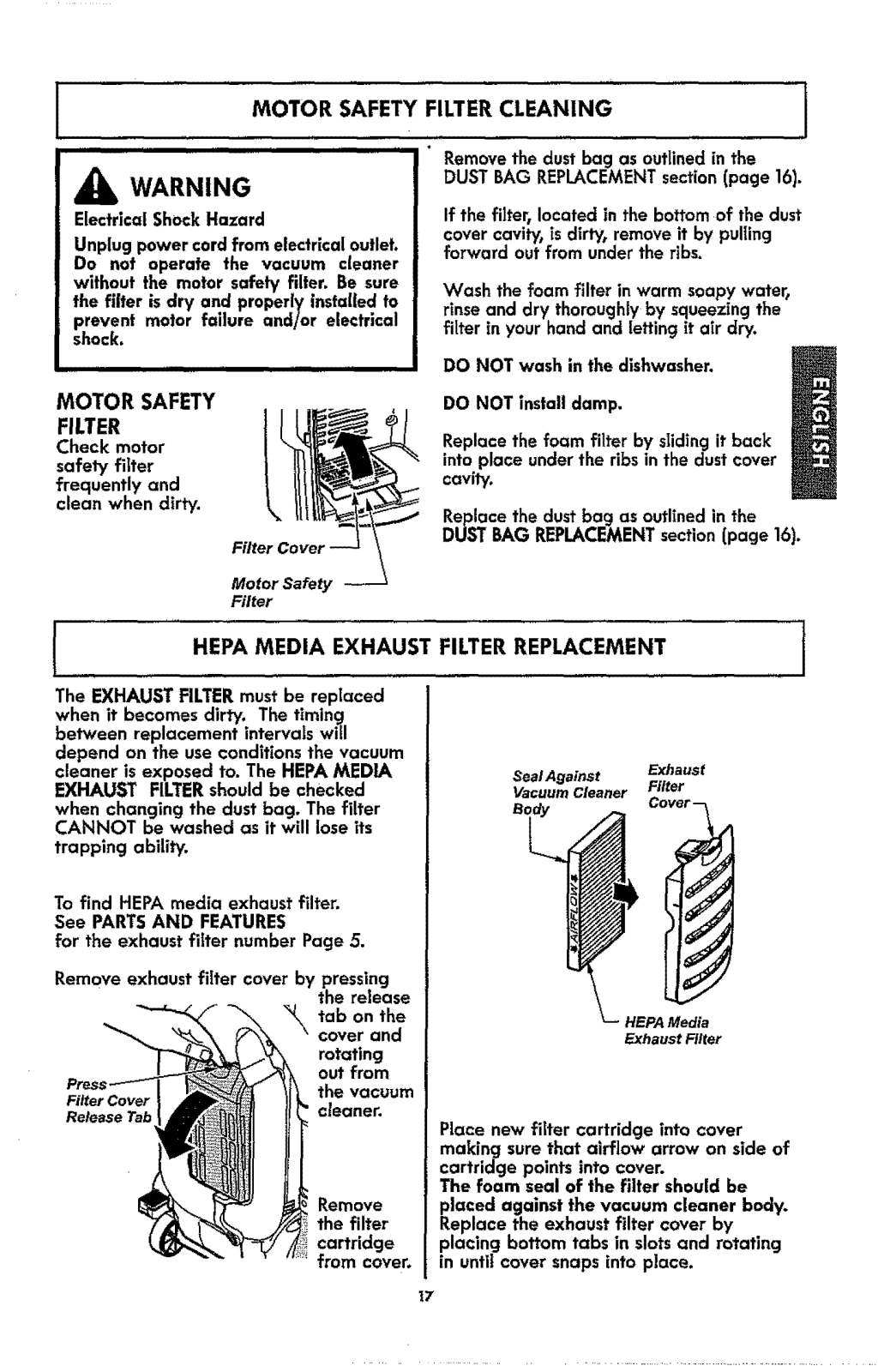

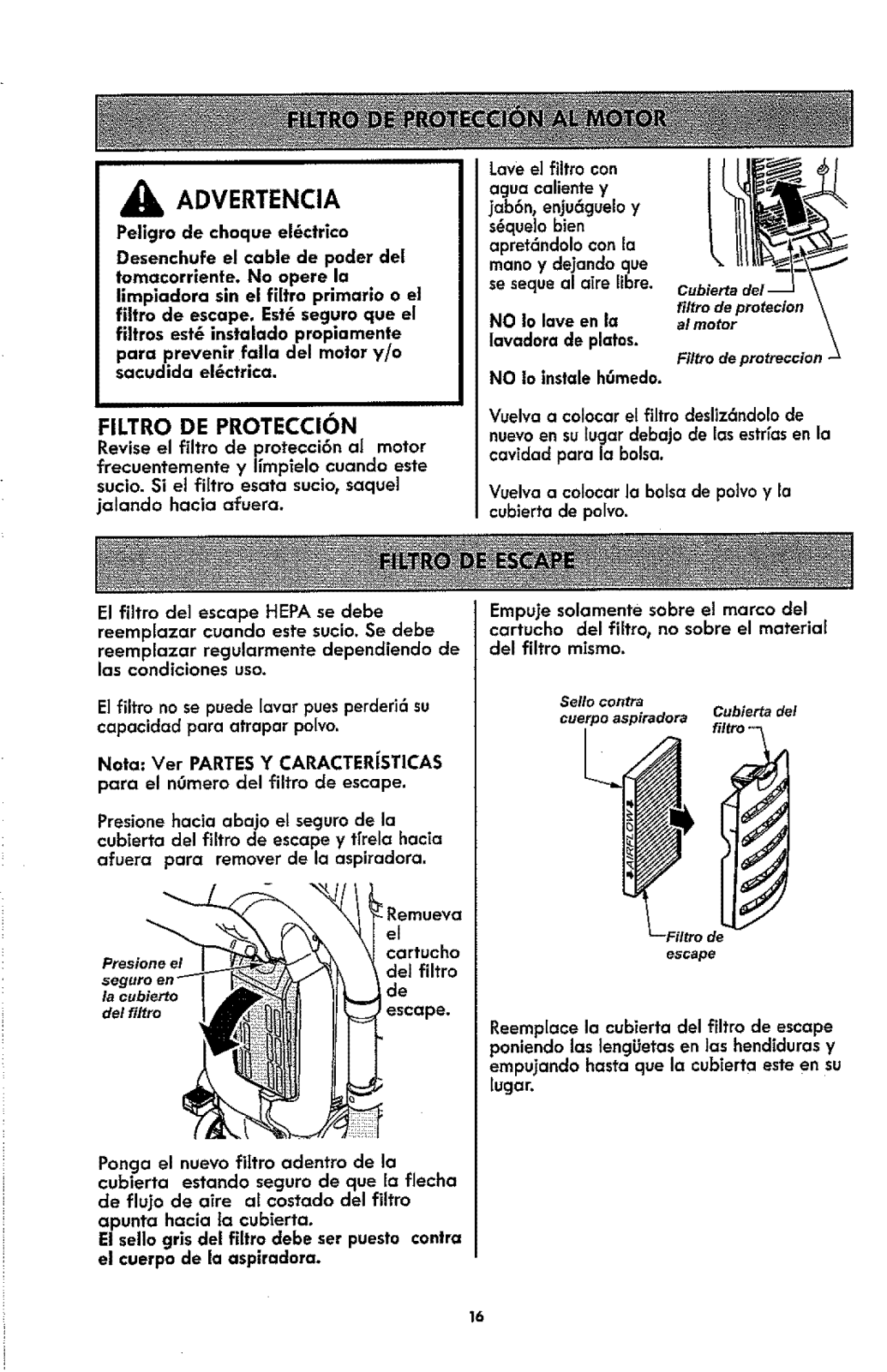

Motor Safety Filter Cleaning ........ 17

Exhaust Filter Replacement ......... 17

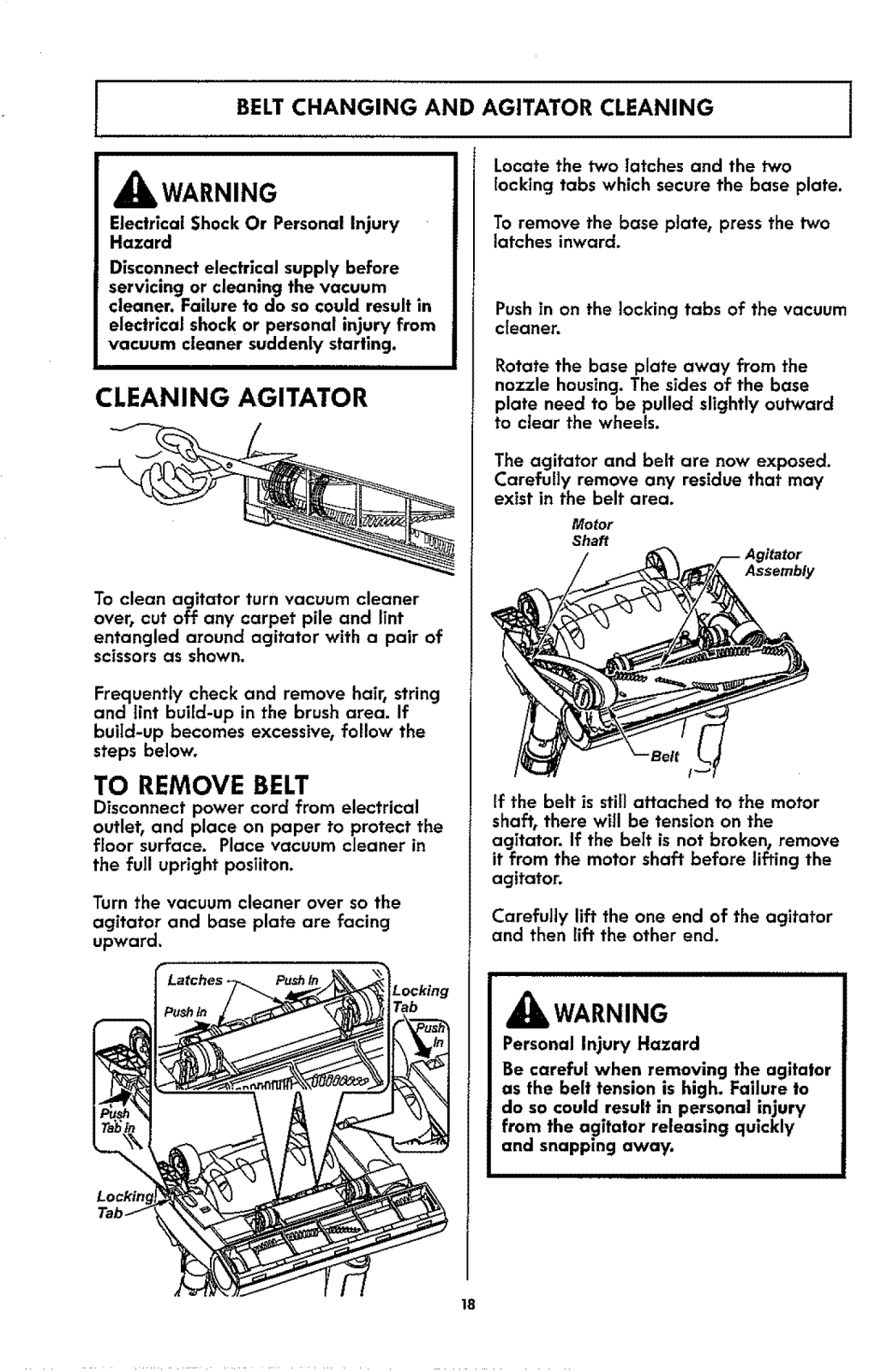

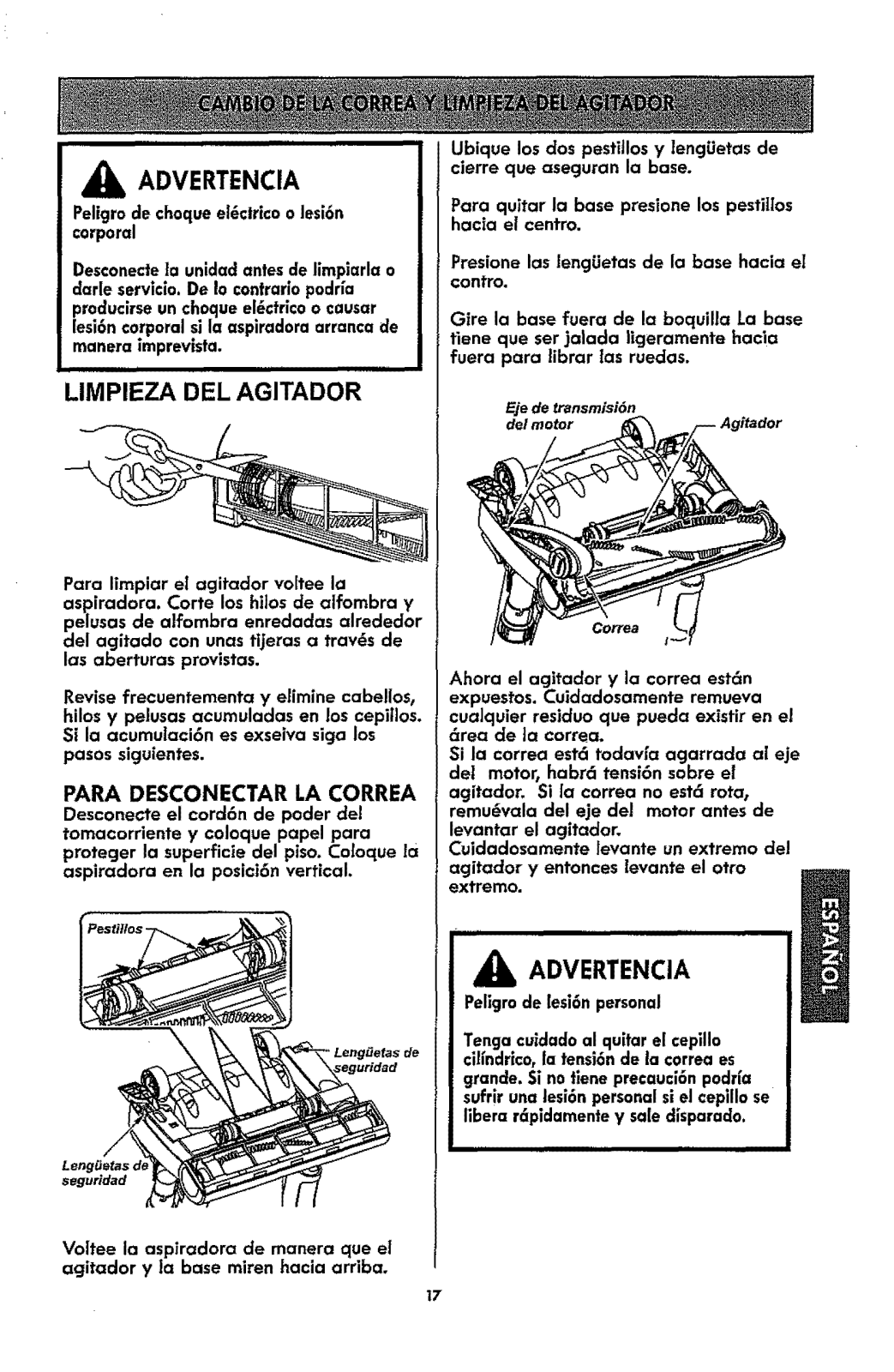

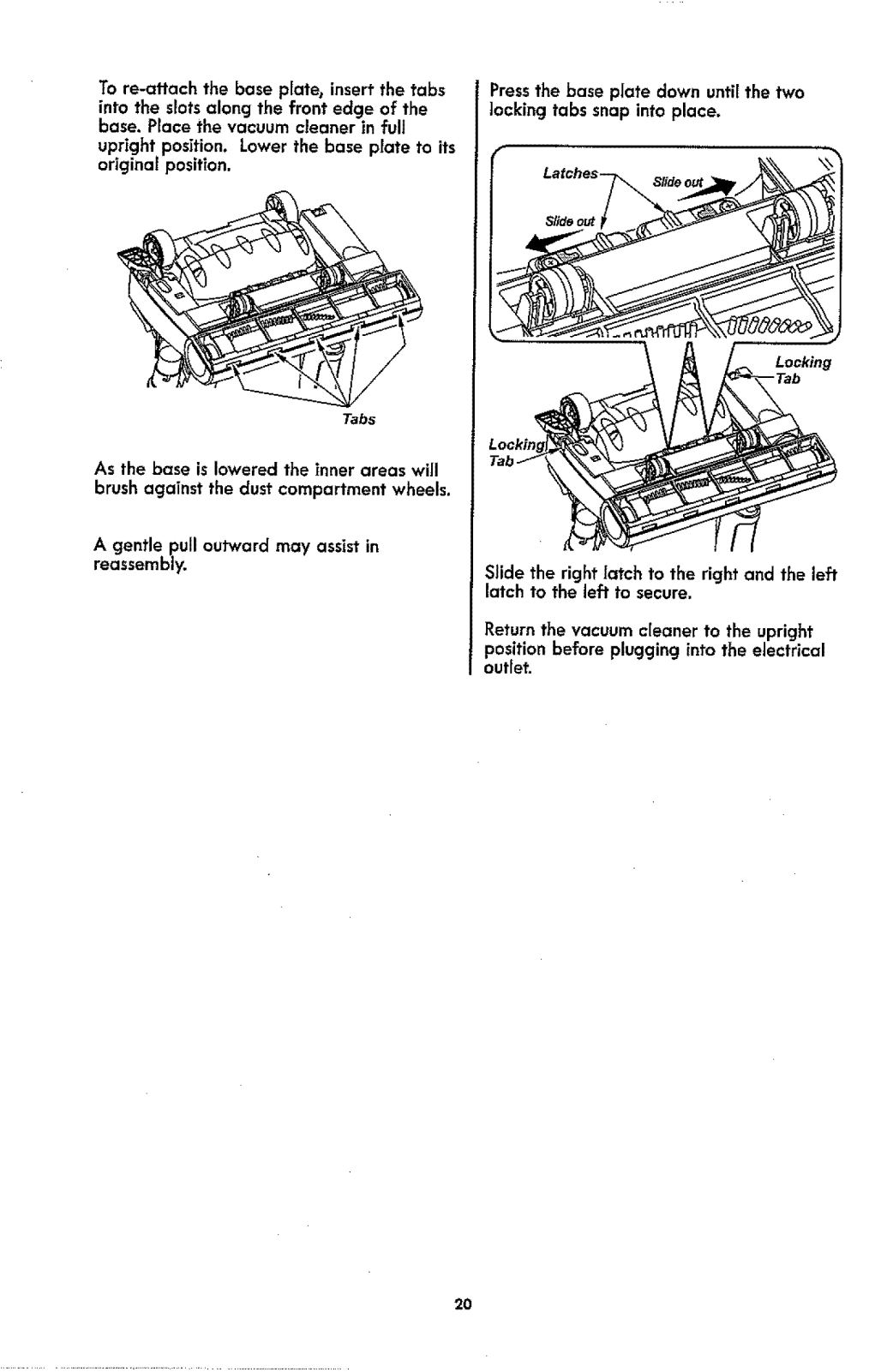

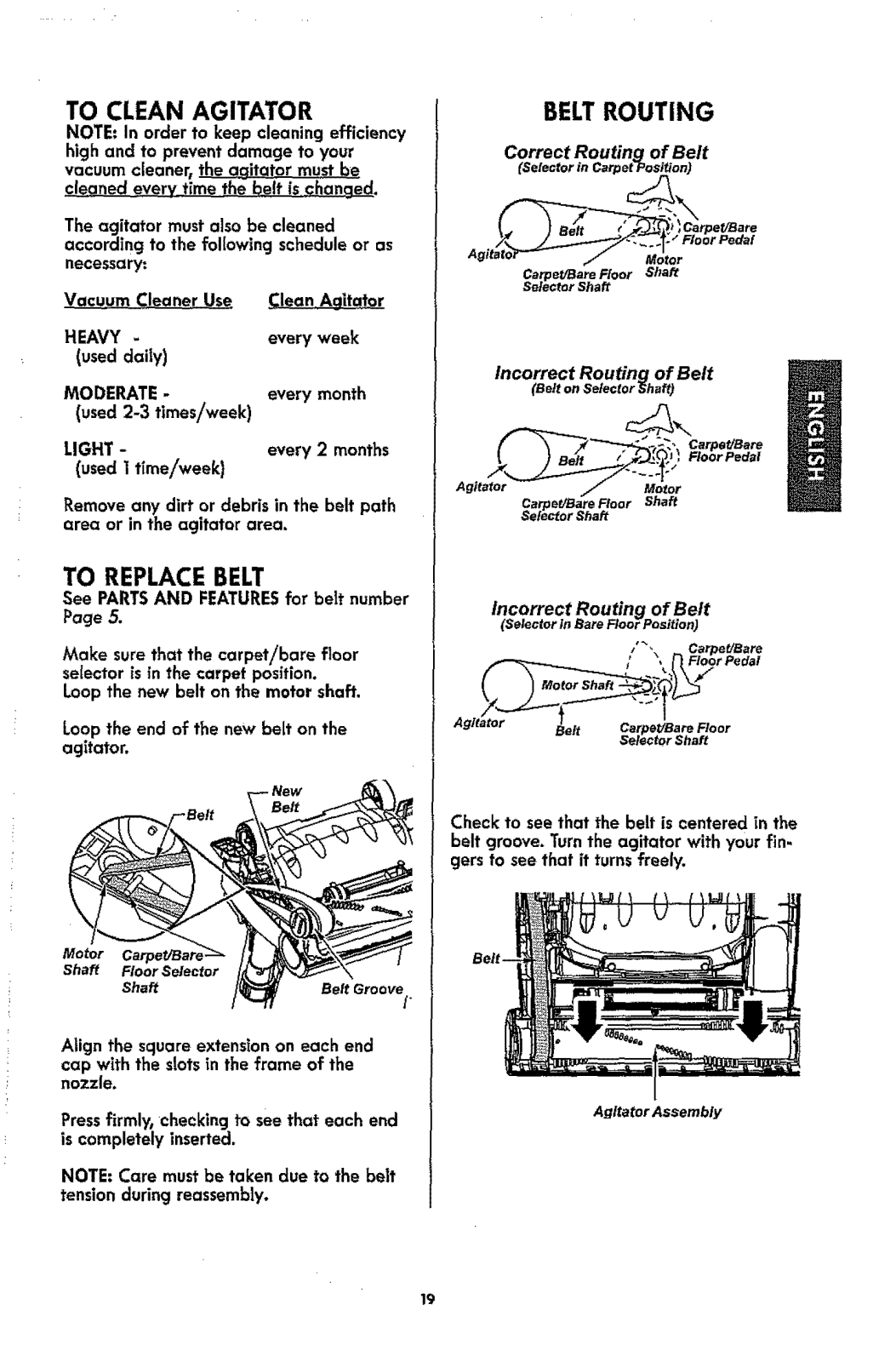

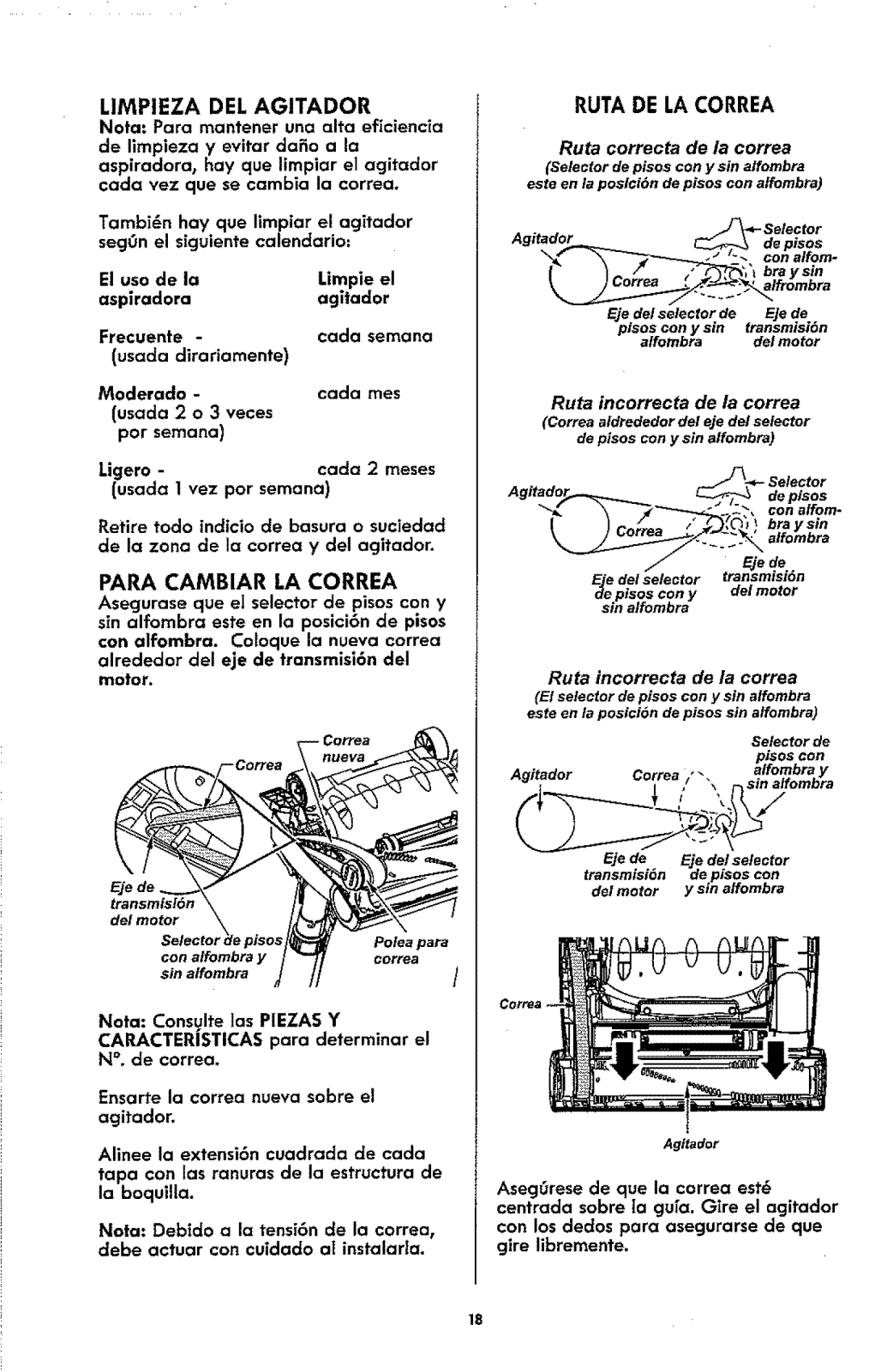

Belt Changing and Agitator

Cleaning ..................... 18-20

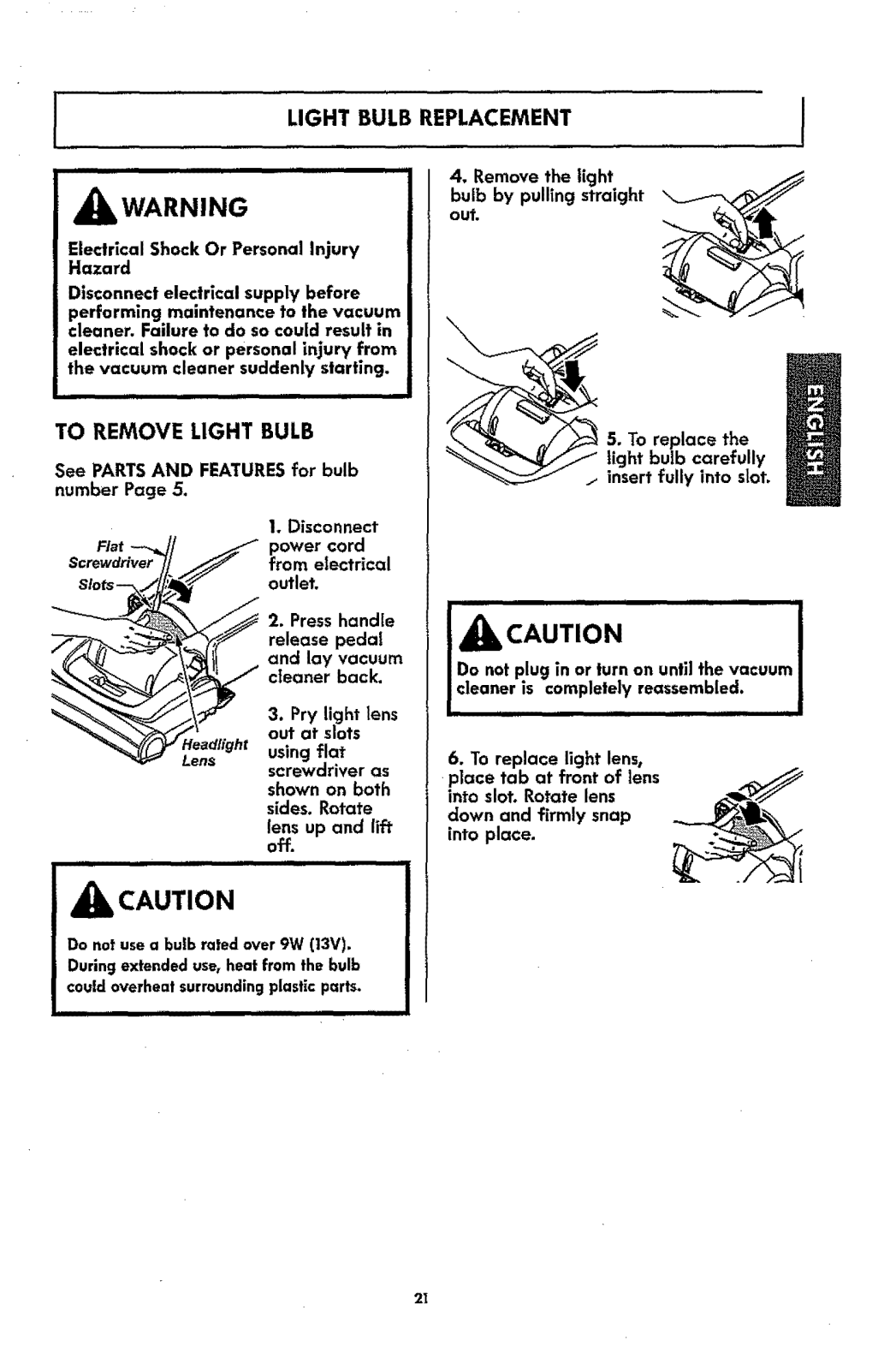

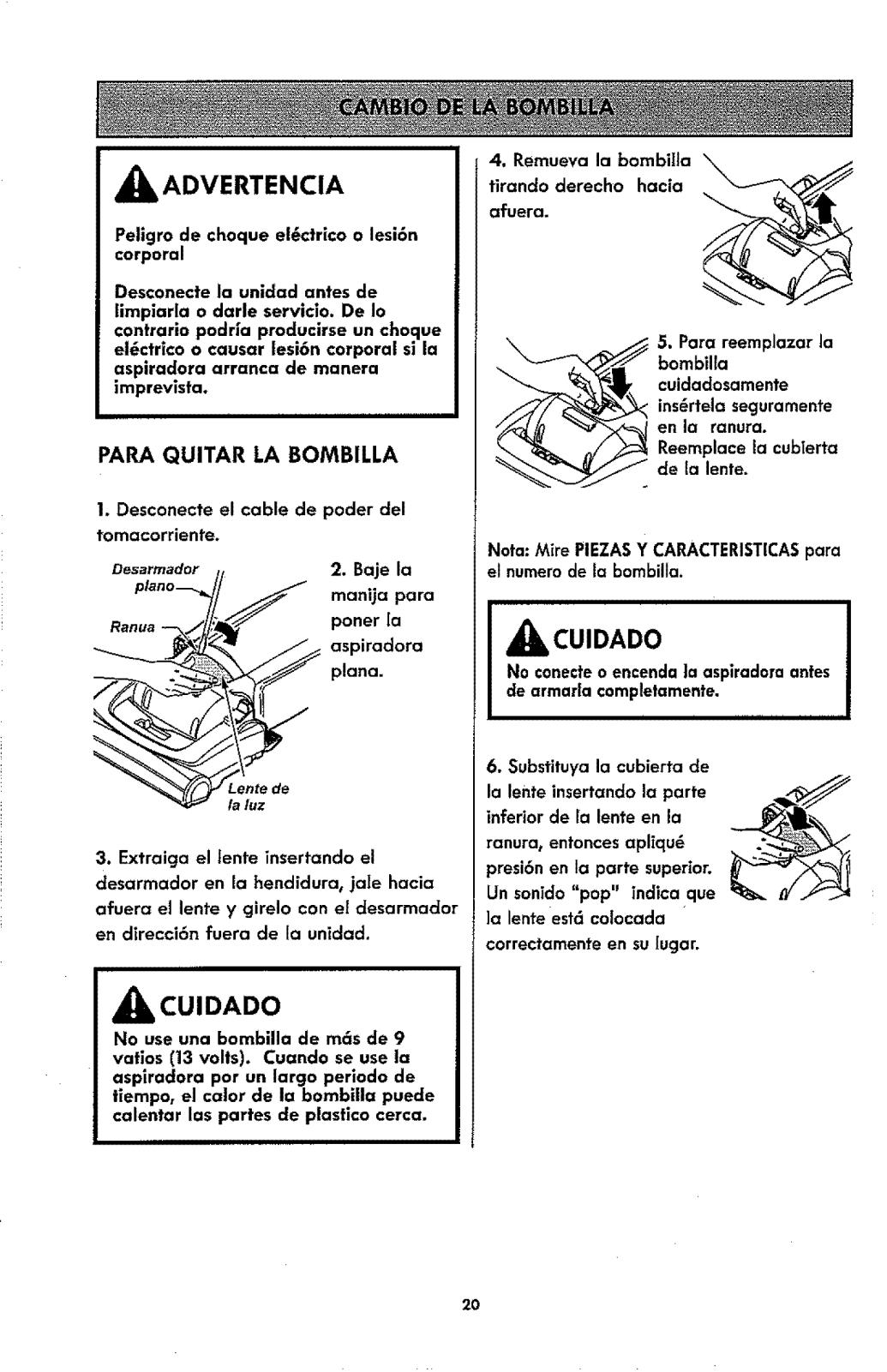

Light Bulb Replacement ........... 21

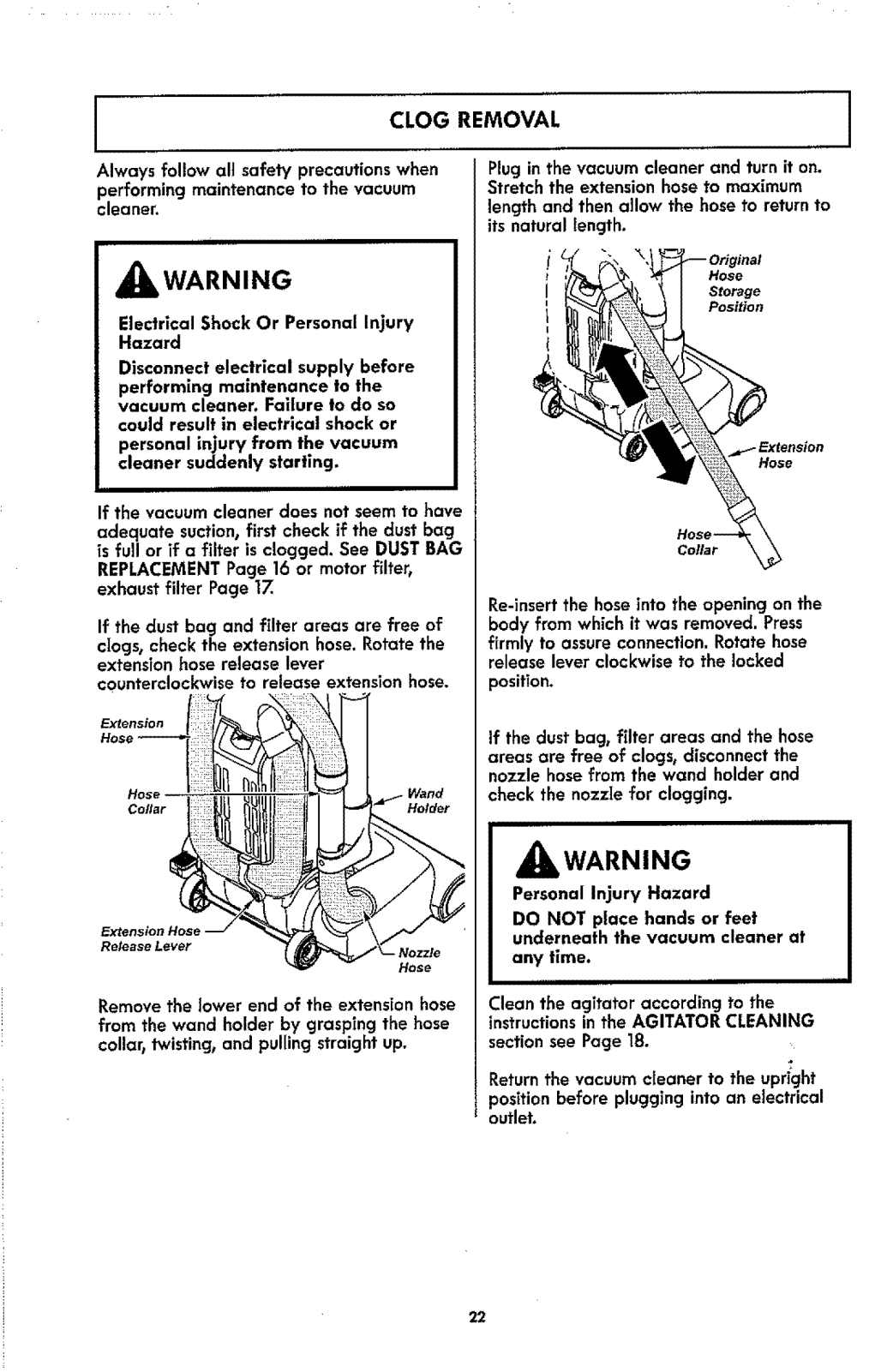

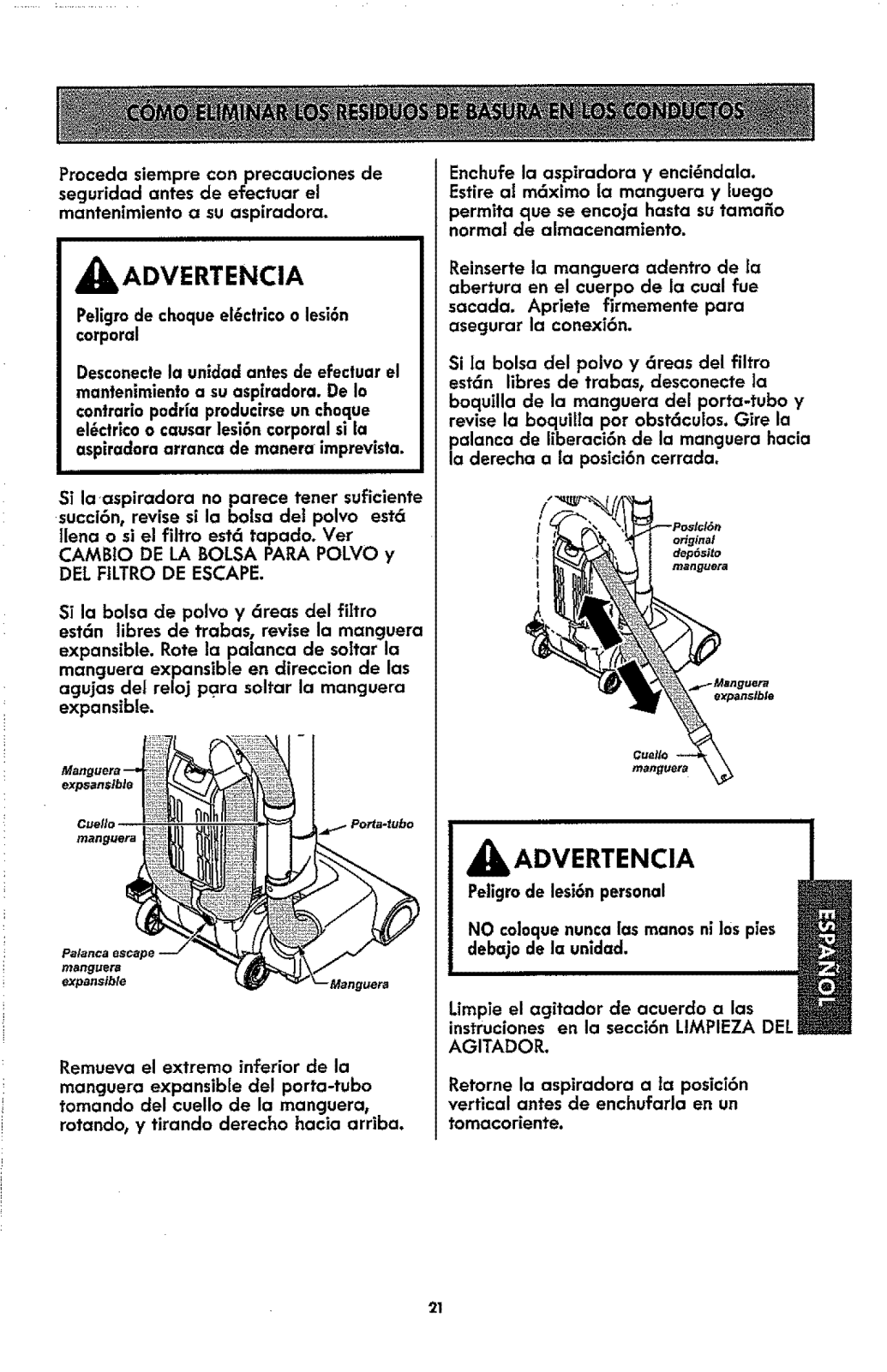

Clog Removal ................... 22

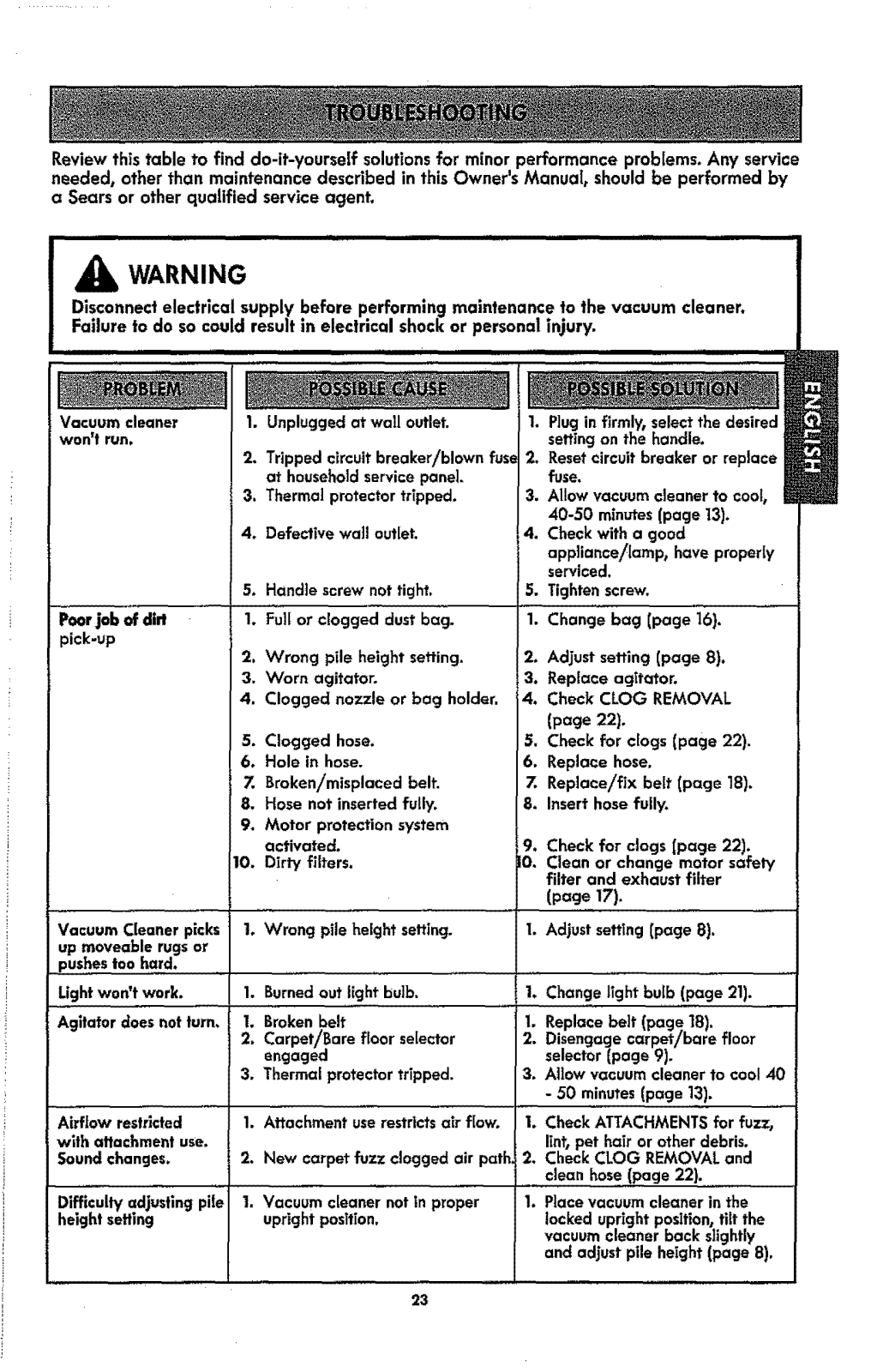

Troubleshooting .................... 23

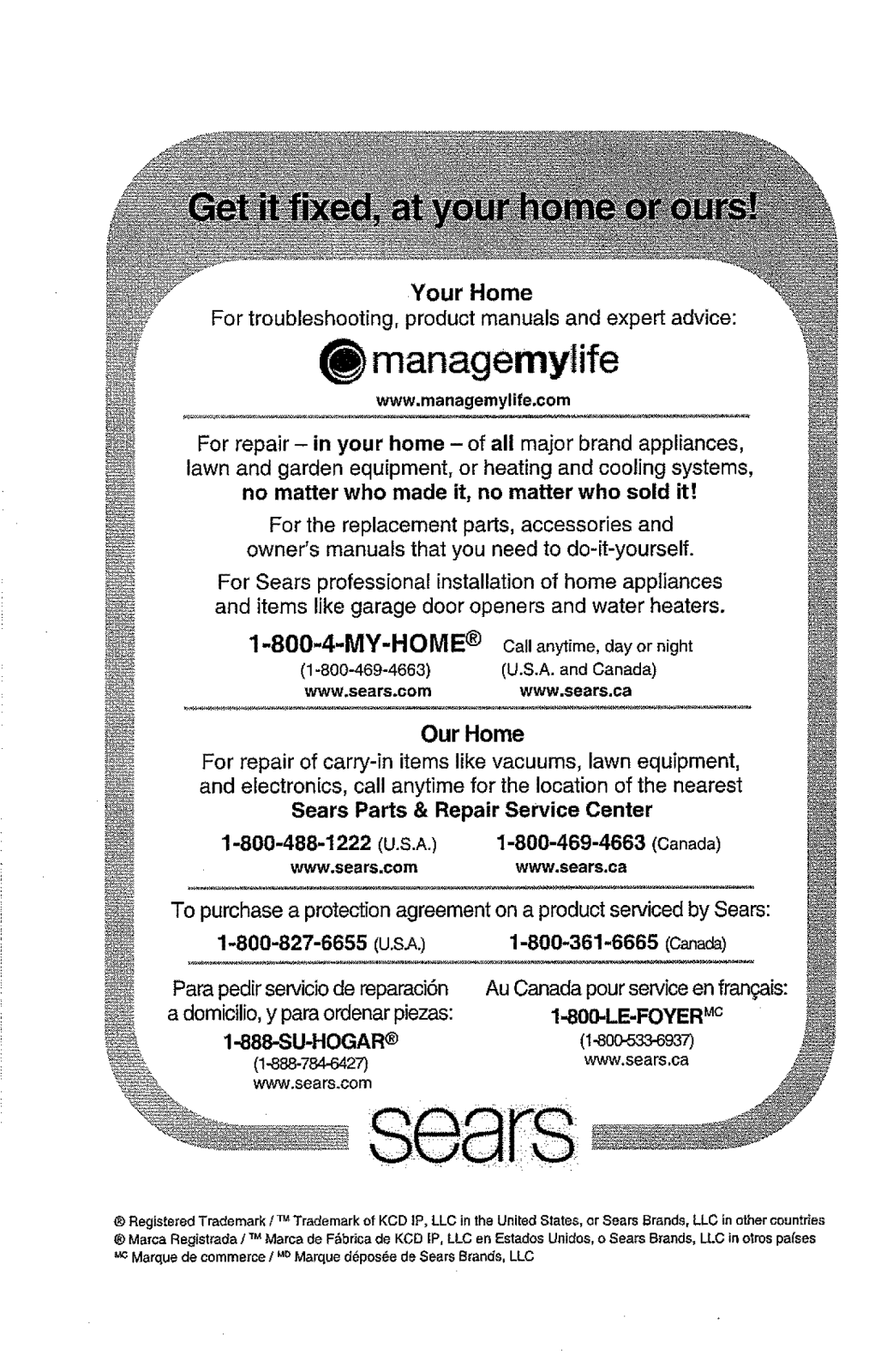

Requesting Assistance Or

Service .................. back page

Serial No.

Date of Purchase

Keep this book and your sales check (receipt) in a safe place for future reference.

PACKING LIST

Your KENMORE VACUUM CLEANERis packaged with the following parts and components assembled separately in the carton:

1 Vacuum CIeaner 1 Pet Hand Mate _M 1 Handte Assembly 1 Telescoping Wand

1 Combo Brush 1 Use & Care Guide t Crevice Tool 1 Repair Parts List

Each of the above assemblies are shown in detail inside the Repair Parts list.

1-877-531-7321

8:00am-5=OOpm EST, M-F

(U.S.A. and Canada)

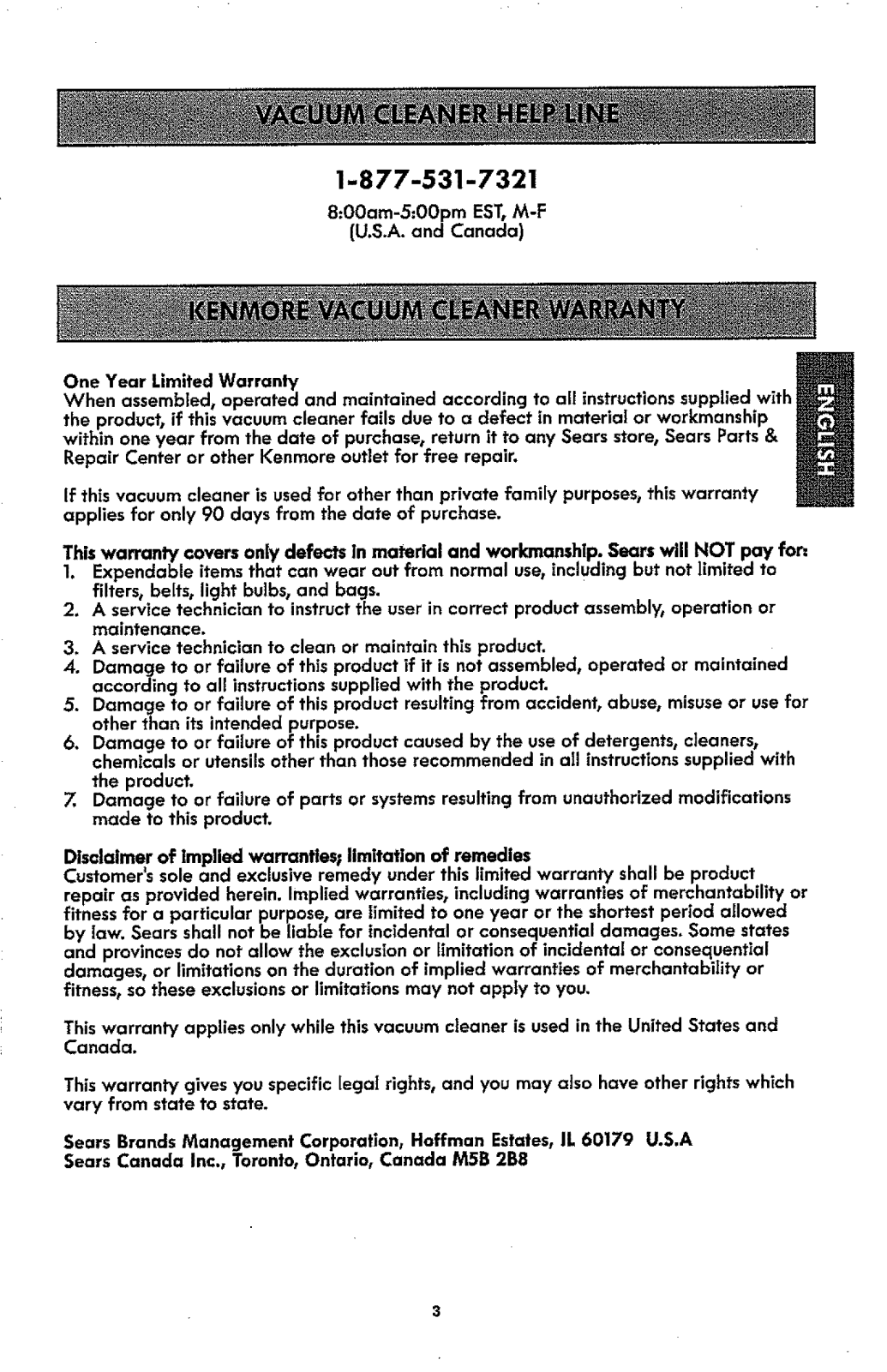

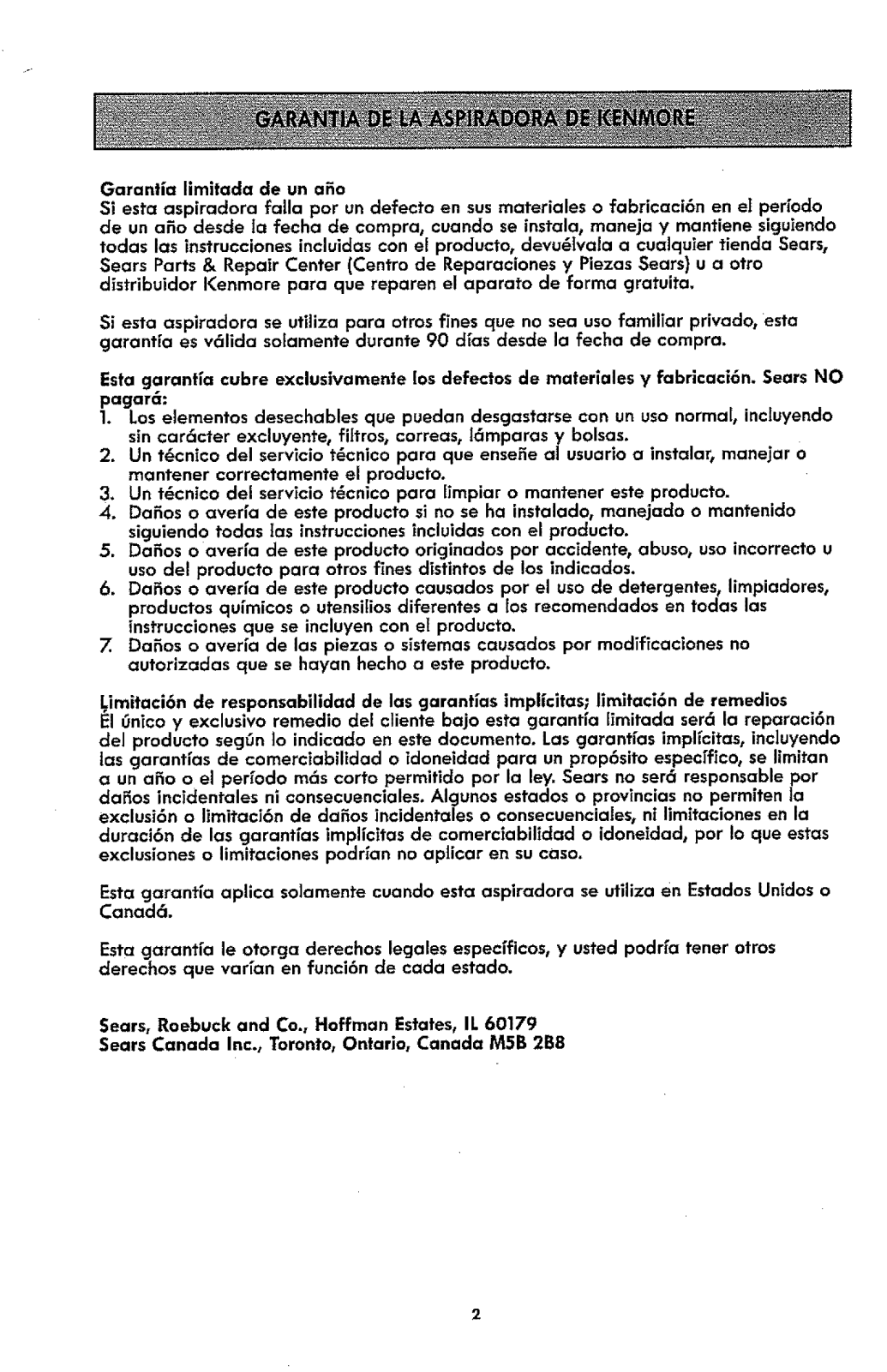

One Year Limited Warranty When assembled, operated and maintained according to all instructions supplied with

the product, if this vacuum cleaner fails due to a defect in material or workmanship within one year from the date of purchase, return it to any Sears store, Sears Parts &

Repair Center or other Kenmore outlet for free repair. If this vacuum cleaner is used for other than private family purposes, this warranty

applies for only 90 days from the date of purchase.

Thiswarrantycovers only defects in material and workmanship. Sears will NOT pay fort

1. Expendable items that can wear out from normal use, including but not limited to

filters, belts, light bulbs, and bags.

2. A service technician to instruct the user in correct product assembly, operation or

maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not assembled, operated or maintained according to all instructions supplied with the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.

6. Damage to or failure of this product caused by the use of detergents, cleanerss chemicals or utensils other than those recommended in all instructions supplied with

the product.

7, Damage to or falure of parts or systems resulting from unauthorized modifications

made to this product.

Disclaimer of implied warranties; limitation of remedies Customer's sole and exclusive remedy under this limited warranty shall be product

repair as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed

by law. Sears shall not be liable for incidental or consequential damages. Same states and provinces do not allow the exclusion or [imitation of incidental or consequential damages, or limitations on the duration of implied warranties of merchantability or

fitness, so these exclusions or limitations may not apply to you.

Thiswarranty applies onlywhile thisvacuum cleaner isusedinthe UnitedStates and Canada.

This warranty gives you specific [egaI rights, and you may also have other rights which vary from state to state.

Sears BrandsManagement Corporation, Hoffman Estates,IL 60179 U.S.A Sears Canada Inc., Toronto,Ontario, Canada MhB 2B8

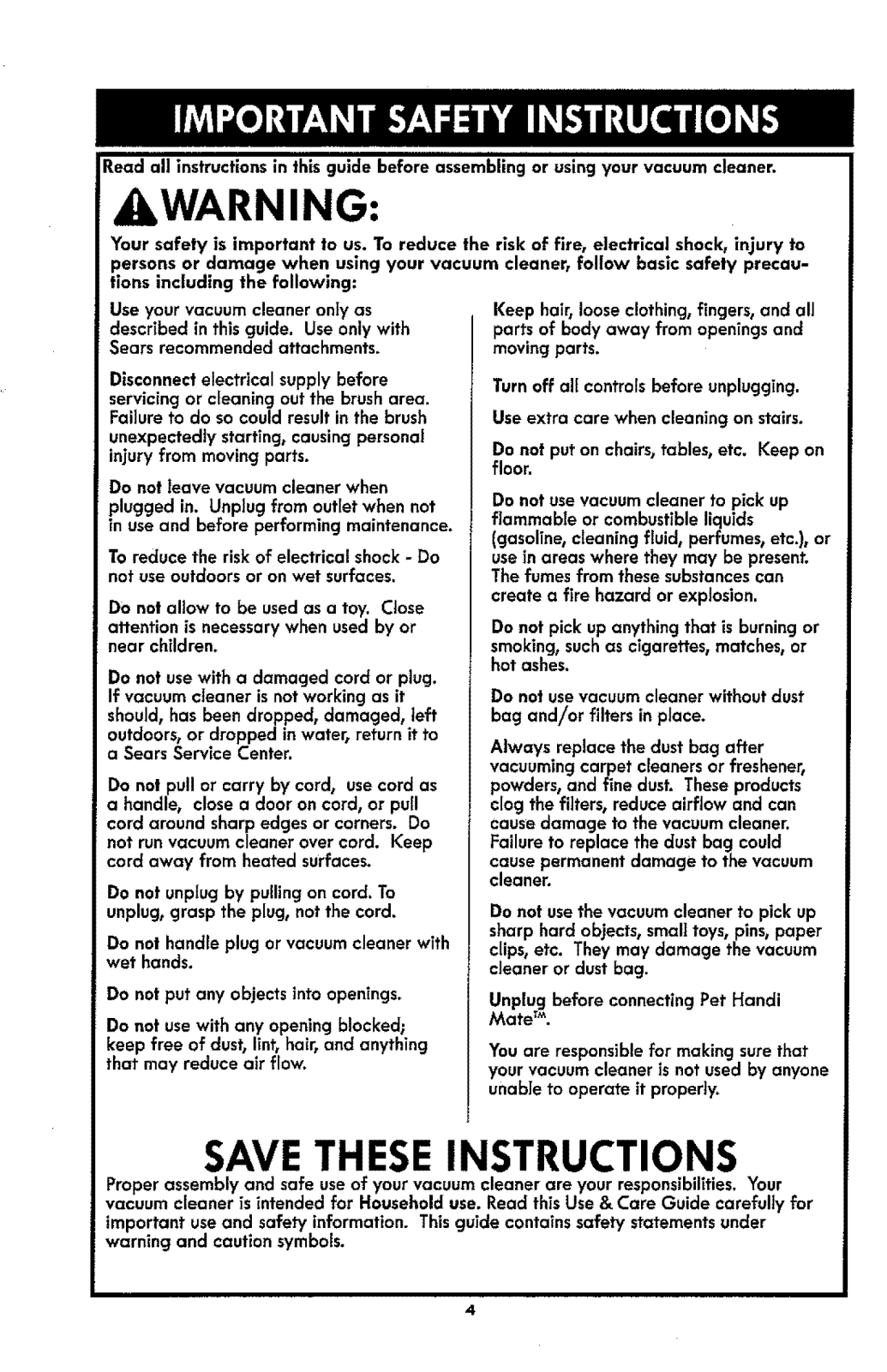

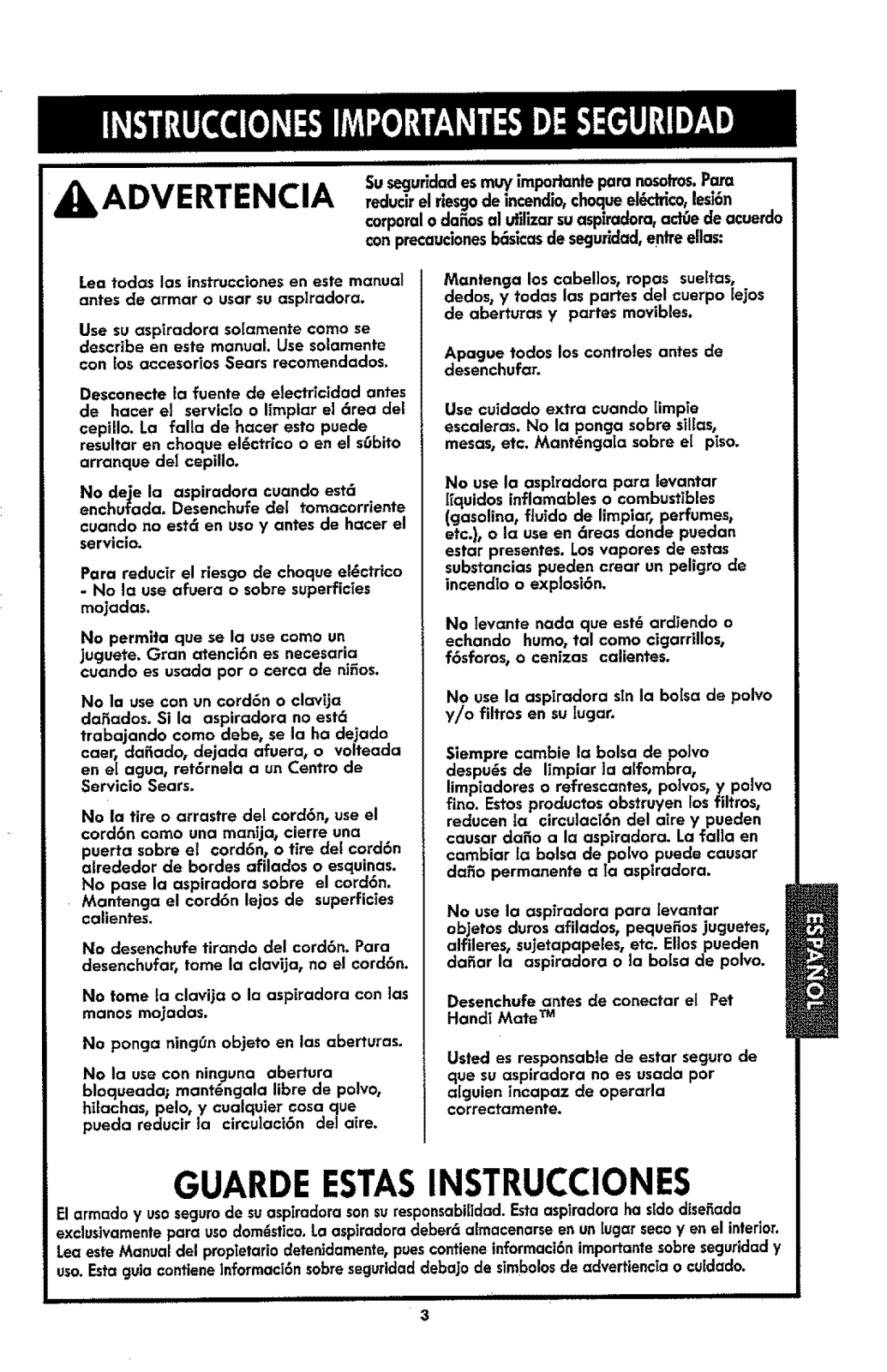

Read all instructions in this guide before assembling or using your vacuum cleaner.

kWARNING:

Your safety is important to us. To reduce the risk of fire, electrical shock, injury to persons or damage when using your vacuum cleaner, follow basic safely precau-

tions including the following:

Use your vacuum cleaner only as described in this guide. Use only with Sears recommended attachments.

Disconnect electrical supply before servicing or cleaning out the brush area.

Failure to do so could result in the brush unexpectedly starting, causing personal injury from moving parts.

Do not leave vacuum cleaner when plugged in. Unplug from outlet when not

in use and before performing maintenance. To reduce the risk of electrical shock - Do

not use outdoors or on wet surfaces. Do not allow to be used as a toy. Close

attention is necessary when used by or near children.

Do not use with a damaged cord or plug. If vacuum cleaner is not working as it

should, has been dropped, damaged, left outdoors_or dropped in water, return it to

a Sears Service Center. Do not pull or carry by cord, use cord as

a handle, close a door on cord, or pull cord around sharp edges or corners. Do

not run vacuum cleaner over cord. Keep cord away from heated surfaces.

Do not unplug by pulling on cord. To

unplug, grasp the plug, notthe cord. Do not handle plug or vacuum cleaner with

wet hands. Do not put any objects into openings.

Do not use with any opening blocked; keep free of dust, lint, hair, and anything

that may reduce air flow.

Keep hair_loose clothing, fingers, and all parts of body away from openings and

moving parts. Turn off alf controls before unplugging.

Use extra care when cleaning on stairs. Do not put on chairs,tables, etc. Keep on

floor. Do not usevacuum cleaner to pick up

flammable or combustible liquids (gasoline_ cleaning fluid, perfumes_etc.), or

use in areas where they may be present. The fumes from these substances can

create a fire hazard or explosion. Do not pick up anything that is burning or

smoking, suchas cigarettes, matches, or

hot ashes. Do not use vacuum cleaner without dust

bag and/or filters in place.

Always replace the dust bag after vacuuming carpet cleaners or freshener,

powders, and fine dust. These products clog the filters, reduce airflow and can

cause damage to the vacuum cleaner. Failure to replace the dust bag could

cause permanent damage to the vacuum cleaner.

Do not usethe vacuum cleaner to pick up sharp hard objects, small toys, pins, paper

clips, etc. They may damage the vacuum cleaner or dust bag.

Unplug before connecting Pet Handi Mate TM.

You are responsible for making sure that

your vacuum cleaner is not used by anyone

unable to operate it properiy_

SAVETHESEINSTRUCTIONS

Proper assembly and safe use of your vacuum cleaner are your responsibii|ties. Your vacuum cleaner is intended for Household use. Read this Use & Care Guide carefully for

important use and safety information. This guide contains safety statements under warning and caution symbols.

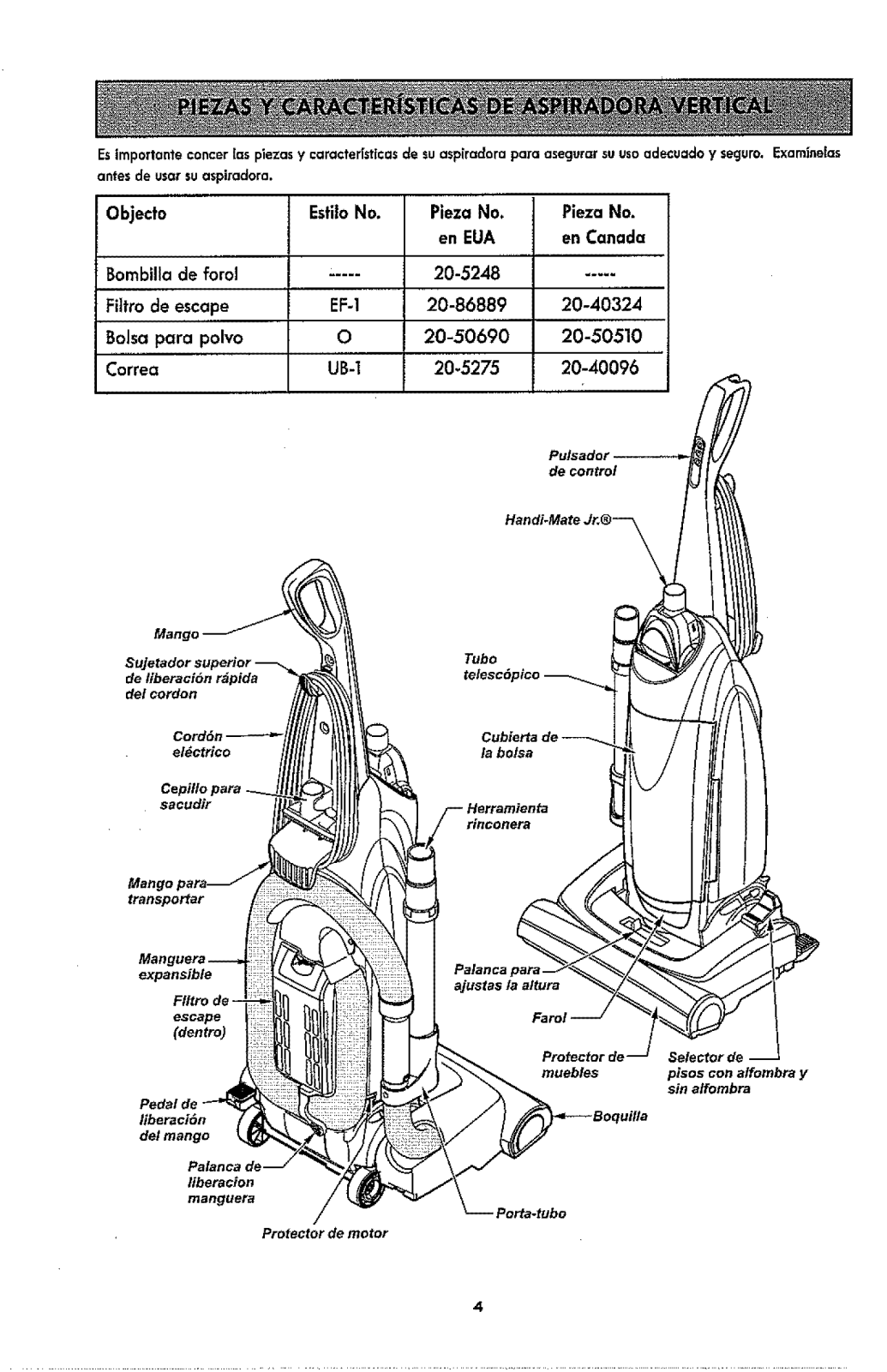

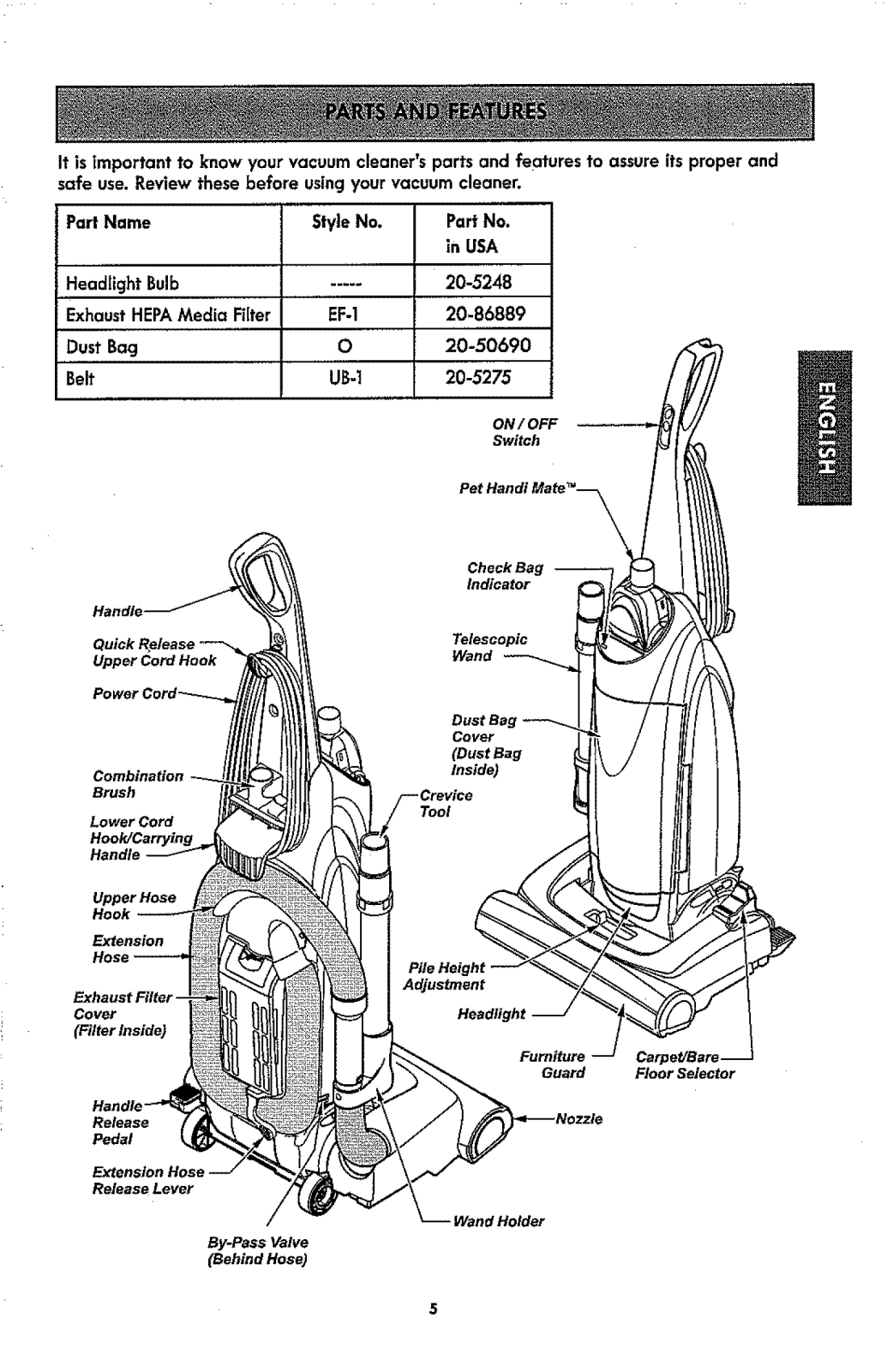

Itisimportant to know your vacuum cleaner's parts and features to assure its proper and

ale use. Review these before using your vacuum cleaner.

Part Name Style No.

Headlight Bulb .....

Exhaust HEPAMedia Fi[ter EF-1 Dust Bag 0

Belt UB-I

Handle

Upper Cord Hook

Combination Brush

Lower Cord

UpperHose

Extens_n Hose

Cover (Filer Inside)

Release Pedal

Extension Release Lever

Wand Holder

By-Pass Valve (Behind Hose)

Please pay special attention to these hazard alert boxes, and follow any

_i instructions given. WARNING statements alert you to such hazards as fire, electric

shockt burns and personal injury. CAUTION statements alert you to such hazards

as personal injury and/or property damage.

_IbWARNING

Electrical Shock Hazard

Do not plug into the electrical supply until the assembly is complete. Failure to do so could result in electrical shock

or injury.

Before assembling the vacuum cleaner,

check the PACKING LIST (page 2). Use this list to verify that you have received

all the components of ,/our new Kenmore vacuum cleaner.

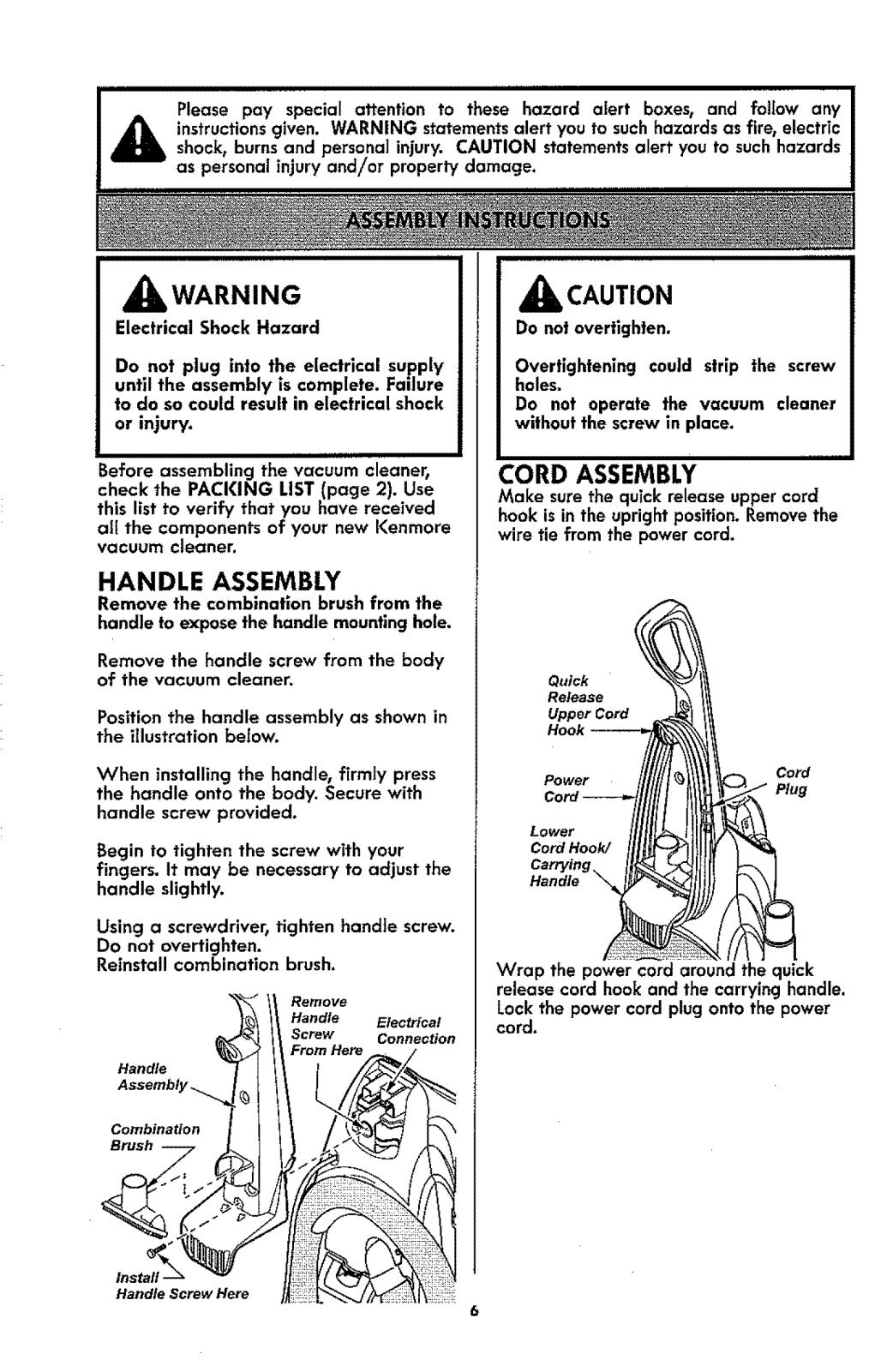

HANDLE ASSEMBLY

Remove the combination brush from the handle to expose the handle mounting hole.

Remove the handle screw from the body of the vacuum cleaner.

Position the handle assembly as shown in

the illustration below.

When installing the handle, firmly press the handle onto the body. Secure with

handle screw provided. Begin to tighten the screw with your

fingers. It may be necessary to adjust the

handle slightly. Using a screwdriver, tighten handle screw.

Do not overtighten. Reinstall combination brush,

Handle

u i i, UUUlllJu

Ret]3ove

Handle Electrical Screw Connection

_I_CAUTION

Do not overtighten.

Overtightening could strip the screw holes.

Do not operate the vacuum cleaner wilhout the screw in place.

CORD ASSEMBLY

Make sure the quick release upper cord hook is in the upright position. Remove the

wire tie from the power cord.

Quick

Release )_ I_

Power Illlll It_i\_I1\tC_ Cord

oo, --111t!11

Lower IIItlL,_ J!ltlL,_"_

CordHook//lt_t"F!ll!lii'/_

Wrap the power cord around the quick release cord hook and the carrying handle,

Lock the power cord plug onto the power

cord.

Assembly _, ! _ !

Combination

Brush _ _.

Handle Screw Here

ii!,

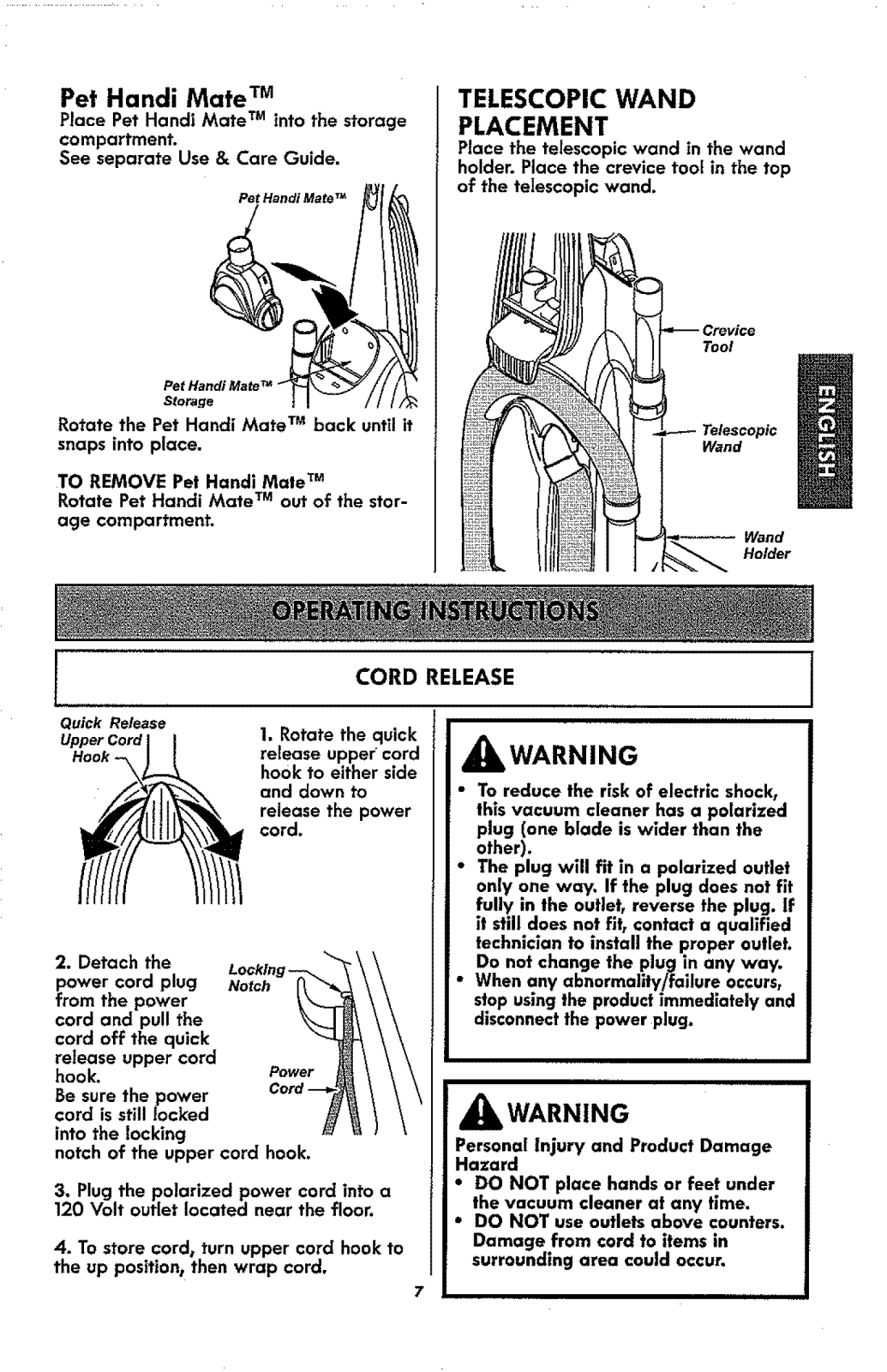

Pet Handi Mate TM

Place Pet Handi Mate _ into the storage compartment.

See separate Use & Care Guide.

Pet Handi Mate _

Storage

Rotate the Pet Handi Mate TMback until it

snaps into place. TO REMOVE Pet Handi Mate TM

Rotate Pet Handi Mate TM out of the stor-

age compartment.

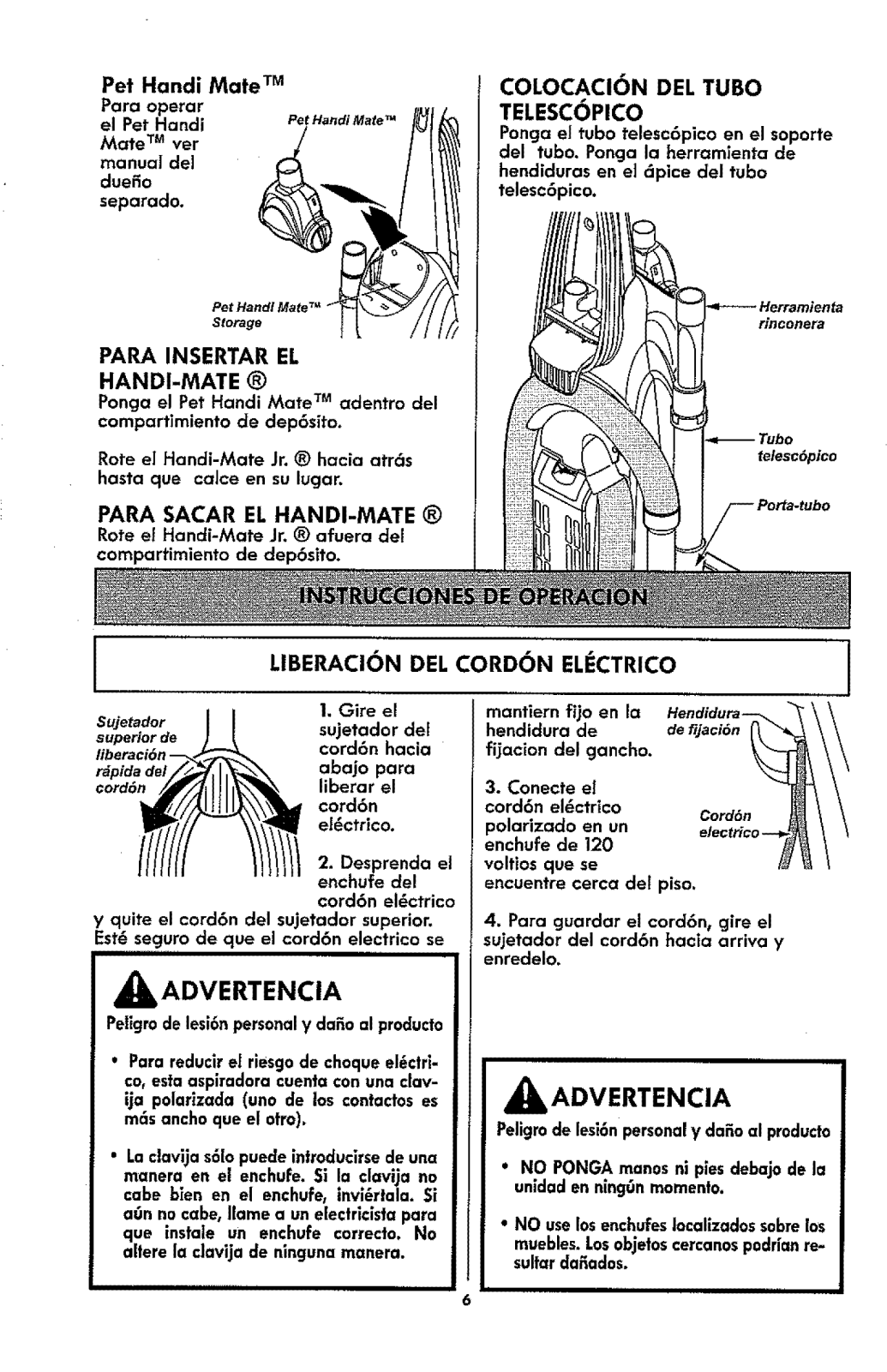

CORD RELEASE

TELESCOPIC WAND PLACEMENT

Place the telescopic wand in the wand holder. Place the crevice tool in the top

of the telescopic wand.

Quick Release

UpperCord

Hook -_,\

2. Detach the power cord plug Notch

from the power cord and pull the

cord off the quick release upper cord

hook. Power

Be sure the power cord is still locked

into the locking notch of the upper cord hook.

3. Plug the polarized power cord into a

120 Volt outlet located near the floor.

4. To store cord, turn upper cord hook to

the up positiont then wrap cord.

1, Rotate the quick release upper_cord

hook to either side and down to

release the power

cord.

AWARNING

• To reduce the risk of electric shock,

this vacuum cleaner has a polarized plug (one blade is wider than the

other).

• The plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. if

it still does not fit, contact a qualified technician to install the proper outlet.

Do not change the plug in any way.

• When any abnormallty/failure occurs, stop using the product immediately and

disconnect the power plug.

_IsWARNING

Personal Injury and Product Damage Hazard

* DO NOT place hands or feet under

the vacuum cleaner at any time.

, DO NOT use outlets above counters.

Damage from cord to items in

surrounding area could occur.

7 .ll i ii

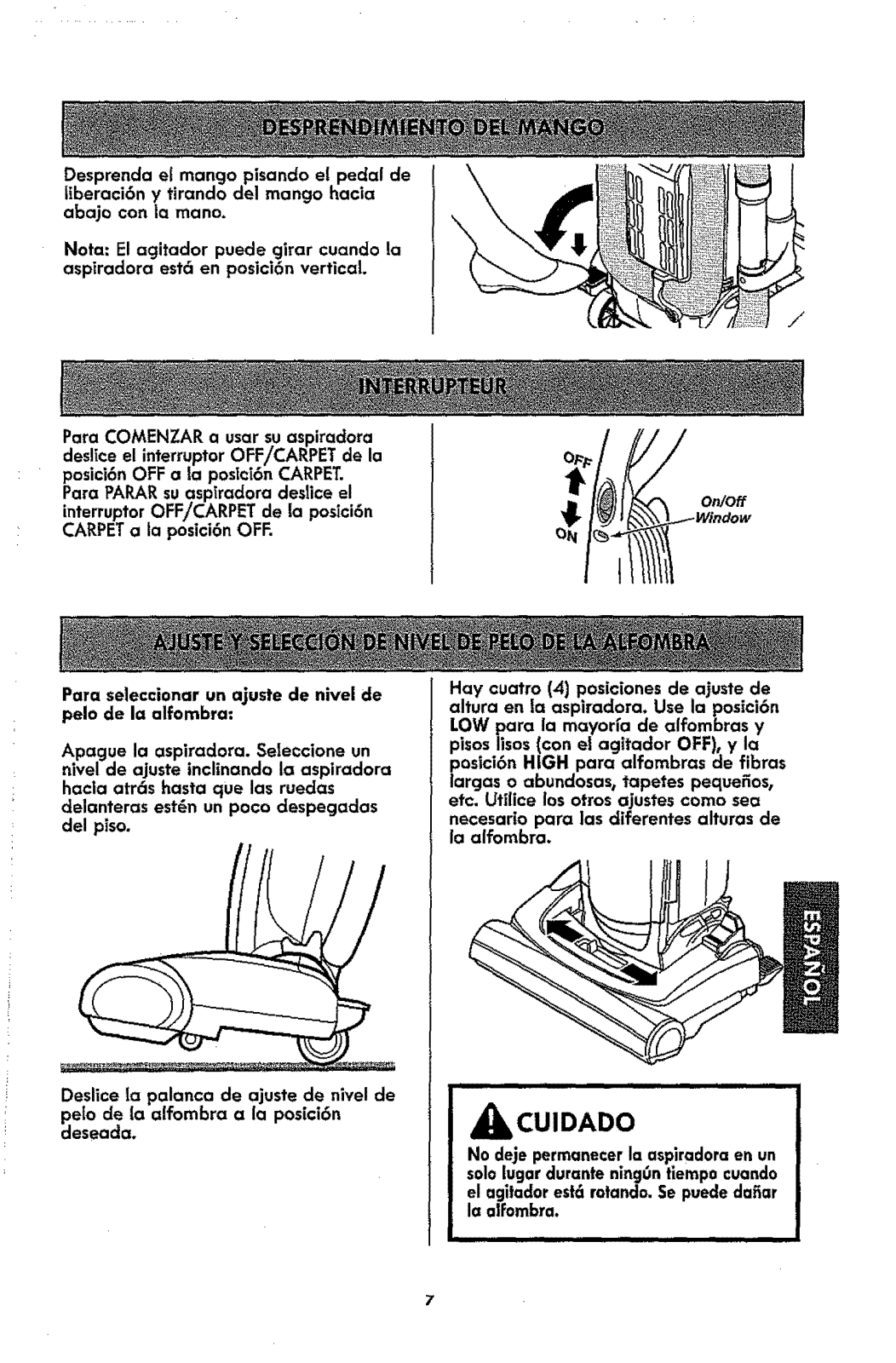

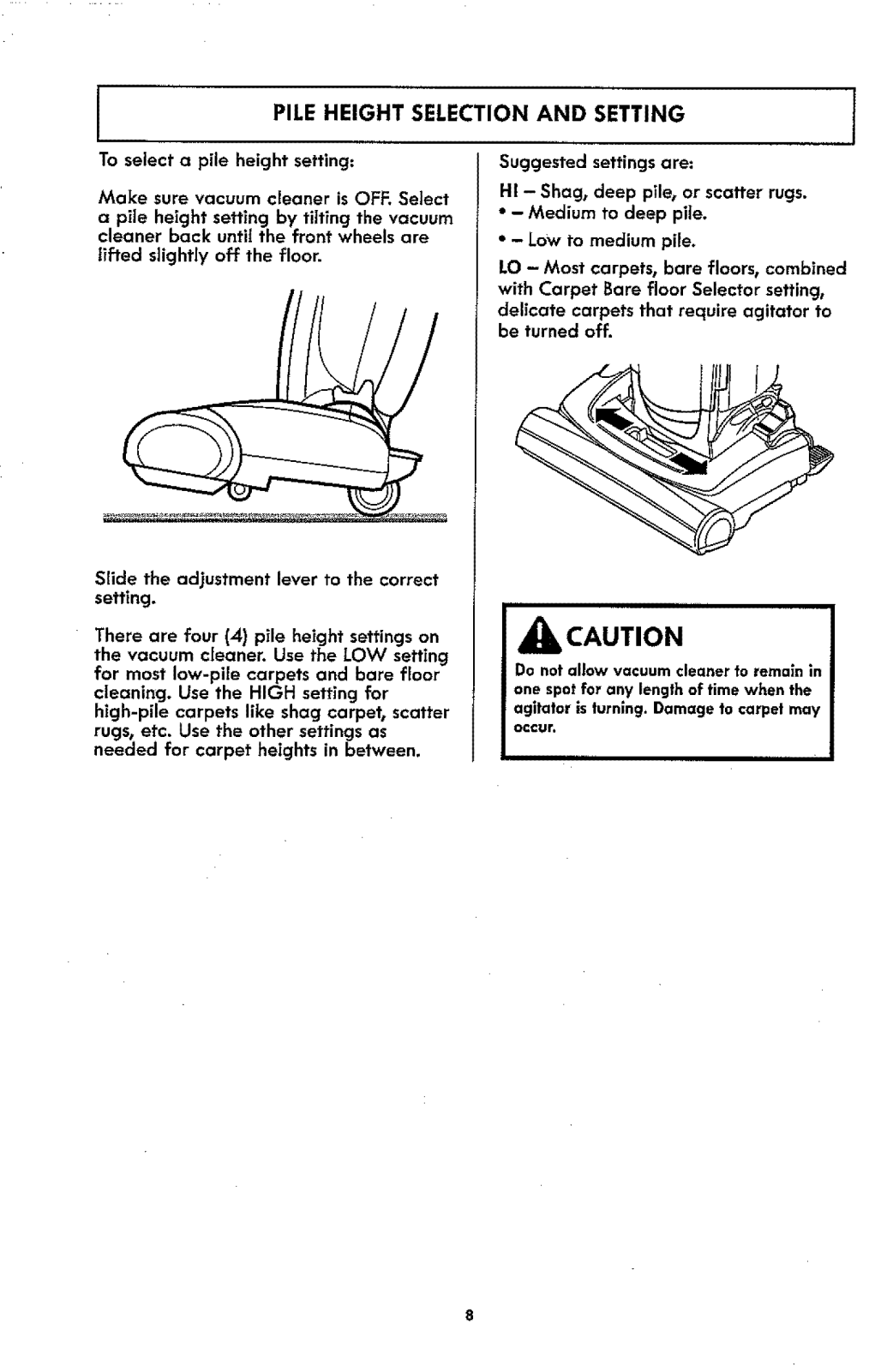

J PILE HEIGHT SELECTION AND SETTING

To select a pile height setting:

Make sure vacuum cleaner is OFF. Select a pile height setting by tilting the vacuum

cleaner back untit the front wheels are

lifted slightly off the floor.

Slide the adjustment lever to the correct

setting.

Suggested settings are:

HI - Shag, deep pile, or scatter rugs.

* - Medium to deep pi|e. * - Low to medium pile.

LO - Most carpets, bare floors, combined with Carpet Bare floor Selector setting, delicate carpets that require agitator to

be turned off.

There are four (4) pile height settings on the vacuum cleaner. Use the LOW setting for most low-pile carpets and bare floor

cleaning. Use the HIGH setting for high-pile carpets like shag carpet, scatter

rugs, etc. Use the other settings as needed for carpet heights in between.

A CAUTION

Do notallow vacuum cleaner to remain in one spot for any lengthof time when the

agitator is turning, Damage to carpet may

OCCUr.

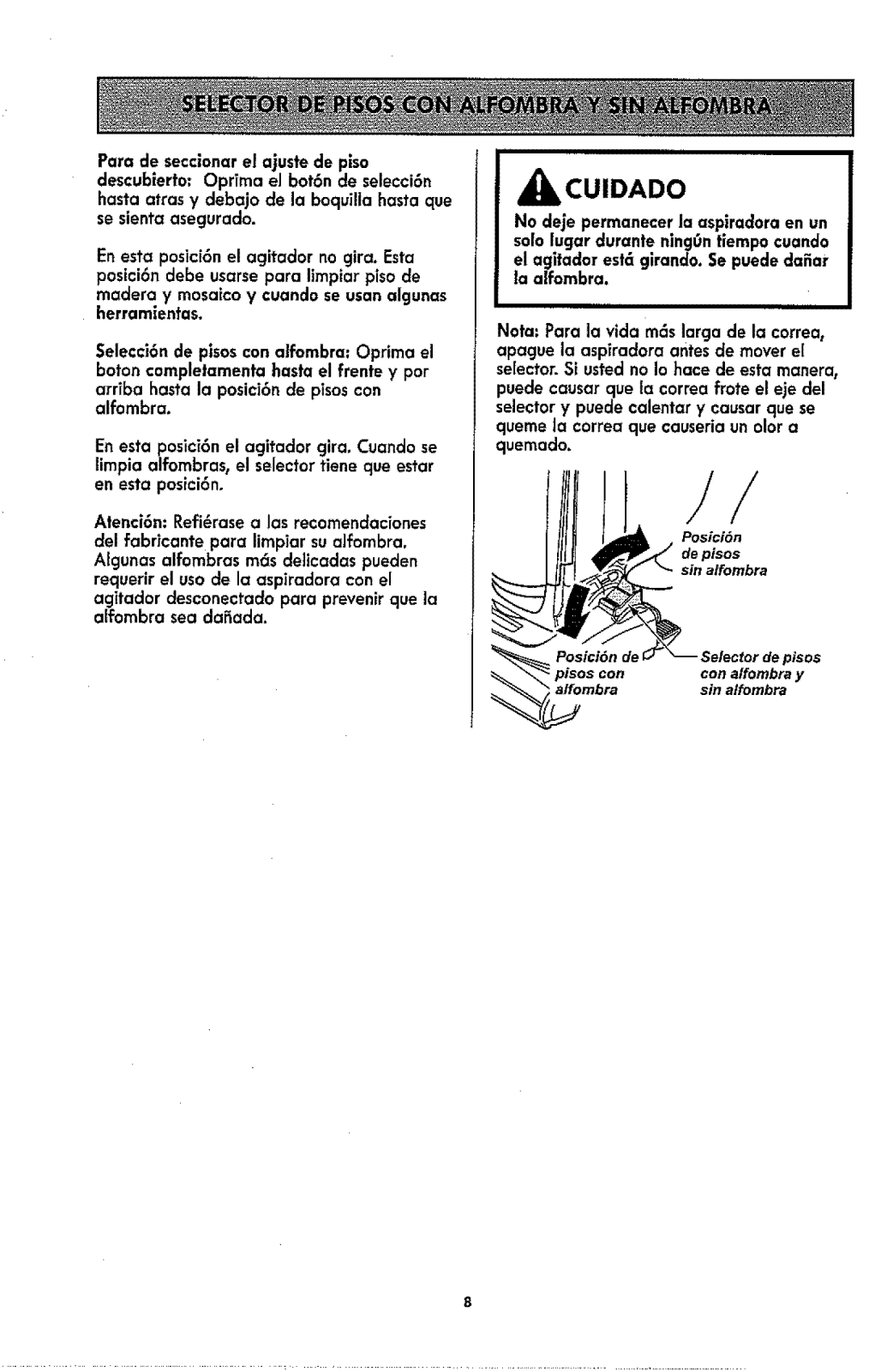

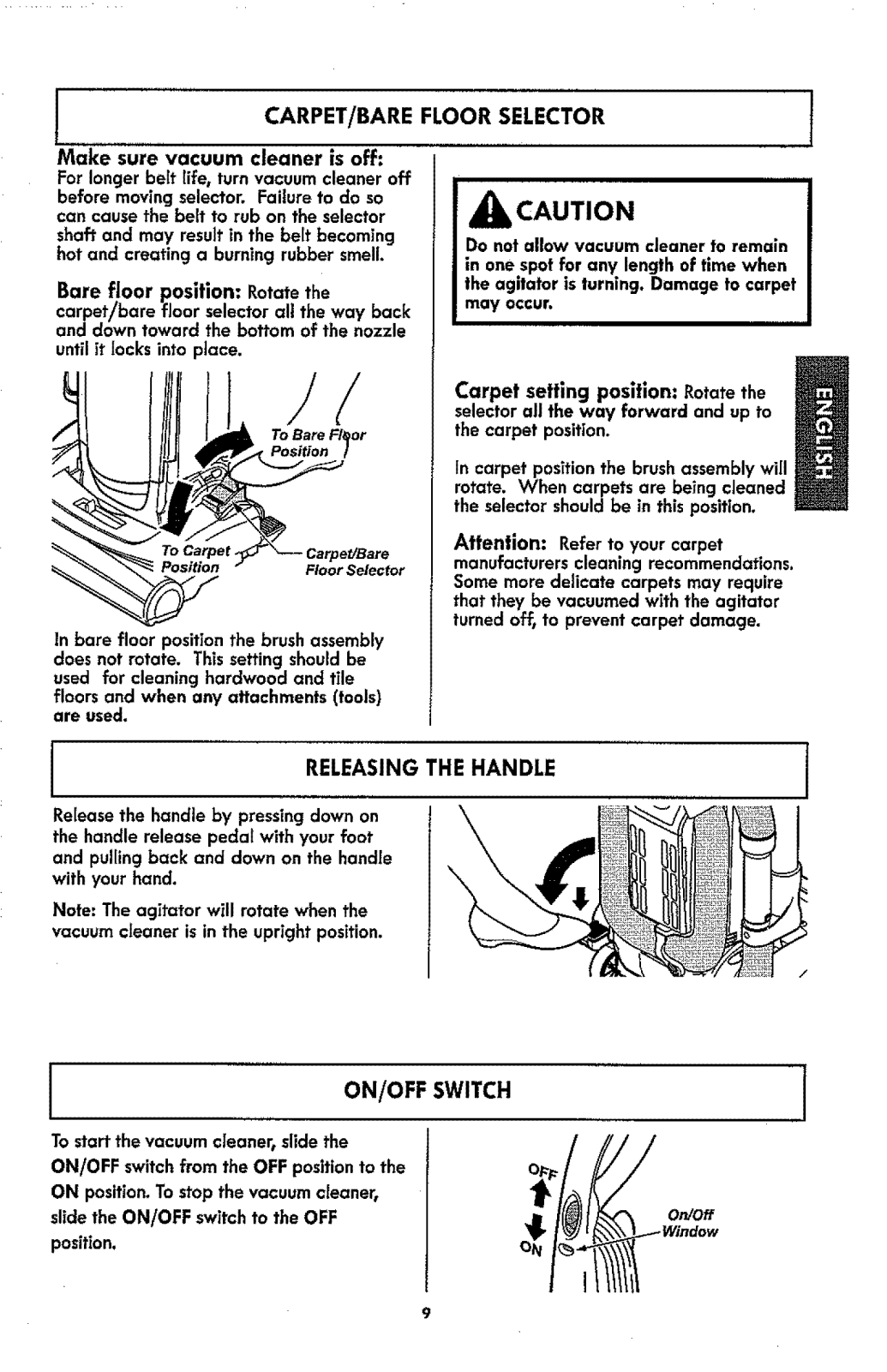

CARPET/BARE FLOOR SELECTOR

Make sure vacuum cleaner isoff:

For longer belt life0 turn vacuum cleaner off before moving selector. Failure to do so can cause the belt to rub on the selector

shaft and may result in the beff becoming hot and creating a burning rubber smell,

Bare floor position:Rotatethe

carpet/bare floor selector all the way back and down toward the bottom of the nozzle

until it Iocks into place.

ToBareFlOor

Position I

Floor Selector

In bare floor position the brush assembly does not rotate. This setting should be

used for cleaning hardwood and tile floors and when any attachments (tools)

are used,

_1_ CAUTION

Do not allow vacuum cleaner to remain

in one spot for any length of time when the agitator is turning. Damage to carpet

may occur.

Carpet setting position: Rotatethe selectorall the way forward and up to

thecarpet position.

In carpet posffion the brush assembly will rotate. When carpets are being cleaned

the selector should be in this position,

Attention: Refer to your carpet manufacturers cleaning recommendations.

Some more delicate carpets may require that they be vacuumed with the agitator

turned off, to prevent carpet damage.

Release the handle by pressing down on

the handle release pedal with your foot and pulling back and clown on the handle with your hand.

Note: The agitator will rotate when the vacuum cleaner is in the upright position.

RELEASINGTHE HANDLE

ON/OFF SWITCH

To start the vacuum cteanert slide the ON/OFF switch from the OFF position to the ON position, To stop the vacuum cleaner,

slide the ON/OFF switch to the OFF

position,

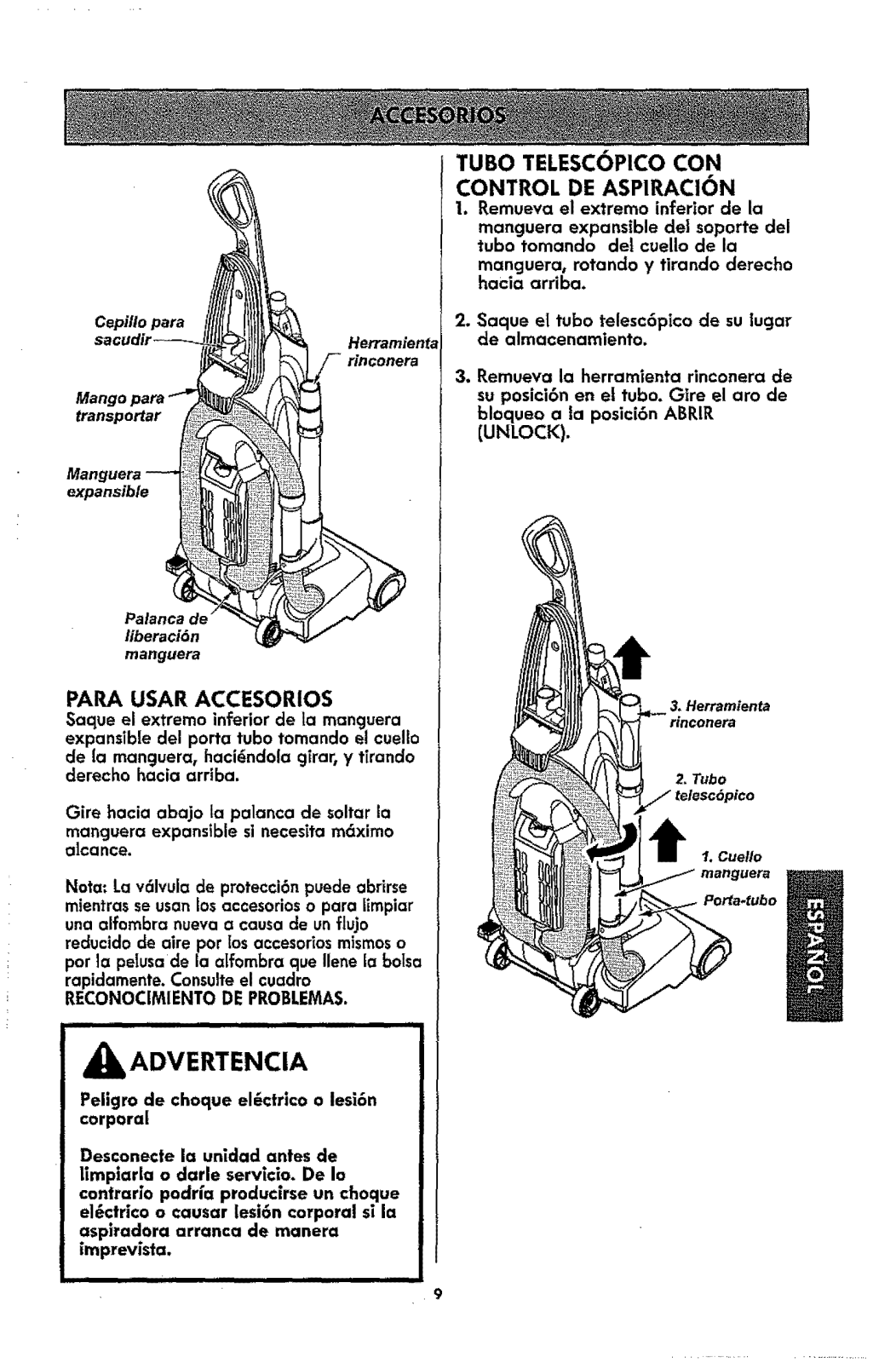

I ATTACHMENTS

TELESCOPIC WAND WITH SUCTION CONTROL SLIDE

1. Remove the lower end of the extension

hose from the wand holder by grasping the hose collar, twisting, and puffing straight up.

2. Remove the telescopic wand from the

wand holder.

Combination

Brush

Handle 2. Telescopic

Extension Hose

Release Lever

Crevice

Tool

Wand

Hose

3. Remove the crevice tool from its storage position in the wand, Rotate the locking

ring to the UNLOCK position.

,_ WARNING

Electrical Shock And Personal Injury Hazard

Disconnect electrical supply before

servicing or cleaning the vacuum cleaner. Failure to do so could result in

electrical shock or personal injury from vacuum cleaner suddenly starting.

TO USE ATTACHMENTS

Place the carpet/bare floor selector in the bare floor setting by rotating the selector

back and down to the bare floor setting. See CARPET/BARE FLOOR SELECTOR

section on page 9.

ToBareFlRor

Position /

Carpet/Bare Floor Selector

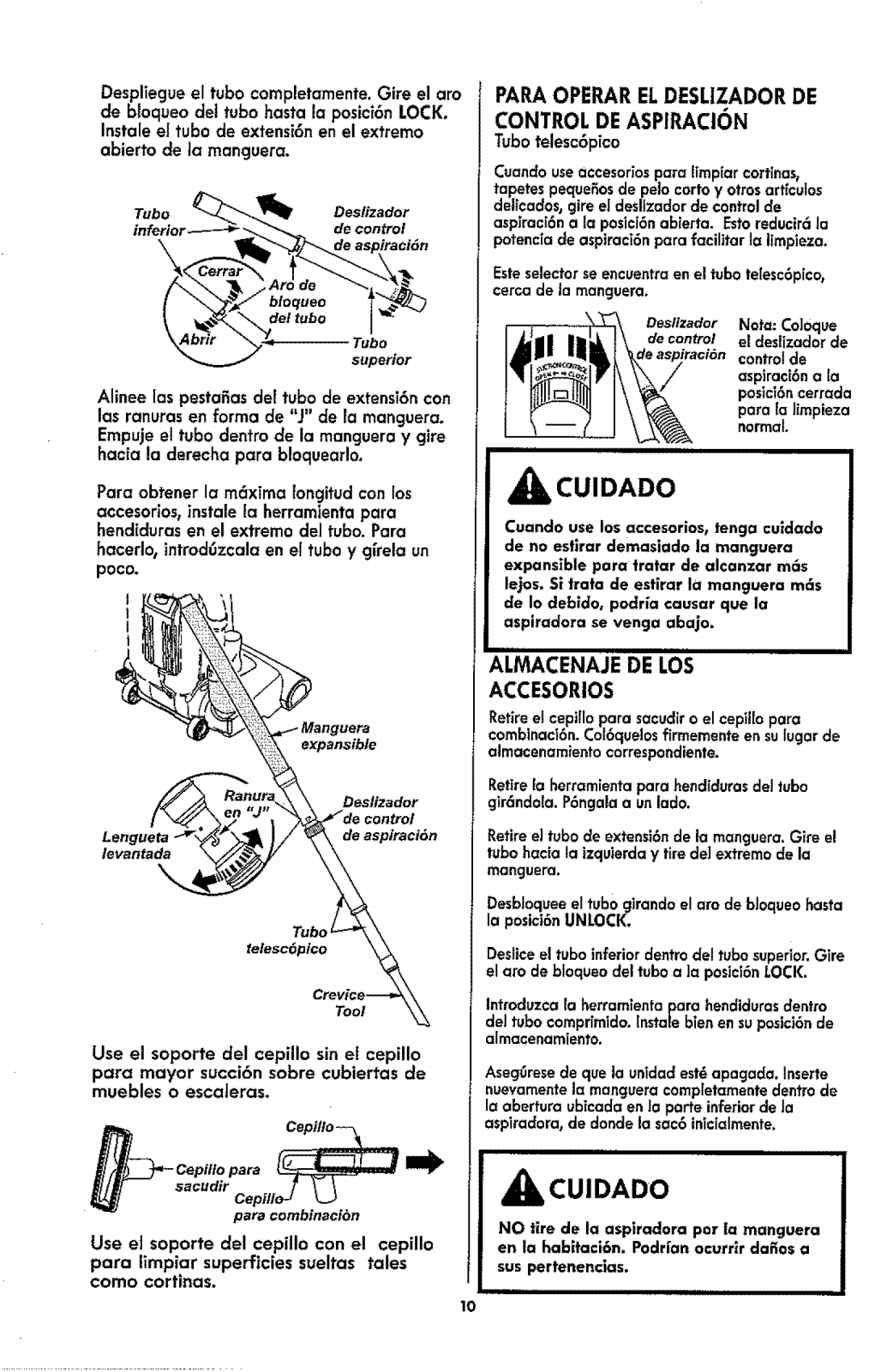

Extendthe wand to its full length. Rotate

the locking ring to the LOCKposition. Attach the wand onto the open end of the

hose.

IgL Suction _'_ #_'/ ,_2" I

_, i@_Z-. LockingRin"

x_Unlock "-_".= Upper

Align the tabs on the wand with the "J"

slots in the hose. Push the wand into the

hose and twist to the right to lock.

Tab

To achieve maximum reach with the attachments, add the crevice tool to the

end of the wand by inserting and twisting

slightly. The combination brush can be attached

directly to the wand.

Combination _

Brush BrushJ ___

Use the brush holder without the brush for greater suction on furniture cushions or

stairs.

Use brush holder with brush for cleaning loose surfaces such as drapes.

Wand

Suction

Wand

Tool

Holder

TO OPERATE SUCTION CONTROL SLIDE

Telescopic Wand When using attachments for cleaning

draperies, small rugs with low pile and other delicate items, rotate the suction

control slide to the open position. This slide is located on the telescopic wand,

close to the hose. See view at left.

This will reduce suction for ease of cleaning.

Note; Return suctioncontrolslide to the

closed positionfor normal cleaning.

_JiCAUTION

When using attachments, be careful not to overextend the stretch hose when

reaching. Trying to reach beyond the hose stretch capability could cause the vacuum cleaner to tip over.

TO STORE ATTACHMENTS

Remove the combination brush, Snap into appropriate storage location.

Remove crevice tool from the wand by twisting. Lay aside.

Remove the telescopic wand from the hose,

Twist the wand to the left and pull from the

hose end.

Unlock the wand by turning the wand locking ring to the UNLOCK position.

Slide the lower wand into the upper wand. Turn the wand locking ring to the LOCK

position. Place the crevice tool down into the

compressed wand. Place the telescopic wand in the wand holder

ill,i ii

_ib CAUTION

DO NOT pull the vacuum cleaner around the room by the hose. Property damage

or personal injury could result.

III i

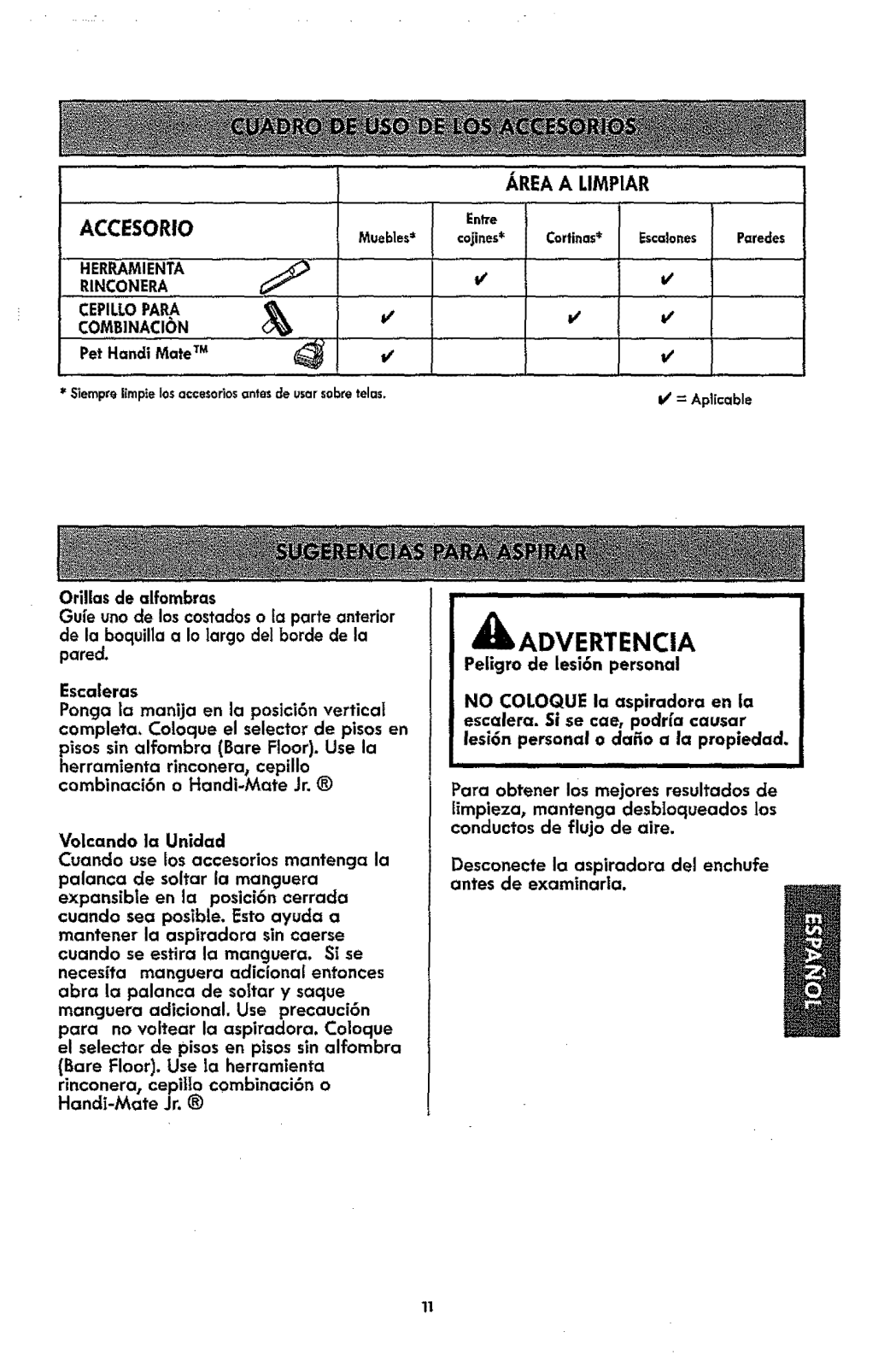

ATTACHMENT

Furnffure _

CLEANING AREA

Between

Cushions*

Drapes _

5talrs

CREVICETOOL COMBINATION BRUSH*_

Pet Handi MateTM

I/= Applicable *Always clean attachments before using on fabrics. _* Use the brush holder without the brush for greater suction on furniture cushions or

stairs. Use brush hotder with brush for cleaning loose surfaces such as drapes.

Carpel edges Guide either side or the front of the nozzle alone a baseboard.

v' v'

IH IH,IIIII,111III II II

_IbWARNING

Personal Injury Hazard

Use care if vacuum cleaner is placed on stairs. If it falls, personal injury or

property damage could result.

For best cleaning results, keep the airflow passage clear.

v' v'

Unplug thevacuumcleanerfrom the outlet beforechecking.

See Removing Clogs (page 22).

Stairs

Put handle in full upright position. Place the carpet/bare floor selector in the bare

floor position. Use the crevice tool, combination brush or Pet Handi Mate.

Vacuum Cleaner Tipping

When using the attachments keep the

extension hose release lever in the locked position when possible. This helps to keep

the vacuum cleaner from tipping over when stretching the hose. If additional

hose is needed then unlock the release lever and pull out additional hose. Use

caution not to tip over vacuum cleaner.

Carpet/Bare Floor Selector Place the carpet/bare floor selector in

the bare floor position. Use the crevice tool, combination brush or Pet Handi Mate.

Combination Brush

Carrying_

Handle _

oi!!ii

Extension Release Lever

Mate

-Telescopic Wand

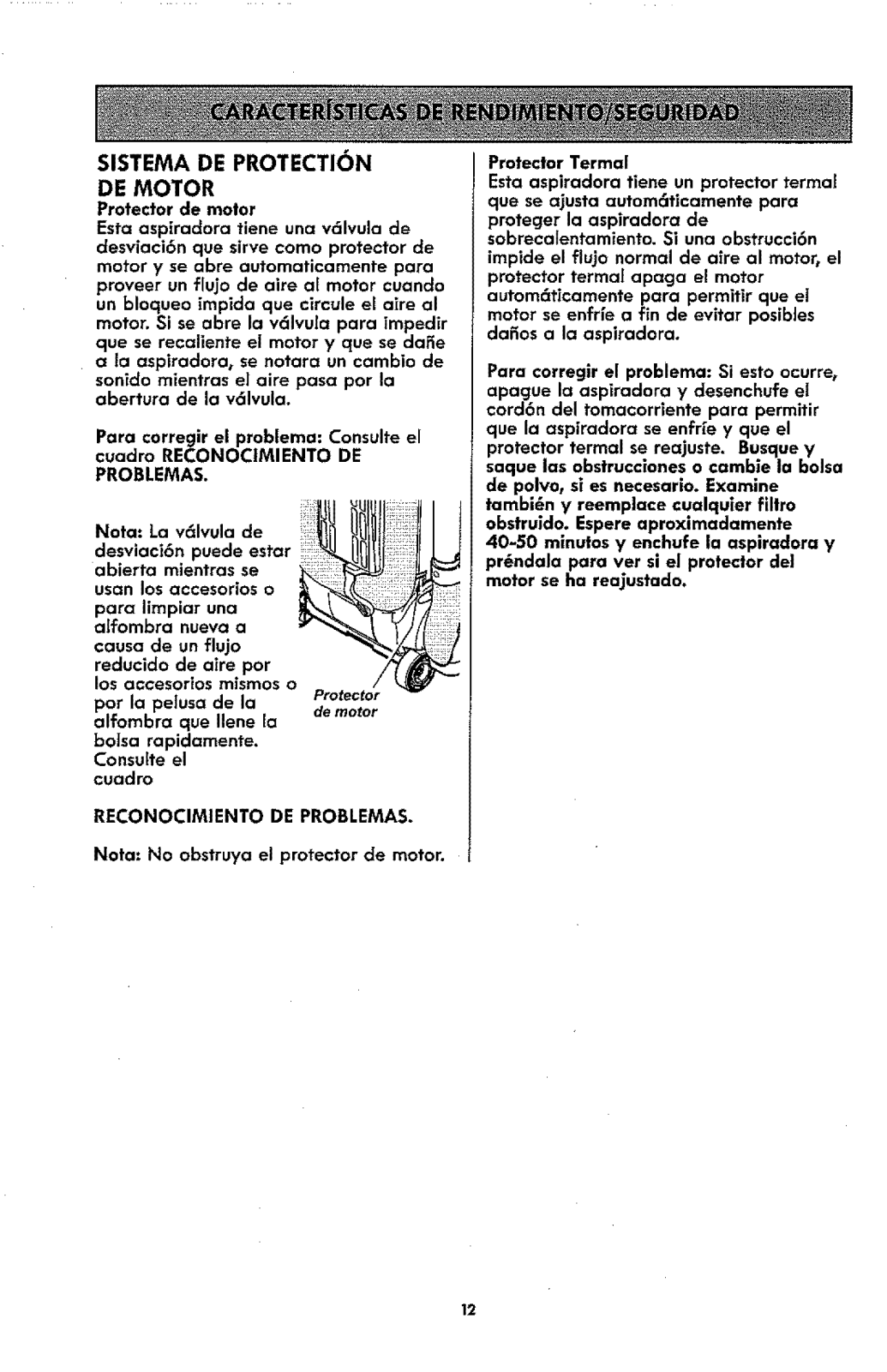

PERFORMANCE/SAFETY FEATURES J

MOTOR PROTECTION

SYSTEM

By-Pass Valve

This vacuum cleaner has a by-pass valve which automatically opens to provide

cooling air to the vacuum cleaner motor when a clog prevents the normal flow of

air to the motor. The by-pass valve opens to prevent motor overheating and possible damage to the vacuum cleaner. You wilt

notice a change of sound as air rushes through the valve opening.

Thermal Protector

This vacuum cleaner has a thermal protector, which automatically trips to

protect the vacuum cleaner from

overheating. If a clog prevents the normal f!ow of air to the motors the thermal

protector turns the motor off automatically. This allows the motor to

cool in order to prevent possib!e damage to the vacuum cleaner.

To correct problem: Turn the vacuum cleaner off and unplug the power cord

from the outlet to allow the vacuum cleaner to cool and the thermal protector

to reset. Check for and remove clogs, replace bag if necessary. See CLOG

REMOVAL section Page 22. Also check

and replace any clogged filters. Wait approximately 40-50 minutes before

restarting vacuum cleaner.

NOTE: The by-pass valve may open

when using attachments or

when cleaning new

carpet due to reduced airflow

caused by the attachments By-Pass Valve

themselves or by (BehindHose) new carpet lint filling the dust bag quickly.

NOTE: Do not block by-pass valve.

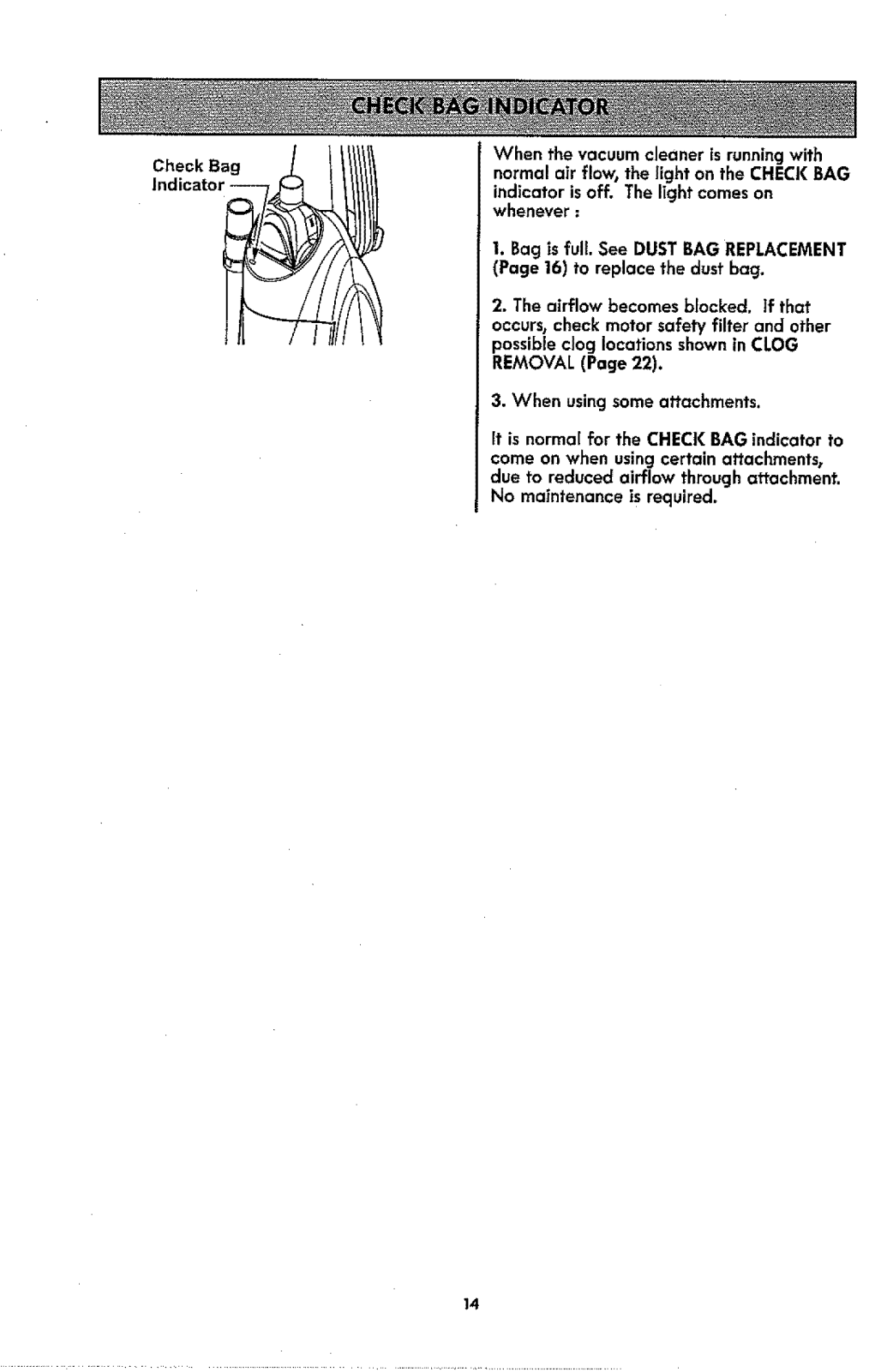

Check Bag

,nd,cator

When the vacuum cleaner Is running with normal air flaw, the light on the CHECK BAG indicator isoff. The light comes on

whenever :

I. Bag isfull. See DUST BAG REPLACEMENT (Page 16) to replace the dust bag.

2. The airflow becomes blocked. If that occurs, check motor safety filter and other

possible clog locations shown in CLOG REMOVAL (Page 22).

3. When using some attachments. it is normal for the CHECK BAG indicator to

come on when using certain attachments, due to reduced airflow through attachment.

No maintenance is required,

Always foUow all safety precautions when

performing maintenance to the vacuum cleaner.

_11, WARNING

Electrical Shock And Personal Injury Hazard

Disconnect electrical supply before

servicing or cleaning the vacuum

cleaner. Failureto do so cou[dresult in electrical shockor personal injury hem

vacuum cleaner sudden[y starling.

I CLEANING EXTERIOR AND ATTACHMENTS

1.Unplugcordfrom wall outlet.DO NOT drip water on vacuumcleaner.

2. To clean exterior, or to reduce static

electricity and dust build-up, wipe outer surface of vacuum cleaner and attach-

ments. Use a clean, soft cloth that has

been dipped in a solution of mild liquid detergent and water, then wrung dry, Wipe

dry after cleaning. Wash attachments in warm soapy waterr

rinse and air dry, Do not clean in dishwasher.

JJ_ CAUTION

Do not use attachments if they are

wet. AHachments used in dirty areasr such as under a refrigerator, should

not be used on other surfaces until

they are washed. They could leave marks.

Gather the cord and wrap it _oosely around the upper and rower cord hooks. Lock

power cord plug onto the power cord,

VACUUM CLEANER STORAGE

Store the vacuum cleaner in a dry,

indoor area, on the floor with the handle locked in

the upright

position.

iiii / iiii i

WARNING

ElectricalShockAnd PersonalInjury Hazard

Wrapping the cord too tightly puts stress on the cord and can cause cord damage.

A damaged cord is an electrical shock hazard and could cause personal inju_ or

damage.

+ 33 hidden pages
