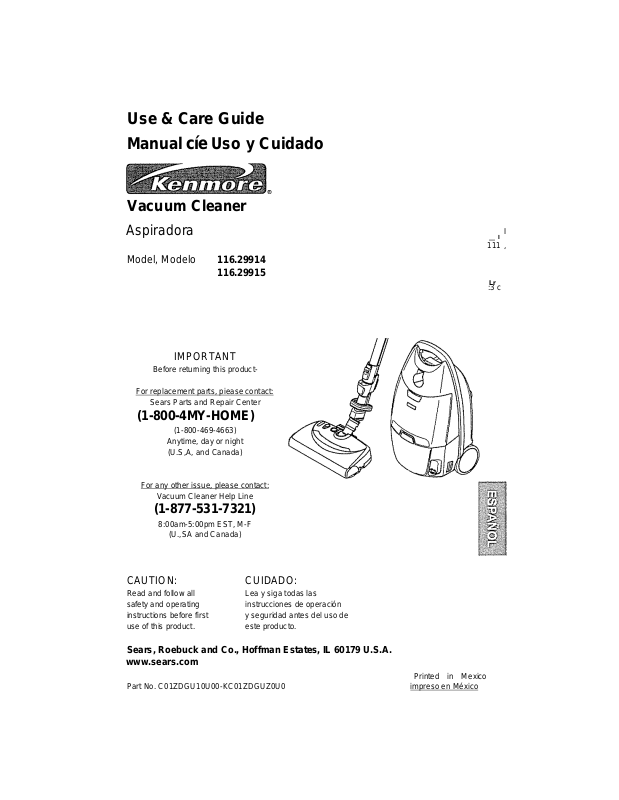

Kenmore 116.29914 User Manual [en, es]
Use & Care Guide
Manual cíe Uso y Cuidado
Vacuum Cleaner
Aspiradora
Model, Modelo
IMPORTANT
Before returning this product-
For replacement parts, piease contact:
Sears Parts and Repair Center
(1-800-4MY-HOME)
(1-800-469-4663)
Anytime, day or night
(U.S,A, and Canada)
For any other issue, please contact:
Vacuum Cleaner Help Line
(1-877-531-7321)
8:00am-5:00pm EST, M-F
(U.,SA and Canada)
116.29914
116.29915
__
111
Lr
:3 c
I
I
‘
CAUTION:
Read and follow all
safety and operating
instructions before first
use of this product.
CUIDADO:
Lea y siga todas las
instrucciones de operación
y seguridad antes del uso de
este producto.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com
Part No. C01ZDGU10U00-KC01ZDGUZ0U0
Printed in Mexico
impreso en México
TABLE OF CONTENTS
Before Using Your New
Vacuum Cleaner ...................................... 2
Packing List
.................................................
2
Kenmore Vacuum Cleaner Wairanty . 3
Important Safety Instructions
Parts and Features ,
Assembly Instructions
.......................
.....
..............................
...............................
5-6
7-8
Pet PowerMate® Storage..............................8
Operating Instructions
How to Start

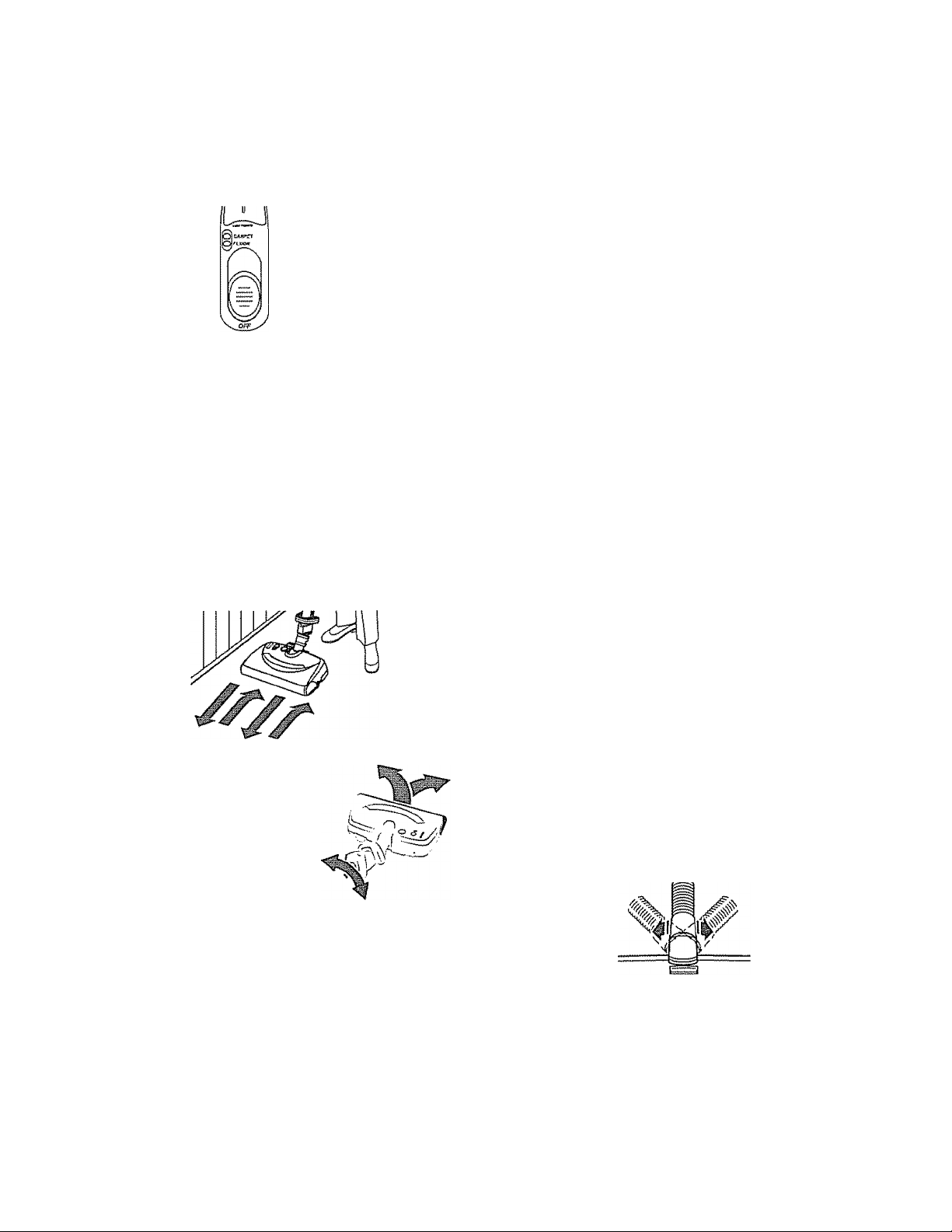

Vacuuming Tips

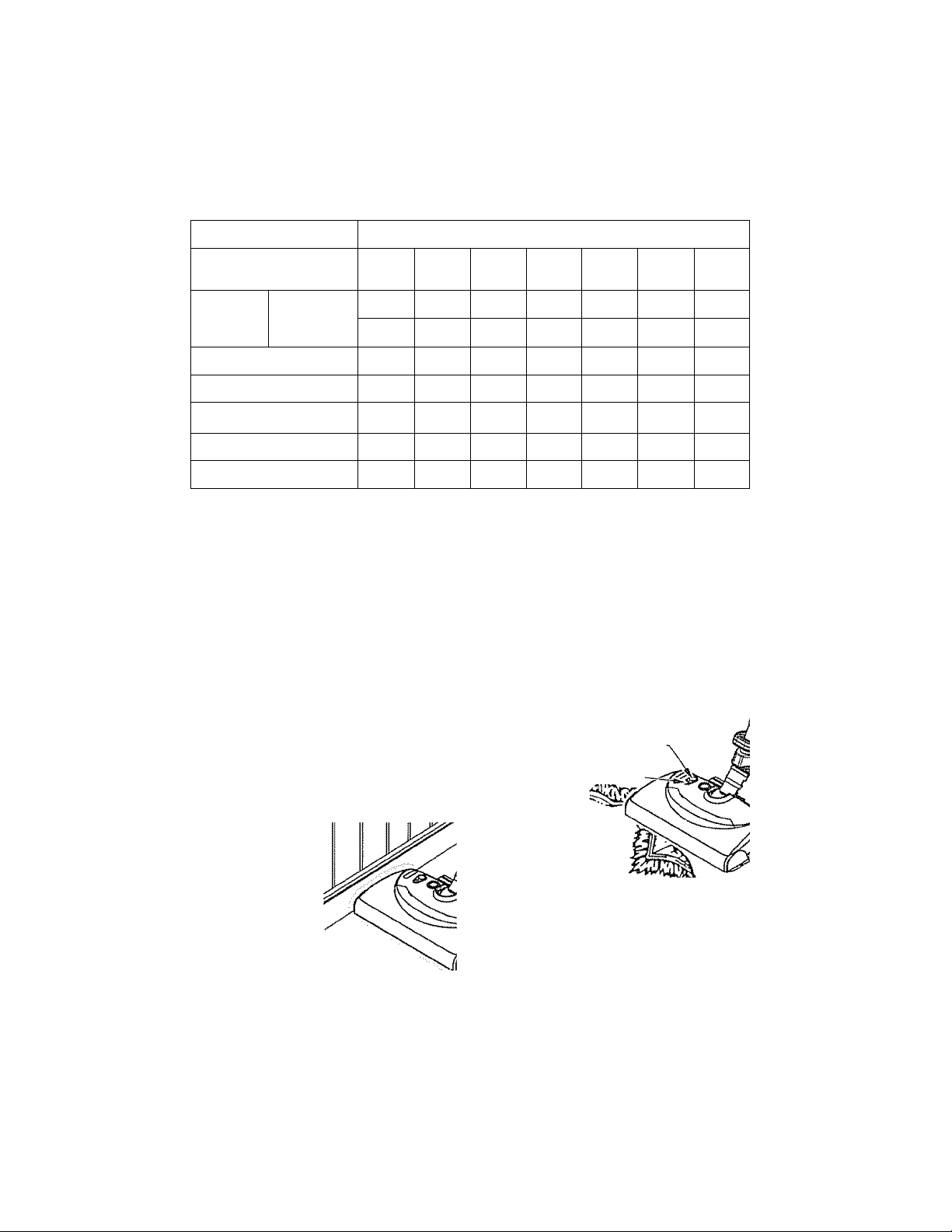

Suggested Pile Height Settings
Attachments.................................................12
Attachment Use Tabie
Performance Features
..................................
................................................
....................................
.................
................................
...........................
9-10
10-11
11
13
13-15
Canister Care
Removing Clogs

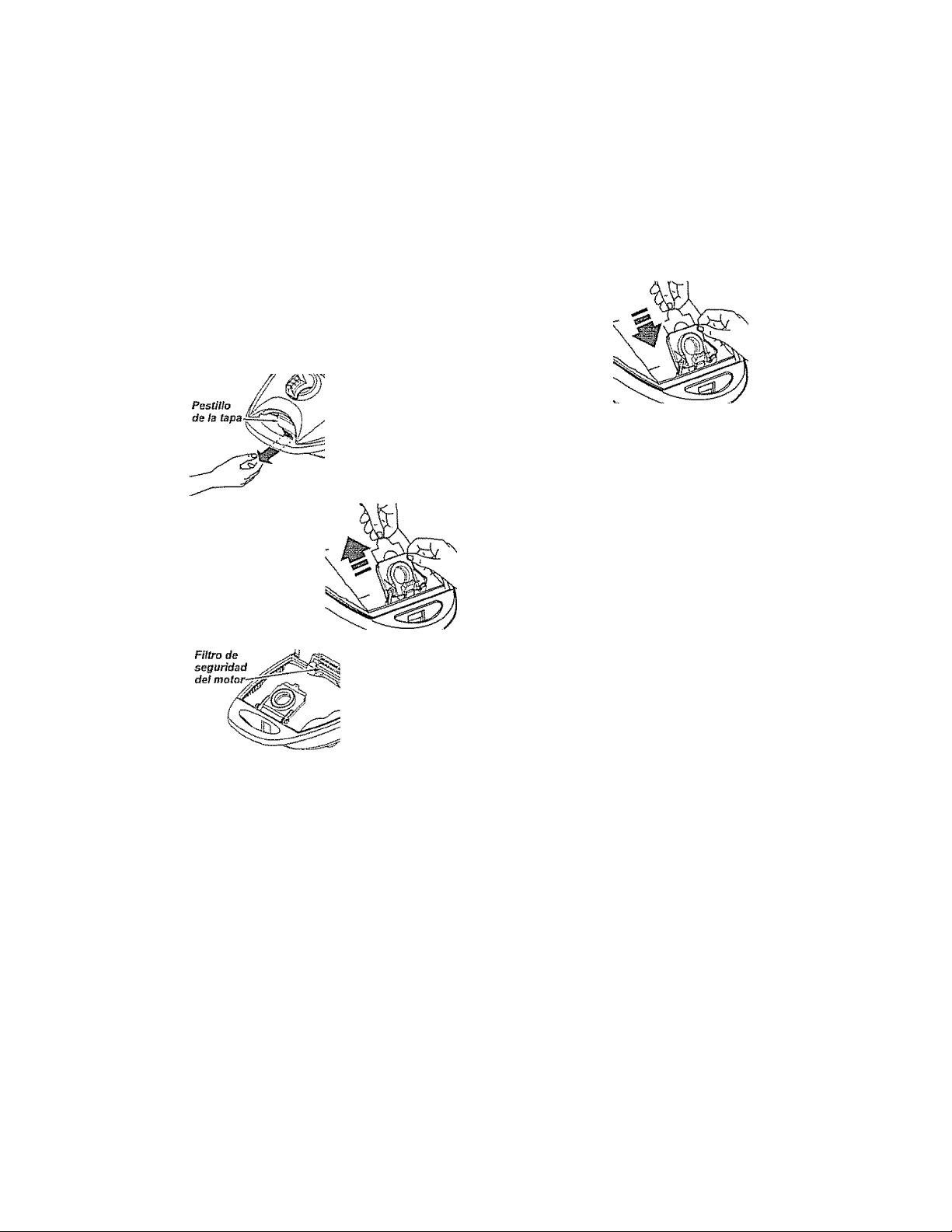

Bag Changing ,, ■
Cleaning Exterior and Attachments
.4
Motor Safety Fitter Changing

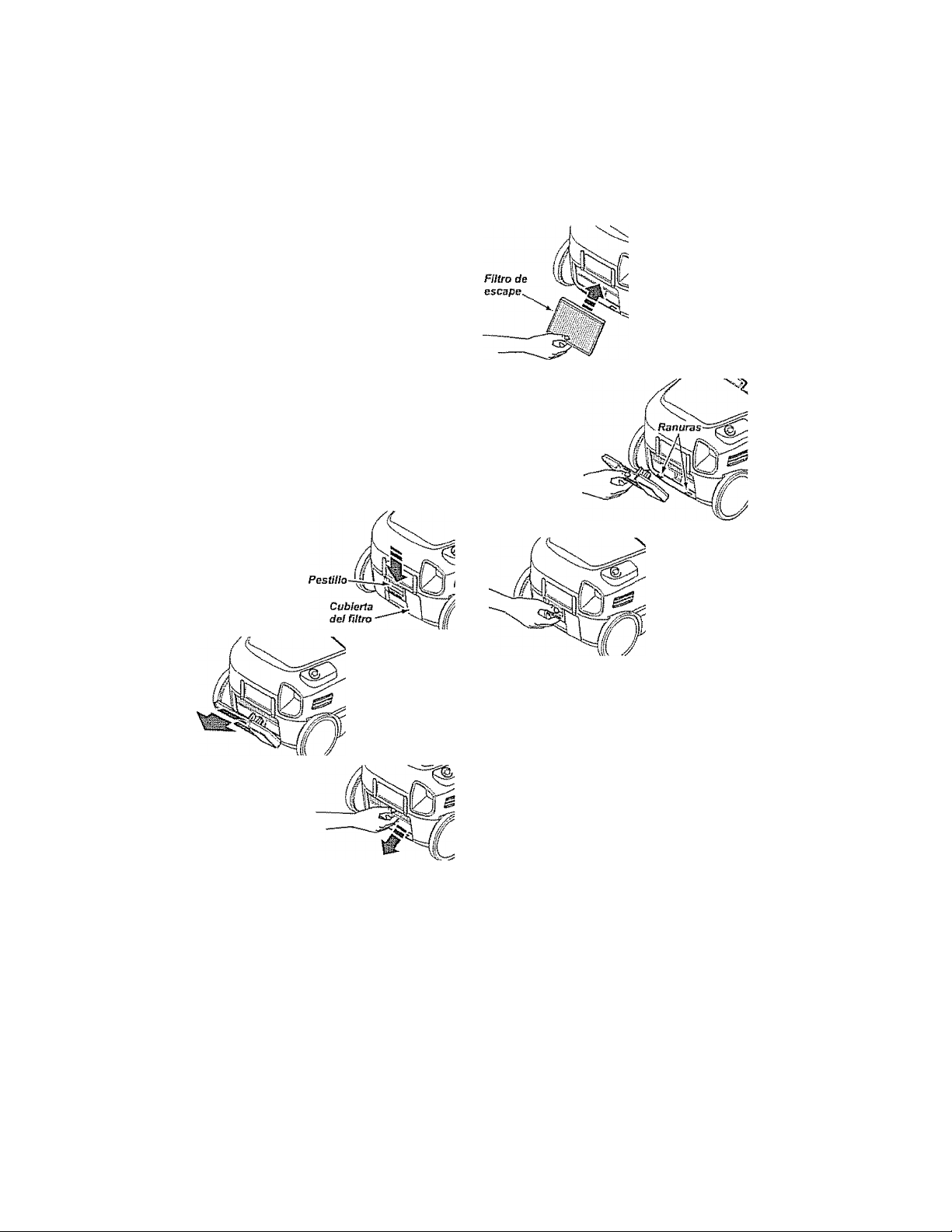

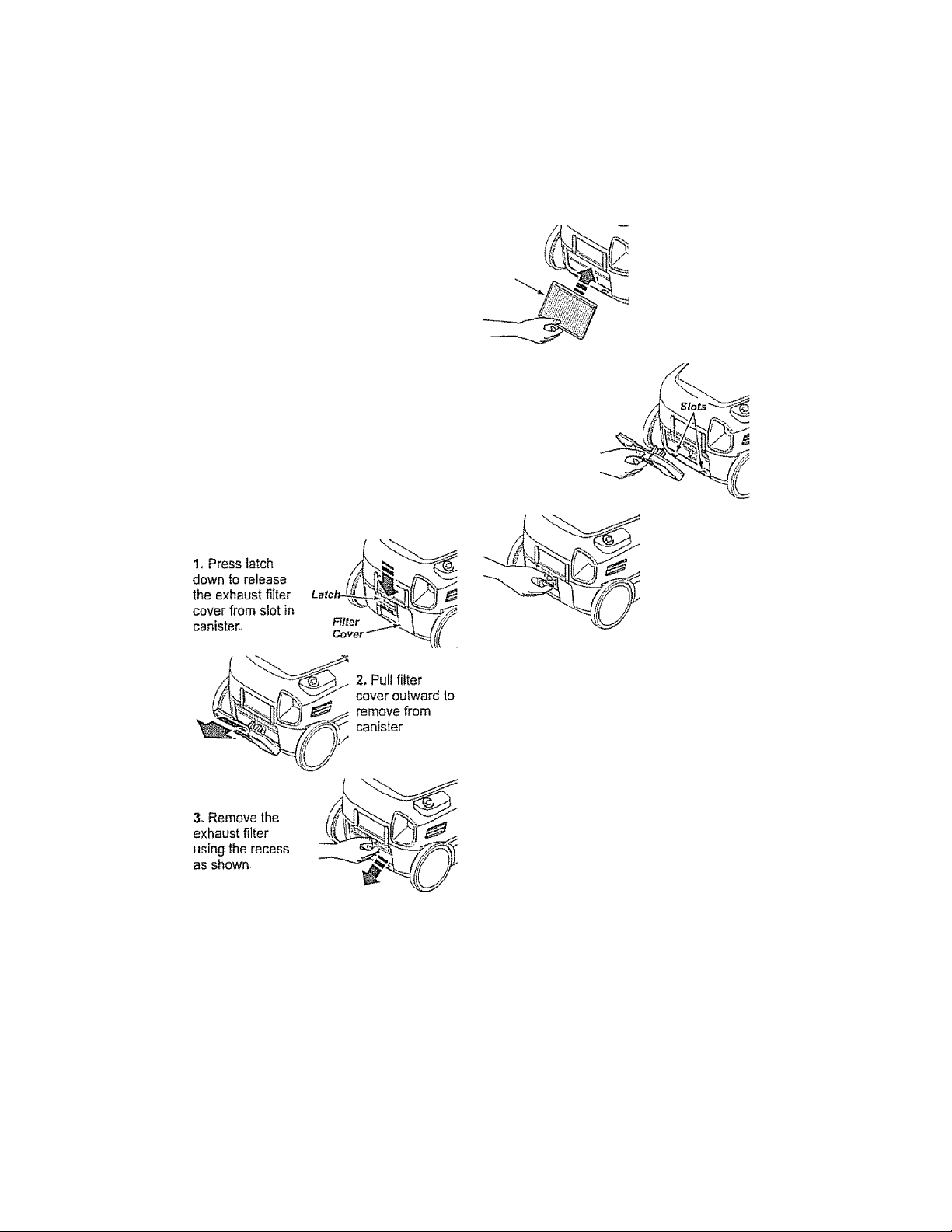

Exhaust Filter Changing
PowerMate® Care . .

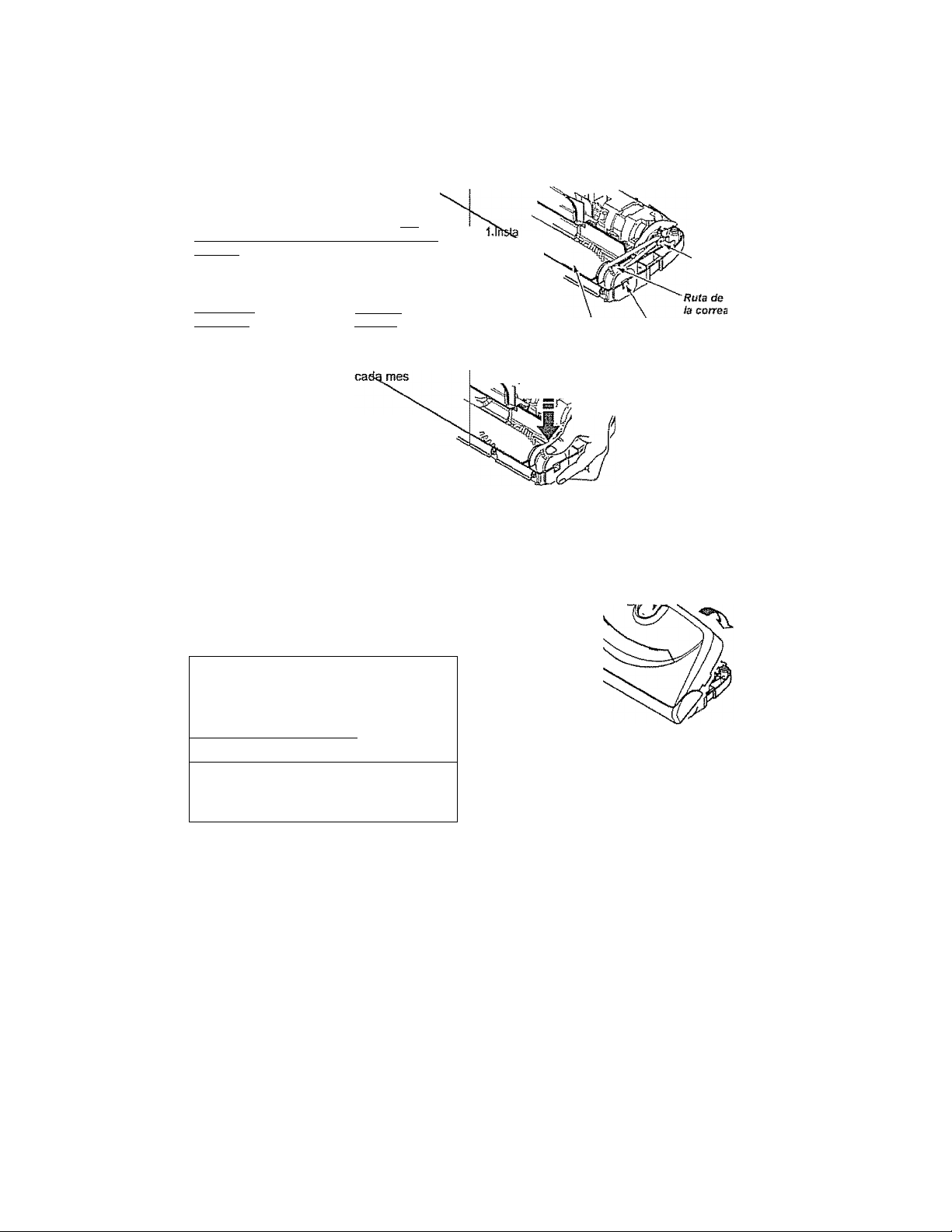

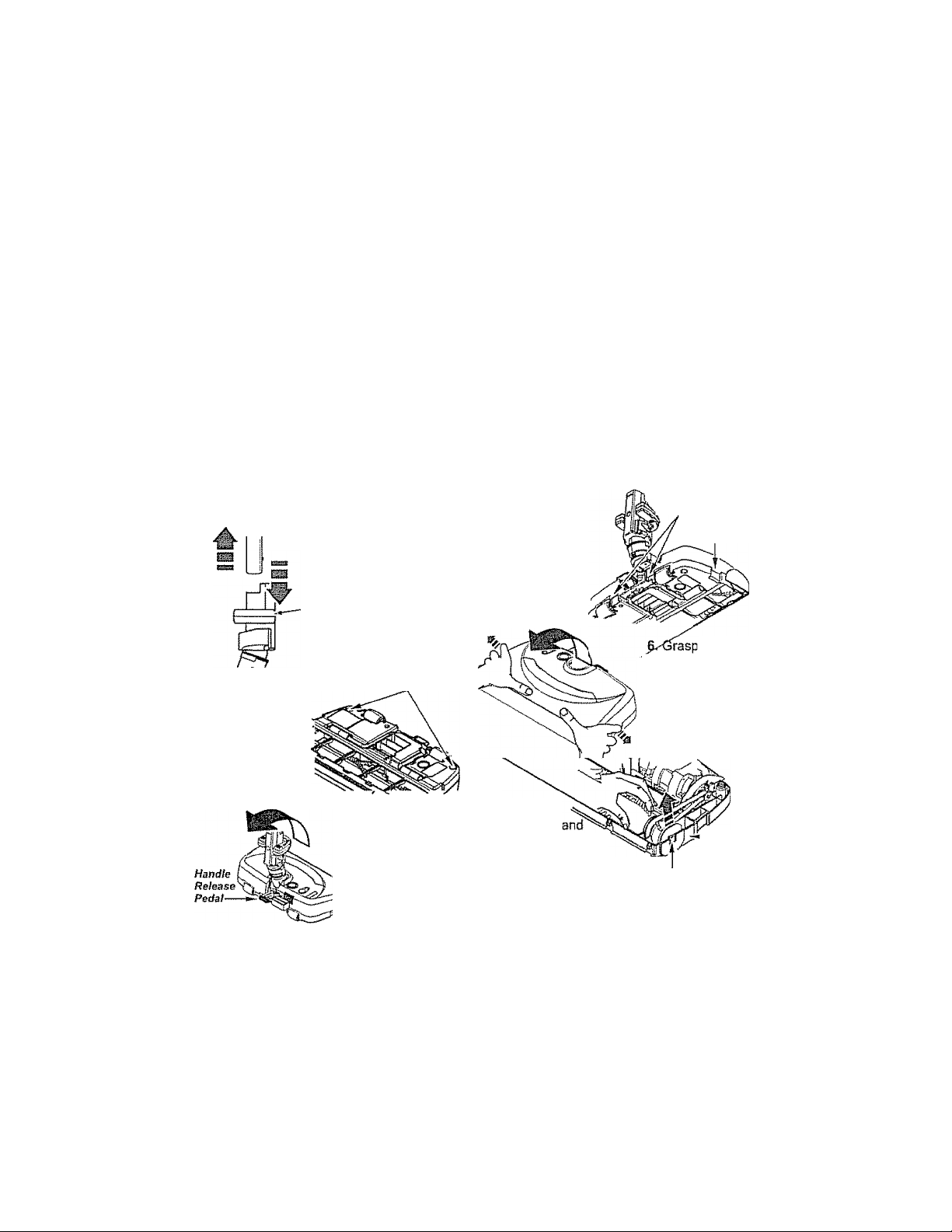

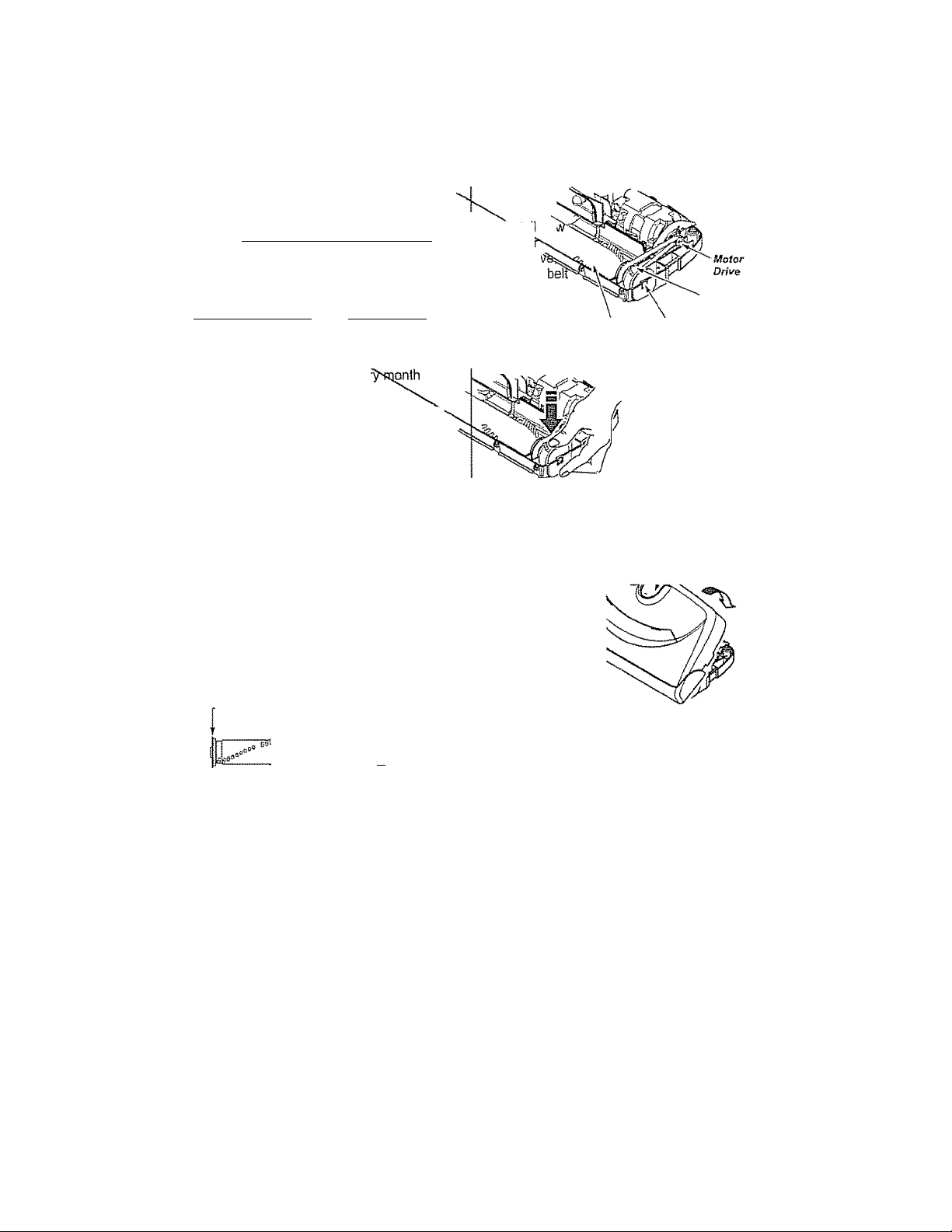

Belt Changing and Agitator Cleaning 19-20
B
Bulb Changing............................................ 21
Dirt Sensor ................................................. 22
Agitator Servicing . ,
Troubleshooting
Master Protection Agreements....................26
Requesting Assistance
Or Service
..........................................
.......................................
.......................................
.....................
............................
...........................
..............................
.....................................
BEFORE USING YOUR NEW VACUUM CLEANER
Please read this guide, it will help you assemble and operate your new Kenmore vacuum
cleaner in the safest and most effective way.
For more information about vacuum cleaner care and operation, cal! your nearest Sears
store. You will need the complete model and serial numbers when requesting information.
Your vacuum cleaner’s model and serial numbers are located on the Mode! and Serial
Number Plate.
Use the space beiow to record the model number and serial number of your new Kenmore
vacuum cleaner.
15
15
16
............
17
17
18
19
23
24-25
Back Cover
Model No...
Serial No,
Date of Purchase
Keep this book and your sales check (receipt) in a safe place for future reference.
PACKING LIST
Your KENMORE VACUUM CLEANER is packaged with the foliowing parts and compo
nents assembled separately in the carton:
1 Canister Vacuum Cleaner 1
1 PowerMate® 1
1 Hose Assembly 1
1 Floor Brush* 1
1 Crevice Tool* 1
Each of the above assemblies are shown in detail inside the Repair Parts List,
‘These items are found under the Too! Cover.
Combination Brush*
Pet PowerMate®
Telescoping Wand
Use & Care Guide
Parts List
KENMORE VACUUM CLEANER WARRANTY
One Year Limited Warranty
When assembled, operated and maintained according to all instructions supplied with
the product, if this vacuum cleaner fails due to a defect in material or workmanship within
one year from the date of purchase, return it to any Sears store, Sears Parts & Repair
Center or other Kenmore outlet for free repair.
If this vacuum cleaner is used for other than private family purposes, this warranty
applies for only 90 days from the date of purchase.
This warranty covers only defects in material and workmanship. Sears will NOT
pay for:
Expendable items that can wear out from normal use, including but not limited to
1,
filters, belts, light bulbs, and bags.
A service technician to instruct the user in correct product assembly, operation or
maintenance.,
3.
A service technician to clean or maintain this product.
4.
Damage to or failure of this product if it is not assembled, operated or maintained
according to all instnjctions supplied with the product.
5.
Damage to or failure of this product resulting from accident, abuse, misuse or use for
other than its intended purpose.
Damage to or failure of this product caused by the use of detergents, cleaners,
chemicals or utensils other than those recommended in ali instructions supplied with
the product
Damage to or failure of parts or systems resulting from unauthorized modifications
made to this product.
WJ
■S'
'■m
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair
as provided herein. Implied warranties, including warranties of merchantability or fitness
for a particular purpose, are limited to one year or the shortest period allowed by law.
Sears shall not be liable for incidental or consequential damages. Some states and
provinces do not allow the exclusion or limitation of incidental or consequential damages,
or limitations on the duration of implied warranties of merchantability or fitness, so these
exclusions or limitations may not apply to you
This warranty applies only while this vacuum cleaner is used in the United States and
Canada.
This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
Sears, Roebuck and Co,, Hoffman Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada MSB 2B8
IMPORTANT SAFETY INSTRUCTIONS
Read ail instructions in this tnanual before assembling or using your vacuum cleaner.
A WARNING
Your safety is important to us.. To reduce the risk of fire, electrical shock,
injuty to persons or damage when uslnjg your vacuum cleaner, follow basic
safety precautions including the following:
Use your vacuum cleaner only as
described in this manuat. Use only with
Sears recommended attachments.
Disconnect electrical supply before
servicing or cleaning out brush area,
Failure to do so could result in electrical
shock or brush suddenly starting.
Do not leave vacuum cleaner when
plugged in. Unplug from outlet when not in
use and before servicing,
To reduce the risk of electrical shock - Do
not use outdoors or on wet surfaces
Do not allow to be used as a toy, Close
attention is necessary when used by or
near children.
Do not use with damaged cord or plug. If
vacuurn cleaner is not working as it should,
has been dropped, damaged, left outdoors,
or dropped into water, return U to a Sears
Service Center,
Do not pull or carry by cord, use cord as a
handle, dose door on cord, or pull cord
around sharp edges or comers Do not run
vacuum cleaner over cord. Keep cord away
from heated surfaces
Do not unplug by pulling on cord To
unplug, grasp the plug, not the cord
Do not handle plug or vacuum cleaner with
wet hands
Do not put any objects into openings.
Do not use with any opening blocked; keep
free of dust, lint, hair and anything that may
reduce airflow.
Keep hair, loose clothing, fingers, and all
parts of body away from openings and
moving parts.
Turn off all controls before unplugging.
Use extra care when cleaning on stairs. Do
not pul on chairs, tables, etc. Keep on
floor.
Do not use vacuum cleaner to pick up
flammable or combustible liquids {gasoline,
cleaning fluids, perfumes, etc,), or use in
areas where they may be present. The
fumes from these substances can create a
fire hazard or explosion
Do not pick up anything that is burning or
smoking, such as cigarettes, matches, or
hot ashes.
Do not use vacuum cleaner without dust
bag and/or filters in place
Always change the dust bag after
vacuuming carpet cleaners or freshener,
powders and fine dust. These producís clog
the bag, reduce airflow and can cause the
bag to burst. Failure to change bag could
cause permanent damage to the vacuum
cleaner.
Do not use the vacuum cleaner to pick up
sharp hard objects, small toys, pins, paper
dips, etc They may damage the vacuum
cleaner or dust bag
Do not operate vacuum cleaner without the
exhaust filter or exhaust filter door in place
(If applicable).
The hose contains electrical wires Do not
use when damaged, cut, or punctured.
Replace if cut or worn, Do not pick up
sharp objects.
Always turn off and unplug the vacuum
cleaner before connecting or disconnecting
either hose, Handi-Mate Jr,® (if applicable^
or nozzle
Hold plug when rewinding onto cord reel.
Do not allow plug to whip when rewinding.
You are responsible for making sure that
your vacuum cleaner is not used by anyone
unable to operate it properly.
SAVE THESE INSTRUCTIONS
Proper assembly and safe use of your vacuum cleaner are your responsibilities.
Your vacuum cleaner is intended for Household use. Read this Use & Care Guide
carefully for important use and safety information. This guide contains safety
statements under warning and caution symbols.

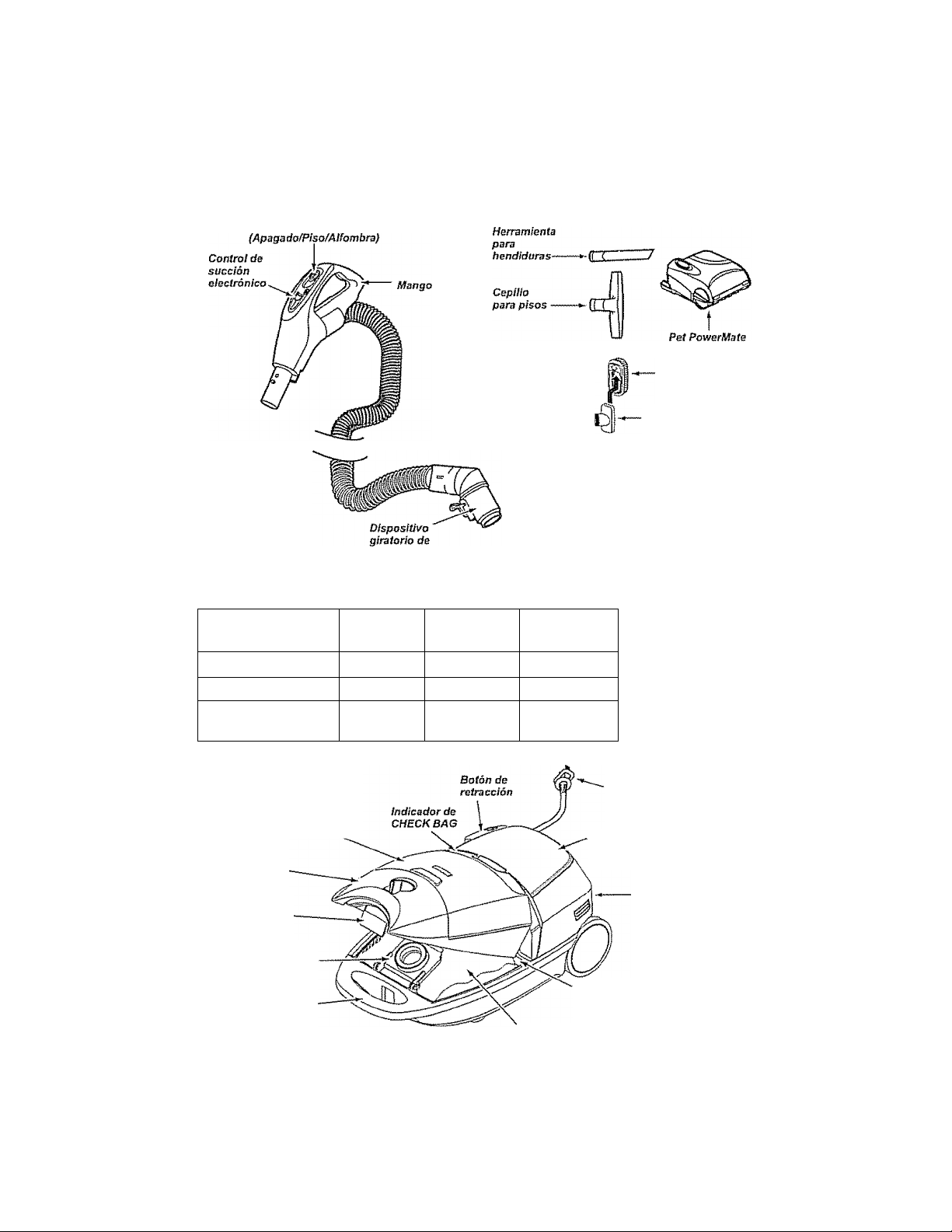

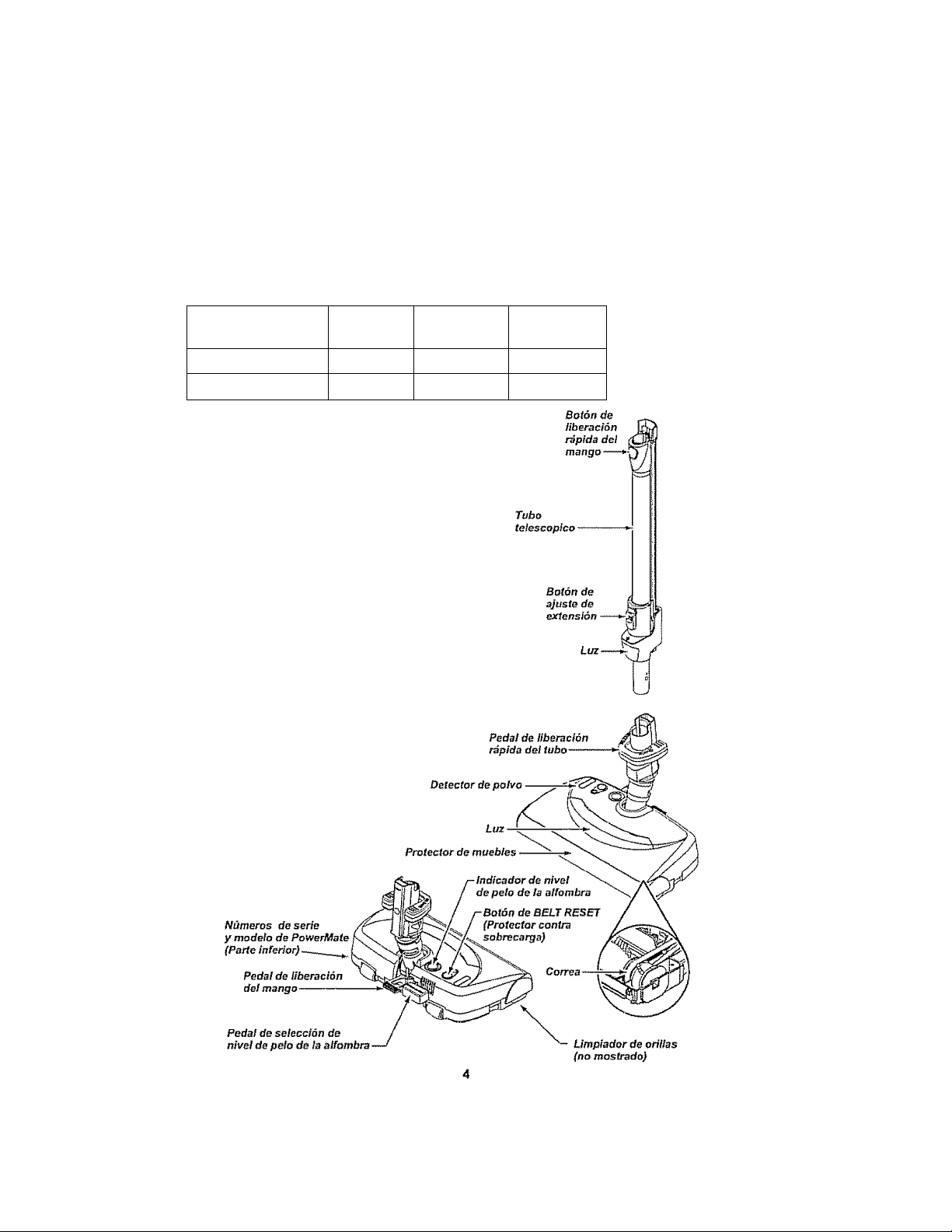

PARTS AND FEATURES
It is important to know your vacuum cleaner's parts and features to ensure its proper and safe
use. Review these before using your vacuum cleaner
PowerMate
Part No.
Object
Belt CB-3 20-5218 20-40118
Headlight Bulb
Style No.
—
in USA
20-5248
Part No,
in Canada
20-40601
HOSE
3-Way On/Off Switch
CANISTER
Hose Swivel
ATTACHMENTS
Crevice
Tool
------
Floor
Brush-
Dusting
Brush
Object
Dust Bag
Exhaust Filter
Part No.
Style No.
Q
in USA
20-50557
EF-1 20-86889 20-40324
Part No.
in Canada
20-50410
Motor Safety Filter CF-1 20-86883 20-40321
Please pay special attention to these hazard alert boxes, and follow any instruc
tions given. WARNING statements alert you to such dangers as fire, electric
shock, burns and personal injury. CAUTION statements alert you to such dangers
as personal injury and/or property damage.
ASSEMBLY INSTRUCTIONS
WARNING
Electrical Shock Hazard
DO NOT plug into electrical supply until
assembly is complete. Failure to do so
could result in electrical shock or
injury.
Before assembling vacuum cleaner,
check the PACKING LIST. Use this list to
verify that you have received all the com
ponents of your new Kenmore vacuum
cleaner.

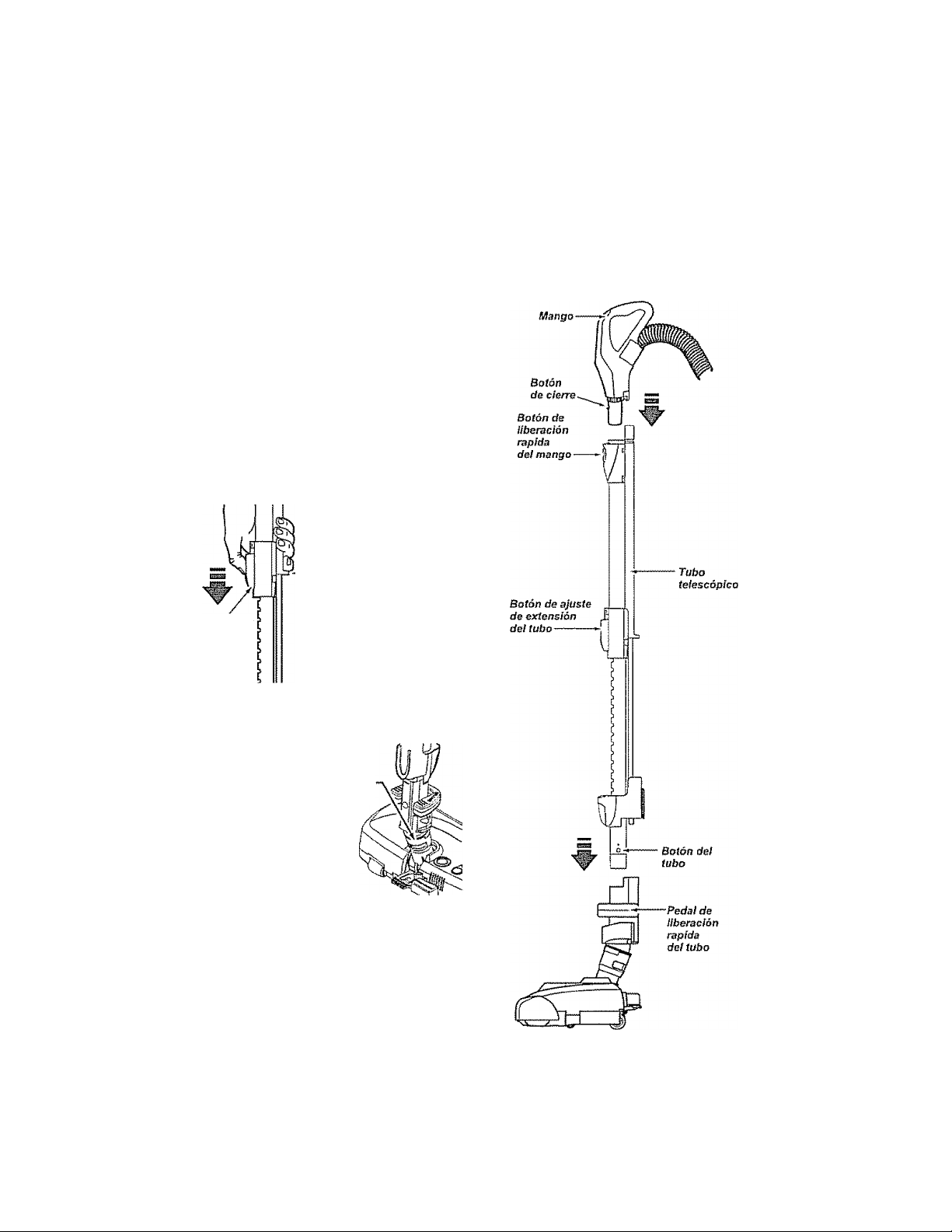

WAND-TELESCOPING
The wand length
is adjustable and
requires no
assembiy. To
adjust, simply
push down on the
wand adjust but
ton and slide the
upper wand to
the desired
height
Wand
Length
Adjust
Button
Keep
Hand
Above
This
Tab
When adjusting the wand length you may
have to hold the PowerMate with your hand
or foot.
The swivel, located on
the PowerMate, allows
you to turn the handle
to the left or right side
to reach farther under
low furniture.
PowerMate
Insert wand into PowerMate until the wand
button snaps into place-
To remove: Step on wand release pedal,
then pull up on wand
CANISTER
1. Open the canister hood,
2. Check to see that the dust bag Is property
instated. See BAG CHANGING for
instructions
3. Check to see that the motor safety filter is
properly installed. See MOTOR SAFETY
FILTER CHANGING for instructions,
HOSE
1. Line up the hose
latch tab and notch
in canister hood
and insert hose
into canister until it
snaps into place
To remove: Do not open hood before
removing hose. With hood dosed, depress
hose latch tab and pull upward on hose
Hose
Latch
Tab
Notch
HOOD AND TOOL STORAGE COVER
It is normal for the canister hood and tool
storage cover to come off when opened
further than needed. Line up the hinge slots,
insert the hinges into the slots, and dose the
hood and tool storage cover to reinstall.
.CAUTION
Never open canister hood with the tool
storage cover open. This will help to
prevent damage from occurring to the
canister hood and/or tool storage cover.

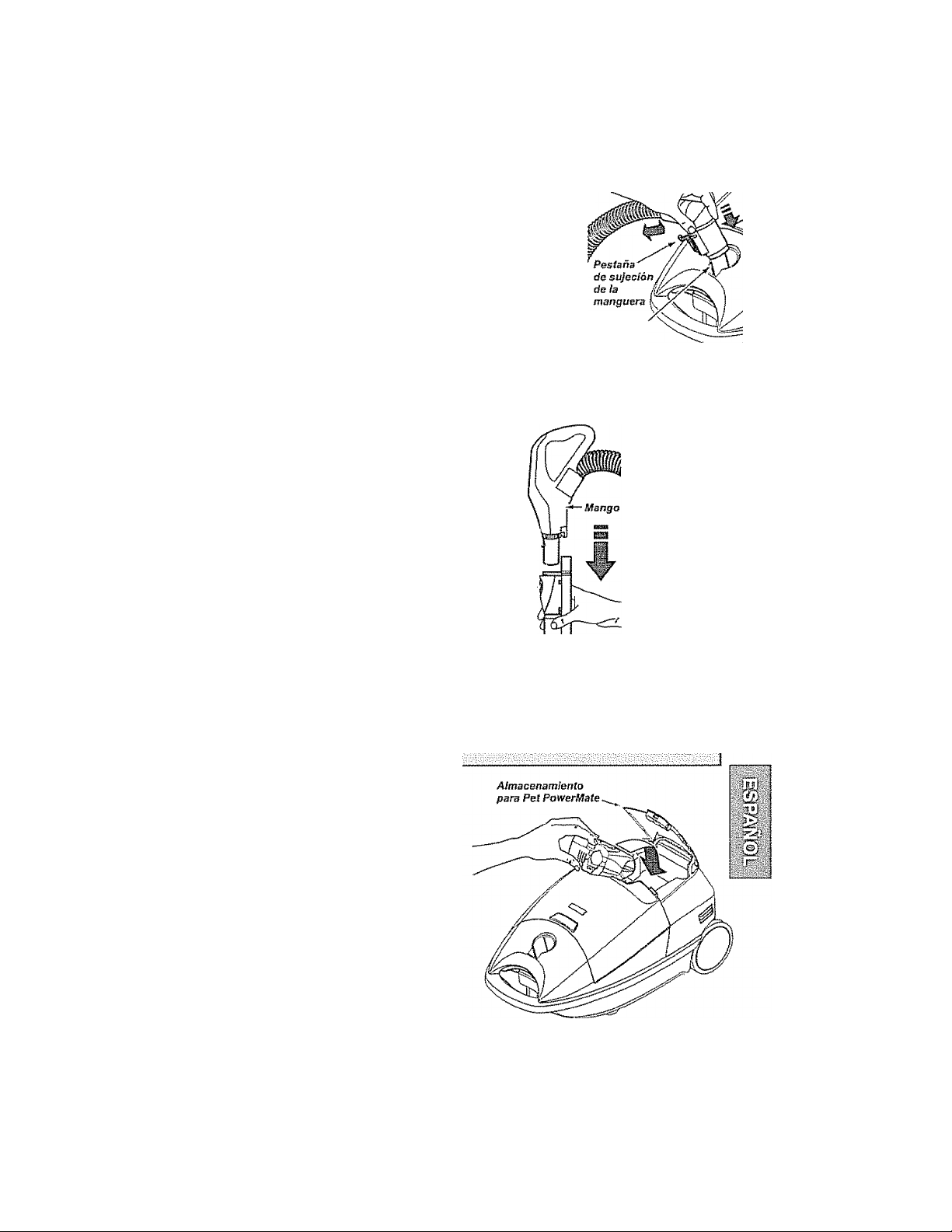

PET POWERMATE STORAGE
This canister is equipped with an on-board
storage area for a Pet PowerMafe
attachment
To Install:
Open the Pet PowerMate storage cover,
insert the Pet PowerMate, press down into
place, and close the lid securely.
2. Insert handle
into wand until
\ lock button
I snaps in place,
\ I ^Handle
Lock S
Handle (
______
Quick
Reiease—/‘
To store: Disconnect hose from wand and
canister to prevent stress on hose during
storage. Store hose in a loosely coiled
position so the hose covering is not stressed.
Pet PowerMate
l[~]
Be sure hose is
not twisted.
To remove:
Press handle
quick release
button and pul!
up on handle.
To Remove:
Open the storage cover, Remove Pet
PowerMate from the storage area and use
as needed {see ATTACHMENTS and
ATTACHMENT USE TABLE),
OPERATING INSTRUCTIONS
CAUTION
Moving parts! To reduce the risk of personal in|ury,
DO NOT touch the agitator when vacuum cleaner is
on. Contacting the agitator while It is rotating can
cut, bruise or cause other injuries. Always turn off
and unplug from electrical outlet before servicing.
Use caution when operating near children.

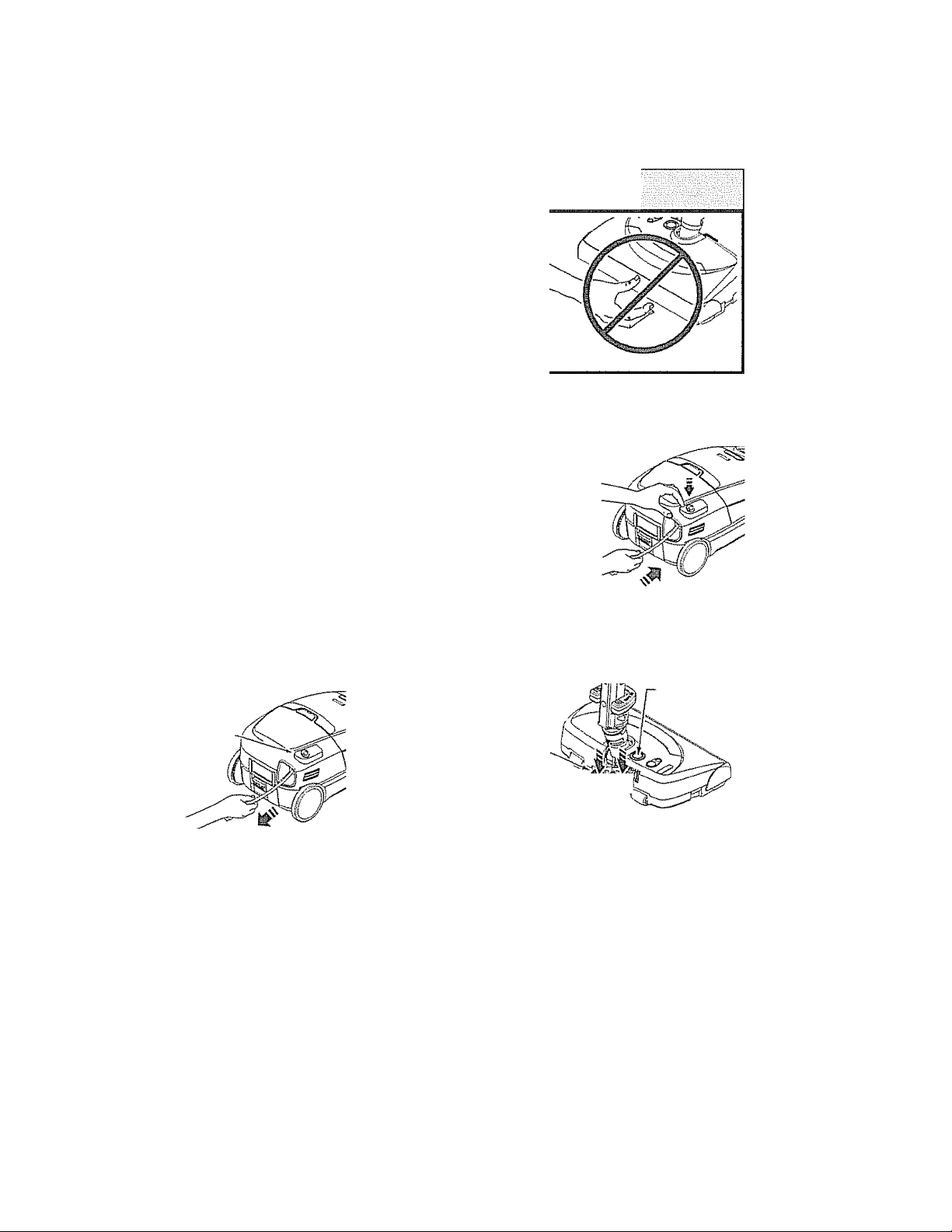

HOW TO START
To rewind: Turn
.WARNING
Personal Injury and Product Damage
Hazard
• DO NOT plug in if switch is in ON
position. Personal injury or property
damage could result
• The cord moves rapidly when
rewinding. Keep children away
and provide a clear path when
rewinding the cord to prevent
personal injury.
• DO NOT use outlets above counters.
Damage from cord to items in
surrounding area could occur.
off and unplug the
vacuum cleaner.
Hold the plug while
rewinding to pre
vent damage or
injury from the
moving cord. Push
cord rewind button.
3. Lower wand from upright position by
pressing on the handle release pedal,,
Pile Height
indicator
Corti
Rewind
Button
NOTE: To reduce the risk of electric shock,
this vacuum cleaner has a polarized plug;
one blade is wider than the other. This plug
will fit in a polarized outlet only one way. If
the plug does not fit fully (n the outlet,
reverse the plug. If it still does not fit. con
tact a qualified electrician to Install the prop
er outlet. Do not change the plug in any
way,
2. Piug the polarized power cord into a 120
Volt outlet located near the floor.
1. Pull cord out
of canister to
desired length.
The cord will not
rewind until the
cord rewind but
ton is pushed,
A. Select a pile height setting by pressing
the HEIGHT ADJUST pedal on the rear of
the PowerMate , The pile height setting
shows on the indicator. See SUGGESTED
PILE HEIGHT SETTINGS.
Attention: Refer to your carpet manufac
turers cleaning recommendations Some
more delicate carpets may require that they
be vacuumed with the PowerMate agitator
turned off to prevent carpet damage.
5. Select a position on the handle three-way
On/Off switch.
OFF
FLOOR - turns on the
canister motor only
CARPET - turns on
both the canister and
the PowerMate
motors.
NOTE - When this switch Is in the FLOOR
position, the wand light, nozzie headlight
and dirt sensor DO NOT function since no
electricity flows to the PowerMate.
VACUUMING TIPS
Suggested sweeping pattern.
For best cleaning action, the PowerMate
should be pushed straight away from you
and pulled straight back- At the end of each
pull stroke, the direction of the PowerMate
should be changed to point into the next
section to be cleaned. This pattern should
be continued across the carpet with slow,
gliding motions.
CAUTION
DO NOT leave the PowerMate running
in one spot in the upright position for
any length of time. Damage to carpet
may occur.
, CAUTION
Product Damage Hazard
Use care if the PowerMate and wand is
left in the upright position as it may tip
over easily. Property damage can occur
if tipped.
The nozzle swivel
rotates left and
right for Improved
maneuvering in
tight spaces and
around corners.
NOTE:
Fast, jerky
strokes do
not provide
complete
cleaning.
.WARNING
Personal Injury and Product Damage
Hazard
• DO NOT run over power cord with
PowerMate. Persona! injury or
product damage could result.
• DO NOT puli plug from wall by
the power cord. If there is damage to
the cord or plug, personal injury or
property damage could result.
The hose swivel
allows the hose to turn
without moving the
canister This is
helpful for cleaning in
small areas. Check
hose for twisting
before pulling canister.
10
%
Carpeted stairs
need to be
vacuumed regularly.
For best cleaning
results, use HIGH
setting on electronic
suction control,
NOTE: Be sure
the mechanical
suction control
located on the
handle is dosed
for maximum
cleaning power
О
WARNING
Personal Injury Hazard
Use care if carrister is placed on stairs.
It may fall, causing personal injury or
property damage.
CAUTION
Product Damage Hazard
Do not pull on the hose to move the
canister from one stair to the next
When finished cleaning in one area use
the handle grip on the canister to move
the vacuum cleaner to a new location
for further cleaning.
The stair grip iocated
on the caster wiil aid
in preventing the
canister from
slipping when used
on stairs (see
PERFORMANCE
FEATURES)
NOTE: Be sure the canister is resting
securely on the stairs and the caster is in a
locked position before usir^g.
For best cleaning results, keep the
airflow passage open Check each
assembly area in REMOVING CLOGS
occasionally for dogs. Turn off and
unplug vacuum cleaner from outlet
before checking.
.¡X' i
~
x;.j
SUGGESTED PILE HEIGHT SETTINGS
For best deep down cleaning, use the XLO
setting. However, you may need to raise the
height to make some Jobs easier, such as
scatter rugs and some deep pile carpets,
and to prevent the vacuum cleaner from
shutting off. Suggested settings are;
Hi - Shag, deep pile, or scatter rugs.
MED - Medium to deep pile.
LO - Low to medium pile,
XLO - Most carpets and bare floors.
It
ATTACHMENTS
CAUTION
DO NOT attach or remove handle or
wands while vacuum cleaner is ON.
This could cause sparking and damage
the electrical contacts or electronic
controls.
ATTACHMENTS ON HANDLE
NOTE: If the
PowerMate is
attached, turn
vacuum cleaner
off before
removing handle
from wand-
1, Press handle
quick release
button and pull
up on handle.
ATTACHMENTS ON WAND
1. To remove
wand from
PowerMate,
lock wand in
straight-up
position.
Lock
Button
Handle
Quick
Refease-
2. Slide attachments
firmly on handle as
needed. See
ATTACHMENT USE
TABLE,
Handle
-Wand
Quick
Release
Pedal
3. Put attach
ments on wand
as needed See
ATTACHMENT
USE TABLE
DUSTING BRUSH
To assemble
dusting brush, ' ,
insert the fqbric, '
brush intathe
dusting bruqh
nozzle-and'press
tnto-p)ace'.
Latch
2. Press wand
quick release
pedal with foot and
pull the wand
straight up and out
of PowerMate
Dusting
Brush
To remove,
press latch
and lift out-
12
ATTACHMENT USE TABLE
CLEANING AREA
ATTACHMENT
Dusting SS
Combination
Brush
Crevice Tooi
Floor Brush
PowerMate
Handi-Mate Jr-'^ ^
Pet PowerMate s. ^
Brush P
Fabric j4
Brush g
Fumitufe“*
Between
Cushions^
✓
✓ ✓
✓ ✓
✓ ✓
✓
Drapes^ Stairs
✓ ✓
✓ ✓
✓
1, Always clean attachments before using on fabrics
2 3-way On/Off switch should be in FLOOR position,
3 Some Models; Handi-mate Jr ® and Pel PowerMate attachment instructions are included
with the products
4, Pet PowerMate can only be used on the hose handle.
Bare
Floors
i/ 2
Carpeted
RaorsyRugs Walls
✓
PERFORMANCE FEATURES
__ •
✓
'ill
$
WARNING
Personai Injury Hazard
Always turn off and unplug the vacuum
cleaner before cleaning the agitator area
as agitator may suddenly restart.
Failure to do so can result in personal
injury.
EDGE CLEANER
Active brush edge
cleaners are on both
sides of the
PowerMate. Guide
either side of the
PowerMate along
baseboards or next
to furniture to help
remove dirt trapped
at carpet edges
OVERLOAD PROTECTOR
The PowerMate
has built-in
protection against
motor and belt
damage should
the agitator jam, if
the agitator slows
down or stops, the
overload protector
shuts off the
PowerMate and
the red light wili
come on. The
canister motor wili continue to run.
To correct problem: Turn off and unplug
vacuum cleaner, remove obstruction, then
press BELT RESET button.
If the problem persists, have the
vacuum cleaner serviced by a Sears or
other qualihed service agent.
13
Overload Protector/
Belt Reset
BttHon-
STAIR GRIP
During normal operation while the canister is
in the horizontal position, the caster wheel
rotates freely 360°.
; er to prevent
mister from
|g cjn stairs,
TAIR GRIP
tifjally locks
wheel in
'hen the
raised
loiizontal
position.
ELECTRONIC SUCTION CONTROL
The electronic suction control allows you to
change the power of the vacuum cleaner
suction motor.
LOW POWER
increase
Suction
I
Decrease
Suction
decreases suction
for draperies and
lightweight rugs.
HIGH increases
suction for
upholsteries and
carpets,
WAIfJD LIGHT
This vacuum cleaner is
equipped with a light on the
extension wand. This light
will operate only when the
'~q4\ / CARPET mode (see HOW
The light can be used for lighting hard to
reach locations .
vacuum cleaner is in
TO START) , The light will
operate when attached or
not attached to the
Poweryate
CHECK BAG INDICATOR
When the vacuum
cleaner is running
with normal airflow,
the CHECK BAG
light is off- The
light comes on
whenever the
airflow becomes
blocked. If that o.
disposable du^
motor safety
clog location
CLOGS
To correct problem: See the TROUBLE
SHOOTING table
NOTE: The light may come on when using
certain attachments, due to reduced airflow
through attachment.
CHECK BAG
indicator-
Then check the
and other possibly
hown in REMOVINf
MECHANICAL SUCTION CONTROL
The mechanical suction control allows you
to adjust the vacuum suction for very light
fabrics,
Opening the
control decreases
suction while
closing the
control increases
suction.
THERMAL PROTECTOR
This vacuum cleaner has a thermal
protector which automatically trips to protect
the vacuum cleaner from overheating, If a
prevents the normal flow of air to the
motor, the thermal protector turns the
motor off automatically, This allows the
motor to cool in order to prevent possible
damage to the vacuum cleaner.
Tgxorrect problem: Turn off and unplug
/ifa^cuum cleaner to allow the vacuum
cleaner to coo! and the thermal protector
to reset Check for and remove clogs, if
necessary., Also check and replace any
clogged filters. Wait approximately
thirty (30) minutes and plug the vacuum
cleaner in and turn back on to see if the
motor protector has reset
14
DIRT SENSOR
The DIRT SENSOR
light system is mount
ed on the PowerMate
no22le near the reset
button. It consists of a
series of two red lights
and two green lights.
The lights give you an indication of the amount
of dirt particles that are passing through the
sensor on its way to the dust bag.
INITIAL START UP
When the Poweryate is first started, the fol
lowing light sequence occurs in a two-second
time frame:
1. Two reds come on,
2. Two greens are on and will remain on until
the PowerMate nozzle is placed in use.
NOTE: if the nozzle is on a surface that has
dirt on it, dirt will be picked up by the vacuum
cleaner and the red lights might stay on
CANISTER CARE
IN OPERATION
When the PowerMate is being moved back
and forth on the floor, the lights will change
from one configuration to another as dirt is
being vacuumed- As long as the red lights are
on, dirt is passing through the wand to indicate
that the surface still needs cleaning.
When the green lights stay on as the
PowerMate is moved back and forth over an
area, the sensor is not seeing enough dirt to
warrant further cleaning of that area,
NOTE: Dirt sensor lights DO NOT function . .
in the FLOOR setting
iLtJ
'B

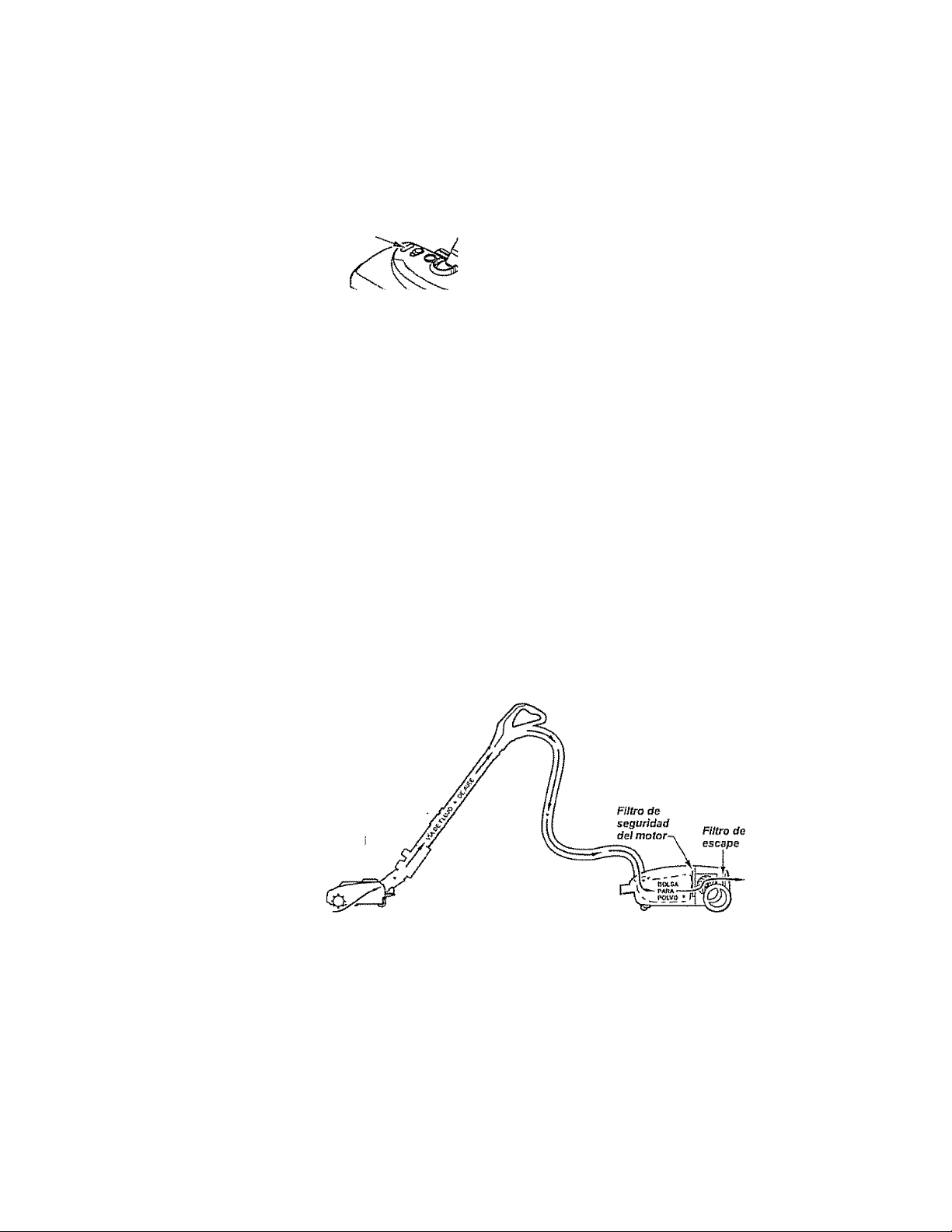

REMOVING CLOGS
The vacuum cleaner creates suction that
picks up dirt. Rapidly moving air carries the
dirt to the dust bag through the airflow pas
sages, The dust bag lets the air pass
through, white it traps the dirt.
For best cleaning results, keep the airflow
passage open. Check the starred areas
occasionally for dogs. Turn off and
unplug vacuum cleaner from outlet
before checking.
15
Motor
Safety _ .
F/fter B'ftausf
Filter
St--
BAG CHANGING
For best cleaning results, the dust bag
should be changed often. The CHECK BAG
indicator will come on when the bag needs
to be changed or the airflow is blocked.
NOTE: See PARTS AND FEATURES for
Bag Number.
1. Turn off and unplug vacuum cleaner.
2. Remove hose
from canister,
3. Pull hood
release out and up,
then lift canister
hood
4. Disengage
cardboard tab from
red bag mount by
pulling away and
lifting up.
5. Pull bag out of the
red bag mount.
Motor
Safety
Filter
6. Check the
motor safety filter
and replace, if
necessary..
Note: DO NOT bend or crease the
middle of the cardboard when installing
the bag into the bag mount slots.
8. Rotate red bag
mount down and
install bag into slots
per illustration,
pushing down until
the cardboard tab
locks into position
and the holes align.
9. Tuck the bag securely into the bag cavity
so that none of the bag is able to be pinched
by the hood.
10. Close and latch canister hood.
11. Insert hose into canister until it snaps in
place
12. Plug cord into wall outlet.
.CAUTION
NEVER REUSE A DUST BAG Very fine
materials, such as carpet freshener,
face powder, fine dust, plaster, soot,
new carpet lint, etc. can dog the bag
and cause it to burst before it is full
and may cause damage to vacuum
cleaner motor. Change bag more often
when vacuuming these materials.
7. The red bag mount will flip forward after
removing bag. This will prevent the hood
from dosing until a new bag is installed.
16
Loading...
