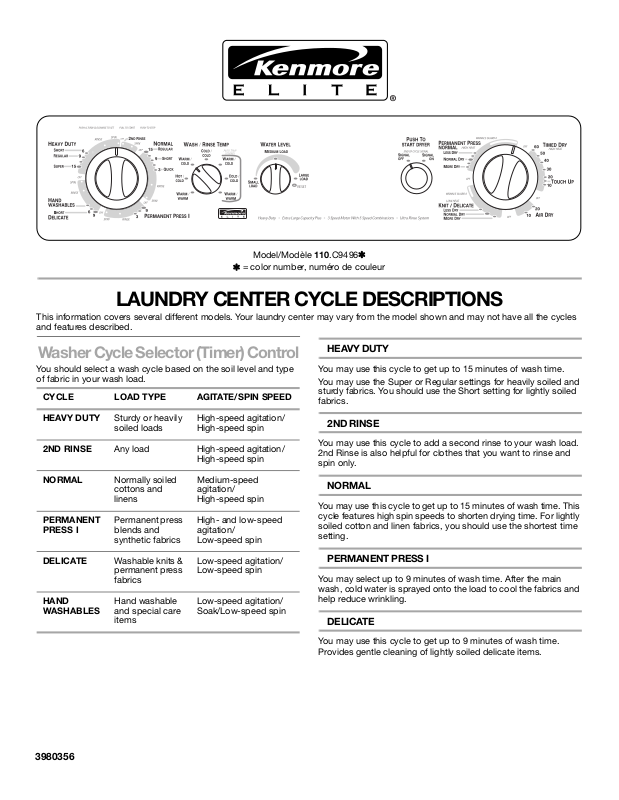

Kenmore 110.C9496* Feature Sheet
®
Model/Modèle
✼ = color number, numéro de couleur
110
.C9496✼
LAUNDRY CENTER CYCLE DESCRIPTIONS
This information covers several different models. Your laundry center may vary from the model shown and may not have all the cycles
and features described.
Washer Cycle Selector (Timer) Control
You should select a wash cycle based on the soil level and type
of fabric in your wash load.
CYCLE LOAD TYPE AGITATE/SPIN SPEED
HEAVY DUTY
2ND RINSE
NORMAL
PERMANENT
PRESS I
Sturdy or heavily
soiled loads
Any load High-speed agitation/
Normally soiled
cottons and
linens
Permanent press
blends and
synthetic fabrics
High-speed agitation/
High-speed spin
High-speed spin
Medium-speed
agitation/
High-speed spin
High- and low-speed
agitation/
Low-speed spin
HEAVY DUTY
You may use this cycle to get up to 15 minutes of wash time.
You may use the Super or Regular settings for heavily soiled and
sturdy fabrics. You should use the Short setting for lightly soiled
fabrics.
2ND RINSE
You may use this cycle to add a second rinse to your wash load.
2nd Rinse is also helpful for clothes that you want to rinse and
spin only.
NORMAL
You may use this cycle to get up to 15 minutes of wash time. This
cycle features high spin speeds to shorten drying time. For lightly
soiled cotton and linen fabrics, you should use the shortest time
setting.
DELICATE
HAND
WASHABLES
3980356
Washable knits &
permanent press
fabrics
Hand washable
and special care
items
Low-speed agitation/
Low-speed spin
Low-speed agitation/
Soak/Low-speed spin
PERMANENT PRESS I
You may select up to 9 minutes of wash time. After the main
wash, cold water is sprayed onto the load to cool the fabrics and
help reduce wrinkling.
DELICATE
You may use this cycle to get up to 9 minutes of wash time.
Provides gentle cleaning of lightly soiled delicate items.
HAND WASHABLES
AUTOMATIC CYCLES
You may use this cycle to wash small loads. If items appear to be
floating (due to trapped air), stop the washer by pushing in the
Cycle Control knob. Push items down into the washer. Close the
lid. Pull out the Cycle Control knob to restart the washer.
RINSE AND SPIN
When using extra detergent for heavily soiled clothes, or washing
special-care items, you may find an extra rinse and spin is
needed. You may select any of the Rinse settings along with a
water level and temperature setting appropriate for the load you
are washing.
NOTE:
You may also choose the 2nd Rinse cycle.
DRAIN AND SPIN
A drain and spin may help shorten drying times for some heavy
fabrics or special-care items by removing excess water. You may
choose any of the Spin settings. The washer drains, then spins.
Wash/Rinse Temp Control
You should select the wash/rinse water temperature based on the
type of load you are washing. Always use the warmest wash
water safe for the fabric and follow garment label instructions.
The AUTO TEMP CONTROL (ATC) electronically senses and
maintains a uniform water temperature by regulating the
temperature of incoming hot and cold water.
Water Level Control
This control allows the water level to be adjusted to the size load
you are washing. Clothes should move freely. You may change to
a higher water level after agitating starts by turning the knob to
Reset, then to desired setting.
Permanent Press/Normal or Knit/Delicate
Automatic Cycles may be used for most loads. These cycles give
the best drying in the shortest time. Drying time varies according
to the type of fabric, size of the load, and dryness setting.
Dryness is determined by the exhaust temperature of the dryer.
When the dryness selected is reached, the dryer goes into a cool
down period of up to 10 minutes for the Permanent Press/Normal
cycle or up to 5 minutes for the Knit/Delicate cycle.
The Cycle Selector (Timer) Control may be set to NORMAL DRY,
which is good for most fabrics. At the end of the cycle, you may
check the dryness of the load.
■
If the load is drier than you like, you may select a setting
closer to Less Dry the next time you dry a similar load.
■
If a load is not as dry as you like, you may complete drying
using a Timed cycle. You may select a setting closer to More
Dry the next time you dry a similar load.
TIMED DRY
This cycle may be used to complete drying if items are still damp
after the automatic cycle. It is also useful for large loads that
require a long drying time. You may choose up to 60 minutes of
heated drying time
TOUCH UP
This cycle may be used to smooth clothes that are clean but
wrinkled from being crowded in a closet or suitcase. This setting
provides about 15 minutes of heated tumbling followed by a cool
down period of up to 10 minutes.
AIR DRY
This cycle may be used to get up to 20 minutes of drying time in
room temperature air.
Dryer Cycle Selector (Timer) Control
CYCLE LOAD TYPE TEMPERATURE
PERMANENT
PRESS/
NORMAL
KNIT/
DELICATE
TIMED DRY
TOUCH UP
AIR DRY
Permanent press,
synthetics, or sturdy
casual clothes
Knit, delicate or sheer
fabrics
Heavyweight and bulky
items, such as
bedspreads, work
clothes
Synthetic and permanent
press clothes
Plastics, rubber and
heat-sensitive fabrics
High Heat
Low Heat
High Heat
High Heat
Air (no heat)
WRINKLE GUARD® II
WRINKLE GUARD® II helps prevent wrinkles that form when
clothes are not removed promptly at the end of a cycle.
WRINKLE GUARD
tumbling the load without heat for up to 45 minutes after the
completion of an automatic cycle, unless you open the dryer
door.
During WRINKLE GUARD
every 5 minutes unless the signal is turned off.
®
II periodically starts and stops the dryer,
®
II, the End of Cycle Signal will sound
End of Cycle Signal Control
The End of Cycle Signal sounds when a cycle is complete. This
signal is helpful when you are drying permanent press, synthetics
and other items that should be removed from the dryer promptly
at the end of a cycle.
The End of Cycle Signal is selectable. If the signal is turned off,
you will not hear WRINKLE GUARD
®
II sound every 5 minutes.
Dryer Rack
The dryer rack was shipped with your dryer. Remove and discard
shipping blocks before use.
The dryer rack may be sed to machine dry items you would not
necessarily want to tumble dry or that you would normally line dry
(for example, sweaters).
