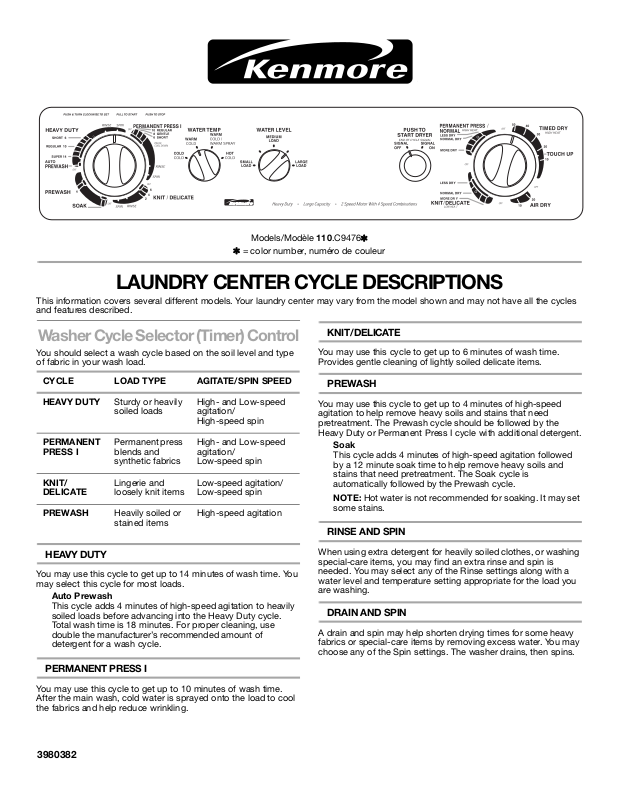

Kenmore 110.C9476* Feature Sheet
Models/Modèle
✼ = color number, numéro de couleur
110
.C9476✼
LAUNDRY CENTER CYCLE DESCRIPTIONS
This information covers several different models. Your laundry center may vary from the model shown and may not have all the cycles
and features described.
Washer Cycle Selector (Timer) Control
You should select a wash cycle based on the soil level and type
of fabric in your wash load.
CYCLE LOAD TYPE AGITATE/SPIN SPEED
HEAVY DUTY
PERMANENT
PRESS I
KNIT/
DELICATE
PREWASH
HEAVY DUTY
You may use this cycle to get up to 14 minutes of wash time. You
may select this cycle for most loads.
Auto Prewash
This cycle adds 4 minutes of high-speed agitation to heavily
soiled loads before advancing into the Heavy Duty cycle.
Total wash time is 18 minutes. For proper cleaning, use
double the manufacturer’s recommended amount of
detergent for a wash cycle.
Sturdy or heavily
soiled loads
Permanent press
blends and
synthetic fabrics
Lingerie and
loosely knit items
Heavily soiled or
stained items
High- and Low-speed
agitation/
High-speed spin
High- and Low-speed
agitation/
Low-speed spin
Low-speed agitation/
Low-speed spin
High-speed agitation
KNIT/DELICATE
You may use this cycle to get up to 6 minutes of wash time.
Provides gentle cleaning of lightly soiled delicate items.
PREWASH
You may use this cycle to get up to 4 minutes of high-speed
agitation to help remove heavy soils and stains that need
pretreatment. The Prewash cycle should be followed by the
Heavy Duty or Permanent Press I cycle with additional detergent.
Soak
This cycle adds 4 minutes of high-speed agitation followed
by a 12 minute soak time to help remove heavy soils and
stains that need pretreatment. The Soak cycle is
automatically followed by the Prewash cycle.
NOTE:
Hot water is not recommended for soaking. It may set
some stains.
RINSE AND SPIN
When using extra detergent for heavily soiled clothes, or washing
special-care items, you may find an extra rinse and spin is
needed. You may select any of the Rinse settings along with a
water level and temperature setting appropriate for the load you
are washing.
DRAIN AND SPIN
A drain and spin may help shorten drying times for some heavy
fabrics or special-care items by removing excess water. You may
choose any of the Spin settings. The washer drains, then spins.
PERMANENT PRESS I
You may use this cycle to get up to 10 minutes of wash time.
After the main wash, cold water is sprayed onto the load to cool
the fabrics and help reduce wrinkling.
3980382
Water Temperature Control
You should select the wash/rinse water temperature based on the
type of fabric and soils you are washing. Always use the warmest
wash water safe for the fabric and follow garment label
instructions.
For the Warm/Cold/Warm Spray temperature selection, the warm
wash will be followed by an “Energy Saving” cold rinse followed
by warm spray rinses. This saves energy while providing an
effective rinse performance.
The Cycle Selector (Timer) Control may be set to NORMAL DRY,
which is good for most fabrics. At the end of the cycle you may
check the dryness of the load.
■
If the load is drier than you like, you may select a setting
closer to Less Dry the next time you dry a similar load.
■
If a load is not as dry as you like, you may complete drying
using a Timed cycle. You may select a setting closer to More
Dry the next time you dry a similar load.
TIMED DRY
Water Level Control
This control allows the water level to be adjusted to the size load
you are washing. Clothes should move freely. You may change to
a higher water level after agitating starts by turning the knob to
Reset, then to desired setting.
Dryer Cycle Selector (Timer) Control
CYCLE LOAD TYPE TEMPERATURE
PERMANENT
PRESS/
NORMAL
KNIT/
DELICATE
TIMED DRY
TOUCH UP
AIR DRY
Permanent press,
synthetics, or sturdy
casual clothes
Knitted, delicate or sheer
fabrics
Heavyweight and bulky
items, such as
bedspreads, work
clothes
Synthetic and permanent
press clothes
Plastics, rubber and
heat-sensitive fabrics
High Heat
Low Heat
High Heat
High Heat
Air (no heat)
This cycle may be used to complete drying if items are still damp
after the automatic cycle. It is also useful for large loads that
require a long drying time. You may choose up to 50 minutes of
heated drying time
TOUCH UP
This cycle may be used to smooth clothes that are clean but
wrinkled from being crowded in a closet or suitcase. This setting
provides about 15 minutes of heated tumbling followed by a cool
down period of up to 10 minutes.
AIR DRY
This cycle may be used to get up to 20 minutes of drying time in
room temperature air.
End of Cycle Signal Control
The End of Cycle Signal is selectable and will sound when a cycle
is complete if set to Signal On. This signal is helpful when you are
drying permanent press, synthetics and other items that should
be removed from the dryer promptly at the end of a cycle.
Dryer Rack (Optional)
The dryer rack may be used to machine dry items you would not
necessarily want to tumble dry or that you would normally line dry
(for example, sweaters). For ordering information, please call
1-800-4 MY-HOME
®
(1-800-469-4663)
.
AUTOMATIC CYCLES
Permanent Press/Normal or Knit/Delicate
Automatic Cycles may be used for most loads. These cycles give
the best drying in the shortest time. Drying time varies according
to the type of fabric, size of the load, and dryness setting.
Dryness is determined by the exhaust temperature of the dryer.
When the dryness selected is reached, the dryer goes into a cool
down period of up to 10 minutes for the Permanent Press/Normal
cycle or up to 5 minutes for the Knit/Delicate cycle.
