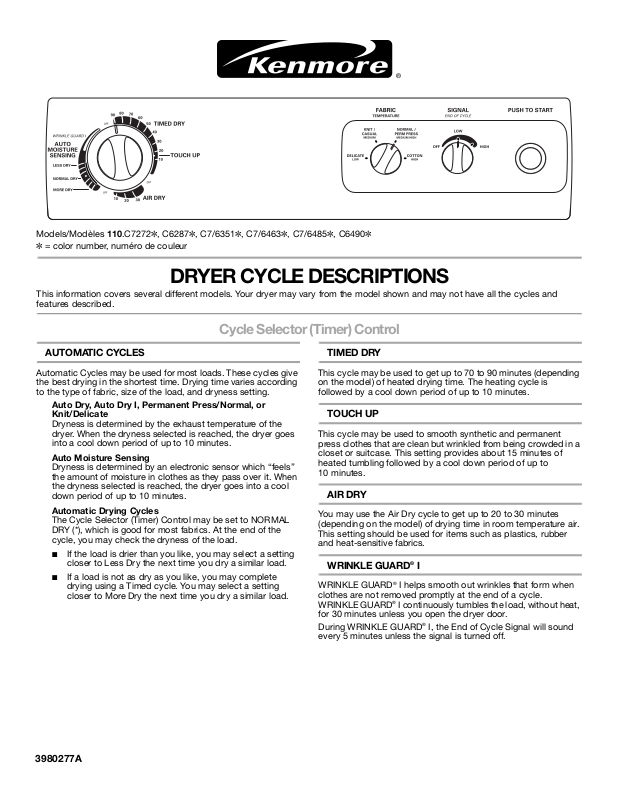

Kenmore 110.C7272*, 110.C6287*, 110.C6490* Feature Sheet

Models/Modèles 110.C7272 , C6287 , C7/6351 , C7/6463 , C7/6485 , C6490= color number, numéro de couleur

DRYER CYCLE DESCRIPTIONS

This information covers several different models. Your dryer may vary from the model shown and may not have all the cycles and features described.

Cycle Selector (Timer) Control

AUTOMATIC CYCLES

Automatic Cycles may be used for most loads. These cycles give the best drying in the shortest time. Drying time varies according to the type of fabric, size of the load, and dryness setting.

Auto Dry, Auto Dry I, Permanent Press/Normal, or Knit/Delicate

Dryness is determined by the exhaust temperature of the dryer. When the dryness selected is reached, the dryer goes into a cool down period of up to 10 minutes.

Auto Moisture Sensing

Dryness is determined by an electronic sensor which “feels” the amount of moisture in clothes as they pass over it. When the dryness selected is reached, the dryer goes into a cool down period of up to 10 minutes.

Automatic Drying Cycles

The Cycle Selector (Timer) Control may be set to NORMAL DRY (*), which is good for most fabrics. At the end of the cycle, you may check the dryness of the load.

■If the load is drier than you like, you may select a setting closer to Less Dry the next time you dry a similar load.

■If a load is not as dry as you like, you may complete drying using a Timed cycle. You may select a setting closer to More Dry the next time you dry a similar load.

TIMED DRY

This cycle may be used to get up to 70 to 90 minutes (depending on the model) of heated drying time. The heating cycle is followed by a cool down period of up to 10 minutes.

TOUCH UP

This cycle may be used to smooth synthetic and permanent press clothes that are clean but wrinkled from being crowded in a closet or suitcase. This setting provides about 15 minutes of heated tumbling followed by a cool down period of up to

10 minutes.

AIR DRY

You may use the Air Dry cycle to get up to 20 to 30 minutes (depending on the model) of drying time in room temperature air. This setting should be used for items such as plastics, rubber and heat-sensitive fabrics.

WRINKLE GUARD® I

WRINKLE GUARD® I helps smooth out wrinkles that form when clothes are not removed promptly at the end of a cycle. WRINKLE GUARD® I continuously tumbles the load, without heat, for 30 minutes unless you open the dryer door.

During WRINKLE GUARD® I, the End of Cycle Signal will sound every 5 minutes unless the signal is turned off.

3980277A

Fabric/Temperature Control

For models with a Fabric/Temperature Control knob, you may use this control to select the drying temperature that matches the fabrics in your load. The following table lists suggested Auto Moisture or Timed Dry settings for various loads. This is only a guide.

FABRIC/	LOAD TYPE	AUTO	TIMED
TEMPERATURE		MOISTURE	DRY
		SETTING	SETTING*
COTTON	Heavyweight	More Dry	50 - 70
High	items - quilts,		minutes
	towels, jeans,
	cottons,
	bedspreads
NORMAL/	Medium	Normal Dry	30 - 50
PERMANENT	weight items		minutes
PRESS	- shirts,
Medium High	sheets,
	slacks, play
	clothes,
	diapers
KNIT/CASUAL	Medium	Normal Dry	30 - 50
Medium	weight items		minutes
	- synthetics
	(polyester,
	acrylic),
	skirts,
	sweaters,
	slacks
DELICATE	Lightweight	Less Dry	20 - 40
Low	items -		minutes
	lingerie,
	blouses,
	dresses,
	synthetics,
	blends

*Reset time as needed to allow items to dry completely.

End of Cycle Signal Control

The End of Cycle Signal sounds when a cycle is complete. This signal is helpful when you are drying permanent press, synthetics and other items that should be removed from the dryer promptly at the end of a cycle.

Depending on your model, the End of Cycle Signal may be automatic or selectable. Some models have a volume control.

If your model has a selectable End of Cycle Signal, and the signal is turned off, you will not hear WRINKLE GUARD® I sound every 5 minutes.

Dryer Rack

(Optional on some models)

A dryer rack may be used to machine dry items you would not necessarily want to tumble dry or that you would normally line dry (for example, sweaters).

For ordering information, please refer to the service numbers located on the back page of the dryer user instructions or contact the dealer from whom you purchased your dryer.
