Kenmore 110.C69822*, 110.C69832*, 110.C69842* Quick Reference Guide

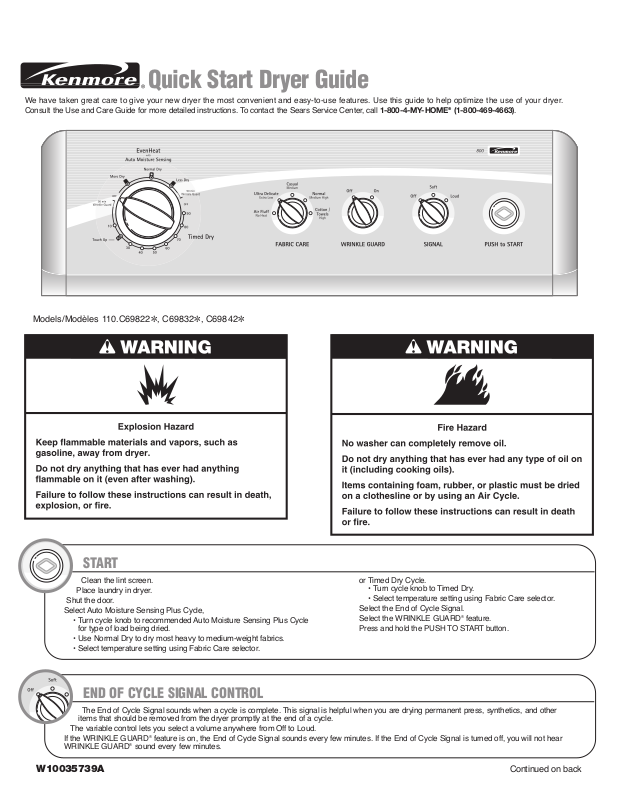

Quick Start Dryer Guide

We have taken great care to give your new dryer the most convenient and easy-to-use features. Use this guide to help optimize the use of your dryer.
Consult the Use and Care Guide for more detailed instructions. To contact the Sears Service Center, call 1-800-4-MY-HOME®(1-800-469-4663).

Models/Modèles 110.C69822✼, C69832✼, C69842✼

START

Clean the lint screen.

Place laundry in dryer.

Shut the door.

Select Auto Moisture Sensing Plus Cycle,

• Turn cycle knob to recommended Auto Moisture Sensing Plus Cycle
for type of load being dried.

• Use Normal Dry to dry most heavy to medium-weight fabrics.

• Select temperature setting using Fabric Care selector.

or Timed Dry Cycle.

• Turn cycle knob to Timed Dry.

• Select temperature setting using Fabric Care selector.
Select the End of Cycle Signal.
Select the WRINKLE GUARD
Press and hold the PUSH TO START button.

®

feature

.

END OF CYCLE SIGNAL CONTROL

The End of Cycle Signal sounds when a cycle is complete. This signal is helpful when you are drying permanent press, synthetics, and other

items that should be removed from the dryer promptly at the end of a cycle.

The variable control lets you select a volume anywhere from Off to Loud.

If the WRINKLE GUARD®feature is on, the End of Cycle Signal sounds every few minutes. If the End of Cycle Signal is turned off, you will not hear
WRINKLE GUARD®sound every few minutes.

W10035739A

Continued on back

FABRIC CARE CONTROL

For models with a Fabric Care control knob, you may use this control to select the drying temperature that matches the fabrics in your load.

The following table lists suggested auto moisture sensing or timed dry settings for various loads. This is only a guide.

FABRIC CARE/TEMP CONTROL LOAD TYPE

AIR FLUFF
NO HEAT

ULTRA DELICATE
EXTRA LOW

CASUAL
MEDIUM

NORMAL
MEDIUM HIGH

COTTON/TOWELS
HIGH

*Reset time as needed to allow items to dry completely.

Rubber, plastic, heat-sensitive fabrics Timed Dry 20-50

Lightweight items – lingerie, blouses, dresses,
synthetics, and blends

Medium-weight items – synthetics (polyester,
acrylic), skirts, sweaters, slacks

Medium-weight items – shirts, sheets, slacks,
play clothes, cloth diapers

Heavyweight items – quilts, towels, jeans,
cottons, bedspreads

CYCLES SETTING

Auto Moisture Sensing Plus
Less Dry

Auto Moisture Sensing Plus
Normal Dry

Auto Moisture Sensing Plus
Normal Dry

Auto Moisture Sensing Plus
More Dry

CYCLE SELECTOR (TIMER) CONTROL

TIMED DRY
SETTING*

minutes

20-40
minutes

30-50
minutes

30-50
minutes

50-70
minutes

Auto Moisture Sensing Plus

And Even Heat™

Even Heat™ improves drying performance with Auto Moisture
Sensing Plus, which advances the cycle as moisture is extracted from
clothing.A thermistor (electronic temperature sensor) and moisture
sensing strips in the dryer drum help measure the amount of moisture
in the clothes as they tumble. An electronic control determines the
load type to help save time, avoid overdrying, and increase the
accuracy of the end dryness level.Auto Moisture Sensing Plus takes
the guesswork out of drying time and enhances fabric care.

If the load is drier than you like, you may select a setting closer to Less
Dry the next time you dry a similar load. If a load is not as dry as you
like, you may complete drying using a Timed cycle. You may also
select a setting closer to More Dry the next time you dry a similar load.

Timed Dry

This cycle may be used to get up to 90 minutes of heated drying time.
The heating cycle is followed by a cool down period of up to
10 minutes.

Touch Up

This cycle may be used to help smooth synthetic and permanent press
clothes that are clean but wrinkled from being crowded in a closet or
suitcase. This setting provides about 20 minutes of heated tumbling
followed by a cool down period of up to 10 minutes.

WRINKLE GUARD®III

The WRINKLE GUARD®feature helps smooth out wrinkles that may form when clothes are not removed promptly at the end of the cycle.

During WRINKLE GUARD®III, the load will periodically stop and start for up to 90 minutes, without heat. WRINKLE GUARD®III has a selectable

On/Off option. If the knob is set to Off, the dryer stops after cool down and may be unloaded.

NOTE: The End of Cycle Signal will sound during the WRINKLE GUARD®feature. If the End of Cycle Signal is turned to Off, no signal will sound.

TUMBLE FREE™ HEATED DRYER RACK

Use the dryer rack for items that you do not want to tumble dry, or that you would normally line dry (for example, sweaters). Items containing

foam, rubber, or plastic must be dried on a clothesline or by using an Air Cycle. The heated dryer rack should be used with a Timed Dry cycle.

When you use the heated dryer rack, the air inside the dryer circulates in a concentrated pattern over, under, and through clothes, significantly

reducing drying time.

TROUBLESHOOTING – LONG DRY TIMES, LOAD NOT DRYING

Before you call service...check for the following.

Is the lint screen clogged with lint?

• Clean the lint screen before each load.

W10035739A

© 2008 Sears Brands, LLC

Is the exhaust vent or outside exhaust hood clogged with lint?

• Lint should be cleaned out of the exhaust vent at least once every
2 years.

See the Use and Care Guide for complete details.

®

Registered Trademark /TMTrademark /SMService Mark of

Sears Brands, LLC, used under licensee by Sears Canada Inc.

Printed in U.S.A.

10/08
