Kenmore 110.C6711* Quick Reference Guide

Continued on back

W10035650

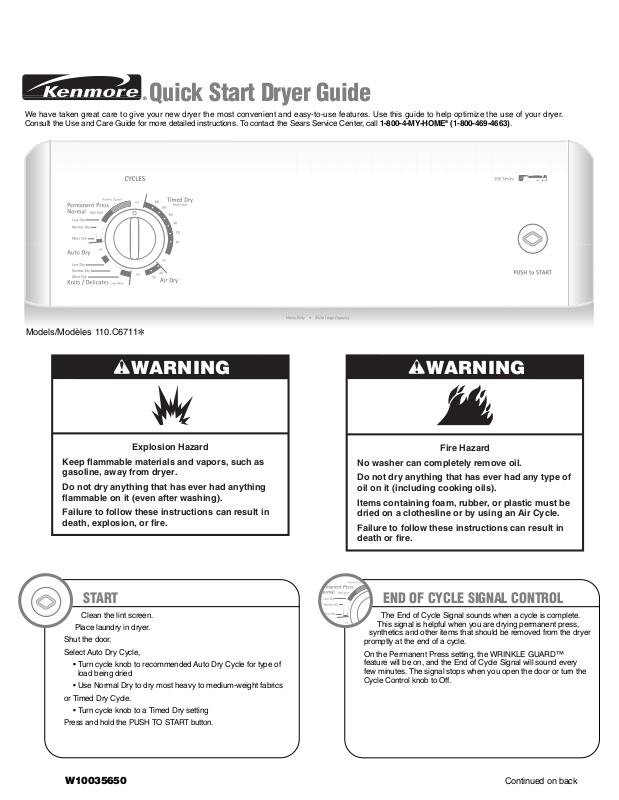

Quick Start Dryer Guide

We have taken great care to give your new dryer the most convenient and easy-to-use features. Use this guide to help optimize the use of your dryer.
Consult the Use and Care Guide for more detailed instructions. To contact the Sears Service Center, call 1-800-4-MY-HOME®(1-800-469-4663).

Models/Modèles 110.C6711✼

START

Clean the lint screen.

Place laundry in dryer.
Shut the door.
Select Auto Dry Cycle,

• Turn cycle knob to recommended Auto Dry Cycle for type of
load being dried

• Use Normal Dry to dry most heavy to medium-weight fabrics

or Timed Dry Cycle.

• Turn cycle knob to a Timed Dry setting

Press and hold the PUSH TO START button.

END OF CYCLE SIGNAL CONTROL

The End of Cycle Signal sounds when a cycle is complete.

This signal is helpful when you are drying permanent press,

synthetics and other items that should be removed from the dryer

promptly at the end of a cycle.
On the Permanent Press setting, the WRINKLE GUARD™

feature will be on, and the End of Cycle Signal will sound every
few minutes. The signal stops when you open the door or turn the
Cycle Control knob to Off.

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as
gasoline, away from dryer.

Do not dry anything that has ever had anything
flammable on it (even after washing).

Failure to follow these instructions can result in
death, explosion, or fire.

WARNING

Fire Hazard
No washer can completely remove oil.
Do not dry anything that has ever had any type of

oil on it (including cooking oils).
Items containing foam, rubber, or plastic must be

dried on a clothesline or by using an Air Cycle.
Failure to follow these instructions can result in

death or fire.

W10035650

8/06

© 2006 Sears Brands, LLC

®

Registered Trademark / TMTrademark / SMService Mark of Sears Brands, LLC

Printed in U.S.A

CYCLE SELECTOR (TIMER) CONTROL

Auto Dry

During the Auto Dry Cycle, the exhaust air temperature of the
dryer determines the drying time and dryness levels. A thermostat
signals the Cycle Control knob when to move into Cool Down. The
drying time for an Auto Dry Cycle depends on load type and load
size. When drying a large or heavy load, the Cycle Control knob
may take a long time before it begins to advance into Cool Down.
The Auto Dry Cycle takes the guesswork out of drying time and
enhances fabric care. The amount of time that is displayed is the
estimated time remaining in the cycle.

The Automatic Cycle may be used for most medium and
lightweight loads. This cycle gives the best drying in the shortest
time. Drying time varies according to the type of fabric, size of the
load, and dryness setting.

Dryness is determined by the exhaust temperature of the dryer.
When the dryness selected is reached, the dryer goes into a
5 minute (approximately) cool down period.

The Cycle Selector (Timer) Control may be set to NORMAL DRY,
which is good for most fabrics. At the end of the cycle, you may
check the dryness of the load.

If the load is drier than you like, you may select a setting closer to
Less Dry the next time you dry a similar load.

If a load is not as dry as you like, you may complete drying using
a Timed cycle. You may select a setting closer to More Dry the
next time you dry a similar load.

Timed Dry

This cycle may be used to get up to 60 minutes of heated drying time.
The heating cycle is followed by a cool down period of up to
10 minutes.

Air Dry

You may use the Air Dry cycle to get up to 20 minutes of drying time in
room temperature air. This setting should be used for items such as
plastics, rubber and heat-sensitive fabrics.

FABRIC CARE/TEMPERATURE CONTROL

The following table lists suggested auto dry or timed dry settings for various loads. This is only a guide.

FABRIC CARE/ TEMPERATURE LOAD TYPE

TIMER CYCLE SELECTION

CYCLE
SETTING*

HIGH Heavyweight items – Quilts, towels, jeans,

cottons, bedspreads

Timed Dry

50-60
minutes

HIGH Medium-weight items – Shirts, sheets, slacks,

play clothes, cloth diapers

Perm Press/Normal

Normal Dry**

LOW Lightweight items – Lingerie, blouses, dresses

synthetics and blends

Knit/Delicate

Normal Dry**

*Reset time as needed to allow items to dry completely.

**Reset dryness level to More or Less Dry as needed for type of fabric or load size.

TROUBLESHOOTING – LONG DRY TIMES, LOAD NOT DRYING

Is the lint screen clogged with lint?

• Clean the lint screen before each load.

Before you call service...check for the following.

Is the exhaust vent or outside exhaust hood clogged with lint?

• Lint should be cleaned out of the exhaust vent at least once every
2 years.

See the Use and Care Guide for complete details.

WRINKLE GUARD®I

WRINKLE GUARD®I helps smooth out wrinkles that may form when clothes are not removed promptly at the end of a cycle. WRINKLE GUARD®I

continuously tumbles the load, without heat, for 30 minutes unless you open the dryer door.

During WRINKLE GUARD®I, the End of Cycle Signal will sound every 5 minutes.
