Models/Modèles 110.C6687✼

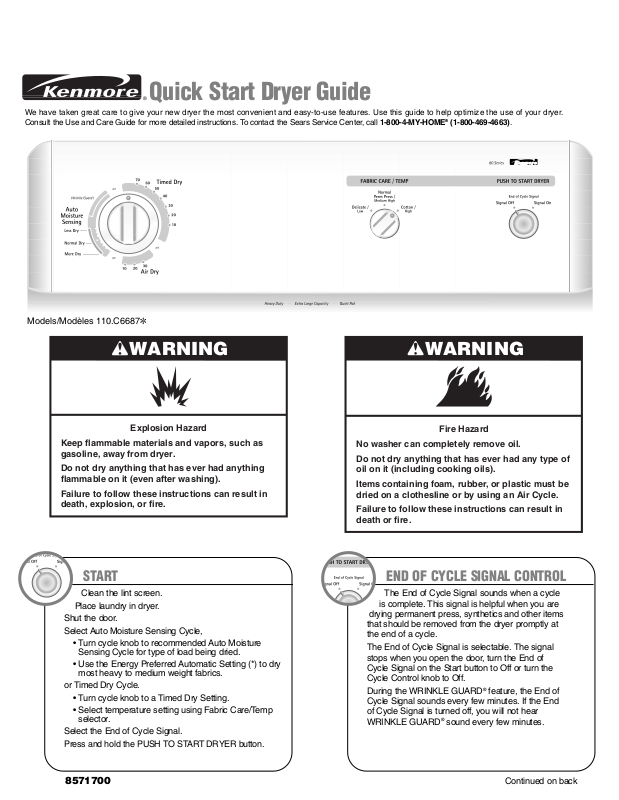

Quick Start Dryer Guide

We have taken great care to give your new dryer the most convenient and easy-to-use features. Use this guide to help optimize the use of your dryer.
Consult the Use and Care Guide for more detailed instructions. To contact the Sears Service Center, call 1-800-4-MY-HOME®(1-800-469-4663).

START

Clean the lint screen.

Place laundry in dryer.
Shut the door.
Select Auto Moisture Sensing Cycle,

• Turn cycle knob to recommended Auto Moisture
Sensing Cycle for type of load being dried.

• Use the Energy Preferred Automatic Setting (*) to dry
most heavy to medium weight fabrics.

or Timed Dry Cycle.

• Turn cycle knob to a Timed Dry Setting.

• Select temperature setting using Fabric Care/Temp

selector.

Select the End of Cycle Signal.
Press and hold the PUSH TO START DRYER button.

END OF CYCLE SIGNAL CONTROL

The End of Cycle Signal sounds when a cycle

is complete. This signal is helpful when you are

drying permanent press, synthetics and other items
that should be removed from the dryer promptly at
the end of a cycle.

The End of Cycle Signal is selectable. The signal
stops when you open the door, turn the End of
Cycle Signal on the Start button to Off or turn the
Cycle Control knob to Off.

During the WRINKLE GUARD

®

feature, the End of
Cycle Signal sounds every few minutes. If the End
of Cycle Signal is turned off, you will not hear
WRINKLE GUARD

®

sound every few minutes.

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as
gasoline, away from dryer.

Do not dry anything that has ever had anything
flammable on it (even after washing).

Failure to follow these instructions can result in
death, explosion, or fire.

WARNING

Fire Hazard
No washer can completely remove oil.
Do not dry anything that has ever had any type of

oil on it (including cooking oils).
Items containing foam, rubber, or plastic must be

dried on a clothesline or by using an Air Cycle.
Failure to follow these instructions can result in

death or fire.

8571700

6/05

© 2005 Sears Brands, LLC

®

Registered Trademark/™ Trademark/SMService Mark of Sears Brands, LLC

Printed in U.S.A

CYCLE SELECTOR (TIMER) CONTROL

Auto Moisture Sensing

When you are using the Auto Moisture Sensing Cycle, the
dryness of the load is determined by two metal strips
(sensors) located on the inside of the dryer. The metal
strips help “feel” the amount of moisture left in the clothes
as they pass. When there is moisture left in the clothes, the
Cycle Control Knob will not advance. As clothes begin to
dry, the amount of water left in the clothes decreases, and
the timer advances through the remainder of the cycle.
When the selected dryness level is reached, the dryer
goes into a cool down period of up to 10 minutes.

If the load is drier than you like, you may select a setting
closer to Less Dry the next time you dry a similar load. If a
load is not as dry as you like, you may complete drying
using a Timed cycle. You may also select a setting closer
to More Dry the next time you dry a similar load.

Timed Dry

This cycle may be used to get up to 90 minutes of heated
drying time. The heating cycle is followed by a cool down period
of up to 10 minutes.

Air Dry

You may use the Air Dry cycle to get up to 30 minutes of drying
time in room temperature air. This setting should be used for
items such as plastics, rubber and heat-sensitive fabrics.

FABRIC CARE/TEMPERATURE CONTROL

For models with a Fabric Care/Temperature Control knob, you may use this control to select the drying temperature that matches the

fabrics in your load. The following table lists suggested auto moisture sensing or timed dry settings for various loads. This is only a guide.

FABRIC CARE/
TEMPERATURE

LOAD TYPE

AUTO MOISTURE
SENSING

TIMED DRY
SETTING*

COTTON
HIGH

Heavyweight items - Quilts, towels, jeans,
cottons, bedspreads

More Dry

50 - 70
minutes

NORMAL/PERM PRESS
MEDIUM HIGH

Medium weight items - Shirts, sheets,
slacks, play clothes, cloth diapers

Normal Dry

30 - 50
minutes

DELICATE
LOW

Lightweight items – Lingerie, blouses,
dresses, synthetics and blends

Less Dry

20 - 40
minutes

*Reset time as needed to allow items to dry completely.

TROUBLESHOOTING – LONG DRY TIMES, LOAD NOT DRYING

Is the lint screen clogged with lint?

• Clean the lint screen before each load.

Before you call service...check for the following.

Is the exhaust vent or outside exhaust hood clogged with
lint?

• Lint should be cleaned out of the exhaust vent at least once
every 2 years.

See the Use and Care Guide for complete details.

WRINKLE GUARD®I

WRINKLE GUARD®I helps smooth out wrinkles that may form when clothes are not removed promptly at the end of a cycle.

WRINKLE GUARD®I continuously tumbles the load, without heat, for 30 minutes unless you open the dryer door.

During WRINKLE GUARD®I, the End of Cycle Signal will sound every 5 minutes unless the signal is turned off.
