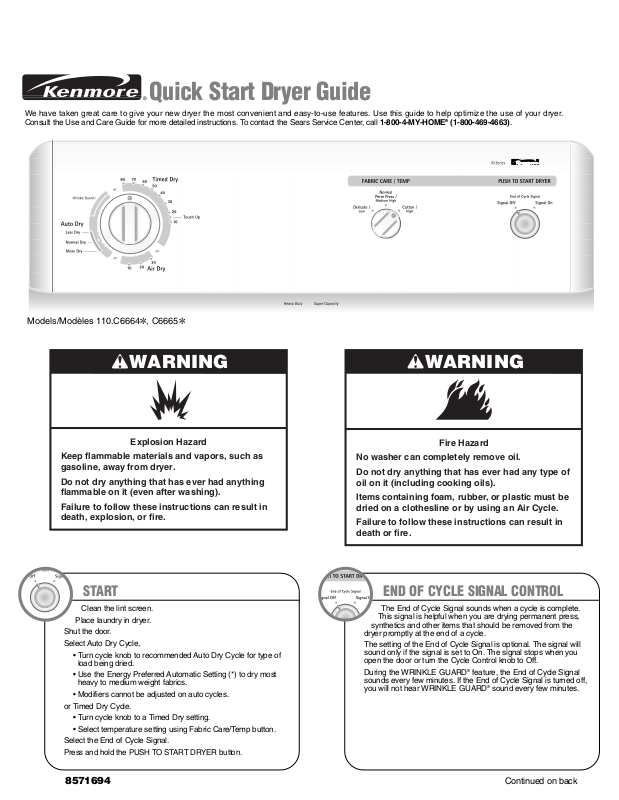

Quick Start Dryer Guide

We have taken great care to give your new dryer the most convenient and easy-to-use features. Use this guide to help optimize the use of your dryer.
Consult the Use and Care Guide for more detailed instructions. To contact the Sears Service Center, call 1-800-4-MY-HOME®(1-800-469-4663).

Models/Modèles 110.C6664✼, C6665✼

START

Clean the lint screen.

Place laundry in dryer.
Shut the door.
Select Auto Dry Cycle,

• Turn cycle knob to recommended Auto Dry Cycle for type of
load being dried.

• Use the Energy Preferred Automatic Setting (*) to dry most
heavy to medium weight fabrics.

• Modifiers cannot be adjusted on auto cycles.

or Timed Dry Cycle.

• Turn cycle knob to a Timed Dry setting.

• Select temperature setting using Fabric Care/Temp button.

Select the End of Cycle Signal.
Press and hold the PUSH TO START DRYER button.

END OF CYCLE SIGNAL CONTROL

The End of Cycle Signal sounds when a cycle is complete.

This signal is helpful when you are drying permanent press,

synthetics and other items that should be removed from the

dryer promptly at the end of a cycle.
The setting of the End of Cycle Signal is optional. The signal will

sound only if the signal is set to On. The signal stops when you
open the door or turn the Cycle Control knob to Off.

During the WRINKLE GUARD

®

feature, the End of Cycle Signal
sounds every few minutes. If the End of Cycle Signal is turned off,
you will not hear WRINKLE GUARD

®

sound every few minutes.

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as
gasoline, away from dryer.

Do not dry anything that has ever had anything
flammable on it (even after washing).

Failure to follow these instructions can result in
death, explosion, or fire.

WARNING

Fire Hazard
No washer can completely remove oil.
Do not dry anything that has ever had any type of

oil on it (including cooking oils).
Items containing foam, rubber, or plastic must be

dried on a clothesline or by using an Air Cycle.
Failure to follow these instructions can result in

death or fire.

8571694

6/05

© 2005 Sears Brands, LLC

®

Registered Trademark/™ Trademark/SMService Mark of Sears Brands, LLC

Printed in U.S.A

CYCLE SELECTOR (TIMER) CONTROL

Auto Dry

During the Auto Dry Cycle, the exhaust air temperature of the
dryer determines the drying time and dryness levels. A thermostat
signals the Cycle Control Knob when to move into Cool Down.
The drying time for an Auto Dry Cycle depends on load type and
load size. When drying a large or heavy load, the Cycle Control
Knob may take a long time before it begins to advance into Cool
Down. The Auto Dry Cycle takes the guesswork out of drying time
and enhances fabric care. The amount of time that is displayed is
the estimated time remaining in the cycle.

The Automatic Cycle may be used for most loads. This cycle gives
the best drying in the shortest time. Drying time varies according
to the type of fabric, size of the load, and dryness setting.

Dryness is determined by the exhaust temperature of the dryer.
When the dryness selected is reached, the dryer goes into a
5-minute (approximately) cool down period.

The Cycle Selector (Timer) Control may be set to NORMAL
DRY (*), which is good for most fabrics. At the end of the cycle,
you may check the dryness of the load.

If the load is drier than you like, you may select a setting closer to
Less Dry the next time you dry a similar load.

If a load is not as dry as you like, you may complete drying using
a Timed cycle. You may select a setting closer to More Dry the
next time you dry a similar load.

Timed Dry

This cycle may be used to get up to 80 minutes of heated drying time.
The heating cycle is followed by a cool down period of up to
10 minutes.

Air Dry

You may use the Air Dry cycle to get up to 30 minutes of drying time in
room temperature air. This setting should be used for items such as
plastics, rubber and heat-sensitive fabrics.

Touch Up

This cycle may be used to help smooth synthetic and permanent press
clothes that are clean but wrinkled from being crowded in a closet or
suitcase. This setting provides about 15 minutes of heated tumbling
followed by a cool down period of up to 10 minutes.

FABRIC CARE/TEMPERATURE CONTROL

For models with a Fabric/Temperature Control knob, you may use this control to select the drying temperature that matches the fabrics in your load.

The following table lists suggested auto moisture or timed dry settings for various loads. This is only a guide.

FABRIC CARE/ TEMPERATURE LOAD TYPE

AUTO MOISTURE SENSING

TIMED DRY
SETTING*

COTTON
HIGH

Heavyweight items - Quilts, towels, jeans,
cottons, bedspreads

More Dry

50 - 70
minutes

NORMAL/PERM PRESS
MEDIUM HIGH

Medium weight items - Shirts, sheets, slacks,
play clothes, cloth diapers

Normal Dry

30 - 50
minutes

DELICATE
LOW

Lightweight items – Lingerie, blouses, dresses,
synthetics and blends

Less Dry

20 - 40
minutes

*Reset time as needed to allow items to dry completely.

TROUBLESHOOTING – LONG DRY TIMES, LOAD NOT DRYING

Is the lint screen clogged with lint?

• Clean the lint screen before each load.

Before you call service...check for the following.

Is the exhaust vent or outside exhaust hood clogged with lint?

• Lint should be cleaned out of the exhaust vent at least once every
2 years.

See the Use and Care Guide for complete details.

WRINKLE GUARD®I

WRINKLE GUARD®I helps smooth out wrinkles that may form when clothes are not removed promptly at the end of a cycle. WRINKLE

GUARD®I continuously tumbles the load, without heat, for 30 minutes unless you open the dryer door.

During WRINKLE GUARD®I, the End of Cycle Signal will sound every 5 minutes unless the signal is turned off.
