Kenmore 11092380200, 11092389200, 11092480200, 11092582220, 11092596100 Installation Guide

...

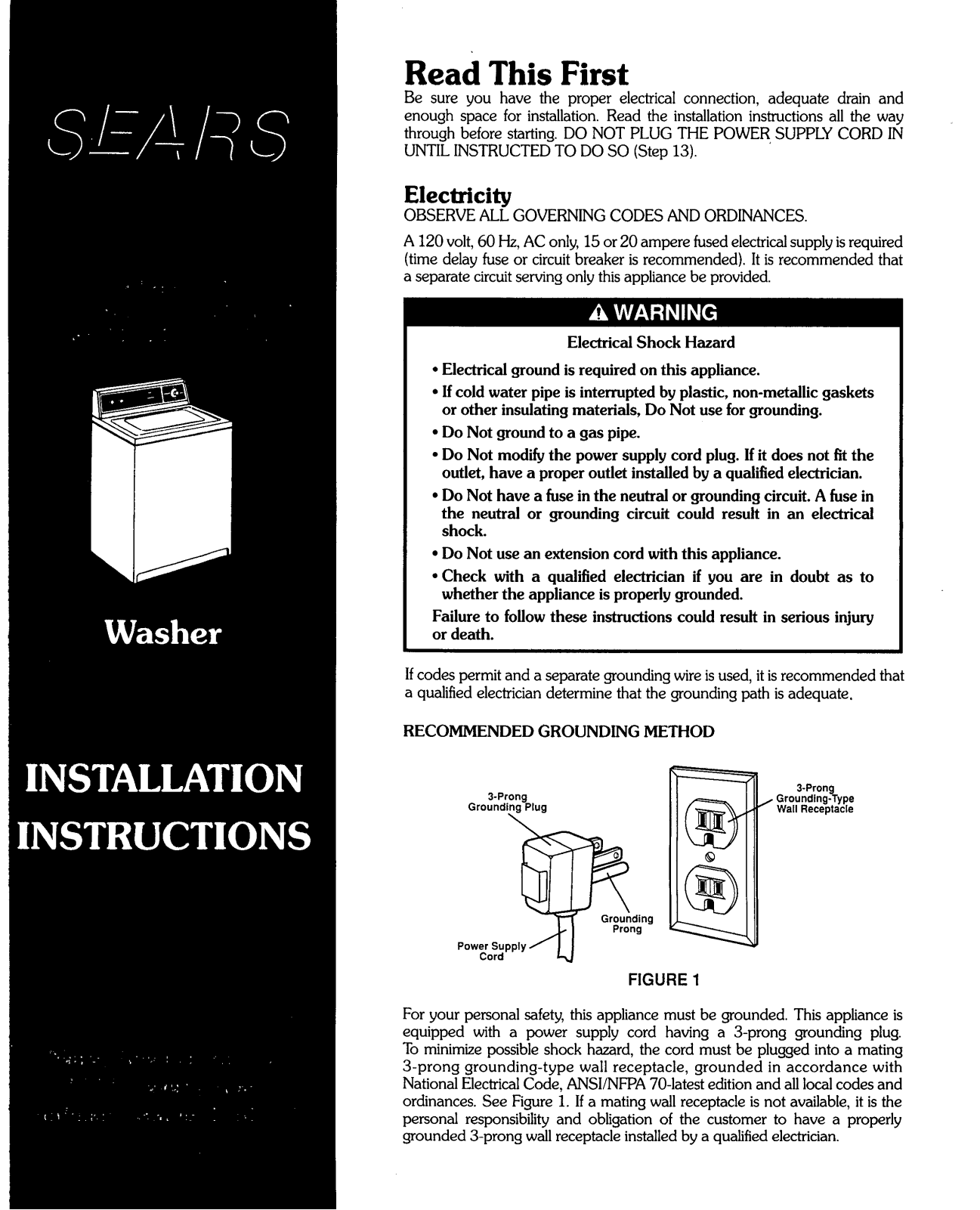

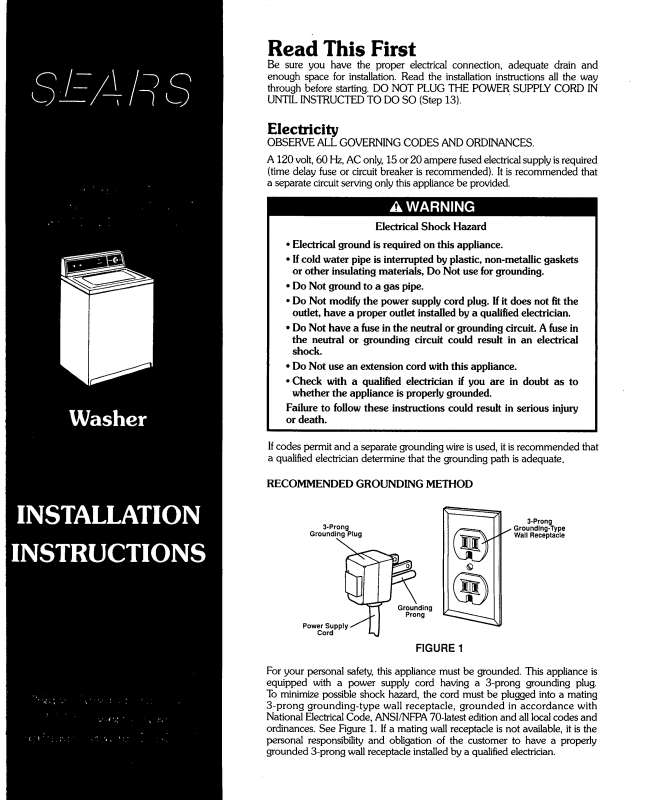

Read This First
Be sure you have the proper electrical connection, adequate drain and enough space for installation. Read the installation instructions all the way through before starting. DO NOT PLUG THE POWER SUPPLY CORD IN UNTIL INSTRUCTED TO DO SO (Step 13).
Electricity
OBSERVE ALL GOVERNING CODES AND ORDINANCES. A 120 volt, 60 Hz, AC only, 15 or 20 ampere fused electrical supply is required
Electrical Shock Hazard
Electrical ground is required on this appliance.
If cold water pipe is interrupted by plastic, non-metallic gaskets
or other insulating materials, Do Not use for grounding.
Do Not ground to a gas pipe.
Do Not modify the power supply cord plug. If it does not fit the
outlet, have a proper outlet installed by a qualified electrician.
Do Not have a fuse in the neutral or grounding circuit. A fuse in
the neutral or grounding circuit could result in an electrical
shock.
Do Not use an extension cord with this appliance.
Check with a qualified electrician if you are in doubt as to whether the appliance is properly grounded.
Failure to follow these instructions could result in serious injury
or death.
i i
a qualified electrician determine that the grounding path is adequate.
RECOMMENDED GROUNDING METHOD
3-Prong
Grounding Plug
Power Su
Cord
Grounding
Prong
3-Prong
e
FIGURE 1
For your personal safety, this appliance must be grounded. This appliance is equipped with a power supply cord having a 3-prong grounding plug. To minimize possible shock hazard, the cord must be plugged into a mating 3-prong grounding-type wall receptacle, grounded in accordance with
National Electrical Code, ANSI/NFPA 70-1atest edition and all local codes and ordinances. See Figure 1. If a mating wall receptacle is not available, it is the personal responsibility and obligation of the customer to have a properly grounded 3-prong wall receptacle installed by a qualified electrician.

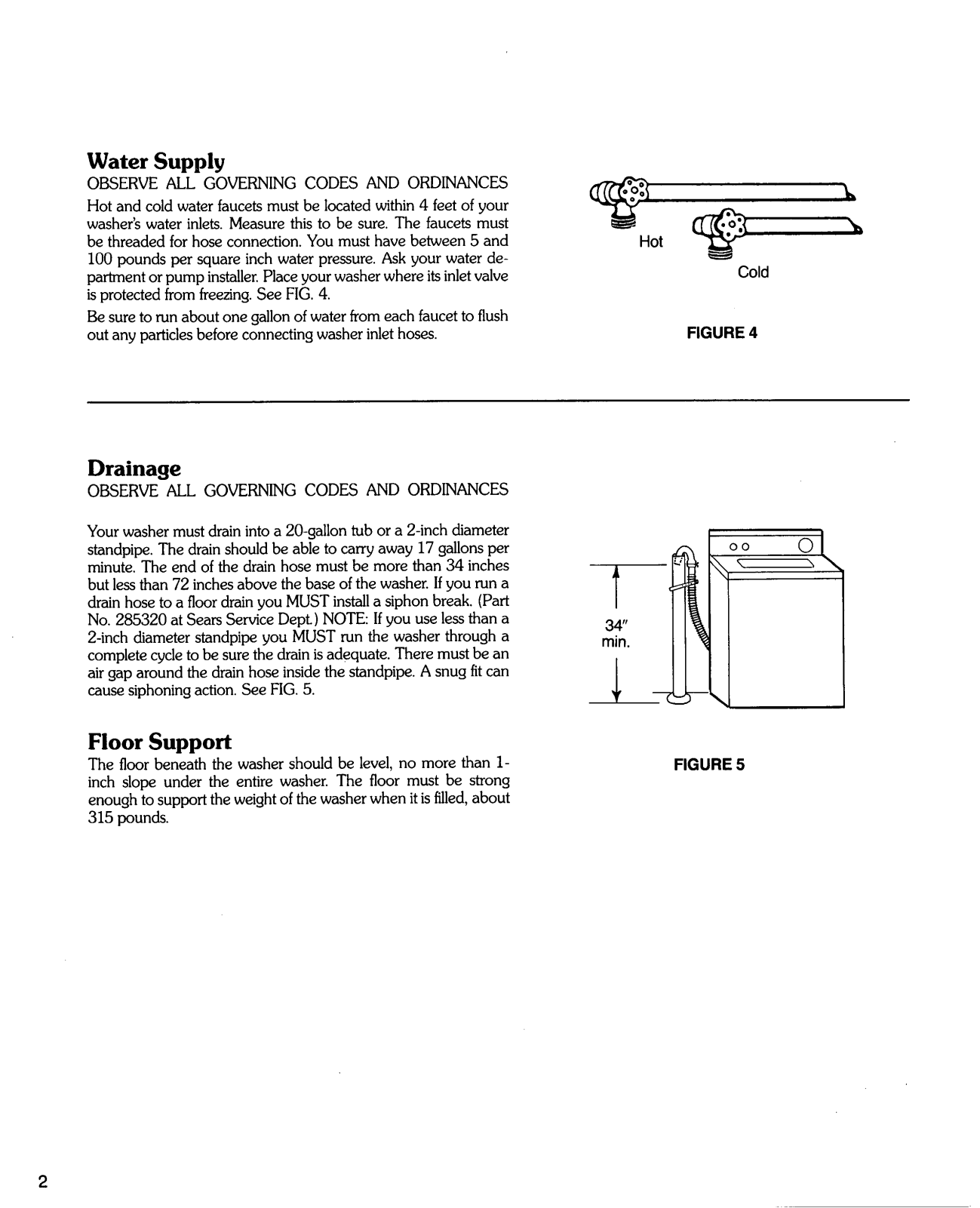

Water Supply
OBSERVE ALL GOVERNING CODES AND ORDINANCES Hot and cold water faucets must be located within 4 feet of your
washer's water inlets. Measure this to be sure. The faucets must be threaded for hose connection. You must have between 5 and
100 pounds per square inch water pressure. Ask your water de- parlment or pump installer. Place your washer where itsinlet valve is protected from freezing. See FIG. 4.
Be sure to run about one gallon of water from each faucet to flush out any particles before connecting washer inlet hoses.
Drainage
OBSERVE ALL GOVERNING CODES AND ORDINANCES
Your washer must drain into a 20-gallon tub or a 2-inch diameter standpipe. The drain should be able to carry away 17 gallons per
minute. The end of the drain hose must be more than 34 inches but less than 72 inches above the base of the washer. Ifyou run a
drain hose to a floor drain you MUST install a siphon break. (Part No. 285320 at Sears Service Dept) NOTE: If you use less than a 2-inch diameter standpipe you MUST run the washer through a complete cycle to be sure the drain is adequate. There must be an air gap around the drain hose inside the standpipe. A snug fitcan
cause siphoning action. See FIG. 5.
k
%.
Hot
Cold
FIGURE 4
oo or,,
34"
min.
Floor Support
The floor beneath the washer should be level, no more than 1-
inch slope under the entire washer. The floor must be strong
enough to support the weight of the washer when it is filled, about
315 pounds.
2
FIGURE 5

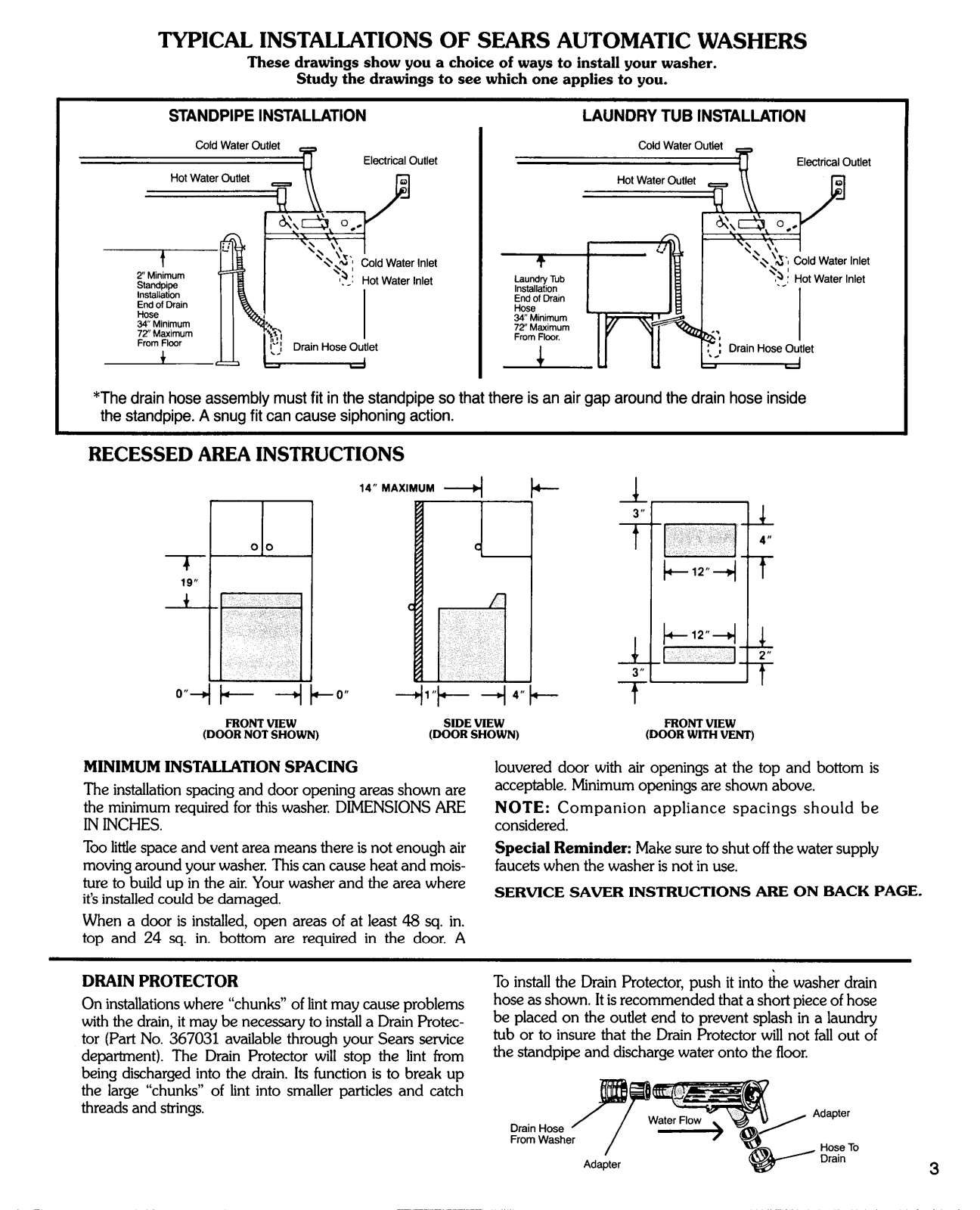

TYPICAL INSTALLATIONS OF SEARS AUTOMATIC WASHERS
These drawings show you a choice of ways to install your washer.
Study the drawings to see which one applies to you.
STANDPIPE INSTALLATION LAUNDRY TUB INSTALLATION
Hot Water Outlet
2" Minimum
Standpipe Installation
End of Drain Hose
34" Minimum 72" Maximum
From Floor
Cold WaterOuUet
-_ Electrical Outlet
,,_", Cold Water Inlet ,._.'. Hot Water Inlet
_"_ Drain Hose Outlet
._, ,_1
Laundry Tub Installation
End of Drain Hose 34" Minimum 72' Maximum From Floor,
l
Cold Water Outlet
Hot Water Outlet
. i Hot Water Inlet
Drain Hose Outlet
*The drain hose assembly must fit in the standpipe so that there is an air gap around the drain hose inside
the standpipe. A snug fit can cause siphoning action.
RECESSED AREA INSTRUCTIONS
14" MAXIMUM -_b._
3"
Electrical Outlet
", Cold Water Inlet
,._J
p--
FRONT VIEW
(DOOR NOT SHOWN)
0"
SIDE VIEW
(DOOR SHOWN)
MINIMUM INSTALLATION SPACING
The installation spacing and door opening areas shown are the minimum required for this washer. DIMENSIONS ARE IN INCHES.
Too little space and vent area means there is not enough air moving around your washer. This can cause heat and mois-
ture to build up in the air. Your washer and the area where it's installed could be damaged.
When a door is installed, open areas of at least 48 sq. in. top and 24 sq. in. bottom are required in the door. A
DRAIN PROTECTOR
On installations where "chunks" of lint may cause problems with the drain, itmay be necessary to install a Drain Protec-
tor (Part No. 367031 available through your Sears service department). The Drain Protector will stop the lint from being discharged into the drain. Its function is to break up the large "chunks" of lint into smaller particles and catch
threads and sl3"ings.
2"
3"
t
t
FRONT VIEW
(DOOR WITH VENT)
louvered door with air openings at the top and bottom is acceptable. Minimum openings are shown above.
NOTE: Companion appliance spacings should be considered.
Special Reminder: Make sure to shut off the water supply faucets when the washer is not in use.

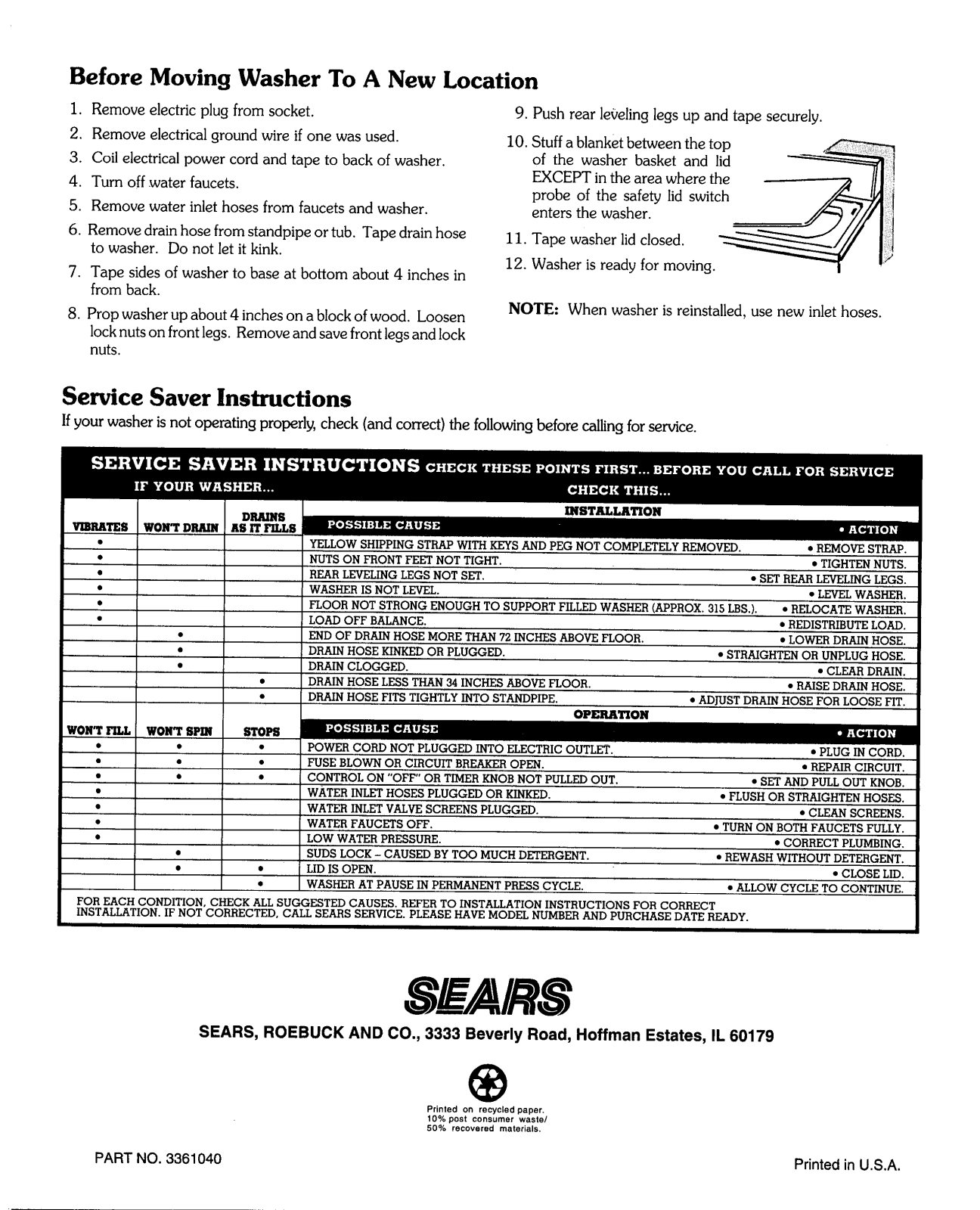

SERVICE SAVER INSTRUCTIONS ARE ON BACK PAGE.
To install the Drain Protector, push it into the washer drain hose as shown. Itis recommended that a short piece of hose
be placed on the outlet end to prevent splash in a laundry tub or to insure that the Drain Protector will not fallout of
the standpipe and discharge water onto the floor.
Drain Hose Water Flow ) Adapter From Washer Hose To
Adapter Drain

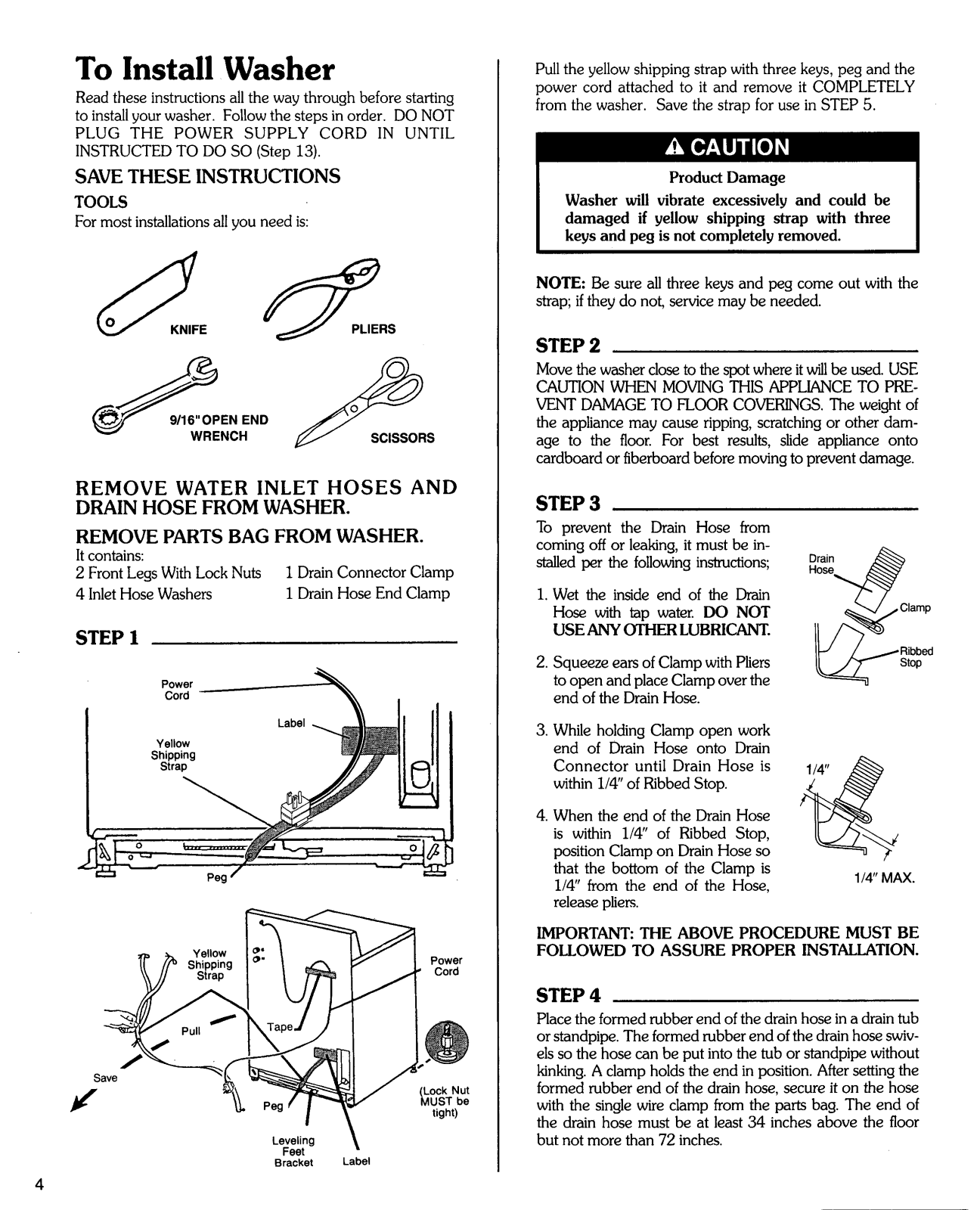

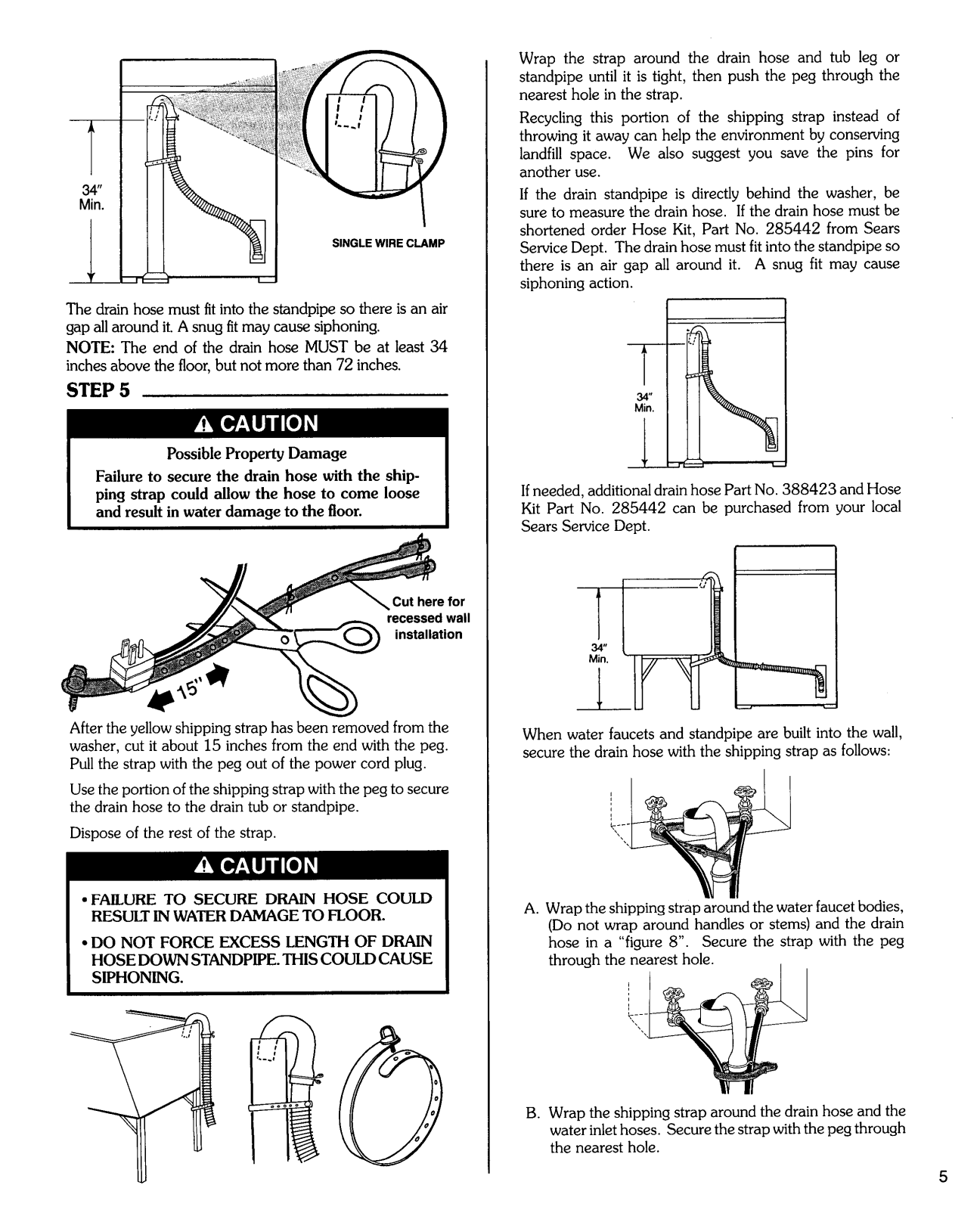

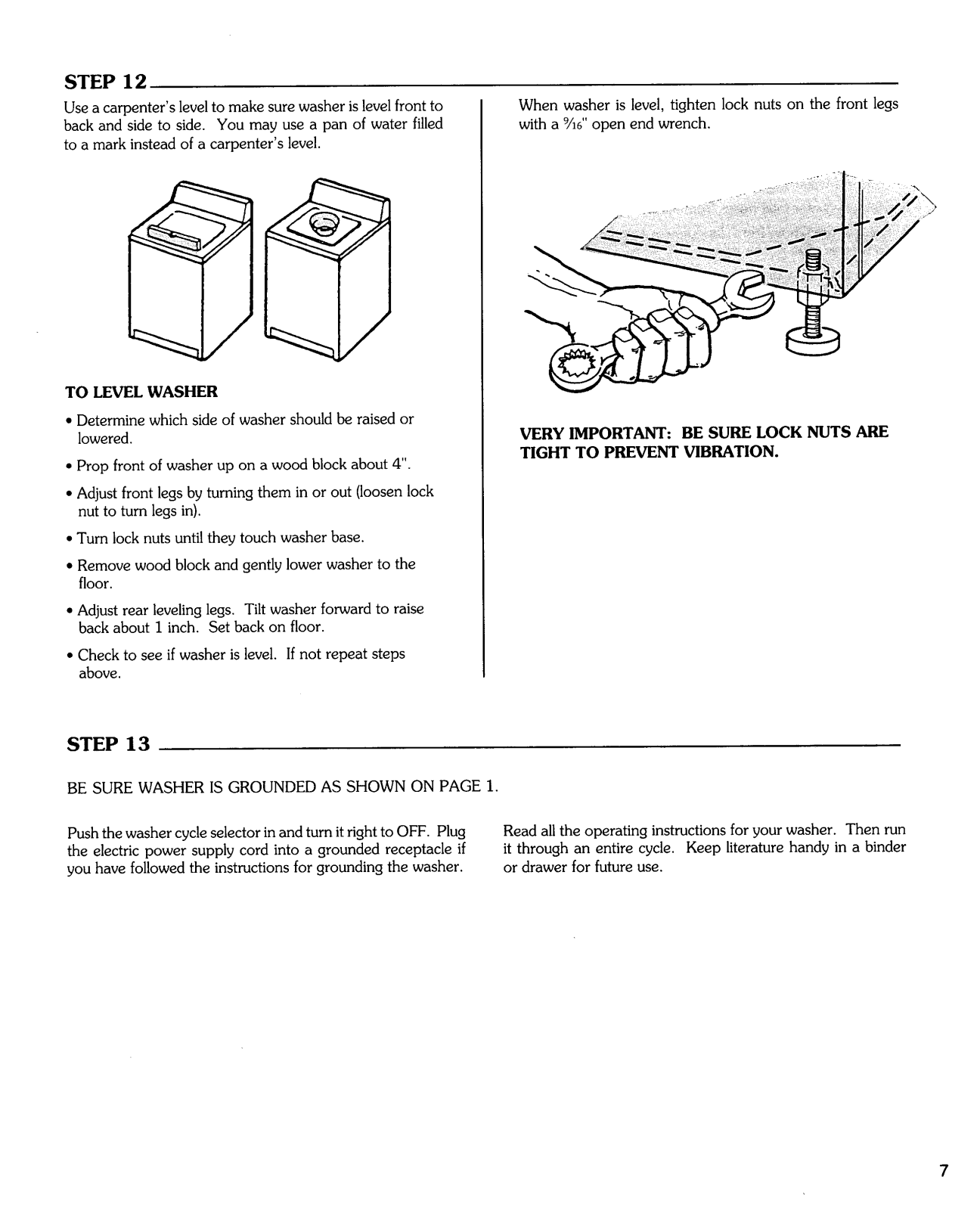

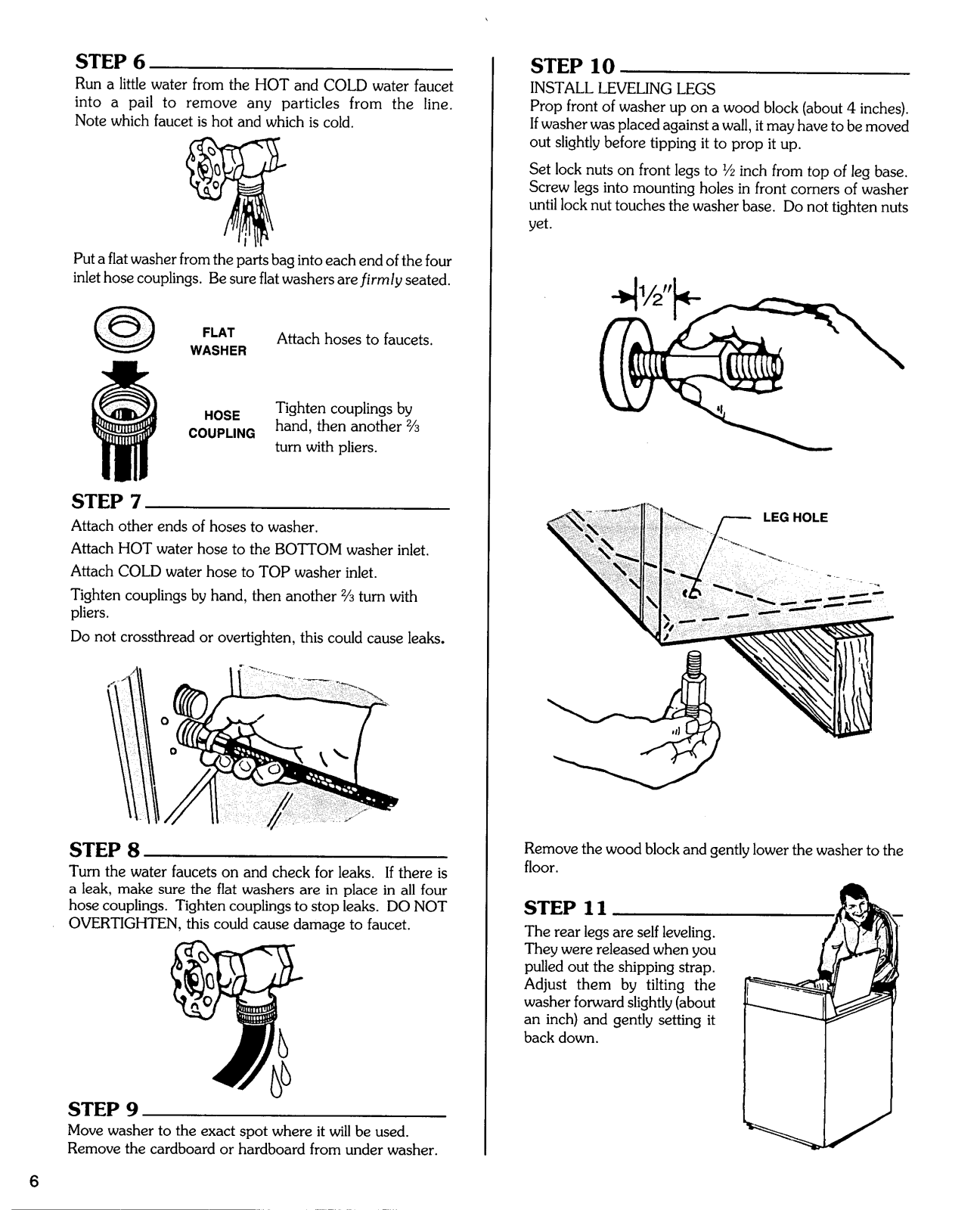

3
