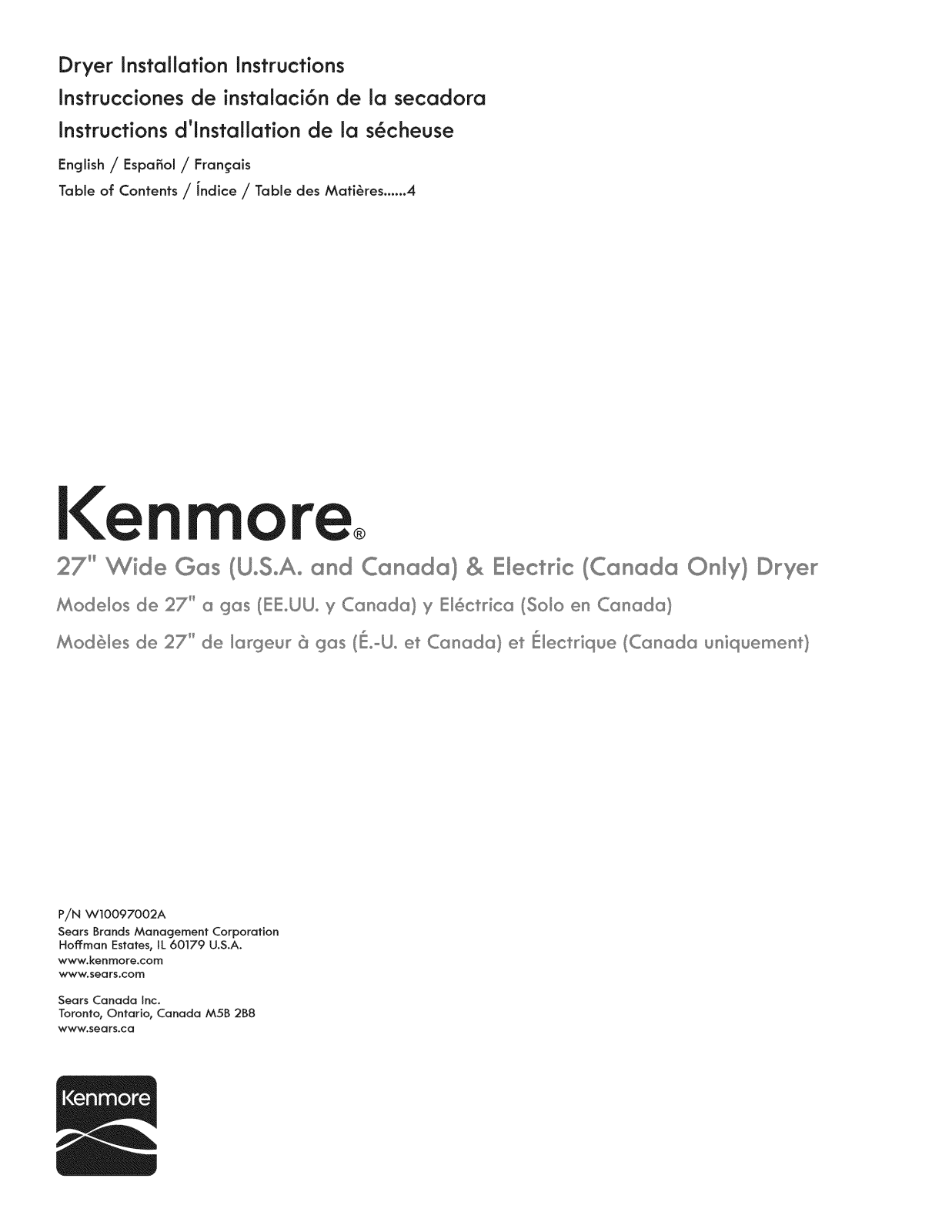

Kenmore 11076002010, 11076002011, 11076002012, 11078002010, 11078002011 Installation Guide

Dryer Installation instructions

Instrucciones de instalaci6n de la secadora
instructions d'lnstallation de la s_cheuse

EngJish/ Espa_oJ/ Francois

Table of Contents / {ndice / Table des Mati_res ......4

Ke

27 °°Wide Gas/UoSoAo and Canada/& Electric/Canada Only / Dryer

Moddos de 27" a gas (EEoUU_y Canada} y El@ctrica ($olo en Canada}
Mod@Wesde 27" de largeur @gas/Eo,,,,,,,U_et Canada} et El÷ctriqu÷ (Canada uniquement}

P/N W10097002A
Sears Brands Management Corporation

Haft:man Estates, IL 60179 U.S.A.
www.kenmore.com
www.sears.com

Sears Canada inc.

Toronto, Ontario, Canada M5B 2B8

www.sears.ca

INSTALLATION NOTES NOTES CONCERNANT NOTAS SOBRE LA INSTALACI6N

LqNSTALLATION

Date of purchase:
Date of installation:

Installer:
Model number:

Serial number:

Date d'achat :
Date d'installation :
Installateur :

Num_ro de module :
Num_ro de s_rie :

Fecha de compra:
Fecha de instalaci6n:

Instalador:

N_mero de modelo:
N_mero de serie:

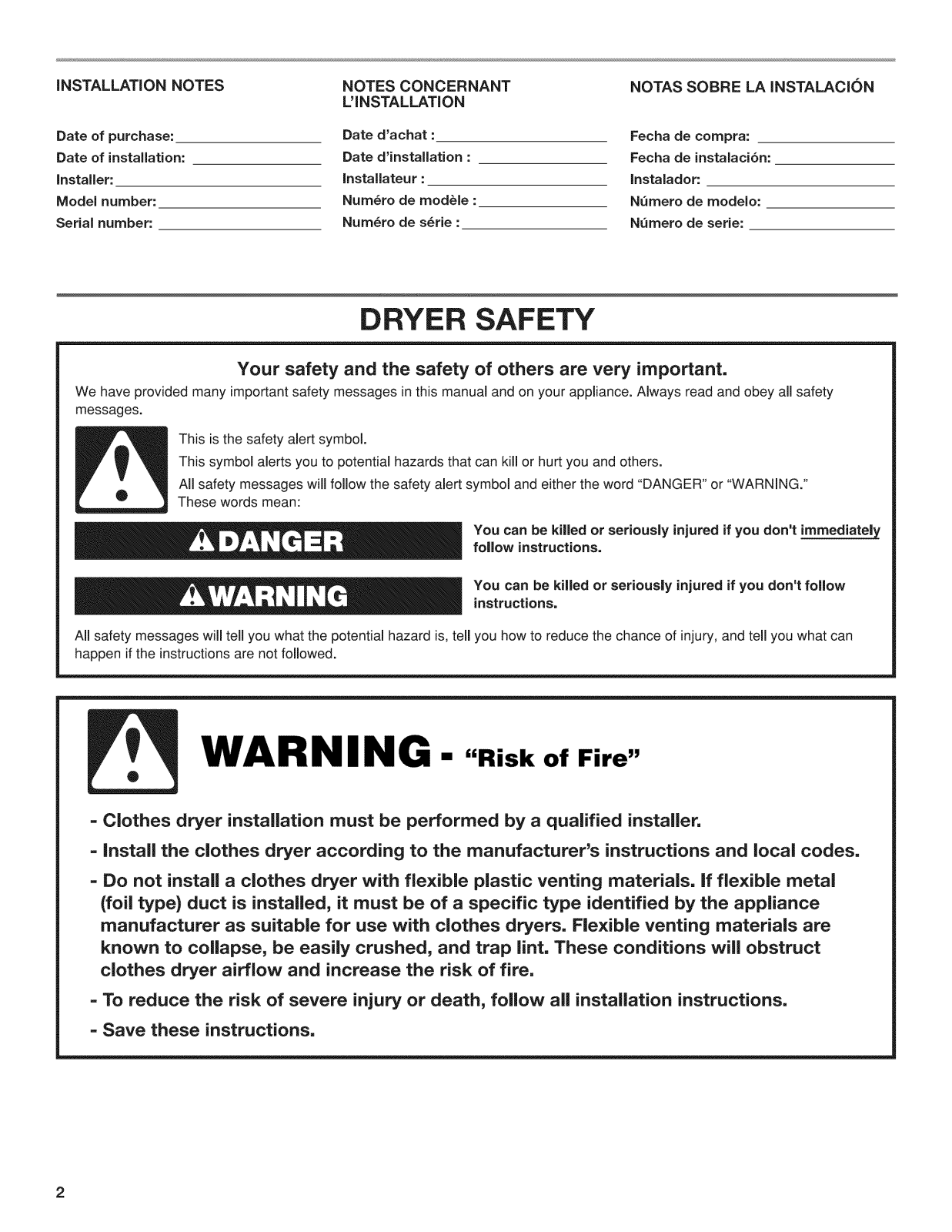

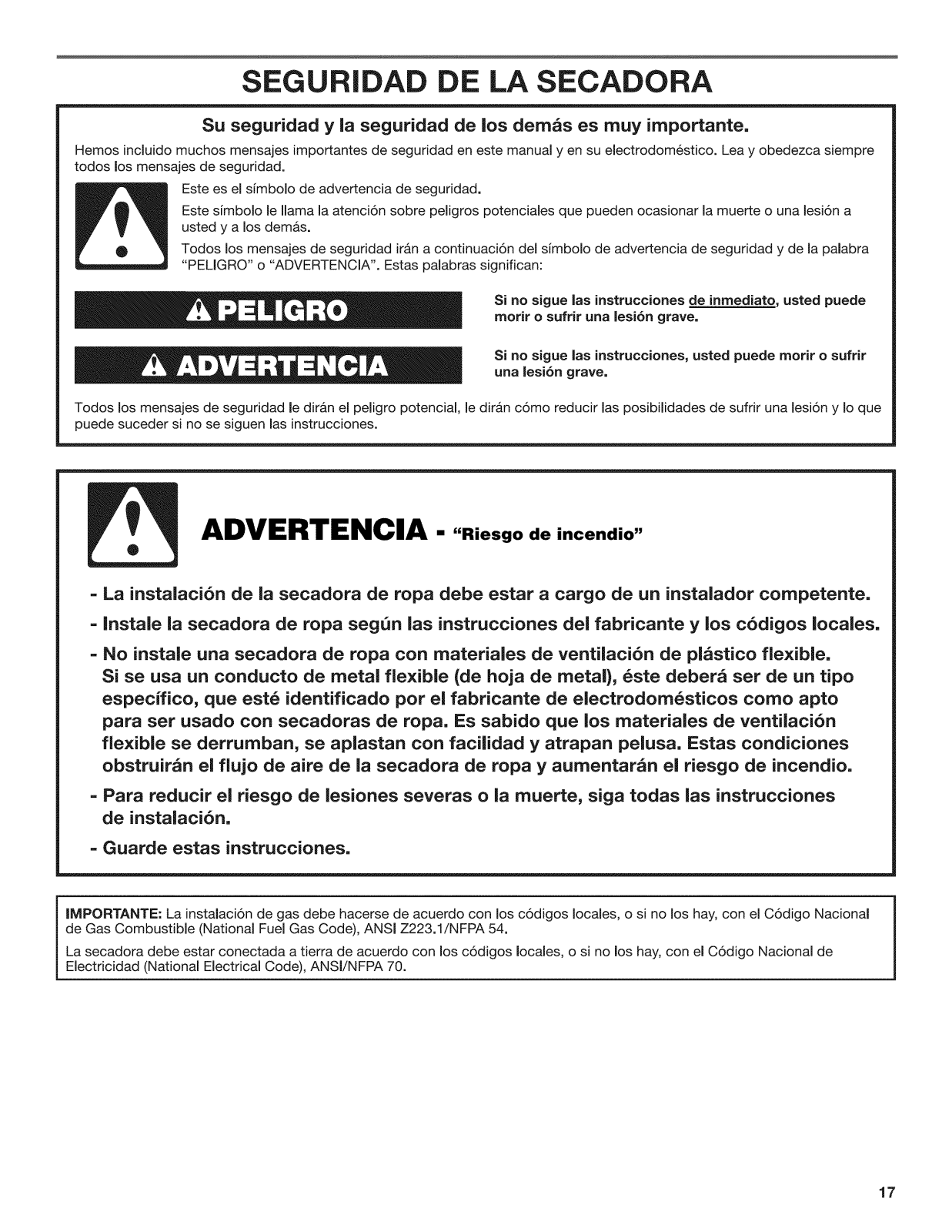

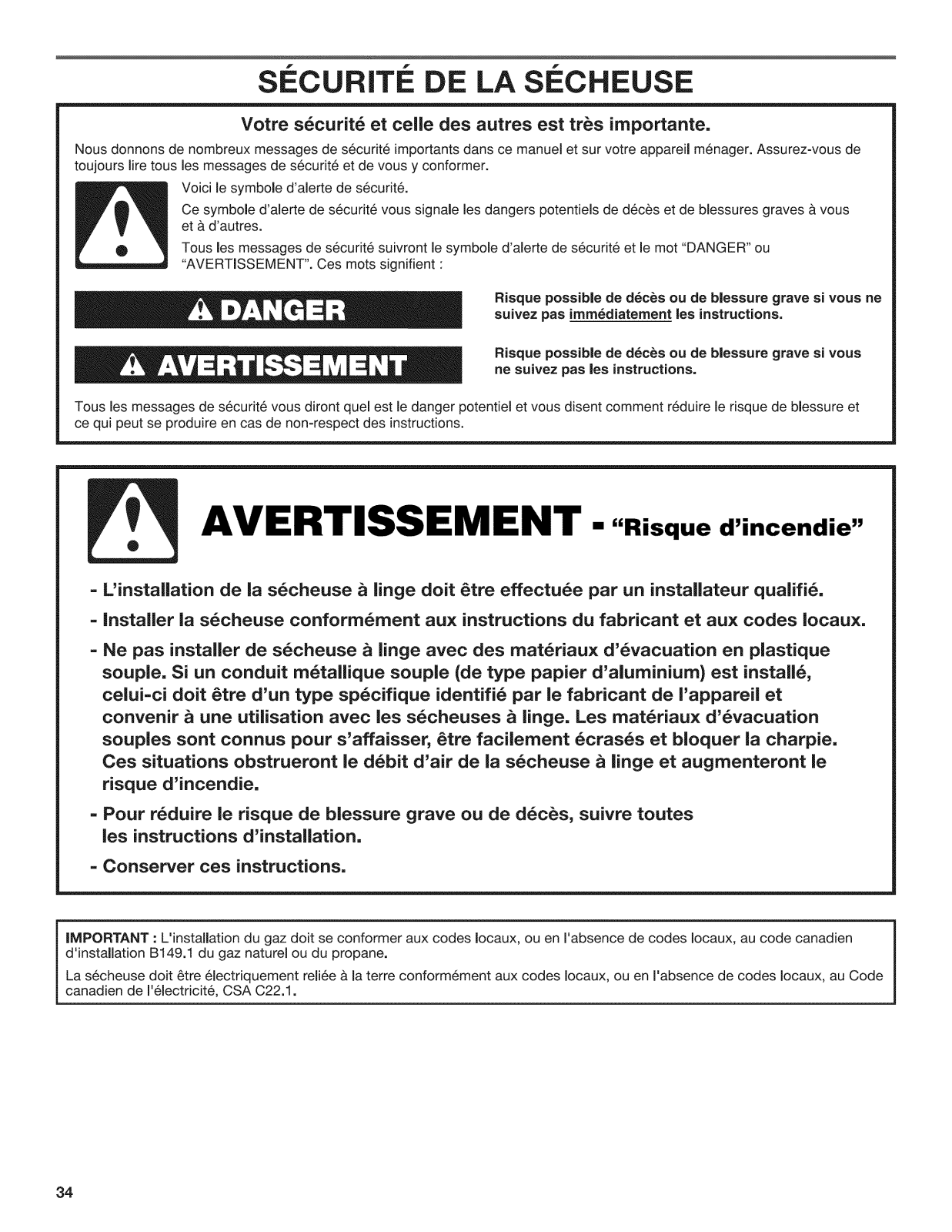

DRYER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.

This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

You can be killed or seriously injured if you don't immediately
follow instructions.

You can be killed or seriously injured ifyou don't follow

instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen ifthe instructions are not followed.

WARNING - "Risk of Fire"

- Clothes dryer installation must be performed by a qualified installer,

- Install the clothes dryer according to the manufacturer's instructions and local codes.

- Do not install a clothes dryer with flexible plastic venting materials, if flexible metal
(foil type) duct is installed, it must be of a specific type identified by the appliance

manufacturer as suitable for use with clothes dryers. Flexible venting materials are
known to collapse, be easily crushed, and trap lint. These conditions will obstruct

clothes dryer airflow and increase the risk of fire.

- To reduce the risk of severe injury or death, follow all installation instructions.

- Save these instructions.

2

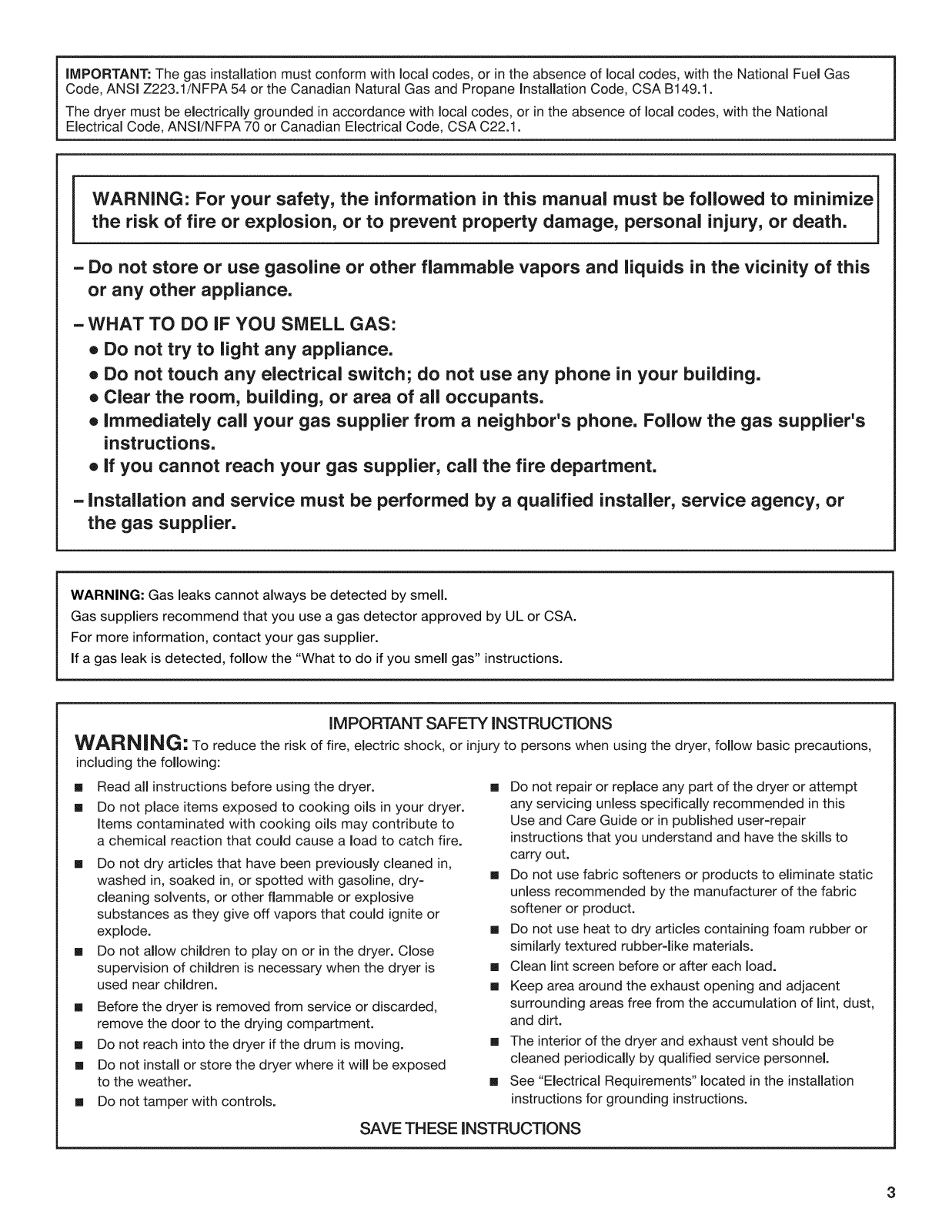

iMPORTANT." The gas installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1iNFPA 54 or the Canadian Natural Gas and Propane Installation Code, CSA B149.1.

The dryer must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National
Electrical Code, ANSIiNFPA 70 or Canadian Electrical Code, CSA C22.1.

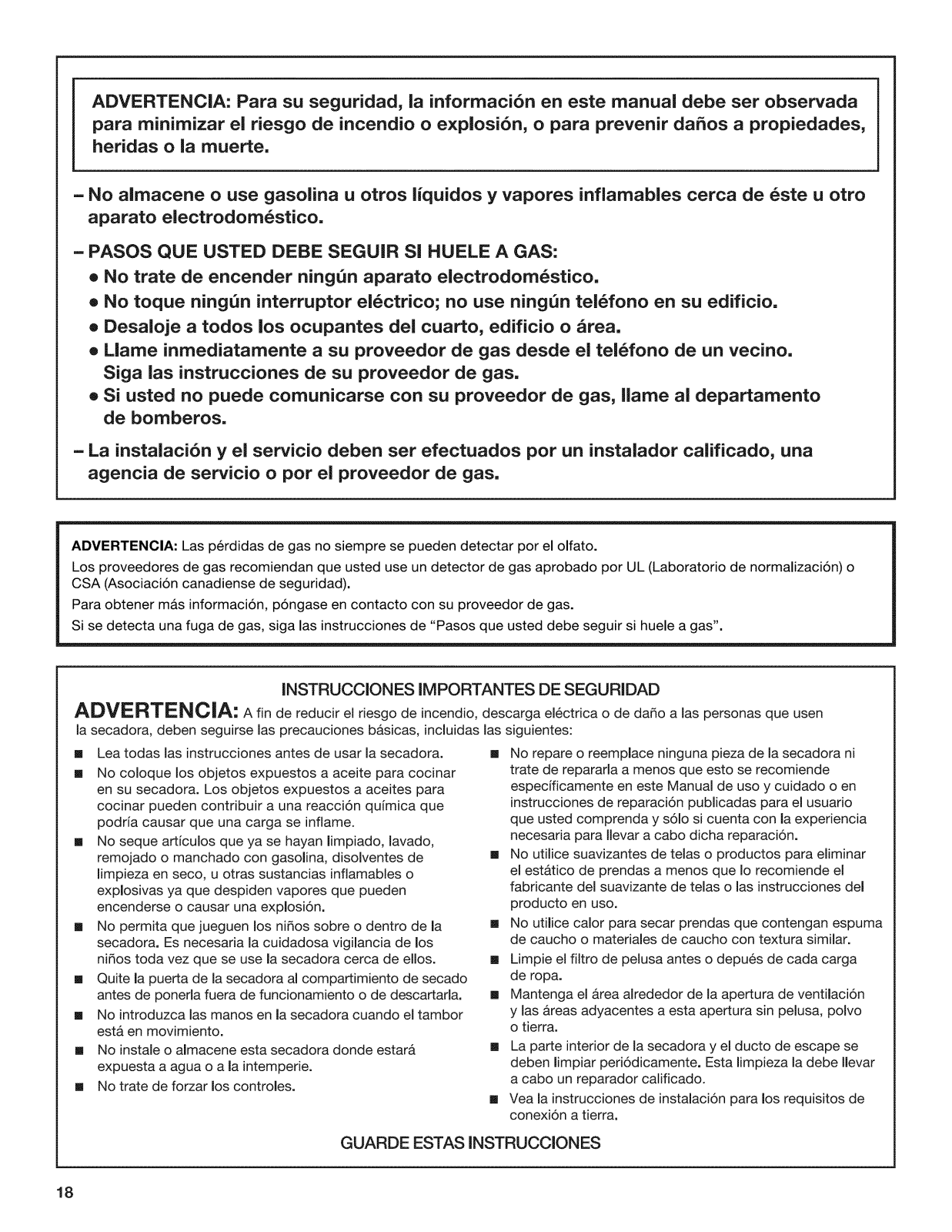

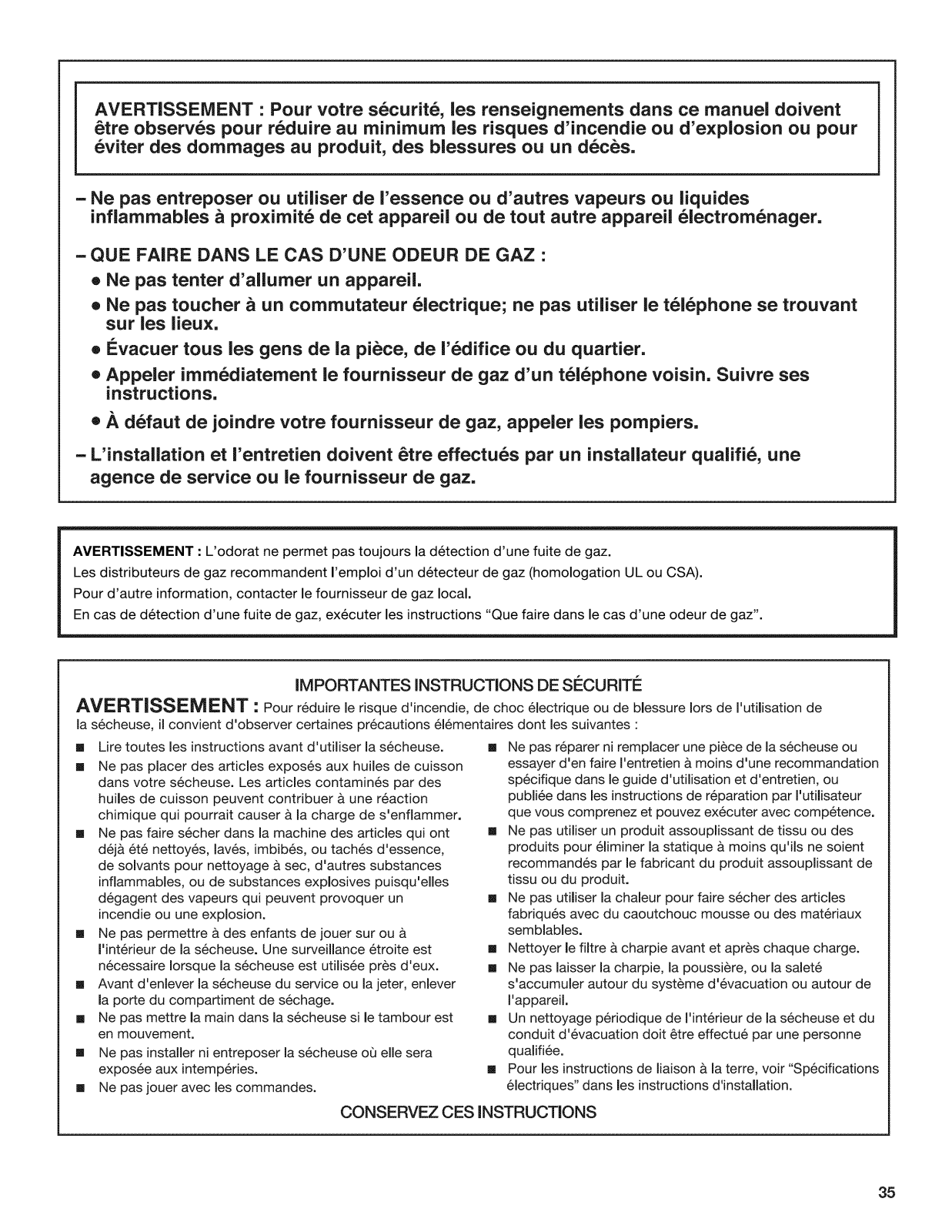

WARNING: For your safety, the information in this manual must be followed to minimize
the risk of fire or explosion, or to prevent property damage, personal injury, or death.

- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this

or any other appliance.

- WHAT TO DO iF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Clear the room, building, or area of all occupants.
e Immediately carl your gas supplier from a neighbor's phone. Follow the gas supplier's

instructions.

• if you cannot reach your gas supplier, call the fire department.

- Installation and service must be performed by a qualified installer, service agency, or
the gas supplier.

WARNING: Gas leaks cannot always be detected by smell.
Gas suppliers recommend that you use a gas detector approved by UL or CSA.

For more information, contact your gas supplier.
If a gas leak is detected, follow the "What to do if you smell gas" instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the dryer, follow basic precautions,

including the following:

[] Read all instructions before using the dryer.
[] Do not place items exposed to cooking oils in your dryer.

Items contaminated with cooking oils may contribute to

a chemical reaction that could cause a load to catch fire.

[] Do not dry articles that have been previously cleaned in,

washed in, soaked in, or spotted with gasoline, dry-
cleaning solvents, or other flammable or explosive
substances as they give off vapors that could ignite or
explode.

[] Do not allow children to play on or in the dryer. Close

supervision of children is necessary when the dryer is
used near children.

[] Before the dryer is removed from service or discarded,

remove the door to the drying compartment.

[] Do not reach into the dryer if the drum is moving.
[] Do not install or store the dryer where it will be exposed

to the weather.

[] Do not tamper with controls.

SAVE THESE INSTRUCTIONS

[] Do not repair or replace any part of the dryer or attempt

any servicing unless specifically recommended in this
Use and Care Guide or in published user=repair

instructions that you understand and have the skills to
carry out.

[] Do not use fabric softeners or products to eliminate static

unless recommended by the manufacturer of the fabric
softener or product.

[] Do not use heat to dry articles containing foam rubber or

similarly textured rubber-like materials.

[] Clean lint screen before or after each load.
[] Keep area around the exhaust opening and adjacent

surrounding areas free from the accumulation of lint, dust,
and dirt.

[] The interior of the dryer and exhaust vent should be

cleaned periodically by qualified service personnel.

[] See "Electrical Requirements" located in the installation

instructions for grounding instructions.

In the State of Massachusetts, the following installation instructions apply:

[] Installations and repairs must be performed by a qualified or licensed contractor, plumber, or gasfitter qualified or licensed by

the State of Massachusetts.

[] If using a ball valve, it shall be a T-handle type.
[] A flexible gas connector, when used, must not exceed 3 feet.

State of California Proposition 65 Warnings:
WARNING: This product contains a chemical known to the State of California to cause cancer.

WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm.

IMPORTANT SAFETY INSTRUCTIONS

When discarding or storing your old clothes dryer, remove the door.

SAVE THESE INSTRUCTIONS

Tabme of Contents

DRYER SAFETY ................................................................. 2

INSTALLATION REQUIREMENTS ..................................... 5

Tools and Parts ..................................................................... 5

Location Requirements ....................................................... 6

Install Leveling Legs ............................................................ 7

ELECTRIC DRYER POWER HOOKUP-CANADA ONLY ............ 7

Electrical Requirements ...................................................... 7

GAS DRYER POWER HOOKUP ........................................... 8

Electrical Requirements ...................................................... 8

Gas Supply Requirements ................................................... 8

VENTING ..................................................................................... 10

Venting Requirements ........................................................ 10

Plan Vent System ................................................................ 11

Venting Kits ......................................................................... 11

Install Vent System ............................................................. 12

Make Gas Connection ....................................................... 13

Connect Vent ...................................................................... 13

Level Dryer .......................................................................... 14

Complete installation Checklist ........................................ 14

Reverse Door Swing (Optional} ......................................... 15

Troubleshooting .................................................................. 16

SEGURIDAD DE LA SECADORA .................................... 17

REQUISITOS DE INSTALACION ..................................... 19

Herramientas y piezas ....................................................... 19

Requisitos de ubicaci6n .................................................... 20

Instalaci6n de las patas niveladoras ................................ 21

CONEXION DEL SUMINISTRO DE LA SECADORA

ELleCTRICA=SOLO EN CANADA .............................................. 22

Requisitos el_ctricos ......................................................... 22

CONEXION DE SUMINISTRO DE LA SECADORA A GAS ...... 23

Requisitos el_ctricos ......................................................... 23

Requisitos del suministro de gas ..................................... 24

Table des mati res

SF:CURIT¢: DE LA SI=CHEUSE ........................................ 34

EXIGENCES D'INSTALLATION ....................................... 36

Outillage et pi_ces ............................................................. 36

Exigences d'emplacement ................................................ 37

installation des pieds de nivellement ............................... 38

RACCORDEMENT A UALIMENTATION leLECTRIQUE
DE LA SI-CHEUSE ELECTRIQUE - CANADA SEULEMENT .. 39

Specifications _lectriques ................................................. 39

RACCORDEMENT D'UNE SECHEUSE A GAZ ........................ 40

Specifications _lectriques ................................................. 40

Specifications de I'alimentation en gaz ........................... 40

VENTILACION .......................................................................... 25

Requisitos de ventilaci6n ................................................ 25

Planificaci6n del sistema de ventilaci6n ........................ 26

Juegos de ventilaci6n ...................................................... 27

Instalaci6n del sistema de ventilaci6n ........................... 28

Conexi6n del suministro de gas ..................................... 29

Conexi6n del ducto de escape ....................................... 30

Nivelaci6n de la secadora ............................................... 30

Lista de control de la instalaci6n terminada ................. 31

Cambio del sentido de abertura

de la puerta (opcional) .................................................... 31

Soluci6n de problemas ................................................... 33

L'i_VACUATION .......................................................................... 42

Exigences concernant I'_vacuation ................................ 42

Planification du syst_me d'_vacuation ........................... 43

Trousses d'_vacuation ...................................................... 44

installation du circuit d'_vacuation ................................. 45

Raccordement au gaz ....................................................... 45

Raccordement du conduit d'6vacuation ......................... 46

R_glage de I'aplomb de la s_cheuse ............................... 47

Achever I'installation =liste de v_rification ..................... 47

inversion du sens de I'ouverture de la porte (facultatif}.. 48

D_pannage ......................................................................... 50

4

iNSTALLATiON REQUIREMENTS

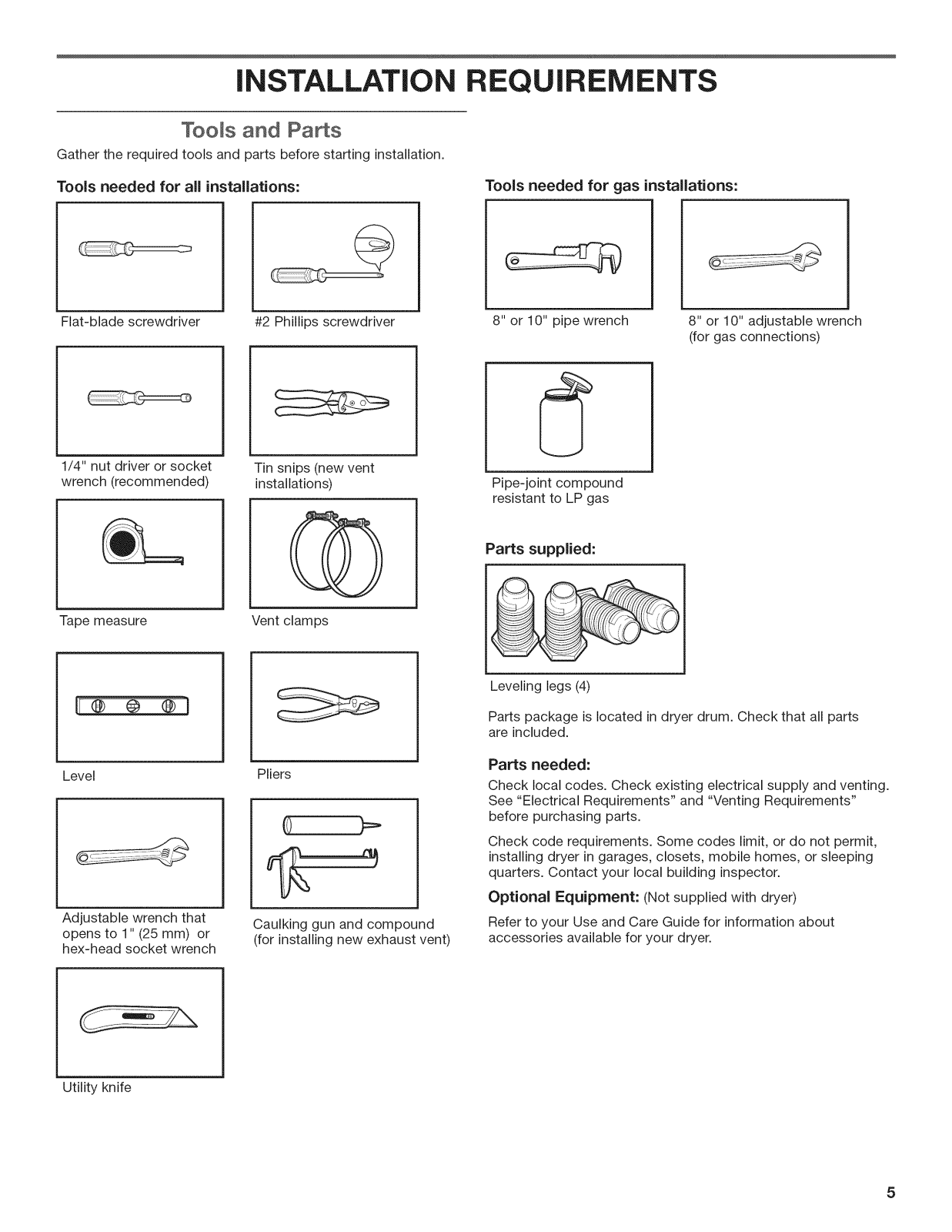

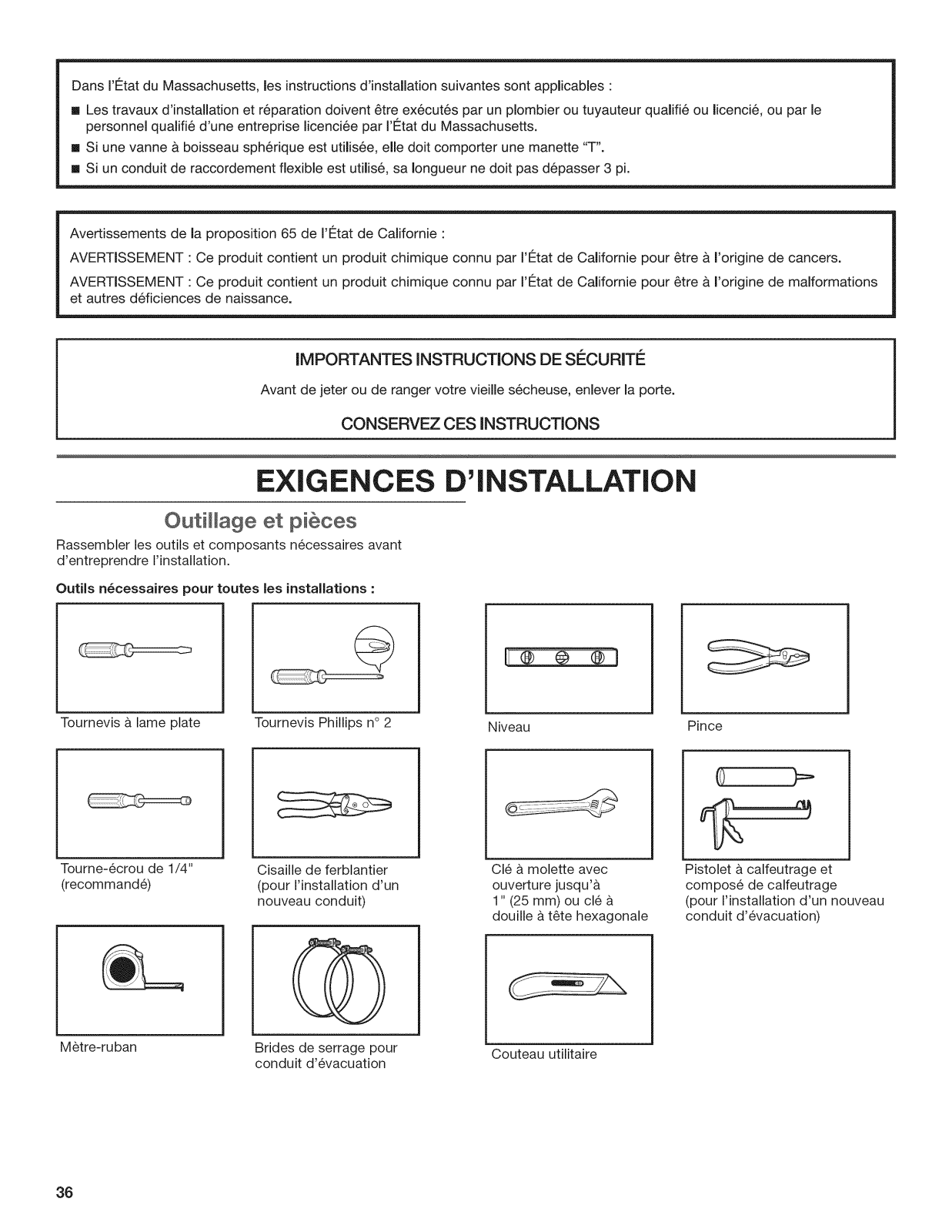

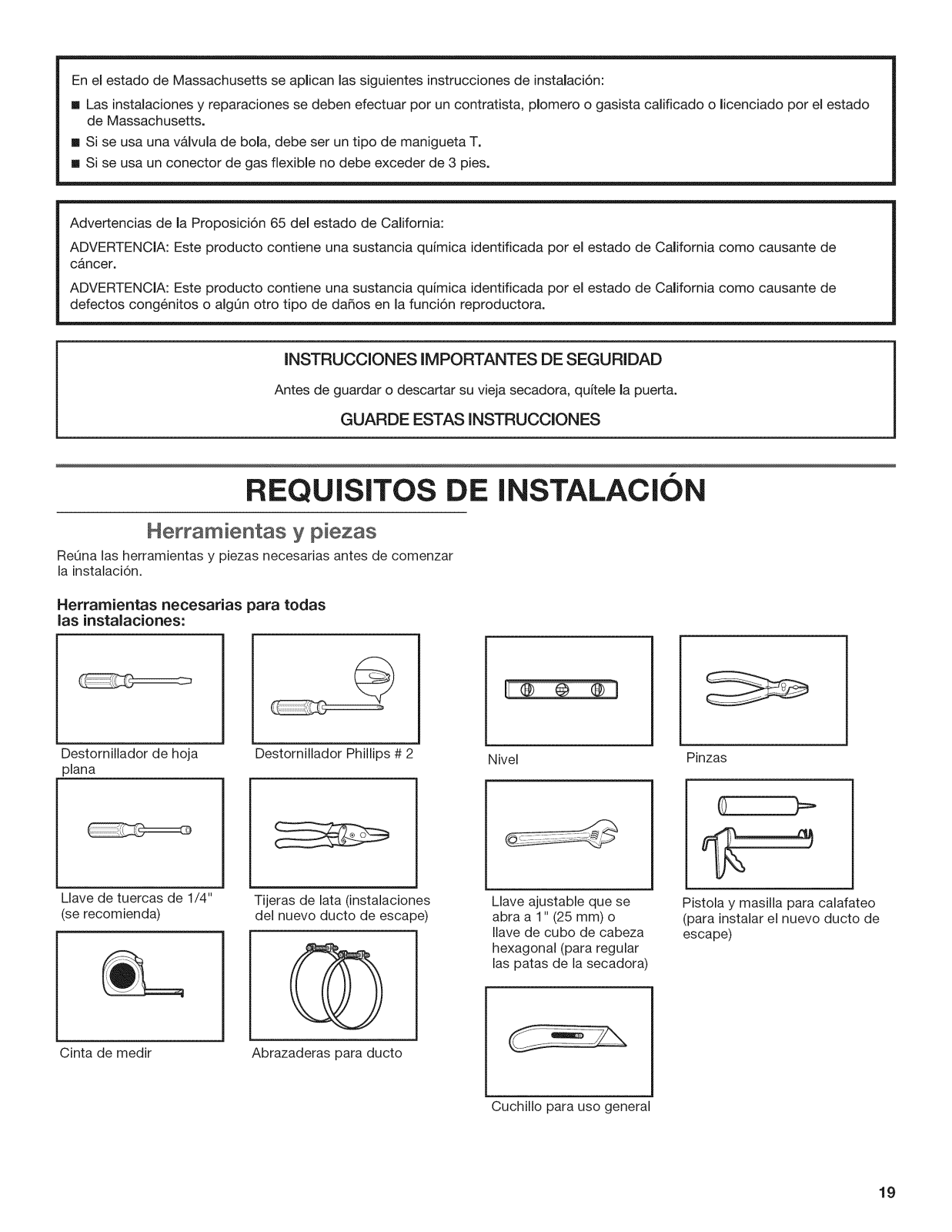

Tooms and Parts

Gather the required tools and parts before starting installation.

Tools needed for all installations:

Flat-blade screwdriver

1/4" nut driver or socket
wrench (recommended)

Tape measure

#2 Phillips screwdriver

Tin snips (new vent

installations)

Vent clamps

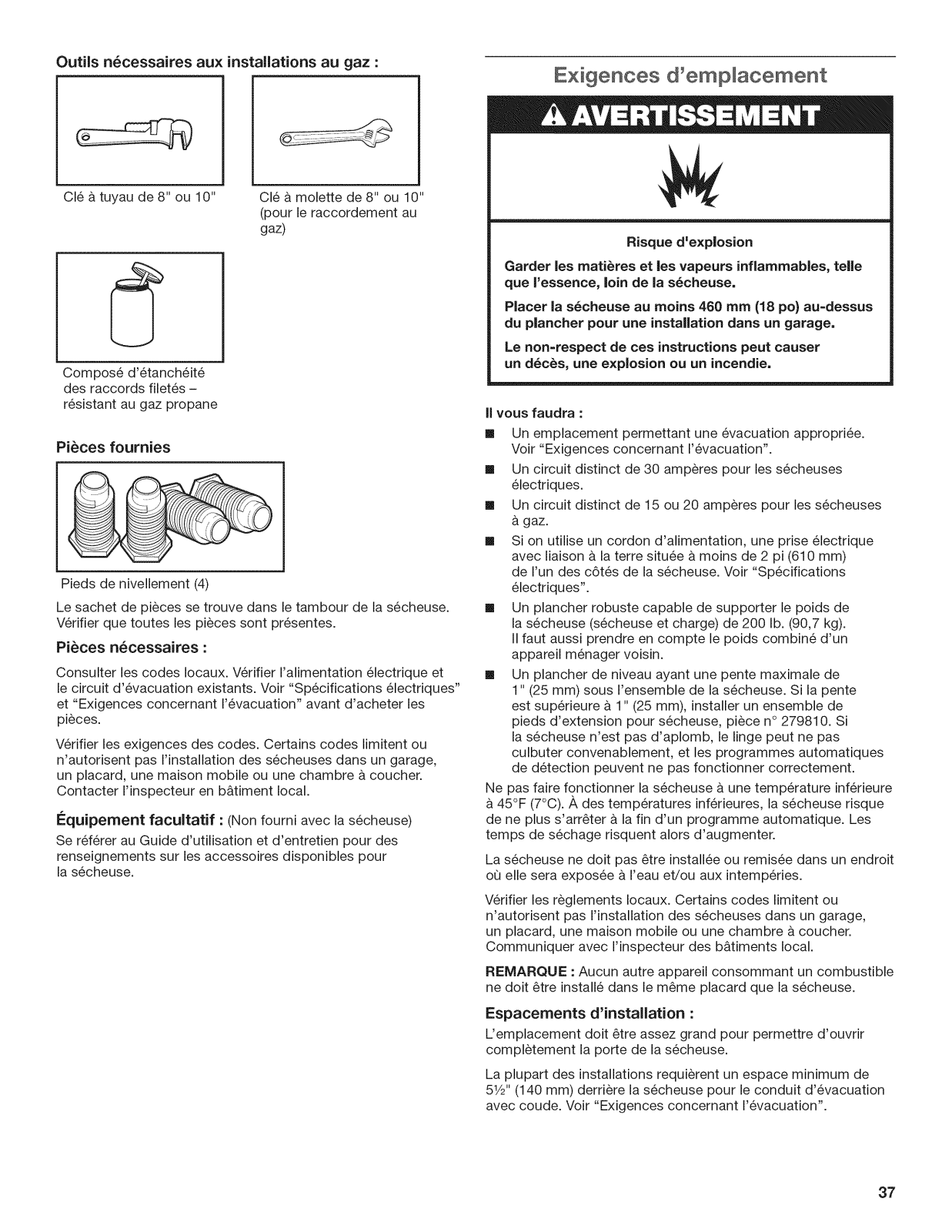

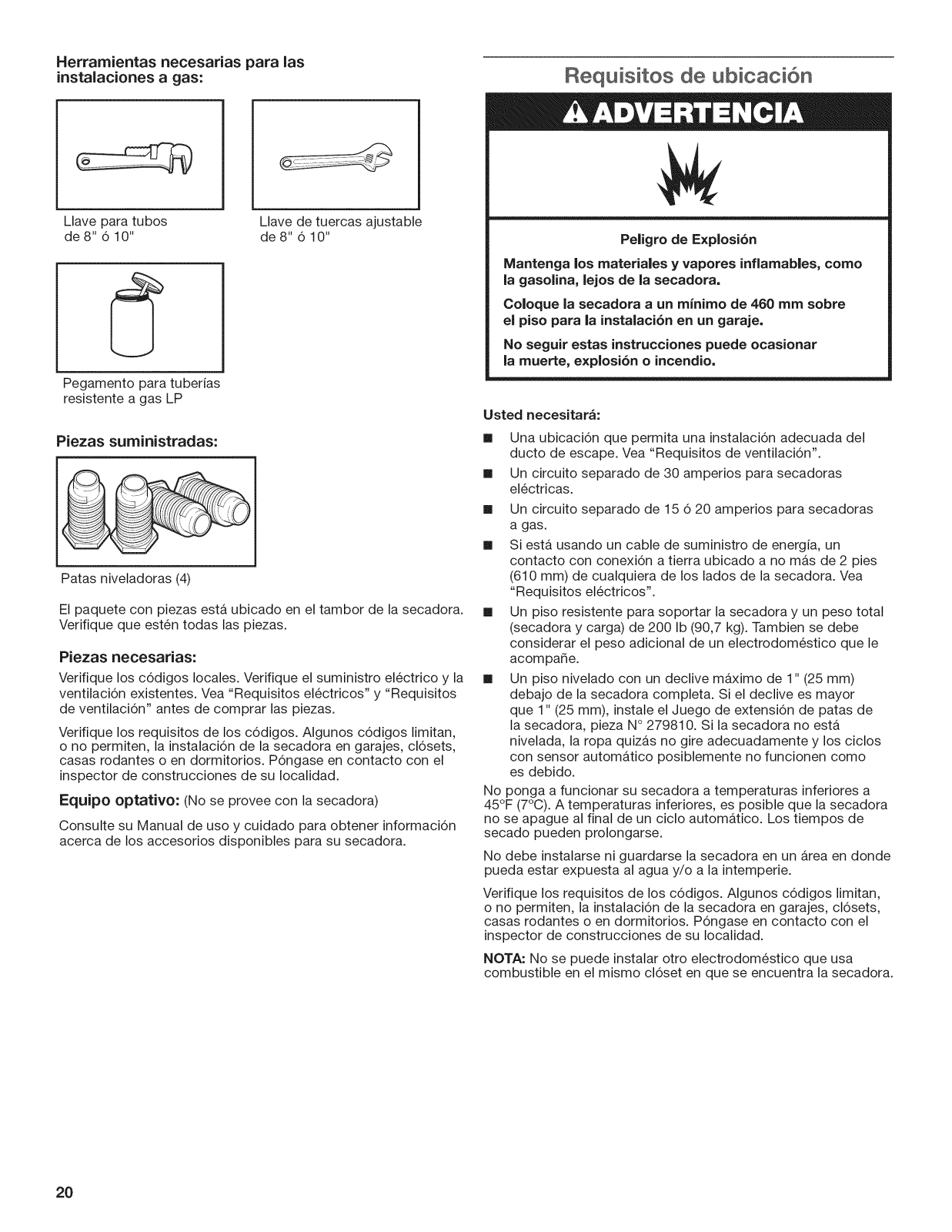

Tools needed for gas installations:

8" or 10" pipe wrench

Pipe-joint compound
resistant to LP gas

Parts supplied:

8" or 10" adjustable wrench
(for gas connections)

[

Level

Adjustable wrench that
opens to 1" (25 mm) or

hex-head socket wrench

Utility knife

Pliers

Caulking gun and compound
(for installing new exhaust vent)

Leveling legs (4)

Parts package is located in dryer drum. Check that all parts
are included.

Parts needed:
Check local codes. Check existing electrical supply and venting.

See "Electrical Requirements" and "Venting Requirements"
before purchasing parts.

Check code requirements. Some codes limit, or do not permit,
installing dryer in garages, closets, mobile homes, or sleeping
quarters. Contact your local building inspector.

Optional Equipment: (Not supplied with dryer)
Refer to your Use and Care Guide for information about

accessories available for your dryer.

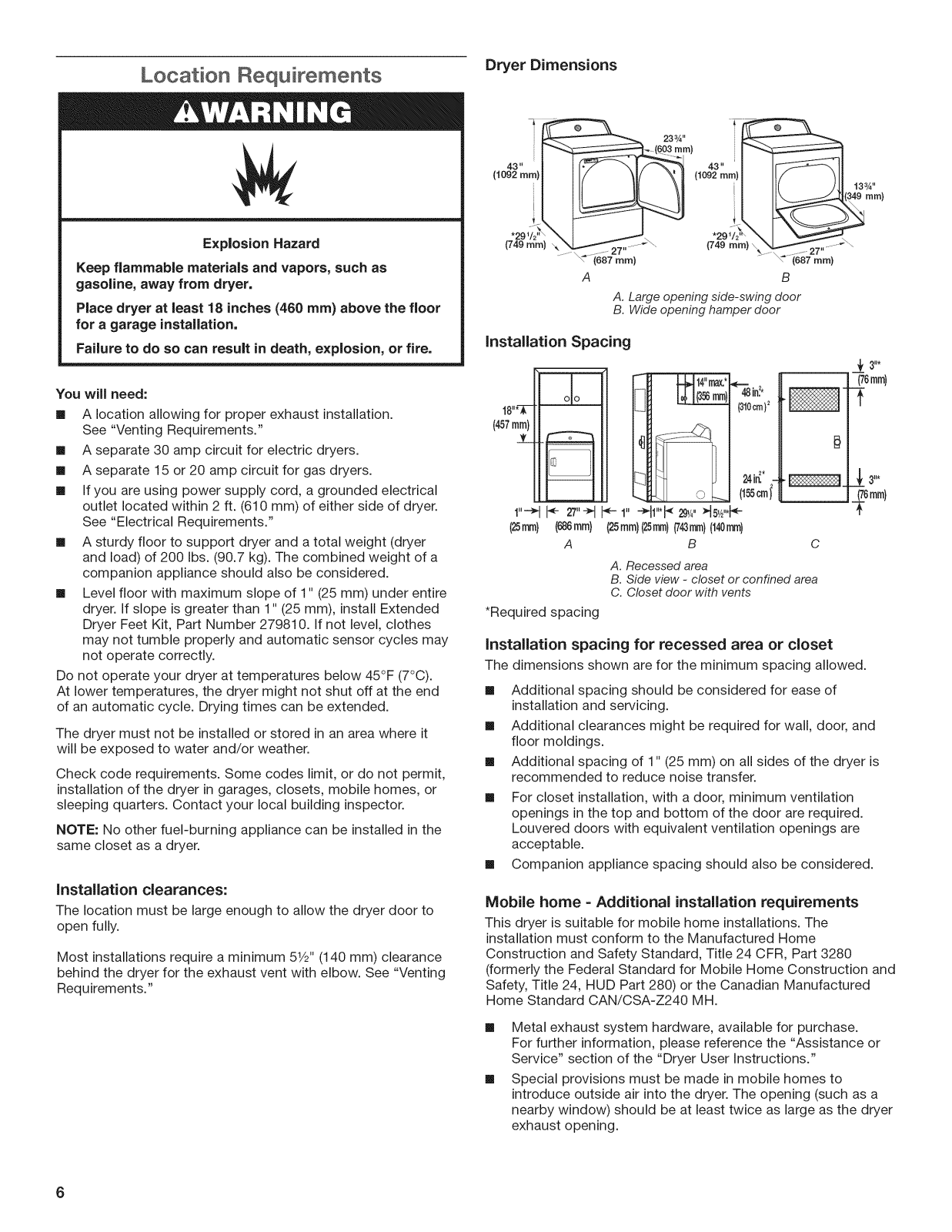

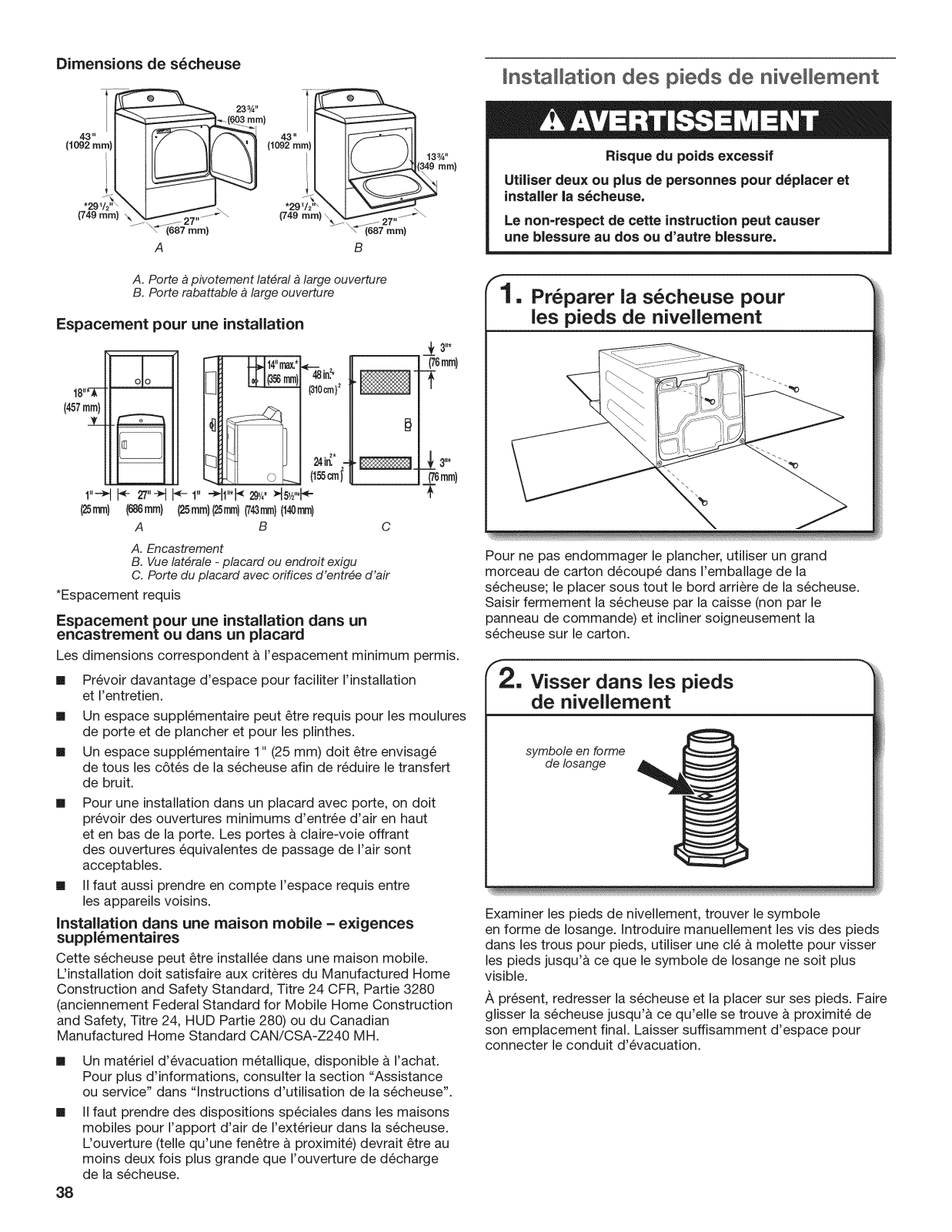

Location Requirements

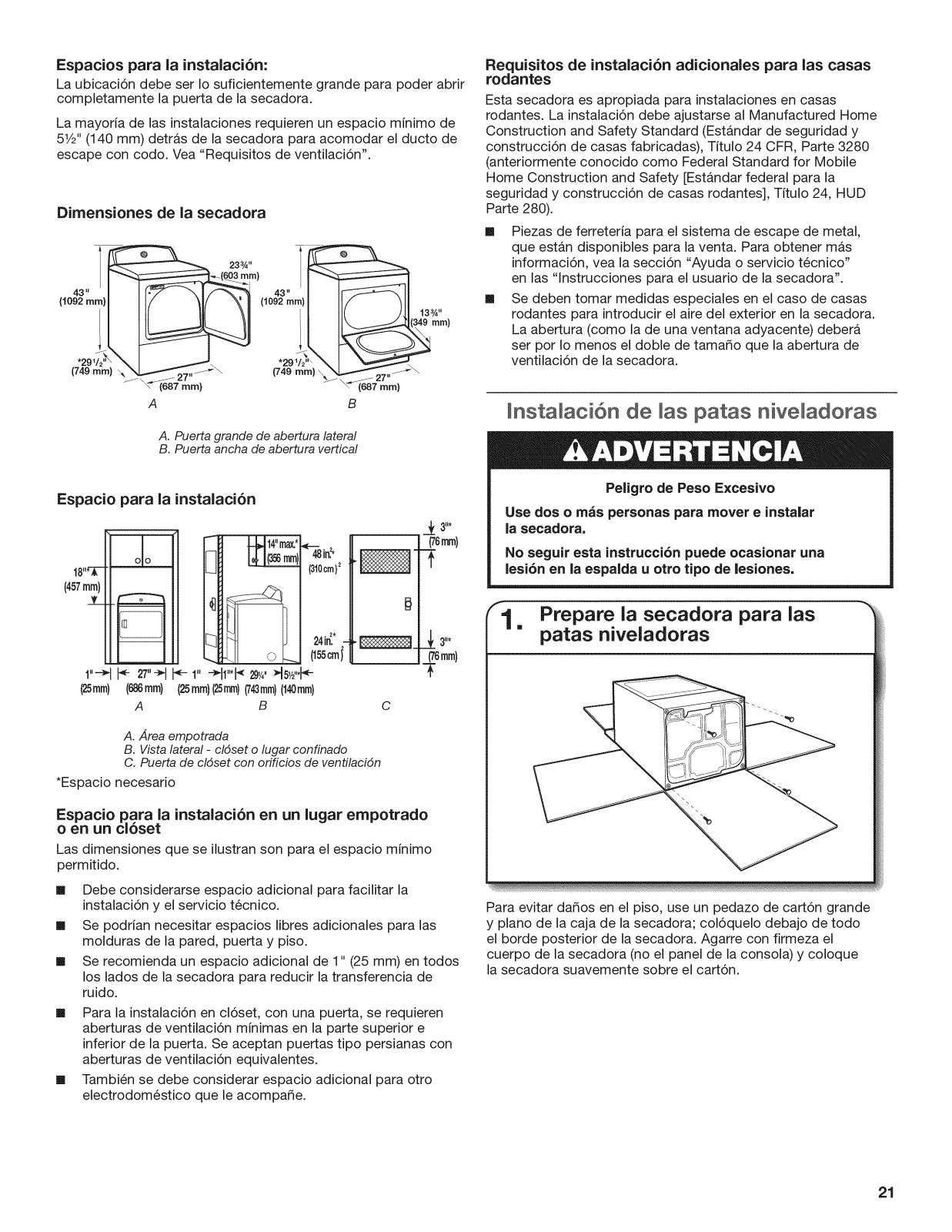

Dryer Dimensions

i m)

m I Ill Yll 133A"

Explosion Hazard

Keep flammable materials and vapors, such as
gasoline, away from dryer.

Place dryer at least 18 inches (460 mm) above the floor

for a garage installation.

Failure to do so can result in death, explosion, or fire.

You will need:

[] A location allowing for proper exhaust installation.

See "Venting Requirements."
[] A separate 30 amp circuit for electric dryers.
[] A separate 15 or 20 amp circuit for gas dryers.

[] If you are using power supply cord, a grounded electrical

outlet located within 2 ft. (610 mm) of either side of dryer.

See "Electrical Requirements."
[] A sturdy floor to support dryer and a total weight (dryer

and load) of 200 Ibs. (90.7 kg). The combined weight of a

companion appliance should also be considered.
[] Level floor with maximum slope of 1" (25 mm) under entire

dryer. If slope is greater than 1" (25 mm), install Extended

Dryer Feet Kit, Part Number 279810. If not level, clothes

may not tumble properly and automatic sensor cycles may

not operate correctly.
Do not operate your dryer at temperatures below 45°F (7°C).

At lower temperatures, the dryer might not shut off at the end
of an automatic cycle. Drying times can be extended.

The dryer must not be installed or stored in an area where it
will be exposed to water and/or weather.

Check code requirements. Some codes limit, or do not permit,

installation of the dryer in garages, closets, mobile homes, or

sleeping quarters. Contact your local building inspector.
NOTE: No other fuel-burning appliance can be installed in the

same closet as a dryer.

installation clearances:
The location must be large enough to allow the dryer door to

open fully.

Most installations require a minimum 51/2"(140 mm) clearance
behind the dryer for the exhaust vent with elbow. See "Venting

Requirements."

(749rnrn) X _7" "\ (749 ram) \ ,%J:_f_ 27" -'"

A B

A. Large opening side-swing door
B. Wide opening hamper door

installation Spacing

311,

(76ram}

-- _ (310cm)2

#

_ 24i_

(76rnm)

1"-_1_ 27"_1_ 1"

¢5mrn)

(686rnm)(25turn)(25mm}(743mm}(140rnm}

A B

*Required spacing

installation spacing for recessed area or closet
The dimensions shown are for the minimum spacing allowed.

[] Additional spacing should be considered for ease of

installation and servicing.

[] Additional clearances might be required for wall, door, and

floor moldings.

[] Additional spacing of 1" (25 mm) on all sides of the dryer is

recommended to reduce noise transfer.

[] For closet installation, with a door, minimum ventilation

openings in the top and bottom of the door are required.
Louvered doors with equivalent ventilation openings are
acceptable.

[] Companion appliance spacing should also be considered.

Mobile home = Additional installation requirements
This dryer is suitable for mobile home installations. The

installation must conform to the Manufactured Home

Construction and Safety Standard, Title 24 CFR, Part 3280
(formerly the Federal Standard for Mobile Home Construction and
Safety, Title 24, HUD Part 280) or the Canadian Manufactured

Home Standard CAN/CSA-Z240 MH.

-Hi" F 2_/,,,Hs,/_"*F-

C

A. Recessed area
B. Side view - closet or confined area

C. Closet door with vents

[] Metal exhaust system hardware, available for purchase.

For further information, please reference the "Assistance or
Service" section of the "Dryer User Instructions."

[] Special provisions must be made in mobile homes to

introduce outside air into the dryer. The opening (such as a
nearby window) should be at least twice as large as the dryer
exhaust opening.

6

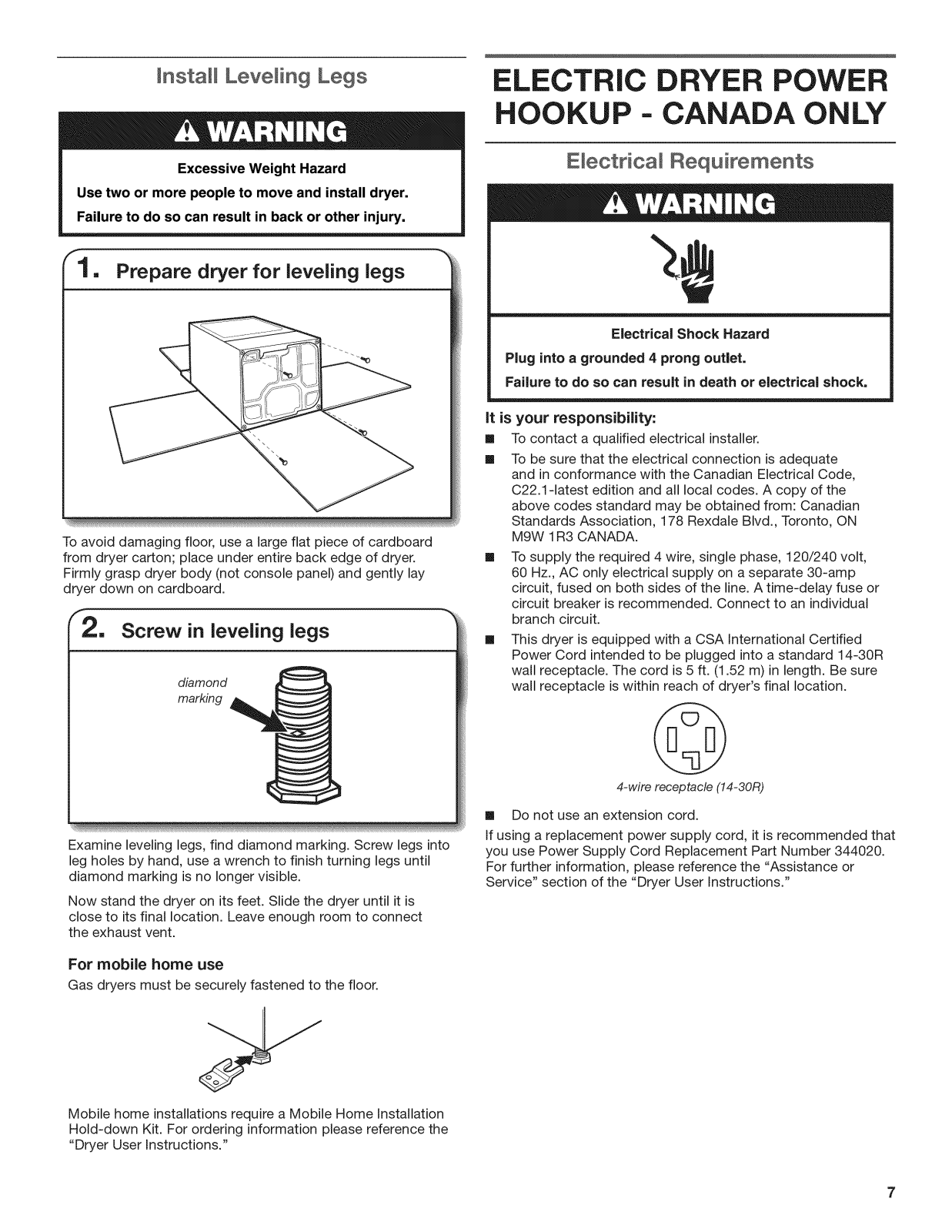

mnstaH Leveling Legs

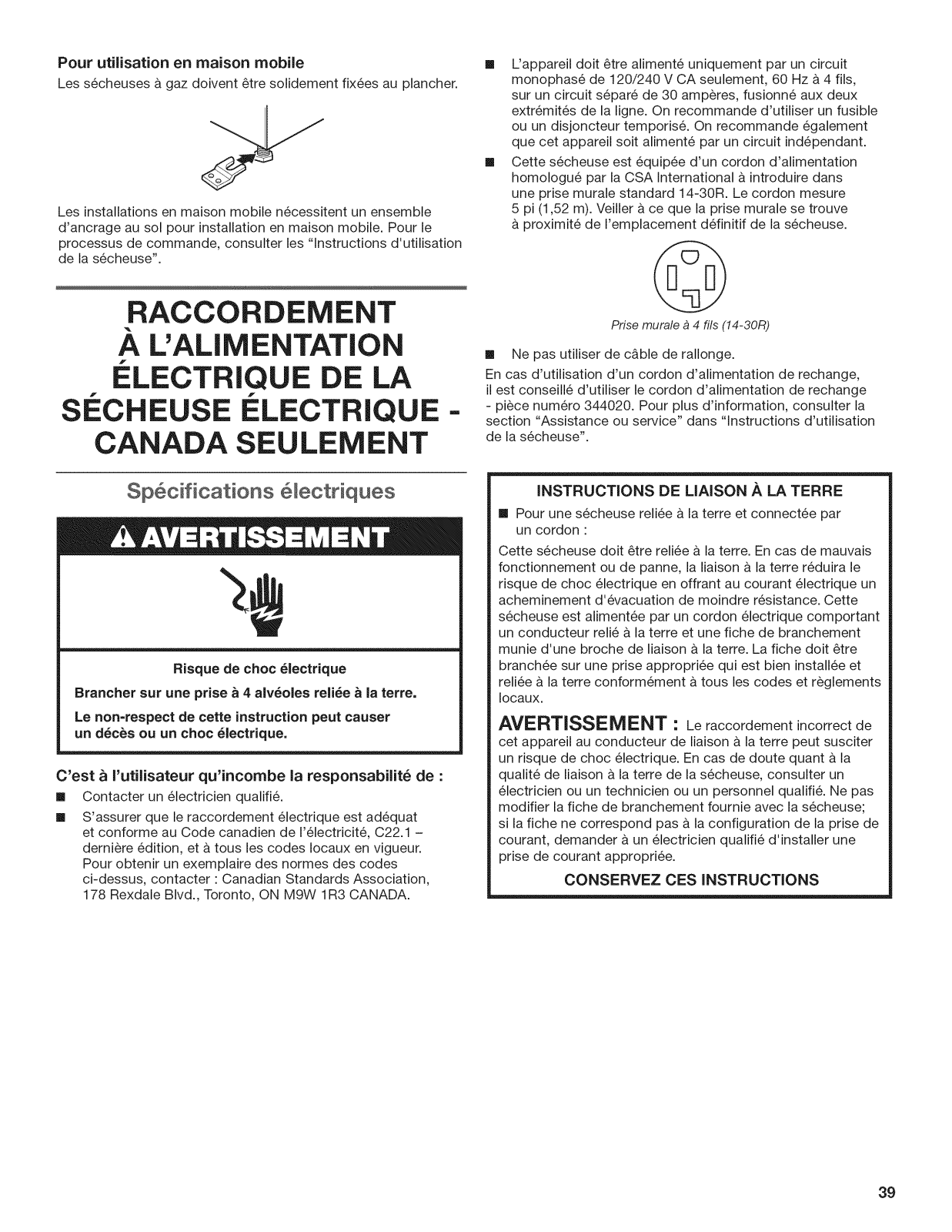

ELECTRIC DRYER POWER

HOOKUP =CANADA ONLY

Excessive Weight Hazard

Use two or more people to move and install dryer.
Failure to do so can result in back or other injury.

1. Prepare dryer for leveling legs

\

To avoid damaging floor, use a large flat piece of cardboard
from dryer carton; place under entire back edge of dryer.

Firmly grasp dryer body (not console panel) and gently lay
dryer down on cardboard.

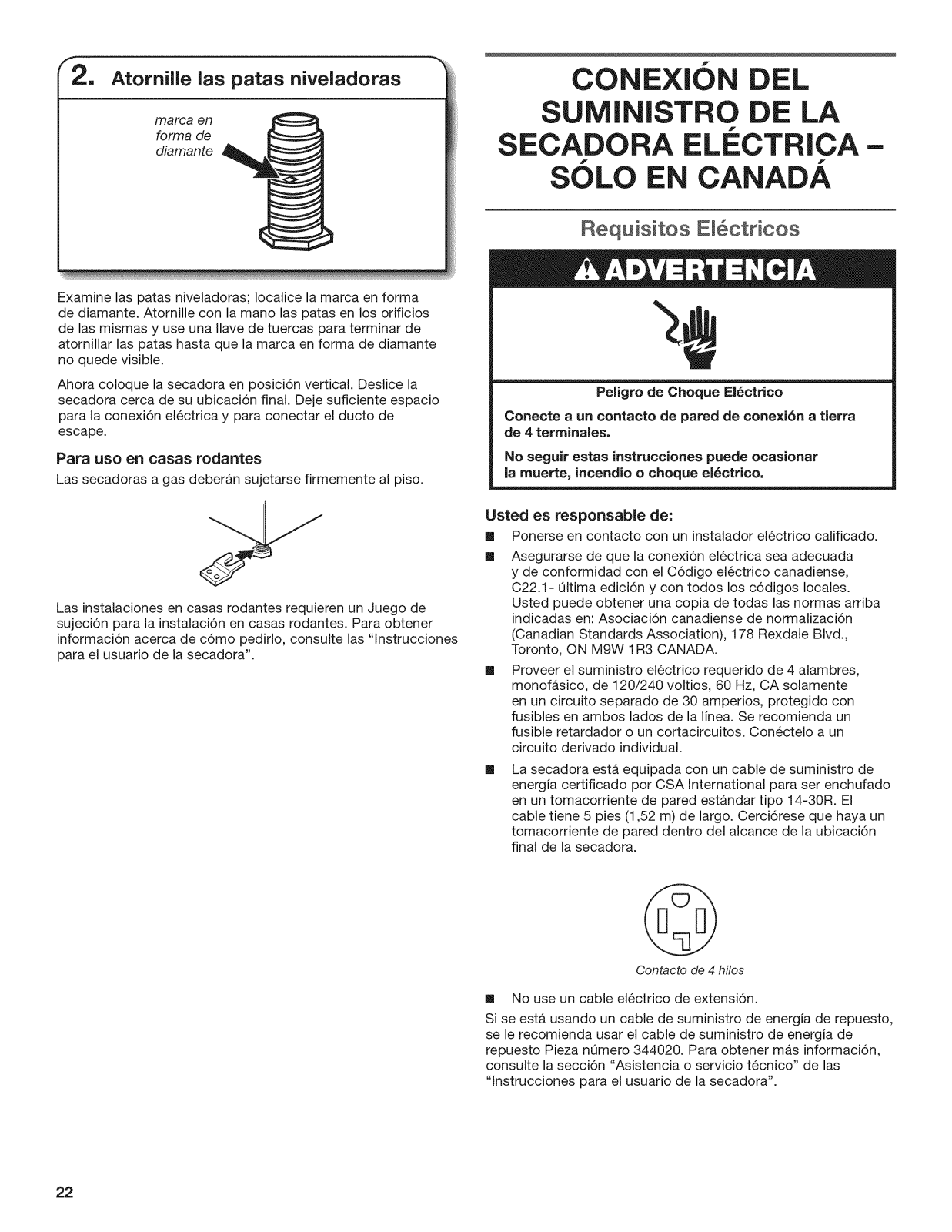

2. Screw in leveling legs

diamond

E_ectdcal Requ

Electrical Shock Hazard

Plug into a grounded 4 prong outlet.
Failure to do so can result in death or electrical shock.

it is your responsibility:

[] To contact a qualified electrical installer.
[] To be sure that the electrical connection is adequate

and in conformance with the Canadian Electrical Code,
C22.1 -latest edition and all local codes. A copy of the
above codes standard may be obtained from: Canadian
Standards Association, 178 Rexdale Blvd., Toronto, ON

Mgw 1R3 CANADA.

[] To supply the required 4 wire, single phase, 120/240 volt,

60 Hz., AC only electrical supply on a separate 30-amp
circuit, fused on both sides of the line. A time-delay fuse or

circuit breaker is recommended. Connect to an individual
branch circuit.

[] This dryer is equipped with a CSA International Certified

Power Cord intended to be plugged into a standard 14-30R
wall receptacle. The cord is 5 ft. (1.52 m) in length. Be sure
wall receptacle is within reach of dryer's final location.

marking _

Examine leveling legs, find diamond marking. Screw legs into
leg holes by hand, use a wrench to finish turning legs until

diamond marking is no longer visible.
Now stand the dryer on its feet. Slide the dryer until it is

close to its final location. Leave enough room to connect
the exhaust vent.

For mobile home use

Gas dryers must be securely fastened to the floor.

Mobile home installations require a Mobile Home Installation
Hold-down Kit. For ordering information please reference the
"Dryer User Instructions."

4-wire receptacle (14-30R)

[] Do not use an extension cord.
If using a replacement power supply cord, it is recommended that

you use Power Supply Cord Replacement Part Number 344020.

For further information, please reference the "Assistance or

Service" section of the "Dryer User Instructions."

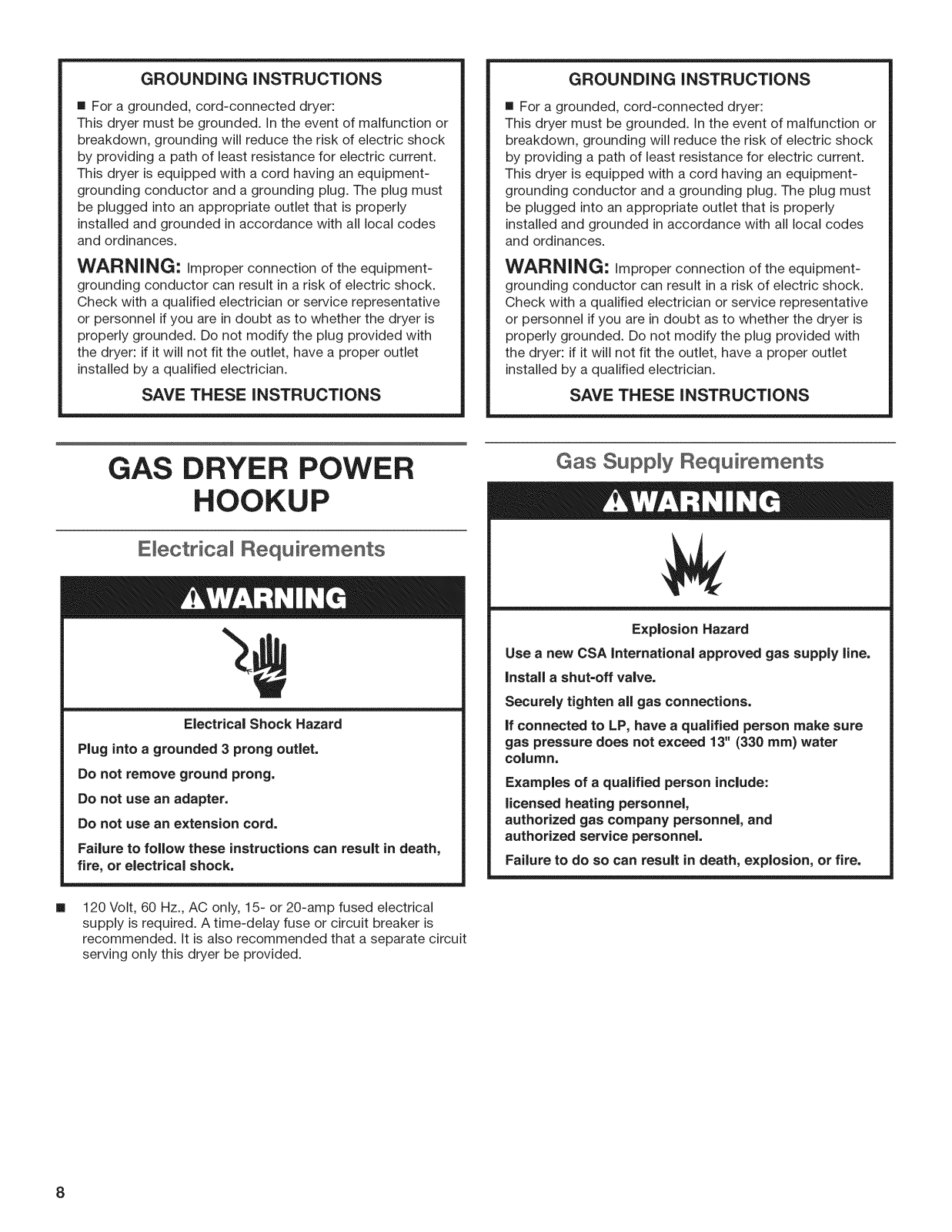

GROUNDING iNSTRUCTiONS

GROUNDING INSTRUCTIONS

[] For a grounded, cord-connected dryer:
This dryer must be grounded. In the event of malfunction or

breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current.

This dryer is equipped with a cord having an equipment-

grounding conductor and a grounding plug. The plug must
be plugged into an appropriate outlet that is properly

installed and grounded in accordance with all local codes
and ordinances.

WARNING: Improper connection of the equipment-

grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or service representative
or personnel if you are in doubt as to whether the dryer is
properly grounded. Do not modify the plug provided with

the dryer: if it will not fit the outlet, have a proper outlet

installed by a qualified electrician.

SAVE THESE INSTRUCTIONS

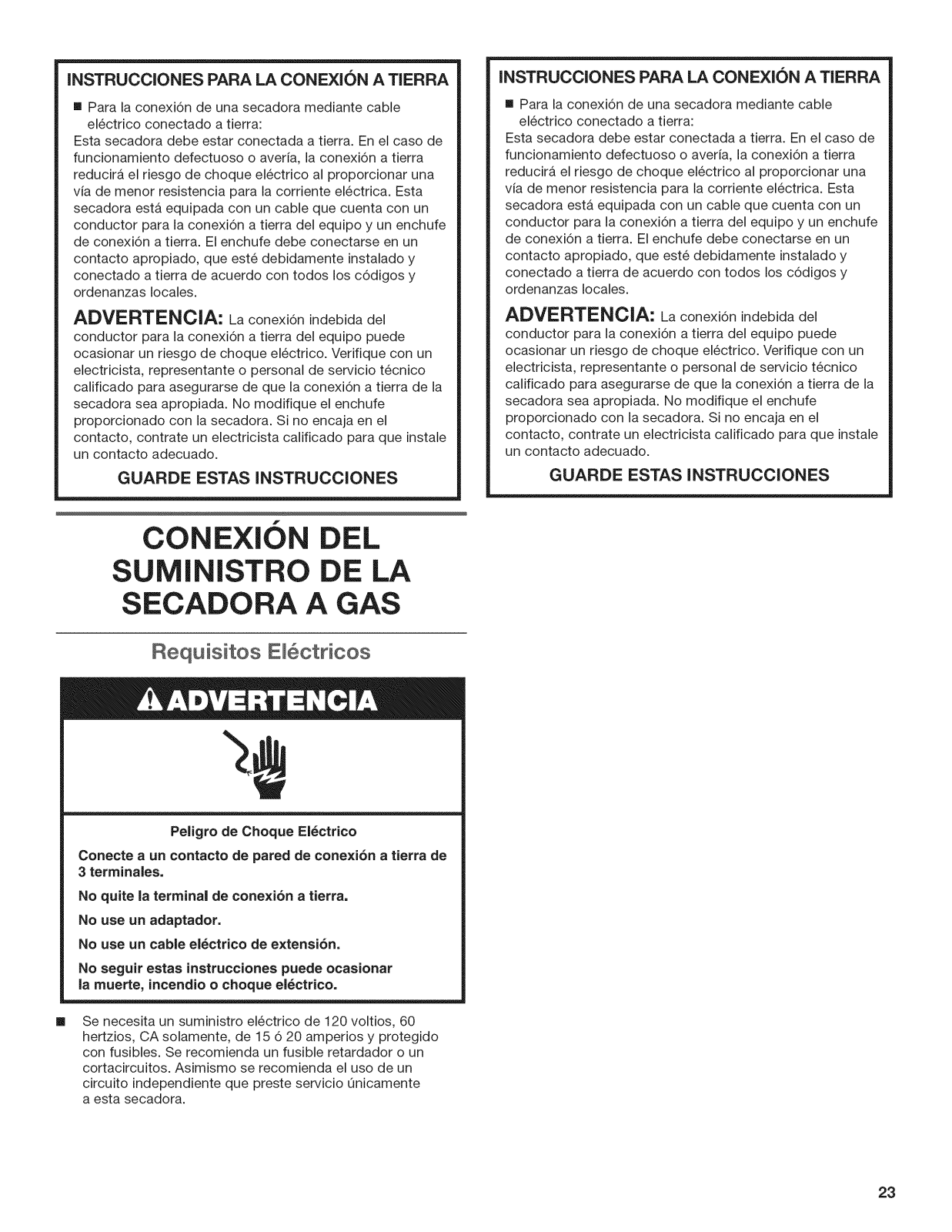

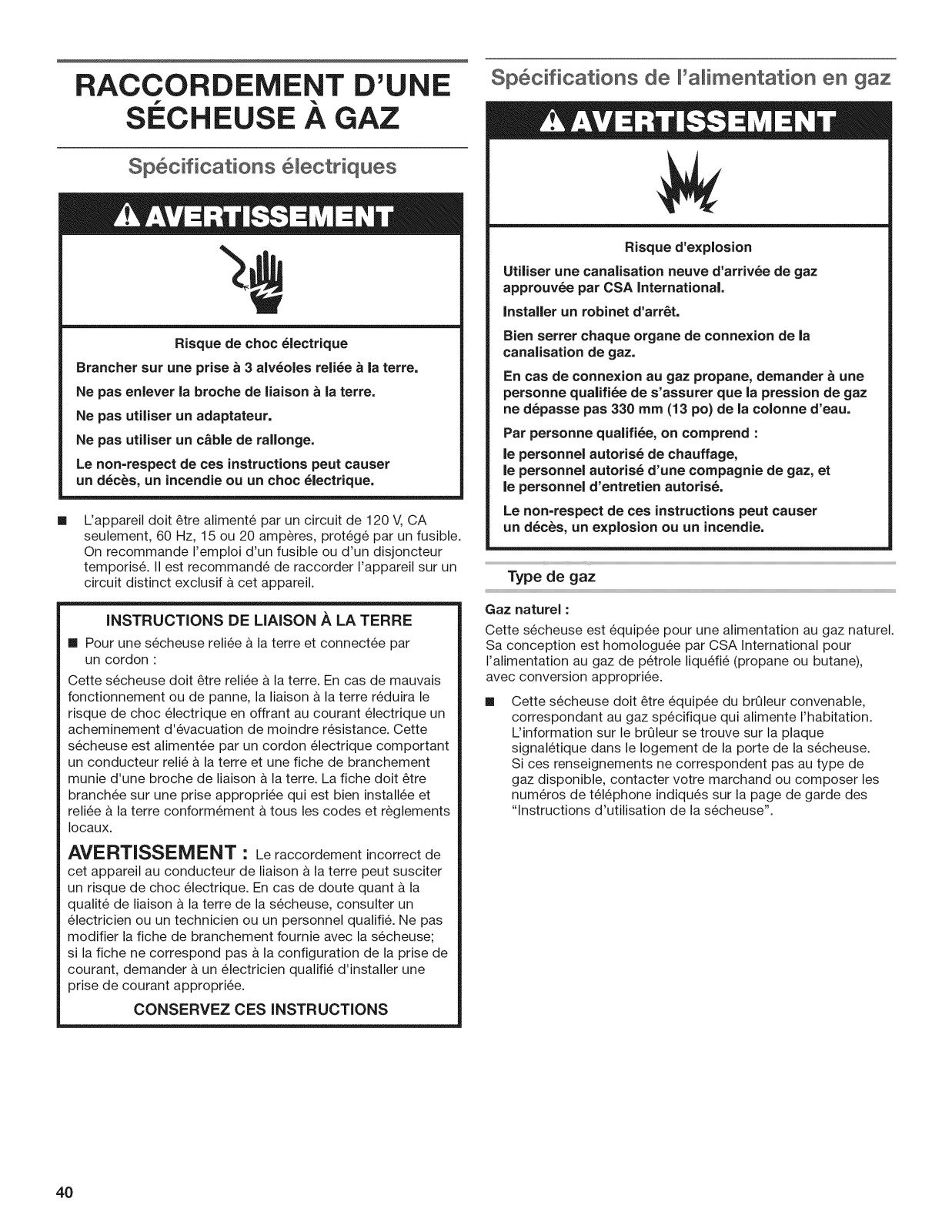

GAS DRYER POWER

HOOKUP

EMectrica Requirements

[] For a grounded, cord-connected dryer:

This dryer must be grounded. In the event of malfunction or

breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current.

This dryer is equipped with a cord having an equipment-

grounding conductor and a grounding plug. The plug must
be plugged into an appropriate outlet that is properly

installed and grounded in accordance with all local codes
and ordinances.

WARNING: improper connection of the equipment-

grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or service representative

or personnel if you are in doubt as to whether the dryer is
properly grounded. Do not modify the plug provided with
the dryer: if it will not fit the outlet, have a proper outlet
installed by a qualified electrician.

SAVE THESE INSTRUCTIONS

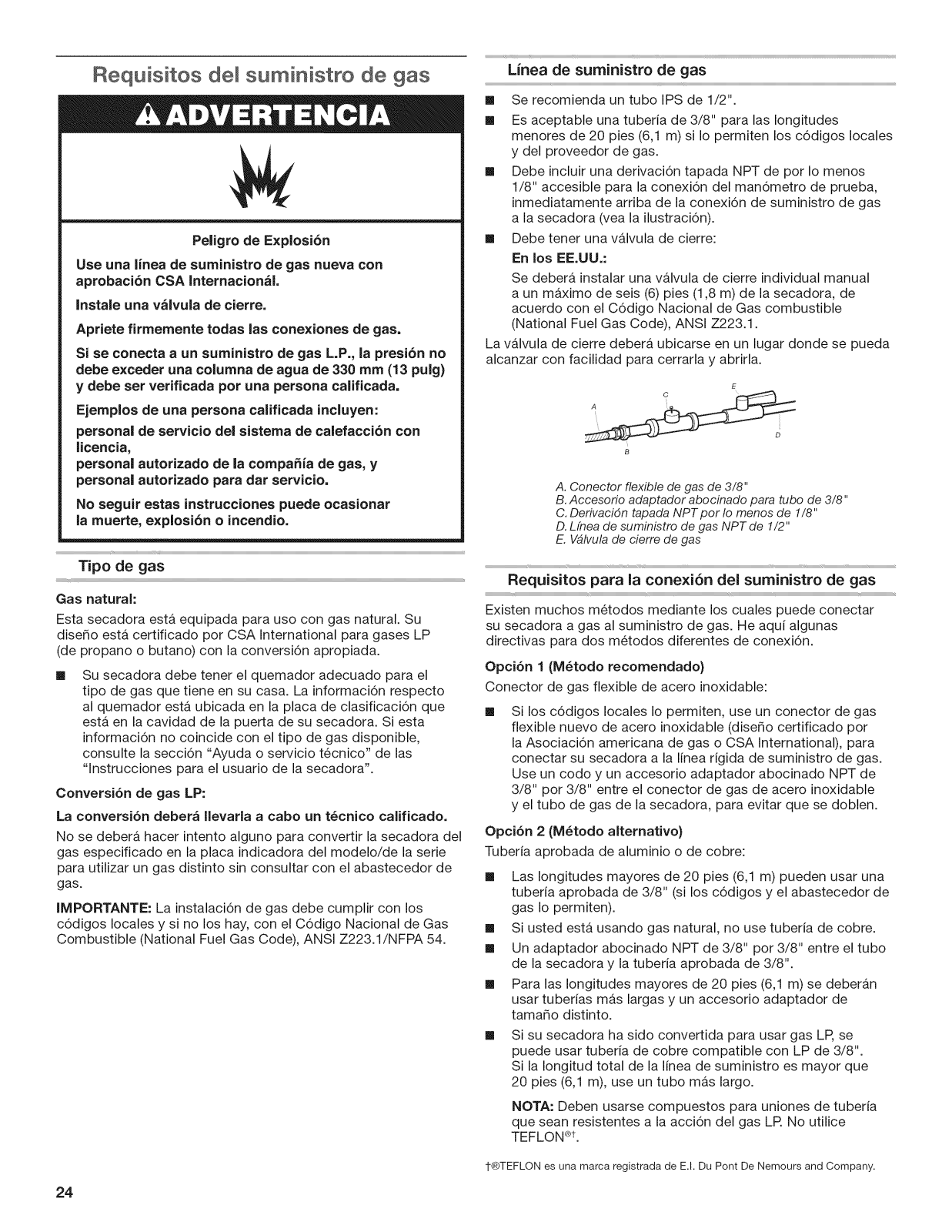

Gas Supply Requirements

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

[]

120 Volt, 60 Hz., AC only, 15- or 20-amp fused electrical

supply is required. A time-delay fuse or circuit breaker is

recommended. It is also recommended that a separate circuit

serving only this dryer be provided.

Explosion Hazard
Use a new CSA international approved gas supply line.
install a shut=off valve.

Securely tighten all gas connections.
if connected to LP, have a qualified person make sure

gas pressure does not exceed 13" (330 ram) water
column.

Examples of a qualified person include:
licensed heating personnel,

authorized gas company personnel, and
authorized service personnel.

Failure to do so can result in death, explosion, or fire.

8

Gas type

Natural gas:
This dryer is equipped for use with Natural Gas. It is design-

certified by CSA international for LP (propane or butane) gases
with appropriate conversion.

[]

Your dryer must have the correct burner for the type of gas
in your home. Burner information is located on the rating
plate in the door well of your dryer. If this information does
not agree with the type of gas available, please reference
the "Assistance or Service" section of the "Dryer User

instructions."

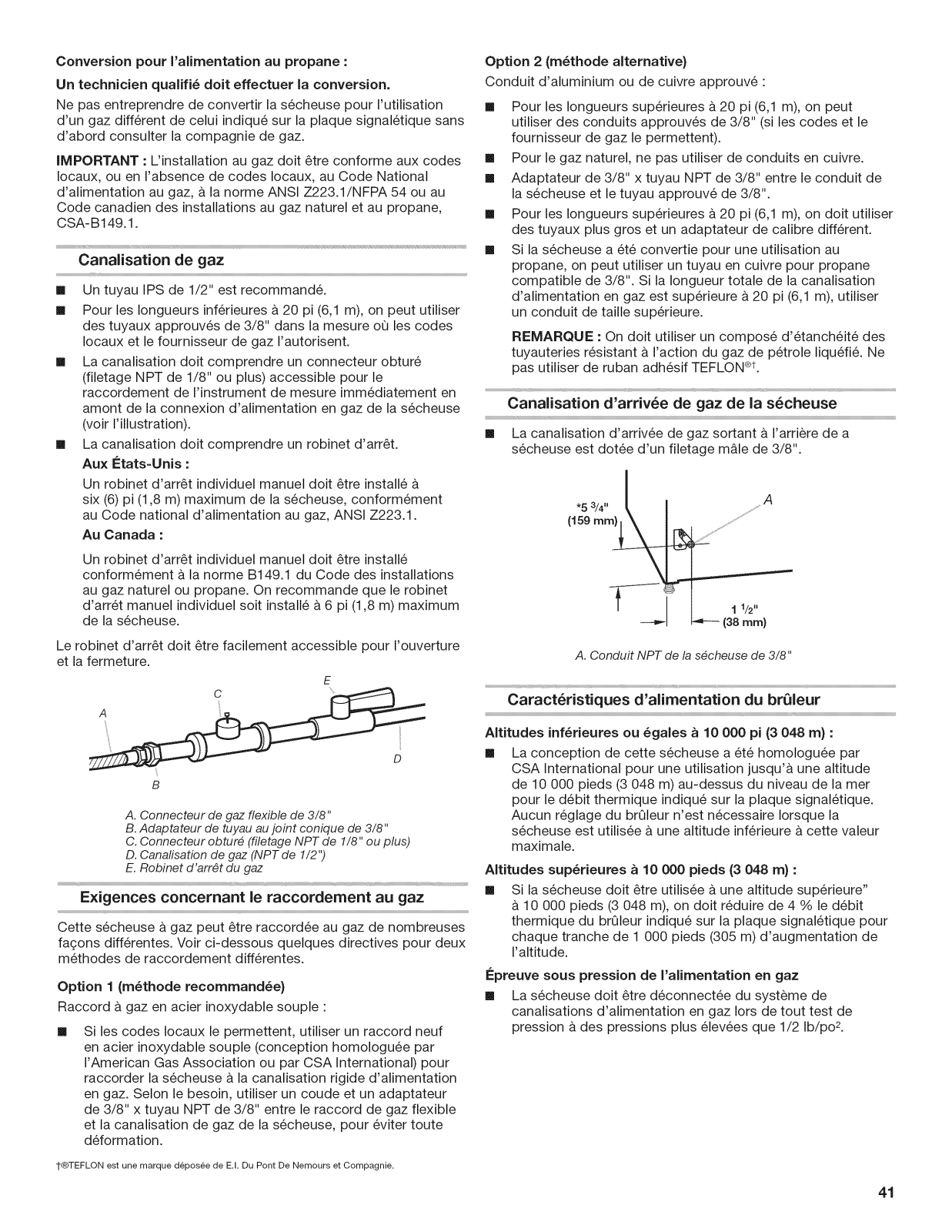

LP gas conversion:
Conversion must be made by a qualified technician.

No attempt shall be made to convert the dryer from the gas
specified on the model/serial rating plate for use with a different
gas without consulting the serving gas supplier.

iMPORTANT: The gas installation must conform with local codes,
or in the absence of local codes, with the National Fuel Gas
Code, ANSi Z223.1/NFPA 54 or the Canadian Natural Gas and

Propane installation Code, CSA B149.1.

Gas supply line

[] 1/2" NPT pipe is recommended.
[] 3/8" approved tubing is acceptable for lengths under

20 ft. (6.1 m) if local codes and gas supplier permit.

[] Must include 1/8" NPT minimum plugged tapping accessible

for test gauge connection, immediately upstream of the gas
connection to the dryer (see illustration).

[] Must include a shutoff valve:

in the U.S.A.:
An individual manual shutoff valve must be installed within

six (6)feet (1.8 m) of the dryer in accordance with the
National Fuel Gas Code, ANSi Z223.1.

in Canada:
An individual manual shutoff valve must be installed in

accordance with the B149.1, Natural Gas and Propane
installation Code. It is recommended that an individual

manual shutoff valve be installed within six (6) feet (1.8 m)
of the dryer.

The shut off valve location should be easy to reach for opening
and closing.

E

i

B

A. 3/8" flexible gas connector

B.3/8" pipe to flare adapter fitting
C. 1/8" NPT minimum plugged tapping

D. 1/2" NPT gas supply line
E. Gas shutoff valve

Gas supply connection requirements

Option 1 (Recommended Method}

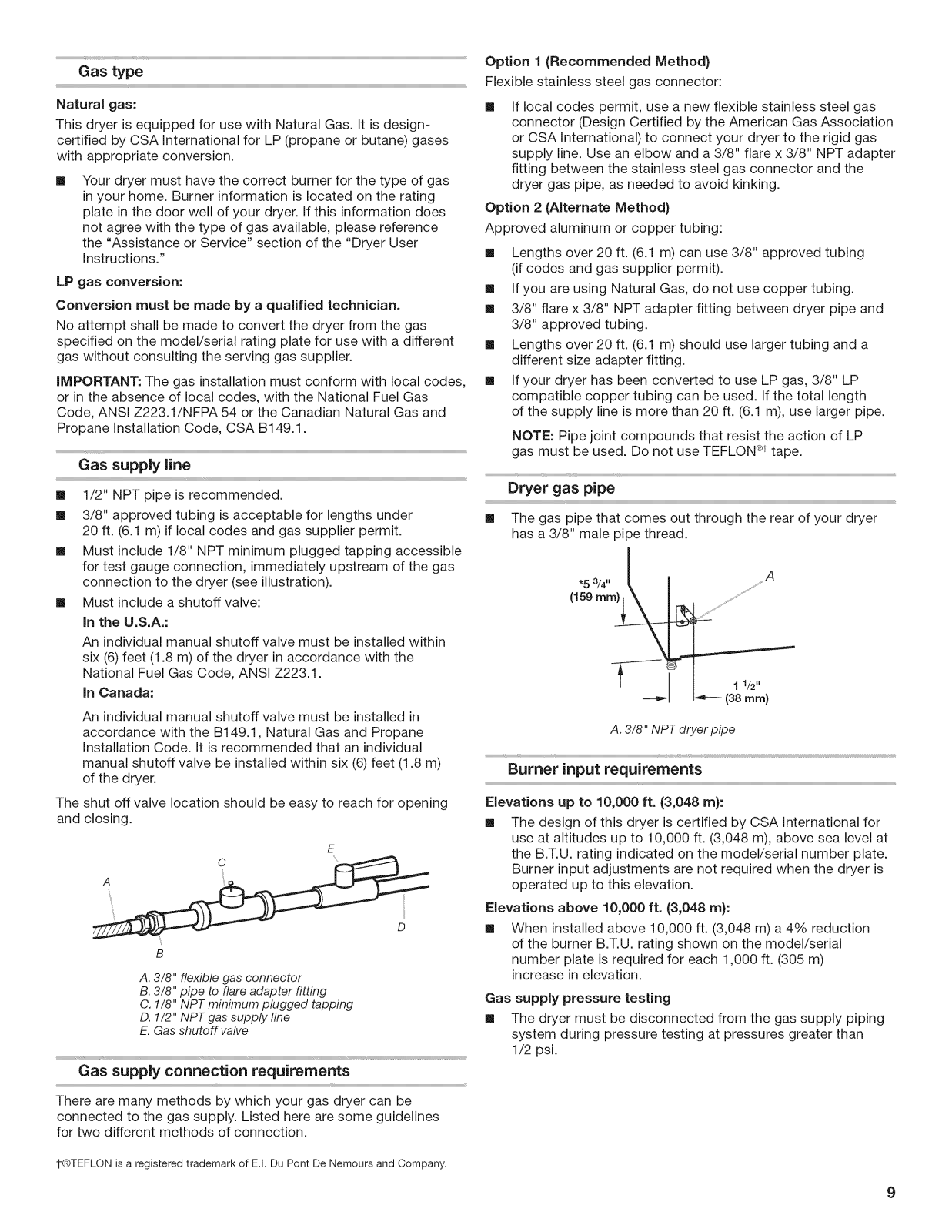

Flexible stainless steel gas connector:

[] If local codes permit, use a new flexible stainless steel gas

connector (Design Certified by the American Gas Association
or CSA International) to connect your dryer to the rigid gas
supply line. Use an elbow and a 3/8" flare x 3/8" NPT adapter
fitting between the stainless steel gas connector and the
dryer gas pipe, as needed to avoid kinking.

Option 2 (Alternate Method}
Approved aluminum or copper tubing:

[] Lengths over 20 ft. (6.1 m) can use 3/8" approved tubing

(if codes and gas supplier permit).
[] If you are using Natural Gas, do not use copper tubing.
[] 3/8" flare x 3/8" NPT adapter fitting between dryer pipe and

3/8" approved tubing.
[] Lengths over 20 ft. (6.1 m) should use larger tubing and a

different size adapter fitting.
[] If your dryer has been converted to use LP gas, 3/8" LP

compatible copper tubing can be used. If the total length

of the supply line is more than 20 ft. (6.1 m), use larger pipe.

NOTE: Pipe joint compounds that resist the action of LP

gas must be used. Do not use TEFLON _>ttape.

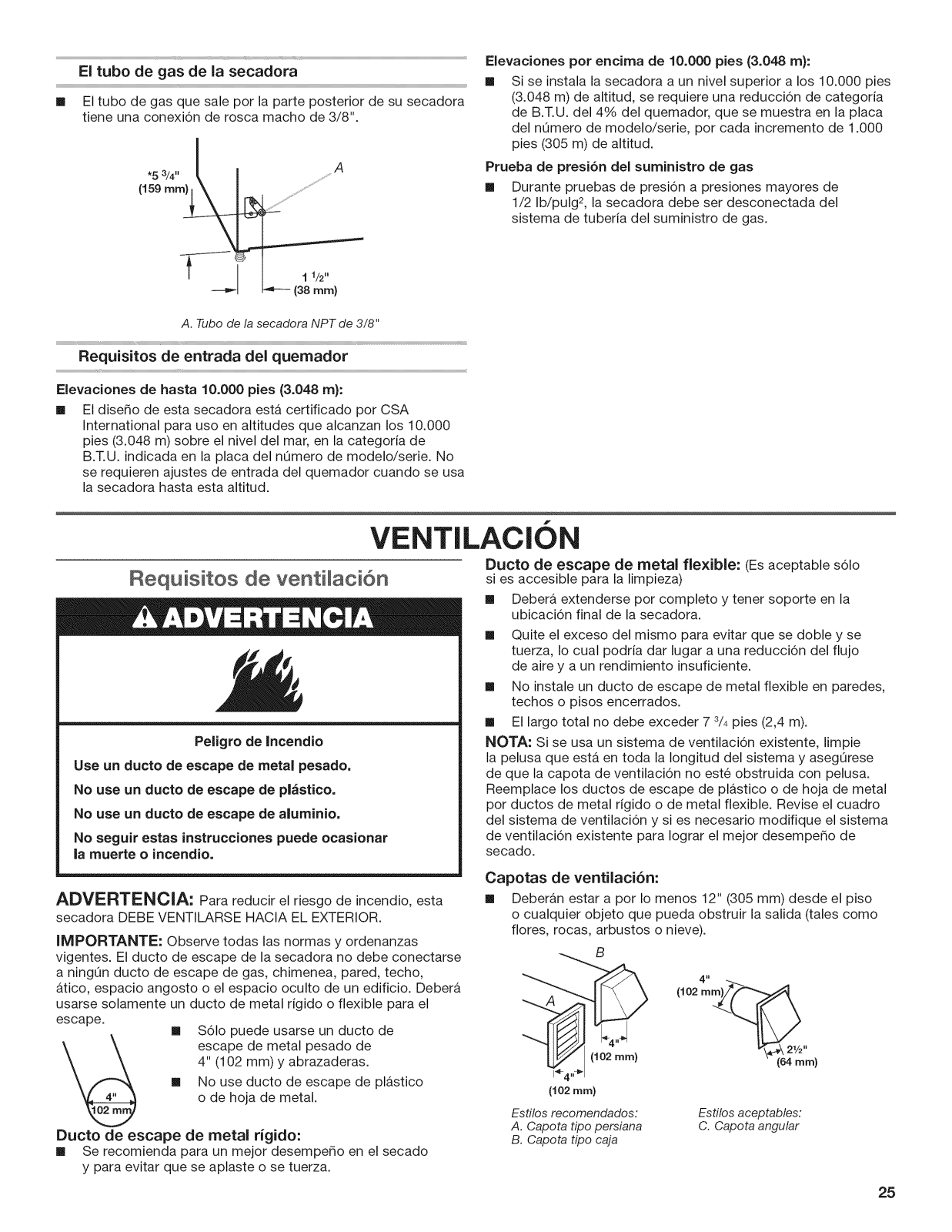

Dryer gas pipe

[] The gas pipe that comes out through the rear of your dryer

has a 3/8" male pipe thread.

*5 3/4"

(159 mm) .........

A. 3/8" NPT dryer pipe

A

Burner input requirements

Elevations up to 10,000 ft. (3,048 m}:

[] The design of this dryer is certified by CSA international for

use at altitudes up to 10,000 ft. (3,048 m), above sea level at

the B.T.U. rating indicated on the model/serial number plate.

Burner input adjustments are not required when the dryer is

operated up to this elevation.
Elevations above 10,000 ft. (3,048 m}:

[] When installed above 10,000 ft. (3,048 m) a 4% reduction

of the burner B.T.U. rating shown on the model/serial

number plate is required for each 1,000 ft. (305 m)

increase in elevation.
Gas supply pressure testing

[] The dryer must be disconnected from the gas supply piping

system during pressure testing at pressures greater than

1/2 psi.

There are many methods by which your gas dryer can be
connected to the gas supply. Listed here are some guidelines

for two different methods of connection.

1-®)TEFLON is a registered trademark of E.I. Du Pont De Nemours and Company.

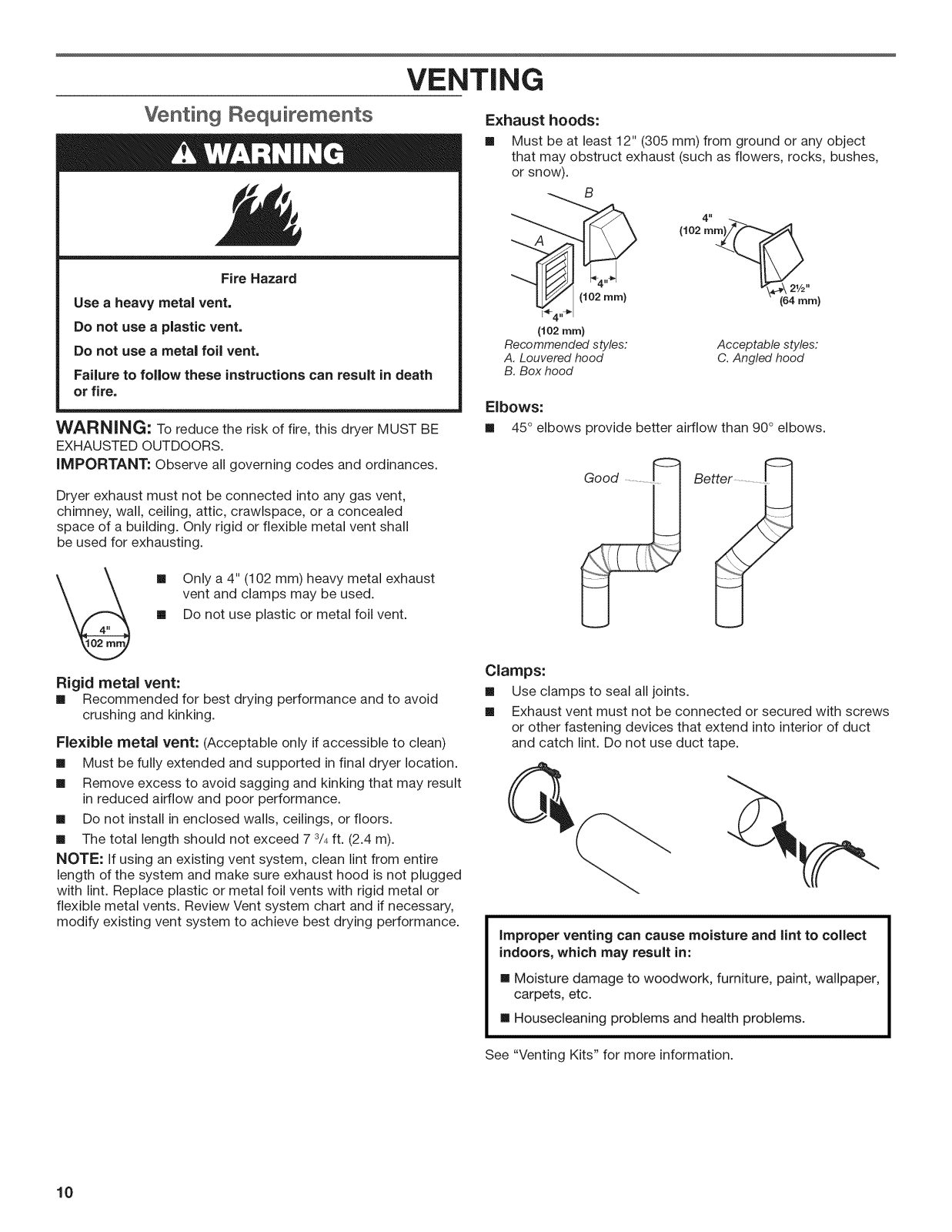

VENTING

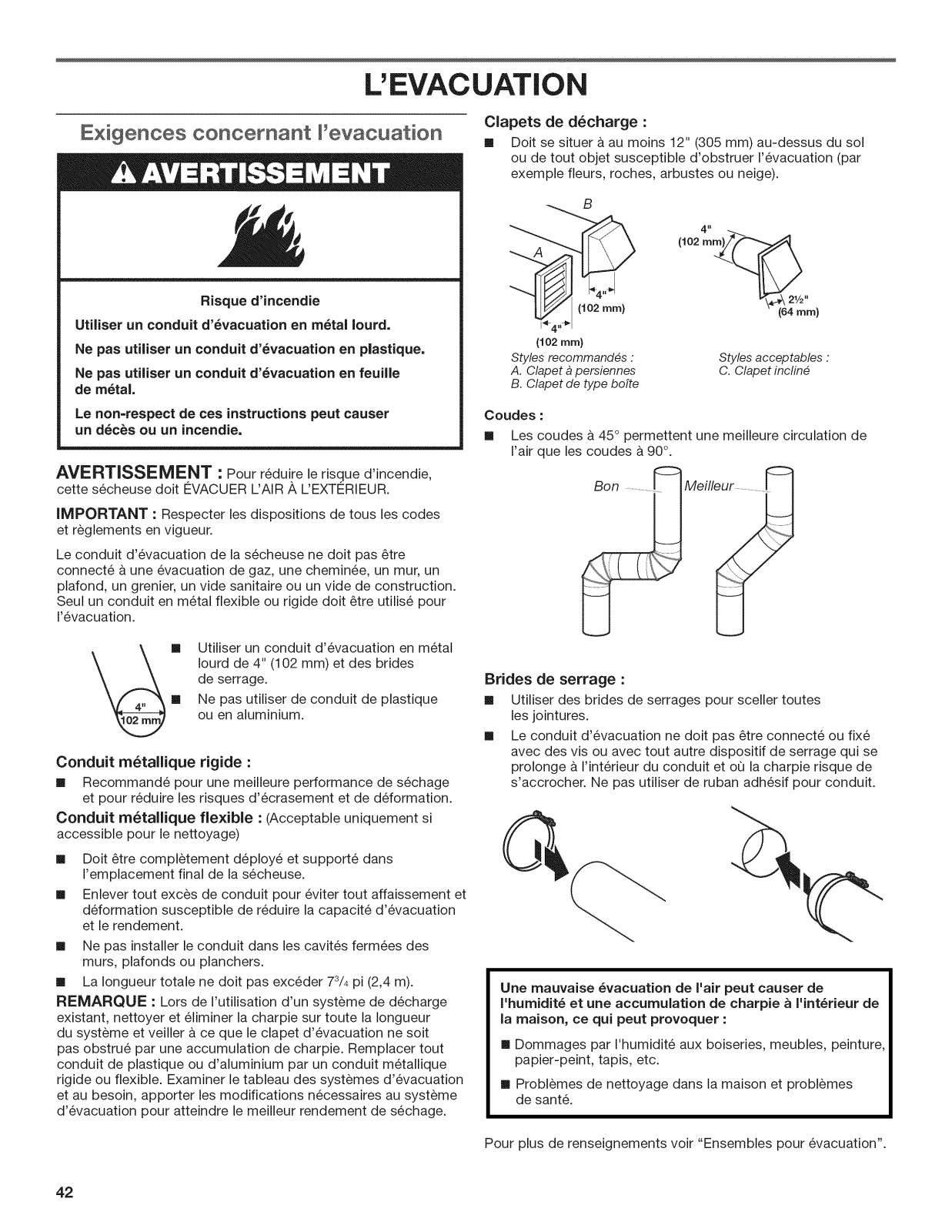

Venting Requirements

Fire Hazard

Use a heavy metal vent,
Do not use a plastic vent.
Do not use a metal foil vent.
Failure to follow these instructions can result in death

or fire.

WARNING: To reduce the risk of fire, this dryer MUST BE

EXHAUSTED OUTDOORS.
IMPORTANT: Observe all governing codes and ordinances.

Dryer exhaust must not be connected into any gas vent,
chimney, wall, ceiling, attic, crawlspace, or a concealed
space of a building. Only rigid or flexible metal vent shall

be used for exhausting.

Exhaust hoods:
[] Must be at least 12" (305 ram) from ground or any object

that may obstruct exhaust (such as flowers, rocks, bushes,

or snow).

(102 ram)

Recommended styles: Acceptable styles:
A, Louvered hood C. Angled hood

B. Box hood

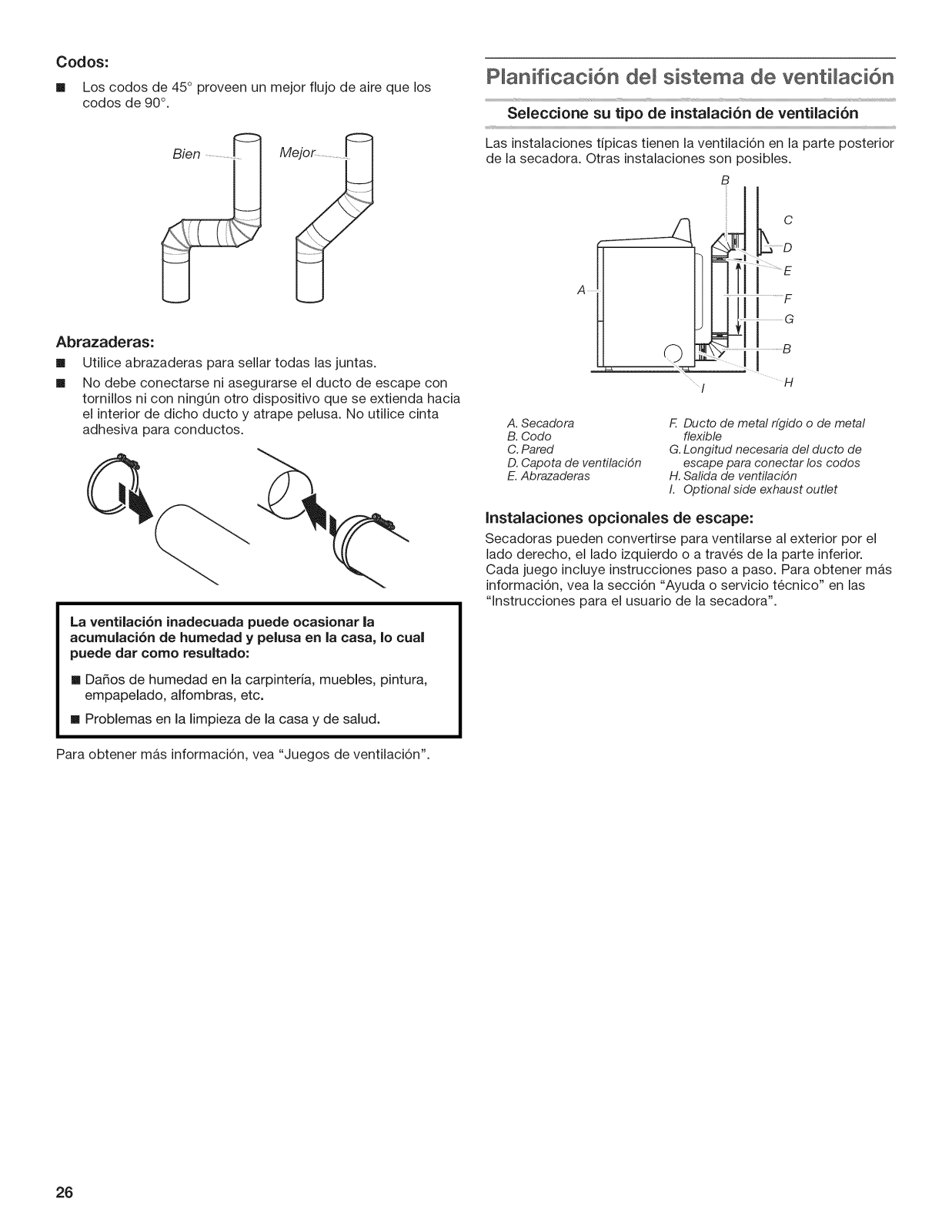

Elbows:
[] 45° elbows provide better airflow than 90° elbows.

Be

[] Only a 4" (102 mm) heavy metal exhaust

vent and clamps may be used.

[] Do not use plastic or metal foil vent.

Rigid metal vent:
[] Recommended for best drying performance and to avoid

crushing and kinking.

Flexible metal vent: (Acceptable only ifaccessible to clean)
[] Must be fully extended and supported in final dryer location.

[] Remove excess to avoid sagging and kinking that may result

in reduced airflow and poor performance.
[] Do not install in enclosed walls, ceilings, or floors.
[] The total length should not exceed 7 3/4ft. (2.4 m).

NOTE: If using an existing vent system, clean lint from entire

length of the system and make sure exhaust hood is not plugged
with lint. Replace plastic or metal foil vents with rigid metal or
flexible metal vents. Review Vent system chart and if necessary,
modify existing vent system to achieve best drying performance.

Clamps:
[] Use clamps to seal all joints.

[] Exhaust vent must not be connected or secured with screws

or other fastening devices that extend into interior of duct
and catch lint. Do not use duct tape.

Improper venting can cause moisture and lint to collect
indoors, which may result in:

[] Moisture damage to woodwork, furniture, paint, wallpaper,

carpets, etc.

[] Housecleaning problems and health problems.

10

See "Venting Kits" for more information.

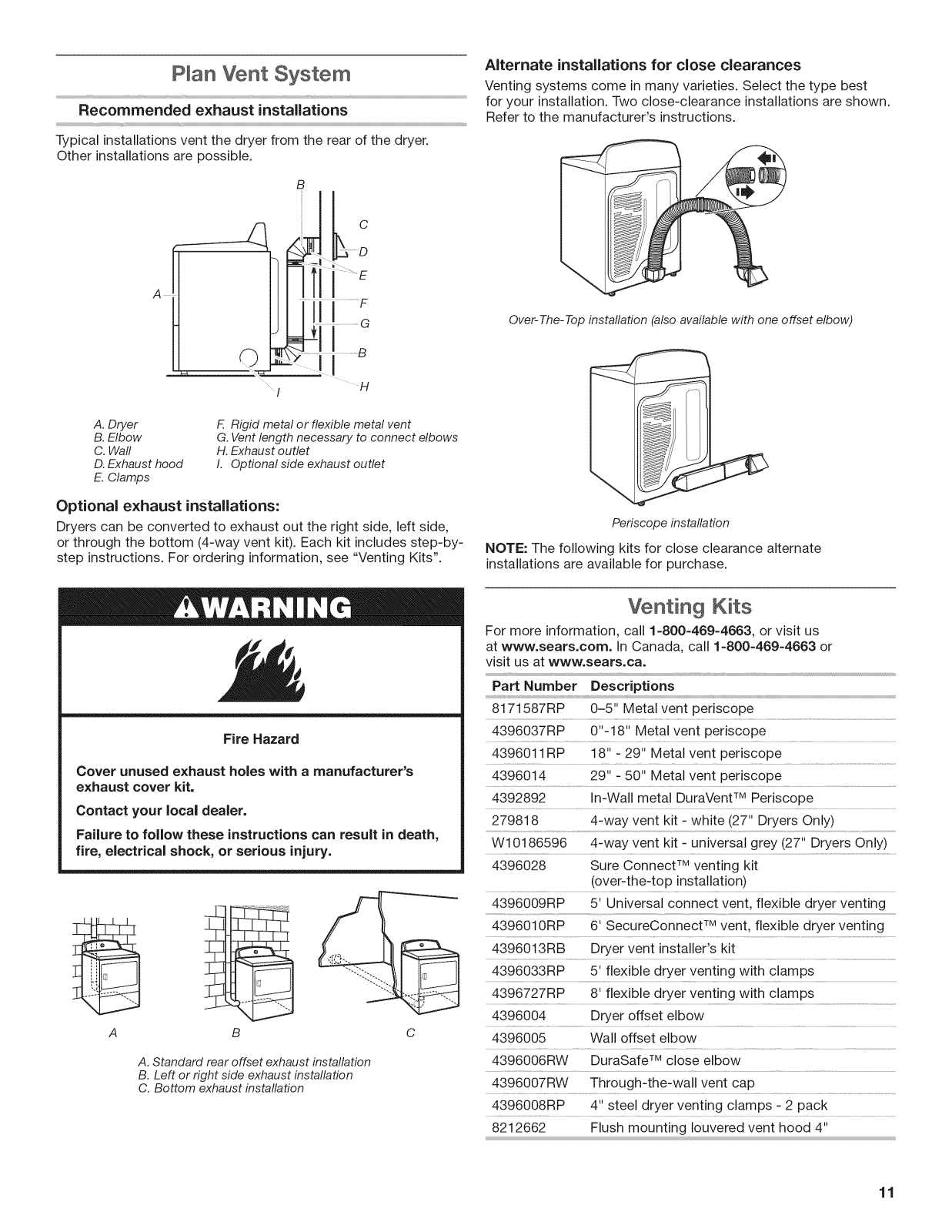

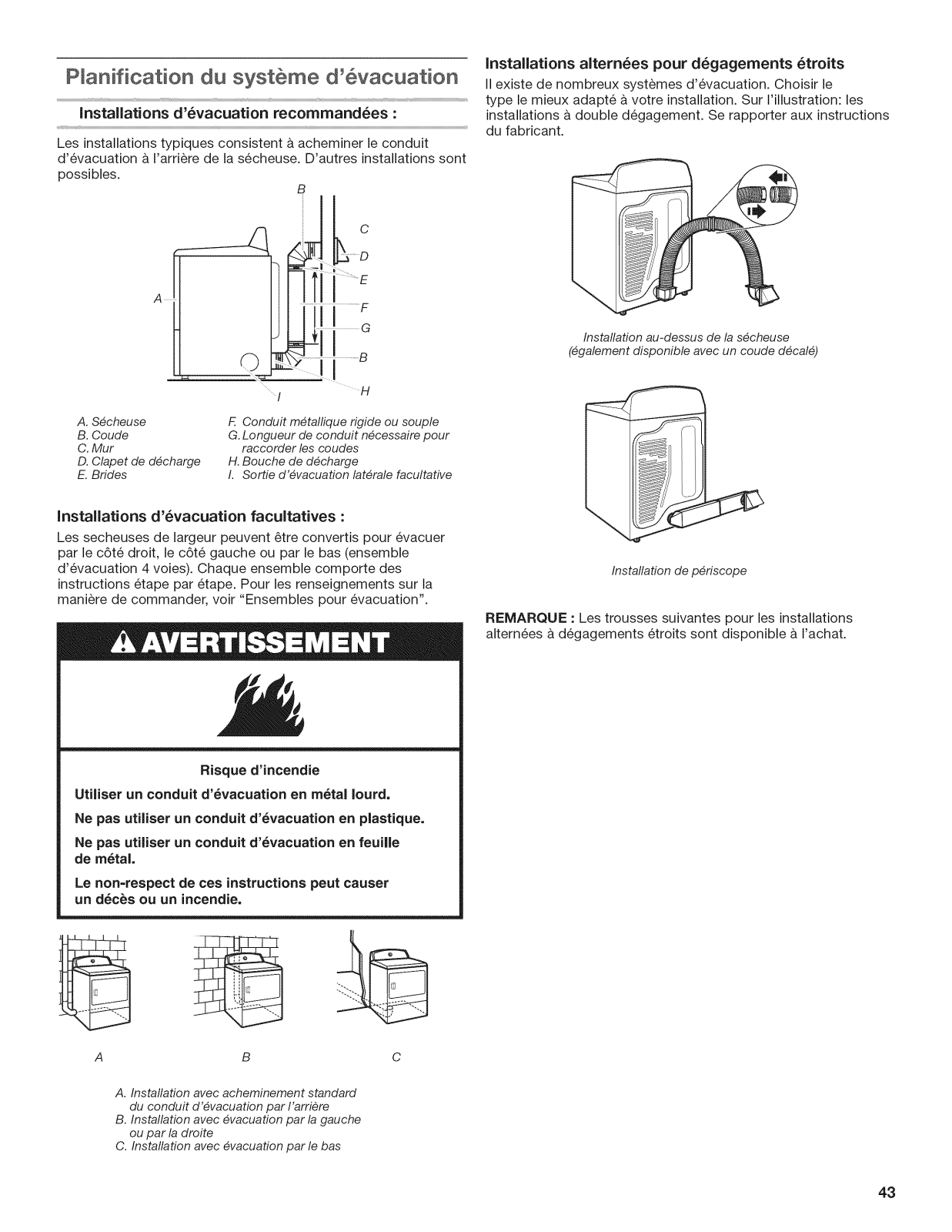

P an Vent System

Recommended exhaust installations

Typical installations vent the dryer from the rear of the dryer.
Other installations are possible.

B

...... D

-]TiI¸..........

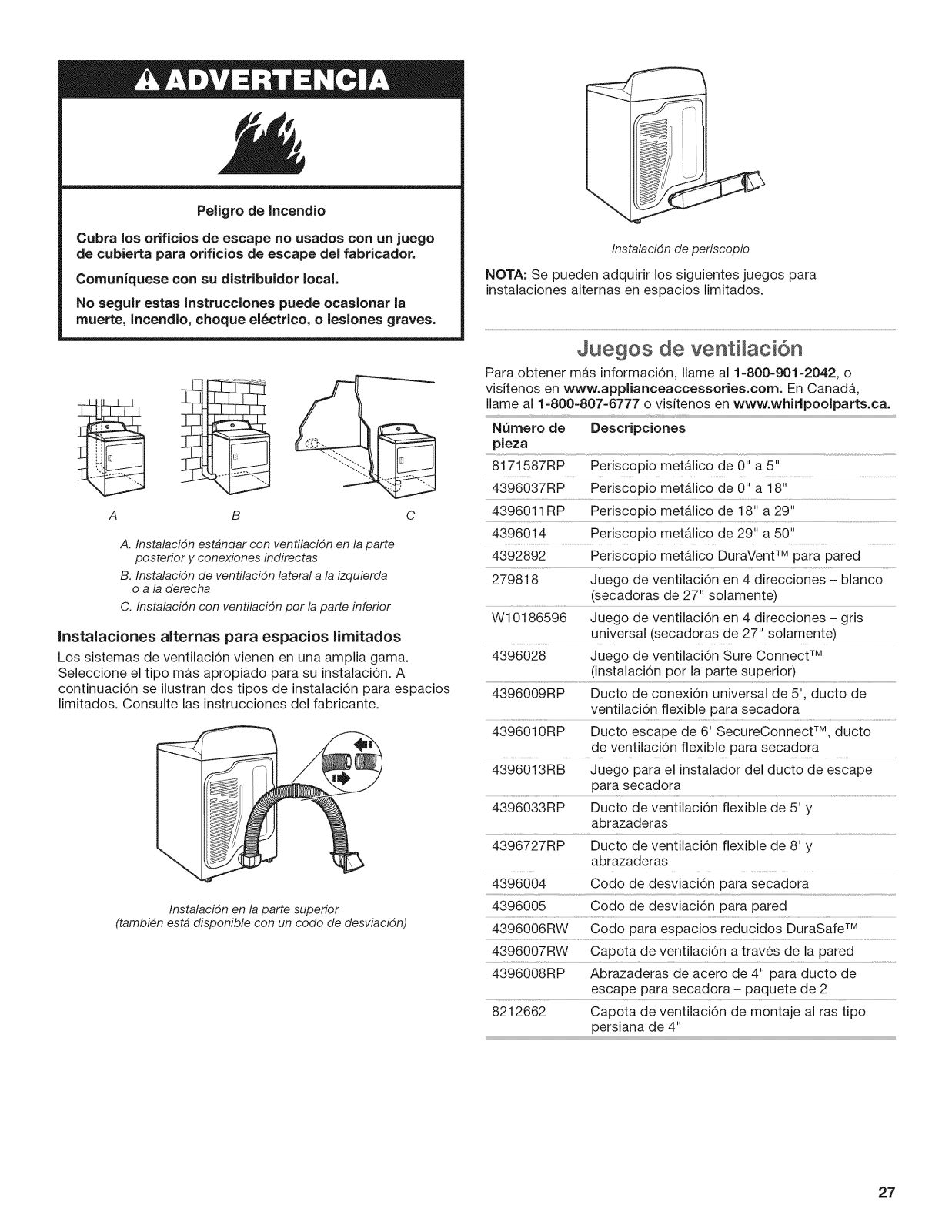

Alternate installations for dose clearances
Venting systems come in many varieties. Select the type best

for your installation. Two close-clearance installations are shown.

Refer to the manufacturer's instructions.

Over-The-Top installation (also available with one offset elbow)

/

A. Dryer
B. Elbow

C, Waft
D. Exhaust hood

E. Clamps

Optional exhaust installations:
Dryers can be converted to exhaust out the right side, left side,

or through the bottom (4-way vent kit). Each kit includes step-by-
step instructions. For ordering information, see "Venting Kits".

Cover unused exhaust holes with a manufacturer's
exhaust cover kit.

Contact your local dealer.
Failure to follow these instructions can result in death,

fire, electrical shock, or serious injury.

A B C

A. Standard rear offset exhaust installation

B. Left or fight side exhaust installation
C. Bottom exhaust installation

F. Rigid metal or flexible metal vent
G. Vent length necessary to connect elbows
H. Exhaust outlet

I. Optional side exhaust outlet

Fire Hazard

H

Periscope installation

NOTE: The following kits for close clearance alternate

installations are available for purchase.

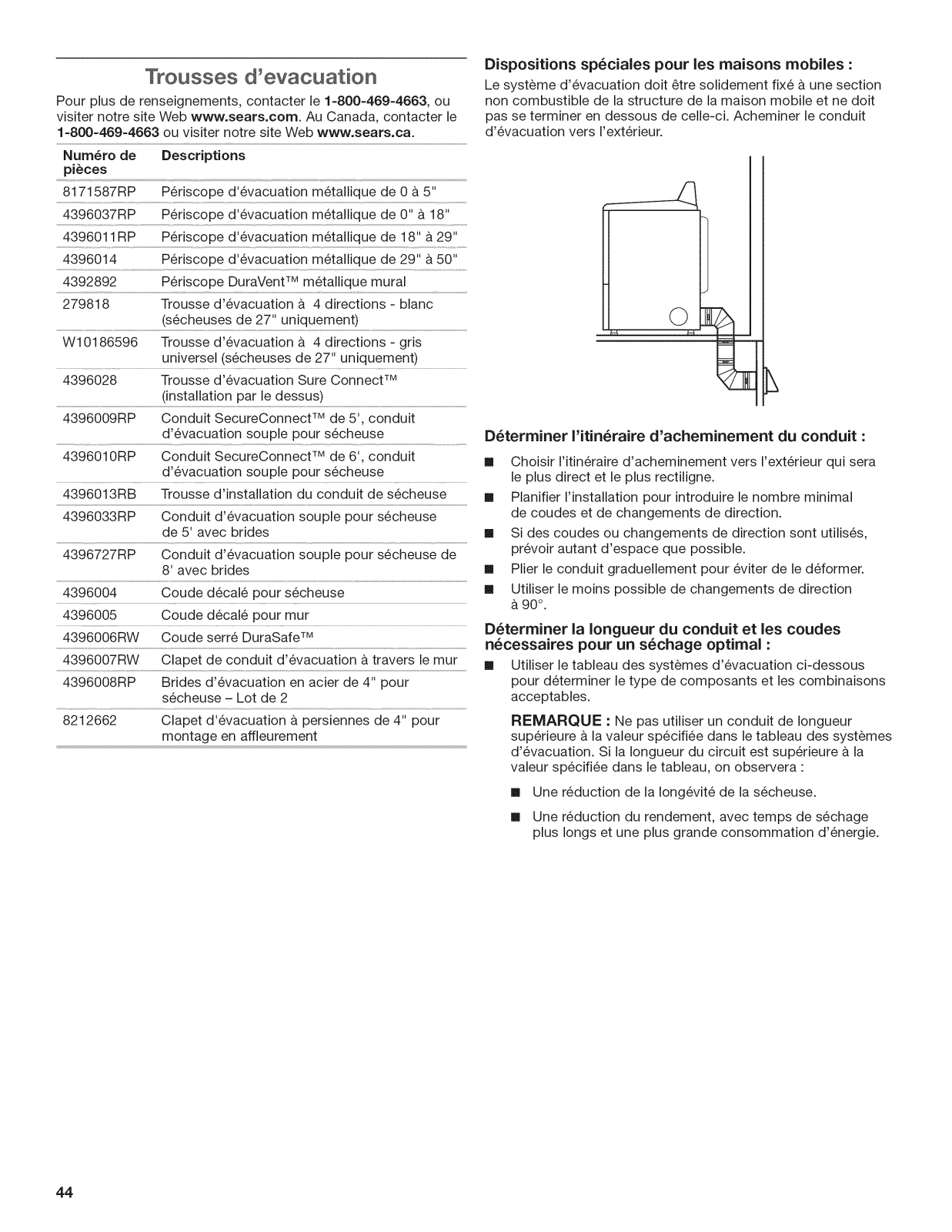

Venting Kits

For more information, call 1-800-469-4663, or visit us
at www.sears.com. In Canada, call 1-800-469-4663 or

visit us at www.sears.ca.

i

Part Number Descriptions

8171587RP 0-5" Metal vent periscope
4396037RP 0"-18" Metal vent periscope
4396011RP 18" - 29" Metal vent periscope

4396014 29" - 50" Metal vent periscope
4392892 In-Wall metal DuraVent TM Periscope

279818 4-way vent kit - white (27" Dryers Only)
W10186596 4-way vent kit - universal grey (27" Dryers Only)

4396028 Sure Connect TM venting kit

(over-the-top installation)
4396009RP 5' Universal connect vent, flexible dryer venting
4396010RP 6' SecureConnect TM vent, flexible dryer venting

4396013RB Dryer vent installer's kit
4396033RP 5' flexible dryer venting with clamps

4396727RP 8' flexible dryer venting with clamps
4396004 Dryer offset elbow

4396005 Wall offset elbow
4396006RW DuraSafe TM close elbow
4396007RW Through-the-wall vent cap
4396008RP 4" steel dryer venting clamps - 2 pack

8212662 Flush mounting Iouvered vent hood 4"

11

Special provisions for mobile home installations:
The exhaust vent must be securely fastened to a noncombustible

portion of the mobile home structure and must not terminate
beneath the mobile home. Terminate the exhaust vent outside.

Determine vent path:

[] Select route that will provide straightest and most direct

path outdoors.

[] Plan installation to use fewest number of elbows and turns.
[] When using elbows or making turns, allow as much room

as possible.
[] Bend vent gradually to avoid kinking.
[] Use as few 90° turns as possible.

The Vent system chart provides venting requirements that will
help achieve best drying performance.

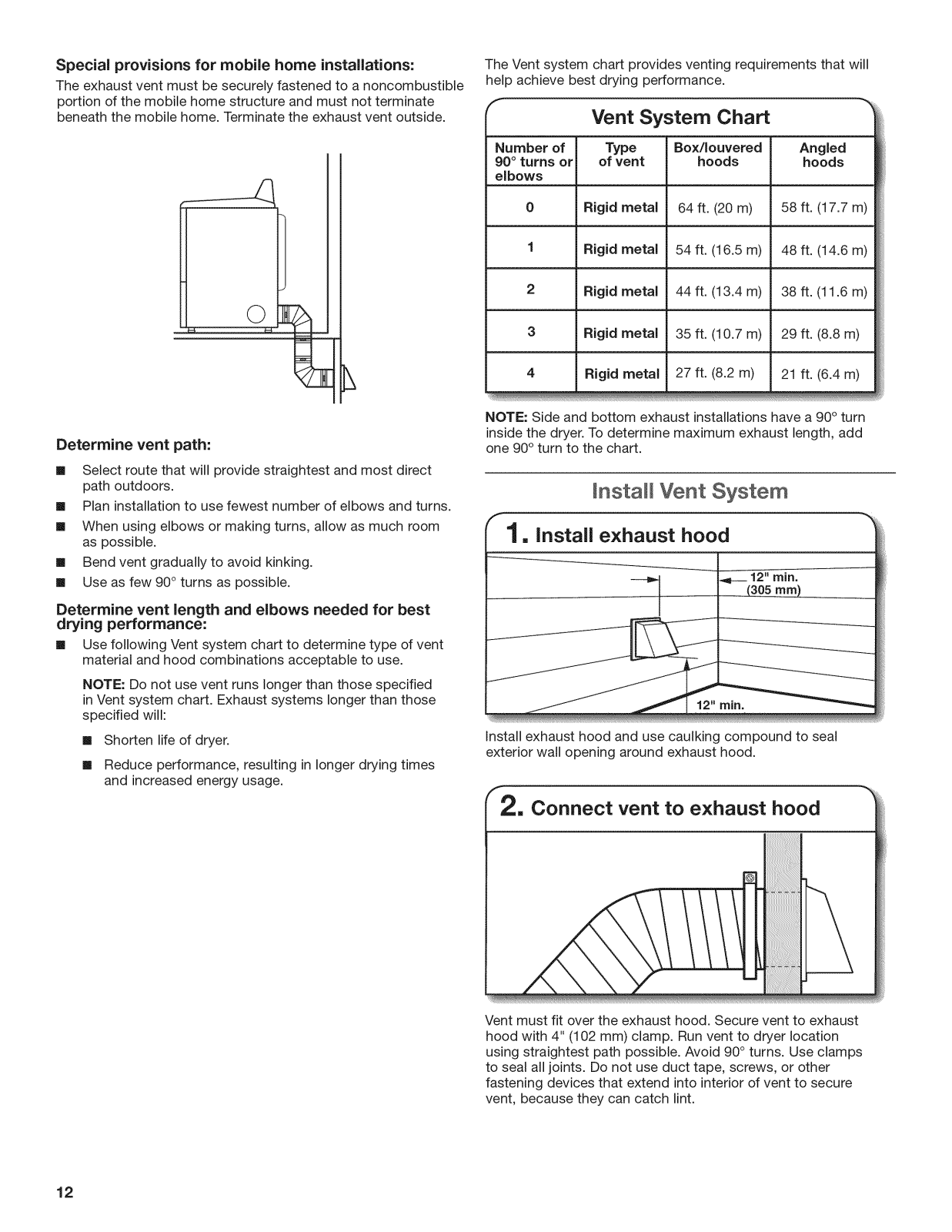

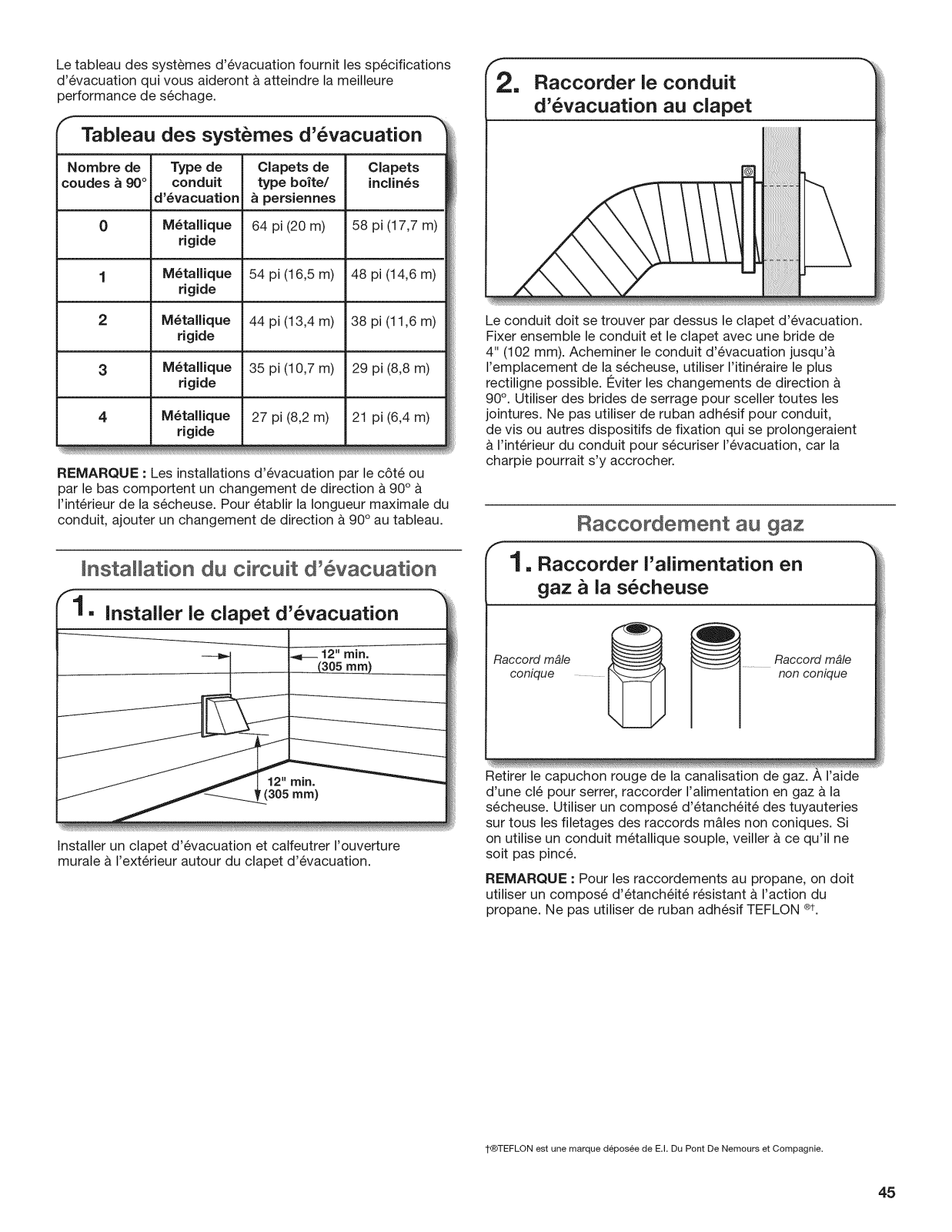

Vent System Chart

Number of Type Box/Iouvered Angled
90 ° turns or of vent hoods hoods

elbows

Rigid metal 64 ft. (20 m) 58 ft. (17.7 m)

Rigid metal 54 ft. (16.5 m) 48 ft. (14.6 m)

Rigid metal 44 ft. (13.4 m) 38 ft. (11.6 m)

3 Rigid metal 35 ft. (10.7 m) 29 ft. (8.8 m)

4 Rigid metal 27 ft. (8.2 m) 21 ft. (6.4 m)

NOTE: Side and bottom exhaust installations have a 90 ° turn

inside the dryer. To determine maximum exhaust length, add

one 90° turn to the chart.

Install Vent System

rnin.

Determine vent length and elbows needed for best
drying performance:

[] Use following Vent system chart to determinetype of vent

material and hood combinations acceptable to use.

NOTE: Do not use vent runs longer than those specified

in Vent system chart. Exhaust systems longer than those

specified will:

[] Shorten life of dryer.

[] Reduce performance, resulting in longer drying times

and increased energy usage.

12" rnin.

install exhaust hood and use caulking compound to seal
exterior wall opening around exhaust hood.

f

2, Connect vent to exhaust hood

Vent must fit over the exhaust hood. Secure vent to exhaust
hood with 4" (102 mm) clamp. Run vent to dryer location

using straightest path possible. Avoid 90 ° turns. Use clamps
to seal all joints. Do not use duct tape, screws, or other
fastening devices that extend into interior of vent to secure
vent, because they can catch lint.

12

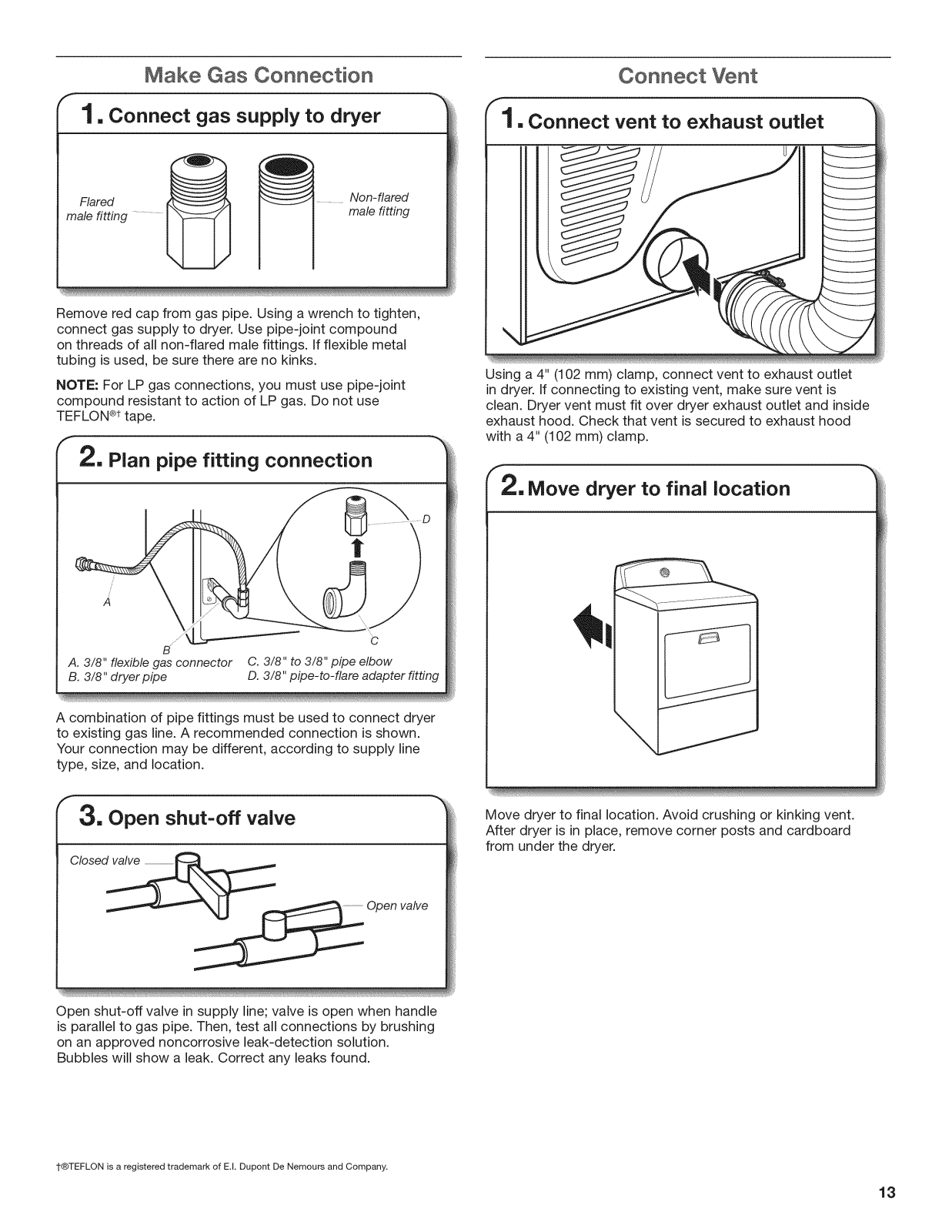

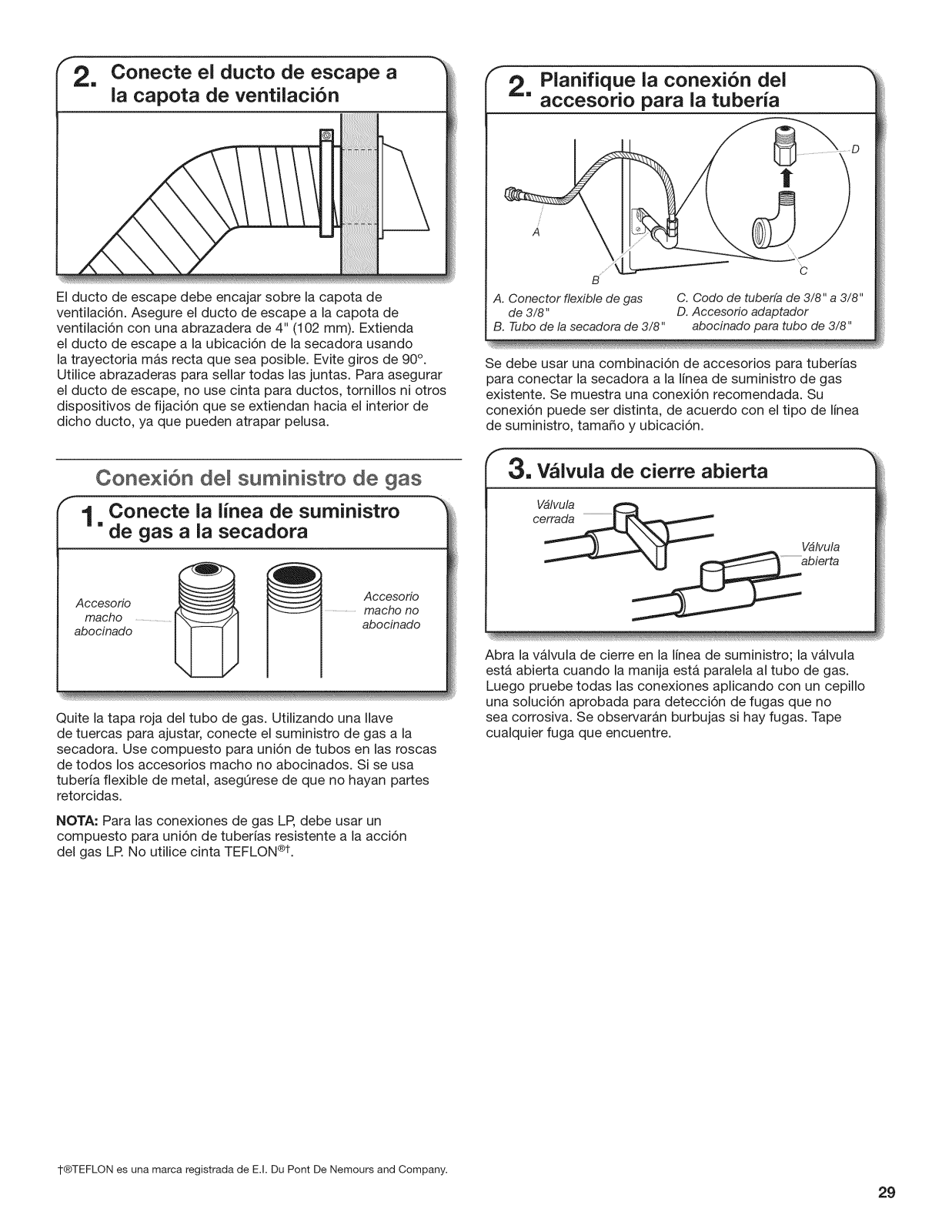

Make Gas Connection

1. Connect gas supply to dryer

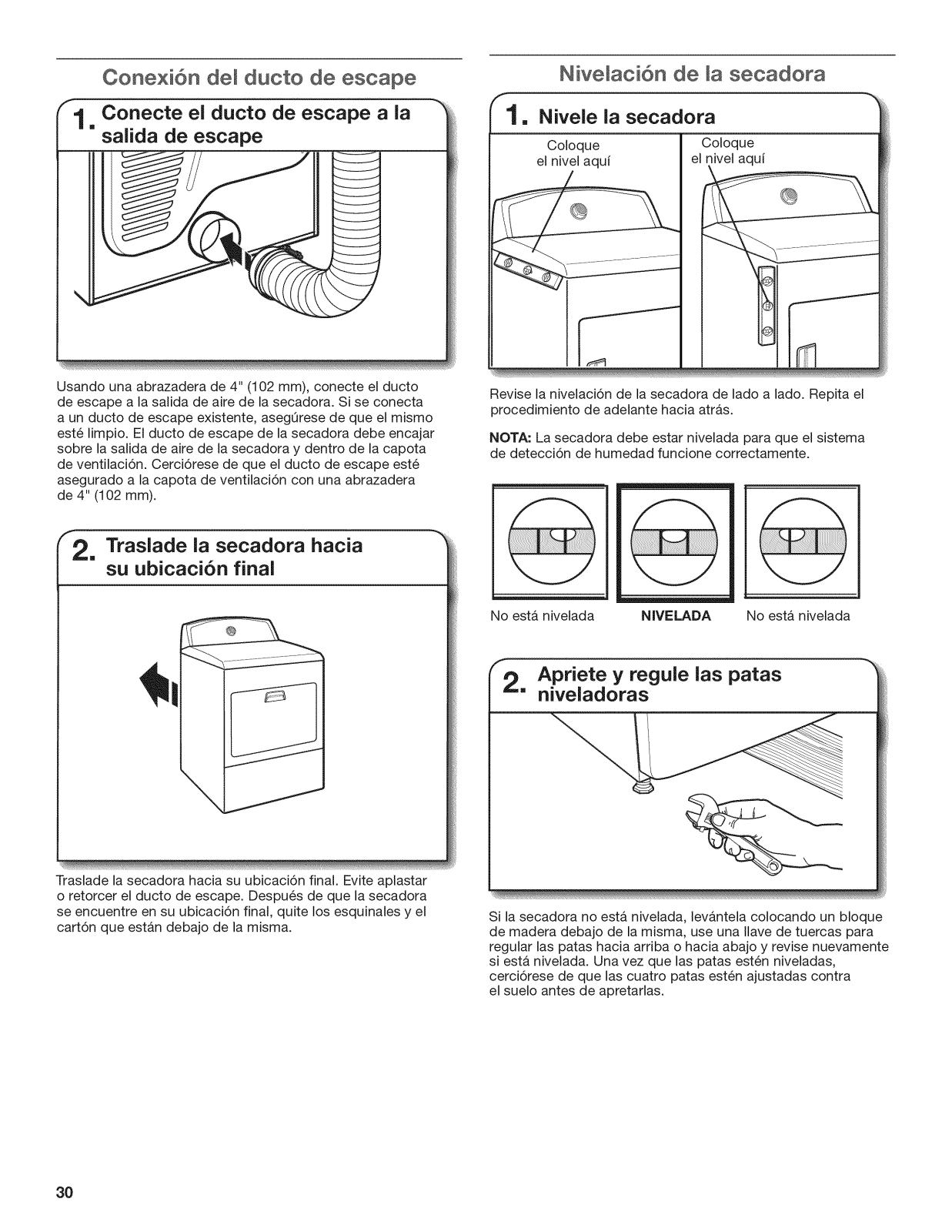

Connect Vent

Flared

male fitting

Remove red cap from gas pipe. Using a wrench to tighten,
connect gas supply to dryer. Use pipe-joint compound
on threads of all non-flared male fittings. If flexible metal
tubing is used, be sure there are no kinks.

NOTE: For LP gas connections, you must use pipe-joint
compound resistant to action of LP gas. Do not use
TEFLON ®t tape.

Non-flared

male fitting

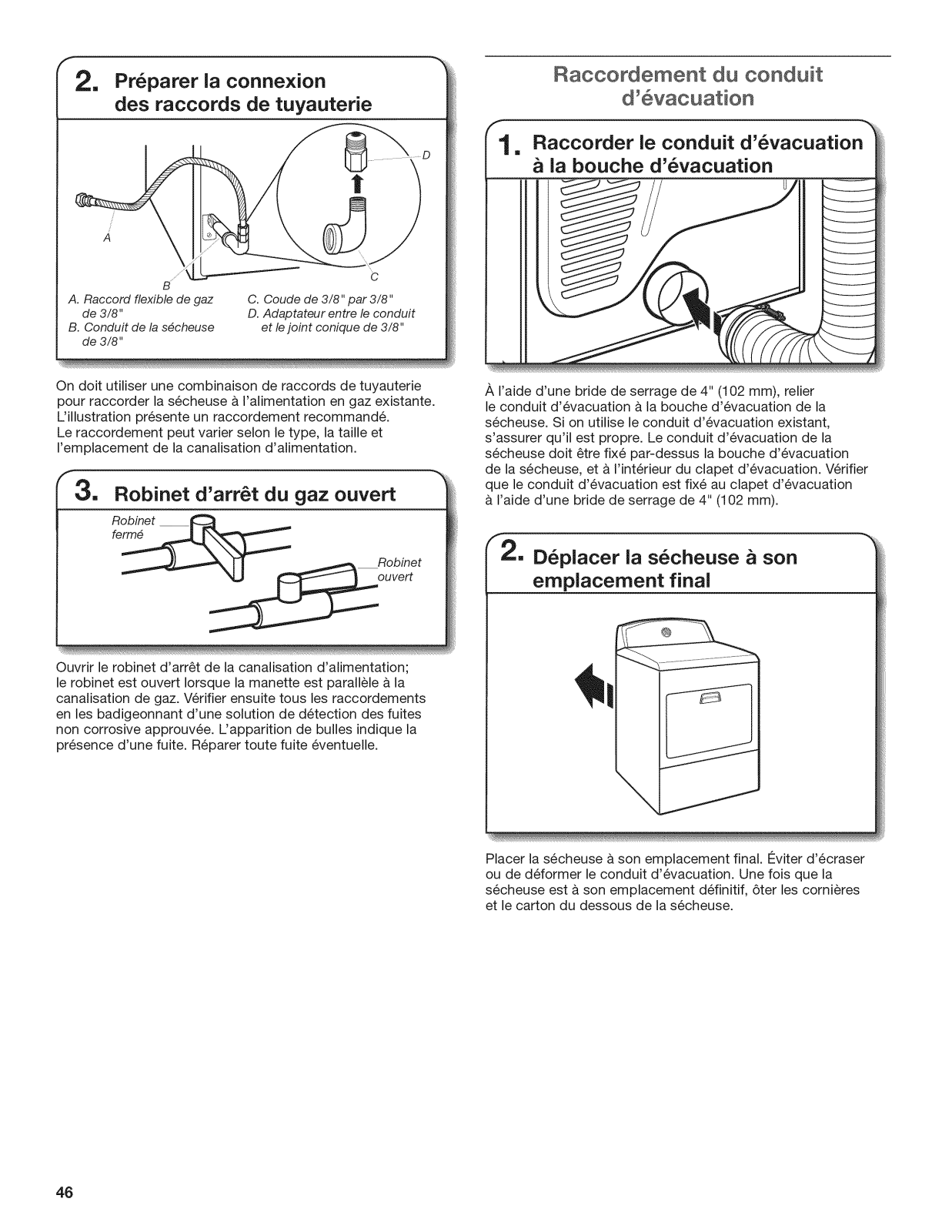

:2. Plan pipe fitting connection

B C

A. 3/8" flexible gas connector C. 3/8" to 3/8" pipe elbow

B. 3/8" dryer pipe D.3/8" pipe-to-flare adapter fitting

Using a 4" (102 mm) clamp, connect vent to exhaust outlet

in dryer. If connecting to existing vent, make sure vent is

clean. Dryer vent must fit over dryer exhaust outlet and inside
exhaust hood. Check that vent is secured to exhaust hood

with a 4" (102 mm) clamp.

:2. Move dryer to final location

A combination of pipe fittings must be used to connect dryer
to existing gas line. A recommended connection is shown.

Your connection may be different, according to supply line
type, size, and location.

3, Open shut-off valve

Closed_

Open shut-off valve in supply line; valve is open when handle

is parallel to gas pipe. Then, test all connections by brushing

on an approved noncorrosive leak-detection solution.

Bubbles will show a leak. Correct any leaks found.

1®TEFLON is a registered trademark of E.L Dupont De Nemours and Company.

Open valve

Move dryer to final location. Avoid crushing or kinking vent.
After dryer is in place, remove corner posts and cardboard
from under the dryer.

13

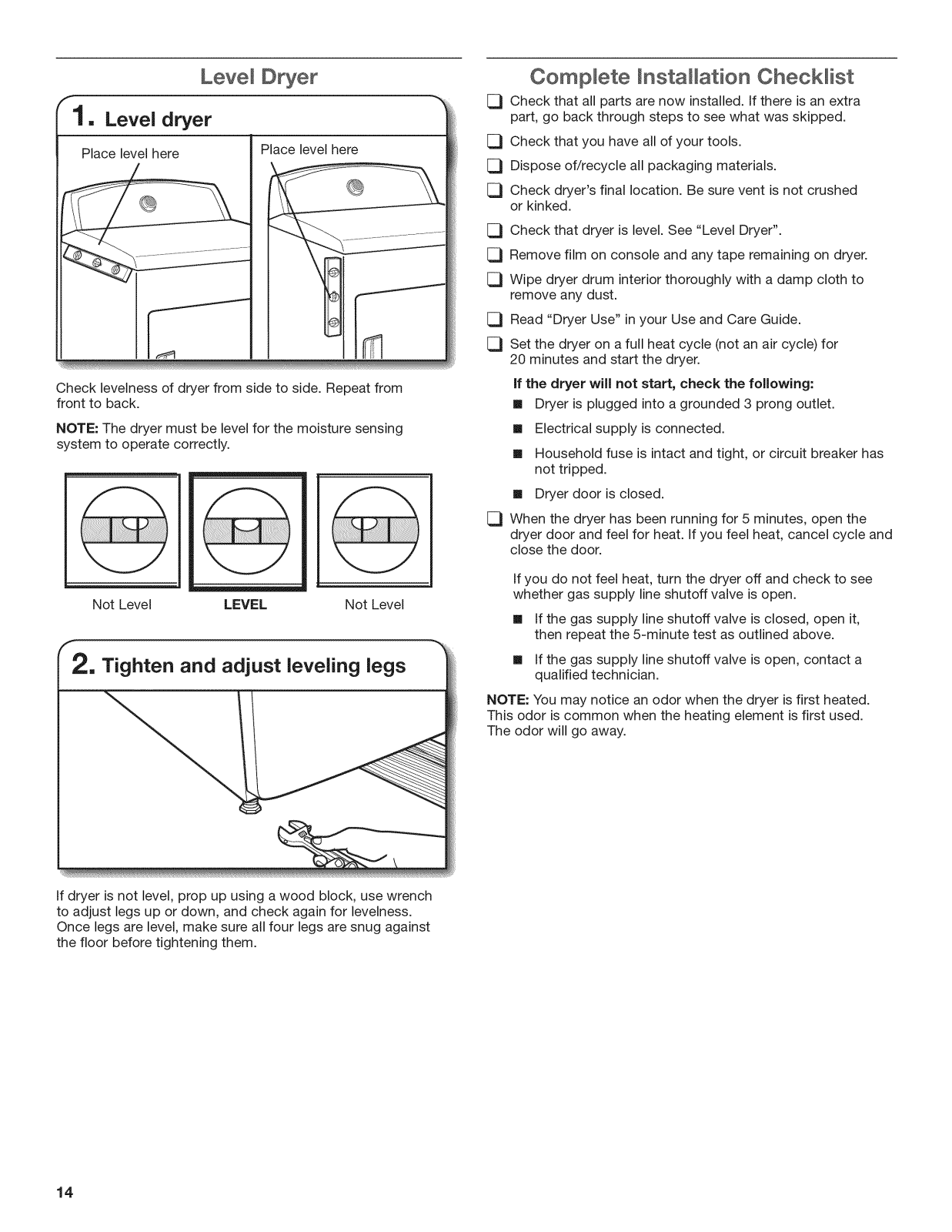

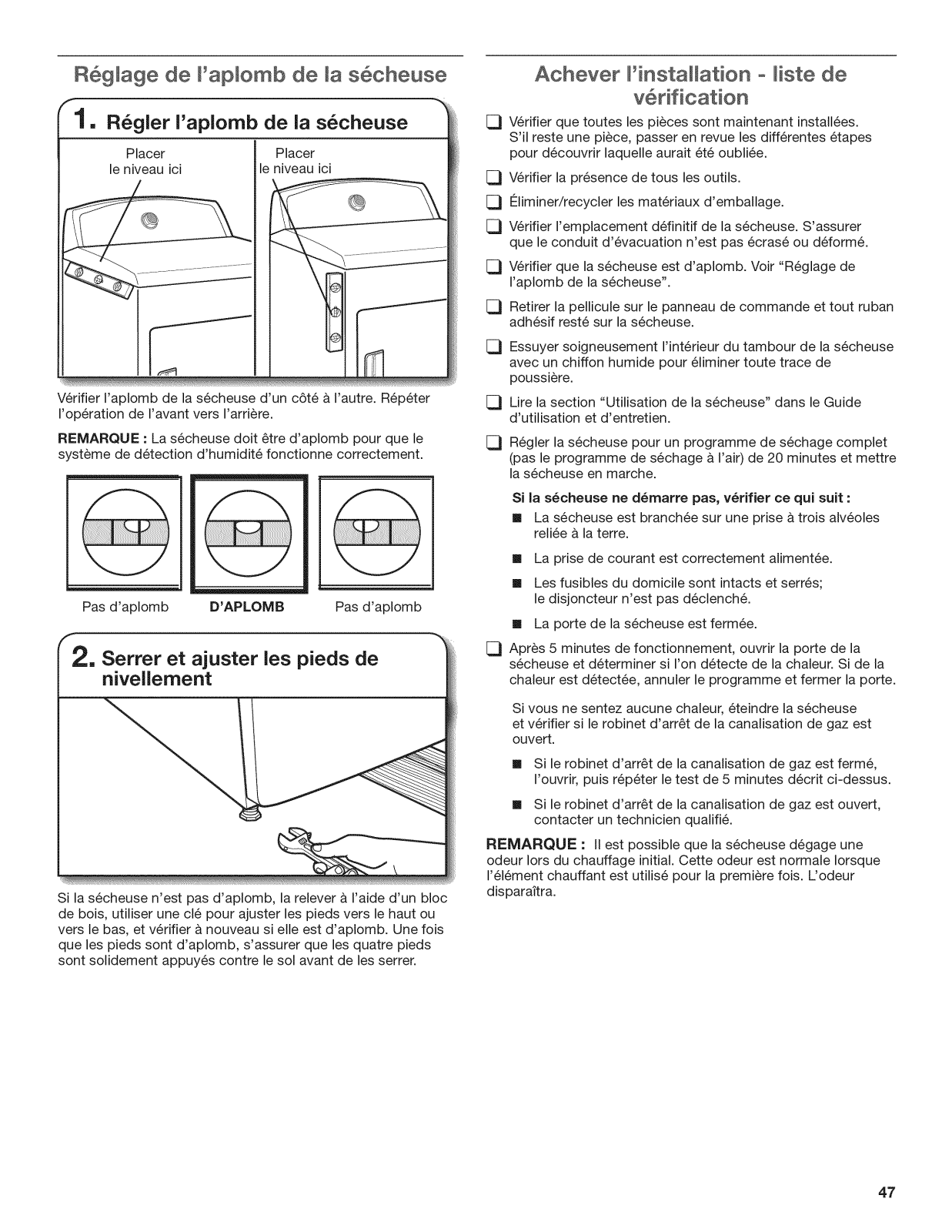

Level Dryer

1, Level dryer

Place level here Place level here

Check levelness of dryer from side to side. Repeat from
front to back.

NOTE: The dryer must be level for the moisture sensing
system to operate correctly.

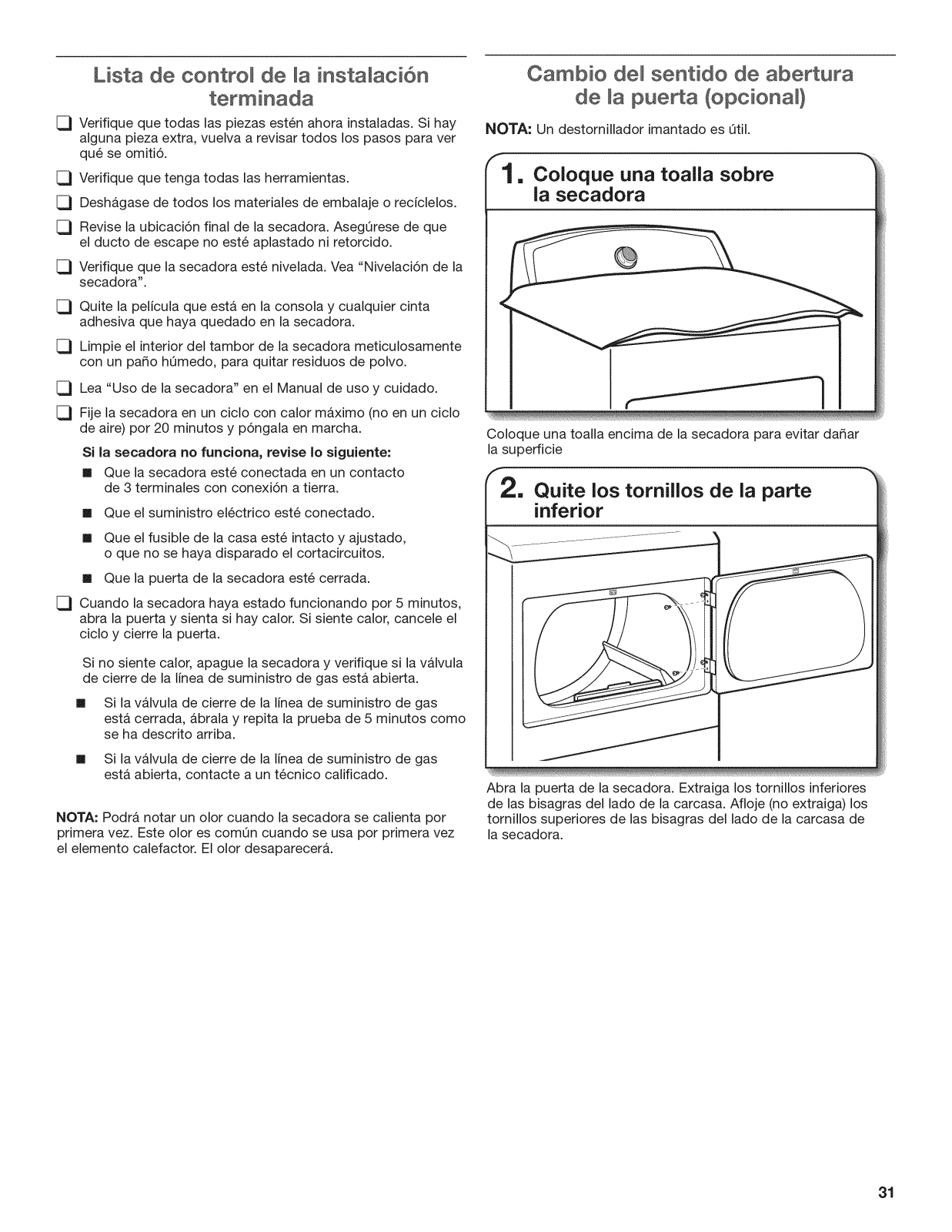

Complete mnstaHation CheckMist

[_ Check that all parts are now installed. If there is an extra

part, go back through steps to see what was skipped.
[_ Check that you have all of your tools.
[_ Dispose of/recycle all packaging materials.

[_ Check dryer's final location. Be sure vent is not crushed

or kinked.
[_ Check that dryer is level. See "Level Dryer".

[_ Remove film on console and any tape remaining on dryer.
[_ Wipe dryer drum interior thoroughly with a damp cloth to

remove any dust.
[_ Read "Dryer Use" in your Use and Care Guide.

[_ Set the dryer on a full heat cycle (not an air cycle) for

20 minutes and start the dryer.

if the dryer will not start, check the following:
[] Dryer is plugged into a grounded 3 prong outlet.

[] Electrical supply is connected.
[] Household fuse is intact and tight, or circuit breaker has

not tripped.

[] Dryer door is closed.

[_ When the dryer has been running for 5 minutes, open the

dryer door and feel for heat. If you feel heat, cancel cycle and

close the door.

Not Level LEVEL Not Level

2. Tighten and adjust leveling legs

If dryer is not level, prop up using a wood block, use wrench
to adjust legs up or down, and check again for levelness.
Once legs are level, make sure all four legs are snug against
the floor before tightening them.

If you do not feel heat, turn the dryer off and check to see
whether gas supply line shutoff valve is open.

[] If the gas supply line shutoff valve is closed, open it,

then repeat the 5-minute test as outlined above.

[] If the gas supply line shutoff valve is open, contact a

qualified technician.

NOTE: You may notice an odor when the dryer is first heated.
This odor is common when the heating element is first used.
The odor will go away.

14

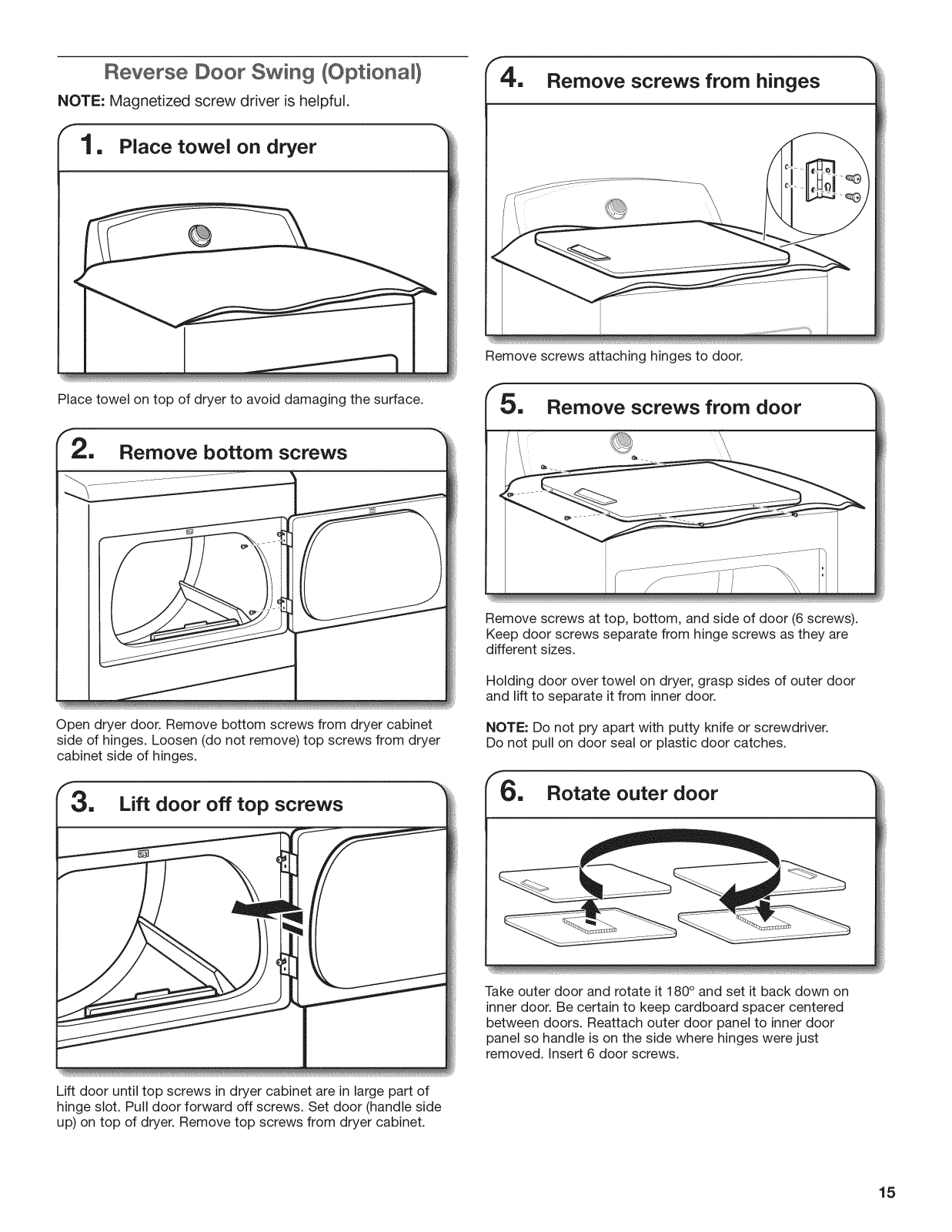

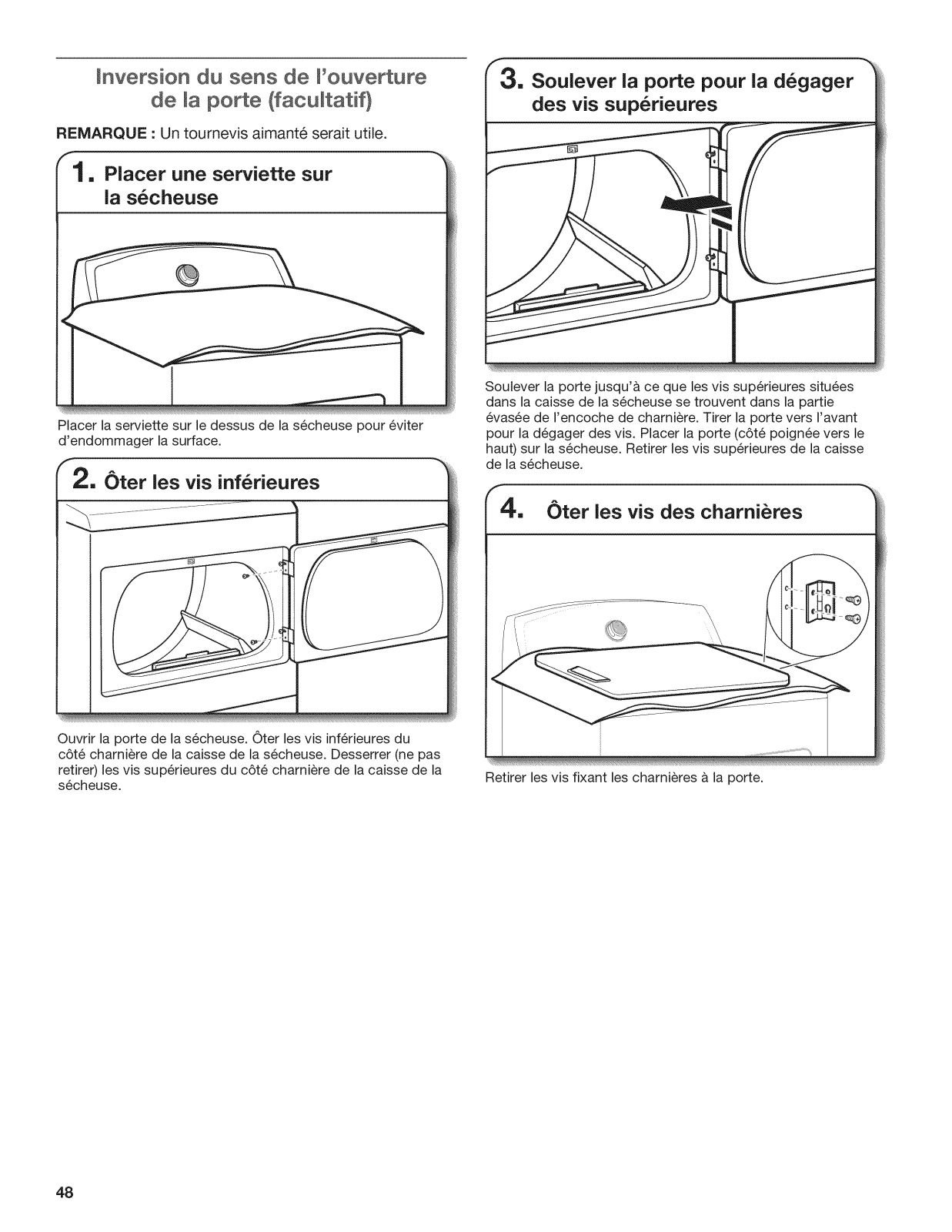

Reverse Door Swing (OptionaM}

NOTE: Magnetized screw driver is helpful.

"1, Place towel on dryer

4. Remove screws from hinges

Remove screws attaching hinges to door.

Place towel on top of dryer to avoid damaging the surface.

Remove bottom screws

Open dryer door. Remove bottom screws from dryer cabinet
side of hinges. Loosen (do not remove) top screws from dryer
cabinet side of hinges.

Lift door off top screws

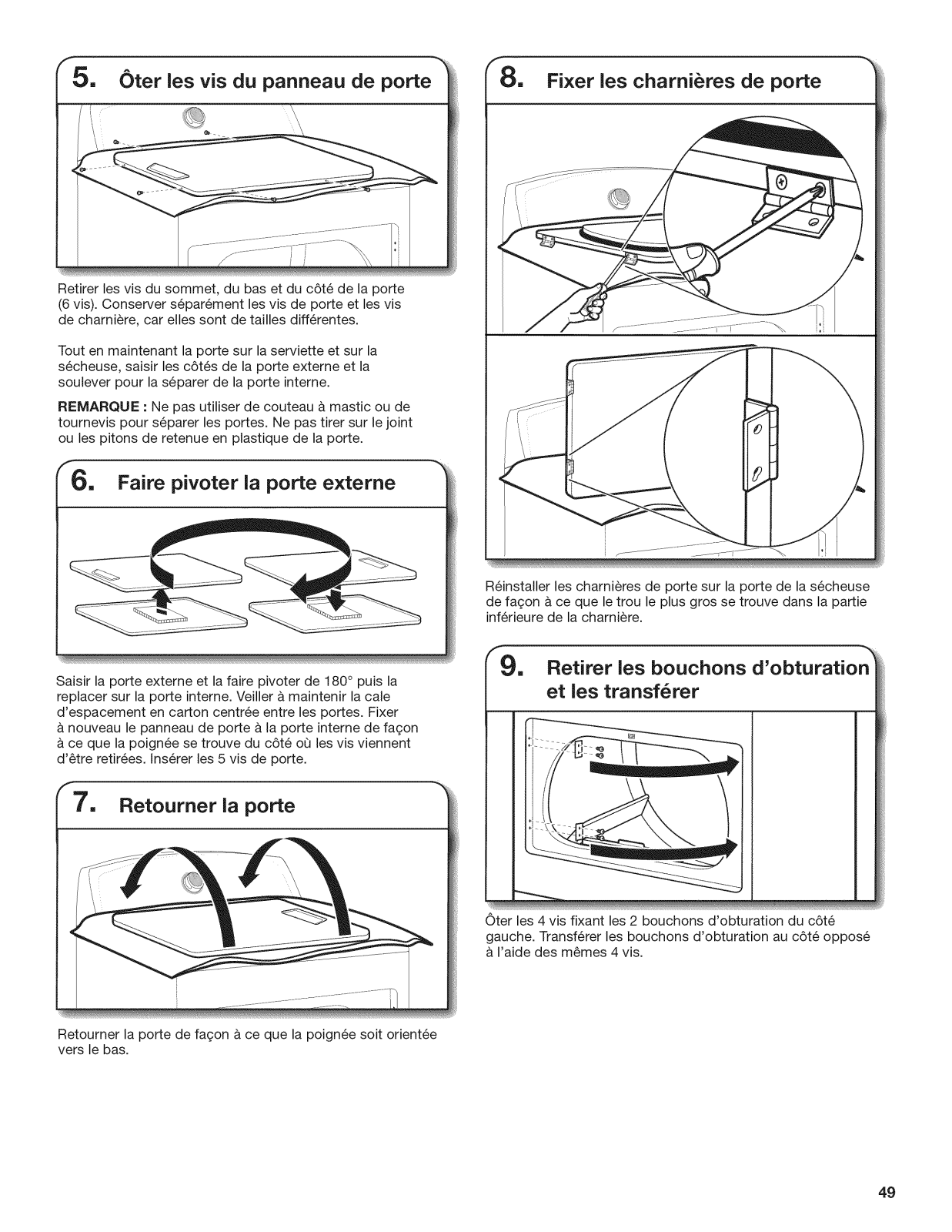

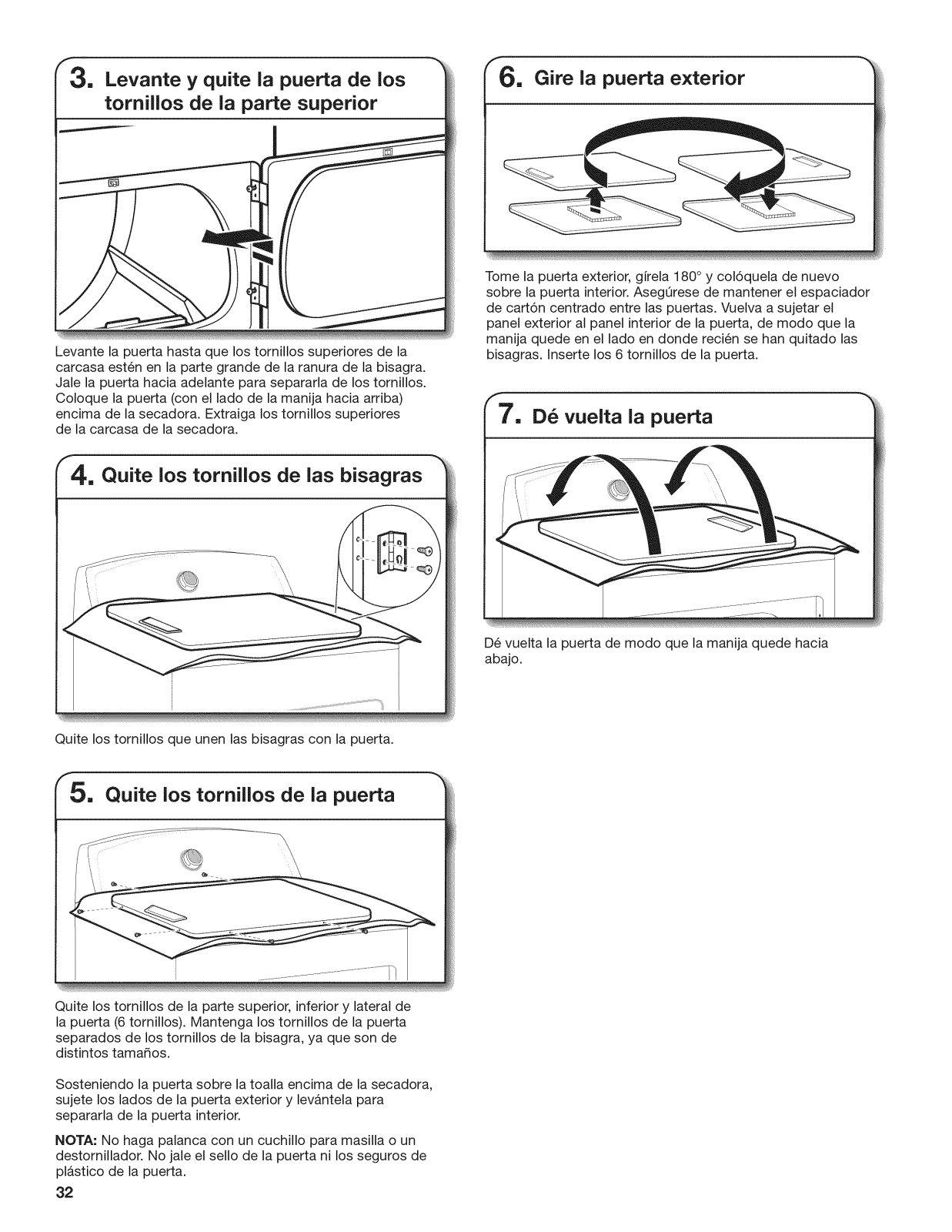

f5. Remove screws from door

Remove screws at top, bottom, and side of door (6 screws).

Keep door screws separate from hinge screws as they are

different sizes.

Holding door over towel on dryer, grasp sides of outer door

and lift to separate it from inner door.

NOTE: Do not pry apart with putty knife or screwdriver.

Do not pull on door seal or plastic door catches.

6, Rotate outer door

Lift door until top screws in dryer cabinet are in large part of
hinge slot. Pull door forward off screws. Set door (handle side
up) on top of dryer. Remove top screws from dryer cabinet.

Take outer door and rotate it 180° and set it back down on

inner door. Be certain to keep cardboard spacer centered
between doors. Reattach outer door panel to inner door
panel so handle is on the side where hinges were just

removed. Insert 6 door screws.

15

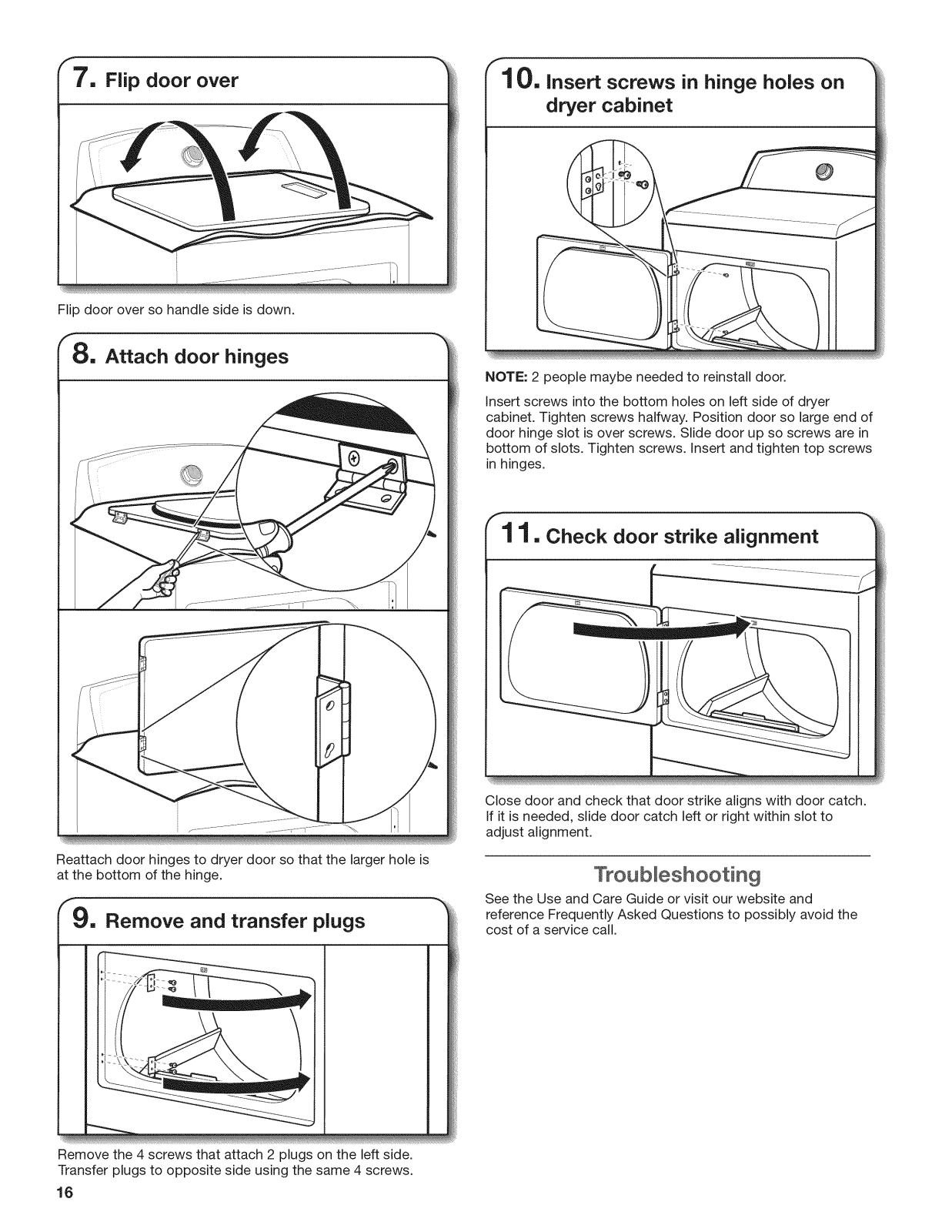

7, Flip door over

I h

Flip door over so handle side is down.

r

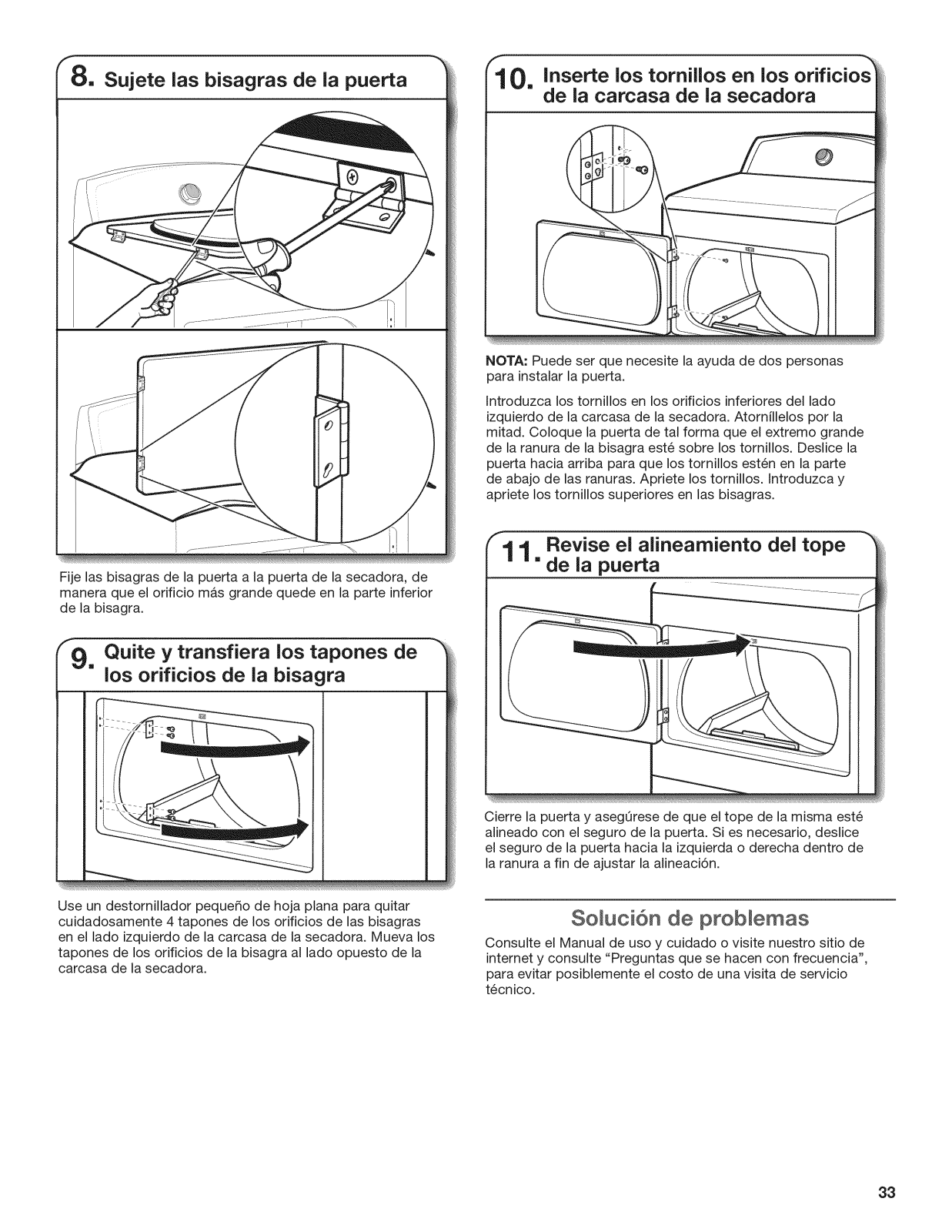

8, Attach door hinges

dryer cabinet

NOTE: 2 people maybe needed to reinstall door.
Insert screws into the bottom holes on left side of dryer

cabinet. Tighten screws halfway. Position door so large end of
door hinge slot is over screws. Slide door up so screws are in

bottom of slots. Tighten screws. Insert and tighten top screws
in hinges.

....... T--3 %.

Reattach door hinges to dryer door so that the larger hole is

at the bottom of the hinge.

9, Remove and transfer plugs

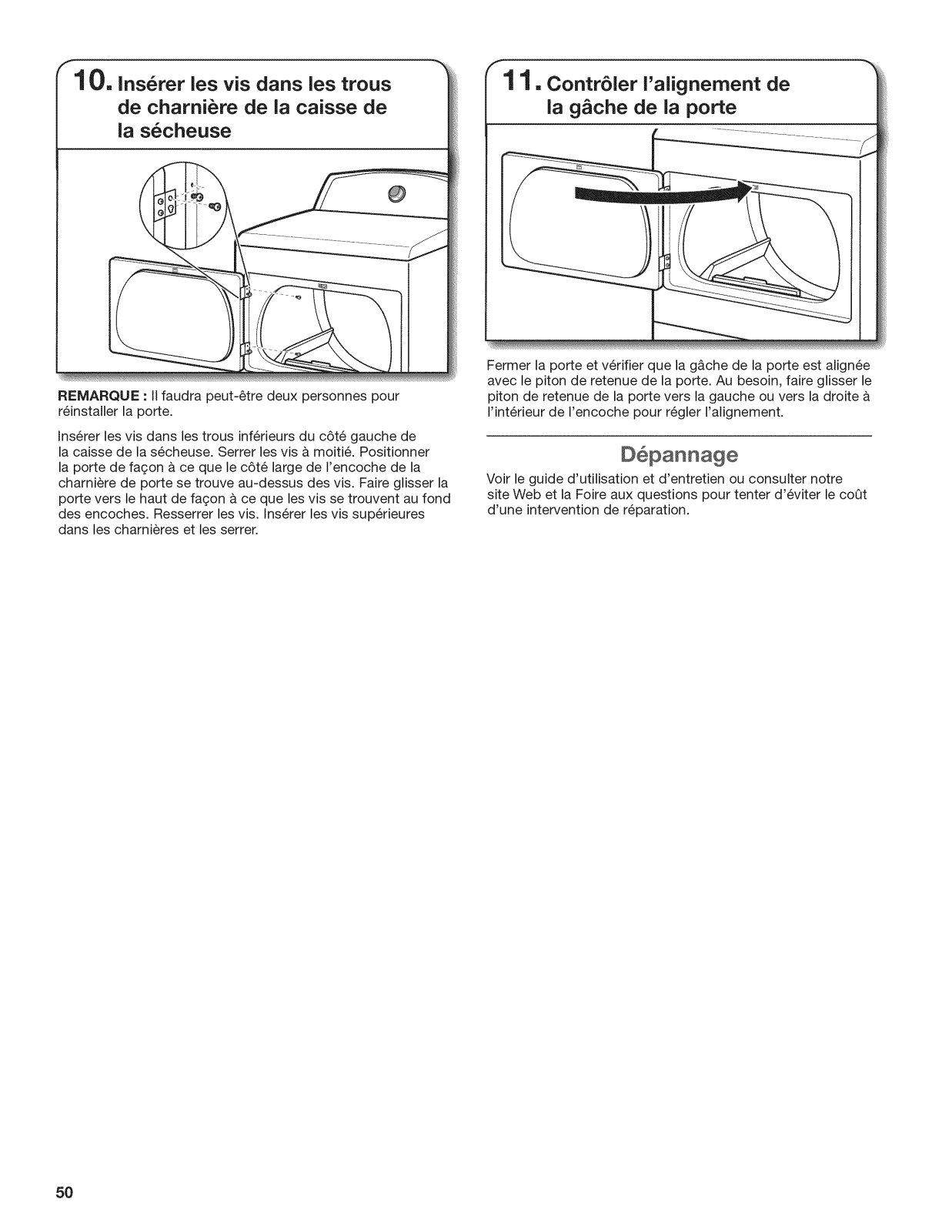

1 1, Check door strike alignment

Close door and check that door strike aligns with door catch.

If it is needed, slide door catch left or right within slot to

adjust alignment.

See the Use and Care Guide or visit our website and
reference Frequently Asked Questions to possibly avoid the

cost of a service call.

Remove the 4 screws that attach 2 plugs on the left side.
Transfer plugs to opposite side using the same 4 screws.

16
