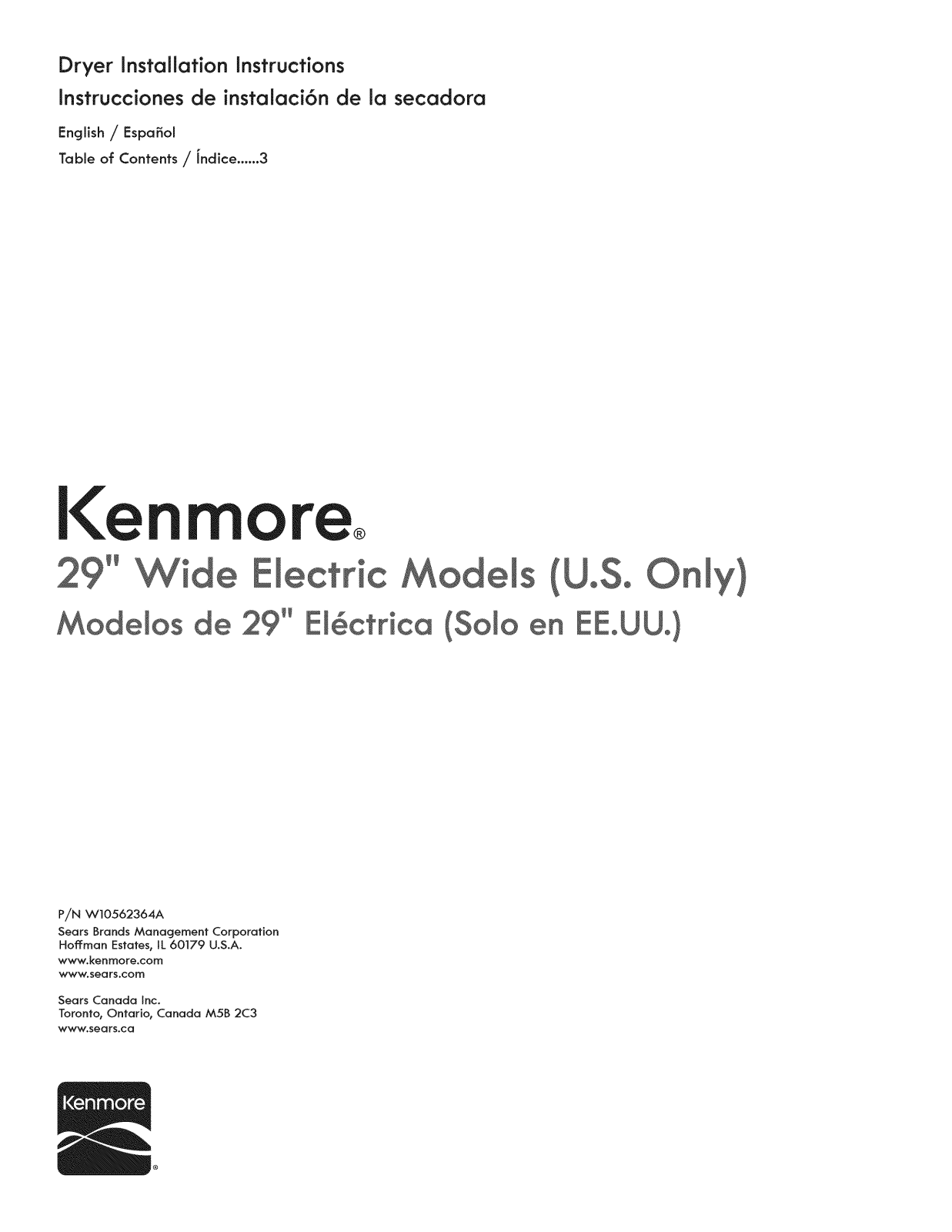

Kenmore 11062102310, 11062102311, 11062332510, 11062342510, 11065102310 Installation Guide

...

Dryer Installation instructions

Instrucciones de instalaci6n de la secadora

English / Espa_oJ

Table of Contents / Jndice ...... 3

29"

Mode_os de 29 °°

P/N W10562364A Sears Brands Management Corporation

Holt:man Estates, IL 60179 U.S.A. www.kenmore.com www.sears.com

Sears Canada inc. Toronto, Ontario, Canada M5B 2C3

www.sears.ca

s UoSoOnly}

(SoJo en EE°UU°}

iNSTALLATiON NOTES NOTAS SOBRE LA INSTALACION

Date of purchase: Date of installation:

installer:

Model number: Serial number:

Fecha de comprm Fecha de instalaci6n:

Instalaclor: N6mero de modelo:

N6mero de serie:

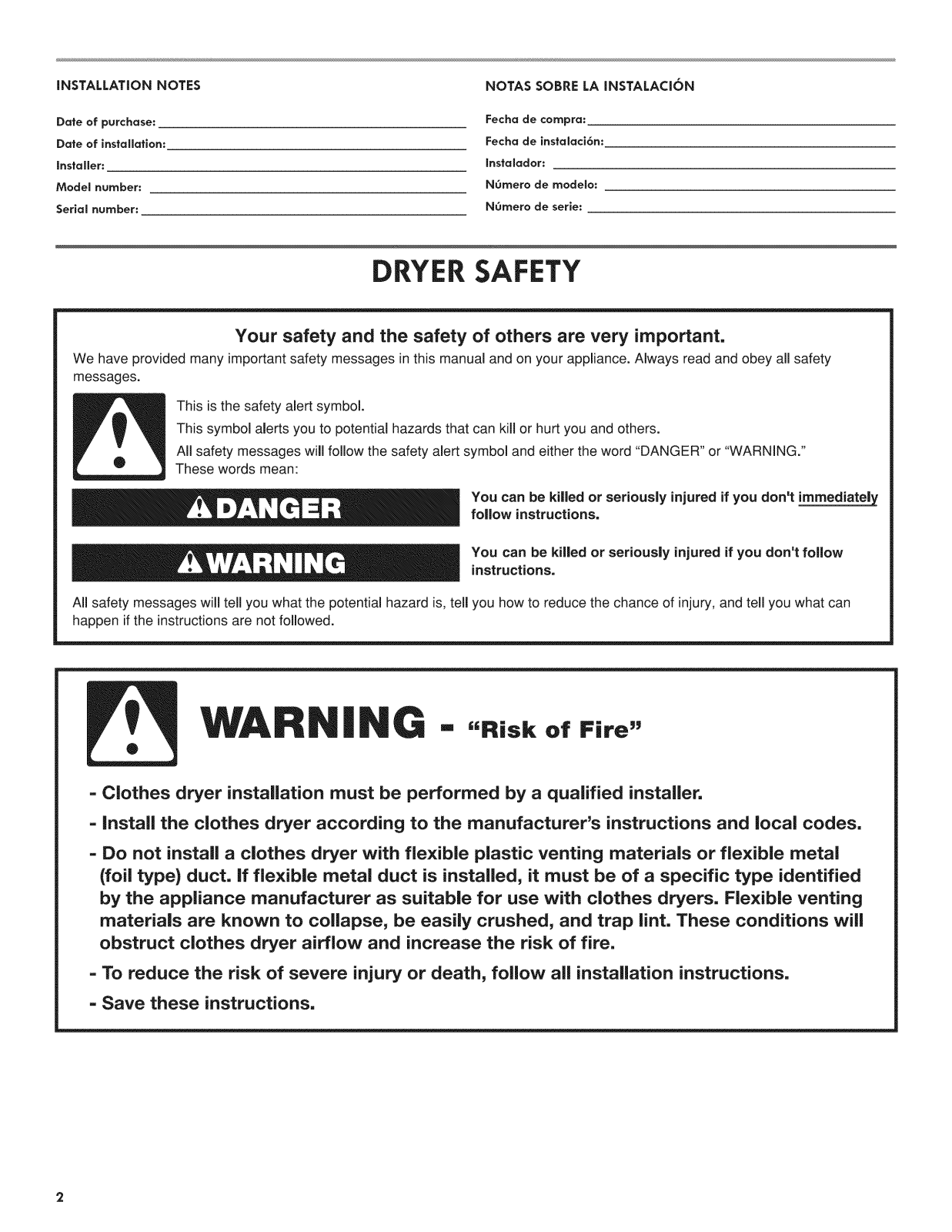

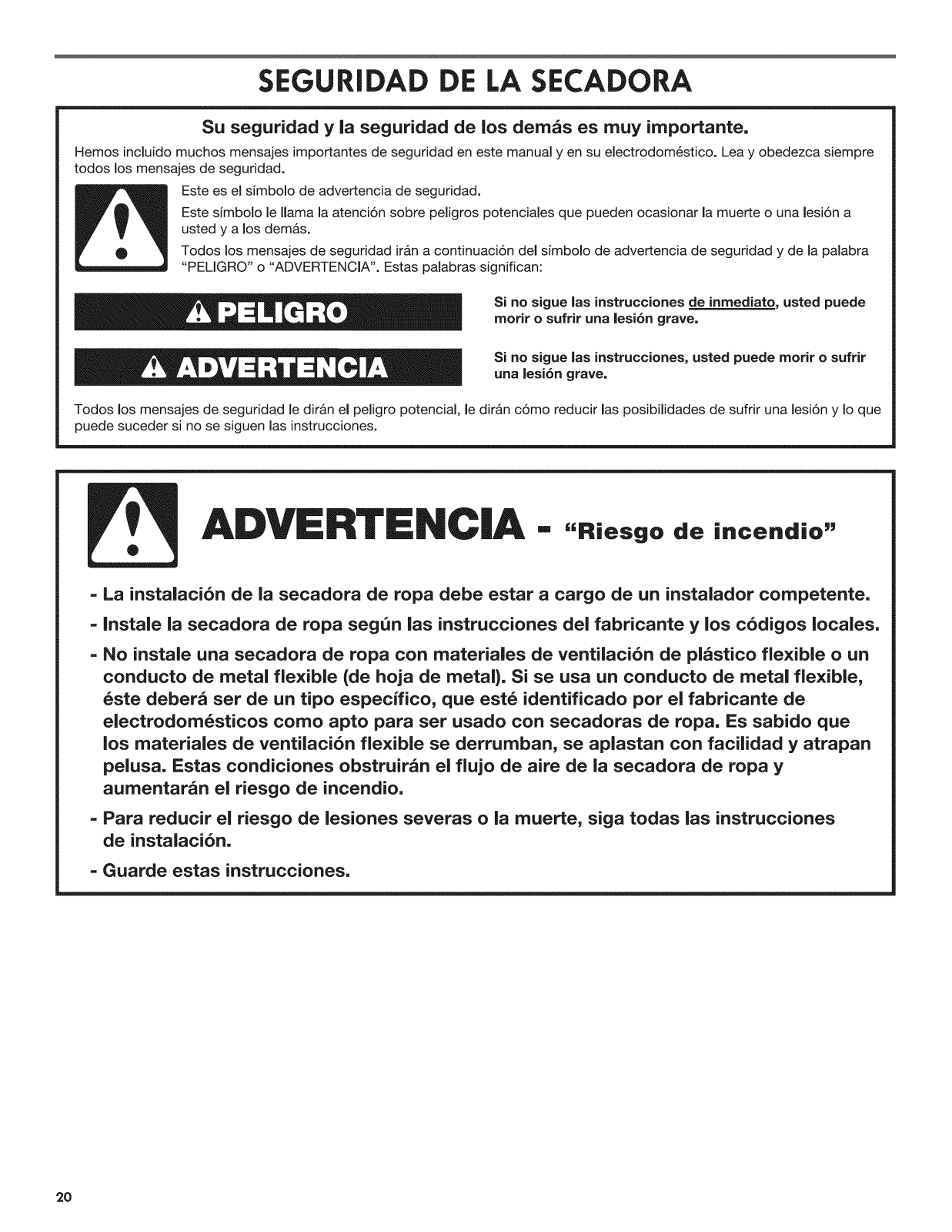

DRYER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

This is the safety alert symbol. These words mean:

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

WARNING - ...... ofFi,o..

- Clothes dryer installation must be performed by a qualified installer.

- Install the clothes dryer according to the manufacturer's instructions and local codes.

- Do not install a clothes dryer with flexible plastic venting materials or flexible metal (foil type) duct. If flexible metal duct is installed, it must be of a specific type identified

by the appliance manufacturer as suitable for use with clothes dryers. Flexible venting materials are known to collapse, be easily crushed, and trap lint. These conditions will obstruct clothes dryer airflow and increase the risk of fire.

- To reduce the risk of severe injury or death, follow all installation instructions.

- Save these instructions.

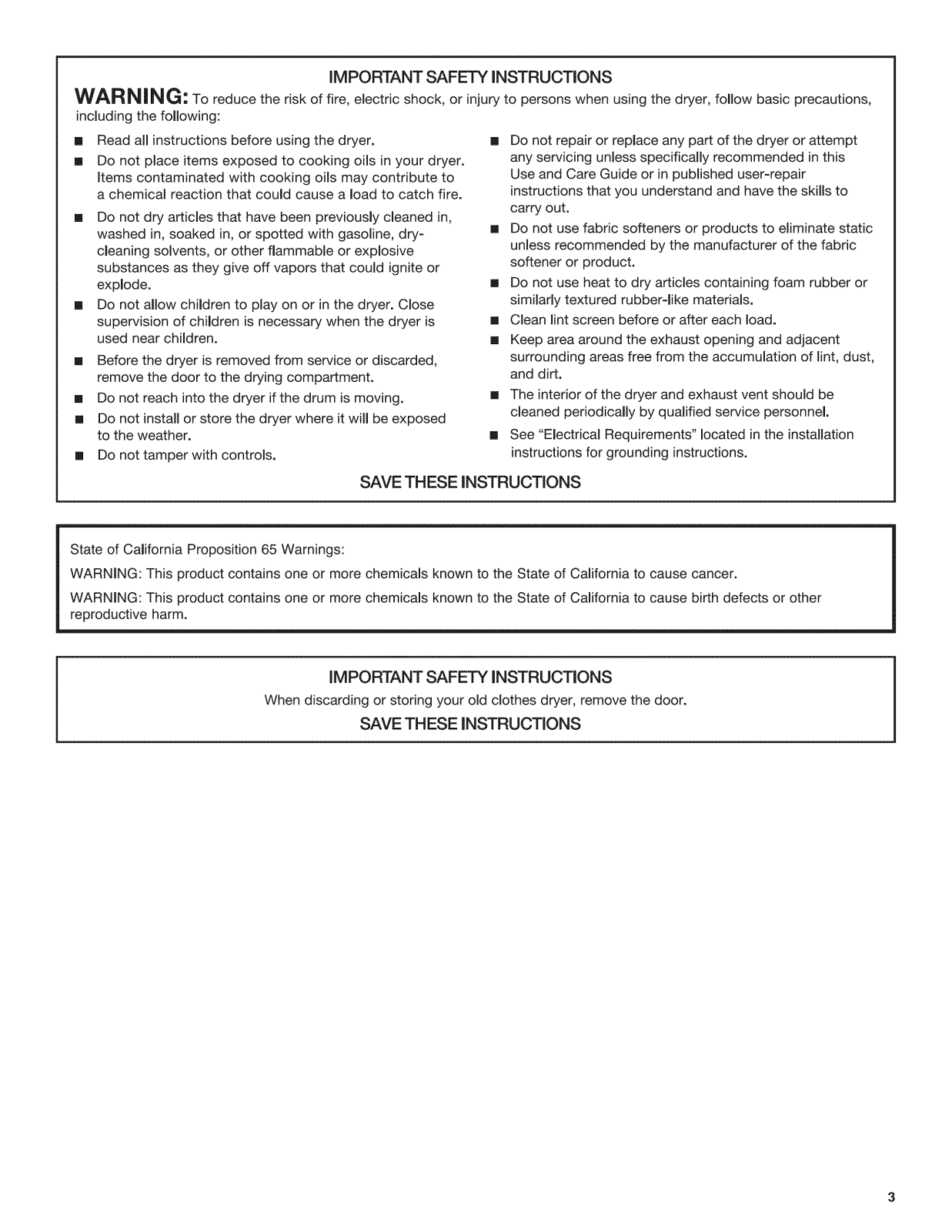

IMPORTANT SAFETY INSTRUCTIONS

WARNING." To reduce the risk of fire, electric shock, or injury to persons when using the dryer, follow basic precautions,

including the following:

[] Read all instructions before using the dryer. [] Do not place items exposed to cooking oils in your dryer.

Items contaminated with cooking oils may contribute to

a chemical reaction that could cause a load to catch fire.

[] Do not dry articles that have been previously cleaned in,

washed in, soaked in, or spotted with gasoline, dry- cleaning solvents, or other flammable or explosive

substances as they give off vapors that could ignite or explode.

[] Do not allow children to play on or in the dryer. Close

supervision of children is necessary when the dryer is used near children.

[] Before the dryer is removed from service or discarded,

remove the door to the drying compartment. [] Do not reach into the dryer if the drum is moving. [] Do not install or store the dryer where it will be exposed

to the weather. [] Do not tamper with controls.

[] Do not repair or replace any part of the dryer or attempt

any servicing unless specifically recommended in this Use and Care Guide or in published user-repair instructions that you understand and have the skills to carry out.

[] Do not use fabric softeners or products to eliminate static

unless recommended by the manufacturer of the fabric softener or product.

[] Do not use heat to dry articles containing foam rubber or

similarly textured rubber-like materials.

[] Clean lint screen before or after each load. [] Keep area around the exhaust opening and adjacent

surrounding areas free from the accumulation of lint, dust, and dirt.

[] The interior of the dryer and exhaust vent should be

cleaned periodically by qualified service personnel.

[] See "Electrical Requirements" located in the installation

instructions for grounding instructions.

SAVE THESE INSTRUCTIONS

State of California Proposition 65 Warnings: WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

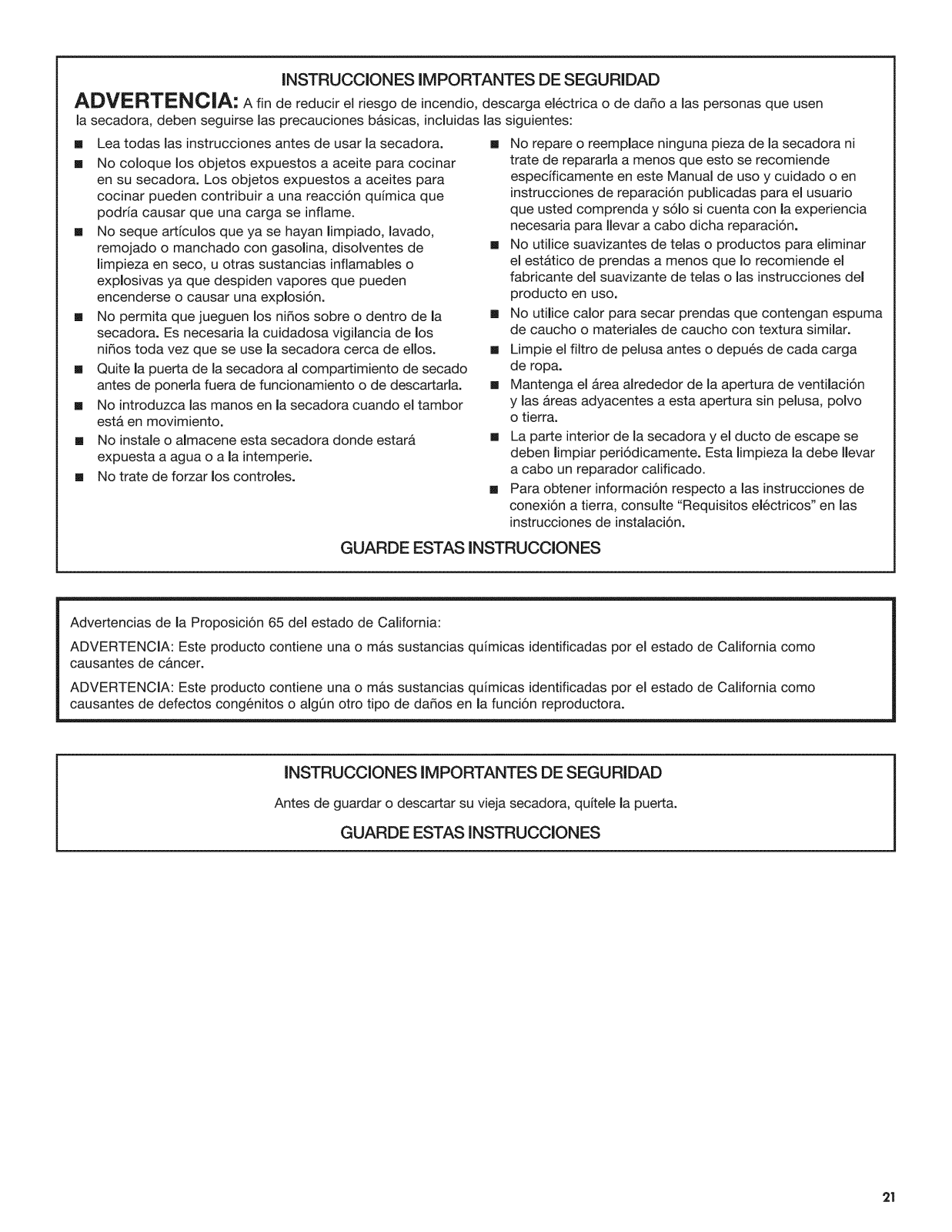

IMPORTANT SAFETY INSTRUCTIONS

When discarding or storing your old clothes dryer, remove the door.

SAVE THESE INSTRUCTIONS

Table of Con_en_s

DRYER SAFETY........................................................................... 2

iNSTALLATiON REQUIREMENTS ............................................... 4

Tools and Parts ............................................................................. 4

Location Requirements ................................................................... 5

Electrical Requirements .................................................................. 6

iNSTALL LEVELING LEGS ...................................................................... 7

ELECTRICAL CONNECTION ................................................................. 7

VENTING ............................................................................................ 13

Venting Requirements .................................................................. 13

indic÷

Plan Vent System ......................................................................... 14

Venffng Kffs ................................................................................. 14

Install Vent System ........................................................................ 15

Connect Vent ................................................................................ t5

LEVEL DRYER ...................................................................................... 16

COMPLETE INSTALLATION CHECKLIST ............................................... 16

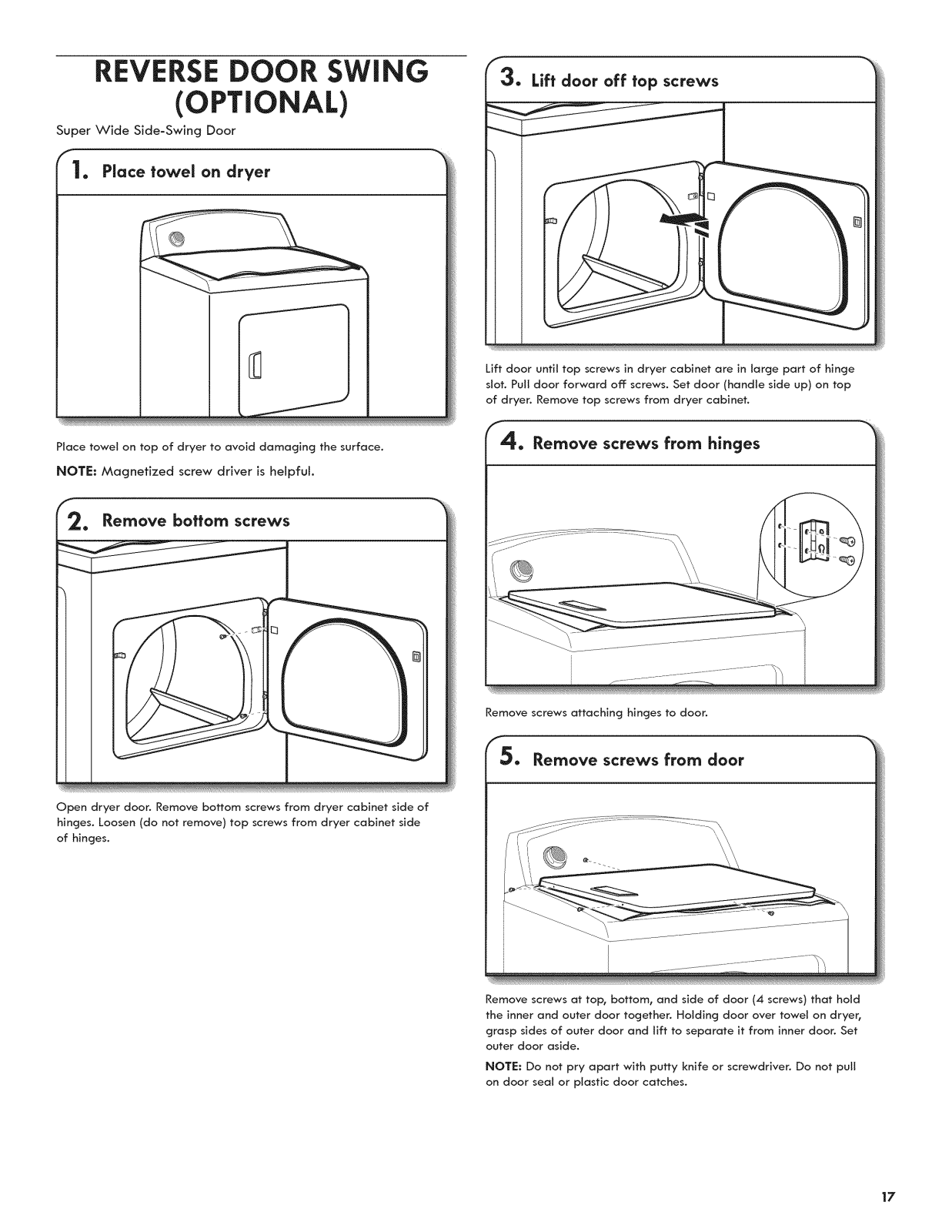

REVERSE DOOR SWING (OPTIONAL) ................................................. 17

TROUBLESHOOTING ........................................................................... 19

ASSISTANCE OR SERVICE ..................................................... Back Cover

SEGURIDAD DE LA SECADORA ............................................... 20

REQUISITOS DE INSTALACI6N ............................................... 22

Herramlentas y piezas ................................................................ 22

Requlsffos de ublcac_6n ............................................................... 23

Requ_sltosel6ctrlcos .................................................................... 24

INSTALACION DE LAS PATAS NIVELADORAS .................................... 25

CONEXION ELECTRICA ..................................................................... 26

VENTILACK)N .................................................................................... 32

Requisitos de ventilaci6n ............................................................. 32

iNSTALLATiON

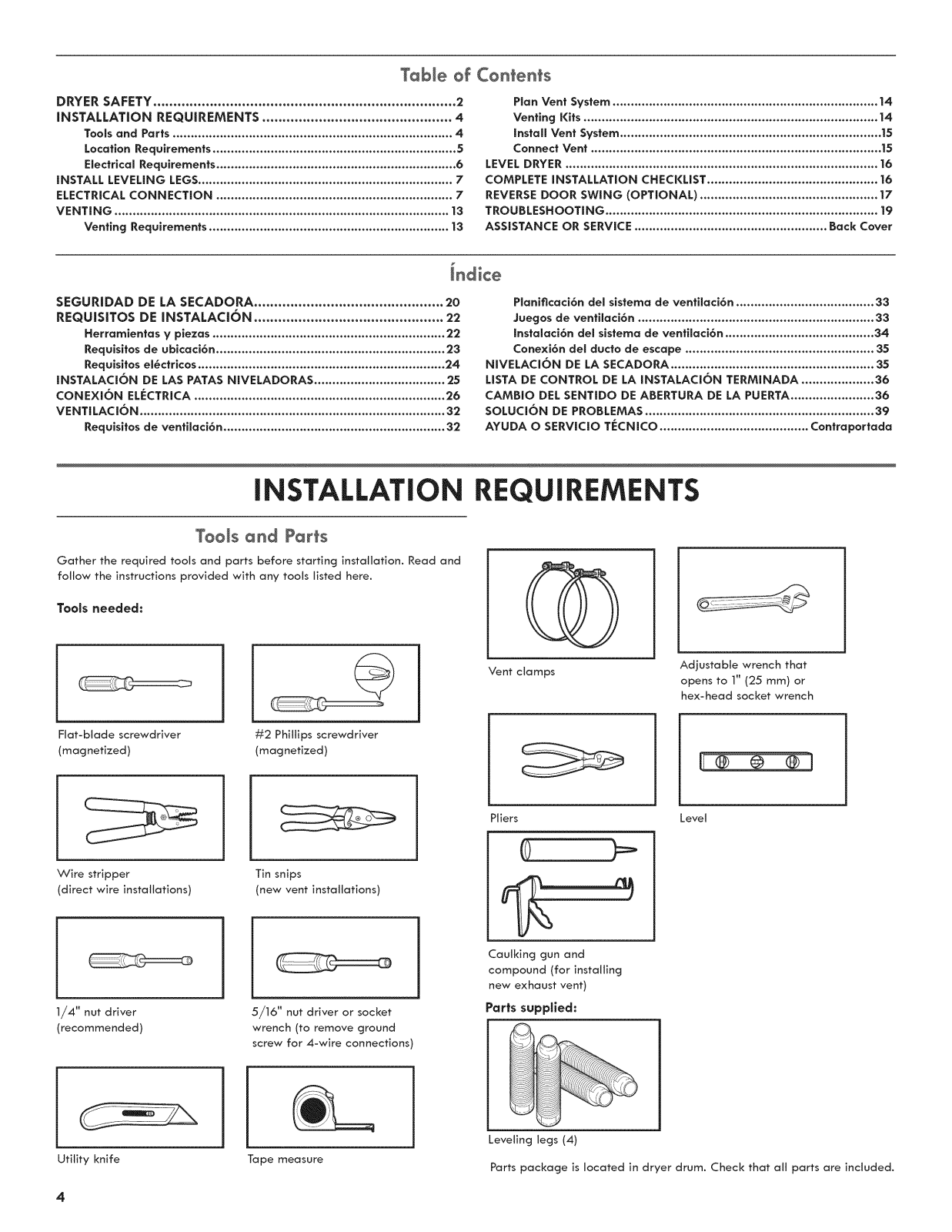

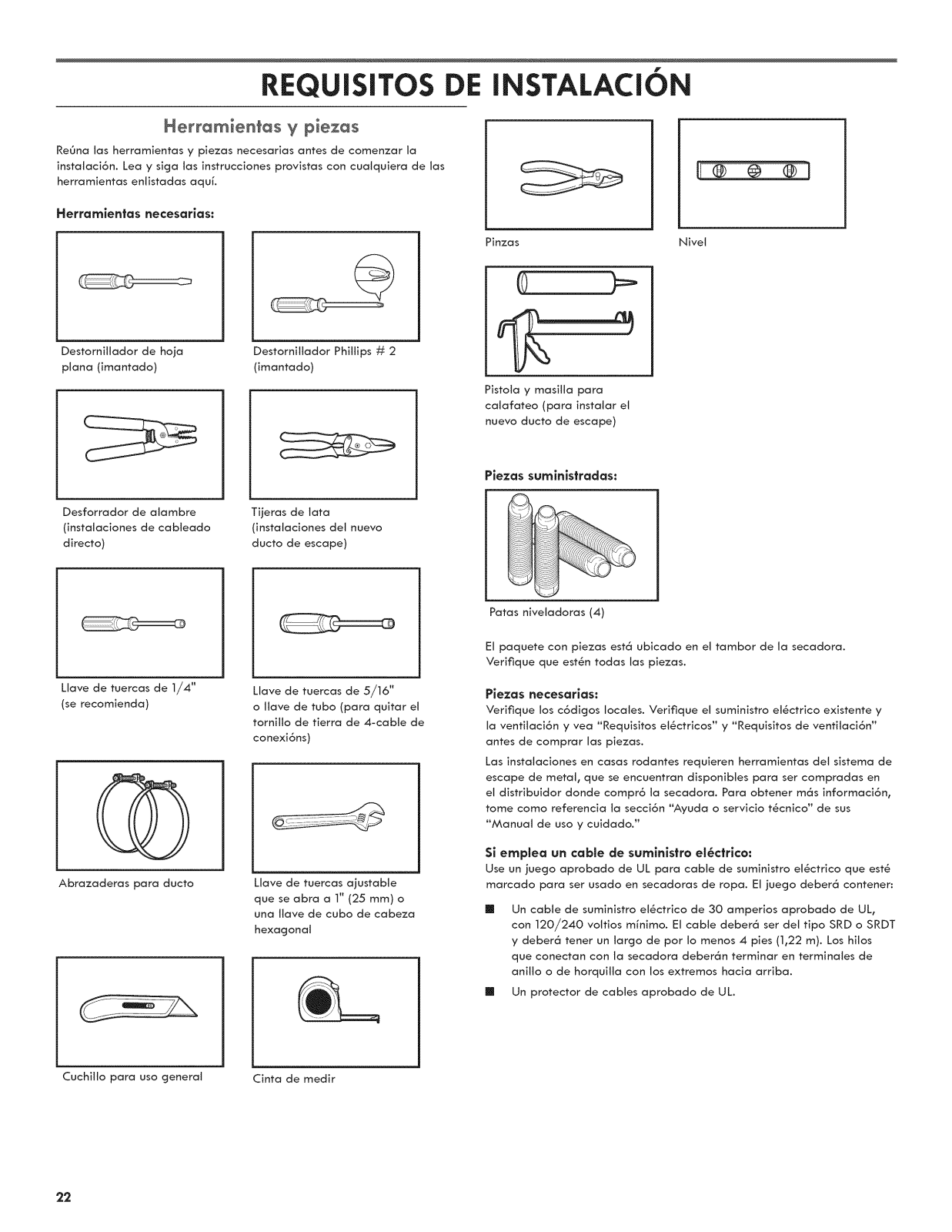

Tools and Par_s

Gather the required tools and parts before starting installation. Read and

follow the instructions provided with any tools listed here.

Tools needed:

Flat-blade screwdriver (magnetized)

#2 Phillips screwdriver (magnetized)

Planificaci6n del slstema de ventilaci6n ...................................... 33

Juegos de ventilaci6n ................................................................. 33

Instalaci6n del slstema de ventffaci6n ......................................... 34

Conex_6n del ducto de escape .................................................... 35

NIVELACION DE LA SECADORA ........................................................ 35

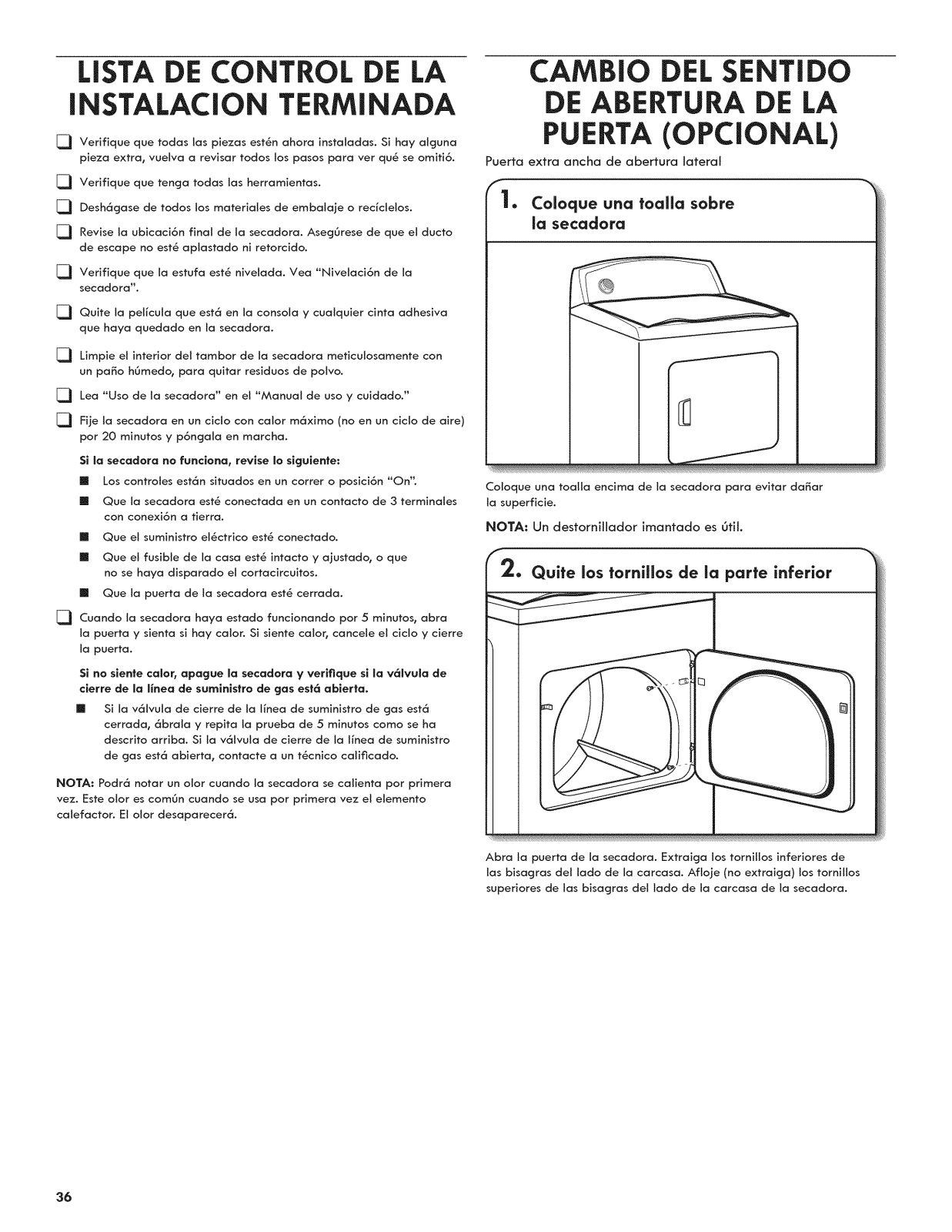

LISTA DE CONTROL DE LA INSTALACION TERMINADA .................... 36

CAMBIO DEL SENTIDO DE ABERTURA DE LA PUERTA ....................... 36

SOLUCION DE PROBLEMAS ............................................................... 39

AYUDA 0 SERVICIO TECNICO ......................................... Contraportada

REQUIREMENTS

Vent clamps

Adjustable wrench that

opens to 1" (25 mm) or hex-head socket wrench

Wire stripper

(direct wire installations)

/4" nut driver

recommended)

Utility knife

Tin snips (new vent installations)

5/16" nut driver or socket wrench (to remove ground

screw for 4-wire connections)

Tape measure

Pliers Level

Caulking gun and compound (for installing new exhaust vent)

Parts supplied:

Leveling legs (4)

Parts package is located in dryer drum. Check that all parts are included.

Ports needed: Check local codes. Check existing electrical supply and venting, and read "Electrical Requirements" and "Venting Requirements" before purchasing

parts.

Mobile home installations require metal exhaust system hardware, available for purchase from the dealer from whom you purchased your

dryer. For further information, please reference the "Assistance or Service" section of your "Use and Care Guide."

If using a power supply cord:

Use a UL listed power supply cord kit marked for use with clothes dryers.

The kit should contain:

[] A UL listed 30-amp power supply cord, rated 120/240 volt minimum.

The cord should be type SRD or SRDT and be at least 4 ft. (1.22 m) long. The wires that connect to the dryer must end in ring terminals

or spade terminals with upturned ends.

[] A UL listed strain relief.

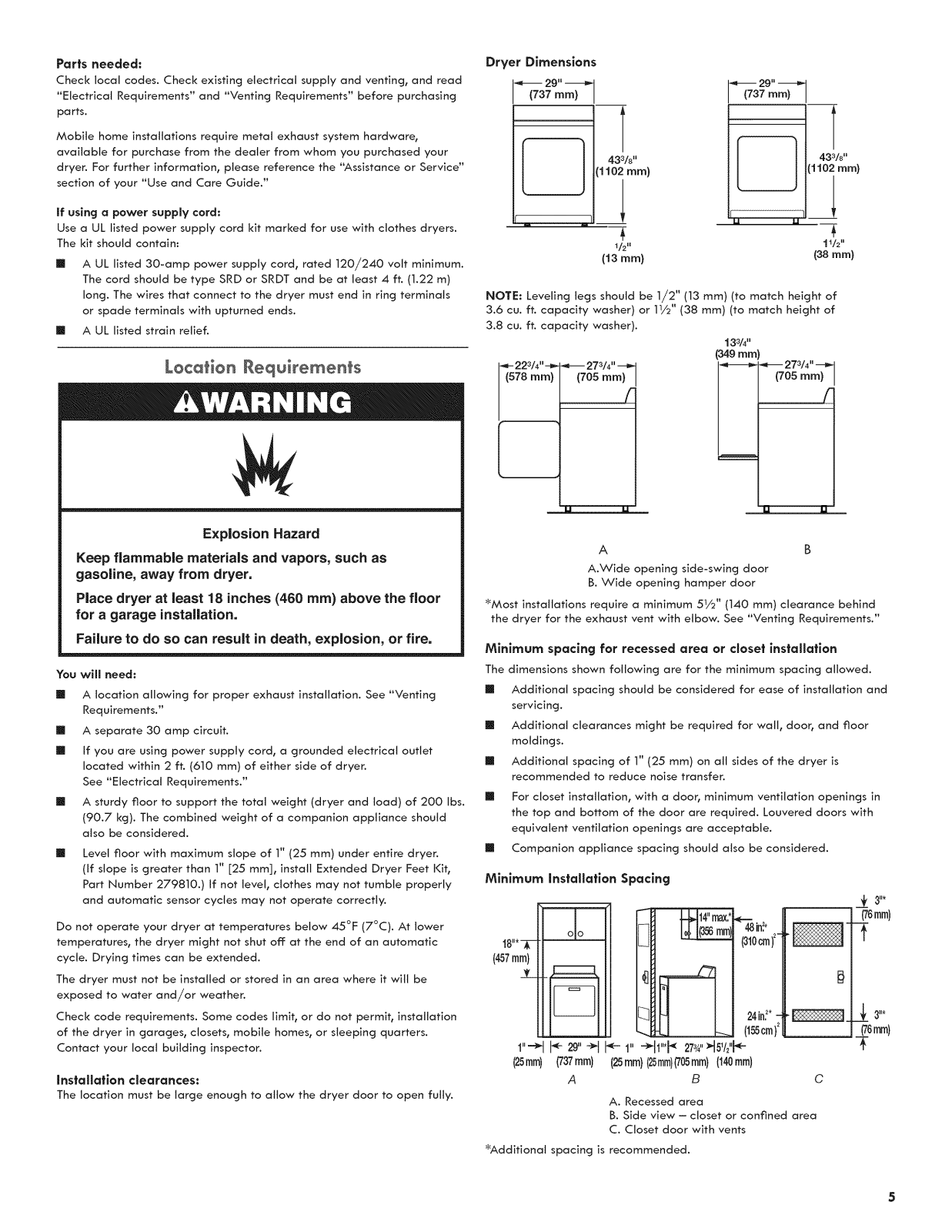

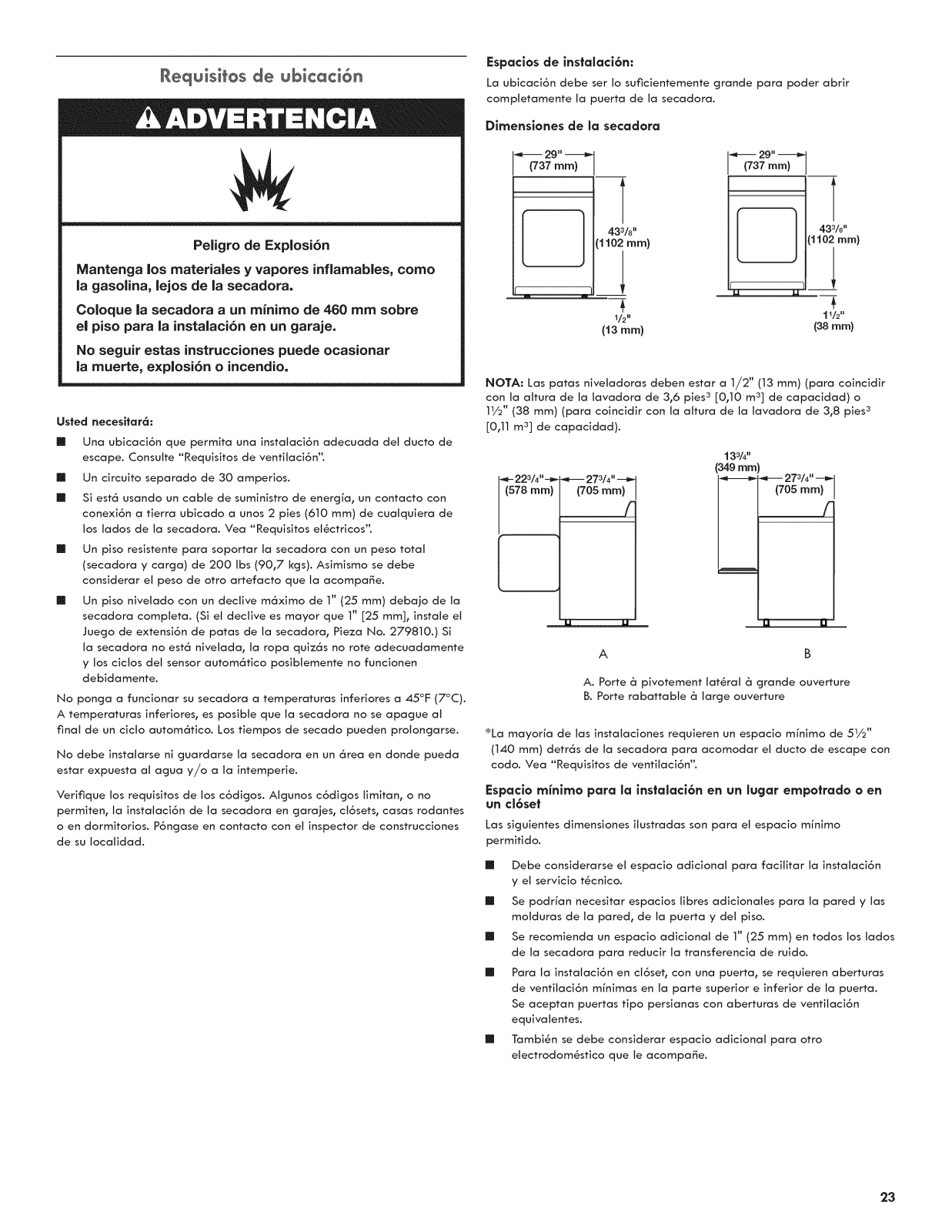

Location Requirements

Dr 'er Dimensions

(737 mm) I

433/8"

102 ram)

(13 ram)

NOTE: Leveling legs should be 1/2" (13 mm) (to match height of

3.6 cu. ft. capacity washer) or 11/2'' (38 mm) (to match height of

3.8 cu. ft. capacity washer).

.,i,-223/4"--=_ _ 273/4 '' ---=. / .e_ 273/4.

(578 rnrn) (705 rnrn) _ (705 ram)

_ 2g" _

(737 ram) I

43s/8''

[1102 ram)

u 1.1' _

(38 rnrn)

133/4"

(34g ram)

11/2"

Explosion Hazard

Keep flammable materials and vapors, such as

gasoline, away from dryer.

Place dryer at least 18 inches (460 turn) above the floor

for a garage installation.

Failure to do so can result in death, explosion, or fire.

You will need:

[] A location allowing for proper exhaust installation. See "Venting

Requirements."

[] A separate 30 amp circuit. [] if you are using power supply cord, a grounded electrical outlet

located within 2 ft. (610 ram) of either side of dryer. See "Electrical Requirements."

[] A sturdy floor to support the total weight (dryer and toad) of 200 Ibs.

(90.7 kg). The combined weight of a companion appliance should also be considered.

[] Level floor with maximum slope of 1" (25 mm) under entire dryer.

(if slope is greater than 1" [25 ram], install Extended Dryer Feet Kit, Part Number 279810.) If not level, clothes may not tumble properly

and automatic sensor cycles may not operate correctly.

Do not operate your dryer at temperatures below 45°F (7°C). At lower temperatures, the dryer might not shut off: at the end of an automatic cycle. Drying times can be extended.

The dryer must not be installed or stored in an area where it will be exposed to water and/or weather.

Check code requirements. Some codes limit, or do not permit, installation of the dryer in garages, closets, mobile homes, or sleeping quarters.

Contact your local building inspector.

Instollotion clearances:

The location must be large enough to allow the dryer door to open fully.

A B

A.Wide opening side-swing door B. Wide opening hamper door

_Most installations require a minimum 51/2" (140 ram) clearance behind

the dryer for the exhaust vent with elbow. See "Venting Requirements."

Minimum spacing for recessed area or closet installation The dimensions shown following are for the minimum spacing allowed. [] Additional spacing should be considered for ease of installation and

servicing.

[] Additional clearances might be required for wall, door, and floor

moldings.

[] Additional spacing of 1" (25 mm) on all sides of the dryer is

recommended to reduce noise transfer.

[]

For closet installation, with a door, minimum ventilation openings in the top and bottom of the door are required. Louvered doors with equivalent ventilation openings are acceptable.

[]

Companion appliance spacing should also be considered.

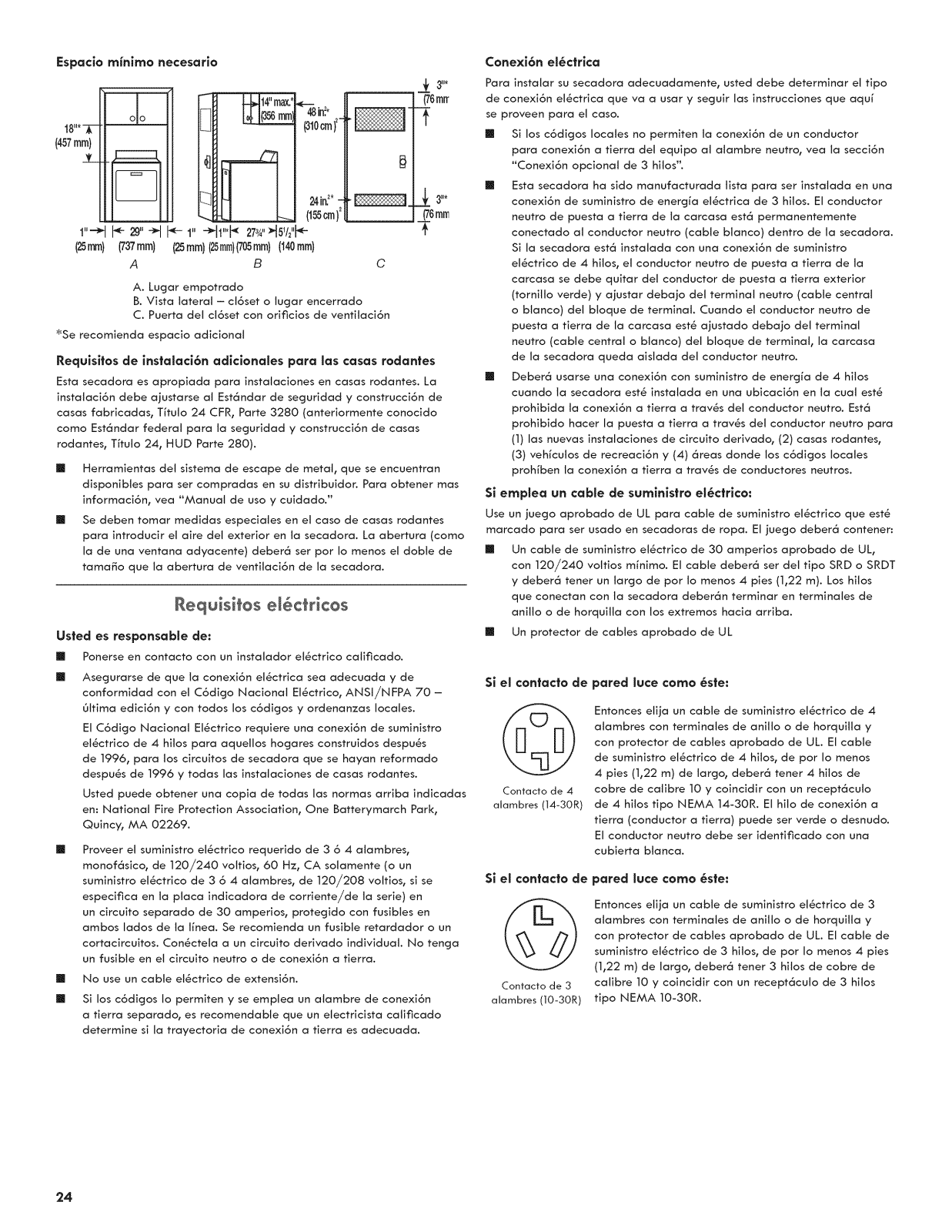

Minimum Instoliotion Spacing

__ 3I1.

_ _'=_in_

1811,_ o o

1"'=-_ _ 29" -_ _ 1" "_(1"*_ 2734":_5V2"_"e-

(25turn) (737mm) (25mm)(25mm)(705mrn)(140ram)

A B

A. Recessed area

B. Side view - closet or confined area C. Closet door with vents

_Additional spacing is recommended.

(310crn)2-

24in.2.-

(155crn)2

(76ram)

-i

(76ram)

Mobile home = Additional installation requirements

This dryer is suitable for mobile home installations. The installation must conform to the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 (formerly the Federal Standard for Mobile

Home Construction and Safety, Title 24, HUD Part 280) or the Canadian

Manufactured Home Standard CAN/CSA-Z240 MH.

[] Metal exhaust system hardware, available for purchase. For further

information, please reference the "Assistance or Service" section of your "Use and Care Guide."

[] Special provisions must be made in mobile homes to introduce

outside air into the dryer. The opening (such as a nearby window) should be at least twice as large as the dryer exhaust opening.

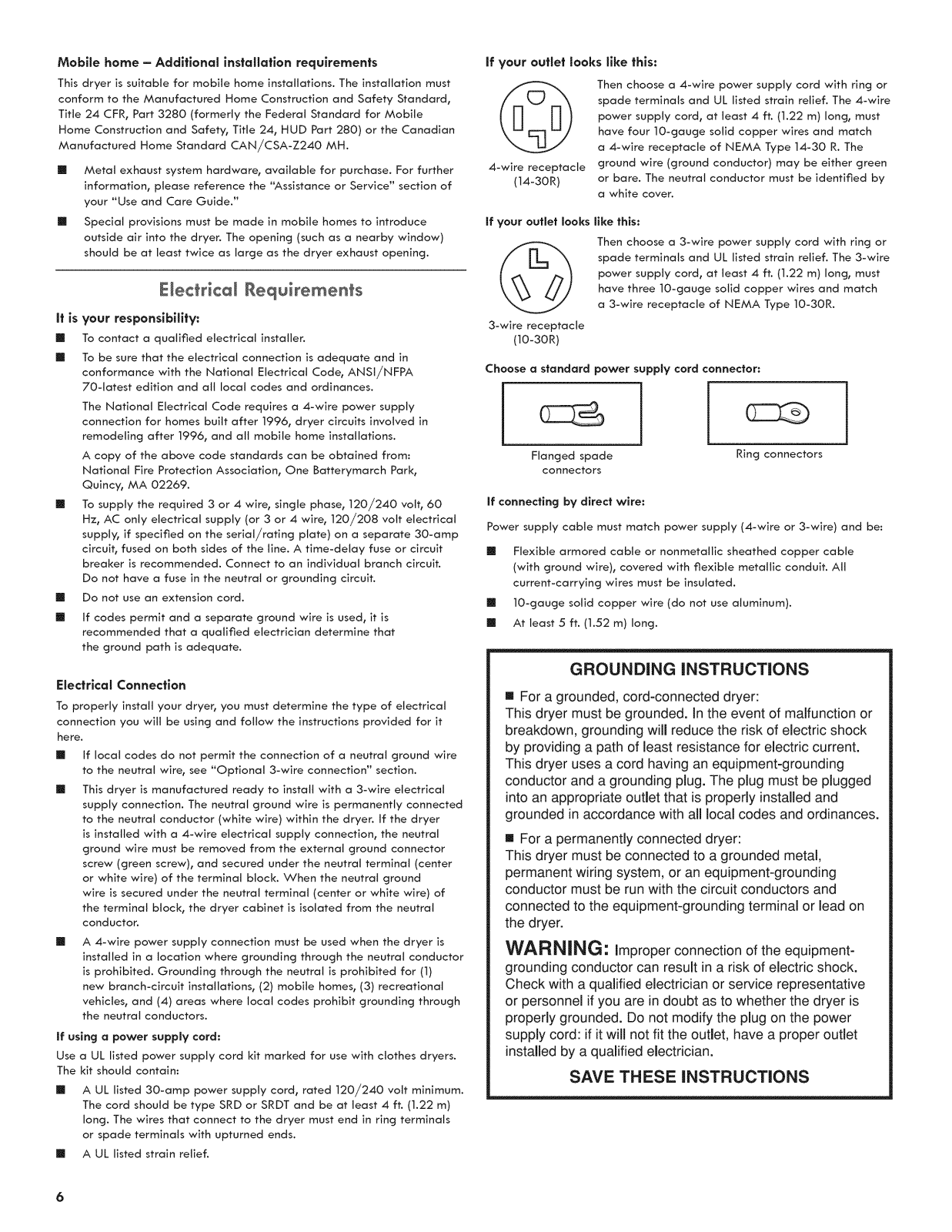

Electrical Requirements

It isyour responsibility:

[] To contact a qualified electrical installer. [] To be sure that the electrical connection is adequate and in

conformance with the National Electrical Code, ANSI/NFPA 70-latest edition and all local codes and ordinances.

The National Electrical Code requires a 4-wire power supply connection for homes built after 1996, dryer circuits involved in

remodeling after 1996, and all mobile home installations. A copy of the above code standards can be obtained from:

National Fire Protection Association, One Batterymarch Park, Quincy, MA 02269.

[] To supply the required 3 or 4 wire, single phase, 120/240 volt, 60

Hz, AC only electrical supply (or 3 or 4 wire, 120/208 volt electrical supply, if specified on the serial/rating plate) on a separate 30-amp

circuit, fused on both sides of the line. A time-delay fuse or circuit breaker is recommended. Connect to an individual branch circuit.

Do not have a fuse in the neutral or grounding circuit.

[] Do not use an extension cord. [] If codes permit and a separate ground wire is used, it is

recommended that a qualified electrician determine that the ground path is adequate.

Electrical Connection

To properly install your dryer, you must determine the type of electrical connection you will be using and follow the instructions provided for it

here.

[] If local codes do not permit the connection of a neutral ground wire

to the neutral wire, see "Optional 3-wire connection" section.

[] This dryer is manufactured ready to install with a 3-wire electrical

supply connection. The neutral ground wire is permanently connected to the neutral conductor (white wire) within the dryer. If the dryer

is installed with a 4-wire electrical supply connection, the neutral ground wire must be removed from the external ground connector

screw (green screw), and secured under the neutral terminal (center or white wire) of the terminal block. When the neutral ground

wire is secured under the neutral terminal (center or white wire) of the terminal block, the dryer cabinet is isolated from the neutral

conductor.

[] A 4-wire power supply connection must be used when the dryer is

installed in a location where grounding through the neutral conductor is prohibited. Grounding through the neutral is prohibited for (1)

new branch-circuit installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local codes prohibit grounding through

the neutral conductors.

If using a power supply cord: Use a UL listed power supply cord kit marked for use with clothes dryers.

The kit should contain: [] A UL listed 30-amp power supply cord, rated 120/240 volt minimum.

The cord should be type SRD or SRDT and be at least 4 ft. (1.22 m) long. The wires that connect to the dryer must end in ring terminals

or spade terminals with upturned ends.

[] A UL listed strain relief.

If your outlet looks like this:

Then choose a 4-wire power supply cord with ring or spade terminals and UL listed strain relief. The 4-wire

power supply cord, at least 4 ft. (1.22 m) long, must

have four 10-gauge solid copper wires and match

a 4-wire receptacle of NEMA Type 14-30 R. The

4-wire receptacle

(I,4-30R)

If your outlet looks

3-wire receptacle

ground wire (ground conductor) may be either green or bare. The neutral conductor must be identified by a white cover.

like this:

Then choose a 3-wire power supply cord with ring or spade terminals and UL listed strain relief. The 3-wire

power supply cord, at least 4 ft. (1.22 m) long, must

have three 10-gauge solid copper wires and match

a 3-wire receptacle of NEMA Type 10-30R.

(10-30R/

Choose a standard power supply cord connector:

Flanged spade Ring connectors

connectors

If connecting by direct wire:

Power supply cable must match power supply (4-wire or 3-wire) and be:

[] Flexible armored cable or nonmetallic sheathed copper cable

(with ground wire), covered with flexible metallic conduit. All

current-carrying wires must be insulated.

[] 10-gauge solid copper wire (do not use aluminum). [] At least 5 ft. (1.52 m) long.

GROUNDING iNSTRUCTiONS

[] For a grounded, cord-connected dryer: This dryer must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.

This dryer uses a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

[] For a permanently connected dryer: This dryer must be connected to a grounded metal, permanent wiring system, or an equipment-grounding

conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on

the dryer.

WARNING: improper connection of the equipment-

grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative or personnel if you are in doubt as to whether the dryer is properly grounded. Do not modify the plug on the power

supply cord: if it will not fit the outlet, have a proper outlet

installed by a qualified electrician.

SAVE THESE INSTRUCTIONS

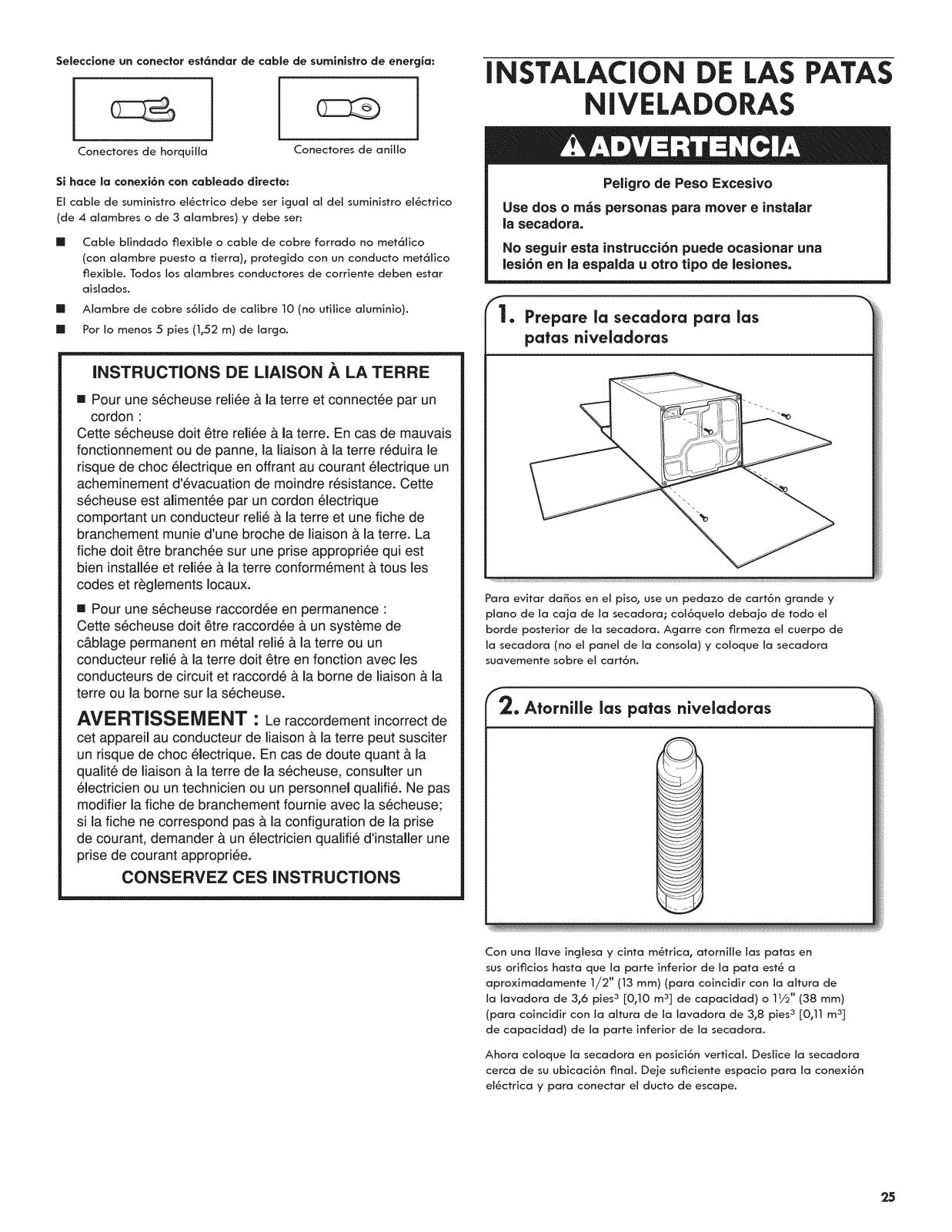

iNSTALL LEVELING LEGS

Excessive Weight Hazard

Use two or more people to move and install dryer. Failure to do so can result in back or other injury.

1. Prepare dryer for leveling legs

To avoid damaging floor, use a large fiat piece of cardboard from dryer carton; place under entire back edge of dryer. Firmly grasp

dryer body (not console panel) and gently lay dryer down on cardboard.

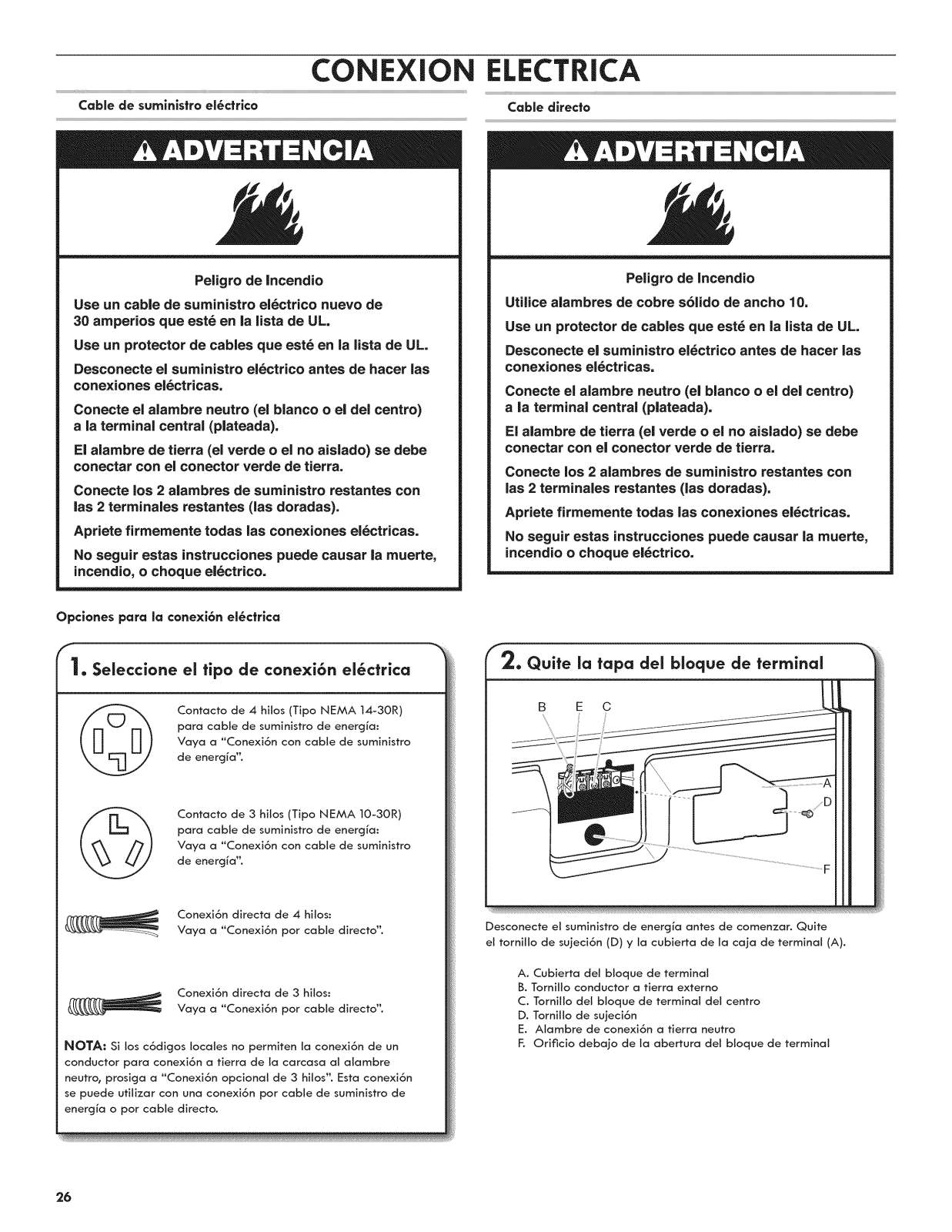

ELECTRICALCONNECTION

Power Supply Cord

Fire Hazard

Use a new UL listed 30 amp power supply cord.

Use a UL listed strain relief. Disconnect power before making electrical connections.

Connect neutral wire (white or center wire) to center terminal (silver).

Ground wire (green or bare wire) must be connected to green ground connector.

Connect remaining 2 supply wires to remaining 2 terminals (gold).

Securely tighten all electrical connections.

Failure to do so can result in death, fire, or

electrical shock.

Screw in leveling legs

Using a wrench and tape measure, screw legs into leg holes until bottom of foot is approximately 1/2" (13 mm) (to match height of 3.6 cu. ft. capacity washer) or 11/2'' (38 mm) (to match height of 3.8 cu. ft. capacity washer) from bottom of dryer.

Now stand the dryer on its legs. Slide the dryer until it is close to its final location. Leave enough room for electrical connection and to

connect the exhaust vent.

Electrical Connection Options

1. Choose electrical connection type

Power supply cord 4-wire receptacle (NEMA Type 14-30R): Go to "Power Supply Cord Connection."

Power supply cord 3-wire receptacle (NEMA Type 10-30R): Go to "Power Supply Cord Connection."

4-wire direct connection:

Go to "Direct Wire Connection."

3-wire direct connection:

Go to "Direct Wire Connection."

NOTE: If local codes do not permit connection of a cabinet- ground conductor to neutral wire, go to "Optional 3-wire

connection." This connection may be used with either a power supply cord or a direct wire connection.

Direct Wire

Fire Hazard

Use 10 gauge copper wire. Use a UL listed strain relief.

Disconnect power before making electrical connections. Connect neutral wire (white or center wire) to center

terminal (silver).

Ground wire (green or bare wire) must be connected to green ground connector.

Connect remaining 2 supply wires to remaining

2 terminals (gold).

Securely tighten all electrical connections. Failure to do so can result in death, fire, or

electrical shock.

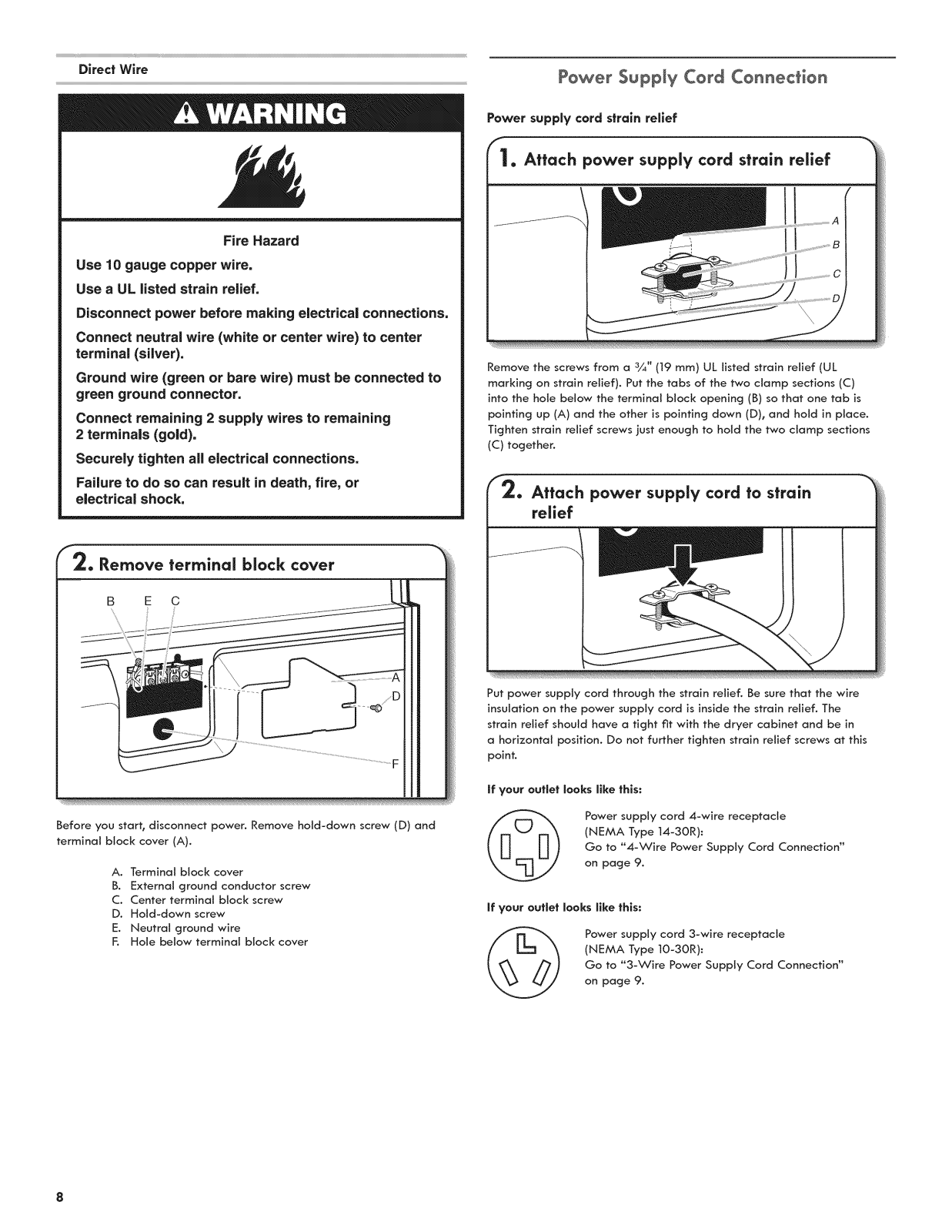

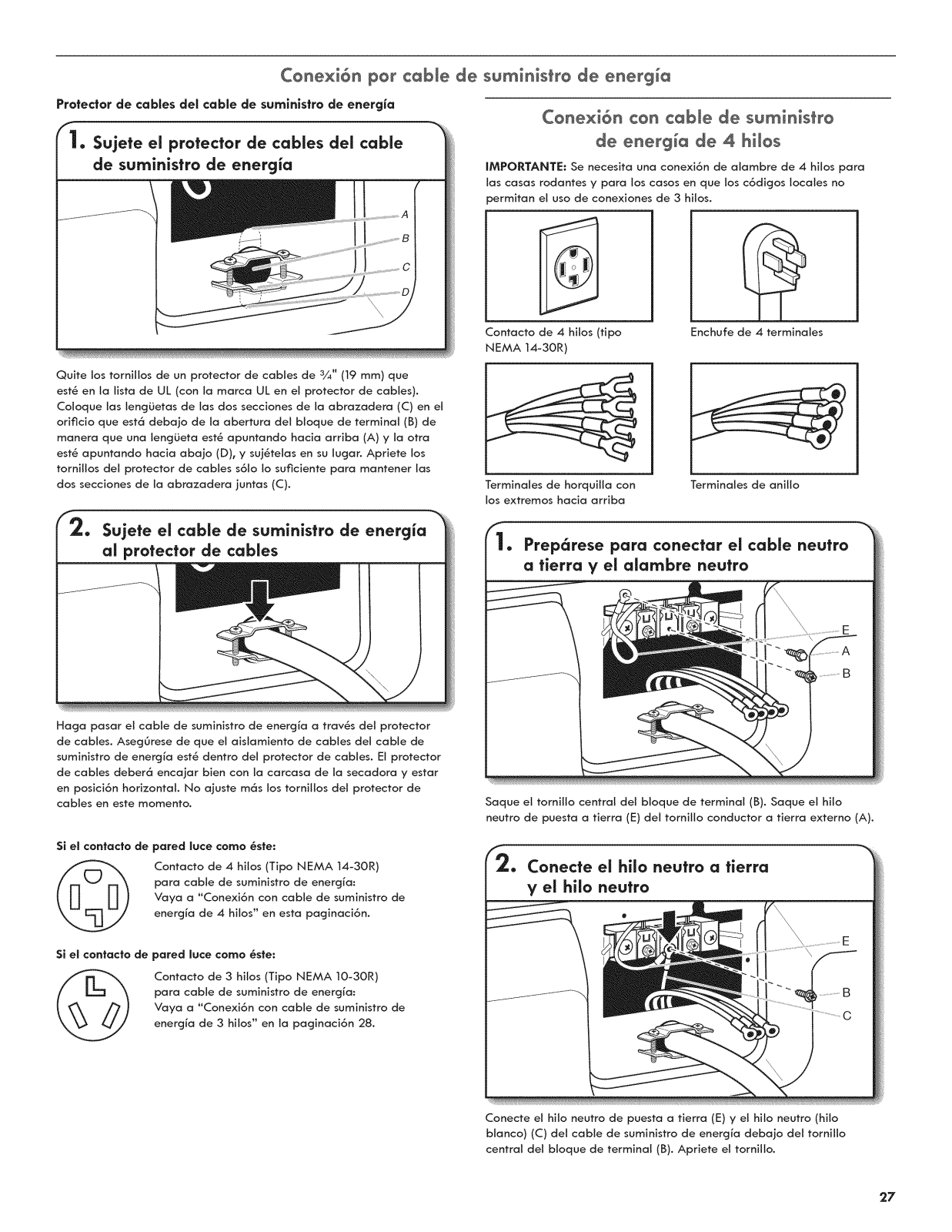

Power Svpp[y Cor_ Co_e¢_io_

Power supply cord strain relief

Remove the screws from a 3/_" (19 mm) UL listed strain relief (UL

marking on strain relief). Put the tabs of the two clamp sections (C) into the hole below the terminal block opening (B) so that one tab is pointing up (A) and the other is pointing down (D), and hold in place.

Tighten strain relief screws just enough to hold the two clamp sections

relief

B E C

Before you start, disconnect power. Remove hold-down screw (D) and terminal block cover (A).

A. Terminal block cover B. External ground conductor screw

C. Center terminal block screw D. Hold-down screw

E. Neutral ground wire F. Hole below terminal block cover

Put power supply cord through the strain relief. Be sure that the wire insulation on the power supply cord is inside the strain relief. The

strain relief should have a tight fit with the dryer cabinet and be in a horizontal position. Do not further tighten strain relief screws at this

point.

If your outlet looks llke this:

Power supply cord 4-wire receptacle (NEMA Type 14-30R):

Go to "4-Wire Power Supply Cord Connection" on page 9.

if your out_et looks llke this:

Power supply cord 3-wire receptacle (NEMA Type 10-30R): Go to "3-Wire Power Supply Cord Connection" on page 9.

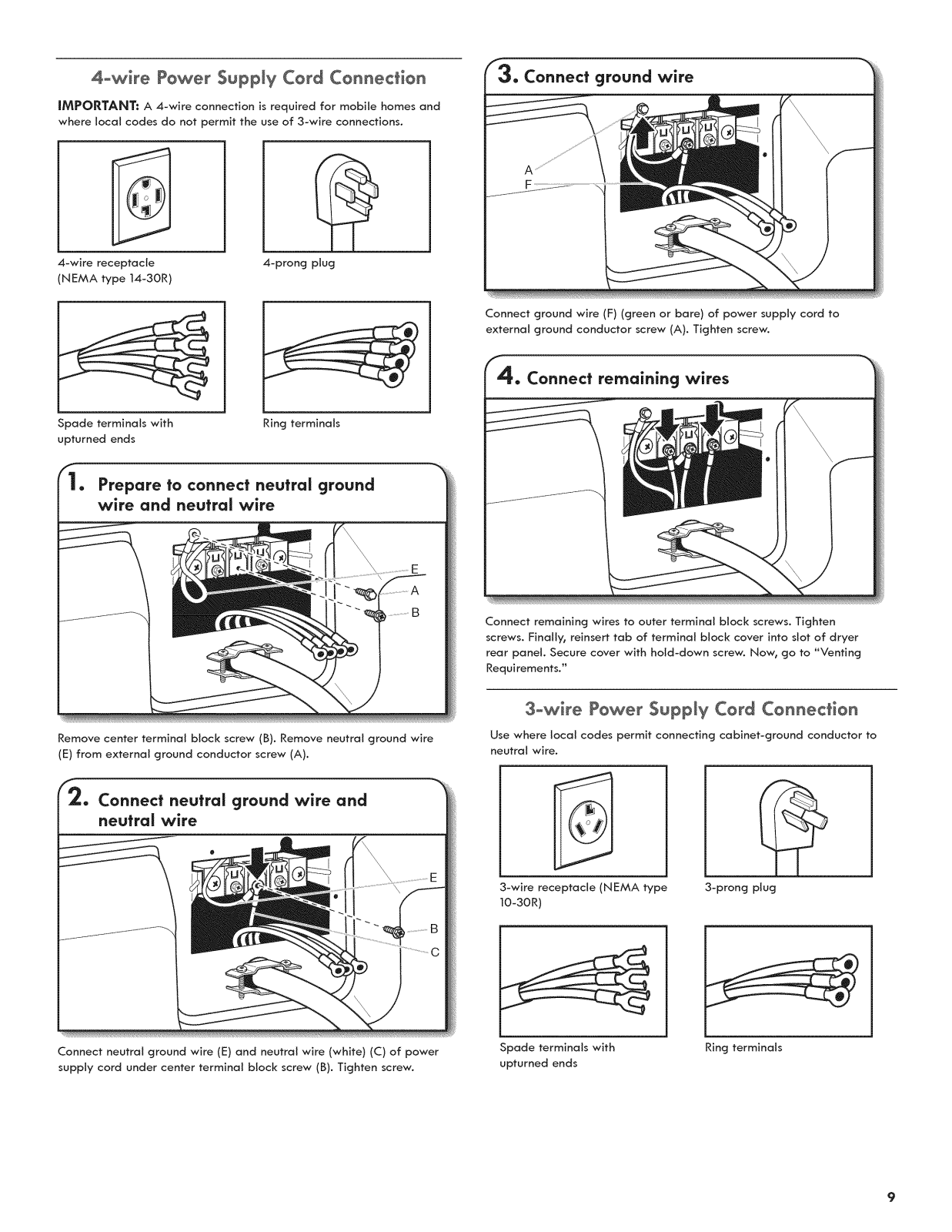

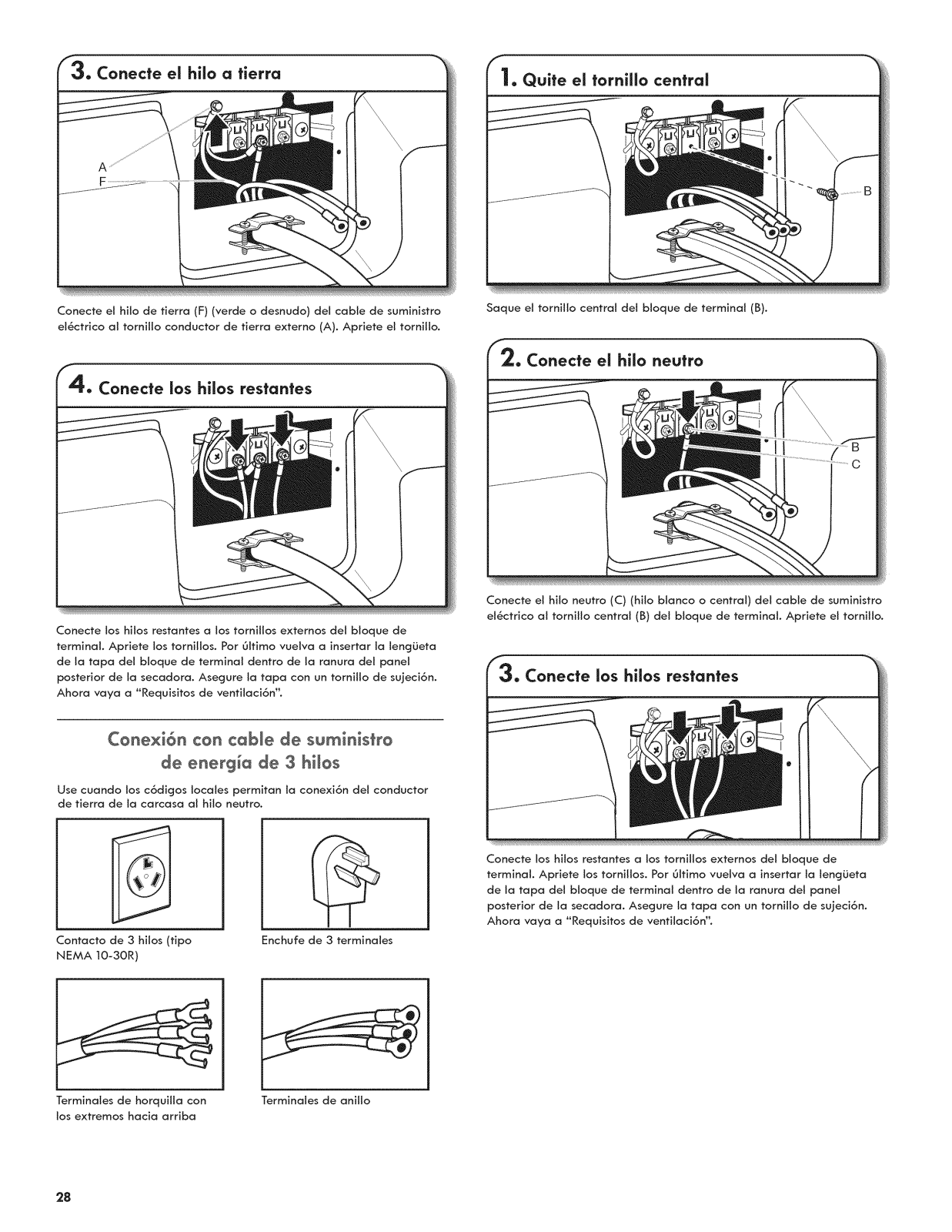

4owire Power Supply Cord Connection

IMPORTANT: A 4-wire connection is required for mobile homes and

where local codes do not permit the use of 3-wire connections.

4-wire receptacle (NEMA type 14-30R)

Spade terminals with upturned ends

4-prong plug

Ring terminals

Prepare to connect neutral ground wire and neutral wire

Remove center terminal block screw (B). Remove neutral ground wire (E) from external ground conductor screw (A).

Connect ground wire (F) (green or bare) of power supply cord to external ground conductor screw (A). Tighten screw.

Connect remaining wires to outer terminal block screws. Tighten screws. Finally, reinsert tab of terminal block cover into slot of dryer

rear panel. Secure cover with hold-down screw. Now, go to '_Venting

Requirements/_

3owire Power Supply Cord Connection

Use where local codes permit connecting cabinet-ground conductor to neutral wire.

Connect neutral ground wire and

neutral wire

Connect neutral ground wire (E) and neutral wire (white) (C) of power supply cord under center terminal block screw (B). Tighten screw.

3-wire receptacle (NEMA type

10-30R)

Spade terminals with upturned ends

3-prong plug

Ring terminals

Removecenter terminal block screw (B).

Put direct wire cable through the strain relief. The strain relief should

have a tight fit with the dryer cabinet and be in a horizontal position.

Tighten strain relief screw against the direct wire cable.

if your wiring looks llke this:

4-wire direct connection: Go to "4-Wire Direct Connection" on this page.

if your wiring looks llke this:

3-wire direct connection:

/]l]r_ Go to '"3-Wire Direct Connection" on page 11.

Connect neutral wire (white or center) (C) of power supply cord to center terminal block screw (B). Tighten screw.

3. Connect remaining wires

Connect remaining wires to outer terminal block screws. Tighten

screws. Finally, reinsert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold-down screw. Now, go to "Venting Requirements/_

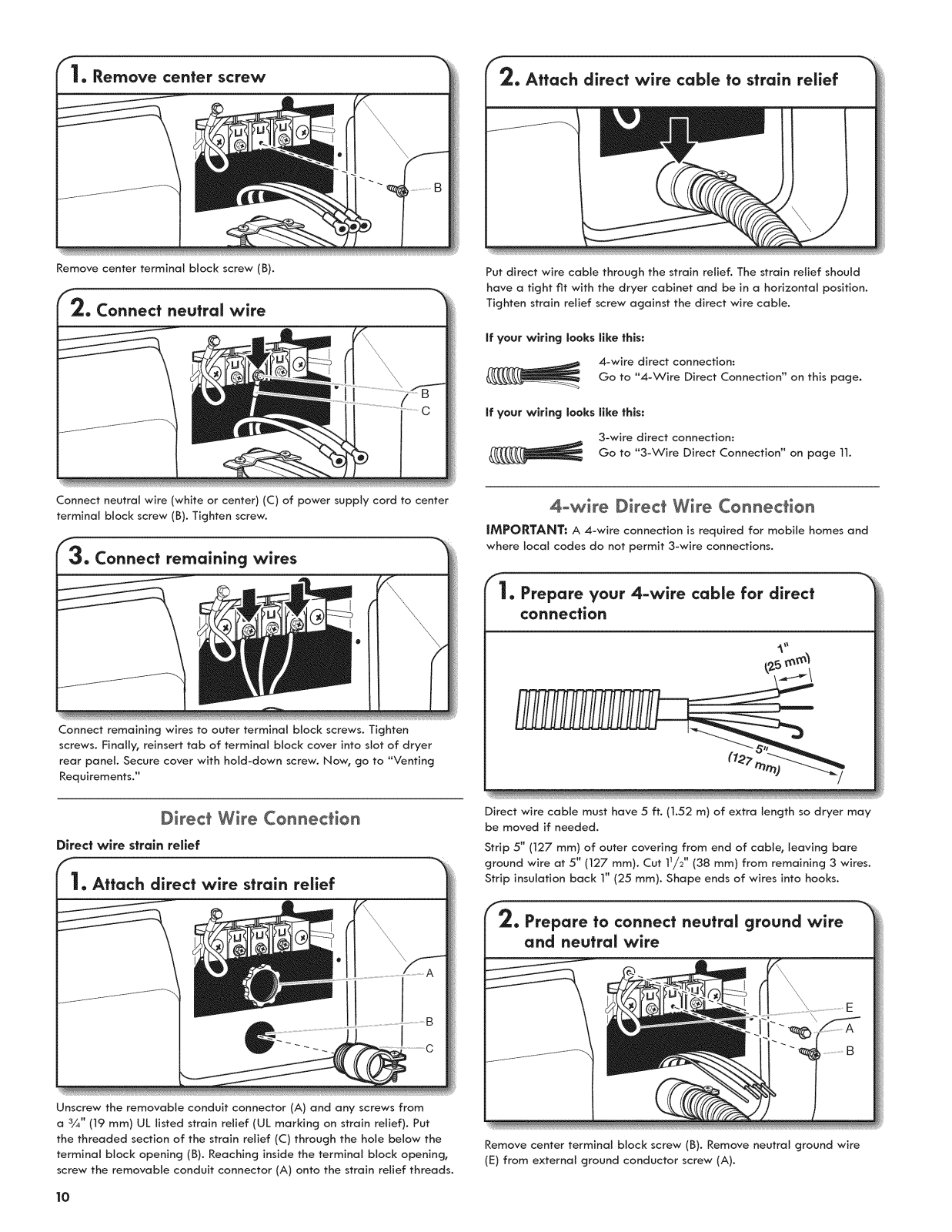

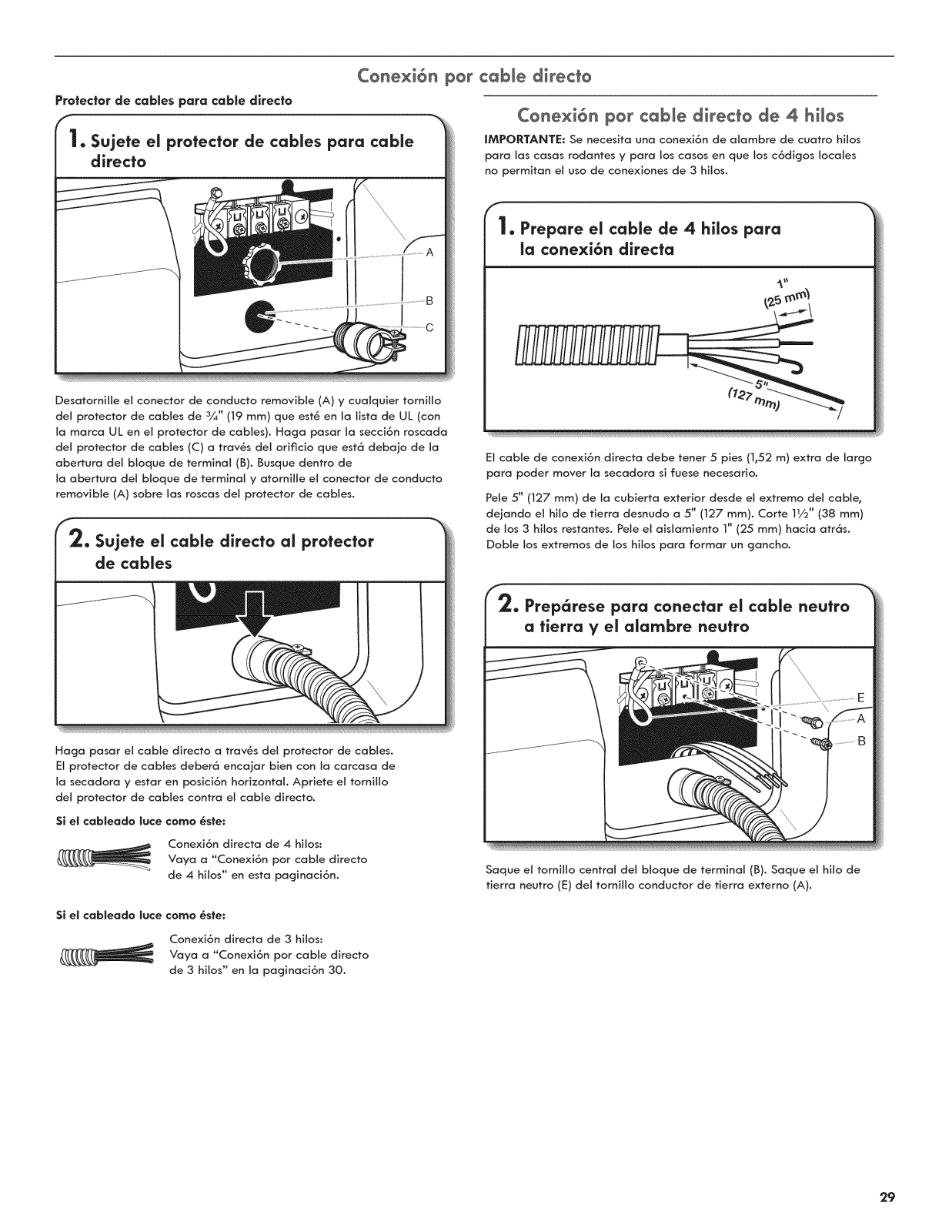

Dire¢_ Wire Connection

Direct wire strain relief

4owire Dire¢_ Wire Connection

iMPORTANT: A 4-wire connection is required for mobile homes and

where local codes do not permit 3-wire connections.

1. Prepare your 4-wire cable for direct

connection

Direct wire cable must have 5 ft. (1.52 m) of extra length so dryer may be moved if needed.

Strip 5" (127 mm) of outer covering from end of cable, leaving bare

ground wire at 5" (127 mm). Cut 11/2`' (38 mm) from remaining 3 wires. Strip insulation back 1" (25 mm). Shape ends of wires into hooks.

and neutral wire

Unscrew the removable conduit connector (A) and any screws from a 3/_" (19 mm) UL listed strain relief (UL marking on strain relief). Put the threaded section of the strain relief (C) through the hole below the terminal block opening (B). Reaching inside the terminal block opening, screw the removable conduit connector (A) onto the strain relief threads.

Remove center terminal block screw (B). Remove neutral ground wire (E) from external ground conductor screw (A).

neutral wire

Connect neutral ground wire (E) and place hooked end (hook facing right) of neutral wire (white or center wire) (C) of direct wire cable under center screw of terminal block (B). Squeeze hooked ends together and tighten

screw.

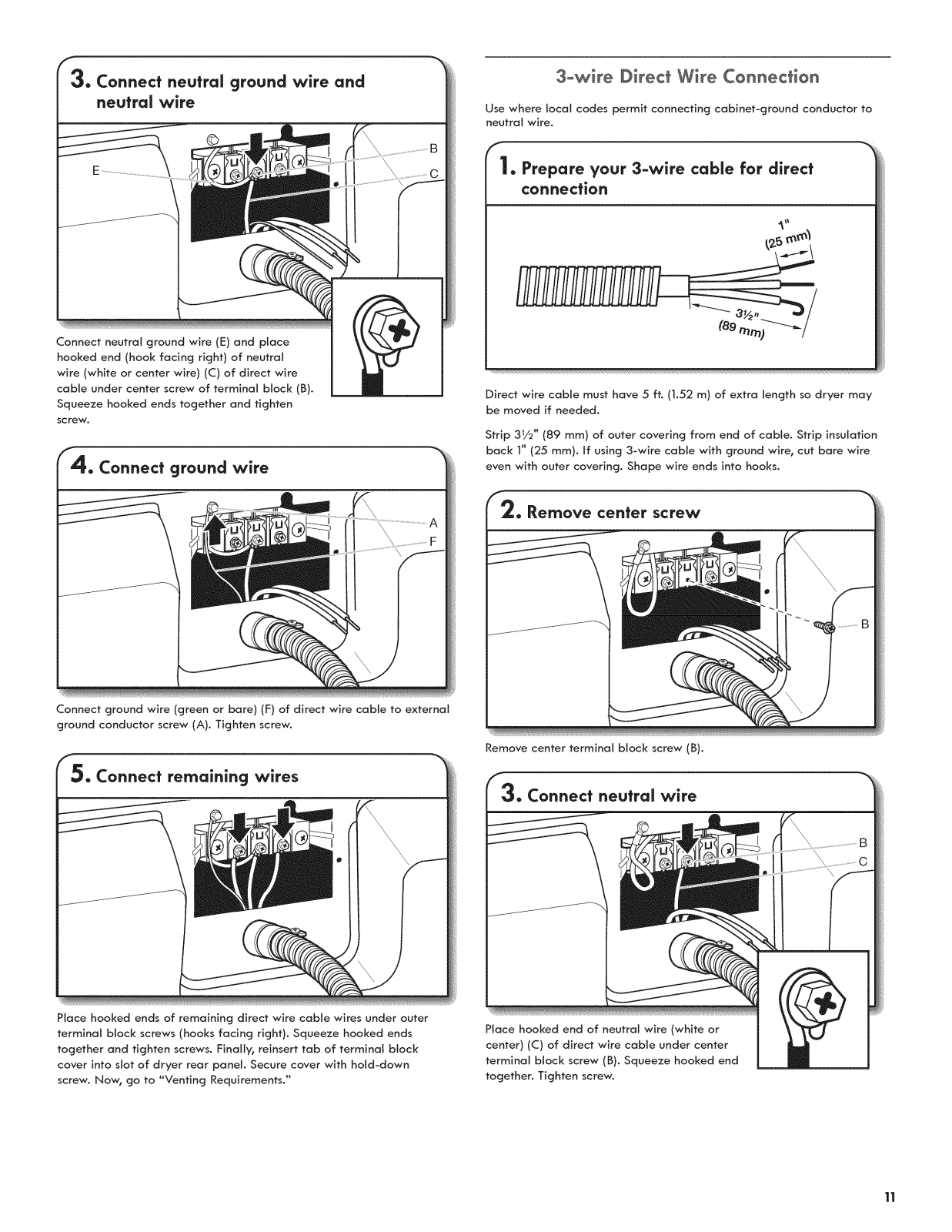

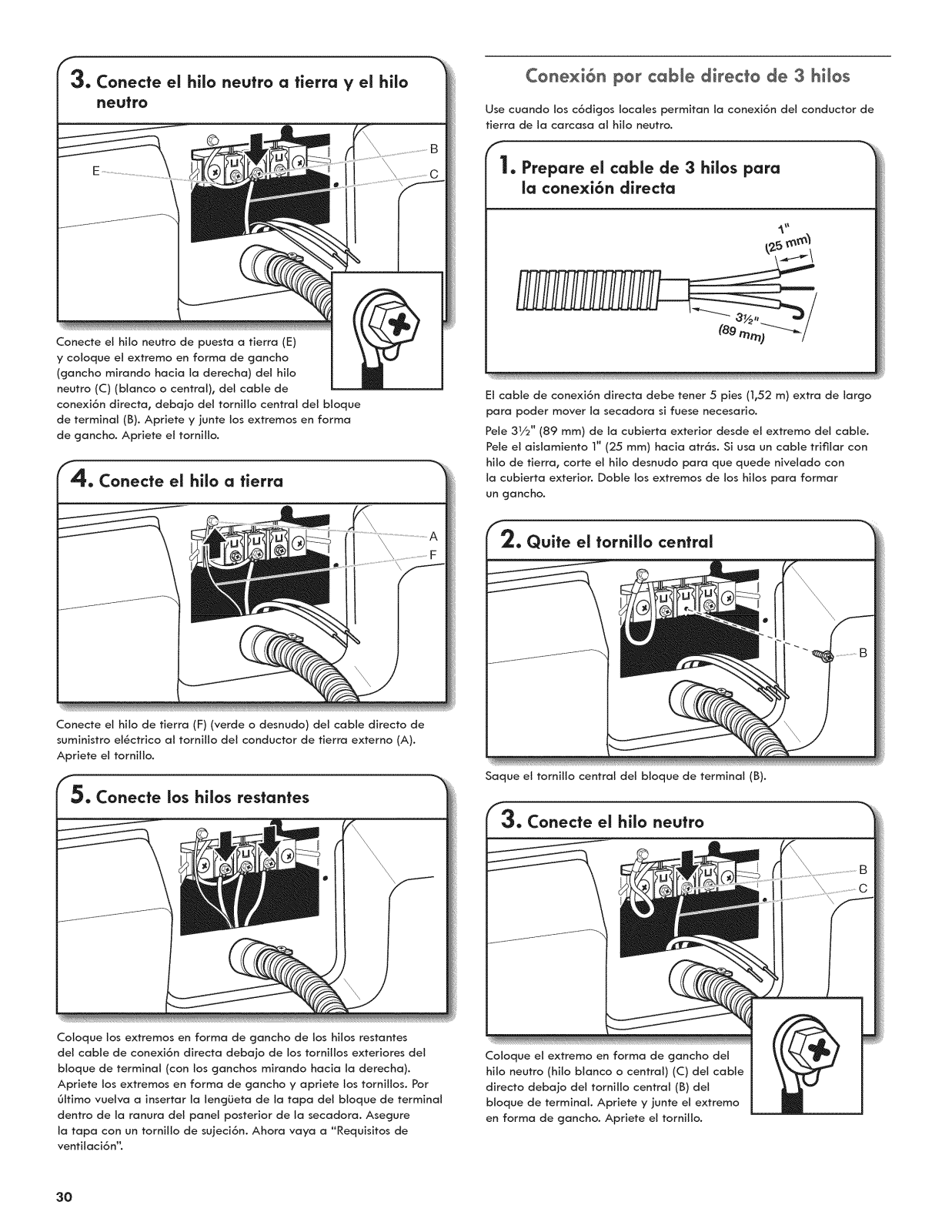

3°wire Dire¢_ Wire Connection

Use where local codes permit connecting cabinet-ground conductor to neutral wire.

1. Prepare your 3-wire cable for direct connection

Direct wire cable must have 5 ft. (1.52 m) of extra length so dryer may be moved if needed.

Strip 31/2'' (89 mm) of outer covering from end of cable. Strip insulation back 1" (25 mm). If using 3-wire cable with ground wire, cut bare wire

even with outer covering. Shape wire ends into hooks.

Connect ground wire (green or bare) (F) of direct wire cable to external ground conductor screw (A). Tighten screw.

5. Connect remaining wires

Place hooked ends of remaining direct wire cable wires under outer terminal block screws (hooks facing right). Squeeze hooked ends together and tighten screws. Finally, reinsert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold-down screw. Now, go to "Venting Requirements."

Remove center terminal block screw (B).

Place hooked end of neutral wire (white or center) (C) of direct wire cable under center terminal block screw (B). Squeeze hooked end together. Tighten screw.

4. Connect remaining wires

Requirements."

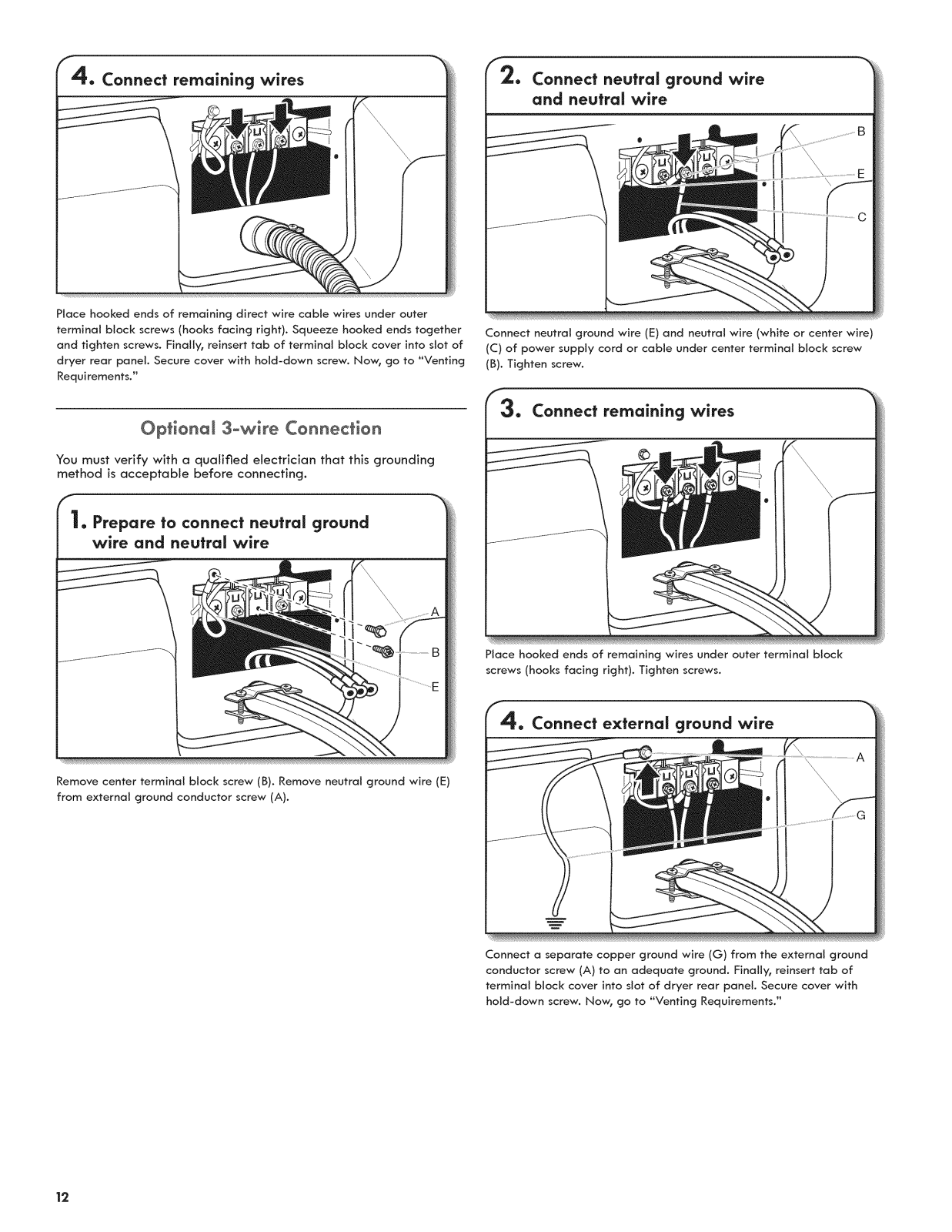

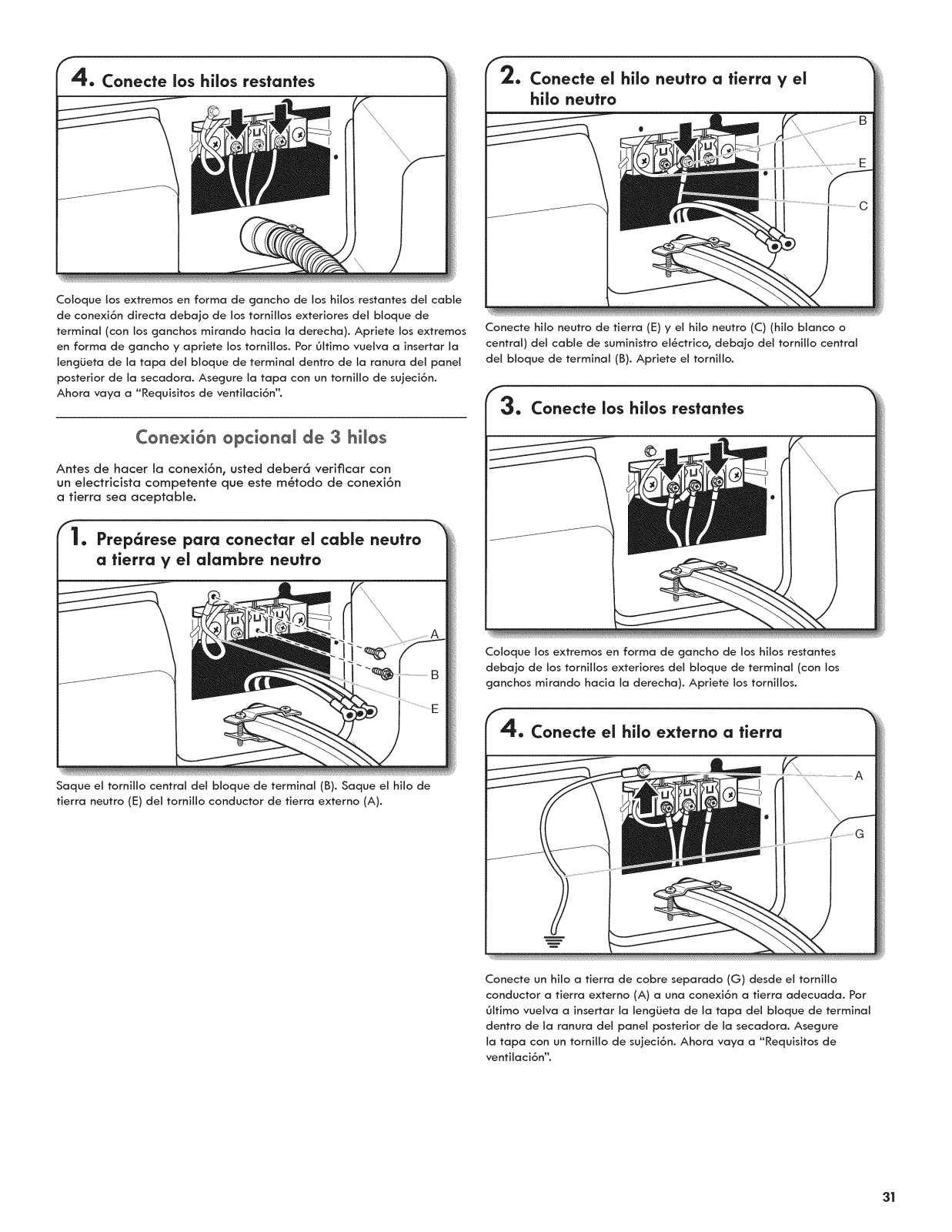

Optional 3owire Connection

You must verify with a qualified electrician that this grounding method is acceptable before connecting_

and neutral wire

Connect neutral ground wire (E) and neutral wire (white or center wire) (C) of power supply cord or cable under center terminal block screw (B). Tighten screw.

3. Connect remaining wires

wire and neutral wire

Remove center terminal block screw (B). Remove neutral ground wire (E) from external ground conductor screw (A).

Place hooked ends of remaining wires under outer terminal block screws (hooks facing right). Tighten screws.

Connect a separate copper ground wire (G) from the external ground conductor screw (A) to an adequate ground. Finally, reinsert tab of

terminal block cover into slot of dryer rear panel. Secure cover with hold-down screw. Now, go to ""Venting Requirements/"

+ 28 hidden pages
