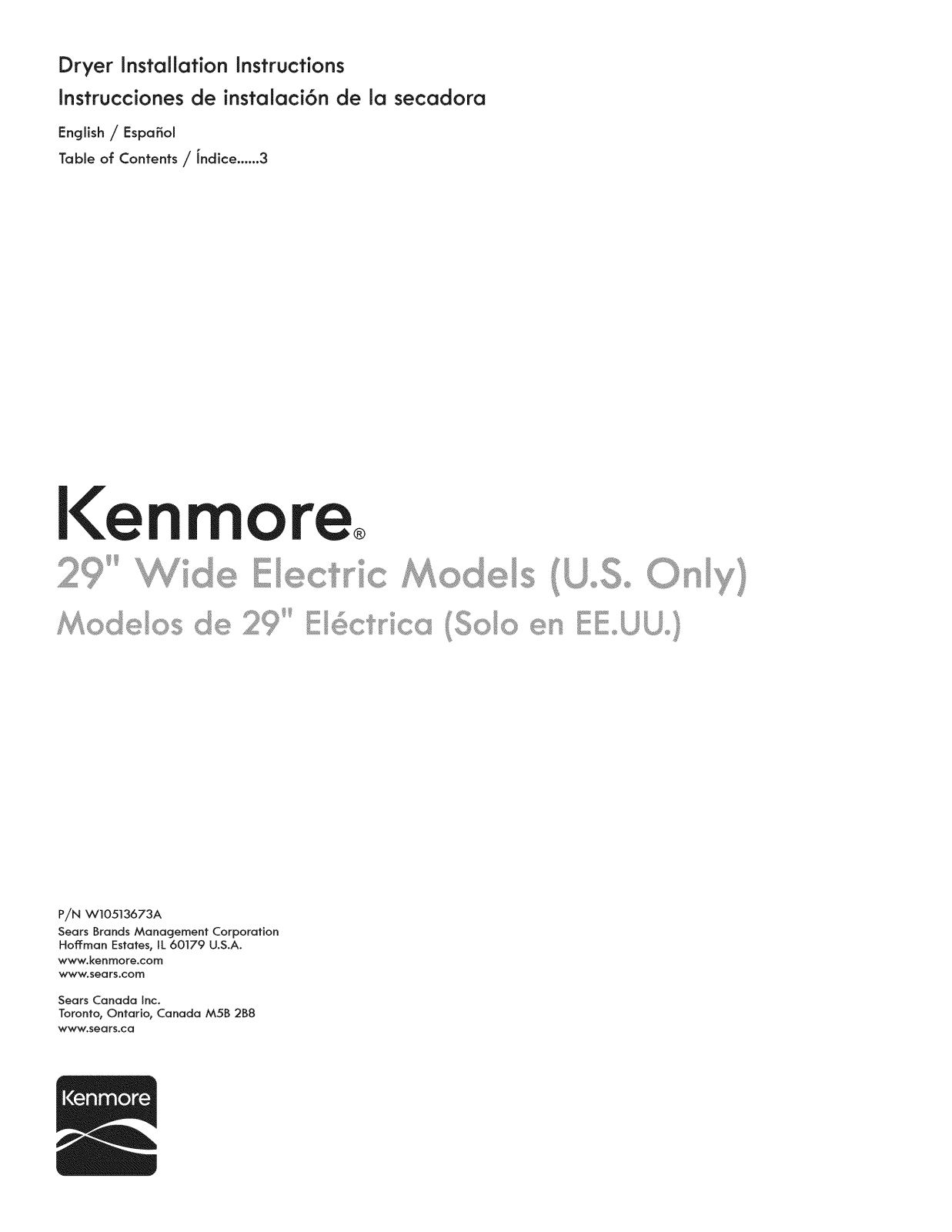

Kenmore 1106012510, 1106012511, 11060222510, 11060222511, 11061202013 Installation Guide
...
Dryer installation instructions
instrucciones de instalaci6n de la secadora
English / Espa_oi
Table of Contents / Jndice ...... 3
P/N W10513673A
Sears Brands Management Corporation
Holt:man Estates, IL 60179 U.S.A.
www.kenmore.com
www.sears.com
Sears Canada inc.
Toronto, Ontario, Canada M5B 2B8
www.sears.ca

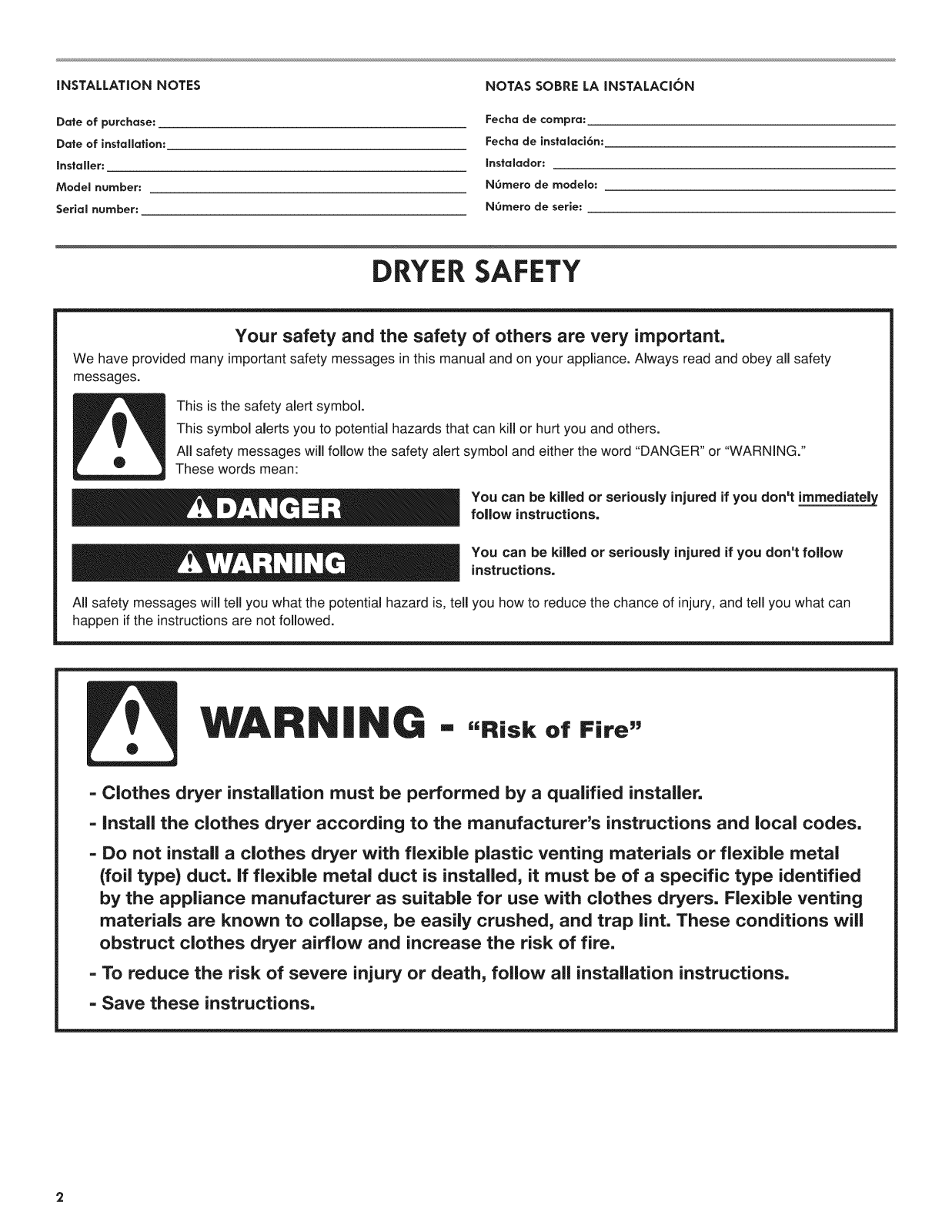

iNSTALLATiON NOTES NOTAS SOBRE LA INSTALACION
Date of purchase:
Date of installation:
installer:
Model number:
Serial number:
Fecha de comprm
Fecha de instalaci6n:
Instalaclor:
N6mero de modelo:
N6mero de serie:
DRYER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
This is the safety alert symbol.
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
WARNING - ...... ofFi,o..
- Clothes dryer installation must be performed by a qualified installer.
- Install the clothes dryer according to the manufacturer's instructions and local codes.
- Do not install a clothes dryer with flexible plastic venting materials or flexible metal
(foil type) duct. If flexible metal duct is installed, it must be of a specific type identified
by the appliance manufacturer as suitable for use with clothes dryers. Flexible venting
materials are known to collapse, be easily crushed, and trap lint. These conditions will
obstruct clothes dryer airflow and increase the risk of fire.
- To reduce the risk of severe injury or death, follow all installation instructions.
- Save these instructions.
2

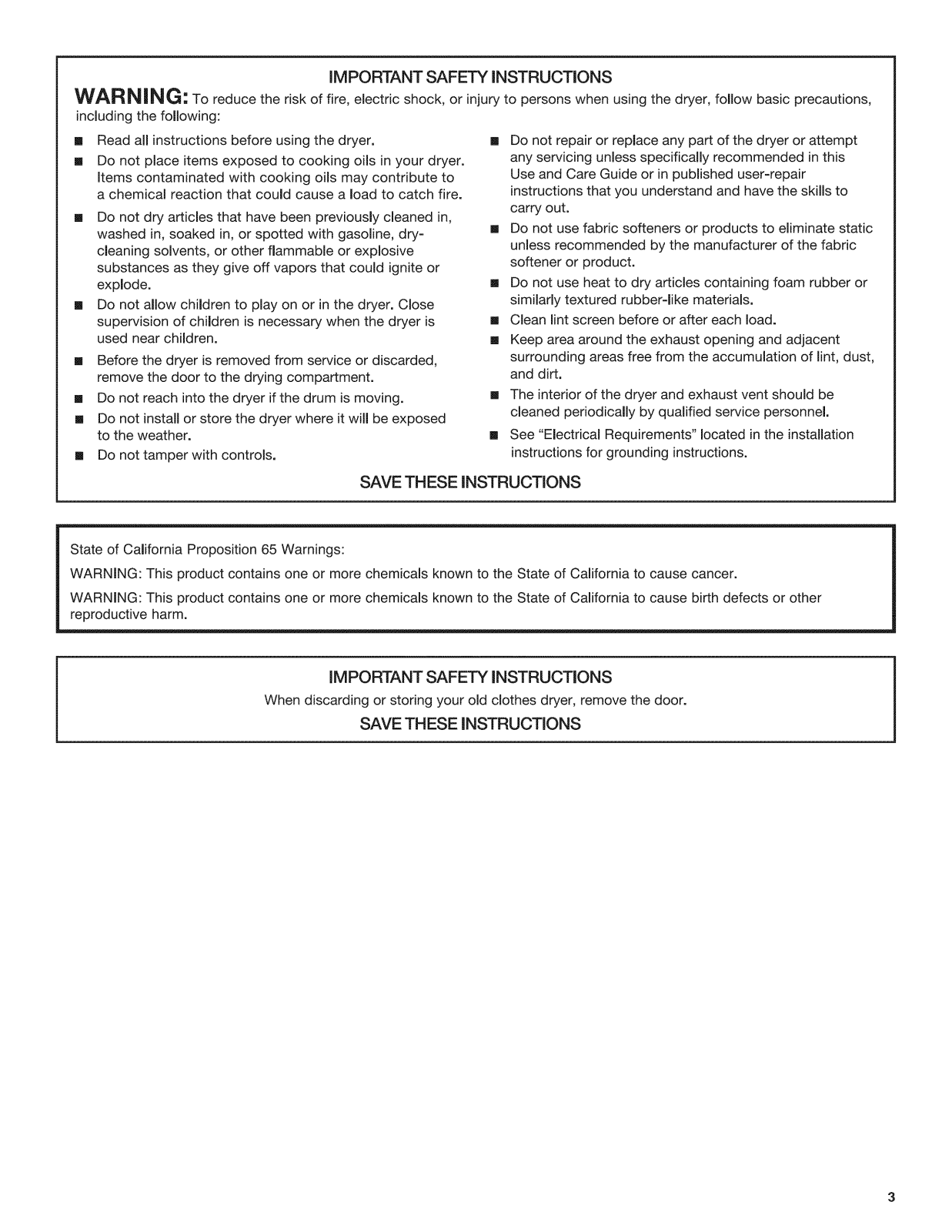

IMPORTANT SAFETY INSTRUCTIONS
WARNING." To reduce the risk of fire, electric shock, or injury to persons when using the dryer, follow basic precautions,
including the following:
[] Read all instructions before using the dryer.
[] Do not place items exposed to cooking oils in your dryer.
Items contaminated with cooking oils may contribute to
a chemical reaction that could cause a load to catch fire.
[] Do not dry articles that have been previously cleaned in,
washed in, soaked in, or spotted with gasoline, dry-
cleaning solvents, or other flammable or explosive
substances as they give off vapors that could ignite or
explode.
[] Do not allow children to play on or in the dryer. Close
supervision of children is necessary when the dryer is
used near children.
[] Before the dryer is removed from service or discarded,
remove the door to the drying compartment.
[] Do not reach into the dryer if the drum is moving.
[] Do not install or store the dryer where it will be exposed
to the weather.
[] Do not tamper with controls.
[] Do not repair or replace any part of the dryer or attempt
any servicing unless specifically recommended in this
Use and Care Guide or in published user-repair
instructions that you understand and have the skills to
carry out.
[] Do not use fabric softeners or products to eliminate static
unless recommended by the manufacturer of the fabric
softener or product.
[] Do not use heat to dry articles containing foam rubber or
similarly textured rubber-like materials.
[] Clean lint screen before or after each load.
[] Keep area around the exhaust opening and adjacent
surrounding areas free from the accumulation of lint, dust,
and dirt.
[] The interior of the dryer and exhaust vent should be
cleaned periodically by qualified service personnel.
[] See "Electrical Requirements" located in the installation
instructions for grounding instructions.
SAVE THESE INSTRUCTIONS
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other
reproductive harm.
IMPORTANT SAFETY INSTRUCTIONS
When discarding or storing your old clothes dryer, remove the door.
SAVE THESE INSTRUCTIONS

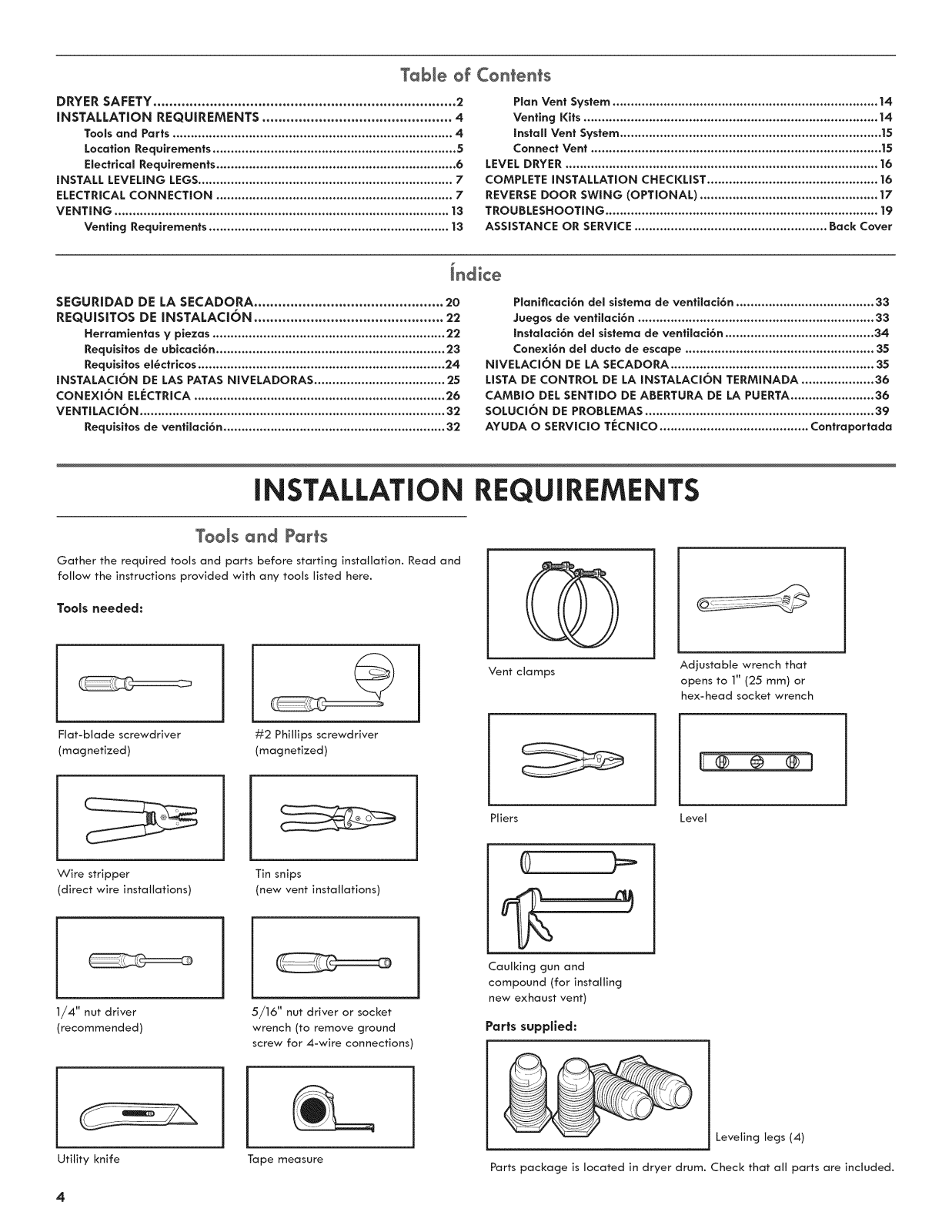

Table of Con_en_s
DRYER SAFETY........................................................................... 2
iNSTALLATiON REQUIREMENTS ............................................... 4
Tools and Parts ............................................................................. 4
Location Requirements ................................................................... 5
Electrical Requirements .................................................................. 6

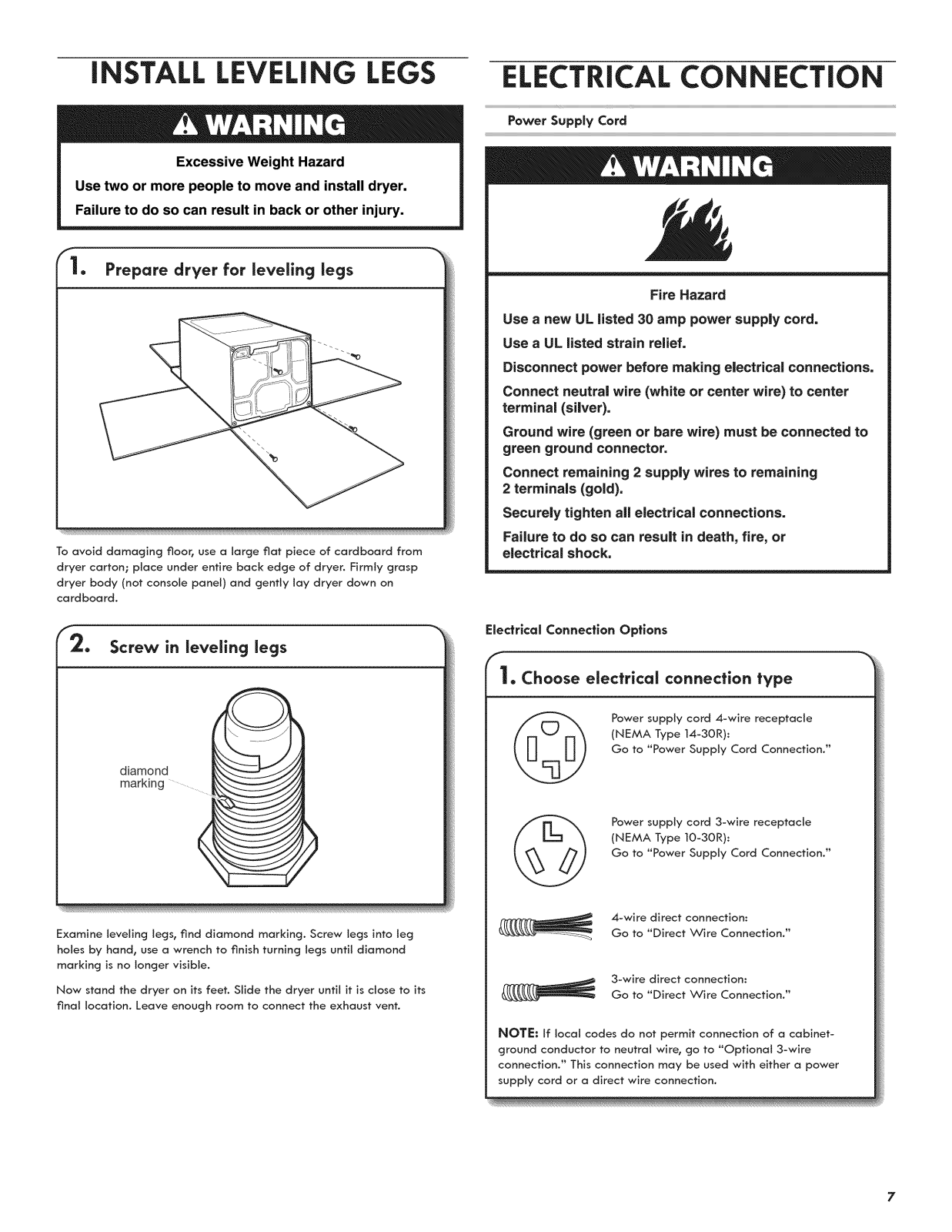

iNSTALL LEVELING LEGS ...................................................................... 7

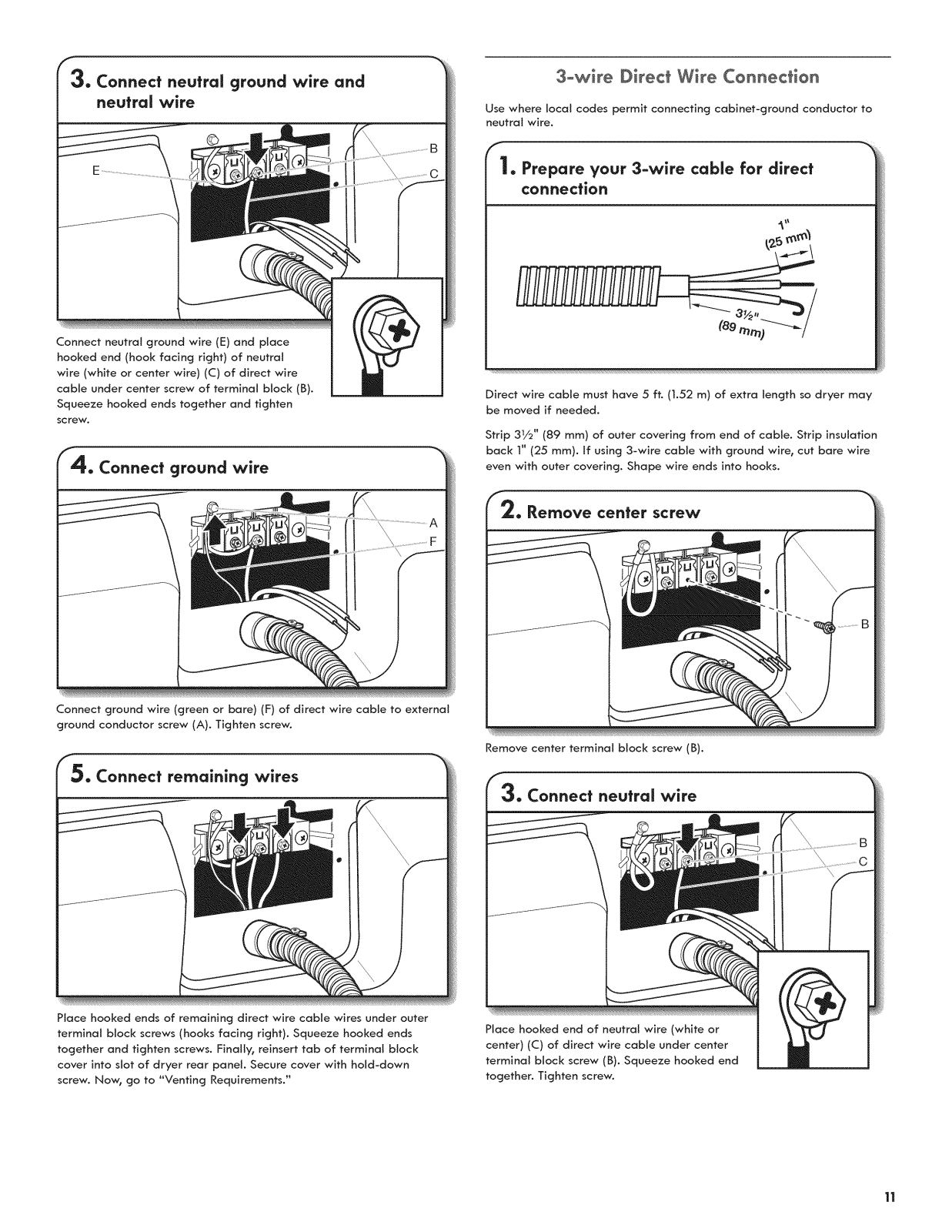

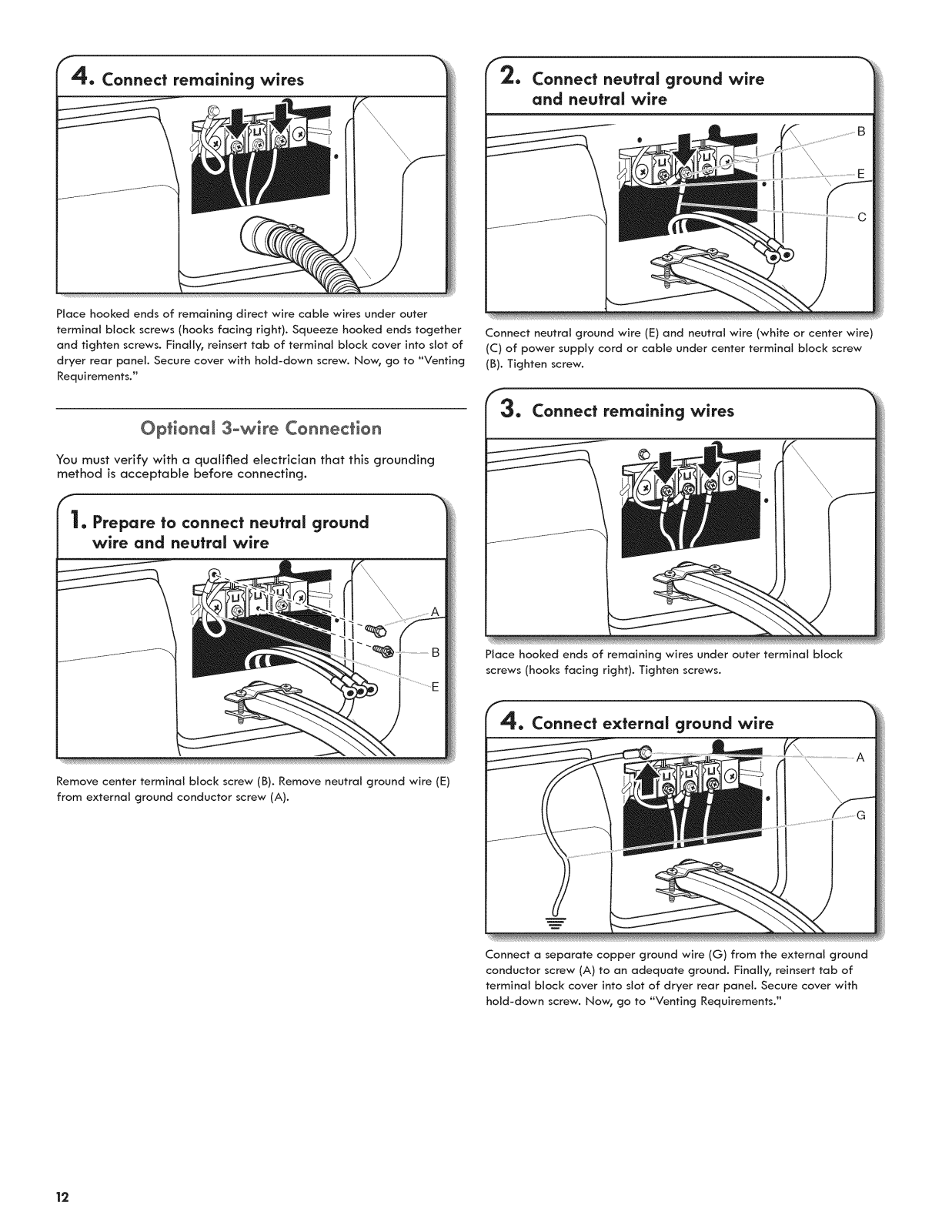

ELECTRICAL CONNECTION ................................................................. 7

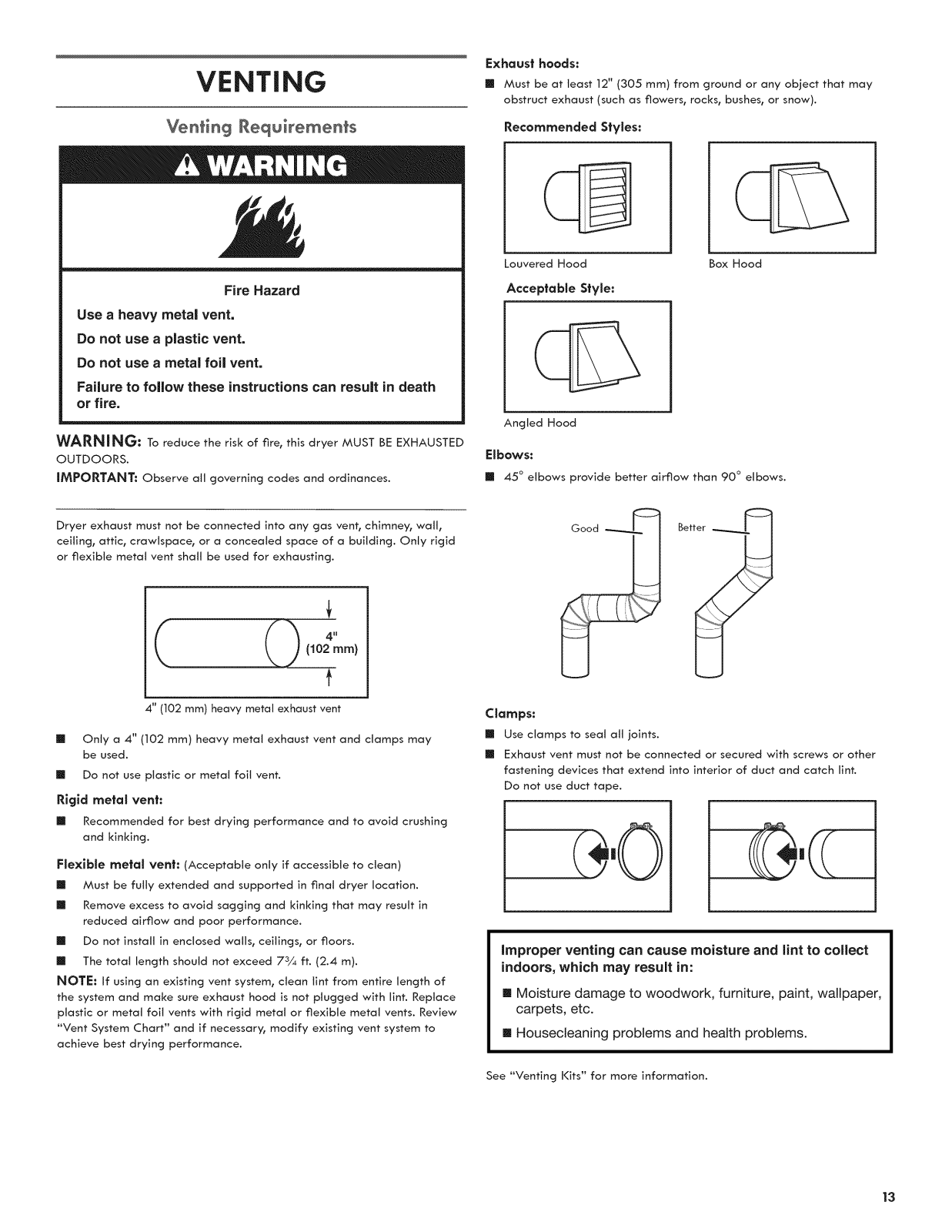

VENTING ............................................................................................ 13
Venting Requirements .................................................................. 13
indic÷

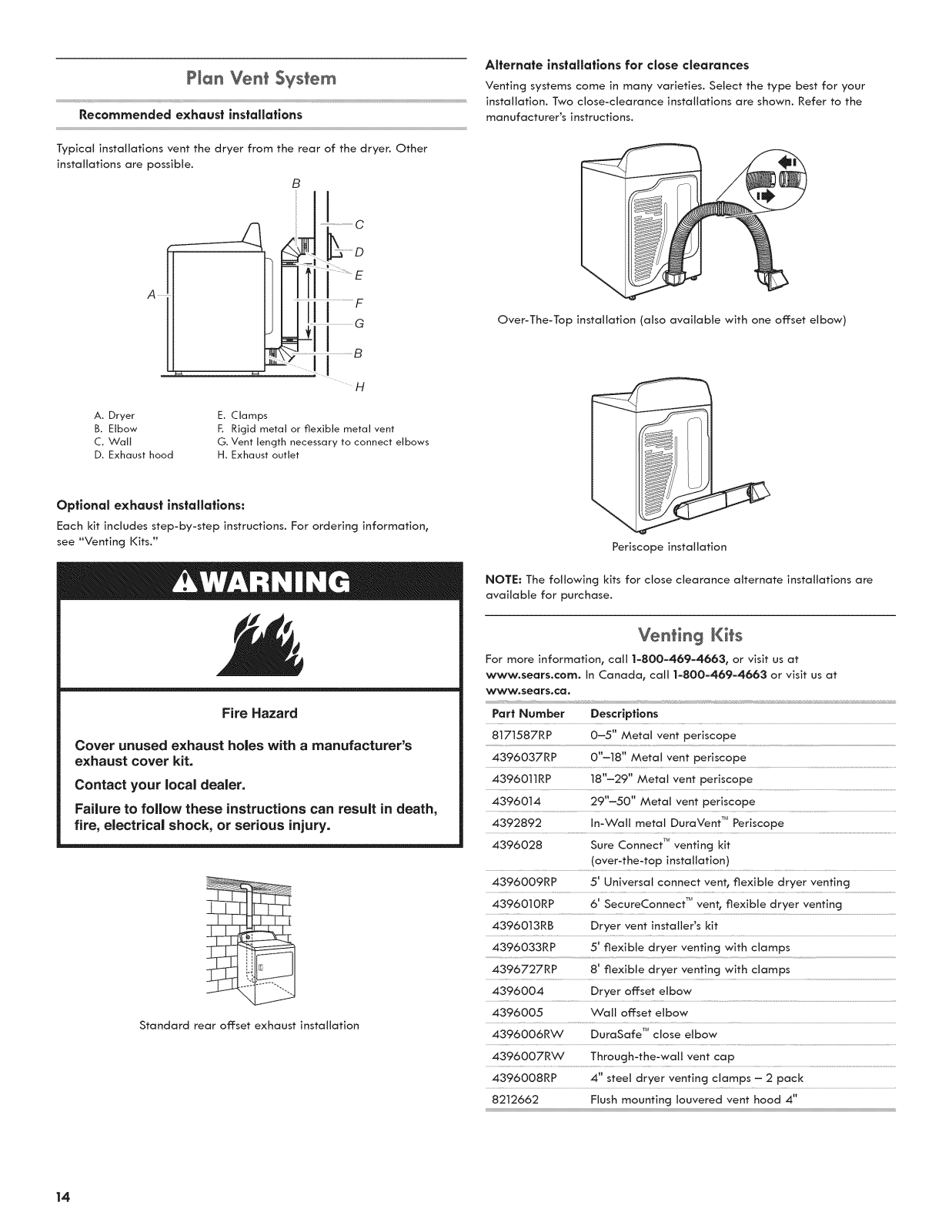

Plan Vent System ......................................................................... 14
Venffng Kffs ................................................................................. 14

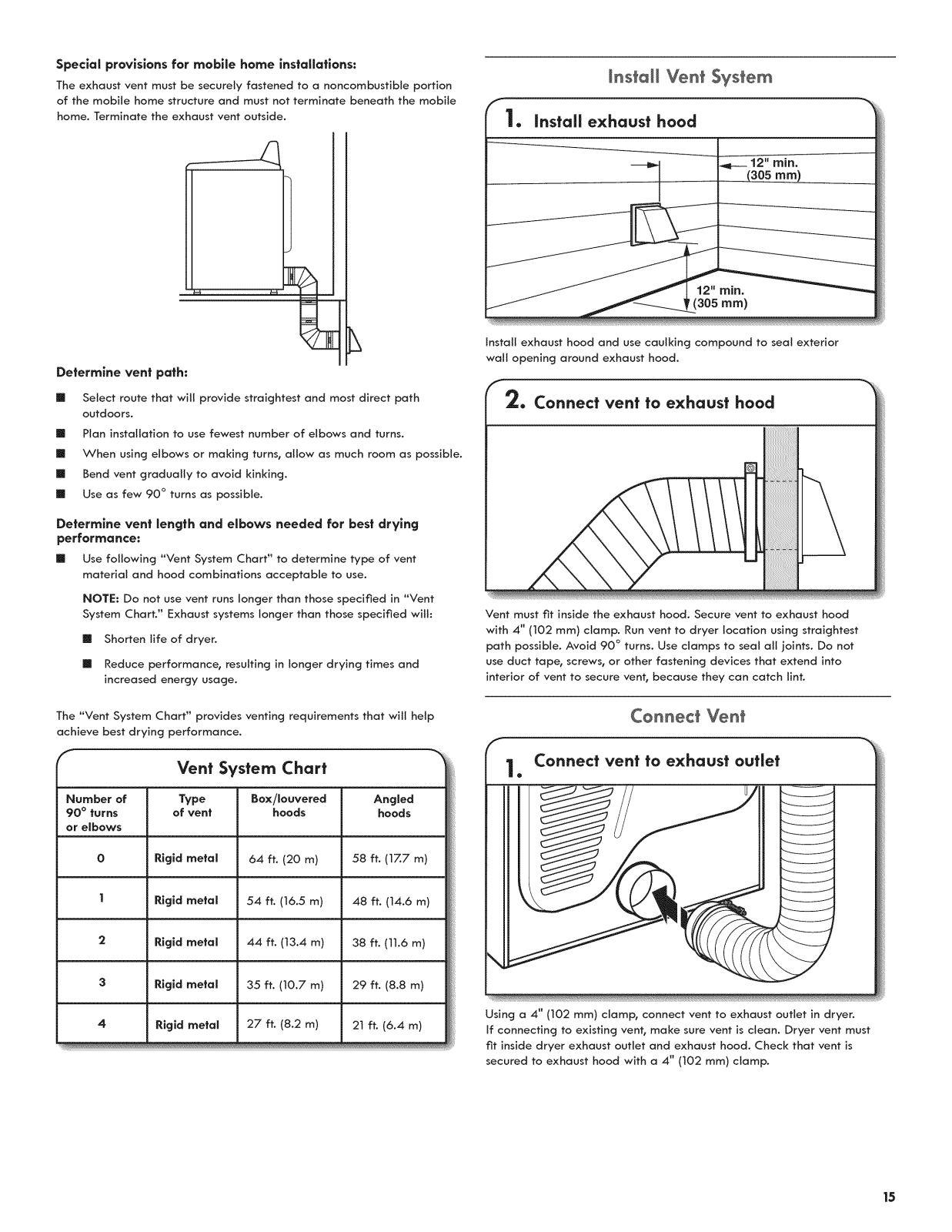

Install Vent System ........................................................................ 15
Connect Vent ................................................................................ t5

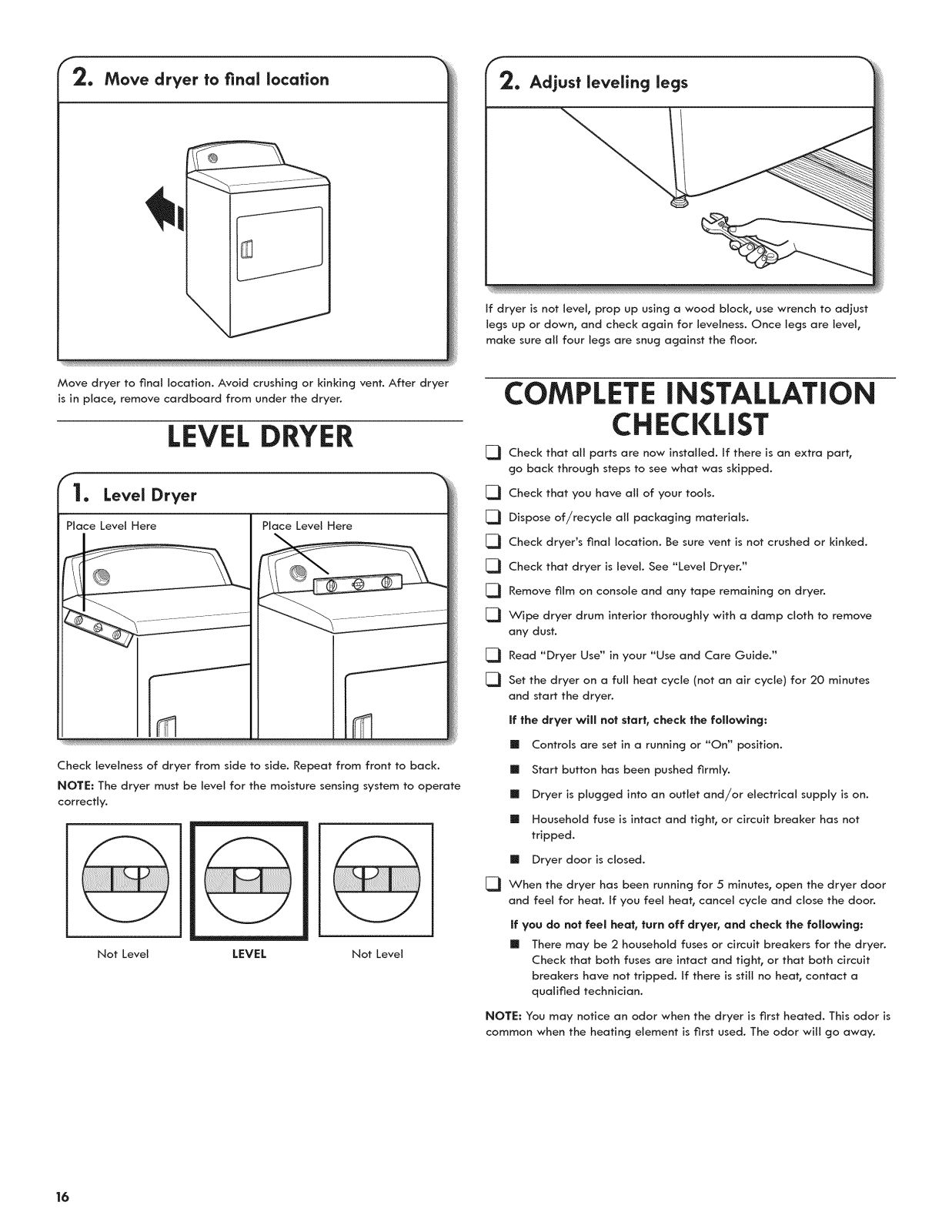

LEVEL DRYER ...................................................................................... 16
COMPLETE INSTALLATION CHECKLIST ............................................... 16

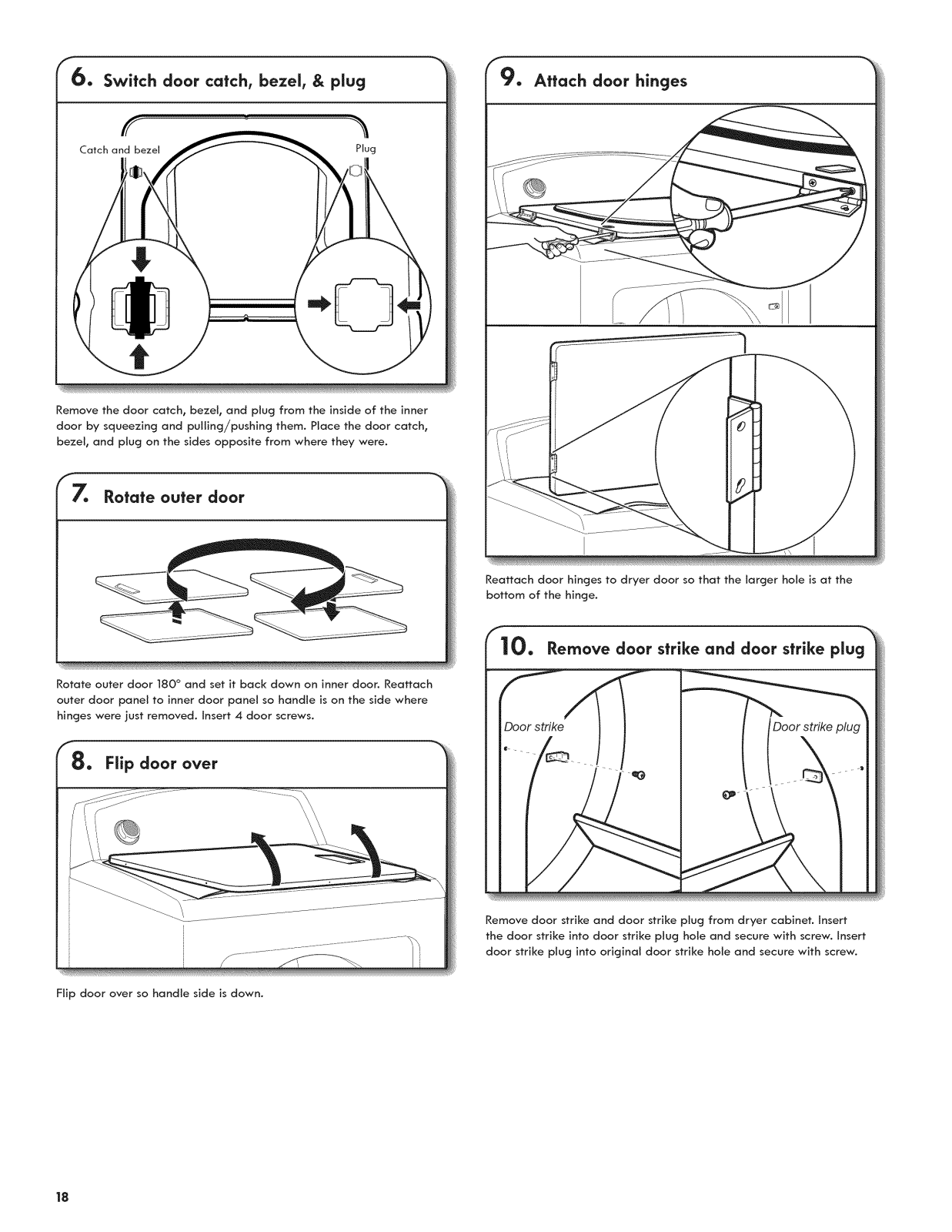

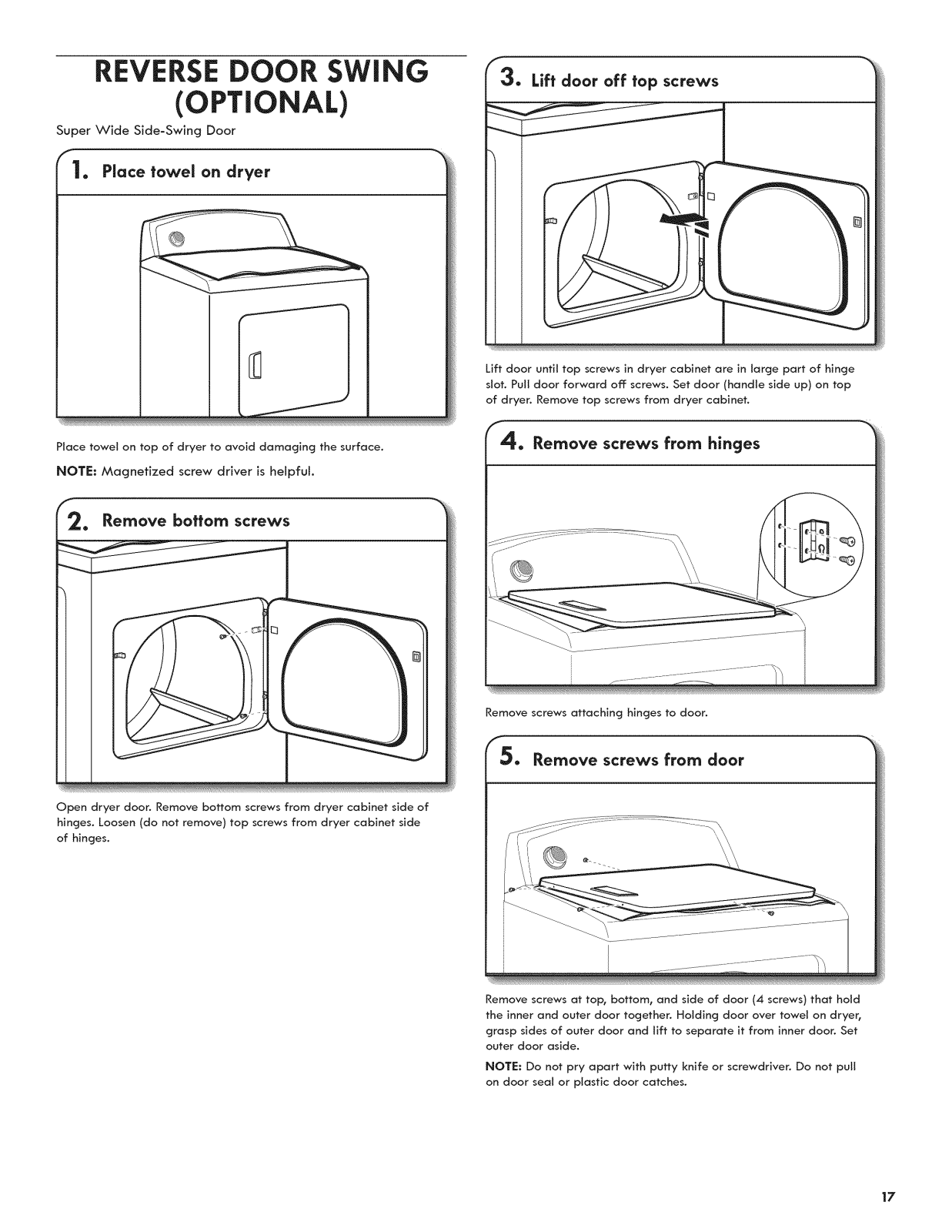

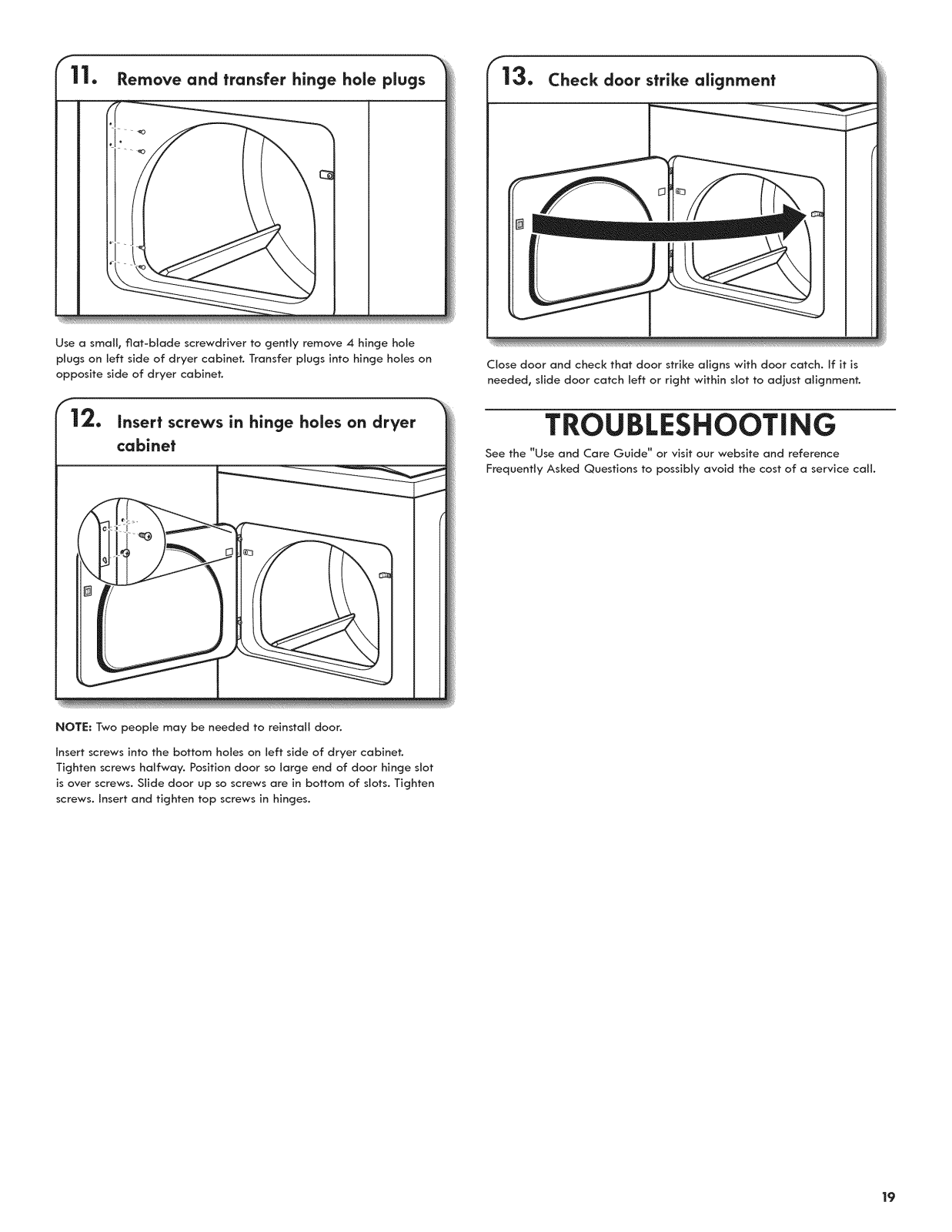

REVERSE DOOR SWING (OPTIONAL) ................................................. 17
TROUBLESHOOTING ........................................................................... 19
ASSISTANCE OR SERVICE ..................................................... Back Cover

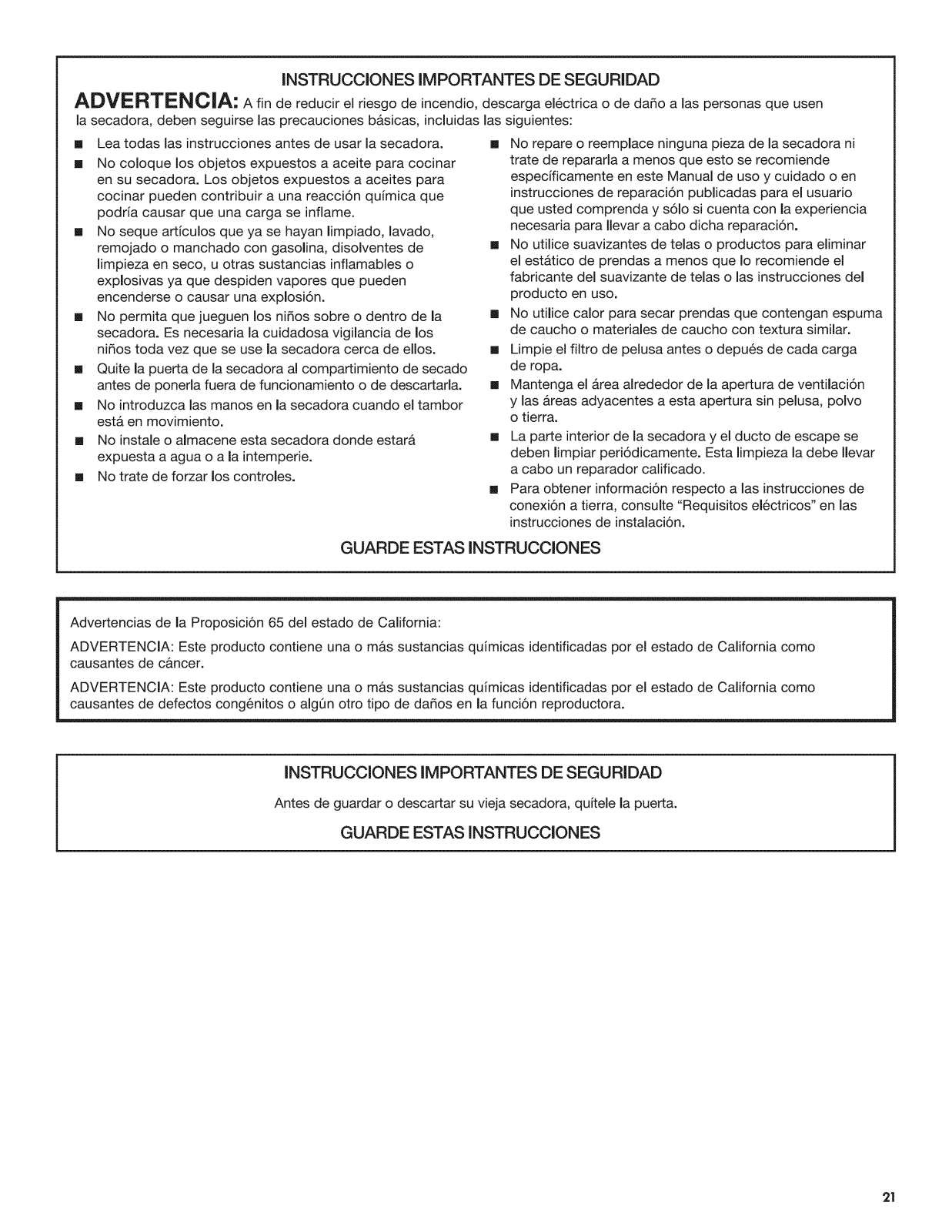

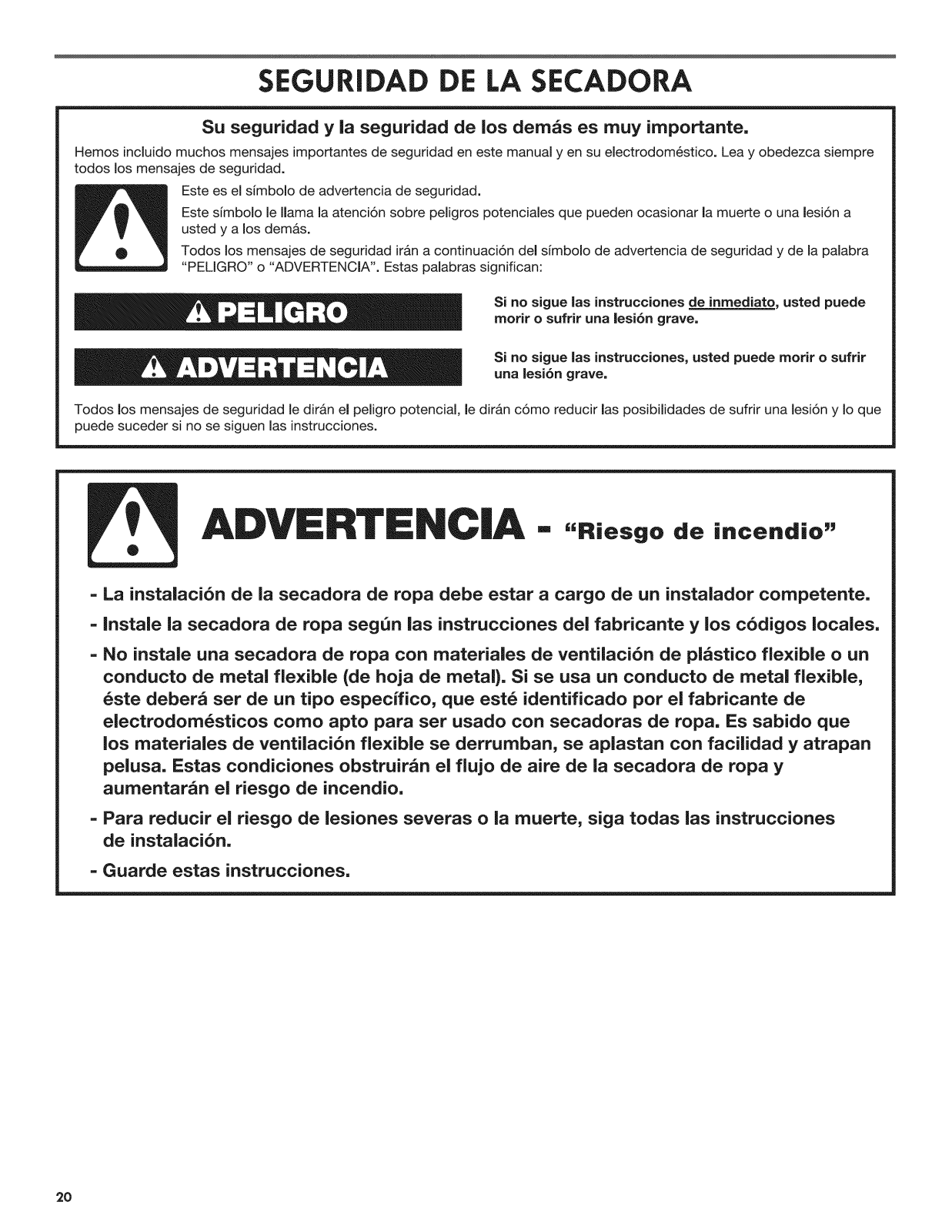

SEGURIDAD DE LA SECADORA ............................................... 20

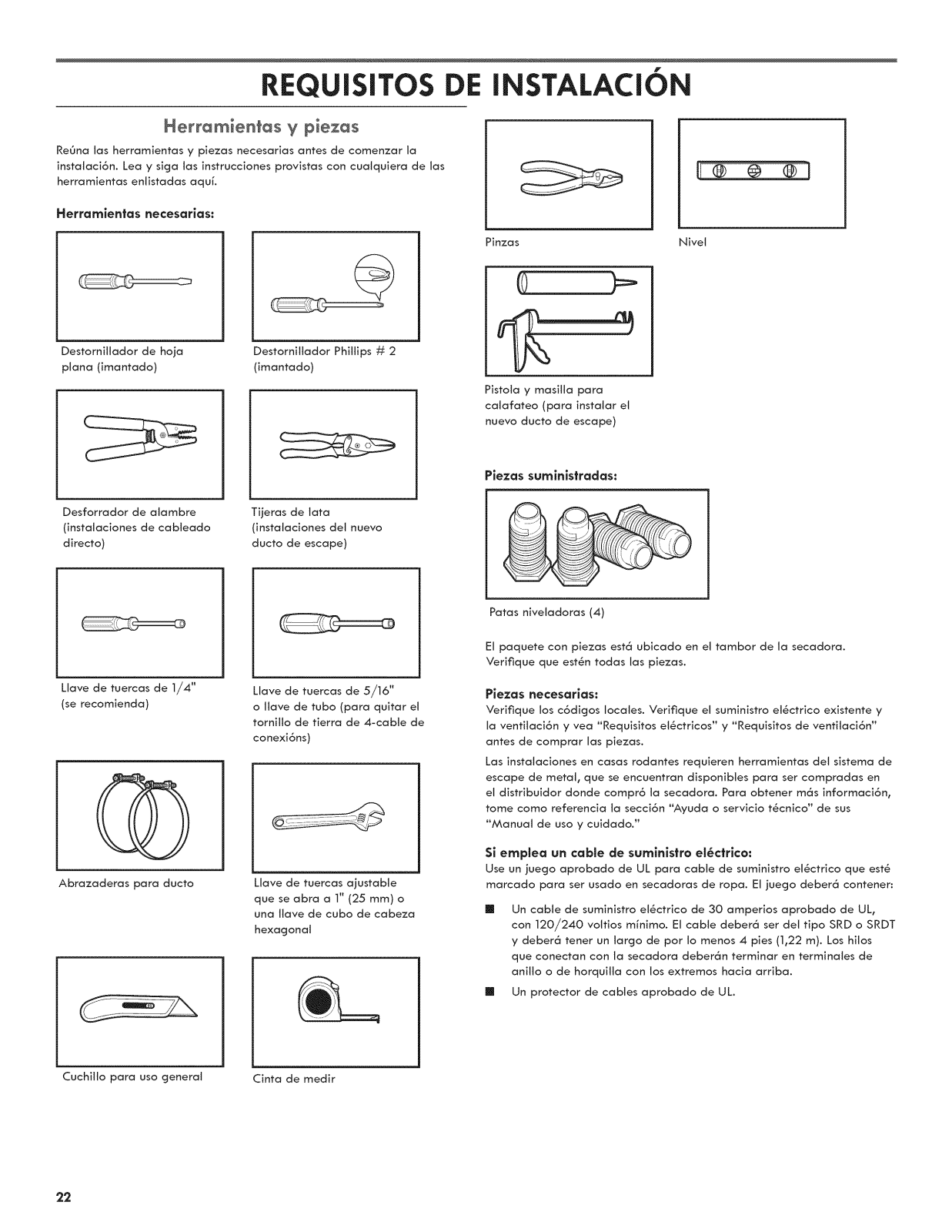

REQUISITOS DE INSTALACION ............................................... 22
Herramlentas y piezas ................................................................ 22

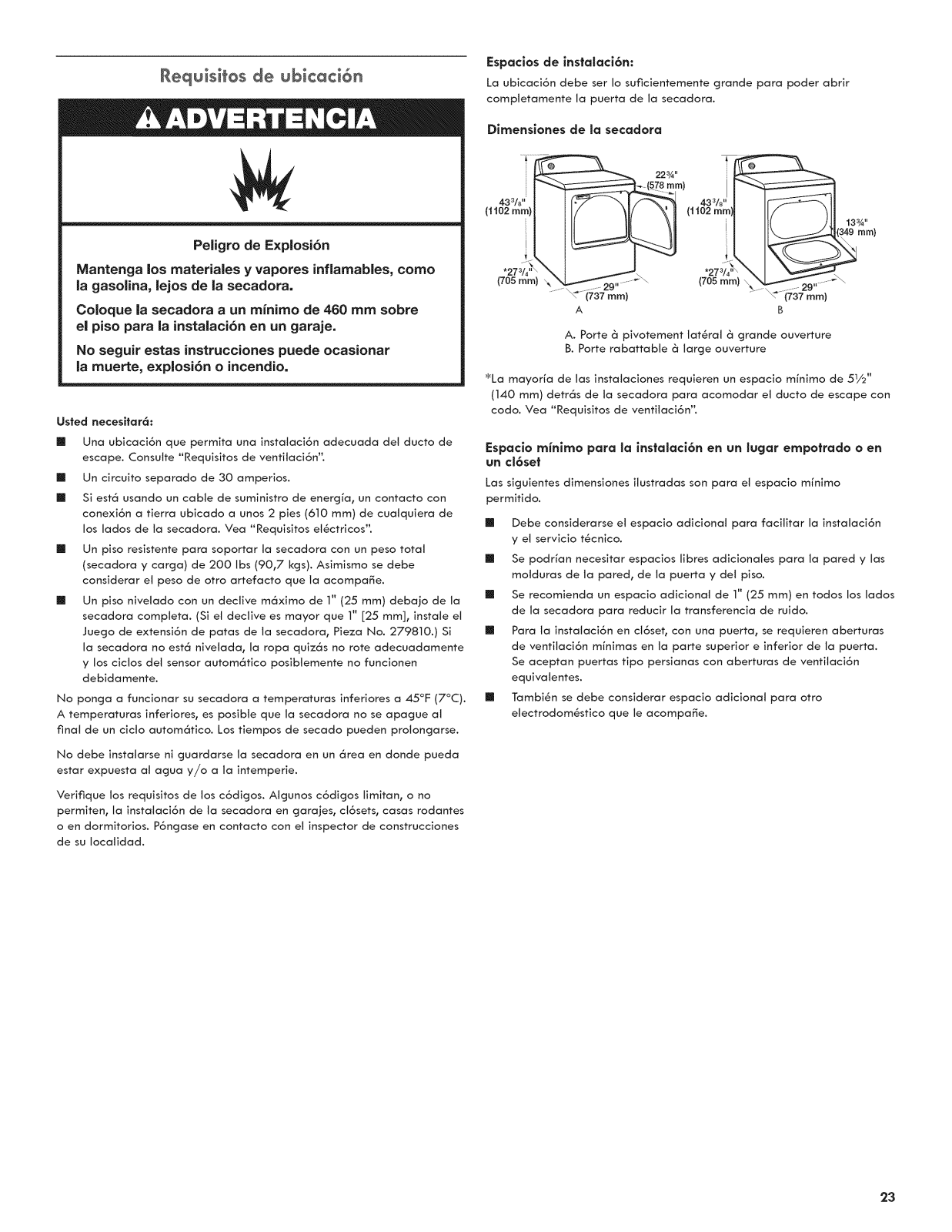

Requlsffos de ublcac_6n ............................................................... 23
Requ_sltosel6ctrlcos .................................................................... 24

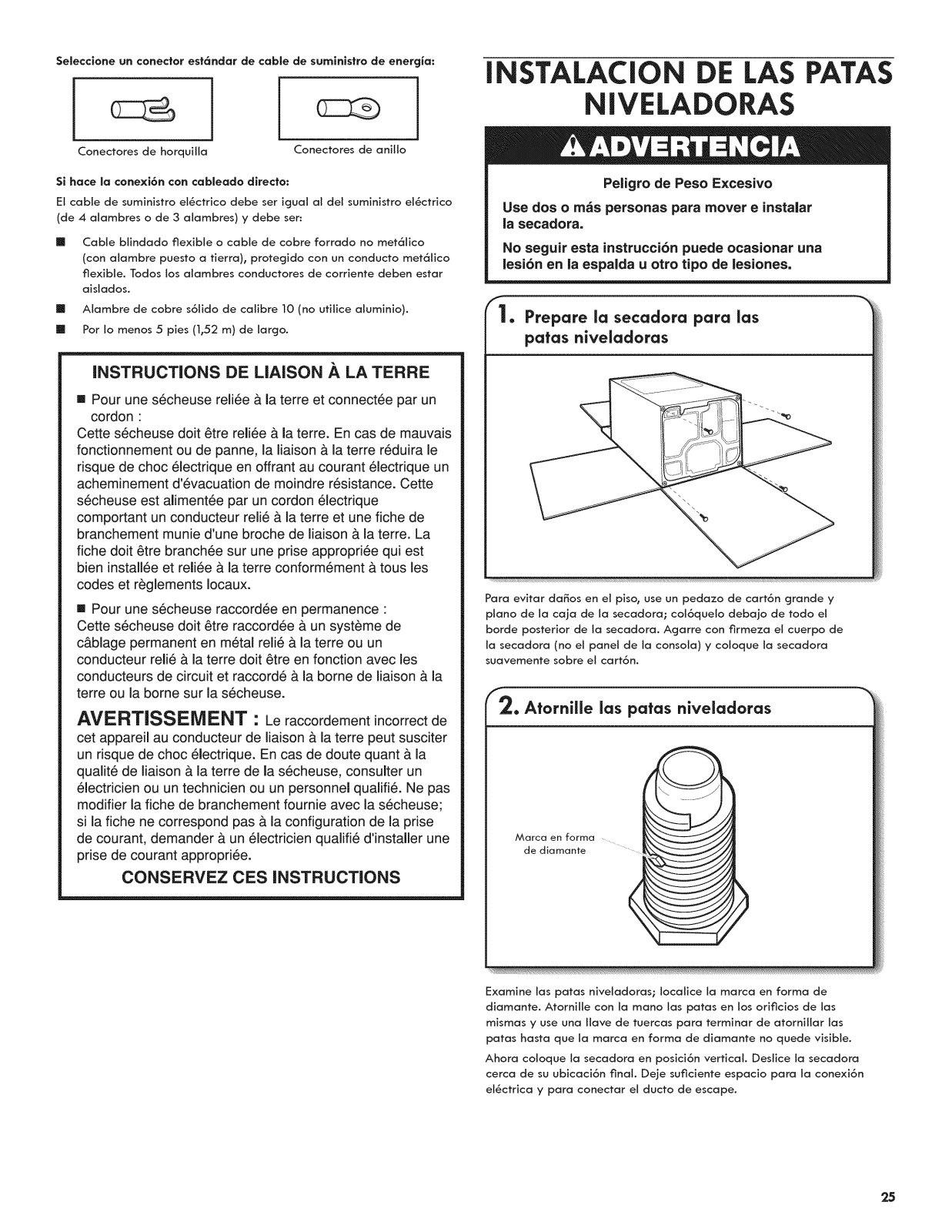

INSTALACI6N DE LAS PATAS NIVELADORAS .................................... 25

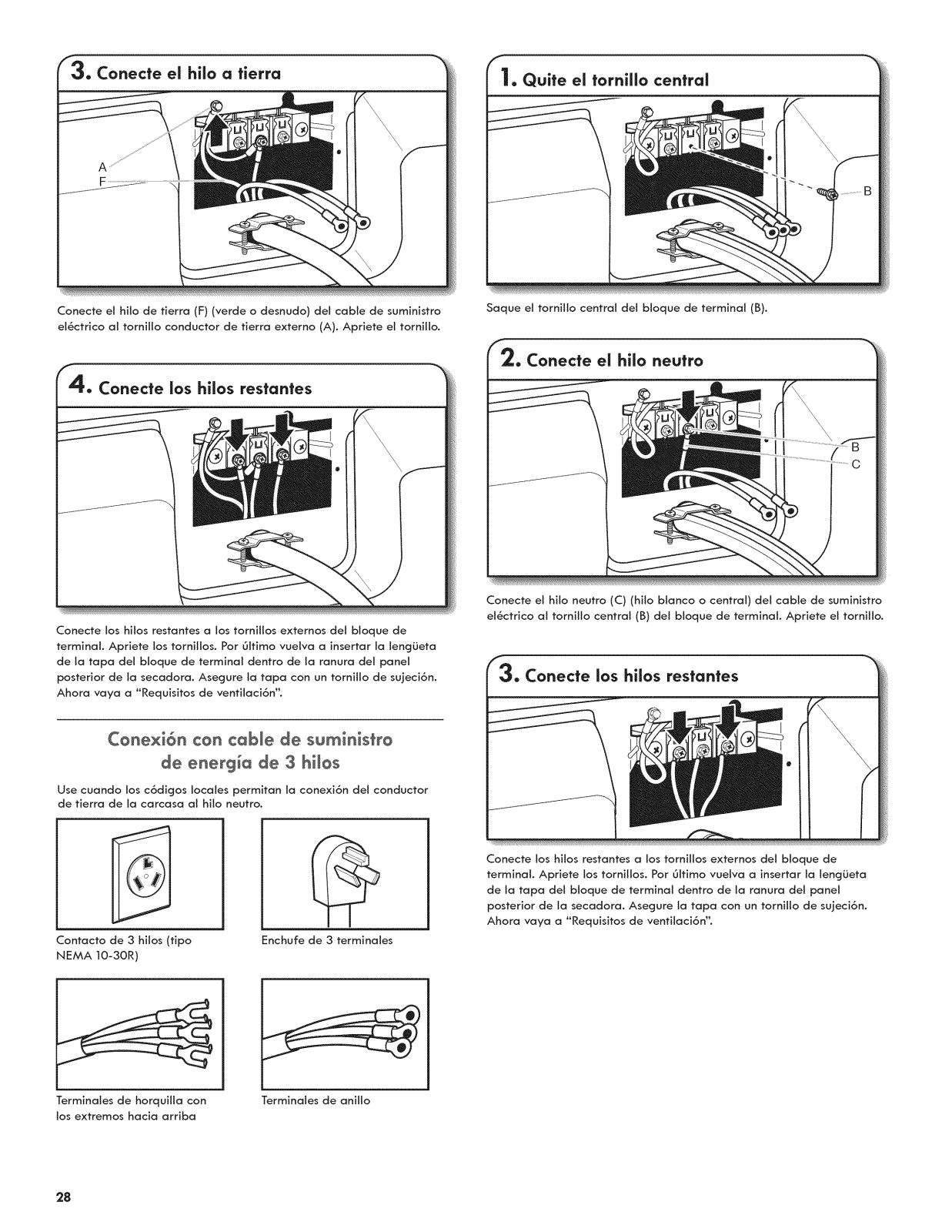

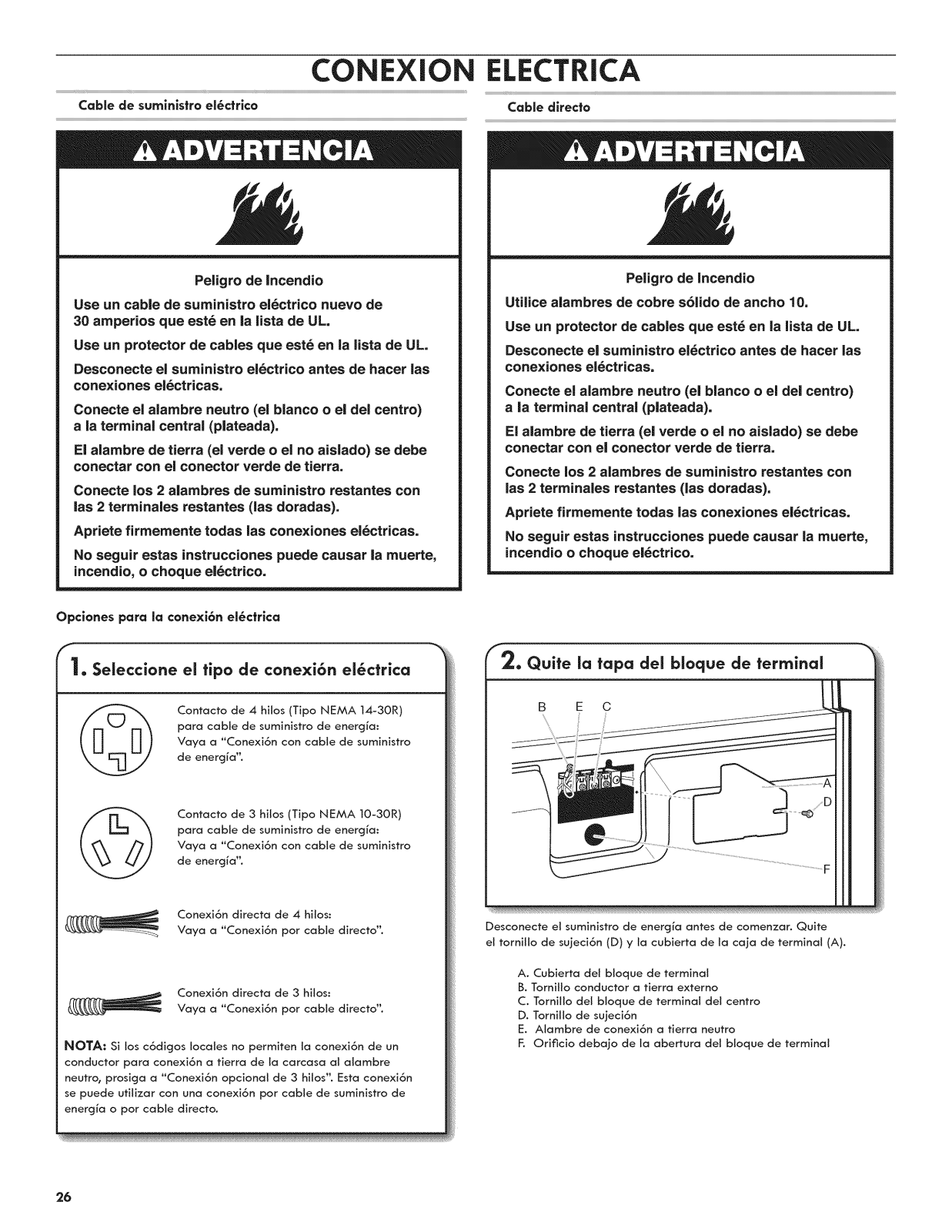

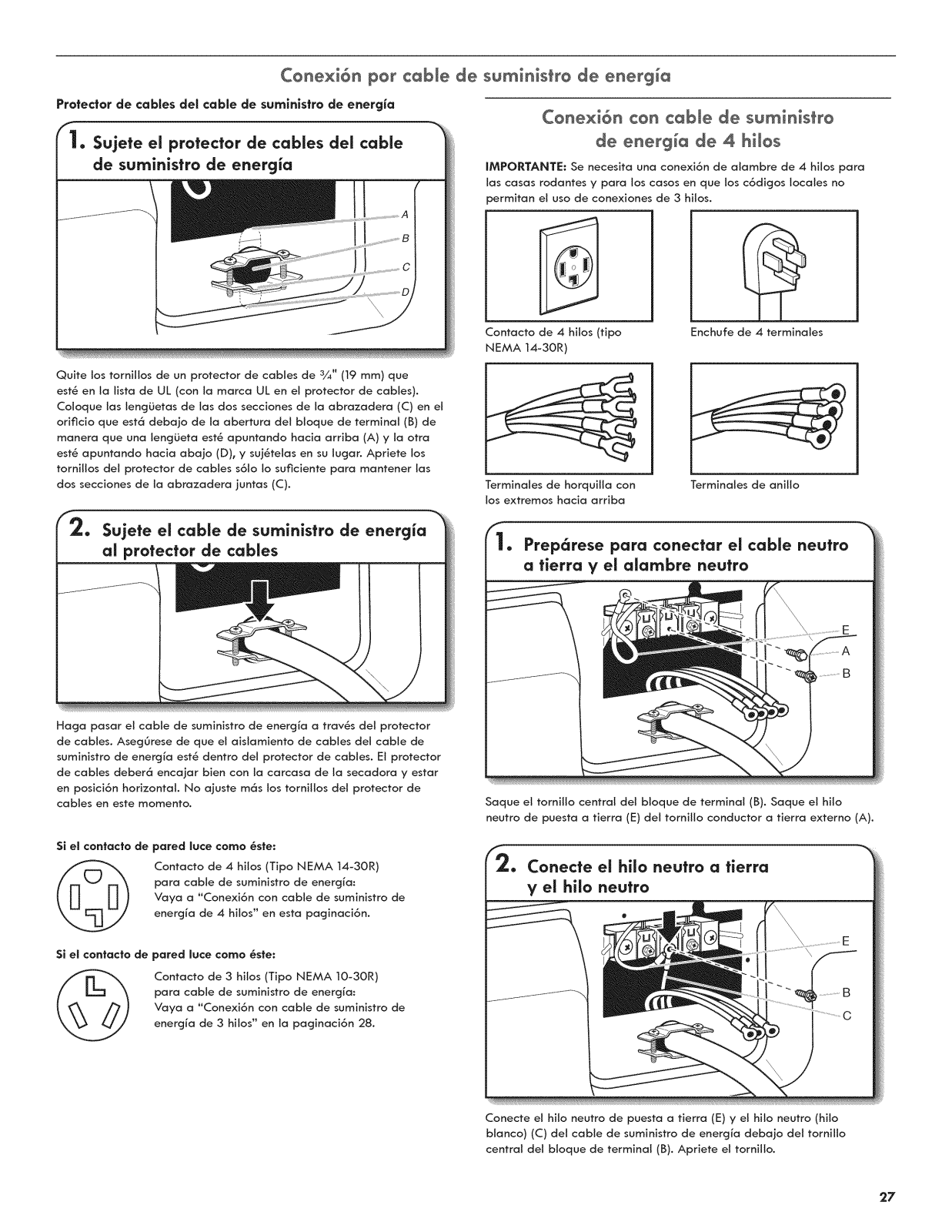

CONEXION ELECTRICA ..................................................................... 26
VENTILACK)N .................................................................................... 32
Requisitos de ventilaci6n ............................................................. 32
iNSTALLATiON
Tools and Par_s
Gather the required tools and parts before starting installation. Read and
follow the instructions provided with any tools listed here.
Tools needed:
Flat-blade screwdriver
(magnetized)
#2 Phillips screwdriver
(magnetized)
Planificaci6n del slstema de ventilaci6n ...................................... 33
Juegos de ventilaci6n ................................................................. 33
Instalaci6n del slstema de ventffaci6n ......................................... 34
Conex_6n del ducto de escape .................................................... 35

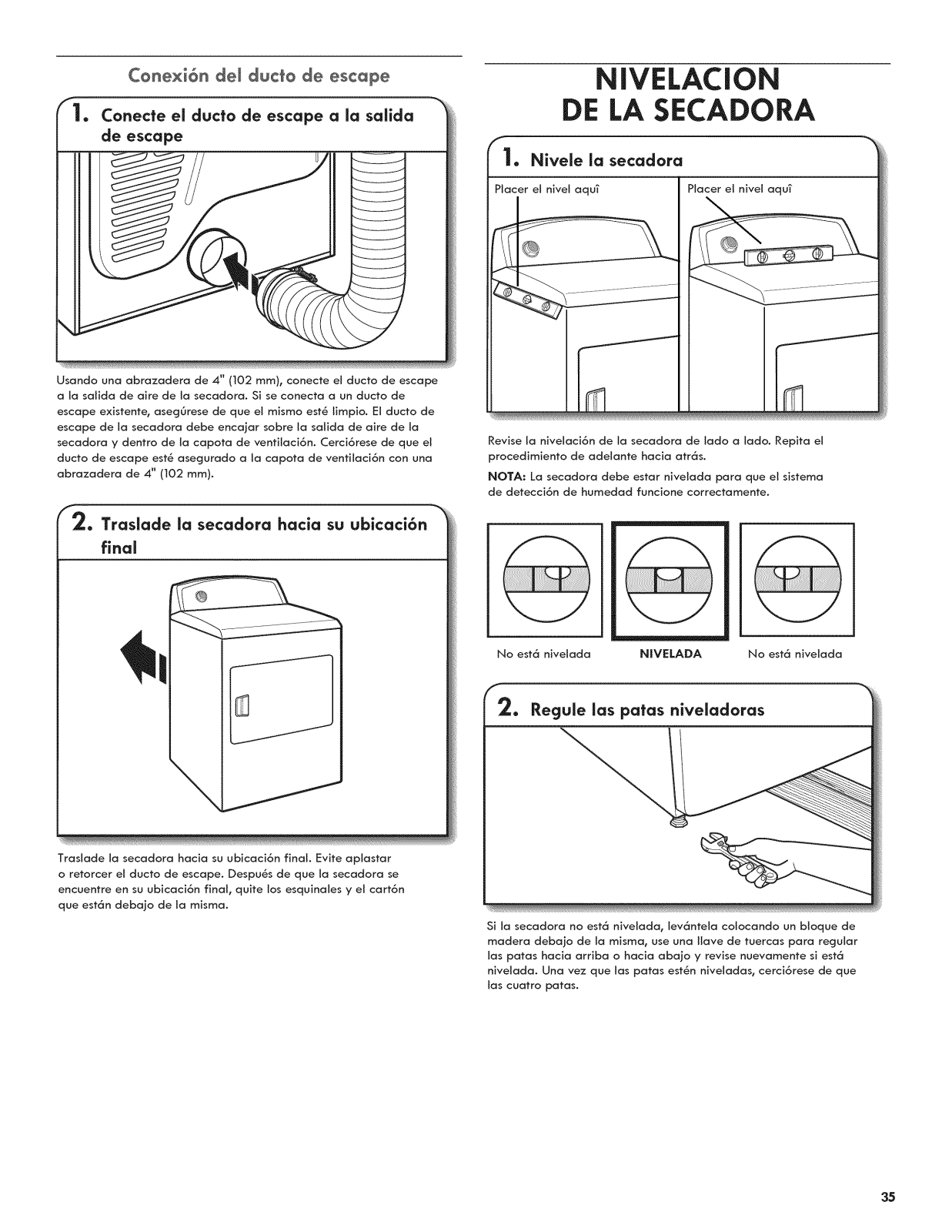

NIVELACION DE LA SECADORA ........................................................ 35

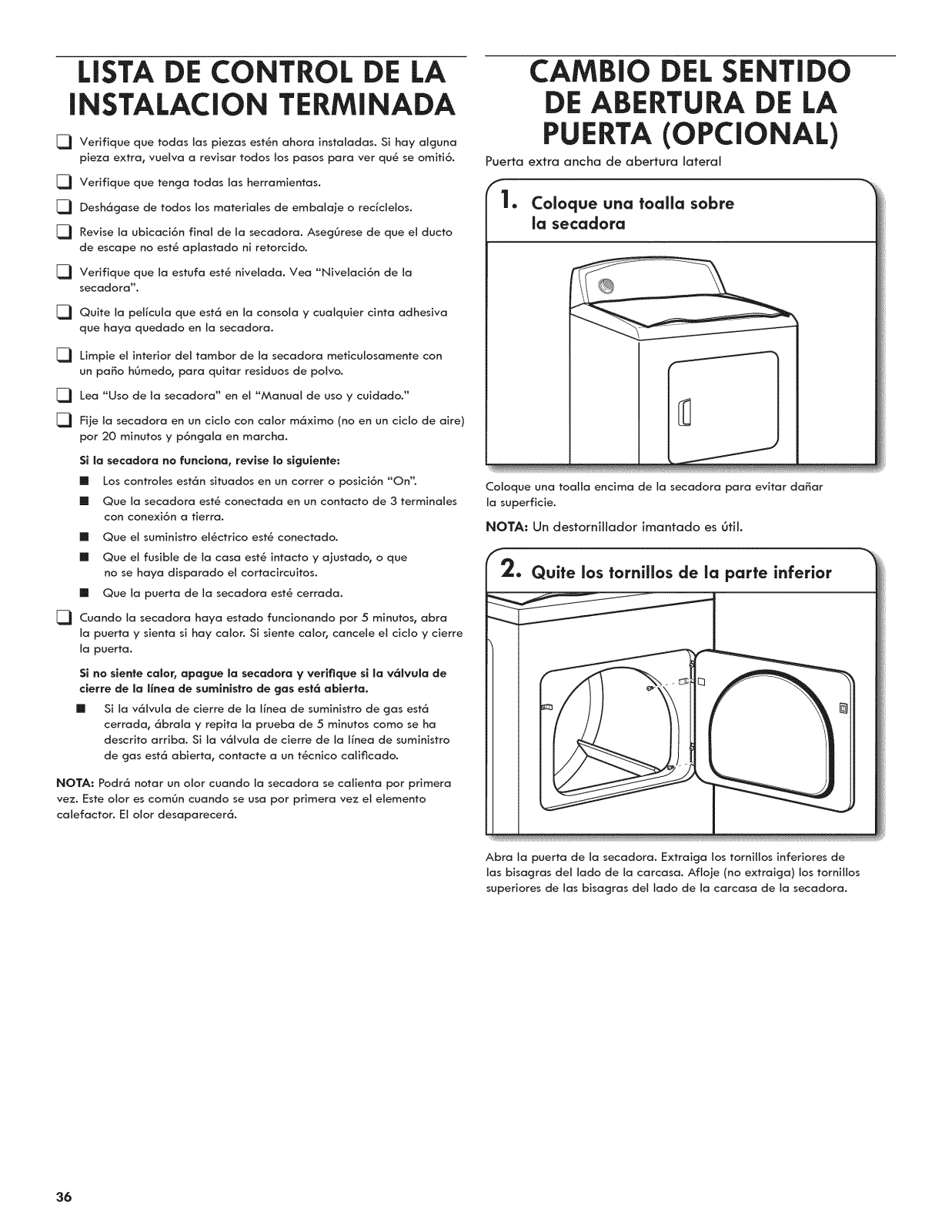

LISTA DE CONTROL DE LA INSTALACION TERMINADA .................... 36

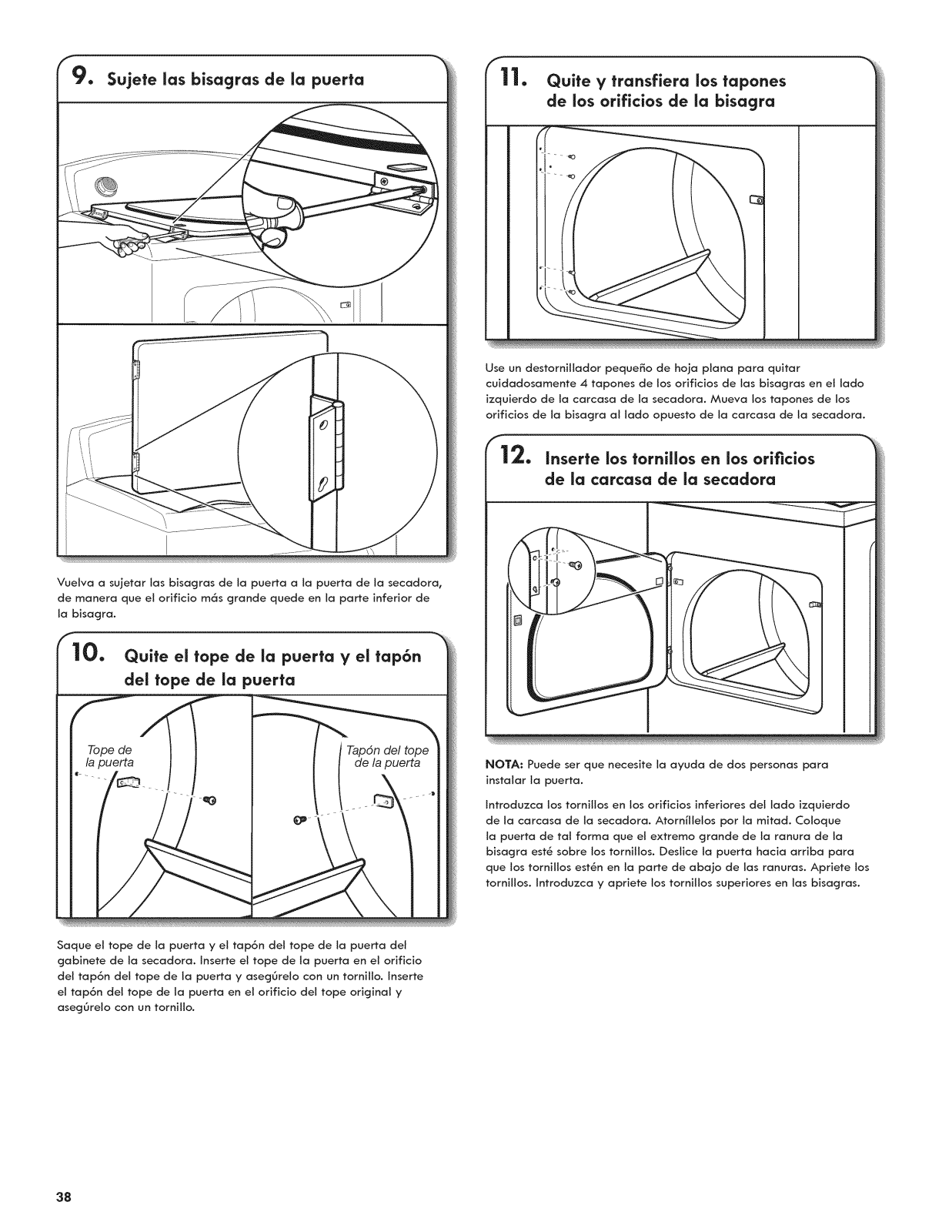

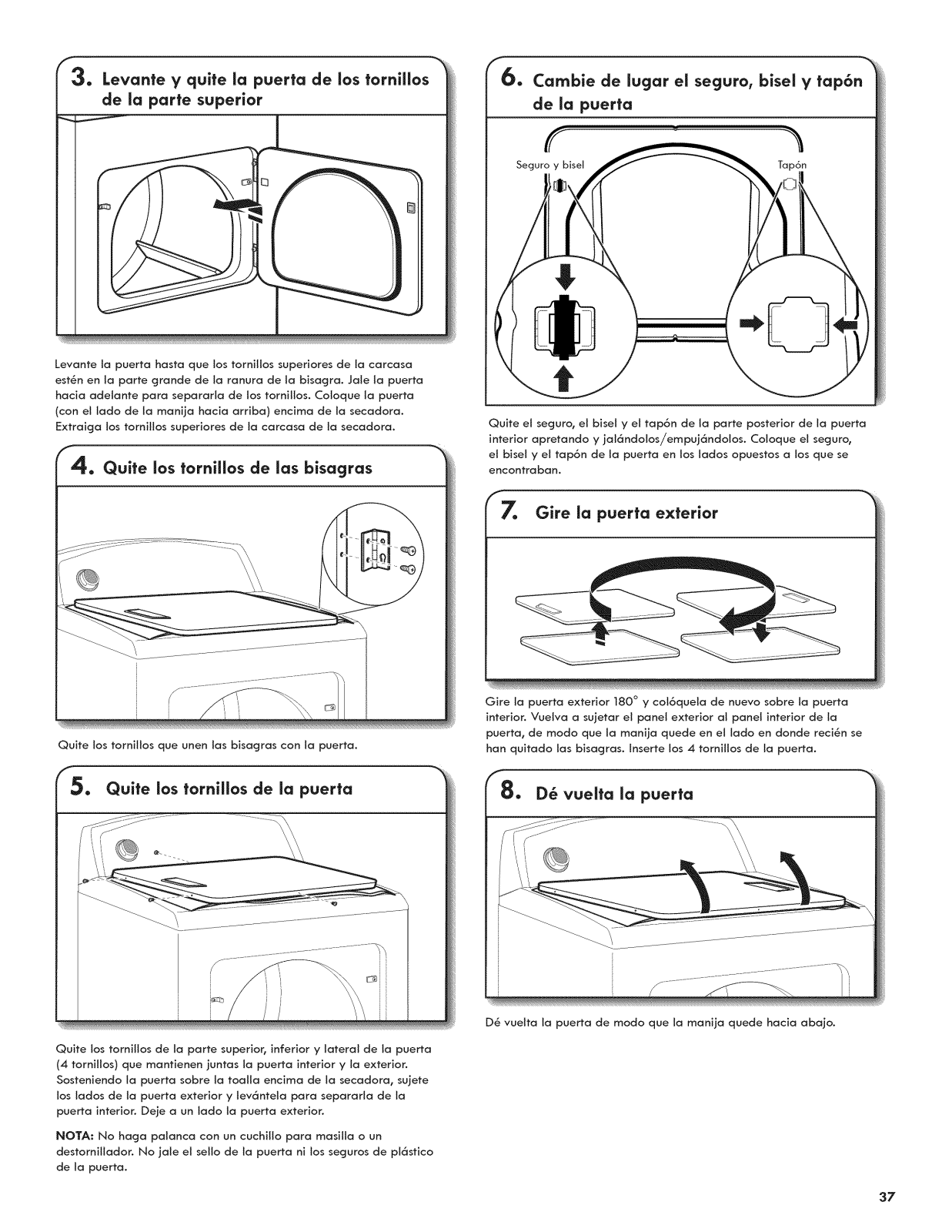

CAMBIO DEL SENTIDO DE ABERTURA DE LA PUERTA ....................... 36

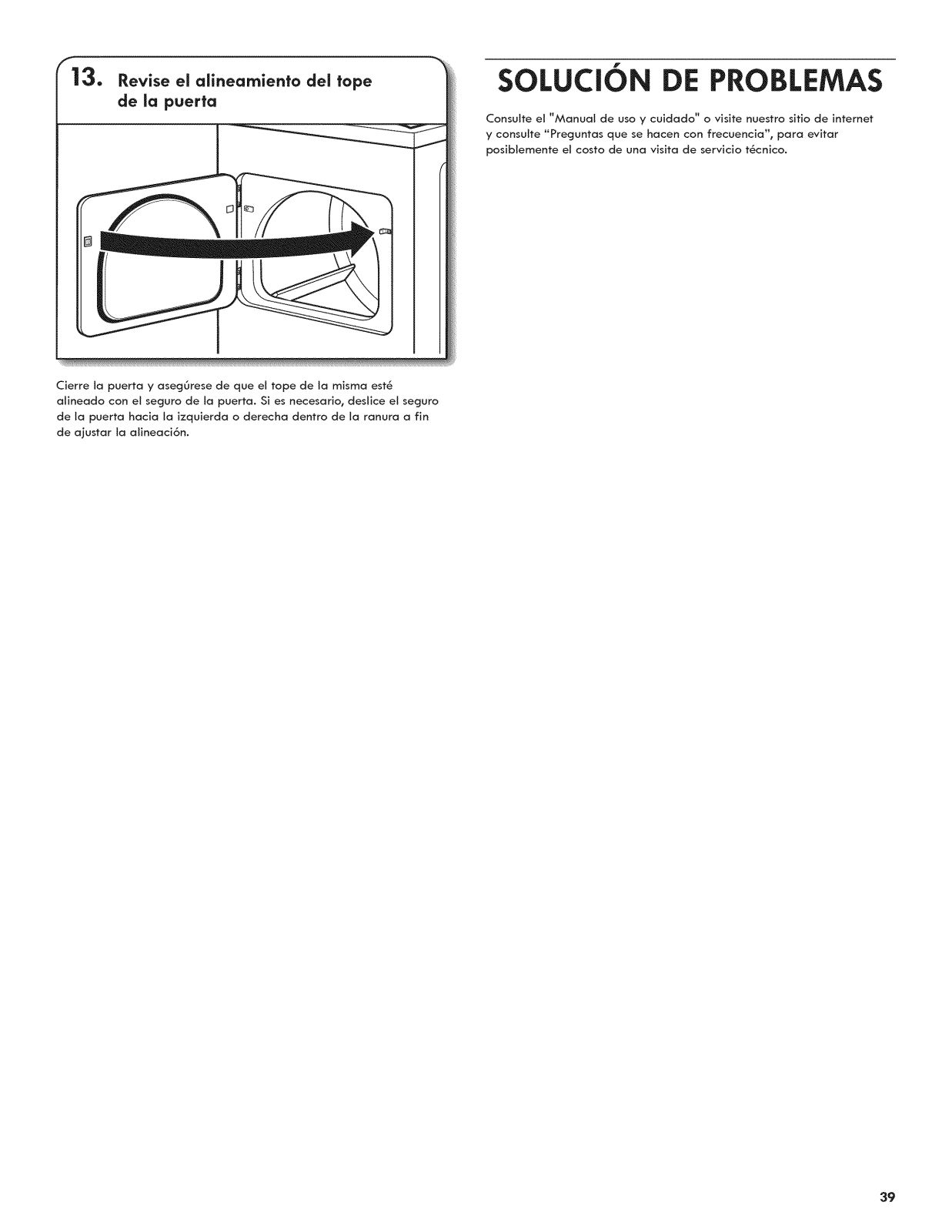

SOLUCION DE PROBLEMAS ............................................................... 39
AYUDA 0 SERVICIO TECNICO ......................................... Contraportada
REQUIREMENTS
Vent clamps
Adjustable wrench that
opens to 1" (25 mm) or
hex-head socket wrench
Wire stripper
(direct wire installations)
/4" nut driver
recommended)
Utility knife
4
Tin snips
(new vent installations)
5/16" nut driver or socket
wrench (to remove ground
screw for 4-wire connections)
Tape measure
Pliers Level
Caulking gun and
compound (for installing
new exhaust vent)
Parts suppliecl:
Leveling legs (4)
Parts package is located in dryer drum. Check that all parts are included.
Parts needed:
Check local codes. Check existing electrical supply and venting, and read
"Electrical Requirements" and "Venting Requirements" before purchasing
parts.
Mobile home installations require metal exhaust system hardware,
available for purchase from the dealer from whom you purchased your
dryer. For further information, please reference the "Assistance or Service"
section of your "Use and Care Guide."

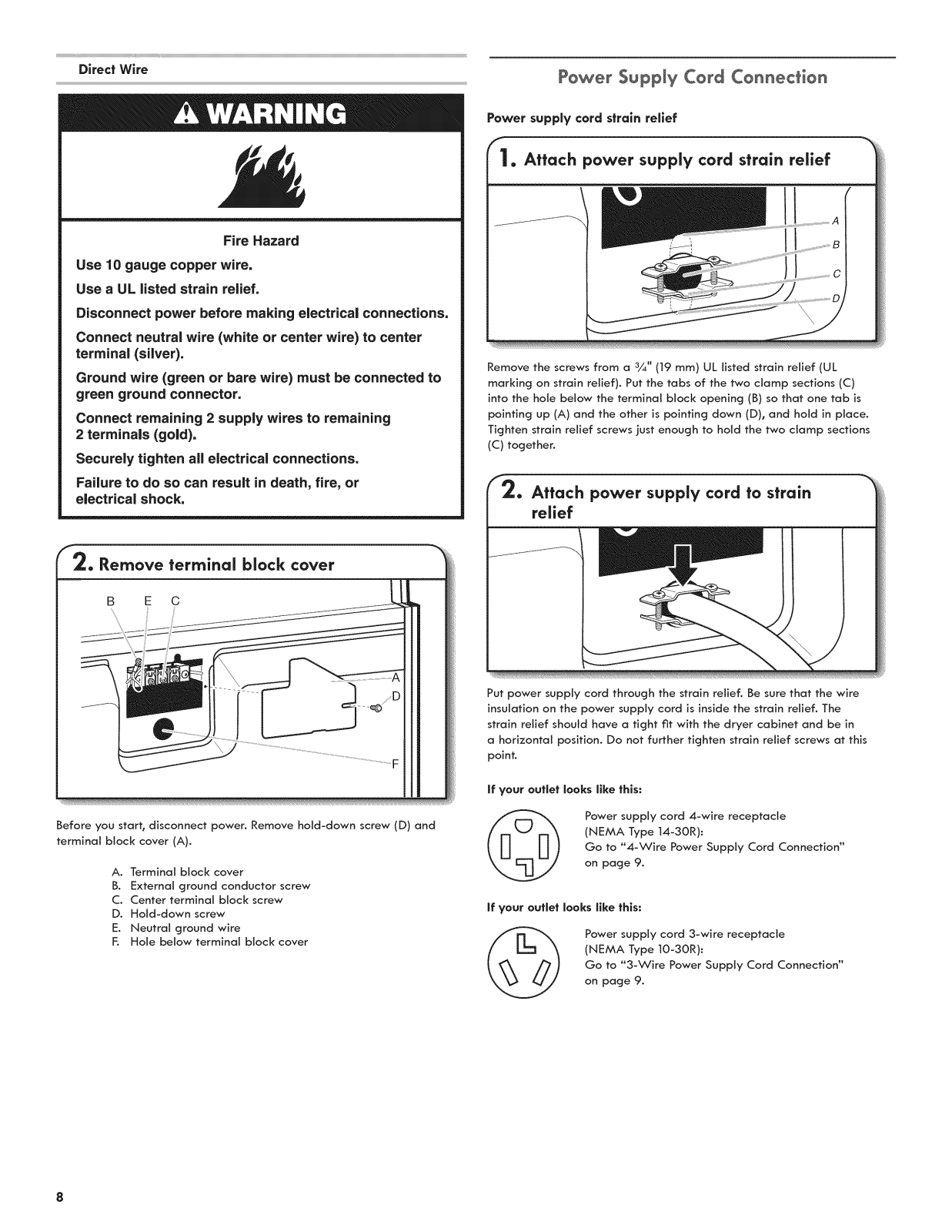

If using a power supply cord:
Use a UL listed power supply cord kit marked for use with clothes dryers.
The kit should contain:
[] A UL listed 30-amp power supply cord, rated 120/240 volt minimum.
The cord should be type SRD or SRDT and be at least 4 ft. (1.22 m)
long. The wires that connect to the dryer must end in ring terminals
or spade terminals with upturned ends.
[] A UL listed strain relief.

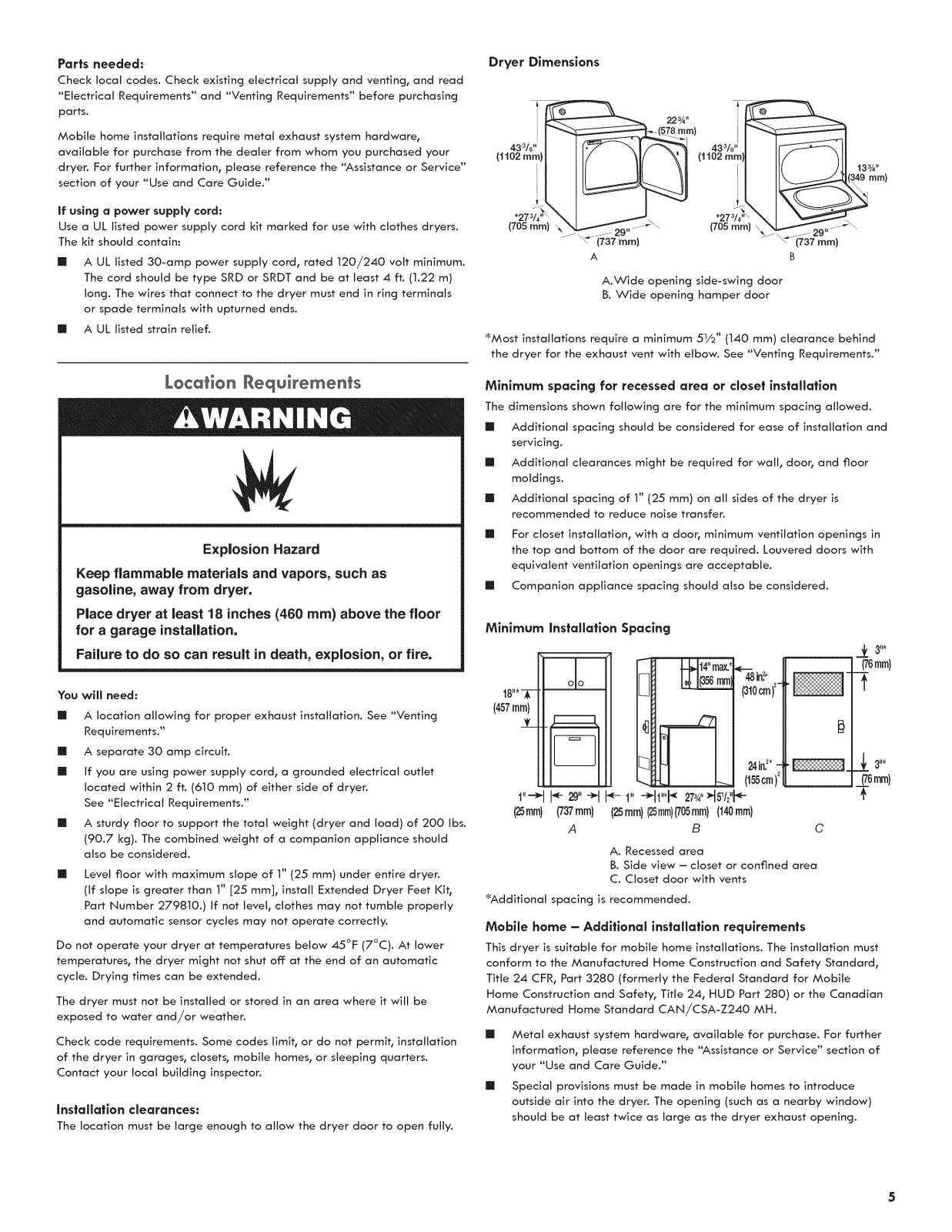

Dryer Dimensions
22sA,,
) _mm)
(tt°2mm)l I!/ )ll 1s3_,
(705 ram) _ _9" _
_Most installations require a minimum 51/2 '' (140 ram) clearance behind
the dryer for the exhaust vent with elbow. See "Venting Requirements."
.... _'"(737 ram) (737 ram)
A B
A.Wide opening side-swing door
B. Wide opening hamper door
ram)(705
rnm)
Location Requirements
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from dryer.
Place dryer at least 18 inches (460 ram) above the floor
for a garage installation.
Failure to do so can result in death, explosion, or fire.
You will need:
[] A location allowing for proper exhaust installation. See "Venting
Requirements."
[] A separate 30 amp circuit.
[] if you are using power supply cord, a grounded electrical outlet
located within 2 ft. (610 ram) of either side of dryer.
See "Electrical Requirements."
[] A sturdy floor to support the total weight (dryer and load) of 200 Ibs.
(90.7 kg). The combined weight of a companion appliance should
also be considered.
[] Level floor with maximum slope of 1" (25 mm) under entire dryer.
(if slope is greater than 1" [25 ram], install Extended Dryer Feet Kit,
Part Number 279810.) If not level, clothes may not tumble properly
and automatic sensor cycles may not operate correctly.
Do not operate your dryer at temperatures below 45°F (7°C). At lower
temperatures, the dryer might not shut off: at the end of an automatic
cycle. Drying times can be extended.
The dryer must not be installed or stored in an area where it will be
exposed to water and/or weather.
Check code requirements. Some codes limit, or do not permit, installation
of the dryer in garages, closets, mobile homes, or sleeping quarters.
Contact your local building inspector.
installation clearances:
The location must be large enough to allow the dryer door to open fully.
Minimum spacing for recessed area or closet installation
The dimensions shown following are for the minimum spacing allowed.
[] Additional spacing should be considered for ease of installation and
servicing.
[] Additional clearances might be required for wall, door, and floor
moldings.
[] Additional spacing of 1" (25 mm) on all sides of the dryer is
recommended to reduce noise transfer.
[]
For closet installation, with a door, minimum ventilation openings in
the top and bottom of the door are required. Louvered doors with
equivalent ventilation openings are acceptable.
[]
Companion appliance spacing should also be considered.

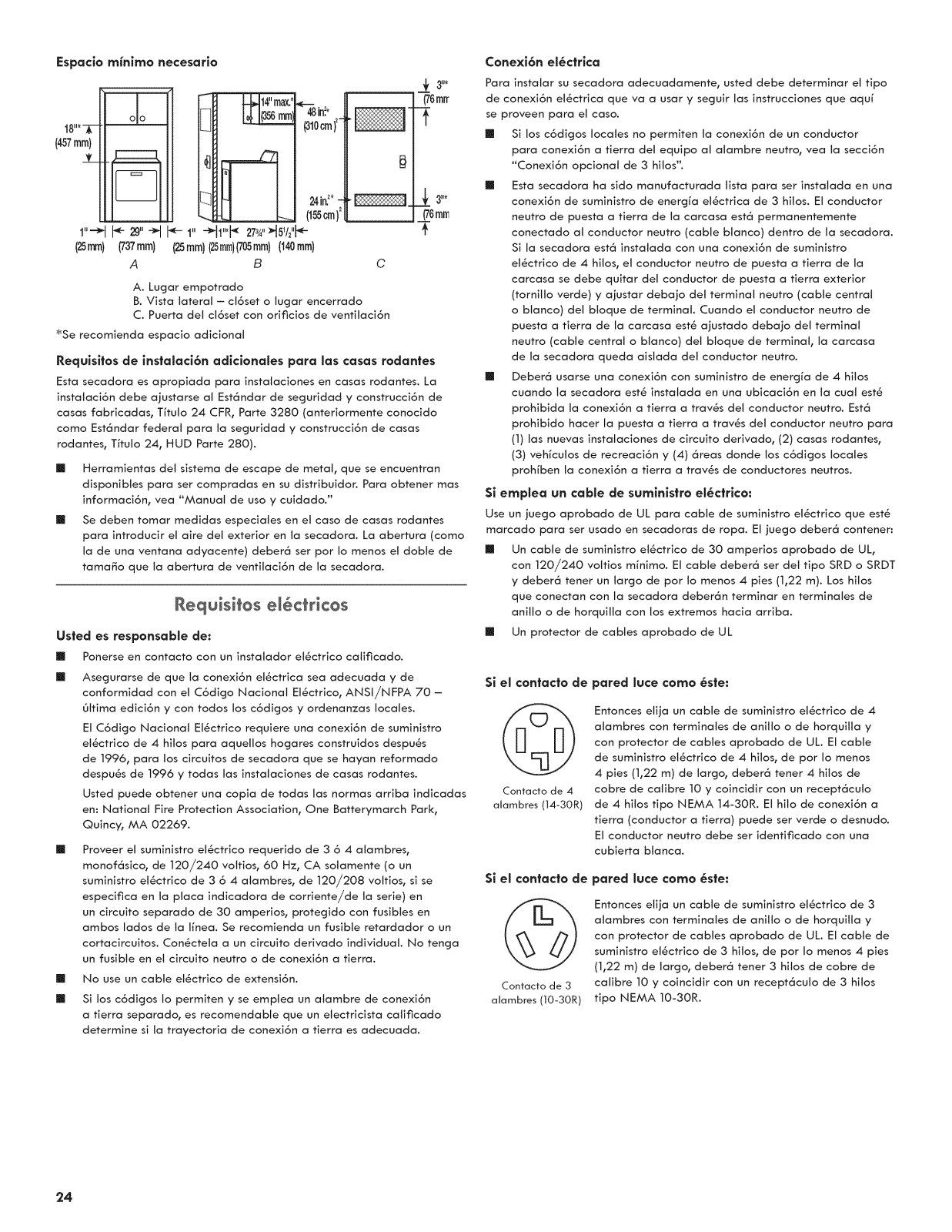

Minimum Installation Spacing
_--_414"max," J
[_ i,_ m(_,'_mm 48inf
(310cm)2"
(76mm)
E}
[_ 24in._* "
-._ _ (155cm)2
1"==_ _ 29"-_ _ 1" _h"*_ 273A"_5'/2"_<-"
(25ram) (737mm) (25mm)(25mm)(705mm)(14gram)
A B
A. Recessed area
B. Side view - closet or confined area
C. Closet door with vents
_Additional spacing is recommended.
Mobile home = Additional installarian requirements
This dryer is suitable for mobile home installations. The installation must
conform to the Manufactured Home Construction and Safety Standard,
Title 24 CFR, Part 3280 (formerly the Federal Standard for Mobile
Home Construction and Safety, Title 24, HUD Part 280) or the Canadian
Manufactured Home Standard CAN/CSA-Z240 MH.
[] Metal exhaust system hardware, available for purchase. For further
information, please reference the "Assistance or Service" section of
your "Use and Care Guide."
[] Special provisions must be made in mobile homes to introduce
outside air into the dryer. The opening (such as a nearby window)
should be at least twice as large as the dryer exhaust opening.
_ 311_
(76ram)

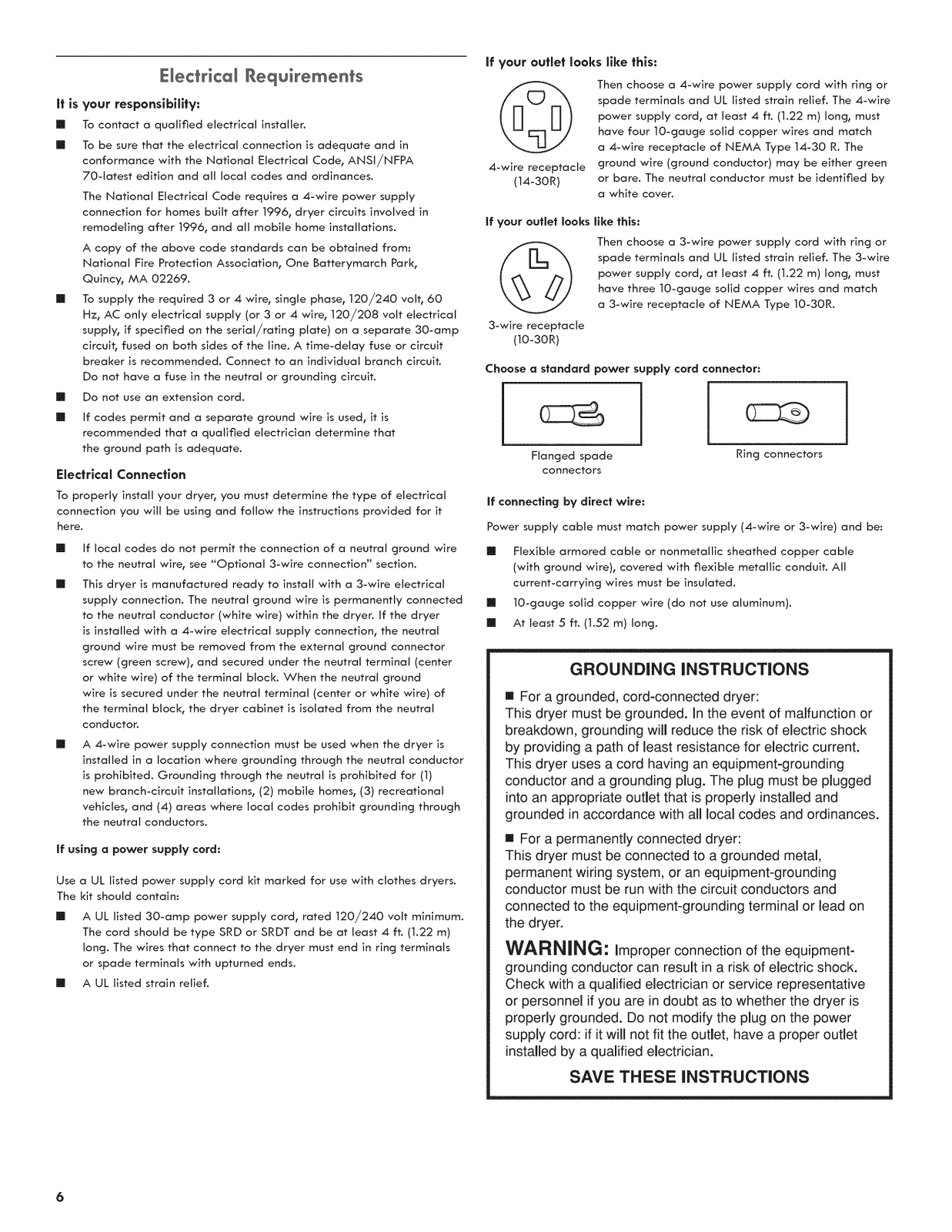

Electrical Requirements
it is your responsibility:
[] To contact a qualified electrical installer.
[] To be sure that the electrical connection is adequate and in
conformance with the National Electrical Code, ANSI/NFPA
70-latest edition and all local codes and ordinances.
The National Electrical Code requires a 4-wire power supply
connection for homes built after 1996, dryer circuits involved in
remodeling after 1996, and all mobile home installations.
A copy of the above code standards can be obtained from:
National Fire Protection Association, One Batterymarch Park,
Quincy, MA 02269.
[] To supply the required 3 or 4 wire, single phase, 120/240 volt, 60
Hz, AC only electrical supply (or 3 or 4 wire, 120/208 volt electrical
supply, if specified on the serial/rating plate) on a separate 30-amp
circuit, fused on both sides of the line. A time-delay fuse or circuit
breaker is recommended. Connect to an individual branch circuit.
Do not have a fuse in the neutral or grounding circuit.
Do not use an extension cord.[]
[]
if codes permit and a separate ground wire is used, it is
recommended that a qualified electrician determine that
the ground path is adequate.
Electrical Connection
To properly install your dryer, you must determine the type of electrical
connection you will be using and follow the instructions provided for it
here.
[]
if local codes do not permit the connection of a neutral ground wire
to the neutral wire, see "Optional 3-wire connection" section.
[]
This dryer is manufactured ready to install with a 3-wire electrical
supply connection. The neutral ground wire is permanently connected
to the neutral conductor (white wire) within the dryer. If the dryer
is installed with a 4-wire electrical supply connection, the neutral
ground wire must be removed from the external ground connector
screw (green screw), and secured under the neutral terminal (center
or white wire) of the terminal block. When the neutral ground
wire is secured under the neutral terminal (center or white wire) of
the terminal block, the dryer cabinet is isolated from the neutral
conductor.
[]
A 4-wire power supply connection must be used when the dryer is
installed in a location where grounding through the neutral conductor
is prohibited. Grounding through the neutral is prohibited for (1)
new branch-circuit installations, (2) mobile homes, (3) recreational
vehicles, and (4) areas where local codes prohibit grounding through
the neutral conductors.
If using a power supply cord:
Use a UL listed power supply cord kit marked for use with clothes dryers.
The kit should contain:
[] A UL listed 30-amp power supply cord, rated 120/240 volt minimum.
The cord should be type SRD or SRDT and be at least 4 ft. (1.22 m)
long. The wires that connect to the dryer must end in ring terminals
or spade terminals with upturned ends.
[] A UL listed strain relief.
If your outlet looks like this:
Then choose a 4-wire power supply cord with ring or
spade terminals and UL listed strain relief. The 4-wire
power supply cord, at least 4 ft. (1.22 m) long, must
have four 10-gauge solid copper wires and match
a 4-wire receptacle of NEMA Type 14-30 R. The
4-wire receptacle
(14-30R)
If your outlet looks
3-wire receptacle
ground wire (ground conductor) may be either green
or bare. The neutral conductor must be identified by
a white cover.
like this:
Then choose a 3-wire power supply cord with ring or
spade terminals and UL listed strain relief. The 3-wire
power supply cord, at least 4 ft. (1.22 m) long, must
have three 10-gauge solid copper wires and match
a 3-wire receptacle of NEMA Type 10-30R.
(10-30R)
Choose a standard power supply cord connector:
Flanged spade Ring connectors
connectors
If connecting by direct wire:
Power supply cable must match power supply (4-wire or 3-wire) and be:
[] Flexible armored cable or nonmetallic sheathed copper cable
(with ground wire), covered with flexible metallic conduit. All
current-carrying wires must be insulated.
[] 10-gauge solid copper wire (do not use aluminum).
[] At least 5 ft. (1.52 m) long.
GROUNDING iNSTRUCTiONS
[] For a grounded, cord-connected dryer:
This dryer must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current.
This dryer uses a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged
into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
[] For a permanently connected dryer:
This dryer must be connected to a grounded metal,
permanent wiring system, or an equipment-grounding
conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or lead on
the dryer.
WARNING: Improper connection of the equipment-
grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or service representative
or personnel if you are in doubt as to whether the dryer is
properly grounded. Do not modify the plug on the power
supply cord: if it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
SAVE THESE INSTRUCTIONS
6
iNSTALL LEVELING LEGS
Excessive Weight Hazard
Use two or more peopleto move and install dryer.
Failure to do so can result in back or other injury.
i. Prepare dryer for leveling legs
To avoid damaging floor, use a large fiat piece of cardboard from
dryer carton; place under entire back edge of dryer. Firmly grasp
dryer body (not console panel) and gently lay dryer down on
cardboard.
ELECTRICALCONNECTION
Power Supply Cord
Fire Hazard
Use a new UL listed 30 amp power supply cord.
Use a UL listed strain relief.
Disconnect power before making electrical connections.
Connect neutral wire (white or center wire) to center
terminal (silver).
Ground wire (green or bare wire) must be connected to
green ground connector.
Connect remaining 2 supply wires to remaining
2 terminals (gold).
Securely tighten all electrical connections.
Failure to do so can result in death, fire, or
electrical shock.
_. Screw in leveling legs
diamond
marking ........
( )
Examine leveling legs, find diamond marking. Screw legs into leg
holes by hand, use a wrench to finish turning legs until diamond
marking is no longer visible.
Now stand the dryer on its feet. Slide the dryer until it is close to its
final location. Leave enough room to connect the exhaust vent.
Electrical Connection Options
. Choose electrical connection type
Power supply cord 4-wire receptacle
(NEMA Type 14-30R):
Go to "Power Supply Cord Connection."
Power supply cord 3-wire receptacle
(NEMA Type 10-30R):
Go to "Power Supply Cord Connection."
4-wire direct connection:
Go to "Direct Wire Connection."
3-wire direct connection:
Go to "Direct Wire Connection."
NOTE: If local codes do not permit connection of a cabinet-
ground conductor to neutral wire, go to "Optional 3-wire
connection." This connection may be used with either a power
supply cord or a direct wire connection.
Direct Wire
Fire Hazard
Use 10 gauge copper wire.
Use a UL listed strain relief.
Disconnect power before making electrical connections.
Connect neutral wire (white or center wire) to center
terminal (silver).
Ground wire (green or bare wire) must be connected to
green ground connector.
Connect remaining 2 supply wires to remaining
2 terminals (gold).
Securely tighten all electrical connections.
Failure to do so can result in death, fire, or
electrical shock.
Power Svpp[y Cor_ Co_e¢_io_
Power supply cord strain relief
Remove the screws from a 3/_" (19 mm) UL listed strain relief (UL
marking on strain relief). Put the tabs of the two clamp sections (C)
into the hole below the terminal block opening (B) so that one tab is
pointing up (A) and the other is pointing down (D), and hold in place.
Tighten strain relief screws just enough to hold the two clamp sections
(C) together.
relief
B E C
i!
Before you start, disconnect power. Remove hold-down screw (D) and
terminal block cover (A).
A. Terminal block cover
B. External ground conductor screw
C. Center terminal block screw
D. Hold-down screw
E. Neutral ground wire
F. Hole below terminal block cover
Put power supply cord through the strain relief. Be sure that the wire
insulation on the power supply cord is inside the strain relief. The
strain relief should have a tight fit with the dryer cabinet and be in
a horizontal position. Do not further tighten strain relief screws at this
point.
If your outlet looks llke this:
Power supply cord 4-wire receptacle
(NEMA Type 14-30R):
Go to "4-Wire Power Supply Cord Connection"
on page 9.
if your out_et looks llke this:
Power supply cord 3-wire receptacle
(NEMA Type 10-30R):
Go to "3-Wire Power Supply Cord Connection"
on page 9.
8

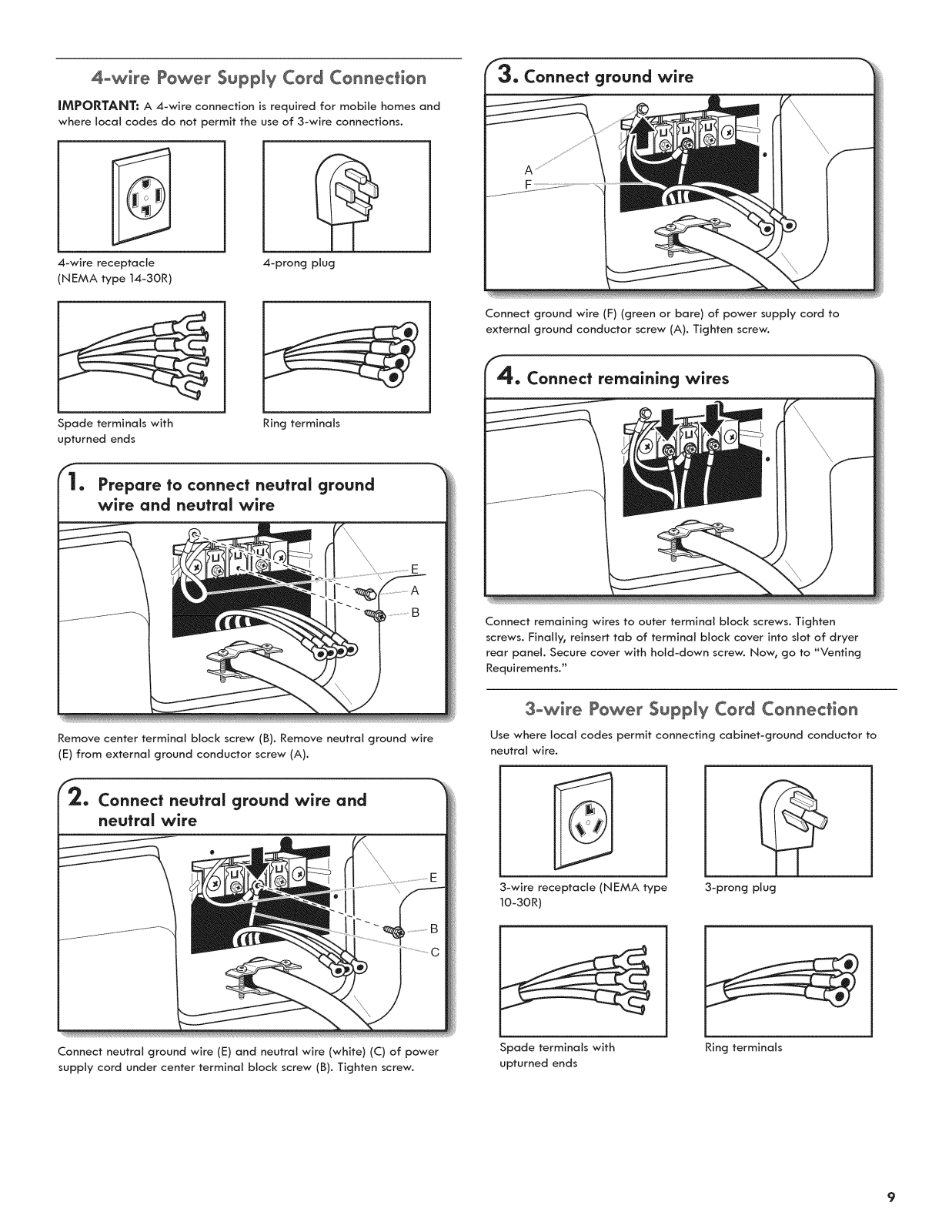

4owire Power Supply Cord Connection
IMPORTANT: A 4-wire connection is required for mobile homes and
where local codes do not permit the use of 3-wire connections.
4-wire receptacle
(NEMA type 14-30R)
Spade terminals with
upturned ends
4-prong plug
Ring terminals
Prepare to connect neutral ground
wire and neutral wire
Remove center terminal block screw (B). Remove neutral ground wire
(E) from external ground conductor screw (A).
Connect ground wire (F) (green or bare) of power supply cord to
external ground conductor screw (A). Tighten screw.
Connect remaining wires to outer terminal block screws. Tighten
screws. Finally, reinsert tab of terminal block cover into slot of dryer
rear panel. Secure cover with hold-down screw. Now, go to '_Venting
Requirements/_
3owire Power Supply Cord Connection
Use where local codes permit connecting cabinet-ground conductor to
neutral wire.
Connect neutral ground wire and
neutral wire
Connect neutral ground wire (E) and neutral wire (white) (C) of power
supply cord under center terminal block screw (B). Tighten screw.
3-wire receptacle (NEMA type
I0-30R)
Spade terminals with
upturned ends
3-prong plug
Ring terminals

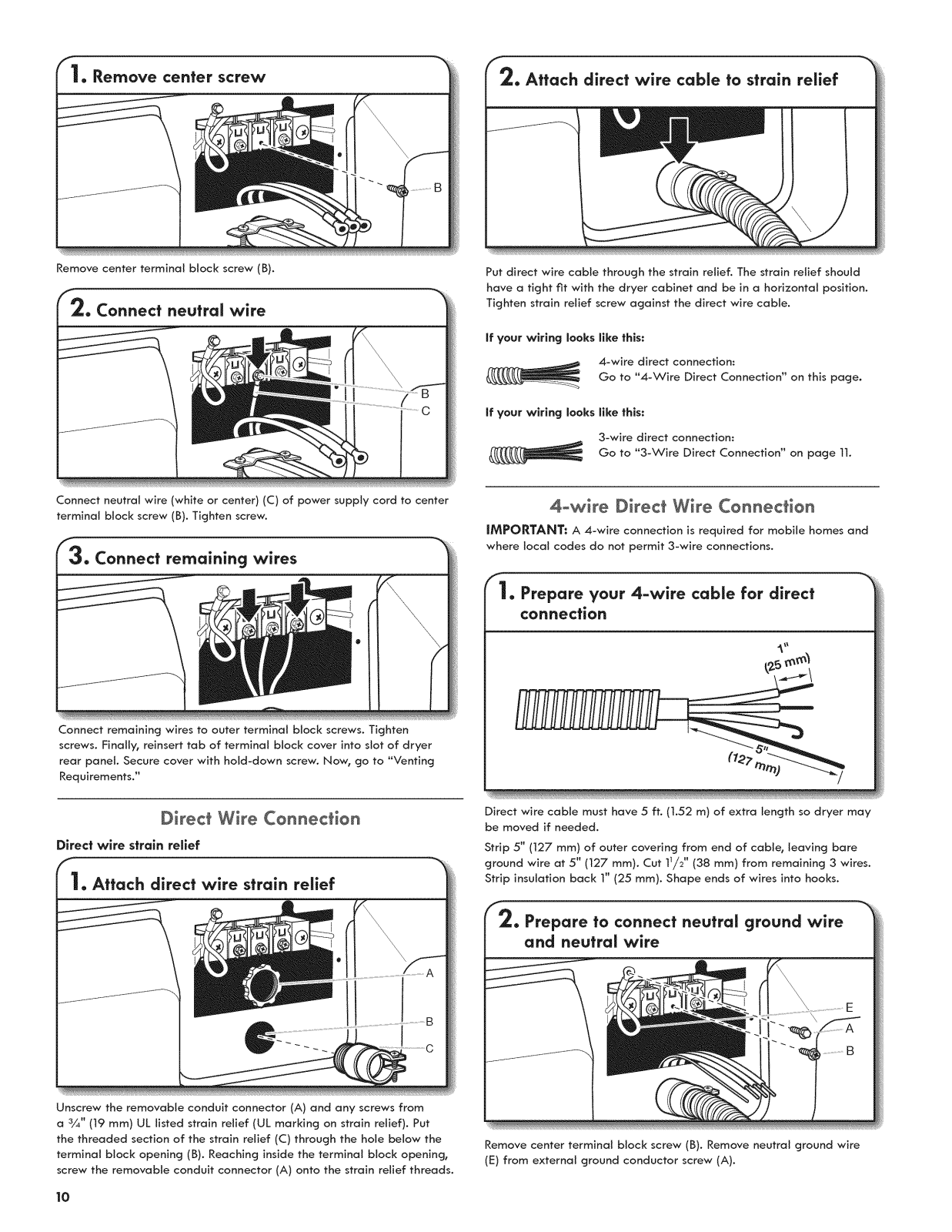

Removecenter terminal block screw (B).
Put direct wire cable through the strain relief. The strain relief should
have a tight fit with the dryer cabinet and be in a horizontal position.
Tighten strain relief screw against the direct wire cable.
if your wiring looks llke this:
4-wire direct connection:
Go to "4-Wire Direct Connection" on this page.
If your wiring looks llke this:
3-wire direct connection:
/]l]r_ Go to '"3-Wire Direct Connection" on page 11.
Connect neutral wire (white or center) (C) of power supply cord to center
terminal block screw (B). Tighten screw.
3. Connect remaining wires
Connect remaining wires to outer terminal block screws. Tighten
screws. Finally, reinsert tab of terminal block cover into slot of dryer
rear panel. Secure cover with hold-down screw. Now, go to "Venting
Requirements/_

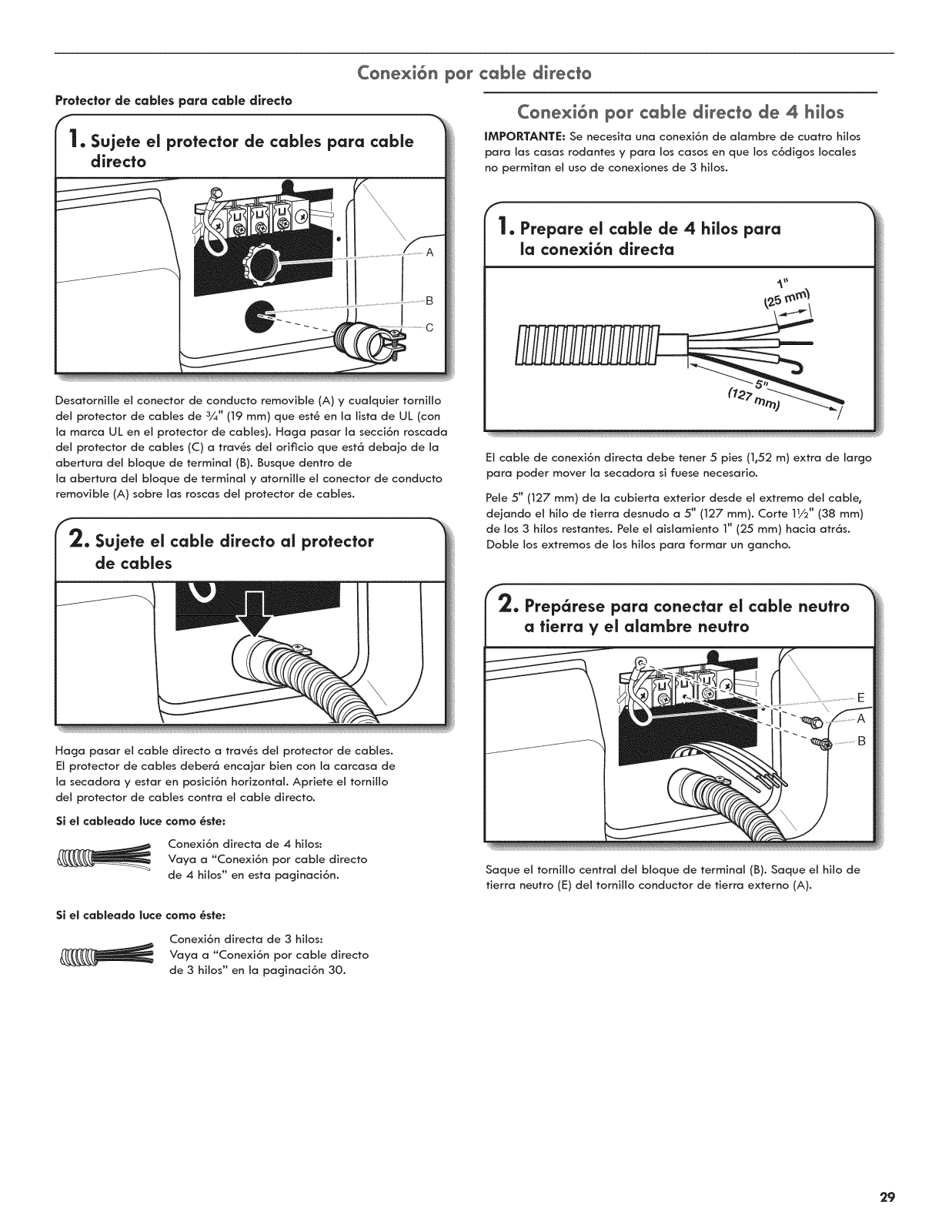

Direc_ Wire Connection
Direct wire strain relief
4owire Dire¢_ Wire Connection
IMPORTANT: A 4-wire connection is required for mobile homes and
where local codes do not permit 3-wire connections.
1. Prepare your 4-wire cable for direct
connection
Direct wire cable must have 5 ft. (1.52 m) of extra length so dryer may
be moved if needed.
Strip 5" (127 mm) of outer covering from end of cable, leaving bare
ground wire at 5" (127 mm). Cut 11/2`' (38 mm) from remaining 3 wires.
Strip insulation back 1" (25 mm). Shape ends of wires into hooks.
and neutral wire
Unscrew the removable conduit connector (A) and any screws from
a 3/_" (19 mm) UL listed strain relief (UL marking on strain relief). Put
the threaded section of the strain relief (C) through the hole below the
terminal block opening (B). Reaching inside the terminal block opening,
screw the removable conduit connector (A) onto the strain relief threads.
10
Remove center terminal block screw (B). Remove neutral ground wire
(E) from external ground conductor screw (A).
neutral wire
Connect neutral ground wire (E) and place
hooked end (hook facing right) of neutral
wire (white or center wire) (C) of direct wire
cable under center screw of terminal block (B).
Squeeze hooked ends together and tighten
screw.
3°wire Dire¢_ Wire Connection
Use where local codes permit connecting cabinet-ground conductor to
neutral wire.
1. Prepare your 3-wire cable for direct
connection
Direct wire cable must have 5 ft. (1.52 m) of extra length so dryer may
be moved if needed.
Strip 31/2 '' (89 mm) of outer covering from end of cable. Strip insulation
back 1" (25 mm). If using 3-wire cable with ground wire, cut bare wire
even with outer covering. Shape wire ends into hooks.
Connect ground wire (green or bare) (F) of direct wire cable to external
ground conductor screw (A). Tighten screw.
5. Connect remaining wires
Place hooked ends of remaining direct wire cable wires under outer
terminal block screws (hooks facing right). Squeeze hooked ends
together and tighten screws. Finally, reinsert tab of terminal block
cover into slot of dryer rear panel. Secure cover with hold-down
screw. Now, go to "Venting Requirements."
Remove center terminal block screw (B).
Place hooked end of neutral wire (white or
center) (C) of direct wire cable under center
terminal block screw (B). Squeeze hooked end
together. Tighten screw.
11
4. Connect remaining wires
Place hooked ends of remaining direct wire cable wires under outer
terminal black screws (hooks facing right). Squeeze hooked ends together
and tighten screws. Finally, reinsert tab of terminal block cover into slot of
dryer rear panel. Secure cover with hold-down screw. Now, go to "Venting
Requirements."

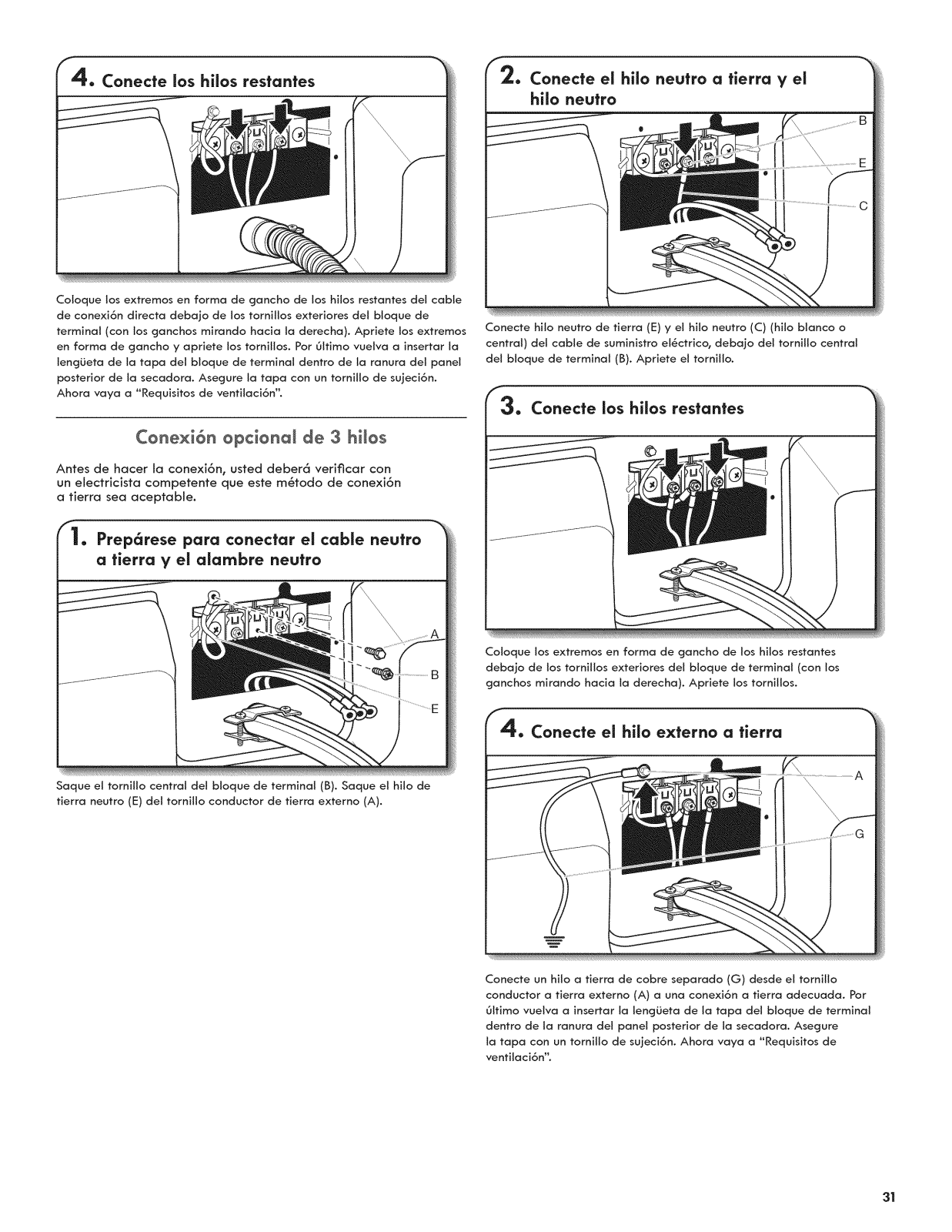

Optional 3owire Connection
You must verify with a qualified electrician that this grounding
method is acceptable before connecting.
and neutral wire
Connect neutral ground wire (E) and neutral wire (white or center wire)
(C) of power supply cord or cable under center terminal block screw
(B). Tighten screw.
3. Connect remaining wires
©
wire and neutral wire
Remove center terminal block screw (B). Remove neutral ground wire (E)
from external ground conductor screw (A).
Place hooked ends of remaining wires under outer terminal block
screws (hooks facing right). Tighten screws.
Connect a separate copper ground wire (G) from the external ground
conductor screw (A) to an adequate ground. Finally, reinsert tab of
terminal block cover into slot of dryer rear panel. Secure cover with
hold-down screw. Now, go to ""Venting Requirements/"
12
Loading...
