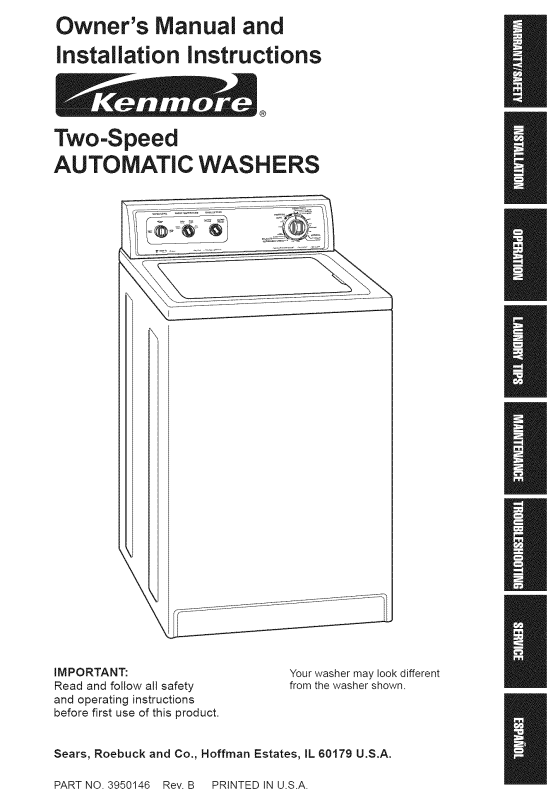

Kenmore 110.26722693 User Manual

Owner's Manual and

installation instructions

Two-Speed AUTOMATIC WASHERS

B m

IMPORTANT: Read and follow all safety

and operating instructions before first use of this product.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

PART NO. 3950146 Rev. B PRINTED IN U.S.A.

Your washer may look different from the washer shown.

BEFORE USING YOUR NEW WASHER

SEARS AUTOMATIC WASHER WARRANTY

IMPORTANT SAFETY iNSTRUCTiONS

INSTALLATION INSTRUCTIONS

OPERATING YOUR WASHER

LAUNDRY TIPS

CARING FOR YOUR WASHER

TROUBLESHOOTiNG

SEARS MAINTENANCE AGREEMENT

Please read this manual. It will help you install and operate your new

Kenmore washer in the safest and most economical way.

For more information about the care and operation of Kenmore appliances

call your nearest Sears store. You will need the complete model and serial numbers when requesting information.

Your washer's model and serial numbers are located on the Model and Serial Number Plate.

Use the space below to record the model number and serial number of your new

Kenmore Washer.

Model No.

Serial No.

Date of Purchase

' Model and Serial

Number Plate

Keep this book and your Sears

Salescheck (receipt) in a safe

place for future reference.

FULL 1-YEAR WARRANTY ON MECHANICAL AND ELECTRICAL PARTS

For one year from the date of purchase, when the washer is installed and operated

in accordance with the instructions in the Owner's Manual, Sears will repair or

replace any mechanical or electrical parts in this washer, if defective in material or

workmanship. LIMITED 5-YEAR WARRANTY

ON GEARCASE PARTS After one year and until five years from

the date of purchase, Sears will furnish replacement parts for any defective gear- case parts. You will be charged for labor.

LIMITED 10-YEAR WARRANTY ON PLASTIC TUB

After one year and until ten years from date of purchase, Sears will furnish a

replacement plastic tub for any plastic

tub which is defective in material or work-

manship. You will be charged for labor. If the washer is subjected to other than

private family use, the above warranty

coverage is effective for only 90 days. WARRANTY SERVICE 18 AVAILABLE

BY CONTACTING THE NEAREST SEARS SERVICE CENTER iN THE UNITED STATES.

This warranty applies only while this

product is in use in the United States.

This warranty gives you specific legal

rights, and you may also have other rights which vary from state to state.

Sears Roebuck and Co., Dept. 817WA,

Hoffman Estates, IL 60179.

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual

and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to hazards that can kill or hurt you and others. All safety messages will be preceded by the safety alert symbol and the word "DANGER" or "WARNING."

These words mean:

injured if you don't follow

You will be killed or seriously

instructions.

You can be killed or seriouslyinjured if you don't follow

instructions.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are

not followed.

YOUR SAFETY IS IMPORTANT TO US

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your washer, follow basic precautions, including the following:

• Read all instructions before using the washer.

• Do not wash articles that have been

previously cleaned in, washed in, soaked

in, or spotted with gasoline, dry-cleaning solvents, other flammable or explosive substances as they give off vapors that could ignite or explode.

• Do not add gasoline, dry-cleaning solvents, or other flammable or explosive

substances to the wash water. These substances give off vapors that could

ignite or explode.

• Under certain conditions, hydrogen gas

may be produced in a hot water system

that has not been used for 2 weeks or

more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been

used for such a period, before using a

SAVE THESE INSTRUCTIONS

washing machine, turn on all hot water faucets and let the water flow from each

for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

• Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near

children.

• Before the washer is removed from service or discarded, remove the lid.

• Do not reach into the washer if the tub or agitator is moving.

• Do not install or store this washer where it will be exposed to the weather.

• Do not tamper with controls.

• Do not repair or replace any part of the washer or attempt any servicing unless specifically recommended in the Owner's Manual or in published user-repair instructions that you understand and have the skills to carry out.

IMPORTANT: Observe all governing codes and ordinances.

INSTALLATION OVERVIEW

For a complete list of tools and parts needed, see pages 6-8.

A. SELECT LOCATION

FOR YOUR WASHER (pgs. 10-12)

Recessed Areal Closet installation instructions (p. 10)

Laundry Tub Drain System (p. 11)

T=.=.=.=-=-=-=-_

Standpipe Drain System (p. 12)

39"

Floor Drain System (p. 12)

B. REMOVE SHIPPING STRAP (p. 13)

Tools Needed:

Scissors

C, CONNECT DRAIN HOSE (pgs, 14-15)

Flashlight (optional depending on installation)

__/TWIST

_>'1 / AND

Tools Needed: Parts Needed:

Pliers that open to 1_/, inches

Flashlight (optional depending on installation)

1 yellow, single-wire hose clamp (top of

drain hose)

1 silver, double- wire hose clamp (bottom of drain hose)

D. CONNECT INLET HOSES TO WASHER (pgs. 15-16)

l :_ ...... ] ....

Tools Needed: Parts Needed:

Pliers that open to 19/_6inches

2 water inlet hoses

Flashlight (optional depending

on installation)

4 fiat water inlet hose washers

E. CONNECT INLET HOSES TO WATER FAUCETS (p, 16)

Tools Needed: Parts Needed:

Pliers that open to 19h6 inches

Bucket ,_

(optional Flashlight (optional

depending on depending on

installation) installation)

2 water inlet hoses

F. SECURE DRAIN HOSE (p. 17)

Tools Needed: Parts Needed:

Flashlight (optional depending on installation)

Shipping strap with fastener

G. LEVEL WASHER (p. 18)

Tools Needed: Parts Needed:

9h6-1nch open- end wrench

2 front leveling legs with nuts

Flashlight (optional depending on installation)

Wood block

Selectingtheproperlocationforyour washerwillimproveitsperformance

andminimizeconcernslikewasher walkornoise.

ELECTRICALREQUIREMENTS

120-Volt,60-Hz.,AC-only,15-or 20-amperefusedelectricalsupplyis required.(Time-delayfuseorcircuit breakerisrecommended.)Connectto

individualbranchcircuit.

ElectricalShockHazard

Plugintoagrounded3-prong

outlet.

Donotremovegroundprong.

Do not use an adapter. Do not use an extension cord.

Failure to follow these instructions

can result in death, fire, or electrical shock.

GROUNDING INSTRUCTIONS WARNING: Improper connection of

the equipment grounding conductor can result in a risk of electric shock. Check

with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the appli- ance - if it will not fit the outlet, have a proper outlet installed by a qualified

electrician. For your personal safety, this washer

must be grounded. In the event of malfunction or breakdown, grounding

will reduce the risk of electric shock by providing a path of least resistance

for electric current. This washer is equipped with a power

supply cord having a 3-prong grounding plug. To minimize possible shock hazard, you must plug the power supply cord into a mating 3-prong grounding-type wall receptacle, grounded in accordance with National Electrical Code, ANSI/NFPA

70-latest edition and all local codes and ordinances.

3-prong

grounding-type

wail receptacle

3-prong

grounding plug

Grounding

prong

Power supply

A. SELECT LOCATION

FOR YOU R WASHER -

RECESSED AREAl CLOSET iNSTALLATiON iNSTRUCTiONS

This washer may be installed in a recessed area or closet.

48sq. in.

minimum-

ventilation

area

24 sq. in. .L

minimum -

ventilation 3"

area

÷ 4

FrontView

(DoorWithVent)

*Additionalclearanceforwall, door andfloor moldings mayhe required.

Toreducetransferoiwashersounds,aclearanceol 1 inchonthesidesof thewasheris recomlnended.

**Washerwidth canhe24"or27" dependingonmodelselected.

* The installation spacing is in inches

and is the minimum allowable.

* Allow additional space if other appli-

ances are to be installed in the area.

* If closet door is installed, the mini-

mum air openings in top and bottom are required. Louvered doors with equivalent air openings in top and bottom are acceptable.

LAUNDRY TUB DRAIN SYSTEM Check location where washer will be

installed. This washer can be installed using one of three systems:

• Laundry tub drain system (below)

• Standpipe drain system (p. 12)

• Floor drain system (p. 12)

Do not store or operate washer at or below 32°F (some water may remain in

washer). See page 30 for Winterizing

information. Proper installation is your responsibility.

Make sure you have everything necessary for correct installation including the following points:

Grounded receptacle: Must be within 4 feet of where the

power cord is attached to the back of the washer.

__________-------

7_ = - --==, ........

Support: Floor must be sturdy enough to support a total weight of 315 pounds (including washer, water, and toad weight).

Hot and cold water faucets: Must be within 4 feet of the hot and cold water fill valves attached to the back of the

washer and provide water

pressure between 5-I00 RS.I.

Level floor: Maximum allowable slope under entire

washer- I inch.

Water heater: To get the

best washing results, set

water heater to deliver

I40)F water to washer.

Laundry tub drain system: Needs a minimum 20-gallon laundry tub.

Top of tub must be at least 39 inches high and no higher than

96 inches from bottom of washer.

ALTERNATE LOCATIONS- STANDPIPE AND FLOOR DRAIN SYSTEMS

Siphon break: Must be purchased separately. See chart below.

Standpipe drain system: Needs a two-inch minimum diameter standpipe with minimum

carry-away capacity of 17 gallons per minute. Top of standpipe must be at least 39 inches

high and no higher than 96 inches from bottom of washer.

If you have: You will need to buy: Laundry tub or standpipe Sump pump system

higher than 96 inches (if not already available)

1-inch diameter standpipe 2-inch diameter to 1-inch diameter

Overhead sewer Standard 20 gallon, 39-inch high drain

Floor drain Siphon break, Part No. 285320;

Parts listed are available from your local Sears store or Sears Service Center. Call 1-800-366-PART (1-800-366-7278).

Floor drain system: Requires a siphon

break, see chart below. A minimum carry- away capacity of 17 gallons per minute is

required.

standpipe adapter, Part No. 3363920

tub or utility sink and sump pump (available from local plumbing suppliers)

additional drain hose, Part No. 3357090; and Connector Kit, Part No. 285442

B. REMOVE SHIPPING STRAP

Removing the shipping strap is necessary for smooth operation.

If the shipping strap is not removed, the washer will make

excessive noise.

To prevent floor damage, set washer onto cardboard before moving across floor.

Move washer close to its final location. STEP 1. Read, then remove the label

over the electrical plug and shipping strap. STEP 2. Pull the yellow shipping strap

completely out of the washer. There should be three cotter pins on the end

of the shipping strap when it is pulled out of the washer. The electrical plug is attached to this shipping strap.

STEP 3. Pull firmly to remove the

end of the shipping strap that remains

pinned to the back of washer. This will

release the rear self-leveling legs.

Pin PULL

Electrical plug

STEP 4. Cut the shipping strap about

16 inches from plug end. Look for the words "CUT HERE." Remove shipping strap from the electrical plug.

ippmg s rap

NOTE: For use in securing the drain

hose, save the end of the shipping strap that does not have the three cotter pins.

Discard the rest.

C. CONNECT DRAIN HOSE

Proper connection of the drain hose wil! protect your floors from damage

due to water leakage,

STEP 1. To prevent the drain hose from coming off or leaking, it must be installed

per the following instructions: IMPORTANT: This procedure must be

followed to ensure proper installation. a. Wet the inside of the straight end of

the drain hose with tap water. DO

NOT USE ANY OTHER LUBRICANT.

b. Squeeze ears of silver, double-wire

clamp with pliers to open. Place clamp over the straight end of the drain hose

1/4inch from the end.

d. Place clamp over area marked

"CLAMP." Release clamp.

c. Open clamp. Twist hose back and

forth while pushing down onto drain connector at the bottom of the washer.

Continue until hose contacts the ribbed stop on the cabinet.

If you have: You will need to buy: Drain hose that is too short Drain hose, Part No. 388423 and

hose kit, Part No. 285442 Drain hose that is too long Hose kit, Part No. 285442 A problem with lint clogging your drain Drain protector, Part No. 367031

Parts listed are available from your local Sears store or Sears Service Center. Catl 1-800-366-PART (1-800-366-7278).

Forstandpipeorlaundry tub drain

systems:

STEP 2. Open yellow, single-wire clamp with pliers and slide over hooked end

of drain hose to secure the rubber and corrugated sections together.

HookedEnd

DrainHose

STEP 3. Put hooked end of drain hose into laundry tub or standpipe. Check for proper length of drain hose. Rotate

hook to eliminate kinks. To prevent drain water from going back

into the washer:

• Do not straighten hooked end of drain hose and force excess drain hose into

standpipe.

• Do not lay excess drain hose in bottom

of laundry tub.

D. CONNECTINLETHOSES

TOWASHER

Proper connection of your inlet hoses

will allow hot and cold water to enter your washer properly, it also helps

prevent water damage due to leaks.

Slip and Fall Hazard

Use new water inlet hoses. Failure to do so can result in head

injury or broken bones.

NOTE: Replace inlet hoses after five years of use to reduce the risk of hose failure. Periodically inspect and replace

inlet hoses if bulges, kinks, cuts, wear, or leaks are found. When replacing your inlet hoses, mark the date of

replacement on the label with a

permanent marker.

STEP 1. Insert one new, flat washer

(from the parts bag) into each end of the inlet hoses. Check that washers

are firmly seated in couplings.

COUPLING WASHER

STEP2.Attachthehosewiththered couplingtothehotwater(bottom)inlet

valve.Attachingtheredcouplingfirst makesiteasiertotightenconnection withpliers.Screwoncouplingbyhand.

Makeanadditionaltwo-thirdsturnwith plierstotightencoupling.DONOT

OVERTIGHTEN;thiscoulddamage thevalves.

CaldWater

Inlet Valve

STEP 3. Attach the hose with the blue coupling to the cold water (top) inlet

valve. Screw on coupling by hand. Make an additional two-thirds turn with pliers

to tighten coupling. DO NOT OVER- TIGHTEN; this could damage valves.

E. CONNECT INLET HOSES

TO WATER FAUCETS

STEP 1. Make sure washer basket is

empty. Run water through both faucets

into a bucket or laundry tub to get rid of

particles in the water lines that might

clog hoses. Determine which faucet is

hot and which is cold. Mark the hot water

faucet.

STEP 2. Attach the hose with the red coupling to the hot water faucet. Screw

on coupling by hand. Make an additional two-thirds turn with pliers to tighten cou-

pling. DO NOT OVERTIGHTEN; this could damage the coupling.

STEP 3. Attach the hose with the blue coupling to the cold water faucet.

Screw on coupling to faucet by hand.

Make an additional two-thirds turn with

pliers to tighten coupling. DO NOT

OVERTIGHTEN; this could damage the coupling.

STEP 4. Turn on water faucets and check for leaks. A small amount of

water may enter the washer. You will drain this later.

If you have: You will need to buy: Water faucets beyond the 2 longer water fill hoses: 6 ft. hoses,

reach of water fill hoses Part No. 76314 or 10 ft. hoses,

Part No. 350008

Parts listed are available from your local Sears store or Sears Service Center. Call 1-800-366-PART (1-800-366-7278).

F. SECURE DRAIN HOSE

Securing the drain hose properly will protect your floors from damage due to water leakage.

STEP 1. Move washer to its final location.

STEP 2. Use the shipping strap you cut and removed (without the three cotter pins) and tightly wrap it around the drain hose and laundry tub or standpipe. Push

fastener into the nearest hole in the shipping strap.

If the water faucets and drain standpipe

are recessed, put hooked end of drain

hose in standpipe. Tightly wrap the shipping strap around the drain hose and water inlet hoses (not the handles or stems). Push fastener into the

nearest hole in the shipping strap.

Fastener

G. LEVEL WASHER

Leveling your washer properly pre- vents excessive noise and vibration.

To install front legs: STEP 1. Prop front of washer up (about

4 inches). Use a wood block or another object that will support the weight of the washer. If washer was placed against a wall, move the washer out slightly before tipping it up.

STEP 2. With one of the legs in hand, screw lock nut onto leg s/8inch from top of leg base. This is the recommended initial setting.

STEP 5. Move washer to its final

location. STEP 6. Tilt washer forward until rear

of washer is at least 3 inches off floor. You may hear the self-adjusting rear

legs click into place. Lower washer to floor. Check levelness of the washer

by placing a level on top of the washer, first side-to-side; then front-to-back.

STEP 3. Screw leg into washer base by hand until nut reaches washer base.

Repeat for other leg.

STEP 4. Tilt washer backward until front of washer is off the wood block.

Remove wood block. Gently lower washer to floor.

STEP 7. If washer is not level, prop

up the front of the washer and adjust the legs up or down as necessary. Lower

washer and reset self-adjusting rear legs

(as in Step 6). Repeat Step 7 until the washer is level.

STEP 8. When washer is in its final

location and level, use a 9/16-inch open- end wrench to turn nuts on front legs tightly against washer cabinet. If nuts are

not tight against washer cabinet, the washer may vibrate.

REVIEW INSTALLATION

Take a few minutes to complete this checklist, it will help assure you

that you have a proper installation and increase your satisfaction with

your Kenmore washer.

[] Check electrical requirements.

Be sure you have correct electrical

supply and recommended grounding

method.

[] Check that you have:

• All the tools you started with.

• Removed all packaging materials.

• Removed shipping strap with three cotter pins.

• Installed all parts listed on pages 6-8.

FINAL STEPS

[] Plug power supply cord into

grounded outlet.

[] Remove the blue protective film on

the console and any tape remaining on washer.

[] Check that:

• The washer is level.

• The nuts on the front legs are tight.

[] Check that the water faucets are

turned on.

[] Take a few minutes and read the

Operating Instructions (pages 20-27) to fully understand your new washer. Then, start the washer and allow it to complete the NORMAL Cycle.

To get the maximum cleaning and fabric care from your washer, please

read and follow these instructions.

NOTE: The drawings in this section show the basic features of all models

covered by this manual. Refer to the supplied "Feature Sheet" for your

washer's particular features.

Explosion Hazard

Never place items in the washer that are dampened with gasoline or other flammable fluids.

No washer can completely remove oil.

Do not dry anything that has ever had any type of oil on it (including

cooking oils).

Failure to follow these instructions can result in death, explosion,

or fire.

STARTING WASHER STEP 1. Add measured detergent

directly into washer basket. Then place a load of sorted clothes in the washer.

STEP 2. (OPTIONAL STEP) If desired, add measured liquid chlorine bleach to the liquid bleach dispenser (if available);

(see page 25).

STEP 3. (OPTIONAL STEP) If desired, add measured liquid fabric softener to the fabric softener dispenser (if available);

(see page 26).

STEP 4. Close washer lid. STEP 5. Set WATER LEVEL Control O

based on the size of your wash load.

STEP 6. Set the WATER TEMPERATURE

Control._

STEP 7. Set RINSE OPTIONS Control

(if available);_(see page 23).

STEP 8. Push the Cycle Selector Control

(Timer) Knob_ and turn to the right. Set cycle and time according to the type of fabric in the load (see page 22).

STEP g. Pull the Cycle Selector Control

(Timer) Knob out. The dial will rotate as the cycle progresses. The knob will

not rotate.

STOPPING/RESTARTING WASHER

• To stop the washer at any time, push the Cycle Selector Control (Timer)

Knob in.

• Pull the knob out to restart.

HEAVYDUTYsupE R

P?wAs,_,,__4, _E_T_

PERMANENT PRESS 1_ ,_ _SHO_'

SET WATER LEVEL CONTROL

This control gives you the flexibility to save water when washing small loads.

Your washer lets you select a water setting based on the size of your wash

load.

• For normal loads, start with the MEDIUM LOAD Setting. Adjust up

or down depending on your load.

Clothes should move freely and roll

toward the agitator.

• To change to a higher water level

setting after the washer has started to agitate, turn the knob to the desired

new setting.

SET WATER TEMPERATU RE CONTROL

Your washer lets you select a wash and rinse water temperature setting based on the type of load you are washing.

Some washers allow you to select warm rinses:

• Using warm rinse water will leave loads dryer after the spin cycle than if

you use cold rinse water. However, warm rinses may increase wrinkling when line drying.

• In cold climates, warm rinse water

also provides a more comfortable temperature for handling the wash

load.

SELECTING WATER TEMPERATURES

Wash Water Temperature Suggested Fabrics Comments

HOT • Work clothes • Best cleaning for heavily soiled items 130°F or above • Sturdy whites/ • Removes oils, perspiration, greasy soils,

WARM • Dark/non-colorfast colors • Best for moderately soiled to lightly soiled items 90°-110°F • Permanent press items • Safe for most fabric finishes

COLD* • Extra-sensitive colors • Best for very lightly soiled items 70°-90°F • Non-colorfast items • Saves hot water

*In wash water temperatures colder than 70°F detergents do not dissolve well. Also, soils may

be difficult to remove and some fabrics may retain wear wrinkles and have increased pilling - the formation of small lint-like balls on the surface of garments. Pilling is the natural result of wearing and washing of garments.

colorfast pastels and stains

• Diapers • Prevents graying or yellowing

• Nylon, polyester, acrylics, • Less fading and dye bleeding silks, woolens • Reduces wrinkling

• Knits/delicate fabrics

• Hand washables

SETTINGYOURCYCLE SELECTOR(TIMER) CONTROL

Use this control to choose the agitation time and to start the washer. Each cycle is designed with the wash and spin speeds that are appropriate for the fabrics and soil levels in your wash load.

* For heavy soil and sturdy fabrics, use

the full time (SUPER or REGULAR

if indicated).

* For light soil and delicate fabrics, use

less time (SHORT if indicated).

NOTE: Do not wash garments labeled Hand Wash in your washer. Garments

that are labeled Hand Wash have:

• A fiber or construction that is sensitive to agitation.

• Sensitive dyes that may bleed.

Follow care label directions for drying. Items that may shrink should be dried

flat. Block these items by gently stretch-

ing to original measurements. Woolens tend to shrink more the first time they are washed.

PERMANENT PRESS

You can select up to 10 minutes of wash time.

DELICATE

Use this cycle to get up to 6 minutes of wash time for lingerie and loosely

knit items.

The PERMANENT PRESS/DELICATE

Cycles include a load cooling process that reduces wrinkling compared to other cycles.

• Wash combines slow speed agitation for gentle soil removal and slow spin speeds to reduce wrinkling.

NOTE: When the timer reaches PAUSE,

the washer will drain and pause for no

more than two minutes while some of the

wash water is drained and replaced with

rinse water. NORMAL

Use this cycle to get up to 10 minutes

of wash time for normally soiled cottons and linens.

• Wash combines fast and slow speed agitation with fast spin speeds to shorten drying time.

• Selecting REGULAR gives you fast agitation speeds initially, then the washer steps down to a slow agitation speed.

• Selecting SHORT gives you slow agitation speed.

HEAVY DUTY Use this cycle to get up to 14 minutes

of wash time for sturdy or heavily soiled

loads.

• Wash combines fast speed agitation and fast spin speeds.

PREWASH (on some models) Use this cycle to get up to 4 minutes of

agitation to help remove heavy soils and stains that need pretreatment. PREWASH

Cycle should be followed by a HEAVY DUTY, NORMAL, or PERMANENT

PRESS Cycle with additional detergent.

SOAK (on some models)

SOAK Cycle features 4 minutes of agita- tion followed by an unlimited soak time to help remove heavy soils and stains that need pretreatment. You will need to reset the washer to a SPIN setting to

remove water. SOAK Cycle should be followed by a HEAVY DUTY, NORMAL,

PERMANENT PRESS or PREWASH

Cycle with additional detergent.

NOTE: We do not recommend hot water for soaking. It may set some stains.

+ 50 hidden pages
