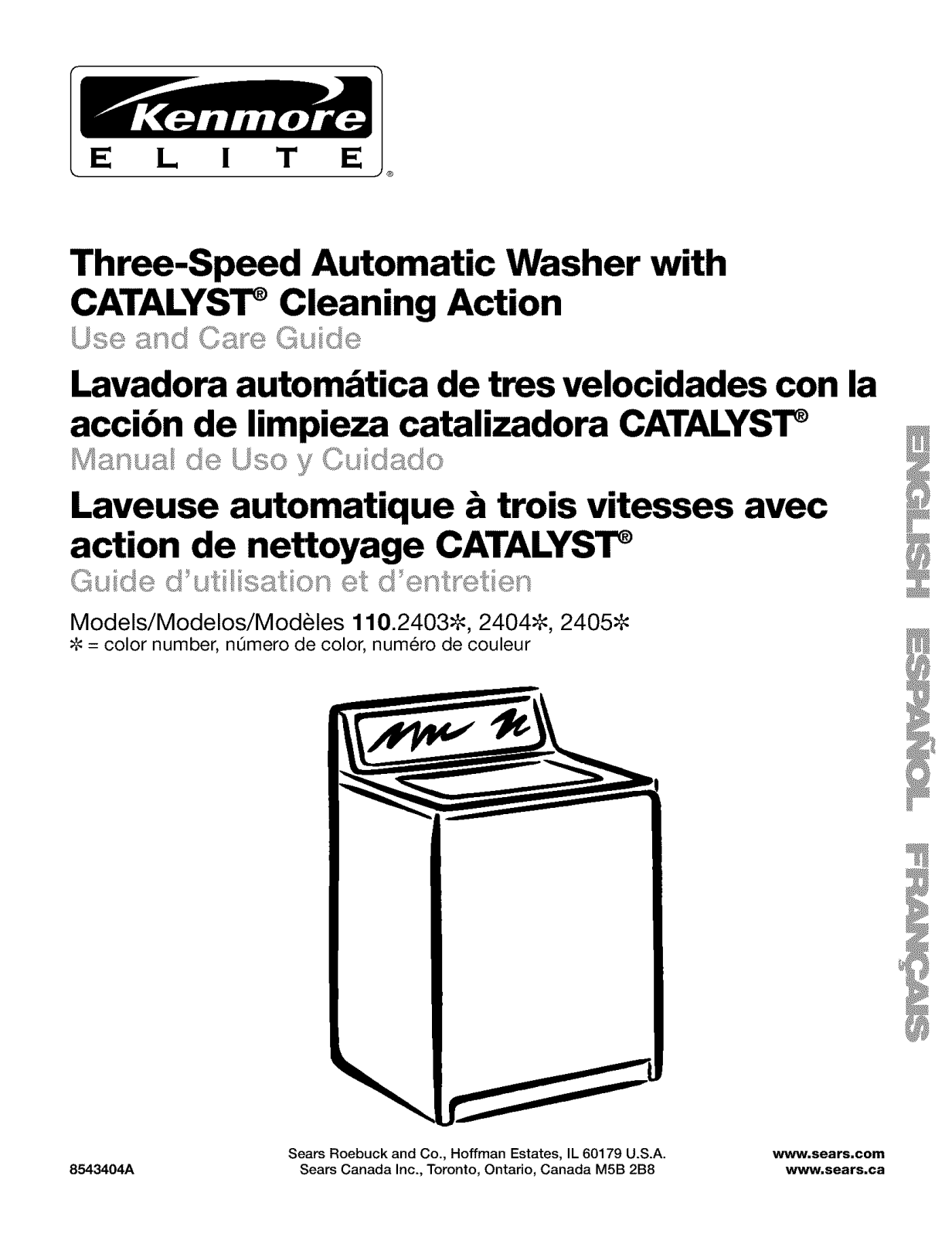

Kenmore 110.2403, 110.2405 User Manual

E L ! T E

Three-Speed Automatic Washer with

CATALYSlr_ Cleaning Action Lavadora autom&tica de tres velocidades con la

accibn de limpieza catalizadora CATALYST_

Laveuse automatique & trois vitesses avec

action de nettoyage CATALYST _

Models/Modelos/Modeles 110.2403#, 2404#, 2405#

= color number, nQmero de color, numero de couleur

Sears Roebuck and Co., Hoffman Estates, IL60179 U.S.A. www.sears,com

8543404A Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8 www, sears.ca

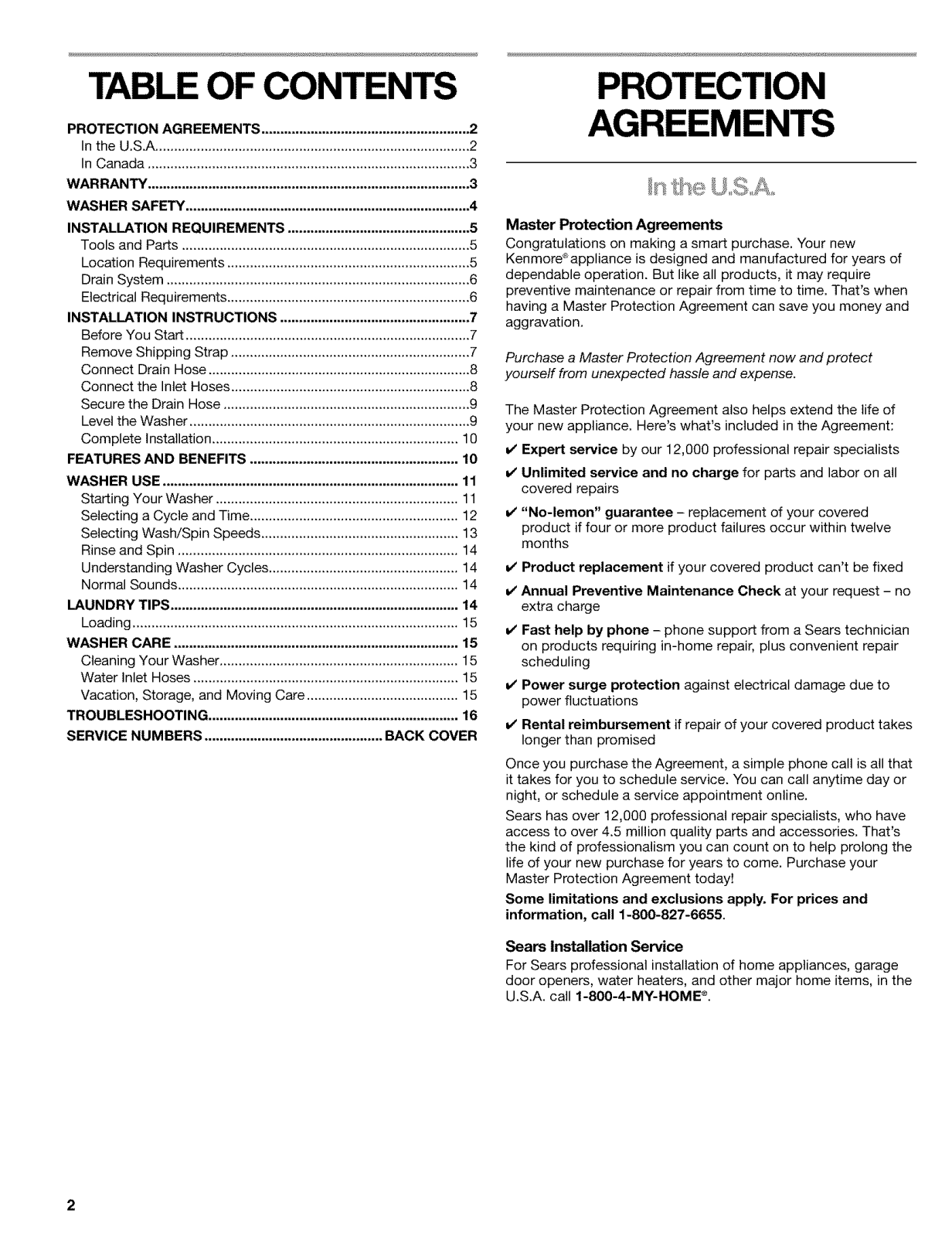

TABLE OF CONTENTS

PROTECTION

PROTECTION AGREEMENTS ....................................................... 2

In the U.S.A................................................................................... 2

In Canada ..................................................................................... 3

WARRANTY ..................................................................................... 3

WASHER SAFETY ........................................................................... 4

INSTALLATION REQUIREMENTS ................................................ 5

Tools and Parts ............................................................................ 5

Location Requirements ................................................................ 5

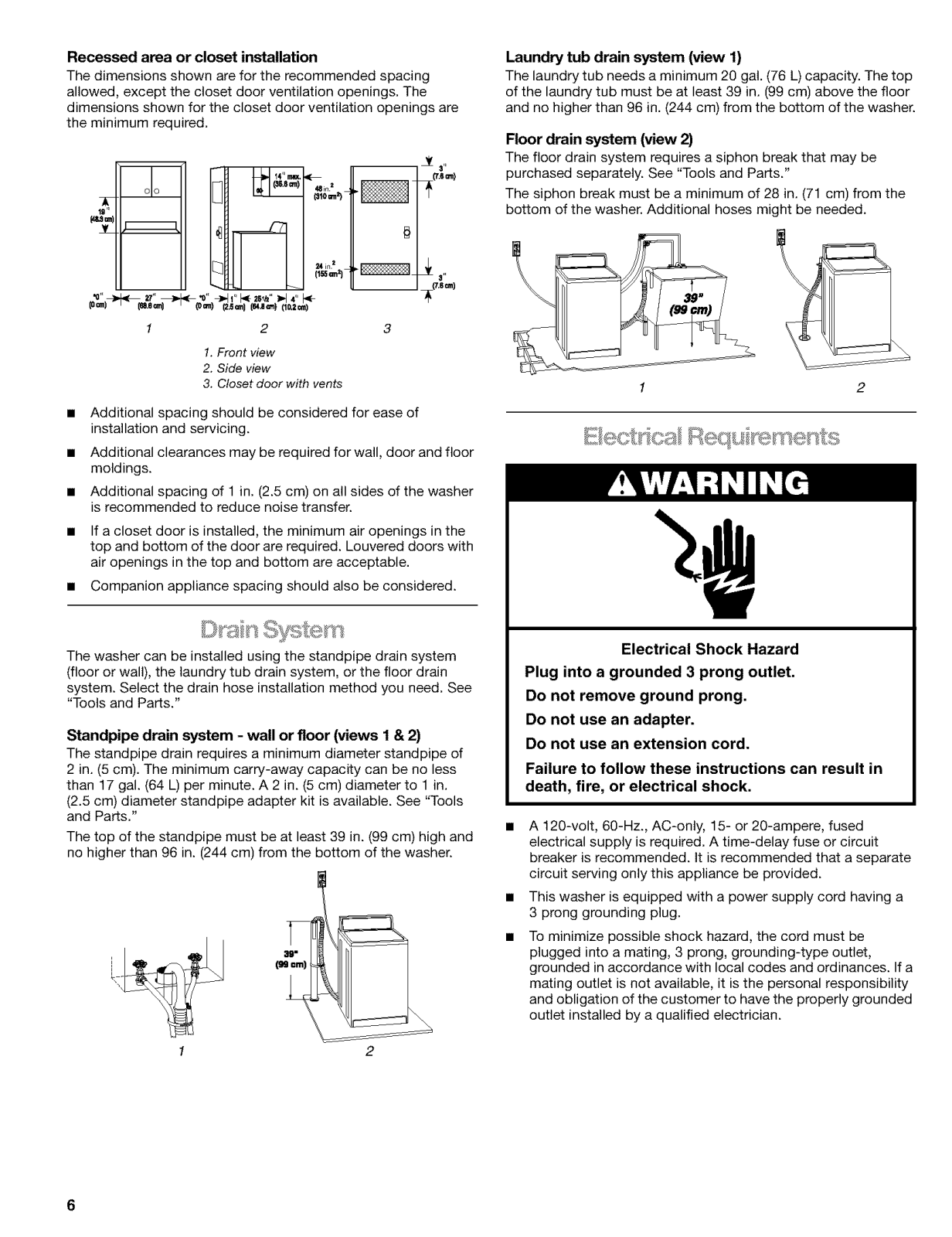

Drain System ................................................................................ 6

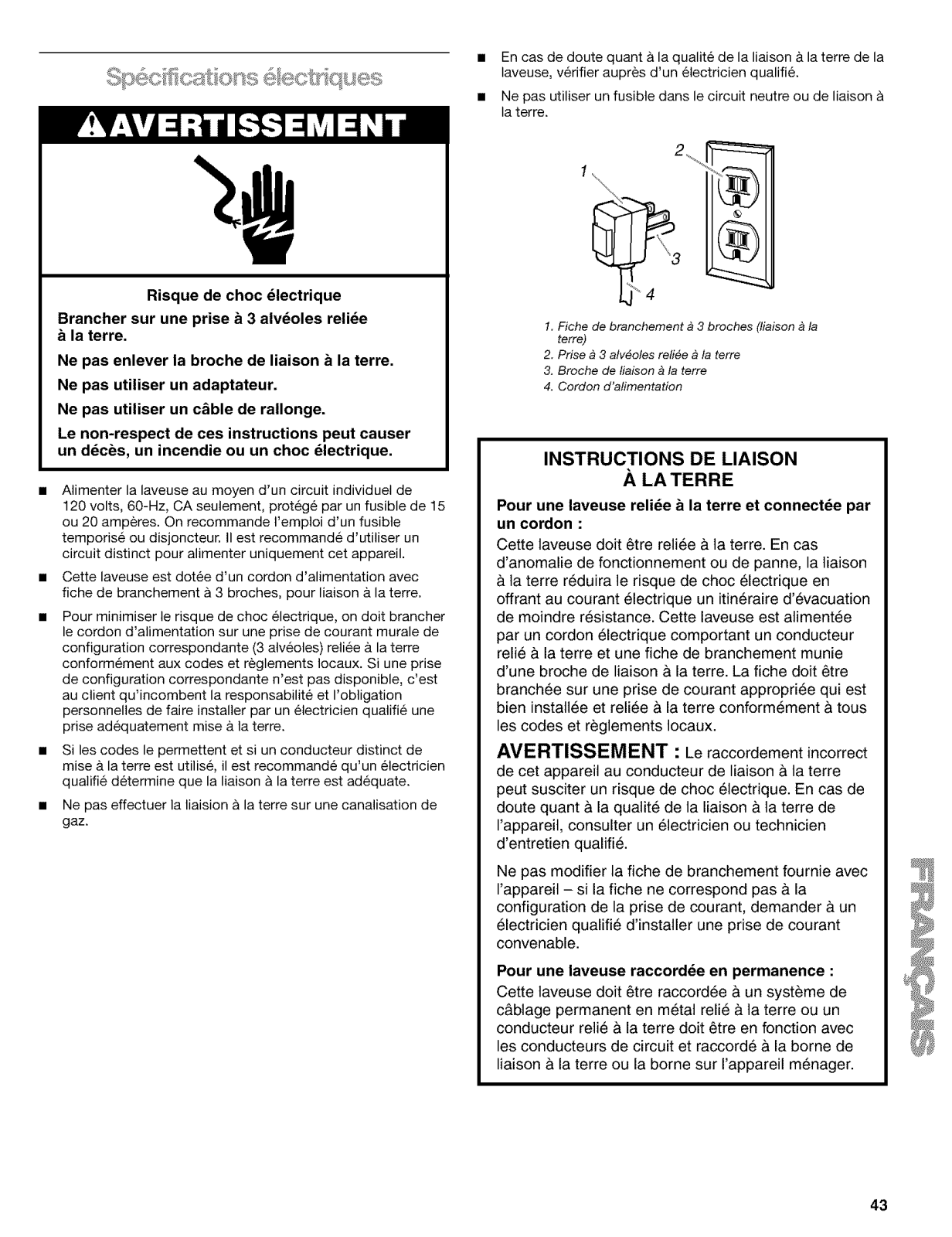

Electrical Requirements ................................................................ 6

INSTALLATION INSTRUCTIONS .................................................. 7

Before You Start ........................................................................... 7

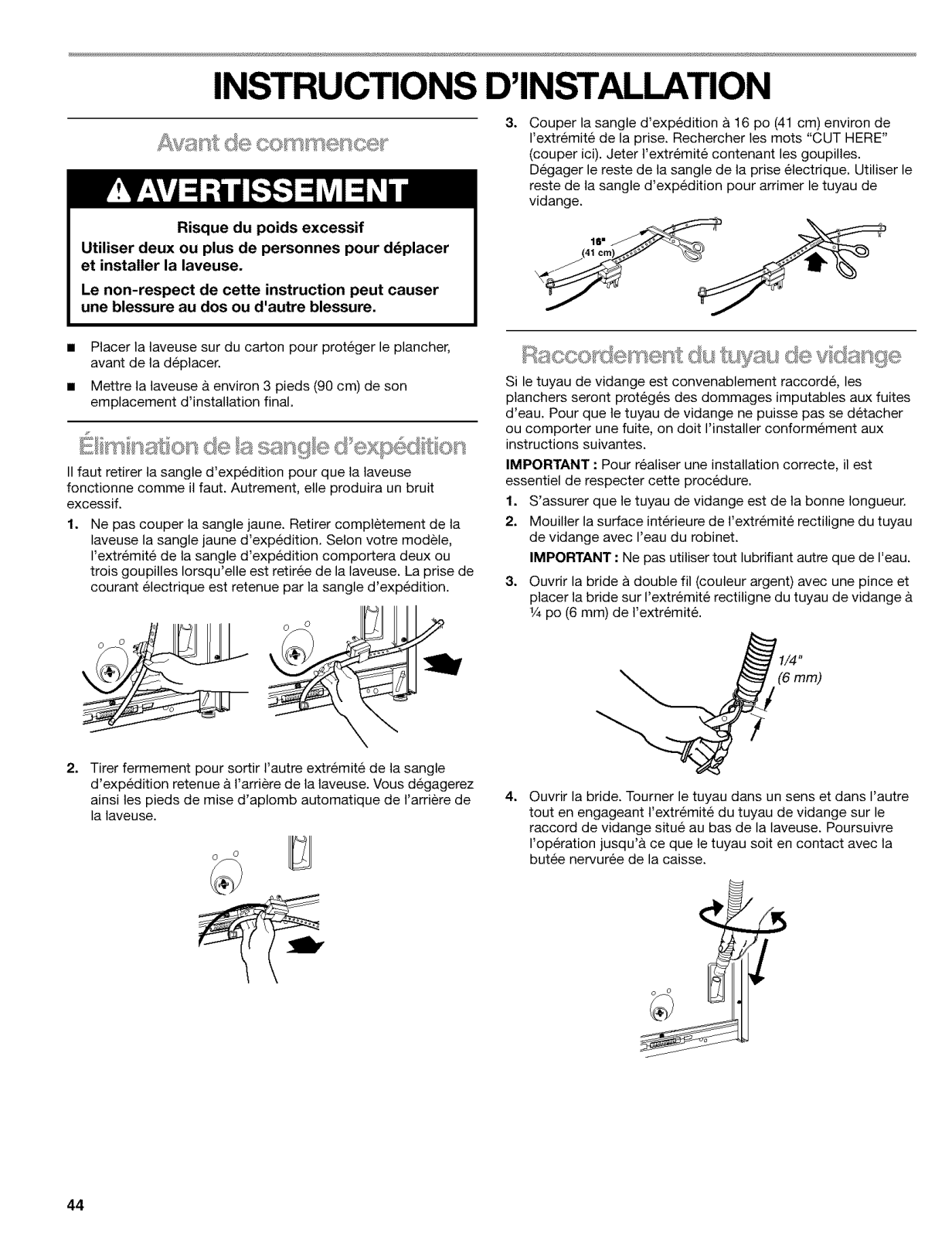

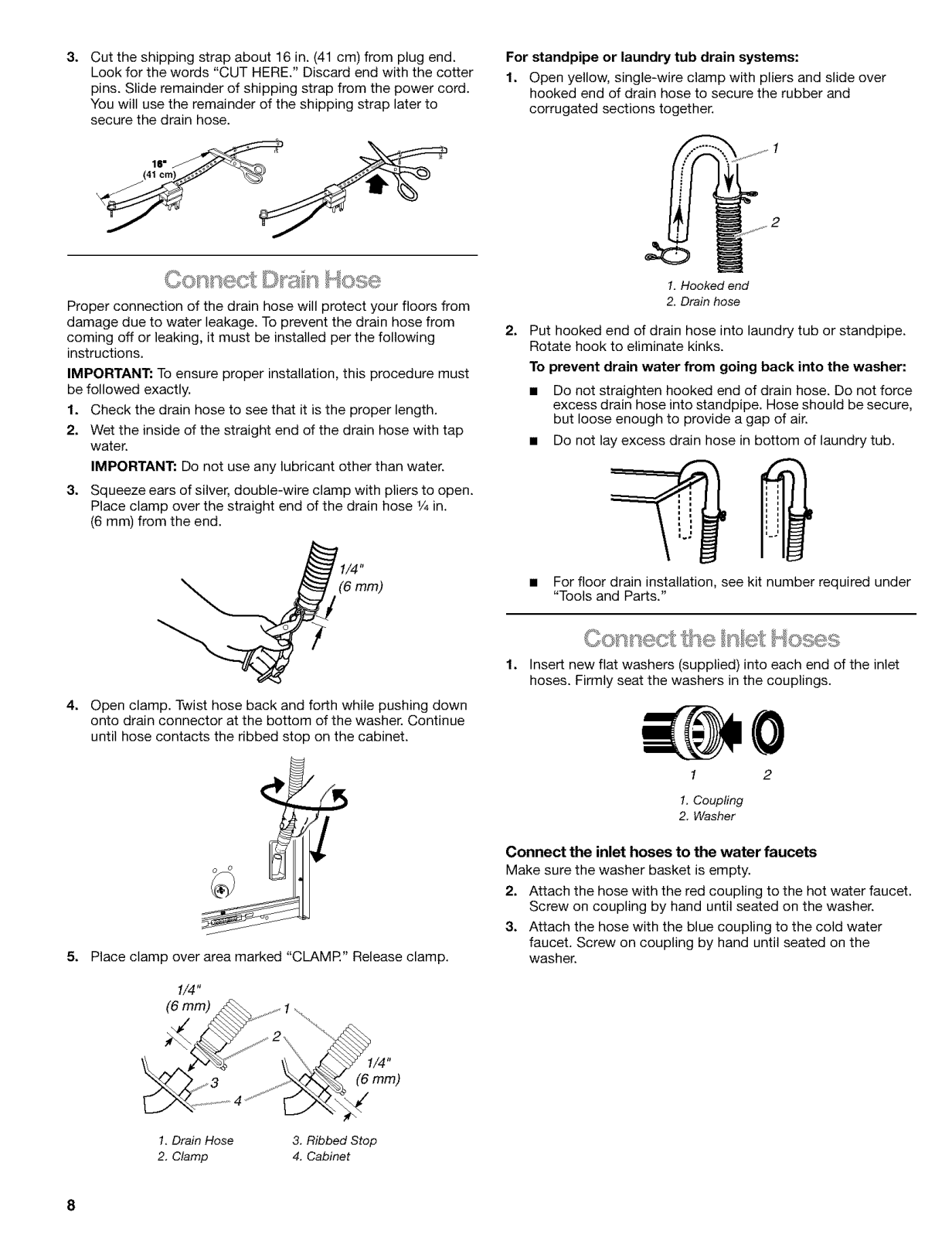

Remove Shipping Strap ............................................................... 7

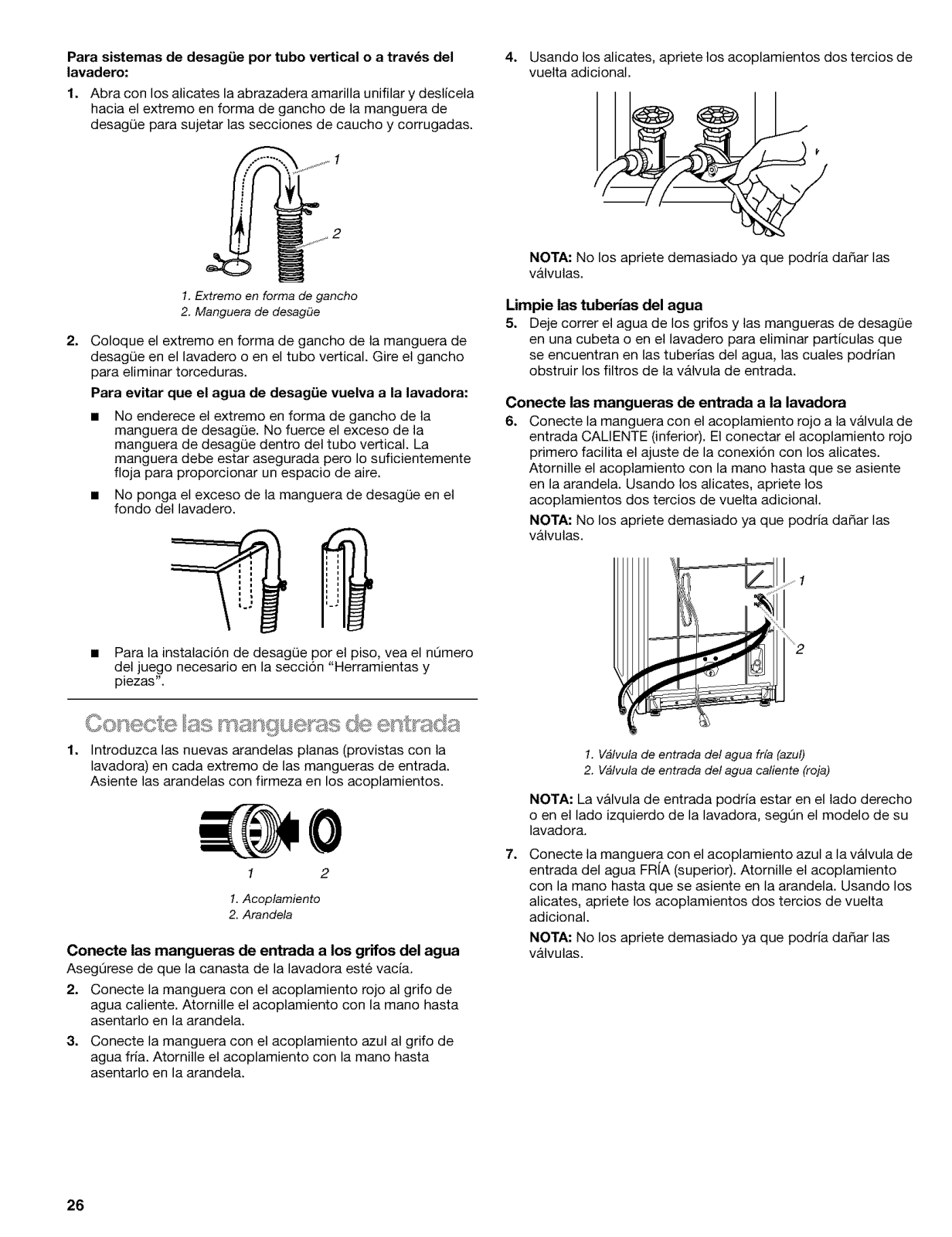

Connect Drain Hose ..................................................................... 8

Connect the Inlet Hoses ............................................................... 8

Secure the Drain Hose ................................................................. 9

Level the Washer .......................................................................... 9

Complete Installation ................................................................. 10

FEATURES AND BENEFITS ....................................................... 10

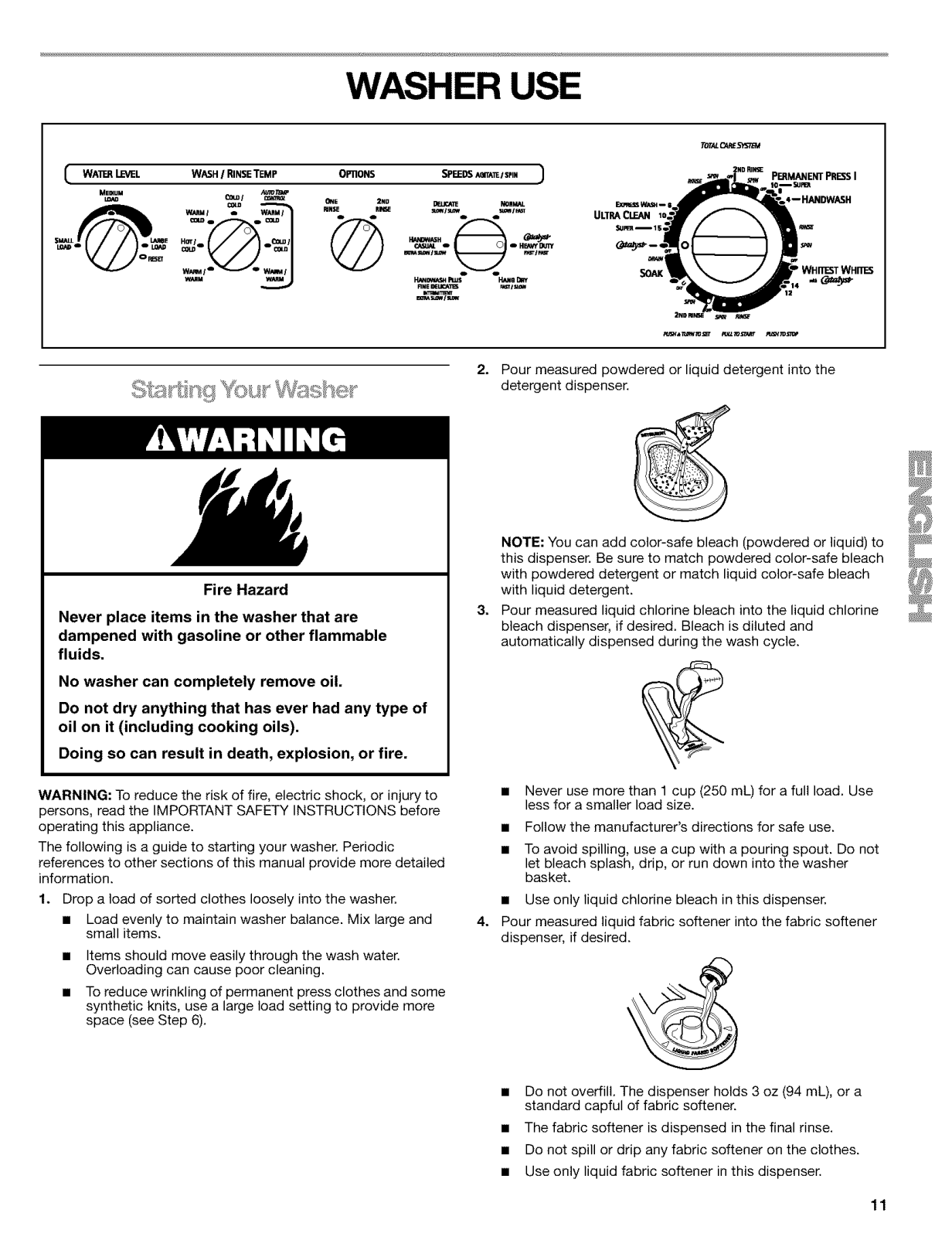

WASHER USE .............................................................................. 11

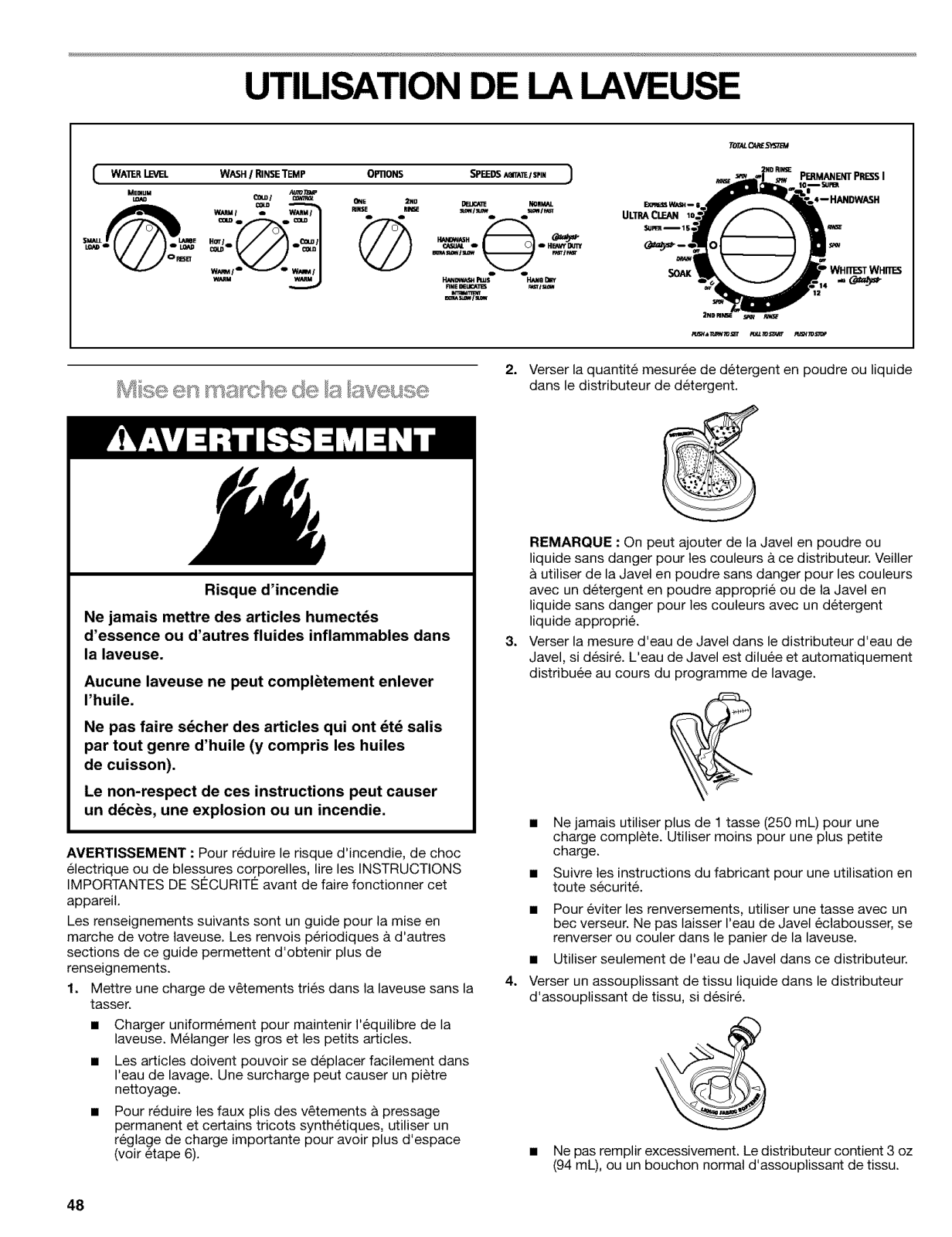

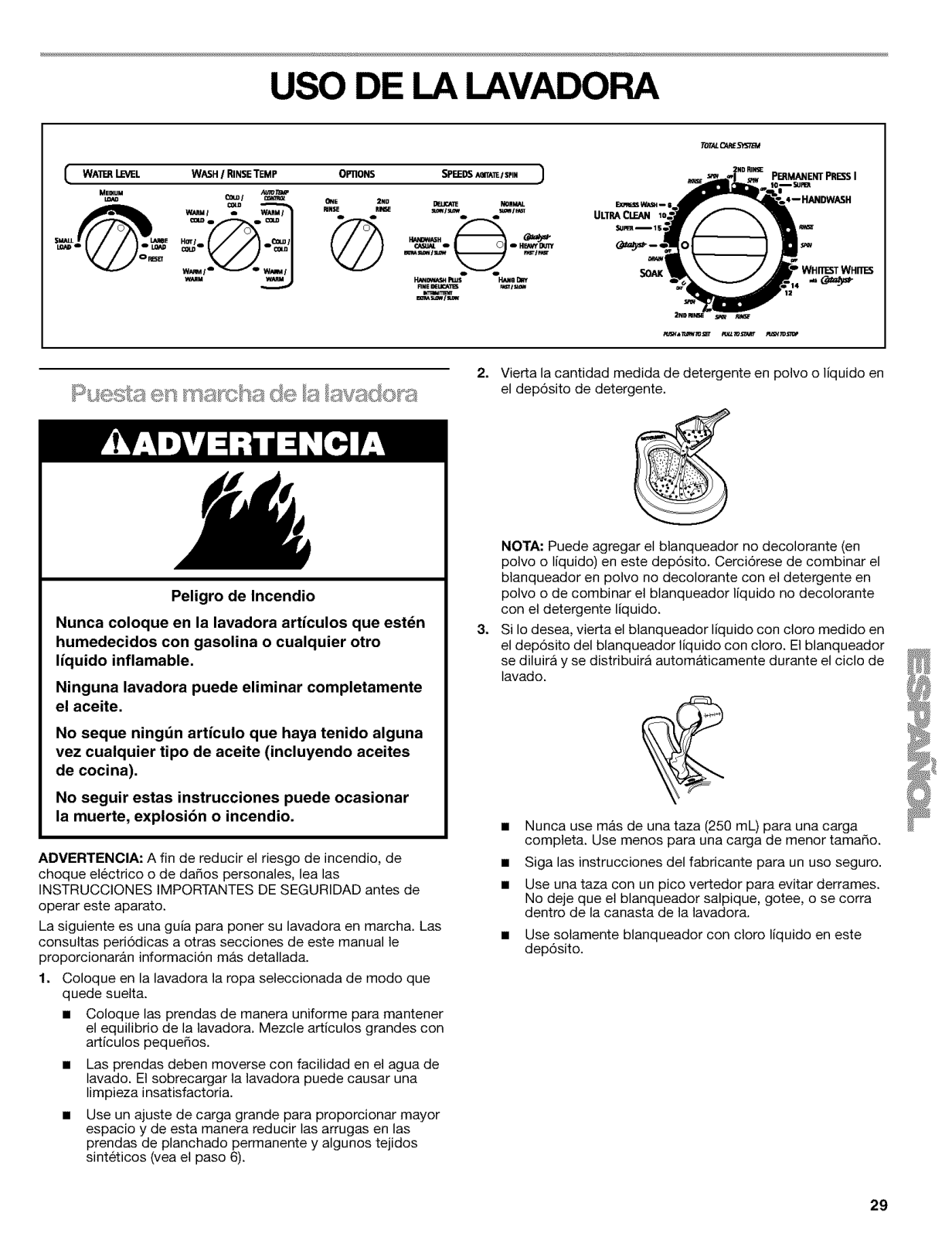

Starting Your Washer ................................................................ 11

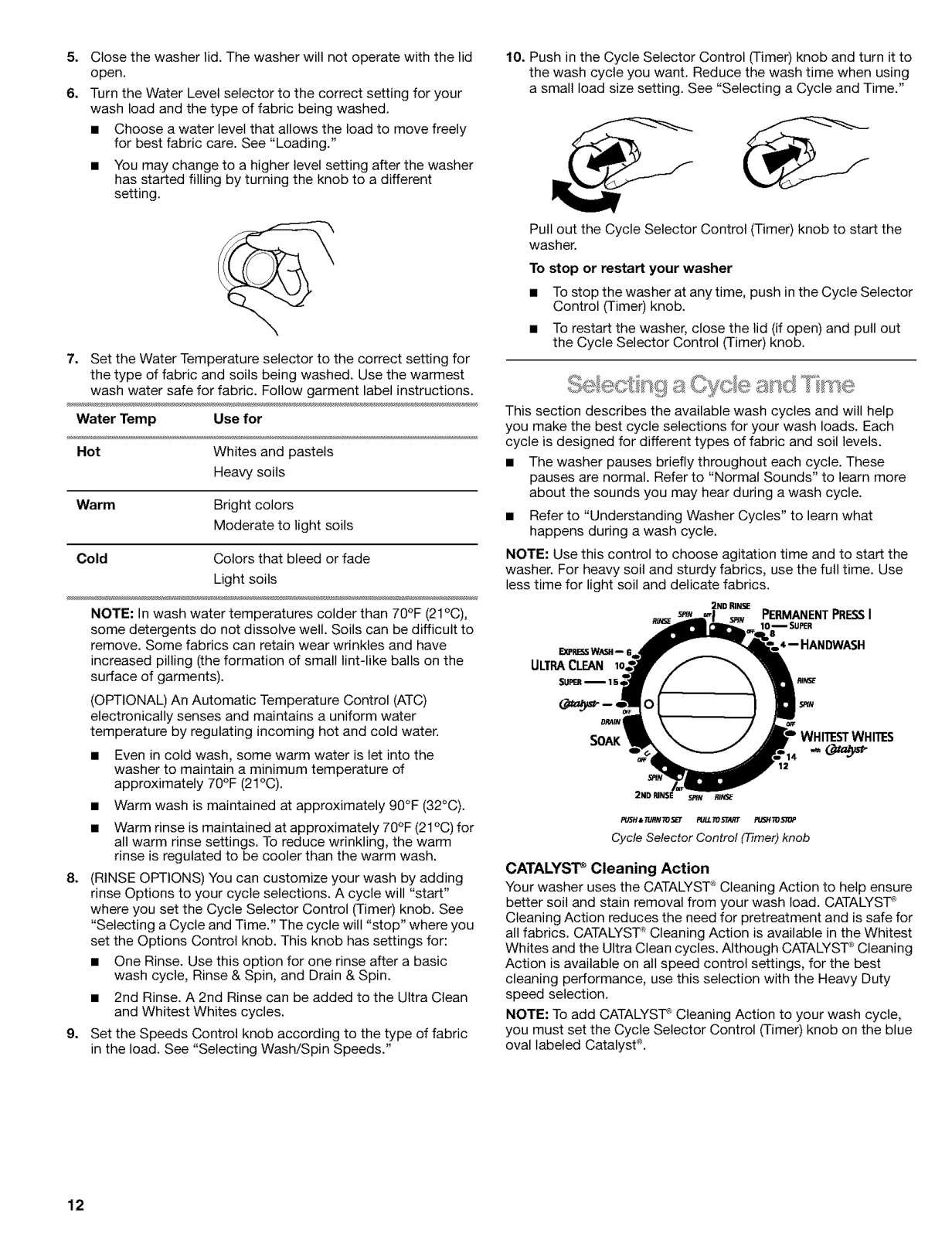

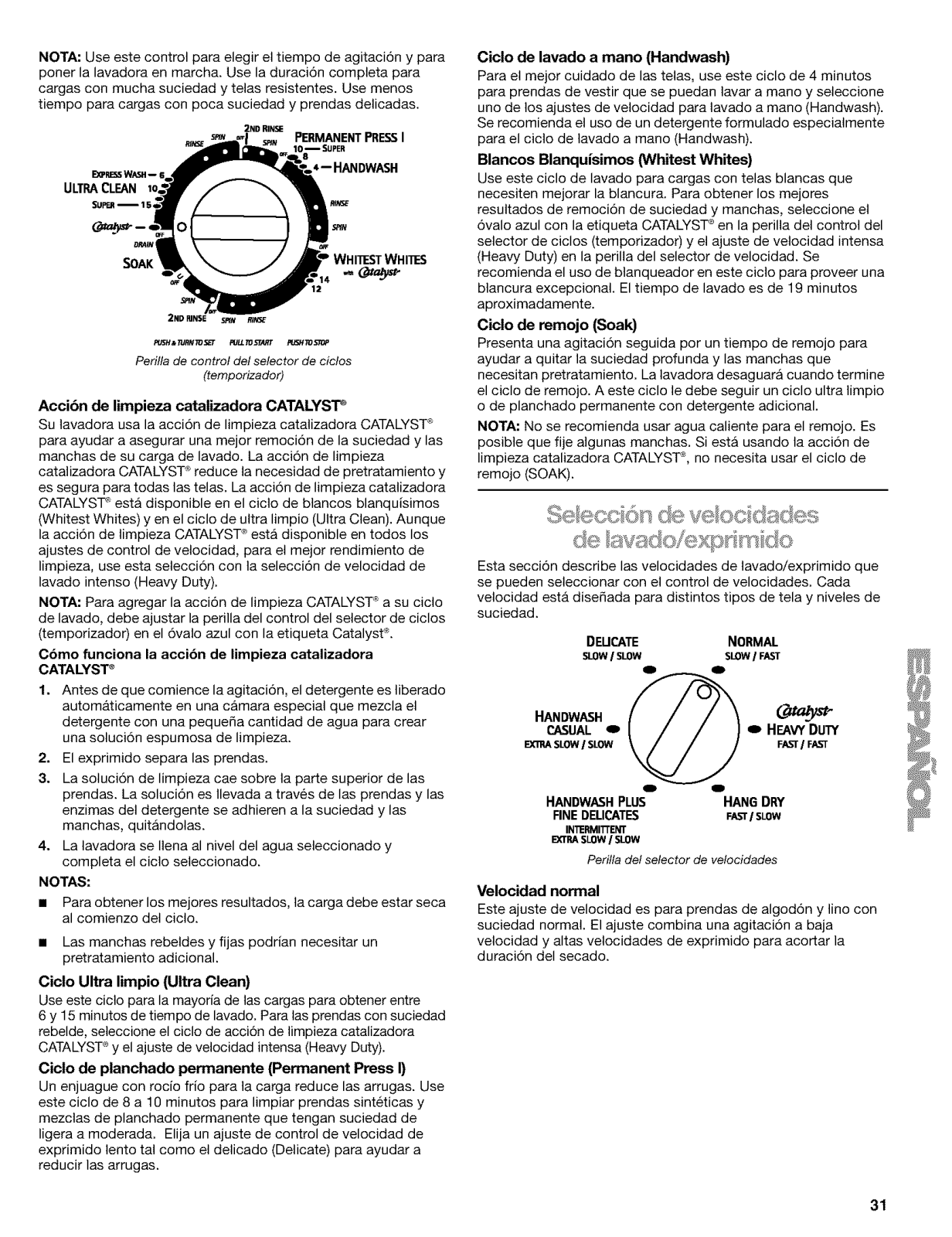

Selecting a Cycle and Time ....................................................... 12

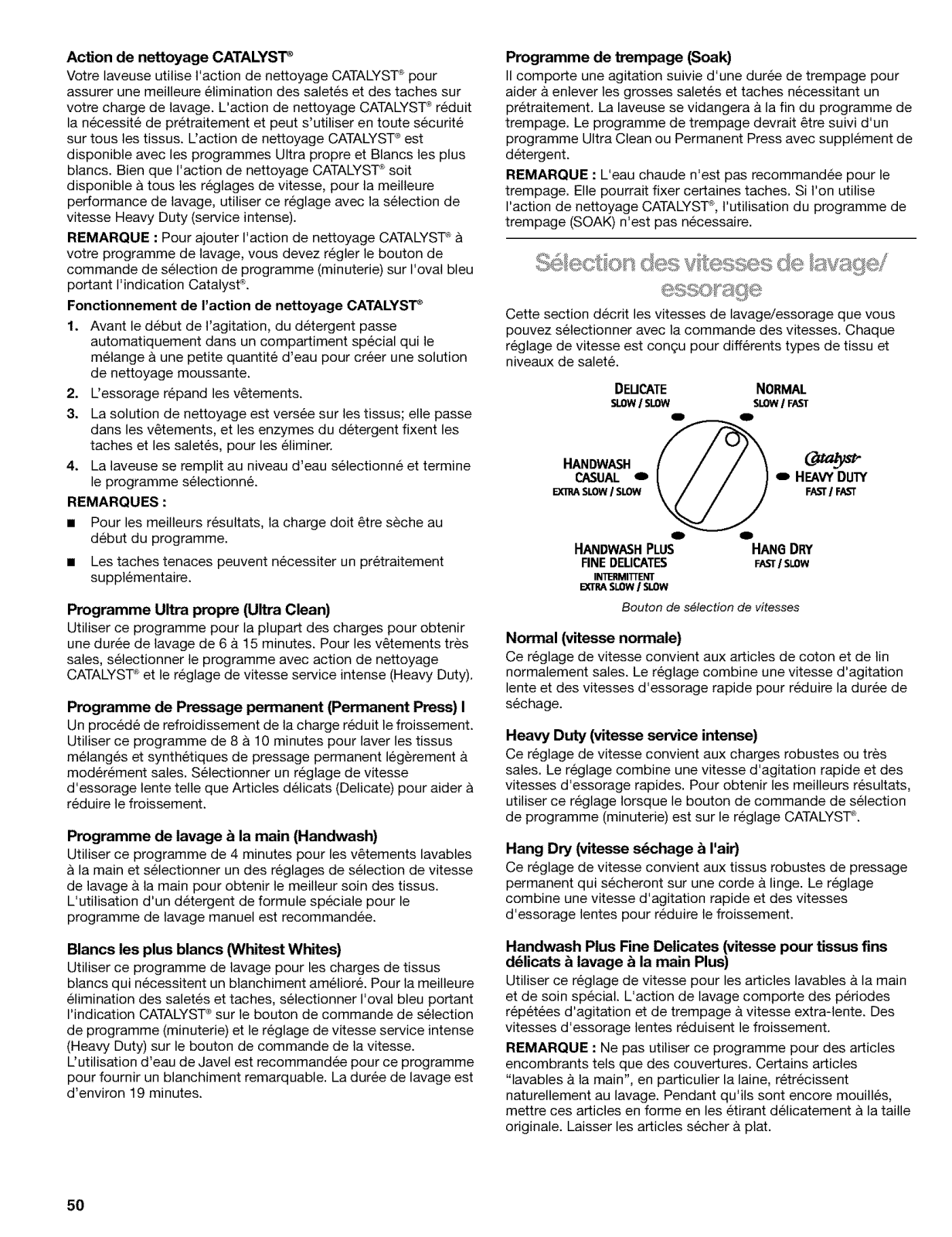

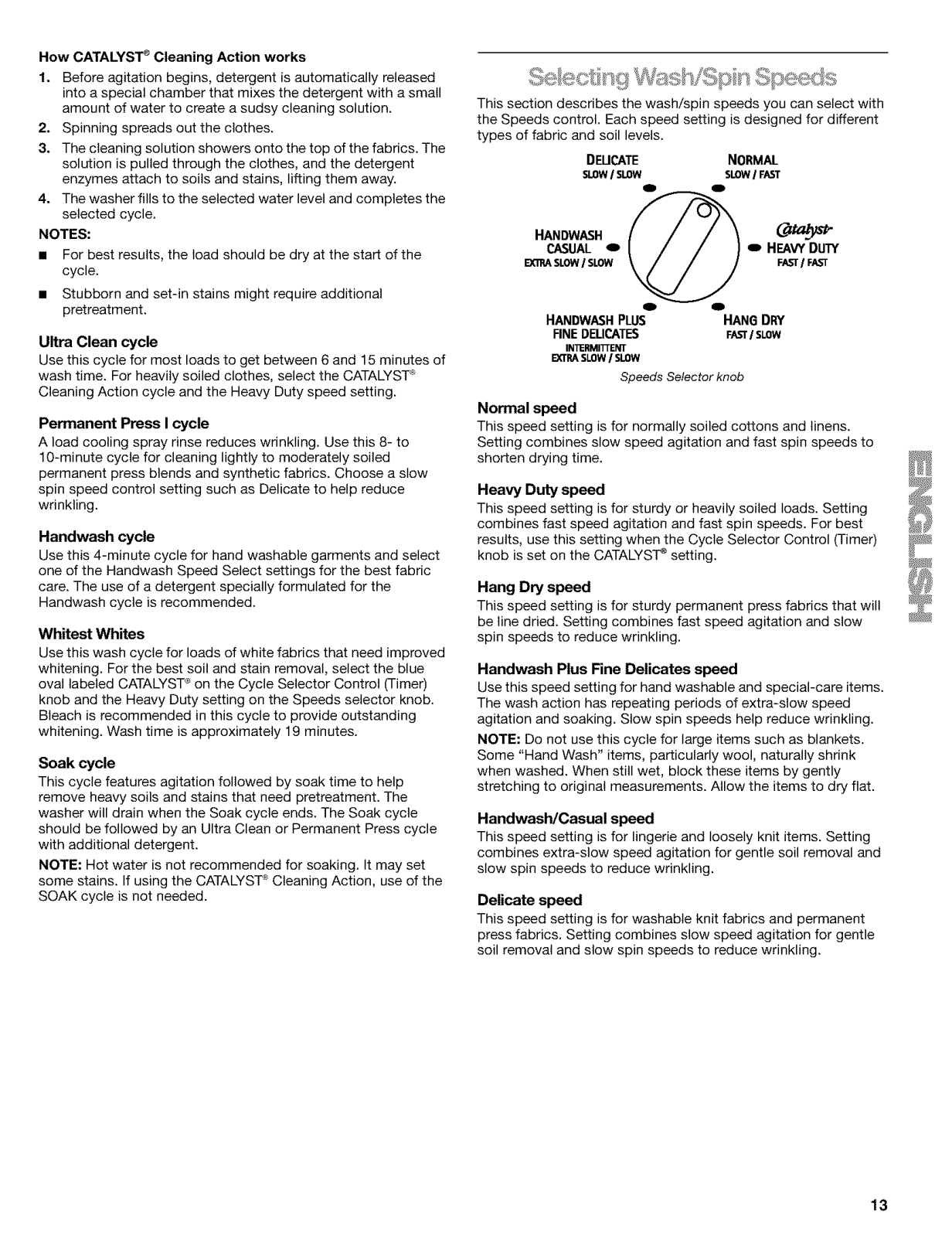

Selecting Wash/Spin Speeds .................................................... 13

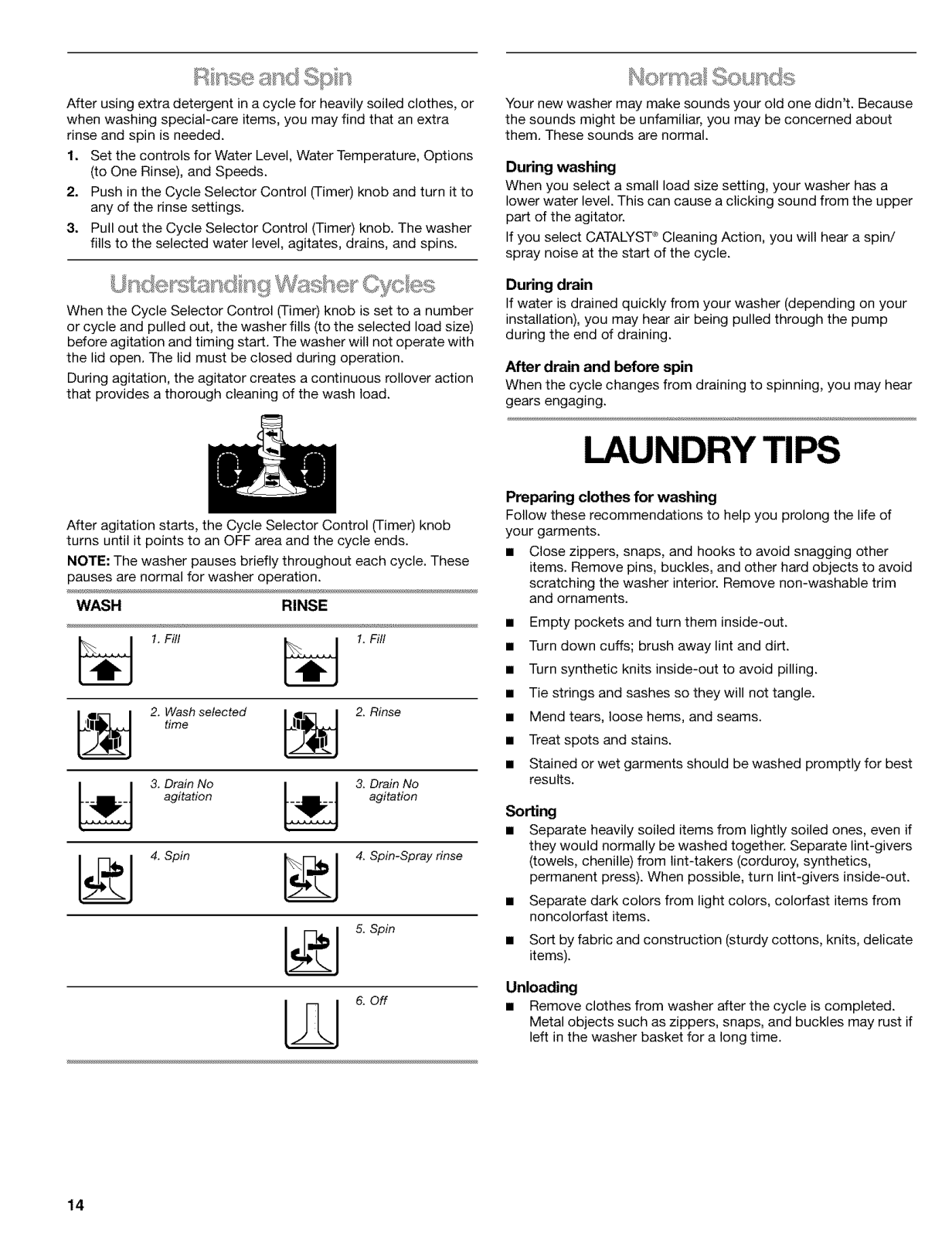

Rinse and Spin .......................................................................... 14

Understanding Washer Cycles .................................................. 14

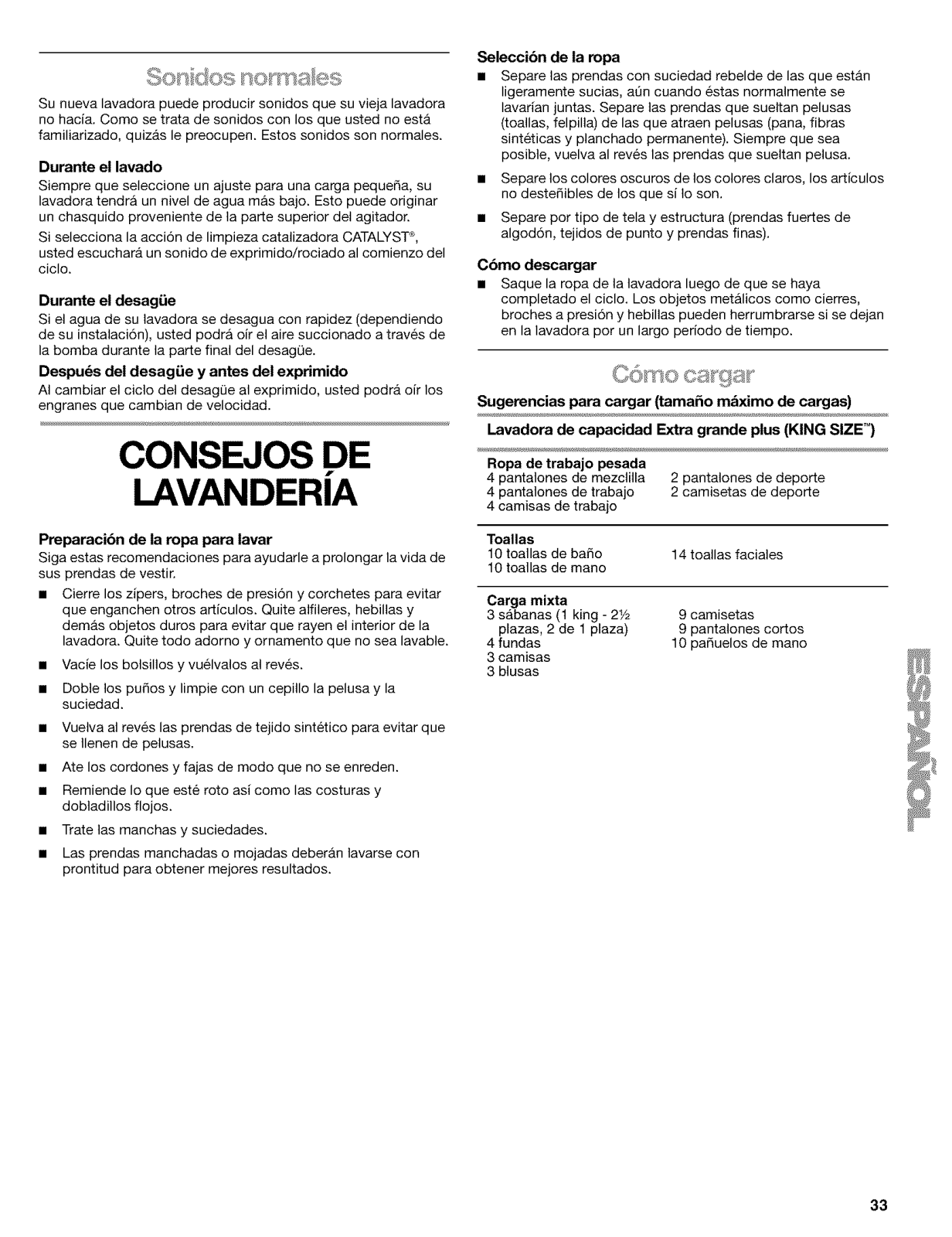

Normal Sounds .......................................................................... 14

LAUNDRY TIPS ............................................................................ 14

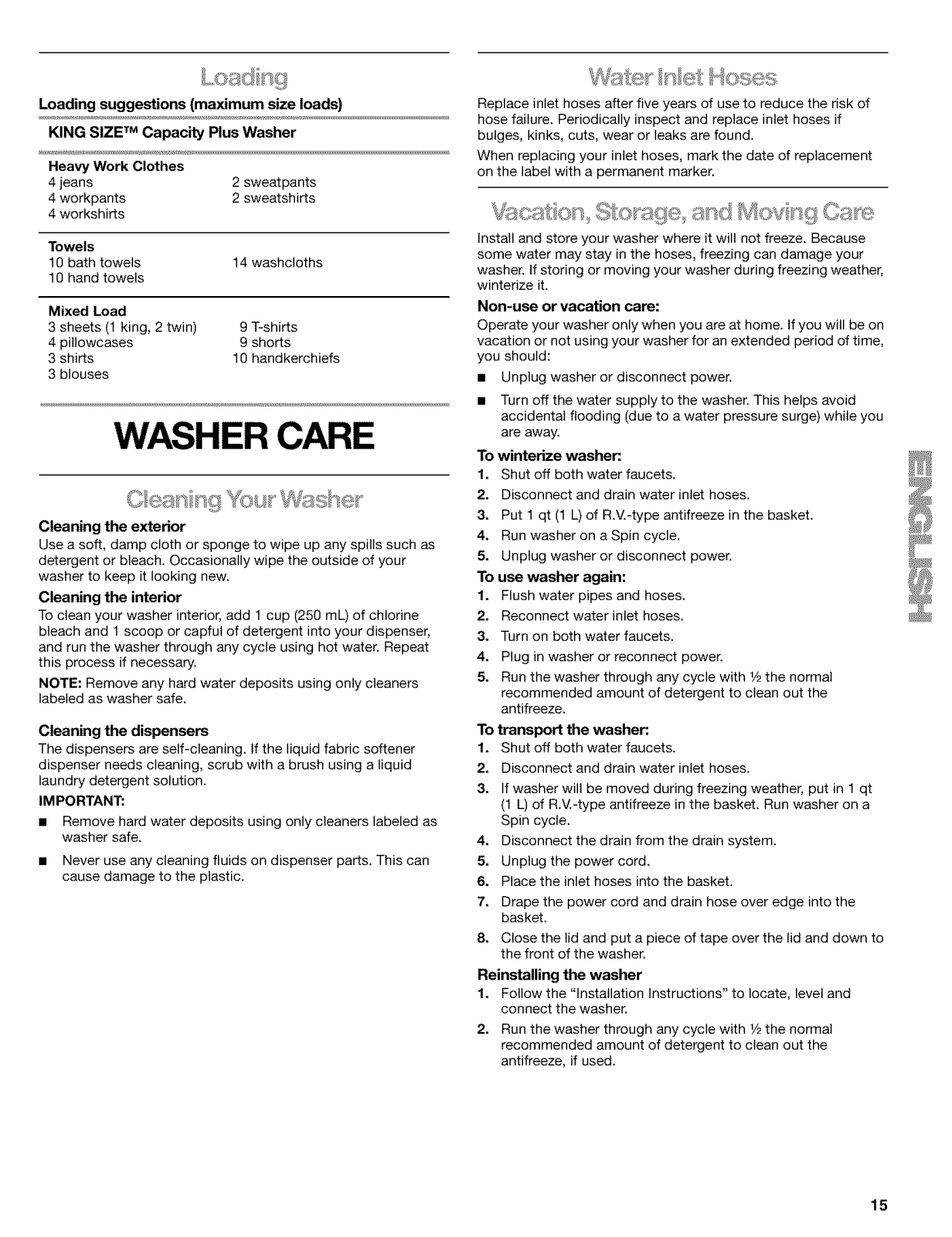

Loading ...................................................................................... 15

WASHER CARE ........................................................................... 15

Cleaning Your Washer ............................................................... 15

Water Inlet Hoses ...................................................................... 15

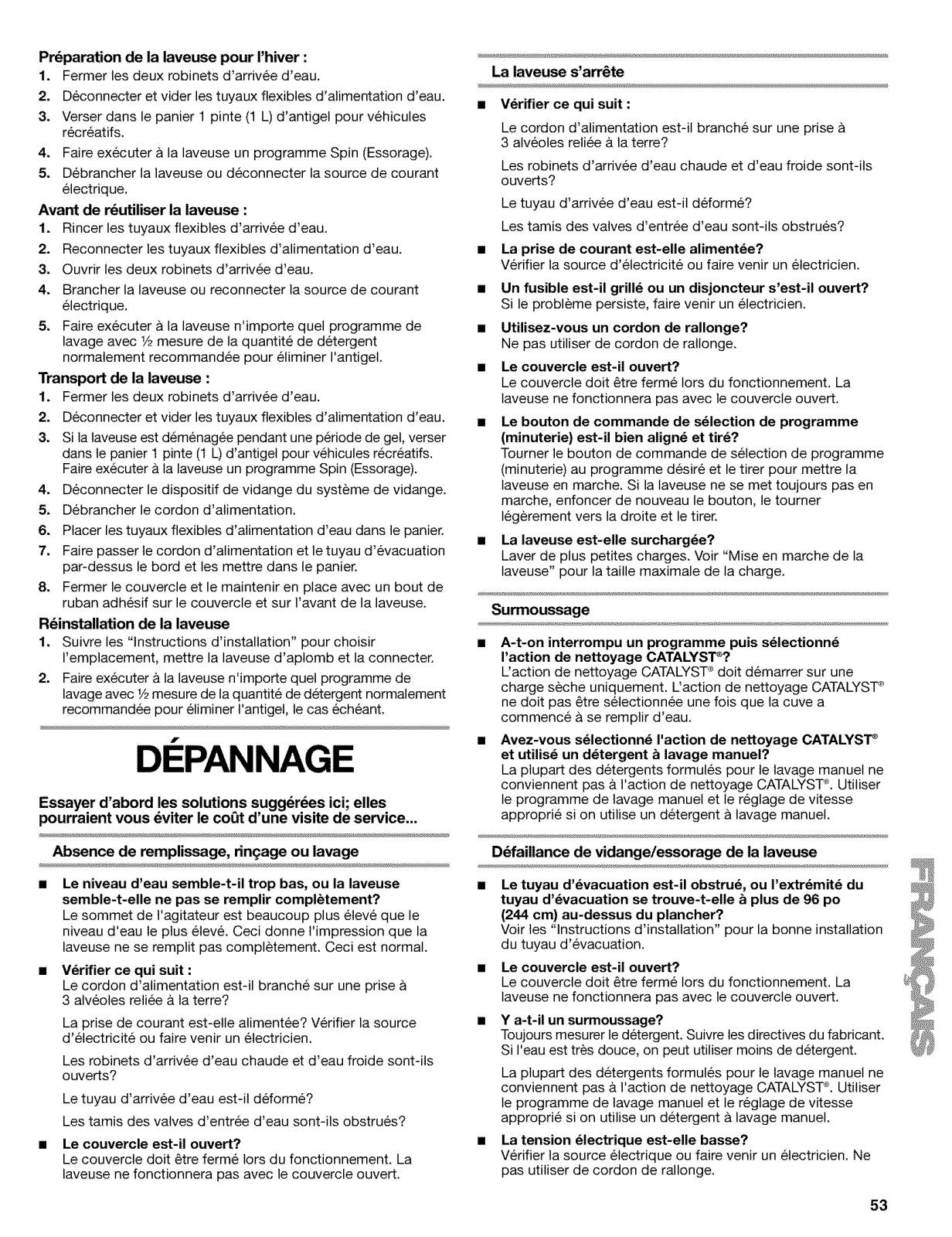

Vacation, Storage, and Moving Care ........................................ 15

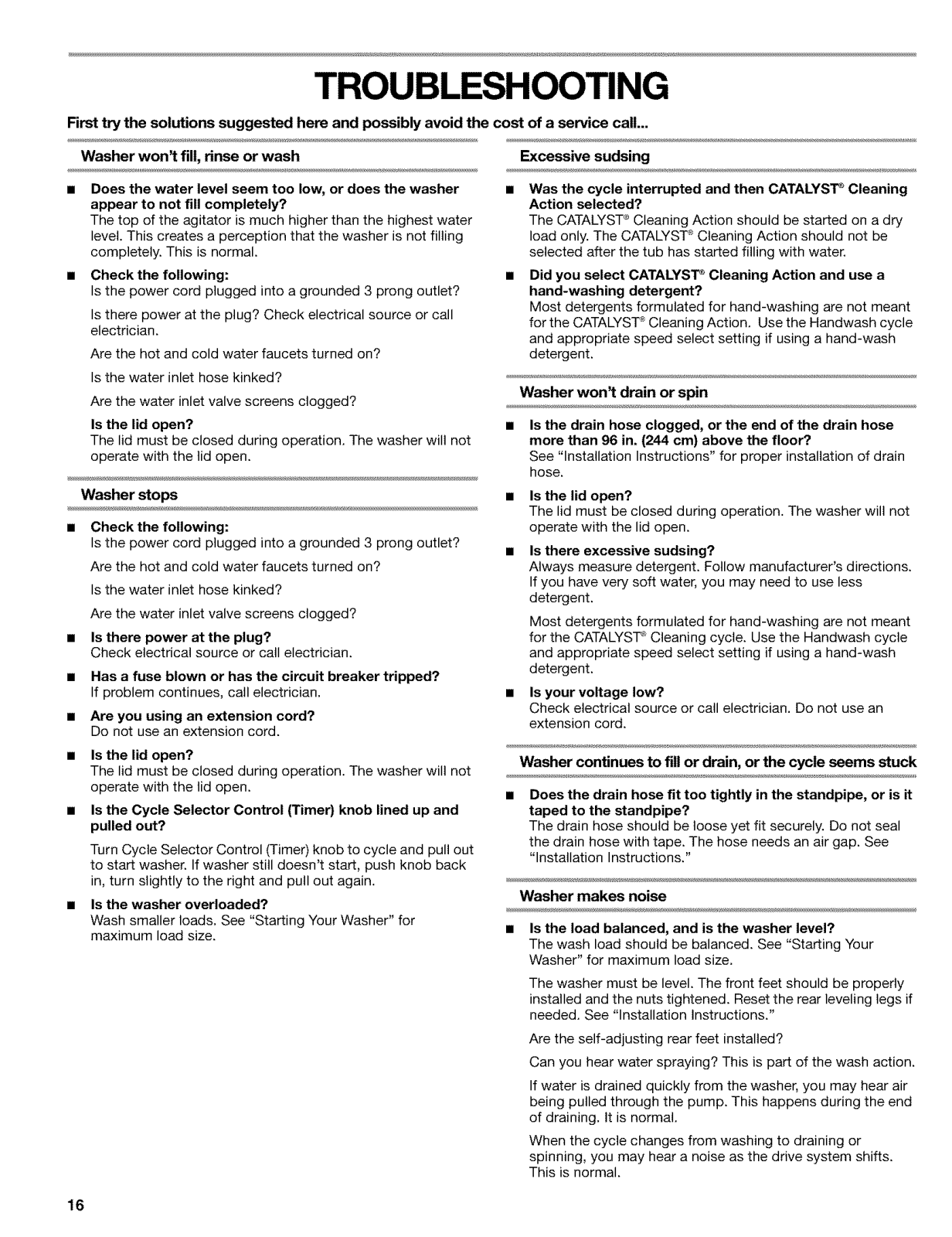

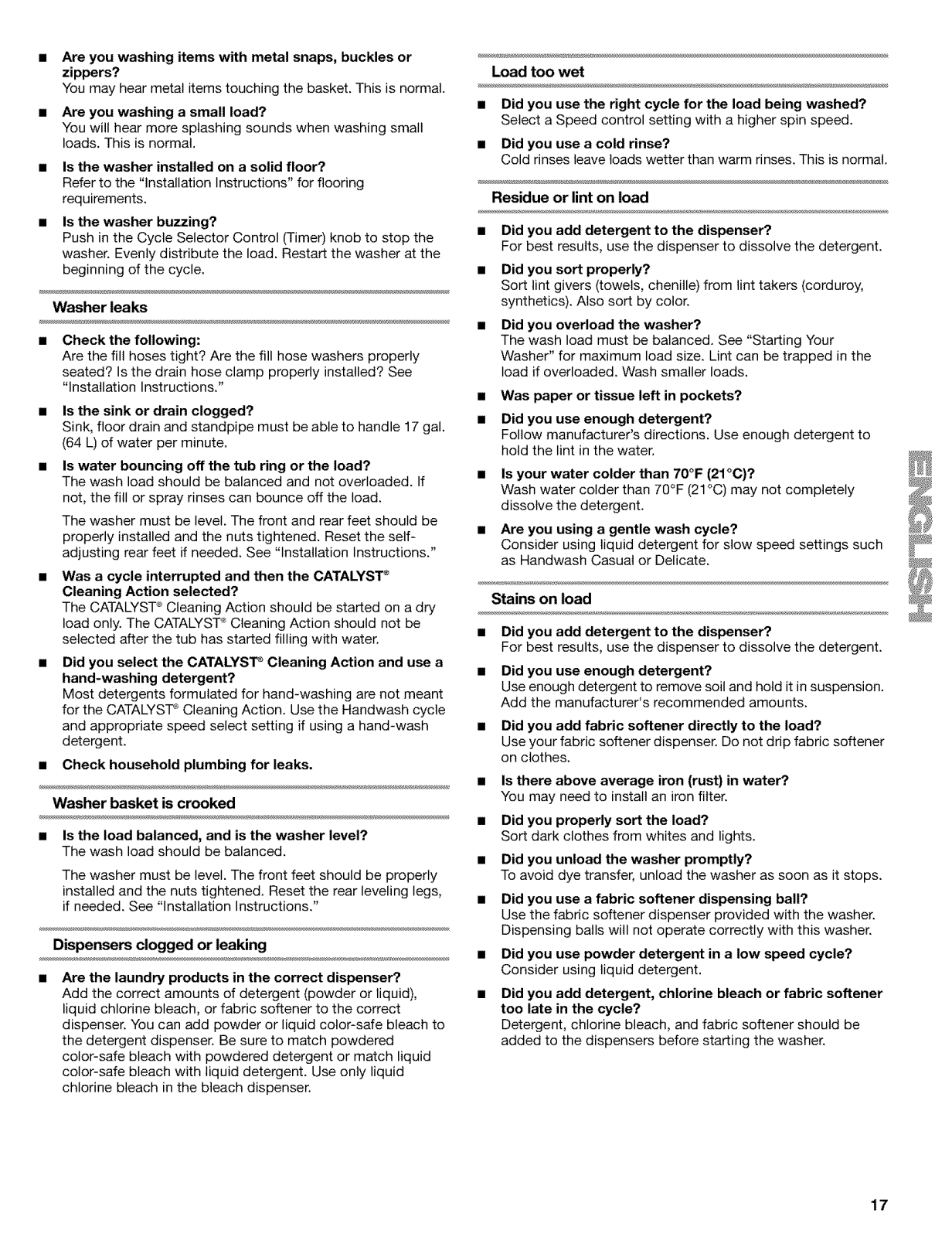

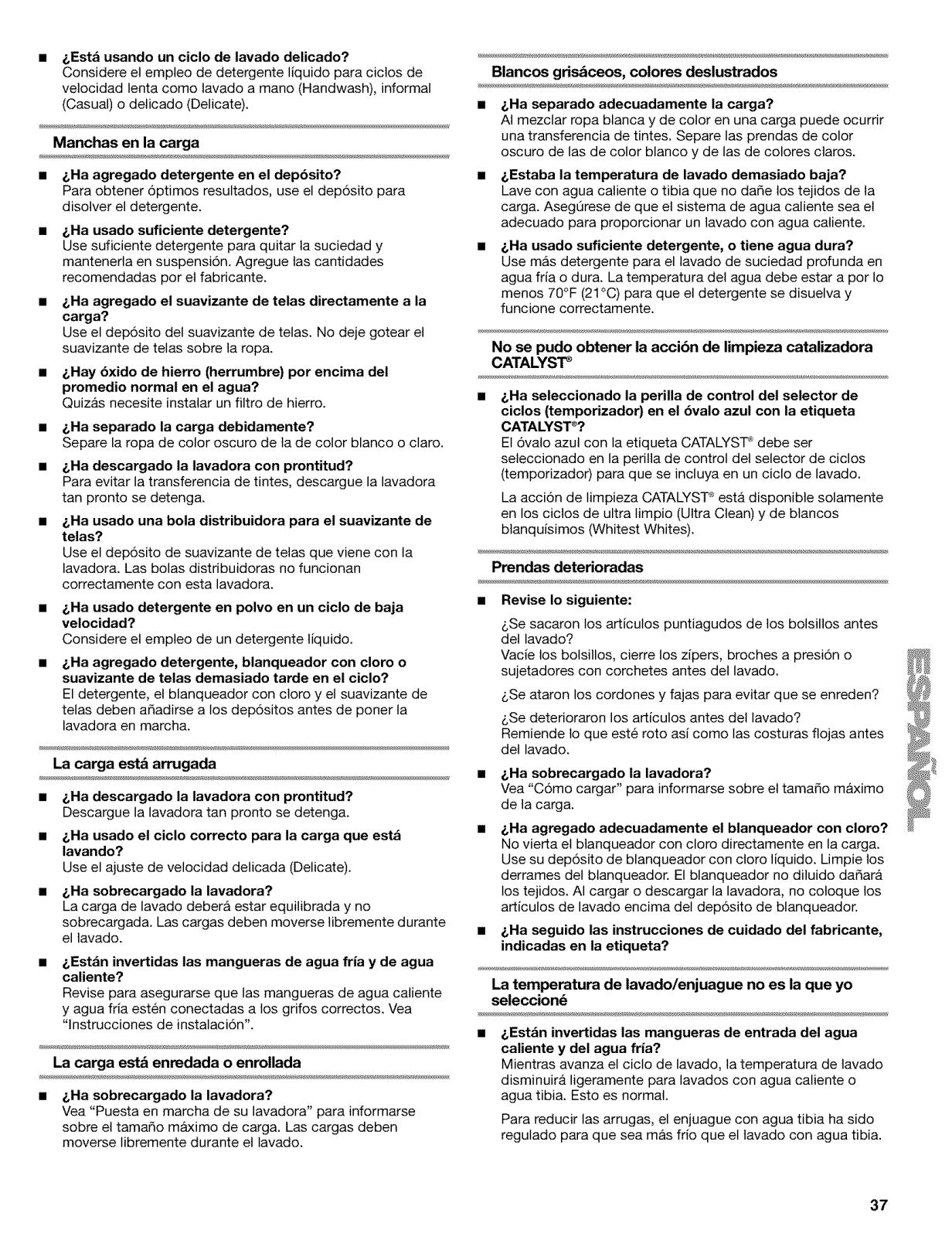

TROUBLESHOOTING .................................................................. 16

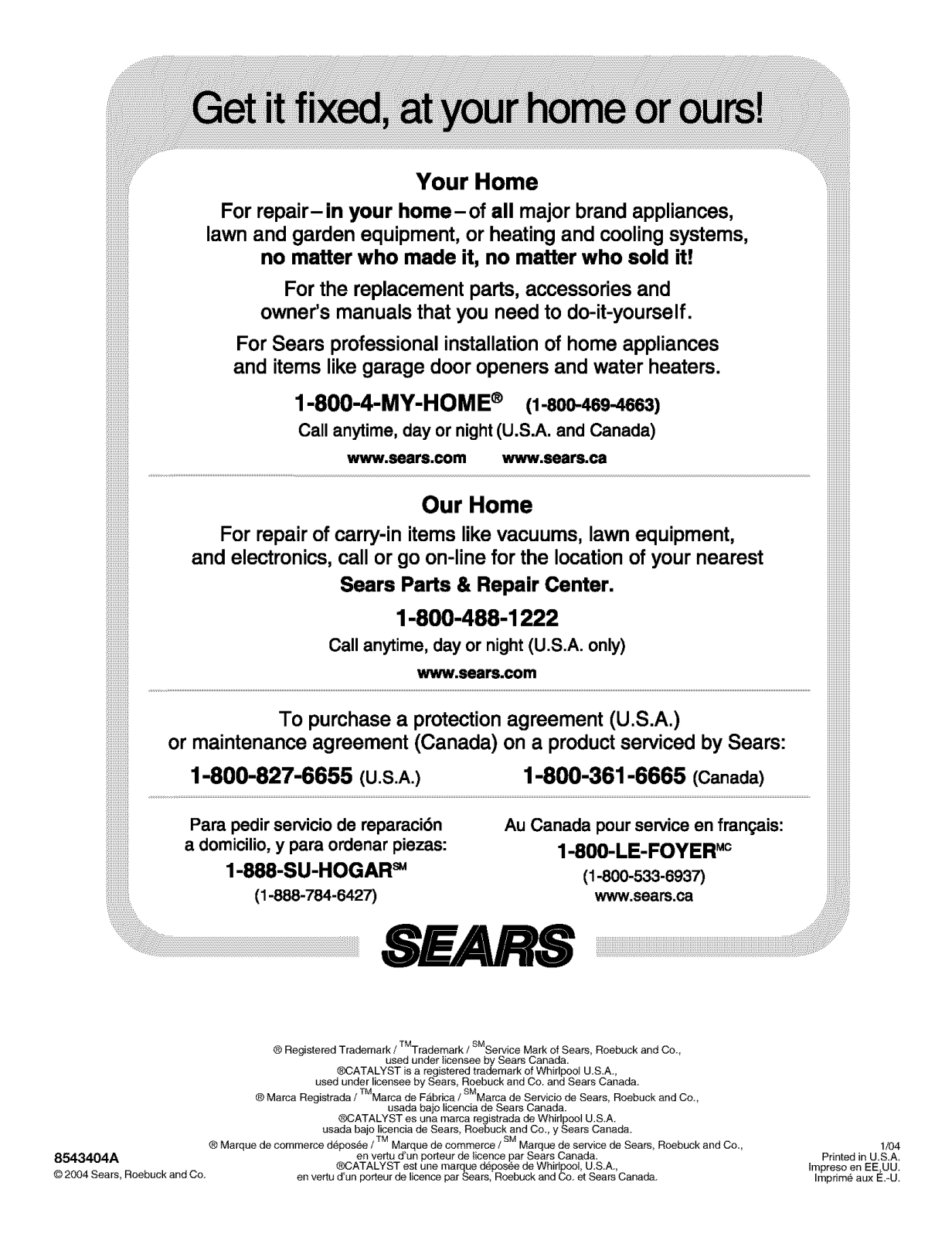

SERVICE NUMBERS ............................................... BACK COVER

AGREEMENTS

Master Protection Agreements

Congratulations on making a smart purchase. Your new

Kenmore®appliance is designed and manufactured for years of

dependable operation. But like all products, it may require

preventive maintenance or repair from time to time. That's when having a Master Protection Agreement can save you money and

aggravation.

Purchase a Master Protection Agreement now and protect yourseff from unexpected hassle and expense.

The Master Protection Agreement also helps extend the life of your new appliance. Here's what's included in the Agreement:

if Expert service by our 12,000 professional repair specialists V' Unlimited service and no charge for parts and labor on all

covered repairs

if "No-lemon" guarantee - replacement of your covered

product if four or more product failures occur within twelve

months if Product replacement if your covered product can't be fixed if Annual Preventive Maintenance Check at your request - no

extra charge if Fast help by phone - phone support from a Sears technician

on products requiring in-home repair, plus convenient repair

scheduling if Power surge protection against electrical damage due to

power fluctuations

if Rental reimbursement if repair of your covered product takes

longer than promised

Once you purchase the Agreement, a simple phone call is all that

it takes for you to schedule service. You can call anytime day or night, or schedule a service appointment online.

Sears has over 12,000 professional repair specialists, who have access to over 4.5 million quality parts and accessories. That's

the kind of professionalism you can count on to help prolong the

life of your new purchase for years to come. Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and information, call 1-800-827-6655.

Sears Installation Service

For Sears professional installation of home appliances, garage

door openers, water heaters, and other major home items, in the

U.S.A. call 1-800-4-MY-HOME _.

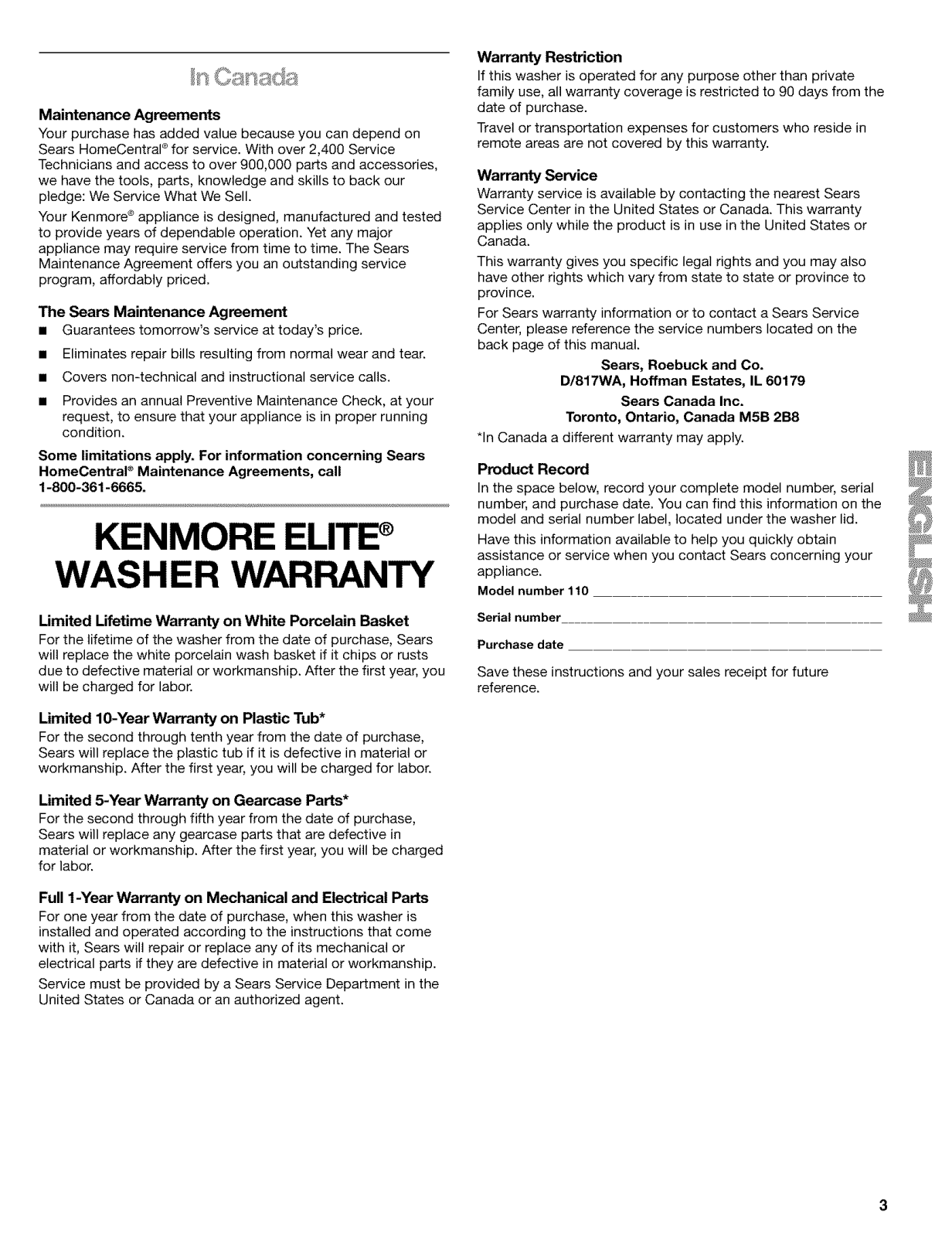

Maintenance Agreements

Your purchase has added value because you can depend on Sears HomeCentraP for service. With over 2,400 Service

Technicians and access to over 900,000 parts and accessories, we have the tools, parts, knowledge and skills to back our

pledge: We Service What We Sell.

Your Kenmore ®appliance is designed, manufactured and tested to provide years of dependable operation. Yet any major

appliance may require service from time to time. The Sears

Maintenance Agreement offers you an outstanding service program, affordably priced.

The Sears Maintenance Agreement

• Guarantees tomorrow's service at today's price.

• Eliminates repair bills resulting from normal wear and tear.

• Covers non-technical and instructional service calls.

• Provides an annual Preventive Maintenance Check, at your request, to ensure that your appliance is in proper running

condition.

Some limitations apply. For information concerning Sears

HomeCentral ®Maintenance Agreements, call 1-800-361-6665.

KENMORE ELITE®

WASHER WARRANTY

Limited Lifetime Warranty on White Porcelain Basket

For the lifetime of the washer from the date of purchase, Sears

will replace the white porcelain wash basket if it chips or rusts due to defective material or workmanship. After the first year, you will be charged for labor.

Warranty Restriction

If this washer is operated for any purpose other than private family use, all warranty coverage is restricted to 90 days from the date of purchase.

Travel or transportation expenses for customers who reside in remote areas are not covered by this warranty.

Warranty Service Warranty service is available by contacting the nearest Sears

Service Center in the United States or Canada. This warranty applies only while the product is in use in the United States or

Canada. This warranty gives you specific legal rights and you may also

have other rights which vary from state to state or province to

province.

For Sears warranty information or to contact a Sears Service Center, please reference the service numbers located on the

back page of this manual.

Sears, Roebuck and Co.

D/817WA, Hoffman Estates, IL 60179

Sears Canada Inc.

Toronto, Ontario, Canada M5B 2B8

*In Canada a different warranty may apply.

Product Record

In the space below, record your complete model number, serial

number, and purchase date. You can find this information on the model and serial number label, located under the washer lid.

Have this information available to help you quickly obtain assistance or service when you contact Sears concerning your appliance.

Model number 110

Serial number

Purchase date

Save these instructions and your sales receipt for future reference.

Limited 10-Year Warranty on Plastic Tub* For the second through tenth year from the date of purchase,

Sears will replace the plastic tub if it is defective in material or workmanship. After the first year, you will be charged for labor.

Limited 5-Year Warranty on Gearcase Parts*

For the second through fifth year from the date of purchase, Sears will replace any gearcase parts that are defective in material or workmanship. After the first year, you will be charged

for labor.

Full 1-Year Warranty on Mechanical and Electrical Parts

For one year from the date of purchase, when this washer is

installed and operated according to the instructions that come with it, Sears will repair or replace any of its mechanical or electrical parts if they are defective in material or workmanship.

Service must be provided by a Sears Service Department in the

United States or Canada or an authorized agent.

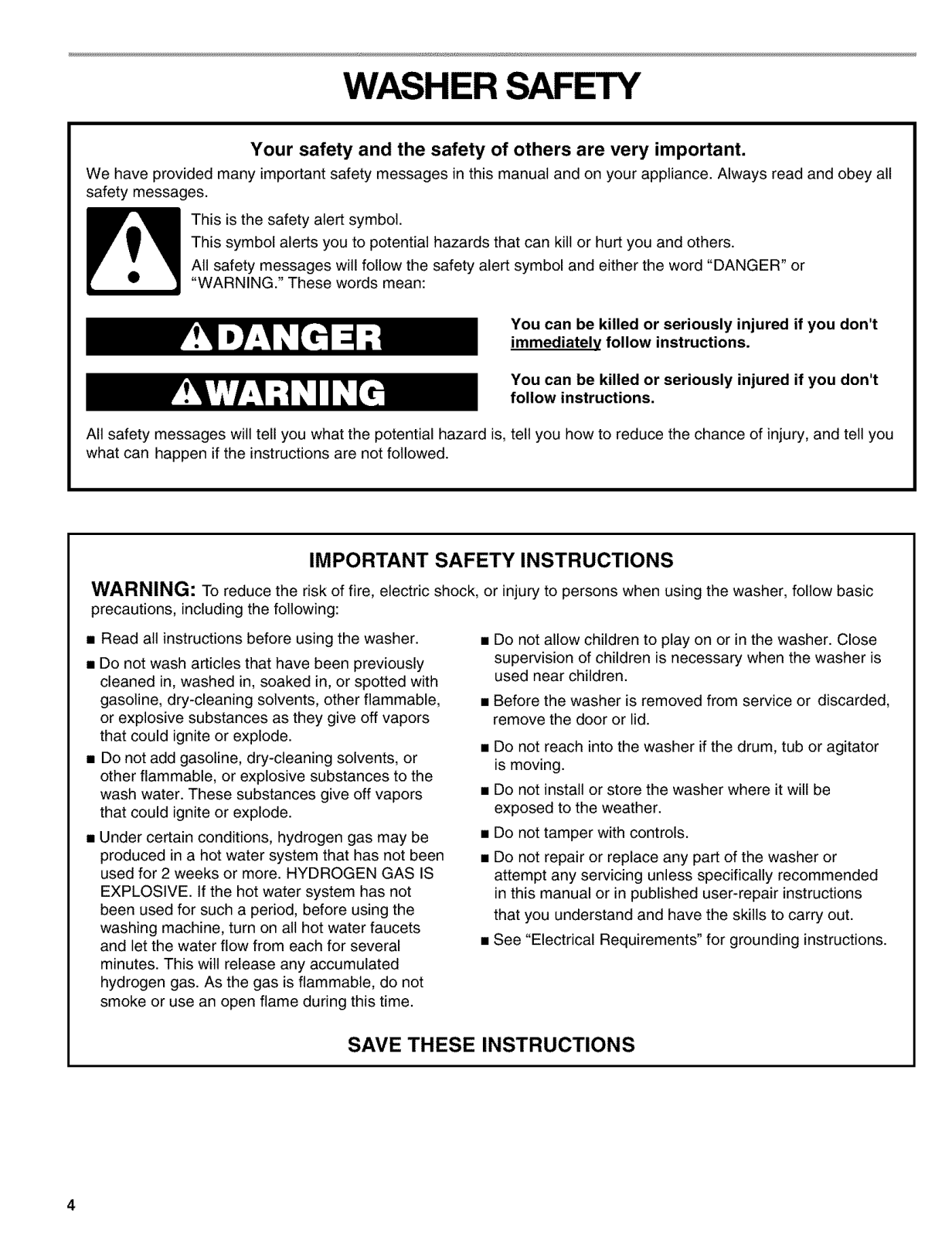

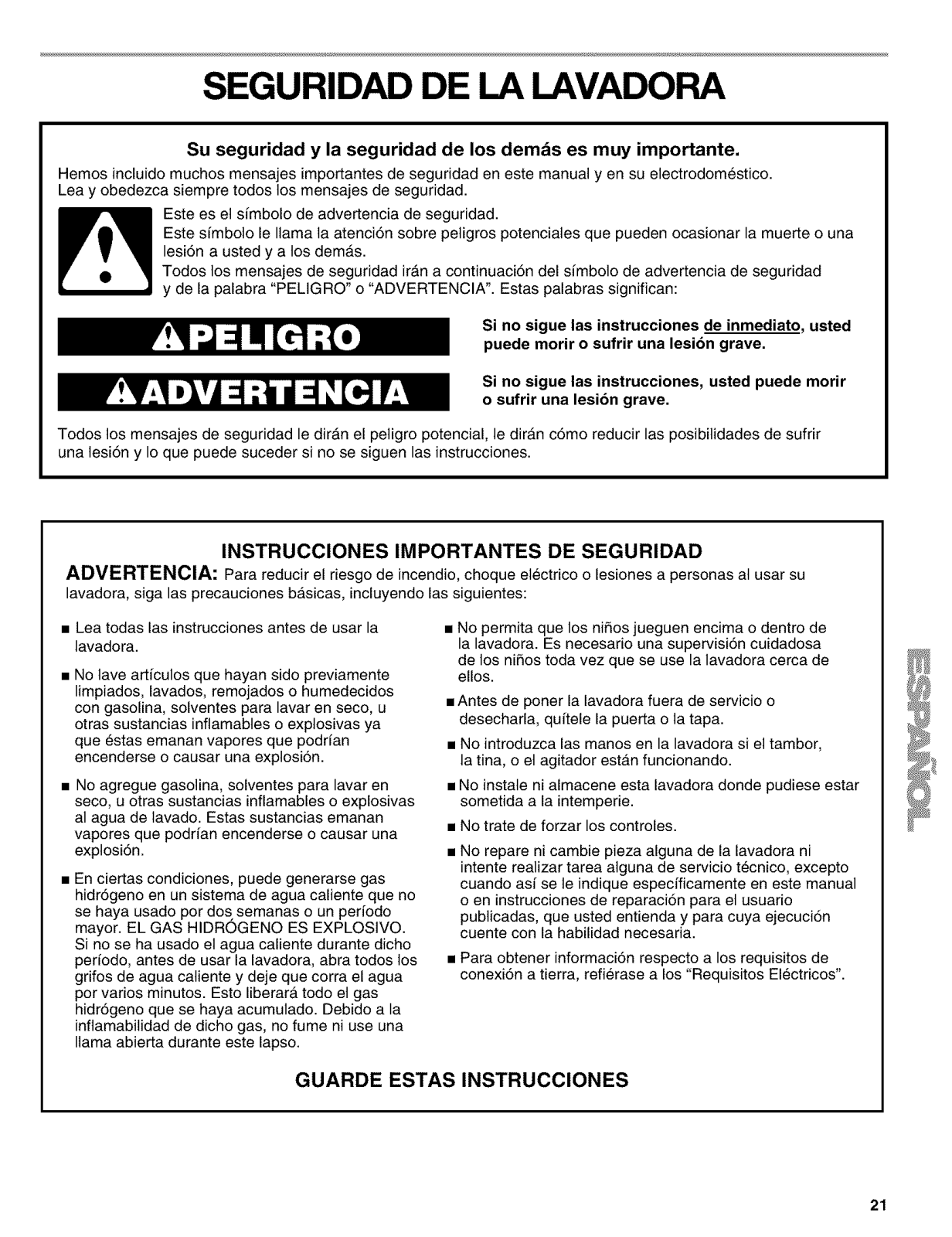

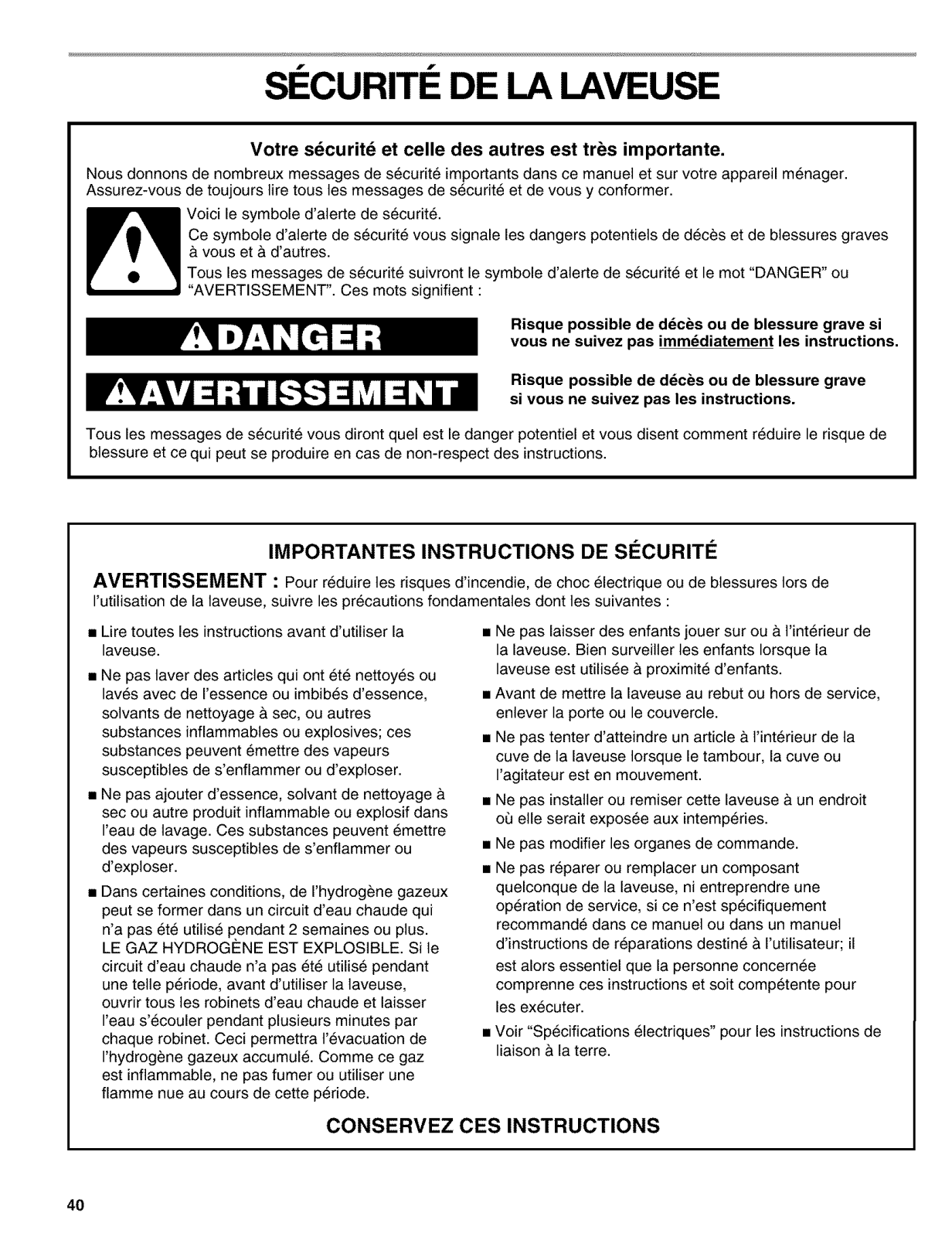

WASHER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or

This is the safety alert symbol.

"WARNING." These words mean:

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't

follow instructions,

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic

precautions, including the following:

• Read all instructions before using the washer. •

• Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with

gasoline, dry-cleaning solvents, other flammable, • or explosive substances as they give off vapors

that could ignite or explode.

• Do not add gasoline, dry-cleaning solvents, or other flammable, or explosive substances to the

wash water. These substances give off vapors •

that could ignite or explode.

• Under certain conditions, hydrogen gas may be produced in a hot water system that has not been

used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not

been used for such a period, before using the washing machine, turn on all hot water faucets

and let the water flow from each for several minutes. This will release any accumulated

hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is

used near children.

Before the washer is removed from service or discarded,

remove the door or lid.

Do not reach into the washer if the drum, tub or agitator

is moving.

Do not install or store the washer where it will be exposed to the weather.

Do not tamper with controls. Do not repair or replace any part of the washer or

attempt any servicing unless specifically recommended

in this manual or in published user-repair instructions

that you understand and have the skills to carry out. See "Electrical Requirements" for grounding instructions.

SAVE THESEINSTRUCTIONS

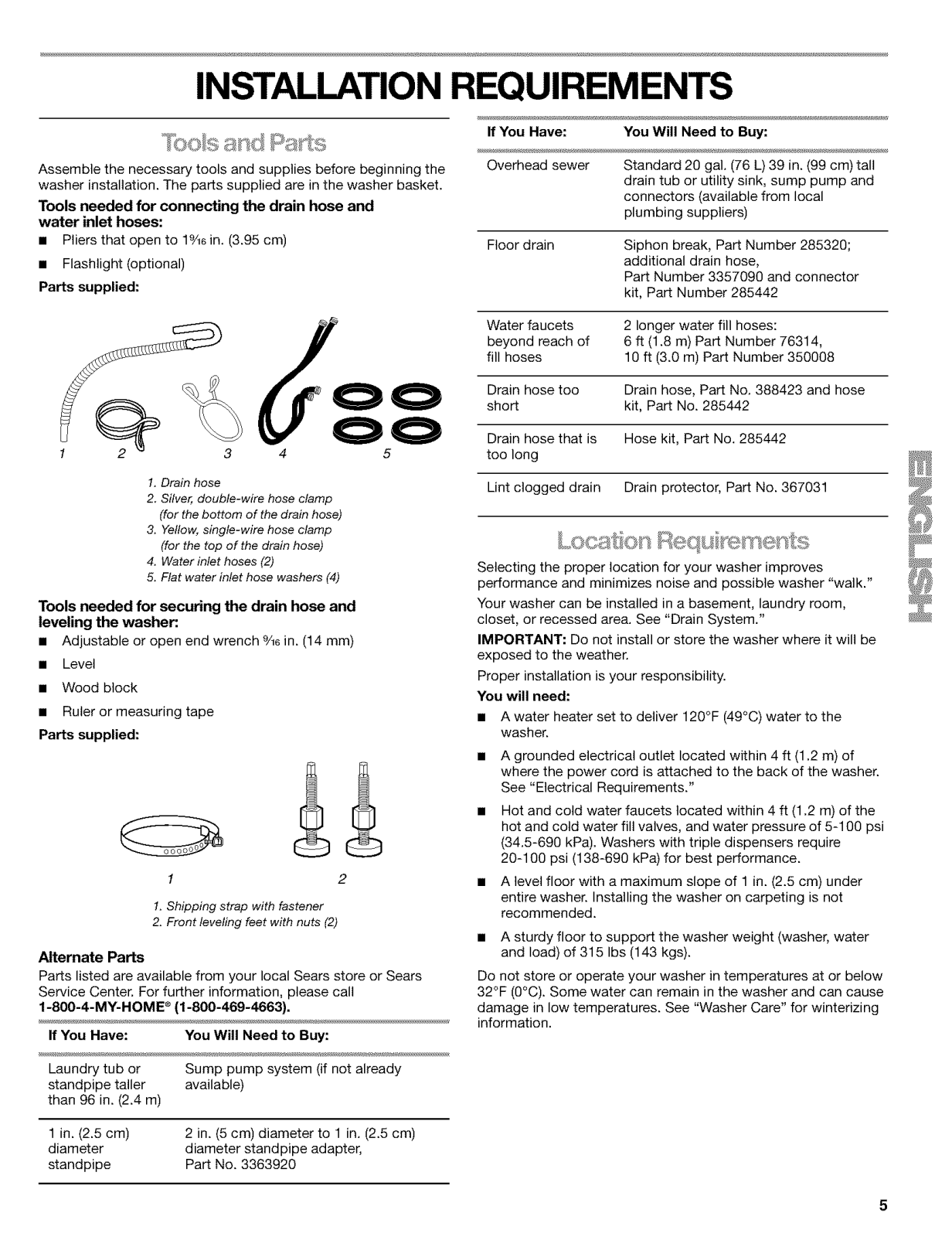

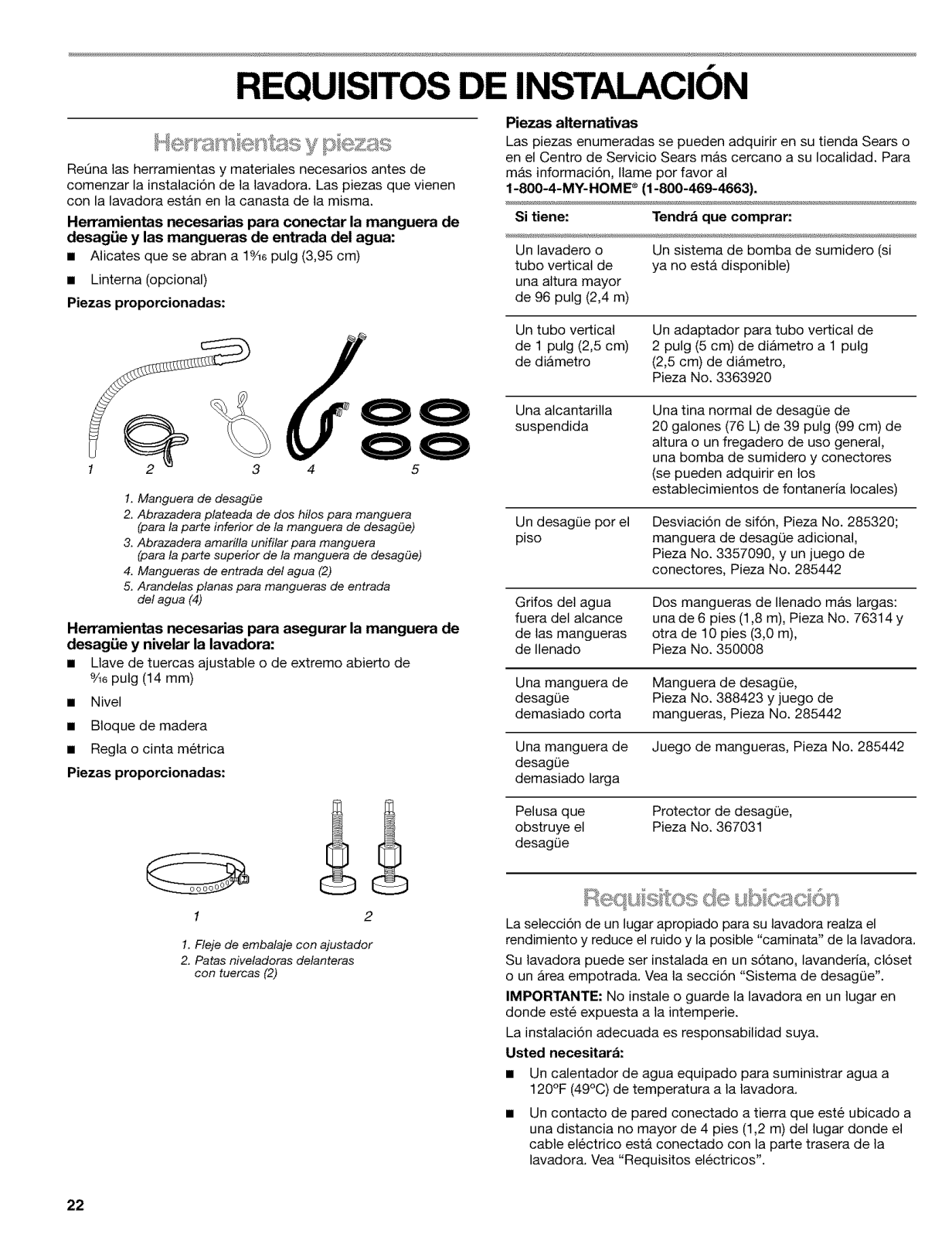

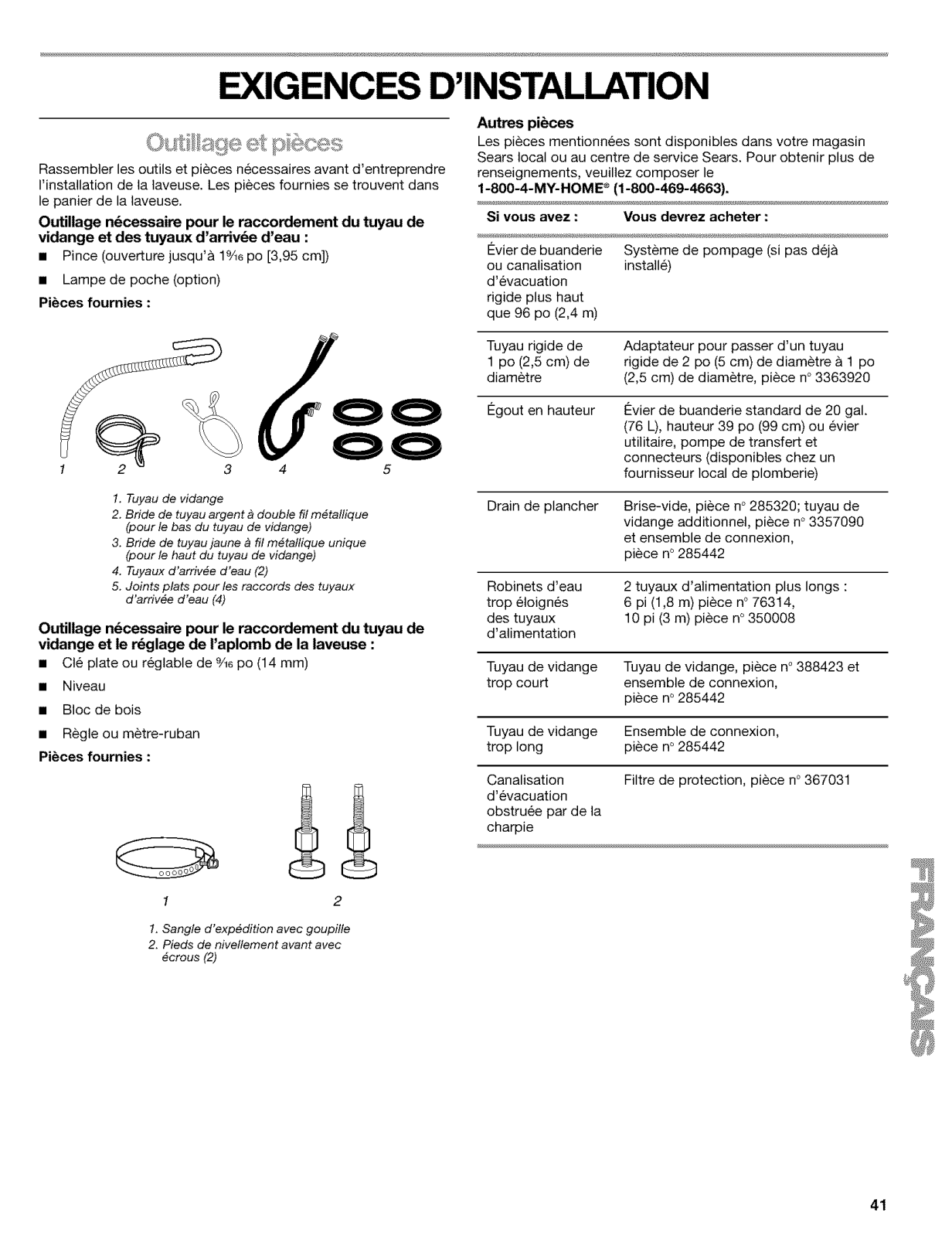

INSTALLATION REQUIREMENTS

If You Have: You Will Need to Buy:

Assemble the necessary tools and supplies before beginning the washer installation. The paris supplied are in the washer basket.

Tools needed for connecting the drain hose and water inlet hoses:

• Pliers that open to 19/16in. (3.95 cm)

• Flashlight (optional)

Parts supplied:

3 4 5

1. Drain hose

2. Silver, double-wire hose clamp (for the bottom of the drain hose)

3. Yellow, single-wire hose clamp

(for the top of the drain hose)

4. Water inlet hoses (2)

5. Flat water inlet hose washers (4)

Tools needed for securing the drain hose and leveling the washer:.

• Adjustable or open end wrench %8in. (14 mm)

• Level

• Wood block

• Ruler or measuring tape

Parts supplied:

1 2

1. Shipping strap with fastener

2. Front leveling feet with nuts (2)

Alternate Parts

Parts listed are available from your local Sears store or Sears

Service Center. For further information, please call

1-800-4-MY-HOME ®(1-800-469-4663).

If You Have: You Will Need to Buy:

Overhead sewer Standard 29 gaL (76 L) 39 in. (99 cm) tall

drain tub or utility sink, sump pump and connectors (available from local plumbing suppliers)

Floor drain Siphon break, Part Number 285320;

additional drain hose, Part Number 3357099 and connector kit, Part Number 285442

Water faucets 2 longer water fill hoses:

beyond reach of 6 ft (1.8 m) Part Number 76314,

fill hoses 10 ft (3.0 m) Part Number 350008

Drain hose too Drain hose, Part No. 388423 and hose

short kit, Part No. 285442

Drain hose that is Hose kit, Part No. 285442

too long

Lint clogged drain Drain protector, Part No. 367031

,,,eta O e e }l s

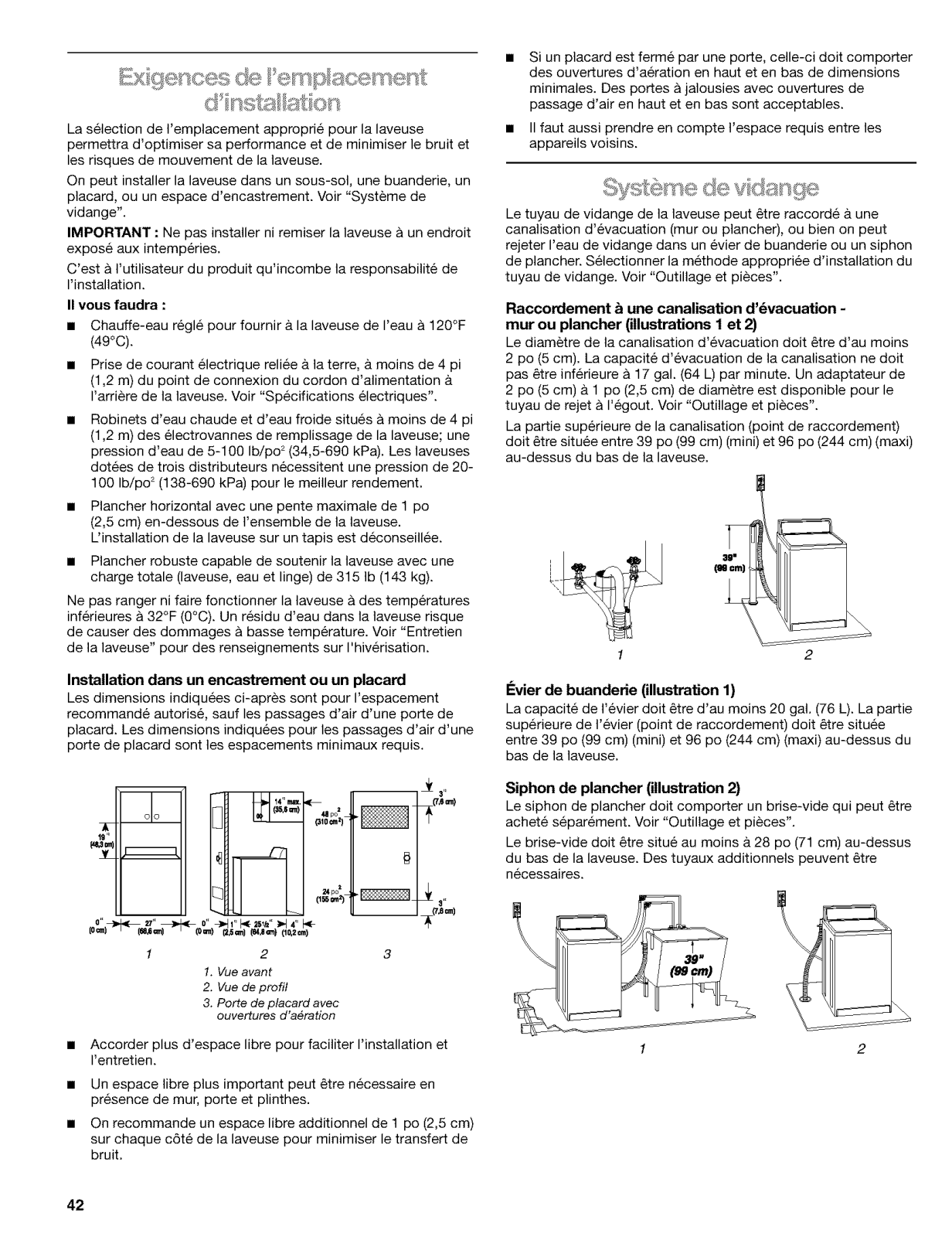

Selecting the proper location for your washer improves

performance and minimizes noise and possible washer "walk."

Your washer can be installed in a basement, laundry room, closet, or recessed area. See "Drain System."

iMPORTANT: Do not install or store the washer where it will be

exposed to the weather.

Proper installation is your responsibility.

You will need:

• A water heater set to deliver 120°F (49°C) water to the washer.

• A grounded electrical outlet located within 4 ft (1.2 m) of where the power cord is attached to the back of the washer.

See "Electrical Requirements."

• Hot and cold water faucets located within 4 ft (1.2 m) of the

hot and cold water fill valves, and water pressure of 5-199 psi

(34.5-690 kPa). Washers with triple dispensers require 20-199 psi (138-699 kPa) for best performance.

• A level floor with a maximum slope of 1 in. (2.5 cm) under entire washer. Installing the washer on carpeting is not

recommended.

• A sturdy floor to support the washer weight (washer, water and load) of 315 Ibs (143 kgs).

Do not store or operate your washer in temperatures at or below

32°F (0°C). Some water can remain in the washer and can cause damage in low temperatures. See "Washer Care" for winterizing

information.

Laundry tub or Sump pump system (if not already

standpipe taller available) than 96 in. (2.4 m)

1 in. (2.5 cm) 2 in. (5 cm) diameter to 1 in. (2.5 cm) diameter diameter standpipe adapter, standpipe Part No. 3363920

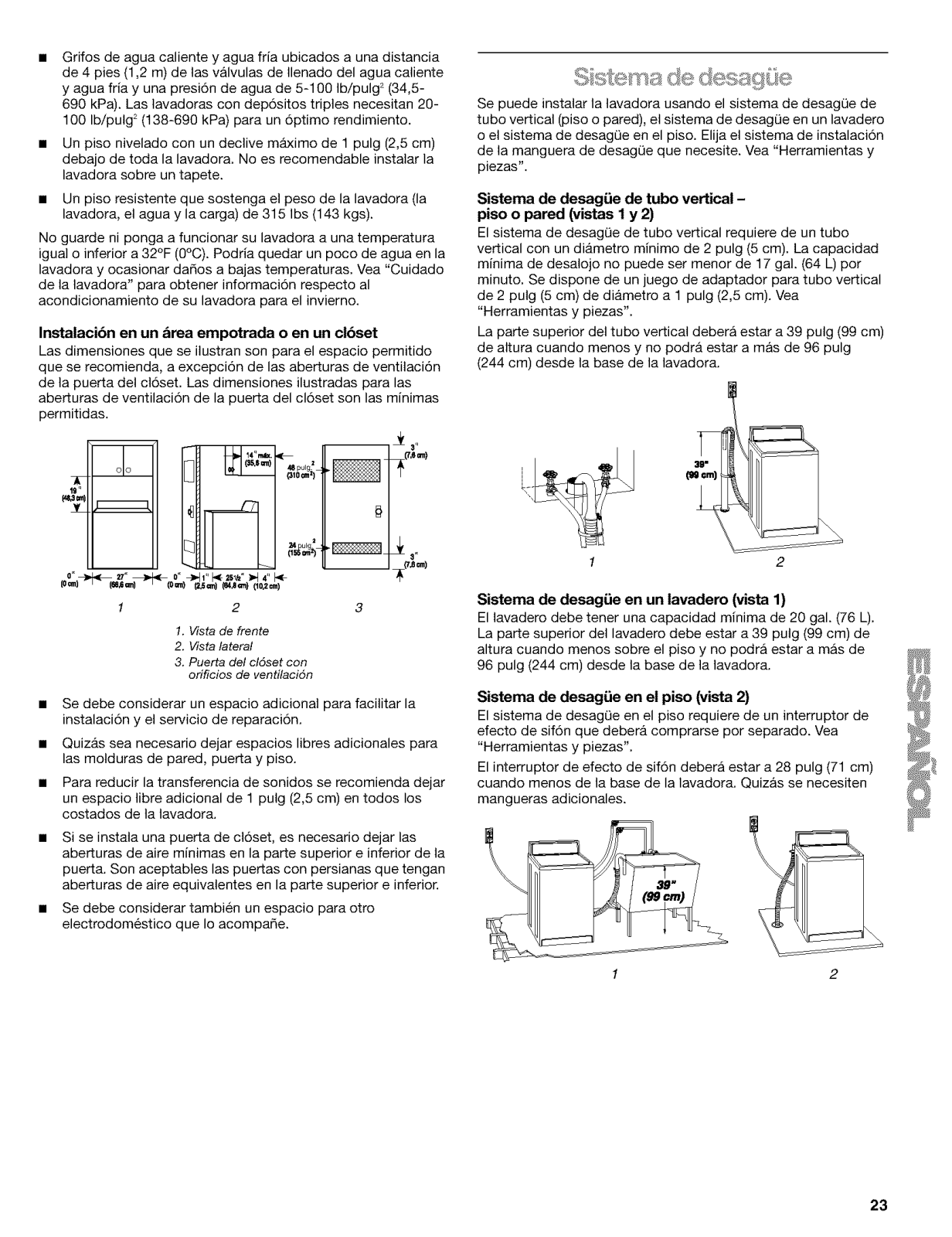

Recessed area or closet installation

The dimensions shown are for the recommended spacing allowed, except the closet door ventilation openings. The dimensions shown for the closet door ventilation openings are the minimum required.

24 in =

-- _.8m)

Laundry tub drain system (view 1)

The laundry tub needs a minimum 20 gal. (76 L) capacity. The top of the laundry tub must be at least 39 in. (99 cm) above the floor and no higher than 96 in. (244 cm) from the bottom of the washer.

Floor drain system (view 2)

The floor drain system requires a siphon break that may be

purchased separately. See "Tools and Parts."

The siphon break must be a minimum of 28 in. (71 cm) from the

bottom of the washer. Additional hoses might be needed.

1 2

1. Front view

2. Side view

3. Closet door with vents

Additional spacing should be considered for ease of

installation and servicing.

Additional clearances may be required for wall, door and floor moldings.

Additional spacing of 1 in. (2.5 cm) on all sides of the washer

is recommended to reduce noise transfer.

If a closet door is installed, the minimum air openings in the top and bottom of the door are required. Louvered doors with air openings in the top and bottom are acceptable,

• Companion appliance spacing should also be considered.

The washer can be installed using the standpipe drain system (floor or wall), the laundry tub drain system, or the floor drain system. Select the drain hose installation method you need. See

"Tools and Parts."

Standpipe drain system - wall or floor (views I & 2) The standpipe drain requires a minimum diameter standpipe of

2 in. (5 cm). The minimum carry-away capacity can be no less than 17 gal. (64 L) per minute. A 2 in. (5 cm) diameter to 1 in. (2.5 cm) diameter standpipe adapter kit is available. See "Tools

and Parts." The top of the standpipe must be at least 39 in. (99 cm) high and

no higher than 96 in. (244 cm) from the bottom of the washer.

8 =

(m©m)

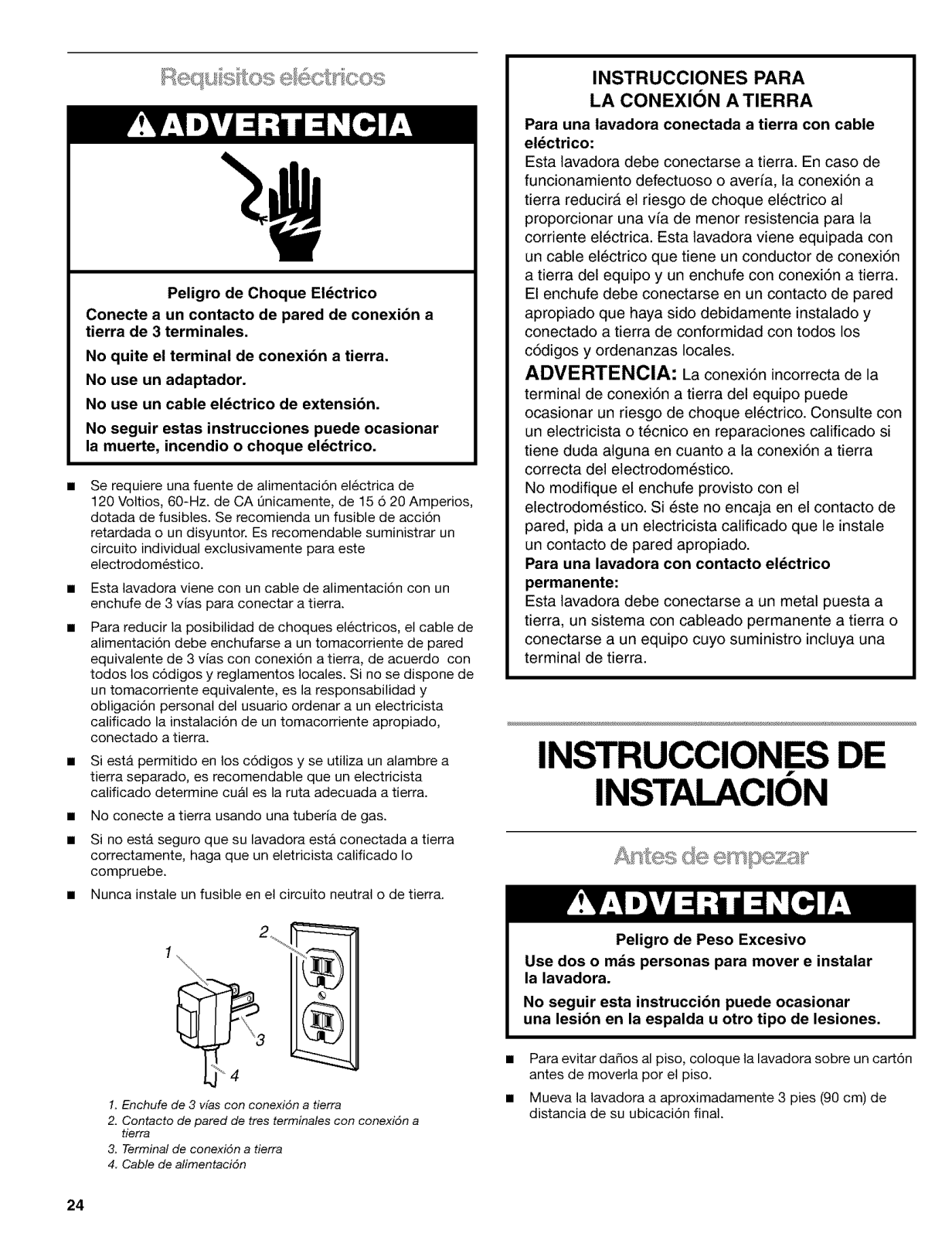

Electrical Shock Hazard

Plug into a grounded 3 prong outlet. Do not remove ground prong.

Do not use an adapter. Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

A 120-volt, 60-Hz., AC-only, 15- or 20-ampere, fused electrical supply is required. A time-delay fuse or circuit

breaker is recommended. It is recommended that a separate

circuit serving only this appliance be provided. This washer is equipped with a power supply cord having a

3 prong grounding plug. To minimize possible shock hazard, the cord must be

plugged into a mating, 3 prong, grounding-type outlet, grounded in accordance with local codes and ordinances. If a mating outlet is not available, it is the personal responsibility and obligation of the customer to have the properly grounded outlet installed by a qualified electrician.

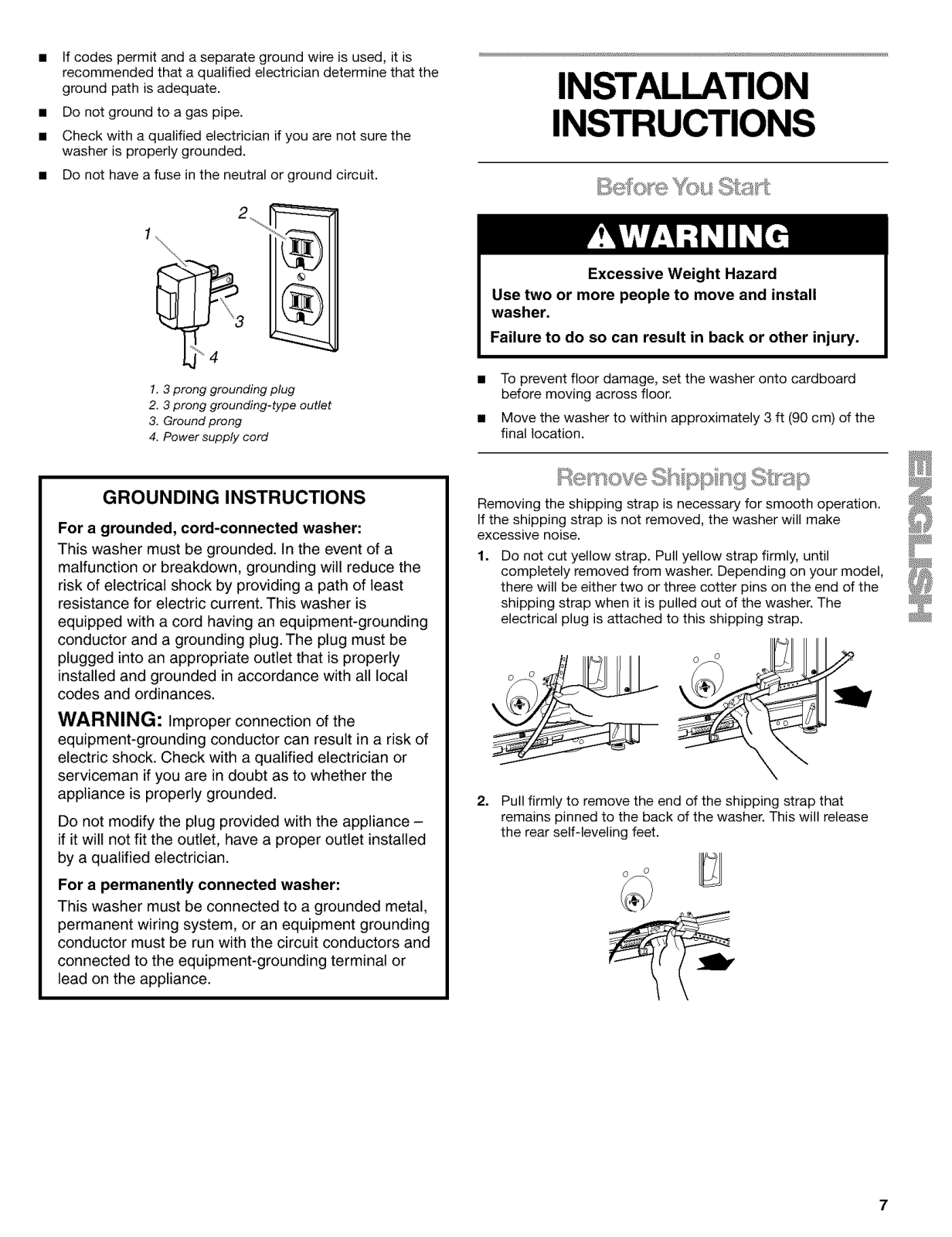

• If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

• Do not ground to a gas pipe.

• Check with a qualified electrician if you are not sure the washer is properly grounded.

• Do not have a fuse in the neutral or ground circuit.

¢bl

INSTALLATION

INSTRUCTIONS

1. 3 prong grounding plug

2. 3 prong grounding-type outlet

3. Ground prong

4. Power supply cord

GROUNDING INSTRUCTIONS

For a grounded, cord-connected washer:

This washer must be grounded. In the event of a

malfunction or breakdown, grounding will reduce the risk of electrical shock by providing a path of least

resistance for electric current. This washer is equipped with a cord having an equipment-grounding

conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly

installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the

equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or

serviceman if you are in doubt as to whether the appliance is properly grounded.

Do not modify the plug provided with the appliance - if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

For a permanently connected washer:

This washer must be connected to a grounded metal,

permanent wiring system, or an equipment grounding conductor must be run with the circuit conductors and

connected to the equipment-grounding terminal or lead on the appliance.

• To prevent floor damage, set the washer onto cardboard before moving across floor.

• Move the washer to within approximately 3 ft (90 cm) of the

final location.

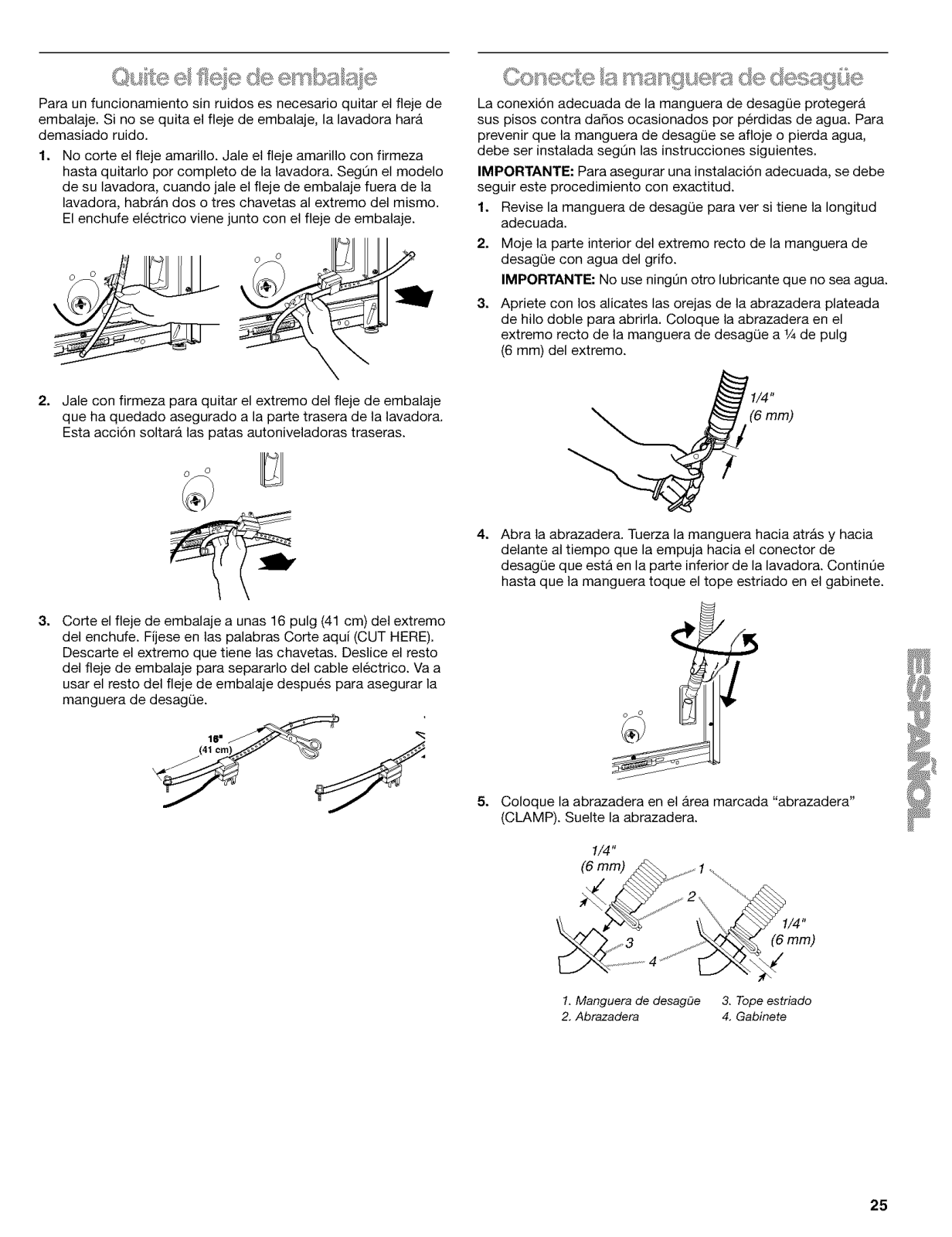

Removing the shipping strap is necessary for smooth operation. If the shipping strap is not removed, the washer will make

excessive noise.

1. Do not cut yellow strap. Pull yellow strap firmly, until completely removed from washer. Depending on your model, there will be either two or three cotter pins on the end of the shipping strap when it is pulled out of the washer. The electrical plug is attached to this shipping strap.

2. Pull firmly to remove the end of the shipping strap that remains pinned to the back of the washer. This will release the rear self-leveling feet.

3. Cut the shipping strap about 16 in. (41 cm) from plug end. Look for the words "CUT HERE." Discard end with the cotter

pins. Slide remainder of shipping strap from the power cord.

You will use the remainder of the shipping strap later to secure the drain hose.

Proper connection of the drain hose will protect your floors from

damage due to water leakage. To prevent the drain hose from coming off or leaking, it must be installed per the following

instructions. IMPORTANT: Toensure proper installation, this procedure must

be followed exactly.

1. Check the drain hose to see that it is the proper length.

2. Wet the inside of the straight end of the drain hose with tap

water

IMPORTANT: Do not use any lubricant other than water.

3. Squeeze ears of silver, double-wire clamp with pliers to open.

Place clamp over the straight end of the drain hose V4in.

(6 mm) from the end.

For standpipe or laundry tub drain systems:

1. Open yellow, single-wire clamp with pliers and slide over hooked end of drain hose to secure the rubber and

corrugated sections together.

1. Hooked end

2. Drain hose

2. Put hooked end of drain hose into laundry tub or standpipe. Rotate hook to eliminate kinks.

To prevent drain water from going back into the washer:

• Do not straighten hooked end of drain hose. Do not force excess drain hose into standpipe. Hose should be secure, but loose enough to provide a gap of air.

• Do not lay excess drain hose in bottom of laundry tub.

_1/4"

(6 mm)

4. Open clamp. Twist hose back and forth while pushing down onto drain connector at the bottom of the washer. Continue

until hose contacts the ribbed stop on the cabinet.

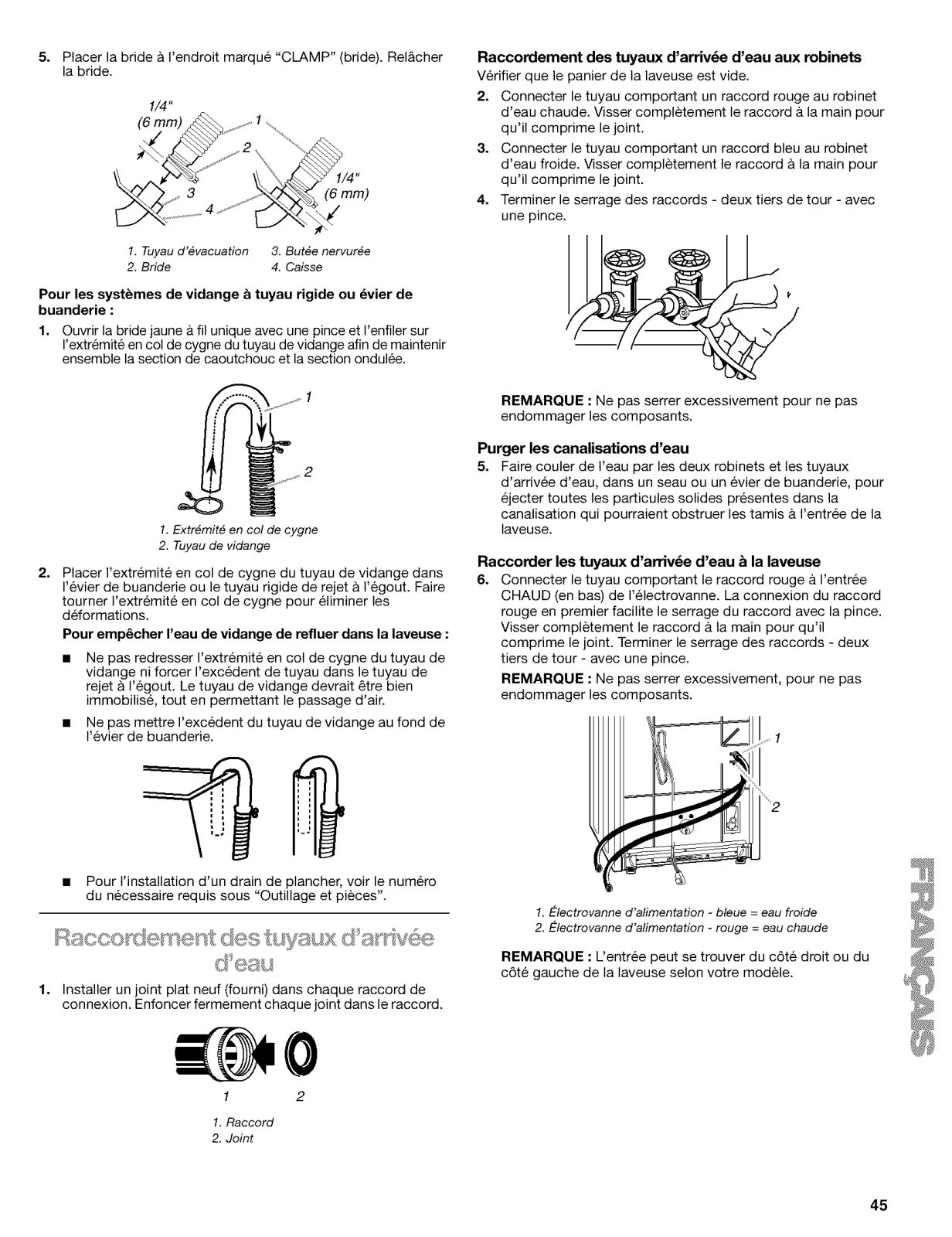

5. Place clamp over area marked "CLAMR" Release clamp.

1/4"

(6turn)

For floor drain installation, see kit number required under "Tools and Parts."

1. Insert new fiat washers (supplied) into each end of the inlet hoses. Firmly seat the washers in the couplings.

1 2

1. Coupling

2. Washer

Connect the inlet hoses to the water faucets

Make sure the washer basket is empty.

2. Attach the hose with the red coupling to the hot water faucet. Screw on coupling by hand until seated on the washer.

3. Attach the hose with the blue coupling to the cold water faucet. Screw on coupling by hand until seated on the

washer.

(6turn)

1, Drain Hose 3. Ribbed Stop

2. Clamp 4. Cabinet

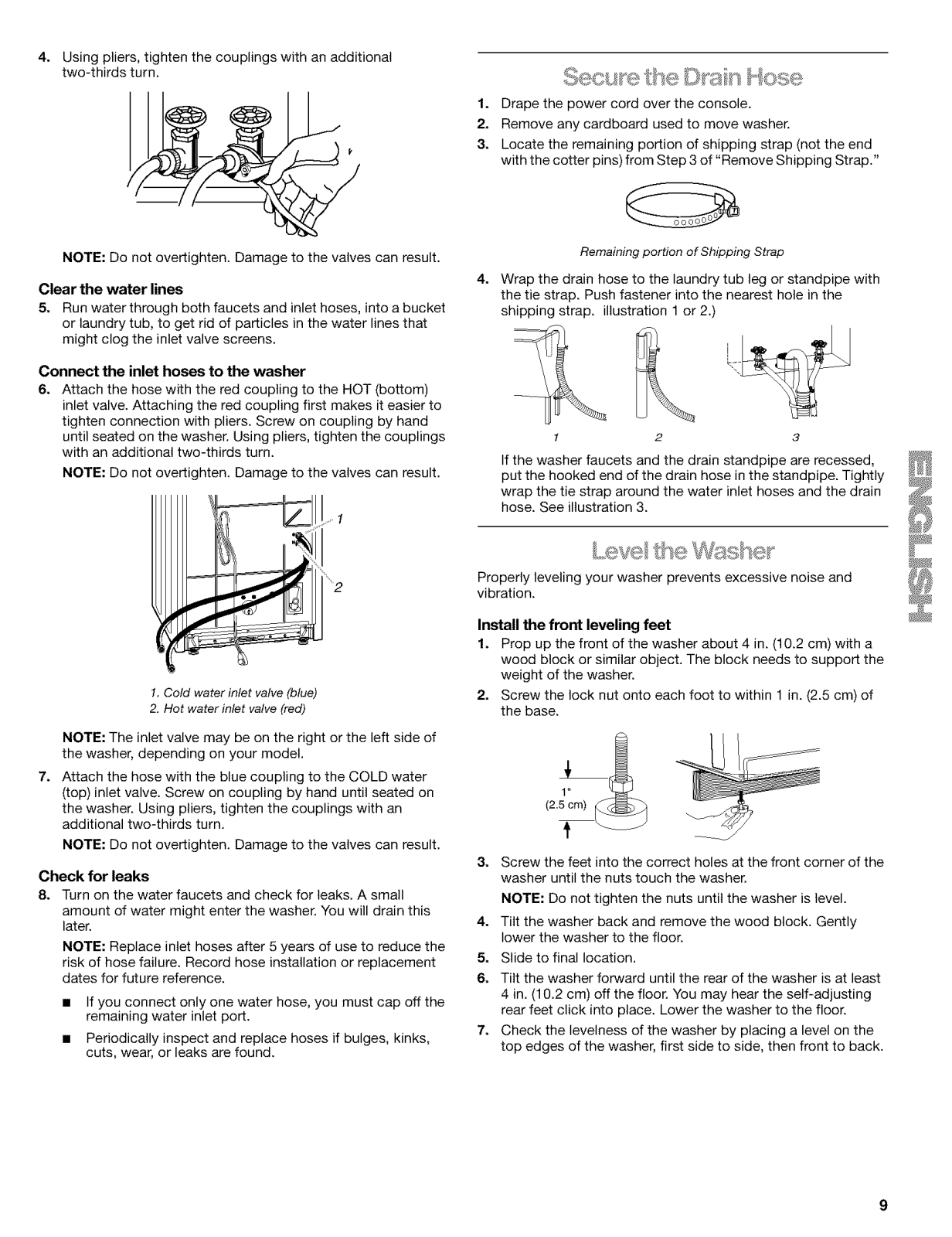

Using pliers, tighten the couplings with an additional

two-thirds turn.

1. Drape the power cord over the console.

2. Remove any cardboard used to move washer,

3. Locate the remaining portion of shipping strap (not the end with the cotter pins) from Step 3 of "Remove Shipping Strap."

NOTE: Do not overlghten. Damage to the valves can result.

Clear the water lines

5. Run water through both faucets and inlet hoses, into a bucket or laundry tub, to get rid of particles in the water lines that

might clog the inlet valve screens.

Connect the inlet hoses to the washer

6. Attach the hose with the red coupling to the HOT (bottom)

inlet valve. Attaching the red coupling first makes it easier to

tighten connection with pliers. Screw on coupling by hand

until seated on the washer. Using pliers, tighten the couplings

with an additional two-thirds turn.

NOTE: Do not overlghten. Damage to the valves can result.

1 Cold water inlet valve (blue)

2. Hot water inlet valve (red)

Remaining portion of Shipping Strap

4. Wrap the drain hose to the laundry tub leg or standpipe with the tie strap. Push fastener into the nearest hole in the shipping strap, illustration 1 or 2.)

If the washer faucets and the drain standpipe are recessed, put the hooked end of the drain hose in the standpipe. Tightly

wrap the tie strap around the water inlet hoses and the drain

hose. See illustration 3.

Properly leveling your washer prevents excessive noise and

vibration.

Install the front leveling feet

1. Prop up the front of the washer about 4 in. (10.2 cm) with a

wood block or similar object. The block needs to suppor[ the weight of the washer.

2. Screw the lock nut onto each foot to within 1 in. (2.5 cm) of the base.

NOTE: The inlet valve may be on the right or the left side of

the washer, depending on your model.

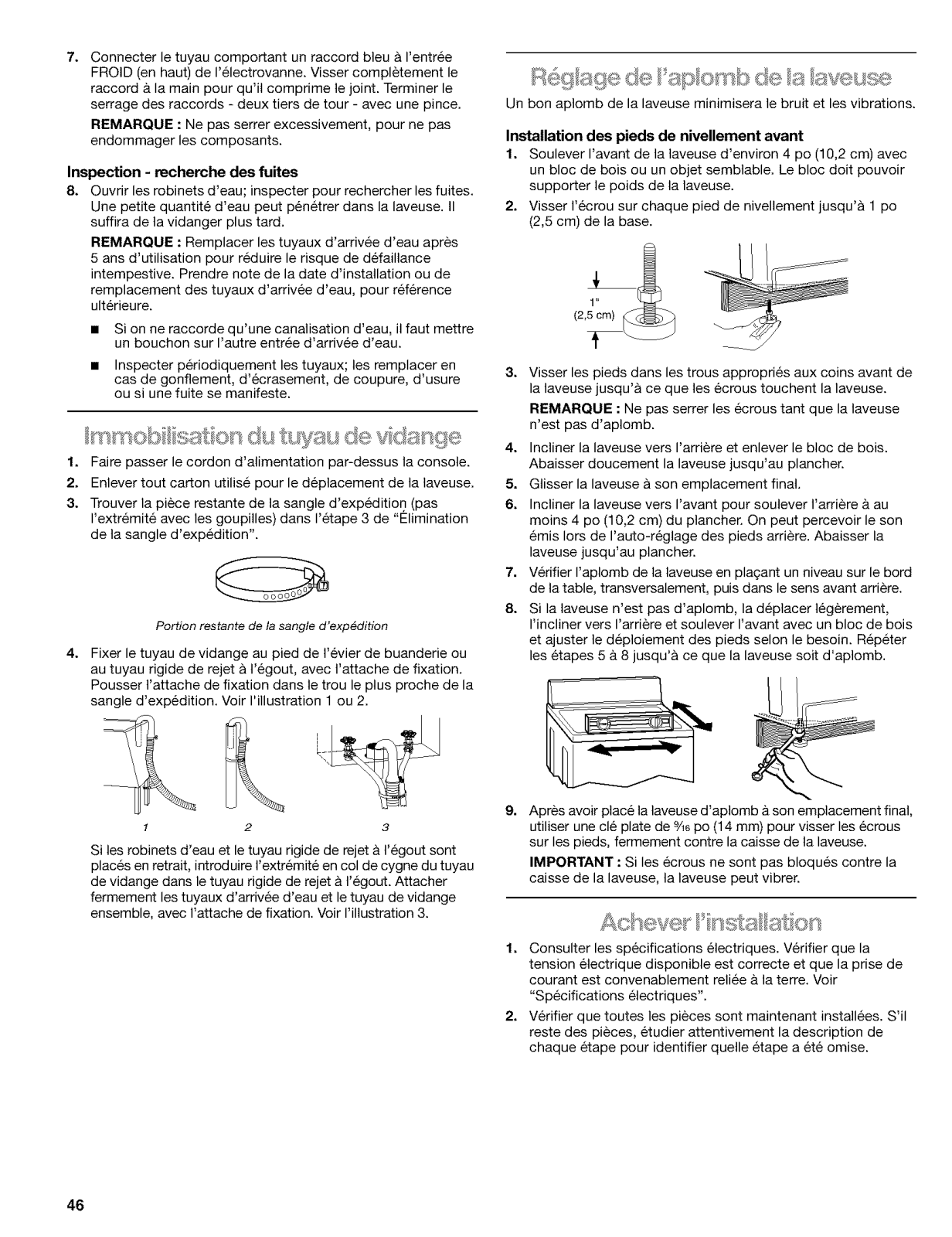

7. Attach the hose with the blue coupling to the COLD water (top) inlet valve. Screw on coupling by hand until seated on the washer. Using pliers, tighten the couplings with an

additional two-thirds turn.

NOTE: Do not overlghten. Damage to the valves can result.

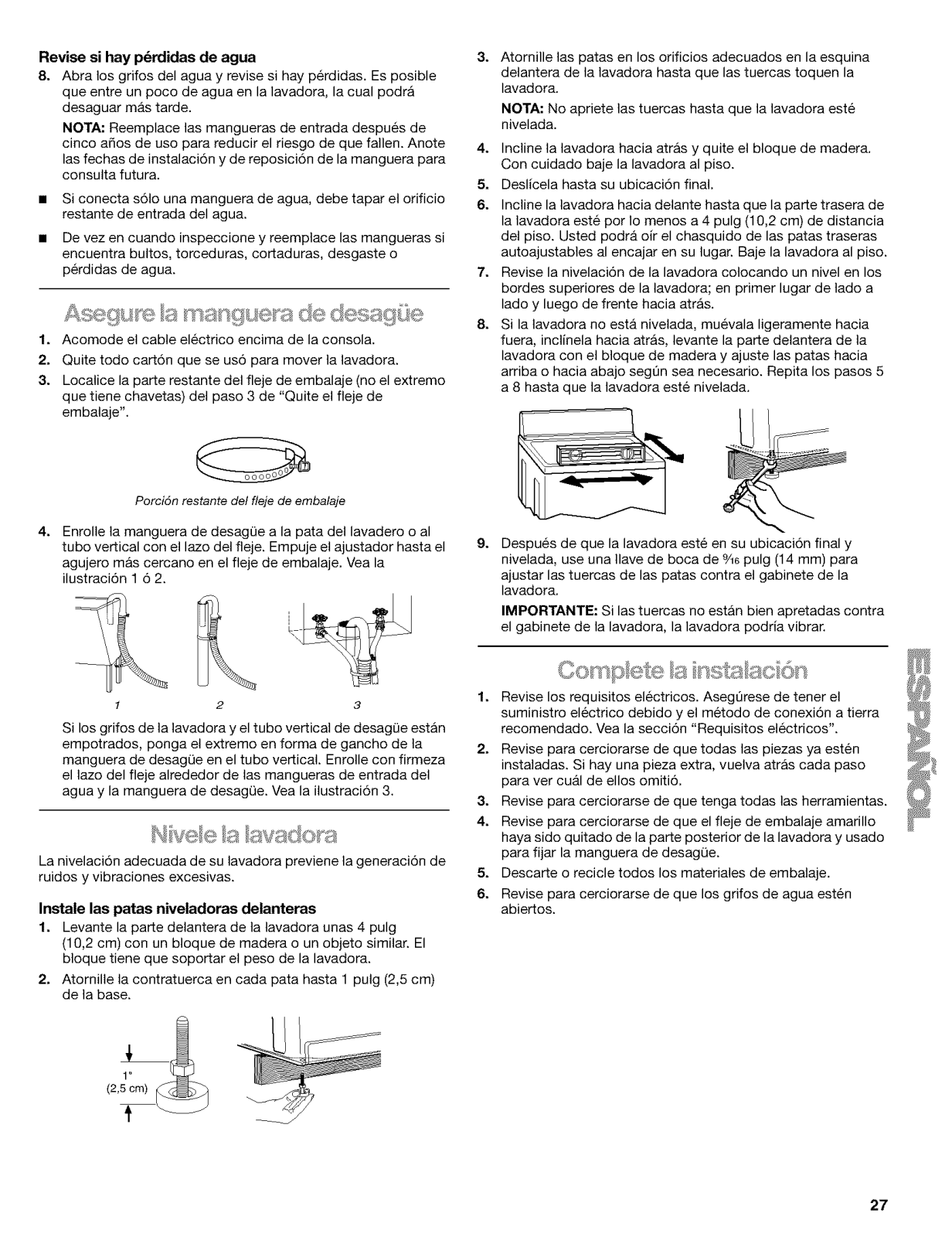

Check for leaks

8. Turn on the water faucets and check for leaks. A small amount of water might enter the washer. You will drain this

later. NOTE: Replace inlet hoses after 5 years of use to reduce the

risk of hose failure. Record hose installation or replacement dates for future reference.

If you connect only one water hose, you must cap off the remaining water inlet port.

Periodically inspect and replace hoses if bulges, kinks, cuts, wear, or leaks are found.

(2.5 cm)

3. Screw the feet into the correct holes at the front corner of the washer until the nuts touch the washer.

NOTE: Do not tighten the nuts until the washer is level.

4. Tilt the washer back and remove the wood block. Gently

lower the washer to the floor.

5. Slide to final location.

6. Tilt the washer forward until the rear of the washer is at least 4 in. (10.2 cm) off the floor. You may hear the self-adjusting

rear feet click into place. Lower the washer to the floor.

7. Check the levelness of the washer by placing a level on the top edges of the washer, first side to side, then front to back.

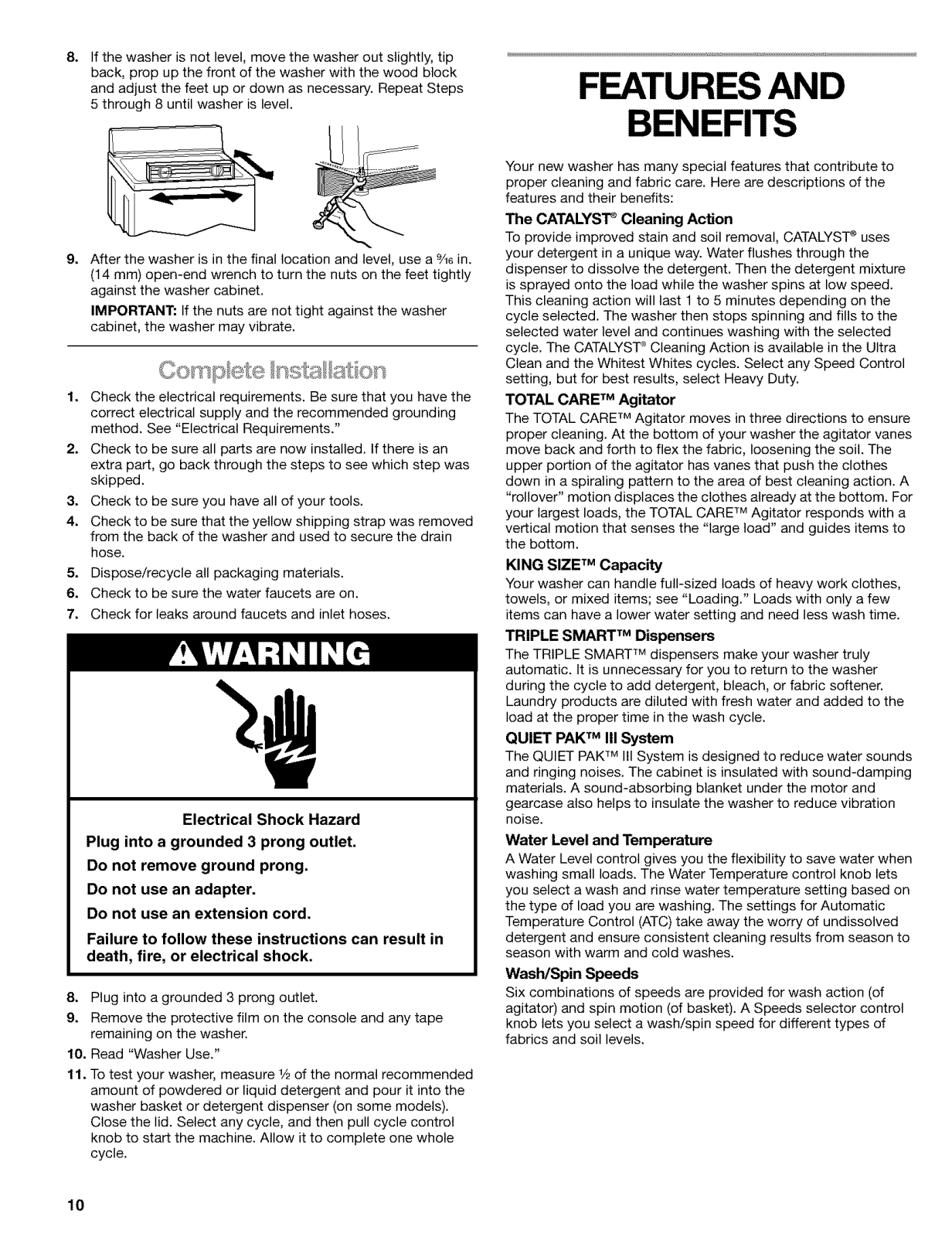

8. Ifthewasherisnotlevel,movethewasheroutslightly,tip back,propupthefrontofthewasherwiththewoodblock

andadjustthefeetupordownasnecessary.RepeatSteps 5through8untilwasherislevel.

9. Afterthewasherisinthefinallocationandlevel,usea%8in.

(14mm)open-endwrenchtoturnthenutsonthefeettightly againstthewashercabinet.

IMPORTANT:Ifthenutsarenottightagainstthewasher

cabinet,thewashermayvibrate.

1. Checktheelectricalrequirements.Besurethatyouhavethe correctelectricalsupplyandtherecommendedgrounding method.See"ElectricalRequirements."

2. Checktobesureallpartsarenowinstalled.Ifthereisan extrapart,gobackthroughthestepstoseewhichstepwas skipped.

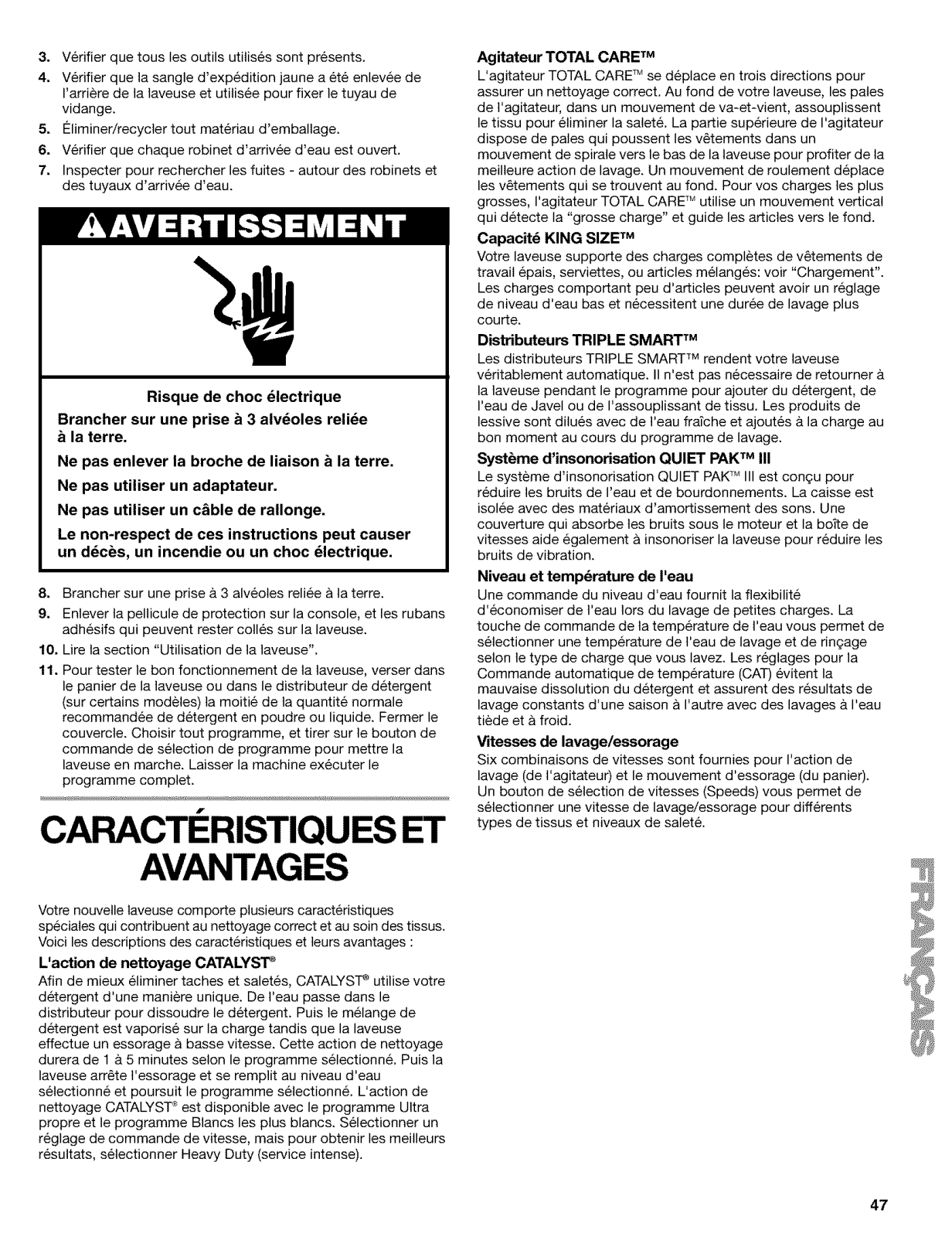

3. Check to be sure you have all of your tools.

4. Check to be sure that the yellow shipping strap was removed from the back of the washer and used to secure the drain

hose.

5. Dispose/recycle all packaging materials.

6. Check to be sure the water faucets are on.

7. Check for leaks around faucets and inlet hoses.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet. Do not remove ground prong.

Do not use an adapter. Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

8. Plug into agrounded 3 prong outlet.

9. Remove the protective film on the console and any tape remaining on the washer.

10. Read "Washer Use."

11. To test your washer, measure 1/2of the normal recommended amount of powdered or liquid detergent and pour it into the washer basket or detergent dispenser (on some models). Close the lid. Select any cycle, and then pull cycle control

knob to start the machine. Allow it to complete one whole

cycle.

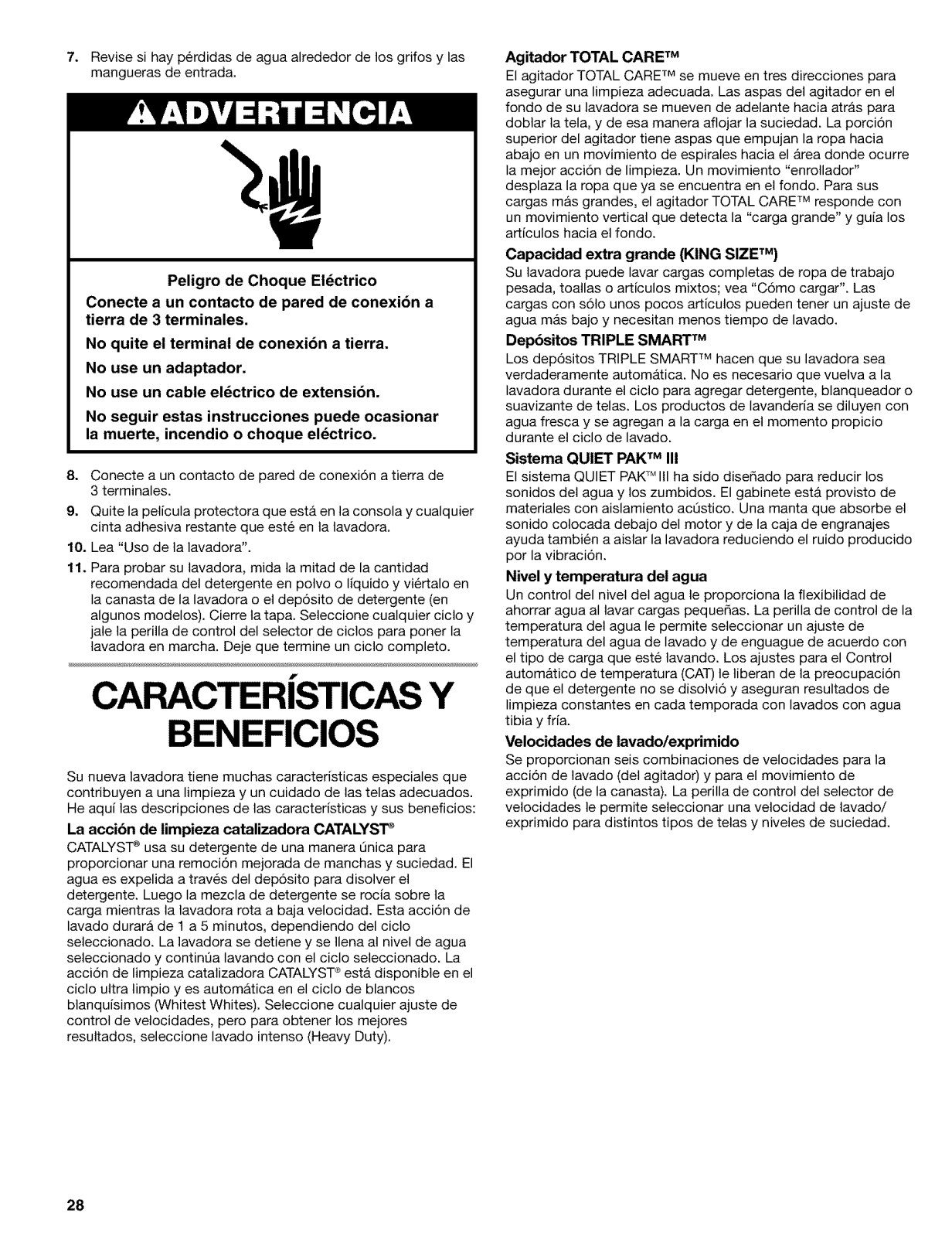

FEATURES AND

BENEFITS

Your new washer has many special features that contribute to

proper cleaning and fabric care. Here are descriptions of the

features and their benefits: The CATALYST _ Cleaning Action

To provide improved stain and soil removal, CATALYST_ uses your detergent in a unique way. Water flushes through the

dispenser to dissolve the detergent. Then the detergent mixture

is sprayed onto the load while the washer spins at low speed. This cleaning action will last 1 to 5 minutes depending on the cycle selected. The washer then stops spinning and fills to the selected water level and continues washing with the selected

cycle. The CATALYST_ Cleaning Action is available in the Ultra Clean and the Whitest Whites cycles. Select any Speed Control

setting, but for best results, select Heavy Duty. TOTAL CARE TM Agitator

The TOTAL CARETM Agitator moves in three directions to ensure

proper cleaning. At the bottom of your washer the agitator vanes move back and forth to flex the fabric, loosening the soil. The

upper portion of the agitator has vanes that push the clothes down in a spiraling pattern to the area of best cleaning action. A

"rollover" motion displaces the clothes already at the bottom. For your largest loads, the TOTAL CARETM Agitator responds with a vertical motion that senses the "large load" and guides items to

the bottom.

KING SiZE TM Capacity

Your washer can handle full-sized loads of heavy work clothes, towels, or mixed items; see "Loading." Loads with only a few

items can have a lower water setting and need less wash time. TRIPLE SMART TM Dispensers

The TRIPLE SMART TM dispensers make your washer truly automatic. It is unnecessary for you to return to the washer during the cycle to add detergent, bleach, or fabric softener.

Laundry products are diluted with fresh water and added to the

load at the proper time in the wash cycle.

QUIET PAK TM III System

The QUIET PAKTM Ill System is designed to reduce water sounds and ringing noises. The cabinet is insulated with sound-damping materials. A sound-absorbing blanket under the motor and gearcase also helps to insulate the washer to reduce vibration

noise.

Water Level and Temperature

A Water Level control gives you the flexibility to save water when washing small loads. The Water Temperature control knob lets you select a wash and rinse water temperature setting based on the type of load you are washing. The settings for Automatic

Temperature Control (ATC) take away the worry of undissolved detergent and ensure consistent cleaning results from season to

season with warm and cold washes.

Wash/Spin Speeds

Six combinations of speeds are provided for wash action (of agitator) and spin motion (of basket). A Speeds selector control

knob lets you select a wash/spin speed for different types of fabrics and soil levels.

WASHER USE

_T4L_St_aW

I WA]ERLL:VEL WASH/ RINSETEMP oPnONS SPEE_ _TAI_ISPl. 1

M_,_M COLD/

C_tO ,m, O COLD _H ° 4b

HOT/ CaW/ _ O O RE,_y OU1y {_'_- _ q

RNE _Lr_ R;_IS_O_

_n_T

mm_s_wpt_

2. Pour measured powdered or liquid detergent into the detergent dispenser.

NOTE: You can add color-safe bleach (powdered or liquid) to this dispenser. Be sure to match powdered color-safe bleach with powdered detergent or match liquid color-safe bleach

Fire Hazard

Never place items in the washer that are dampened with gasoline or other flammable

fluids.

with liquid detergent.

3. Pour measured liquid chlorine bleach into the liquid chlorine bleach dispenser, if desired. Bleach is diluted and

automatically dispensed during the wash cycle.

PERMANENTPRESSI

WHIIESTWHILES

No washer can completely remove oil. Do not dry anything that has ever had any type of

oil on it (including cooking oils). Doing so can result in death, explosion, or fire.

WARNING: To reduce the risk of fire, electric shock, or injury to

persons, read the IMPORTANT SAFETY INSTRUCTIONS before

operating this appliance. The following is a guide to starting your washer. Periodic

references to other sections of this manual provide more detailed

information.

1. Drop a load of sorted clothes loosely into the washer.

• Load evenly to maintain washer balance. Mix large and small items.

• Items should move easily through the wash water. Overloading can cause poor cleaning.

• To reduce wrinkling of permanent press clothes and some synthetic knits, use a large load setting to provide more space (see Step 6).

• Never use more than 1 cup (250 mL) for a full load. Use less for a smaller load size.

• Follow the manufacturer's directions for safe use.

• To avoid spilling, use a cup with a pouring spout. Do not let bleach splash, drip, or run down into the washer

basket.

• Use only liquid chlorine bleach in this dispenser.

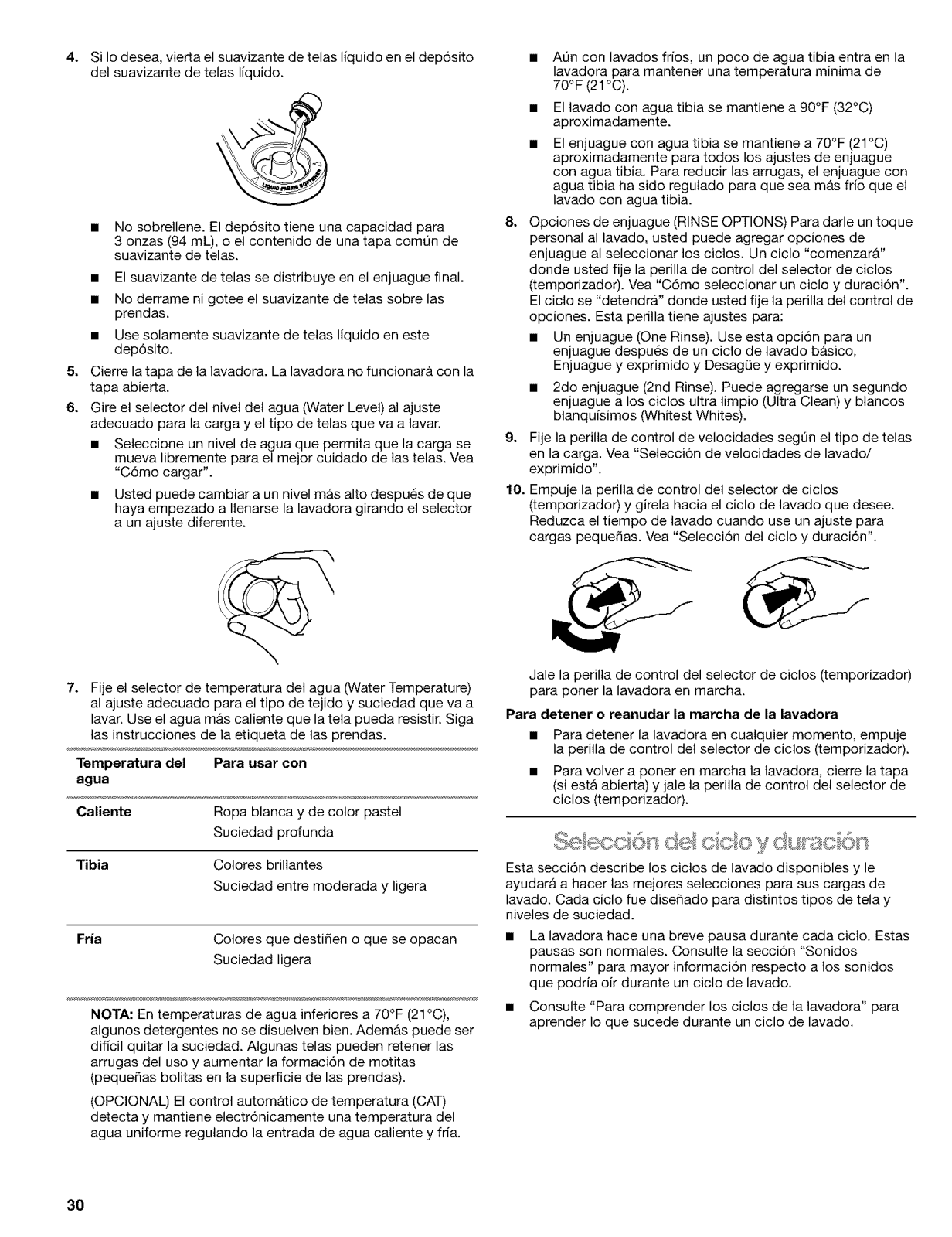

4. Pour measured liquid fabric softener into the fabric softener dispenser, if desired.

• Do not overfill The dispenser holds 3 oz (94 mL), or a

standard capful of fabric softener.

• The fabric softener is dispensed in the final rinse.

• Do not spill or drip any fabric softener on the clothes.

• Use only liquid fabric softener in this dispenser.

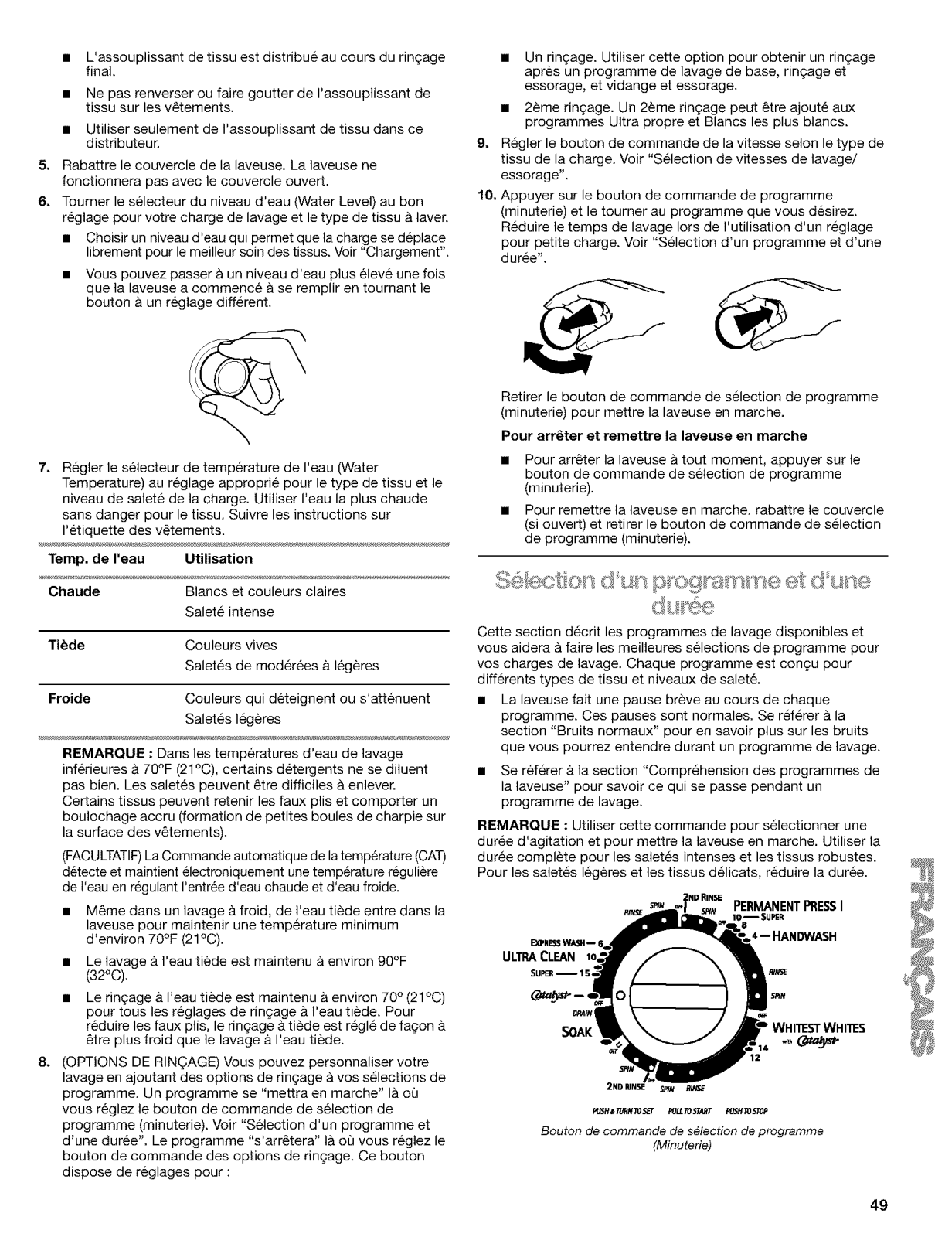

5. Close the washer lid. The washer will not operate with the lid open.

6. Turn the Water Level selector to the correct setting for your wash load and the type of fabric being washed.

• Choose a water level that allows the load to move freely

for best fabric care. See "Loading."

• You may change to a higher level setting after the washer

has started filling by turning the knob to a different setting.

7. Set the Water Temperature selector to the correct setting for the type of fabric and soils being washed. Use the warmest wash water safe for fabric. Follow garment label instructions.

Water Temp Use for

Hot Whites and pastels

Heavy soils

Warm Bright colors

Moderate to light soils

Cold Colors that bleed or fade

Light soils

NOTE: In wash water temperatures colder than 70°F (21°C),

some detergents do not dissolve well. Soils can be difficult to remove. Some fabrics can retain wear wrinkles and have

increased pilling (the formation of small lint-like balls on the

surface of garments). (OPTIONAL) An Automatic Temperature Control (ATC)

electronically senses and maintains a uniform water temperature by regulating incoming hot and cold water.

• Even in cold wash, some warm water is let into the

washer to maintain a minimum temperature of

approximately 70°F (21°C).

• Warm wash is maintained at approximately 90°F (32°C).

• Warm rinse is maintained at approximately 70°F (21°C) for

all warm rinse settings. To reduce wrinkling, the warm rinse is regulated to be cooler than the warm wash.

8. (RINSE OPTIONS) You can customize your wash by adding rinse Options to your cycle selections. A cycle will "start" where you set the Cycle Selector Control (Timer) knob. See

"Selecting a Cycle and Time." The cycle will "stop" where you

set the Options Control knob. This knob has settings for:

• One Rinse. Use this option for one rinse after a basic

wash cycle, Rinse & Spin, and Drain & Spin.

• 2nd Rinse. A 2nd Rinse can be added to the Ultra Clean

and Whitest Whites cycles.

9. Set the Speeds Control knob according to the type of fabric

in the load. See "Selecting Wash/Spin Speeds."

10. Push in the Cycle Selector Control (Timer) knob and turn it to the wash cycle you want. Reduce the wash time when using a small load size setting. See "Selecting a Cycle and Time."

Pull out the Cycle Selector Control (Timer) knob to start the

washer

To stop or restart your washer

• To stop the washer at any time, push in the Cycle Selector

Control (Timer) knob.

• To restart the washer, close the lid (if open) and pull out

the Cycle Selector Control (Timer) knob.

This section describes the available wash cycles and will help you make the best cycle selections for your wash loads. Each

cycle is designed for different types of fabric and soil levels.

• The washer pauses briefly throughout each cycle. These pauses are normal. Refer to "Normal Sounds" to learn more

about the sounds you may hear during a wash cycle.

• Refer to "Understanding Washer Cycles" to learn what happens during a wash cycle.

NOTE: Use this control to choose agitation time and to start the

washer. For heavy soil and sturdy fabrics, use the full time. Use

less time for light soil and delicate fabrics.

2ND RINSE

_RJE_ WAMI

PERMANENTPRESSI

10-- SUFER

4--HANDWASH

ULTRACLEAN

p_SHa,_IJRN_SEr I_IJ.TO_'ART p[ISH_'Up

CycleSelector Control (Timer)knob

CATALYS'P Cleaning Action Your washer uses the CATALYST'_Cleaning Action to help ensure

better soil and stain removal from your wash load. CATALYST" Cleaning Action reduces the need for pretreatment and is safe for all fabrics. CATALYST'_Cleaning Action is available in the Whitest

Whites and the Ultra Clean cycles. Although CATALYST _Cleaning Action is available on all speed control settings, for the best cleaning performance, use this selection with the Heavy Duty speed selection.

NOTE: To add CATALYST" Cleaning Action to your wash cycle, you must set the Cycle Selector Control (Timer) knob on the blue

oval labeled Catalyst_%

How CATALYST _ Cleaning Action works

1. Before agitation begins, detergent is automatically released

into a special chamber that mixes the detergent with a small

amount of water to create a sudsy cleaning solution.

2. Spinning spreads out the clothes.

3. The cleaning solution showers onto the top of the fabrics. The

solution is pulled through the clothes, and the detergent enzymes attach to soils and stains, lifting them away.

4. Thewasherfillstotheselectedwaterlevelandcompletesthe selected cycle.

NOTES:

• For best results, the load should be dry at the star[ of the cycle.

• Stubborn and set-in stains might require additional

pretreatment.

Ultra Clean cycle Use this cycle for most loads to get between 6 and 15 minutes of

wash time. For heavily soiled clothes, select the CATALYST'_ Cleaning Action cycle and the Heavy Duty speed setting.

Permanent Press I cycle

A load cooling spray rinse reduces wrinkling. Use this 8- to

10-minute cycle for cleaning lightly to moderately soiled

permanent press blends and synthetic fabrics. Choose a slow spin speed control setting such as Delicate to help reduce wrinkling.

Handwash cycle

Use this 4-minute cycle for hand washable garments and select one of the Handwash Speed Select settings for the best fabric care. The use of a detergent specially formulated for the

Handwash cycle is recommended. Whitest Whites

Use this wash cycle for loads of white fabrics that need improved whitening. For the best soil and stain removal, select the blue oval labeled CATALYST®on the Cycle Selector Control (Timer)

knob and the Heavy Duty setting on the Speeds selector knob.

Bleach is recommended in this cycle to provide outstanding whitening. Wash time is approximately 19 minutes.

Soak cycle This cycle features agitation followed by soak time to help

remove heavy soils and stains that need pretreatment. The washer will drain when the Soak cycle ends. The Soak cycle should be followed by an Ultra Clean or Permanent Press cycle with additional detergent.

NOTE: Hot water is not recommended for soaking. It may set some stains. If using the CATALYSTSCleaning Action, use of the SOAK cycle is not needed.

This section describes the wash/spin speeds you can select with the Speeds control. Each speed setting is designed for different

types of fabric and soil levels.

DEUCATE

$LOWI SLOW

HANDWASH

CASUAL

Ex'mASLOW/ SLOW

HANDWASHPLUS

FINEDELICATES

IN_RMI_ENT

B('rRASLOWI SLOW

€ID G_

91D O

Speeds Selector knob

NORMAL

SLOWI FAST

o HEAVYDUTY

FAST/ FAST

HANg DRY

F/L_-r/ SLOW

Normal speed

This speed setting is for normally soiled cottons and linens. Setting combines slow speed agitation and fast spin speeds to shorten drying time.

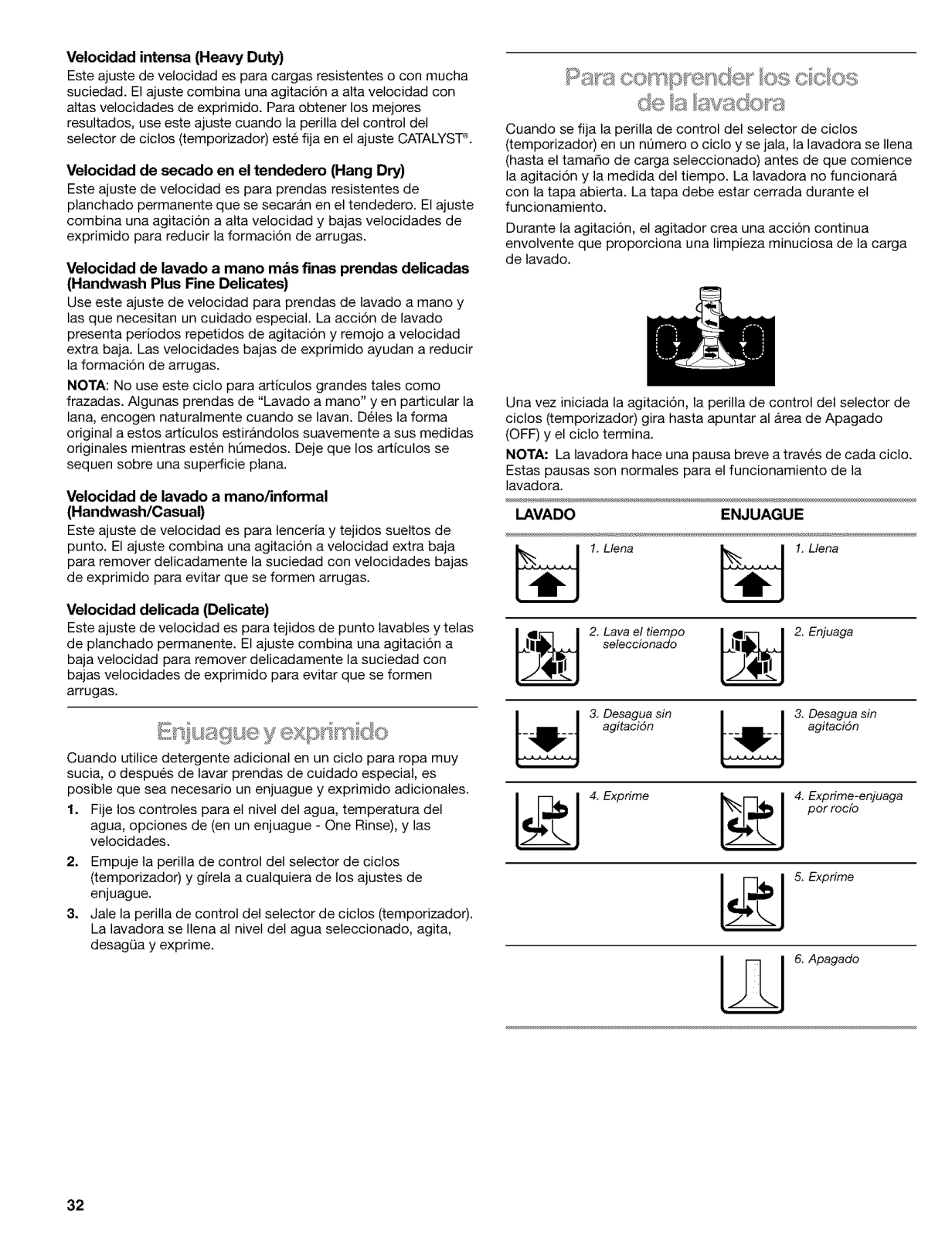

Heavy Duty speed

This speed setting is for sturdy or heavily soiled loads. Setting combines fast speed agitation and fast spin speeds. For best results, use this setting when the Cycle Selector Control (Timer)

knob is set on the CATALYSTe setting.

Hang Dry speed

This speed setting is for sturdy permanent press fabrics that will

be line dried. Setting combines fast speed agitation and slow

spin speeds to reduce wrinkling.

Handwash Plus Fine Delicates speed

Use this speed setting for hand washable and special-care items. The wash action has repeating periods of extra-slow speed agitation and soaking. Slow spin speeds help reduce wrinkling.

NOTE: Do not use this cycle for large items such as blankets. Some "Hand Wash" items, particularly wool, naturally shrink when washed. When still wet, block these items by gently stretching to original measurements. Allow the items to dry flat.

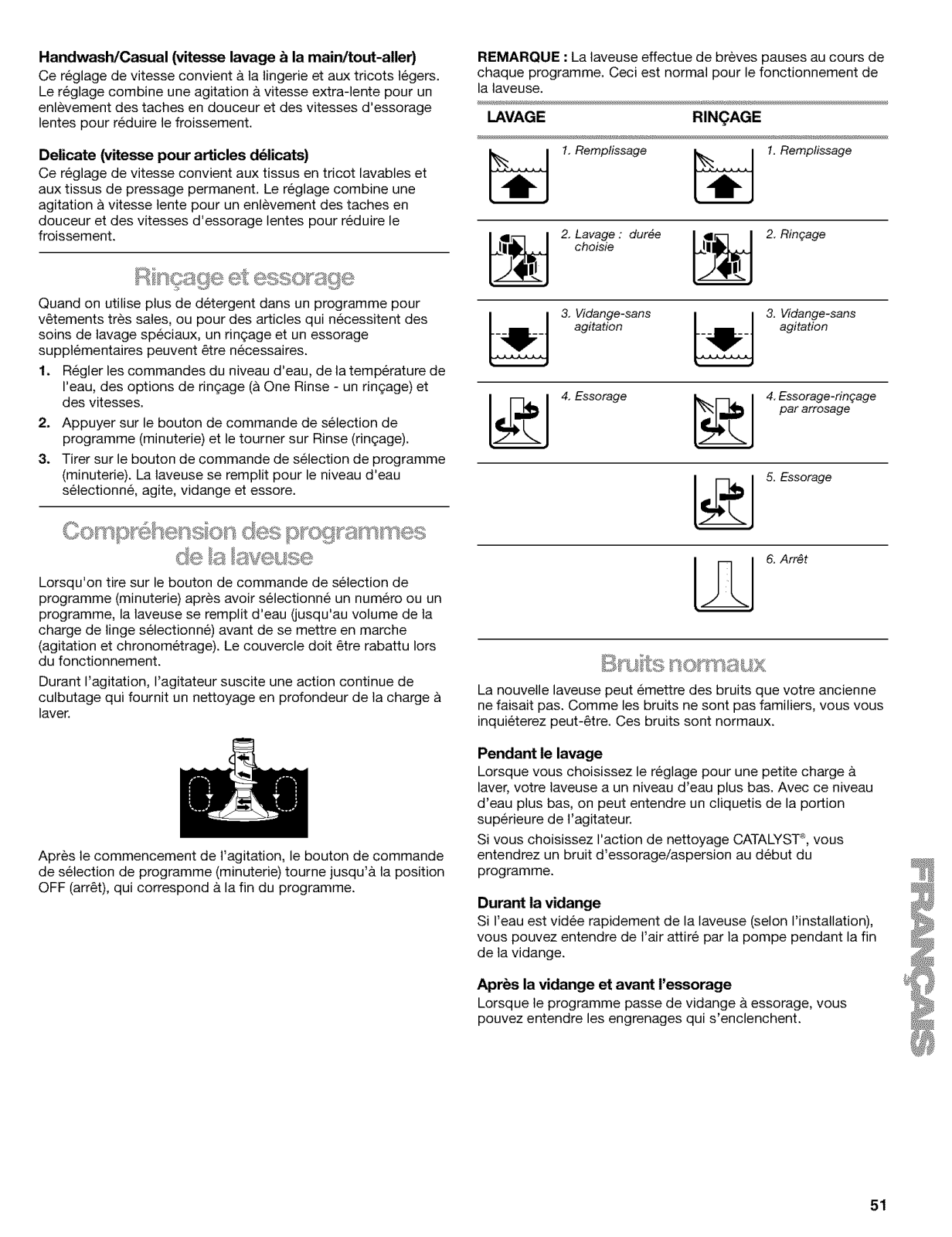

Handwash/Casual speed

This speed setting is for lingerie and loosely knit items. Setting combines extra-slow speed agitation for gentle soil removal and slow spin speeds to reduce wrinkling.

Delicate speed

This speed setting is for washable knit fabrics and permanent

press fabrics. Setting combines slow speed agitation for gentle soil removal and slow spin speeds to reduce wrinkling.

After using extra detergent in a cycle for heavily soiled clothes, or when washing special-care items, you may find that an extra rinse and spin is needed.

1. Set the controls for Water Level, Water Temperature, Options (to One Rinse), and Speeds.

2. Push in the Cycle Selector Control (Timer) knob and turn it to any of the rinse settings.

3. Pull out the Cycle Selector Control (Timer) knob. The washer fills to the selected water level, agitates, drains, and spins.

When the Cycle Selector Control (Timer) knob is set to a number or cycle and pulled out, the washer fills (to the selected load size)

before agitation and timing start. The washer will not operate with

the lid open. The lid must be closed during operation.

During agitation, the agitator creates a continuous rollover action

that provides a thorough cleaning of the wash load.

After agitation starts, the Cycle Selector Control (Timer) knob turns until it points to an OFF area and the cycle ends.

NOTE: The washer pauses briefly throughout each cycle. These pauses are normal for washer operation.

WASH RINSE

1.Fill _ 1. Fill

,_ 2. timeWaShselected _ 2. Rinse

agitation agitation

_J 3. Drain No _J 3. Drain No

__g 4. Spin _g 4. Spin-Spray rinse

_g 5. Spin

Your new washer may make sounds your old one didn't. Because the sounds might be unfamiliar, you may be concerned about

them. These sounds are normal.

During washing

When you select a small load size setting, your washer has a

lower water level. This can cause aclicking sound from the upper part of the agitator.

If you select CATALYST_ Cleaning Action, you will hear a spin/

spray noise at the start of the cycle.

During drain

If water is drained quickly from your washer (depending on your installation), you may hear air being pulled through the pump

during the end of draining.

After drain and before spin When the cycle changes from draining to spinning, you may hear

gears engaging.

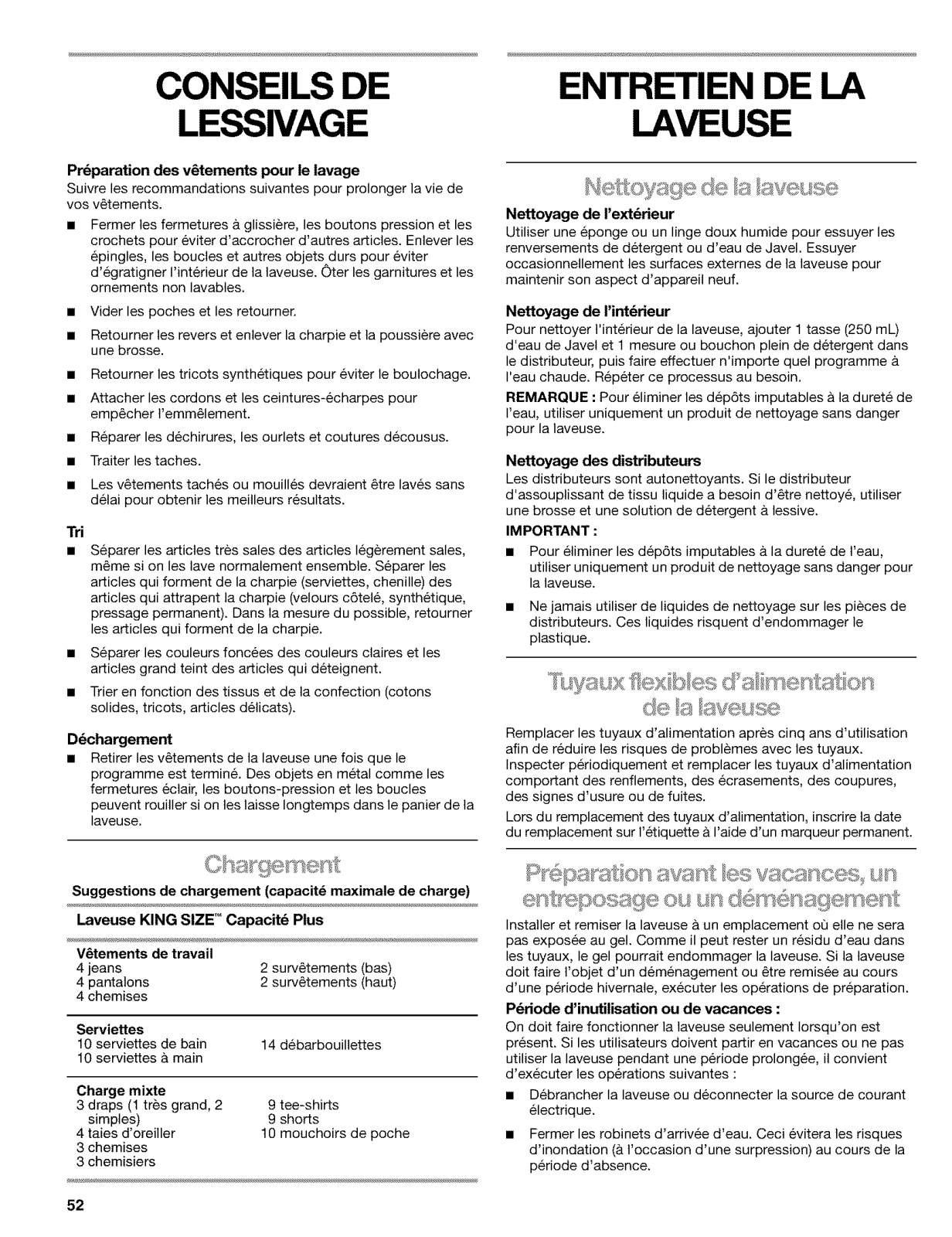

LAUNDRY TIPS

Preparing clothes for washing

Follow these recommendations to help you prolong the life of

your garments.

• Close zippers, snaps, and hooks to avoid snagging other items. Remove pins, buckles, and other hard objects to avoid

scratching the washer interior. Remove non-washable trim and ornaments.

• Empty pockets and turn them inside-out.

• Turn down cuffs; brush away lint and dirt.

• Turn synthetic knits inside-out to avoid pilling.

• Tie strings and sashes so they will not tangle.

• Mend tears, loose hems, and seams.

• Treat spots and stains.

• Stained or wet garments should be washed promptly for best

results.

Sorting

• Separate heavily soiled items from lightly soiled ones, even if

they would normally be washed together. Separate lint-givers (towels, chenille) from lint-takers (corduroy, synthetics,

permanent press). When possible, turn lint-givers inside-out.

• Separate dark colors from light colors, colorfast items from noncolorfast items.

• Sorf by fabric and construction (sturdy cottons, knits, delicate items).

6. Off

Unloading

• Remove clothes from washer after the cycle is completed. Metal objects such as zippers, snaps, and buckles may rust if

left in the washer basket for a long time.

Loading suggestions (maximum size loads)

KING SIZE TM Capacity Plus Washer

Heavy Work Clothes

4 jeans 2 sweatpants 4 workpants 2 sweatshirts

4 workshirts

Towels

10 bath towels 14 washcloths 10 hand towels

Mixed Load

3 sheets (1 king, 2 twin) 9 T-shirts 4 pillowcases 9 shorts

3 shirts 10 handkerchiefs 3 blouses

WASHER CARE

Cleaning the exterior

Use a soft, damp cloth or sponge to wipe up any spills such as detergent or bleach. Occasionally wipe the outside of your washer to keep it looking new.

Cleaning the interior To clean your washer interior, add 1 cup (250 mL) of chlorine

bleach and 1 scoop or capful of detergent into your dispenser, and run the washer through any cycle using hot water. Repeat this process if necessary.

NOTE: Remove any hard water deposits using only cleaners

labeled as washer safe.

Cleaning the dispensers

The dispensers are self-cleaning. If the liquid fabric softener dispenser needs cleaning, scrub with a brush using a liquid

laundry detergent solution.

IMPORTANT:

• Remove hard water deposits using only cleaners labeled as

washer safe.

• Never use any cleaning fluids on dispenser parts. This can

cause damage to the plastic.

Replace inlet hoses after five years of use to reduce the risk of hose failure. Periodically inspect and replace inlet hoses if bulges, kinks, cuts, wear or leaks are found.

When replacing your inlet hoses, mark the date of replacement on the label with a permanent marker.

Install and store your washer where it will not freeze. Because some water may stay in the hoses, freezing can damage your washer. If storing or moving your washer during freezing weather,

winterize it.

Non-use or vacation cars: Operate your washer only when you are at home. Ifyou will be on

vacation or not using your washer for an extended period of time, you should:

• Unplug washer or disconnect power.

• Turn oft the water supply to the washer. This helps avoid

accidental flooding (due to a water pressure surge) while you are away.

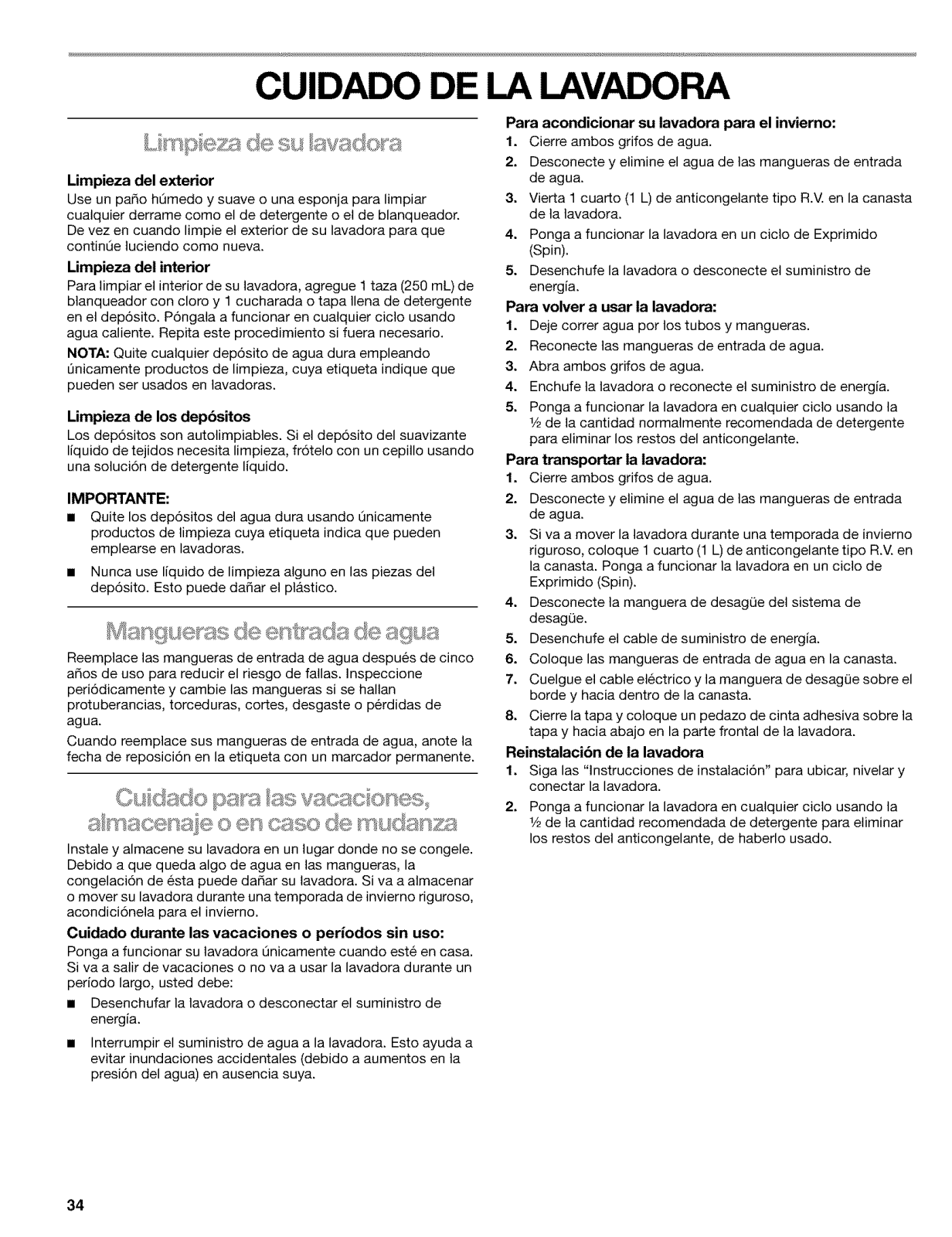

To winterize washer:

1. Shut off both water faucets.

2. Disconnect and drain water inlet hoses,

3. Put 1 qt (1 L) of R.V.-type antifreeze in the basket,

4. Run washer on a Spin cycle,

5. Unplug washer or disconnect power.

To use washer again:

1. Flush water pipes and hoses.

2. Reconnect water inlet hoses.

3. Turn on both water faucets.

4. Plug in washer or reconnect power.

5. Run the washer through any cycle with 1_the normal

recommended amount of detergent to clean out the antifreeze.

To transport the washer:.

1. Shut off both water faucets.

2. Disconnect and drain water inlet hoses.

3. If washer will be moved during freezing weather, put in 1 qt

(1 L)of R.V.-type antifreeze in the basket. Run washer on a Spin cycle.

4. Disconnect the drain from the drain system.

5. Unplug the power cord.

6. Place the inlet hoses into the basket.

7. Drape the power cord and drain hose over edge into the

basket.

8. Close the lid and put a piece of tape over the lid and down to

the front of the washer.

Reinstalling the washer

1. Follow the "Installation Instructions" to locate, level and connect the washer.

2. Run the washer through any cycle with 1_the normal recommended amount of detergent to clean out the antifreeze, if used.

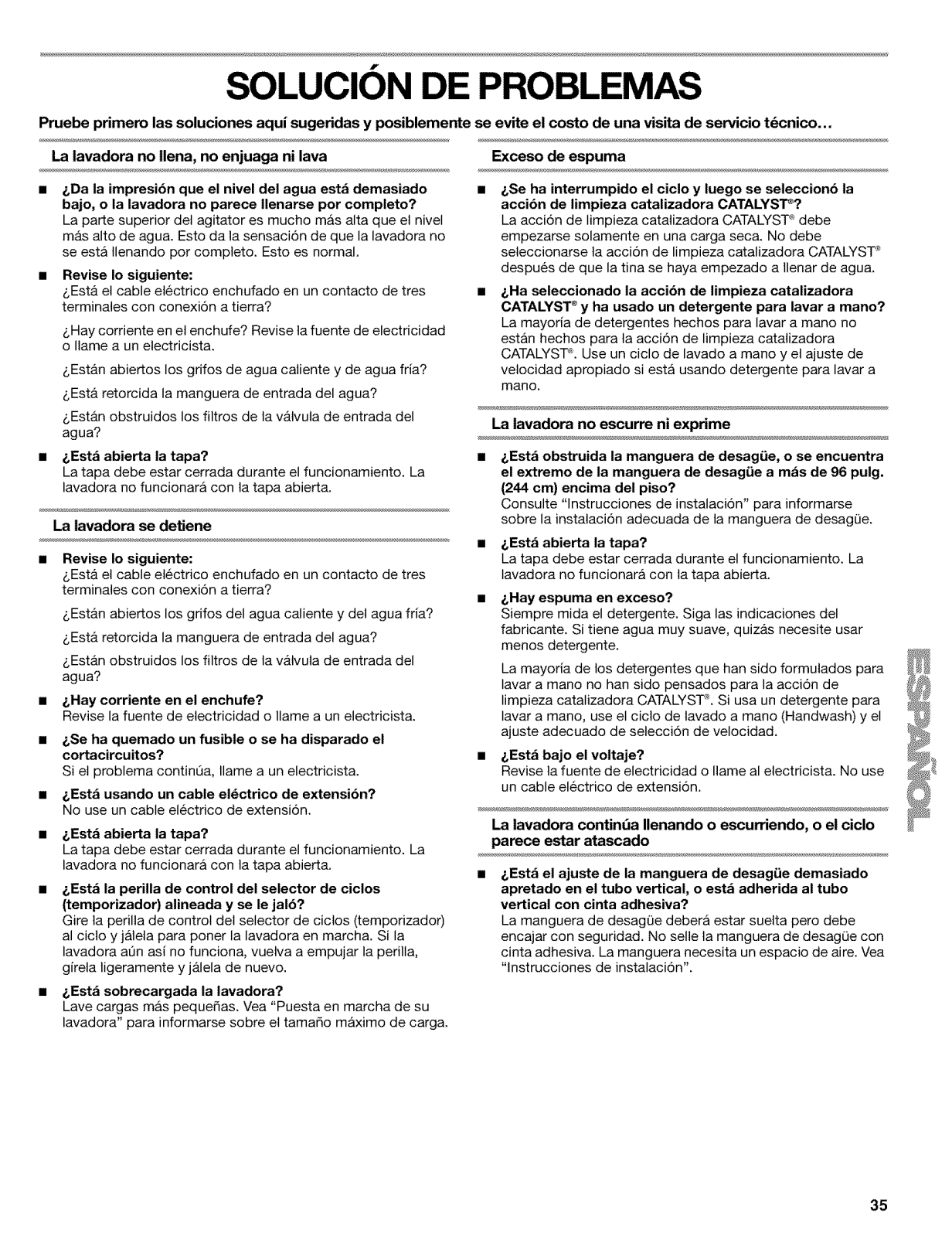

TROUBLESHOOTING

First try the solutions suggested here and possibly avoid the cost of a service call...

Washer won't fill, rinse or wash Excessive sudsing

• Does the water level seem too low, or does the washer • Was the cycle interrupted and then CATALYST _ Cleaning appear to not fill completely?

The top of the agitator is much higher than the highest water

level. This creates a perception that the washer is not filling

completely. This is normal. Check the following:

Is the power cord plugged into a grounded 3 prong outlet? Is there power at the plug? Check electrical source or call

electrician.

Are the hot and cold water faucets turned on?

Is the water inlet hose kinked?

Are the water inlet valve screens clogged?

Is the lid open? The lid must be closed during operation. The washer will not operate with the lid open.

Washer stops •

• Checkthe following: Is the power cord plugged into a grounded 3 prong outlet?

Are the hot and cold water faucets turned on?

Is the water inlet hose kinked?

Are the water inlet valve screens clogged?

• Is there power at the plug?

Check electrical source or call electrician.

Has a fuse blown or has the circuit breaker tripped?

If problem continues, call electrician.

Are you using an extension cord?

Do not use an extension cord. Is the lid open?

The lid must be closed during operation. The washer will not operate with the lid open.

Is the Cycle Selector Control (Timer) knob lined up and

pulled out?

Turn Cycle Selector Control (Timer) knob to cycle and pull out to start washer. If washer still doesn't start, push knob back

in, turn slightly to the right and pull out again.

Is the washer overloaded?

Wash smaller loads. See "Starting Your Washer" for maximum load size.

Action selected?

The CATALYST®Cleaning Action should be started on a dry

load only. The CATALYSTSCleaning Action should not be

selected after the tub has started filling with water.

Did you select CATALYST _ Cleaning Action and use a

hand-washing detergent?

Most detergents formulated for hand-washing are not meant for the CATALYST _Cleaning Action. Use the Handwash cycle and appropriate speed select setting if using a hand-wash detergent.

Washer won't drain or spin

Is the drain hose clogged, or the end of the drain hose more than 96 in. (244 cm) above the floor?

See "Installation Instructions" for proper installation of drain

hose.

Is the lid open? The lid must be closed during operation. The washer will not operate with the lid open.

Is there excessive sudsing? Always measure detergent. Follow manufacturer's directions.

If you have very soft water, you may need to use less detergent.

Most detergents formulated for hand-washing are not meant for the CATALYST" Cleaning cycle. Use the Handwash cycle and appropriate speed select setting if using a hand-wash detergent.

Is your voltage low? Check electrical source or call electrician. Do not use an extension cord.

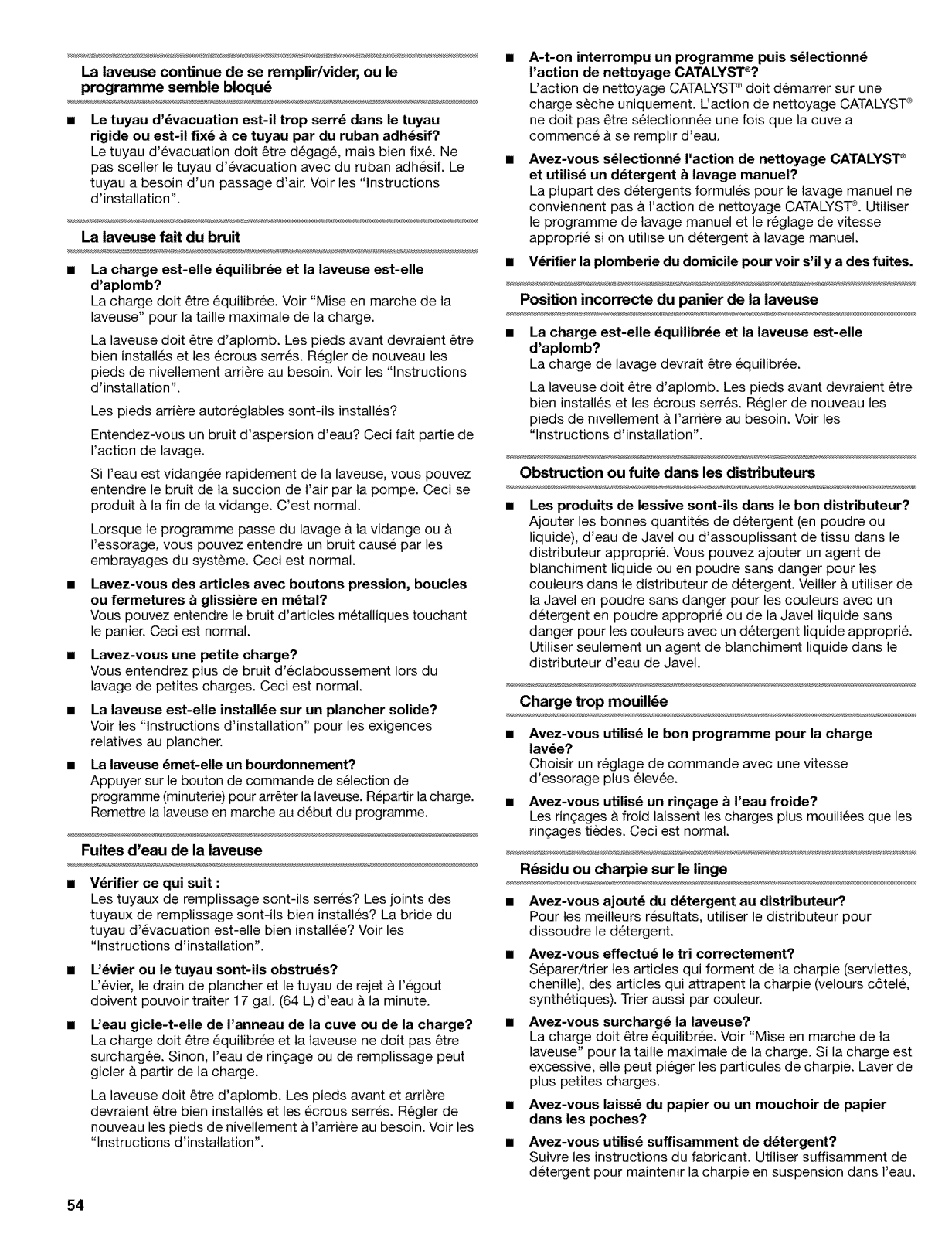

Washer continues to fill or drain, or the cycle seems stuck

Does the drain hose fit too tightly in the standpipe, or is it taped to the standpipe?

The drain hose should be loose yet fit securely. Do not seal the drain hose with tape. The hose needs an air gap. See

"Installation Instructions."

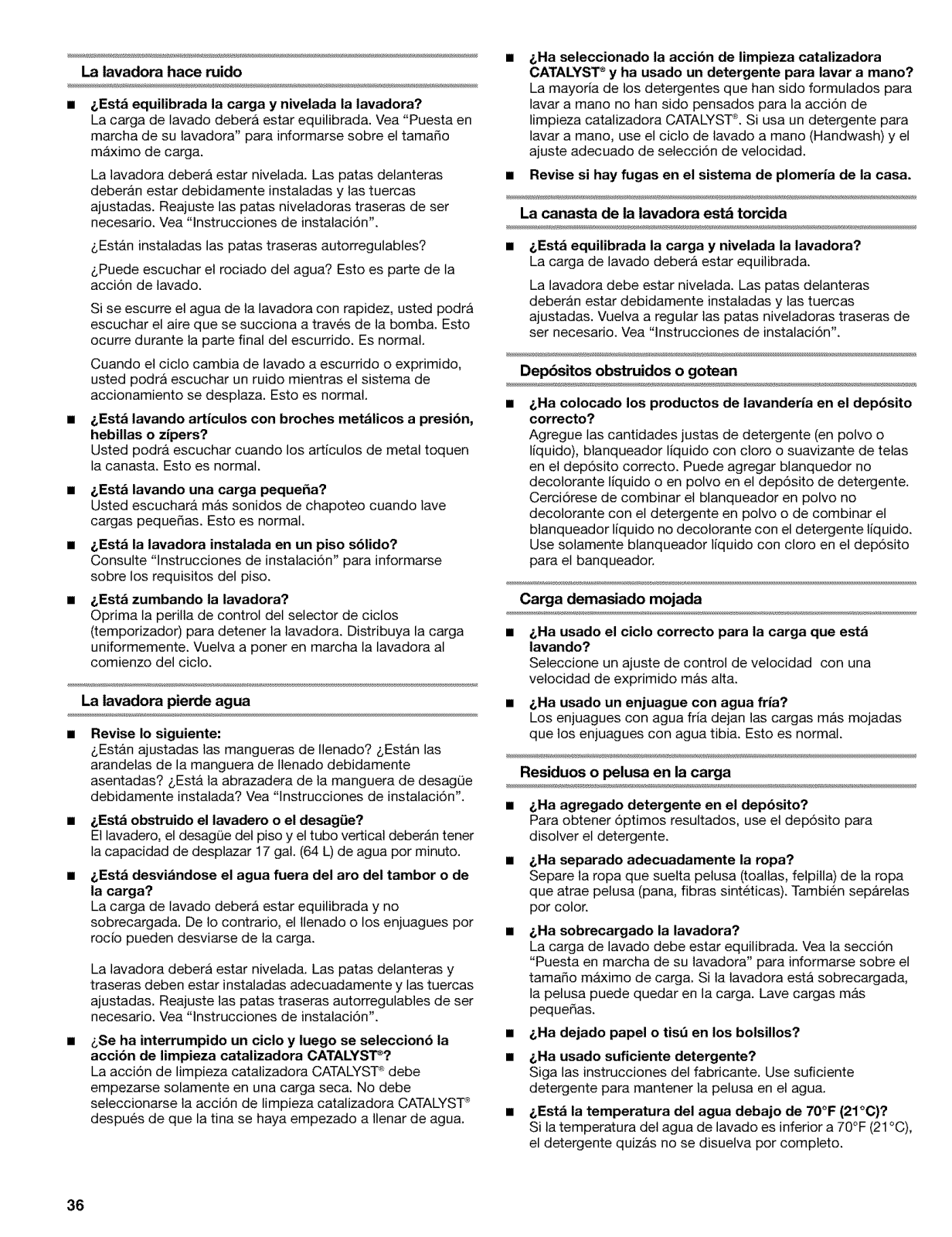

Washer makes noise

• Is the load balanced, and is the washer level? The wash load should be balanced. See "Starting Your

Washer" for maximum load size. The washer must be level. The front feet should be properly

installed and the nuts tightened. Reset the rear leveling legs if needed. See "Installation Instructions."

Are the self-adjusting rear feet installed? Can you hear water spraying? This is part of the wash action.

If water is drained quickly from the washer, you may hear air being pulled through the pump. This happens during the end

of draining. It is normal. When the cycle changes from washing to draining or

spinning, you may hear a noise as the drive system shifts. This is normal.

• Are you washing items with metal snaps, buckles or

zippers?

You may hear metal items touching the basket. This is normal.

• Are you washing a small load? You will hear more splashing sounds when washing small

loads. This is normal. Is the washer installed on a solid floor?

Refer to the "installation Instructions" for flooring

requirements.

Is the washer buzzing? Push in the Cycle Selector Control (Timer) knob to stop the

washer. Evenly distribute the load. Restart the washer at the

beginning of the cycle.

Washer leaks

• Check the following: Are the fill hoses tight? Are the fill hose washers properly seated? Is the drain hose clamp properly installed? See

"Installation Instructions."

Is the sink or drain clogged? Sink, floor drain and standpipe must be able to handle 17 gal. (64 L) of water per minute.

Is water bouncing off the tub ring or the load? The wash load should be balanced and not overloaded. If •

not, the fill or spray rinses can bounce off the load. The washer must be level. The front and rear feet should be

properly installed and the nuts tightened. Reset the self- adjusting rear feet if needed. See "Installation Instructions."

• Was a cycle interrupted and then the CATALYST e Cleaning Action selected? The CATALYST®Cleaning Action should be started on a dry

load only. The CATALYST®Cleaning Action should not be

selected after the tub has started filling with water.

Did you select the CATALYST e Cleaning Action and use a

hand-washing detergent?

Most detergents formulated for hand-washing are not meant for the CATALYST" Cleaning Action. Use the Handwash cycle and appropriate speed select setting if using a hand-wash detergent.

• Check household plumbing for leaks.

Washer basket is crooked

• Is the load balanced, and is the washer level? The wash load should be balanced.

The washer must be level. The front feet should be properly

installed and the nuts tightened. Reset the rear leveling legs, if needed. See "Installation Instructions."

Dispensers clogged or leaking

• Are the laundry products in the correct dispenser? Add the correct amounts of detergent (powder or liquid),

liquid chlorine bleach, or fabric softener to the correct dispenser. You can add powder or liquid color-safe bleach to the detergent dispenser. Be sure to match powdered

color-safe bleach with powdered detergent or match liquid color-safe bleach with liquid detergent. Use only liquid

chlorine bleach in the bleach dispenser.

Load too wet

• Did you use the right cycle for the load being washed? Select a Speed control setting with a higher spin speed.

• Did you use a cold rinse? Cold rinses leave loads wetter than warm rinses. This is normal.

Residue or lint on load

• Did you add detergent to the dispenser?

For best results, use the dispenser to dissolve the detergent.

Did you sort properly? Sort lint givers (towels, chenille) from lint takers (corduroy, synthetics). Also sort by color.

Did you overload the washer? The wash load must be balanced. See "Starting Your Washer" for maximum load size. Lint can be trapped in the

load if overloaded. Wash smaller loads.

Was paper or tissue left in pockets?

Did you use enough detergent?

Follow manufacturer's directions. Use enough detergent to

hold the lint in the water.

Is your water colder than 70°F (21°0)? Wash water colder than 70°F (21°C) may not completely dissolve the detergent.

Are you using a gentle wash cycle?

Consider using liquid detergent for slow speed settings such as Handwash Casual or Delicate.

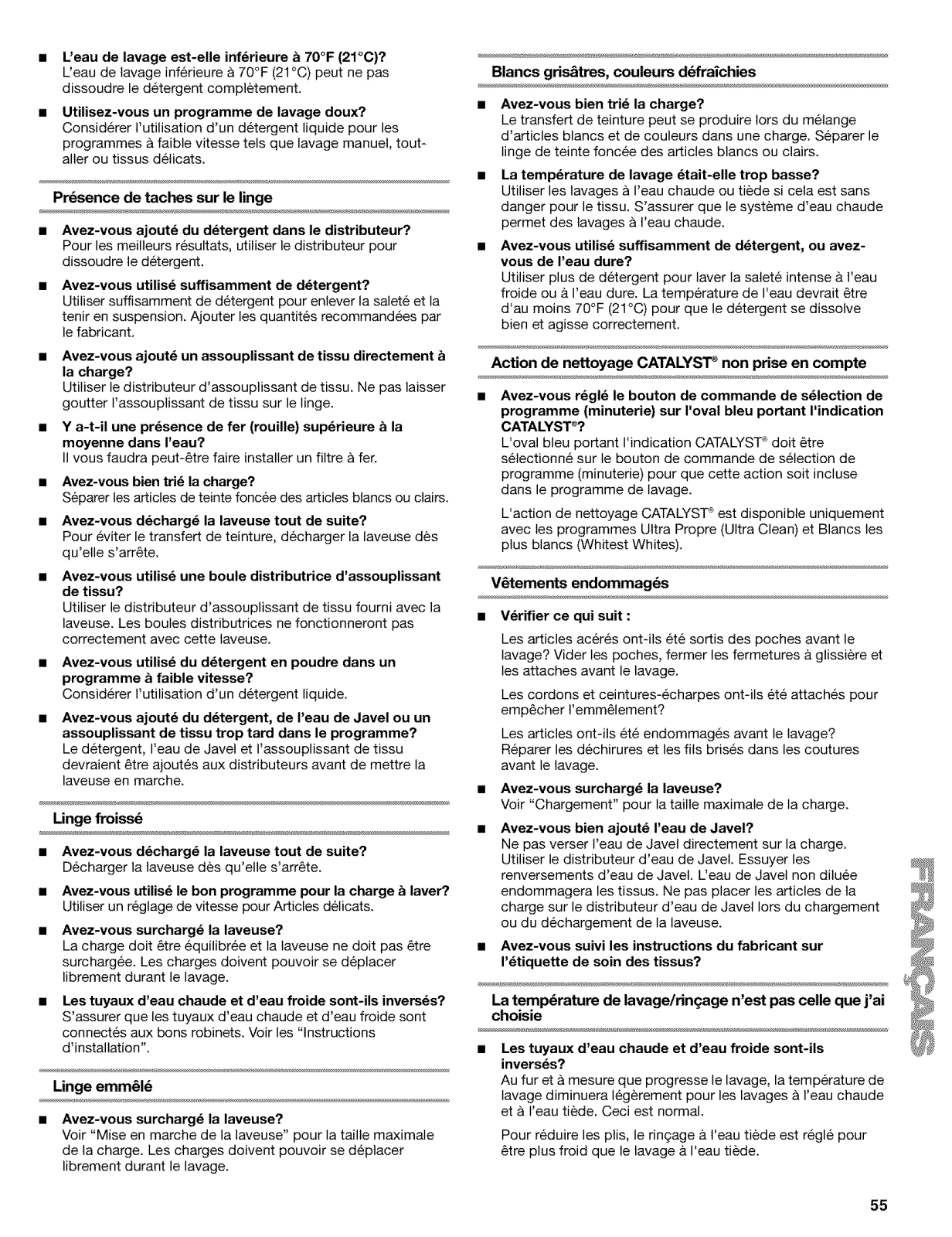

Stains on load

• Did you add detergent to the dispenser? For best results, use the dispenser to dissolve the detergent.

• Did you use enough detergent? Use enough detergent to remove soil and hold it in suspension.

Add the manufacturer's recommended amounts.

• Did you add fabric softener directly to the load? Use your fabric softener dispenser. Do not drip fabric softener

on clothes.

Is there above average iron (rust) in water?.

You may need to install an iron filter.

Did you properly sort the load?

Sort dark clothes from whites and lights.

Did you unload the washer promptly?

To avoid dye transfer, unload the washer as soon as it stops.

Did you use a fabric softener dispensing ball? Use the fabric softener dispenser provided with the washer.

Dispensing balls will not operate correctly with this washer. Did you use powder detergent in a low speed cycle?

Consider using liquid detergent.

Did you add detergent, chlorine bleach or fabric softener

too late in the cycle?

Detergent, chlorine bleach, and fabric softener should be

added to the dispensers before starting the washer.

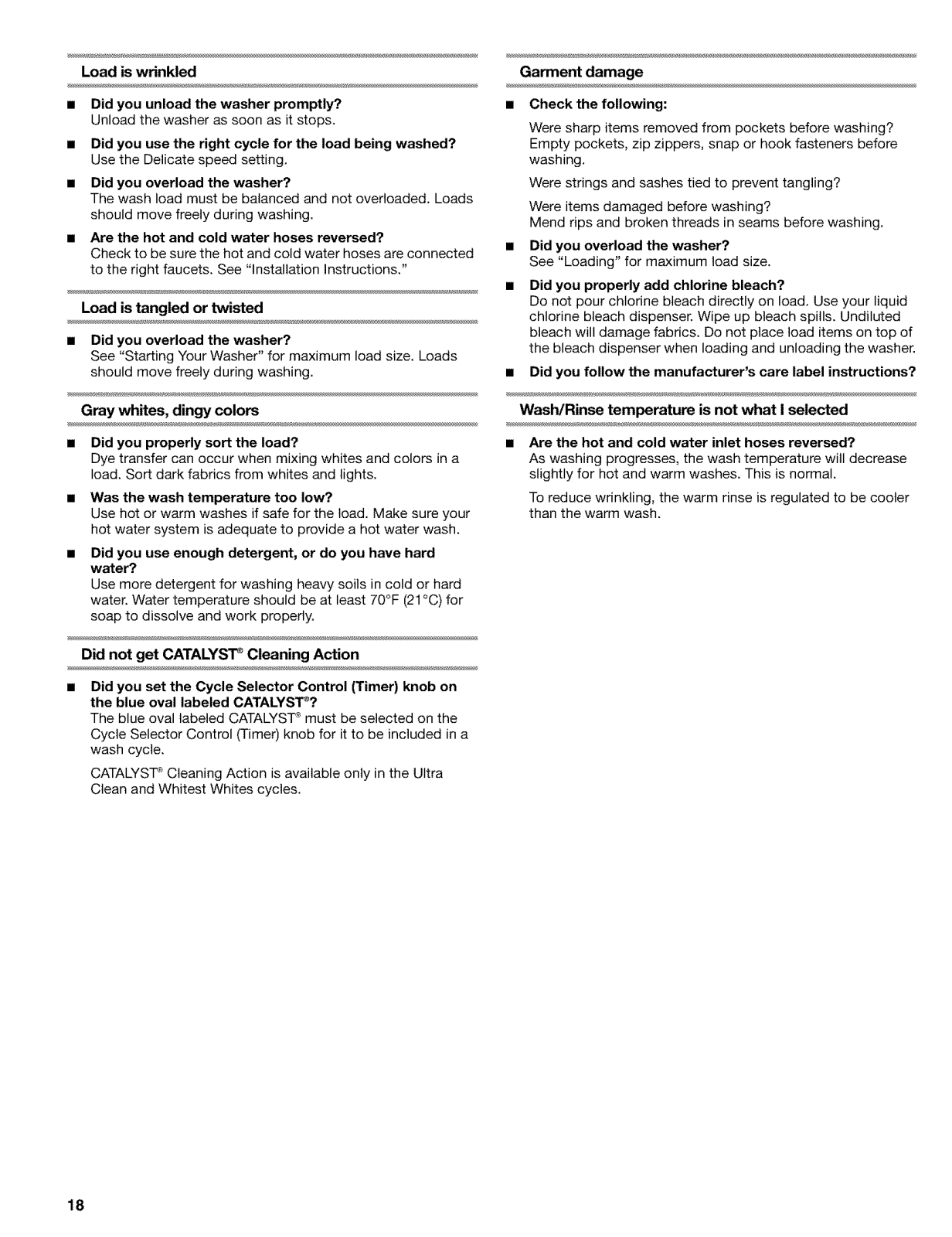

+ 39 hidden pages
