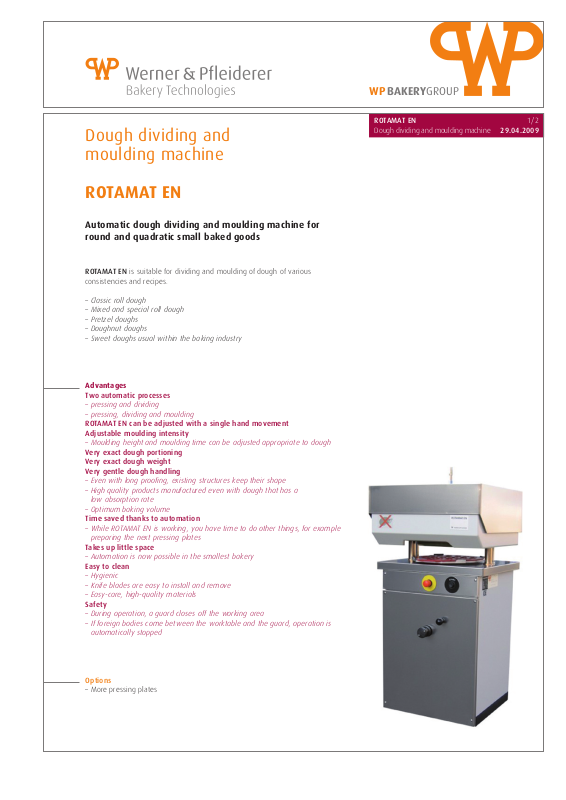

Dough dividing and
moulding machine
ROTAMAT EN
Automatic dough dividing and moulding machine for
round and quadratic small baked goods
ROTAMAT EN is suitable for dividing and moulding of dough of various
consistencies and recipes.
– Classic roll dough
– Mixed and special roll dough
– Pretzel doughs
– Doughnut doughs
– Sweet doughs usual within the baking industry
WP BAKERYGROUP
ROTAMAT EN 1/2
Dough dividing and moulding machine 29.04.2009
Advantages
Two automatic processes
– pressing and dividing
– pressing, dividing and moulding
ROTAMAT EN can be adjusted with a single hand movement
Adjustable moulding intensity
– Moulding height and moulding time can be adjusted appropriate to dough
Very exact dough portioning
Very exact dough weight
Very gentle dough handling
– Even with long proofing, existing structures keep their shape
– High quality products manufactured even with dough that has a
low absorption rate
– Optimum baking volume
Time saved thanks to automation
– While ROTAMAT EN is working, you have time to do other things, for example
preparing the next pressing plates
Takes up little space
– Automation is now possible in the smallest bakery
Easy to clean
– Hygienic
– Knife blades are easy to install and remove
– Easy-care, high-quality materials
Safety
– During operation, a guard closes off the working area
– If foreign bodies come between the worktable and the guard, operation is
automatically stopped
Options
– More pressing plates
ROTAMAT EN
All details non-binding. Subject to change in the course of technical progress. All rights reserved. ® = registered trademark
Werner & Pfl eiderer Lebensmitteltechnik GmbH . von-Raumer-Straße 8-18 . 91550 Dinkelsbühl . Germany
Fon +49 (0) 98 51-905-0 . Fax +49 (0) 98 51-905-342 . info@wp-l.de . www.wp-l.de
690
WP BAKERYGROUP
ROTAMAT EN 2/2
Dough dividing and moulding machine 29.04.2009
1,510
890
610 540
600
Dimensions in mm.
Technical data
Dough dividing pieces per press 30
Weight range g/piece 30 - 70
Max. weight of dough per press g 2,100
Weight of ROTAMAT EN kg 405
Absorption rate when dividing % 140 - 175
Absorption rate when moulding % 140 - 165
Drive power at 400 V
– Main motor kW 0.75
– DC current motor kW 0.20
Connected load kVA 1.6
