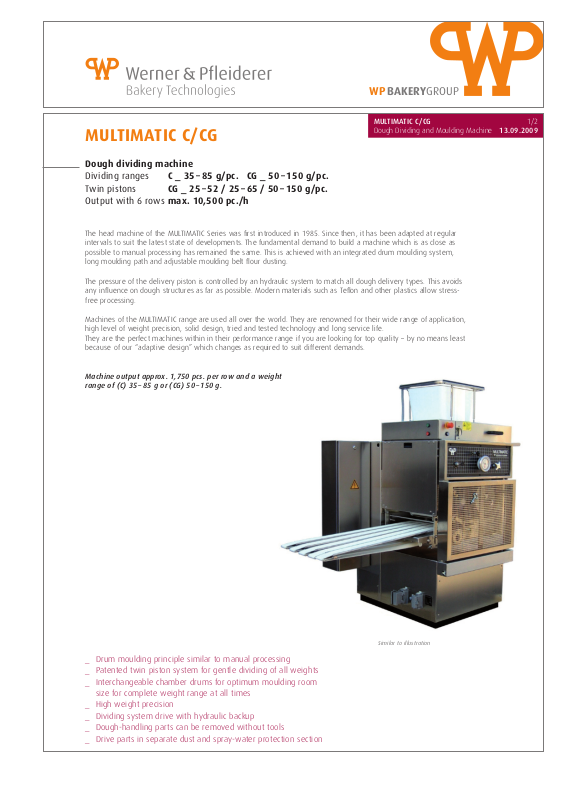

WP BAKERYGROUP
MULTIMATIC C/CG 1/2
Dough Dividing and Moulding Machine 13.09.2009
MULTIMATIC C/CG
Dough dividing machine
Dividing ranges C _ 35 – 85 g/pc. CG _ 50 – 150 g/pc.
Twin pistons CG _ 25 – 52 / 25 – 65 / 50 – 150 g/pc.
Output with 6 rows max. 10,500 pc./h
The head machine of the MULTIMATIC Series was first introduced in 1985. Since then, it has been adapted at regular
intervals to suit the latest state of developments. The fundamental demand to build a machine which is as close as
possible to manual processing has remained the same. This is achieved with an integrated drum moulding system,
long moulding path and adjustable moulding belt flour dusting.
The pressure of the delivery piston is controlled by an hydraulic system to match all dough delivery types. This avoids
any influence on dough structures as far as possible. Modern materials such as Teflon and other plastics allow stressfree processing.
Machines of the MULTIMATIC range are used all over the world. They are renowned for their wide range of application,
high level of weight precision, solid design, tried and tested technology and long service life.
They are the perfect machines within in their performance range if you are looking for top quality – by no means least
because of our “adaptive design” which changes as required to suit different demands.
Machine output approx. 1,750 pcs. per row and a weight
range of (C) 35 – 85 g or (CG) 50 – 150 g.
Similar to illustration
_ Drum moulding principle similar to manual processing
_ Patented twin piston system for gentle dividing of all weights
_ Interchangeable chamber drums for optimum moulding room
size for complete weight range at all times
_ High weight precision
_ Dividing system drive with hydraulic backup
_ Dough-handling parts can be removed without tools
_ Drive parts in separate dust and spray-water protection section
MULTIMATIC C/CG
All details non-binding. Subject to change in the course of technical progress. All rights reserved. ® = registered trademark
Werner & Pfl eiderer Lebensmitteltechnik GmbH . von-Raumer-Straße 8-18 . 91550 Dinkelsbühl . Germany
Fon +49 (0) 98 51-905-0 . Fax +49 (0) 98 51-905-342 . info@wp-l.de . www.wp-l.de
Weight range
1. 35 – 85 g = MUC
2. 50 – 150 g = MUC-G
WP BAKERYGROUP
MULTIMATIC C/CG 2/2
Dough Dividing and Moulding Machine 13.09.2009
Output
600 – 1,750 pcs./h
per row
Dough types
Wheat dough
Wheat mix dough
Rye mix and special dough
Products
Round dough pieces
Dimensions(without spreading belt)
Height 1,860 mm
Breadth 1,360 mm
Length 1,250 mm
Modules
Various chamber drums for
exact adaptation to dough weights
Interfaces
– WP Multiroll
– WP Selecta Mega
– WP Formmeister
– WP Rollmeister
– WP Selecta Kompakt
Twin piston system
Properties
Separate drive parts – dust and spray-water protected
– Hygienic
– Easy to clean
Hydraulic system
– Processing gently on dough
– High volume yield
– Maximum baking quality
Large dividing range
– Easy to change chamber drums
– Highly versatile possibilities for use
Long moulding path
– Gentle moulding
– Retains typical baking structures
Technical Data MUC MUC-G
Drive motor 1.5 kW 1.5 kW
Connected value 2.3 kVA 2.3 kVA
Dough input height in mm 1,860 1,860
Dimensions in mm
Without spreading belt (funnel upper edge) (B x L x H) 1,360 x 1,250 x 1,860 1,360 x 1,250 x 1,860
In box (B x L x H) 1,480 x 1,480 x 2,120 1,480 x 1,480 x 2,120
In sea chest (B x L x H) 1,450 x 1,450 x 1,900 1,450 x 1,450 x 1,900
Dividing section
Measuring piston Ø 50 mm (standard) 35 – 85 g (upon request up to 95 g)
Measuring piston Ø 44 mm 30 – 75 g (ideal for 60 g)
Measuring piston Ø 40 mm 25 – 65 g
Measuring piston Ø 55 mm 55 – 150 g
Twin measuring pistons Ø 36/55 mm 24 – 52 g / 55 – 150 g
Twin measuring pistons Ø 40/55 mm 600 – 1,750 pcs./h 24 – 65 g / 55 – 150 g
Max. performance range per row* 600 – 1,750 pcs./h 628 – 2,027 pcs./h
* depending on dough piece weight
