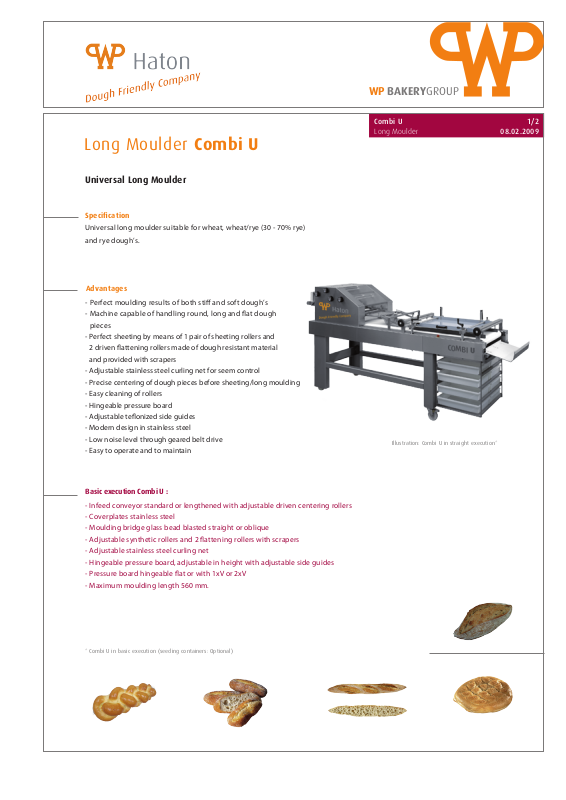

Combi U 1/2
Long Moulder 08.02.2009

Long Moulder Combi U

Universal Long Moulder

Specification

Universal long moulder suitable for wheat, wheat/rye (30 - 70% rye)

and rye dough’s.

Advantages

- Perfect moulding results of both sti and soft dough’s

- Machine capable of handling round, long and at dough

pieces

- Perfect sheeting by means of 1 pair of sheeting rollers and

2 driven attening rollers made of dough resistant material

and provided with scrapers

- Adjustable stainless steel curling net for seem control

- Precise centering of dough pieces before sheeting/long moulding

- Easy cleaning of rollers

- Hingeable pressure board

- Adjustable teonized side guides

- Modern design in stainless steel

- Low noise level through geared belt drive

- Easy to operate and to maintain

BAKERYWP

Illustration: Combi U in straight execution*

GROUP

Basic execution Combi U :

- Infeed conveyor standard or lengthened with adjustable driven centering rollers

- Coverplates stainless steel

- Moulding bridge glass bead blasted straight or oblique

- Adjustable synthetic rollers and 2 attening rollers with scrapers

- Adjustable stainless steel curling net

- Hingeable pressure board, adjustable in height with adjustable side guides

- Pressure board hingeable at or with 1xV or 2xV

- Maximum moulding length 560 mm.

* Combi U in basic execution (seeding containers: Optional)

WP BAKERYGROUP

Combi U 2/2
Long Moulder 08.02.2009

Combi U

Technical details

Type Weight range Capacity

- Combi U, straight version 200 - 2000 gr. Max. 2500 pcs/h., depending on dough weight.

- Combi U, inclined version

Dimensions Combi U Weight Connecting load

- Length 3491 mm. max.* - Net Kg. - 230/400 V, 50 Hz + earth

- Width 902 mm. max.* - Gross Kg. - 1,5 KVA

- Hoogte 1583 mm. max.* * = standard straight version. Extended straight version = lxbxh: 4720x902x1583 mm.

Options Combi U

- Driven moulding belt in stead of pressure board

- Combi U-L = extended version with 2 pressure boards

- Combi U-L = extended version with 1 pressure board and 1 driven moulding belt

- Combi U-A = sheeting head without sheeting rollers only 2x attening rollers

- Bypass for round dough pieces including conveyor from rounder to long moulder

- Flour duster with own drive

- Pressure board for pointed ends

- Seeding bins 8 pieces

® = registered trademark

Werner & Pfleiderer Haton B.V. Industrieterrei n 13, 5981 NK Panningen, The Netherlands.
Phone [phone] . Fax [phone]. info@ wp-haton.com . www.wp-haton.com

All details non-binding. Subject to change in the course of technical progress. All rights reserved.
