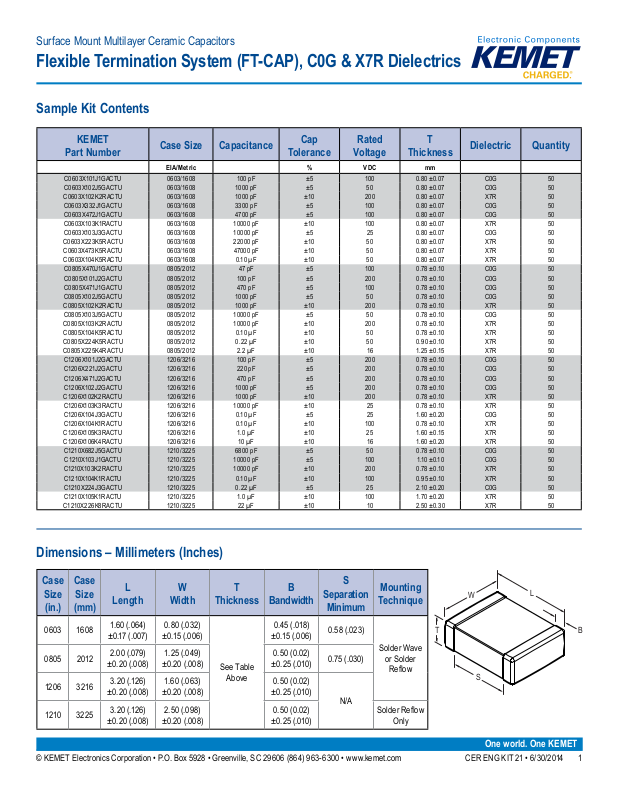

Surface Mount Multilayer Ceramic Capacitors
(in.)
(mm)
Minimum
Flexible Termination System (FT-CAP), C0G & X7R Dielectrics
Sample Kit Contents
KEMET
Part Number
C0 603X101J1GACTU 0603/1608 100 pF ±5 100 0.80 ±0.07 C0G 50
C0603X102J5GACTU 0603/1608 1000 pF ±5 50 0.80 ±0.07 C0G 50
C0603X102K2RACTU 0603/1608 1000 pF ±10 200 0.80 ±0.07 X7R 50
C0603X332J1GACTU 0603/1608 330 0 pF ±5 100 0.80 ±0.07 C0G 50
C0603X472J1GACTU 0603/1608 470 0 pF ±5 100 0.80 ±0.07 C0G 50
C0603X103K1RACTU 0603/1608 10000 pF ±10 100 0.80 ±0.07 X7R 50
C0603X103J3GACTU 0603/1608 10000 pF ±5 25 0.80 ±0.07 C0G 50
C0603X223K5RACTU 0603/1608 22000 pF ±10 50 0.80 ±0.07 X7R 50
C0603X473K5RACTU 0603/1608 47000 pF ±10 50 0.80 ±0.07 X7R 50
C0603X104K5RACTU 0603/1608 0.10 µF ±10 50 0.80 ±0.07 X7R 50
C0805X470J1GACTU 0805/2012 47 pF ±5 100 0.78 ±0.10 C0G 50
C0 805X101J2GACTU 0805/2012 100 pF ±5 200 0.78 ±0.10 C0G 50
C0805X471J1GACTU 0805/2012 470 pF ±5 100 0.78 ±0.10 C0G 50
C0805X102J5GACTU 0805/2012 1000 pF ±5 50 0.78 ±0.10 C0G 50
C0 805X102K 2RACTU 0805/2012 1000 pF ±10 200 0.78 ±0.10 X7R 50
C0805X103J5GACTU 0805/2012 10000 pF ±5 50 0.78 ±0.10 C0G 50
C0805X103K2RACTU 0805/2012 10000 pF ±10 200 0.78 ±0.10 X7R 50
C0805X104K5RACTU 0805/2012 0 .10 µF ±10 50 0.78 ±0.10 X7R 50
C0805X224K5RACTU 0805/2012 0.22 µF ±10 50 0.90 ±0.10 X7R 50
C0805X225K4RACTU 0805/2012 2.2 µF ±10 16 1.25 ±0.1 5 X7R 50
C1206X101J2GACTU 1206/3 216 100 pF ±5 200 0.78 ±0.10 C0G 50
C1206X221J2GACTU 1206/3216 220 pF ±5 200 0.78 ±0.10 C0G 50
C120 6X471J2GACT U 120 6/3216 470 pF ±5 200 0.78 ±0.10 C0G 50
C1206X102J2GACTU 1206/3216 1000 pF ±5 200 0.78 ±0.10 C0G 50
C1206 X102K 2RACT U 1206/3216 1000 pF ±10 200 0.78 ±0.10 X7R 50
C1206 X103K 3RA CT U 1206/3216 10000 pF ±10 25 0.78 ±0.10 X7R 50
C1206 X10 4J3GACT U 1206/3216 0.10 µ F ±5 25 1.60 ±0.20 C0G 50
C1206X104K1RACTU 1206/3216 0 .10 µF ±10 100 0.78 ±0.10 X7R 50
C1206X105K3RACTU 1206/3 216 1.0 µF ±10 25 1.6 0 ±0 .15 X7R 50
C1206X106K4RACTU 120 6/3216 10 µF ±10 16 1.60 ±0.20 X7R 50
C1210X682J5GACTU 1210/3225 6800 pF ±5 50 0.78 ±0.10 C0G 50
C1210X103J1GACTU 1210/3225 10000 pF ±5 100 1 .10 ±0.1 0 C0G 50
C1210X103K2RACT U 1210/3225 10000 pF ±10 200 0.78 ±0.10 X7R 50
C1210X104K1RACTU 1210/3225 0 .10 µF ±10 100 0.95 ±0.10 X7R 50
C1210X224J3GACTU 1210/3225 0.22 µF ±5 25 2 .10 ±0. 20 C0G 50
C1210X105K1RACTU 1210/3225 1.0 µ F ±10 10 0 1.70 ±0.20 X7R 50
C1210X226K8R ACTU 1210/3225 22 µF ±10 10 2.50 ±0.30 X7R 50
Case Size Capacitance
EIA/Metric % VDC mm
Cap
Tolerance
Rated
Voltage
T
Thickness
Dielectric Quantity

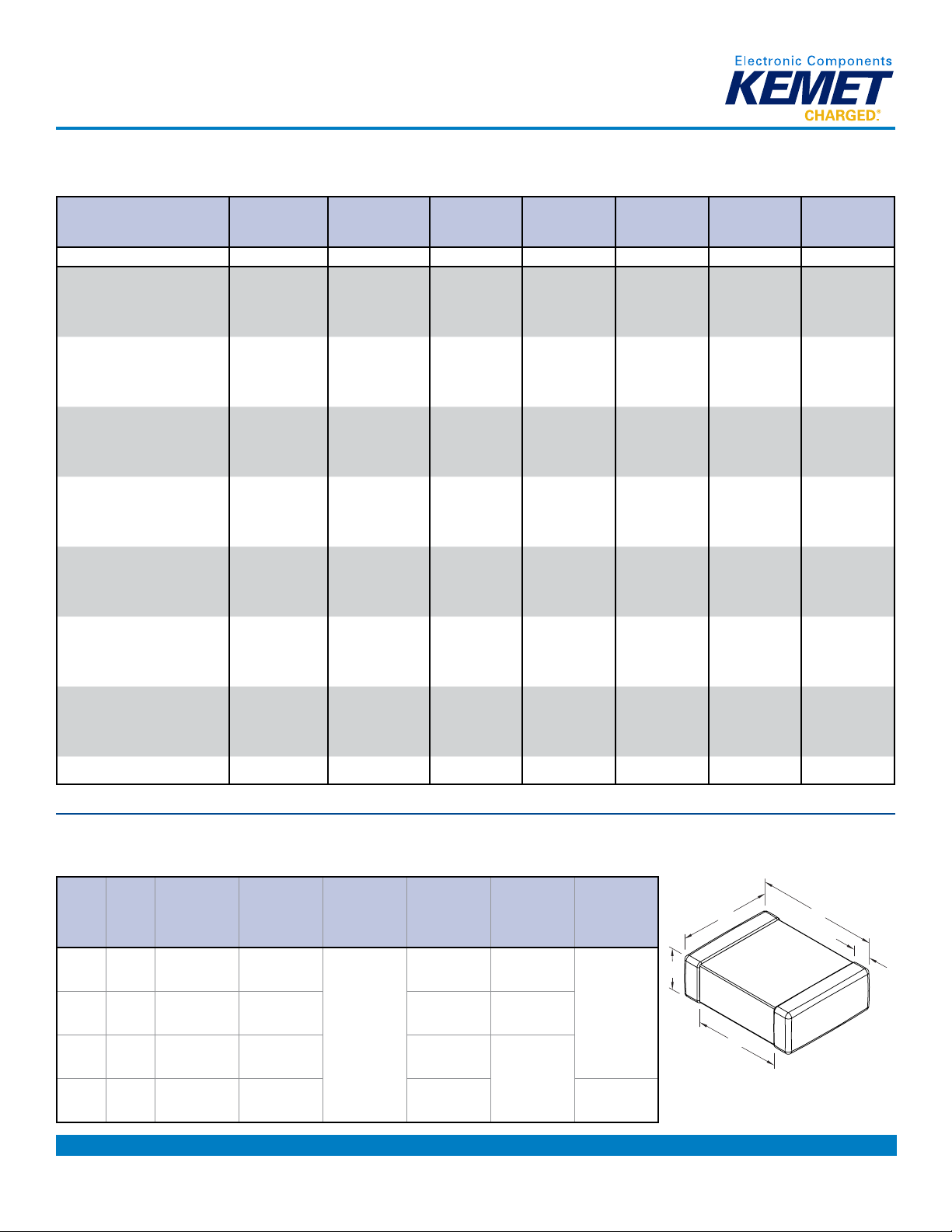

Dimensions – Millimeters (Inches)
Case
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com CER ENG KIT 21 • 6/30/2014 1
Case
Size
0603 1608
0805 2012
1206 3216
1210 3225
Size
L
Length
1.60 (.064)
±0.17 (.007)
2.00 (.079)
±0.20 (.008)
3.20 (.126)
±0.20 (.008)
3.20 (.126)
±0.20 (.008)
W
WidthT ThicknessB Bandwidth
0.80 (.032)
±0.15 (.006)
1.25 (.049)
±0.20 (.008)
1.60 (.063)
±0.20 (.008)
2.50 (.098)
±0.20 (.008)
See Table
Above
0.45 (.018)
±0.15 (.006)
0.50 (0.02)
±0.25 (.010)
0.50 (0.02)
±0.25 (.010)
0.50 (0.02)
±0.25 (.010)
S
Separation
0.58 (.023)
0.75 (.030)
N/A
Mounting
Technique
Solder Wave
or Solder
Reow
Solder Reow
Only
W
T
S
L
One world. One KEMET
B
