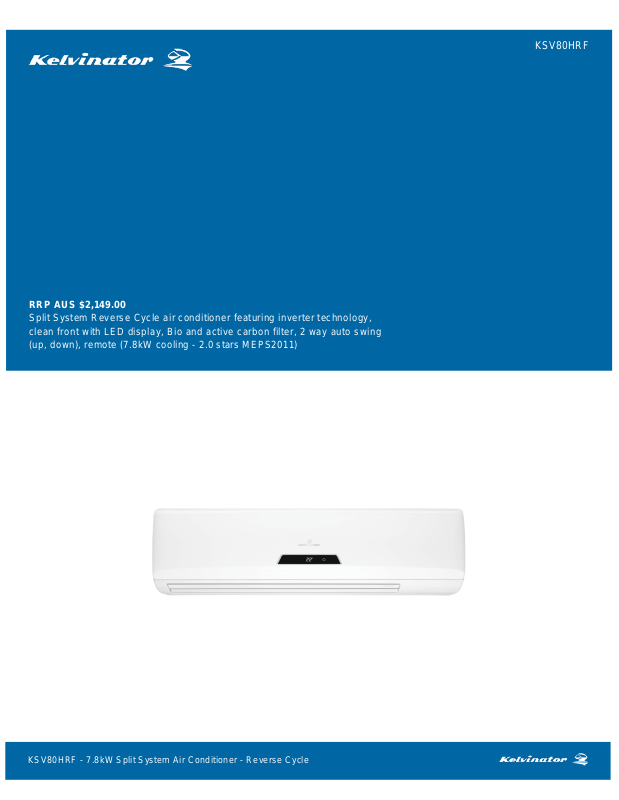

Page 1
KSV80HRF
RRP AUS $2,149.00
Split System Reverse Cycle air conditioner featuring inverter technology,
clean front with LED display, Bio and active carbon filter, 2 way auto swing
(up, down), remote (7.8kW cooling - 2.0 stars MEPS2011)
KSV80HRF - 7.8kW Split System Air Conditioner - Reverse Cycle
Page 2
Product Details
Features
Heating and cooling modes
of operation
Provides year round comfort
Auto or Manual operation
Easy to set and forget or
retain full user control
Auto air swing
Air can be automatically be
directed up and down to
distribute cooling or heating
evenly
LCD backlit wireless remote
control
Easy access to all
functionality combined with a
large easy screen backlit to
be clearly readable in all
lighting conditions
Follow Me command
Measures and controls the
temperature where you are
for personal comfort
Sleep mode
Sleep mode automatically
adjusts the temperature while
you sleep for maximum
comfort and minimum
energy consumption
24 hour timer
Program your air conditioner
to turn on and off
automatically
Auto restart
In the event of an
interruption in power supply
the unit will restart with sthe
same settings that were
selected prior to the power
outage
Inverter compressor
technology
Electronic compressor
control for maximum energy
efficiency and minimum
noise
Up to 5 year comprehensive
residential warranty
KSV80HRF - 7.8kW Split System Air Conditioner - Reverse Cycle
Page 3
Product Details
Benefits
Peace of mind
BioFresh filtration is the ideal way to purify, sterilise and
deodorise the air in your living areas
Superior comfort and control
With DC inverter technology you’ll enjoy greater comfort,
control and energy efficiency all year round
Easy to use
One touch climate control is at your fingertips with a simpleto-use remote control
Easy to clean
The contemporary clean-face fascia not only looks good, it
also minimises dust build-up on the front of the unit. Slim and
compact, these air-conditioners are unobtrusive and will suit
any interior style
KSV80HRF - 7.8kW Split System Air Conditioner - Reverse Cycle
Page 4
Specifications
PRODUCT PROFILE
Domestic warranty
details (yrs)
5
Type reverse cycle
SPECIFICATIONS
Nominal horsepower 4.0
Capacity cool watts 7800
Capacity cool Btu/h 26600
Capacity Heat watts 8000
Capacity Heat Btu/h 27300
Current rating amps 20 amps
Power Supply Connection
Point (for the indoor unit)
indoor unit
Service cord length 2.0
Colour of fascia White, Digital Display
Compressor type rotary
Indoor sound pressure dBA
high setting
51
Indoor sound pressure dBA
low setting
44
Outdoor sound pressure
dBA
59
Indoor air circulation max
(ltr/s)
333
Ambient temperature range
minimum
-7
Ambient temperature range
maximum
48
Moisture removal ltr/hour 2.7
New Energy star rating
cooling
1.5
New Energy star rating
heating
1.5
Cooling EER 3.17
Heating COP 3.25
KSV80HRF - 7.8kW Split System Air Conditioner - Reverse Cycle
Page 5
Specifications
Refrigerant weight (g) 1700
Refrigerant type R32
OUTDOOR UNIT DIMENSIONS
Width (mm) 955
Height (mm) 700
Depth (mm) 396
Refrigerant weight (g) 1700
Refrigerant type R32
INDOOR UNIT DIMENSIONS
Total width (mm) 1178
Total height (mm) 326
Total depth (mm) 253
Refrigerant weight (g) 1700
Refrigerant type R32
FEATURES
Filtration biofresh,dust,carbon,hepa
Remote control
type
LCD
Timer 24 hour
Anti corrosion
treatment
Hydrophilic Blue Fin Coating -
Indoor & Outdoor Units
Fan speeds low,medium,high,Auto
Refrigerant weight
(g)
1700
Refrigerant type R32
INSTALLATION REQUIREMENTS
(PIPING AND WIRING)
Gas pipe size 15.88
Liquid pipe size 6.35
Maximum piping length
vertical
10
Maximum piping length
horizontal
30
Maximum pipe length with
supplied charge
7.5
Wires connecting indoor
unit to outdoor unit
4
Refrigerant weight (g) 1700
INDOOR UNIT PACKED DIMENSIONS
Shipping Volume (m3) 0.180
Shipping Weight (Kg) 23
Pack Dimensions Width
(mm)
1253
Pack Dimension Height
(mm)
411
Pack Dimension Depth
(mm)
349
Refrigerant weight (g) 1700
Refrigerant type R32
KSV80HRF - 7.8kW Split System Air Conditioner - Reverse Cycle
Page 6
OUTDOOR UNIT PACKED
DIMENSIONS
Shipping Volume (m3) 0.353
Shipping Weight (Kg) 60.5
Pack Dimensions Width
(mm)
1029
Pack Dimension Height
(mm)
750
Pack Dimension Depth
(mm)
458
Refrigerant weight (g) 1700
Refrigerant type R32
STUFFING QUANTITIES
20ft 45
40ft 102
40ft HC 114
Refrigerant weight (g) 1700
Refrigerant type R32
KSV80HRF - 7.8kW Split System Air Conditioner - Reverse Cycle
Page 7
ELECTROLUX HOME PRODUCTS AUSTRALIA
telephone: 1300 363 640
fax: 1800 350 067
email: customercare@electrolux.com.au
web: www.electrolux.com.au
ELECTROLUX HOME PRODUCTS NEW ZEALAND
telephone: 09 573 2230
fax: 09 573 2221
email: customercare@electrolux.co.nz
web: www.electrolux.co.nz
Terms and Conditions
IMPORTANT
This is a guide of product dimensions only. For complete installation instructions, refer to the manual provided with product.
PRODUCT INFORMATION
The descriptors and illustrations in this publication apply to the specific products and models described as at the date of issue. Under our policy of continuous
productdevelopment, product specifications may change without notice. Prospective purchasers should therefore check with their retailer to ensure this
publication correctly describes theproducts that are being offered for sale. All information supplied is to be used for general reference purposes only and is on the
understanding that Electrolux Home Products PtyLtd (Australia) and Electrolux (NZ) Ltd (New Zealand) will not be liable for any loss, liability or damage of whatever
kind arising as a result of reliance on such information. Colours ofproducts illustrated are as close as printing limitations allow. Electrolux will at all times comply
with its obligations pursuant to law including Trade Practices (Australian Consumer Law) Act and Regulations.
WARRANTY
This warranty only applies to Appliances purchased and used in Australia or New Zealand and used in normal domestic applications and is in addition to (and does
not exclude, restrict, or modify in any way) any non-excludable statutory warranties in Australia or New Zealand. All warranties are subject to the conditions set out in
the warranty card accompanying the product when purchased.
