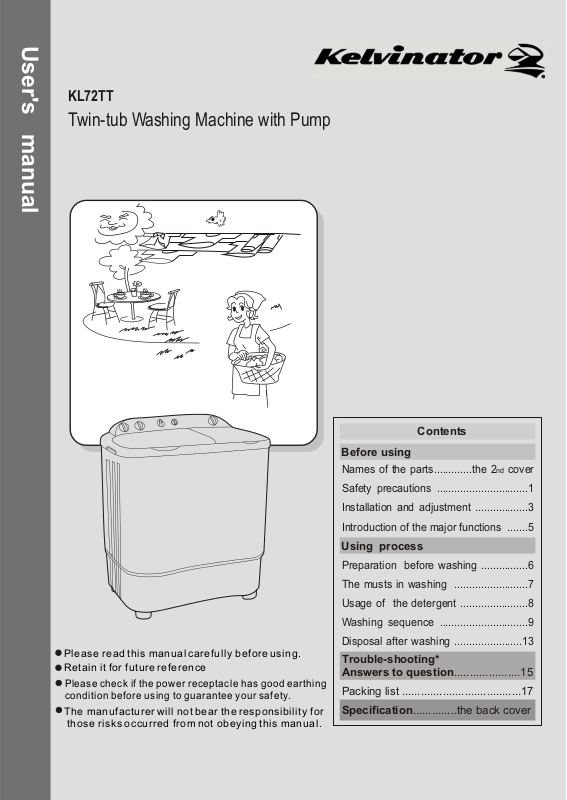

Kelvinator KL72TT User Manual

User's manual

R

KL72TT

Twin-tub Washing Machine with Pump

Please read this manual carefully before using.
Retain it for future reference

Please check if the power receptacle has good earthing
condition before using to guarantee your safety.

The manufacturer will not bear the responsibility for
those risks occurred from not obeying this manual.

Contents

Before using

Names of the parts.............the 2nd cover

Safety precautions ...............................1

Installation and adjustment ..................3

Introduction of the major functions .......5

Using process

Preparation before washing ................6

The musts in washing .........................7

Usage of the detergent .......................8

Washing sequence ..............................9

Disposal after washing .......................13

Trouble-shooting*

Answers to question.....................15

Packing list ......................................17

Specification..............the back cover

Names of the parts

Buzzer

Before Using

Before Using

Water-filling entrance

Water inlet selector handle

Wash selector

Wash timer

Control panel

Overflow filter

Quick water-filling entrance

Drain hose surpport

Water level adjusting lever

Lint filter(installed by user)

Pulsator

Wash tub

Drain hose

Wash tub cover

Base frame

Outer cover of the spin tub

Inner cover of the spin tub

Spin timer

Spin tub frame

Spin tub

Cabinet

Power cord

Accessories

Water-filling jointer
(one piece)

Water inlet hose
(one piece)

Lint filter

(one piece)

Gland
(one piece)

Meaning and description of the symbols

Contents marked with that symbol

Warning sign

Forbidding sign

are related to the safety of the
product and the personal safety
of the users. Please operate in
strict conformity to the contents,
otherwise it may cause damage
of the machine or injure the
personal safety of the user.

Contents marked with that symbol
are actions forbidden to perform.
Performing of those actions may
result in damage of the machine
or injure the personal safety of
the user.

Safety precautions

Before Using

Before Using

Please insert the power cord into special
receptacle with rated voltage.Be sure to
use single-phase three pins receptacle.
The earthing terminal of the receptacle
must be earthed reliably.If possible,please
adopt electric leakage protector.

Earth

If the supply cord is damaged, it must be replaced by the manufacturer,it s service
agent or similarly qualified persons in order to avoid a hazard.

Power

The carpet must not obstruct the ven
tilation openings in the base of the wa
shing machine

plug clean.

.

The washing machine should be position
ed so that the plug is accessible

to pull the plug off when there'spower fai­lure, or the machine is being moved, cle­aned or when it is idle.

Keep the pin of the

-

Do not use water hotter than 50 C .

-

. Be sure

'

-

Ventilation hole at
the bottom of the
washing machine

Do not put the machine at damp place
like the bathroom . Never wash it with
water. Do not place wet laundries on the
control panel.

Do not share one receptacle with other
electric appliances. Do not use it in
case that the power plug is damaged
or the inserting into the receptacle is
loose.

Do not wash water-proof laundries such
as the raincoat, bicycle shelter etc. To
avoid abnormal vibration during spinning.

Safety precautions

Before Using

Before Using

Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.

Do not put any hot or heavy items
( such as the kettle with hot water )
on the washing machine.

Do not decompose, repair or alter the
machine by yourself.

Do not wash laundries with volatile
materials (such as thinner, petrol etc.).

Petrol

Thinner

Handicapped or children without care
shall not use the machine.

To protect your laundries and washing
machine, please take out all of the coins,
buttons, sand, hairpin and other foreign
materials before washing.

Keep the machine away from direct
sunlight and heat source like the
heater.

Please check if the water faucet is open, and if
the connection of the water inlet pipe is proper.
It is suggested to use foamless washing powder.

Installation and adjustment

Before Using

Before Using

Please install and adjust the machine according to the requirement of the manual.
It is very important to your security and correct operating the machine.

The drainage shall be smooth with the drain hose.

1.The height of the drain hose shall be less than 1.2m , or the drainage will
not be smooth enough and cause incomplete drainage.

<1.2m

2.Do not step on or press the drain hose.

Install the lint filter

After opening the package,please take out the
lint filter from the document bag,install it
to the overflow filter of the cabinet.
See to the figure

Overflow filter

Install the water inlet hose; Select the water level

Insert the water inlet hose into the water-filling
entrance on the control pane directly.(pull it
out to dismantle it)The appliance is to be connected
to the water mains using new hose-sets and that
old hose-sets should not be reused.

Select water level according to the
quantity of the laundries.
Set the water level adjusting lever
to needed line.

Page8

Maximum

about 55L

Medium

about 46L

Minimum

about 36L

Water inlet hose

Water level
indicator

Max.

Med

Min

Lint filter

Water inlet

Before Using

Before Using

How to change the direction of the drain hoses

Figure 1 indicates the ex factory
installation position of the drain

Figure 1

hose.

Extend the drain hose from the side of spin tub.

Take off the drain hose from the hanging
hole of the cabinet. Pull the drain hose
fixing hook outwards gently to take out
the drain hose from the two fixing hooks.
(As per Figure 2)

Rotate the drain hose fixing hook for 90
to take it out from the installation hole
(As per Figure 3).

Install the two drain hose
fixing hooks taken out into
the installation hole at the
other side of the base frame

(to aim at the installation
hole accurately you can
lean the washing machine
forward slightly).Then rotate
for 90 (As per Figure 4).

Drain hose
fixing hook

Rotate the fixing
hook for 90

Take off the fixing
hook downwards

Figure 3

Side sectional view

Drain hose
fixing hook

Pull outwards
slightly

Take of f
the drain hose

Figure 2

Rotate the fixing
hook for 90

to fix it

Insert the fixing hook into the
installation hole upwards

Figure 4

Fixing hook
installation hole

Drain hose

Pull the fixing hook outwards slightly.
Inlay the drain hose into the fixing hooks
reliably along the groove at spin tub side,
and make it extend towards spin tub side.

Then hang the drain hose into the hanging hole at the spin tub side. (As per Figure

Figure 5

Figure 6

Extend the drain hose from the rear side

Take out the drain hose from the fixing hook. Extend it from the rear side (When
the drain hose is extended from the rear side, it can be hung on the point for drain
hose at the two sides of the cabinet.) (See to Figure 6).

Using process

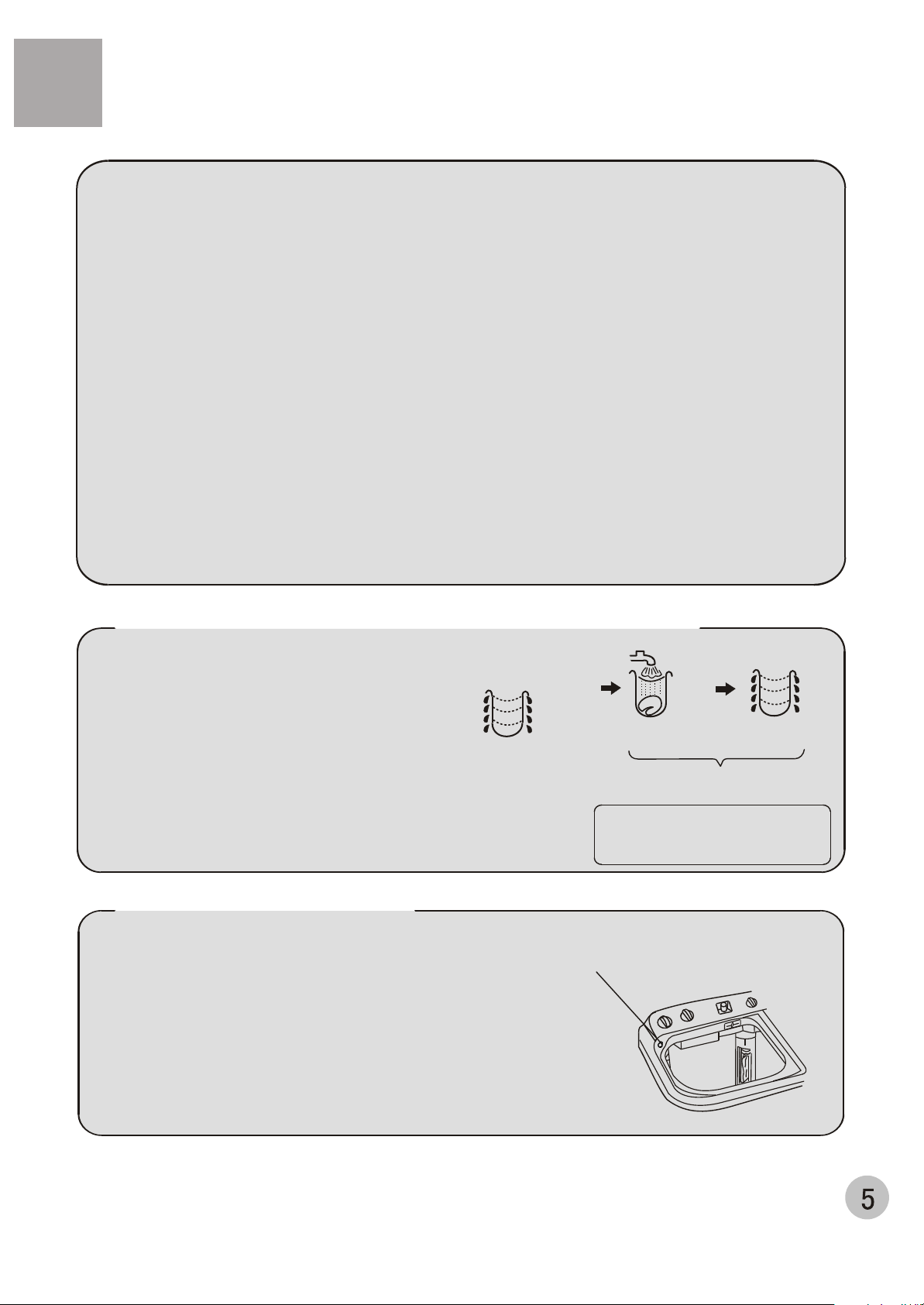

Introduction of the major function

The machine has good comprehensive performance, and nice appearance.

It adopts streamline appearance and full plastic shell, which will never get rust.

For the design on safety and reliability, it adopts the wash shelf, spin shelf and water

reception groove design, and reduces the unfavorable influence on the electrical component

by the vapor. Therefore it guarantees more safe and reliable washing.

By the technology of comprehensive energy-saving, the machine can work under

wide range of voltage, regardless of the voltage fluctuation.

It adopts complete enclosed base frame and low-noise motor, and thus reduces the

working noise significantly. We can guarantee that the purchase of this machine will bring

you a clean world without disturbing your quiet life.

Using process

Foam-removing spinning during high-efficiency rinsing

Use the foam-removing spinning to
remove the extra detergent liquid. It
can both shorten the washing time
and save the water consumption.

Spin

Remove most of
the foam extra
detergent liquid.

Fill water for
about 1 minutes

Remove the detergent
liquid remained

The effect is best when the
laundries quantity is below
80% of the rated value.

Quick water-filling entrance

If you do not need spraying spin, you can
fill water into the wash tub directly through
this entrance. It can reduce the humidity
inside the control panel significantly and
prolong the operating life of the components.

Quick water-filling entrance

Foam-removing
spinning

Spin for about
1~2 minutes

Preparation before washing

Preparation before washing

1.Connect the water inlet hose.

2.Confirm that the washing machine is earthed
reliably . Then insert the power plug into the
receptacle. Do not connect the earth terminal
to the gas pipe and tap water pipe.

3.Put the drain hose up to suitable position .

4.Slanting or uneven ground may result in
unstable working or abnormal noise. Please
make the machine stand horizontally.

Using process

Using process

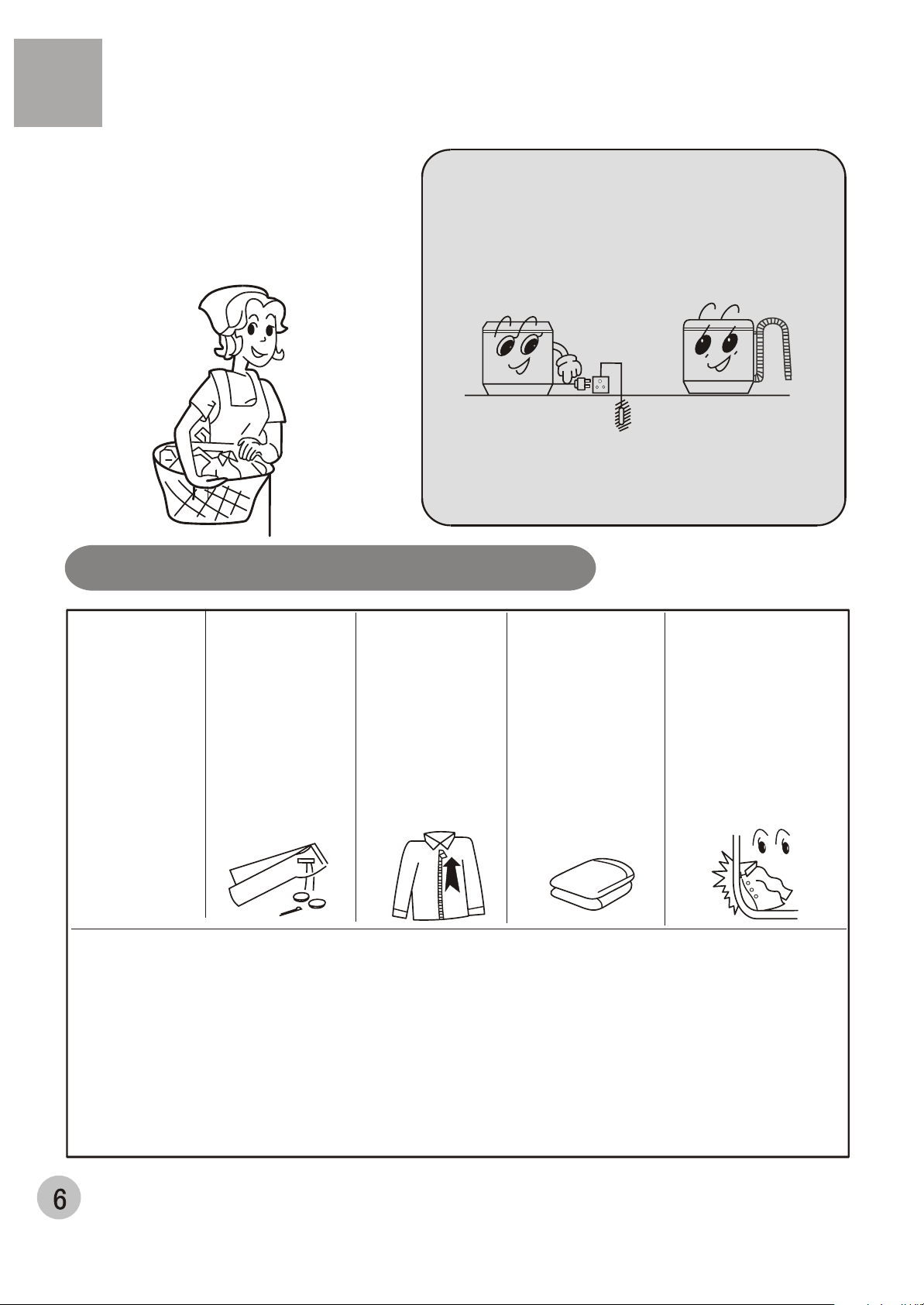

Pay attention to followings before washing the laundries

Check if
the laundries
has special
requirement
on washing

a. Check if the laundries are applicable for washing with machine.
b. Divide the laundries that are not colorfast from other laundries.
c. Put those laundries difficult to absorb water into water with hand.
d. For those laundries with heavy soil, please first remove the dirt like mud or dust.
For the parts with heavy soil, please apply detergent on them in advance, which
can make it easier to remove the soil.
e. For those laundries that may get lint ball and those with long fur, turn it over before
putting in.
f. Do not put those laundries polluted by chemicals into the washing machine directly.

Clear the
pocket. Take
out the coins,
sand, hairpins
etc.

Tie the long
strips; fasten
the buttons;
close zippers.

The quantity of
the laundries
shall not be too
large. Stretch
and loosen the
laundries before
putting them in
the tub.

When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion, please
put the laundries
with buttons into
other laundries.

The musts in washing

The capacity of washing and spinning of
the machine refer to the largest weight of
the standard laundries under dry condition
that can be washed or spinned in one time.
Laundries quantity in one washing cycle
shall be lower than the rated capacity.
The largest wash capacity of this mach­ine is 7.2 kg, The largest spin capacity
of this machine is 6.0 kg,

The thickness ,size , type of the cloth will
influence the actual washing capacity. It
is suitable to put in reasonable amount of
laundries and the laundries can be turned
round in washing for one time washing.

Do not select " Maximum " water level
for laundries less than 3.2kg, so as to
avoid splashing of water.

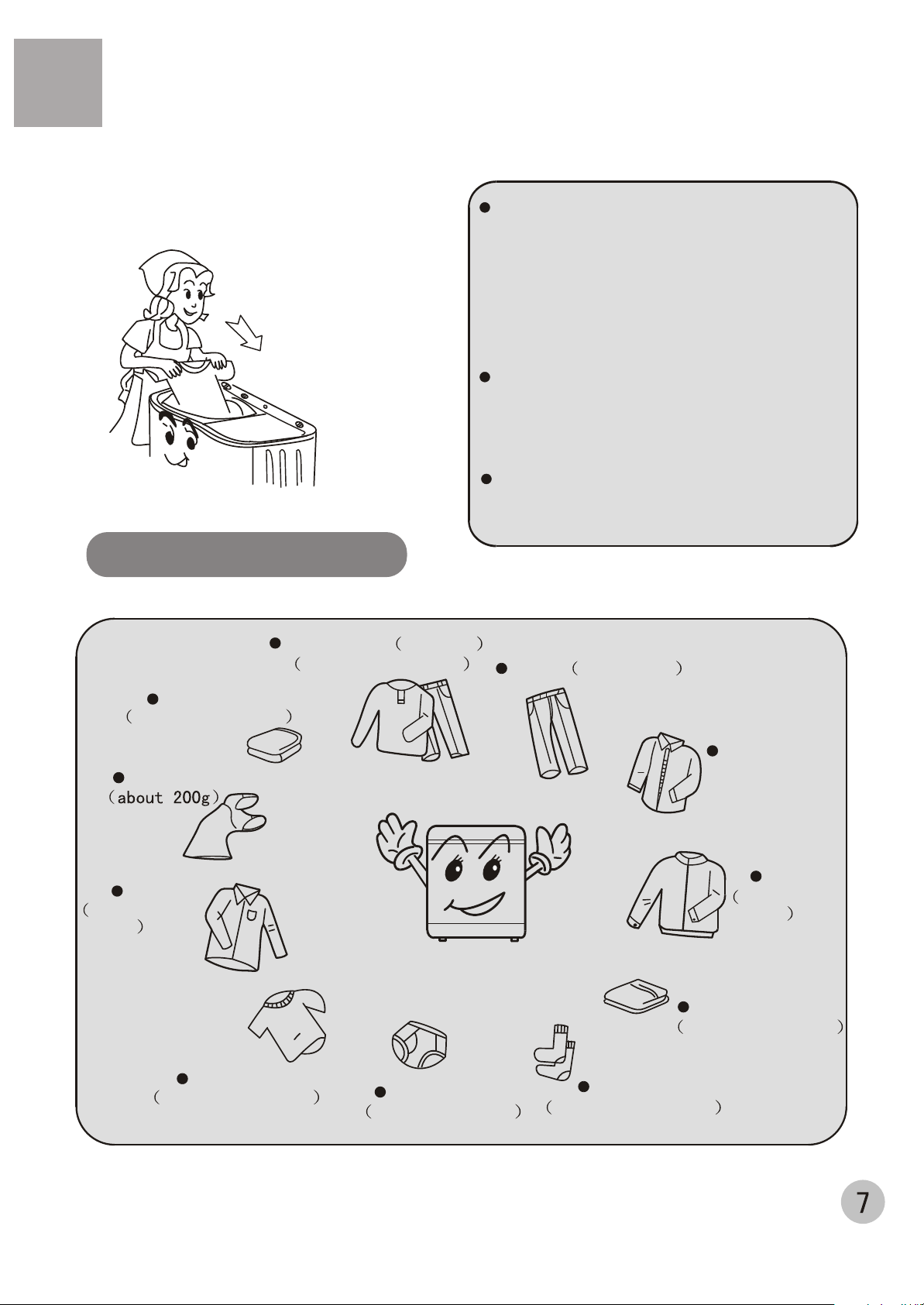

Reference weight of the laundries

Using process

Using process

cotton,about 900g

Pajamas

Shirt

cotton,about

300g

Working suit up,down

Blanket

Undershirt

cotton,about 180g

cotton,about 1120g

Underpants

cotton,about 70g

Jeans about 800g

Blending coat

about 800g

Jacket

cotton,about

800g

Single bed sheet

cotton,about 600g

Socking

blending,about 50g

Using process

Usage of the detergent

Using process

How to use the whitener

Fill water to decided level. Dilute the whitener with container. Pour it slowly into the
washing tub.
Avoid using whitener on laundries with color or pattern as they are prone to lose color.

The whitener shall not touch the laundries directly.
Refer to the user's manual for the usage and quantity of the whitener.

For powder whitener, please dissolve it before using.

How to use the washing powder

Direct dissolved in the machine:

1.Fill small quantity of water.

2.Add the powder . Run for 30 seconds to
dissolve it completely.

3.Put it in the laundries. Select suitable
water level.

The instant dissolving of the washing powder:

1.Prepare warm water of 30 C and a container.

2.Add the powder while stirring to fully
dissolve it.

The powder is more prone to pollute the
laundries than the detergent. Therefore
please use it with proper quantity.

It is suggested not to use high sudsing
detergent.

Dosage of different washing powder is
different. Please refer to the instruction
of the washing powder for the detail
dosage.

Selection of the quantity of the washing powder list 1

Standard dosage

Laundries
quantity

4.5kg~7.2kg

2.5kg~4.5kg

Below2.5kg

Water level

Water quantity

Maximum (about55L)

Medium (about46L)

Minimum (about36L)

Concentrated washing
powder

About About

About About

About About

46g

38g

30g

Common washing
powder

55g

46g

36g

Selection of the current , water level and washing time list 2

Laundries
quantity

3.2kg~7.2kg

Below3.2kg

Current

Strong

Standard

Water level

Water quantity

Medium (about46L)
~

Maximum (about55L)

Minimum (about36L)
~

Medium (about46L)

Laundries

Knitwear
Cotton,blending,linen
Very dirty and thick
Bed sheet
Silk(thin laundries)
Chemical fiber
Cotton,blending,linen

Washing time
(minutes)

About3~6
About8~10
About10~13
About7~13
About2~4
About3~6
About8~10

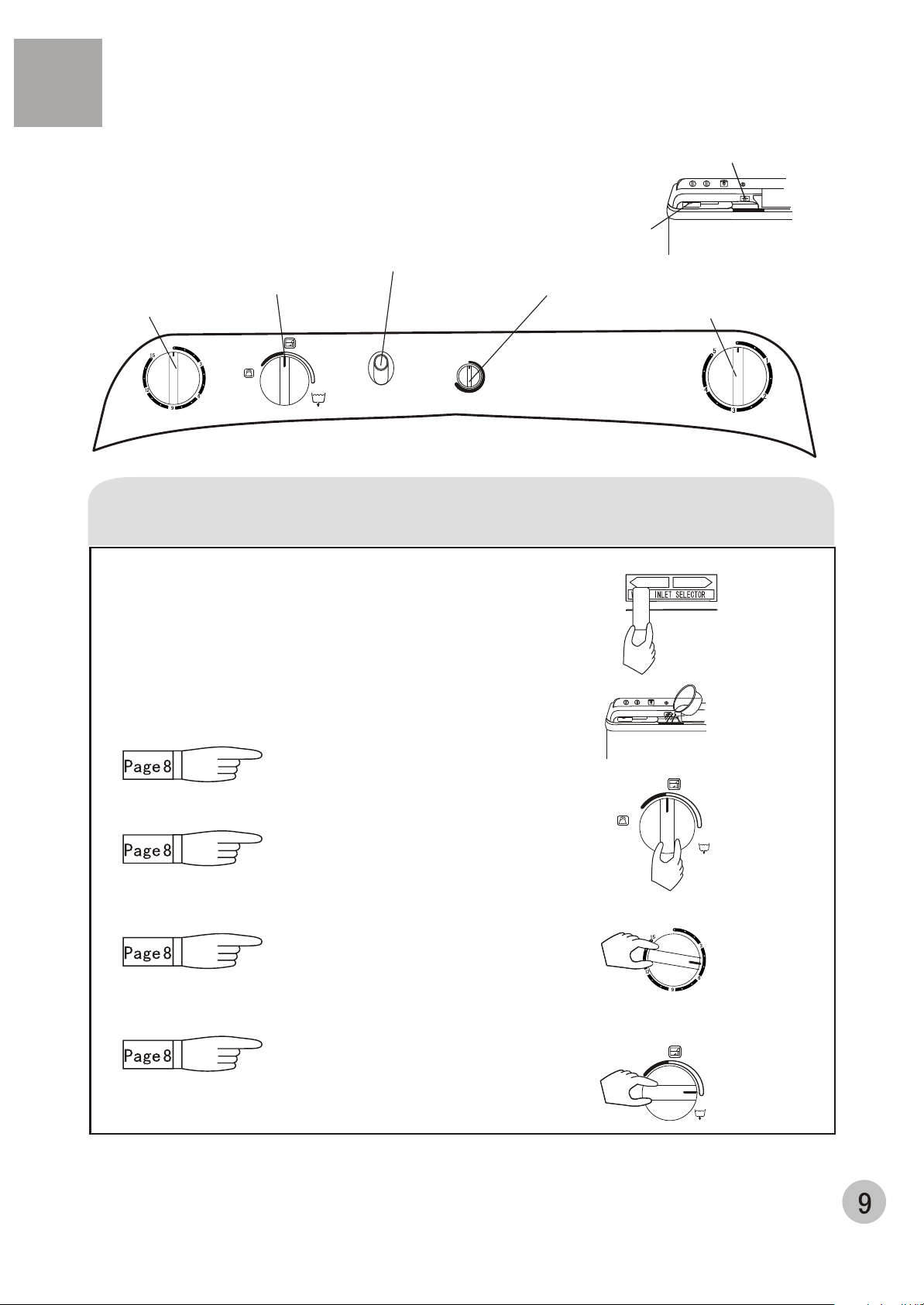

Washing sequence

Using process

Using process

Water-filling selector handle

Overfilling sign

Wash timer

(To set to below 2 minute,
first set to 5 minute then
turn it back. it can increase
the service life of the timer).

OFF

WASH TIMER

Wash selector

(Strong current,
standard current)

STRONG

STANDARD

WASH SELECTOR

Water-filling entrance

DRAIN

OFF

MAX

BUZZER

Wash

1.Water-filling selector
(1) Set the water-filling selector at the "WASH" side.
(Figure 1)
(2) Set the water level adjusting lever to needed line.

2. Fill the water and add the dissolved washing
powder to make the water level reach the preset
position. (Figure 2)
Run washing program for some time to stir and
dissolve the powder completely.

Buzzer

(The buzzer will ring when
the washing finishes)

Spin timer

(to set to below 1 minute,
first set to 2 minute then
turn it back. it can increase
the service life of the timer).

OFF

SPIN TIMER

SPIN

WASH

Figure 1

Figure 2

3.Put in the laundries. If the water quantity is
insufficient, please add water.

4.Select the current.
Select the strength of the current according to
the laundries. (Figure 3)

5.Select the washing time
Select the washing time according to the laundries.
(Figure 4)

6.After washing, the buzzer will ring. Set the "WASH
SELECTOR" at "DRAIN". (Figure 5).

WASH SELECTOR

WASH TIMER

WASH SELECTOR

STRONG

STANDARD

STRONG

STANDARD

OFF

DRAIN

DRAIN

Figure 3

Figure 4

Figure 5

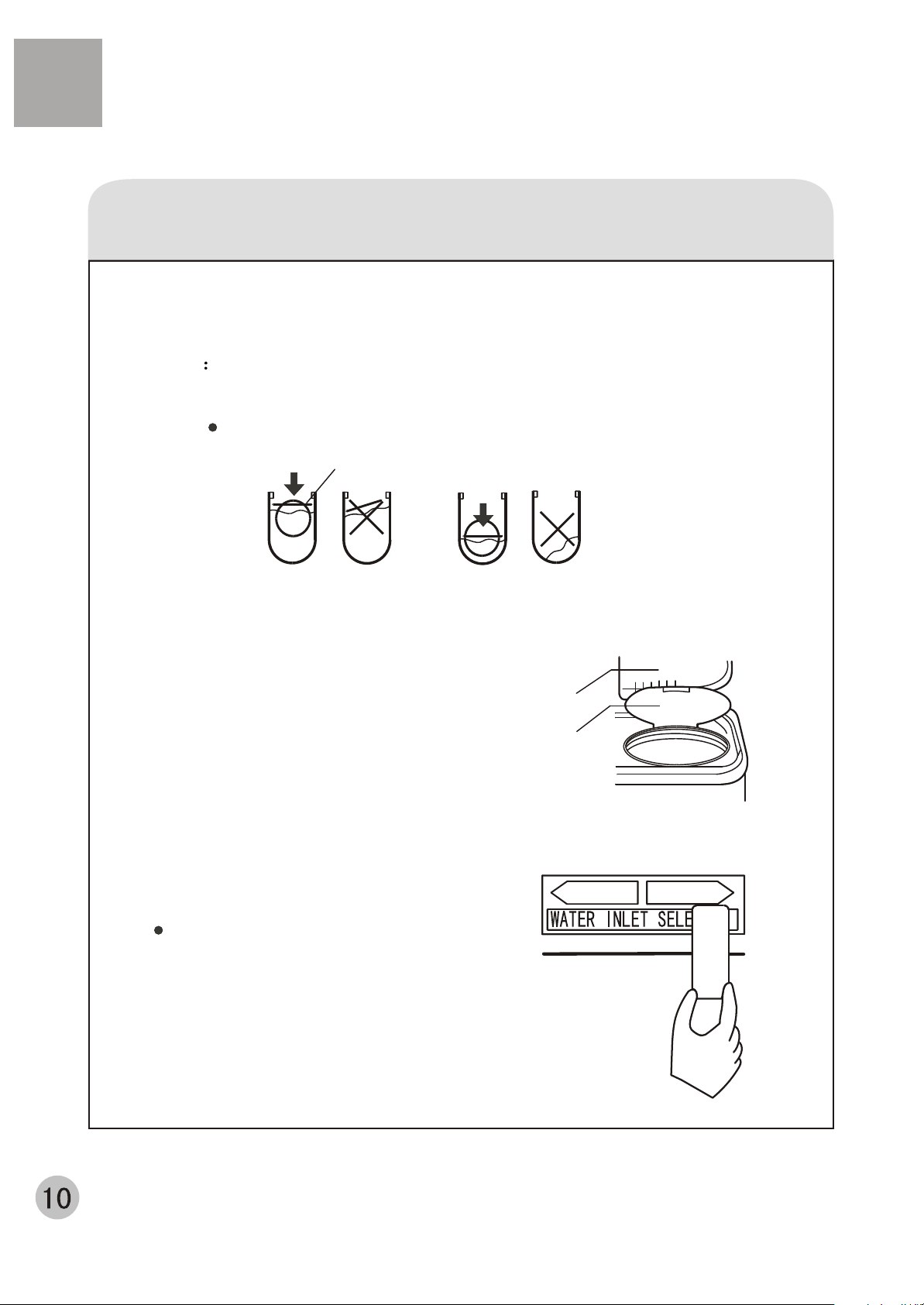

Midway spinning

1.

Put the laundries into the spin tub evenly and smoothly.

2.

Spin

(1) Put the gland in properly.

Please put in the gland properly even if the laundries quantity is small.

Using process

Using process

Push

Proper Proper

(2) Close the inner and outer cover of the spin tub.

(3) Spin for 1-2 minutes.

3.

Run the foam-removing spinning.

(1) Open the outer cover of the spin tub.
(2) Set the water-filling selector control
rod at the "SPIN" side. Fill water for
about 1 minute.
If the water quantity filled is too large,
the water may flow out from the wash
tub side. Please twist the water tap to
limit the water filling.
(3) Close the outer cover of the spin tub.
Spin for 1-2 minutes.

Gland

The laundries
are slanting

Push

No gland

Outer cover of
The spin tub

Inner cover of
The spin tub

WASH

SPIN

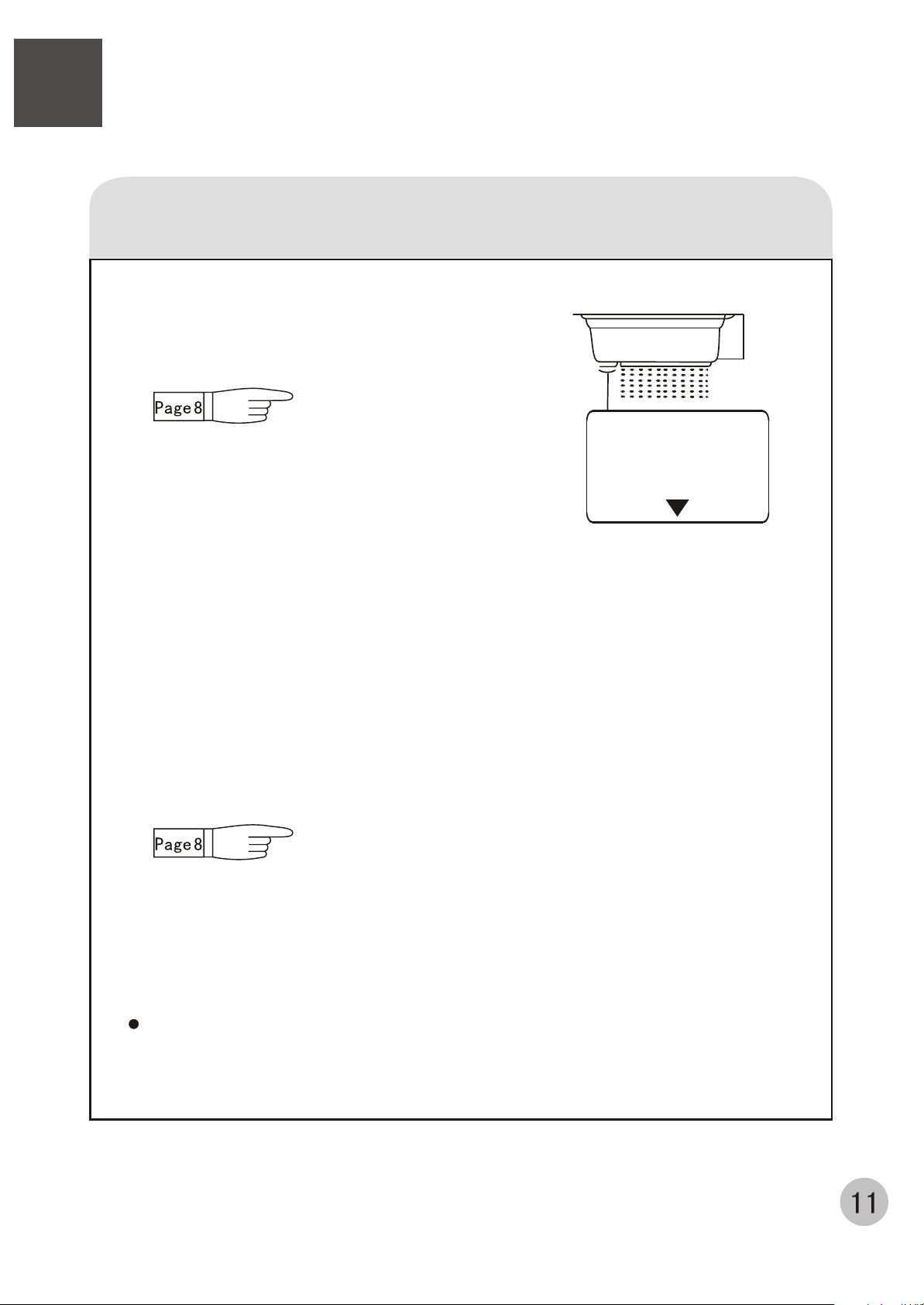

Rinsing

Rinse with water-filing

Using process

Using process

1.Put the laundries into the wash tub. Select
suitable current according to the laundries.

2.Adjust the water level
Set the water level with water level adjusting
lever according to the laundries quantity.
Then fill suitable water continuously.

3.Rinse
Adjust the wash timer to 5-7 minutes to do
rinsing.

Rinse with stored water

1. Put the laundries into the wash tub. Select suitable current according to
the laundries.

(Repeat the midway spinning and
rinsing with stored water for 2-3 times)

OVERFILL

If you find water flo­wing out here,please
twist the water tap to
limit the water filling.

2. Fill water to preset water level.

3. Rinse
Adjust the wash timer to 2-3 minutes to do rinsing.

When the laundries quantity is below 3.2kg, please use " STANDARD " current.
If you use "STRONG" current, it may splash.

Spinning

Using process

Using process

1. Put the laundries into the spin tub
evenly and smoothly.

2. Press the gland in the tub properly.
Close the inner and outer cover of
the spin tub.

3. Spin
Select suitable spin time according
to the laundries, and do spinning.

During spinning, if there's abnormal
sound, it is generally owing to slanting
placement of the laundries. Please
stop the machine and re-order the
laundries.

In spinning, it will pause the work if you open the outer cover of the spin
tub. Close it to resume the spinning.

Selection of the spin time list 3

Laundries

Bed sheet or
blanket

Underwear
(knitwear)

Swear
(chemical fiber)

Blending thin
laundries

Spin time
(minutes)

About 4~5

About 2~4

About 1~2

Within 1 minute

To do spinning and draining or rinsing
with water-filling together, please first
do spinning for around 1 minute, then
do draining or rinsing with water-filling.
Otherwise the spinning will stop owing
to too much water stored in the spin tub.

Using process

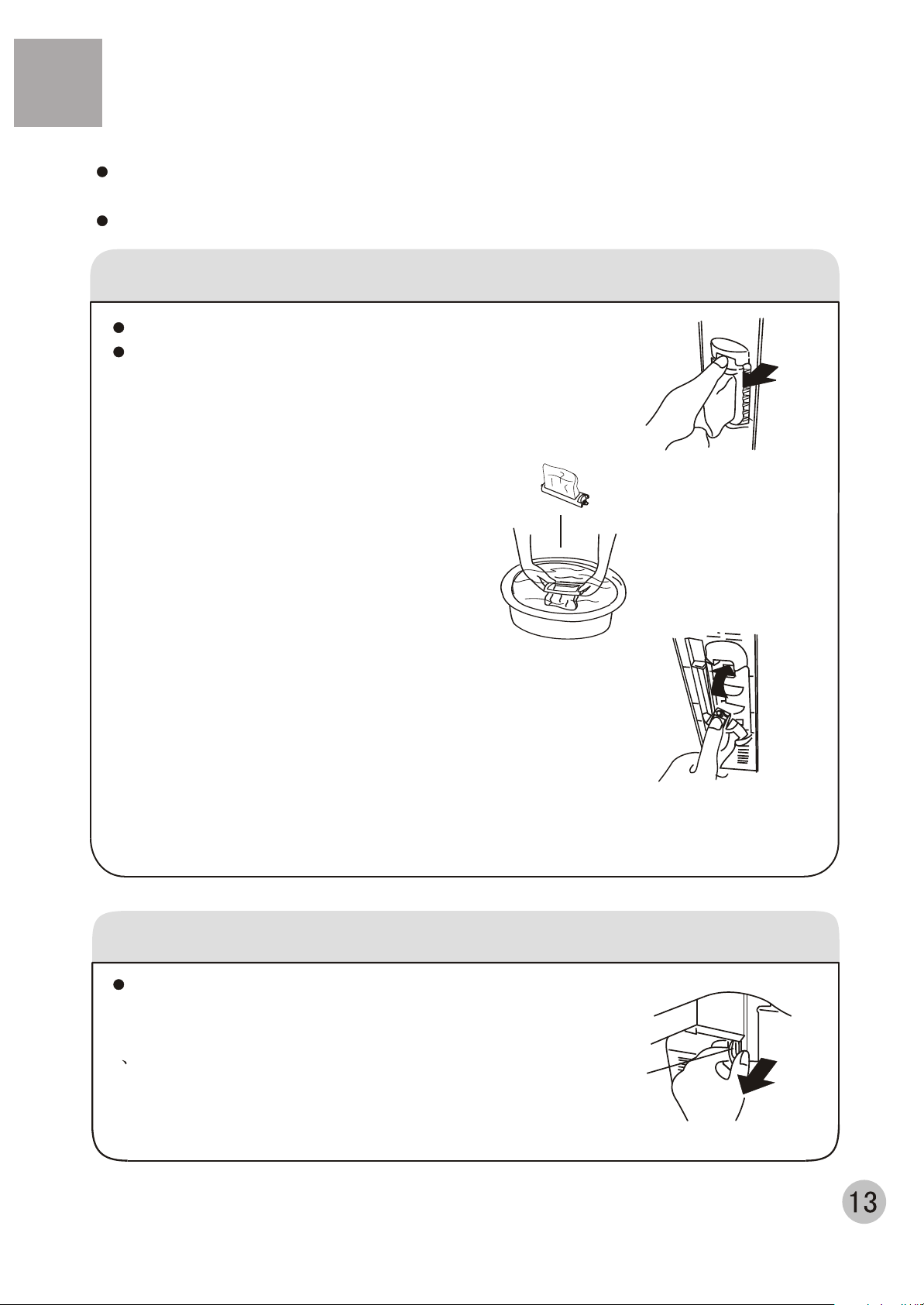

Disposal after washing

After using, please clean the lint and foreign materials of the lint filter and overflow filter

in time. Otherwise it may influence your using the machine.

Please first pull off the power plug from the receptacle before cleaning.

Using process

Cleaning the lint filter

The lint filter must be used during washing.
It must be cleaned in time after each using.

1. Take off the lint filter
Put hand at the indicated position.
Push down to take it off. ( See to
Figure 1)

2. Clean the lint
Put it in water and clean while it is
still wet.(See to Figure 2)

Figure 1

3. Install the lint filter
After cleaning, insert the bottom
of the lint filter ( marked with
"DOWN SIDE") into the overflow filter ,
then push the upper part of the
filter in ( marked with " UP SIDE ").
(See to Figure 3)

Cleaning the overflow filter

Too much lint on the overflow filter will influence
the normal usage of the machine. Please
clean it every two months.

1 Take off the overflow filter.
As indicated in the figure, nip the elastic fixing
claw and pull it to the direction of the arrow to
take it off.

Figure 2

Figure 3

Elastic fixing
claw

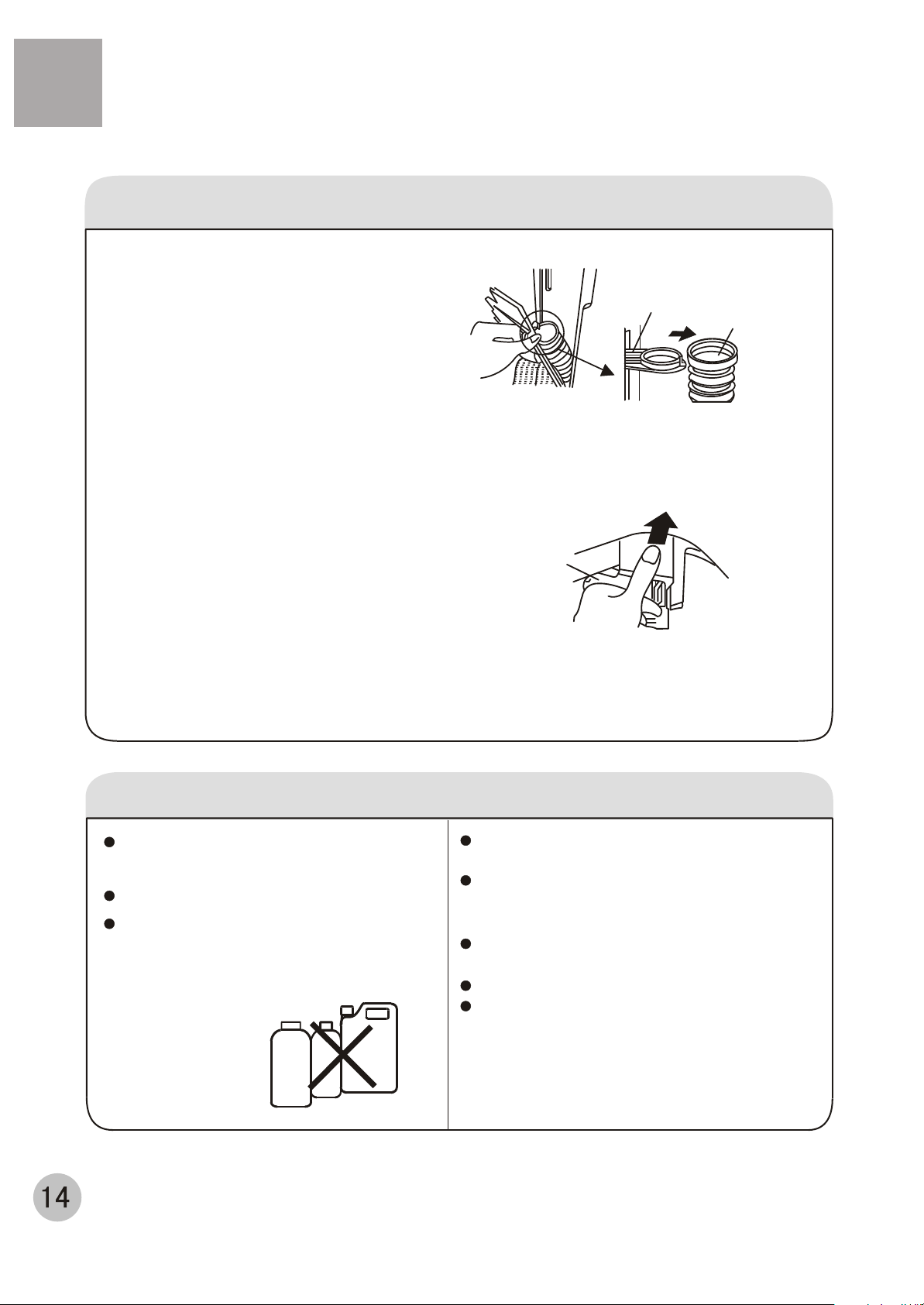

Cleaning the overflow filter

2. Take off the corrugation pipe.
Dismantle the upper part of the
corrugation pipe inside the
overflow filter ( as indicated in
Figure 1).

Using process

Using process

Water level
adjusting lever

Corrugation
Pipe

3. Cleaning the overflow filter
Clean the lint around the filter
and flush with tap water.

4. Install the overflow filter.
(1).Install the corrugation pipe.
(2).Insert the mounting plate at
the bottom of the filter into
original position.
(3).Hang up the hook at the left
upper side.
(4).Push the upper part in as
indicated in Figure 2.

Disposal of the complete unit

Wipe the complete unit with soft cloth

twisted dry.

Wipe with neutral detergent if too dirty

Do not wash it directly by water

Thinner

Petrol

Alcohol

After washing, dismount the water inlet
hose.
Do not store water in the tub for long
period. Discharge the water immediately
after each using.
Pull off the power plug and hang up the
power cord.
Hang up the drain hose.
Wipe off the water drops on the surface
and inside the tub with clean soft cloth.
Open the cover of the wash tub and the
inner/outer cover of the spin tub for
some time (about one hour), then close
them.

Figure 1

Hook

Figure 2

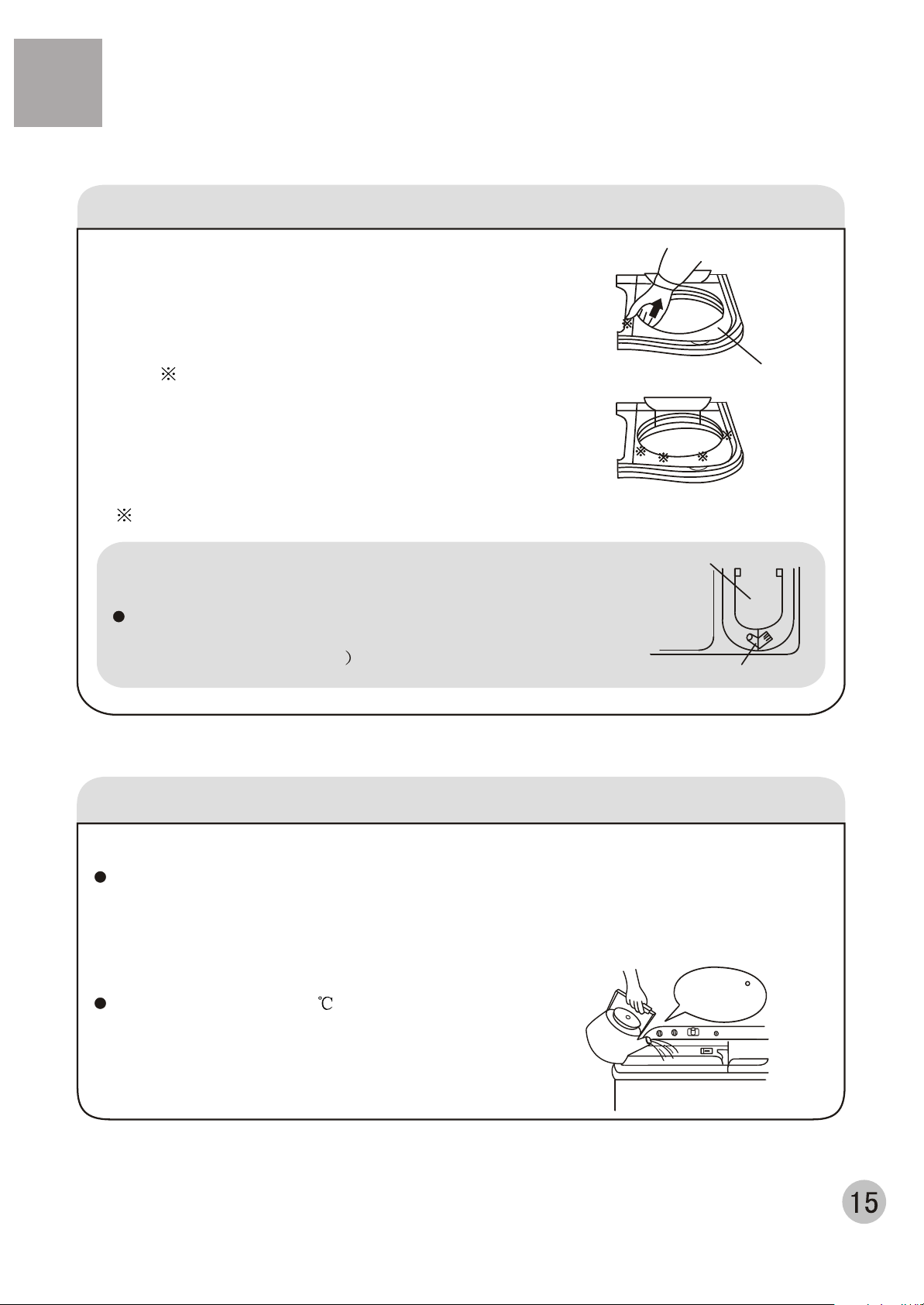

Trouble-shooting Answer to question

If the laundries fall to the outer side of the spin tub

If the laundries fall to the outer side of the spin tub,
please take them out immediately.

1.Dismantle
As indicated in the figure, push the point marked
with " " to pull the spin tub frame to oblique
upwards to dismantle it.

2.Install
After install the back edge of the spin tub frame to
proper position, push the four points marked with
" " by force to reset it.

Spin tub frame

Please check carefully. The laundries may fall to the lower part

of the outer side of the spin tub (as indicated in the figure).

If the laundries fall to the outer side of the spin tub, during

spinning the draining will get blocked and the rotation speed

of the spin tub is reduced.

Spin tub

Laundries

When the remained water is frozen

Prevent the freezing (be sure to discharge the water completely after using)
After complete draining, set the "WASH SELECTOR" at "STRONG" or "STANDARD".
If it is set at "DRAIN", it will be rather difficult for the frozen water to melt.

When the water is frozen
Pour hot water below 50 into the wash tub
to soak it completely. Then turn the pulsator
with hands gently. Please confirm the drainage
can work normally before next using.

Below 50 c

2~3L

Trouble-shooting Answer to question

(If there's breakdown, please pull off the power plug before checking) The following
phenomena are not breakdowns sometimes. Please confirm again before sending
it to repair. If there are real breakdowns, please come to the special maintenance
department or after-sale service department of our company. Do not repair it by yourself.

Phenomena The reason

Is there power failure?

The machine does not act.

The draining does not work

Is the power plug loose?
Is the pulsator twisted by foreign materials?

Is the drain hose frozen?
Is the drain hose blocked by foreign material?
Are there laundries falling to the outer side of
the spin tub?

There's abnormal sound
during washing

There's abnormal sound
and violent vibration
during spinning

There may be some water
flowing out of the drain
hose in the first use of
the machine.

Are there hair pin, coins or metal items brought
inside the tub?

Is the machine slanting?
Is the gland pressed evenly?
Are there laundries falling to the outer side of
the spin tub?
Are the laundries in spin tub too much?

It is the water remained in the factory inspection
of performance.

Packing list

User's manual

Water inlet hose

Water-filling jointer

Gland

Lint filter

Twin-tub washing machine

One

One

One

One

One

One

Specification

Type

Model

Power source

Water level Water quantity about

Rated washing capacity kg

Rated spinning capacity kg

Rated input power W

Dimensions(mm)

Wash pattern

Weight kg

Injection pressure

Twin-tub washing machine with pump

KL72TT

Rated voltage 220V~, Rated frequency 50Hz

Maximum/55L Medium/46L Minimum/36L

7.2

.0

6

Wash 320 Spin210

L810 W460 H926

New current

27

0.02MPa~0.2MPa
