Thank you for choosing one of our products. It will offer you many years of
excellent performance. Please carefully read the instructions and suggestions
contained in this manual for correct use of our products.
INSTALLATION INSTRUCTION
Technical details
This appliance conforms to the standard
regarding suppression of radio reception
interference.
Voltage regulations
230 V a.c. - 50 Hz
Muffle dimensions:
Height : 340 mm
Length : 440 mm
Depth : 390 mm
Volume : 59 lt
Voltage of heating elements
Static oven (KE601BL):
- Lower heating element : 1,3 kW
- Top heating element : 1,3 kW
- Maximum input of heating element : 2,6 kW
.
.
.
.
.
.
.
Multifunction oven (KE601SS):
- Lower heating element : 1,3 kW
- Top heating element : 0,9 kW
- Grill element : 1,35 kW
- Maximum input of heating element : 2,28 kW
.
.
.
.
.
.
Built-in installation
IMPORTANT: The unit must be correctly
installed in accordance with Manufacturers
instructions and by qualified person.
Maintenance and service must be carried
out after the power supply has been
disconnected.
ELECTRICAL CONNECTION: Make sure
that the voltage supply is the same as what
is on the rating plate which can be found on
the lower part of the front of the oven.
The oven must be connected at the back
using a cable with minimum section of 1.5
mm, providing an omnipole switch in
compliance with current regulations with a
contact opening distance of at least 3 mm.
Warning: this appliance must be earthed.
Our company declines any liability for failures in the earth connection of for earth
connection that is not in compliance with
the regulation in force.
Oven preparation and pre-use
Before using the oven, thoroughly clean the
inside with non-abrasive soap and
lukewarm water. Fit the rack and drip pan
in their runners. Once you have completed
the operation, bring the oven to maximum
temperature for approximately 20 minutes
in order to eliminate any remains of
manufacturing grease, oil or resins that can
produce unpleasant smells during cooking;
the
QYHQWLODWHWKHURRP.
1
Once you have done this operation, the oven is
ready for the first cooking.
IMPORTANT: Each time you want to clean the
oven, make sure the warning light is off and
the oven is disconnected.
CAUTION: ALWAYS KEEP CHILDREN
OFF THE OVEN WHEN HOT.
Important notices for the installation:
The oven can be built into a standard 600 mm
housing unit when built-under the work top,
or in a tall housing unit when built-in a column.
This appliance must be installed by a
competent person and with particular
attention to ventilation.
In both cases ventilation provisions must be
made.

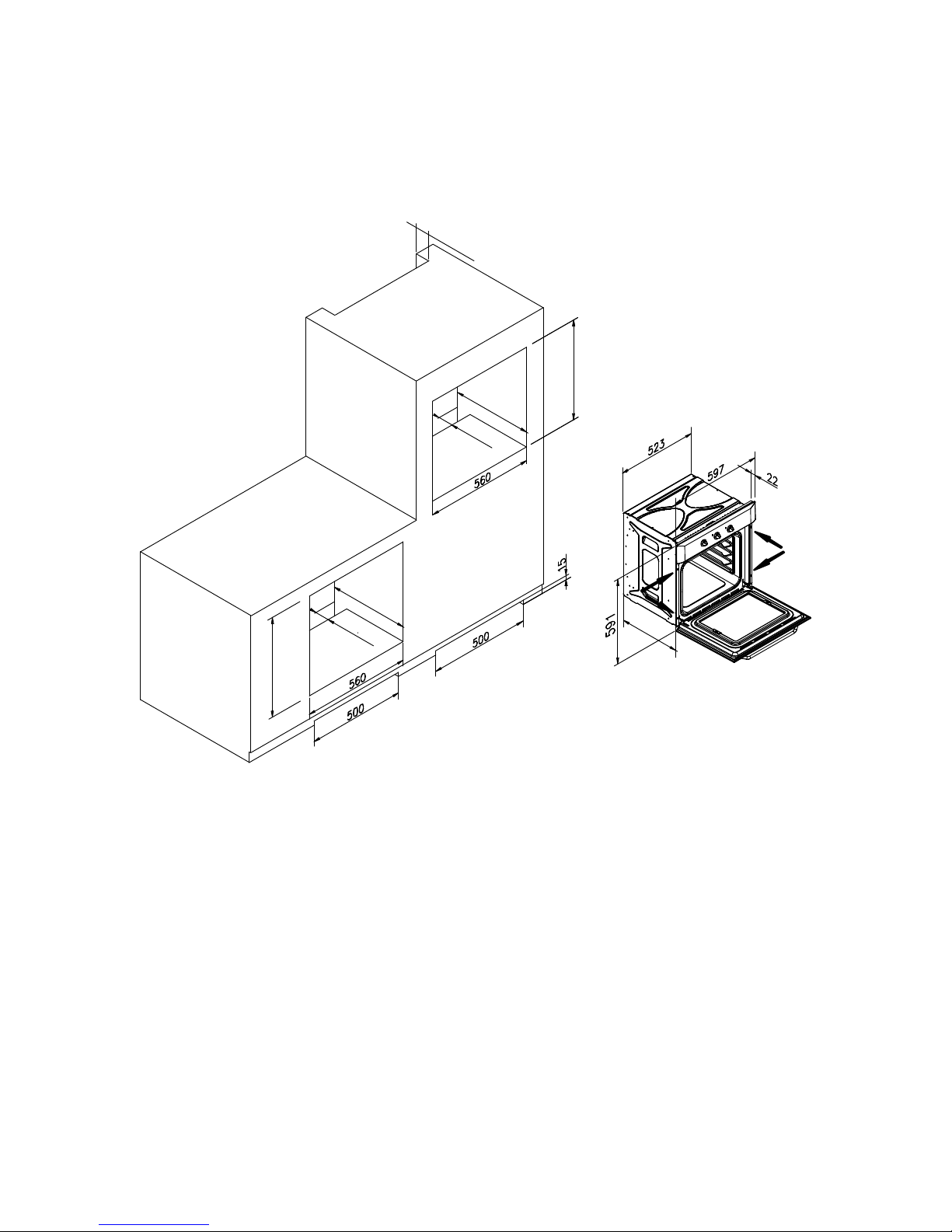

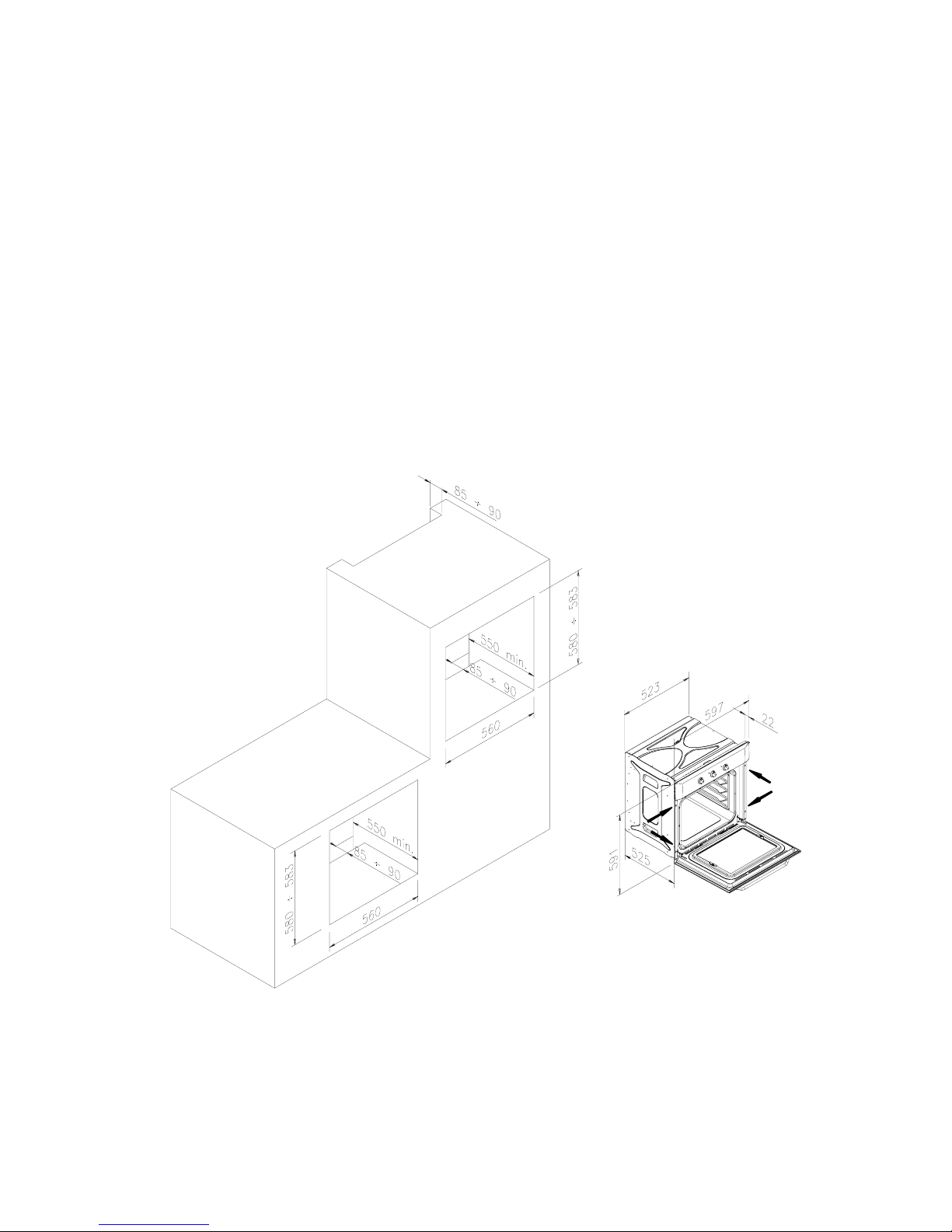

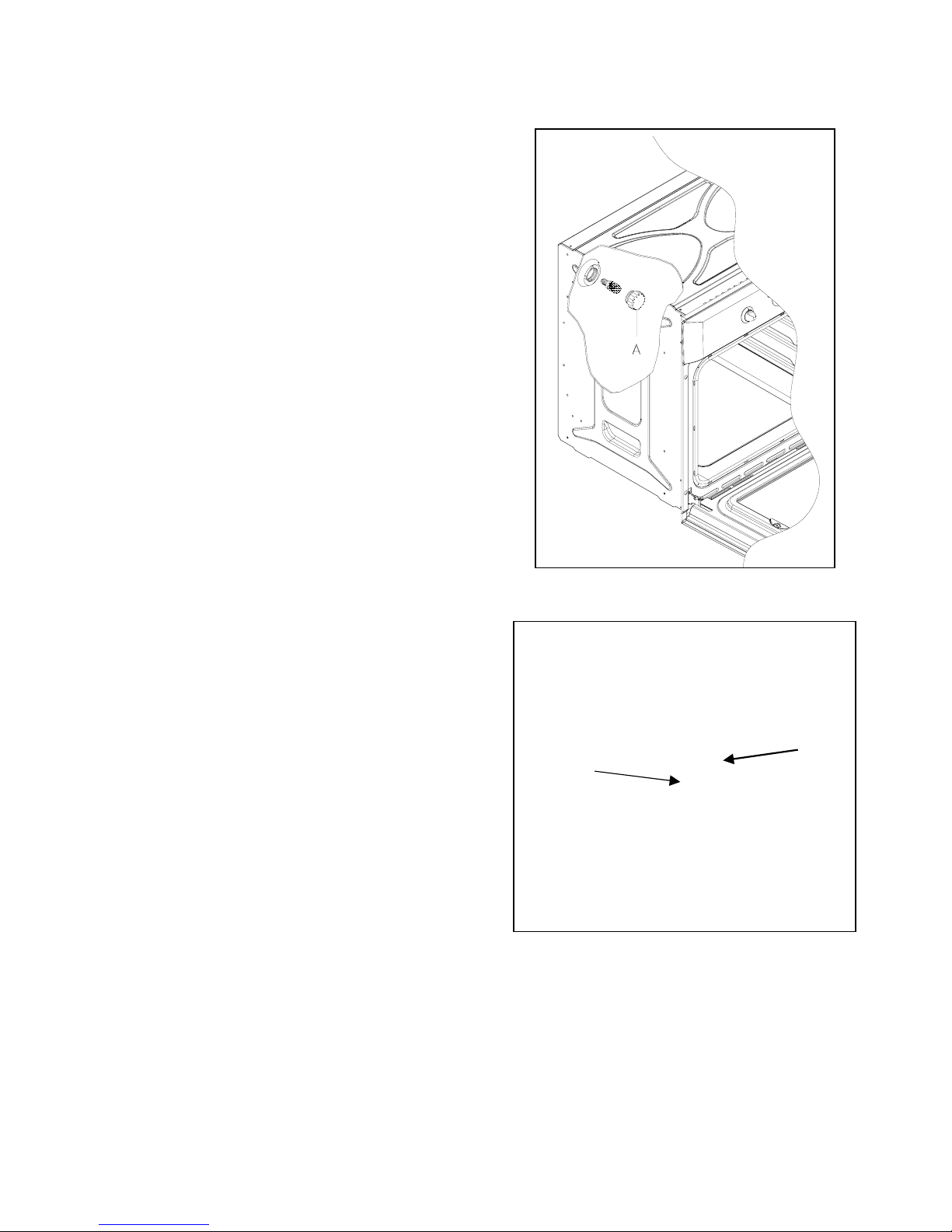

This being a gap at the back of the housing
unit between 85 and 90 mm as indicate in
fig.1. The fixing of the oven in the cabinet is
made by 4 screws “A” that are on the corner
of the oven door-frame.
When placing the oven in the housing unit,
do not use the oven door as a lever for lifting
the oven.
Do not put excess pressure on the open door
once opened.
2
